USER MANUAL 917.169 Bachmann

Willeveen Project-Inrichting.nl ENGLISH / 2013/14

ENGLISH / 2013/14

COMPLETE CATALOGUE 2013 / 2014

Innovative products for the professional user.

It's electric.

BACH MANN

Bachmann International. Build on the best connections.

Bachmann makes connections. To ensure that power and data are available right where you need them. For industrial, commercial and home applications, in offices and training rooms, on desks and on conference tables. Bachmann facility and IT systems are flexible enough that you can modify them at any time to suit future power or data management needs. And with Bachmann's up-to-the-minute range of electrical components you can be sure of satisfying even your customers' more unusual electrical and electronics requirements.

One of Bachmann's primary objectives is to deliver innovative products to help our customers achieve long-term success. For this reason we exploit all the possibilities offered by professional engineering and modern process management to develop our standardised and customised systems and products.

Consider, for example, energy management optimisation and the efficient use of energy. Day after day our technical specialists help you tap into new scope for energy efficiency with the aid of intelligent new products. Discuss your projects with us if you would like to improve your connections.

We will be there from the initial in-depth consultation, supply you with components and modules ready for installation and assist you in planning and developing your specific solutions. And we will use every opportunity to exceed your expectations of us and our systems.

We look forward to making the best connections for you - and with you.

Quality at all levels

Do not be satisfied until you have the optimum solution. A philosophy that applies at every level of our company and that is consistently demonstrated by all our employees.

The result: products to match the best on the world's markets, outside and inside.

This is also evident from our certification to DIN EN ISO 9001:2000.

Bachmann facility systems 8

Elegant, practical solutions for energy and data connections in office, training and conference rooms. Flexible, modular systems for all supply and communications needs.

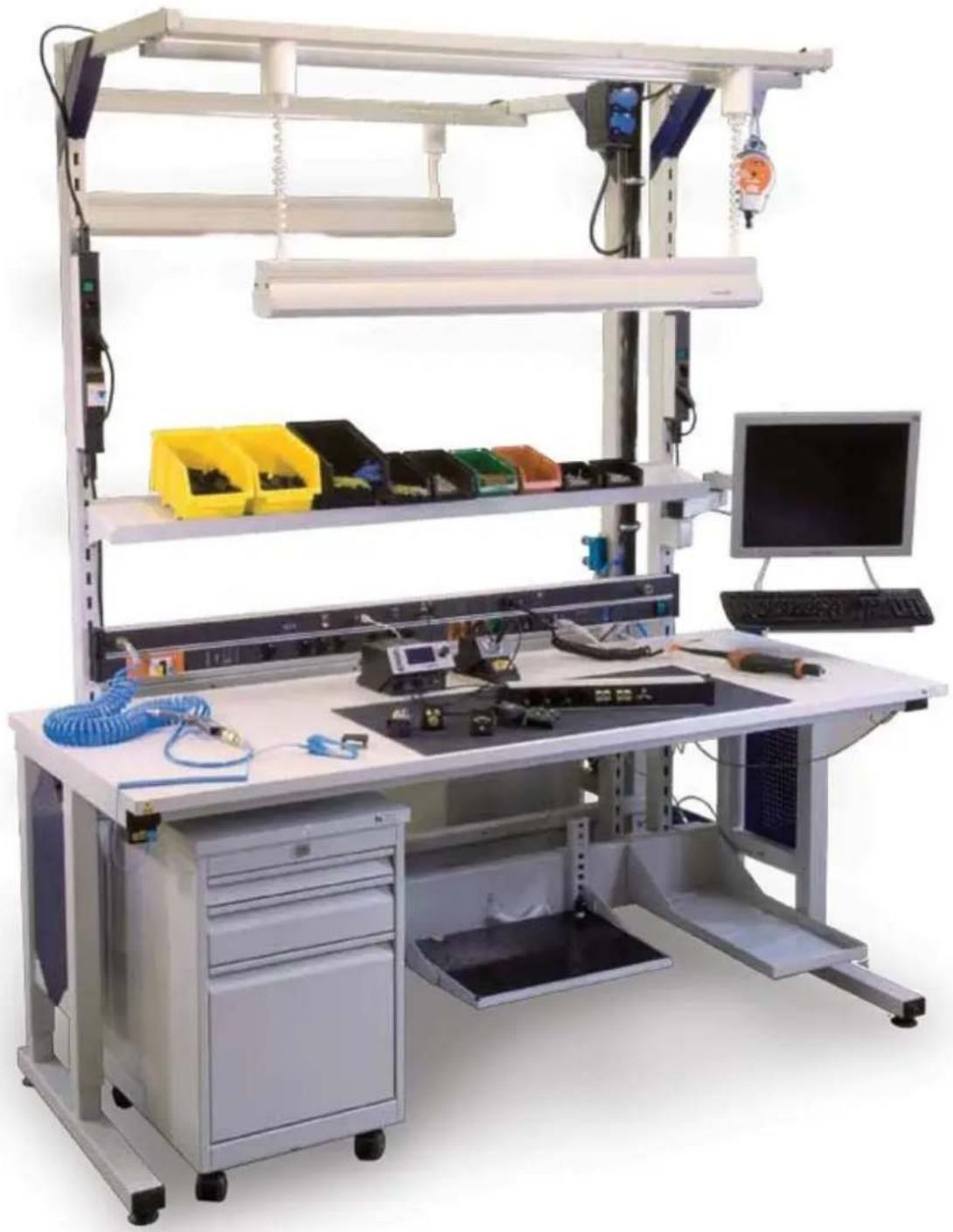

Bachmann manufacturing 144

Power strips for power and data, plus modules for compressed air and ESD and workstation illumination. Bachmann quality for modern manual workstations.

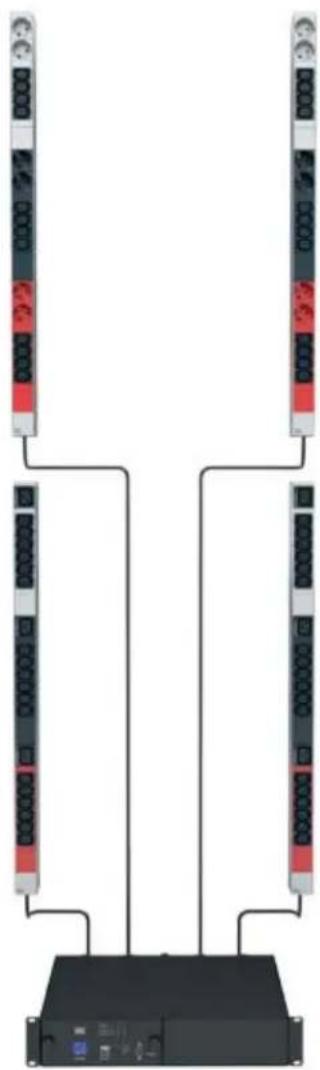

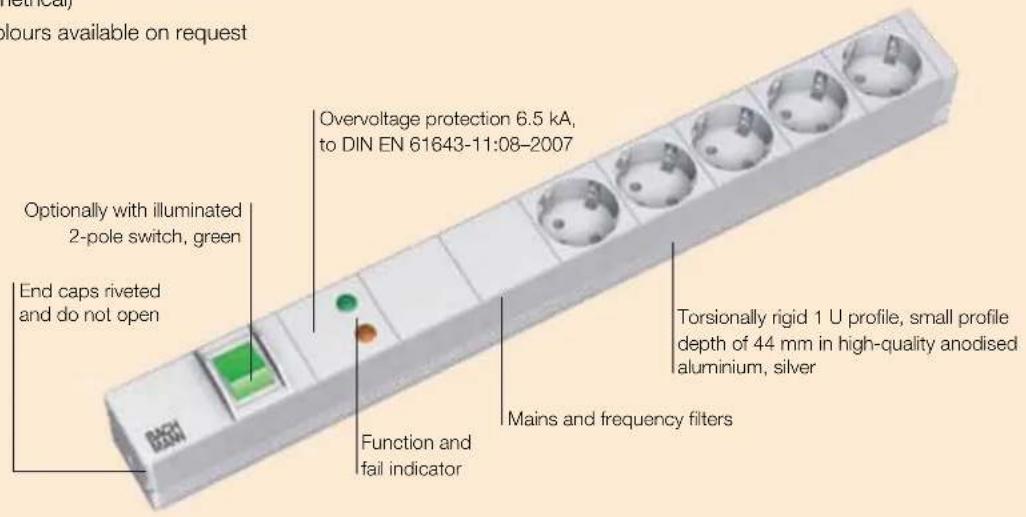

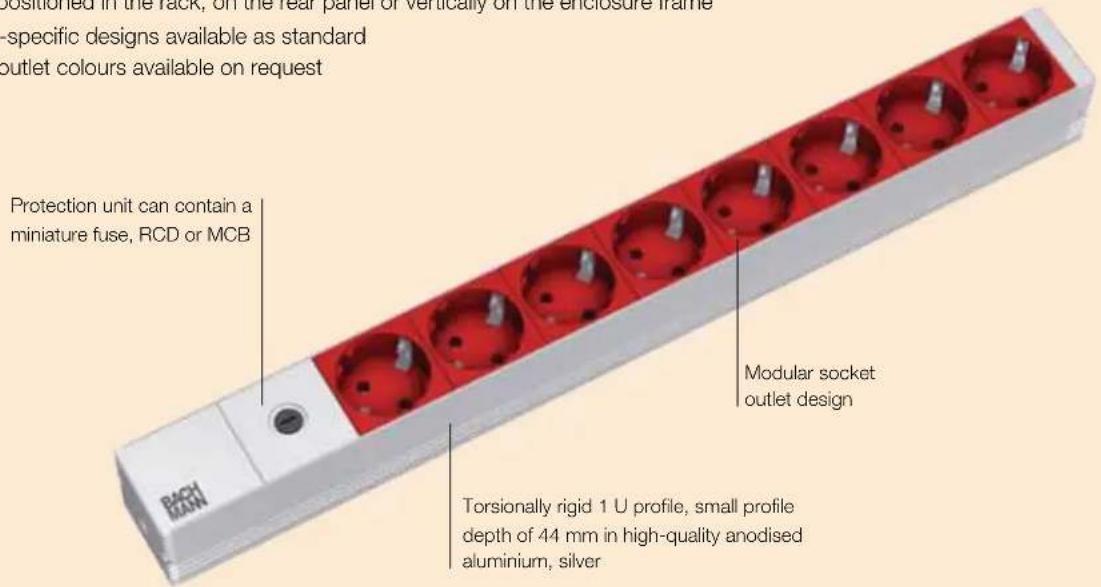

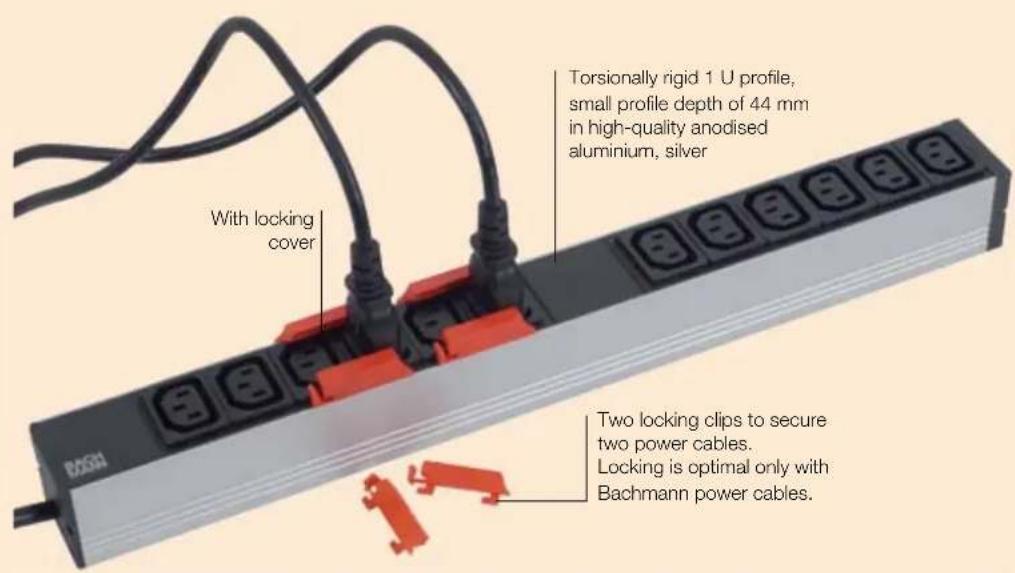

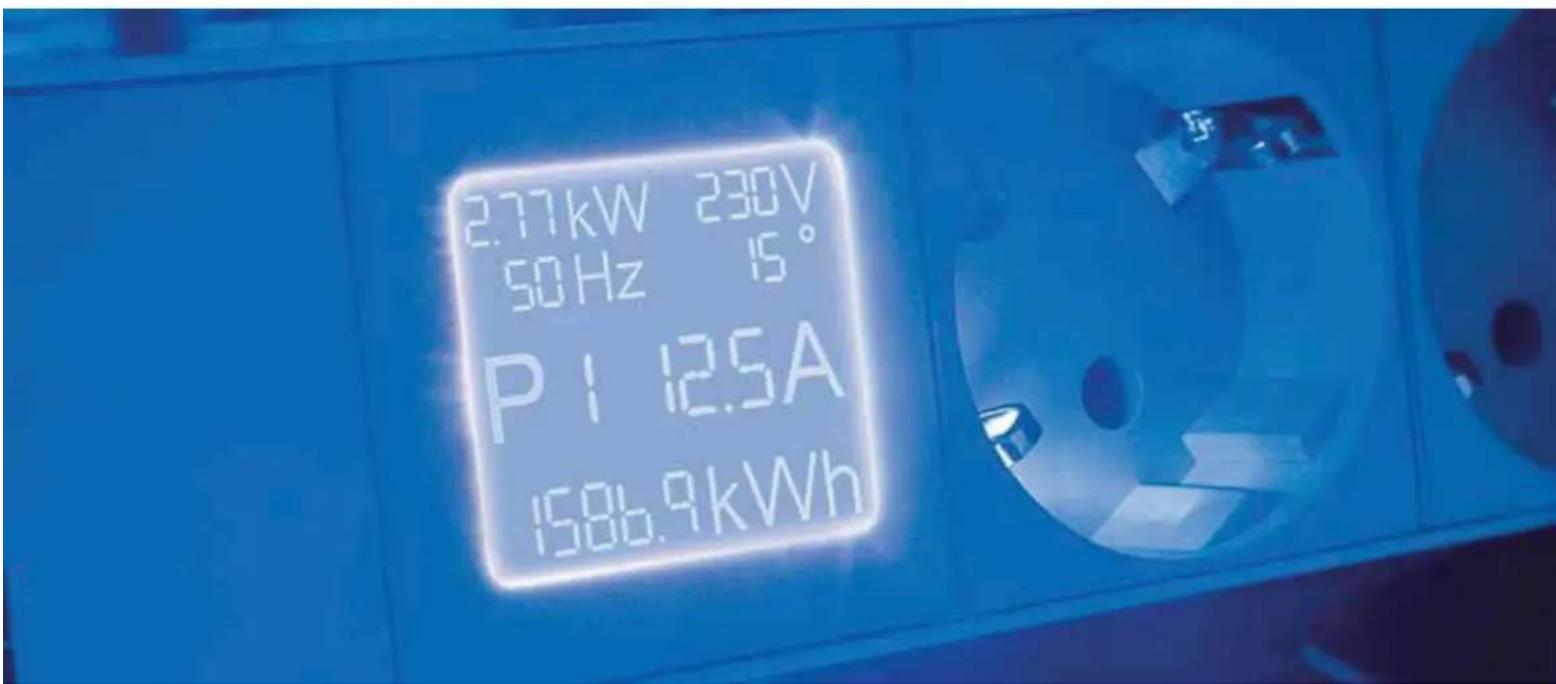

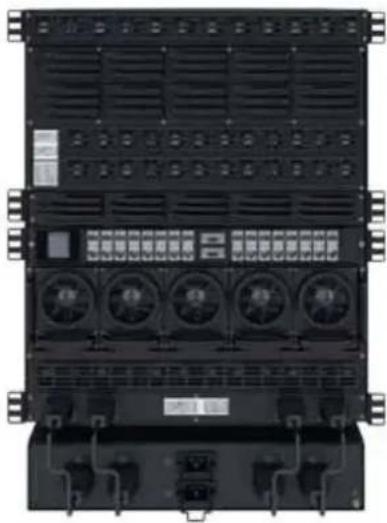

Bachmann IT power distribution ..... 162

Distribution systems offering efficient energy management for modern IT solutions. Everything from power for control cabinets to high-quality built-in electronic components.

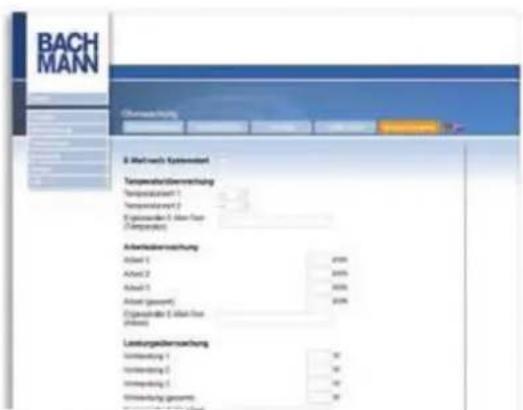

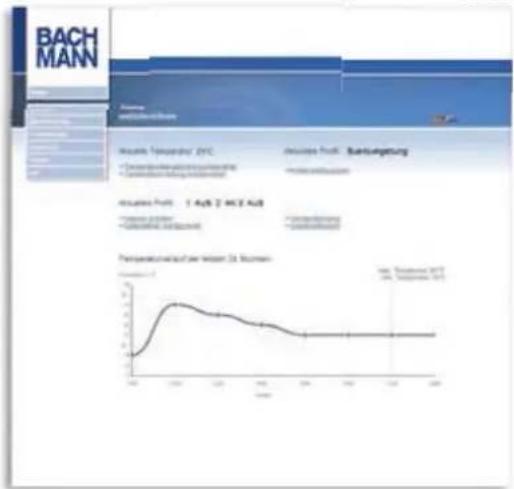

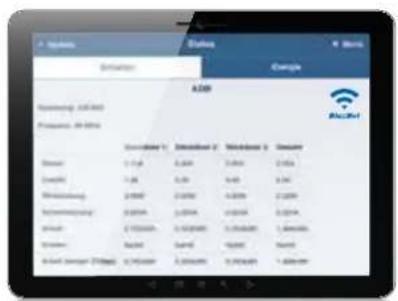

Blu≡Net

Efficient Power Management

Bachmann electrical materials 216

Our extensive range of electrical and electronics products. Everything the technician needs, and always the state of the art - trusted components, high quality products.

NEW

FACILITY SYSTEMS

POWER FRAME COVER

Page 34

Modern office setup with a white cylindrical device connected to a grid of charging cables and a black vent, placed on a desk (no visible text or symbols)

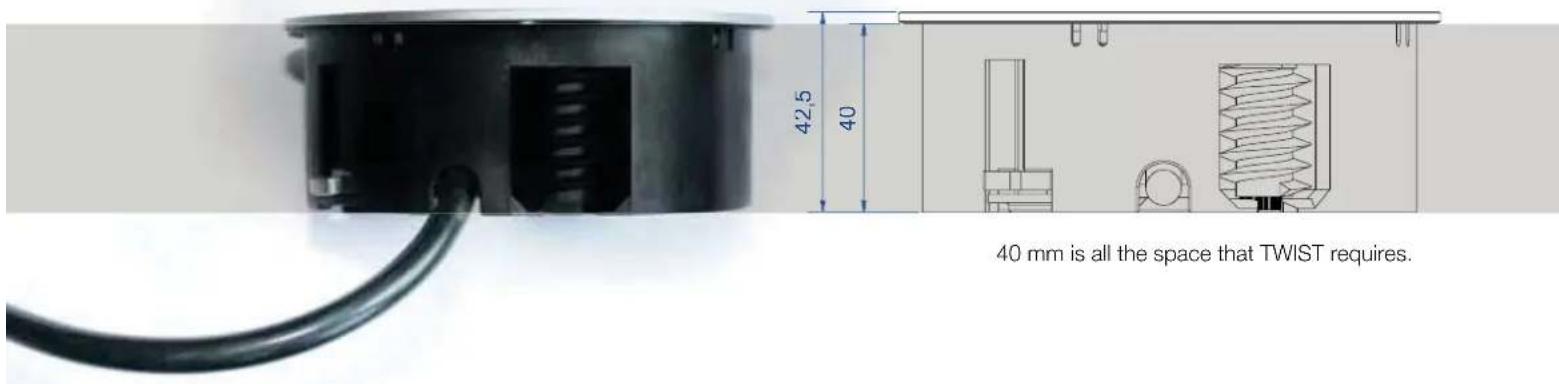

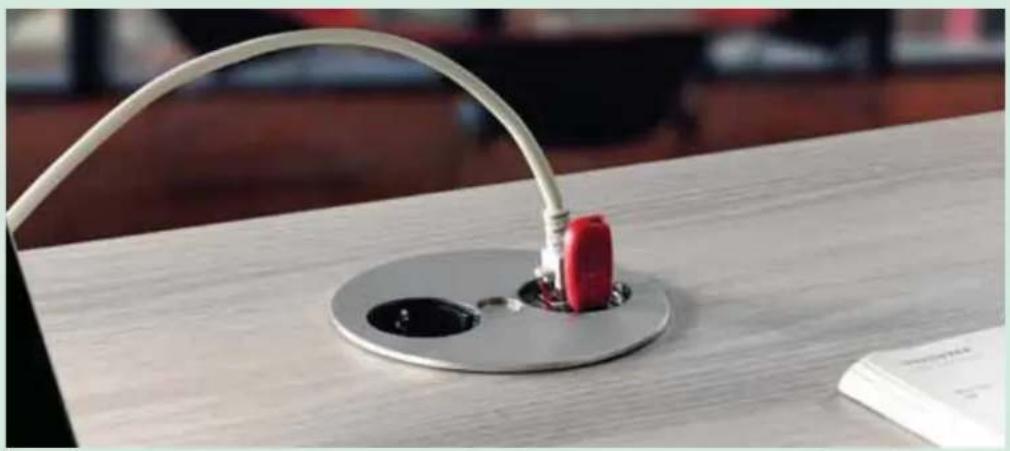

TWIST

Page 36

Desk lamp with red connector mounted on a silver base, no visible text or symbols

ELEVATOR

Page 38

White wall-mounted power outlet with network ports and cable, placed on a wooden table (no text or symbols visible)

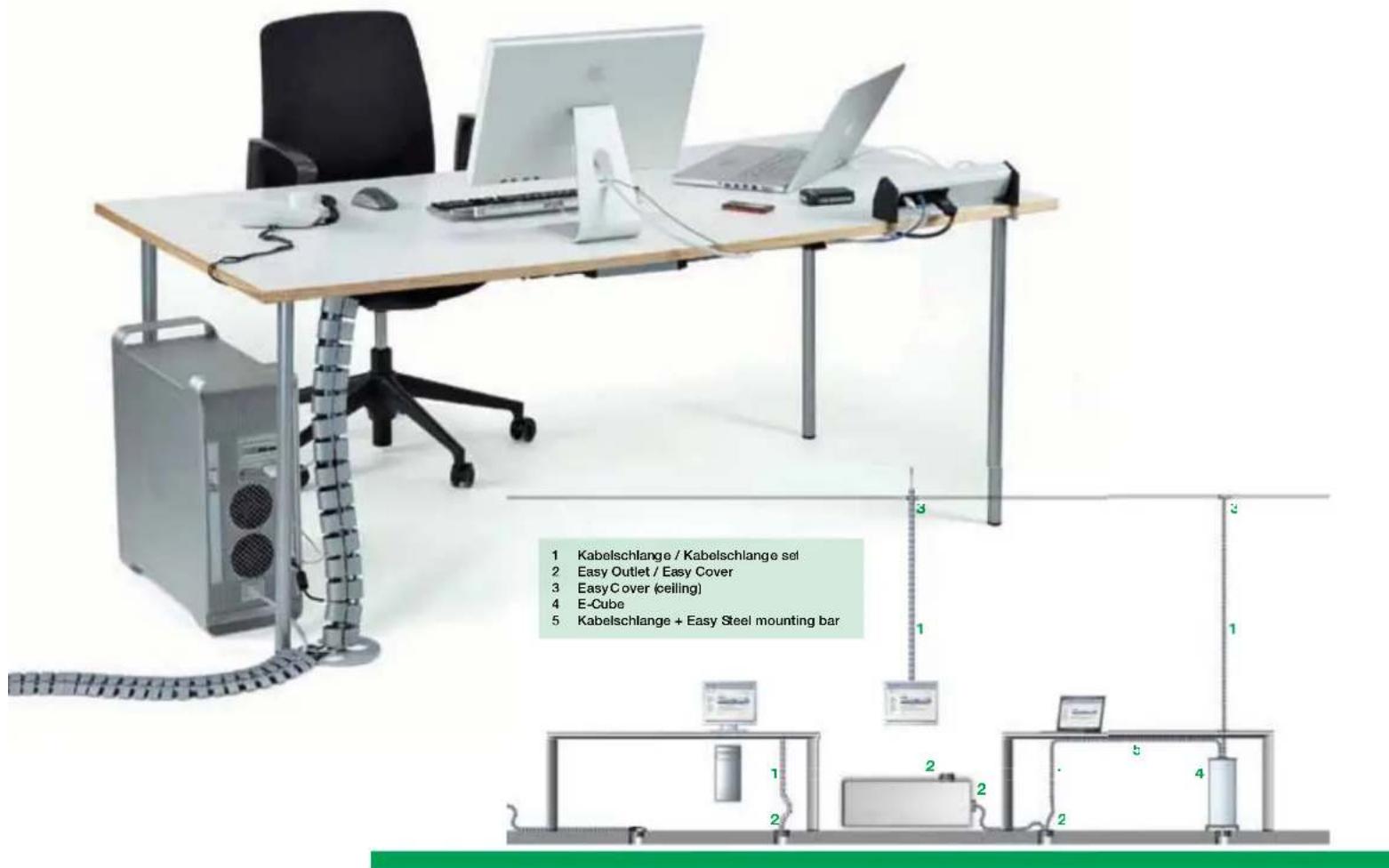

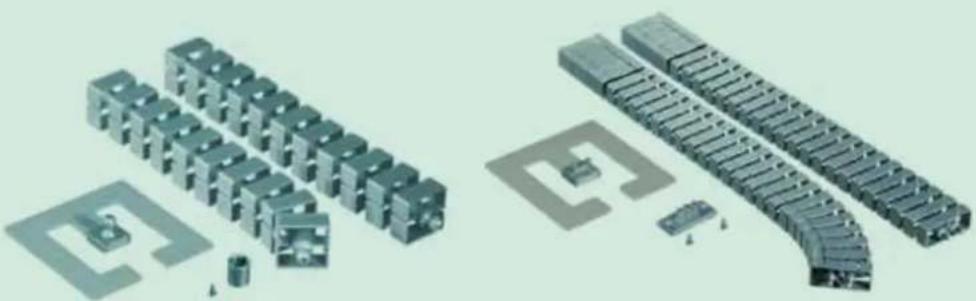

KABELSCHLANGE®

Page 138

Illustration of industrial conveyor systems with multiple units and components (no text or symbols)

NEW

Close-up of a red and black electrical connector with three red pins (no text or symbols visible)

FUSE BOX

Page 181

3D rendering of a black utility pole with a power plug and terminal blocks (no text or symbols visible)

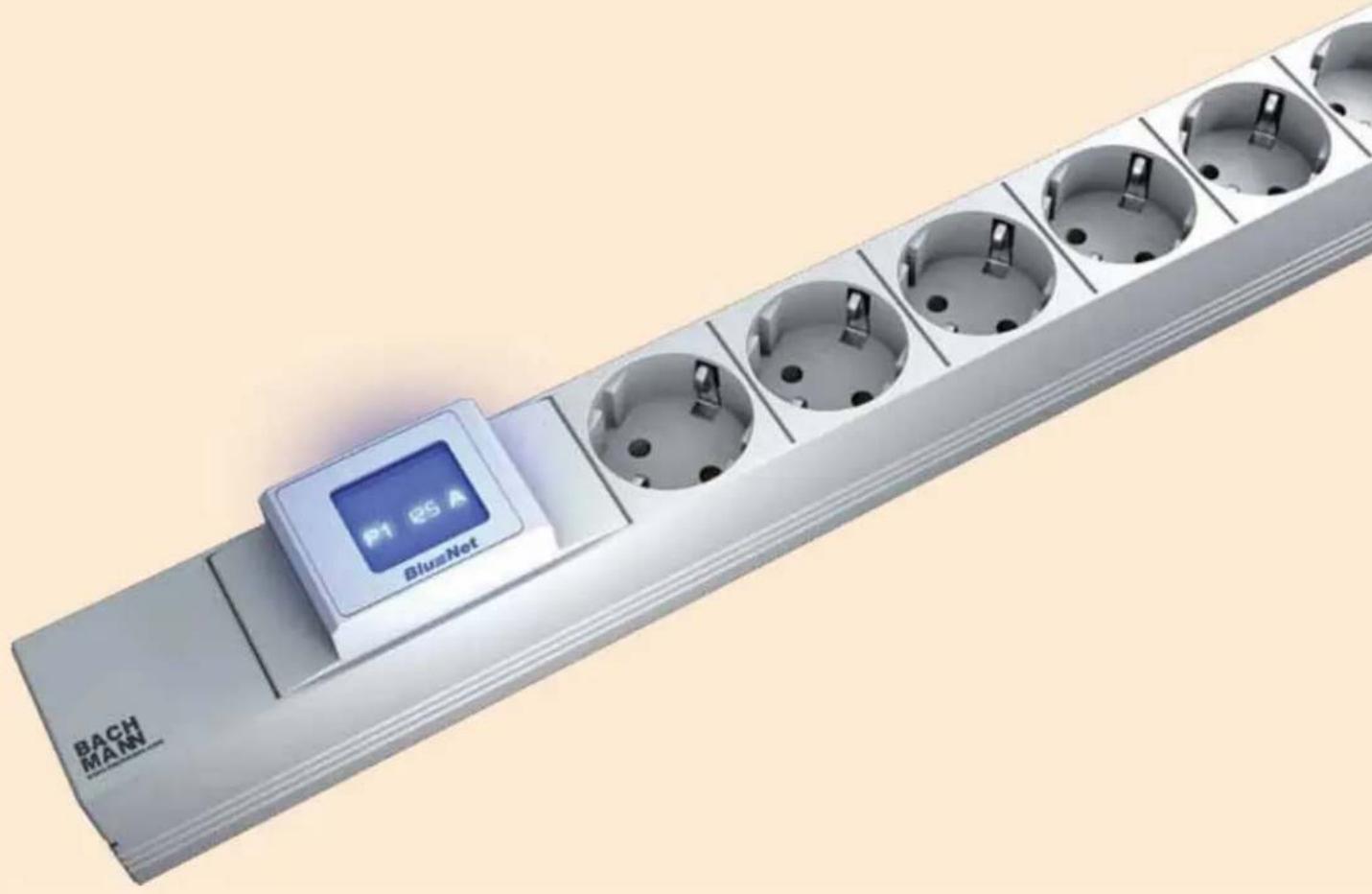

BLUENET MONITORED

Page 199

Black industrial control unit with indicator lights and a red push button (no visible text or symbols)

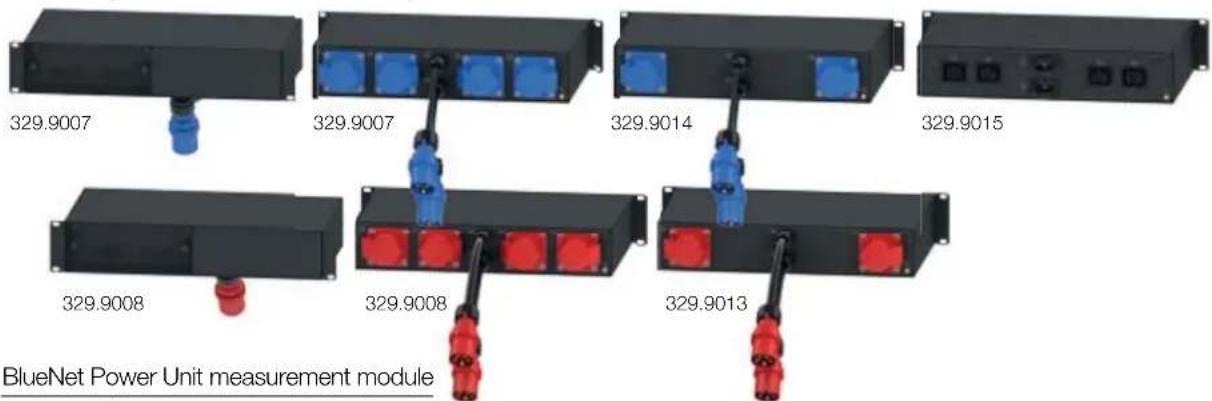

BLUENET POWER UNIT

Page 204

3D rendering of a black plastic electrical connector with red connectors and internal components (no text or symbols visible)

BLUENET CEE OUTLET BOX

Page 206

Yellow plastic tool with cutouts and several black plastic pieces scattered on a plain background (no text or symbols visible)

RACK FIX

Page 209

NEW

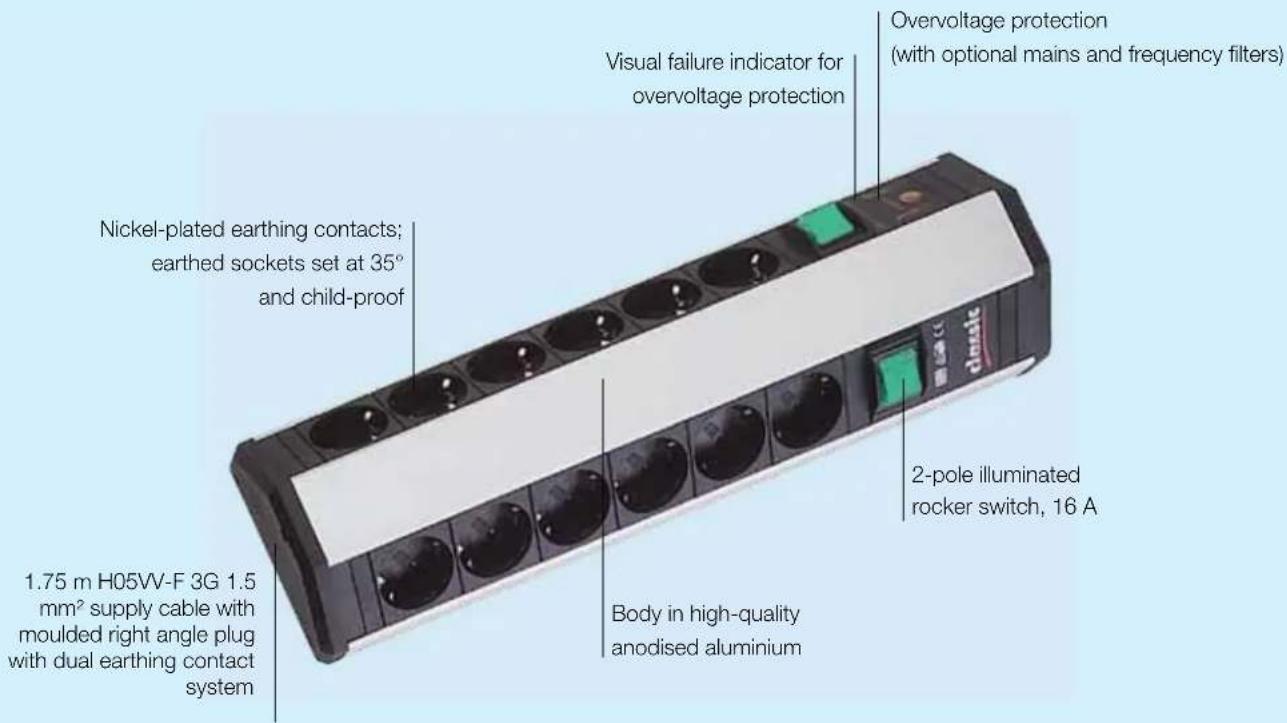

PRIMO with USB charger

Page 222

USB Charger 2.150 mA

TRADESMAN'S STRIP with USB charger

Page 232

Exterior view of a USB charger module with multiple ports and a green indicator light (no text or symbols on the device itself)

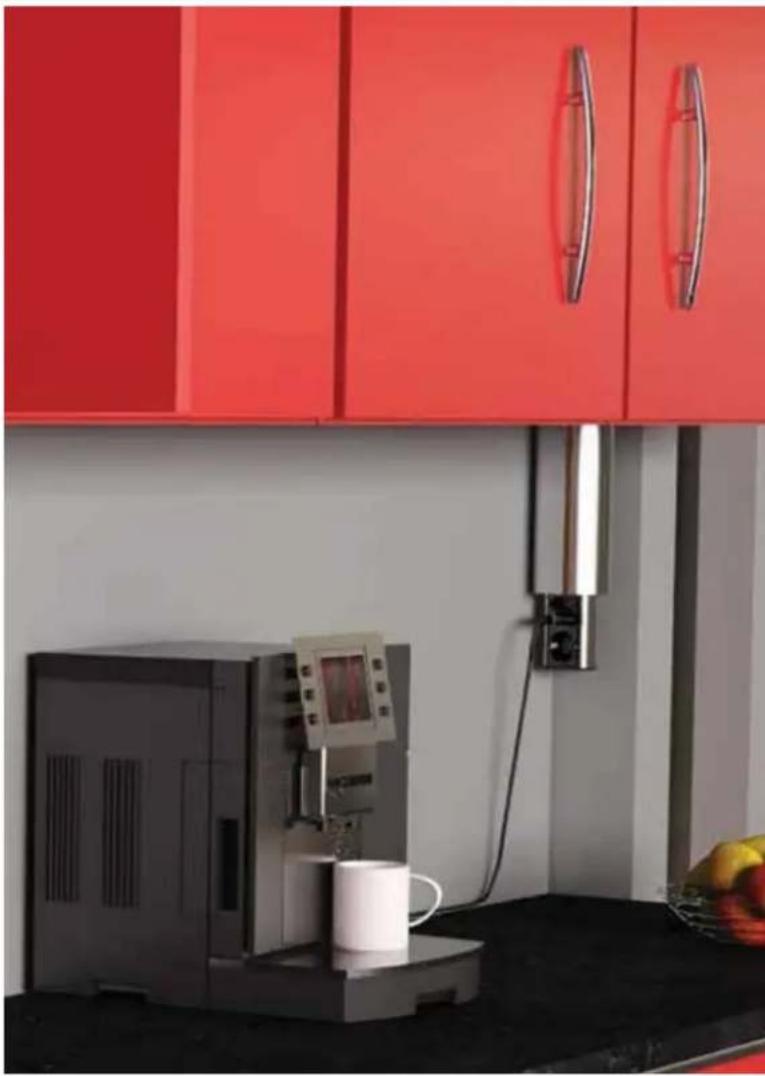

KITCHEN CONNECTION BOX

Page 247

Coiled electrical sensor or probe with terminal connector and cable (no visible text or symbols)

NEW

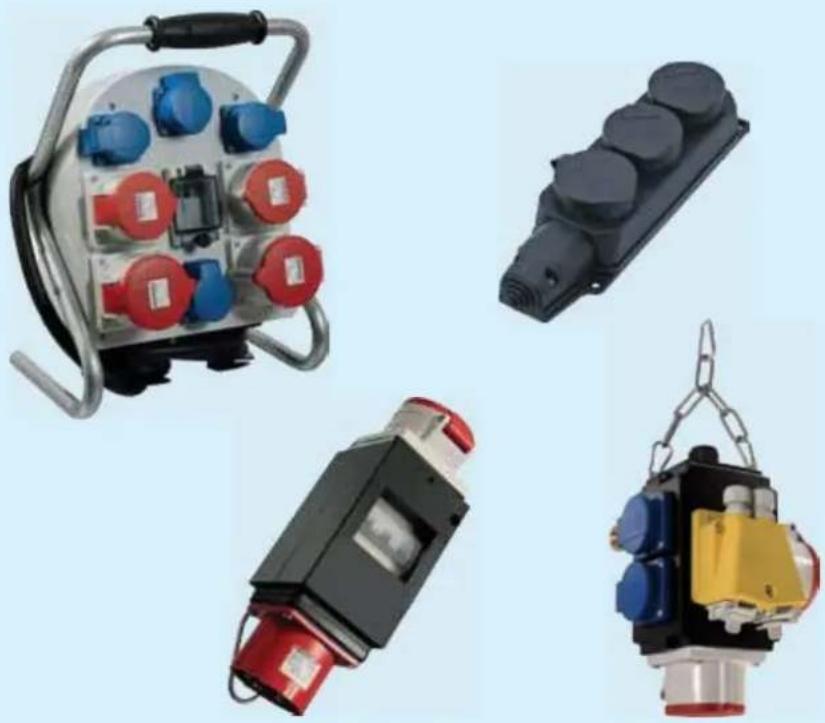

Four different industrial electrical components with red, blue, and black connectors, displayed against a plain background (no text or symbols visible)

POWER DISTRIBUTORS

Two electronic lighting components: a light bulb and a square reflector (no text or symbols visible)

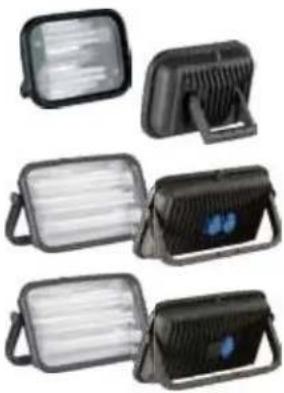

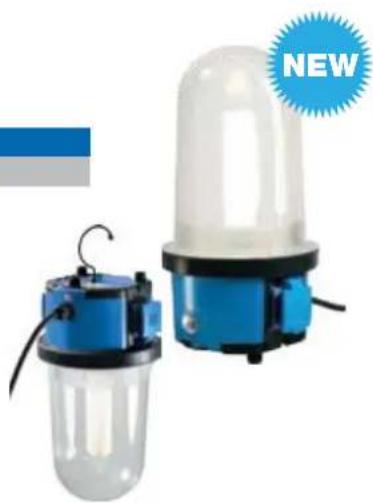

LAMPS

Three electronic devices: a digital timer, a white electrical plug with a power outlet, and a black electrical plug with wires (no visible text or symbols)

MEASURING AND SWITCHING

Three electronic devices with transparent packaging, one white and one gold, shown against a light blue background (no text or symbols visible)

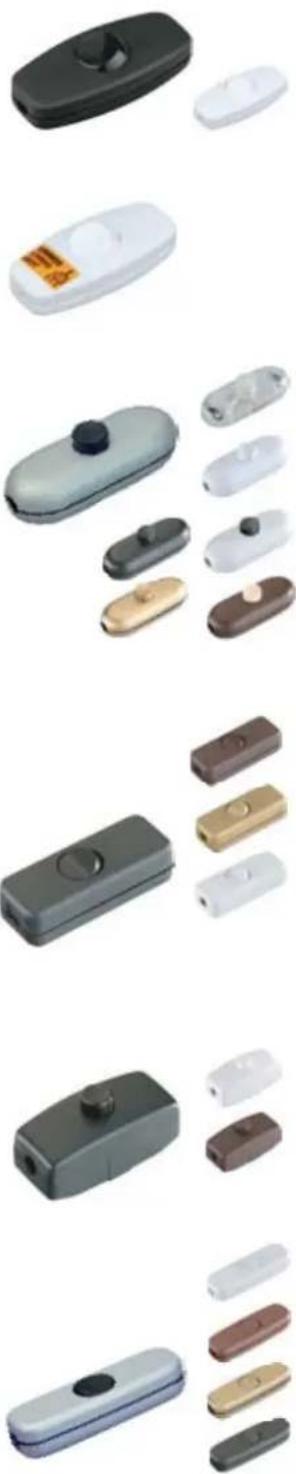

INTERBÄR SWITCHES

Facility systems

Desk connection panels

SLIDE 10

Opening and closing by means of a control unit. When the unit is closed, the cut-out in the desk or table is flush with the surface and items can be placed on top of it. Features torque limitation.

CONFERENCE 12

Practical power and data supply. Recessed in the top of the desk or table when not in use. Simply press down with your thumb to open the unit. Features a spring clip, can be closed once cables have been connected.

TOP FRAME 16

TOP FRAME is the new power and data supply solution for conference facilities. With its completely recessable cover, power and data can be conveniently accessed from any seat around the table.

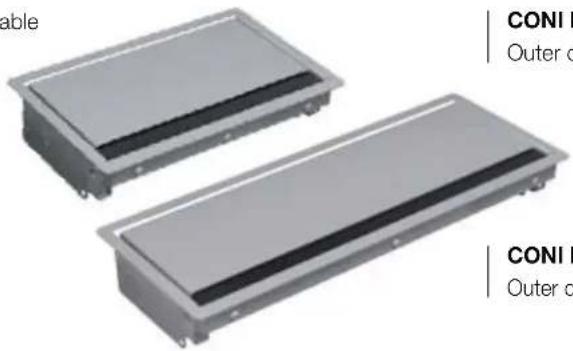

CONI 22

Unrestricted access to power and data on the table or desk. Integrated into your table or desk together with connected cables. The integrated brush insert prevents cables jamming.

CONI COVER 28

Elegant access to separate power supply units under the desk or table. Also ideal for retrofitting. Features integrated brush insert, can be closed even with devices plugged in.

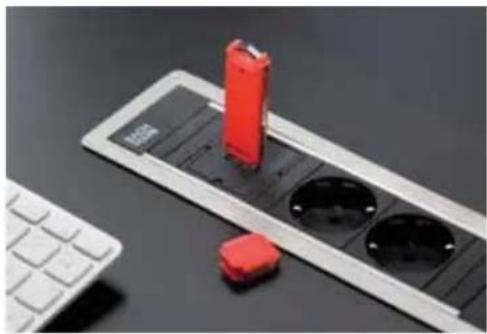

POWER FRAME 30

For integrated power and data connections to workstations. Versatile application options. The power strip simply clicks into the built-in frame.

POWER FRAME COVER NEW 34

The amazing evolution of the POWER FRAME. An elegant and attractive aluminium cover that is particularly suitable for stylish offices or conference rooms.

TWIST NEW 36

Very compact power strip and space-saving cable management system. TWIST is flat enough not to interfere with units installed underneath. Red Dot Product Design Award Winner 2012

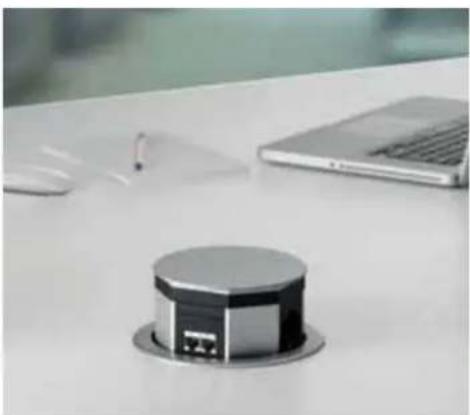

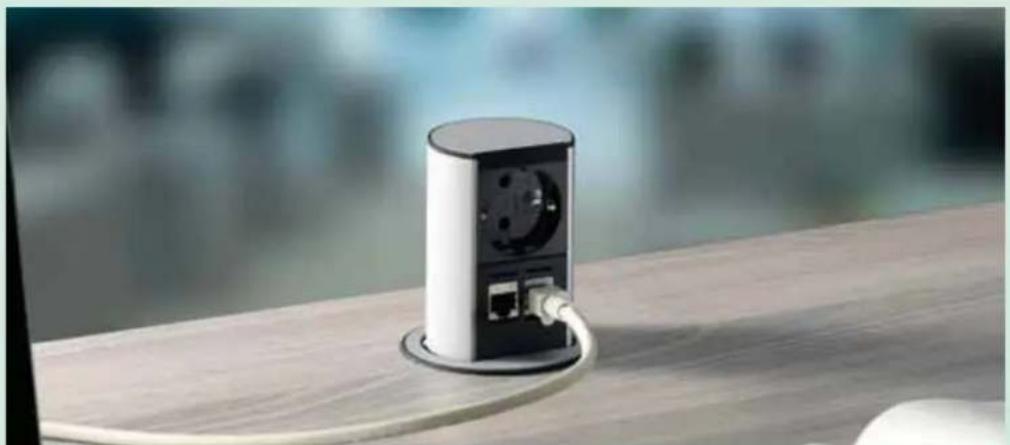

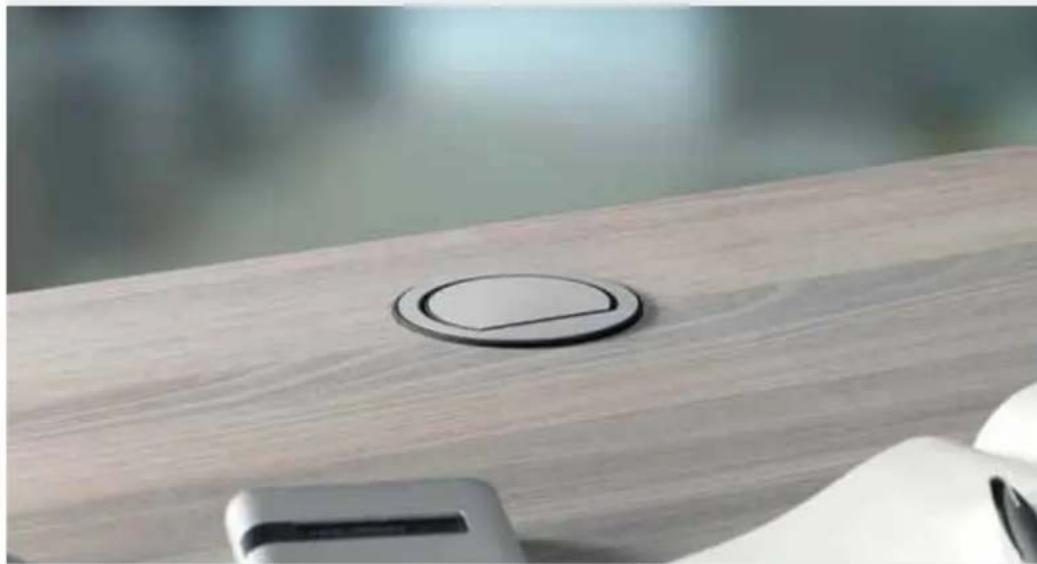

ELEVATOR NEW 38

Designed for a standard hole diameter of 79 mm, ELEVATOR is a compact powerhouse. Recessed in the top of the desk or table when not in use, simply touch to raise.

LIFT 40

A practical combination of sophisticated looks and precision mechanical design. Recessed in the top of the desk or table when not in use. Simply touch to raise. Docking options on four sides.

DESK 1 4 4

Ideal where workstations have to be flexible. Modular design for individual configuration of communication and power supply connections. Fixed or free-standing installation.

DESK 2 54

The new generation of desk with superior design credentials. The modularity for which Bachmann is renowned ensures adaptability to future requirements.

STEP 60

For flexible power and data supply at workstations, in partition systems, false floors, etc. Consistently modular throughout, making the possibilities virtually endless.

Custom modules

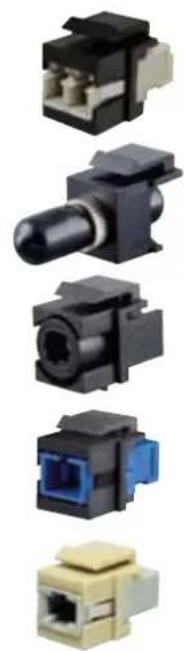

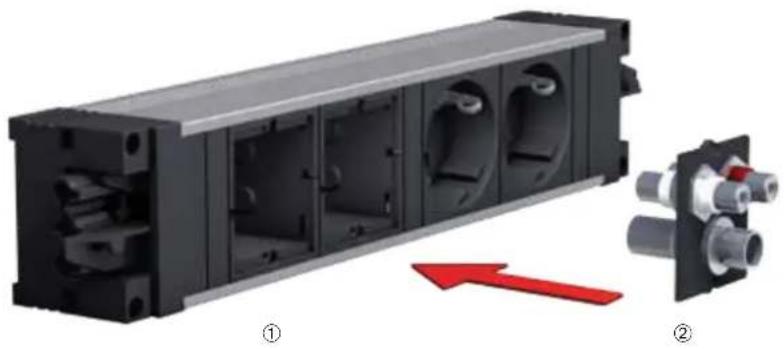

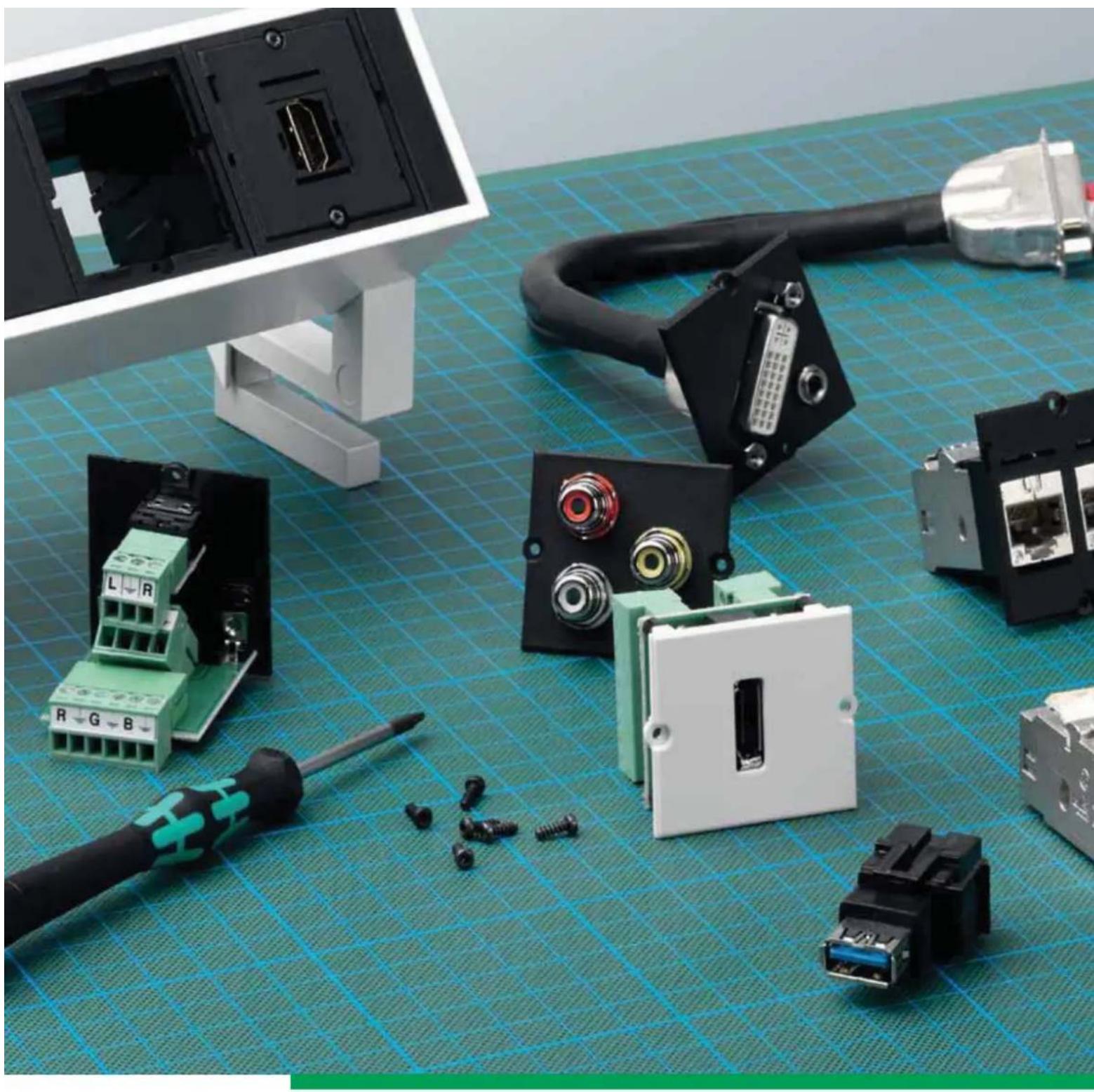

CUSTOM MODULES 66

The word CUSTOM appears in this catalogue wherever the modules can be flexibly interchanged. CUSTOM MODULES: Bachmann facility systems can be adapted to perfectly match individual requirements for data, video and audio connections.

Media technology

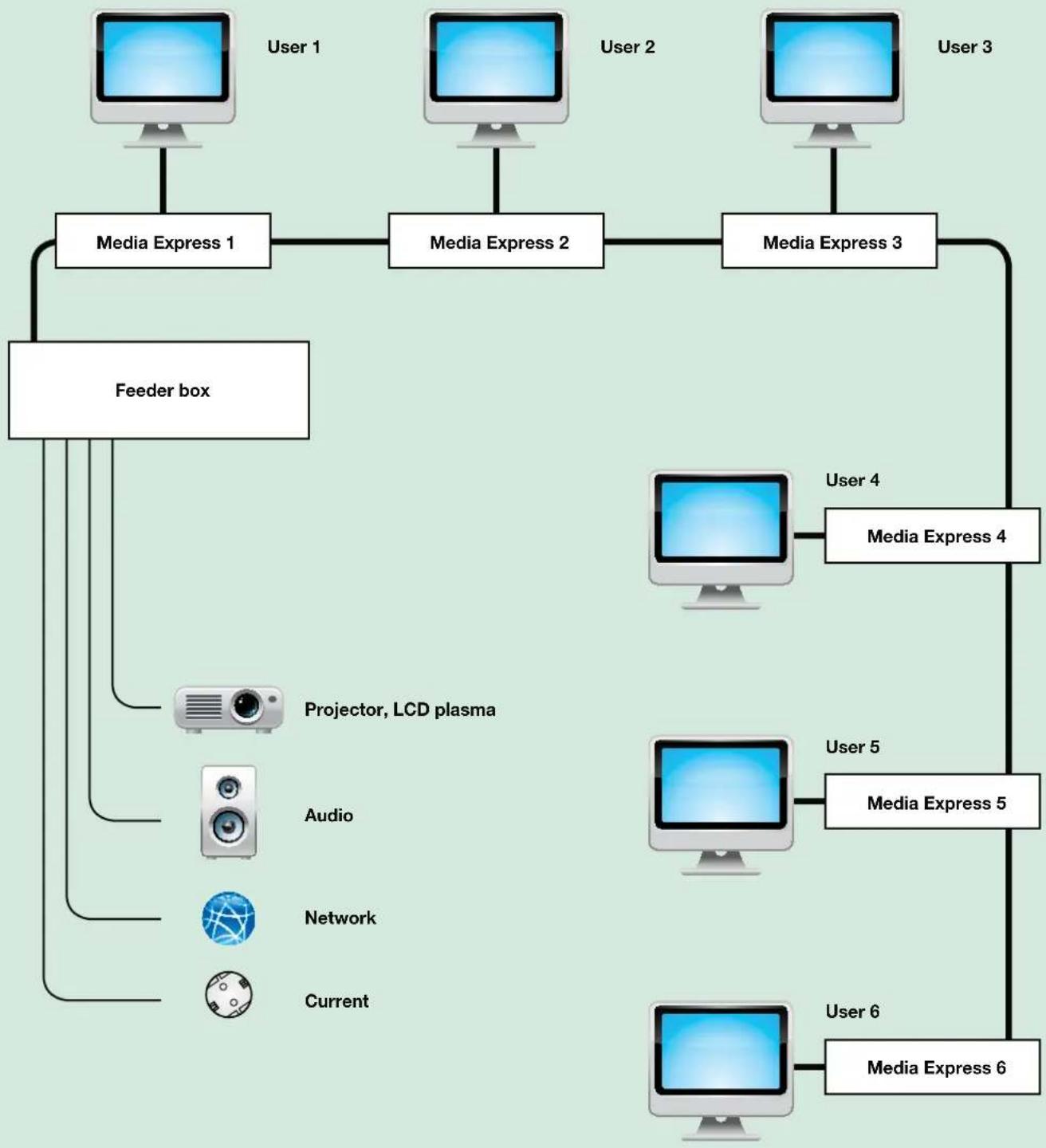

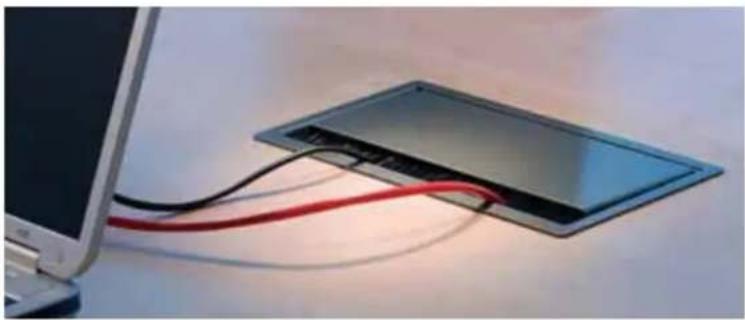

Media Express 98

Plug-and-play for simplicity and efficiency.

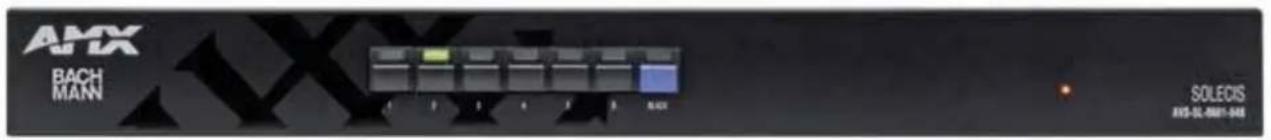

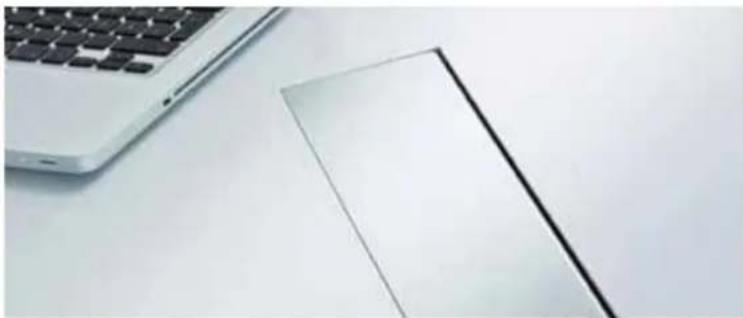

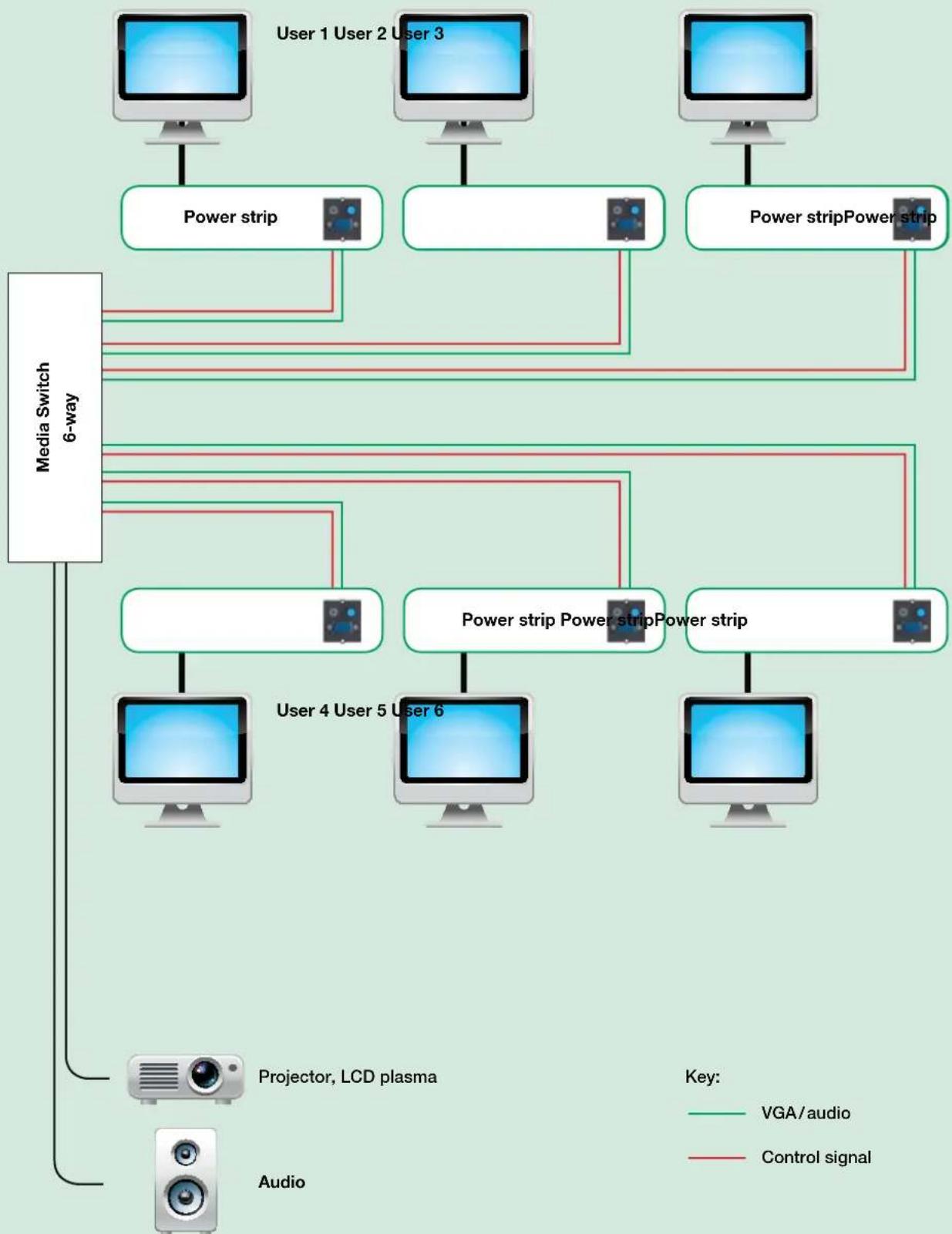

Media Switch 104

Flexible and reliable thanks to high-quality components

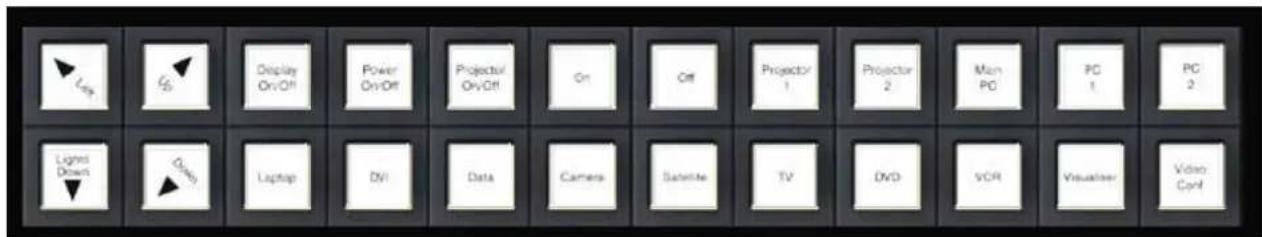

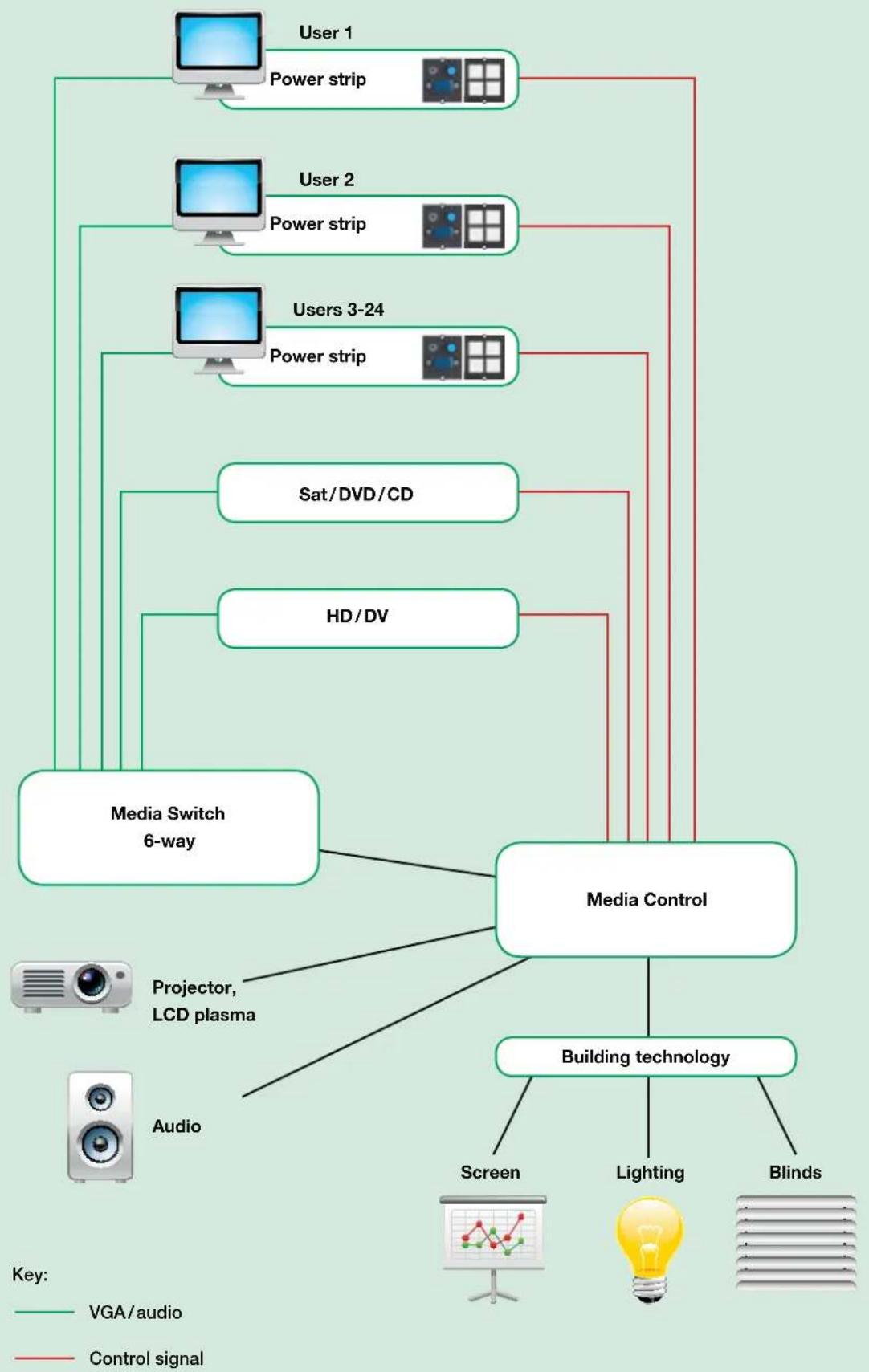

Media Control....110

Simple control of complex processes in media and facility applications

LanLight ^® , the smart supply system

LanLight® system overview 122

Modular building installation solution offering flexible supply to office workstations

Basic unit and inserts....124

Connecting plates for power and data

Lift covers 126

Modern floor boxes for dry-cleaned floors

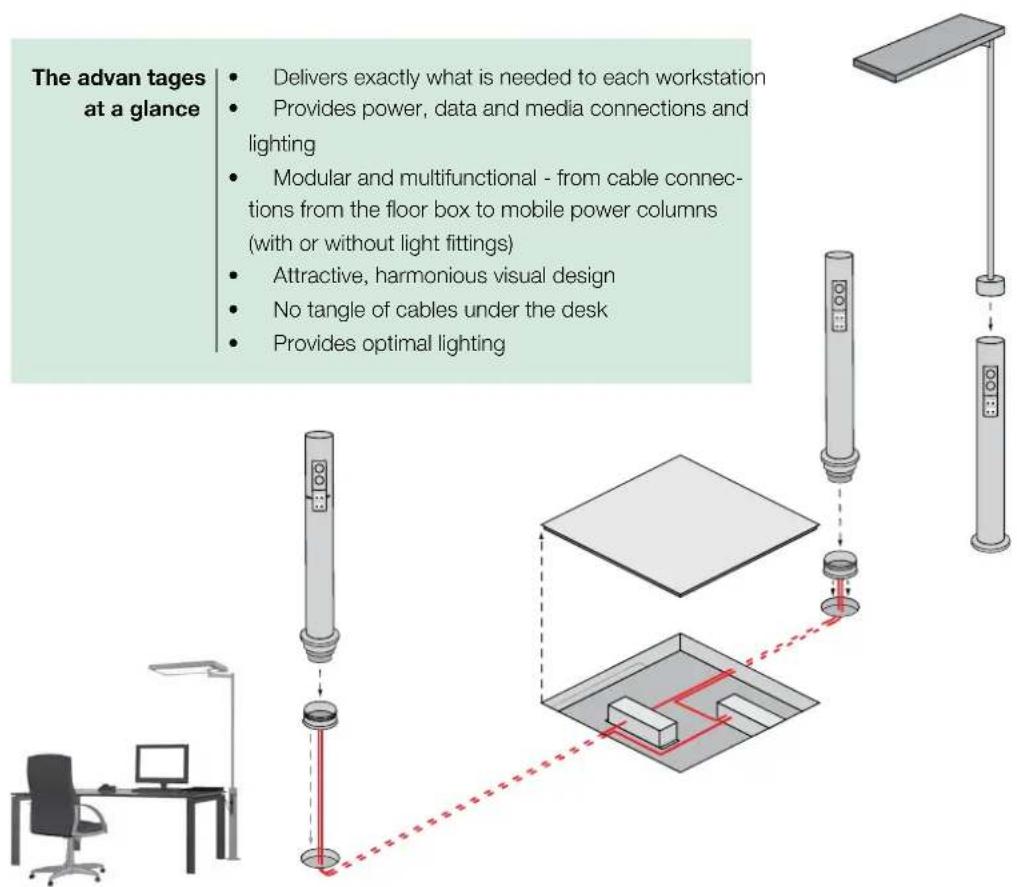

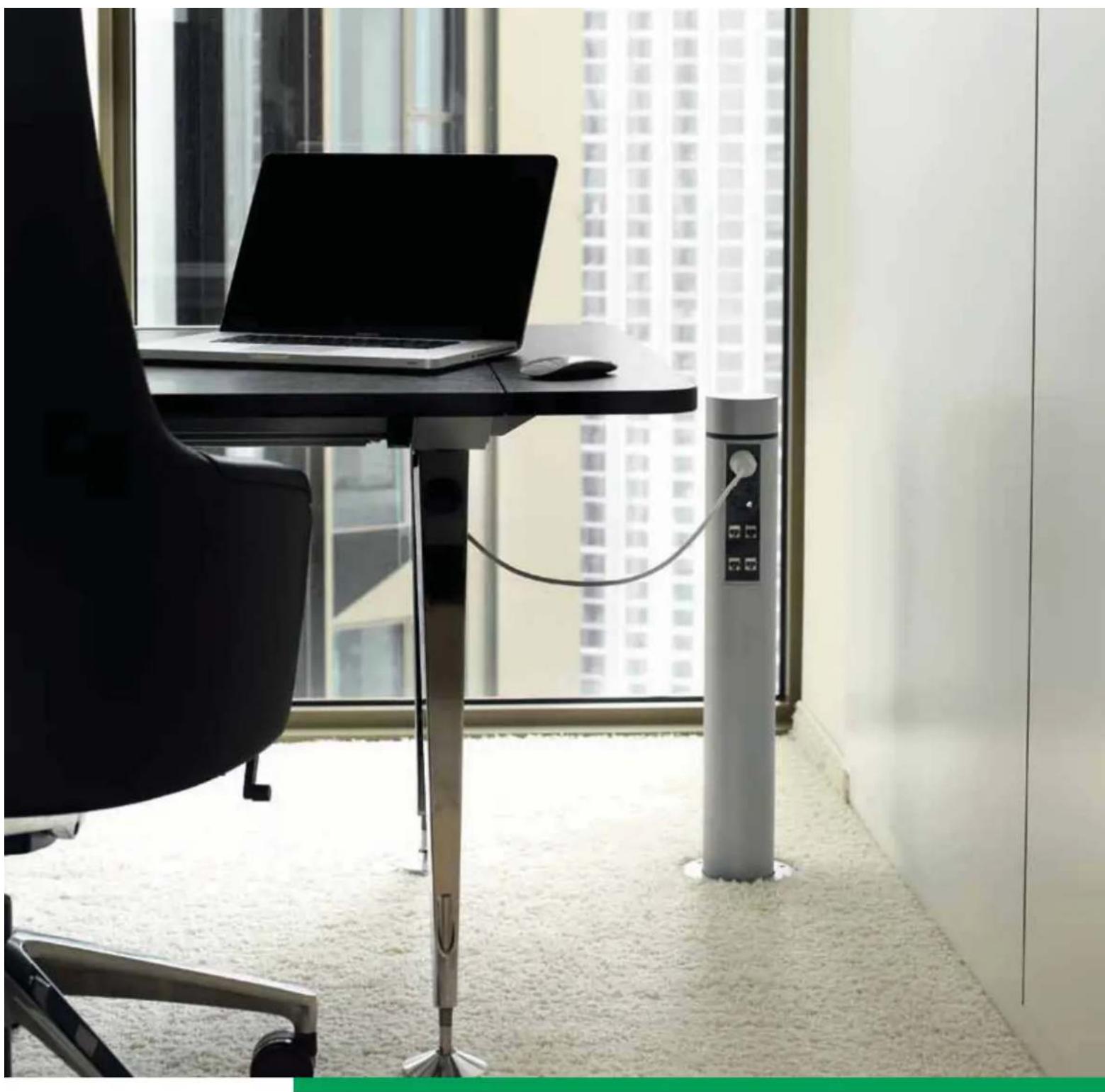

Pillars 127

Mobile pillars for power and data distribution in raised and false floors

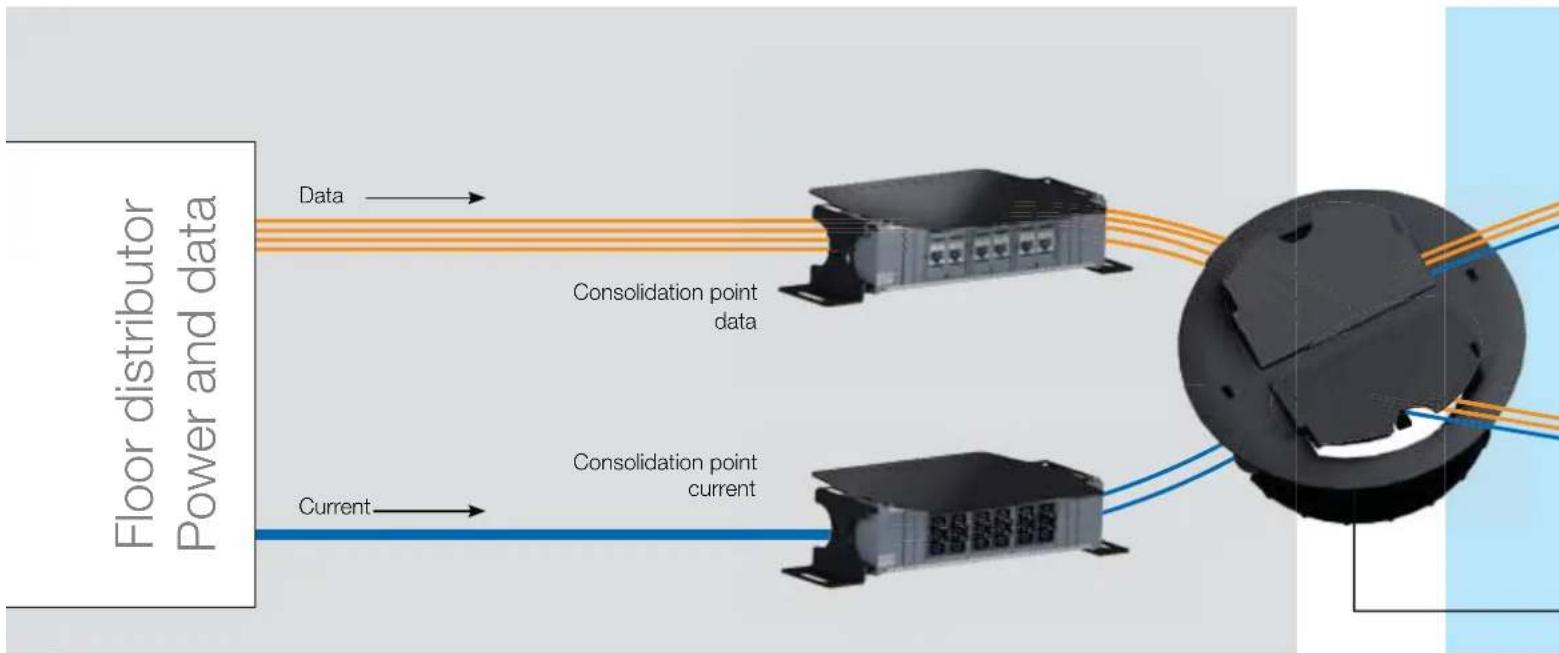

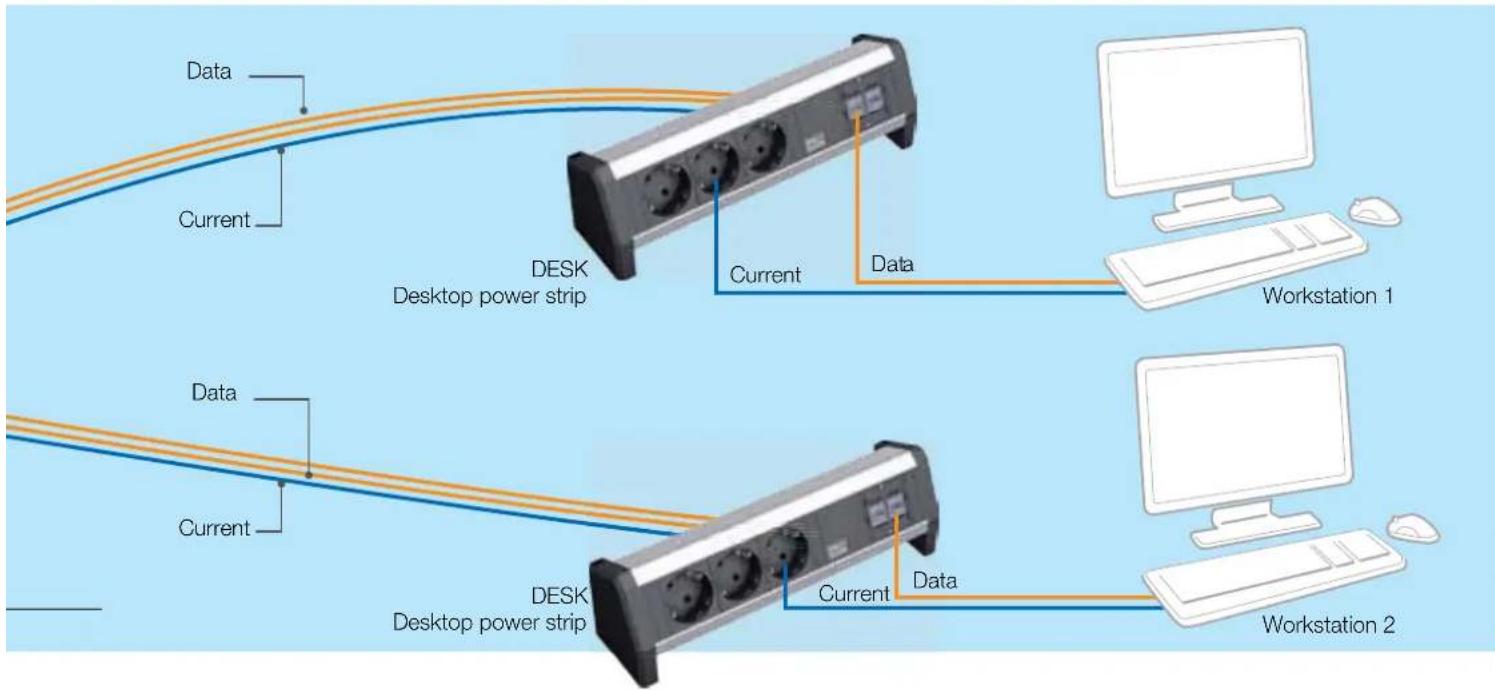

Consolidation points

CONSOLIDATION POINTS 128

Underfloor distributors for power and data

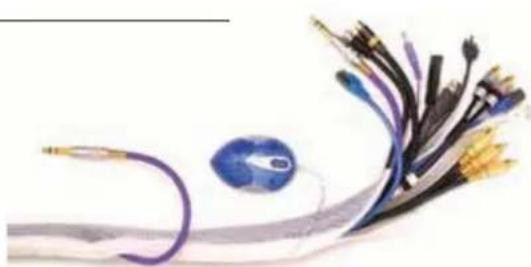

ACCESSORIES, CABLES AND CABLE MANAGEMENT....132

CUSTOM

LanLight®

Product photo of a cylindrical electronic device with three circular components and a vertical screen (no visible text or symbols)

Top-down view of a wooden desk with open electrical socket, white cables, and a laptop displaying the keyboard (no visible text or symbols)

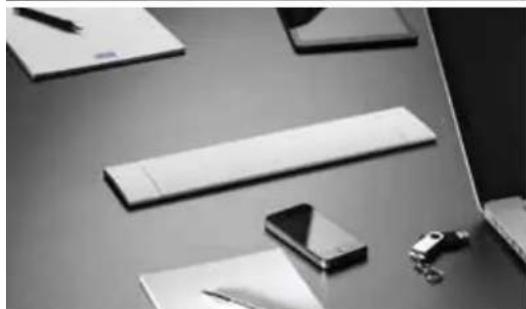

SLIDE

Functionality at the touch of a button

SLIDE opens and closes at the touch of a button. When the unit opens, the integrated electronics slides the cut-out in the desk or table down beneath its surface, providing free access to the power and data supply modules. When the unit is closed, the desk or table cut-out is flush with the surface making for a very practical solution.

Electronically controlled torque limitation protects users and cables. There is no risk of fingers or power supply cables becoming trapped or crushed. The SLIDE is available in various configurations and power strips are easily interchangeable.

SLIDE – the unobtrusive way of releasing functions when they are needed.

Simply at the touch of a button.

The advan tages at a glance

• Opens and closes at the touch of a button
  • Can withstand weight when closed
  • Fully integrated into the top of your desk or table
  • Torque limitation ensures safety
  • Power strip can be interchanged easily

Art. no. Version

SLIDE housing Black

913.000

odule for mounting in desk or table systems

• Complete kit incl. motion mechanism, control electronics and fixing materials
• Incl. mounting frame for 2 power strips (see page 16)
• Incl. stainless steel button with 2.0 m control cable and plug for controlling the SLIDE
• Suitable for installation in desk or table tops (thickness must be adapted to 8 mm)
• Incl. cut-out drawing for preparation of desk or table top
  · Dimensions (L x W x H): approx. 725 x 340.5 x 70.3 mm

SLIDE housing illuminated Black

913.005

Mounting frame for fitting in desk or table systems

• Complete kit incl. motion mechanism, control electronics and fixing materials
• With 2 blue LED striplights that light up when open
• Incl. mounting frame for 2 power strips (see page 16)
• Incl. stainless steel button with 2.0 m control cable and plug for controlling the SLIDE
• Suitable for installation in desk or table tops (thickness must be adapted to 8 mm)
• Incl. cut-out drawing for preparation of desk or table top
  · Dimensions (L x W x H): approx. 725 x 340.5 x 70.3 mm

Solid black rectangular object with no visible text, symbols, or markings

You will find power strips suitable for Slide, Conference and Top Frame on page 20/21

Wooden wall with a rectangular cutout showing black material, no text or symbols visible

Office desk setup with laptop, phone, and earplifier (no visible text or symbols)

3D diagram of a mechanical assembly with wooden components and wiring, no visible text or symbols

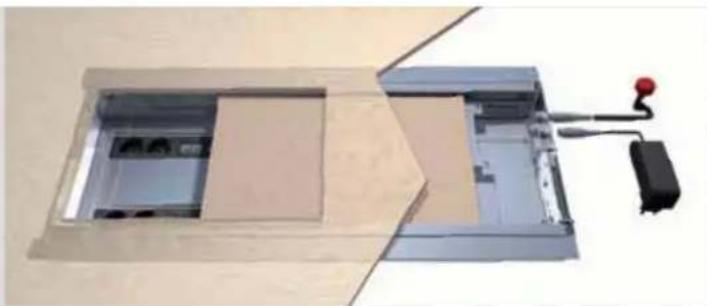

SLIDE – a user-friendly solution even at the installation stage.

All set for quick fitting

The SLIDE module screws onto the underside of your tabletop or desktop. The screw fixtures are designed for table or desk tops up to 20 mm thick. If the thickness is more than 20 mm you will need to rout the area around the SLIDE module housing down to 20 mm.

The dimensions of the sliding panel in the tabletop are approx. (L x W) 302.5 x 236 mm. The built-in frame for the socket outlets is attached to the SLIDE module using the screws included in the scope of supply. Power strips (short version) can also be attached to this built-in frame and interchanged if required. You will find power strips on page 20/21.

Sealed cables can also be supplied

The SLIDE module's moving carriage is opened and closed using a pushbutton. The carriage itself can have an "elongated slot" so that cables can be routed even when the unit is closed. Customers can choose whether to also include this slot in the table or desk top through the design of the cut-out.

Electronics for safety

As soon as a resistance is felt by the moving “carriage”, the electronics will bring it to a halt. This prevents fingers and cables getting trapped, avoiding possible injuries or damage.

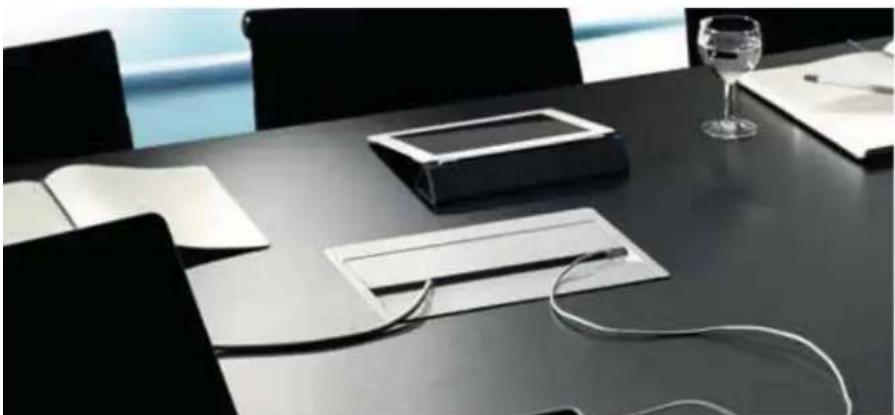

Ideal for conference and training desks and tables and high-grade workstations alike, CONFERENCE is a truly refined and discreet solution for individual access to power and data connections.

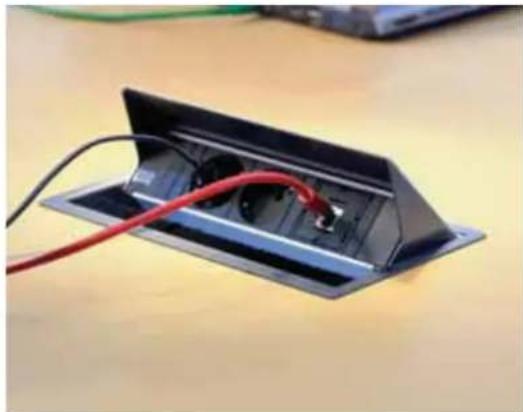

When not in use, CONFERENCE is hidden in the top of the desk or table. When you need power or data, press with your thumb to release the magnetic catch and the opening flap swings up. Once you have connected your notebook, projector, microphone, etc. the flap can be closed again. The narrow closing flap opposite adapts to the inserted cables - nothing is squashed and the elegant appearance of the desk or table is preserved.

CONFERENCE built-in frames are available both for surface mounting (e.g. if retrofitting) and for flush mounting in the tops of desks and tables. Where installed under a desk or table, the opening and closing flaps are flush with the table or desk top. As we can supply flaps on request in almost any coating and even ready for veneer finishing, CONFERENCE is able to meet the most stringent of requirements in terms of elegant looks and harmonious design.

The configuration of CONFERENCE data connections can be freely selected. Power strips can also be interchanged quickly and at any time, without the need for tools. Maximum functionality and top-end design can therefore be adapted to advancements in communication technology for many years to come.

The advan tages at a glance

• Integrated into the top of the desk or table
• Simply press with your thumb to open
- Flap can be closed with cables connected
- For both surface mounting (e.g. if retrofitting) and flush mounting
- Can be installed flush with the top of the desk or table
• Suitable for veneer finishing
- Configuration can be freely selected (see custom modules from page 66)
• Complete power strip can be quickly interchanged

Office meeting table with laptop, tablet, and wine glass (no visible text or symbols)

Office desk with a laptop and a glass of water, no visible text or symbols

Simply press with your thumb to open CONFERENCE. Thanks to its flexible closing flap, the unit can even be closed once devices have been plugged in without crushing the cables.

Office desk setup with laptop, tablet, and smartphone (no visible text or symbols)

CONFERENCE

Setting a design standard

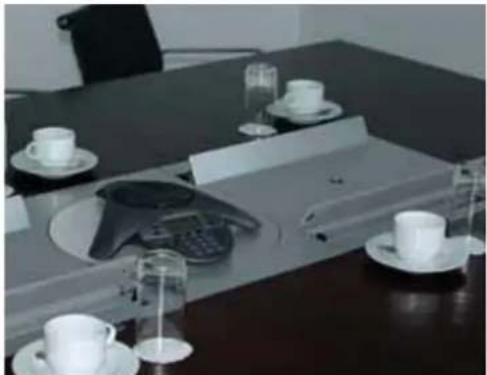

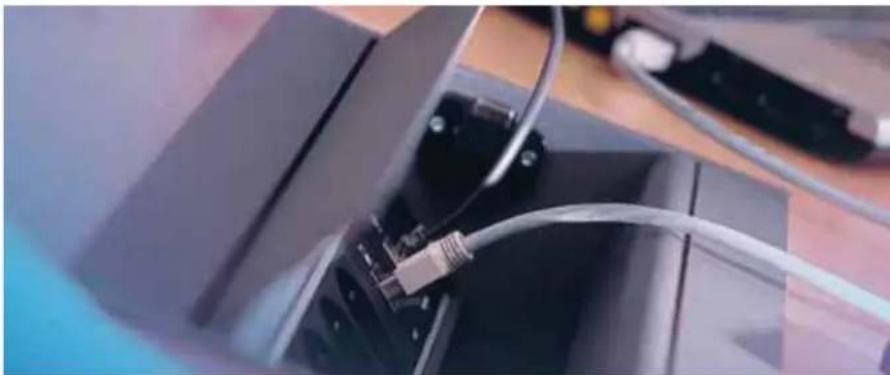

CONFERENCE – as versatile as you need.

Grid of white panels with small rectangular cutouts and a small circular object on the right panel (no text or symbols visible)

Close-up of a mechanical device with a white cable inserted into a black component, no visible text or symbols.

Office meeting table with black table, open phone, and teacups (no visible text or symbols)

Interior view of a modern conference room with a large round table and multiple chairs (no visible text or symbols)

Top-down view of a mechanical device with a black component inserted into a gray housing (no visible text or symbols)

Simple built-in frame fitting

The built-in frame is very easy to install - only standard tools are required. Simply make a rectangular cut-out in the top of your desk or table.

Frameless

Conference under-table mounting frames (frameless) are fitted from the underside of the tabletop. Thus only the pivoting flaps are visible on the tabletop. The necessary drawings containing the special details of the table or desk cut-out are supplied with the unit or can be found in the download area at www.bachmann.com. If required, the flaps can be removed from the frame by means of the integrated bayonet catch. You can also custom match the flaps to the finish of your tabletop by gluing on a suitable veneer (this is not done ex works).

The dimensions of the cut-out are included in the frame packaging materials. They are also available by e-mail or can be downloaded from www.bachmann.com

3D diagram showing a mechanical component with a red arrow indicating direction, no visible text or symbols

Power strip simply clicks into place

The power strip is not supplied with the built-in frame and must be ordered separately.

It simply clicks into the built-in frame (tools are not required).

Since the power strip can be interchanged at any time, the user is guaranteed long-term flexibility and adaptability to future requirements.

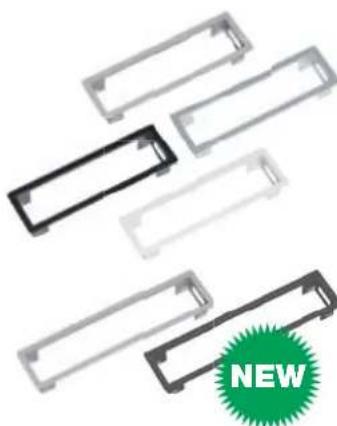

CONFERENCE with frame

• Chamfered side panels, can be flush-mounted on desk or table surface
• Incl. quick-change mechanism for swapping power strips
• Incl. fixing claws and fitting instructions with cut-out dimensions

Art. no. Version

CONFERENCE built-in frame, long Moonstone metallic

338.0200

·Outer dimensions: approx. 466.1 x 182.4 mm, built-in dimensions: approx. 450.1 x 166.4 mm ·Built-in depth: 110 mm

CONFERENCE built-in frame, short Moonstone metallic

338.0201

·Outer dimensions: approx. 284.6 x 182.4 mm, built-in dimensions: approx. 268.6 x 166.4 mm ·Built-in depth: 110 mm

CONFERENCE built-in frame, long RAL9006, silver grey

338.0221

·Outer dimensions: approx. 466.1 x 182.4 mm, built-in dimensions: approx. 450.1 x 166.4 mm ·Built-in depth: 110 mm

CONFERENCE built-in frame, short RAL9006, silver grey

338.0219

·Outer dimensions: approx. 284.6 x 182.4 mm, built-in dimensions: approx. 268.6 x 166.4 mm ·Built-in depth: 110 mm

CONFERENCE built-in frame, long Chrome effect finish

338.0212

·Outer dimensions: approx. 466.1 x 182.4 mm, built-in dimensions: approx. 450.1 x 166.4 mm·Built-in depth: 110 mm

CONFERENCE built-in frame, short Chrome effect finish

338.0210

·Outer dimensions: approx. 284.6 x 182.4 mm, built-in dimensions: approx. 268.6 x 166.4 mm·Built-in depth: 110 mm

CONFERENCE frameless

Art. no. Version

CONFERENCE under-table built-in frame, long RAL9006, silver grey

338.0230	Dimensions (visible surface): approx. 442.5 x 119 mm
	Built-in depth: 107 mm

CONFERENCE under-table built-in frame, short RAL9006, silver grey

338.0231	Dimensions (visible surface): approx. 261.5 x 119 mm
	• Built-in depth: 107 mm

Two gray rectangular electronic components with metallic contacts, no visible text or symbols

Two gray rectangular electronic components with internal channels, no visible text or symbols

Two white rectangular electronic components with metallic contacts, no visible text or symbols

Exterior view of a metallic rectangular electronic component with a circular hole at the top (no text or symbols visible)

You will find power strips suitable for Slide, Conference and Top Frame on page 20/21

TOP FRAME is the new power and data supply solution for conference facilities. With its completely recessable cover, power and data can be conveniently accessed from any seat around the table. The balanced geometry of TOP FRAME fits elegantly into the tabletop and allows it to be fitted with high-quality veneers.

TOP FRAME is also elegantly simple to open: just press lightly with a finger and it opens and closes again - silently.

With its surround frame, TOP FRAME is also suitable for retrofitting. The power strips can of course be interchanged in a flash and can be equipped with Bachmann's flexible custom modules.

TOP FRAME is available in various versions:
in EV1 anodised aluminium or powder-coated in RAL 9006. Other surface finishes are available on request. A veneer of up to 0.6mm can also be glued to the flap without the dimensions of the cut-out having to be changed.

The power strip clips into the frame without tools. There is a short version with 4 modules and a long version with 8 modules to suit both TOP FRAME solutions.

The advan tages at a glance

• Access to power supply and data from any seat
- Silent opening
• Integrated into the top of the desk or table
- Can be installed flush with the top of the desk or table
- Version with surround frame suitable for retrofitting
• Suitable for veneer finishing
- Configuration can be freely selected
• Complete power strip can be quickly interchanged

Interior view of a modern meeting table with a glass of wine, open notebook, and black chairs (no visible text or symbols)

Close-up of a computer interface with black cables and connectors, no visible text or symbols

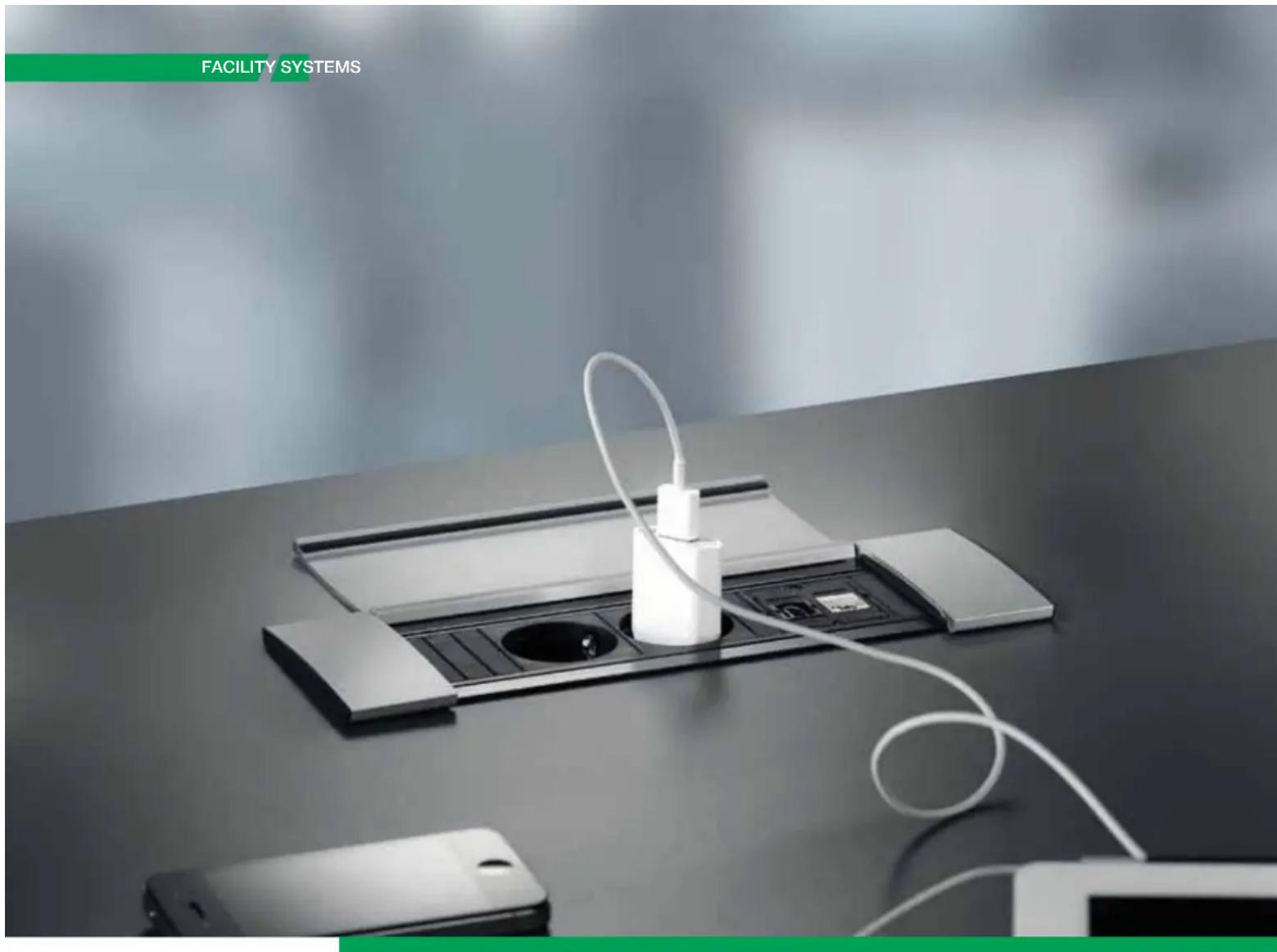

TOP FRAME opens silently and can also be conveniently operated from the seat opposite.

Office desk with white chair, open notebook, wine glass, and smartphone (no visible text or symbols)

TOP FRAME

Perfect elegance

Four-panel image showing a black plastic enclosure with three white plastic panels arranged vertically (no text or symbols visible)

TOP FRAME frameless

- Includes fixing accessories

Art. no. Version

TOP FRAME base Black

Top Frame base without flap, black powder-coated housing
925.100	4-way
	Dimensions (L x W x H): approx. 300 x 92 x 98 mm
925.101	3-way
	Dimensions (L x W x H): approx. 482.5 x 92 x 98 mm

TOP FRAME cover blasted and EV1 anodised

Top Frame blasted and anodised cover, with fixing screws
925.0044	4-way· for mounting on TOP FRAME base (art. no. 925.100)
925.0034	8-way· for mounting on TOP FRAME base (art. no. 925.101)

TOP FRAME cover blasted and black anodised

Top Frame blasted and black anodised cover, with fixing screws
925.0047	4-way· for mounting on TOP FRAME base (art. no. 925.100)
925.0049	8-way· for mounting on TOP FRAME base (art. no. 925.101)

TOP FRAME cover EV1 anodised

Top Frame EV1 anodised cover, with fixing screws
925.0022	4-way· for mounting on TOP FRAME base (art. no. 925.100)
925.0023	8-way· for mounting on TOP FRAME base (art. no. 925.101)

TOP FRAME with frame

- Includes fixing accessories

Art. no. Version

TOP FRAME RAL 9006

Asymmetrical surround frame, short - for 4-way power strip

925.500 · Aluminium flap RAL 9006, black powder-coated housing · Dimensions (L x W x H): approx. 340.5 x 162 x 98.35 mm

3D rendering of a rectangular electronic device with a pink connector (no text or symbols visible)

TOP FRAME RAL 9006

Asymmetrical surround frame, long - for 8-way power strip

925.501 · Aluminium flap RAL 9006, black powder-coated housing · Dimensions (L x W x H): approx. 583 x 162 x 110 mm

3D rendering of a rectangular electronic component with a pink connector (no text or symbols visible)

TOP FRAME RAL 9006

Symmetrical surround frame, short - for 4-way power strip

925.800 · Aluminium flap RAL 9006, black powder-coated housing - Dimensions (L x W x H): approx. 400.5 x 192 x 98.35 mm

Exterior view of a rectangular electronic component or enclosure (no text or symbols visible)

TOP FRAME RAL 9006

Symmetrical surround frame, long - for 8-way power strip

925.801 · Aluminium flap RAL 9006, black powder-coated housing - Dimensions (L x W x H): approx. 583 x 192 x 98.35 mm

Exterior view of a rectangular electronic component or panel with no visible text or symbols

You will find power strips suitable for Slide, Conference and Top Frame on the next two pages

4-way power strips for Slide / Conference / Top Frame

Power cables and custom modules are available separately. See glossary for country-specific information.

Art. no. Version

CUSTOM

4-way: 3 x custom modules + power socket outlet Length: approx. 260 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.002	1 socket outlet with earthing contact, child-proof, black, set at 35°
909.025	1 French / UTE socket outlet, child-proof, black, set at 35°
909.028*	1 Swiss / CH socket outlet, black, set at 0°
909.065*	1 Italian / earth contact combination, black, set at 35°

CUSTOM

4-way: 2 x custom modules + power socket outlets Length: approx. 260 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.003	2 socket outlets with earthing contact, child-proof, black, set at 35°
909.010	2 French / UTE socket outlets, child-proof, black, set at 35°
909.017	2 Swiss / CH socket outlets, black, set at 0°
909.029*	2 Italian / earth contact combination, black, set at 35°

CUSTOM

4-way: 1 x custom module + power socket outlets Length: approx. 260 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.004	3 socket outlets with earthing contact, child-proof, black, set at 35°
909.011	3 French / UTE socket outlets, child-proof, black, set at 35°
909.018	4 Swiss / CH socket outlets, black, set at 0°
909.058*	3 Italian / earth contact combination, black, set at 35°
909.0023*	2 UK 3.15 A individually fused, child-proof, black, set at 45°

CUSTOM

4-way: 4 x custom modules Length: approx. 260 mm

Anodised aluminium profile; without power connection

909.000 · without socket outlets

Two black electronic components with two ports, no visible text or symbols

4-way: 1 x USB double charger (5.2 V /2.15 A) + custom modules + power socket outlets L: approx. 260 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.0056	2 socket outlets with earthing contact, child-proof, black, set at 35° · 1 x USB double charger, 1 x custom module
909.0059	2 French / UTE socket outlets, child-proof, black, set at 35° · 1 x USB double charger, 1 x custom module

8-way power strips for Conference / Top Frame

Power cables and custom modules are available separately. See glossary for country-specific information.

Art. no. Version

USB CHARGER CUSTOM

Three identical mechanical components with black connectors, arranged vertically (no visible text or symbols)

8-way: 1 x USB double charger (5.2 V/2.15 A) + custom modules + power socket outlets L: approx. 444 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.0057	3 socket outlets with earthing contact, child-proof, black, set at 35° · 1 x USB double charger, 4 x custom modules
909.0060	3 French / UTE socket outlets, child-proof, black, set at 35° · 1 x USB double charger, 4 x custom modules
909.0058	3 UK 3.15 A individually fused, child-proof, black, set at 45° · 1 x USB double charger, 2 x custom modules

* No storage type

8-way power strips for Conference / Top Frame

Power cables and custom modules are available separately. See glossary for country-specific information.

Art. no. Version

8-way: 6 x custom modules + power socket outlet Length: approx. 444 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.005	2 socket outlets with earthing contact, child-proof, black, set at 35°
909.012	2 French / UTE socket outlets, child-proof, black, set at 35°
909.033*	2 Swiss / CH socket outlets, black, set at 0°

CUSTOM

Black plastic electronic component with multiple slots, displayed against a white background with German and French flags (no text or symbols on the component itself)

8-way: 5 x custom modules + power socket outlet Length: approx. 444 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.006	3 socket outlets with earthing contact, child-proof, black, set at 35°
909.013	3 French / UTE socket outlets, child-proof, black, set at 35°
909.0029*	2 UK 3.15 A individually fused, child-proof, black, set at 45°

CUSTOM

Exterior view of a black plastic electronic component with multiple slots, displayed against a white background (no text or symbols visible)

8-way: 4 x custom modules + power socket outlet Length: approx. 444 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.007	4 socket outlets with earthing contact, child-proof, black, set at 35°
909.014	4 French / UTE socket outlets, child-proof, black, set at 35°
909.019*	5 Swiss / CH socket outlets, black, set at 0°
909.050*	4 Italian / earth contact combination, black, set at 35°
909.0028	2 UK 3.15 A individually fused, child-proof, black, set at 45°

CUSTOM

Black rectangular electronic component with multiple slots, accompanied by a row of German and Italian flags (no text or symbols on the component itself)

8-way: 3 x custom modules + power socket outlet Length: approx. 444 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.008	5 socket outlets with earthing contact, child-proof, black, set at 35°
909.015	5 French / UTE socket outlets, child-proof, black, set at 35°
909.020*	6 Swiss / CH socket outlets, black, set at 0°
909.0027*	3 UK 3.15 A individually fused, child-proof, black, set at 45°

CUSTOM

Exterior view of a black rectangular electronic component with multiple slots, alongside a partial German and UK flag (no text or symbols visible)

8-way: 2 x custom modules + power socket outlet Length: approx. 444 mm

Anodised aluminium profile; power input: GST18i3 plug, power output: GST18i3 socket
909.009	6 socket outlets with earthing contact, child-proof, black, set at 35°
909.016	6 French / UTE socket outlets, child-proof, black, set at 35°
909.0026	4 UK 3.15 A individually fused, child-proof, black, set at 45°

CUSTOM

Exterior view of a black plastic electronic component with multiple slots, next to a German flag symbol (no text or labels on the component itself)

8-way: 8 x custom modules Length: approx. 444 mm

Anodised aluminium profile; without power connection

909.001 - without socket outlets

CUSTOM

CONFERENCE guide rail set

Art. no. Version

CONFERENCE guide rail set Black

For power strips (pages 6 - 7)
940.099	Guide rail, plastic, blackIncl. 2 countersunk head screws 2.9 × 13 mm with Torx to DIN 7982

* No storage type

CONI brings flexibility to the desktop, for example in conference and training rooms. CONI facilitates unrestricted individual access to power, media and data right on the table or desk top. Minimal depth also means no restriction on leg movement under the desk or table, even where the units are fitted near the edge. Furthermore, a wide range of standard surface finishes ensures a high level of design freedom.

When not in use, CONI integrates into the surface of the desk or table. Should you need power, data or media, simply open the cover, plug into a socket and close the cover again. The integrated brush insert prevents cables jamming. The harmonious appearance of an "even" table is retained.

Configuration of CONI data connections can be freely selected (see custom modules from page 66). Power strips can also be interchanged quickly and at any time, without the need for tools. Integrated functionality and flexibility not just for today but also for the advancements of tomorrow.

The advan tages at a glance

• Integrated into the top of the desk or table
• Minimum built-in depth, robust frame design
- Integrated brush insert for closing once cables have been connected
- Configuration can be freely selected (see custom modules from page 66)
• Complete power strip can be quickly interchanged
• Suitable for retrofitting

Interior view of a classroom with wooden desks and chairs on blue flooring, no visible text or symbols

Interior view of a modern minimalist room with black slatted wall and beige sofa, no visible text or symbols

Exterior view of a black plastic electrical outlet with red and black wires, placed on a wooden surface (no text or symbols visible)

CONI provides unrestricted access to power, media and data supplies. Thanks to the integrated brush insert, the cover can be closed once devices have been connected without jamming the cables.

Office desk setup with laptop, notebook, and open book; no visible text or symbols on main objects

CONI

Integrated functionality

CONI built-in frame, short and long version

Built-in depth is 56 mm, suitable for desk or table top thicknesses of 10 mm and above.

The R5 corner radius facilitates flush mounting in desks or tables.

The brush strips can easily be replaced with colour strips; no tools are required. Simply remove the built-in frame from the top of the desk or table and unscrew the 3 re-usable plastic rivets.

Two rectangular electronic components with black bands, labeled 'CONI' and 'Outer' (no additional text or symbols)

CONI built-in frame short

Outer dimensions: approx. 248 x 151 mm

CONI built-in frame long

Outer dimensions: approx. 386.5 x 151 mm

Two rectangular electronic components with metallic contacts, no visible text or symbols

Art. no. Version

CONI short Silver grey

338.0203 | Silver-grey similar to RAL9006

Two rectangular electronic components with no visible text or symbols

CONI long Silver grey

338.0205 | Silver-grey similar to RAL9006

CONI short Anthracite

338.0204 | Anthracite

Two rectangular electronic components with black bands, no visible text or symbols

CONI long Anthracite

338.0206 | Anthracite

CONI short Chrome-plated

338.0214 | Chrome-plated

Two rectangular electronic components with black bands, no visible text or symbols

CONI long Chrome-plated

338.0227 | Chrome-plated

CONI short Satin white

911.000 · Satin white RAL9010

Two black rectangular electronic components with rounded bases, no visible text or symbols

CONI long Satin white

911.001 · Satin white RAL9010

CONI short Black

911.002 · Black RAL9005

CONI long Black

911.003 · Black RAL9005

Two rectangular electronic components with black bands, no visible text or symbols

CONI short

911.004 · Ground stainless steel

CONI long

911.005 · Ground stainless steel

Stainless steel

Stainless steel

CONI bracket

• For mounting CONI power strips without using a built-in frame, can be installed e.g. under a desk or table top in a cable tray. Standard chipboard screws (which can be purchased from all good retailers) are required for mounting.
  • Takes account of the rear-side outlet and bending radii of power and data connections.

Art. no. Version

CONI mounting high

918.002 · Black

• 2 pcs in plastic bag
• Distance between socket outlet profile and floor: 30 mm from floor to top edge
• Power strip: 74 mm

3D rendering of a mechanical component with a shaft and housing (no visible text or symbols)

CONI holder

• For optional mounting on CONI mounting frame (short and long version)
• Allows excess lengths of cable to be stowed when plugged in
• Easy to fit by hooking into mounting frame already fitted, using plastic rivets supplied
• Small extra built-in depth of approx. 20 mm in addition to depth of mounting frame

Exterior view of a rectangular metal enclosure or housing component (no text or symbols visible)

Art. no. Version

CONI holder

911.910 · Version for Coni mounting frame, short
911.913 · Version for Coni mounting frame, long

3D rendering of a rectangular mechanical part with layered structure (no text or symbols)

CONI brushes

Art. no. Version

CONI brush strip short

911.900 · Red
911.901 · Blue
911.902 · White
911.903 - Yellow
911.904 · Black

Five colored rectangular panels in red, silver, yellow, blue, and dark blue, arranged vertically (no text or symbols)

CONI brush strip long

911.905 · Red
911.906 · Blue
911.907 - White
911.908 · Yellow
911.909 · Black

3-way power strips for CONI

Power cables and custom modules are available separately. See glossary for country-specific information.

Art. no. Version

CUSTOM	3-way: 2 x custom modules + power socket outlet Length: approx. 217 mm
	Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
	912.002 · 1 socket outlet with earthing contact, child-proof, black, set at 35°
	912.009 · 1 French / UTE socket outlet, child-proof, black, set at 35°
	912.016 · 1 Swiss / CH socket outlet, black, set at 0°
	912.0055* · 1 Italian / earth contact combination, black, set at 35°
CUSTOM	3-way: 1 x custom module + power socket outlets Length: approx. 217 mm
	Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
	912.003 · 2 socket outlets with earthing contact, black, set at 35°
	912.010 · 2 French / UTE socket outlets, child-proof, black, set at 35°
	912.015 · 3 Swiss / CH socket outlets, black, set at 0°
	912.037* · 1 socket outlet with earthing contact, black, set at 35° · 1 Swiss / CH socket outlet, black, set at 0°
	912.045* · 2 UK 3.15 A individually fused, child-proof, black, set at 90°
CUSTOM	3-way: 1 x custom module + power socket outlets, black and red Length: approx. 217 mm
	Anodised aluminium profile; power input: 2 x 0.1 m cable (black and red) and GST18i3 plug (black)
	912.023* · 1 socket outlet with earthing contact, black, set at 35° · 1 socket outlet with earthing contact, red, set at 35°
CUSTOM	3-way: 2 x CAT5e + power socket outlets Length: approx. 217 mm
	Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
	333.1008 · 2 socket outlets with earthing contact, black, set at 35° · 2 CAT5e RJ45, front: socket / rear: socket
CUSTOM	3-way: Power socket outlets Length: approx. 217 mm
	Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
	333.1007 · 3 socket outlets with earthing contact, black, set at 35°
CUSTOM	3-way: 3 x custom modules Length: approx. 217 mm
	Anodised aluminium profile; without power connection
	912.000 · without socket outlets
USB CHARGER CUSTOM	Art. no. Version 3-way: 1 x USB double charger (5.2 V/2.15 A) + custom modules + power socket outlets Length: approx. 217 mm
	Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
	912.0167 · 1 socket outlet with earthing contact, child-proof, black, set at 35° · 1 x USB double charger (5.2 V/2.15 A), 1 x custom module
	912.0156 · 2 socket outlets with earthing contact, child-proof, black, set at 35° · 1 x USB double charger (5.2 V/2.15 A)
	912.0171 · 1 French / UTE socket outlet, child-proof, black, set at 35° · 1 x USB double charger (5.2 V/2.15 A), 1 x custom module

* No storage type

6-way power strips for CONI

Power cables and custom modules are available separately. See glossary for country-specific information.

Art. no. Version

6-way: 5 x custom modules + power socket outlet Length: approx. 356 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
912.004 · 1 socket outlet with earthing contact, child-proof, black, set at 35°
6-way: 4 x custom modules + power socket outlet Length: approx. 356 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
912.005 · 2 socket outlets with earthing contact, child-proof, black, set at 35°
912.011 · 2 French / UTE socket outlets, child-proof, black, set at 35°
912.017 · 3 Swiss / CH socket outlets, black, set at 0°
912.0125* · 1 UK 3.15 A individually fused, child-proof, black, set at 45°
6-way: 3 x custom modules + power socket outlet Length: approx. 356 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
912.006 · 3 socket outlets with earthing contact, child-proof, black, set at 35°
912.012 · 3 French / UTE socket outlets, child-proof, black, set at 35°
912.018 · 4 Swiss / CH socket outlets, black, set at 0°
912.022* · 3 UK 3.15 A individually fused, child-proof, black, set at 90°
912.0124* · 2 UK 3.15 A individually fused, child-proof, black, set at 45°
6-way: 2 x custom modules + power socket outlet Length: approx. 356 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
912.007 · 4 socket outlets with earthing contact, child-proof, black, set at 35°
912.013 · 4 French / UTE socket outlets, child-proof, black, set at 35°
912.019 · 5 Swiss / CH socket outlets, black, set at 0°
912.035* · 1 socket outlet with earthing contact, black, set at 35°

Art. no. Version

6-way: 1 x USB double charger (5.2 V/2.15 A) + custom modules + power socket outlets Length: approx. 356 mm		CUSTOMUSB CHARGER
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
912.0168	2 socket outlets with earthing contact, child-proof, black, set at 35°• 1 x USB double charger, 3 x custom modules
912.0169	3 Swiss / CH socket outlets, child-proof, black, set at 90°• 1 x USB double charger, 3 x custom modules
912.0172	2 French / UTE socket outlets, child-proof, black, set at 35°• 1 x USB double charger, 3 x custom modules
912.0170	2 UK 3.15 A individually fused, child-proof, black, set at 45°• 1 x USB double charger, 2 x custom modules

Office desk setup with laptop, notebook, eraser, and open book; no visible text or symbols on main objects

CONI COVER

Easy access

Close-up of a flexible solar panel with visible black and white bands against a blue sky (no text or symbols)

CONI COVER is an elegant way of accessing separate power supply units or standard cable installation systems under the tops of desks and tables. It is ideal, for example, for desks and tables with built-in cable ducts. CONI COVER can of course also be retrofitted to existing equipment.

To access the connections under the desktop or tabletop, simply open the cover of the CONI COVER. Thanks to the integrated brush insert, the cover can even be closed again with devices connected. The harmonious appearance of an "even" table is retained.

CONI COVER, the refined cover for practical solutions - access couldn't be easier!

The advan tages at a glance

• Compatible with all makes of duct and furniture
- Ideal for retrofitting
- Integrated brush insert for closing even when cables are connected

CONI COVER built-in frames are available in short and long versions. The R5 corner radius facilitates flush mounting in desks or tables. The built-in depth of 24 mm is suitable for a minimum desk or table top thickness of 16 mm. Fixing to the desk of table top is with 4 screws. These are screwed on from the inside through corresponding holes on the long sides of the built-in frame. Fitting instructions and cut-out dimensions are supplied with the unit.

CONI COVER built-in frame short

Outer dimensions: 248 x 149 mm

CONI COVER built-in frame long

Outer dimensions: 387 x 149 mm

Art. no. Version

CONI COVER short Silver grey

338.0081 | Sheet steel silver-grey RAL9006 (similar)

CONI COVER long Silver grey

338.0080 | Sheet steel silver-grey RAL9006 (similar)

CONI COVER short Satin white

911.500 · Satin white RAL9010

CONI COVER long Satin white

911.501 · Satin white RAL9010

CONI COVER short Black

911.502 · Black RAL9005

CONI COVER long Black

911.503 · Black RAL9005

Two rectangular electronic components with black bands, no visible text or symbols

Two rectangular electronic components with black bands, no visible text or symbols

Two black rectangular electronic components with no visible text or symbols

CONI COVER and STEP.

The expandable combination.

The modular design of the STEP power strips puts everything you need for your specific, customised supply of power and data at your fingertips. CONI COVER with its integrated brush insert provide access that is both fast and elegant. For STEP see from page 60.

Two black industrial electrical modules with three internal components, no visible text or symbols

Two views of a white metal panel or enclosure with black and gray components, no text or symbols visible.

Easy access to all power supply units located under the table or desk top - for example to modular STEP power strips.

You will find STEP on page 60

POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations.

They can be either factory fitted or supplied for retrofitting.

Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. Such as in sales showrooms and display windows and at trade fair and demonstration stands.

In short, wherever secure and rapid connections are the order of the day.

Your chosen power strip simply plugs into the built-in frame from below without tools - a stroke of perfection.

POWER FRAME - for a more compact and more efficient solution.

The advan tages at a glance

• Compact dimensions
  • Suitable for retrofitting
• Timeless design
• Versatile in application
  • Rapid installation of complete power strips

Electrical plug and socket installation on a wooden floor, no visible text or symbols

Exterior view of a modern office building (no signage)

POWER FRAME is the solution for easy-to-access power and data connections at workstations and elsewhere. The power strip simply clicks into the built-in frame from below.

Digital grid-connected plug and cable installation on a wooden desk, with a tablet and pen nearby (no visible text or symbols)

POWER FRAME

Compact and efficient

POWER FRAME – the practical unit for fast fitting.

Close-up of a red cylindrical device on a black electrical wall socket next to a white calculator and a keyboard (no visible text or symbols)

POWER FRAME is an easily accessible unit for supplying electricity to workstations. The power strip clicks into the built-in frame and can be interchanged or fitted with custom modules as required.

Two rectangular electronic enclosure units with internal components, no visible text or symbols

Built-in frame for desk/table top thicknesses: from 10 mm Installation depth (of built-in frame): approx. 36 mm
Corner radius for flush mounting: R5
Total installation depth (with cables): approx. 70 mm
The power and data sockets are located on the rear of the power strip.

Built-in frame

Five plastic rectangular components with a green 'NEW' badge (no text or symbols on components)

Art. no. Version

POWER FRAME 3-way built-in frame Outer dimensions approx. 241 x 73 mm

317.000	Silver grey, similar to RAL 9006
317.001	Stainless steel
915.000	Black RAL 9005
915.001	White RAL 9010

Art. no. Version

POWER FRAME 4-way built-in frame Length: approx. 283.5 x 73 mm

317.006	Silver grey, similar to RAL 9006
915.004	Black RAL 9005

Plastic power strips, 3-way

Art. no. Version

CUSTOM

3-way: 2 x custom modules + power socket outlet Length: approx. 220 mm

Plastic profile; power input: 0.1 m cable and GST18i3 plug
916.061 ·	1 socket outlet with earthing contact, child-proof, black, set at 35°
916.063 ·	1 French / UTE socket outlet, child-proof, black, set at 35°

3-way: 1 x custom module + power socket outlets Length: approx. 220 mm

Plastic profile; power input: 0.1 m cable and GST18i3 plug

916.060 · 2 socket outlets with earthing contact, child-proof, black, set at 35°

916.062 · 2 French / UTE socket outlets, child-proof, black, set at 35°

STOM

3-way: Power socket outlets Length: approx. 220 mm

Plastic profile; power input: 0.1 m cable and GST18i3 plug

317.117 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

916.059 · 3 French / UTE socket outlets, child-proof, black, set at 35°

Aluminium power strips, 3-way

Art. no. Version

3-way: 2 x custom modules + power socket outlets Length: approx. 220 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug

916.001	-	socket outlet with earthing contact, child-proof, black, set at 35°
916.003	-	French / UTE socket outlet, child-proof, black, set at 35°
916.005*	-	1 Swiss / CH socket outlet, black, set at 0°

CUSTOM

3-way: 1 x custom module + power socket outlets Length: approx. 220 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug

916.000	·2	socket outlets with earthing contact, child-proof, black, set at 35°
916.002	·2	French / UTE socket outlets, child-proof, black, set at 35°
916.004*	·3	Swiss / CH socket outlets, black, set at 0°
916.082	·2	UK 3.15 A individually fused, child-proof, black, set at 90°

CUSTOM

3-way: 2 x CAT5e + power socket outlets Length: approx. 220 mm

Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug

317.101 · 2 socket outlets with earthing contact, child-proof, black, set at 35° · 2 CAT5e RJ45, front: socket / rear: socket

3-way: Power socket outlets Length: approx. 220 mm
Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug

317.100 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

317.102 · 3 French / UTE socket outlets, child-proof, black, set at 35°

916.1129 · 3 UK 3.15 A individually fused, child-proof, black, set at 90°

3-way: 3 x custom modules

Anodised aluminium profile; without power connection

916.010 · Custom module-only variant

Length: approx. 220 mm
CUSTOM

3-way: 1 x USB double charger (5.2 V/2.15 A) + 1 x custom module + power socket outlets Length: approx. 220 mm

Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug
916.0039	1 socket outlet with earthing contact, child-proof, black, set at 35°
916.0042	1 French / UTE socket outlet, child-proof, black, set at 35°

CUSTOM USB CHARG

3-way: 1 x USB double charger (5.2 V/2.15 A) + power socket outlets

Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug

916.0040 2 socket outlets with earthing contact, child-proof, black, set at 35^ \ .

Length: approx. 220 mm
CUSTOM USB CHARGER

Exterior view of a black rectangular electronic device with three black buttons (no text or symbols visible)

Power strips, 4-way

Art. no. Version

4-way: 1 x USB double charger (5.2 V/2.15 A) + 2 x custom modules + power socket outlets L: approx. 261.9 mm

Anodised aluminium profile; power input: 0.1 m cable and GST18i3 plug916.0041*

- 1 socket outlet with earthing contact, child-proof, black, set at 35°

CUSTOM USB CHARGER

CUSTOM

CUSTOM

4-way: 2 x custom modules + power socket outlets L: approx. 261.9 mm

Black plastic; power input: 0.1 m cable and GST18i3 plug
916.0601	2 socket outlet with earthing contact, child-proof, black, set at 35°

4-way: 3 x custom modules + power socket outlets L: approx. 261.9 mm

Black plastic; power input: 0.1 m cable and GST18i3 plug

916.0611 | 1 socket outlet with earthing contact, child-proof, black, set at 35°

* No storage type

FACILITY SYSTEMS

POWER FRAME COVER

Who'd have thought power could be so elegant?

The compact POWER FRAME has evolved into the POWER FRAME COVER. An elegant and attractive aluminium cover, designed especially for conference and office environments with a strong design element, which also protects power and data connections from dust and dirt.

The advan tages at a glance

• Design piece made from anodised aluminium
• For conference tables and desks
• Access to power supply and data from any seat
- Dust protection
- Versatile: can be combined with socket outlet and data/audio/video modules

POWER FRAME COVER

NEW

Art. no. Version

POWER FRAME COVER 3-way Dimensions approx. 255 x 87 x 8 mm

3-way black Power Frame (art. 915.000), with aluminium flap, for gluing into desk or table

915.500 · Aluminium

915.503 · Aluminium, painted in white RAL 9010

915.501 · Aluminium, painted in stainless steel

POWER FRAME COVER 4-way Dimensions approx. 298 x 87 x 8 mm

4-way black Power Frame (art. 915.004), with aluminium flap, for gluing into desk or table 915.502 · Aluminium

Only power strips with evenly flush custom modules can be used in conjunction with the POWER FRAME COVER.

See previous pages for suitable power strips.

Black-and-white photo of a meeting table with smartphone, tablet, and pen (no visible text or symbols)

Three-panel image showing a device with internal components and a transparent cover, displayed against a cloudy sky (no text or symbols visible)

Office desk with a white lamp and red plug, overlooking a cityscape with large windows in the background (no visible text or symbols)

reddot design award winner 2012

TWIST

Power outside the box

TWIST is a power strip for office, lounge and kitchen areas. With its compact design and low installation depth, it is easily integrated in desks or kitchen worktops. Because the power cable is routed close to the housing, the installation depth is only around 40 mm, so the unit can be easily installed above a drawer.

With a choice of stainless steel or chrome look finish, the TWIST blends easily into both modern and organic interiors. After use, simply rotate the cover and the socket outlets disappear underneath it. The TWIST won the Red Dot Product Design Award 2012.

The advan tages at a glance

• Very low installation depth (approx. 40 mm)
• Compact design (H x diameter: approx. 42.5 x 115 mm)
• Space-saving cable routing
• Quick and easy to install
• Stainless steel or matt chrome
• Red Dot Product Design Award Winner 2012

TWIST

Art. no. Version

TWIST 2S

Metallic stainless steel look cover disc; power input: 2.0 m cable with end sleeves and black earthing contact mounting plug (included)

931.000 - 2 x socket outlets with earthing contact, child-proof, black

- Installation diameter 105 mm, installation depth 40 mm

· for desk/table top thicknesses from 20 mm

TWIST 1S 2P

Metallic matt chrome look cover disc; power input: 0.2 m with GST18i3 plug

931.001 · x socket outlet with earthing contact, child-proof, black

- 2 x keystone mount for data sockets

• Installation diameter 105 mm, installation depth 40 mm

- for desk/table top thicknesses from 20 mm

Hole saw diameter 105 mm

For fitting the TWIST

931.900 · in wood / plastic

· cutting depth up to 44 mm

Mounting tool for hole saw 931.900

918.900 · with centre drill

Keystone modules for 931.001 can be found in the Custom modules chapter.

NEW

Product assembly diagram showing three mechanical components: a circular head with two holes, a metallic ring with internal slots, and a red drill bit (no text or symbols visible)

Similar to illustration

TWIST is so compact that it can even be installed above a drawer.

At 42.5 mm high, TWIST is so compact that it can be fitted on almost any surface. It can even be installed above a drawer. The cable is routed through a flexible outlet and stored in a recessed channel.

42,5 40 40 mm is all the space that TWIST requires.

Office desk setup with a white portable wall-mounted device, laptop, and open notebook (no visible text or symbols)

ELEVATOR

The elevator is powered straight away

ELEVATOR fits perfectly in any working environment. At 79 mm in diameter, ELEVATOR is ideal for integrating power and data connections in tiny spaces.

Simply press down with your thumb to raise and lower ELEVATOR. ELEVATOR is available in two versions: with three socket outlets or with one socket outlet and two data connections.

Installation is incredibly simple. ELEVATOR is placed in a cut-out 79 mm in diameter and secured to the desk or table top from below using a lock ring.

The advan tages at a glance

• Press down with your thumb to raise
• 2 configurations
• Suitable for standard 79 mm hole
• Quick and easy to install
• Suitable for retrofitting
• Aluminium nickel-plated, brushed
- Classic design
- For desk or table top thicknesses of 16 - 40 mm

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

ELEVATOR

Art. no. Version

Elevator power strip

Stainless steel look aluminium profile; kitchen variant; power input: 2.0 m H05VV-F 3G 1.5 mm² with end sleeves and earthing contact mounting plug (included)

928.003 · 1 socket outlet with earthing contact, child-proof, black, set at 35^ · 2 Euro socket outlets, child-proof, black

Anodised aluminium profile E0EV01; office variant

Power input: 0.3 m H05VV-F 3G1.5 mm² with GST18 plug; 3.0 m data cables and plug

928.004	-1 socket outlet with earthing contact, child-proof, black, set at 35°-2 CAT6 RJ45 with 3.0 m data cable and RJ45 plug
928.005	-1 socket outlet with earthing contact, child-proof, black, set at 35°-1 USB A socket with 3.0 m data cable and plug-1 CAT6 RJ45 with 3.0 m data cable and RJ45 plug
928.006	-1 socket outlet with earthing contact, child-proof, black, set at 35°-1 HDMI socket with 3.0 m data cable and plug-1 CAT6 RJ45 with 3.0 m data cable and plug

Art. no. Version

Hole saw diameter 79 mm

For fitting the ELEVATOR

928.900 · in wood / plastic

· cutting depth up to 44 mm

Mounting tool for hole saw

918.900 · with centre drill

NEW

Two identical black industrial sensors or sensor units with no visible text or symbols

Similar to illustration

Ø 86 Ø 65 94,6 135 Ø 79

Dimensions in mm

ELEVATOR fits in

cut-outs 79 mm in diameter

100 mm high, 79 mm in diameter: With 3 socket outlets, ELEVATOR is a tiny yet impressive powerhouse. Simply press down with your thumb to open ELEVATOR. It is simply lowered again after use.

Close-up of a wooden surface with a circular button and a white object at the bottom (no text or symbols visible)

LIFT is the totally practical combination of sophisticated looks and high-precision mechanical design. The unit is recessed neatly in the top of the desk or table when not in use. Simply touch to raise out of the desk or table ready for docking on all four sides. Once you have finished using the LIFT unit, simply push it back into its initial recessed position by hand.

LIFT can be supplied in a variety of power and data connection configurations. This highly compact unit needs a drill hole only 140 mm in diameter for installation. Built-in depth both open and closed is just 195 mm.

By setting cutting-edge technology in motion, LIFT makes power and data supply a truly enjoyable experience.

The advan tages at a glance

• Simply touch to raise
  • Attractive looks all round
  • Access points on four sides
  • Incredibly compact dimensions
• Low built-in depth
  • 4 plug-in units on 1 height unit

Office desk with a circular disc and a laptop, no visible text or symbols

Office desk with a circular electronic device and a laptop, no visible text or symbols

Office desk with a circular electronic device and a laptop, no visible text or symbols

Simply touch to raise and lower LIFT. The unit has connection points on four sides and can be equipped with a variety of power and data connection configurations.

Office desk setup with a hexagonal device connected to a network cable, laptop and mouse in background (no visible text or symbols)

LIFT

High-tech in motion

Black and white cylindrical device with a circular top, showing no visible text or symbols.

Enclosure colour BLACK

Art. no. Version

LIFT: Power socket outlets

[25x4]	904.000 · 4 socket outlets with earthing contact, child-proof, black, set at 35°
	904.004 · 4 French / UTE socket outlets, child-proof, black, set at 35°
	904.024* · 4 Swiss / CH socket outlets, black, set at 0°
	904.020* · 4 UK 3.15 A individually fused, child-proof, black, set at 90°

LIFT: 2 x CAT6 + power socket outlets

[IMAGE]	Enclosure colour black; power input: 3.0 m cable and plug; 3.0 m data cable and RJ45 plug
	904.001 · 3 socket outlets with earthing contact, child-proof, black, set at 35°
	904.005 · 3 French / UTE socket outlets, child-proof, black, set at 35°
	904.025* · 3 Swiss / CH socket outlets, black, set at 0°
	904.021* · 3 UK 3.15 A individually fused, child-proof, black, set at 90°

LIFT: 2 x CAT6, 1 x VGA + miniature jack + power socket outlets

[7752]	904.002 · 2 socket outlets with earthing contact, child-proof, black, set at 35°
	904.006 · 2 French / UTE socket outlets, child-proof, black, set at 35°
	904.026* · 2 Swiss / CH socket outlets, black, set at 0°
	904.022* · 2 UK 3.15 A individually fused, child-proof, black, set at 90°

LIFT: 2 x CAT6, 2 x USB + power socket outlets

[7504]	904.003 · 2 socket outlets with earthing contact, child-proof, black, set at 35°
	904.007	· 2 French / UTE socket outlets, child-proof, black, set at 35°
	904.027*	· 2 Swiss / CH socket outlets, black, set at 0°
	904.023*	· 2 UK 3.15 A individually fused, child-proof, black, set at 90°

LIFT: 2 x CAT6, 1 x VGA + miniature jack, 1 x HDMI, power socket outlet

[WSCK]

904.045

· CAT6 3.0 m data cable and RJ45 plug; VGA 15-pole and miniature jack with 3.0 m cable and plug· 1 x socket outlet with earthing contact, child-proof, black, set at 35°, with 3.0 m cable and plug· 2 x CAT6 RJ45 with 3.0 m data cable and RJ45 plug· 1 x VGA + miniature jack each with 3.0 m cable· 1 x HDMI with plug

LIFT: 1 x USB double charger (5.2 V/2.15 A), 2 x CAT6 + power socket outlets

	504.0001	2 x socket outlets with earthing contact, child-procer, black, set at 60
		- 1 x USB double charger
		- 2 x CAT6 RJ45 socket

* No storage type

Enclosure colour SILVER

Art. no. Version

LIFT: Power socket outlets

Enclosure colour silver; power input: 0.5 m cable and GST18i3 plug

904.008 · 4 socket outlets with earthing contact, child-proof, black, set at 35°

Exterior view of a circular mechanical device with black and silver casing (no visible text or symbols)

LIFT: 2 x CAT6 + power socket outlets

Enclosure colour black; power input: 3.0 m cable and plug; 3.0 m data cable and RJ45 plug

904.009 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

LIFT: 2 x CAT6, 1 x VGA + miniature jack + power socket outlets

Enclosure colour black; power input: 3.0 m cable and plug;

CAT6 3.0 m data cable and RJ45 plug; VGA 15-pole and miniature jack with 3.0 m cable and plug

904.010 · 2 socket outlets with earthing contact, child-proof, black, set at 35°

LIFT: 2 x CAT6, 2 x USB + power socket outlets

Enclosure colour black; power input: 3.0 m cable and plug;

CAT6 3.0 m data cable and RJ45 plug; USB A socket with 3.0 m cable and plug

904.011 · 2 socket outlets with earthing contact, child-proof, black, set at 35°

Hole saw diameter 140 mm

For LIFT installation

904.900 · Hole saw for clamping, with centre drill

- 140 mm diameter

Close-up of a mechanical gear or cam component with visible teeth and central shaft (no text or symbols)

Similar to illustration

DESK is the ideal solution for data, media and power management wherever workstations need to be flexible. Typical situations might include meeting rooms, home offices or desk sharing environments.

The modular construction of DESK enables it to be factory configured with exactly the communications and power connections required for specific workstations and applications. Thus for power connections there is a free choice of either the flexible Wieland system or permanent connections. The data connections are fitted with adapters as standard, but can likewise also be fixed connections.

When it comes to positioning the DESK units, again versatility is the key. They are fixed to the desk/table top by mounting brackets or screws or can be free-standing, as best suits the application and good style.

The advan tages at a glance

• Flexibility of use regardless of location
• With Wieland connector system or fixed cable connections
  • Fixed or free-standing on desk/table
  • Custom versions adapt to future requirements

Interior view of a modern office with multiple workstations and red-labeled chairs, no visible text or symbols.

Office desk setup with laptop, notebook, and power outlet rack (no visible text or symbols)

The modular construction of DESK enables it to be factory configured with exactly the communications and power connections you require. DESK can be fixed to a table or desk top or be free-standing.

Office desk setup with a wall-mounted power strip unit, a laptop, and open notebook (no visible text or symbols)

DESK 1

Versatility with style

DESK 1 – every possibility at your fingertips.

3D rendering of a mechanical device with black and silver components, no visible text or symbols

Plug connections as standard

The standard power connection features a Wieland plug-in connector in the rear panel and provides both reliable power feed and also flexibility in cable length. The cables can be swapped for longer or shorter power supply cables, for example. We use Wieland's GST18 connector, which is popular all over the world, as standard. This plug connection has a catch mechanism which complies with the relevant standards and can be released again if required. The contacts on the plug connection are safe to touch.

A power output socket provides a means of forwarding power to the next module.

Mounting without damage

DESK 1 can be mounted on the edge of a desk or table quickly and easily using a mounting bracket. A size 4 Allen key is required in order to tighten the inside screw on the bracket. Mounting does not damage the table/desk top. You will find a range of mounting brackets and units on page 51.

DESK 1 plus STEP in combination

Combining DESK 1 with a STEP power strip provides the ideal overall solution for an individual office workstation. DESK 1 provides easy access to power and data connections for various devices (laptop, mobile phone, USB etc.) whilst the STEP power strip under the desk/table top supplies power to fixed devices such as PC, monitor, printer etc. The STEP power strip is screwed in place underneath the top of the desk or table or placed in a duct underneath.

The integrated Wieland connector system allows multiple power strips to be connected in series in compliance with standards.

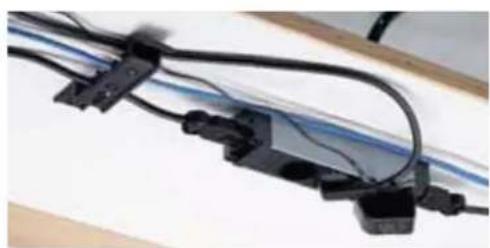

Close-up of a black mechanical component with a cable inserted, no visible text or symbols

Close-up of a mechanical device with metallic components and cables (no visible text or symbols)

Close-up of black cables and connectors attached to a blue cable, mounted on wooden beams (no text or symbols visible)

Office desk setup with laptop, cable, and electronic device (no visible text or symbols)

Exterior view of a white industrial electrical enclosure with multiple ports and a control panel (no visible text or symbols)

DESK 1 - Product matrix

A detailed product description can be found on the following pages.

DESK 1	Country code	Socket inserts	Spaces for custom modules	USB charger	Illuminated switch	CAT5e RJ45 Socket/socket	VGA+3.5 mm miniature jack	USB 3.0 A/A socket	Incl. bracket	Incl. supply cable	Child-proof	Length in mm
902.0182 D	E	2	1	y	e	s	-	-	-	-	-	-	y	e
902.011 D	E	2	2	-	-	-	-	-	-	-	y	e	s	322.5
902.0183* D	E	2	2	y	e	s	-	-	-	-	-	-	y	e
902.0048 D	E	3	-	-	-	-	-	-	-	-	y	e	s	270.0
339.1002 D	E	3	-	-	-	-	-	-	y	e	s	-	y	e
902.0050 D	E	3	-	-	y	e	s	-	-	-	-	-	y	e
339.1001 DE 3 - - yes	- - yes yes yes 268.0
339.1004 DE 3 - - 2	- yes - yes 280.0
339.1005 DE 3 - - 2	1 - yes - yes 325.0
339.1006	DE	3	-	-	-	2	-	1	yes	-	yes	325.0
902.000 D	E	3	1	-	-	-	-	-	-	-	y	e	s	322.5
902.017 D	E	3	1	-	y	e	s	-	-	-	-	-	y	e
902.001 D	E	3	2	-	-	-	-	-	-	-	y	e	s	365.0
902.018 D	E	3	2	-	y	e	s	-	-	-	-	-	y	e
902.012 D	E	1	/	2	2	-	-	-	-	-	-	-	y	e
902.002 D	E	3	3	-	-	-	-	-	-	-	y	e	s	366.3
902.019 D	E	3	3	-	y	e	s	-	-	-	-	-	y	e
902.003 D	E	3	4	-	-	-	-	-	-	-	y	e	s	450.0
902.0049 D	E	4	-	-	-	-	-	-	-	-	y	e	s	313.0
339.1000	DE	4	-	-	-	-	-	-	yes	yes	yes	268.0
902.0185	UTE	2	1	yes	-	-	-	-	-	-	yes	281.3
902.004	UTE	3	1	-	-	-	-	-	-	-	yes	323.0
902.005	UTE	3	2	-	-	-	-	-	-	-	yes	365.0
902.006	UTE	3	3	-	-	-	-	-	-	-	yes	366.3
902.007	UTE	3	4	-	-	-	-	-	-	-	yes	450.0
902.0161	CH	2	2	yes	-	-	-	-	-	-	-	323.8
902.008 C	H	3	1	-	-	-	-	-	-	-	-	258.0
902.009 C	H	3	2	-	-	-	-	-	-	-	-	301.0
902.010 C	H	3	3	-	-	-	-	-	-	-	-	258.0
902.0184	UK	2	1	yes	-	-	-	-	-	-	y	e	s	300.7
902.024	U	K	2	2	-	-	-	-	-	-	-	y	e	s
902.039	U	K	3	2	-	-	-	-	-	-	-	y	e	s

* No storage type

DESK 1 power strips

Max. 16A/230V\~ See glossary for country-specific information

Power cables and mounting brackets are available separately

Three identical industrial electrical panel units with cooling fans and indicator lights, shown from different angles (no text or symbols visible)

Art. no. Version

Power socket outlets

Anodised aluminium profile; power input: GST18 / power output: GST18

902.0048 | 3 socket outlets with earthing contact, child-proof, black, set at 35°, length 270 mm

Power socket outlets

Anodised aluminium profile; power input: GST18 / power output: GST18

902.0049 | 4 socket outlets with earthing contact, child-proof, black, set at 35°, length 313 mm

902.0050 | 3 socket outlets with earthing contact, child-proof, black, set at 35°

· 1 switch, 2-pole, illuminated

- Length 313 mm

DESK 1 power strips

Max. 16A/230V\~ See glossary for country-specific information

with spaces for custom modules

Power cables, custom modules and mounting brackets are available separately

Art. no. Version

1 x custom module + power socket outlets

Anodised aluminium profile; power input: GST18 / power output: GST18

902.000 · 3 socket outlets with earthing contact, child-proof, black, set at 35°, length 322.5 mm

902.017 · B socket outlets with earthing contact, child-proof, black, set at 35°

· 1 switch, 2-pole, illuminated, length 365 mm

902.004 · B French / UTE socket outlets, child-proof, black, set at 35°, length 322.5 mm

902.008 · 3 Swiss / CH socket outlets, black, set at 0°, length 258 mm

CUSTOM 2 x custom modules + power socket outlets

Anodised aluminium profile; power input: GST18 / power output: GST18

902.001 · B socket outlets with earthing contact, child-proof, black, set at 35°, length 365 mm

902.011 | - 2 socket outlets with earthing contact, child-proof, black, set at 35°, length 322.5 mm

902.018 · 3 socket outlets with earthing contact, child-proof, black, set at 35°, length 407.5 mm

· 1 switch, 2-pole, illuminated

902.005 · 3 French / UTE socket outlets, child-proof, black, set at 35°, length 365 mm

902.009 · 3 Swiss / CH socket outlets, black, set at 0°, length 300.5 mm

902.039* · 3 UK 3.15 A individually fused, child-proof, black, set at 90°, length 309 mm

902.024 · 2 UK 3.15 A individually fused, child-proof, black, set at 45°, length 346.3 mm

Exterior view of a metallic electrical outlet rack with four ports (no text or symbols visible)

3 x custom modules + power socket outlets

Anodised aluminium profile; power input: GST18 / power output: GST18

902.002 · 3 socket outlets with earthing contact, child-proof, black, set at 35°, length 366.3 mm

902.006 · 3 French / UTE socket outlets, child-proof, black, set at 35°, length 366.3 mm

902.010 · 3 Swiss / CH socket outlets, black, set at 0°, length 257.5 mm

Exterior view of a metallic electrical connector with four slots (no text or symbols visible)

You can find suitable Wieland cables on page 135

* No storage type

DESK 1 power strips

Max. 16A/230V\~ See glossary for country-specific information

with spaces for custom modules

Power cables, custom modules and are available separately

Art. no. Version

4 x custom modules + power socket outlets
Anodised aluminium profile; power input: GST18 / power output: GST18

902.003 · 8 socket outlets with earthing contact, child-proof, black, set at 35°, length 450 mm

902.007 · 8 French / UTE socket outlets, child-proof, black, set at 35°, length 450 mm

CUSTOM

2 x custom modules + power socket outlets
Anodised aluminium profile; power input: 2 x GST18 (black and red)

902.012 · 1 socket outlet with earthing contact, child-proof, black, set at 35° · 2 socket outlets with earthing contact, child-proof, red, set at 35°, length 385 mm

CUSTOM

1 x custom module + power socket outlets + illuminated switch
Anodised aluminium profile; power input: GST18 / power output: GST18

902.017 · 3 socket outlets with earthing contact, child-proof, black, set at 35° · 1 x illuminated switch; length 365 mm

CUSTOM

Exterior view of a server rack unit with multiple ports and indicator lights (no visible text or symbols)

2 x custom module + power socket outlets + illuminated switch
Anodised aluminium profile; power input: GST18 / power output: GST18

902.018 · 3 socket outlets with earthing contact, child-proof, black, set at 35° · 1 x illuminated switch; length 407.5 mm

CUSTOM

3 x custom modules + power socket outlets + illuminated switch
Anodised aluminium profile; power input: GST18 / power output: GST18

902.019 · 8 socket outlets with earthing contact, child-proof, black, set at 35° · 1 x illuminated switch; length 450 mm

CUSTOM

Exterior view of a black industrial control panel with multiple ports and buttons (no visible text or labels)

Art. no. Version

DESK 1 with 1 x USB double charger (5.2 V /2.15 A), 1 x custom modules + power socket outlets
Anodised aluminium profile; power input: GST18 / power output: GST18

902.0182	· 2 socket outlets with earthing contact, child-proof, black, set at 35°, length 281.3 mm
902.0185	2 French / UTE socket outlets, child-proof, black, set at 35°, length 281.3 mm
902.0184	2 UK 3.15 A individually fused, child-proof, black, set at 45°, length 300.7 mm

CUSTOM

Exterior view of a black electronic device with ports and connectors, accompanied by a flag icon (no text or symbols on the device itself)

DESK 1 with 1 x USB double charger (5.2 V /2.15 A), 2 x custom modules + power socket outlets
Anodised aluminium profile; power input: GST18 / power output: GST18

902.0183*	- 2 socket outlets with earthing contact, child-proof, black, set at 35°, length 323.8 mm
902.0161	- 2 Swiss / CH socket outlets, black, set at 90°, length 323.8 mm

CUSTOM

Exterior view of a black industrial electronic device with ports and buttons, no visible text or symbols

You can find suitable Wieland cables on page 135

* No storage type

Max. 16A/230V\~ See glossary for country-specific information

• Anodised aluminium profile, black socket outlets
- incl. standard mounting bracket and screws

Art. no. Version

Exterior view of a three-pin electrical outlet rack (no text or symbols visible)

DESK 1 3 x earthing contact, GST18 Length: approx. 280 mm

2 x CAT5e

339.1004

3 socket outlets with earthing contact, child-proof, black, set at 35°
- 2 x CAT5e RJ45, front: socket/rear: socket
- Power input: GST18i3 plug, power output: GST18i3 socket
- Incl. standard mounting bracket and screws

Exterior view of a three-pin electrical outlet rack (no text or symbols visible)

DESK 1 3 x earthing contact, GST18 Length: approx. 325 mm

2 x CAT5e, 1 x VGA

339.1005

socket outlets with earthing contact, child-proof, black, set at 35°
- 2 x CAT5e RJ45, front: socket/rear: socket
· 1 x VGA 15-pole + miniature jack 3.5 mm
- Power input: GST18i3 plug, power output: GST18i3 socket
- Incl. standard mounting bracket and screws

Exterior view of a four-pin electrical outlet rack (no text or symbols visible)

DESK 1 3 x earthing contact, GST18 Length: approx. 325 mm

2 x CAT5e, 1 x USB

339.1006

socket outlets with earthing contact, child-proof, black, set at 35°
· 2 x CAT5e RJ45, front: socket/rear: socket
- 1 x USB A / A socket
- Power input: GST18i3 plug, power output: GST18i3 socket
- Incl. standard mounting bracket and screws

DESK 1 3 x earthing contact, GST18 Length: approx. 225 mm

339.1002

3 socket outlets with earthing contact, child-proof, black, set at 35°
- Power input: GST18i3 plug, power output: GST18i3 socket
- Incl. standard mounting bracket and screws

Exterior view of a four-pin electrical connector (no text or symbols visible)

DESK 1 4 x earthing contact Length: approx. 268 mm

Fixed connection

339.1000

4 socket outlets with earthing contact, child-proof, black, set at 35°
· Power input: 3.0 m, H05W-F 3G 1.50 mm black, with right-angled earthing contact plug
- Incl. standard mounting bracket and screws

3D rendering of a gray industrial electrical outlet with three ports and a green indicator light (no text or symbols visible)

DESK 1 3 x earthing contact Length: approx. 268 mm

Fixed connection, 1 x switch

339.1001

3 socket outlets with earthing contact, child-proof, black, set at 35°
- 1 x switch 2-pole green illuminated
- Power input: 3.0 m, H05W-F 3G 1.50 mm, black, with right-angled earthing contact plug
- Incl. standard mounting bracket and screws

DESK 1 accessories

Art. no. Version

DESK 1 slimline brackets for table/desk top thicknesses up to 50 mm

918.001 · Stainless steel, thickness 3 mm

- Contents: 2 stainless steel mounting brackets + 2 M5 x 45 mm Allen keys

DESK 1 standard bracket for table/desk top thicknesses up to 50 mm

930.120 · Anodised aluminium, thickness approx. 9 mm

• Contents:
• 2 x mounting clamps, anodised aluminium profile
• 2 x M5 x 60 mm Allen bolts

DESK 1 long bracket for table/desk top thicknesses up to 80 mm

930.180 · Mounting bracket, long, 50-80 mm

• Contents:
• 2 x mounting clamp, black painted RAL9011
• 2 x M5 x 45 mm Allen bolts
• 2 x M5 x 60 mm Allen bolts

Chipboard screw for DESK end caps for table/desk top thicknesses over 15 mm

930.183 · 2 x chipboard screws 4 x 90 mm incl. brass threaded sleeve

DESK 1 mounting plate

930.182 · Black plastic

• Mounting plates for attachment to DESK end caps
• Contents:
• 2 x mounting plates
• 2 x screws
• 2 x TESA POWER STRIP

Collection of industrial mechanical components with no visible text or symbols

Person holding a young green plant with soil, against a blurred green background (no text or symbols visible)

AUTOMATIC Saves Energy

Automatic switchoff

Switch off and save power

The Bachmann automatic switchoff unit allows efficient savings in power consumption by modern-day office equipment during non-working hours without a major outlay on wiring.

Switching equipment off completely is no longer left to chance; power saving now begins as soon as the workstation PC is shut down.

The effectiveness of this system exceeds the savings possible with master-and-slave multiple-socket outlets, since no standby current is drawn by the master device and total power consumption during on-working hours is exactly zero.

The advan tages at a glance

• Complete interrupt
  • No standby current is drawn by the master device
  • No electricity - no fire risk
  • Potential saving of up to €70 per year and workstation
  • Improvement to carbon footprint

Automatic switchoff system components

GREEN

Art. no. Version

STEP ALU automatic switchoff Length: approx. 263 mm

906.005 · Anodised aluminium profile

• 1 x automatic switchoff device with socket outlet with earthing contact
• 1 x button connection with 0.5 m cable and connector for linking to module 917.060
• Power input: GST18i3 plug, power output: GST18i3 socket

Module 1 x button automatic switchoff / Automatic Saves Energy

917.060 · x button, black, with 1.0 m cable and 2-pole connector

• Pressing the button subsequently restores power to the connected equipment.
• Use in any power strip with custom modules

3D rendered mechanical component with a black body, gray casing, and a small protrusion, no visible text or symbols.

Two black electrical circuit components with mounting holes and a handle (no text or symbols visible)

A desk connection panel with custom module space and a STEP are needed to complete the system.

Savings of up to €70 a year and workstation are possible with the automatic switchoff.

DESK 2 is a multiple-socket outlet that can be populated with various communication modules. It has been designed for flexible use in the office, meeting rooms, home offices or desk sharing environments.

The outlet is made from aluminium and is available in various colours. The connections are screwed onto the standardised module windows and can be easily changed over.

DESK 2 is secured to the desktop with aluminium mounting brackets, and cables are routed behind the screen.

DESK 2 won the red dot design award 2011 and the IF Product Design Award 2012 and was nominated for the German Design Award 2012. The design is unostentatious and straightforward, the materials used durable and high-quality.

The advan tages at a glance

• Design solution for modern workstations
• User-focused 45° orientation
• Covered wiring to the edge of a desk or table
• Custom versions adapt to future requirements
• Red Dot Design Award Winner 2011
• IF Award winner 2012
• Nominated for the German Design Award 2012

3D rendering of a white electronic device with blue arrows pointing to its top panel (no text or symbols visible)

3D rendering of a white architectural structure with a triangular cutout and black base (no text or symbols visible)

White wall-mounted power strip unit with three black socket plugs, placed on a wooden surface (no visible text or symbols)

Exterior view of a modern office building (no signage)

Particular attention has been paid to the design of the DESK 2. In terms of technology, DESK 2 has a modular structure, just like its predecessor DESK 1. Like all other Bachmann desk connection panels with media and data modules, DESK 2 is adapted to individual requirements and future purposes using Bachmann custom modules.

Modern home security kit with three power plugs and a charging plug, placed on a wooden table with a smartphone nearby (no visible text or symbols)

DESK 2

Design meets technology

reddot design award winner 2011

Exterior view of a white electrical outlet with three black power outlets (no text or symbols visible)

DESK 2 - Product matrix

DESK 2	Country code	Socket inserts	Spaces for custom modules	USB charger	Colour	CAT6 RJ45 socket/socket	USB 3.0 A/A socket	HDMI socket/socket	Incl. bracket	Incl. supply cable	Child-proof	Length in mm
902.203 DE 2 1 - white --- yes - yes 204.0
902.228 DE 2 1 yes white --- yes - yes 239.2
902.211 DE 2 2 - white --- yes - yes 239.0
902.229* DE 2 2 yes white --- yes - yes 281.7
902.2048 DE 3 --- white --- yes - yes 197.0
902.300 DE 3 --- white --- yes yes 197.0
902.301 DE 3 --- white			1 1 - yes yes yes 239.0
902.302 DE 3 --- white			2 1 1	yes yes yes 282.0
902.200 DE 3 1 - white --- yes - yes 239.0
902.201 DE 3 2 - white --- yes - yes 282.0
902.202 DE 3 3 - white --- yes - yes 324.0
902.232*	UTE	2 1 yes white --- yes - yes 239.2
902.204	UTE	3 1 - white --- yes - yes 239.0
902.205	UTE	3 2 - white --- yes - yes 282.0
902.213	UK	2 --- white --- yes - yes 196.7
902.206	UK	2 1 - white --- yes - yes 239.0
902.231*	UK	2 1 yes white --- yes - yes 274.2
902.207	UK	2 2 - white --- yes - yes 274.0
902.214	UK	4 --- white --- yes - yes 316.7
902.230*	CH	2	2	yes	white	-	-	-	yes	-	-	281.7
902.208	CH	3	1	-	white	-	-	-	yes	-	-	239.0
902.209	CH	3	2	-	white	-	-	-	yes	-	-	282.0
902.403 DE 2 1 -		stainless steel		--- yes - yes 204.0
902.428 DE 2 1 yes		stainless steel		--- yes - yes 239.2
902.411 DE 2 2 -		stainless steel		--- yes - yes 239.0
902.429* DE 2 2 yes		stainless steel		--- yes - yes 281.7
902.4048	DE	3	-	-	stainless steel	-	-	-	yes	-	yes	197.0
902.500 DE 3 ---		stainless steel		--- yes yes yes 197.0
902.501 DE 3 ---		stainless steel 1 1 - yes yes yes 239.0
902.502 DE 3 ---		stainless steel 2 1						1	yes yes yes 282.0
902.400 DE 3 1 -		stainless steel		--- yes - yes 239.0
902.401 DE 3 2 -		stainless steel		--- yes - yes 282.0
902.402 DE 3 3 -		stainless steel		--- yes - yes 324.0
902.432*	UTE	2	1	yes	stainless steel	-	-	-	yes	-	yes	239.2
902.404	UTE	3	1	-	stainless steel	-	-	-	yes	-	yes	239.0
902.405	UTE	3	2	-	stainless steel	-	-	-	yes	-	yes	282.0
902.431*	UK	2	1	yes	stainless steel	-	-	-	yes	-	yes	274.2
902.407	UK	2	2	-	stainless steel	-	-	-	yes	-	yes	274.0
902.406	UK	2	1	-	stainless steel	-	-	-	yes	-	yes	239.0
902.430*	CH	2	2	yes	stainless steel	-	-	-	yes	-	-	281.7
902.408	CH	3	1	-	stainless steel	-	-	-	yes	-	-	239.0
902.409	CH	3	2	-	stainless steel	-	-	-	yes	-	-	282.0

* No storage type

DESK 2 power strips

Art. no. Version

Power socket outlets Length: approx. 197 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket
902.2048	· 3 socket outlets with earthing contact, child-proof, black, set at 35°- Painted in RAL 9010 white
902.4048	· 3 socket outlets with earthing contact, child-proof, black, set at 35°- Painted in stainless steel
902.300	· 3 socket outlets with earthing contact, child-proof, black, set at 35°- Painted in RAL 9010 white· 1.5 m separate device supply cable, GST18/earth contact
902.500	· 3 socket outlets with earthing contact, child-proof, black, set at 35°- Painted in stainless steel

Power socket outlets

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket

902.213 · 2 UK 3.15 A individually fused, child-proof, black, set at 45°

902.214* · 4 UK 3.15 A individually fused, child-proof, black, set at 45°

DESK 2 power strips, empty

Art. no. Version

1 x custom module + power socket outlets Length: approx. 239 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket
902.200	·socket outlets with earthing contact, child-proof, black, set at 35° ·Painted in RAL 9010 white
902.204	· French / UTE socket outlets, child-proof, black, set at 35° ·Painted in RAL 9010 white
902.206	·2 UK 3.15 A individually fused, child-proof, black, set at 45° ·Painted in RAL 9010 white
902.208	·Swiss / CH T13 socket outlets, black, set at 90° ·Painted in RAL 9010 white
902.400	· socket outlets with earthing contact, child-proof, black, set at 35° ·Painted in stainless steel
902.404	·French / UTE socket outlets, child-proof, black, set at 35° ·Painted in stainless steel
902.406	·2 UK 3.15 A individually fused, child-proof, black, set at 45° ·Painted in stainless steel
902.408	· Swiss / CH T13 socket outlets, black, set at 90° ·Painted in stainless steel

1 x custom module + power socket outlets Length: approx. 204 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket

902.203 · 2 socket outlets with earthing contact, child-proof, black, set at 35° · Painted in RAL 9010 white

902.403 · 2 socket outlets with earthing contact, child-proof, black, set at 35° · Painted in stainless steel

2 x custom modules + power socket outlets Length: approx. 239 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket
902.211 · 2 socket outlets with earthing contact, child-proof, black, set at 35°
	· Painted in RAL 9010 white
902.411 · 2 socket outlets with earthing contact, child-proof, black, set at 35°
	· Painted in stainless steel

2 x custom modules + power socket outlets Length: approx. 274 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket
902.207*	2 UK 3.15 A individually fused, child-proof, black, set at 45°
	Painted in RAL 9010 white
902.407*	2 UK 3.15 A individually fused, child-proof, black, set at 45°
	Painted in stainless steel

* No storage type

DESK 2 power strips

Art. no. Version

2 x custom modules + power socket outlets Length: approx. 282 mm
Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm² with GST18; incl. mounting bracket

902.201 · 3 socket outlets with earthing contact, child-proof, black, set at 35° · Painted in RAL 9010 white

902.205 · 3 French / UTE socket outlets, child-proof, black, set at 35° · Painted in RAL 9010 white

902.209 · 3 Swiss / CH T13 socket outlets, black, set at 90° · Painted in RAL 9010 white

902.401 · 3 socket outlets with earthing contact, child-proof, black, set at 35° · Painted in stainless steel

902.405 · 3 French / UTE socket outlets, child-proof, black, set at 35° · Painted in stainless steel

902.409 · 3 Swiss / CH T13 socket outlets, black, set at 90° · Painted in stainless steel

3 x custom modules + power socket outlets Length: approx. 324 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket
902.202 · 3 socket outlets with earthing contact, child-proof, black, set at 35°
	Painted in RAL 9010 white
902.402 · 3 socket outlets with earthing contact, child-proof, black, set at 35°
	Painted in stainless steel

DESK 2 power strips

Art. no. Version

USB CHARGER	CUSTOM	DESK 2 with 1 x USB double charger (5.2 V /2.15 A ), 1 x custom modules + power socket outlet
		Aluminium profile; power input 0.2 m H05VV-F 3G 1.5 mm ^2 with GST 18; incl. mounting bracket
		902.228 · 2 socket outlets with earthing contact, child-proof, black, set at 35°Length 239.2 mmPainted in RAL 9010 white
		902.232* · 2 French / UTE socket outlets, child-proof, black, set at 35°Length 239.2 mmPainted in RAL 9010 white
		902.231* · 2 UK 3.15 A individually fused, child-proof, black, set at 45°Length 284.2 mmPainted in RAL 9010 white
		902.428 · 2 socket outlets with earthing contact, child-proof, black, set at 35°Length 239.2 mmPainted in stainless steel
		902.432* · 2 French / UTE socket outlets, child-proof, black, set at 35°Length 239.2 mmPainted in stainless steel
		902.431* · 2 UK 3.15 A individually fused, child-proof, black, set at 45°Length 284.2 mmPainted in stainless steel

* No storage type

DESK 2 power strips

Art. no. Version

DESK 2 with 1 x USB double charger (5.2 V /2.15 A), 2 x custom modules + power socket outlet		CUSTOM	USB CHARGER
Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket
902.229*	2 socket outlets with earthing contact, child-proof, black, set at 35°Length 281.7 mmPainted in RAL 9010 white
902.230*	2 Swiss / CH T13 socket outlets, black, set at 90°Length 281.7 mmPainted in RAL 9010 white
902.429*	2 socket outlets with earthing contact, child-proof, black, set at 35°Length 281.7 mmPainted in stainless steel
902.430*	2 Swiss / CH T13 socket outlets, black, set at 90°Length 281.7 mmPainted in stainless steel

DESK 2 power strips, equipped

Art. no. Version

1 x custom module + power socket outlets Length: approx. 239 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket

902.301 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

· Painted in RAL 9010 white

· 1 CAT6 coupling socket/socket

· 1 USB A/A 3.0 keystone module

· 1.5 m separate device supply cable, GST18/earth contact

902.501 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

· Painted in stainless steel

· 1 CAT6 coupling socket/socket

· 1 USB A/A 3.0 keystone module

· 1.5 m separate device supply cable, GST18/earth contact

2 x custom modules + power socket outlets Length: approx. 282 mm

Aluminium profile; power input: 0.2 m H05VV-F 3G 1.5 mm ^2 with GST18; incl. mounting bracket

902.302 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

· Painted in RAL 9010 white

· 2 CAT6 coupling socket/socket

· 1 USB A/A 3.0 keystone module

· 1 HDMI keystone socket/socket

· 1.5 m separate device supply cable, GST18/earth contact

902.502 · 3 socket outlets with earthing contact, child-proof, black, set at 35°

· Painted in stainless steel

· 2 CAT6 coupling socket/socket

· 1 USB A/A 3.0 keystone module

· 1 HDMI keystone socket/socket

· 1.5 m separate device supply cable, GST18/earth contact

Accessories

Art. no. Version

DESK 2 cable management

Covered cabling to the underside of desk or table edge

918.106 Plastic, painted in RAL 9010 white

918.107 Plastic, painted in stainless steel

DESK 2 brackets are suitable for desk or table top thicknesses of 10 mm to 40 mm. Alternatively, DESK 1 standard brackets (art. no. 930.120) can also be used for DESK 2. In combination with DESK 2, these cover a range of 25 mm to 55 mm.

STEP embodies the principle of modularity with absolute consistency. The system is thus ideal for the flexible delivery of power and data to workstations, in partition systems, false floors and other connection types.

The modular design of STEP power strips makes for virtually endless possibilities: from simple power supply sets through to power strips with integrated data connections, RCDs/MCBs, overvoltage protection, media technology links and much more.

For electricity distribution STEP uses the Wieland connector system as standard and can therefore be supplied with a variety of cable lengths. Other plug connection systems can also be supplied on request.

STEP delivers individual tailor-made solutions meeting all the requirements of modern power and data supply. In short: Fit for the future - step by step.

The advan tages at a glance

• Consistent modularity
• Versatile applications
  • Standard connection system
  • Can be removed at any time
  • Functional efficiency

Interior view of a modern office or lab space with white workbenches and chairs, no visible text or symbols

Close-up of white electrical plug connections with colored wires (red, yellow, gray) inserted into a black panel (no text or symbols visible)

STEP is ideal for the flexible delivery of power and data to workstations, in partition systems, false floors and other connection types.

Digital wall clock showing 15:08 with red and black wires connected to an open electrical socket (no text or symbols on main subject)

STEP

Fit for the future - step by step

STEP – the all-round system designed for expansion.

Close-up of a mechanical component with three circular ports and internal blades (no visible text or symbols)

Close-up of a metallic mechanical assembly with mounting bracket and mounting holes (no visible text or symbols)

Close-up of a black plastic electronic component with internal cavities and mounting holes (no visible text or symbols)

Two black metal bracket components and five separate metal screws arranged diagonally (no text or symbols)

Perfectly tailored for the best connections

The STEP power strip is available with an aluminium or plastic profile. It is possible to connect multiple power strips together to form a modular system. STEP is designed primarily as a simple electricity supply unit for office workstations. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to STEP.

STEP power strips have a power input and a power output, each of which is built into the end caps. The Wieland GST18 plug connectors fitted are tried-and-tested solutions for office use and have the coding and latch mechanism required to comply with the applicable standard.

Multiple fixing options

STEP power strips are versatile in their application. They can be fitted for example under table/desk tops, in cable ducts and in partitions. Different fixing options are available to suit these various applications (see from page 65).

Close-up of black cable connectors with wires, no visible text or symbols

STEP combination options

You can plug separate modules together or combine them as you wish with a connecting cable.

Thus STEP gives you your own custom power distribution system. Other plug-in connection systems (e.g. Wago Winsta, Woertz, Ensto) can be supplied on request.

See glossary for country-specific information

Power cables and custom modules are available separately

Art. no. Version

STEP BASE: Power socket outlets Length: approx. 220 mm
Plastic profile; power input: GST18 / power output: GST18

336.600	· 3 socket outlets with earthing contact, child-proof, black, set at 35°
336.601	· 3 socket outlets with earthing contact, child-proof, red, set at 35°
336.603	· 3 French / UTE socket outlets, child-proof, black, set at 35°
906.1306	· 2 UK 3.15 A individually fused, child-proof, black, set at 45°
906.0059	· 2 UK 3.15 A individually fused, child-proof, black, set at 45°, 2 switches
906.0055	· 4 UK 3.15 A individually fused, child-proof, black, set at 45°
906.0060	· 4 UK 3.15 A individually fused, child-proof, black, set at 45°, 1 switch

STEP BASE: Power socket outlets Length: approx. 262.5 mm (note special lengths)

Plastic profile; power input: GST18 / power output: GST18

336.604 · 4 socket outlets with earthing contact, child-proof, black, set at 35°

336.606 · 4 French / UTE socket outlets, child-proof, black, set at 35°

336.626 · 5 socket outlets with earthing contact, child-proof, black, set at 35°, length 305 mm

STEP ALU: Power socket outlets Length: approx. 220 mm (note special lengths)

Aluminium profile; power input: GST18 / power output: GST18
336.039	3 socket outlets with earthing contact, child-proof, black, set at 35°
336.067	3 socket outlets with earthing contact, child-proof, red, set at 35°
906.1075	3 French / UTE socket outlets, child-proof, black, set at 35°, length 220 mm
336.046	4 French / UTE socket outlets, child-proof, black, set at 35°, length 262.5 mm
336.072	3 French / UTE socket outlets, child-proof, red IT, set at 35°
336.088	4 French / UTE socket outlets, child-proof, black, set at 35°, length 262.5 mm
906.1086*	3 Swiss / CH socket outlets, black, set at 90°
906.1059*	3 UK 3.15 A individually fused, child-proof, black, set at 45°, length 314.5 mm
336.076	3 USA socket outlets, black, set at 0°, length 195 mm

Four black plastic electrical connectors with red internal components, displayed against a white background with national flags in the corner (no text or symbols on the connectors themselves)

STEP ALU: 1 x custom module + power socket outlets Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18
906.000	2 socket outlets with earthing contact, child-proof, black, set at 35°
906.002	2 French / UTE socket outlets, child-proof, black, set at 35°
906.071	2 Swiss / CH socket outlets, black, set at 90°
336.079	2 UK 3.15 A individually fused, child-proof, black, set at 45° (length 284.5 mm)

Exterior view of a black plastic enclosure with internal cavities, alongside national flags (no text or symbols on the main body)

STEP ALU: 2 x custom modules + power socket outlets Length: approx. 262.5 mm

Aluminium profile; power input: GST18 / power output: GST18

906.001 · 2 socket outlets with earthing contact, child-proof, black, set at 35°

906.009* · 2 French / UTE socket outlets, child-proof, black, set at 35°

906.080* · 2 Swiss / CH socket outlets, black, set at 90°

Exterior view of a black plastic enclosure with internal compartments, alongside country flags (no text or symbols on the main body)

STEP ALU: 1 x switch + power socket outlets Length: approx. 262.5 mm

Aluminium profile: Power input: GST18 / power output: GST18

906.003 · 3 x socket outlets with earthing contact, child-proof, black, set at 35° · Switch controls sockets only (not power output)

906.031 · 3 x socket outlets with earthing contact, child-proof, black, set at 35° · Switch controls both sockets and power output

Electronic component with a green indicator light and two German flags on the side (no visible text or symbols)

STEP ALU: 1 x USB double charger (5.2 V/2.15 A), 1 x custom module + power socket outlets L: approx. 262.8 mm

Aluminium profile; power input: GST18 / power output: GST18
906.0113*	2 x socket outlets with earthing contact, child-proof, black, set at 35°

CUSTOM USB CHARGER

Exterior view of a mechanical or electronic device with three ports and a German flag marker (no text or symbols on the device itself)

All STEP safety modules are compatible with STEP ALU and STEP BASE

See glossary for country-specific information. Power cables and custom modules are available separately.

Art. no. Version

STEP ALU overvoltage protection, GST18 Length: approx. 147 mm

Aluminium profile; power input: GST18 / power output: GST18

336.003 · Overvoltage protection 2 kV with function and fail indicator

STEP ALU overvoltage protection + mains and frequency filters, GST18 Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18

336.004 · Overvoltage protection 2 kV with function and fail indicator and mains filter 30 MHz

STEP ALU MCB, GST18 Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18

336.015 · Miniature circuit-breaker 16 A, 2-pole

- Characteristic B

STEP ALU RCD, GST18 Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18

336.014 · Residual current device 16 A, tripping current 30 mA, response time 30 ms, 2-pole

STEP ALU RCD, GST18 Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18

906.067 · Residual current device, 16 A, tripping current 10 mA, response time 30 ms, 2-pole

- Power input: GST18i3 plug, power output: GST18i3 socket;

STEP ALU RCD / MCB, GST18 Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18

336.065 · Combined RCD/MCB comprising:

- Residual current device 16 A, tripping current 30 mA, response time 30 ms, 2-pole

- Miniature circuit-breaker 16 A rated current, 400 V, 2-pole

- Characteristic B; 6 kA

STEP ALU master & slave, GST18 Length: approx. 220 mm

Aluminium profile; power input: GST18 / power output: GST18

336.006 · Master & slave circuit with threshold value setting 10 W and higher

- Effective power: 0.29 W / apparent power: 1.05 W

STEP ALU automatic switchoff Length: approx. 263 mm

Aluminium profile; power input: GST18 / power output: GST18 See page 48

906.005 · | x automatic switchoff device with socket

· 1 x button connection with 0.5 m cable

and connector for linking to module 917.060

Series of industrial electrical components with no visible text or symbols

Art. no. Version

Mounting accessories

375.502 · Contents:

• 4 screws 2.9 x 30 mm
• 2 cover strips for the end caps as optical finish (to be placed on the end caps where two power strips are linked together)
• 1 end cap for power output socket

Stainless steel mounting bracket

940.096 · For insertion into the rear of a STEP profile

- Ideal for use with power strips with data connections

- 2 items

Stainless steel mounting bracket with elongated hole

940.024 · For insertion into the rear of a STEP profile

• With elongated hole (keyhole) for screwing into place, ideal for use with power strips with data connections
• 1 item left, 1 item right

Stainless steel mounting plate, flat

940.097 · For insertion into the rear of a STEP profile

• For screw fixing e.g. under a desk or table
• 2 items, packaged in plastic bag

STEP cover plates

375.529 · Fit over the end caps of STEP power strips

• Visual finish
• Black plastic
• 2 items, packaged in plastic bag

Sheet steel mounting plate

940.108 · For insertion into rear of STEP profile

• Tightening the nut on the threaded screw fixes the power strip in place
• Contents:
• 1 mounting plate incl. M5 screw, washer and nut

STEP plastic mounting clip

918.025 · For mounting STEP BASE and STEP ALU power strips in suitable cut-outs in sheet steel (thickness 2.0 mm)
- Contents: 2 plastic mounting clips, 4 screws 2.9 x 30 mm
- Drawings for the required cut-outs can be requested if required.

Product assembly diagram showing battery pack, circuit breakers, and terminal block (no text or symbols)

Two electronic components with black and white casing, no visible text or symbols

Two electrical circuit breakers with indicator lights and connectors (no visible text or symbols)

Two electronic components with mounting brackets and connectors (no visible text or symbols)

Pure mechanical component assembly diagram without any text, numbers, or symbols

Earthed power supply cable to STEP unit, see Accessories section

• Pre-assembled power supply cables with integrated earth connection
• Earthing of the power strip is independent of the installation
• Ideal in combination with STEP power strips (see from page 60)

Coiled black electrical cable with two connectors (no text or symbols visible)

Bachmann custom modules are the central components of video, audio and network connections. Their construction offers you simple and flexible installation in facility systems, rack systems and electrical installations. The versatility of custom modules make Bachmann facility systems even more flexible. With the easy-to-swap modules you can create units to meet the individual data, video and audio connection requirements of your customers quickly and simply.

Now Bachmann also offers this flexibility for 10" and 19" panel installations. The standard custom modules facilitate optimal configuration for every media and network connection requirement. Again here socket/socket or screw-terminal connections provide great simplicity of installation.

When it comes to electrical installations, Bachmann custom modules are again an outstanding addition. The small number of parts make the custom modules compatible with the current switch ranges of reputable manufacturers. Simple fitting and removal mean that all installations can be quickly adapted to changed requirements or brought up to the current state of the art.

The advan tages at a glance

• Flexibly interchangeable modules
• For data, video and audio connections
- Can be used in facility systems, rack systems and electrical installations
• Integration with the switch ranges of leading manufacturers
- Easy to connect via socket/socket or screw-terminal connections

Close-up of a black electrical plug socket with red cable inserted, showing internal components (no text or symbols visible)

Back view of a computer setup showing multiple ports with connectors and audio equipment (no visible text or labels)

Exterior view of a wall-mounted electrical outlet with a blue wall and gray panel (no text or symbols visible)

Power strips 19" and 10" media racks Electrical installations

Disassembled electronic components laid out on a green cutting mat, including connectors and a cable, with no visible text or symbols.

CUSTOM MODULES

As versatile as your applications

3D rendering of a mechanical housing with internal compartments and a separate inset showing a red arrow pointing to a component (no text or symbols present)

Close-up of a screwdriver with a green handle and black end cap, showing two screws (no text or symbols on the tool itself)

The empty built-in frame ^① of Bachmann facility systems accommodates the custom modules ^② , which are fixed in place with two Torx screws ^③ . The custom modules can be easily exchanged by loosening the screws.

Custom modules in facility systems

Computer monitor connected to a network device with three ports and cables (no visible text or symbols)

Close-up of a red cylindrical component mounted on a black electrical wall socket next to a white keyboard and a white resistor (no visible text or symbols)

Individual configuration

Modern technology and strong ideas are at the heart of each and every Bachmann facility system. With expansion-compatible multiple-socket outlets and facility custom modules for individual configuration, these systems provide the ideal basis for setting up flexible connections. Practical units provide secure networking in the office, while elegantly designed, concealed supply systems offer trouble-free communications for conferences. In addition to standard, ready-made outlet units, Bachmann facility products include empty modules for individual configuration. Custom modules are supplied complete with screws.

The greatest flexibility - prepared for the future

Whenever you change the configuration you have the opportunity to upgrade your equipment to the latest state of the art. Built-in insulation protects you from contact with live parts when exchanging modules.

There is no requirement to recheck the electrical connections of the unit after changing modules, and the warranty is not affected.

You can find facility system products in the main Bachmann catalogue and in the separate Facility systems catalogue.

■ Compatible with Bachmann facility systems

① ② ③ Torx T6 (917.040)

Our 19" and 10" racks ^① accept custom modules ^② , which are simply inserted and screwed in. System integration is made easy with the open design and socket/socket or screw-terminal custom modules.

Custom modules in rack installations

Full integration of media and network technologies

The 19" and 10" panels offer simple and flexible integration of media and network technologies into your rack system. The custom modules, easily screwed into place (Torx M2 screws ^® included with the panels) enable you to respond to changes in system requirements at any time. Socket/socket and screw-terminal technology offers a compact and clearly arranged installation. The panels are particularly economical on space, requiring only one height unit (44.5 mm).

Two identical rectangular electronic components with slots and mounting holes, shown side by side (no text or symbols)

903.000 Bachmann 19' panel, 1 U, with strain-relief bar, accepts 10 custom modules (screws for mounting the modules included)
903.001 Bachmann 10" panel, 1 U, with strain-relief bar, accepts 5 custom modules (screws for mounting the modules included)

Compatible with Bachmann IT rack panel

① ② ③ Torx T6 (917.040)

Using a mounting plate ^① and adapter frame ^② (see page 74), custom modules ^③ can be installed in a switch box.

Custom modules in electrical installations

Unlimited installation options

The addition of a few extra components opens up whole new possibilities for electrical installations. Installed in either a switch box or sill-type trunking, the extensive range of custom modules allows the easy integration of audio, video and data networks. By using the 50 x 50 mm and 55 x 55 mm adapter frames available as standard, the custom modules form an optimal complement to the current switch ranges of reputable manufacturers. The connections to the rear can be made either as socket/socket or via screw terminals. No complicated soldering or cabling is required. A compatibility list of custom modules to the switch ranges of various manufacturers can be found on page 72 onwards.

917.064 mounting plate (Suitable Torx M2 screws included)

Adapter frames, 50 x 50 mm and 55 x 55 mm in black and white

Example of mounting box for trunking You can obtain various mounting or device boxes from trunking manufacturers

Exploded view diagram of a device showing internal components and a screwdriver (no text or symbols)

Torx T6 (917.040)

The mounting box is inserted into the trunking.

This forms the base onto which the mounting plate ^① and adapter frame ^② (50 x 50 mm or 55 x 55 mm) and the Bachmann custom module are bolted ^③ .

Bachmann custom modules ^③ can even be fitted into conventional floor boxes. The custom module bracket ^④ for floor-box systems allows the module to be fitted directly. There is thus no need for a mounting plate ^① or adapter frame ^② . The Bachmann custom module bracket ^④ is suitable for various makes of floor box. Please check the installation depth required by the custom modules.

Exterior view of a gray plastic electronic device with internal components (no text or symbols visible)

④
Compatible with Bachmann electrical installations

Manufacturer*	Switch range*	Bachmann Adapter frame** Colour black	Bachmann Adapter frame** Colour white	+ Adapter manufacturer number
Berker S.1 917.066 917.169 -
	B.1 917.066 917.169 -
	B.3 917.066 917.169 -
	B.7 Glass 917.066 917.169 -
	K.1 917.065 917.168 11087124 11087106 11087109 11087102
	K.5 917.065 917.168 11.087.104
	Arsys 917.065 917.168 11080101 11089104 11089111 11080169 11080102
	Module 2 917.065 917.168 114309 114302
Busch-Jaeger	carat 917.065 917.168 1746/10-81 1746/10-82 1746/10-84
	pure stainless steel 917.065 917.168 1746/10-866
	pulse 917.065 917.168			1746/10-71 1746/10-72 1746/10-74 1746/10-79 1746/10-777 1746/10-783
	solo 917.065 917.168			1746/10-82 1746/10-84 1746/10-85 1746/10-86 1746/10-87 1746/10-88 1746/10-803 1746/10-815
	Busch-axcent 917.065 917.168 1746/10-84
	future 917.065 917.168 1746/10-82 1746/10-84 1746/10-85 1746/10-89
	Future linear 917.065 917.168			1746/10-81 1746/10-82 1746/10-83 1746/10-84 1746/10-89
EGB	Elegant Standard	917.065	917.168	143.090.045
ELSO	JOY	917.065 917.168	363080 363084
	RIVA	917.065 917.168	203080 203084 2030831 2030811 2030819
	RIVA	917.066 917.169	203160 203164 2031611 2031619
	SCALA	917.065 917.168	203080 203084 2030811 2030819
	SCALA	917.066 917.169	203160 203164 2031611 2031619
	FASHION	917.065 917.168		203080 203084 203081 2030812 203082 2030831 203086 203089 2030844
	FASHION	917.066 917.169	203160 203164 203160D
	NOVIA	917.066 917.169	284800 284804
	NOVIA	917.065 917.168		283160 283164 2831631 2831612 283166 283169 2.831.611
	CLASSIC 917.065 917.168 303110 303111
Gira	Standard 55	917.066 917.169 -
	E2	917.066 917.169 -
	Event	917.066 917.169 -
	Esprit 917.066 917.169 -
	E22	917.066 917.169	0.289.202
	Stainless steel series 20 / 21	917.066 917.169	028920
	TX_44	917.066 917.169	028966 028967 028965
	Large-area switch	917.066 917.169	0289111 0289112
	S-Color	917.065 917.168	028240 028242 028243	028246 028247
Jäger Opus 917.065 917.168 560.050.02
Jung	AS 500	917.066 917.169 -
	AS Universal	917.066 917.169 -
	A 500	917.066 917.169 -
	A plus	917.066 917.169 -
	A creation	917.066 917.169 -
	LS-design	917.066 917.169 AL2961Z5-L ES2961Z5-L
	LS 990	917.066 917.169 LS961Z5WW LS961Z5SW LS961Z5AL
	LS plus	917.066 917.169 AL2961Z5-L ES2961Z5-L

* Name and product designation of manufacturer
** Also order the appropriate Bachmann adapter frame for fitting in the switch range.

Manufacturer*	Switch range*	Bachmann Adapter frame** Colour black	Bachmann Adapter frame** Colour white	+ Adapter manufacturer number
Jung FD-design	917.066 917.169 AL2961Z5-L ES2961Z5-L
	CD 500 917.065 917.168 590ZCD 590ZWW
LS 990 917.065	917.168 LS961Z LS961ZWW LS961ZLG LS961ZSW
	LS 990 917.065 917.168 LS961Z5 LS961Z5WW LS961Z5SW
	Aluminium 917.065 917.168 LS961Z LS961ZWW LS961ZLG LS961ZSW
	Aluminium 917.066 917.169			LS961Z5 LS961Z5WW LS961Z5SW AL2961Z5-LES2961Z5-L
	Stainless steel 917.065 917.168 LS961Z LS961ZWW LS961ZLG LS961ZSW
	Stainless steel 917.066 917.169			LS961Z5 LS961Z5WW LS961Z5SW AL2961Z5-LES2961Z5-L
	Anthracite 917.065 917.168 LS961Z LS961ZWW LS961ZLG LS961ZW
	Anthracite 917.066 917.169			LS961Z5 LS961Z5WW LS961Z5SW AL2961Z5-LES2961Z5-L
	Bright chrome 917.065 917.168 LS961Z LS961ZWW LS961ZLG LS961ZSW
	Bright chrome 917.066 917.169			LS961Z5 LS961Z5WW LS961Z5SW AL2961Z5-LES2961Z5-L
Merten 1-M 917.066 917.169 -
	ATELIER-M 917.066 917.169 -
	M-SMART 917.066 917.169 -
	M-PLAN	917.066 917.169 -
	M-PLAN GLASS	917.066 917.169 -
	M-PLAN Metal	917.066 917.169 -
	M-PLAN II 917.066 917.169 -
	M-ARC	917.066 917.169 -
	M-STAR	917.066 917.169 -
	ARTEC	917.065 917.168 516094 516099
	AQUADESIGN 917.065 917.168 518344 518319 518314 518360
PEHA	Standard	917.066	917.169	219511 219611
	Standard	917.065 917.168 219411 219211 219711 219311 218711
	Dialog	917.065 917.168 828611 819511 768611 847311 838011 778611 316611
	Aura	917.065 917.168 117211 129511 155811
	Nova	917.065 917.168 027211 042211 057211
	Nova	917.066 917.169 100511 100711 100611
POPP	FOREVER	917.065	917.168	729828 729811
	PALLAS	917.065 917.168 729842 729866 729859
	ARCADA	917.065 917.168 -
Presto-Vedder	Regina classic	917.065 917.168 730RW 730RUW
	Alessa 917.065 917.168 230RUW
	Alessa plus 917.065 917.168 230RUW
	Fiorena	917.065 917.168 3030RUW 3030RW 3030RSI 3030RSGR
Siemens	DELTA line	917.065	917.168	5TG2557 5TG2587 5TG1160 5TG1150
	DELTA vita	917.065 917.168 5TG2557 5TG1160 5TG1150
	DELTA miro	917.065 917.168 5TG2557 5TG2587 5TG1160 5TG1150
	DELTA style	917.065 917.168 5TG1326 5TG1326-1 5TG1366
	DELTA style	917.066 917.169 5TG1327 5TG1327-1 5TG1367
	DELTA profile	917.065 917.168		5TG1806 5TG1866 5TG1766 5TG18365TG1706-1 5TG1746-1
	DELTA profile	917.066 917.169		5TG1893 5TG1885 5TG1762 5TG18355TG1705-1 5TG1745-1

* Name and product designation of manufacturer
** Also order the appropriate Bachmann adapter frame for fitting in the switch range.

Switch range

Art. no. Version

Simple 3D rendering of a square mechanical component with mounting holes (no text or symbols)

Custom module mounting plate for switch range Stainless steel

917.064

· Stainless steel mounting plate suitable for conventional devices, for flush-mounted, cavity and device boxes for trunking· Incl. 2 Torx M2 screws· For trunking an additional mounting box is required(see manufacturer's range)

Adapter frame for switch range Plastic

917.065 · 50 x 50 mm

· Black

· Fits into conventional switch ranges (50 x 50 mm internal dimensions) in conjunction with the stainless steel mounting plate 917.064

Please check the compatibility list from page 72

Adapter frame for switch range
Plastic

917.168 · 50 x 50 mm

· White RAL 9010

· Fits into conventional switch ranges (50 x 50 mm internal dimensions) in conjunction with the stainless steel mounting plate 917.064

Please check the compatibility list from page 72

Adapter frame for switch range
Plastic

917.066 · 55 x 55 mm

· Black

· Fits into conventional switch ranges (55 x 55 mm internal dimensions) in conjunction with the stainless steel mounting plate 917.064

Please check the compatibility list from page 72

Adapter frame for switch range
Plastic

917.169 · 55 x 55 mm

· White RAL 9010

· Fits into conventional switch ranges (55 x 55 mm internal dimensions) in conjunction with the stainless steel mounting plate 917.064

Please check the compatibility list from page 72

Floor boxes

Art. no. Version

Floor box mounting 2 x Sheet steel

2 x custom modules

917.068 · For fitting in OBO Bettermann device case/floor-box systems

• Accepts 2 custom modules (transverse mounting)
• Incl. Torx M2 screws

Metallic mechanical housing component with internal slots and mounting holes (no text or symbols visible)

Floor box mounting 3 x Sheet steel

3 x custom modules

917.067 · For fitting in OBO Bettermann device case/floor-box systems

• Accepts 3 custom modules (transverse mounting)
• Incl. Torx M2 screws

3D rendering of a gray plastic mechanical housing with four vertical slots (no text or symbols visible)

Floor box mounting 2 x Black plastic

2 x custom modules

917.139 · Mounting for Electraplan floor boxes

• Accepts 2 custom modules (transverse mounting)
• Incl. Torx M2 screws for custom modules

Close-up of a black plastic electronic component with two square cutouts (no visible text or symbols)

Floor box mounting 3 x Black plastic

3 x custom modules

917.140 · Mounting for Electraplan floor boxes

• Accepts 3 custom modules (transverse mounting)
• Incl. Torx M2 screws for custom modules

Black plastic mechanical component with four square cutouts (no text or symbols visible)

Media racks/IT panels

Art. no. Version

10" custom module panel 1 U Black anodised aluminium

903.001 · Accepts up to 5 custom modules

- Incl. fixing accessories and Torx M2 screws

19" custom module panel 1 U Black anodised aluminium

903.000 · Accepts up to 10 custom modules

- Incl. fixing accessories and Torx M2 screws

Pure diagram of a rectangular object with internal slots, no text or symbols present

Modules for keystone data connections · All modules are supplied with 2 Torx T6 screws.

Art. no. Version

Module 2 x keystone

917.000	Module, black, accepts 2 data sockets with keystone fitting
	Suitable for the data sockets listed below
917.158	Module, white, accepts 2 data sockets with keystone fixing
	Suitable for the data sockets listed below

Module 1 x keystone

917.001	Module, black, accepts 1 data socket with keystone fitting
	Suitable for the data sockets listed below
917.159	Module, white, accepts 1 data socket with keystone fixing
	Suitable for the data sockets listed below

2 x keystone modules with metal holder

917.061

Module, black, accepts 2 data sockets with keystone fittingKeystone fitting with metal holder on rear of cover for high mechanical stressesSuitable for the data sockets listed below

Module 1 x keystone with metal holder

917.062	Module, black, accepts 1 data socket with keystone fitting
	Keystone fitting with metal holder on rear of cover for high mechanical stresses
	Suitable for the data sockets listed below

Data connections for custom modules 917.000, 917.001, 917.061 and 917.062

Socket / socket (Suitable data cables can be found in the accessories)

Art. no. Version

CAT6 coupling socket/socket

940.044	Type: BTR E-DAT
	Front: RJ45 (keystone fixing), rear: RJ45 (E-DAT mounting)
	Shielded

CAT6 coupling / socket/socket

940.083	Front: RJ45 (keystone fixing), rear: RJ45 (keystone fixing)
	- Shielded

CAT6 coupling socket/socket

940.112	Front: RJ45 (keystone fixing), rear: RJ45 (keystone fixing)
	· Unshielded

CAT5e coupling socket/socket

940.057

Front: RJ45 (keystone fixing), rear: RJ45 (keystone fixing) - Shielded

ISDN RJ12 socket/socket

940.085	Front: RJ 12 (keystone fixing), rear: RJ 12 (keystone fixing)
	Unshielded

Keystone socket cover

917.057

Socket cover, clips into an empty keystone socketCan be used as a placeholder for sockets inserted subsequentlySuitable for 917.000 / 917.001 / 917.061 / 917.062

Data connections for custom modules 917.000, 917.001, 917.061 and 917.062

Socket/supply cable

Art. no. Version

CAT6a 10 GB patch cable plug/socket 3.0 m

918.033	Front: Socket RJ45 CAT6a TKM 10 GB
	Cable, black, with RJ45 plug
	Shielded

CAT6a 10 GB patch cable plug/socket 5.0 m

918.034	Front: Socket RJ45 CAT6a TKM 10 GB
	Cable, black, with RJ45 plug
	Shielded

CAT6a 10 GB socket TKM

918.035	· CAT6 connector socket TKM 10 GB
	· Without cable (designed for tool-free connection of data cable)
	· Shielded

RJ 45 shutter

930.143 · Cover for keystone custom module

· Does not require tools

· Suitable for custom modules 917.000 / 917.001 / 917.051 / 917.052

· With paper labelling strips

· Universally suits 1 and 2 data connections

· Ideal as dust cover for data socket contacts when not in use

Keystone media technology links

Art. no. Version

Custom module 1 x HDMI keystone Black

918.040 · Front: HDMI socket
	· Rear: HDMI socket without cable
	· Fits into keystone frame 917.000 or 917.001
	· Requires approx. 85 mm installation depth

Custom module 1 x miniature jack 3.5 mm keystone Black

917.157	Front: 3.5 mm stereo miniature jack socket
	Rear: Miniature jack socket with approx. 0.1 m cable
	Fits into keystone frame 917.000 or 917.001
	Requires approx. 65 mm installation depth

Custom module 1 x USB 3.0 A / A keystone Black

917.120 - Front: USB A socket
	· Rear: USB A socket
	· Fits into keystone frame 917.000 or 917.001
	· Requires approx. 85 mm installation depth

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Six different types of Ethernet connectors shown in black, blue, and beige (no text or symbols visible)

OWG connections

Art. no. Version

OWG-LC duplex keystone

918.071 · OWG-LC duplex coupler - Keystone fixing

OWG-ST duplex keystone

918.073 · OWG-ST duplex coupler · Keystone fixing

TOSLINK keystone

918.045 · TOSLINK optic fibre audio coupler · Keystone fixing

OWG-SC keystone

918.072 · OWG-SC coupler · Keystone fixing

OWG-MT-RJ keystone

918.074 · OWG-MT-RJ coupler · Keystone fixing

Cable bushing

Four mechanical components with circular features, one showing a curved arrow and label 'Front Rear' (no other text or symbols)

Module 1 x data cable bushing

917.032 · Module with drill hole and 2-part cable bushing for data cables up to 11 mm in diameter

Module 1 x VGA cable bushing

917.033 · 1 x 2-part cable bushing, ideal for routing VGA cables; without cable. · Suitable for cables up to 24 mm in diameter

Modules for data connections All modules are supplied with 2 Torx T6 screws.

BTR ^**

- E-DAT module CAT6a 8(8) - E-DAT module coupling 8(8) CAT6

DAETWYLER ^**

- unilan MS 1 / 8 CAT6 RJ45 - unilan RJ45 feedthrough coupling CAT6 - unilan MU 1 / 8 CAT6 RJ45

KERPEN\*\*

VarioKeystone socket module RJ45

Three identical black-and-white electrical switch panel designs with no text or symbols

Module 2 x BTR E-DAT module CAT6

917.038 · Module with cut-out and mounting module for 2 x BTR E-DAT module CAT6 (not included) · Also suitable for Daetwyler Unilan module MS 1-8

Module 1 x BTR E-DAT module CAT6

917.006 · Module with cut-out and mounting module for 1 x BTR E-DAT module CAT6 (not included) · Also suitable for Daetwyler Unilan module MS 1-8

Module 1 x Systimax CAT6

917.003 · Module with cut-out and mounting plate for 1 x Systimax CAT6 MGS500 and MGS400 series (not included) FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Modules for data connections All modules are supplied with 2 Torx T6 screws.

Art. no. Version

Module 1 x RDM CAT6

917.005

- Module with cut-out and mounting plate (black) for 1 x Reichle de Masari (RDM) CAT6 (not included)

Module 1 x BKS

917.153

- Module with cut-out for BKS (RJ, RJ250, RJUTP, RJpro and MMC3000pro) data connections in conjunction with mounting clip 403-7540xx (not included).

- Also suitable for Kerpen ELine 1200 C7 socket in conjunction with ELine EC7 adapter clips LKD9ZE300210000), not included.

Module Nexans 2 x

917.052

- Module, black, with cut-out for 2 Nexans LAN-mark-6 CAT6 (clips in with keystone Nexans clip)

- Data socket and keystone clip available separately

Module Nexans 1 x

917.051

- Module, black, with cut-out for 1 Nexans LAN-mark-6 CAT6 (clips in with keystone Nexans clip)

- Data socket and keystone clip available separately

module with cut-out and mounting plate (black) for 1 x Panduit CAT6 (not included)

Module 1 x Corning CAT6

917.002

module with cut-out and mounting plate (black) for 1 x Tera CAT6 S250 (not included)

- Suitable for the following Corning modules: S500 module / CAXASM-00104-C001, S500 fx / CAXASM-00104-C002, S10 ten / CAXTSM-00112-C001, S10 ten fx / CAXTSM-00112-C004, S250 module / CAXESM-00100-C001, S250 fx / CAXESM-00100-C004, S100 eL / CAXGSM-00100-C001, S100 e / CAXDSM-00100-C001

Module 2 x CAT7 Tera

917.039

module with cut-out and mounting plate (black) for 2 x Tera CAT7 (not included)

- DAETWYLER unilan PS 1 / 8 CAT7, CORNING S1200 module S1200 shielded CAT7 +

Module 1 x CAT7 Tera

917.008

module with cut-out and mounting plate (black) for 1 x Tera CAT7 (not included)

· DAETWYLER unilan PS 1 / 8 CAT7, CORNING S1200 module S1200 shielded CAT7 +

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Manufacturer

917.000

917.001

917.061

917.062

917.038

917.006

917.003

917.002

917.051

917.052

917.053

917.008

917.038

917.007

917.005

Bachmann versions

CAT6 coupling, shielded 940.044

x

x

x

x

CAT6 coupling, unshielded 940.112 x x x x

CAT5e coupling 940.057 x x x x

ISDN RJ12 socket unshielded x x x x

CAT6a 10 GB socket TKM, shielded, for automatic telephone 918.035 x x x

x

CAT6a 10 GB socket TKM, shielded, with 3.0 m cable and RJ45 plug / 918.033 x

x

x

x

CAT6a 10 GB socket TKM, shielded, with 5.0 m cable and RJ45 plug / 918.034 x

x

x

x

Socket cover / blank cover keystone black / 917.057 x x x x

RJ45 shutter / 930.143 x x

OWG-LC duplex keystone / 918.071 x x x x

OWG-SC keystone / 918.072 x x x x

OWG-ST keystone / 918.073 x x x x

OWG-MT-RJ keystone / 918.074 x x x x

TOSLINK keystone / 918.045 x x x x

Tyco Electronics / AMP NETCONNECT*

SL Series 110 Connect jacks CAT6 X

x

x

x

SL Series 110 Connect jacks CAT5e

x

x

x

x

SL Series 110 Connect jacks CAT3 X x x x

SL Series toolless jacks CAT5e

x

x

x

x

SL Series toolless jacks CAT3 x x x x

Modular telephone coupler RJ45 / RJ11 coupler

x

x

x

x

AMP-TWIST-6S SL jack CAT6 x x x x

Standard 110 Connect jacks CAT5e

x

x

Standard 110 Connect jacks CAT3 RJ45 / RJ11

x

x

AMP-TWIST 6AS SL RJ45 jack

x

x

x

x

ADC KRONE*

KM8 RJ45 Modular keystone shielded

x

x

KM8 RJ45 Modular keystone unshielded

x

x

BELDEN*

Giga Flex keystone

x

x

x

x

Giga Flex MDVO

x

x

x

x

BKS* (can be used with mounting clip 403-7540xx (not included)

RJ, RJ250, RJUTP, RJpro and MMC3000pro

x

* Name and product designation of manufacturer

Manufacturer

917.000

917.001

917.061

917.062

917.038

917.006

917.003

917.002

917.051

917.052

917.053

917.008

917.038

917.007

917.005

BRAND-REX*

10GPLUS jack shielded

x

x

x

x

Augmented category 6 shielded tool-free jack / AC6JAKS000 x x x x

CAT5e GIGAPlus jack 110 IDC 568 x x

CAT6 keystone plus x x

CAT6 keystone snap in x x x x

CAT6 Plus

x

x

Cat6Plus shielded module / C6CJAKS000CR x x x x

Category 6 shielded tool-free jack 7 C6CJAKS000 x x x x

BTR*

C6A module 180° / 130B11-E

x

x

E-DAT module CAT6a 8(8) x x

E-DAT module coupling 8(8) CAT6 1309A0-I x x x x x x

E-DAT module coupling 8(8) CAT6 1309A0-I x x

UTP module CAT5e / 130A08-I / 130A08-I-B1 x x x x

UAE module CAT5e unshielded 130908-x x x x

UAE module CAT6 130909-I / 130909-I-B1 x x

UTP module 8 (8) CAT6 / 130A10-I / 130A10-29-I / 130A10-29-I-B1 x x x x

x

CIMABOX*

CAT5e and CAT6 keystone CJ545U / CJ545F

x

x

x

x

Shielded and unshielded CJ645U / CJ645F x x x x

COBINET*

TopConnect RJ45 patch cable coupling

x

x

RJ45 module TopKey

x

x

CORNING*

S10 TEN / CAXTSM-00112-C001

x

S10 TEN fx / CAXTSM-00112-C004

x

S100 e / CAXDSM-00100-C001

x

S100 eL / CAXGSM-00100-C001

x

S1200 module S1200 shielded CAT7 / CAXFSM-00100-C001

x

x

S250 fx / CAXESM-00100-C004

x

S250 module / CAXESM-00100-C001

x

S500 fx / CAXASM-00104-C002

x

S500fx module / CAXBSM-00104-C002

x

x

x

x

S500 module / CAXBSM-00104-C001

x

x

x

x

S500 module / CAXASM-00104-C001

x

* Name and product designation of manufacturer

Manufacturer

917.000

917.001

917.061

917.062

917.038

917.006

917.003

917.002

917.051

917.052

917.053

917.008

917.038

917.007

917.005

DAETWYLER*

unilan RJ45 coupling CAT6 417 446

x

x

x

x

unilan module KS 1/8 CAT6 RJ45 418 050 x x x x

unilan module KS 1/8 CAT5e RJ45 418 051 x x x x

unilan module KST 1/8 toolless CAT6 RJ45 418 053 x x x x

unilan module KU 1/8 CAT6 418 080 x x x x

unilan module KU 1/8 CAT6 418 081 x x x x

unilan module KU 1/8 CAT5e 418 082 x x x x

unilan module KU 1/8 CAT5e 418 083 x x x x

unilan® module PS-GG45 7A 1000 MHz 400 102 + 400 103****

x

x

unilan® module KS-T 6A 1/8 tool-less cat. 6A/EA, shielded 418 060 x x x x

unilan® module KS-TS 6 1/8 toolless Slimline cat.6/EA shielded 418 054 x x x x

x

unilan® RJ45 keystone coupler CAT6 / 418 057 x x x x

unilan® module KS-T5 1/8 tool-less cat. 5e, shielded / 418 055 x x x x

unilan® RJ45 module MS-K 1/8 cat. 6a shielded - modular solution 440 001 x x x x

x

x

unilan® module MS-K Plus 1/8 cat. 6A, shielded 440 004 x x x x

unilan MS 1/8 CAT6 RJ45 x x

unilan RJ45 feedthrough coupling CAT6 x x

unilan MU 1/8 CAT6 RJ45 x x

unilan PS 1/8 CAT7

x

x

x

x

x

x

EFB ECOLAN*

E-20050

x

x

x

x

E-20051

x

x

x

x

E-20060

x

x

x

x

E-20061

x

x

x

x

37.486.1

x

x

x

x

37.488.1 x x x x

37.508.2

x

x

x

x

x

x

ERSYS*

CAT5C-SIJ-FKey-002

x

x

Ersys 356k-8c5e

x

x

Ersys 628MC-8-C5E

x

x

x

x

x

x

GIGAMEDIA*

RJ45 CAT6 UTP / STP

x

x

x

x

RJ45 CAT6 contacts 110 UTP / STP

x

x

x

x

RJ45 CAT5e UTP / STP

x

x

x

x

3M*

Volition RJ45 K6 module without shielding cover*

x

x

* Name and product designation of manufacturer

Manufacturer

917.000

917.001

917.061

917.062

917.038

917.006

917.003

917.002

917.051

917.052

917.053

917.008

917.038

917.007

917.005

KERPEN*

ELine 250 MLS RJ45 shielded

x

x

x

x

ELine 250 MLU RJ45 unshielded x x x x

ELine 600® GG45 socket / 9ZE20001 x x x x

Variokeystone socket module RJ45 x x

x

x

x

x

NEXANS* (requires additional keystone clip to fit)

LANmark-5 snap-in EVO

x

x

LANmark-6 EVO RJ45 snap-in x x

LANmark-6 10G snap-In x x

LANmark-7 GG45 snap-in x x

x

x

Panduit*

Mini-Com® Mini-JackTM category 3 UTP jack modules x

Mini-Com® TX5eTM keyed shielded jack modules x

Mini-Com® category 6 UTP coupler module x

Reichle de Masari*

RDM CAT6

x

RUTENBECK*

UM-real. cat. 6a A

x

x

x

x

x

x

x

x

SETEC*

CAT6 modular keystone jack shielded

x

x

x

x

SeSix eXtra keystone jack XKJ x x x x

SeSix universal keystone jack UKJ x x x x

SeSix modular keystone jack MKJ x x x x

SYSTIMAX*

MGS500 CAT6 series

x

MGS400 series x

x

TELEGÄRTNER*

AMJ module K CAT6+

x

x

AMJ coupling K CAT6

x

x

AMJ coupling K CAT5e x x

x

x

x

x

TKM*

RJ-MOD - cat. 6 / 4677682

x

x

x

x

GG45 / 4677701 (can be fitted with keystone clip)

x

x

x

x

* Name and product designation of manufacturer

Video and audio modules See the glossary for detailed information on use/application

Front Rear

Two electronic device components: a black rectangular panel with blue VGA connectors and a black cylindrical connector (no text or symbols visible)

Art. no. Version

Custom module 1 x VGA + miniature jack Black

917.045

ont: VGA socket and miniature jack

• Rear: VGA socket and miniature jack with approx. 0.1 m cable
• Requires approx. 70 mm installation depth

Two electronic device components: a blue V1 port and a green connector stack (no text or symbols visible)

Custom module 1 x VGA + miniature jack Black

917.071

Front: VGA socket and miniature jack

· Rear: 10-pole screw terminal (VGA) and 3-pole (stereo)
- Requires approx. 50 mm installation depth

Two electronic components: a blue VGA connector and a green circuit board (no visible text or symbols)

Custom module 1 x VGA + miniature jack White

917.160

Front: VGA socket and miniature jack

• Rear: 10-pole screw terminal (VGA) and 3-pole (stereo)
• Requires approx. 50 mm installation depth

Three electronic components: a blue D-sub interface, a green electrical connector with black leads, and three colored wires (red, green, white) attached to the right side.

Custom module 1 x VGA + miniature jack Black

917.073

Front: VGA socket and miniature jack

• Rear: 5 x BNC socket with approx. 0.3 m cable (VGA) and 3-pole (stereo)
• Requires approx. 50 mm installation depth

Three electronic component images showing VGA connectors with mounting holes (no text or symbols visible)

Custom module 1 x VGA + miniature jack Black

917.150

Front: VGA socket and miniature jack

• Rear: VGA + miniature jack socket with approx. 0.2 m cable each
• Requires approx. 50 mm installation depth

Electronic device components including a GND card, VGA connectors, and USB port (no visible text or symbols)

Custom module 1 x VGA + miniature jack and button for MediaNet switch Black

917.134

Front: VGA socket and miniature jack + button, blue illuminated

• Rear: VGA socket and miniature jack with approx. 0.1 m cable + RJ12 socket for button
• Requires approx. 70 mm installation depth

All modules are supplied with 2 Torx T6 screws. For suitable cables see the Accessories section

Art. no. Version

Custom module 1 x VGA + miniature jack and button for MediaNet switch Black

917.074 · Front: VGA socket and miniature jack + button, blue illuminated

- Rear: 10-pole screw terminal (VGA) and 3-pole (stereo) + micro clamp terminal (button)

- Requires approx. 50 mm installation depth

Custom module 1 x VGA + miniature jack and button for MediaNet switch Black

917.077 · Front: VGA socket and miniature jack + button, blue illuminated

Rear: 5 x BNC socket with approx. 0.3 m cable (VGA) and 3-pole (stereo) + micro clamp terminal

(button)

- Requires approx. 50 mm installation depth

Custom module 1 x VGA Black

917.011 · Front: VGA socket

- Rear: VGA socket

- Requires approx. 70 mm installation depth

Custom module 1 x VGA Black

917.069 · Front: VGA socket

- Rear: 10-pole screw terminal (VGA)

- Requires approx. 50 mm installation depth

Custom module 1 x VGA Black

917.070 - Front: VGA socket

- Rear: 5 x BNC socket with approx. 0.3 m cable (VGA)

- Requires approx. 35 mm installation depth

Custom module 1 x VGA Black

917.072 · Front: VGA plug

- Rear: 10-pole screw terminal (VGA)

- Requires approx. 50 mm installation depth

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Front

Rear

Video and audio modules See the glossary for detailed information on use/application

Front Rear

Collection of automotive electrical connectors and sensors (no visible text or symbols)

Art. no. Version

Custom module 1 x DVI-I + miniature jack Black

917.021

ont: DVI-I socket and miniature jack

• Rear: DVI-I socket and miniature jack with approx. 0.1 m cable each
• Requires approx. 75 mm installation depth

Custom module 1 x DVI-I Black

917.078

ont: DVI-I socket

• Rear: DVI-I socket with approx. 0.1 m cable
• Requires approx. 75 mm installation depth

Custom module 1 x HDMI keystone Black

918.040

ont: HDMI socket

• Rear: HDMI socket without cable
• Fits into keystone frame 917.000 or 917.001
• Requires approx. 85 mm installation depth

Custom module 1 x HDMI Black

917.143

ont: HDMI socket

• Rear: screw terminal 2 x 9-pole (HDMI)
• Requires approx. 40 mm installation depth

Custom module 1 x HDMI White

917.183

ont: HDMI socket

• Rear: screw terminal 2 x 9-pole (HDMI)
• Requires approx. 40 mm installation depth

Custom module 1 x display port Black

917.145

ont: display port socket

• Rear: display port socket, without cable
• Requires approx. 70 mm installation depth

Video and audio modules

See the glossary for detailed information on use/application

Art. no. Version

Module 1 x video + Cinch stereo BVM-1 Black

917.026 · Front: Cinch video (yellow) + Cinch stereo (red + white) socket - Rear: Cinch socket without cable

Custom module 1 x Cinch video + stereo Black

917.085 · Front: Cinch video (yellow) + Cinch stereo (red + white) socket · Rear: 10-pole screw terminal (VGA) · Requires approx. 50 mm installation depth

Custom module 1 x Cinch video + stereo White

917.161 · Front: Cinch video (yellow) + Cinch stereo (red + white) socket · Rear: 10-pole screw terminal (VGA) · Requires approx. 50 mm installation depth

Module 1 x VBNC + Cinch stereo Black

917.027 · Front: BNC video (yellow) + Cinch stereo (red + white) socket · Rear: BNC + Cinch socket without cable

Module 1 x S-Video + Cinch stereo Black

917.028 · Front: S-Video (S-VHS) + Cinch stereo (red + white) socket · Rear: S-Video + Cinch socket without cable

Module 1 x S-Video + Cinch stereo Black

917.081 · Front: S-Video + Cinch stereo (red + white) socket · Rear: screw terminal 4-pole (S-Video) + 3-pole (stereo) · Requires approx. 30 mm installation depth

Custom module 1 x S-Video + Cinch stereo White

917.162 · Front: S-Video + Cinch stereo (red + white) socket · Rear: screw terminal 4-pole (S-Video) + 3-pole (stereo) · Requires approx. 30 mm installation depth

Front Rear

Two industrial electrical components with metallic and green fittings, no visible text or symbols

Two electronic components: a metallic connector with three circular ports and a green terminal block (no visible text or symbols)

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Video and audio modules

See the glossary for detailed information on use/application

Front Rear

Art. no. Version

Module 1 x S-Video + Cinch stereo Black

917.035

front: S-Video (S-VHS) + Cinch video (yellow) socket

- Rear: S-Video + video socket without cable

Custom module 1 x S-Video + Cinch video Black

917.083

Front: S-Video + Cinch video (yellow) socket

- Rear: screw terminal 4-pole (S-Video) + approx. 0.3 m cable with 2 x BNC (stereo)

- Requires approx. 30 mm installation depth

Custom module 1 x BNC R / G / B Black

917.088

Front: BNC socket R / G / B (red / green / blue)

- Rear: screw terminal 6-pole

- Requires approx. 30 mm installation depth

Custom module 1 x BNC R / G / B Black

917.090

Front: BNC socket R / G / B (red / green / blue)

- Rear: BNC socket R / G / B (red / green / blue)

- Requires approx. 65 mm installation depth

Custom module 1 x sat / TV / radio Black

917.030

Front: F-plug connector (sat) and 2 x coax (TV + radio)

· Rear: F-plug connector (sat) and 2 x coax (TV + radio)

- Requires approx. 50 mm installation depth

Custom module 1 x TV / radio Black

917.117

front: 2 x coax (TV + radio)

- Rear: 2 x coax (TV + radio)

- Requires approx. 50 mm installation depth

Custom module 1 x Cinch stereo Black

917.022

Front: Cinch stereo socket (red + white)

- Rear: Cinch stereo (red + white) socket without cable

- Requires approx. 55 mm installation depth

Video and audio modules

See the glossary for detailed information on use/application

Art. no. Version

Custom module 1 x Cinch stereo Black

917.089

Front: Cinch stereo socket (red + white)
- Rear: 3-pole screw terminal (stereo)
- Requires approx. 35 mm installation depth

Front

Rear

Custom module 1 x Cinch stereo White

917.163

Front: Cinch stereo socket (red + white)

- Rear: 3-pole screw terminal (stereo)

- Requires approx. 35 mm installation depth

Custom module 1 x 3.5 mm miniature jack Black

917.023

Front: 3.5 mm stereo miniature jack socket (red + white)

- Rear: Cinch stereo socket (red + white)

- Requires approx. 65 mm installation depth

Custom module 1 x miniature jack 3.5 mm keystone Black

917.157

Front: 3.5 mm stereo miniature jack socket

- Rear: Miniature jack socket with approx. 0.1 m cable

- Fits into keystone frame 917.000 or 917.001

- Requires approx. 65 mm installation depth

Custom module 1 x 3.5 mm miniature jack Black

917.091

Front: 3.5 mm stereo miniature jack socket

- Rear: screw terminal 3-pole

- Requires approx. 35 mm installation depth

Custom module 1 x 3.5 mm miniature jack White

917.164

Front: 3.5 mm stereo miniature jack socket

- Rear: screw terminal 3-pole

- Requires approx. 35 mm installation depth

Custom module 1 x 6.3 mm stereo jack Black

917.036

Front: stereo jack socket 6.3 mm

- Rear: cable approx. 0.1 m with jack socket 6.3 mm

- Requires approx. 65 mm installation depth

FACILITY SYSTEMS

IT RACK PANELS

ELECTRICAL INSTALLATIONS

Audio modules See the glossary for detailed information on use/application

Front Rear

Three black electronic component images: a circular connector, a pin socket, and a plug (no text or symbols visible)

Art. no. Version

Custom module 1 x XLR microphone 3-pole Black

917.024 · Front: XLR 3-pole microphone socket - Rear: cable approx. 0.1 m with XLR plug 3-pole - Requires approx. 65 mm installation depth

Custom module 1 x XLR socket 3-pole Black

917.096 · Front: XLR 3-pole socket · Rear: screw terminal 3-pole · Requires approx. 40 mm installation depth

Custom module 1 x XLR socket 3-pole White

917.165 · Front: XLR 3-pole socket · Rear: screw terminal 3-pole · Requires approx. 40 mm installation depth

Custom module 1 x XLR socket 4-pole Black

917.099 - Front: XLR 4-pole socket - Rear: screw terminal 4-pole - Requires approx. 40 mm installation depth

Custom module 1 x XLR socket 5-pole Black

917.101 · Front: XLR 5-pole socket · Rear: screw terminal 5-pole · Requires approx. 40 mm installation depth

Custom module 1 x XLR plug 3-pole Black

917.095 · Front: XLR 3-pole plug · Rear: screw terminal 3-pole · Requires approx. 40 mm installation depth

Custom module 1 x XLR plug 4-pole Black

917.098 · Front: XLR 4-pole plug · Rear: screw terminal 4-pole · Requires approx. 40 mm installation depth

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Audio modules

See the glossary for detailed information on use/application

Art. no. Version

Custom module 1 x XLR plug 5-pole Black

917.100 · Front: XLR 5-pole plug

• Rear: screw terminal 5-pole
• Requires approx. 40 mm installation depth

Front

Rear

Custom module Combo series 1 x XLR socket 3-pole + 1 x 6.3 mm jack socket Black

917.094 · Front: XLR socket 3-pole + 6.3 mm stereo jack socket

· Rear: Screw terminal 2 x 3-pole
- Requires approx. 40 mm installation depth

Custom module 1 x Speakon 2-pole + 6.3 mm stereo jack Black

917.102 · Front: Speakon socket + 6.3 mm stereo jack

• Rear: screw terminal
• Requires approx. 50 mm installation depth

Custom module 1 x Speakon 4-pole Black

917.110 · Front: Speakon 4-pole socket

· Rear: screw terminal
- Requires approx. 40 mm installation depth

Custom module 1 x stereo loudspeaker connection Black

917.114 · Front: stereo loudspeaker connection (red + white)

· Rear: screw terminal
- Requires approx. 30 mm installation depth

Data transmission

See the glossary for detailed information on use/application

Front Rear

Art. no. Version

Custom module 1 x USB 3.0 A / A keystone Black

917.120	Front: USB A socket
	· Rear: USB A socket
	· Fits into keystone frame 917.000 or 917.001 (see page 72)
	· Requires approx. 85 mm installation depth

Custom module 2 x USB 2.0 A / A Black

917.141	Front: 2 x USB A socket
	Rear: Screw terminal 2 x 4-pole
	Requires approx. 40 mm installation depth

Custom module 2 x USB 2.0 A / A White

917.182	Front: 2 x USB A socket
	· Rear: Screw terminal 2 x 4-pole
	· Requires approx. 40 mm installation depth

Custom module 1 x USB 2.0 A / B Black

917.018	Front: USB A socket
	Rear: USB B socket
	Requires approx. 85 mm installation depth

Custom module 1 x USB 2.0 B / A Black

917.019 · Front: USB B socket
	· Rear: USB A socket
	· Requires approx. 85 mm installation depth

Custom module 1 x FireWire Black

917.037	Front: FireWire socket 6-pole
	Rear: FireWire socket 6-pole
	Requires approx. 85 mm installation depth

Custom module RS232 socket Black

917.075	Front: RS232 SubD 9-pole socket
	Rear: screw terminal 9-pole
	Requires approx. 40 mm installation depth

Custom module RS232 plug Black

917.076	Front: RS232 SubD 9-pole plug
	Rear: screw terminal 9-pole
	Requires approx. 40 mm installation depth

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Data transmission

See the glossary for detailed information on use/application

Art. no. Version

Custom module 1 x RS232 socket Black

917.012

• Rear: RS232 SubD 9-pole socket
• Requires approx. 70 mm installation depth

Custom module 1 x RS232 crossover socket Black

917.116

ont: RS232 SubD 9-pole socket
- Rear: RS232 SubD 9-pin crossover plug (crossed)
- Requires approx. 70 mm installation depth

Custom module PS2 mouse + keyboard Black

917.031

• Front: 2 x MiniDIN 6-pole socket (mouse - mint green; keyboard - purple)
• Rear: 2 x MiniDIN 6-pole socket (mouse - mint green; keyboard - purple)
• Requires approx. 50 mm installation depth

Power transmission

Art. no.

Custom module Power Con blue (power input) Black

917.112

• Front: Power Con socket, blue
• Rear: Screw terminal, incl. 2 crimp sleeves and cover cap
• Requires approx. 40 mm installation depth

Custom module Power Con grey (power outlet) Black

917.113

• Front: Power Con socket, grey
• Rear: Screw terminal, incl. 2 crimp sleeves and cover cap
• Requires approx. 40 mm installation depth

Front

Rear

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

Control See the glossary for detailed information on use/application

Front

Rear

Art. no. Version

Custom module with stainless steel button Black

917.046

- Front: stainless steel button; switching capacity: 50 mA/24 V/DC;

• Rear: screw terminal 2-pole
• Requires approx. 30 mm installation depth

Custom module with stainless steel button, blue illuminated Black

917.047

• Front: Stainless steel button, blue illuminated (ring illuminated);
  switching capacity: 50 mA/24 V/DC
• Rear: Solder pins 4-pole
• Requires approx. 30 mm installation depth

Custom module with automatic switchoff button Black

917.060

Front: button, black;

• Rear: GST15i2 connector with approx. 1.0 m cable (suitable for power strips with automatic switchoff device, e.g. STEP switchoff device 906.005)
• Requires approx. 40 mm installation depth

Custom module with button Black

917.152

Front: on/off switch

• Rear: approx. 1.0 m 3G 1.0 mm ^2 cable with end sleeves (labelled)
• Requires approx. 60 mm installation depth

Custom module with switch (to control external devices) Black

917.135

Front: 2-pole rocker switch, green

• Rear: approx. 1.0 m H05VV-F 4G 1.50 mm² cable with end sleeves (labelled)
• Requires approx. 60 mm installation depth

Custom module with 4-key keypad for MediaNet control unit Black

917.127

Front: 4 buttons, white, blue illuminated

• Rear: 2 x RJ45 sockets for connecting to media controller and linking to further modules of the same type
• Requires approx. 30 mm installation depth
• Note: cannot be used in electrical installations.

Custom module with 4-key keypads for KNX application Black

917.056

Front: 4 buttons, white, blue illuminated, with various pictograms for labelling, programmable on KNX installations; with integrated bus coupler; voltage supply: system voltage 30 V DC via bus push-in terminal;

• Rear: Bus push-in terminal, 2-pole
• Requires approx. 35 mm installation depth

Custom module with 4-key keypads for EnOcean application Black

917.093

Front: 4 buttons, white, blue illuminated, with various pictograms for labelling, programmable on EnOcean application; with built-in radio module, battery buffered;
- Requires approx. 35 mm installation depth

FACILITY SYSTEMS

IT RACK PANELS

ELECTRICAL INSTALLATIONS

Accessories

See the glossary for detailed information on use/application

Art. no. Version

Custom module blank cover Black

917.009 · Blank cover as placeholder or for you to mount your own connector - Material: plastic, black, thickness 1.8 mm

Custom module blank cover White

917.166 · Blank cover as placeholder or for you to mount your own connector · Material: plastic, white, thickness 1.8 mm

Custom module blank cover with screw dome Black

917.010 · Blank cover as placeholder or for you to mount your own connector - Screw dome on rear side of module for fixing e.g. of boards or blank holders - Material: plastic, black, thickness 1.8 mm

Custom module blank cover with screw dome White

917.167 · Blank cover as placeholder or for you to mount your own connector · Screw dome on rear side of module for fixing e.g. of boards or blank holders · Material: plastic, white, thickness 1.8 mm

Torx T6 screws for custom modules in facility power strips Black

917.041 · Designed for 10 screwing cycles; contents: 10 pcs in colour black

Screws Torx T6 for custom modules in electrical installations (mounting plate) and 10" + 19" panels Black

917.111 · Designed for 10 screwing cycles; contents: 10 pcs in colour black

Torx T6 screwdriver Black

917.040 · x Torx T6 screwdriver to fit the screws on the custom modules

Modern office interior with large windows and a potted plant, featuring beige chairs on a long table (no visible text or symbols)

Media technology

Bachmann media technology systems provide a flexible and elegant solution for custom media management in conference and training rooms. From simply switching between image and sound signals to a complete central control of all media, this solution can be tailored to the needs of every user.

With its modern components, including control elements from the global market leader AMX ^® plus all connecting systems, Bachmann media technology systems offer all that is required for any application. Thanks to its modular construction and intelligent cabling, the system can be quickly installed or adapted to specific requirements.

The flexibility of Bachmann complete solutions is complemented by their elegance. Regardless of how complex the Bachmann media technology system configuration is, it can be quickly and easily integrated into the Bachmann facility systems.

Media Express

Plug-and-play for simplicity and efficiency.

Bachmann's Media Express system for media technology lets you switch between different image and sound signals and is already integrated in the connection panels of the Bachmann facility product ranges. In addition to switching between image and sound signals, Media Express also extends the network connection to each user.

Media Switch

Flexible and reliable thanks to high-quality components.

The Media Switch (Amx ^® inside) allows simple routing of image and sound signals from multiple users to various output devices such as projectors or monitors. All these elements can be combined with existing Bachmann facility products.

Media Control

Simple control of complex processes in media and facility applications.

The Media Control (Amx ^® inside) system uses control units to govern the various media from a central point. This makes it possible to activate various processes in a meeting or conference environment at the touch of a button on the Bachmann connection panel. The system is very user-friendly and easy for visitors to grasp quickly.

Media Express –

Plug-and-play for simplicity and efficiency.

Two electronic devices connected by red and black cables, one mounted on a computer monitor (no visible text or symbols)

Problem-free integration

Media Express is the solution for simple switching between image and sound signals. This system is already integrated in the connection panels of the Bachmann facility product ranges. In addition to switching between signals, it gives a network connection to each user.

With Media Express the individual connection panels are linked in a series known as a 'daisy chain'. This chain requires only one cable set with 3 connections. Connections are inserted into the connection panels on a plug-and-play basis. No programming of the units is necessary and the sequence of the connection units can be freely selected. The system is self-initialising and can be used immediately.

Flexible switching

The signal-switching function enables image and sound signals to be sent from the connection panel to a D/V projector or monitor screen. Authorisation to transmit the user's image and sound signal is activated by means of a dedicated button. An LED on the button indicates activation.

For image transmission the common 15-pole VGA sub-D system is provided on the front of the connection panel. This allows laptops to be connected easily using VGA connector cables. Of particularly practical benefit, no additional signal booster is necessary as this is integrated into the feeder box. This assures problem-free image transmission (so long as the maximum number of users and cable length are observed). The system can be built with a single infeed.

Interior view of a long conference room with rows of chairs and a large table, no visible text or signage

Up to 6 connection panels can be linked via connector cables. No central switching box is required. Projectors or monitors can be connected directly to the feeder box.

Simplicity of linking

Connection to the network requires only one access point (via the feeder cable). Two RJ45 LAN ports with signal boosting on each connection panel allow laptops to be connected. Thus the network is linked from one user to the next via the connector cable. The built-in network switch is designed for 10/100 Mbit and is sufficient, depending on the specific installation, for up to 6 participants.

Feeder box

The system structure requires the use of a feeder box. This box provides the link between the connection panels and the output devices (projector, audio, network etc.).

The advan tages at a glance

• Simple plug-and-play principle
• Electronics already integrated in the connection panel
• Available for most Bachmann facility systems
- Pre-cabled
• Extension of image, sound and network signals
• Simple, decentralised signal switching
• Compact and space-saving unit

Configuration information and lists of applications are available at www.bachmann.com.

Should you have any questions concerning your project, contact us at [e-mail] for assistance.

Overview of Media Express connections

15-pole VGA sub-D interface for image transmission Authorisation request button with visual acknowledgement 2 x LAN RJ45 sockets 3.5 mm miniature jack stereo socket

Media Express technical data:

Video / audio:

• Hardware detect/automatic detection
• Input signal: - 0.7 Vss/75 ohm RGB, 5 V H&V-Sync, 1.8 Vss audio, 24 bit/96 kHz
• 15-pin VGA sub-D plug
• Output signal: - 0.7 Vss/75 ohm RGB, 5 V H&V-Sync, 3.5 Vss audio, 24 bit/96 kHz - 26-pin sub-D socket
  • Video bandwidth: (+/- 3 dB) 300 MHz
  • Resolution max: 1600 x 1024
  • Transmission distance: 20 x MediaNet Express modules/cable length: max. 50 m in total
  • Audio: stereo L/R

Connections:

• 1 x 15-pole VGA sub-D
• 1 x 3.5 mm miniature jack stereo socket
• 2 x LAN RJ45 sockets
- Sockets as per connection unit selected

Network:

• 2 x RJ45 ports, 10 / 100 Mbit
• CAT5 with LED (speed and active LED)

Power supply unit:

2.5 A; 18 V
• Max. current consumption per connection unit: - 500 mA

Media Express

The Media Express unit can also be integrated into other facility systems such as Power Frame, Desk and Step. Please ask us for the configuration you require.

• Anodised aluminium profile, black socket outlets, rotated 35^
• Media Express
  • Power input: GST18i3
  • Power outlet: GST18i3

Art. no. Version

1x earthing contact, GST18i3, short (TOP FRAME, CONFERENCE) Length: approx. 260 mm
1 x Media Express

903.2000

1 socket outlet with earthing contact · 1 Media Express

3 x earthing contact, GST18i3, long (TOP FRAME, CONFERENCE) Length: approx. 444 mm
1 x Media Express, 2 x custom modules

903.2001	3 socket outlets with earthing contact
	· 1 Media Express
	· 2 custom modules, empty

Exterior view of a black plastic electronic component with internal slots, labeled 'CUSTOM' in red and German flag (no other text or symbols)

2 x earthing contact, GST18i3 (CONI) Length: approx. 356 mm
1 x Media Express, 1 x custom module

903.3000	2 socket outlets with earthing contact
	· 1 Media Express
	· 1 custom module, empty

Exterior view of a gray plastic enclosure with three internal slots and a German flag marker in the corner (no text or symbols on the casing itself)

3 x earthing contact, GST18i3 (CONI) Length: approx. 356 mm
1 x Media Express

903.3001	3 socket outlets with earthing contact
	- 1 Media Express

Exterior view of a black rectangular electronic device with four ports, no visible text or symbols

Media Express feeder box

Art. no. Version

Media Express feeder box

Signal feeder unit for Media Express system

903.400 - Distribution of signals:

• Image (D/V projector), 15-pole VGA sub-D to 26-pole sub-D
• Sound (loudspeakers), Cinch stereo to 26-pole sub-D
• Data (network), RJ45 to RJ45
  – Signal authorisation on 26-pole sub-D
• RS-232 interface for optional programming

Media Express feeder cable

• Feeder cable length 2.0 m
  • The cable set is held together in a textile-fibre sleeve

Art. no. Version

Coiled black cable with connectors and connectors (no visible text or symbols)

Media Express feeder cable

Feeder cable to feeder box

903.500 · 1 x 15-pole VGA plug/26-pole sub-D socket
- 1 x CAT6 patch cable plug/plug, shielded
- 1 x power cable, right-angle earth contact plug and GST18i3 socket

Media Express connector cable

• Connecting cable, length 2.0 m
  • The cable set is held together in a textile-fibre sleeve

Art. no. Version

Coiled black cable with multiple connectors (no visible text or symbols)

Media Express connector cable

To link one connection unit to another

903.600 · 1 x 26-pole sub-D (90° plug/45° socket)
- 1 x CAT6 patch cable plug/plug, shielded
· 1 x power cable, Wieland GST18i3 plug and GST18i3 socket

Typical order for 4 presentation stations

Quantity Art. no. Description

4 x For articles of your choice, see page 97 (903.2000, 903.2001, 903.2000, 903.2001)

Media Express

Quantity Art. no. Description

1 x 903.400 Signal feeder unit for Media Express system 1 x 903.500 Feeder cable to feeder box

Feeder cable

Quantity Art. no. Description

3 x 903.600 Connecting cable to link one connection unit to another

Connection

CurrentNetworkProjector Audio

Configuration information and lists of applications are available at www.bachmann.com. Should you have any questions concerning your project, contact us at [e-mail] for assistance.

Media Switch –

flexible and reliable thanks to high-quality components.

White desk with a laptop and a blank tablet on the surface (no text or symbols visible)

Easy to install

Today's meeting rooms are equipped such that the signal to an output device (projector etc.) can be switched between various sources. Key requirements are also ease of installation, ease of use and flexibility.

An exemplary solution to all these requirements is the Media Switch system.

Ease of integration

The control elements can be fitted into existing Bachmann facility products on a plug-and-play basis. Like all Bachmann media technology systems, Media Switch is also simple to plan, easy to install and straightforward to use. Multiple users can dock their laptops simultaneously via the multiple connection panels.

The VGA sockets on the connection panels allow e.g. presentations to be sent to the projector. As soon as a user presses the button on his/her connection panel, the switch selects the image signal on that panel/laptop. The connection to the switch /changeover switch is set up via a pre-prepared set of cables. Pressing the button issues a command to the switch /changeover switch to route the incoming image and sound signals to the projector and loudspeakers.

Black laptop on a conference table in an office setting (no visible text or symbols)

Signal booster

To ensure problem-free image signals, it is recommended that signal boosters are used with the Media Switch system. This enables image signals from devices with less powerful graphics cards to be transmitted with significantly better quality. The signal booster is fitted between each connection panel and the switch /changeover switch.

Switching is effected by pressing the button on a custom module with VGA and miniature jack on the connection panel. As soon as the button is pressed, the image and sound signals are routed to the switch /changeover switch. The button is illuminated blue until another user activates the button on his/her own connection panel to obtain signal authorisation.

The advan tages at a glance

• Simple, low-cost signal switching
• Star configuration, ideal for small meeting rooms
• Plug-and-play connections
- Decentralised switching: each user can request authorisation by pressing a button
- Additional switches/changeover switches can be cascaded one after the next to expand the system for larger numbers of users
- Connects to all Bachmann facility systems via built-in VGA, miniature jack and switch button connections (see art. no. 917.143)
- Pre-prepared cabling for connection between connection panel/signal booster and switch/changeover switch

Switcher/changeover switch

• Power supply: 9–12V DC 15W
- Includes power cable and operating instructions in German and English

AHX BACH MANN A3201 A INPUT A A2001 B INPUT B SOLECIS AVB-SL-8201-824 A SELECT

A-1000 18 MAX CONTROL OUTPUT OUTPUT AUDIO

For switch / changeover switch 903.100 there are two options for connecting to the custom module 917.134:

1. Without acknowledgement of signal authorisation, i.e. button is not illuminated when authorisation is granted. For this the set is used with signal authorisation 903.113 (see page 118).
2. With acknowledgement of signal authorisation, i.e. button is illuminated blue when authorisation is granted. For this the set is used with signal authorisation 903.112 (see page 118).

Art. no. Version

Switch / changeover switch L x W x H: 145 x 115 x 40 mm

2 x VGA / audio input, 1 x VGA / audio output

903.100 · RGB input / output: analogue HD-15 (VGA)
- Impedance 75 ohms / Max. signal level 1 V p-p
- RGB bandwidth: 400 MHz -3 dB
- RGB return loss: 45 dB@10 MHz, 27 dB@100 MHz
- Adjacent input crosstalk: 73 dB@10 MHz, 50 dB@100 MHz
· Audio input / output: analogue 3.5 mm stereo / Max level 2 V p-p

AHX BACH MAN 1 2 3 4 PLACT SOLECIS AVS-SL-0401-838

0-12000 18 MHz Rx Tx 0 A000101 1 2 3 4 A000101 7-5 4-5 R0002 - A00000.6 1 2 3 4 BUT

For the switch / changeover switch 903.101 there are the options of connecting the custom module 917.134 by means of the signal converter 903.112 (see page 118) with visual acknowledgement as button illumination.

Art. no. Version

Switch / changeover switch L x W x H: 225 x 125 x 45 mm

4 x VGA/audio input, 1 x VGA/audio output

903.101 · RGB input / output: analogue HD-15 (VGA)
- Impedance 75 ohms / Max. signal level 1 V p-p
- RGB bandwidth: 350 MHz -3 dB
- RGB return loss: 45 dB@10 MHz, 32 dB@100 MHz
· Audio input / output: analogue 3.5 mm stereo / Max level 2 V p-p

Suitable mountings on page 118

AMX BACH MANN SOLECKS R15-52-0001-048

70000000 USB 1 USB 2 USB 3 USB 4 USB 5 USB 6 USB 7 USB 8 USB 9 USB 10

For the switch / changeover switch 903.102 there are the options of connecting the custom module 917.134 by means of the signal converter 903.112 (see page 118) with visual acknowledgement as button illumination.

Art. no. Version

Switch / changeover switch L x W x H: 482 x 170 x 45 mm

6 x VGA / audio input, 1 x VGA / audio output

903.102 · RGB input / output: analogue HD-15 (VGA)
- Impedance 75 ohms / Max. signal level 1 V p-p
- RGB bandwidth: 400 MHz -3 dB
- RGB return loss: 45 dB@10 MHz, 2 dB@100 MHz
• Audio input / output: analogue 3.5 mm stereo / Max level 2 V p-p
- Mounting for 19" fitting included

Signal booster

• Interference can sometimes occur, particularly with image transmission. This may be caused e.g. by lower-power graphics cards on the laptop or by long cable lengths
  • To improve these image signals we recommend that each user uses a signal booster
• This provides optimum boosting of the signals and prevents interference when used by different users
  • Additional output (VGA 15HD) allows an additional monitor to be connected
• Compact, easily-installed unit

AMX RJRCN SOLECIS AVB-0A-RGBWV-0182

Back panel of a black electronic device showing three connected ports (no visible text or labels)

Art. no. Version

Signal booster VGA L x W x H: 150 x 70 x 35 mm

1 x VGA input, 2 x VGA output

903.104 · RGB input / output: analogue HD-15 (VGA),
- 1 x video IN/2 x video OUT
- Impedance 75 ohms / Max. signal level 1 V p-p
- Output gain 1.0 (unity)
- RGB bandwidth: 400 MHz -3 dB
- Power supply: 9 V DC 3 W
- Includes power cable and operating instructions in German and English

Typical order for 4 presentation stations

Quantity Art. no. Description

4 x Power strips from Bachmann facility systems with blank space for custom module
4 x 917.134 Custom module VGA, miniature jack and button for Media switch

Desk connection panel

Quantity Art. no. Description

4 x 903.104 VGA signal booster
4 x 918.009 VGA connecting cable from power strip to signal booster optional:
4 x 918.023 Mounting

Signal booster

Quantity Art. no. Description

1 x 903.101 Switch, 4-way, VGA + audio
1 x 918.023 Mounting

Switch

Quantity Art. no. Description

4 x 903.107-110 VGA + sound + authorisation cable set / own choice of length
1 x 903.112 Signal converter, 2-6-way with acknowledgement

Cabling

Projector Audio

Configuration information and lists of applications are available at www.bachmann.com.

Should you have any questions concerning your project, contact us at [e-mail] for assistance.

Media Control –

simple control of complex processes in media and facility applications.

Interior view of a modern conference room with a large oval table, patterned chairs, and large windows (no visible text or signage)

Central control

To control a variety of media from a central point, control units are used. This makes it possible to activate various processes in a meeting or conference environment at the touch of a button on the Bachmann connection panel. The system is very user-friendly and easy even for visitors or new users to grasp quickly. The various procedures can be individually performed between the operator panel (in the connection panel) and the control unit.

Close-up of a black electronic device with blue buttons and ports, mounted on a white base against a blue background (no visible text or symbols)

Simple to programme

Programming is very simple and can soon be set up with the software provided and the instruction manual (German/English). Subsequent alterations or additions can also be entered without problems.

The control functions can be used to control various media: e.g. projector, DVD, SAT, TV, projector screen, lighting, blinds etc.

The 2 built-in 230 V\~ 10 A relays can be used for example to connect a screen directly to the control unit. This means that a power cable is sufficient for control.

The advan tages at a glance

• Central control of multiple media
• Very easy to use
• Simple to install and easy-to-learn programming
- Plug-and-play operation adapted to Bachmann connection panels
- Up to 6 button modules can be connected in series or 2 strings with additional modules can be programmed for up to 24 button commands
- Multiple buttons can be programmed on the control unit with the same command (thus also allowing decentralised control)
- Simple connection of button modules via standard RJ45 patch cables (plug/plug)
• 2 built-in relays, 230 V\~10 A with 1 earthing contact coupling each for direct connection
- Ready-to-connect unit with accessories (programming cable, IR transmitter)
• Can be retrofitted to existing systems
• Pre-programmed demo version on CD
- Basic programming can be reinstalled if necessary (from CD or download)
- If desired, programming (sequences, devices etc.) can be created and made available by Bachmann as an option

Media control

The software supplied makes even complex procedures simple to programme.

ProConl87x ControlSoftware [ ] 8700\8701 Control Unit File View Button Program Run Mode L/O Setup Help Notes Instruction Manual Add RS232 Function Add Panel Feedback Add Time Delay Add Relay Enable a Bank Advance Toggle Add IR Function Add Output Function Copy Script Program Button (PRCSO) 1 namebutton EVENT SCRIPT Select RS232 Function Item [ ] Library Select Device AM - 802 Pre Amp/A Mixer Select Function All Oil Select Action Send String Once View RS232 Library Change Library Import Library Select Port Port1 Add to Script Cancel 1330 Events Remaining RS232/40 Memory Capacity

Start programmed procedures by pressing button

Four-panel black square frame with white inner squares, each containing a horizontal line (no text or symbols)

Pictograms for other button functions are provided

Cascadable up to 6 button arrays with 24 procedures

Keypad on page 118

Display On/Off Power On/Off Projector On/Off On Off Projector 1 Projector 2 Main PC PC 1 PC 2 Light Down Laptop DVI Data Camera Satellite TV DVD VCR Visualizer Video Conf

Suitable mountings on page 118

Media Control

• Memory = 8 Kb
• 2 x 230 V\~ relays 10 A built-in
• 2 x RS-232 interface
• Baud rate 1200–57 600
• Data bits 7/8
• Stop bits 1/2
• Command string 1-22 bytes

- 2 x infrared interface PPM or PWM

- PWM frequency 30–62 KHz

• Power connection: 100 – 240 V\~

- PSU, programming cable, 2 x infrared transmitters, programming software and operating instructions in German and English included

RTX CONTROLLER BACH MANN AMX POWER ACTIVE RELAY RELAY Program CE Master on the LIF 10AMP 240V MAX RATING P1 P2 P3 P4 CE I2 A1 A2

Art. no. Version

Control unit L x W x H: 225 x 125 x 45 mm

Control system with programming function

903.105* - Control system with programming function - I/O port: external switch detect input

872 CONTROLLER BACH MAIN AMX POWER ACTIVE RELAY RELAY Program Made in the LP 10AMP 24V MAX RATING RELAY NETWORK Line High Activity P1 P2 P3 P4 CL K3 A1 A2

Control unit TCP / IP L x W x H: 225 x 125 x 45 mm

Control system with programming function and TCP/IP interface

903.106* · Control system with programming function and TCP/IP interface - Devices from different manufacturers can communicate via the network - I/O port: Input: external switch detect

Programming according to requirements

Available for control units 903.105 and 903.106

903.114 · Programming is done by entering: - connected devices (manufacturer, type) - required procedures (max. 24 commands) - The file is sent via e-mail

*No storage type / Suitable mountings on page 118

Switch function

Combined source switch for 4 to 2 VGA, 6 to 2 S-video or CVBS and 10 to 2 stereo audio signals. In all cases the output signal is present on the two outputs at the same time.

Ideal for applications with multiple different signal sources - RGBHV, S-video, CVBS and audio. The six video inputs can be connected to either an S-video or a CVBS signal. A combination of both signal types is possible.

The 10 audio inputs are designed for unbalanced stereo audio signals. One output offers an unbalanced and the other a balanced stereo signal for further processing. The audio input signal levels and the volume of the audio outputs are adjustable. Sound and video can both be silenced (mute/blank).

Control function

The functions are controlled manually via the front operator panel or remotely via RS-232 from a button module on a connection panel. When operating the unit via RS-232 it is possible to switch audio and video inputs separately. A programmable RS-232 output port is also provided; this can be used to control displays or projectors.

AMX BACK MANN COMPRESS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SOLEDS 400 GB-7500000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Front panel of a network equipment rack with labeled ports, connectors, and indicator lights

Art. no. Version

Switch / changeover switch presentation L x W x H: 150 x 70 x 35 mm

4 x input/2 x output VGA, 10 x input/2 x output audio, 6 x input/2 x output S-video

903.103 · Inputs/signals: 4 x RGBHV, 6 x S-video/CVBS, 10 x stereo audio

• Outputs: 2 of each (dual)
• Bandwidth: 350 MHz
• Stereo audio: unbalanced to balanced
• Front operator panel and operation via RS-232
• RS-232 control output for connected playback equipment
• Power supply: 100 - 240 V AC 15 W
• Includes power cable and operating instructions in German and English
• Mounting for 19" fitting included

Typical order for 4 presentation stations

Four identical computer monitors arranged horizontally (no text or symbols visible)

Quantity Art. no. Description

4 x Power strips from Bachmann facility systems with blank space for custom module
4 x 917.134 Custom module VGA, miniature jack and button for Media switch
1-6 x 917.127 Custom module button

Desk connection panel

Quantity Art. no. Description

4 x 903.104 VGA signal booster
4 x 918.009 VGA connecting cable from power strip to signal booster optional:
4 x 918.023 Mounting

Signal booster

Quantity Art. no. Description

1 x 903.101 Switch, 4-way, VGA + audio
1 x 918.023 Mounting

Switch

Quantity Art. no. Description

1 x 903.105 Control unit
1 x 903.111 Converter control unit

Control unit

Quantity Art. no. Description

1-6 x 918.006 - 008 Patch cable to connect custom module button 917.127

Cable output

Screen Lighting BlindsProjector Audio

Configuration information and lists of applications are available at www.bachmann.com. Should you have any questions concerning your project, contact us at [e-mail] for assistance.

Close-up of a black electronic device with blue display panels and control buttons (no visible text or symbols)

Facility control modules

Pushbutton modules in the Bachmann custom-module format offer convenient control of light and blinds in open-plan and individual offices and in meeting and conference rooms.

The control module is installed within the user's easy reach on the desk connection panel at office workstations or in meeting rooms. Then the lighting and blinds settings can be controlled with ease from the user's seat. The increased convenience lets the user respond to changing environmental situations - and thus save energy.

KNX pushbutton module 4-way

The 4-way KNX pushbutton module is designed as a custom module and can be integrated into Bachmann desk connection panels either by the manufacturer or retrospectively. Installation in rack and electrical installations is also possible with the custom module system.

Functions such as switching, dimming, storage of lighting scenes, blind control etc. can be programmed by specialist personnel using the standard ETS software. For this, specialist knowledge and in-depth KNX training is required.

Each button can be custom configured and labelled accordingly (common pictograms are supplied). A blue lamp indicates the activity status.

This pushbutton module can be simply installed by KNX-trained personnel. The appropriate bus coupling is built into the module and can be simply connected to the bus cable by means of clips.

KNX/EIB 4-button custom module

Simple black square with four white squares arranged in a cross pattern, no text or symbols present.

Front:

• 4 x buttons, square, can be labelled, blue back-lit, programmable on EIB/KNX installations
• With integral bus coupler and bus terminal (can be labelled with physical address)
• Power supply: system voltage 30 V DC via bus terminal
• Use: e.g. as buttons for controlling lighting, blinds etc.

Black plastic electrical contactor component with mounting bracket (no visible text or symbols)

Art. no. Version

Micro clamp terminals

917.056 Rear:

- Bus push-in terminals

- Requires approx. 35 mm installation depth

FACILITY SYSTEMS IT RACK PANELS ELECTRICAL INSTALLATIONS

EnOcean pushbutton module 4-way

The EnOcean pushbutton module offers wireless control of e.g. lighting, blinds, projector screen etc. Installation is simple: the pushbutton module can be used in Bachmann desk connection panels with custom modules or in wall or trunking installations. The required control signals are transmitted wirelessly to the receiving device. Each button can be separately programmed. With 868 MHz EnOcean technology, interference is practically eliminated.

No cable installation is required for this module. Power is obtained from a built-in battery that will last for up to 1 million switching cycles.

If required the EnOcean pushbutton module can also be linked into the KNX building control system bus.

EnOcean 4-button custom module

Black rectangular electronic component with a circular cutout and mounting base (no visible text or symbols)

Art. no. Version

Front:

• 4 x buttons, square, can be labelled, backlit blue
• Programmable on EnOcean applications
  • Power supply: Battery-buffered radio module
• Includes inserter with common pictograms
• Use: e.g. as buttons for controlling lighting, blinds etc.

Simple black square with four white squares arranged in a cross pattern (no text or symbols)

Micro clamp terminals

917.093 Rear:

- Includes battery

- Requires approx. 35 mm installation depth

Custom modules

Art. no. Version

Custom module VGA, miniature jack and button for media switch

Two electronic device components: a black USB drive with port and a black RJ48 connector (no visible text or symbols)

917.134 - Custom module to fit in Bachmann connection panels

• 1 x 15-pole VGA socket/socket
• 1 x 3.5 mm miniature jack socket with approx. 0.1 m cable and 3.5 mm miniature jack socket
• 1 x button, blue illuminated, with approx. 0.1 m cable and RJ12 for controlling switch
• Requires approx. 70 mm installation depth

Two electronic components: a black square panel and a green circuit board (no visible text or symbols)

Custom module with 4 x buttons for media control unit

Can be used in all facility systems

917.127 · Custom module, can also be retrofitted
- 4 buttons, white, blue illuminated, with various pictograms for labelling
On rear: 2 x RJ45 sockets for connecting to media control unit and linking to further modules of the same type
- Includes inserter with common pictograms
- Requires approx. 80 mm installation depth

Patch cable plug/plug

To connect custom module 917.127 to signal converter

918.006	1.0 m	· End 1: RJ45 plug Hirose TM12
918.007	3.0 m · End 2: RJ45 plug Hirose TM12
918.008	5.0 m	· Shielded

Signal converter Media

Art. no. Version

2-way signal converter

To implement the authorisation signals of each participant. Without visual acknowledgement on button

903.113 · nput: 2 x RJ12 socket
- Output: 1 x 2-pole terminal for connection to switch
- Can only be used with 903.100 switch

For the switch / changeover switch 2 x, 4 x and 6 x VGA/audio, the custom module 917.134 is connected by means of the 2-6-way RS 232 signal converter (903.112) with visual acknowledgement as button illumination.

Close-up of a black electrical connector with two ports and a green terminal (no text or symbols visible)

2-6-way signal converter L x W x H: 225 x 125 x 45 mm

To implement the authorisation signals of each participant. With visual acknowledgement on button

903.112 · Input: 6 x RJ12 socket
· Output: 1 x 9-pole RS-232 sub-D
- With 1.0 m cable with push-in terminals to connect 2-pole terminal to switch
- Includes PSU

Converter box

For connecting an additional series of button modules

903.111 · Media converter for connection to control unit
- End 1: RS-232
· End 2: RJ45
- Includes PSU

Mounting for converter/control unit

For fitting under the tabletop

918.023 · Mounting to install unit under a tabletop (see page 102)

Combi cables and extensions

Art. no. Length Version

15-pole VGA HD extension cable

1 x VGA
918.009	1.0 m	· High-quality VGA cable to connect:
940.047	3.0 m – connection panel to laptop
940.048	5.0 m	– connection panel to signal booster– signal booster to monitor / TV (optional)· End 1: 1 x 15-pole VGA HD plug· End 2: 1 x 15-pole VGA HD plug

1 x VGA, 1 x miniature jack
918.066	1.0 m	· High-quality VGA cable to connect:
918.067	3.0 m - connection panel to laptop
918.068	5.0 m - connection panel to signal booster
918.069	10.0 m	- signal booster to monitor / TV (optional)· End 1: 1 x 15-pole VGA HD plug, 1 x miniature jack plug, 3.5 mm· End 2: 1 x 15-pole VGA HD plug, 1 x miniature jack plug, 3.5 mm· Plug with metal housing and shielding

Media combi cable

1 x VGA, 1 x miniature jack, 1 x control signal
903.107 1.0 m	· Professional high-quality VGA cable together with audio cable and control cable for switching switches via the pushbutton in custom module 917.134
903.108 3.0 m
903.109 5.0 m
903.110 10.0 m	· End 1: 1 x 15-pole VGA HD plug, 1 x 3.5 mm miniature jack plug; 1 x RJ12 for button
	· End 2: 1 x 15-pole VGA HD plug, 1 x 3.5 mm miniature jack plug; 1 x RJ12 for button
	· Plug with metal housing and shielding

Accessories

Art. no. Version

STEP BASE 3 x earthing contact, GST18i3 Length: approx. 220 mm

Power outlet for switch and control unit

336.600 · Plastic profile, black socket outlets · 3 socket outlets with earthing contact, set at 35° · Power input: GST18i3 plug, power output: GST18i3 socket

Coiled black cable with two connectors, one connected to a black VGA connector (no text or symbols visible)

Coiled black cable and DVI connector with two connectors (no text or symbols visible)

Coiled black cable and DVI connector (no text or symbols visible)

LanLight® combines power, network connectivity, connections to media and even lighting in a modular, multifunctional system with a consistently modular construction that lets you adapt and use it flexibly in office environments. The system creates order in providing the various connections required at the workplace, and so increases safety. With its clear design language and high quality materials it fits harmoniously and unobtrusively into its surroundings.

The LanLight® basic module can accommodate a variety of module inserts. These include floor box inserts for all media - from earthing contact power outlets to HDMI sockets - that are also available fully pre-installed with tested connecting cables.

A special feature is the new type of self contacting used in the basic LanLight® module with mobile power column, in which all connections are created by a single plugging action.

LanLight^ fits into a hole of only 152 mm diameter. This ease of installation, together with its compact size and the functionality provided by the modular design mean that installations and energy consumers can be fitted only in those positions where they are really needed. Thus LanLight^ can be installed to meet the exact requirements and is equally easy to remove. Benefit: during restructuring, individual system components are reused time and again and the usual provision of installations is no longer necessary.

Combined with consolidation points, LanLight® can reach virtually every part of the room to provide power, data, media and light. The optimum cable length is up to 9 metres.

Interior view of a modern office with a black office chair, laptop, and large window overlooking city buildings (no visible text or symbols)

reddot design award winner 2011

LanLight®

Modular installation offering flexible supply to office workstations

LanLight®

SMART SUPPLY SYSTEM

LanLight® offers ...

• a cable outlet
• a floor box with various inserts for a wide range of applications
• plug-in mobile power columns with two power circuits and up to eight data connections with self-contacting interface (mobile column)
• plug-in power columns with two power circuits and up to eight data connections with prepared patch cables
• a plug-in lighting module, one-sided, with lighting head that swivels on two axes
• a plug-in lighting module, double-sided, with swivelling lighting head

Metallic circular bracket component (no text or symbols visible)

Basic unit 924.1016 Modular socket

Floor outlet

No insert required

Floor box versions

Connection plate 924.4000

4 x power Wieland GST15i3

8 x keystone mount

Earth contact connection plate 924.4002

2 x earth contact

4 x keystone mount

Media connection plate 924.4003

3 x power Wieland GST15i3

3 x custom media module mount

Basis for patch versions

Patch column mount 924.1041

Cone for patch column

Basis for self-contact system

Connection plate 924.4005

Self-contact system

2 x power for max.

2 x data cable set 924.700

Data cable set 924.700

4 x Terra CAT7 jack, length 6 m

Stage 1 Stage 2

LanLight® is a brand belonging to Bierbrauer Hoff Planungsgesellschaft mbH

Lift-off cover set 924.1038

for 5 mm or 8 mm floor coverings

Lift-off cover set

Lift-off cover set 924.1018

Stainless steel

Twist-off cover 924.1046

for floor coverings,

with water protection

Patch column 640 mm

924.5002: 2 x earth contact, 4 x CAT6a jack including 6 m supply cable

924.5003: 4 x earth contact, 8 x CAT6a jack including 6 m supply cable

Mini patch column 924.6000

150 mm, 2 x earth contact

Twist-off cover 924.1046

for floor coverings, with

water protection

Lift-off cover set

Self-contact system

Lift-off cover set 924.1039

Stainless steel

Mobile column 640 mm

924.5000: 2 x earth contact, 4 x CAT6a 10 Gbit

924.5001: 4 x earth contact, 8 x CAT6a 10 Gbit

Stage 3 Lamps

Abstract geometric shape with a gray triangular cutout (no text or symbols)

Vertical LED light fixture with a green 'NEW' badge (no text or symbols on the device itself)

Lamps are available from our partner

LUDWIG Leuchten on request

Stage 1: LanLight® basic unit

Metallic circular mechanical component with mounting holes (no text or symbols visible)

Art. no. Version

Basic unit for all LanLight ^® components

Modular socket

924.1016 Fits into raised and false floors

• Fixes in round cut-out with diameter 152 (+1) mm
- For floor thicknesses from 25 to 70 mm (min. floor thickness 35 mm for column versions)
- Fixed by three clamping claws
- Overall height: 97 mm, installation depth: 93 mm, external diameter: 162 mm
• Die-cast aluminium

Stage 2: LanLight® inserts

Art. no. Version

3D rendering of a mechanical component with multiple slots and a curved top, supported by black cables (no text or symbols visible)

8P/4S connection plate with breakout cable and GST18i3 plug

Connection plate for fitting in LanLight® lift-off cover set

924.4001 To connect up to 4 Wieland GST15i3 sockets (power) and 8 data jacks (keystone)
- Rear strain relief for power connections
- Disengagement aid for Wieland GST15i3 plugs
- 4 x Wieland GST15i3 sockets, fitted, incl. 0.2 m H05VV-F 3G 2.5 mm² power cable to GST18i3 plug
• To connect up to 8 data jacks (keystone)
- Rear strain relief for power connections
· Coded connecting points (data 1-8, power A-D)
· Diameter: 114.8 mm

8P/4S connection plate for mains connection by client

Connection plate for fitting in LanLight ^® lift-off cover set

924.4000 To connect up to 4 Wieland GST15i3 sockets (power) and 8 data jacks (keystone)
- Rear strain relief for power connections
- Disengagement aid for Wieland GST15i3 plugs
- Coded connecting points (data 1-8, power A-D)
- 4 x Wieland GST15i3 sockets
- To connect up to 8 data jacks (keystone)
· Diameter: 114.8 mm

Exterior view of a circular electrical enclosure with two internal outlets and three side grilles (no text or symbols visible)

Earthing contact unit 4P/2S with breakout cable and GST18i3 plug

Connection plate for fitting in LanLight ^® lift-off cover set

924.4009 | To connect up to 4 data jacks (keystone)

- Rear strain relief for power connections integrated in housing

- Coded connecting points (data 1-4, power A-B)

· Incl. 2 x 0.2 m H05W-F 3G 2.5 mm² power cable to GST18i3 plug

- Diameter: 114.8 mm

Earth contact unit for 4P/2S connection plate for mains supply by client

Connection plate for fitting in LanLight® lift-off cover set

924.4002 To connect up to two phases to the earthing contact socket outlets

• To connect up to 4 data jacks (keystone)

- Rear strain relief for power connections integrated in housing

· Coded connecting points (data 1-4, power A-B)

· Diameter: 114.8 mm

Art. no. Version

Connection plate for 3 x custom modules and 3 x power with breakout cable and GST18i3 plug

Connection plate for fitting in the LanLight® cover guide

924.4004

Accepts up to 3 Bachmann custom modules

• 3 x Wieland GST15i3 sockets, fitted, incl. 0.2 m H05VV-F 3G 2.5 mm² power cable to GST18i3 plug
• Rear strain relief for power connections
• Disengagement aid for Wieland GST15i3 plugs
• Coded connecting points (data 1-3, power A-C)
• Diameter: 114.8 mm

CUSTOM

Mechanical component with four mounting holes and wiring (no visible text or symbols)

Media connection plate 3 x custom module and 3 x power for mains connection by client

Connection plate for fitting in LanLight ^10 lift-off cover set

924.4003

• To connect up to 3 Wieland GST15i3 sockets (power) and
  3 Bachmann custom modules
• Rear strain relief for power connections
• 3 x Wieland GST15i3 sockets
  • Disengagement aid for Wieland GST15i3 plugs
• Coded connecting points (data 1-3, power A-C)
  · Diameter: 114.8 mm

CUSTOM

Exterior view of a mechanical housing component (no visible text or symbols)

Self-contact 10 Gbit 4P/2S with breakout cable and GST18i3 plug

Connection plate to fit in the modular installation box

924.4006*

Base unit to accept the self-contacting power column 924.5000 or 924.5001

• Prepared to accept 1-2 data cable sets 924.700
- Coded connecting points (data 1-8, power A-B)
- For 924.1041
- 2 x Wieland GST15i3 sockets, fitted, incl. 0.2 m H05VV-F 3G 2.5 mm² power cable to GST18i3 plug
• Diameter: 114.8 mm

Interior view of a circular electronic device with internal components and connectors (no visible text or symbols)

10 Gbit self-contact for mains connection by client

Connection plate to fit in the modular installation box

924.4005*

Base unit to accept the self-contacting power column 924.5000 or 924.5001

• Prepared to accept 1-2 data cable sets 924.700
- Coded connecting points (data 1-8, power A-B)
- For 924.1041
- 2 x Wieland GST15i3 sockets
· Diameter: 114.8 mm

Interior view of a cylindrical electronic device with internal components (no visible text or symbols)

Data cable set

For self-contact connection plates 924.4005 and 924.4006

924.700*

4 x Tyco Electronics CAT7 (Terra) Jacks to Tyco Electronics CAT6a plug

• Column, 2-sided with 8 ports: Requires 2 x data cable set 924.700
• Column, 1-sided with 4 ports: Requires 1 x data cable set 924.700
• Cable length 6 m each
• Prepared as a cable bundle

Cone as tower holder

Cone as column holder

924.1041

Used to directly mount the LanLight ^® columns

· For 924.5002, 924.5003 and 924.6000

Close-up of a metallic circular mechanical component with concentric rings (no text or symbols visible)

* No storage type

Lift-off cap variants

Art. no. Version

3D rendering of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols visible)

Lift-off cap set with stainless steel inlay

Lift-off cap set to fit in the modular installation box

924.1018 | Two positions: open during use / closed when not in use

• With catch mechanism when open
• With dust protection as cable bushing
• With labelling card for connections
• With stainless steel inlay
  · Inlay diameter: inner 49 mm, outer 142 mm
• Lift-off cap diameter 146.4 mm, cap guide diameter 128.8 mm

Lift-off cap set 5 mm / 8 mm

Lift-off cap set to fit in the modular installation box

924.1038 | Two positions: open during use / closed when not in use

• With catch mechanism when open
• With dust protection as cable bushing
• With labelling card for connections
• For gluing into dry surfaces with thicknesses 5 mm or 8 mm (e.g. carpet, laminate)
  · Inlay diameter: inner 49 mm, outer 142 mm, lining depth 5 mm or 8 mm
  · Lift-off cap diameter 146.4 mm, cap guide diameter 128.8 mm

Lift-off cap set, self-contacting, with stainless steel inlay

Lift-off cap set to fit in the self-contacting cone

924.1039* · Two positions: open during use / closed when not in use

• With catch mechanism when open
• With labelling card for connections
• With stainless steel inlay
  · Inlay diameter: inner 49 mm, outer 142 mm, depth 5 mm or 8 mm
  · Lift-off cap diameter 146.4 mm, cap guide diameter 128.8 mm

Cross-sectional view of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols visible)

3D rendering of a cylindrical mechanical component with a circular top and inner cavity (no text or symbols visible)

Close-up of a cylindrical mechanical component with a black top and gray base, showing internal features and mounting holes (no text or symbols visible)

Lift-off cap set, self-contacting, 5 mm / 8 mm

Lift-off cap set to fit in the self-contacting cone

924.1040* · Two positions: open during use / closed when not in use

• With catch mechanism when open
  · With labelling card for connections
• For gluing into dry surfaces with thicknesses 5 mm or 8 mm (e.g. carpet, laminate)
  · Inlay diameter: inner 49 mm, outer 142 mm, lining depth 5 mm or 8 mm
  · Lift-off cap diameter 146.4 mm, cap guide diameter 128.8 mm

Twist-off cover for 12 mm inlay

Twist-off cover to screw onto cone to hold column

924.1046 Cover to close modular installation box with cone (924.1016, 924.1041)

• Water protected
  · For inlay (e.g. stone/tiles) with approx. 12 mm thickness
• Incl. mounting wrench and shucks
  · Inlay diameter: inner 139 mm

Stage 3: LanLight® extension units

Art. no. Version

Self-contacting column, 10 Gbit 4P/2S, one-sided

Column, 10 Gbit, for 1-2 workstations

924.5000* | For simply plugging into and unplugging from LanLight ^® cone holder (924.1041)

• 2 earthing contact socket outlets (2 phase) and 4 Tyco CAT6a jacks
• Coded connecting points (data 1-4, power A-B)
  · Fully pre-wired, incl. 4 x Tyco Terra CAT7 plug for self contacting
• Socket outlets: 2-pole with earthing contact, 16 A/3680 W, AC 250 V, IP20, black
• Column can be expanded by inserting a LanLight system lamp
• Height 640 mm, diameter 95 mm

Column, self-contacting, 10 Gbit 8P/4S, two-sided

Column, 10 Gbit, for 3-4 workstations

924.5001* | For simply plugging into and unplugging from LanLight ^® cone holder (924.1041)
· 4 earthing contact socket outlets (2 phase) and 8 Tyco CAT6a jacks
- Coded connecting points (data 1-8, power A-D)
· Fully pre-wired, incl. 8 x Tyco Terra CAT7 plug for self contacting
- Socket outlets: 2-pole with earthing contact, 16 A/3680 W, AC 250 V, IP20, black
- Column can be expanded by inserting a LanLight system lamp
- Height 640 mm, diameter 95 mm

4P/2S patch column, one-sided

Column for 1-2 workstations

924.5002 | Simple mounting on the LanLight ^ conical holder (924.1041)

• 2 earthing contact socket outlets (2 phase) and 4 CAT6a jacks (keystone)
• Coded connecting points (data 1-4, power A-B)
• 2 x 6 m H05VV-F 3G 2.5 mm² power cable to Wieland GST18i3 plug
• 4 x 6 m data cables, CAT6a jack to CAT6a plug
• Socket outlets: 2-pole with earthing contact, 16 A /3680 W, AC 250 V, IP20, black
• Column can be expanded by inserting a LanLight system lamp
• Column materials: Extruded aluminium, powder-coated RAL 9006
• Height 640 mm, diameter 95 mm

Patch column 8P/4S two-sided

Column for 3-4 workstations

924.5003 | Simple mounting on the LanLight ^® conical holder (924.1041)

· 4 earthing contact socket outlets (2 phase) and 8 CAT6a jacks (keystone)
- Coded connecting points (data 1-8, power A-D)
- 4 x 6 m H05VV-F 3G 2.5 mm² power cable to Wieland GST18i3 plug
- 8 x 6 m data cables, CAT6a jack to CAT6a plug
- Socket outlets: 2-pole with earthing contact, 16 A/3680 W, AC 250 V, IP20, black
- Column can be expanded by inserting a LanLight system lamp
- Height 640 mm, diameter 95 mm

Mini patch column 2S

Mini column

924.6000 · Mini patch column for simple mounting on the LanLight conical holder (924.1041)
- 2 socket outlets with earthing contact (2 phases)
- Coded connecting points (power A-B)
- 30 mm surge water protection
- 2 x 0.2 m breakout cable H05VV-F 3G 2.5 mm² and GST18i3 plug incl. GST T-piece
- Socket outlets: 2-pole with earthing contact, 16 A/3680 W, AC 250 V, IP20, black
· Height 150 mm, diameter 95 mm

Two metallic cylindrical electronic components labeled F and R, with no visible text or symbols on the body.

Two metallic cylindrical electronic components labeled F and R, with no visible text or symbols on the body.

Two metallic cylindrical objects labeled F and R, with no visible text or symbols on the objects themselves.

Two identical cylindrical electronic components labeled F and R, with no visible text or symbols on the body.

Consolidation point

Installation solutions from a single supplier

Bachmann's new system for under-floor distribution and installation, based on the MUTO (multi-user terminal outlet) concept, offers a coherent and simple installation solution that brings power and data to the desktop.

The consolidation points for power and data are linked to the floor distributor in the conventional way. Floor outlets and desktop power strips from the Bachmann facility range complete the installation kit. After the consolidation point the floor outlet allows power and data to be conveyed with ease to the workstation. This dispenses with complicated and inflexible installations such as traditional floor box systems.

Thanks to the “open-office cabling”, CP and MUTO concepts the network installation is flexible, future-proof and at the same time cost-optimised. The combination of power and data connections can be found in various Bachmann facility systems. They thus offer a user-centred unit providing all necessary connections.

In the complete Bachmann catalogue you can also find various desktop power strips for mounting on top of or fitting into office workstation desks. All versions can be configured as required and supplied ready for use.

Data Current DESK Desktop power strip Current Data Workstation 1 Data Current DESK Desktop power strip Current Data Workstation 2

CP mounting

• Robust steel plate mounting for CPs
• Mountings with secure, tool-free clip-in and release mechanism
- Anchors firmly on the floor with integrated screw-on brackets
• Mountings with extra step protection of approx. 200 kg incl. CP unit
- Raised position of CP units for greater protection in case of minor ingress of water

CP power

• Power CP is fully wired and electrically tested at the factory
- Power connections with connector systems by Wieland (Gesis GST); Wago (Winsta) versions available on request
• Other connector systems can be fitted if required
• Time-optimised on-site installation
• Future-proof thanks to flexible structure

Exterior view of a silver rectangular electronic device with red indicator lights (no text or symbols visible)

CP power reconnectable

CP data

• CP data - flexible and modular based on custom modules
• Various manufacturers' systems can be integrated
• Easy to install and future-proof thanks to modular structure
- Should a change be necessary, only the data connector unit is changed
• Mounting and unit remain unchanged
• Additional strain relief for data connection can be provided with cable ties

Consolidation point units for power

• Fully wired and electrically tested
With Wieland GST18i3 plug

Art. no. Version

Consolidation point units for power

Short
919.2000	6-way GST18i3 socket, black, 1-phase• Power input: GST18i3
919.2001	2 x 3-way GST18i3 socket, 2-phase• Sockets in black and red• Power input: GST18i3

Consolidation point units for power

Long
919.2002	12-way GST18i3 socket, black, 1-phase· Power input: GST18i3
919.2003	2 x 6-way GST18i3 socket, 2-phase· Sockets in black and red· Power input: GST18i3
919.2004	3 x 4-way GST18i3 socket, 3-phase· Sockets in black, red and grey· Power input: 3 x GST18i3 socket
919.2005	3 x 4-way GST18i3 socket, 3-phase· Sockets in red, black and grey· Power input is via the end cap with rewireable terminal to allow connection by user

Consolidation point units for data

• Without power, to integrate with Bachmann custom modules
Anodised aluminium profile

Art. no. Version

CUSTOM

Two gray plastic electronic components with multiple slots, shown in isometric view (no text or symbols)

Consolidation point units for data

912.000 · 3 x custom modules, empty· Short: 217 mm

912.001 · 6 x custom modules, empty· Long: 356 mm

Consolidation point mounting

Colour black (RAL 9005)
Mounting in steel plate

Art. no. Version

Two black plastic clip holders with mounting brackets (no text or symbols visible)

Consolidation point mounting L x W x H: 295 x 85 x 65 mm

919.1100	Short (for units with 3 modules)
Consolidation point mounting L x W x H: 435 x 85 x 65 mm
919.1101	Long (for units with 6 modules)

Floor outlet for dry-maintained floors

Outlet for dry-maintained floors (raised and false floors) from 24 mm thickness for the cable outlet from the subfloor (consolidation point) to the power strip on the desk. The outlet features a very simple universal fixing. With one rotation of each of the two eccentric Allen bolts in the outer ring the outlet is anchored firmly into the floor, yet can easily be removed again if required. 2 flaps, each of which can be opened to a position independent of the other, allow cabling to be routed out from the floor. The flaps can be snap-fastened in open positions, thus preventing cables becoming bent and possibly damaged. If required the flaps can be rotated through 130° with the inner ring. Textile-fibre sleeves or cable management systems from the Bachmann range can be docked to the outlet flaps. If the outlet is no longer used, the flaps can be lowered and used as a blank cover that can be stepped on.

• Exit point/floor outlet for power and data cables
  Fits in raised floors with thicknesses from 24 mm
  • Hole diameter 112 mm
  • Simple fixing mechanism with Allen bolts
  2 flaps, rotatable though approx. 130°, for cable outlet
  • Material: polyamide (halogen free)

Art. no. Version

Exit point / floor outlet RAL 9005

919.1000 {Black RAL 9005

Circular black plastic component with internal slots and mounting holes (no text or symbols)

Data cables -> Transfer of data within various categories

(see glossary) Used for network and IP telephone services

Art. no. Length Version

CAT5e patch cable plug/plug

918.003	1.0 m	· CAT5e cable, shielded, colour grey
940.052	3.0 m · Conforms to ISO / IEC 11801 and EN 50173
940.053	5.0 m	· Ends 1 and 2: RJ45 plug with kink protection nozzle andprotective tongue for interlock· Suitable for e.g. CAT5e socket / socket 940.057

CAT6 patch cable plug / plug

940.040	3.0 m	· CAT6 cable, shielded, colour grey
940.041	5.0 m	· Conforms to ISO / IEC 11801 and EN 50173
		· Ends 1 and 2: RJ45 plug with kink protection nozzle and protective tongue for interlock
		· Suitable for e.g. CAT6 socket / socket 940.044

CAT6a patch cable plug / plug

918.006	1.0 m	· CAT7 cable, shielded, colour black
918.007	3.0 m · Conforms to IEC 61156-6
918.008	5.0	m: Ends 1 and 2: RJ45 Hirose TM12 CAT6a plug with kink protection nozzle and unlocking tongue· Suitable for e.g. CAT6 socket / socket 940.044

CAT6a patch cable plug

918.033	3.0 m	· CAT7 cable, shielded, colour black
918.034	5.0 m	· Conforms to IEC 61156-6
		· End 1: RJ45 Hirose TM12 CAT6a plug with kink protection nozzle and unlocking tongue. End 2: CAT6a TKM 10 GB keystone socket.
		· Fits into keystone frames 917.000 / 917.001 / 917.061 / 917.062

RJ12 patch cable plug / plug

940.089*	3.0 m · RJ12 cable, unshielded, colour black
		· Conforms to ISO / IEC 11801 and EN 50173
		· Ends 1 and 2: RJ12 plug with kink protection nozzle
		· Suitable for e.g. RJ12 socket / socket 940.085

VGA 15-pole HD with or without miniature jack cable (stereo 3.5 mm) ->

Transmission of analogue image and sound signals

Art. no. Length Version

Coiled black cable and connected 3-pin connector (no text or symbols visible)

VGA 15-pole HD combi cable with miniature jack

918.066	1.0 m	· High quality cable, high flexibility, colour black
918.067	3.0 m	· End 1: 1 x 15-pole VGA HD plug, 1 x miniature jack plug, 3.5 mm
918.068	5.0 m · End	2: 1 x 15-pole VGA HD plug, 1 x miniature jack plug, 3.5 mm
918.069	10.0 m	· Plug with metal housing and shielding, no additional ferrite core is required
		· Can be used with custom modules with VGA + miniature jack socket / socket (e.g. 917.045 etc.)

Two types of broadband cables: a black cable with two connectors and a black D-sub connector (no text or symbols visible)

VGA 15-pole HD

918.009	1.0 m	·High quality cable, flexible, colour black
940.047	3.0 m ·End 1: 1 x 15-pole VGA HD plug
940.048	5.0 m	·End 2: 1 x 15-pole VGA HD plug
		·Can be used with custom modules with VGA socket / socket (e.g. 917.011)

* No storage type

Media VGA 15-pole HD combi cable with miniature jack

(3.5 mm stereo) and RJ12 (signal control) for media switch

Art. no. Length Version

VGA 15-pole HD combi cable with miniature jack and signal control

903.107	1.0 m	·High quality cable, high flexibility, colour black
903.108	3.0 m	·End 1: 1 x 15-pole VGA HD plug, 1 x miniature jack plug 3.5 mm and RJ12 plug
903.109	5.0 m · End	: 1 x 15-pole VGA HD plug, 1 x miniature jack plug 3.5 mm and RJ12 plug
903.110	10.0 m	·Plug with metal housing and shielding, no additional ferrite core is required
		·Can be used with custom modules with VGA+ miniature jack socket / socket and button (e.g. 917.134)

HDMI connecting cable -> digital transmission of image and sound signals

Art. no. Length Version

HDMI connecting cable

918.019	3.0 m	· HDMI cable, colour black
918.020	5.0 m	· End 1: 1 x HDMI plug, 19-pole · End 2: 1 x HDMI plug, 19-pole · Can be used with custom modules with HDMI socket / socket (e.g. 918.040)

DVI-I connecting cable -> digital transmission of image signals

(compatible with DVI-A and DVI-D connectors)

Art. no. Length Version

DVI-I connecting cable

918.017	3.0 m	· DVI cable, colour black
918.018*	5.0 m	· End 1: 1 x DVI plug · End 2: 1 x DVI plug · Can be used with custom modules with DVI-I socket / socket (e.g. 917.021 / 917.078)

Cinch video + stereo connecting cable -> transmission of analogue image and sound signals

Art. no. Length Version

Cinch video + stereo connecting cable

918.015*	3.0 m	· Cinch connecting cable set, colour black
918.016*	5.0 m	· End 1: Cinch plug (red + white + yellow) · End 2: Cinch plug (red + white + yellow) · Can be used with custom modules with Cinch socket / socket (e.g. 917.026)

S-Video (Hosiden) connecting cable -> transmission of analogue image signals

Art. no. Length Version

S-Video (Hosiden) connecting cable

940.104*	3.0 m	· S-Video (Hosiden) connecting cable, colour black
940.105*	5.0 m	· End 1: S-Video plug · End 2: S-Video plug · Can be used with custom modules with S-Video socket / socket (e.g. 917.028 / 917.035)

* No storage type

Close-up of five different audio/video cables with colored connectors (no text or symbols visible)

3.5 mm miniature socket connection cable -> transmission of sound signals

Art. no. Length Version

3.5 mm miniature jack connecting cable for audio signals

918.010	1.5 m	· 3.5 mm miniature jack (stereo) connecting cable, colour black
918.011	2.5 m · End 1: 3.5 mm stereo miniature jack plug
918.012	5.0 m	· End 2: 3.5 mm stereo miniature jack plug· Can be used with custom modules with miniature jack socket / socket (e.g. 917.045 / 917.157)

Cinch stereo connecting cable -> transmission of sound signals

Art. no. Length Version

Cinch stereo connecting cable for audio signals

940.049	3.0 m	· Cinch (stereo) connecting cable, colour black
		· End 1: Cinch stereo plug (red + white)
		· End 2: Cinch stereo plug (red + white)
		· Can be used with custom modules with Cinch socket / socket (e.g. 917.027 / 917.028 / 917.022 / 917.023)

XLR connecting cable -> transmission of sound signals (e.g. from microphone)

Art. no. Length Version

XLR 3-pole connecting cable for audio signals

918.013	3.0 m	· XLR 3-pole connecting cable, colour black
918.014	5.0 m	· End 1: XLR 3-pole plug with interlock · End 2: XLR 3-pole socket with interlock · Can be used with custom modules with XLR connector (e.g. 917.024)

USB connecting cable -> transmission of data

Art. no. Length Version

USB A/A connecting cable

918.021	1.0 m	· USB A/A connecting cable, colour black
940.045	3.0 m · End 1: plug A
918.022	5.0 m	· End 2: plug ACan be used with custom modules with USB A socket / socket (e.g. 917.120 / 917.019)

USB A/B connecting cable

940.046	3.0 m · USB A/B connecting cable, colour black
		· End 1: plug A
		· End 2: plug B
		· Can be used with custom modules with USB B socket / socket (e.g. 917.018)

FireWire connecting cable -> transmission of data

Art. no. Length Version

FireWire connecting cable

918.024	4.5 m	· FireWire connecting cable, colour black
		· End 1: FireWire 6-pole plug
		· End 2: FireWire 6-pole plug
		· Can be used with custom modules with FireWire socket / socket (e.g. 917.037)

Two USB connectors with black plastic cable, no text or symbols visible

Two black USB connectors with metallic leads, shown against white background (no text or symbols)

Close-up of two black USB connectors with metallic leads (no text or symbols visible)

Power supply cables for Bachmann facility systems

wieland

Cables fitted with Wieland GST18 plug-in connectors are available to connect facility products to the mains power supply. The advantages of these cables and their connectors, which are used all over the world, are flexibility in terms of length, the possibility of exchanging them should length requirements change, and availability for a variety of countries. Even extending the power supply to other power strips presents no problem and can usually be done without tools.

Art. no. Length Version

Device supply cable, GST18 earthing contact black

375.000	1.5 m	· Cable: H05VV-F 3G 1.5 mm2
375.075	2.0 m · End 1: Right angle plug with earthing contact
375.003	3.0 m · End 2: Wieland GST18i3 socket
375.005	4.0 m
375.007	5.0 m
375.039	10.0 m

Halogen-free cable

375.044	2.0 m	· Cable: S05VV-F 3G 1.5 mm ^2
375.045	8.0 m · End 1: Right angle plug with earthing contact
375.046	5.0 m	· End 2: Wieland GST18i3 socket

Two black electrical connectors with right-angle connectors, each labeled with a German flag (no text or symbols on the connectors themselves)

Device supply cable with additional earth connection

Pre-assembled power supply cables with integrated earth connection

Earthing of the power strip is independent of the installation

Ideal in combination with STEP power strips (see from page 56)

Table-mounted frames can be earthed independently of the power strip fitted in them

Art. no. Length Version

Device supply cable, GST18 earthing contact black

With extra earth connection
375.115 2.0 m	· Cable: H05VV-F 3G 1.5 mm^2
375.116 3.0 m · End 1:	Right angle plug with earthing contact
375.117 5.0 m	· End 2: Wieland GST18i3 socket with 0.3 m1.5 mm^2 green/yellow, with M6 ring terminal

Coiled black electrical cable with two terminal connectors, no visible text or symbols

Device supply cable, GST18, plug CH / Switzerland			Black
375.016	1.5 m	· Cable: H05VV-F 3G 1.0 mm2
375.017	3.0 m	· End 1: CH / Switzerland plug
375.018	5.0 m	· End 2: Wieland GST18i3 socket

Device supply cable, GST18, plug UK 13 A			Black
375.068	2.0 m	· Cable: H05VV-F 3G 1.5 mm ^2
375.069	3.0 m	· End 1: UK 13 A plug
375.070	4.0 m	· End 2: Wieland GST18i3 socket

Device extension cable, GST18/GST18			Black
375.050	0.3 m	· Cable: H05W-F 3G 1.5 mm ^2
375.053	1.0 m	· End 1: Wieland GST18 i 3 plug
375.038	2.0 m	· End 2: Wieland GST18 i 3 socket
375.055	3.0 m

Halogen-free cable			black
375.080	0.3 m	· Cable: S05Z1Z1-F 3G 1.5 mm ^2
375.081	1.0 m	· End 1: Wieland GST18i3 plug
375.082	2.0 m	· End 2: Wieland GST18i3 socket
375.083	3.0 m

Device extension cable, GST15/GST18			Black
375.127	1.5 m	· Cable: H05VV-F 3G 1.5 mm ^2
375.128	3.0 m	· End 1: Wieland GST15 i 3 plug	LanLight®
375.129	5.0 m	· End 2: Wieland GST18 i 3 socket

wieland

Cables with ST18 connector system (older system, cannot be plugged in under load)

Art. no. Length Version

Device supply cable, ST18 earthing contact Black

Pure electrical connector diagram without any text or symbols

375.004	1.5 m	· Cable: H05W-F 3G 1.5 mm ^2
375.079	2.0 m	· End 1: Right angle plug with earthing contact
375.040	3.0 m	· End 2: Wieland ST18/3 socket
375.076	5.0 m

Device extension cable, ST18 / ST18
Black

375.071	0.5 m	· Cable: H05VV-F 3G 1.5 mm2
375.072	1.0 m	· End 1: Wieland ST18/3 plug
375.073	1.5 m	· End 2: Wieland ST18/3 socket
375.064	3.0 m

Connectors / distributors

Art. no. Version Version

Coupler Black

No interlock
375.500 GST/GST	• Allows easy linking of e.g. two STEP power strips with the same or different plugging systems
375.515 GST/ST
375.516 ST/GST	• 1 x input (plug section) and 1 x output (socket section)

Three grayscale 3D mechanical component models labeled 1, 2, and 3 (no text or symbols on parts)

Multiplier, GST18

For power distribution
375.101 1	x input, 2 x output (1)	· Input: 3-pole plug
375.102 1	x input, 2 x output (2) · Output	3-pole socket
375.105 1	x input, 3 x output (3)

Through-wired for 3-phase power, 5 and 3-pole

375.106

1 x input, 1 + 6 x output

· Input: 1 x plug, 5-pole · Output: 1 x socket, 5-pole; · 6 x 3-pole socket per outer cable

Interlocks

Art. no. Version Version

Interlock for appliance plugs and couplings

Compliant with VDE 0628
375.518 Wieland 05.587.3156.1	· Snaps onto the relevant plugs and couplings

Locking latch (interlock)

Compliant with VDE 0628
375.501	Black · For snap-in fitted plug and coupling Wieland 05.584.0153.0

Accessories

Art. no. Version Version

End cap

375.503 BlackWieland 05.561.3653.1

- Inserts into the snap-in fitted plug and coupling

Mounting accessories

Art. no. Version Version

Appliance plug with screw terminal, GST18

375.504 Black - Ready to fit, with strain relief
	Wieland 92.932.3053.1	· For cross section 0.75 – 2.5 mm ^2 , solid and flexible wires can be connected without end sleeves
375.517 White	Wieland 92.932.3052.0	· For cable diameters 6.5 – 10.5 mm (H05VV, NYM) · Outer sheath stripped length 31 mm; insulation stripped length: 7 mm

Appliance plug with spring-loaded terminal, GST18i3

Lockable, coded
940.073 Bright red · Ready to fit, with Wieland 92.934.0553.0		strain relief· For rigid cables 1.5 – 2.5 mm2 or flexible cables 1.5 mm2with end sleeves· 2 connections per pole, not mounted, for cables H05VV, NYM (diameter 7.8 – 10.3 mm)· Outer sheath stripping length 45 mm,insulation stripped length for 1.5 mm2 and 2.5 mm2: 9 mm
940.074 Pebble grey Wieland 92.934.0153.0

Appliance coupling with screw terminal, GST18i3

375.505 Black · Ready to fit, with strain relief
	Wieland 92.931.3053.1	· For cross section 0.75 – 2.5 mm ^2 , solid and flexible wires can be connected without end sleeves
375.514 White	Wieland 92.931.3053.0	· For cable diameters 6.5 – 10.5 mm (H05VV, NYM)
		· Outer sheath stripped length 31 mm; insulation stripped length: 7 mm

Appliance coupling with spring-loaded terminal, GST18i3

Lockable, coded
940.070 Bright red · Ready to fit, with Wieland 92.933.0553.0		strain relief· For rigid cables 1.5 – 2.5 mm ^2 or flexible cables 1.5 mm ^2 with end sleeves· 2 connections per pole, not mounted, for cables H05VV, NYM (diameter 7.8 – 10.3 mm)· Outer sheath stripping length 45 mm,insulation stripped length for 1.5 mm ^2 and 2.5 mm ^2 : 9 mm
940.071 Pebble greyWieland 92.933.0153.0

Snap-in fitted plug, spring loaded, GST18

With interlock
375.506 Black	Wieland 92.032.9658.1	· For material thickness 0.5 – 1.5 mm; engages in cut-out in housing
375.519 White		· Flexible cable 0.5 – 1.5 mm^2 with end sleeve
	Wieland 92.032.9658.0	· Rigid cable 0.5 – 2.5 mm^2
375.520 Bright red		· Stripped length 0.5 – 1.5 mm^2 : 8 mm,Stripped length 2.5 mm^2 : 9 mm
	Wieland 92.032.8558.0
375.521 Pebble grey
	Wieland 92.032.9758.0

Snap-in fitted coupling, spring loaded, GST18i3

With interlock
375.507 Black		· For material thickness 0.5 – 1.5 mm; engages in cut-out in housing
375.523 Bright red		· Stripped length 0.5 – 1.5 mm2: 8 mm, Stripped length 2.5 mm2: 9 mm
375.524 Pebble grey

wieland

Close-up of a black electrical connector with wires, no visible text or symbols

Close-up of a black plastic electrical connector with a small black plug attached (no visible text or symbols)

1 Kabelschlange / Kabelschlange sel 2 Easy Outlet / Easy Cover 3 Easy Cover (ceiling) 4 E-Cube 5 Kabelschlange + Easy Steel mounting bar

CABLE MANAGEMENT

Perfect installation solutions

Bachmann banishes unwieldy cables from workstations. The KABELSCHLANGE ^® cable management system optimises cable routes in the workplace between the desk, floor box, wall duct and various devices.

Bachmann can offer the best cable management system for every situation. Whether the cables run along the floor or are routed from the floor to the desk, the systems are mutually compatible. A well-thought-out and integrated cable management concept is available to you.

The various systems are available finished in black and silver as standard, but we can provide custom colours on request.

Flexible cable management system

• The links are safe to step on and break-proof; they can be displaced with respect to one another
• 2 connector shoulders for the transmission of forces (including torques and lateral forces)
• Special geometry enables individual cables to be unfurled through the sides of the links without risking crushing

Art. no. Colour Version

Individual Plugging Shortening Extending

Kabelschlange® Classic (for horizontal and vertical cable routing)

930.030 Black	· 3-chamber system to separate low-current, data and power cables
930.031 Silver	· 46 chain links, W x H: approx. 53 x 23 mm· Length (separated): approx. 100 cm, (pushed together): approx. 72 cm

Kabelschlange® Cube (for horizontal and vertical cable routing)

930.058 Black	·2-chamber system to separate data and power cables
930.059 Silver	·34 chain links, W x H: approx. 55 x 25 mm·Length (separated): approx. 100 cm, (pushed together): approx. 69 cm

Illustration of a coiled, segmented worm-like structure (no text or symbols)

Abstract 3D geometric shape resembling a segmented or curved structure (no text or symbols)

Kabelschlange® Pro (for horizontal and vertical cable routing)

930.032 Black	· Increased resistance to being stepped on even in high foot traffic areas such as passages
930.033 Silver	· 5 chain links can withstand short-term loads of up to 120 kg· 2-chamber system to separate data and power cables· Can also be connected directly to Kabelschlange® Classic· 34 chain links, W x H: approx. 90 x 24 mm· Length (separated): approx. 100 cm, (pushed together): approx. 70 cm

Illustration of a coiled snake or serpent (no text or symbols)

Kabelschlange® Premium Set (for vertical cable routing)

930.049 Black · Designer top-of-the range premium set:

930.050 Silver 16 chain links,

W x H: approx. 70 x 35 mm1 x metal base plate in appropriate colour1 x desk attachment in appropriate colour· The chain links can be pushed together completely to form a self-locking, elliptical cable duct.· 2-chamber system to separate data and power cables· Length incl. base plate and desk attachment approx. 78 cm· Length without accessories approx. 75 mm· Length (pushed together): approx. 59 cm in set

Circular mechanical component with segmented bands and a central hub, no visible text or symbols

Kabelschlange® Quadro Set (for vertical cable routing)

930.016 Black · Functional set with a strong design element:
930.017 Silver 23 quadratic chain links, W x H: approx. 45 x 45 mm
	1 x metal base plate in appropriate colour1 x desk attachment in appropriate colour· The Quadro system is very stable and can therefore be used for ceiling-based installations for room heights of up to approx. 5 metres.· 2-chamber system to separate data and power cables· Length incl. base plate and desk attachment approx. 76 cm

Isometric illustration of industrial equipment blocks with a green 'NEW' badge (no text or symbols on components)

Kabelschlange® Quadro (as addition to set article no.: 930.016 and 930.017)

930.018 Black		· as addition to set article no.: 930.016 and 930.017
930.019	Silver	· for height-adjustable seating/standing combinations or desk/table heights as of 75 cm and for ceiling suspensions · 32 links, length approx. 100 cm

Abstract graphic of a chain of connected blocks with a green 'NEW' badge (no text or symbols on the chains themselves)

Kabelschlange® FLEX II Set (for vertical cable routing)

930.022 Black · Compact and flexible set:
930.023 Silver 38 chain links,	W x H: approx. 55 x 22 mm1 x metal base plate in appropriate colour1 x desk attachment in appropriate colour· 2-chamber system to separate data and power cables and for ceiling suspensions· Length incl. base plate and desk attachment approx. 75 cm

Industrial conveyor system with green 'NEW' badge (no readable text or symbols)

Illustration of a flexible roller with a green 'NEW' badge and a close-up of the roller (no text or symbols on the roller itself)

Furniture accessories

Art. no. Colour Version

Kabelschlange® FLEX II (as addition to set article no.: 930.022 and 930.023)

930.020 Black		· for seating/standing combinations
930.021 Silver · 54 links. Length approx. 100 cm

Easy-Bridge®

930.027 Silver

· Aluminium floor duct, can be stepped on, length 100 cm· The Kabelschlange Pro can be connected directly· For carpet

Easy-Bridge®

930.028 Silver · Aluminium floor duct, can be stepped on, length 100 cm· The Kabelschlange Pro can be connected directly· For smooth floors

Easy-Steel® mounting bar

930.024*

Dimensions: Length 750 mm, diameter 5 mm

Easy-Desk-3G®

930.025* Silver · Easy-Steel

© mounting bar fastening

Easy-Connect®

930.026*

Silver · Universal coupling

Easy-Desk-2B®

930.029 Black	Adapter for vertical connections on furniture
930.090 Silver	Can be combined with Easy-Stop ^ and Easy-Steel ^ Includes two 4 x 12 mm screws

Easy-Stop-2B2K®

930.091 Black	· 3-part cable strain relief for Kabelschlange Classic, Cube, Pro
930.092 Silver	· Can be combined with Easy-Desk-2B and Easy-Steel®
	· Includes clamping screws

Cable clamp set with strain relief

930.051 Black · For screwing onto underside of desk/table top

· Consisting of: of: Cable clamp incl. 2 fixing screws and strain relief with adjusting screw

E-Cube-K-540 ^® power column for supply of power and data

930.166 · To hold sockets indoors (e.g. article no.: 333.0122)
	· Material: anodised aluminium / plastic
	· Dimensions: Height approx. 54 cm/ cover approx. 22.3 x 22.3 cm/ base approx. 24 x 24 cm
	· Hole diameter 80 mm including Easy Outlet telescopic cover

Close-up of a white electronic component with a green 'NEW' badge (no other text or symbols)

Illustration shows 930.099 and 930.137

Floor connection accessories

Art. no. Colour Version

Easy-Outlet® floor unit

930.098* Black	· Floor level installation unit
930.099* Silver	· Tight braced fastening
	· Suited to dry-maintained raised and false floors

Easy-Cover® telescopic cover for floor unit

930.100" Black	· Telescopic cover set for Easy-Outletfloor unit
930.137 Silver

* No storage type

Floor connection accessories

Art. no. Colour Version

Easy-Cover-I® (system attachment for floor unit)

930.162* Black	· Connection for 1 x Cube, Pro, Classic or Flex
930.138* Silver	· Material: PP for use in floor outlet

Easy-Cover-II ^® (system attachment for floor unit)

930.163* Black	· Connection for 2 x Cube, Pro, Classic or Flex
930.139* Silver	· Material: PP for use in floor outlet

Easy-Cover-Quadro® (system attachment for floor unit)

930.164* Black	· Connection for 1 x Kabelschlang® Quadro
930.160* Silver	· Material: PP for use in floor outlet

Easy-Cover-Premium® (system attachment for floor unit)

930.165* Black	· Connection for 1 x Kabelschlang® Premium
930.161* Silver	· Material: PP for use in floor outlet

Easy-Switch® distributor (for Kabelschlange® Classic, Cube, Pro)

930.034* Black	· 3-way distributor
930.035* Silver	· includes 4 coupling links for KS Cube®

Easy-Switch® distributor (for Kabelschlange® Classic, Cube, Pro and a vertical K. Premium connection)

930.057* Black · 4-way distributor with fixing screw and base plate

· includes 4 coupling links for KS Cub®

Easy-Cap®

930.044* Black	· Cover cap for Easy-Switch connections that are not needed
930.045* Silver

Easy-Clip-S® floor outlet adapter for all common floor outlets

930.036*	For floor outlet for	Kabelschlange	® Classic
		Dimensions: L x W: approx. 86 x 47 mm

Easy-Clip-L® floor outlet adapter for all common floor outlets

930.054*	For floor outlet for	Kabelschlange	® Pro and Cube
		Dimensions: L x W: approx. 91.5 x 51 mm

Ceiling connection accessories

Art. no. Colour Version

Easy-Cover-B® (system attachment with low transmission of force to suspended ceilings)

930.093*

White · Polypropylene blank cover

Easy-Cover-I® (system attachment with low transmission of force to suspended ceilings)

930.094* White · Connection for 1 x Cube, Pro, Classic or Flex· Material: POM for suspended ceilings

Easy-Cover-II® (system attachment with low transmission of force to suspended ceilings)

930.095* White · Connection for 2 x Cube, Pro, Classic or Flex · Material: POM for suspended ceilings

Easy-Cover-Quadro® (system attachment with low transmission of force to suspended ceilings)

930.096* White · Connection for 1 x Kabelschlange® Quadro · Material: POM for suspended ceilings

Easy-Cover-Premium ^® (system attachment with low transmission of force to suspended ceilings)

930.097*	White · Connection for 1 x Kabelschlange	® Premium
	· Material: POM for suspended ceilings

Collection of mechanical components with green 'NEW' labels indicating new features (no text or symbols on parts)

3D rendered mechanical component with a black base and gray top, no visible text or symbols

Illustration of various mechanical components or assemblies, including circular and rectangular parts with no visible text or symbols.

BRIDGE – the cable duct

Art. no. Length Version

Pure electrical circuit lines without any symbols

CABLE BRIDGE Dimensions: (W x H) 146 x 9 mm

Cable duct, straight
930.060	1.0 m	· Anodised aluminium profile, with rippled surface to reduce slipping
930.061	2.0 m	· 3-chamber system allowing power and data cables to be routed separately· Can be fixed with double-sided tape or screwed into place on the floor (see fixing accessories)

3D rendering of a gray structural panel or bracket component (no text or symbols visible)

CABLE BRIDGE

Bracket for cable duct
930.062	45°	· Bracket in anodised aluminium
930.063	90°

Close-up of metallic hardware components including a flat panel and two small tools (no text or symbols visible)

CABLE BRIDGE

Linking element for cable duct
930.064 Straight · Link for joining straight cable ducts
	· Screws into place with integral Allen bolts
	· 2 items

Pure electrical circuit lines without any symbols

CABLE BRIDGE

Fixing accessories for cable duct

930.065 Straight · For screwing down cable ducts at the ends · 4 items

Wrap textile-fibre sleeves

Wrap textile-fibre sleeves bundle and protect cables and wires in office and home environments.

The elastic braided sheath with its monofilament fibres assures fire and abrasion resistance and is thus also ideal for professional and industrial use.

Hand connecting a black cable to a computer tower with visible network cables (no text or symbols)

Automatic Wrap

The advan tages at a glance

• Simple, low-cost installation with minimal labour
• More flexible than coiled or wound solutions
• 25% overlap for secure cable bundling
• Resistant to chemicals and solvents
- Halogen-free
• Resistant to cuts and abrasions
• Retains its shape within operating
temperature range -75 °C to +125 °C

Simple geometric diagram of a circle with internal lines and a right angle marker (no text or labels)

Art. no. Length Version

Automatic Wrap

Dimensions: diameter 2.54 cm = 1 inch

930.900	1.0 m	· Black
930.901	2.0 m	· Black
930.902	3.0 m	· Black

Automatic Wrap

Dimensions: diameter 5.08 cm = 2 inches

930.903	1.0 m	· Black
930.904	2.0 m	· Black
930.905	3.0 m	· Black

Manual Wrap in colour

The advan tages at a glance

• Strong Velcro fastener for frequent access
- Can be stretched over plugs and sockets
- Halogen-free
• Resistant to chemicals and solvents
- Melting point \~230 °C

Cross-sectional view of a black cable with exposed wires and insulation sheath, alongside a blue and gray striped strip (no text or symbols)

Illustration of a medical device with a blue eye and multiple colored cables (no text or symbols)

Art. no. Version Version

Manual Wrap

Dimensions: diameter 3.18 cm = 1 1⁄4 inch
930.906*	1.0 m · Black
930.907*	2.0 m · Black
930.908*	3.0 m · Black

Dimensions: diameter 5.08 cm = 2 inches

930.909*	1.0 m	· Black
930.910*	2.0 m	· Black
930.911*	3.0 m	· Black

* No storage type

Nominal diameter

Bachmann Manufacturing

Efficient power and data distribution for manufacturing

With Bachmann manufacturing systems you can be sure of having access to the best connectors and connections wherever you are in the world. Our systems can be configured with all standard international socket outlets and data connections. Modules can be retrofitted or interchanged quickly and easily. In short, when it comes to energy and data management systems that are fit for the future, Bachmann maximises your options.

Our top priority at Bachmann is a collaborative partnership with our customers. This begins with what we refer to as “customised engineering”, since providing engineering services for customised solutions is as important for our international development team as continuing to develop the Bachmann range overall. The result is a long list of registered designs and patents for technical innovations and special solutions under the Bachmann brand.

Laboratory workstation with overhead equipment and a computer monitor, no visible text or symbols

Power strips 146

BlueNet power management 148

Feed modules....149

Compressed air units 150

ESD units 151

STEP 152

Automatic switch-off units.... 154

Tradesman's power strip 155

Fixings....156

DESK....157

Custom modules 158

Cables 159

Lighting 160

Blu≡Net

CUSTOM

FACTORY – the professional solution

3D rendering of a mechanical assembly with a cylindrical component and stepped base (no visible text or symbols)

Power strips in aluminium profile, 1 U, width 44.5 mm, ideally suited for mounting on 45 mm T-slot profiles.

Mounts flush with profile

• Strip does not protrude over the 45-mm T-slot profile
  • Can be mounted on 30, 45 or 60 mm T-slot profiles
  • Can be mounted on the upright profiles of various manufacturers
  • Easy to fit with specially designed mounts (ESD-capable)
  • Mains input and output based on Wieland GST18 connector system
  • Strips can be linked to one another using device extension cables (see page 159)
  • Power infeed direct to mains input via supply cable (see page 159) or via feed modules (see from page 149)

Max. 16A/230V\~

Art. no. Version

Exterior view of a three-pin electrical connector housing (no text or symbols visible)

FACTORY 1 U 3 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 294 mm

509.001 · Anodised aluminium profile, 1 U

· 3 socket outlets with earthing contact, RAL7035, set at 35°
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
- Incl. safety plug catch

Exterior view of a white electrical outlet with three charging plugs and a red indicator button (no text or symbols visible)

FACTORY 1 U 2 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 294 mm

1 switch, illuminated, controls power outlet

509.002 · Anodised aluminium profile, 1 U

• 2 socket outlets with earthing contact, RAL7035, set at 35°
• 1 switch, red, 2-pole, controls power outlet (e.g. for lamp)
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Incl. safety plug catch

Exterior view of a white power strip unit with three slots and a red indicator light (no text or symbols visible)

FACTORY 1 U 2 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 294 mm

1 switch, illuminated, controls power input (sockets and power outlet)

509.003 · Anodised aluminium profile, 1 U

• 1 switch, red, 2-pole, controls power input
  · 2 socket outlets with earthing contact, RAL7035, set at 35°
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Incl. safety plug catch

Suitable mountings on page 156

Max. 16A/230V\~

Art. no. Version

FACTORY 1 U 8 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 866 mm

2 switches, illuminated

509.004 · Anodised aluminium profile, 1 U

• 1 switch, green, 2-pole, controls sockets
• 8 socket outlets with earthing contact, RAL7035, set at 35^ , with spacing between sockets
• 1 switch, red, 2-pole, controls only white auxiliary outlet
• Power inputs on side of profile:
• Power input: GST18i3 plug, black
  • Power outlet: 2 x GST18i3 socket, black/white
• Incl. safety plug catch

Pure electrical circuit lines without any symbols

FACTORY 1 U 10 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 1086 mm

2 switches, illuminated

509.005 · Anodised aluminium profile, 1 U

• 1 switch, green, 2-pole, controls sockets
• 10 socket outlets with earth contact, RAL7035, set at 35^ , with spacing between sockets
• 1 switch, red, 2-pole, controls power outlets
• Power inputs on side of profile:
  • Power input: GST18i3 plug, black
• Power outlet: 2 x GST18i3 socket, black/white
• Incl. safety plug catch

Ruler with multiple circular markings, no visible text or symbols

For horizontal mounting 2-pole illuminated rocker switch for white power outlet Generous socket spacing of 42.5 mm facilitates use of various sizes of mains adapter side by side 2-pole illuminated rocker switch to control sockets GST18i3 power input GST18i3 power output for peripheral devices Power outlet, white (e.g. for lamps)

BLUENET - spotting potential and using it

Blu≡Net

Bachmann's BlueNet range creates optimal conditions for efficient power management. It makes power consumption transparent - and thus controllable - with intelligent products that help you to gather current data wherever power is consumed, and thus to spot potential energy savings - and to document and use them.

• Integrated function for measuring current, voltage, power, phase angle, frequency and total energy consumption (BlueNet Metered Plus)
  • Measured values are shown on the display
• Modular construction allows configuration of PDUs to customers' specifications

Power measurement (kW)

Frequency (Hz)

Phase number (P 1, 2, 3) Current

Total energy consumption (kWh)

2.77 kW 230V 50 Hz 15°

Mains voltage (V)

Phase angle

P1 12,5A

1586,9kWh

Art. no. Version

FACTORY 1 U Metered BlueNet, GST18, max. 16 A / 230 V - / 3680 W Length: approx. 191 mm

Current measurement

509.009 · Anodised aluminium profile, 1 U

- 1 x current measurement (digital ammeter)

- Power input: GST18i3 plug, black

• Power outlet: 2 x GST18i3 socket, black

- Current measurement features:

Range 0-16 A, max. current 32 A,

Accuracy: class 1, backlit liquid crystal display

Exterior view of a mechanical device with a blue display and shaft (no visible text or symbols)

FACTORY 1 U Metered Plus BlueNet, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 191 mm

Current and power measurement with phase angle

509.012 · Anodised aluminium profile, 1 U

- 1 x current + power measurement

- Power input: GST18i3 plug, black

- Power outlet: 2 x GST18i3 socket, black

- Power measurement features:

backlit LCD display, precision: class 1, 1-phase, max. 16 A

Mains voltage (V), current (A), frequency (Hz), phase angle,

energy (kWh) and power (kW) measurement

Exterior view of a mechanical or electronic device with a blue display and coiled shaft (no visible text or symbols)

Feed modules - greater safety at the workstation

Feed module in aluminium profile, 1 U (width 44.5 mm) with protective features and 2 power outlets

• Can be used as the base unit for any power strip
  • Easy to fit with specially designed mounts (ESD-capable)
• Connects to power strip via extension cable (see page 159)
• 1 x power input and 2 x power outlet in Wieland GST18 system for connecting to one or two power strips or workstations
• Integral protector unit with overvoltage protection, miniature circuit breaker or residual current device
• Feed module with built-in current and power measurement to record energy consumption of workstation

Exterior view of a white electrical circuit breaker with indicator lights and terminal connectors (no text or symbols visible)

Art. no. Version

FACTORY 1 U overvoltage protector with filter, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 235 mm

509.006 · Anodised aluminium profile, 1 U

• 1 overvoltage protection unit, 6.5 kA, with optical function and fail indicator; mains filter 30 MHz
• Power input: GST18i3 plug, black
• Power outlet: 2 x GST18i3 socket, black

FACTORY 1 U miniature circuit breaker, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 235 mm

509.007 · Anodised aluminium profile, 1 U

• 1 miniature circuit breaker, 16 A, 2-pole, type B
• Power input: GST18i3 plug, black
  • Power outlet: 2 x GST18i3 socket, black

FACTORY 1 U residual current device\* (RCD), GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 235 mm

509.008 · Anodised aluminium profile, 1 U

• 1 residual current device, 16 A, tripping current 10 mA, response time 30 ms, 2-pole
  • Power input: GST18i3 plug, black
• Power outlet: 2 x GST18i3 socket, black
  * Since 1 February 2009 all mains circuits supplying power sockets that are used by people other than electrical technicians must contain a RCD. Indoor use: up to 20 A / Outdoor use: up to 32 A

COMPRESSED AIR - everything in one system

3D rendering of a mechanical assembly with multiple cylindrical components and a shaft (no text or symbols visible)

Aluminium profile, 1 U (width 44.5 mm) with standard compressed-air outlets for up to 16 bar

• Simple to fit with specially designed mountings
- Standard compressed air outlets, nominal diameter 7
- Infeed and onward supply via nominal diameter 5
- Strips can be linked to one another directly or via a connecting hose
- Other nominal diameters and configurations are available on request

Art. no. Version

FACTORY 1 U, 2 x compressed air outlets, max. 16 bar Length: approx. 147 mm

509.010 · Anodised aluminium profile, 1 U

• 2 compressed air outlets (NW7 coupling)
• Compressed air inlet via NW5 connector
• Compressed air outlet via NW5 coupler

FACTORY 1 U, 3 x compressed air outlets, max. 16 bar Length: approx. 187 mm

509.011 · Anodised aluminium profile, 1 U

· 3 compressed air outlets (NW7 coupling)
- Compressed air inlet via NW5 connector
- Compressed air outlet via NW5 coupler

Compressed air

Ordinary air is forced via compressors to a higher pressure and can be used to drive a variety of equipment. Bachmann FACTORY compressed air units distribute the compressed air to two or three access points for end-use devices (screwdrivers,

compressed-air guns etc.). Each compressed air unit also has a compressed air outlet, allowing more than one unit to be used in combination.

ESD - all-round protection

Aluminium profile, 1 U (width 44.5 mm) with standard ESD connectors

• Simple to fit with specially designed mountings (ESD-capable)
• Integrates simply into ESD design of workstation via standard plug connectors and so can be used as EBP (earth bonding point)
• Other nominal diameters and configurations are available on request

3D rendering of a mechanical device with two labeled buttons (EBP) and a green cable, no visible text or symbols beyond labels.

Art. no. Version

FACTORY 1 U 3 x ESD 10 ohm Length: approx. 104.5 mm

509.013 · Anodised aluminium profile, 1 U

• 2 x ESD snap connector sockets, 10 mm, 10 ohm
• Input: 3 m cable, green/yellow with M4 ring termination

FACTORY 1 U 3 x ESD 10 ohm Length: approx. 147 mm

509.014 · Anodised aluminium profile, 1 U

• 3 x ESD snap connector socket, 10 mm, 10 ohm
• Input: 3 m cable, green/yellow with M4 ring termination

3D rendering of a gray industrial device with two yellow buttons labeled 'Load' and 'Order', connected by a green cable (no visible text or symbols beyond labels)

ESD

ESD is the abbreviation for electrostatic discharge, which occurs when two bodies at different electrical potentials come into to contact and their charges equalise. Electrostatic charges are created when two different materials are rubbed together or are separated from one another. Examples include: walking on plastic floors, rubbing against synthetic clothing, moving plastic containers, unrolling

adhesive PVC tapes or moving conveyor belts. In modern workspaces static charges can create high static voltages. Charges of above 10 kV are not uncommon. Where air humidity is below 20 %, values of 30 kV have been recorded.

STEP - the low-cost alternative

3D rendered mechanical component with stepped base and flanged top (no visible text or symbols)

Pure electrical connector diagram without any text, numbers, or symbols

Power strips in plastic or aluminium profile (width 52 mm) for a simple modular electrification system.

• Compact dimensions and robust housing
- Can be mounted on T-slot profiles and the upright profiles of various manufacturers
• Easy to fit with specially designed mounts (ESD-capable)
• Mains input and output based on Wieland GST18 connector system
• Strips can optionally be fitted with modules (from page 149)
• Strips can be linked to one another using device extension cables (see page 159)
- Power infeed direct to mains input via supply cable (see page 159) or via feed modules (see from page 149)

Max. 16A/230V\~

Art. no. Version

STEP BASE 3 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 220 mm

336.600

Light-grey plastic profile, socket outlets black

• 3 x socket outlets with earthing contact, set at 35°
• Power input: GST18i3 plug, black
  • Power outlet: GST18i3 socket, black
• Incl. safety plug catch

STEP BASE 3 x earthing contact, red, GST18, max. 16 A / 230 V - / 3680 W Length: approx. 220 mm

336.601

Light-grey plastic profile, socket outlets red

· 3 socket outlets with earthing contact, set at 35°
- Power input: GST18i3 plug, black
- Power outlet: GST18i3 socket, black
- Incl. safety plug catch

3D rendering of a black rectangular electronic component with multiple ports (no text or symbols visible)

STEP BASE 4 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 262.5 mm

336.604

Light-grey plastic profile, socket outlets black

• 4 socket outlets with earthing contact, set at 35^
• Power input: GST18i3 plug, black
  • Power outlet: GST18i3 socket, black
• Incl. safety plug catch

Max. 16A/230V\~

Art. no. Version

STEP ALU 1 x switch, 3 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 262.5 mm

1 x switch, controls sockets only

906.003 · Anodised aluminium profile, socket outlets black

• 1 switch, green, 2-pole, illuminated, switches sockets only (not power outlet)
• 3 socket outlets with earthing contact, set at 35^
• Power input: GST18i3 plug, black
  • Power outlet: GST18i3 socket, black
• Incl. safety plug catch

Exterior view of a black electronic device with three ports and a green indicator light (no text or symbols visible)

STEP ALU 1 x switch, 3 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 262.5 mm

1 x switch, controls power input (sockets and power outlet)

906.031 · Anodised aluminium profile, socket outlets black

• 1 switch, green, 2-pole, illuminated, controls power input
• 3 socket outlets with earthing contact, set at 35^
  • Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Incl. safety plug catch

Exterior view of a black rectangular electronic device with three ports and a green indicator light (no text or symbols visible)

STEP ALU, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 220 mm

1 x custom module

906.000 · | anodised aluminium profile, 1 U

• 3 socket outlets with earthing contact, set at 35^
• 1 custom module cover, blank
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Incl. safety plug catch

STEP ALU, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 220 mm

Overvoltage protection

336.004 · Anodised aluminium profile, 1 U

• 1 overvoltage protection unit, 6.5 kA, with function and fail indicator; mains filter 30 MHz
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Incl. safety plug catch

STEP ALU, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 220 mm

Miniature circuit breaker, 16 A

336.015 · Anodised aluminium profile, 1 U

• 1 miniature circuit breaker, 16 A, 2-pole, type B
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Incl. safety plug catch

STEP ALU, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 220 mm

Residual current device, 16 A, 10 mA

906.067 · Anodised aluminium profile, socket outlets black

• 1 residual current device, 16 A, tripping current 10 mA, response time 30 ms, 2-pole
• Power input: GST18i3 plug, black
  • Power outlet: GST18i3 socket, black
• Incl. safety plug catch

AUTOMATIC SWITCHOFF - save power automatically

The Bachmann automatic switchoff unit allows efficient savings in power consumption without major wiring outlay when equipment is not in use. No longer is the proper shutdown of equipment left to chance; now power is conserved when consumption falls below a defined threshold. The effectiveness of this system exceeds the savings possible with master-and-slave power strips, since practically no standby current is drawn by the master device and power consumption during non-use hours is exactly zero. The automatic switchoff device thus saves some 70 euros annually in standby power.

Max. 16A/230V\~

Art. no. Version

3D rendering of a black rectangular electronic component with a handle and internal slots (no text or symbols visible)

STEP ALU, automatic switchoff, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 263 mm

906.005 · Anodised aluminium profile, 1 U

· 1 automatic switchoff unit with adjustable threshold
- Power input: GST18i3 plug, black
- Power outlet: GST18i3 socket, black
- Incl. safety plug catch

How the automatic switchoff works

When the main device is switched off, power consumption falls below a defined threshold 30 seconds after the main device (1) is switched off, the sockets downstream are isolated from the supply - and no standby current is drawn. Pressing the button switches the system on. (Button 917.060, see page 158) Power infeed Automatic switchoff (Master device) STEP with sockets for peripheral devices Current Power onward feed

Tradesman's strips: robust professional quality

• Separate earth conductor of up to 4 mm ^2 connects directly
• Easily accessible terminal to allow other conductor lengths to be connected
  • End caps with additional screw holes for mounting on different profiles (T-slot or upright)
• Outlet sockets set at 90° with 15 mm additional spacing - ideal for mains plugs with large housings
  • 2.0 m cable, H05W-F 3G 1.50 mm² with right-angle earthed plug

Art. no. Version

Tradesman's strip, sockets set at 90^ , max. 16 A / 230 V \~ / 3680 W

Without switch
300.000 ·	6 socket outlets with earthing contact, set at 90°
300.001 ·	9 socket outlets with earthing contact, set at 90°
300.002 ·	12 socket outlets with earthing contact, set at 90°
With switch, 2-pole, green, illuminated
300.003 ·	6 socket outlets with earthing contact, set at 90°
300.004 ·	9 socket outlets with earthing contact, set at 90°
300.005 ·	12 socket outlets with earthing contact, set at 90°

Exterior view of a gray rectangular electronic component with multiple pins and a green indicator light (no text or symbols visible)

Power strip for horizontal mounting

• Combination of sockets and various custom modules (see page 158)
- Can be mounted on T-slot profiles and upright profiles of various manufacturers with the metal mounting brackets provided, but fully insulated from the socket profile (ESD-capable)
• Power infeed direct to mains input via supply cable (see page 159) or via feed modules (see from page 149)

Art. no. Version

Universal ALU, 2 x switch, 6 x earthed socket, max. 16 A / 230 V \~ / 3680 W Length: approx. 920 mm

906.039 · Anodised aluminium profile, >1 U

· 1 switch, green, 2-pole, controls sockets

· 3 socket outlets with earthing contact, black, set at 35°

· 5 custom module covers, blank

· 3 socket outlets with earthing contact, black, set at 35°

· 1 switch, red, 2-pole, controls power outlet

· Power input: GST18i3 plug, black

· Incl. safety plug catch

Exterior view of a long, metallic industrial or electronic device with multiple ports (no visible text or symbols)

TWIN: for workstations requiring a large number of sockets

• Compact dimensions thanks to arrangement of sockets on 2 profile tracks
• Can be mounted on T-slot profiles and upright profiles of various manufacturers with the metal mounting brackets provided, but fully insulated from the socket profile (ESD-capable)
  • Strips can optionally be fitted with data or media technology modules (from page 158)
  • Power infeed direct to mains input via supply cable (see page 159) or via feed modules (see from page 149)

Art. no. Version

Universal ALU, 10 x earthed socket, max. 16 A / 230 V \~ / 3680 W Length: approx. 366 mm

922.014 · Anodised aluminium profile, >1 U

· 2 x 5 socket outlets with earthing contact, set at 35°

· 2 custom module covers, blank

· Power input: 0.1 m H05W-V-3G 1.50 mm2 black, with GST18i3 plug

· Incl. 4 mounting brackets 940.096 (see page 144)

Suitable mountings on page 156

Illustration of a flexible electronic device with a coiled cable and two rectangular components (no text or symbols)

Fixings - suitable for all systems

3D rendered mechanical component with mounting base and internal slots (no visible text or symbols)

Mountings for the FACTORY and STEP ranges of power strip onto T-slot profiles, upright profiles and tabletops.

• ESD-compatible mountings
• Simple to fit, can be flexibly swapped
• Use standard M8 or M6 screws and ordinary tools

Fixing accessories for Bachmann PDUs

Art. no. Version

Plastic bracket set for Factory, Step and Universal power strips Plastic

509.000 · Plastic bracket set:
· Holes for M8 and M6 bolts
- Colour RAL7035 light grey

Stainless steel mounting bracket

940.096 · Inserts into rear of Factory and Step profiles and in end cap of Universal
- Ideal when using power strips with data connections
(data and media cables exit from rear)
· 2 items, packed in polythene

Bolts

509.015 · For 10 mm T-slot profile
Contents:
· 2 M6 x 16 bolts DIN 7984-8.8
· 2 U-washers for M6 (D6.4), zinc-plated
· 2 T-slot nuts M6, zinc-plated

Two 3D mechanical components with arrows indicating direction, one showing a textured block and the other a rectangular shaft (no text or symbols visible)

Pure electrical circuit lines without any symbols

Close-up of a mechanical bracket or frame structure with no visible text or symbols

Plastic brackets allow versatile mounting on T-slot or upright profiles.

The brackets are inserted into the profile groove on the rear of the strip.

Suitable for power strips in the FACTORY and STEP series.

Close-up of a mechanical component with mounting bracket and mounting holes (no visible text or symbols)

Use of brackets with STEP power strips, 36 mm in height.

No ESD capability specified.

Four 3D mechanical assembly diagrams showing bracket and mounting features (no text or symbols)

Use of bracket with UNIVERSAL power strips. The bracket simply slots into the UNIVERSAL end cap and can be fixed in various positions.

DESK - versatile tabletop power strip

DESK power strips as tabletop units for workstations, letting you combine power outlets with data and media technology modules

• Combine power outlets with data and media modules
- Sockets and power outlets can be switched off to save energy
- Mounts on tabletop workstations with screws or brackets (available separately)
• Strips can optionally be fitted with data or media technology modules (see from page 158)
- Power infeed direct to mains input via supply cable (see page 159) or via feed modules (see from page 149)

Max. 16A/230V\~

Art. no. Version

DESK 1 x switch, 3 x earthing contact, max. 16 A / 230 V \~ / 3680 W Length: approx. 268 mm

339.1001

Anodised aluminium profile, socket outlets black
- 1 switch, green, 2-pole, illuminated, controls sockets
- 3 socket outlets with earthing contact, set at 35^
- Power input: 3.0 m H05VV-F 3G 1.50 mm² black, with right-angle earthed plug
- incl. standard brackets

Exterior view of a server rack unit with three ports and ventilation slots (no visible text or labels)

Close-up of a mechanical device with a metallic frame and black connectors (no visible text or symbols)

Rear

Exterior view of a gray industrial rack with three black components and a green indicator light (no text or symbols visible)

DESK 1 x switch, 3 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 368 mm

1 x custom module

902.017 · Anodised aluminium profile, socket outlets black

• 1 switch, green, 2-pole, illuminated, controls sockets and power outlet
• 3 socket outlets with earthing contact, set at 35^
• 1 custom module cover, blank
• Power input: GST18i3 plug, black
  • Power outlet: GST18i3 socket, black
• Brackets not included (available separately)

CUSTOM

Exterior view of a black industrial device with ports and a green indicator button (no visible text or symbols)

DESK 1 x switch, 3 x earthing contact, GST18, max. 16 A / 230 V \~ / 3680 W Length: approx. 409 mm

2 x custom module

902.018 · Anodised aluminium profile, socket outlets black

• 1 switch, green, 2-pole, illuminated, controls sockets and power outlet
• 3 socket outlets with earthing contact, set at 35^
• 2 custom module covers, blank
• Power input: GST18i3 plug, black
• Power outlet: GST18i3 socket, black
• Brackets not included (available separately)

CUSTOM

Exterior view of a black rectangular electronic device with multiple ports and a green indicator light (no visible text or symbols)

DESK standard brackets for tabletop thicknesses up to 50 mm

930.120 · Anodised aluminium, thickness approx. 9 mm

Contents:

• 2 support brackets, anodised aluminium
• 2 M5 x 60 mm Allen bolts

DESK end cap screws for tabletop thicknesses over 15 mm

930.183 · 2 Spax screws, 5 x 90 mm incl. brass threaded sleeve

Two 3D mechanical components with mounting holes, one black and one gray, shown without any text or symbols.

Custom modules – for networks, media and programming

Bachmann custom modules are the central building blocks for network, media or programming connections, and fit easily and flexibly into power strip units with custom module covers.

Exterior view of a black plastic enclosure with internal compartments and a red arrow indicating motion (no text or symbols)

• Flexibly interchangeable modules
• Simple to connect using socket/socket versions and connecting cables
• Can be purchased as a kit
• Can be fitted or replaced later
- Warranty is not affected by fitting/replacement since each frame is insulated separately
- Screws and frames are designed for approx. 10 bolting cycles
- Bolts = Torx T6 For other versions see page 66

Art. no.

Module 2 x keystone

917.000

- Module, black, accepts 2 data sockets with keystone fitting

Module 1 x keystone

917.001

- Module, black, accepts 1 data socket with keystone fitting

OWG-LC duplex keystone

918.071

• OWG-LC duplex coupler
• Keystone fixing
• Suitable for modules 917.000 and 917.001

OWG-SC keystone

918.072

• OWG-SC coupler
• Keystone fixing
• Suitable for modules 917.000 and 917.001

PS2 mouse + keyboard

917.031

• Front: PS2 MiniDin socket
  (mint green for mouse and lilac for keyboard)
• Rear: PS2 MiniDin socket
  (mint green for mouse and lilac for keyboard)

Button for automatic switchoff

917.060

• Front: Button, black, for automatic switchoff unit
• Rear: 1.0 m H05VV-F 2 x 0.75 mm² black with Wieland GST 15i2 connector
• Use in any socket unit with custom modules

Art. no.

CAT6 coupling socket/socket

940.044

• Type: BTR E-DAT
• Front: RJ45 (keystone fixing)
• Rear: RJ45 (E-DAT mounting)
  • Shielded
• Suitable for modules 917.000 and 917.001

CAT5e coupling socket/socket

940.057

• Front: RJ45 (keystone fixing)
• Rear: RJ45 (keystone fixing)
  • Shielded
  • Suitable for modules 917.000 and 917.001

ISDN RJ12 socket/socket

940.085

• Front: RJ 12 (keystone fixing)
  · Rear: RJ 12 (keystone fixing)
• Unshielded
  • Suitable for modules 917.000 and 917.001

CAT6a 10 GB patch cable plug/socket 3.0 m

918.033

• Front: Socket RJ45 CAT6a TKM 10 GB
  · Cable, black, with RJ45 plug
  • Shielded
• Suitable for modules 917.000 and 917.001

BNC R/G/B

917.090

• Front + rear:
  BNC R/G/B socket

RS232

917.012

• Front + rear:
  9-pole RS232 socket

Supply cables and distributors

For supplying or linking multiple power strips we offer cables featuring the Wieland GST18 connectors that are used worldwide.

• Prefabricated cables in various lengths
• Plug connectors conforming to world standards, contact-protected
• With mandatory latching to power strips
- Connect to power strips without tools
• Can subsequently be removed
- Power input can be earthed via the separate earthing connection on device supply cables 375.115 – 375.117

wieland

3D rendering of a black electrical connector with visible wiring and internal components (no text or symbols)

Art. no. Length Version

Device supply cable, GST18/earthing contact

With extra earth connection
375.115	2.0 m	· Cable: H05VV-F 3G 1.50 mm ^2
375.116	3.0 m · End 1:	Right angle plug with earthing contact
375.117	5.0 m	· End 2: Wieland GST18i3 socket with 0.3 m 2.5 mm ^2 green/yellow,with M6 ring terminal

Device supply cable, GST18/earthing contact

375.000	1.5 m	· Cable: H05VV-F 3G 1.50 mm^2
375.075	2.0 m · End 1:	Right angle plug with earthing contact
375.003	3.0 m · End 2:	Wieland GST18i3 socket
375.005	4.0 m
375.007	5.0 m
375.039	10.0 m

Coiled black electrical plug with two terminal connectors (no text or symbols visible)

Device extension cable, GST18/GST18

375.050	0,3 m	· Cable: H05VV-F 3G 1.50 mm2
375.053	1,0 m · End 1: Wieland GST18i3 plug
375.038	2,0 m · End 2: Wieland GST18i3 socket
375.055	3,0 m

Orange and black coiled cable with connectors (no text or symbols visible)

Tapping cable, GST18/earthing contact coupling

Extends length from - to
375.097 0.5-2.5 m	· Spiral device extension cable
375.098 1.0-5.0 m	· Cable: H07BQ-F 3G 1.50 mm ^2 orange· End 1: Wieland GST18i3 plug· End 2: Earth contact coupling, black

2

Multipliers

For power distribution
375.101 1 x input, 1 x outlet (1)		· Input: 3-pole plug
375.102 1 x input, 2 x outlet (2) · Output: 3-pole socket
375.105 1 x input, 3 x outlet (3)
Through-wired for 3-phase power, 5 and 3-pole
375.106 1 x input, 1+6 x outlet · Input: 1 x plug, 5-pole
		· Output: 1 x socket, 5-pole
		6 x 3-pole socket per outer conductor

Coupler

No interlock

375.500 GST input/GST outlet · For simple connecting of e.g. two Factory power strips

FACTORY LIGHT – good light for assembly workstations

Good lighting facilitates productivity and wellbeing. To meet the particular lighting requirements of assembly workstations, our collaboration with Siteco has developed highly specific lamp systems. These lamp types, for mounting horizontally above the work area or vertically on an upright profile, create bright light over a wide area of the workstation. Depending on specific requirements the lamps may be used singly or in combination. The outrigger lamp, for fitting to a vertical upright profile (770.000) can also be rotated and swivelled, allowing adjustment of the beam angle to the specific needs of the employees and the task. It offers the best conditions for absolutely glare-free light, facilitating efficient work and low fatigue levels. Both models use fluorescent light sources, anodised louvres and electronic ballast units to offer maximum effectiveness and maximum energy savings.

Art. no. Version

SITECO assembly area outrigger lamp Length: 610 mm, width: 125 mm

3D rendering of a mechanical component with internal cavities and a shaft (no text or symbols visible)

Close-up of a mechanical device labeled 'Outrigger' (no other text or symbols visible)

770.000 · Lamp in aluminium profile, RAL9006, matt

• Incl. 1 x TC-L 36W / 840 light source
• Electronic ballast to minimise power loss
• Aluminium specular louvre, satin anodised, for high lighting comfort and high efficiency
• Mounts on vertical profile frames
• Outrigger arm turns through 360° and swivels through 180°, so can be set up individually
• Can be mounted without opening lamp
• GST 18/3 power input

SITECO assembly area horizontal mounting lamp Length: 899 mm, width 87 mm (incl. fixing bracket 126 mm)

770.001 · Lamp in aluminium profile, RAL9006, matt

• Incl. 1 x T16 39W / 840 light source
• Electronic ballast to minimise power loss
• Aluminium specular louvre, satin anodised, for high lighting comfort and high efficiency
  · CRF (contrast rendering factor) louvre to avoid reflected glare
• Mounts on horizontal roof section
• Can be mounted without opening lamp
  · GST 18/3 power input + power output with 3-pole through wiring

3D rendering of a rectangular electronic component with multiple slots and mounting holes (no visible text or symbols)

Note

These lamps should be operated via BACHMANN FACTORY power strips with switched power outlets (see pages 146) or any other external switch.

They have no built-in switch of their own.

Eulumdat data is available on request.

FACTORY SPOTLIGHT – light exactly where you need it

There are certain situations in which a particularly high brightness of light on the workpiece is essential. The LED flexible arm lamp (770.002) allows you to match the light intensity and angle of illumination quickly and flexibly to any work situation. The high-quality flexible tube allows quick and precise positioning of the lamp head. Thanks to the use of LEDs this remains considerably cooler than a 20 W halogen lamp, yet is brighter than a 35 W halogen lamp. Where there is a particular need for illumination of a specific area, our LED flexible arm lamp forms the ideal complement to wide-area workplace illumination (see FACTORY LIGHT 770.000 + 770.001).

Art. no. Version

Flexible-arm LED lamp for assembly areas

770.002 · High-performance lamp head with 3 x 3 W POWER LED, cool white, 30° beam angle

• Up to 60 000 operating hours (designed for continuous use)
• Illuminance 5000 lux at distance of 0.5 m
• Luminous flux 600 lumens
  • Lamp head IP 64 protected (against dust and splashwater)
• Special mounting bracket for fitting to T-slot profiles of various manufacturers
• External LED operating unit (IP 20) with GST 18/3 power connection
• Flexible arm length 500 mm, lamp head diameter 75 mm

Close-up of a black cable with two connectors and a magnified inset showing internal components (no text or symbols)

Cost comparison of LED lamp with conventional lighting

Type LED lamp Incandescent lamp Halogen lamp
Acquisition costs of lamp in € 360.00	150.00 250.00
Cost of illuminant, each, in € - 1.50 4.00
Lifetime of illuminant, hours	60 000	approx. 1000	approx. 2,000
Power consumption	9 W	60 W	20 W
Illuminant costs after 60 000 operating hours, in €	-	90.00	120.00
Energy consumption after 60 000 operating hours, in kWh	540	3600	1200
Costs (approx. 0.20 €/kWh)	108.00 720.00 240.00
Total costs after 60 000 operating hours, in €	468.00 960.00 610.00

Calculated for 60 000 operating hours

IT power distribution

INTRODUCTION / APPLICATION EXAMPLES ....164

POWER DISTRIBUTION UNIT 1 U....176

Power supply for 19" data racks

POWER DISTRIBUTION UNIT > 1 U ..... 188

Power supply for 19" data racks

BLUENET 192

Intelligent power supply system for 19" data racks

Blu≡Net

Efficient Power Management

Interior view of a modern data center with rows of server racks and overhead lighting (no visible text or labels)

POWER UNIT NEW 204

Intelligent power supply system for 19" data racks

CEE OUTLET BOX . NEW 206

Intelligent power supply system for 19" data racks

ACCESSORIES. NEW 208

2.77kW 230V 50Hz 15° P | 12.5A 1586.9kWh

IT POWER DISTRIBUTION

IT POWER DISTRIBUTION

Systematic Bachmann IT power distribution

Forty years of experience in developing, manufacturing and distributing power distribution solutions. True to this history, BACHMANN is synonymous with high-quality and innovative electronics and high measurement accuracy, packaged in extremely robust aluminium housings.

We provide solutions in IT energy distribution. Our intelligent and modular product range provides great peace of mind. The PDU Basic power distribution unit and Bachmann's BlueNet products meet all key requirements for future-proofed, highly efficient energy distribution, especially for data centres.

Bachmann power distribution provides various solutions for this sector:

• New and intelligent energy distribution systems
• Upgrading of existing energy distribution systems
  • Combination of existing PDUs and Bachmann power distribution products

12 x IEC C320 C13 with interlock 6 x socket outlet with earthing contact Split into 3 phases Art. no. 800.0109 (See page 185)

U Basic 1 U with interlock hing contact to 3 phases o. 800.0109 (see page 185)

Supply A
16 A / 400 V / 50 Hz

IT PDU Bas 12 x IEC C3 6 x socket o Split into 3 p Art. no. 800. (See page 185

Supply B
16 A / 400 V / 50 Hz

The advan tages at a glance

• High packing density (48 A / PDU)
• Space-saving (depth: 47 mm)
• Also fits in small racks
• Good availability (N +1 redundancy)
• C13 lockable sockets
• Phases identified by colour

12 x IEC C320 C13 with interlock 6 x socket outlet with earthing contact Split into 3 phases Art. no. 800.0109 (See page 185)

IT PDU Basic 1 U

18 x IEC C320 C13 with interlock 3 x IEC C320 C19 with interlock Split into 3 phases Art. no. 800.0104 (See page 185)

Supply A

2 × 16 A / 400 V / 50 Hz

Robu PDUs

IT PDU Basic 1 U

12 x IEC C320 C13 with interlock 6 x socket outlet with earthing contact Split into 3 phases Art. no. 800.0109 (See page 185)

IT PDU Basic 1 U

18 x IEC C320 C13 with interlock 3 x IEC C320 C19 with interlock Split into 3 phases Art. no. 800.0104 (See page 185)

Supply B

2 × 16 A / 400 V / 50 Hz

Robust and compact fixing of two PDUs with vertical link.

The advan tages at a glance

• Very high packing density (96 A per side)
• Very good MTTR (mean time to repair)
• Space-saving (depth: 47 mm)
• Maximum availability thanks to complete physical and electrical isolation
- Lockable C13 and C19 sockets
• Phases identified by colour

BLADE CENTER RACK

Sample system

Sample system IT PDU Basic 1 U 6 x IEC C320 C19 with interlock Each socket is protected by a C16A MCB Split into 3 phases Art. no. 800.0101 (See page 185) Supply A 32 A / 400 V / 50 Hz Supply B 32 A / 400 V / 50 Hz IT PDU Basic 1 U 6 x IEC C320 C19 with interlock Each socket is protected by a C16A MCB Split into 3 phases Art. no. 800.0101 (See page 185)

The advan tages at a glance

• Little wiring work required
- Fuse protection in rack with protection against accidental switching
• Selective protection structure
- Redundant power supply specially designed for high power ratings (22 kW per PDU)
• Compact PDU construction

UPGRADE SOLUTION

Sample system

PDU already installed

BlueNet Monitored upgrade module 16 A / 400 V / 50 Hz CEE plug 16 A / 400 V / 50 Hz CEE coupling Art. no. 329.3004 (See page 200)

Supply

16 A / 400 V / 50 Hz

The advan tages at a glance

• Easy to upgrade using plug connector
• Phase-level monitoring (current, voltage, power, power factor)
• Monitoring of neutral conductors
• Integrated Ethernet interface
- Interface for external temperature and humidity sensors
• OLED display rotatable by software
• Upgrade modules up to 32 A depending on version

INTELLIGENT PDU CONCEPT

Sample system

BlueNet PDU Managed

Measurement per phase

Switching per port

24 x IEC C320 C13 with

interlock

6 x IEC C320 C19 with

interlock

Split into 3 phases

Art. no. 329.800

(See page 203)

Supply A

32 A / 400 V / 50 Hz

BlueNet PDU Managed

Measurement per phase

Switching per port

24 x IEC C320 C13 with interlock

6 x IEC C320 C19 with interlock

Split into 3 phases

Art. no. 329.800

(See page 203)

Supply B

32 A / 400 V / 50 Hz

The advan tages at a glance

• System with N + 1 redundancy
• Very high packing density (96 A per side)
- Integrated measurement of current, voltage, frequency, power factor, effective power and energy
• Switching per socket outlet
• MCBs split 32 A per phase over two blocks of 16 A each
• Integrated Ethernet interface

MODULAR POWER DISTRIBUTION

Sample system

IT PDU Basic 1 U

12 x IEC C320 C13 with interlock 6 x socket outlet with earthing contact Split into 3 phases Art. no. 800.0109 (See page 185)

IT PDU Basic 1 U

18 x IEC C320 C13 with interlock 3 x IEC320 C19 with interlock Split into 3 phases Art. no. 800.0104 (See page 185)

Supply A

16 A / 400 V / 50 Hz

Pure diagram of a server rack connected to two vertical-mounted units with red and black indicators, no text or symbols present.

IT PDU Basic 1 U

12 x IEC C320 C13 with interlock 6 x socket outlet with earthing contact Split into 3 phases Art. no. 800.0109 (See page 185)

IT PDU Basic 1 U

18 x IEC C320 C13 with interlock 3 x IEC320 C19 with interlock Split into 3 phases Art. no. 800.0104 (See page 185)

Supply B

16 A / 400 V / 50 Hz

BlueNet Power Unit with measurement module

329.9008 + 329.9011

(See page 202)

The advan tages at a glance

• Two galvanically isolated infeeds, 400 V / 16 A / 50 Hz each
• Up to four multiple-socket outlets can be connected
• Measurement module can be swapped during operation (plug-and-play)
• Integrated power metering
- Ethernet interface with integral web server
• Excellent value for money
• Modest space requirement (2 U)

MODULAR POWER DISTRIBUTION

Sample system

BlueNet PDU Switched

Switching per port

12 × IEC320 C19

Split into three phases

Art. no. 329.704

(See page 202)

Diagram of two server racks connected via a cable, with a black rack base and control panel (no text or symbols visible)

BlueNet PDU Switched

Switching per port

12×IEC320 C19

Split into three phases

Art. no. 329.704

(See page 202)

Supply A

32 A / 400 V / 50 Hz

BlueNet Power Unit with measurement module

329.9012 + 329.9011

(See page 202)

Supply B

32 A / 400 V / 50 Hz

The advan tages at a glance

• Combines ideally with switchable PDUs
- Separate Ethernet interfaces for measurement and switching electronics
• Two galvanically isolated infeeds, 400 V / 32 A / 50 Hz each
• Up to two multiple-socket outlets can be connected
• Measurement module can be swapped during operation (plug-and-play)
• Integrated power metering
- Ethernet interface with integral web server
• Excellent value for money
• Modest space requirement (2 U)

MODULAR POWER DISTRIBUTION

Sample system

2 x IT PDU Basic 1 U

36 x IEC C320 C13 with interlock

Split into 3 phases

Art. no. 800.0102

(See page 185)

Front view of a server rack unit with two vertical racks connected to a black rack-mounted device (no visible text or labels)

2 x IT PDU Basic 1 U

36 x IEC C320 C13 with interlock

Split into 3 phases

Art. no. 800.0102

(See page 185)

Supply A

32 A / 400 V / 50 Hz

Supply B

32 A / 400 V / 50 Hz

BlueNet Power Unit with measurement module

329.9012 + 329.9011

(See page 202)

The advan tages at a glance

Ideal for combination with PDUs with built-in MCB C16 A circuit breakers
- Cabling and installation kept to a minimum with 400 V / 32 A supply cables
• Two galvanically isolated infeeds, 400 V / 32 A / 50 Hz each
• Up to four multiple-socket outlets can be connected
- Measurement module can be swapped during operation (plug-and-play)
• Integrated power metering
- Ethernet interface with integral web server
• Excellent value for money
• Modest space requirement (2 U)

MODULAR POWER DISTRIBUTION

Sample system

IT PDU Basic 1 U

6 x IEC C320 C19 with interlock

Split into 3 phases

Art. no. 800.0111

(See page 185)

Diagram of two server racks connected to a black rack-mounted device (no text or symbols visible)

IT PDU Basic 1 U

6 x IEC C320 C19 with interlock

Split into 3 phases

Art. no. 800.0111

(See page 185)

Supply A

16 A / 400 V / 50 Hz

Supply B

16 A / 400 V / 50 Hz

BlueNet Power Unit with measurement module

329.9013 + 329.9011

(See page 202)

The advan tages at a glance

• Ideal for combination with blade PDUs
• Two galvanically isolated infeeds, 400 V / 16 A / 50 Hz each
• Up to four multiple-socket outlets can be connected
• Measurement module can be swapped during operation (plug-and-play)
• Integrated power metering
- Ethernet interface with integral web server
• Excellent value for money
• Modest space requirement (2 U)

MODULAR POWER DISTRIBUTION FOR BLADE CENTER

Sample system

BlueNet Power Unit with measurement module

Art. no. 329.9015 and 329.9010

(See page 205)

Supply A

16 A / 400 V / 50 Hz

Front view of a black server rack with multiple drive bays and ventilation grilles (no visible text or labels)

BlueNet Power Unit with measurement module

Art. no. 329.9015 and 329.9010

(See page 205)

Supply B

16 A / 400 V / 50 Hz

BlueNet Power Unit with measurement module

Art. no. 329.9015 and 329.9010

(See page 205)

Supply A

16 A / 400 V / 50 Hz

Front view of a black server rack unit with multiple drive bays and ventilation grilles (no visible text or labels)

BlueNet Power Unit with measurement module

Art. no. 329.9015 and 329.9010

(See page 205)

Supply B

16 A / 400 V / 50 Hz

The advan tages at a glance

• Up to four consumers can be directly connected via C19 plugs
- Ideal for combination with blade PDUs or a smaller number of servers in the rack
• Two galvanically isolated C20 infeeds, 400 V / 16 A / 50 Hz each
• Measurement module can be swapped during operation (plug-and-play)
• Integrated power metering
- Ethernet interface with integral web server
• Excellent value for money
• Modest space requirement (2 U)

Interior view of a data center with rows of server racks and mesh panels (no visible text or labels)

IT PDU 1 U

19" IT PDU Basic (230 V / 50 Hz)

• Power supply for 19" data racks
  · Universal bracket for mounting in 19" data rack
• Flexible positioning in rack, on rear panel and vertically on housing frame
  · Various country-specific designs available as standard
  · Various socket outlet colours available on request

in rack, on rear panel and vertically on housing frame specific designs available as standard set colours available on request Modular design of socket outlets Optionally with illuminated 2-pole switch, green End caps riveted and do not open Torsionally rigid profile 1 U, low profile depth 44 mm made from high-grade anodised aluminium, silver

IEC LOCKABLE

19" IT PDU Basic (230 V / 50 Hz)

• Power supply for 19" data racks with lockable IEC socket outlets
• Locking clips to prevent accidental disconnection
• Various socket outlet colours available on request

Torsionally rigid 1 U profile, small profile depth of 44 mm in high-quality anodised aluminium, silver With locking cover Two locking clips to secure two power cables. Locking is optimal only with Bachmann power cables.

Mounting brackets included with all PDUs.

OVERVOLTAGE PROTECTION

19" IT PDU Basic (230 V / 50 Hz)

• Power supply for 19" data racks with built-in protection functions
• Overvoltage protection against current peaks on a 230 V mains power supply
• Mains and frequency filters to attenuate high-frequency interference (symmetrical and asymmetrical)
  · Various socket outlet colours available on request

colours available on request Overvoltage protection 6.5 kA, to DIN EN 61643-11:08-2007 Optionally with illuminated 2-pole switch, green End caps riveted and do not open Torsionally rigid 1 U profile, small profile depth of 44 mm in high-quality anodised aluminium, silver Function and fail indicator Mains and frequency filters

PROTECTION

19" IT PDU Basic (230 V / 50 Hz)

• Power supply for 19" data racks with built-in fuses
  · Universal bracket for mounting in 19" data rack
• Can be flexibly positioned in the rack, on the rear panel or vertically on the enclosure frame
  · Various country-specific designs available as standard
• Various socket outlet colours available on request

positioned in the rack, on the rear panel or vertically on the enclosure frame -specific designs available as standard outlet colours available on request Protection unit can contain a miniature fuse, RCD or MCB Modular socket outlet design Torsionally rigid 1 U profile, small profile depth of 44 mm in high-quality anodised aluminium, silver

IT POWER DISTRIBUTION

IT PDU BASIC 1 U

Power distribution units 230 V / 50 Hz

With its IT-PDU 1 U, Bachmann provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 U in height, 44 mm in depth and 19" in width, the PDUs can be easily integrated in your IT rack. Their multi-functional mounting brackets allow the units to be mounted in various ways (e.g. inwardly recessed). Our high quality standards ensure that the contact is reliable.

19" IT PDU Basic (230 V / 50 Hz)

For description, see page 176

Art. no. Version Colour (plastic / profile)

19" IT PDU Basic

Without switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.401 9	socket outlets with earthing contact, light grey light grey / silver
333.506 9	socket outlets with earthing contact, light grey black / black
333.539 9	IEC320 non-heating appliance socket outlets C13 black light grey / silver
333.616 12	IEC320 non-heating appliance socket outlets C13 black black / black
Without switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with IEC320 C20 plug
333.815 8	IEC320 non-heating appliance socket outlets C19 black light grey / silver
Without switch, without supply cable, rewireable with terminal block
333.416 8	socket outlets with earthing contact, light grey light grey / silver
333.830 12	IEC320 non-heating appliance socket outlets C13 black black / black
With switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.400 8	socket outlets with earthing contact, light grey light grey / silver
333.505 8	socket outlets with earthing contact, light grey black / black

Two electronic terminal blocks with circular leads, one metallic and one black (no text or symbols visible)

LOCKABLE

LOCKABLE

Two electronic circuit breakers with indicator lights, one black and one white, labeled 'LOCKABLE' in orange text (no other symbols or text visible)

19" IT PDU overvoltage protection (230 V / 50 Hz)

For description, see page 177

Art. no. Version Colour

19" IT PDU Basic with overvoltage protection

Without switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.404 8 socket outlets with earthing contact grey light grey / silver
333.534 8 socket outlets with earthing contact, black black / black
With switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.405 7 socket outlets with earthing contact, light grey light grey / silver
333.535 7 socket outlets with earthing contact, black black / black

Row of eight identical industrial electrical connectors or modules, no visible text or symbols

19" IT PDU Basic with overvoltage protection + mains and frequency filters

Without switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.402 6 socket outlets with earthing contact, light grey light grey / silver
333.536 6 socket outlets with earthing contact, black black / black
With switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.403 5 socket outlets with earthing contact, light grey light grey / silver
333.537 5 socket outlets with earthing contact, black black / black

19" IT PDU Basic mains and frequency filters

Without switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact

333.406 7 socket outlets with earthing contact, light grey light grey / silver

Four electronic circuit breakers with red and white terminal blocks, arranged vertically (no visible text or symbols)

19" IT PDU Protection (230 V / 50 Hz)

For description, see page 177

Art. no. Version Colour (plastic / profile)

19" IT PDU Basic with fusing

10 A miniature fuse, 2.0 m H05VV-F 3G 1.00 mm ^2 , black, with IEC320 C14 plug
333.410 8	socket outlets with earthing contact, red light grey / silver
333.538 8	socket outlets with earthing contact, red black / black
10 A miniature fuse, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.408	8 IEC320 non-heating appliance socket outlets C13 black	light grey / silver
10 A miniature fuse, 2.0 m H05VV-F 3G 1.00 mm ^2 , black, with IEC320 C14 plug
333.540	8 IEC320 non-heating appliance socket outlets C13 black	light grey / silver
1 x residual current device, 16 A, tripping current 30 mA
333.411 6	socket outlets with earthing contact, light grey light grey / silver
1 x MCB 16 A type B
333.412 6	socket outlets with earthing contact, light grey light grey / silver

Zero U-Space IT PDU Basic (230 V / 50 Hz)

Art. no. Version Colour (plastic / profile)

Without switch, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact 333.413 12 socket outlets with earthing contact, light grey light grey / silver

10" IT PDU Basic (230 V / 50 Hz)

Art. no. Version Colour (plastic / profile)

IT PDU Basic

10", 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact

333.417 3 socket outlets with earthing contact, light grey light grey / silver

333.0122 4 socket outlets with earthing contact, light grey light grey / silver

19" IT PDU Master + Slave (230 V / 50 Hz)

• Automatically isolates master device and all slave devices from supply once master device is shut down/switched off
• Automatically switches on master device and all slave devices once master device has been switched on
- Integral LED indicates switching status

Art. no. Version Colour (plastic / profile)

19" IT PDU Master + Slave

2.0 m H05VV-F 3G 1.50 mm², black, with right angle plug with earthing contact

333.407 | 1 + 4 socket outlets with earthing contact, light grey | light grey / silver

19" fuse box (32 A / 400 V / 50 Hz)

• Space-saving option of splitting a 32 A / 400 V infeed between two 16 A / 400 V infeeds
- 6 x 16 A miniature circuit breakers, characteristic C

Art. no. Version

19" IT PDU fuse box

Input: 32 A / 400 V CEE plug outlet: 2 x 16 A / 400 V coupling

800.0120 6|x 16 A miniature circuit breakers, characteristic C

Exterior view of a modern office building (no signage)

NEW

Close-up of three red and black connectors with purple pins, mounted on a white panel (no visible text or symbols)

LOCKABLE

IEC320 C13 lockable

Two locking clips to secure two power cables. Locking is optimal only with Bachmann power cables.

Connecting cables and locking clips can be found on page 209.

Exterior view of a power strip with four black socket switches (no text or symbols visible)

Electrical power strip with black and red connectors and wiring, no visible text or symbols

IEC320 C19 with IEC lock

The IEC lock system protects computers, as servers and electrical equipment can become accidentally disconnected due to vibrations.

IT PDU BASIC 1U

Country versions

IT PDU Basic Switzerland

Art. no. Version Colour Supply cable

19" IT PDU Basic Switzerland

Without switch
800.1259	8 x CH type 13 90° black	2.0 m H05VV-F	3G 1.0 mm ^2 with CH plug type 12
800.1262	8 x CH type 23 90° black	3.0 m H05VV-F	3G 1.5 mm ^2 with CH plug type 23
With switch
800.1263	7 x CH type 13 90° black	2.0 m H05VV-F	3G 1.0 mm ^2 with CH plug type 12
800.1264	7 x CH type 23 90° black	3.0 m H05VV-F	3G 1.5 mm ^2 with CH plug type 23

19" IT PDU Basic overvoltage protection Switzerland

Without switch
800.1260 7 x CH type 13 90° black		2.0 m H05VV-F	3G 1.0 mm ^2 with CH plug type 12
800.1258 7 x CH type 23 90° black		3.0 m H05VV-F	3G 1.5 mm ^2 with CH plug type 23

19" IT PDU Basic overvoltage protection + mains and frequency filters Switzerland

Without switch
800.1261 5 x CH type 13 90° black		2.0 m H05VV-F	3G 1.0 mm ^2 with CH plug type 12
800.1265 5 x CH type 23 90° black		3.0 m H05VV-F	3G 1.5 mm ^2 with CH plug type 23

IT PDU Basic UK

Art. no. Version Colour

19" IT PDU Basic UK

Without switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with UK plug
333.804 7 k UK 90° child-proof grey
With switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with UK plug
333.805 6 k UK 90° child-proof grey

Four identical metallic rectangular electronic components with multiple circular slots, shown from different angles (no text or symbols visible)

Two white rectangular electronic components with multiple slots and a green indicator badge (no text or symbols visible)

IT PDU Basic France

Art. no. Version Colour

19" IT PDU Basic France

Without switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with right-angled earthing contact plug
333.418 9 × UTE socket outlets grey
Without switch, rewireable with terminal block
333.819 8 × UTE socket outlets grey
With switch
333.419 8 × UTE socket outlets + switch grey

19" IT PDU Basic overvoltage protection France

Without switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with right-angled earthing contact plug
333.4061 8 x UTE socket outlets grey
With switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with right-angled earthing contact plug
333.838 7 x UTE socket outlets grey

19" IT PDU Basic overvoltage protection + mains and frequency filters, France

Without switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with right-angled earthing contact plug
333.4063 6 x UTE socket outlets grey
With switch, 2.0 m, H05VV-F 3G 1.5 mm ^2 with right-angled earthing contact plug
333.840 5 x UTE socket outlets grey

19" IT PDU Basic with fusing France

1 x residual current device, 16 A, tripping current 30 mA2.0 m H05VV-F 3G 1.5 mm ^2 with right-angle earthed plug
333.4065 6 x UTE socket outlets grey
1 x MCB 16 A type B, 2.0 m, H05VV-F 3G 1.5 mm ^2 with right-angled earthing contact plug
333.4066 6 x UTE socket outlets grey

Exterior view of a modern office building (no signage)

Exterior view of a white industrial piping system with multiple circular components and a green indicator light (no text or symbols visible)

White electronic power strip with multiple terminal blocks (no visible text or symbols)

IT POWER DISTRIBUTION

IT PDU BASIC 1U

Power distribution units 230 - 400 V / 50 Hz

Development of the IT PDU focused on space-saving PDU integration in the server rack with scope for modular expansion. The high-quality and very robust aluminium profile measures a compact 44 x 47 mm. The space-saving design therefore provides space for data cabling and ventilation for cooling the server rack. The IT PDUs can be linked together by a simple insertion mechanism, making it easy to combine various different plug versions.

19" IT PDU Basic (3 x 16 A / 400 V / 50 Hz)

Art. no. Version Dimensions

19" IT PDU Basic

16 A, 3.0 m H05VV-F 5G 2.5 mm ^2 with CEE plug 16 A red

800.0111* IEC320 C19 non-heating appliance socket outlets 482.6 x 44 x 47 mm

16 A, 3.0 m H05VV-F 5G 2.5 mm ^2 with end sleeves

800.0112* IEC320 C19 non-heating appliance socket outlets 482.6 x 44 x 47 mm

Zero U-Space IT PDU Basic (32 A / 230 V / 50 Hz)

With integrated MCBs

Art. no. Version Dimensions

Without switch, 3.0 m H05VV-F 3G 4 mm2, grey, with CEE plug 32 A blue

800.0119 20 IEC320 non-heating appliance socket outlets C13 black, 2 x C16A MCB 778 x 44 x 47 mm

Zero U-Space IT PDU Basic (3 x 16 A / 400 V / 50 Hz)

Art. no. Version Dimensions

Zero U-Space IT PDU Basic 16 A

16 A, 3.0 m 5G 2.5 mm ^2 with CEE plug 16 A red
800.0104*	18 IEC320 C13 non-heating appliance socket outlets, 3 IEC320 C19 non-heating appliance socket outlets	821 x 44 x 47 mm
800.0105	18 IEC320 non-heating appliance socket outlets C13 821 x 44 x 47 mm
800.0107	15 socket outlets with earthing contact 821 x 44 x 47 mm
800.0109	12 IEC320 non-heating appliance socket outlets C13, 6 socket outlets with earthing contact	821 x 44 x 47 mm
16 A, 3.0 m 5G 2.5 mm ^2 with end sleeves
800.0106*	18 IEC320 non-heating appliance socket outlets C13 821 x 44 x 47 mm
800.0108*	15 socket outlets with earthing contact 821 x 44 x 47 mm
800.0110*	12 IEC320 non-heating appliance socket outlets C13, 6 socket outlets with earthing contact	821 x 44 x 47 mm

Zero U-Space IT PDU Basic (2 x 3 x 16 A / 400 V / 50 Hz)

Art. no. Version Dimensions

Zero U-Space IT PDU Basic 16 A

Two separate power supply cables, 16 A, 3.0 m 5G 2.5 mm ^2 with CEE plug 16 A red
800.0113*	36 IEC320 non-heating appliance socket outlets C13, 12 socket outlets with earthing contact	1840 x 44 x 47 mm
800.0114*	48 IEC320 non-heating appliance socket outlets C13	1840 x 44 x 47 mm

Zero U-Space IT PDU Basic (3 x 32 A / 400 V / 50 Hz)

With integrated MCBs

Art. no. Version Protection Dimensions

Zero U-Space IT PDU Basic 32 A

32 A, 3.0 m 5G 4 mm ^2 with CEE plug 32 A red
800.0100	12 IEC320 C19 non-heating appliance socket outlets	6 x C16A miniature circuit-breakers	1075 x 44 x 47 mm
800.0101*	6 IEC320 C19 non-heating appliance socket outlets	6 x C16A miniature circuit-breakers	820 x 44 x 47 mm
800.0102	36 IEC320 non-heating appliance socket outlets C13	6 x C16A miniature circuit-breakers	1586 x 44 x 47 mm
32 A, 3.0 m 5G 4 mm ^2 with end sleeves
800.0103*	36 IEC320 non-heating appliance socket outlets C13	6 x C16A miniature circuit-breakers	1586 x 44 x 47 mm

800.0111

LOCKABLE
LOCKABLE

LOCKABLE

Image showing four vertical bars with red and black segments, each containing a unique symbol or label.

LOCKABLE
LOCKABLE
LOCKABLE

LOCKABLE
LOCKABLE

LOCKABLE

LOCKABLE

LOCKABLE
LOCKABLE

LOCKABLE
LOCKABLE

Vertical strip of Chinese text, likely from a document or label, with red and black segments indicating different sections.

1.5 m supply cable HO5VV-F 3G 1.5 mm², black Door-position switch can be connected Switch Dulux-SE 11 W illuminant Torsionally rigid 1 U profile, small profile depth of 44 mm in high-quality anodised aluminium, silver

CABINET LIGHTING

1 U 19" lamp

The advan tages at a glance

• Lighting for 19" data racks
- With on/off switch
- With built-in socket recess in various country versions
• Electronic ballast unit
• Includes mounting bracket

Max. 16 A/230V\~

- Power input: 1.5 m H05VV-F 3G 1.50 mm², black, moulded right-angle plug with dual earthing contact system, plastic, RAL7035, sealed riveted end caps, cannot be opened.

Art. no. Version

19", 1 U lamp Length: 438.5 mm

1 x switch
755.000	socket outlet with earthing contact
755.002	UTE socket outlet
1 x switch, 1 x connection point for door-position switch
755.001	socket outlet with earthing contact
755.003	UTE socket outlet

Two metallic dental or implant devices with a connector, displayed against a white background with German and French flags in the corner (no text or symbols on the devices themselves)

Mounting bracket set with door-position switch

1 x door-position switch, 1 x fitting set, 1 x switch

755.004 · Door position switch for 755.001

Close-up of a black and yellow electronic component with a gray connector, shown without any visible text or symbols.

Two 3D mechanical components with mounting holes and a central shaft, shown from different angles (no text or symbols visible)

Mounting brackets made from sheet steel:

4 adjustable screw fastenings, each can be rotated 90° degrees. Can be mounted vertically or horizontally.

PDU > 1 U ALU

Power distribution units

• Torsionally rigid profile > 1 U (52 mm), profile depth 44 mm
• Modular socket outlet design
• Standard socket colour white; other colours black, yellow, red, brown, blue and green also available
• Option including illuminated 2-way switch
  · High-quality electronics components built in, e.g. overvoltage protection, mains and frequency filters
• Mounting brackets included

End caps riveted and do not open

Power input: 2.0 m, H05VV-F 3G 1.50 mm² grey, with moulded right angle plug with dual earthing contact system, sockets white, set at 35°, mounting brackets included

Art. no. Version

19", 8 x earthing contact Length: 440 mm

333.001 · β socket outlets with earthing contact, white

19", 7 x earthing contact Length: 440 mm

1 x switch, green

333.000 · 7 socket outlets with earthing contact, white · Switch, green

19", 7 x earthing contact Length: 440 mm

1 x overvoltage protection

333.004 · 7 socket outlets with earthing contact, white · Overvoltage protection

19", 6 x earthing contact Length: 440 mm

1 x overvoltage protection, 1 x switch, green

333.005 · 6 socket outlets with earthing contact, white · Switch, green · Overvoltage protection

19", 5 x earthing contact Length: 440 mm

1 x overvoltage protection + mains and frequency filters

333.002 · 5 socket outlets with earthing contact, white · Overvoltage protection + mains and frequency filters

19", 4 x earthing contact Length: 440 mm

1 x overvoltage protection + mains and frequency filters, 1 x switch, green

331.0202 4 socket outlets with earthing contact, white - Switch, green - Overvoltage protection + mains and frequency filters

Row of seven identical white electrical terminal blocks with circular and rectangular components, no visible text or symbols.

PDU > 1 U PVC

Power distribution units

• Torsionally rigid profile > 1 U (52 mm) in high-quality PVC, profile depth 44 mm
• Option including illuminated 2-way switch
  · High-quality electronics components built in, e.g. overvoltage protection, mains and frequency filters
• Mounting brackets included

End caps riveted and do not open

Power input: 2.0 m, H05VV-F 3G 1.50 mm² grey, with moulded right angle plug with dual earthing contact system, sockets light grey RAL7035, set at 35°, mounting brackets included

Art. no. Version

19", 8 x earthing contact Length: 440 mm

333.601 - 8 socket outlets with earthing contact

19", 7 x earthing contact Length: 440 mm

1 x switch, green

333.600 · † socket outlets with earthing contact

- Switch, green

19", 7 x earthing contact Length: 440 mm

1 x overvoltage protection

333.604 · 7 socket outlets with earthing contact

- Overvoltage protection

19", 6 x earthing contact Length: 440 mm

1 x overvoltage protection, 1 x green switch

333.605 · 6 socket outlets with earthing contact

- Switch, green

- Overvoltage protection

19", 5 x earthing contact Length: 440 mm

1 x overvoltage protection + mains and frequency filters

333.602 - \$ socket outlets with earthing contact

- Overvoltage protection + mains and frequency filters

Illustration of a metal bracket with mounting holes and a panel mounted on top (no text or symbols)

Stainless steel mounting bracket:

Fastening in the slots of the end cap enables the unit to be fitted at various heights and angles.

Five identical white industrial power strip units with multiple screw holes and indicator lights, arranged vertically (no text or symbols visible)

With integrated terminal for power cables and additional outlet for separate earth conductor. Screwed and rewireable Additional screw holes for mounting in 19" data racks 2 x 2 screw holes for mounting 15 mm spacing between socket inserts Robust plastic profile, very torsionally rigid Earthing contact socket outlets are set at 90°. 2-pole illuminated rocker switch, 16 A 2.0 m H05VV-F 3G 1,5 mm² supply cable with moulded right angle plug with dual earthing contact system

TRADESMAN'S STRIP

Robust, professional quality plastic strip.

With increased distance between socket outlets, allowing easy positioning of mains adaptor plugs and operating equipment.

The advan tages at a glance

• Modern, technical design
- End caps with additional screw holes for mounting in data racks
• Additional earth conductor can be connected without opening the housing
• Strips in 19" dimensions available

Tradesman's strip set at 90°

· Supply cable: 2.0 m H05VV-F 3G 1.50 mm², black with right angle plug with earthing contact
- Socket inserts, black, 15 mm spacing between sockets

Art. no. Version Dimensions: (L x W x H)

Power strip 90°

Without switch
300.000	· 6 socket outlets with earthing contact	· approx. 445 x 74 x 45 mm
300.001	· 9 socket outlets with earthing contact	· approx. 617 x 74 x 45 mm
300.002	· 12 socket outlets with earthing contact	· approx. 790 x 74 x 45 mm

1 x rocker switch, green

300.003	·6 socket outlets with earthing contact	·approx. 445 x 74 x 45 mm
300.004	·9 socket outlets with earthing contact	·approx. 617 x 74 x 45 mm
300.005	·12 socket outlets with earthing contact	·approx. 790 x 74 x 45 mm

1 x overvoltage protection, 1 x rocker switch, green

300.011

·6 socket outlets with earthing contact

·approx. 490 x 74 x 45 mm

1 x overvoltage protection + mains and frequency filters, 1 x rocker switch, green

300.012

·6 socket outlets with earthing contact

·approx. 575 x 74 x 45 mm

Three metallic cylindrical electronic components with evenly spaced leads, no visible text or symbols

Five black rectangular electronic components with green indicator lights, arranged in a row (no visible text or symbols)

Overvoltage protection with filter

Overvoltage protection – conforms to EN 61643-1:2005, EN 61643-11:2002 + A11:2007, type 3, discharge current 6.5 kA, response time < 25 nS. Suitable for 16 A (miniature fuse on request) with varistors, temperature fuse, gas discharge arrester, visual LED function and failure indicator (acoustic signalling also available on request).

Mains and frequency filters conforming to VDE 0565-3:05-2006, damping diagram on data sheet.

Tradesman's strip set at 35°

· Supply cable: 2.0 m H05VV-F 3G 1.50 mm², black
- Screwing dimension 465 mm, socket outlets set at 35°

Art. no. Version Dimensions: (L x W x H)

Power strip 35°

Without switch
300.006	· 8 socket outlets with earthing contact	· approx. 482.6 x 74 x 45 mm

1 x rocker switch, green

300.007

· 7 socket outlets with earthing contact

· approx. 482.6 x 74 x 45 mm

Two black rectangular electronic components with labeled ports and a green indicator light, no readable text or symbols present.

2.77kW 230V 50Hz 15° P1 12.5A 1586.9kWh

Blu≡Net

Efficient Power Management

BLUENET

Power distribution unit

BlueNet is the intelligent energy management system with a measurement accuracy of +/- 1% . Measurement on the neutral conductor also provides increased safety. Alarm values for current, voltage and the phase angle can be individually set for early detection of physical sources of danger. Temperature sensors or humidity sensors can also be connected.

All BlueNet Network series products have an integrated Ethernet interface and can be connected to monitoring systems via SNMP.

Power monitoring and display

BlueNet creates the optimum conditions for efficient power management. In order to monitor and control energy costs it is first necessary to know where and when they arise. BlueNet provides all relevant data such as energy consumption, voltage, power and more.

Capacity planning

Know what's running. By measuring individual loads, administrators can carry out effective planning for their data centre. They can then distribute loads so well that failures due to circuit overloads no longer occur.

Security

Automated notification when threshold values are reached informs the user by e-mail and SNMP before a fault can develop. Restarts controlled by web link further increase availability and flexibility.

Network-based evaluation and control

The data captured by BlueNet is evaluated centrally on the network. Thus the user obtains not only an exact energy cost overview but also information on available load reserves and on possible intervention in the power supply.

Save energy

For an exact analysis of power consumption in data centres, BlueNet is the ideal solution. It enables administrators to select servers for a virtualisation or for decommissioning. By performing a before/after comparison of energy consumption, savings on power costs can be reached in budget planning.

Features	Metered	Metered Plus	Monitored, CEE outlet box	Monitored Plus	Switched Managed
Parameter
Current	● ●	● ●—●	●	●		●
Voltage —		● ●	— ● ●	●		●
Phase angle —		● — ●	— ●	●		●
Frequency —		● ●	— ● ●	●		●
Energy —		● ●	— ● ●	●		●
Reactive power	—	—	● ● — ●	●		●
Effective power	—	● ●	— ● ●	●		●
Apparent power	—	—	● ● — ●	●		●
Power factor	—	—	● ● — ●	●		●
Neutral conductor monitoring	—	—	depends on model	depends on model	—	depends on model
Measurement per phase	● ●	● ●— ●	●	●		●
Display
Type	LCD	LCD	TFT / 2"	LCD	LCD	LCD
Display can be rotated using software	—	—	● —	—	—
Illustration can be set in variable manner	—	—	● —	—	—
Sensors
Integrated temperature sensor	—	—	● —	—	—
Connections for external sensors	—	—	2	—		— —
Switching
Can be switched individually —	—		—	—	●	●
Switching status monitoring	—	—	—	—	O	O
Network
Ethernet (10/100 Mbit/s)	—	—	● ●	●	●●	●
ModBus TCP/IP	—	—	—	O	O	O
HTTP	—	—	● ●	●	●●	●
HTTPS	—	—	—	●	●	●
SSH	—	—	—	●	●	●
DHCP	—	—	● ●	●	●●	●
SMTP	—	—	—	●	●	●
SNMP	—	—	● ●	●	●●	●
Syslog	—	—	—	●	●	●
NTP	—	—	● ●	●	●●	●
Alarm (SMTP, SNMP) —	—	—		●	●	●

• yes - no / O optional

BlueNet Metered Plus / Monitored Plus / Managed

Power measurement (kW) The effective power drawn by the consumers, taking the phase angle into account. Power consumption of the connected devices. Mains voltage (V) Displays the voltage of the incoming mains supply to which the power meter is connected. Frequency (Hz) Current mains frequency 2.77 kW 230V 50 Hz 15° P 1 12,5A 1586,9kWh Phase angle Displays the phase shift in the power network. Phase indicator (P) Shows the phase (1, 2 or 3) currently being measured. Display moves automatically through the phases showing their respective measured values. Current (A) The current now being drawn by the connected devices. Total energy consumption (kWh) The total energy consumption shown on the display is calculated taking the phase angle into account.

BlueNet Monitored

Mains voltage (V)

Displays the voltage of the incoming mains supply to which the power meter is connected.

Current (A)

The current now being drawn by the connected devices.

230 V 50.00 Hz 12.5 A PF 0.966 2.77 kW

MODE DELTA

Power measurement (kW)

The effective power drawn by the consumers, taking the phase angle into account. Power consumption of the connected devices.

Frequency (Hz)

Current mains frequency

Power factor

Displays the power factor.

Exterior view of a BACH MAIN electrical terminal with multiple power socket plugs and a blue 'BlueNet' display (no text or symbols on main body)

Blu≡Net

Metered Series

The display for the BlueNet Metered series:

See and evaluate the most important values at a glance.

The advan tages at a glance

• Current measurement
• Voltage measurement
• Phase angle measurement
• Effective power calculated with regard to phase angle
• Frequency measurement
- BlueNet display
- Accuracy class 1

BlueNet Metered (16 A / 230 V / 50 Hz)

• Integrated current measurement for up to 32 A (depending on version)
  · 3-digit current readout on illuminated LCD display
  · Precision +/- 1%
• End caps riveted and do not open
• Includes mounting brackets and screws
• Plastic light grey, aluminium profile silver

Exterior view of a modern office building (no signage)

Art. no. Version Dimensions (L x W x H)

BlueNet Metered

integrated ammeter, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
333.808 7	socket outlets with earthing contact approx. 482.6 x 44 x 58
333.810 8	EC320 non-heating appliance socket outlets C13 approx. 482.6 x 44 x 58
333.862 7	EC320 C19 non-heating appliance socket outlets approx. 482.6 x 44 x 58
333.864 7	UTE socket outlets approx. 482.6 x 44 x 58
integrated ammeter, 2.0 m H05VV-F 3G 1.00 mm ^2 , black, with CH plug type 12
333.0422 7	CH socket outlets type 13 approx. 482.6 x 44 x 58

BlueNet Metered Plus (16 A / 230 V / 50 Hz)

• Integrated measurement of: current, effective power, voltage, frequency, phase angle and energy
• Indication on illuminated LCD
• Energy meter which can be reset (value is stored even if there is no power supply)
• Precision +/- 1%
• End caps riveted and do not open
• Includes mounting brackets and screws
• Plastic light grey, aluminium profile silver

Exterior view of a modern office building (no signage)

Art. no. Version Dimensions (L x W x H)

BlueNet Metered Plus

integrated power metering, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
329.213 6	socket outlets with earthing contact approx. 482.6 x 44 x 58
329.214 8	EC320 non-heating appliance socket outlets C13 approx. 482.6 x 44 x 58
329.215 6	EC320 C19 non-heating appliance socket outlets approx. 482.6 x 44 x 58

Exterior view of a multi-pin electrical terminal with multiple power outlets (no visible text or labels)

Exterior view of a white computer control panel with multiple buttons and a small display (no visible text or symbols)

Exterior view of a silver remote control device with black buttons and a digital display (no visible text or symbols)

329.214329.213

Mains voltage (V)

Displays the voltage of the incoming mains supply to which the power meter is connected.

Current (A)

The current now being drawn by the connected devices.

230 V

12.5 A

50.00 Hz

PF 0.966

2.77 kW

MODE DELTA

Frequency (Hz)

Current mains frequency

Power factor

Displays the power factor.

Power measurement (kW)

The effective power drawn by the consumers, taking the phase angle into account. Power consumption of the connected devices.

Blu≡Net

Network Series

The data centre's mains supply is monitored and remotely controlled from the comfort of your desk with BlueNet Network series products. BlueNet increases data centre availability, minimises down times and cuts costs.

The BlueNet Network series monitors current, voltage and power.

This allows resources to be planned efficiently and alarms to be issued in the event of faults.

BLUENET MONITORED

Power distribution units

• Integrated measurement of current, voltage, frequency, effective, apparent and reactive power and power factor
  • Integrated Ethernet connection
• Operated via web browser
  • Supported protocols include : HTTP; SNMP
• Integrated temperature sensor
• Up to two sensors can be connected
• Incredibly compact design (WxD: 44 mm x 47 mm)
• Robust aluminium housing
  · High-resolution TFT display
• Software can be used to turn the display to make it easier to read

Exterior view of a black electrical outlet with a plug and cable (no text or symbols visible)

BlueNet Monitored PDU 1-phase (16 A / 230 V / 50 Hz)

Art. no. Version Dimensions

BlueNet Monitored 1-phase

2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
329.3009 6	socket outlets with earthing contact 482.6 x 44 x 47 mm
329.3010 8	IEC320 non-heating appliance socket outlets C13 482.6 x 44 x 47 mm
329.3011 ^	6 IEC320 C13 non-heating appliance socket outlets, 2 IEC320 C19 non-heating appliance socket outlets	482.6 x 44 x 47 mm

BlueNet Monitored PDU 3-phase (3 x 16 A / 400 V / 50 Hz)

Art. no. Version Dimensions

BlueNet Monitored 3-phase

3.0 m H05VV-F 5G 2.50 mm ^2 , black, with CEE plug 16 A red
329.3012	36 IEC320 non-heating appliance socket outlets C13, 6 socket outlets with earthing contact	1757.7 x 44 x 47 mm
329.3013	36 IEC320 C13 non-heating appliance socket outlets, 6 IEC320 C19 non-heating appliance socket outlets	1757.7 x 44 x 47 mm
329.3014	42 IEC320 non-heating appliance socket outlets C13	1675 x 44 x 47 mm

BlueNet Monitored accessories

Art. no. Description

BlueNet Monitored accessories

329.3102 Temperature sensor

329.3104* Combined temperature and humidity sensor

329.3105* USB cable for connecting PDU directly to PC

329.3012

BLUENET MONITORED

Upgrade modules

The BlueNet Monitored upgrade modules are used to upgrade intelligent modules in an existing power distribution system. Simple integration reduces the work and costs involved in installation to a minimum. Upgrade modules can be supplied with both integrated Ethernet interface and Power Line communications adaptor. The Power Line modules further simplify integration by reducing the cabling required.

Pure electrical circuit lines without any symbols

BlueNet Monitored 19" upgrade modules (400 V / 50 Hz)

Art. no. Input Output Dimensions (L x W x H)

BlueNet Monitored 19" upgrade module with integrated Ethernet connection

329.3001*	Wago X-Com 3 phases 32 A Wago X-Com 3 phases 32 A 482.6 x 44 x 47 mm
329.3003*	CEE red 3 phases 16 A 3 IEC320 C19 16 A 482.6 x 44 x 47 mm
329.3004	CEE red 3 phases 16 A CEE red 3 phases 16 A 482.6 x 44 x 47 mm

BlueNet Monitored Power Line upgrade modules (400 V / 50 Hz)

Art. no. Input Output Dimensions (L x W x H)

BlueNet Monitored 19" upgrade module with Power Line communications module

329.3005*	Wago X-Com 3 phases 32 A Wago X-Com 3 phases 32 A 482.6 x 44 x 47 mm
329.3007*	CEE red 3 phases 16 A 3 IEC320 C19 16 A 482.6 x 44 x 47 mm
329.3008*	CEE red 3 phases 16 A CEE red 3 phases 16 A 482.6 x 44 x 47 mm

BlueNet Power Line Concentrator

- The BlueNet Power Line Concentrator collects the data from the Power Line PDUs and supplies it to the network via the Ethernet interface

Art. no. Version

BlueNet Concentrator with Power Line communications module

329.3016*	1 phase / 230 V
329.3017*	8 phases / 400 V

BLUENET MONITORED PLUS

Power distribution units

• Integrated measurement of current, effective power, voltage, frequency and phase angle
  • Integrated Ethernet connection
• Operated via web browser
  • Supported protocols include: HTTP, HTTPS, SNMP, SMTP, NTP, SSH
• Robust aluminium housing
• Illuminated LCD

BlueNet Monitored Plus PDU 1-phase (16 A / 230 V / 50 Hz)

Art. no. Version Dimensions (L x W x D)

BlueNet Monitored Plus 1-phase

19", 2.0 m H05VV-F 3G 1.50 mm2, black, with right angle plug with earthing contact

329.600 6 socket outlets with earthing contact 482.6 x 44 x 199 mm

329.601 8 IEC320 non-heating appliance socket outlets C13 482.6 x 44 x 199 mm

329.602 6 IEC320 C19 non-heating appliance socket outlets 482.6 x 44 x 199 mm

LOCKABLE

BlueNet Monitored Plus PDU 3-phase (3 x 16 A / 400 V / 50 Hz)

Art. no. Version Dimensions (L x W x D)

BlueNet Monitored Plus 3-phase

3.0 m H05VV-F 5G 2.5 mm ^2 , black, with CEE plug 16 A red
329.615 9 IEC320 non-heating socket outlets C19 695 x 44 x 199 mm
329.617 9 socket outlets with earthing contact 695 x 44 x 199 mm
3.0 m, H05VV-F 5G 2.5 mm ^2 black, with end sleeves
329.616*	9 IEC320 non-heating socket outlets C19 695 x 44 x 199 mm
329.618*	9 socket outlets with earthing contact 695 x 44 x 199 mm

BlueNet Monitored Plus PDU 3-phase (3 x 32 A / 400 V / 50 Hz)

In the 32 A variants of the Monitored Plus PDUs, per phase the 32 A are split over two groups of pots each using two MCBs.

Art. no. Version Dimensions (L x W x D)

BlueNet Monitored Plus 3-phase

3.0 m H05VV-F 5G 4 mm2, black, with CEE plug 32 A red
329.604	24 IEC320 C13 non-heating appliance socket outlets, 6 IEC320 C19 non-heating appliance socket outlets	1713 x 44 x 207 mm
329.605 12	IEC320 C19 non-heating appliance socket outlets 1202 x 44 x 207 mm
329.606 24	socket outlets with earthing contact 1713 x 44 x 207 mm

LOCKABLE

Front view of a black rack-mounted server unit with multiple power outlets and a digital display (no visible text or symbols)

BlueNet Monitored Plus, 19"

BLUENET SWITCHED

Power distribution units

• Socket outlets can be switched individually
• Safe zero-voltage switching
• Integrated LED switching status check per port
• Integrated Ethernet connection
• Operated via web browser
• Supported protocols include: HTTP, HTTPS, SNMP, SMTP, NTP, SSH
• Robust aluminium housing

Vertical industrial control panel with red indicator lights and black buttons (no visible text or symbols)

BlueNet Switched PDU 1-phase (16 A / 230 V / 50 Hz)

Art. no. Version Dimensions (L x W x D)

BlueNet Switched 1-phase

	19", 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
LOCKABLE	329.700 8	EC320 non-heating appliance socket outlets C13 482.6 x 44 x 199 mm
	329.702 6	socket outlets with earthing contact 482.6 x 44 x 199 mm
	Zero-U Space, 2.0 m H05VV-F 3G 1.50 mm ^2 , black, with right angle plug with earthing contact
LOCKABLE	329.701 16	IEC320 non-heating appliance socket outlets C13 692 x 44 x 199 mm

BlueNet Switched PDU 3-phase (3 x 32 A / 400 V / 50 Hz)

In the 32 A versions of the Switched PDUs, each 32 A phase is split over two groups of pots with two MCBs.

Art. no. Version Dimensions (L x W x D)

BlueNet Switched 3-phase

	3.0 m Ölflex 3G 4 mm2, black, with CEE plug 32 A red
LOCKABLE	329.703 24	IEC320 C13 non-heating appliance socket outlets,6 IEC320 C19 non-heating appliance socket outlets	1713 x 44 x 207 mm
	329.704 12	IEC320 C19 non-heating appliance socket outlets 1202 x 44 x 207 mm
	329.705 24	socket outlets with earthing contact 1713 x 44 x 207 mm

329.704

BLUENET MANAGED

Power distribution units

• Socket outlets can be switched individually
• Safe zero-voltage switching
• Integrated LED switching status check per port
• Integrated Ethernet connection
• Operated via web browser
  · Integrated measurement of current, effective power, voltage, frequency and phase angle
  • Supported protocols include: HTTP, HTTPS, SNMP, SMTP, NTP, SSH
• Robust aluminium housing
• Illuminated LCD

BlueNet Managed PDU 3-phase (3 x 32 A / 400 V / 50 Hz)

In the 32 A versions of the Managed PDUs each 32 A phase is split over two groups of pots with two MCBs.

Art. no. Version Dimensions (L x W x D)

BlueNet Managed 3-phase

3.0 m H05VV-F 5G 4 mm2, black, with CEE plug 32 A red
329.800	24 IEC320 C13 non-heating appliance socket outlets, 6 IEC320 C19 non-heating appliance socket outlets	1713 x 44 x 207 mm
329.801 12	IEC320 C19 non-heating appliance socket outlets 1202 x 44 x 207 mm
329.802 24	socket outlets with earthing contact 1713 x 44 x 207 mm

Vertical industrial control panel with red and gray buttons, no visible text or symbols

329.802

The measurement module can be removed in use without interruption of the supply to the connected devices.

DCM Power Control 1 Control 2 Power Control Power, voltage, Single and energy

Only two height units are required.

Current, effective power, voltage, frequency, phase angle and energy can be read from the LC display on the front of the unit. LEDs indicate whether there is voltage present on each of the phases.

A built-in Ethernet port lets you export readings and set alarm thresholds via a web browser or SNMP.

Two galvanica infeeds.

Two galvanically isolated infeeds.

BLUENET POWER UNIT

Modular power distribution in data centres

BlueNet POWER UNIT offers a modular platform for power distribution in data centres. The POWER UNIT basic unit provides power distribution in the rack. If required, the measurement module can be upgraded or replaced during operation without interruption to the supply.

BLUENET POWER UNIT

Power distribution units

• Integrated measurement of current, effective power, voltage, frequency and phase angle
• Two galvanically isolated power supply units
• Integrated Ethernet connection
• Can be operated by web browser, SNMP or serial interface
• Can optionally also be controlled by ModBus TCP (on request)
  • Supported protocols include: HTTP, HTTPS, SNMP, SMTP, NTP, SSH
• Robust enclosure in steel plate
• Illuminated LC display
• Measurement module can be swapped in use without interruption to supply

Front view of a black industrial control unit with blue indicator lights and a red connector (no visible text or symbols)

BlueNet Power Unit base unit (measurement module is available separately)

Art. no. Input Output

BlueNet Power Unit 435.6 x 88 x 317 mm

2 x 1 phase 230 V
329.9007*	2 x 3.0 m CEE 16 A / 230 V 4 x CEE 16 A / 230 V
329.9014*	2 x 3.0 m CEE 16 A / 230 V 2 x CEE 16 A / 230 V
329.9015*	2 x C20 16 A / 230 V 4 x C19 16 A / 230 V
329.9016*	2 x C20 16 A / 230 V 2 x C19 16 A / 230 V
2 x 3 phase 400 V
329.9008*	2 x 3.0 m CEE 16 A / 400 V 4 x CEE 16 A / 400 V
329.9013*	2 x 3.0 m CEE 16 A / 400 V 2 x CEE 16 A / 400 V
329.9009*	2 x 3.0 m CEE 32 A / 400 V 4 x CEE 32 A / 400 V
329.9012*	2 x 3.0 m CEE 32 A / 400 V 2 x CEE 32 A / 400 V

329.9007 329.9007 329.9014 329.9015 329.9008 329.9008 329.9013 BlueNet Power Unit measurement module

Art. no. Version

BlueNet Power Unit Monitored Plus

with integrated Ethernet interface
329.9010*	16 - 32 A / 230 V
329.9011	16 - 32 A / 400 V

BlueNet Power Unit set (basic unit + measurement module)

Art. no. Input Output

BlueNet Power Unit 435.6 x 88 x 317 mm

2 x 1 phase 230 V
329.9001 2	x 3.0 m CEE 16 A / 230 V 4 x CEE	16 A / 230 V
2 x 3 phase 400 V
329.9002 2	x 3.0 m CEE 16 A / 400 V 4 x CEE	16 A / 400 V
329.9003 2	x 3.0 m CEE 32 A / 400 V 4 x CEE	32 A / 400 V

* No storage type, delivery time available on request

IT POWER IT POWER DISTRIBUTION / Bluenet

BLUENET CEE OUTLET BOX

Intelligent infrastructure

The BlueNet CEE outlet box is an easy-to-install intelligent system for monitoring and displaying power. The product is perfectly suited to data centres and industrial applications. The BlueNet CEE outlet box can be quickly and cheaply integrated in existing and new infrastructures using the integrated terminal block or the connection cable that has already been fitted.

NEW

BLUENET CEE OUTLET BOX

Intelligent infrastructure

• Integrated measurement of current, voltage, frequency, effective, apparent and reactive power and power factor
  • Integrated Ethernet connection
• Operated via web browser
  • Supported protocols include: HTTP; SNMP
• Integrated temperature sensor
  · Up to two sensors can be connected (see page 199)
• Robust enclosure in steel plate
  · High-resolution TFT display
• Software can be used to turn the display to make it easier to read
• Can be reconnected with terminal block
• Removable mounting plate for cable ducts or wall mounting
• Other mounting plates available on request.

BlueNet CEE outlet box

Art. no. Input Output

BlueNet outlet box 232 x 104 x 102 mm

16 A
329.3030 1	0 m CEE plug, blue CEE outlet 16 A / 230 V
329.3031 1	0 m CEE plug, red CEE outlet 16 A / 400 V
329.3032 Connector CEE outlet 16 A / 230 V
329.3033 Connector CEE outlet 16 A / 400 V
32 A
329.3034 1	0 m CEE plug, blue CEE outlet 32 A / 230 V
329.3035 1	0 m CEE plug, red CEE outlet 32 A / 400 V
329.3036 Connector CEE outlet 32 A / 230 V
329.3037 Connector CEE outlet 32 A / 400 V

Integrated Ethernet connection & connection point for up to two external sensors (see page 199).

The TFT display can be turned in 90° steps to make it easier to read.

make it easier to read. Removable dusts or wa

The integrated terminal block enables simple connection to existing cabling.

Removable mounting plate for cable ducts or wall mounting. Other mounting plates available on request.

Close-up of a black rectangular electronic component with a blue handle and circular opening (no visible text or symbols)

329.3032

3D rendering of a black rectangular device with blue connectors and a gray cable (no visible text or symbols)

329.3030

Close-up of a black rectangular electronic component with a red pin, no visible text or symbols.

329.3033

3D rendering of a black rectangular device with two red connectors and a gray cable (no visible text or symbols)

329.3031

ACCESSORIES

Mounting brackets for standard 1 U profile

- The brackets are screwed to the PDU end cap using a screw connection (screws provided).

Art. no. Version

1 U mounting brackets

19", Zero-U Space

940.142 · Mounting brackets left and right

>1 U mounting brackets

19", Zero-U Space

940.096 · Mounting brackets left and right

3D mechanical component assembly showing two views of a device housing (no text or symbols visible)

Fixing brackets in sheet steel for 1 U:

4 adjustable screw fastenings, each can be rotated 90° degrees, vertical installation also possible.

Mounting brackets for VM profile variant / Zero U-Space installation

- Power strip is fixed by insertion into the profile groove provided.

- No additional screws required.

Art. no. Version

Exploded view of a mechanical component assembly (no text or symbols visible)

1 U mounting brackets

19", Zero-U Space

940.141 · Mounting brackets left and right

1 U mounting brackets

Zero-U Space

940.143 · Mounting brackets left and right

1 U link

Zero-U Space

800.0053 | For connecting two vertically fitted PDUs

Locking clip

Art. no. Version

Locking clips

940.103 · Red locking clip for IEC 320 appliance socket outlets C13, supplied in packs of 12.

Connecting cable for interlock

Art. no. Version

Connecting cable for interlock

356.119	Connecting cable, 0.5 m, black, H05VV-F 3G 1.0 mm2End 1: moulded non-heating appliance plug IEC C14End 2: moulded non-heating appliance socket outlet IEC C13
356.120	Connecting cable, 1.0 m, black, H05VV-F 3G 1.0 mm2End 1: moulded non-heating appliance plug IEC C14End 2: moulded non-heating appliance socket outlet IEC C13

Locking cap IEC320 C13 & C19

Art. no. Version

Connecting cable for interlock

800.0050	C19 locking caps, 10 items incl. unlocking tool
800.0051	C13 locking caps, 10 items incl. unlocking tool
800.0052	Unlocking tool for locking cap

Shift inhibitor

- To protect against unintentional actuation of miniature or residual current circuit breakers

Art. no. Version

Shift inhibitor

940.140 - Actuation lock for circuit breakers and switches, 1 pole, to protect against unauthorised or dangerous activation of the switch lever

RackFix tool-free mounting on 19" rail

- Self-locking fixing connector for tool-free fastening of PDUs in 19" rack

Art. no. Version

RackFix tool-free rack fastening

940.166 Fixing clip, supplied in packs of 50

940.167 Disassembly tool for fixing clip

Two black electrical connectors with two leads, shown against a white background (no text or symbols visible)

Three black plastic electronic components with mounting holes, shown from different angles (no text or symbols visible)

Yellow hand tool with black plastic pieces and a 'NEW' badge (no text or symbols on main objects)

Data cables -> Transfer of data within various categories

Art. no. Length Version

CAT5e patch cable plug/plug

918.003	1.0 m	· CAT5e cable, shielded, colour grey
940.052	3.0 m · Conforms to ISO / IEC 11801 and EN 50173
940.053	5.0 m	· Ends 1 and 2: RJ45 plug with kink protection nozzle andprotective tongue for interlock· Suitable for e.g. CAT5e socket / socket 940.057

CAT6 patch cable plug / plug

940.040	3.0 m	· CAT6 cable, shielded, colour grey
940.041	5.0 m	· Conforms to ISO / IEC 11801 and EN 50173 · Ends 1 and 2: RJ45 plug with kink protection nozzle and protective tongue for interlock · Suitable for e.g. CAT6 socket / socket 940.044

CAT6a patch cable plug / plug

918.006	1.0 m	· CAT7 cable, shielded, colour black
918.007	3.0 m · Conforms to IEC 61156-6
918.008	5.0 m	· Ends 1 and 2: RJ45 Hirose TM12 CAT6a plug with kink protection nozzle and unlocking tongue· Suitable for e.g. CAT6 socket / socket 940.044

CAT6a patch cable plug

918.033	3.0 m	· CAT7 cable, shielded, colour black
918.034	5.0 m	· Conforms to IEC 61156-6End 1: RJ45 Hirose TM12 CAT6a plug with kink protection nozzle and unlocking tongue.End 2: CAT6a TKM 10 Gb keystone socket.Fits into keystone frames 917.000 / 917.001 / 917.061 / 917.062

RJ12 patch cable plug / plug

940.089	3.0 m · RJ12 cable, unshielded, colour black
		· Conforms to ISO / IEC 11801 and EN 50173
		· Ends 1 and 2: RJ12 plug with kink protection nozzle
		· Suitable for e.g. RJ12 socket / socket 940.085

Close-up of two black USB connectors with metallic leads (no text or symbols visible)

USB connecting cable

Art. no. Length Version

USB A/B connecting cable

940.046	3.0 m	· USB A/B connecting cable, colour black
		· End 1: plug A
		· End 2: plug B
		· Can be used with custom modules with USB B socket / socket (e.g. 917.018)

Flexible cable management system

• The links are safe to step on and break-proof; they can be displaced with respect to one another
• 2 connector shoulders for the transmission of forces (including torques and lateral forces)
• Special geometry enables individual cables to be unfurled through the sides of the links without risking crushing

Art. no. Colour Version

KABELSCHLANGE® Classic

930.030 Black	· For horizontal and vertical cable routing
930.031 Silver	· 3-chamber system to separate low-current, data and power cables· 46 chain links, W x H: approx. 54 x 23 mm· Length (separated): approx. 100 cm· Length (pushed together): approx. 72 cm

KABELSCHLANGE® Cube

930.058 Black	· For horizontal and vertical cable routing
930.059 Silver	· 2-chamber system to separate low-current, data and power cables· 34 chain links, W x H: approx. 55 x 25 mm· Length (separated): approx. 100 cm· Length (pushed together): approx. 69 cm

KABELSCHLANGE® Pro

930.032 Black	· For horizontal cable routing
930.033 Silver	· Increased resistance to being stepped on even in high foot traffic areas such as passages· 5 chain links can withstand short-term loads of up to 120 kg· 2-chamber system to separate data and power cables· Can also be connected directly to Kabelschlang® Classic· 34 chain links, W x H: approx. 90 x 24 mm· Length (separated): approx. 100 cm· Length (pushed together): approx. 69 cm

KABELSCHLANGE® Premium-Set

930.049 Black

· For vertical cable routing to high-quality office furniture

930.050 Silver

· Looks-orientated premium set:16 chain links, W x H: approx. 35 x 70 mm1 x metal base plate in appropriate colour1 x end piece for fixing to desk, screws· The chain links can be pushed together completely to form a self-locking,elliptical cable duct· 2-chamber system to separate data and power cables· Length incl. base plate and desk fixing approx. 78 cm· Length without accessories approx. 75 cm· Length (pushed together): approx. 59 cm per set

KABELSCHLANGE® Easy-Clip

For KABELSCHLANGE® Classic, Cube and Pro
930.037 Black	Clip for tool-free flexible connection to power columns(e.g. Power Tower)Plug in the clip at the end of the KABELSCHLANGE® and attachthe wire bracket to the terminals on the power column
930.038 Silver

KABELSCHLANGE® Easy-Clip for floor outlet

930.036	For KABEL-SCHLANGE®Classic	· Patented adaptor for docking the KABELSCHLANGEcable management systems to all common floor outlets· Clip with elongated holes and fixing holes, can be used for horizontal or vertical fixing to furniture or trunking by removing components that are not required· Clip, pushes onto bottom of the last chain link· Clip yields flexibly in the event of impact (e.g. when floor is being cleaned), thus avoiding damage to outlet or clip
930.054	For KABEL-SCHLANGE®Pro and Cube

Illustration of a coiled snake or serpent (no text or symbols)

Two curved, segmented mechanical components in black and gray, arranged diagonally (no text or symbols)

Two coiled, segmented worm-like structures in grayscale (no text or symbols)

Product assembly diagram showing coiled mechanical components and a curved guide rail (no text or labels)

Illustration of a battery and three paper clips with wires, no text or symbols present

Three types of office chair trim tools including clips, clips, and a spring (no text or symbols visible)

Art. no. Colour Version

KABELSCHLANGE® Easy-Fix 90S Dimensions (L x W x H) 48 x 20 x 20 mm

For KABELSCHLANGE® Classic, Cube and Pro
930.055 Black · Bracket for vertical fixing e.g. to undersides of desk/table tops
	· D = 1.5 mm; 2 drill holes, diameter = 4 mm. Hole spacing 30 mm

KABELSCHLANGE® Easy-Stop

930.042 Black

· Cable grip to fix cables (to ensure cabling complies with standards)securely and tightly to the fixing point· Suitable for horizontal and vertical fixing· Can be used as an individual component or combined with any Easy-Liné rail· With connector clips to connect to system independently of direction

KABELSCHLANGE® Easy-Line

For KABELSCHLANGE® Classic and Pro curved and straight sections
930.039 Straight		· Ideal for mounting on walls or ceilings
930.040	90° curved sectionRadius 150 mm	· Can also be used for horizontal desk cabling,for trunking or for skirting
930.041	22.5° curved section	· 4 x Easy-Line straight sections are sufficient for one metre ofKABELSCHLANGE® Classic· Please fit an Easy-Stop cable grip to each free end!

KABELSCHLANGE® cable clamp set with cable grip

930.051 Black · Cable clamp set, screws onto underside of desk/table top
	· Clamp allows further routing of cable under he desk/table top
	· Contents:
	- Cable clamp incl. 2 fixing screws (for thin desk / table tops too)
	- Strain relief with adjusting screw

KABELSCHLANGE® Easy-Switch

For KABELSCHLANGE® Classic, Cube and Pro
930.034 Black	· The Easy-Switch distributor turns the KABELSCHLANGE into a network-compatible cable management system
930.035 Silver	· The Easy-Switch docks without tools to the KABELSCHLANGE using the adaptor chain links· Note: If using with KABELSCHLANGE Pro you should also order Classic chain links to link to the distributor

KABELSCHLANGE® Easy-Switch

For KABELSCHLANGE® Classic, Cube, Pro and Premium
930.057 Black	4-way distributor with 3 x 120hororizontal junction sockets for KABELSCHLANGE® Classic, Cube and Pro1 vertical coupling point for KABELSCHLANGE PremiumIncl. fixing screw and solid base plate (Easy-Floor Premium)Set contains 4 KS Cube coupling links for linking to KABELSCHLANGE® Pro

KABELSCHLANGE® Easy-Cap

930.044 Black	· Blank cap to seal unused Easy-Switch connection points
930.045 Silver

BRIDGE – the cable duct

Two views of a white plastic panel with multiple colored wires, shown from different angles (no text or symbols visible)

Art. no. Length Version

CABLE BRIDGE Dimensions: (W x H) 146 x 9 mm

Cable duct, straight
930.060	1.0 m	· Anodised aluminium profile, with rippled surface to reduce slipping
930.061	2.0 m	· 3-chamber system allowing power and data cables to be routed separately· Can be fixed with double-sided tape or screwed into place on the floor (see fixing accessories)

Pure white cylindrical object with parallel grooves, no text or symbols visible

CABLE BRIDGE

Bracket for cable duct
930.062	45°	· Bracket in anodised aluminium
930.063	90°

3D rendering of a gray L-shaped metal bracket with cutouts and mounting holes (no text or symbols)

CABLE BRIDGE

Linking element for cable duct
930.064 Straight	Link for joining straight cable ducts
	Screws into place with integral screws
	2 items

Close-up of metallic components including a curved panel and two small metal tools (no text or symbols visible)

CABLE BRIDGE

Fixing accessories for cable duct

930.065 Straight · For screwing down cable ducts at the ends · 4 items

Pure diagram of a roof structure with no text, numbers, or symbols

Close-up of a black cable with multiple wires and a mouse, no visible text or symbols

Wrap textile-fibre sleeves

Wrap textile-fibre sleeves bundle and protect cables and wires in data centre and office environments. The elastic braided sheath with its monofilament fibres assures fire and abrasion resistance and is thus also ideal for professional and industrial use.

Wrap textile-fibre sleeves are aesthetically appealing and can also be retrofitted to cable sets without difficulty.

Simple geometric diagram of a circle with two perpendicular lines and a horizontal dashed line (no text or labels)

Automatic Wrap

The unique, sectional, semi-rigid weave makes Automatic Wrap an ideal solution for situations in which simple installation is required. Its side opening allows for a wide range of applications and can be closed again without the need for aids such as adhesive tape. The PET braid is light and flexible. The edge, which juts out by 25 %, provides cover for the cable extensions and connections inside. Automatic Wrap can be routed around narrow edges without opening or becoming warped. Unlike rigid cable ducts, it does not impair the flexibility of the cable harness.

The advan tages at a glance

• Simple, low-cost installation with minimal labour
• More flexible than coiled or wound solutions
• 25% overlap for secure cable bundling
• Resistant to chemicals and solvents
- Halogen-free
• Resistant to cuts and abrasions
• Retains its shape within operating temperature
range -75 °C to +125 °C

Close-up of a black cable with multiple colored wires (no text or symbols visible)

Art. no. Length Version

Automatic Wrap
Dimensions: diameter 2.54 cm = 1 inch

930.900	1.0 m	· Black
930.901	2.0 m	· Black
930.902	3.0 m	· Black

Automatic Wrap
Dimensions: diameter 5.08 cm = 2 inches

930.903	1.0 m	· Black
930.904	2.0 m	· Black
930.905	3.0 m	· Black

Manual Wrap in colour

Manual Wrap is an exclusive product that offers the ideal solution for numerous applications. A strong Velcro fastener makes the application simple to fit. The entire length of the run remains accessible after installation, e.g. for adding or removing cables or connections. The stretchable woven braid allows the Manual Wrap to bundle and sheathe cables of various diameters. Manual Wrap can also wrap around applications with non-standard shapes. It can be cut cleanly with a thermal cutting device (optional).

The advan tages at a glance

• Strong Velcro fastener for frequent access
- Can be stretched over plugs and sockets
- Halogen-free
• Resistant to chemicals and solvents
- Melting point \~230 °C

Close-up of a medical or laboratory device with attached cables and connectors (no visible text or symbols)

Art. no. Version Version

Manual Wrap

Dimensions: diameter 3.18 cm = 1 1⁄4 inch
930.906*	1.0 m · Black
930.907*	2.0 m · Black
930.908*	3.0 m · Black

Close-up of a hand holding a black, textured object against a white background (no text or symbols visible)

Manual Wrap

Dimensions: diameter 5.08 cm = 2 inches
930.909*	1.0 m · Black
930.910*	2.0 m · Black
930.911*	3.0 m · Black

Electrical materials

SOCKET OUTLETS

ENERGY SAVING 218

PRIMO NEW 220

DUO....224

COMPACT 225

CONNECTUS 226

TRADESMAN'S STRIP NEW 230

SMART 234

OTHER SOCKET OUTLETS 240

CABLES

CONNECTING CABLES 246

SPIRAL CABLES 256

EXTENSION CABLES....260

Close-up of a white coiled tube against a blue background, no text or symbols visible

CONSTRUCTION SITE ACCESSORIES

CEE MATERIAL . NEW 264

CABLE REELS 266

LIGHTING NEW 278

ADAPTORS

PERSONAL CIRCUIT BREAKERS / PRCD-S 288

PERSONAL CIRCUIT BREAKERS / PRCD 290

ENERGY MEASURING INSTRUMENTS NEW 291

TIMER SWITCHES 292

TRAVEL PLUGS 292

SKROSS TRAVEL PLUGS 296

PLUGS / COUPLINGS

EURO PLUG 300

Two hands cupping a small green plant with heart-shaped leaves, against a blurred green background (no text or symbols)

AUTOMATIC Saves Energy

Automatic switchoff

Switch off and save power

The Bachmann automatic switchoff unit allows efficient savings in power consumption by modern-day office equipment during non-working hours without a major outlay on wiring.

Switching equipment off completely is no longer left to chance; power saving now begins as soon as the workstation PC is shut down.

The effectiveness of this system exceeds the savings possible with master-and-slave multiple-socket outlets, since no standby current is drawn by the master device and total power consumption during on-working hours is exactly zero.

The advan tages at a glance

• Complete interrupt
  • No standby current is drawn by the master device
  • No electricity - no fire risk
• Potential saving of up to €70 per year and workstation
• Improvement to carbon footprint

Automatic switchoff

GREEN

CONNECTUS automatic switchoff p. 226

While power outlets with switches are mostly well suited to energy saving, since they can prevent the connected equipment being left in standby mode, unfortunately people often forget to switch them off. The automatic switchoff device saves energy automatically, using intelligent electronics.

• 30 seconds after the device connected to the master socket is shut down/switched off, it automatically isolates this and all the devices connected to slave sockets (e.g. PC, TV etc.) from the supply.
  • Power can be restored simply by pressing the button.
• Optional remote-controlled relay (mounts simply on the desk/table top)
• Energy saving per workstation (with PC, monitor and printer) up to 200 kWh/year

PC Monitor Scanner Printer Button automatic switchoff Lave GREEN ~ €40 per year per workstation

Master & slave

GREEN

Master and slave p. 227

Energy can also be automatically saved using a master-and-slave power strip. When the device plugged into the master socket is switched off or on, this and all the devices connected to the slave sockets (e.g. PC, TV) are automatically switched off or on accordingly.

A particularly convenient feature is that the master-and-slave electronics is also suitable for master appliances with remote control.

• Once master device is shut down/switched off, automatically isolates this and all slave devices from supply
• Once master device has been switched on, automatically switches on this and all slave devices
• Integral LED indicates switching status
• Energy saving per workstation (with PC, monitor and printer) up to 150 kWh/year

PC Monitor Scanner Printer GREEN ~ €25 per year

Timer switch

GREEN

Timer switches p. 292

Numerous appliances both at home and at work can be used significantly more efficiently with a simple-to-operate timer switch. The timer switch never forgets, and so the user need not be concerned with switching on and off.

- Switches connected devices automatically on and off within the preset time window

Product display of four white industrial timer units with buttons and control knobs, one labeled 'GREEN' (no other text or symbols visible)

Energy measuring instrument

GREEN

Energy measurement instruments p. 291

Identifying "power guzzlers" is essential if monitoring and reduction of energy consumption is to be effective. This energy measuring instrument gives a complete and clear overview of which device or group of devices is consuming excessive power. It measures energy consumption (kWh) and current effective power (W), thus enabling the desired savings to be made.

• For monitoring energy consumption and advance energy cost calculation for the devices connected
• With plug adaptor for mobile use with different consumers

21:12:50 0.08 GREEN

These figures do not refer to the product shown specifically and are not a part of the product offer but are provided solely for purposes of comparison.

Easy and quick to reconnect Earthing contacts sockets set at 35°, with nickel-plated earthing contacts and child-proof 2-pole illuminated rocker switch, 16 A Mounting hole Rounded end caps with handy automatic cable rewind and screw-mounting eyes Torsionally rigid profile in high-quality anodised aluminium High-grade integrated electronic components e.g. overvoltage protection, mains and frequency filters, master-and-slave system, ISDN protection etc. 1.75 m H05VV-F 3G 1.50 mm² supply cable with moulded right angle plug with dual earthing contact system

PRIMO

Power strips for professionals.

The advan tages at a glance

• Exclusive to the specialist trade
• Professional quality
Full range
- Attractive modern design
- Tested components
• Halogen and PVC-free socket recesses

Max. 16A/3680W

- 1.75 m supply cable: H05VV-F 3G 1.50 mm², socket inserts, black with moulded right angle plug with earthing contact

Art. no. Version Dimensions: (L x W x H)

PRIMO
Without switch

331.000 · 3	socket outlets with earthing contact, black · approx. 304 x 71 x 46 mm
331.010 · 6	socket outlets with earthing contact, black · approx. 431 x 71 x 46 mm
331.011 · 9	socket outlets with earthing contact, black · approx. 560 x 71 x 46 mm
331.012 · 12	socket outlets with earthing contact, black · approx. 690 x 71 x 46 mm

PRIMO
1 x switch, green

330.070 · 3	socket outlets with earthing contact, black · approx. 304 x 71 x 54 mm
330.071 · 6	socket outlets with earthing contact, black · approx. 431 x 71 x 54 mm
330.072 · 9	socket outlets with earthing contact, black · approx. 560 x 71 x 54 mm
330.073 · 12	socket outlets with earthing contact, black · approx. 690 x 71 x 54 mm

PRIMO, 6 x earthing contact
1 x overvoltage protection, without switch

331.014 · 6	socket outlets with earthing contact · approx. 474 x 71 x 47 mm
	· Overvoltage and transient protection
	· Discharge current 6.5 kA

PRIMO, 6 x earthing contact
1 x overvoltage protection, 1 x switch, green

331.013 · 6	socket outlets with earthing contact · approx. 474 x 71 x 54 mm
	· Overvoltage and transient protection
	· Discharge current 6.5 kA
	· Green switch

PRIMO
1 x overvoltage protection + mains and frequency filters, without switch

·Overvoltage protection + mains and frequency filters
331.006 · 6	socket outlets with earthing contact · approx. 515 × 71 × 4 mm
331.007 · 9	socket outlets with earthing contact · approx. 645 × 71 × 4 mm

PRIMO

1 x overvoltage protection + mains and frequency filters, 1 x switch, green

·Overvoltage protection + mains and frequency filters

·Green switch

331.071 · 6 socket outlets with earthing contact · approx. 560 x 71 x 54 mm

331.072 · 9 socket outlets with earthing contact · approx. 690 x 71 x 54 mm

Seven identical black-and-white industrial electrical connectors arranged vertically (no visible text or symbols)

Overvoltage protection with filter

Overvoltage protection - conforms to DIN VDE 0620-1:01-2002, EN 61643-11:08-2007, type 3, discharge current 6.5 kA, response time < 25 nS. Suitable for 16 A (miniature fuse on request) with varistors, temperature fuse, gas discharge arrester, visual LED function and failure indicator (acoustic signalling also available on request).

Mains and frequency filters - conforming to VDE 0565-3:05-2006 for voltage peaks up to 30 MHz, damping diagram on data sheet.

Max. 16A/3680W

- 1.75 m supply cable: H05VV-F 3G 1.50 mm ^2 with moulded right angle plug with earthing contact

Exterior view of a long, metallic electronic device with multiple ports and a green indicator light (no visible text or symbols)

Art. no. Version Dimensions: (L x W x H)

PRIMO, 6 x earthing contact

1 x overvoltage protection + mains and frequency filters, 1 x ISDN protection, 1 x green switch

331.074* · 6 socket outlets with earthing contact · approx. 645 x 71 x 54 mm

- Overvoltage protection + mains and frequency filters

• ISDN overvoltage protection for

1 x ISDN input, 3 x ISDN output

GREEN

Black cylindrical electronic component with multiple leads, labeled 'GREEN' in green banner (no other text or symbols)

PRIMO, 1 + 6 x earthing contact

Master & slave

332.071 · 1 + 6 socket outlets with earthing contact · approx. 573 x 71 | x 47 mm

- With threshold value setting

GREEN

Close-up of a black cylindrical electronic component with metallic edges, labeled 'GREEN' in the top-right corner (no other text or symbols visible)

PRIMO, 1 + 6 x earthing contact

Master & slave, with overvoltage protection + mains and frequency filters

333.071 · 1 + 6 socket outlets with earthing contact · approx. 695 x 71 | x 47 mm

- With threshold value setting

- Overvoltage protection + mains and frequency filters

Exterior view of a modern office building (no signage)

PRIMO Alu with USB charger

8x socket outlets with earthing contact

331.154 · Socket inserts set at 35°

- Double USB charging port with 2150 mA

· Green switch

- 1.75 m H05W-F 3G 1.5 mm ^2 supply cable, black

with right angle plug with earthing contact

· approx. 560 x 71 x 54 mm

Close-up of a black cylindrical electronic component with four circular holes, no visible text or symbols.

PRIMO, 5 x earthing contact

85 mm socket outlet spacing, without switch

· Ideal for connecting mains supply unit plugs

331.032 · 5 socket outlets with earthing contact, black · approx. 515 x 71 x 46 mm

Illustration of a red cylindrical object with circular holes, possibly a battery or connector (no text or symbols visible)

PRIMO, 6 x earthing contact

IT red, without switch

331.040 · 6 red socket outlets with earthing contacts for IT circuits · approx. 390 x 71 x 46 mm

Exterior view of a black industrial pipe with multiple side connectors (no text or symbols visible)

PRIMO, 6 x earthing contact

1 x residual current device

331.035 · 6 socket outlets with earthing contact · approx. 516 x 71 x 88 mm

· 30 A residual current device

- Tripping time < 30 mS

· 2-pin

Overvoltage protection with filter: Overvoltage protection - conforms to DIN VDE 0620-1:012002, EN 61643-11:08-2007, type 3, discharge current 6.5 kA, response time < 25 nS. Suitable for 16A (miniature fuse on request) with varistors, temperature fuse, gas discharge arrester, visual LED function and failure indicator (acoustic signalling also available on request). Mains and frequency filters - conforming to VDE 0565-3:05-2006 for voltage peaks up to 30 MHz, damping diagram on data sheet.

* No storage type

code outlets age protection age protection

PRIMO – Product matrix

PRIMO	Country code	Socket outlets	Switch	Overvoltage protection	Overvoltage protection for ISDN	Mains and frequency filters	Master & slave	30 mA residual current device	Can be rewired	Child-proof	Length in mm
331.000	D	E	3	-		-	-	-	-	-	y
330.070	D	E	3	y	e	s	-	-	-	-	-
331.032	DE	5	85 mm socket outlet spacing						yes yes	515
331.010	D	E	6	-		-	-	-	-	-	y
331.040	D	E	6	-		-	-	-	-	-	y
331.035	DE 6 - - - - yes	yes yes 516
330.071	D	E	6	y	e	s	-	-	-	-	-
331.014	D	E	6	-	y	e	s	-	-	-	-
331.013	D	E	6	y	e	s	y	e	s	-	-
331.006	DE 6 -		yes - yes - - yes yes 515
331.071	DE 6 yes		yes - yes - - yes yes 560
331.074*	DE 6 yes		yes yes yes - - yes yes 645
332.071	DE	1+6 - - - - yes - yes yes 573
333.071	DE	1+6 -	yes - yes yes - yes yes 695
331.154	D	E	8	y	e	s	-	-	-	-	-
331.011	D	E	9	-		-	-	-	-	-	y
330.072	D	E	9	y	e	s	-	-	-	-	-
331.007	DE 9 -		yes - yes - - yes yes 645
331.072	DE 9 yes		yes - yes - - yes yes 690
331.012	D	E	1	2	-		-	-	-	-	-
330.073	D	E	1	2	y	e	s	-	-	-	-

e y e e y y - y e y

- e e Socketoutlets

Visual failure indicator for overvoltage protection Overvoltage protection (with optional mains and frequency filters) Nickel-plated earthing contacts; earthed sockets set at 35° and child-proof 1.75 m H05VV-F 3G 1.5 mm² supply cable with moulded right angle plug with dual earthing contact system Body in high-quality anodised aluminium 2-pole illuminated rocker switch, 16 A

Technical line drawing of a mechanical component with mounting holes and internal fan-like structure (no text or symbols)

DUO

High-grade power strip.

The advan tages at a glance

• Installation kit with fixing screws included
• High-quality ergonomic power strip
• Clear connection system

Max. 16A/3680W

- Supply cable: 1.75 m H05VV-F 3G 1.50 mm², black, with moulded right-angle plug with dual earthing contact system; socket inserts black, set at 35°, child-proof

Art. no. Version Dimensions: (L x W x H)

DUO 6 x earthing contact Aluminium

1 x switch

335.002 · 6 German-type socket outlets, rotated 35° · 240 x 116 x 60 mm · 1 x switch, green

Black rectangular electronic device with multiple ports and a white stripe (no visible text or symbols)

DUO 2 x 6 earthing contact Aluminium

1 x overvoltage protection, 2 x switch

335.009 · 12 German-type socket outlets, rotated 35° · 405 x 116 x 60 mm · 2 x switch, green; one switch per side

Black rectangular electronic device with a green indicator button and a white top panel (no visible text or symbols)

DUO 6 x earthing contact Aluminium

1 x overvoltage protection with mains and frequency filters, 1 x switch 335.007 · 6 German type socket outlets, rotated 35° · 325 x 116 x 60 mm · 1 x switch, green

Nickel-plated earthing contacts; earthed sockets set at 35° and child-proof 2-pole illuminated rocker switch, 16 A Visual failure indicator for overvoltage protection (with optional mains and frequency filters) Body in high-quality anodised aluminium 1.75 m H05VV-F 3G 1.5 mm² supply cable with moulded right angle plug with dual earthing contact system

COMPACT

Socket tower.

The advan tages at a glance

• Ideal for large number of plugs in limited space
- Attractive design
• Mounting accessories included

Max. 16A/3680W

• Supply cable: 1.75 m H05VV-F 3G 1.50 mm², black, with moulded right-angle plug with dual earthing contact system; socket inserts black, set at 35°, child-proof

Art. no. Version Dimensions: (L x W x H)

COMPACT 8 x earthing contact Aluminium

1 x switch

334.006 · 8 German type socket outlets, rotated 35° · 116 x 116 x 179 mm · 1 x switch, green

COMPACT 12 x earthing contact Aluminium

1 x switch

334.001 · 12 German type socket outlets, rotated 35° · 116 x 116 x 222 mm · 1 x switch, green

COMPACT 9 x earthing contact Aluminium

1 x overvoltage protection with mains and frequency filters, 1 x switch

334.003 · 9 German-type socket outlets, rotated 35° · 116 x 116 x 222 mm · Overvoltage protection with mains and frequency filters · 1 x switch, green

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Three black industrial electrical modules with indicator lights and a green control panel, shown against a white background (no text or symbols visible)

Handy automatic cable rewind Silver plastic profile Child-proof 2-pole illuminated rocker switch, 16 A Black end caps 2.0 m H05VV-F 3G 1.50 mm² supply cable with moulded right angle plug with dual earthing contact system. Except with: 330.300 Socket inserts set at 35°, with nickel-plated earthing contact Mounting flange for quick and secure fixing

CONNECTUS

Modular plastic power strip.

The advan tages at a glance

• Very good value for money
• Exclusive to the specialist trade
- Wide range
• High-grade technology
- Tested components
• Halogen and PVC-free socket recesses

Max. 16A/3680W

· Supply cable: 2.0 m H05W-F 3G 1.50 mm², black

Art. no. Version Dimensions: (L x W x H)

CONNECTUS
1 x rocker switch, orange

330.100 · 4	socket outlets with earthing contact · approx. 355 x 72 x 49 mm
330.101 · 6	socket outlets with earthing contact · approx. 440 x 72 x 49 mm
330.102 · 9	socket outlets with earthing contact · approx. 570 x 72 x 49 mm
330.103 · 12	socket outlets with earthing contact · approx. 695 x 72 x 49 mm

CONNECTUS 6 x earthing contact
1 x overvoltage protection, 1 x orange rocker switch

330.104 · 6	socket outlets with earthing contact · approx. 480 x 72 x 49 mm
	· Overvoltage protection
	· Optical function and fail indicator

CONNECTUS 6 x earthing contact

1 x overvoltage protection + mains and frequency filters, 1 x orange rocker switch

330.105 · 6 socket outlets with earthing contact · approx. 568 x 72 x 49 mm

· Overvoltage protection + mains and frequency filters

· Optical function and fail indicator

CONNECTUS 1 + 4 x earthing contact
Master & slave

330.106 · 1

master + 4 slave socket outlets with earthing contact · approx. 480 x 72 x 42 mm· With threshold value setting

CONNECTUS 1 + 4 x earthing contact
Master & slave, with overvoltage protection + mains and frequency filters

330.107 · 1	master + 4 slave socket outlets with earthing contact · approx. 610 x 72 x 49 mm
	· With threshold value setting
	· Overvoltage protection + mains and frequency filters
	· Optical function and fail indicator

Close-up of a black and red electronic device with no visible text or symbols

Max. 16A/3680W

Supply cable: 2.0 m H05W-F 3G 1.00 mm², with black IEC non-heating appliance plug, type C14, red socket outlets

Art. no. Version Dimensions: (L x W x H)

CONNECTUS, 3 x earthing contact

1 x 10 A fuse

330.300 · 3 socket outlets with earthing contact, red · approx. 273 x 72 x 46 mm · 10 A miniature fuse

Max. 16A/3680W

• 1.5 m supply cable: H05VV-F 3G 1.50 mm²,
• Foot-operated switch with 2-pole cutout
• Activating the foot switch halts unnecessary standby power consumption in stand-by mode by the connected devices

Art. no. Version Dimensions: (L x W x H)

Black rectangular electronic device with a circular head and a green label reading 'GREEN' (no visible text or symbols on the device itself)

CONNECTUS Energy Saver

1 x foot-activated switch

330.142 · Function LED in foot-activated switch · approx. 442 x 72 x 49 mm · 1.5 m H05VV-F 4G 1.50 mm² cable to switch · 6 socket outlets with earthing contact

6 x earth contact black/grey, child-proof, 1 x foot-activated switch with LED, black

330.153 · H05VV-F 3G 1.50 mm² supply cable, 1.5 m, black, to plug · approx. 572 x 72 x 49 mm · H05VV-F 4G 1.50 mm², 1.5 m, black, to foot switch · 1 x full equipment protection (OVP + mains and frequency filters) · Does not open, cannot be reconnected · Packaged in carton

Max. 16A/3680W

• Supply cable: 2.0 m H05W-F 3G 1.50 mm², black with right angle plug with earthing contact
· External button (foot-activated switch) on 2.0 m cable
- Also cuts off standby consumption from master socket

Art. no. Version Dimensions: (L x W x H)

Black rectangular electronic device with a circular head and a green label reading 'GREEN' (no other text or symbols visible)

CONNECTUS

1 x integrated automatic switchoff device

330.140 · 1 master + 4 slave German-type socket outlets · approx. 538 x 72 x 49 mm · With integral automatic switchoff device with external button · With threshold value setting

Overvoltage protection with filter: Overvoltage protection - conforms to DIN VDE 0820-1:01-2002, EN 61643-11:08-2007, type 3, discharge current 6.5 kA, response time < 25 nS. Suitable for 16A (miniature fuse on request) with varistors, temperature fuse, gas discharge arrester, visual LED function and failure indicator (acoustic signalling also available on request). Mains and frequency filters - conforming to VDE 0585-3:05-2006 for voltage peaks up to 30 MHz, damping diagram on data sheet.

Max. 16A/3,600W

· Supply cable: 2.0 m H05W-F 3G 1.50 mm², black

Art. no. Version Dimensions: (L x W x H)

CONNECTUS
1 x rocker switch, orange

330.100F	4 UTE socket outlets · approx. 355 x 72 x 49 mm
330.101F	6 UTE socket outlets · approx. 440 x 72 x 49 mm

CONNECTUS 6 x UTE socket outlets
1 x overvoltage protection + mains and frequency filters, 1 x orange rocker switch
330.104F* | 6 UTE socket outlets - approx. 480 x 72 x 49 mm

· Overvoltage protection + mains and frequency filters

· Optical function and fail indicator

CONNECTUS 1 + 4 x UTE socket outlets
Master & slave

330.106F*

1 master + 4 slave socket outlets with earthing contact · approx. 480 x 72 x 49 mm · With threshold value setting

Four different types of power strip connectors shown in black, arranged vertically against a white background (no text or symbols visible)

CONNECTUS – Product matrix

CONNECTUS	Country code	Socket outlets	Switch	Foot switch with function LED with 1.5 m cable	Foot switch without function LED with 2 m cable	Overvoltage protection	Mains and frequency filters	Master & slave	Master & slave with automatic switchoff device	Can be rewired	Child-proof	Length in mm
330.100	D	E	4	y	e	s	-		-	-	-	-
330.106	DE	1+4	-	-	-	-	-	yes	-	-	yes	480
330.140	DE	1+4	-	-	yes	-	-	-	yes	-	yes	538
330.107	DE	1+4	-	-	-	yes	yes	yes	-	-	yes	610
330.101	D	E	6	y	e	s	-		-	-	-	-
330.142	D	E	6	-	y	e	s	-	-	-	-	-
330.104	D	E	6	y	e	s			y	e	s	-
330.105	DE	6	yes	-	-	yes	yes	-	-	-	yes	568
330.153	DE	6	-	yes	-	yes	yes	-	-	-	yes	572
330.102	D	E	9	y	e	s	-		-	-	-	-
330.103	D	E	1	2	y	e	s	-		-	-	-
330.300	DE	3	with IEC non-heating appliance miniature 10A fuse							-	yes	273
330.100F	U	T	E	4	y	e	s	-		-	-	-
330.106F*	UTE	1+4	-	-	-	-	-	yes	-	yes	yes	480
330.101F	U	T	E	6	y	e	s	-		-	-	-
330.104F*	UTE	6	yes	-		yes	yes	-	-	yes	yes	480

* No storage type

2 x 2 screw holes for mounting With integrated terminal for power cable and additional outlet for separate earth conductor. Screwed and rewireable Additional screw holes for mounting in 19" data racks 15 mm spacing between socket inserts 2-pole illuminated rocker switch, 16 A Robust plastic profile, very torsionally rigid Earthing contact socket outlets are set at 90°. 2.0 m H05VV-F 3G 1.5 mm² supply cable with moulded right angle plug with dual earthing contact system

TRADESMAN'S STRIP

Robust, professional quality plastic strip.

With increased distance between socket outlets, allowing easy positioning of mains adaptor plugs and operating equipment.

The advan tages at a glance

• Modern, technical design
- End caps with additional screw holes for mounting in data racks
• Additional earth conductor connection possible without opening the housing
• Strips available in 19" dimensions

Tradesman's strip set at 90°

- Supply cable: 2.0 m H05VV-F 3G 1.50 mm², black with right angle plug with earthing contact Socket inserts, black, 15 mm spacing between sockets

Art. no. Version Dimensions: (L x W x H)

Power strip 90°

Without switch
300.000 · 6	socket outlets with earthing contact · approx. 445 x 74 x 45 mm
300.001 · 9	socket outlets with earthing contact · approx. 617 x 74 x 45 mm
300.002 · 12	socket outlets with earthing contact · approx. 790 x 74 x 45 mm

Three parallel gray cylindrical electronic components with metallic leads, arranged diagonally (no text or symbols visible)

1 x rocker switch, green

300.003 · 6	socket outlets with earthing contact · approx. 445 x 74 x 45 mm
300.004 · 9	socket outlets with earthing contact · approx. 617 x 74 x 45 mm
300.005 · 12	socket outlets with earthing contact · approx. 790 x 74 x 45 mm

Three gray rectangular electronic components with green indicator lights, arranged horizontally (no visible text or symbols)

1 x overvoltage protection, 1 x rocker switch, green

300.011 · 6

socket outlets with earthing contact · approx. 490 x 74 x 45 mm

Black rectangular electronic component with multiple leads and a green indicator light (no visible text or symbols)

1 x overvoltage protection + mains and frequency filters, 1 x rocker switch, green

300.012 · 6

socket outlets with earthing contact · approx. 575 x 74 x 45 mm

Exterior view of a black rectangular electronic device with multiple ports and a green indicator light (no text or symbols visible)

Overvoltage protection with filter:

Overvoltage protection - conforms to DIN VDE 0620-1:01-2002, EN 61643-11:08-2007, type 3, discharge current 6.5 kA, response time < 25 nS. Suitable for 16 A (miniature fuse on request) with varistors, temperature fuse, gas discharge arrester, visual LED function and failure indicator (acoustic signalling also available on request).

Mains and frequency filters - conforming to VDE 0565-3:05-2006 for voltage peaks up to 30 MHz, damping diagram on data sheet.

Tradesman's strip set at 90^

· Supply cable: 2.0 m H05VV-F 3G 1.50 mm², black with right angle plug with earthing contact
- Socket inserts, black, 15 mm spacing between sockets

Exterior view of a gray industrial power strip with six black buttons and a green indicator light (no text or symbols visible)

Art. no. Version Dimensions: (L x W x H)

Tradesman's strip with USB charger

5 x socket outlets with earthing contact

300.030 Socket inserts set at 90° - approx. 445 x 74 x 45 mm
• Double USB charging port with 2150 mA
- Green switch
· 2.0 m H05W-F 3G 1.5 mm ^4 supply cable, black
with right angle plug with earthing contact

Tradesman's strip set at 35°

· Supply cable: 2.0 m H05VV-F 3G 1.50 mm², black Screwing dimension 465 mm, socket outlets set at 35°

Art. no. Version Dimensions: (L x W x H)

Power strip 35°

Without switch

300.006 · 8 socket outlets with earthing contact · approx. 445 x 74 x 45 mm

1 x rocker switch, green

300.007 · 7 socket outlets with earthing contact · approx. 445 x 74 x 45 mm

· In neutral PVC pouch

Two gray rectangular electronic components with internal connectors and a green indicator light, shown against a blue background (no text or symbols visible)

Exterior view of a gray power strip with five black buttons and a green indicator light (no text or symbols visible)

Tradesman's strip – Product matrix

TRADESMAN'S STRIP	Country code	Socket outlets set at 90°	Switch	Overvoltage protection	Mains and frequency filters	Can be rewired	Child-proof	Note	Length in mm
300.030	DE 5 yes - - yes - USB 445
300.000	DE 6 - - - yes - 19" 445
300.003	DE 6 yes - - yes - 19" 445
300.011	DE 6 yes yes - yes - - 490
300.007	DE 7 (35°) yes - - yes - 19" 445
300.006	DE 8 (35°) - - - yes - 19" 445
300.001	DE 9 - - - yes - - 617
300.004	DE 9 yes - - yes - - 617
300.002	DE 12 - - - yes - - 790
300.005	DE 12 yes - - yes - - 790
300.012	DE 6 yes yes yes yes - - 575

line

2-pole, illuminated rocker switch

Supply cable with moulded right angle plug with dual earthing contact system

Child-proof

Socket inserts set at 35^ , with nickel-plated earthing contact

Mounting flange for quick and secure fixing

SMART

Desk socket outlet in specialist trade quality.

The advan tages at a glance

• Exclusive to the specialist trade
• Specialised trade design
• For professional use
- Tested quality
- Product variants:
- Screwed and rewireable
• Overvoltage protection

Max. 16A/3680W For suitable screw mounting, see page 237

- 3 x socket outlets with earthing contact

· Supply cable: H05W-F 3G 1.50 mm²

Art. no. Version Unit

SMART (not rewireable) Dimensions: approx. 185 x 56 x 41 mm

1.5 m supply cable, screwed (single use screws), without switch
· 3 earthing contact socket outlets, child-proof
387.170 · Black 20 items
387.270 · White 20 items
3.0 m supply cable, screwed (single use screws), without switch
· 3 earthing contact socket outlets, child-proof
387.171 · Black 20 items
387.271 · White 20 items
5.0 m supply cable, screwed (single use screws), without switch
· 3 earthing contact socket outlets, child-proof
387.172 · Black 15 items
387.272 · White 15 items

Art. no. Version Unit

SMART (rewireable) Dimensions: approx. 185 x 56 x 41 mm

1.5 m supply cable, screwed (reusable screws), without switch
· 3 earthing contact socket outlets, child-proof
388.170 · Black 20 items
388.270 · White 20 items
3.0 m supply cable, screwed (reusable screws), without switch
· 3 earthing contact socket outlets, child-proof
388.171 · Black 20 items
388.271 · White 20 items
388.471 · Brown 20 items
388.371 · Red 20 items

5.0 m supply cable, screwed (reusable screws), without switch

·3 earthing contact socket outlets, child-proof
388.172 · Black 15 items
388.272 · White 15 items

Without supply cable, screwed (reusable screws), without switch

· 3 earthing contact socket outlets, child-proof
385.170 · Black 20 items
385.270 · White 20 items

Two electrical plug plugs, one white and one black, shown against a white background (no text or symbols visible)

Four different types of electrical plug plugs, one white and three red, two brown, and one black, displayed against a plain background (no text or symbols visible).

Two white electrical power strip devices with multiple outlets and a red indicator button (no text or symbols visible)

Two white electrical power strip relays with black screw holes and a red indicator light (no text or symbols visible)

White electrical strip with multiple power cord and indicator lights (no text or symbols visible)

Max. 16A/3680W

· Supply cable: H05W-F 3G 1.50 mm²

Art. no. Version Unit

SMART 4 x earthing contact Dimensions: approx. 288 x 56 x 41 mm

1.5 m supply cable, screwed (reusable screws), rewireable, without switch

· 4 earthing contact socket outlets, child-proof

381.121K · Black 20 items

381.221K·White 20 items

1.5 m supply cable, 1 x switch, screwed (reusable screws), rewireable

· 4 earthing contact socket outlets, child-proof

381.130K·Black 20 items

381.230K · White 20 items

SMART 6 x earthing contact Dimensions: approx. 370 x 56 x 41 mm

1 x overvoltage protection, 1 x switch, 1.5 m supply cable, screwed (screws non-reusable), non-rewireable

· 6 earthing contact socket outlets, child-proof

· Overvoltage protection consisting of: 2 varistors, nominal discharge current 6.5 kA, 16 A,

3680 W, temperature fuse and visual fail indicator

381.2501K·White 20 items

SMART 6 x earthing contact Dimensions: approx. 340 x 56 x 41 mm

1.5 m supply cable, screwed (reusable screws), rewireable, without switch

- 6 earthing contact socket outlets, child-proof

381.147K·Black 20 items

381.247K · White 20 items

3.0 m supply cable, screwed (reusable screws), rewireable, without switch

· 6 earthing contact socket outlets, child-proof

381.148K · Black 20 items

381.248K·White 20 items

5.0 m supply cable, screwed (reusable screws), rewireable, without switch

· 6 earthing contact socket outlets, child-proof

381.149K · Black 15 items

381.249K · White 15 items

Without supply cable, screwed (reusable screws) rewireable, without switch

· 6 earthing contact socket outlets, child-proof

381.146K·Black 20 items

381.246K·White 20 items

1.5 m supply cable, 1 x switch, screwed (reusable screws), rewireable

· 6 earthing contact socket outlets, child-proof

381.150K · Black 20 items

381.250K · White 20 items

381.450K · Brown 20 items

3.0 m supply cable, 1 x switch, screwed (reusable screws) rewireable

· 6 earthing contact socket outlets, child-proof

381.151K·Black 20 items

381.251K · White 20 items

5.0 m supply cable, 1 x switch, screwed (reusable screws), rewireable

· 6 earthing contact socket outlets, child-proof

381.152K · Black 15 items

381.252K · White 15 items

Max. 16A/3680W

· Supply cable: H05W-F 3G 1.50 mm², white

Art. no. Version Unit

SMART 3 x UTE Dimensions: approx. 185 x 56 x 41 mm

1.5 m supply cable, screwed (reusable screws), rewireable, without switch

3 UTE, child-proof

388.270F · White 20 items

3.0 m supply cable, screwed (reusable screws), rewireable, without switch

3 UTE, child-proof

388.271F · White 20 items

SMART 6 x UTE Dimensions: approx. 340 x 56 x 41 mm

1.5 m supply cable, 1 x switch, screwed (reusable screws), rewireable, child-proof

- 6 UTE, child-proof

381.250F · White 20 items

3.0 m supply cable, screwed (multi-use), rewireable, child-proof, 1 x overvoltage protection, 1 x switch

· 6 UTE, child-proof

Overvoltage protection consisting of: 2 varistors, nominal discharge current 6.5 kA, 16 A,

3,600 W, temperature fuse and visual fail indicator

381.2512K · White 20 items

381.2507K · Black 20 items

Six white rectangular electronic components with black and red markings, arranged in a row (no visible text or symbols)

Screw mounting for SMART power strips

• Attaches to desk/table with screw mounting, e.g. on the edge of a desk
• Can be positioned lengthwise or crosswise

Art. no. Version Unit

SMART desk attachment

For all rewireable (reusable screws) power strips, plastic version

919.273 · White

1 item

Medical imaging device with CT II label and metallic components (no readable text or symbols)

SMART – Product matrix

SMART	Country code	Socket outlets	Switch	Length Supply cable in meters	Overvoltage protection	Can be rewired	Child-proof	Length in mm
white
387.270	DE 3 - 1.5 - - yes 185
387.271	D	E	3	-	3	-	-	y
387.272	D	E	3	-	5	-		y
385.270	DE 3 - - - yes yes 185
386.270	DE 3 - 1.5 - yes yes 185
388.271	D	E	3	-	3	-	y	e
388.272	D	E	3	-	5	-	y	e
381.221K	DE 4 - 1.5 - yes yes 288
381.230K	DE 4 yes 1.5 - yes yes 288
381.246K	DE 6 - - - yes yes 340
381.247K	DE 6 - 1.5 - yes yes 340
381.250K	DE 6 yes 1.5 - yes yes 340
381.2501K	DE 6 yes 1.5 yes - yes 370
381.248K	D	E	6	-	3	-	y	e
381.251K	DE 6 yes 3 - yes yes 340
381.249K	DE 6		5 - yes yes 340
381.252K	DE 6 yes 5 - yes yes 340
black
387.170	DE 3 - 1.5 - - yes 185
387.171	D	E	3	-	3	-	-	y
387.172	D	E	3	-	5	-	-	y
385.170	DE 3 - - - yes yes 185
388.170	DE 3 - 1.5 - yes yes 185
388.171	D	E	3	-	3	-	y	e
388.172	D	E	3	-	5	-	y	e
381.121K	DE 4 - 1.5 - yes yes 288
381.130K	DE 4 yes 1.5 - yes yes 288

SMART - Product matrix

SMART	Country code	Socket outlets	Switch	Length Supply cable in meters	Overvoltage protection	Can be rewired	Child-proof	Length in mm
381.146K	DE 6 - - - yes yes 340
381.147K	DE 6 - 1.5 - yes yes 340
381.150K	DE 6 yes 1.5 - yes yes 340
381.148K	D	E	6	-	3	-	y	e
381.151K	DE 6 yes 3 - yes yes 340
381.149K	DE 6 5 - yes yes 340
381.152K	DE 6 yes 5 - yes yes 340
381.249K	DE 6 5 - yes yes 340
381.252K	DE 6 yes 5 - yes yes 340
brown
388.471	D	E	3	-	3	-	y	e
381.450K	DE 6 yes 1.5 - yes yes 340
red
388.371	D	E	3	-	3	-	y	e

white
388.270F	UTE	3 - 1.5 - yes yes 185
388.271F	U	T	E	3	-	3	-	y
381.250F	UTE	6 yes 1.5 - yes yes 340
381.2512K	UTE	6 yes 3 yes yes yes 340
black
381.2507K	UTE	6 yes 3 yes yes yes 340

5

s

s

e

Max. 16A/3680W

· Supply cable: H05W-F 3G 1.50 mm²

Art. no. Version Unit

3 x earthing contact
Angled plug set at 45°, without switch

3 earthing contact socket outlets, non child-proof

387.270S · White, supply cable 1.5 m 20 items

387.271S · White, supply cable 3.0 m 20 items

White electrical plug with five metallic socket terminals (no text or symbols visible)

White power strip with multiple leads and a red indicator button (no text or symbols visible)

Angled plug, set at 45°, 1 x switch, red

3 x earthing contact socket outlets, child-proof

384.270S • White, supply cable 1.5 m 20 items

6 x earthing contact
Angled plug set at 45°, without switch

6 x earthing contact socket outlets, child-proof

381.241S · White, supply cable 1.5 m 20 items

381.141S · Black, supply cable 1.5 m 20 items

Angled plug set at 45°, 1 x switch, red

6 x earthing contact socket outlets, child-proof
381.244S	White, supply cable 1.5 m 20 items
381.144S	Black, supply cable 1.5 m 20 items

Export versions (since a cable cross-section of 1.00 mm ^4 is not permitted in Germany).

Art. no. Version Unit

3 x earthing contact

1 x red switch, 1.4 m supply cable H05VV-F 3G 1.00 mm2, with right angle plug and set at 45°
· 3 earthing contact socket outlets, non child-proof
384.371S | White 20 items

6 x earthing contact

1.4 m supply cable H05VV-F 3G 1.00 mm2, with right angle plug and set at 45°, without switch
·6 earthing contact socket outlets, child-proof
381.340S | White 20 items

6 x earthing contact

1 x red switch, 1.4 m supply cable H05VV-F 3G 1.00 mm2, with right angle plug and set at 45°
· 6 earthing contact socket outlets, child-proof
381.343S | White 20 items

Three white electrical plug spools with red buttons, arranged horizontally (no text or symbols visible)

Max. 10/16A/250V\~

Art. no. Version Unit

Power strip

1.5 m supply cable H05VV-F 3G 1.50 mm2, screwed, rewireable with earthing contact right angle plug

· 2 socket outlets with earthing contact

380.270 · White 25 items

1.5 m supply cable H05VV-F 3G 1.50 mm2, screwed, rewireable with earthing contact right angle plug

· 4 socket outlets with earthing contact

380.271 · White 25 items

Multiple plug adaptor

Art. no. Version Unit

Multiple plug adaptor, max. 2.5 A / 250 V \~

2 Euro plug sockets

921.271 · White 30 items

Two white electrical socket plugs with three internal slots, connected by wires (no text or symbols visible)

Surface wiring standard ERGE socket outlets with earthing contact, max. 16 A / 250 V

Art. no. Version Unit

Surface-mounted standard ERGE socket outlet with earthing contact

1 x surface-mounted earthing contact socket, DIN 49 440

382.204 · Greenland white 10 items

2 x surface-mounted earthing contact sockets, DIN 49 440

382.205 · Greenland white 10 items

Overload protection

Art. no. Version Unit

Overload protection-power strip type 8110
2-way

924.164

· 230V~, 50 Hz/16A· For connecting two devices with high energy consumption (e.g. washing machines and driers)· 1.5 m connector cable with plug· 1 socket outlet with automatic cut-out, power dependent· 1 socket outlet, carry current· Dimension: 75 x 45 x 270 mm· Screw-on· Weight 450 g

1 item

Exterior view of a white and blue electrical power strip with a coiled cable and two socket ports (no visible text or symbols)

Protection

Powercubes look good on any desk and combine modern design with practical versatility. They combine a range of functions in a compact, handy and space-saving form.

The advan tages at a glance

• Supply cable: 2.0 m H05W-F 3G 1.00 mm², black, with right angle plug with earthing contact
  • Dimensions (L x W x H): 105 x 120 x 95 mm
• Two fixed sockets and one socket moveable through 90^ , with overvoltage protection
• Overvoltage protection and earthing indicators: The green LED indicates that the power network is securely earthed. The red LED indicates that the voltage protection unit is functioning correctly.
• X3 multi-stage metal-oxide varistor absorbs power pulses and thus offers protection against high-energy voltage peaks

Exterior view of a black and white industrial device with circular ports and control knobs (no visible text or symbols)

Art. no. Version Unit

Powercube

Powercube, 3 x earthing contact sockets, 10 A/230 V

335.050 · Resettable 10 A fuse 1 item

• Headphone and microphone jacks
• Overvoltage protection display
• Earthing display
  · X3 multi-stage metal oxide varistor
  · High-frequency capacitor for noise reduction
  · Safety cut-off technology
• Child-proof

Powercube Protection, 3 x earthing contact sockets, 10 A/230 V

335.051 Additional features of Powercube Protection: 1 item

• Telephone, fax, modem and network protection
• USB 2.0 charging device with 2 ports

The on/off switch on the tabletop unit switches the floor unit off Overvoltage protection 2 x USB charging device 5 x 16 A earthing contact + 2 x 2.5 A Euro plug socket child-proof 1.2 m supply cable H05VV-F 3G 1.0 mm² Resettable 10A fuse 2 m supply cable H05VV-F3G 1.0 mm² BACH

DUO POWER 16 A and 2.5 A / 250 V

The on/off switch on the tabletop unit switches the floor unit off. This allows devices plugged into the floor unit (e.g. monitor, printer, PC etc.) to be isolated and standby currents avoided, while the tabletop unit continues to supply power e.g. for charging a mobile phone.

The advan tages at a glance

• 2.0 m supply cable H05VV-F 3G 1.0 mm
- 5 x 16 A earthing contact + 2 x 2.5 A Euro plug socket
- Child-proof
- Resettable 10 A fuse
• 2 x USB charging device
• Overvoltage protection

Tabletop unit Floor unit

Art. no. Version Unit

Duo Power

5 x 16 A earthing contact + 2 x 2.5 A Euro plug socket / 250 V

335.055 · Duo Power with overvoltage protection 1 item

Two electrical connectors with cables, one partially open and the other closed (no visible text or symbols)

Three white concrete outdoor lighting fixtures on a green grass field, no text or symbols visible in the image itself.

GARDEN POSTS

Practical options for the garden.

The advan tages at a glance

• Earthing contact socket outlets, splashproof to IP44
- Connecting block for connecting external supply cables for outdoor use; minimum cable cross-section 1.5 mm ^2 , maximum 3.0 mm ^2
• Power columns for the garden in weatherproof polystone
• Granite look fits in to garden setting
- Allows easy use of garden equipment, lighting and irrigation systems
- The timer model lets you programme electrical garden equipment to switch on and off at specified times. Thus for example the garden can be regularly watered even when nobody is at home.
- The model with the lamp provides a cosy atmosphere for garden parties or illuminates the way to the door of the house.

Garden posts

Art. no. Version

Garden post, 4 x earthing contact 160 x 160 x 280 mm

1 x splash water protection

394.170 · 4 IP 44 German-type sockets for outdoor use

Garden post with timer, 2 x earthing contact 160 x 160 x 280 mm

1 x splash water protection, 1 x timer

394.171·2 IP 44 German-type sockets for outdoor use

• Mechanical 24 h timer

Garden post with lamp, 2 x earthing contact 150 x 150 x 460 mm

1 x splash water protection, 1 x lamp

394.172 · 2 IP 44 German-type sockets for outdoor use

· E 27 holder for energy-saving lamp, max. 11 W

Garden socket with earth spike, 16 A / 230 V\~, IP44

Art. no. Version Unit

Garden socket outlet

2.0 m cable: H07RN-F 3G 1.50 mm² with central plug with earthing contact

394.180 · 2 x earthing contact socket outlets 230 V- 1 item

- With hinged lid, splashproof to IP44

- Black

2.0 m cable: H07RN-F 3G 1.50 mm² with central plug with earthing contact

394.182 · 4 x earthing contact socket outlets 230 V\~ 1 item

- With hinged lid, splashproof to IP44

- Black

Garden outlet, 3 x earthing contact sockets

2.0 m cable: H07RN-F 3G 1.50 mm² with central plug with earthing contact

394.175 - 3 x earthing contact socket outlets, 230 V\~ 1 item

- With hinged lid, splashproof to IP44

- Green

Three white industrial lighting fixtures with circular components and a central light source, shown from different angles (no text or symbols visible)

Simple line drawing of a coiled wire with multiple leads (no text or symbols)

Cooker connecting cable with end sleeves PVC, 70 °C

• End 1: 50 mm stripped with end sleeves
• End 2: 110 mm stripped with end sleeves, 140 mm green/yellow protective conductor

Art. no. Length Colour Unit

H05VV-F 5G 1.50 mm2	∅ approx. 9.5 mm
Without packaging
116.270 1.5 m · White 50 items
116.271 2.0 m · White 50 items
116.272 3.0 m · White 30 items
Individually packed
116.280 1.5 m · White 50 items

H05VV-F 3G 2.50 mm ^2 ∅ approx.10.1 mm
Without packaging
118.270 1.5 m · White 50 items

H05VV-F 5G 2.50 mm ^2 ∅ approx. 11.3 mm
Without packaging
119.270 1.5 m · White 50 items
119.271 2.0 m · White 30 items
119.272 3.0 m · White 20 items
Individually packed
119.280 1.5 m · White 50 items
119.281 2.0 m · White 30 items

Coiled wire with multiple wires extending outward (no text or symbols visible)

Cooker connecting cable with fork-type lugs PVC, 70 °C

• End 1: 50 mm stripped with end sleeves
  · End 2: 110 mm stripped with fork-type lugs M5, 140 mm green/yellow earth conductor

Art. no. Length Colour Unit

H05VV-F 5G 2.50 mm ∅ approx. 11.3 mm
Without packaging
119.274 2.0 m · White 30 items

Cooker junction box 16A/380V\~

· Duroplast version for surface or flush mounting
- Quick and easy to connect thanks to spacious terminal area
- Clamping range: 0.75 – 2.5 mm for 55 mm wall socket

Art. no. Colour Unit

Cooker junction box
16A/380V~
· For 55 mm wall boxes / height 23 mm
190.270 · White	20 items

Equipment junction box 16A/380V\~

• Thermoplastic version for concealed wiring mounting
• Easy to fit with removable terminal block and snap-lock cover
• With screw terminal 5 x 2.50 mm ^2 and strain relief
• For 55 mm wall socket/ height 14 mm

Appliance junction box
190.271 · White	20 items

Kitchen connection box

· Universal accessory for connecting hob, oven and dishwasher
- No need to fit additional sockets
· The existing cooker socket can still be used
- Saves costs as no need to fit sockets later
- Rewirable WAGO® terminals

Art. no. Version Unit

Coiled industrial sensor or probe with a central connector and two connectors, displayed against a plain white background (no text or symbols visible)

Kitchen connection box

Grey, with screw-mounting eyes, connected load up to 10 kW
H05VV-F 5G 2.5 mm ^2 for cooker connection socketH05VV-F 5G 2.5 mm ^2 for hobH05VV-F 3G 2.5 mm ^2 with socket outlets with earthing contact for oven or dishwasher/ mountable
923.003	Kitchen connection box 2 m(Cocker connection socket 2 m; hob 2 m; oven or dishwasher 2 m)	1 item
923.004	Kitchen connection box 5 m(Cocker connection socket 5 m; hob 5 m; oven or dishwasher 5 m)	1 item
923.005	Kitchen connection box 10 m(Cocker connection socket 2 m; hob 10 m; oven or dishwasher 10 m)	1 item

Euro supply cable PVC, 70 °C

• End 1: 2.5 A Euro plug, moulded
• End 2: 25 mm stripped with end sleeves

Art. no. Length Colour Unit

H03VVH2-F 2 x 0.75 mm² Flat cable approx. 3.6 x 5.6 mm

Without packaging
202.174 2.0 m · Black 100 items
202.274 2.0 m · White 100 items
202.175 3.0 m · Black 100 items
202.275 3.0 m · White 100 items
Individually packed
202.184 2.0 m · Black 50 items
202.284 2.0 m · White 50 items
202.185 3.0 m · Black 50 items
202.285 3.0 m · White 50 items

Euro supply cable with intermediate switch, PVC, 70°C

• End 1: 2.5 A Euro plug, moulded
• End 2: 25 mm stripped with end sleeves, 1-pole intermediate switch – installed approx. 50 cm from side 2

Art. no. Length Colour Unit

H03VVH2-F 2 x 0.75 mm² Flat cable approx. 3.6 x 5.6 mm

Without packaging
211.174 1.8 m · Black 100 items
211.274 1.8 m · White 100 items

Simple line drawing of a coiled cable with a terminal plug (no text or symbols)

Simple line drawing of a cable with two connectors and a plug, no text or symbols present

Simple line drawing of a coiled electrical or mechanical component with wires and a plug (no text or symbols)

Earthing contact supply cable, PVC, with intermediate switch, 70 °C

• Sealed
• Switch dimensions: 60 x 26 x 13 mm
• End 1: right angle plug with dual earthing contact system, moulded
  · End 2: 30 mm stripped with end sleeves, 1-pole intermediate switch - fitted after approx. 50 cm

Art. no. Length Colour Unit

H03VV-F 3G 0.75 mm² ∅ approx. 5.5 mm
Without packaging

302.174 2.0 m · Black 100 items

302.274 2.0 m · White 100 items

Black cylindrical object with a probe inserted, no visible text or symbols

Vacuum cleaner replacement cable, PVC, 70 °C

• End 1: contour plug, moulded
• End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

H05VV-F 2 x 0.75 mm ∅ approx. 6.4 mm
Individually packed

240.187	6.3 m · Black
240.189	10.0 m · Black

20 items 20 items

Coiled white cable with two leads, no text or symbols visible

Contour supply cable, PVC, 70 °C

• End 1: contour plug, moulded
• End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

H05VV-F 2 x 1.00 mm ∅ approx. 6.5 mm
Without packaging

241.175	3.0 m · Black
241.275	3.0 m · White

50 items 50 items

Earthing contact supply cable, PVC, max. 16 A / 250 V\~, 70 °C

• End 1: right angle plug with dual earthing contact system, moulded
• End 2: 30 mm stripped with end sleeves

Art. no. Length Colour | Unit

H03VV-F 3G 0.75 mm² ∅ approx. 5.5 mm

Without packaging
301.174 2.0 m · Black 100 items
301.274 2.0 m · White 100 items
301.974 2.0 m · Grey 100 items
301.175 3.0 m · Black 100 items
301.275 3.0 m · White 100 items

H05VV-F 3G 1.00 mm² ∅ approx. 7.0 mm

Without packaging
304.174 2.0 m · Black 100 items
304.274 2.0 m · White 100 items
304.974 2.0 m · Grey 100 items
304.175 3.0 m · Black 50 items
304.275 3.0 m · White 50 items
304.176 5.0 m · Black 80 items
304.276 5.0 m · White 80 items

Individually packed

304.184 2.0 m · Black	50 items
304.284 2.0 m · White	50 items
304.185 3.0 m · Black	50 items
304.285 3.0 m · White	50 items

H05VV-F 3G 1.50 mm² ∅ approx. 8.0 mm

Without packaging
305.174 2.0 m · Black	50 items
305.274 2.0 m · White	50 items
305.974 2.0 m · Grey	50 items
305.175 3.0 m · Black	50 items
305.275 3.0 m · White	50 items
305.975 3.0 m · Grey	50 items
305.176 5.0 m · Black	30 items
305.276 5.0 m · White	30 items

Individually packed

305.184 2.0 m · Black	50 items
305.284 2.0 m · White	50 items
305.185 3.0 m · Black	20 items
305.285 3.0 m · White	20 items

Coiled white cable with a small connector, isolated on white background (no text or symbols)

Coiled electrical probe with two terminal leads (no text or symbols visible)

Earthing contact supply cable, PVC, max. 16 A / 250 V\~, 70 °C

- End 1: central plug with dual earthing contact system, moulded

- End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

H03VV-F 3G 0.75 mm² Diameter approx. 5.5 mm
Without packaging

311.273 1.5 m · White 100 items

H03VV-F 3G 0.75 mm ^2 Diameter approx. 5.5 mm

Individually packed Diameter approx. 6.0 mm

312.174 2.0 m · Black 100 items

312.175 3.0 m · Black 100 items

312.275 3.0 m · White 100 items

Illustration of a coiled wire with two leads, no text or symbols present

Electric iron supply cable, textile, 150 °C

- End 1: central plug with dual earthing contact system, moulded

- End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

H03RT-H 3G 0.75 mm2 - TEXTILE		Diameter approx. 6.5 mm
Without packaging
313.175 3.0 m	· Grey/ white	50 items
Individually packed
313.185 3.0 m	· Grey/ white	50 items

Coiled black cable with two terminal connectors (no text or symbols visible)

Small equipment supply cable, PVC, max. 2.5 A / 250 V\~

- End 1: Euro flat plug, moulded

- End 2: small equipment socket, moulded

Art. no. Length Colour Unit

H03VHH2-F 2 x 0.75 mm2		Flat cable approx. 3.6 x 5.6 mm
Without packaging
251.173 1.5 m	· Black	200 items
Individually packed
251.183 1.5 m	· Black	50 items

Non-heating appliance supply cable, PVC, 10 A / 250 V\~, 70 °C

- End 1: right angle plug with dual earthing contact system, moulded

- End 2: non-heating appliance socket, IEC 320 / C13, moulded

Art. no. Length Colour Unit

H05VV-F 3G 0.75 mm² Diameter approx. 5.8 mm

Without packaging
351.174 2.0 m · Black 100 items
351.974 2.0 m · Grey 100 items
Individually packed
351.184 2.0 m · Black 50 items
351.984 2.0 m · Grey 50 items

H05VV-F 3G 1.00 mm² Diameter approx. 7.0 mm

Without packaging
353.175 3.0 m · Black 50 items
353.975 3.0 m · Grey 50 items
Individually packed
353.185 3.0 m · Black 50 items
353.985 3.0 m · Grey 50 items

Non-heating appliance supply cable, PVC, 16 A / 250 V\~, 70 °C

- End 1: right angle plug with dual earthing contact system, moulded

· End 2: C19 non-heating appliance socket (915.174)

Art. no. Length Colour Unit

H05VV-F 3G 1.50 mm² Diameter approx. 8.4 mm

Without packaging
352.174 2.0 m · Black 50 items
352.175 3.0 m · Black 50 items

Non-heating appliance extension cable, 10 A / 250 V\~, 70 °C

• End 1: IEC 320 / C14 non-heating appliance plug with earthing contact, moulded
  · End 2: IEC 320 / C13 non-heating appliance socket with earthing contact, moulded
• Ideal connector between PC and monitor or as an extension cable

Art. no. Length Colour Unit

H05VV-F 3G 0.75 mm² Diameter approx. 5.8 mm

Without packaging
356.974	2.0 m · Grey 100 items

H05VV-F 3G 1.00 mm² Diameter approx. 7.0 mm

Without packaging
356.975	3.0 m · Grey 50 items

Coiled gray cable with two terminal connectors (no text or symbols visible)

Coiled cable with two connectors, no text or symbols visible

Non-heating appliance extension cable, PVC, 16 A / 250 V\~, 70 °C

- End 1: C20 non-heating appliance plug (915.175)

· End 2: C19 non-heating appliance socket (915.174)

Art. no. Length Colour Unit

H05VV-F 3G 1.50 mm² Diameter approx. 8.4 mm
Without packaging

356.174 2.0 m · Black 50 items

356.175 3.0 m · Black 50 items

Heating appliance supply cable, PVC, 10 A / 250 V\~ (for export only)

- End 1: right angle plug with dual earthing contact system, moulded

· End 2: heating appliance socket 10 A, IEC 320 / C15, fitted

Art. no. Length Colour Unit

H05VV-F 3G 1.00 mm² Diameter approx. 7.0 mm
Without packaging

361.174

2.0 m · Black 50 items

Individually packed

361.184 2.0 m · Black 50 items

Heating appliance supply cable, rubber, 10 A / 250 V\~, 155 °C

- End 1: central plug with dual earthing contact system, moulded

- End 2: heating appliance outlet 10 A, mounted

Art. no. Length Colour Unit

Coiled black cable with two connectors at ends (no text or symbols visible)

H05RR-F 3G 1.00 mm² Diameter approx. 6.5 mm
Without packaging

372.174

2.0 m · Black 50 items

Individually packed

372.184

2.0 m · Black 20 items

Coiled white cable with two terminal connectors (no text or symbols visible)

Universal supply cable, PVC, 10 A / 250 V\~ (for export only)

- End 1: right angle plug with dual earthing contact system, moulded

· End 2: heating appliance outlet 10 A, mounted

Art. no. Length Colour Unit

H05VV-F 3G 1.00 mm² Diameter approx. 7.0 mm
Without packaging

373.174

2.0 m · Black 50 items

Contour supply cable, neoprene, 16 A / 250 V\~, 70 °C

• End 1: contour plug, moulded
• End 2: 30 mm stripped with end sleeves
• Ideal connecting cable for power tools

Art. no. Length Colour Unit

H07RN-F 2 x 1.00 mm² Diameter approx. 7.7 mm

Without packaging
246.174 2.0 m · Black 50 items
246.175 3.0 m · Black 50 items
246.375 3.0 m · Red 50 items
246.176 5.0 m · Black 20 items
246.376 5.0 m · Red 20 items
Individually packed
246.185 3.0 m · Black 20 items
246.186 5.0 m · Black 20 items

H07RN-F 2 x 1.50 mm² Diameter approx. 8.7 mm

Without packaging
248.174 2.0 m · Black 50 items
248.175 3.0 m · Black 50 items
248.176 5.0 m · Black 20 items
Individually packed
248.185 3.0 m · Black 20 items
248.186 5.0 m · Black 20 items

Contour supply cable, rubber/PUR, 16A/250V\~, 70°C

• End 1: contour plug, moulded
• End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

H05BQ-F 2 x 1.00 mm² Diameter approx. 6.8 mm

Without packaging
244.875 3.0 m · Orange	50 items
244.876 5.0 m · Orange	30 items

H07BQ-F 2 x 1.50 mm² Diameter approx. 8.3 mm

Without packaging
249.875 3.0 m · Orange	50 items
249.876 5.0 m · Orange	30 items

Red electrical plug with terminal leads, coiled cable (no text or symbols visible)

Coiled black electrical plug with terminal connector (no text or symbols visible)

Simple illustration of a coiled orange cable with a terminal plug (no text or symbols)

Coiled black cable with a terminal outlet, no visible text or symbols

Earthing contact supply cable, neoprene, max. 16 A / 250 V\~

- End 1: central plug with dual earthing contact system, moulded

Plug is splash water protected.

- End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

H05RR-F 3G 0.75 mm² Diameter approx. 6.7 mm

Without packaging
321.174 2.0 m · Black		50 items
321.175 3.0 m · Black		50 items
321.176 5.0 m · Black		20 items

H07RN-F 3G 1.00 mm² Diameter approx. 8.9 mm

Without packaging
320.174 2.0 m · Black		50 items
320.175 3.0 m · Black		50 items
320.176 5.0 m · Black		20 items

Individually packed

320.185 3.0 m · Black		20 items
320.186 5.0 m · Black		20 items

H07RN-F 3G 1.50 mm² Diameter approx. 9.5 mm

Without packaging
322.174 2.0 m · Black		50 items
322.175 3.0 m · Black		30 items
322.176 5.0 m · Black		20 items

Individually packed

322.184 2.0 m · Black		20 items
322.185 3.0 m · Black		20 items
322.186 5.0 m · Black		20 items

H07RN-F 3G 2.50 mm ^2		Diameter approx. 11.3 mm
Individually packed
323.185 3.0 m · Black		10 items
323.186 5.0 m · Black		10 items

Earthing contact supply cable, rubber / PUR, max. 16 A / 250 V\~

- End 1: central plug with dual earthing contact system, moulded

Plug is splash water protected.

- End 2: 30 mm stripped with end sleeves

Art. no. Length Colour Unit

Illustration of a coiled orange probe with two leads (no text or symbols)

H05BQ-F 3G 1.00 mm² Diameter approx. 7.9 mm

Without packaging
328.875	3.0 m · Orange 50 items
328.876	5.0 m · Orange 30 items

H07BQ-F 3G 1.50 mm ^2 Diameter approx. 8.6 mm

Without packaging
327.875	3.0 m · Orange 30 items
327.876	5.0 m · Orange 20 items

Note Cable construction Examples of use

• For contour and earthing-contact connector supply cable
• Contour supply cable: 244.875 / 244.876 / 249.875 / 249.876
- Earthing-contact connector supply cable: 328.875 / 328.876 / 327.875/327.876
• Contour supply cable: 244.875 / 244.876 / 249.875 / 249.876
• Copper conductor, finely stranded, tin-plated.
- Lead insulation made from ethylene-propylene rubber.
- Sheath made from polyurethane, blend type 11Ym1 in accordance with VDE 0250 Part 818/585

• Outdoors and in dry, damp and wet indoor spaces.
- For mechanically demanding applications on construction sites, in workshops, in mechanical and plant engineering and in the chemicals industry.
- Wherever requirements for abrasion resistance, impact resistance and oil resistance are high.
• Particularly suitable as a supply cable for hand-held power tools.

We can provide custom configurations following your specification or following free consultation with our experts. As a manufacturer of many years' standing, we possess a wealth of know-how. See also page 300 ff (international connectors and couplings).

Transparent power cable

• Leads FEP T 180 °C / sheath PVC T 105 °C 450 / 750 V, earth conductor threads green/yellow
  · End 1: 40 mm stripped with end sleeves
• End 2: 40 mm stripped with end sleeves

Art. no. Length Colour Unit

Double insulated cable 3 x 0.75 mm²

130.080	1.5 m · Transparent	1 item
130.081	3.0 m · Transparent	1 item

Double insulated cable 3 x 1.50 mm²

131.080	1.5 m · Transparent	1 item
131.081	3.0 m · Transparent	1 item

Double insulated cable 3 x 0.75 mm ^2 Diameter 5.2 mm ± 0.2 mm

150.072 50.0 m ring · Transparent

1 item

Double insulated cable 3 x 1.50 mm²

150.070 50.0 m ring · Transparent

1 item

Double insulated cable 5 x 0.75 mm²

132.080	1.5 m · Transparent	1 item
132.081	3.0 m · Transparent	1 item

Double insulated cable 5 x 1.50 mm²

133.080	1.5 m · Transparent	1 item
133.081	3.0 m · Transparent	1 item

Double insulated cable 5 x 1.50 mm²

151.070 50.0 m ring · Transparent

1 item

Double insulated cable 5 x 0.75 mm²

151.072 50.0 m ring · Transparent

1 item

Coiled metallic wire with two leads, no text or symbols visible

FL CL E1 CED M1 AT CL E2 S1/S2 radial outlet dia. M2 A2

Coil length (WL) = closed length
Working length (AL) = max. stretched length
dia. = cable diameter
WID = coil internal diameter
WAD = coil external diameter
S1 = end 1
S2 = end 2
M1 = stripped
A1 = end sleeve

SPIRAL CABLES

Wide range of stock items plus custom manufacturing

As a leading manufacturer of spiral cables we have extensive competence and count leading global companies among our customers. Specifically developed - from the helicopter communication helix to the robot coil in technically difficult environments - we will find the solution for you.

Properties Examples of use

Properties Examples of use

Properties Examples of use

Leads PVC / sheath PVC

• Good value, low mechanical stiffness, medium chemical resistance, medium reset force.
• For household equipment, lamps and IT systems.

Leads PVC / sheath PUR

• Good chemical resistance, good resistance to cold, excellent abrasion and notching resistance, very good oil resistance, good reset force.
  • For connecting cables in engineering and the building industry (construction equipment).

Leads rubber PUR / sheath PUR

• Good wear resistance, good chemical resistance, good resistance to cold, excellent abrasion and notching resistance, very good oil resistance, good reset force.
• For machines and systems requiring VDE-compatible connection: for example mechanical engineering, construction equipment, electric tools, communication technology - in particular for use out of doors and/or in damp rooms.

Spiral cables PVC Leads: PVC, sheath: PVC, elongation factor 1:4, 70 °C

• End 1 / end 2: 200 mm each, cut flush
• Properties: good value, low mechanical resistance, medium chemical resistance, medium reset force
  • Examples of use: lamps, IT systems and mobile devices/equipment

Art. no. Coil length Operating length Version Unit

Spiral cable

H05VV-F 3G 1.50 mm2, diameter approx. 8.4 mm, WID: approx. 10 mm, WAD: approx. 27 mm

654.180	500 mm 2,000 mm · Black 50 items
654.280	500 mm 2,000 mm · White 50 items
654.181	1,000 mm 4,000 mm · Black 30 items
654.281	1,000 mm 4,000 mm · White 30 items
654.182	1,500 mm 6,000 mm · Black 15 items
654.282	1,500 mm 6,000 mm · White 15 items

Spiral cable, PUR Leads: PVC, sheath: PUR, elongation factor 1:5, 70 °C

- End 1 / end 2: 200 mm each, cut flush

Properties: good chemical resistance, good resistance to cold,

excellent abrasion and notching resistance, very good reset force

• Examples of use: connecting cables for engineering, the construction industry or robotics

Art. no. Coil length Operating length Version

Unit

Spiral cable, PUR

YMH11Y-J 3G 1.50 mm2, diameter approx. 8.0 mm, WID: approx. 13 mm, WAD: approx. 29 mm

692.180	500 mm	2,500 mm	· Black	30 items
692.280	500 mm	2,500 mm	· White	30 items
692.181	1,000 mm	5,000 mm	· Black	20 items
692.281	1,000 mm	5,000 mm	· White	20 items
692.182	1,500 mm	7,500 mm	· Black	15 items
692.282	1,500 mm	7,500 mm	· White	15 items

Two identical curved pipe or tube structures with no text, numbers, or symbols

Close-up of a brown, coiled orange wire or filament against a white background (no text or symbols)

Spiral cable, PUR Leads: PVC, sheath: PUR, elongation factor 1:5, 70 °C

Art. no.	Coil length	Operating length	Version	Unit
Spiral cable, PUR
YMH11Y-J 5 x 1.50 mm2, diameter approx. 10.0 mm, WID: approx. 18 mm, WAD: approx. 39 mm
693.180	500 mm	2,500 mm	· Black	20 items
693.280	500 mm	2,500 mm	· White	20 items
693.181	1,000 mm	5,000 mm	· Black	10 items
693.281	1,000 mm	5,000 mm	· White	10 items
693.182	1,500 mm	7,500 mm	· Black	5 items
693.282	1,500 mm	7,500 mm	· White	5 items

Spiral cable, PUR Leads: rubber, sheath: PUR, elongation factor 1:5, 70 °C

• End 1 / end 2: 200 mm each, cut flush
• Properties: good chemical resistance, good resistance to cold, microbe resistant, excellent abrasion and notching resistance, microbe-proof, high resistance to chafing and grinding, good reset force
• Examples of use: machines and systems requiring VDE-compatible connection:
  e.g. in engineering, power tools, construction equipment and communications systems
  • Particularly suitable for use out of doors or in damp environments; UV resistant

Art. no. Coil length Operating length Version Unit

Spiral cable, PUR
H07BQ-F 3G 1.50 mm2, diameter approx. 9.5 mm, WID: approx. 13 mm, WAD: approx. 32 mm
684.880	00 mm 2,500 mm · Orange	20 items
684.881	1,000 mm 5,000 mm · Orange	15 items
684.882	1,500 mm 7,500 mm · Orange	10 items
H07BQ-F 5G 1.50 mm2, diameter approx. 11.3 mm, WID: approx. 18 mm, WAD: approx. 41 mm
685.880	00 mm 2,500 mm · Orange	20 items
685.881	1,000 mm 5,000 mm · Orange	10 items
685.882	1,500 mm 7,500 mm · Orange	5 items
H07BQ-F 7G 1.50 mm2, diameter approx. 13.9 mm, WID: approx. 18 mm, WAD: approx. 46 mm
681.880	00 mm 2,500 mm · Orange	20 items
681.881	1,000 mm 5,000 mm · Orange	10 items
681.882	1,500 mm 7,500 mm · Orange	5 items
H07BQ-F 3G 2.50 mm2, diameter approx. 10.8 mm, WID: approx. 18 mm, WAD: approx. 40 mm
682.880	00 mm 2,500 mm · Orange	20 items
682.881	1,000 mm 5,000 mm · Orange	10 items
682.882	1,500 mm 7,500 mm · Orange	5 items
H07BQ-F 5G 2.50 mm2, diameter approx. 13.7 mm, WID: approx. 18 mm, WAD: approx. 46 mm
683.880	$00 mm 2,500 mm · Orange	20 items
683.881	1,000 mm 5,000 mm · Orange	10 items
683.882	1,500 mm 7,500 mm · Orange	5 items

Contour supply cable, PUR Leads: rubber, sheath: PUR, elongation factor 1:5, 70 °C

• End 1: moulded contour plug
• End 2: length 100 mm incl. 30 mm stripped, with end sleeves

Art. no. Coil length Operating length Version Unit

Contour supply cable, PUR

H05BQ-F 2 x 1.00 mm², diameter approx. 7 mm, WID: approx. 9 mm, WAD: approx. 23 mm 624.871 1,000 mm 5,000 mm · Orange 50 items

Earthing contact spiral

supply cable, PVC sheath: PVC, elongation factor 1:4, 70 °C

Leads:

· End 1: right angle plug, type 30F with dual earthing contact system, moulded
- End 2: length 100 mm incl. 30 mm stripped, with end sleeves

Art. no. Coil length Operating length Version Unit

Earthing contact spiral supply cable PVC

H05VV-F 3G 1.50 mm2, diameter approx. 8.4 mm, WID: approx. 10 mm, WAD: approx. 27 mm
663.170	500 mm 2,000 mm · Black	50 items
663.270	500 mm 2,000 mm · White	50 items
663.171	1,000 mm 4,000 mm · Black	30 items
663.271	1,000 mm 4,000 mm · White	30 items

Simple illustration of a coiled orange cable with a red end cap (no text or symbols)

Coiled white cable with connectors, no visible text or symbols

Earthing contact spiral

supply cable PUR

Leads: rubber,

sheath: PUR, elongation factor 1:5, 70°C

• End 1: length 100 mm straight, central plug with dual earthing contact system, moulded
  · End 2: length 200 mm incl. 30 mm stripped, with end sleeves

Art. no.

Coil length

Operating length

Version

Unit

Earthing contact spiral supply cable, PUR

H07BQ-F 3G 1.50 mm ^2 , diameter approx. 9.5 mm, WID: approx. 13 mm, WAD: approx. 32 mm
665.870	500 mm	2,500 mm	· Orange	10 items
665.871	1,000 mm	5,000 mm	· Orange	10 items

Orange coiled cable with a terminal connector (no text or symbols visible)

Spiral lighting cables

Ends: 140 mm each, incl. 80 mm stripped, with end sleeves

Art. no.

Coil length

Operating length

Version

Unit

Spiral lighting cable (prepared)

H05VV-F 3G 1.50 mm2, diameter approx. 8.4 mm, WID: approx. 10 mm, WAD: approx. 27 mm
· Insulation: PVC, sheath: PVC, elongation factor 1:4, 70 °C
654.283	400 mm	1,600 mm	· White	50 items
654.284	800 mm	3,200 mm	· White	25 items
YMH11Y-J 5 x 1.50 mm2, diameter approx. 10 mm, WID: approx. 13 mm, WAD: approx. 34 mm
· Insulation: PVC, sheath: PUR, elongation factor 1:5, 70 °C
693.283	400 mm	2,000 mm	· White	20 items

Coiled wire with two leads, no text or symbols visible

Coiled cable with two terminal plugs, no visible text or symbols

Earthing contact extension cable, 16 A / 250 V\~, PVC, 70 °C

• End 1: right angle plug with dual earthing contact system, moulded
• End 2: earthing contact coupling, moulded, with extra child-proofing in coupling

Art. no. Version Unit

Earthing contact extension, cable: H05VV-F 3G 1.50 mm²

Length: 2 m
341.200S · White 50 items
Length: 3 m
341.201S · White 50 items
Length: 5 m
341.202S · White 30 items
Length: 10 m
341.203S · White 20 items

Spiral earthed contact extension cable, PVC, elongation factor 1:4, 70 °C

• End 1: central plug with dual earthing contact system, moulded
• End 2: earthing contact coupling, moulded

Art. no. Coil length Operating length Version Unit

Spiral extension cable with earthing contact plug, PVC

H05VV-F 3G 1.50 mm2, diameter approx. 8.4 mm, WID: approx. 10 mm, WAD: approx. 27 mm
672.180	500 mm 2,000 mm · Black 20 items
672.280	500 mm 2,000 mm · White	20 items
672.181 1,000 mm 4,000 mm · Black 20 items
672.281 1,000 mm 4,000 mm · White	20 items

Red cable with black connectors, no visible text or symbols

Earthing contact extension cable, 16 A / 250 V\~, IP20, PVC, 70 °C

• End 1: central plug with dual earthing contact system, moulded
• End 2: earthing contact coupling, moulded, with cover

Art. no. Version Unit

Earthing contact extension, cable: H05VV-F3 G 1.50 mm², safety colour orange

Length: 10 m
341.879 · range 1 item
Length: 25 m
341.870 · range 1 item

Euro extension cable, 2.5A/250V\~, PVC, 70°C

· End 1: Euro plug, fitted, type 20
· End 2: Euro coupling, fitted, type 23
· Cable: H03VH2-F2 0.75 mm², flat cable

Art. no. Version Unit

Euro extension cable

Length: 2.0 m
233.184 · Black 20 items
233.284 · White 20 items
Length: 3.0 m
233.185 · Black 20 items
233.285 · White 20 items
Length: 5.0 m
233.186 · Black 20 items
233.286 · White 20 items

Earthing contact extension cable, 16 A / 250 V\~, PVC, 70 °C

• End 1: right angle plug with dual earthing contact system, moulded
• End 2: earthing contact coupling, moulded

Art. no. Version Unit

Earthing contact extension, cable: H05VV-F 3G 1.50 mm²

Length: 2.0 m
341.184 · Black 50 items
341.284 · White 50 items
Length: 3.0 m
341.185 · Black 50 items
341.285 · White 50 items
Length: 4.0 m
341.287 · White 50 items
Length: 5.0 m
341.186 · Black 50 items
341.286 · White 50 items
Length: 7.5 m
341.288 · White 20 items
Length: 10 m
341.189 · Black 15 items
341.289 · White 15 items
Length: 15 m
341.281 · White 10 items

Coiled cable with two terminal connectors (no text or symbols visible)

Coiled white cable with two connectors (no text or symbols visible)

Red coiled cable with two black earphones attached (no text or symbols visible)

Lawnmower extension cable, 16A/250V\~, rubber/neoprene, 70°C

- End 1: central plug with earthing contact

- End 2: earthing contact coupling with cover

Art. no. Version Unit

Lawnmower extension, cable: H07RN-F3G 1.50 mm²

15 m
343.373 · Red 1 item
25 m
343.370 · Red 1 item
35 m
343.372 · Red 1 item
50 m
343.371 · Red 1 item

Kabelsafe box, IP44

• Offers the best protection for power cable plug-in connections
• Child-proof and waterproof
• Ideal for outdoor use
• Protects the plug connections of your Christmas and party illuminations
• Practical applications in camping and for use with electric lawnmowers
  · For permanent use in the garden and on construction sites

Three red cylindrical objects with handles, arranged in a row (no text or symbols visible)

Art. no. Version Unit

Kabelsafe box, IP44

919.371 · Max. cable diameter 9 mm 1 item · Internal dimensions 180 mm long, ∅ 60 mm · Orange

Two views of an open electronic device casing with internal components, showing dimensions: 85 mm and 275 mm (no text or symbols on the devices themselves)

Kabelsafe box, IP64

• Offers outstanding protection for power strips, extension cables and adaptors
• 6 cable entries with individual strain relief
• Lockable and can be mounted at rear; very robust construction
• For permanent use in the garden and on construction sites
• Ideal for Christmas lights, garden devices and camping uses

Art. no. Version Unit

Kabelsafe box, IP64

904.100 · Designed for cable diameters from H05W - 1 item

F 3G 1.5 mm to H007RN-F 3G 1.5 mm² to H07RN-F 3G 1.5 mm²

· Light grey

- UV-resistant

- Suitable for e.g. entire Smart Line 3 x range

· Usable surface: 85 mm deep, 275 mm wide

Earthing contact extension cable, 16 A / 250 V\~, rubber, 70 °C

• End 1: central plug with earthing contact
• End 2: earthing contact coupling with cover

Art. no. Version Unit

Earthing contact extension, cable: H05RR-F 3G 1.50 mm²

Length: 10 m
343.179 · Black 1 item
Length: 25 m
343.177 · Black 1 item

Earthing contact extension cable, 16 A / 250 V\~, IP44, rubber / neoprene, 70

Coiled black cable with two connectors, no visible text or symbols

• End 1: central plug with earthing contact
• End 2: earthing contact coupling with cover
• Heavy duty version for outdoor use and on construction sites

Art. no. Version Unit

Earthing contact extension, cable: H07RN-F 3G 1.50 mm²

Length: 5 m
343.170 · Black 1 item
Length: 10 m
343.171 · Black 1 item
Length: 25 m
343.172 · Black 1 item
Length: 50 m
343.173 · Black 1 item

Earthing contact extension, cable: H07RN-F 3G 2.50 mm²

Length: 10 m
343.191 · Black 1 item
Length: 25 m
343.192 · Black 1 item

Earthing contact extension cable, 16 A / 250 V\~, IP44, rubber / neoprene, 70 °C

· 3-way rubber overhead coupling and hinged lid (IP44)
- End 1: central plug with earthing contact
- End 2: 3-way rubber overhead coupling with hinged lid and standardised snap latch

Art. no. Version Unit

Earthing contact extension, cable: H07RN-F 3G 1.50 mm²

Length: 5 m
343.174 · Black 1 item
Length: 10 m
343.175 · Black 1 item
Length: 25 m
343.176 · Black 1 item

Coiled black cable with two earphones, no visible text or symbols

Coiled black cable with plug connectors, no visible text or symbols

Coiled black cable with two orange connectors, no visible text or symbols

CEE extension cable, 32 A/400 V\~, rubber / neoprene, IP44, 70°C

• End 1: CEE plug 32 A / 6 h / 400 V
  · End 2: CEE coupling 32 A / 6 h / 400 V
• Suitable for use out of doors and on construction sites

Art. no. Version Unit

CEE extension cable, H07RN-F5G 2.5 mm²

Length: 5 m
345.170 · Black	1 item
Length: 10 m
345.171 · Black	1 item
Length: 25 m
345.172 · Black	1 item

CEE extension cable, H07RN-F5G 4.00 mm²

Length: 5 m
346.170 · Black	1 item
Length: 10 m
346.171 · Black	1 item
Length: 25 m
346.172 · Black	1 item

CEE extension cable, H07RN-F5G 6.00 mm²

Length: 10 m
348.171 · Black	1 item
Length: 25 m
348.172 · Black	1 item

Cable-carrying aid

• Handle facilitates transport of long cables or tubes
• Adjustable and pliable

Art. no. Version Unit

Cable-carrying aid

394.179 · Orange

1 item

CEE extension cable, 16 A / 400 V \~ , rubber / neoprene, IP44, 70 °C

· End 1: CEE plug 16 A / 6 h / 400 V
· End 2: CEE coupling 16 A / 6 h / 400 V
- Suitable for use out of doors and on construction sites

Art. no. Version Unit

CEE extension cable, H07RN-F5G 1.5 mm²

Length: 5 m
344.170 · Black	1 item

Length: 10 m
344.171 · Black	1 item

Length: 25 m
344.172 · Black	1 item

CEE extension cable, H07RN-F5G 1.5 mm², with phase inverter

Length: 10 m
344.174 · Black	1 item

Length: 25 m
344.175 · Black	1 item

CEE extension cable, H07RN-F5G 2.5 mm²

Length: 5 m
347.170 · Black	1 item

Length: 10 m
347.171 · Black	1 item

Length: 25 m
347.172 · Black	1 item

Coiled black cable with two red and orange connectors (no text or symbols visible)

Exterior view of a black industrial cable spool with coiled wire and mounting feet (no visible text or symbols)

Two plug retainers to hold earthing contact plug when not in use

Includes thread and crank handle for easier winding of cable

Maximum protection against electrical hazards, fully insulated

MEISTERTROMMEL CABLE REELS

For professionals, the BACHMANN Meistertrommel is the ideal cable reel. The Meistertrommel keeps you on the safe side - with the assurance of Bachmann's renowned quality. To document this, every Meistertrommel is individually tested and issued with a certificate of inspection.

The advan tages at a glance

• Resistant to fuel and oil substances. Good resistance to chemicals Weatherproof, no rust, no corrosion!
  • Temperature stability range -15 °C to +60 °C
  IP54

Meistertrommel cable reels

Art. no. Version

Meistertrommel 4 x earthing contact
Empty reel

399.000 - 4

socket outlets with earthing contact

25 m H07RN-F3G 1.5 mm², black

399.003 · 4

German-type socket outlets, with earthing contact central plug

Meistertrommel 4 x earthing contact
40 m H07RN-F3G 1.5 mm², black

399.004 · 4

German-type socket outlets, with earthing contact central plug

50 m H07RN-F3G 1.5 mm², black

399.005 - 4

German-type socket outlets, with earthing contact central plug

40 m H07RN-F3G 2.5 mm², black

399.006 · 4

German-type socket outlets, with earthing contact central plug

Meistertrommel 3 x earthing contact, 1 x CEE
Empty reel

399.007 · 3	socket outlets with earthing contact
	· 1 CEE socket outlet 16 A

25 m H07RN-F5G 2.5 mm², black

399.009 · 3	socket outlets with earthing contact
	· 1 CEE socket outlet 16 A with CEE plug 16 A

Meistertrommel Site Manager Austria
40 m XYMM-J3G 1.5 mm², yellow

399.012 · 4

German-type socket outlets, with earthing contact central plug

Meistertrommel other

399.010 ^x · Empty reel with closed plate for user's own fitting

CABLE REEL

Close-up of a black cable with orange spool and metal frame (no visible text or symbols)

Equipment supply reel with thermal cut-out

- Integrated cable winder and stop brake

Art. no. Version Unit

Empty reel, plastic, large, holds up to 50 m H05VV-F 3G 1.50 mm² cable

397.003 · Disc diameter 290 mm 1 item · Reel: black

Cable reel, 4-way, 16A/250V\~, IP20

• 4 socket outlets with earthing contact 250V\~ without lid
• Integrated 1-pin thermal safety switch

Art. no. Version Unit

Black cable spool with attached metal frame, no visible text or symbols

Plastic cable reel, cable: H05VV-F 3G 1.50 mm²

25 m

392.180 · Central plug with dual earthing contact system 1 item · Cable: black, reel: black

50 m

392.181 · Central plug with dual earthing contact system 1 item · Cable: black, reel: black

Plastic cable reel, cable: H05RR-F 3G 1.50 mm²

25 m

395.180 · Earthing contact central plug 1 item · Cable: black, reel: black

50m

395.181 · Earthing contact central plug 1 item · Cable: black, reel: black

Plastic empty reel, large, holds up to 50 m H05RR-F 3G 1.50 mm² cable

396.181 · Disc diameter 280 mm 1 item · Reel: black

Sheet steel cable reel, cable: H05VV-F 3G 1.50 mm²

25 m

398.183 · Central plug with dual earthing contact system 1 item · Cable: black, reel: silver

Art. no. Version Unit

Sheet steel cable reel, cable: H05RR-F 3G 1.50 mm²

25m

398.181 - Earthing contact central plug 1 item

· Cable: black, reel: silver

50 m

398.182 · Earthing contact central plug 1 item

· Cable: black, reel: silver

Close-up of a black cable spool with metal frame and handle, no visible text or symbols

Sheet steel empty reel, large

396.182 · Disc diameter 290 mm 1 item

· Reel: silver

Cable reel, 3-way, 16A/250V\~

· 3 socket outlets with earthing contact 250 V \~ with hinged lid
- Integrated 1-pin thermal safety switch
- Splash-proof – for outdoor use

Art. no. Version Unit

Plastic cable reel, cable: H07RN-F 3G 1.50 mm²
25 m, IP44

392.182 · Earthing contact central plug 1 item

· Cable: black, reel: black

40 m, IP44

392.183 · Earthing contact central plug 1 item

· Cable: black, reel: black

Plastic empty reel, cable up to max. 40 m

396.183 · Disc diameter 280 mm 1 item

· Reel: black

Sheet steel cable reel, cable: H05RR-F 3G 1.50 mm²
50 m, IP20

398.186 · Earthing contact central plug 1 item

· Cable: black, reel: silver

Sheet steel cable reel, cable: H07RN-F 3G 1.50 mm²
40 m, IP44

398.180 · Earthing contact central plug 1 item

· Cable: black, reel: silver

Sheet steel empty reel, holds up to 40 m cable

396.187 · Disc diameter 280 mm 1 item

· Reel: silver

Black industrial pipe reel with red connectors, displayed on a stand (no text or symbols visible)

Exterior view of a black-and-white cable spool with red connectors (no text or symbols visible)

PROFESSIONAL CABLE REEL

The advan tages

at a glance

• Splash water protection IP44
  • Integrated thermal cut-out
• For outdoor use

Professional cable reel, 3-way, 16A/250V\~

• 3 earthing contact socket outlets with hinged lid
• Integrated 1-pin thermal safety switch
• Dual tubular frame
• Reel body made from unbreakable special plastic

Art. no. Version Unit

Close-up of a black industrial cable with orange connectors and yellow metal clamps (no text or symbols visible)

Professional cable reel, cable: H07RN-F 3G 1.50 mm²

25m

399.181 · Earthing contact central plug 1 item · Cable: black, reel: black

40 m

399.182 · Earthing contact central plug 1 item · Cable: black, reel: black

Empty reel, holds up to 40 m H05RN-F 3G 1.50 mm² cable

396.184 · Disc diameter 280 mm 1 item · Reel body in unbreakable plastic, black

Professional cable reel, 3-way, 16A/400V\~

· 1 CEE socket outlet 16 A / 400 V
- 2 socket outlets with earthing contact 250 V \~ with hinged lid
- Integrated 3-pin thermal safety switch
- Dual tubular frame

Art. no. Version Unit

Professional cable reel, cable: H07RN-F 5G 1.50 mm²

25 m

399.180 · CEE plug 16 A / 400 V \~ 1 item - Reel body made from break-proof plastic - Cable: black, reel: black

Coiled black cable with red connectors and coiled wire, no visible text or symbols

Coiled black cable with red and white connectors, no visible text or symbols

Professional cable reel, cable: H07RN-F 5G 2.50 mm²

40 m

399.186 · CEE plug 16 A / 400 V - 1 item

• Reel body made from unbreakable hard rubber
  · Cable: black

Cable reel with portable RCD, 3-way

· 3 earthing contact socket outlets with hinged lid and built-in 1-pole thermal cut-out
· Dual tubular frame, reel body made from unbreakable hard rubber

Art. no. Version Unit

PRCD cable reel, cable: H07BQ-F 3G 1.50 mm²

25 m

398.200 · Earthing contact plug 16 A / 30 m A 1 item · Cable: orange, reel: black

Professional cable reel, 4-way, 16A/250V\~

• 4 earthing contact socket outlets with hinged lid, with 1-pole thermal cut-out
• Dual tubular frame, reel body made from unbreakable hard rubber

Art. no. Version Unit

Professional cable reel, cable: H07RN-F 3G 2.50 mm²

50 m

399.189 · Earthing contact central plug 1 item · Cable: black

Replacement parts for cable reels

Art. no. Version Unit

Thermal cut-out

1-pole (suitable for all cable reels, page 268 - 271)

900.180 · Fed 1 item

3-pole

900.181 · Red 1 item

Socket insert

4-way, with thermal cut-out

900.187 · Black 1 item

3-way with cover with thermal protection

910.105 · Cover: red, plate: black 1 item

2 x socket outlets with earthing contact, 1 x CEE socket outlet 16 A / 400 V \~

2-way with hinged lid, without thermal cut-out

910.106 · Cover: red, plate: black 1 item

Black cylindrical device with red components and a handle, possibly a portable fuel lamp or coiled tube (no visible text or symbols)

Exterior view of a black cylindrical industrial device with red internal components and metal handles (no visible text or symbols)

Cable box, 4-way, 16A/250V\~

• 4 earthing contact socket outlets with built-in thermal cut-out, 1-pole
• Right angle plug with dual earthing contact system, version with handle and winding crank

Art. no. Version Unit

Cable box, cable: H05VV-F 3G 1.50 mm²

10 m

393.002 · Max. load capacity: 3500 W fully unwound, 1200 W fully wound 6 items

- Child-proof

· Cable: black, box: black

Cable box, cable: H05VV-F 3G 1.50 mm²

20 m

393.006 · Highly break-proof design 1 item

· Max. load capacity: 3500 W fully unwound, 1,000 W fully wound

· Cable: black, box: black / blue

Cable reel, 4-way, 16A/250V\~/IP44

Art. no. Version Unit

Cable reel with automatic spring rewind

15 m

392.187 · Cable H07RN-F 3G 1.5 with earthing contact plug 1 item

- 4-socket outlets with hinged lid

· 230 V / 16 A / max. 3500 W unwound and 1000 W wound

- VDE thermal cut-out

· with plastic handle, plastic frame; colour: blue

Power Bag, max. 16A/3600W, IP44

• 4 sockets with earthing contact, splashproof to IP44
  · 2.0 m H07RN-F 3G 1.50 mm²
  · With carry handle and practical cable winding device
• Compact construction
• Ideal for outdoor use

Art. no. Version Unit

White portable electrical device with dual socket connectors and a black power plug (no visible text or symbols)

Power Bag with 4 earthing contact socket outlets and PRCD

IP44

393.011 · Light grey / green 1 item

• PRCD with test function
• Tripping current < 30 mA, tripping time < 30 ms

Solid rubber distributor, IP44

Art. no. Version Unit

Solid rubber distributor
2.0 m supply cable H07RN-F5G 6.00 mm²

349.020 · Input: - 1 x CEE plug 32 A / 400 V ~ 1 item

· Outlet: - 1 x CEE socket outlet 32 A / 400 V -

- 2 x CEE socket outlet 16 A / 400 V ~

- 3 x earthing contact sockets 16 A / 250 V -

· Protection: - 1 x MCB 16 A / 3-pole

- 3 x MCB 16 A / 1-pole

- 1 x RCD, 40 A / 0.03 A / 4-pole on all outputs

2.0 m supply cable H07RN-F3G 2.50 mm²

349.185 · Input: - 1 x solid rubber earthing contact plug 16 A / 250 V ~ 1 item

· Outlet: - 6 x earthing contact sockets 16 A / 250 V ~

2.0 m supply cable H07RN-F5G 2.50 mm²

349.184 · Input: - 1 x CEE plug 16 A / 400 V ~ 1 item

· Outlet: - 1 x CEE socket outlet 16 A / 400 V ~

- 3 x earthing contact sockets 16 A / 250 V ~

IP44 power strip

Art. no. Version Unit

3-way earthing contact power strip with covers
IP44; 230 V, 16 A

381.109 · Design: DIN 49 440 part 1 1 item

· With attachment eye and four fixing points

· Solid elastomer version

Current limiter and current meter

Art. no. Version Unit

Start inrush current limiter
230V 1-phase

349.017 · Input: 1.5 m cable H07RN-F 3G 1.5 with earthing contact plug, black 1 item

· Outlet: 1x CEE earthing contact socket 230 V / 16 A, 3-pole

· Suitable for MCB 16 A characteristic B, C

· IP44

400V 3-phase

349.018 · Input: 1.5 m cable H07RN-FG 1.5 m; with CEE plug 400 V/16 A 5-pole 1 item

· Outlet: 1 x CEE socket 400 V / 16 A, 5-pole

· Suitable for MCB 16 A characteristic C, D

· IP44

Current meter MID 230 V

349.019 · Input: 1 x 1.5 m H07RN-F 3G 2.5 with earthing contact plug

· Outlet: 1 x 1.5 m H07RN-F 3G 2.5 with earthing contact coupling

· Integrated current meter and operating hours counter;

· MID counter, calibrated and sealed, cannot be reset

· Housing in special unbreakable plastic

Exterior view of a portable electronic device with red connectors and a black casing (no visible text or symbols)

Industrial electrical box with four blue circular components and brown tubing (no visible text or symbols)

CEE distributor, 250V\~/400V\~, IP44

· Highly unbreakable plastic construction, splash water protected
- Ideal for mobile use out of doors
- With practical cable rewind and integral carrying handle

Art. no. Version Unit

CEE distributor

2.0 m supply cable H07RN-F5G 2.50 mm²

349.008 · Input: - 1 x CEE plug 16 A / 400 V \~ 1 item
- Outlet: - 2 x CEE socket outlet 16 A / 400 V -
- 4 x earthing contact sockets 16 A / 250 V \~

CEE distributor with protection

4.0 m supply cable H07RN-F5G 2.50 mm²

349.009 · Input: - 1 x CEE plug 32 A / 400 V \~ 1 item
- Outlet: - 1 x CEE socket outlet 32 A / 400 V -
- 1 x CEE socket outlet 16 A / 400 V \~
- 4 x earthing contact sockets 16 A / 250 V -
- Protection: - 1 x C16 A circuit breaker, 3-pole
- 2 x C16 A circuit breaker, 1-pole
349.010 · Input: - 1 x CEE plug 32 A / 400 V \~ 1 item
- Outlet: - 1 x CEE socket outlet 32 A / 400 V -
- 1 x CEE socket outlet 16 A / 400 V \~
- 4 x earthing contact sockets 16 A / 250 V -
- Protection: - 1 x RCD, 40 A / 0.03 A / 4-pole on all outputs
- 1 x C16 A circuit breaker, 3-pole
- 2 x C16 A circuit breaker, 1-pole
·IP44

Industrial electrical equipment with multiple blue and red components, no visible text or symbols

CEE distributor with protection

Supply cable: 2 m H07RN-F 5G 4 2.50 mm²

349.011 · Input: - CEE plug 400 V / 32 A / 5-pole 1 item

- Outlet: - 2 x CEE socket outlets 400 V / 32 A / 5-pole

- 2 x CEE socket outlets 400 V / 16 A / 5-pole

- 4 x earthing contact sockets 230 V / 16 A

- Protection: - 1 x RC circuit breaker 40 A, 30 mA, 4-pole

- 2 x miniature circuit breaker C16 A, 1-pole

- 1 x miniature circuit breaker C16 A, 3-pole

- Housing made of special shatter-proof plastic and carrying handle

· IP44

Power distributors are not suited to use as construction power distributors or for heavy-duty work on the construction site.

CEE adaptor, 400 V \~, IP44

· Highly unbreakable special plastic version, protected from splash water
- For outdoor use, hanger included

Art. no. Version Unit

CEE adaptor

349.012 · Input: 1 x CEE plug 16 A / 400 V ~ 1 item· Outlet: 1 x CEE socket outlet 32 A / 400 V ~

349.006 · Input: 1 x CEE plug 16 A / 400 V ~ 1 item

· Outlet: 1 x CEE socket outlet 16 A / 400 V ~

1 x CEE socket outlet 32 A / 400 V ~

2 x earthing contact socket outlets 250 V~

349.028 · Input: 1 x CEE plug 16 A / 400 V - 1 item

· Outlet: 3 x earthing contact sockets 16 A / 250 V -

349.033 · Input: 1 x CEE plug 16 A / 400 V ~ 1 item

· Outlet: 3 x CEE socket outlets 16 A / 400 V -

349.029 · Input: 1 x CEE plug 16 A / 400 V - 1 item

· Outlet: 1 x CEE socket outlet 16 A / 400 V ~ 3 x earthing contact sockets 16 A / 250 V -

Protection: 3 x 10 A fuse

349.183 · Input: 1 x CEE plug 32 A / 400 V - 1 item

· Outlet: 1 x CEE socket outlet 16 A / 400 V ~

Protection: 3 x 10 A fuse

349.007 · Input: 1 x CEE plug 32 A / 400 V ~ 1 item

· Outlet: 1 x CEE socket outlet 16 A / 400 V ~

1 x CEE socket outlet 32 A / 400 V ~

1 x earthing contact socket outlet 250 V~

CEE adaptor with 1.5 m supply cable: H07RN-F5G 1.5 mm ^4

Screwed / rewireable

349.027 · Input: 1 x CEE plug 16 A / 400 V ~ 1 item

· Outlet: 3 x earthing contact socket outlets 250 V ~

Screwed / rewireable

349.035 · Input: 1 x CEE plug 16 A / 400 V ~ 1 item · Outlet: 3 x CEE socket outlets 16 A / 400 V ~

Replacement parts

· Fuse protection socket for CEE adapter 900.1086
- Fuse holder for CEE adapter 900.1061
- Miniature fuse

Collection of various electrical switch components and connectors, shown in various colors and sizes (no text or labels visible)

Energy cube • Wired ready for use • Cable entry with screw fitting • Offers high flexibility and greater freedom of movement e.g. in workshops and assembly areas Practical hanger Compressed air optional Practical multi-purpose hook Energy cube in special unbreakable plastic

Art. no. Version

Energy cube 4 x earthing contact

For cable diameters 3 × 1.5 mm^2 - 5 × 1.5 mm^2

349.300 · 4	socket outlets with earthing contact 16 A / 230 V
349.301 · 4	socket outlets with earthing contact 16 A / 230 V
	· 1 compressed-air supply with input 1⁄2" and 2 x output 1⁄2"

Energy cube 1 x CEE, 4 x earthing contact
For cable diameters 5 x 1.5 mm ^2 - 5 x 2.5 mm ^2

349.302 ·	CEE socket outlets 16 A / 400 V, 5-pole· 4 socket outlets with earthing contact 16 A / 230 V
349.303 ·	CEE socket outlets 16 A / 400 V, 5-pole· 4 socket outlets with earthing contact 16 A / 230 V· 1 compressed-air supply with input 12" and 2 x output 12"

Energy cube, 2 x CEE, 2 x earthing contact
For cable diameters 5 x 1.5 mm ^2 - 5 x 4 mm ^2

349.304 · 2	CEE socket outlets 16 A / 400 V, 5-pole
	· 2 socket outlets with earthing contact 16 A / 230 V
349.305 · 2	CEE socket outlets 16 A / 400 V, 5-pole
	· 2 socket outlets with earthing contact 16 A / 230 V
	· 1 compressed-air supply with input 1⁄2" and 2 x outlet 1⁄2"

Energy cube

Art. no. Version Unit

Energy cube with data connection
IP44

349.310 · 4 x earthing contact sockets 16 A / 230 V 1 item

· 1 x CEE socket outlet 16 A

· 1 x compressed air point with 1⁄2" input

· 2 x 1⁄2" compressed air output

· 1 x data outlet IP67 with 2 x RJ45 Cat. 6 module

· Cable entry with screw fitting from 5G 1.5 to 5G 2.5

· Made of special shatter-proof plastic

· Wired ready for use

349.311 2 x earthing contact sockets 16 A / 230 V 1 item

2 x CEE socket outlets 16 A

1 x compressed air point with 1⁄2" input

2 x 1⁄2" compressed air output

1 x data outlet IP67 with 2 x RJ45 Cat. 6 module

Cable entry with screw fitting from 5G 2.5 to 5G 4

Made of special unbreakable plastic

Wired ready for use

CEE adapter with MCB
IP44

349.013 Adapter CEE 400 V 1 item

Input: 1 CEE plug 32 A; output: 1 CEE socket outlet 16 A

Rubberised housing

Protection: 1 x miniature circuit breaker C16 A, 3-pole

Two identical mechanical components suspended in a chain, with a blue 'NEW' badge visible (no text or symbols on components)

Close-up of a black and red electronic device with a blue 'NEW' badge (no text or symbols on the device itself)

CEE wall combination socket, 400 V \~ / 6 h/ 5-pin, IP44, according to IEC 309

Art. no. Version Unit

CEE wall combo outlet (must be fitted by a qualified technician)

1 x CEE wall socket 400 V ~, 1 x earthing contact socket outlet 250 V ~

· Polycarbonate version with cable kink protection, splash-proof

910.002 · 16 A 1 item

· Red

Suspension hooks Versions with 90 or 160 LEDs, giving very bright light Magnet holder included Professional version (aluminium/ rubber) with torch function

LED BATTERY HAND LAMPS

The advan tages at a glance

• LED technology offers very long service life
• Battery operation for flexibility
- Approx. 4 hours of lighting from one battery charge
• Charge time approx. 4 hours
• 230 V AC and 12 V DC charger included
• LEDs are shock resistant
- Minimal heat generation

LED battery hand lamp

• Magnet holder
• Plastic
• Includes 230 V\~ mains adaptor
• Individually packed in blister packaging
  · dia. 6 cm

Art. no. Version Unit

LED battery hand lamp

With automotive charging device

394.188 · 60 LEDs 3.6 W with 1 magnet holder, length 42 cm 20 items

394.189 · 90 LEDs 5.4 W with 1 magnet holder, length 47.5 cm 20 items

394.190 · 160 LEDs 9.6 W with 2 magnet holders, length 53.5 cm 20 items

PROFESSIONAL LED battery hand lamps

394.191 · 60 + 17 LEDs for torch function, with 2 magnet holders 20 items

· Including 12 V charging cable for cigarette lighter in car

Close-up of a flashlight with a black handle and a curved cable, alongside a metallic bar (no text or symbols visible)

LED battery head torch

· High light output and long life
- Small dimensions
- Lamp can be swivelled through 90^
- Adjustable rubber band allows flexible use on head or arm
- Can be used for work, sport and leisure

Art. no. Version Unit

LED battery head torch

19 LEDs
394.200 · Includes 230 V~ mains adaptor 1 item
	· 4 switching states: press 1 x = 1 LED, press 2 x = 7 LEDs press 3 x = 19 LEDs, press 4 x = 19 LEDs flashing

Close-up of a black-and-white photo of a flashlight with a power cord (no visible text or symbols)

Close-up of a black and white string with a hook attached, resembling a measuring tool or spring (no text or symbols visible)

Stick lamp, 8 W, IP20

• 8 W fluorescent lamp
• Not interchangeable, with integrated reflector
• Electronic ballast unit built into the handle, 50 HZ
• Plastic version with shock resistant protection tube and rotary hook
  · 5.0 m H05VV-F 2 x 0.75 mm² supply cable with Euro plug 2.5 A
  · IP20, including light bulb

Art. no. Version Unit

Stick lamp Length without hook: 46.5 cm

IP20

394.184 · Black 1 item · dia. 1.5 cm

Close-up of a black and silver mechanical tool with a hook, shown against a white background (no text or symbols visible)

Professional stick lamp with energy saving lamp 11 W / 250 V\~, IP54

· 11 W energy saving lamp
- Interchangeable, antiglare, pleasant light
· Oil resistant rubber version with shock resistant protection tube
- Integrated reflector and stable suspension hooks
· 5.0 m H05RN-F 2 x 1.00 mm² rubber cable with contour plug
- Splash-proof and dustproof design
• Including light bulb (Dulux S 11 Watt)

Art. no. Version Unit

Professional stick lamp Length/width: 40 cm / 4.5 cm

IP54, protection class II, double insulated

720.006 · Black 1 item

Rubber hand lamp, 250 V\~, IP44

· E 27 holder, max 100 W
- Interchangeable, with protective glass
· Oil resistant rubber design
· Metal basket with integrated hook, light bulbs not included

Close-up of a mechanical component with transparent cage and black shaft (no visible text or symbols)

Art. no. Version Unit

Rubber hand lamp Length/width: 40 cm / 4.5 cm

IP44, protection class II, double insulated

394.183 · 5.0 m H05RN-F 2 x 0.75 mm² supply cable with plug 1 item · Black

IP 40, without cable

394.187 - Black 1 item

Replacement glass

910.1011 · Protection glass 1 item

Halogen spotlight 120 W with earth spike, 16 A / 230 V\~, IP44

Art. no. Version Unit

Halogen spotlight

IP44

• 2.0 m cable: H05RN-F 3G 1.00 mm² with right-angle plug with earthing contact
• Aluminium cast housing with cooling surface
• Lamp holder is turnable and pivotable
  • Including light bulb
  394.181 - Black 1 item

E 27 holder with earth spike, 16 A / 230 V\~, IP44

Art. no. Version Unit

E 27 holder with earth spike

IP44

• 2.0 m cable: H05RN-F 2 x 1.00 mm² with contour plug
• Plastic housing with seal, splash-proof
• Lamp holder is pivotable
• For use only with PAR38 80 W light bulb (not included)
  720.000 · Black 1 item

Close-up of a black electronic device with wires and a plug, no visible text or symbols

Black mechanical tool with pointed tip and lever (no visible text or symbols)

LED class 1 Die-cast aluminium housing Energy-saving LED technology For continuous outdoor use Reflector with safety glass

LED SPOTLIGHT

The advan tages at a glance

• LED class 1
  • LED technology offers very long service life
  • Low power consumption
• Minimal heat generation
• Shock-resistant
• Robust die-cast aluminium housing
  • Practical hanging, positioning and fixing options

LED spotlight

Art. no. Version Unit

Chip LED spotlight

- LED class 1

• Beam angle 120°
• Die-cast aluminium housing
• Pivotable and lockable reflector with safety glass
• IP65

50 W with LED chip; 220-240 V / 50-60 Hz

720.025 · approx. 3600 lumen, colour temperature 6400K 1 item

· 2 m cable H07RN-F 3G 1.5 with earthing contact plug

80 W with LED chip; 220-240 V / 50-60 Hz

720.026 · approx. 7000 lumen, colour temperature 6400K 1 item

- 2 m cable H07RN-F 3G 1.5 with earthing contact plug

Portable Power LED-spotlight

20 W with frame; 220-240 V / 50-60 Hz

720.027 · approx. 1600 lumen, colour temperature 6400K 1 item

• 2 m cable H07RN-F 3G 1.0 with earthing contact plug
• LED class 1
• Beam angle 60°
  • Die-cast aluminium housing
• Pivotable and lockable reflector with safety glass
  ·IP65

Professional Power LED spotlight

• LED class 1
• Beam angle 60°
  • Die-cast aluminium housing
• Pivotable and lockable reflector with safety glass

12 W; 220-240 V / 50-60 Hz

720.028 · approx. 960 lumen, colour temperature 6400K 1 item

· 2 m cable H07RN-F 3G 1.0
· IP65

12 W; 220-240 V / 50-60 Hz

720.029 · approx. 960 lumen, colour temperature 6400K 1 item

• without cable
  · metal cable inlet for cables up to 3G 1.5 mm²
  · IP65

12 W with motion detector; 220-240 V / 50-60 Hz

720.030 · approx. 960 lumen, colour temperature 6400K 1 item

• without cable
  · metal cable inlet for cables up to 3G 1.5 mm²
  ·IP44
  · motion detectors: Range max 12 m
• time adjustable from 9 sec to 10 min
• integrated dawn switch

7 W with earth spike; 220-240 V / 50-60 Hz

720.031 - approx. 560 lumen, colour temperature 6400K 1 item

• 1.5 m cable H07RN-F 3G 1.0 with earthing contact plug
  · IP65

NEW

Exterior view of a modern office lamp with grid-patterned panel and metal frame (no text or symbols visible)

Close-up of a metallic tool with a square component and four circular holes, no visible text or symbols.

5.0 m supply H07RN-F3G rubber cable rubber plug Shock-resistant plastic housing with oil-resistant rubber surround and polycarbonate pane

Shock-resistant plastic housing with oil-resistant rubber surround and polycarbonate pane

PROFESSIONAL WORKING LAMP

For use on construction sites.

The advan tages at a glance

• Uses energy-efficient fluorescent lamps
- Includes 4000 kelvin light bulb
- Splash-proof and dust-proof design IP44 safety class ||
• Infinitely adjustable support bracket for positioning
• Can be stand-mounted
- Version with integrated earthing contact socket outlets

Professional work lamps

• Shadow free and comfortable light.
• 250 V\~ earthing contact socket outlets fitted in rear of housing to allow other equipment to be connected (part nos. 720.020 and 720.021).
  • Examples of use: workshops, tradesmen, ideal for outdoor use and on construction sites.

Art. no. Version Unit

Professional work lamp Black

720.022 · 36 W (2 x 18 W), 2900 lumen, without earthing contact socket outlet 1 item · 34 x 23 x 11 cm

720.020 · 72 W (2 x 36 W), 5800 lumen, with 2 earthing contact socket outlets 1 item · 49.5 x 28.5 x 11 cm

720.021 · 108 W (1 x 36 W), 8700 lumen, with 1 earthing contact socket outlet 1 item · 55 x 29 x 11 cm

Professional stand

• Robust tripod construction, zinc-plated, with mounting pate and fixing screws handy cable winding point
• Height adjustable up to 2.50 m
• Weight: 6 kg

Art. no. Version Unit

Professional stand Silver

730.004 · Stable construction in silver 1 item

Professional rotating light IP54

• Compact shock-proof and shatter-proof housing
• Can stand or hang
  · approx. ∅ x H: 19 x 38 cm

Art. no. Version Unit

Energy saving light 230 V / 16 A

360 ^ rotating light

394.195 · including energy-saving bulb G24 42 W 1 item

· approx. 3100 lumen, colour temperature 6400K

· with on/off switch

· very effective room lighting

· shatter-proof polycarbonate

· 2 x socket outlets with earthing contact, child-proof, black

· 5 m cable H07RN-F 3G 1.5 with earthing contact plug

· flexible fixing with hanging and mounting options

Four different types of lighting fixtures with transparent covers, arranged in a row (no text or symbols visible)

Exterior view of a modern office lamp with adjustable stand (no text or symbols visible)

Two blue industrial lighting fixtures with a transparent dome and black casing, one suspended with a hook (no text or symbols visible)

Black-and-white photo of a flat-screen monitor with a curved stand (no visible text or symbols)

Mobile halogen lamp, 400 W, IP44

Art. no. Version Unit

Halogen mobile light

IP44

· 2 m cable: H05VV-F 3G 1.00 mm² with plug
· 400 W R7S halogen bulb included
· Aluminium cast housing with cooling surface
- Continuously adjustable frame in black with carrying handle

720.013 · Black 1 item

Yellow outdoor lamp with tripod base and black cables, no visible text or symbols

Halogen lamp with stand, 1 x 400 W, IP44

Art. no. Version Unit

Halogen mobile light

IP44

· 2 m cable: H05W-F 3G 1.00 mm² with plug
· 400 W R7S halogen bulb included
· Aluminium cast housing with cooling surface
- Stand with aluminium cast articulation, height adjustable up to 2 m
· With practical cable rewind
- For use outside

722.009 - \$tand colour: yellow, load 5-7 kg 1 item

- Mobile halogen lamp

Two black electrical connectors with wires, one with two gray tags, no text or symbols visible

Lamp holders

Art. no. Version Unit

Lamp holder, pre-wired

E 27

· 60 W plastic E 27 holder
· 0.2 m H03W-F 2 x 0.75 mm²
- Black
· Delivery in units of 20 only
641.170 · With 2-pin terminal block 20 items
641.171 · With plug terminals 20 items

MAXI series 1000 silicon housing Also see page 277

• For halogen cold light mirror lamps, diameter 51 mm, 12 V \~, maximum 35 W
• Do not use Cool Beam light bulbs
• Triple insulation, with cable, light bulbs not included

Art. no. Version Unit

MAXI series 1000 silicon housing
With ceramic lamp holder

924.224 · Transparent 1 item

924.225 · White 1 item

With ceramic lamp holder, supplied in bags of 50, loose

924.332 - White 500 items

Without ceramic lamp holder, supplied in bags of 50, loose

924.334 · White 500 items

Series 1002 decorative rings
For MAXI series 1000 silicon housing

· Dimensions: inner 5 cm, outer 8 cm

924.231 · Chrome	20 items
924.250 · Matt brushed stainless steel	20 items

inter BAR

Two metallic wash rings, one gray and one gray-gray, shown against a white background (no text or symbols)

MAXI silicon housing for low-voltage recessed halogen spotlights

The MAXI silicon housing consists of a high temperature resistant high-tech elastomer with exceptional material qualities and thus a wide variety of applications:

·Totally rust-free
· Resistant to UV, ozone and ageing
· Heat and cold-resistant
· Excellent resistance to weather and maritime environments
· Patented
· Quick and easy to assemble and dismantle
· No component mounting
· Light bulb changing without tools
· No troublesome metal rings
- Can also be used for shops and exhibition stands (to match decor!)
· Quick mounting technology
- Mounting without springs

Can be fitted in:

· Solid materials in different thicknesses

· Fragile materials such as

- Plasterboard, fibreboards, chipboards, etc.

- Solid materials in different thicknesses - Fragile materials such as - Plasterboard, fibreboards, chipboards, etc.

dia. 68 60 dia. 51 dia. 78

Pulse starter See also page 277

Art. no. Version Unit

8600 series pulse starters
Instant ignition (rapid starter)

· For fluorescent lamps, reduces the costs of maintenance and replacement of fluorescent lamps, protects the environment, 10-year warranty, -30 °C to +75 °C, ENEC approval
924.167 · EFS 120 / 110-250 V -, 15-22 W 10 items
924.168 · EFS 600 / 200-260 V -, 18-125 W 10 items

Additional visual ON/ OFF indicator Large, easy to operate ON and OFF buttons For connecting directly into the supply line to the power appliance Encapsulated version for harsh environments

PERSONAL CIRCUIT BREAKERS

Personal circuit breakers with protective conductor monitoring

Recommended by the German Employers' Liability Association:

Designed as an intermediate device on power cords, this is a portable differential current protection device that isolates all poles and features electronic residual current evaluation.

For alternating, pulsed DC and phase-controlled rated residual currents of 10 or 30 mA.

With undervoltage tripping, protective conductor recognition and monitoring as well as external voltage detection.

When the PRCD-S detects an external voltage on the protective conductor, it does not interrupt this conductor. This allows the external current to trip its own upstream RCD or MCB protectors.

Mobile protective switching device PRCD-S 230 V\~, 16 A, 30 m A extension cable, IP44

· Cable lengths: plug – PRCD-S: 0.15 m
PRCD-S - coupling: 3.0 m
· Mobile safety device PRCD-S assembled with cable H07RN-F 3G 1.5 mm²
- Packed in a robust case

Art. no. Version Unit

Mobile PRCD-S personal circuit breaker

1 x protective conductor monitoring
· End 1: solid rubber right angle plug with 2 earthing contact systems· End 2: solid rubber coupling with cover, protection type IP44
919.014 · Black 1 item
1 x protective conductor monitoring
· End 1: solid rubber right angle plug with 2 earthing contact systems· End 2: solid rubber coupling, 3-way with cover, protection type IP44
919.015 · Black 1 item

PRCD-S 230V\~, 16A, 30mA, IP55

• Terminal cross-section 1 mm ^2 - 2.5 mm ^2
• Test marks by BG (German employers' liability association), Cologne SEV, VDE, GS

Art. no. Version Unit

PRCD-S

1 x protective conductor monitoring
· PRCD-S
· 30 mA rated residual current
919.016 · Black 1 item

PRCD-K 230V\~, 16A, 30mA, IP55

• Terminal cross-section 1mm^2 - 2.5mm^2
• Test marks VDE, TÜV, GS

Art. no. Version Unit

PRCD-K

1 x differential current protection device, 1 x undervoltage tripping device
919.018 · Black 1 item

The advan tages at a glance

Scope of protection

• Specially designed as a protective distributor for small construction sites as recommended by the BGFE employers' liability association, Cologne (ZH1 / /271), and for all portable electrical equipment.
• Can be used irrespective of connector system
• Undervoltage tripping
• Offers protection as specified by DIN VDE 0661 in the event of a fault in the connected equipment. Fault currents arising from faulty consumers will cause the PRCD-S to interrupt all poles
• For system faults in the fixed installation. The PRCD-S detects all faults in the fixed installation and then cannot be switched on.

Two black cable connectors with terminal leads, no visible text or symbols

PRCD ADAPTOR 16A/250V\~/50Hz/3680W

· 2-pole interrupt (L,N) with undervoltage tripping; tripping current < 30 mA, tripping time < 30 ms
- Tested in accordance with: EN 61008-1:1994+A2+A11, EN 61008-2-1 / 08.94 IEC 884-1 / A1 / 12.94

Art. no. Version Unit

PRCD adaptor

Plug with PRCD, hinged lid, IP44

919.284 · White 50 items

PRCD mounting plug

Plug with PRCD, IP44

919.183 - Suitable up to rubber cable 05RNF-F3 1.5 mm² 50 items - Black

PRCD personal circuit breaker 16A/250V\~/3600W

· 2-phase, 2-pole interrupt (L,N) with undervoltage tripping
- Tested in accordance with: T+V GS / KEMA: EN 61008-1-1994+A2+A11, EN 61008-2-1 / 08.94, IEC 884-1/A1/12.94, IEC 884-1/06.94
- In accordance with the IEC standard the protective earth (PE) conductor is not interrupted

Art. no. Version Unit

PRCD personal circuit breaker

IP44

919.190 · Tripping current < 10 mA 1 item · Tripping time < 10 m s · Black

IP55

919.189 · Tripping current < 30 mA 1 item · Tripping time < 30 m s · Black

Earthing contact extension cable with PRCD 16A/250V\~/3600W

· 3.0 m HO7BQ-F3G 1.5 mm², with PRCD personal circuit breaker 919.189 fitted at approx. 1.5 m
- Individually packed in plastic bag

Art. no. Version Unit

Earthing contact extension cable

With PRCD 919.189

341.880 · End 1: mounting plug 913.173 1 item · End 2: mounting coupling 919.177 · Black / orange

Three types of electrical connectors with orange and black cables, no visible text or symbols

Cable reel with portable RCD, 3-way

· 3 earthing contact socket outlets with hinged lid and thermal cut-out, 1-pole
- Reel body made from unbreakable hard rubber

Art. no. Version Unit

PRCD cable reel, cable: H07BQ-F 3G 1.50 mm²

25 m

398.200 · Earthing contact plug 16 A / 30 m A 1 item · Cable: orange, reel: black

Black cylindrical device with red connectors and three circular ports, no visible text or symbols

Overvoltage protection adaptor 16A/230V\~/50Hz/3680W

Art. no. Version Unit

Plug-in overvoltage protection adaptor
1 x overvoltage protection adaptor with visual function and fail indicator (100 x 56.5 x 76 mm)
919.003 · White 1 item

· Short-circuiting resistance to 4.5 kA

· Maximum peak current 4500 A for pulses of 8 / 20 μ

· Maximum overvoltage: 6.000 V

· Maximum energy absorption: 165 J for pulses of 10 / 100 μ Response time < 1 ns

· Child-proof

1 x universal overvoltage protection adaptor with protection for ISDN, TEL and TV (177.9 x 62 x 33 mm)

919.004 · IP20 1 item

· Short-circuiting resistance to 4.5 kA

· Visual function and fail indicator

· Maximum peak current 4500 A for pulses of 8 / 20 μ

· Maximum overvoltage: 6.000 V

· Response time < 1 ns

· Child-proof

· White

1 x overvoltage protection adaptor (177.9 x 62 x 33 mm)

919.005 · With 8-level LED overload indicator, IP 20 1 item

· Visual function and fail indicator

· White

Overvoltage protection adaptor

1 x overvoltage protection, 1 x varistor, max. leakage current 4.5 k A per varistor, optical function display
920.000 · White 10 items

Energy measuring instrument 160 - 250 V\~

Art. no. Version Unit

Energy measuring instrument
852.9821 · Large LC display with blue background light 1 item

· Digital display of electricity consumption, energy costs etc.(can be programmed with 2 separate tariffs), voltage (V), current (A), effective power (W)

· Meter for power and cost, can be reset

· Nominal power 3860 W, consumption <1 W

· White

NEW 21:12 0:02 GREEN

Mechanical timer switches

· Mechanical timer switches, 24 h, 16 A/230 V\~/3680 W:
- Plastic version, child-proof, easy to use, operating manual included

Art. no. Version

Mechanical timer switch

852.101 · White

• Smallest switching interval: 15 minutes
• Up to 96 switch-on and switch-off times per day (24 h)
  · 121 × 74 × 76 mm (L × W × H)

Mechanical timer switch IP44

1 x splash water protection (IP 44)

852.102 · With transparent hinged lid

• Suitable for use in damp locations
• Operating temperature range: -25 °C to +55 °C
• Smallest switching interval: 15 minutes
• Up to 96 switch-on and switch-off times per day (24 h)
• 150 x 74 x 82 mm (L x W x H)

Mini timer switch (mechanical)

852.104 · White

• Smallest switching interval: 30 minutes
• Up to 48 switch-on and switch-off times per day (24 h)
• Switch to override timer function
• 103 x 54 x 70 mm (L x W x H)

Digital timer switch, 24 h, 16A/230V\~/3680W

• Plastic version with LCD display, child-proof, easy to use, manual included, built-in rechargeable battery; shortest switching interval: 1 minute
• Programmable by the day or by the week, built-in random generator, countdown function, resettable

Art. no. Version

Digital timer switch

852.103 · White

· 120 × 64 × 76 mm (L × W × H)

Travel plug adapter 16A/250V\~

• Earthing contact system adaptor with storage bag and interchangeable country adaptors
• Suitable for: Red Liechtenstein / Switzerland
  Green Chile/Greece/Italy
  Blue Africa/Asia/Commonwealth countries/UK/Ireland/Middle East
  Black GUS / Japan / Canada / Central and South America / South and East Asia / USA
  Yellow Australia / New Zealand and parts of China

Art. no. Version Unit

Close-up of a black electrical connector with three colored pins (green, red, blue) and three terminal leads (no text or symbols visible)

Travel plug adaptors

Protection class 1

914.670 · Colour

10 items

Note: Adaptors are not voltage transformers. They are not suitable for long-term use.

Travel plugs, 3-pole

KEMA approved

Art. no. Version Unit

Travel plug adaptors

1 x earthing contact with 5 country-specific inserts
914.672 - Black, with travel pouch 10 items
	The only travel plug approved by KEMA
	Italy, UK, Ireland, Africa, Asia
	USA, Canada, Japan, Switzerland, Liechtenstein
	China, Australia, New Zealand

Five black plastic electrical plug connectors arranged vertically, showing different terminal configurations (no text or symbols visible)

Travel plugs, 3-pole

• Socket side: earthing contact
• Plug colour: white

Art. no. Version Unit

Travel plug 15A/125V\~ USA/earthing contact

3-pole

921.004 · Plug pin side: USA 10 items

Travel plug 10/16A/250V\~ France / earthing contact

3-pole

921.005 - Plug pin side: France, Belgium, Czech Republic, Poland 10 items

Travel plug 10 A/250V~, max. 1500 W

Italy/earthing contact

3-pole

921.006 · Plug pin side: Italy, Spain 50 items

Travel plug 13A/250V\~ UK/earthing contact

1 x miniature fuse, 3-pole
921.010 · Plug pin side: UK / Ireland / Malta / Hong Kong / Cyprus 10 items
	• Includes miniature 13 A fuse, interchangeable
900.1077	• Replacement fuse / 13 A miniature fuse

Travel plug 10 A/250V~

Switzerland/earthing contact

3-pole

921.011 · Plug pin side: Switzerland

Travel plug 10A/250V~

Australia / earthing contact

3-pole

921.014 · Plug pin side: Australia

Note: Adaptors are not voltage transformers. They are not suitable for long-term use.

Travel plugs, 2-pole Caution! These adaptors are for 2-pole power systems only

- Plug colour: white

Art. no. Version Unit

Travel plugs 13 A / 250 V\~ UK / Euro and contour

1 x miniature fuse, 2-pole

921.008 · Includes miniature 13 A fuse, interchangeable 10 items - Plug pin side: UK / Ireland / Malta / Hong Kong / Cyprus - Socket side: Euro/contour plug

Six identical cylindrical electronic components with metallic leads, arranged in two rows (no visible text or symbols)

Travel plug set

2-pole

- Set with 3 different plugs/adapters

- 1. Suitable for Southern Europe: France, Greece, Poland, Italy, Spain, Turkey, Czech Republic - 2. Suitable for America: Asia, Far East, Canada, Central and South America, USA - 3. Suitable for old UK system: Africa, China, Hong Kong, India, Caribbean, Sri Lanka

914.270 · White 25 items

Single travel plugs

2-pole

914.271 · Suitable for Southern Europe: France, Greece, Poland, Italy, 25 items Spain, Turkey, Czech Republic

Single travel plugs

2-pole

914.272 · Suitable for America: Asia, Far East, Canada, 25 items Central and South America, USA

Single travel plugs

2-pole

914.273 · Suitable for old British system: Africa, China, Hong Kong, 25 items India, Caribbean, Sri Lanka

Note: Adaptors are not voltage transformers. They are not suitable for long-term use.

Adaptors for the earthing contact system

Art. no. Version Unit

Travel plugs 10 / 16 A / 250 V\~ Earthing contact / universal
2-pole and 3-pole

Plug pin side: Earthing contact / Germany / France / Belgium, with dual earthing contact system
921.000 · Socket side: universal, suitable for all standard plugs 10 items worldwide, child-proof · Grey

Travel plugs 15 A / 125 V\~ Earthing contact / USA
3-pole

Plug pin side: Earthing contact / Germany / France / Belgium, with dual earthing contact system
921.003 · Socket side: USA 10 items
· White

Travel plugs 10 / 16 A / 125 V\~ Earthing contact / France (UTE)
3-pole

Plug pin side: Earthing contact / Germany

921.002 · Socket side: Belgium / France / Poland / Slovakia / Czech Republic 25 items

· White

Travel plugs 10 A / 220 V\~ max. 2200 W Earthing contact / UK
3-pole

Plug pin side: Earthing contact / Germany / France / Belgium

921.001 · Socket side: UK, child-proof 10 items

· White

Travel plugs 10 A / 250 V\~ Earthing contact / Switzerland
3-pole

Plug pin side: Earthing contact / Germany
921.012 · Socket side: Switzerland	10 items
· White

Converter plug 10A/250V\~
3-pole

Plug pin side: Earthing contact / Germany
921.013 · Socket side: Italy	10 items
· White

Note: Adaptors are not voltage transformers. They are not suitable for long-term use.

ELECTRICAL MATERIALS SKROSS® ADAPT TO THE WORLD SKROSS ADAPT TO THE WORLD DESIGNED IN SWITZERLAND 18 SKROSS Made for Dryer Smart phone Shaver MP3 player Laptop Camera Game console GPS Camcorder TabletPC

SKROSS

Voyage of global discovery.

The advan tages at a glance

• Patented "all-in-one" country-specific slider system
• Recipient of function and design awards
• Market leader for high-quality multi-adaptors, country-specific travel adaptors and powerful USB charging devices

DESIGNED IN SWITZERLAND

Travel plugs / travel adaptors

Art. no.

Version

Dimensions: (L x W x H)

SKROSS Travel plugs and adaptors
World adaptor PRO, 100 - 250V, max. 2200W, white

110.3118

·Suitable for all earthed and non-earthed devices (2-pole and 3-pole)·Input end: Europe (earthing contact)·Slide-out connectors: Italy, Switzerland, UK, USA Australia/China·Integrated protection

·72 x 54 x 57 mm

White cylindrical device with black connectors and a brand mark (SKROS) on its side, no visible text or symbols on the device itself.

Art. no.

Version

Dimensions: (L x W x H)

SKROSS Travel plugs and adaptors
World adaptor Pro USB, 3-pole & USB charging device, 100V-250V, max. 2200W, USB 5V/max. 1.300 mA

130.2400

· Input end: Europe (earthing contact)· Slide-out connectors: Italy/Switzerland, UK, USA, Australia/China· Dual USB top for charging 2 USB devices at the same time· Integrated protection· USB output 5V/1300 mA

· 73 x 57 x 76 mm(incl. USB top)

2X USB 1300 mA QUAL PORT USB

Art. no.

Version

Dimensions: (L x W x H)

SKROSS Travel plugs and adaptors
World Adapter Classic, 2-pole, 100V-250V, max. 550W

110.0160

Suitable for all 2-pole devicesInput end: Euro, UK, USA/Japan, Australia/ChinaSlide-out connectors: Euro, UK, USA/Japan,Australia/ChinaIntegrated protection

· 59 × 56 × 60 mm

Two white electrical wall plugs with black connectors, one emitting power lines (no visible text or symbols)

Travel plugs / travel adaptors

Art. no. Version Dimensions: (L x W x H)

SKROSS Travel plugs and adaptors
Single travel adaptor, suitable for protection class I and II devices, 3-pole, white

150.0203 ·

Input end: Europe (earthing contact), France, Germany · 58 x 60 x 63 mmOutput end: USAPower: max. 15 A/125 V~

150.0205

Input end: Europe (earthing contact), France, Germany · 58 x 60 x 72 mm

• Output end: Switzerland
- Power: max. 10 A/250 V- (integrated fuse)

150.0207 ·

Input end: Europe (earthing contact), France, Germany · 57 x 64 x 64 mm

• Output end: UK
  • Power: max. 13 A/250 V- (integrated fuse)

150.0209 ·

Input end: Europe (earthing contact), France, Germany · 53 x 60 x 62 mm

• Output end: Australia
• Power: max. 10 A/250 V\~

150.0212 ·

Input end: Europe (earthing contact), France, Germany · 60 x 52 x 66 mm

• Output end: Italy
• Power: max. 16 A/250 V\~

150.0211 ·

Input end: Australia, China/UK/USA/Italy/ · 58 x 58 x 45 mmEurope (2-pole)/Switzerland

• Output end: Europe (earthing contact), France, Germany
• Power: max. 16 A/250 V-

Travel plugs / travel adaptors

Art. no. Version Dimensions: (L x W x H)

SKROSS Travel plugs and adaptors
World USB charger, USB output: 5 V/max. 1300 mA, white

130.2300 ·

Dual USB charger · 55 x 53 x 55 mmSupports micro USB technology and i-devicesCompatibility (for outlet sockets):Euro, UK, USA, Australia

SKROSS Travel plugs and adaptors

Euro USB charger, USB output: 5 V /max. 1300 mA, white
130.2402 ·	Can be used in countries with standard Euro sockets · 59 and in a modular fashion with all SKROSS adaptors anywhere in the world · 2 USB ports for efficient charging of two USB devices at the same time

SKROSS Travel plugs and adaptors

Midget car charger USB, 12 V, 2100 mA, white
290.0608 ·	The compact USB port for the car · 43 x 21 x 22 mm
	• Input voltage: 12 V
	• Output voltage: 5.0 +/-0.25 V

Exterior view of a white industrial water heater unit with black control knobs and a brand logo (no readable text or symbols beyond branding)

Adaptors are not voltage converters and are not suitable for long-term use.

The input voltage of the device to be connected must match the voltage of the local supply grid.

Euro plug 2.5A/250V\~

• Plastic version
• Packaged version: contains 3 items in plastic bag – supplied in quantities of 3 only
  · Delivery to the end consumer is only permissible in assembled condition
• Must be connected by qualified specialists only
• For cables up to H05VV-F 2 x 0.75 mm ^2

Four different types of electrical plugs shown in white, black, and black blocks (no text or symbols visible)

Art. no. Version Unit

Euro plug

With crimp terminals; unpackaged
910.171 · Black	25 items
910.271 · White	25 items

Euro plug

With screw terminal, packaged
900.010 · Black	3 items
900.011 · White	3 items
With screw terminal, unpackaged
900.002 · Black	100 items
900.003 · White	100 items

Euro coupling 2.5A/250V\~

• Plastic version
• Packaged version: contains 3 items in plastic bag – supplied in quantities of 3 only
• Delivery to the end consumer is only permissible in assembled condition
• Must be connected by qualified specialists only
  · For cables up to H05W-F 2 x 0.75 mm²

Four different types of electrical connectors shown from top, front, side, and side views (no text or symbols visible)

Art. no. Version Unit

Euro coupling

With crimp terminals; unpackaged
912.171 · Black	25 items
912.271 · White	25 items

Euro coupling

With screw terminal, packaged
900.012 · Black	3 items
900.013 · White	3 items
With screw terminal, unpackaged
900.004 · Black	100 items
900.005 · White	100 items

Earthing contact plug 16A/250V\~

Art. no. Version Unit

Earthing contact mounting plug

H05VV-F 3G 0.75 / 1.0 / 1.5 mm2

· With dual earthing contact system and nickel-plated contacts, e.g. Germany and France
- Small, break-proof design with separate strain relief, no parts that can be lost

910.100 · Black	10 items
910.200 · White	10 items

Art. no. Version Unit

Central plug with earthing contact DIN 49441

H05VV-F 3G 1.0 mm²

· Small unbreakable construction in plastic, with strain relief

910.170 · Black 40 items

910.270 · White 40 items

910.470 · Brown 40 items

Central plug with earthing contact DIN 49441

H05VV-F 3G 1.0 mm²

· Large unbreakable construction in plastic, with strain relief

910.971 · Grey 25 items

Right angle plug with earthing contact
H05VV-F 3G 1.50 mm²

· Small unbreakable construction in plastic, with lateral earthing contact
911.172 · Black	50 items
911.272 · White	50 items

Flanged earthing contact plug/angled
H05VV-F 3G 1.50 mm²

· Unbreakable construction, with side entry

911.170 · Black 40 items

911.270 · White 40 items

911.470 · Brown 40 items

Right angle earthing contact plug with switch
H05VV-F 3G 1.50 mm²

·Break-proof design made from plastic, with 2-pin rocker switch
911.171 · Black	20 items
911.271 · White	20 items

Right angle earthing contact plug with control switch
H05VV-F 3G 1.50 mm²

· Break-proof design made from plastic, with 2-pin illuminated rocker switch

911.273 · White 20 items

Earthing contact coupling 16A/250V\~

Art. no. Version Unit

Earthing contact coupling
H05VV-F 3G 1.5 mm²

· Small, break-proof design made from plastic

912.170 · Black 50 items

912.270 · White 50 items

912.470 · Brown 50 items

Earthing contact coupling
H05VV-F 3G 1.5 mm²

· Large, break-proof design made from plastic kink protection nozzle

912.971 · Grey 15 items

Rubber plugs and couplings 16 A / 250 V\~

• For fitting to cables up to H07RN-F 3G 2.50 mm ^2
• Delivery to the end consumer is only permissible in assembled condition
• Must be connected by qualified specialists only

Art. no. Version Unit

Rubber plug

IP44, DIN 49441

• Thermoplast insert with dual earthing
• Also suitable for France and Belgium
  · Revolving strain relief for various cable cross-sections
  913.171 - Black 20 items

IP44, DIN 49441-2-AR1

· Break-proof thermoplast insert with earthing contact
· Standardised clip in function and kink protection
- Side fitting and screw terminal block
· Temperature range -40 °C to 70 °C

913.172 · Black 20 items

Rubber coupling

DIN 49440

· Thermoplast insert with earthing contact and strain relief
913.174 · Black 10 items

IP44, DIN 49440

• Thermoplast insert with earthing contact and strain relief
• With cover
  919.176 · Black 10 items

Solid rubber plugs and couplings 16 A / 250 V\~

• Delivery to the end consumer is only permissible in assembled condition
• Must be connected by qualified specialists only

Art. no. Version Unit

Solid rubber plug

IP44, DIN 49441-2-AR1

· For mounting on cables up to H07RN-F 3G 2.50 mm²
· Solid rubber insert with earthing contact
· Standardised clip in function and kink protection
- Side fitting and screw terminal block
· Temperature range -40 °C to 70 °C

913.173 · Black 20 items

Solid rubber right angle plug

IP44, DIN 49441-2-AR1

• For mounting on cables up to H07RN-F 3G 2.50 mm ^2
• Robust industrial version with solid rubber insert and earthing contact
• Standardised clip in function
  · Surface clamps and metal strain relief
• Side fitting and screw terminal block
  · Temperature range -40 °C to 70 °C
  919.171 · Black 10 items
  919.178 · With dual earthing contact system suitable for Belgian/French standards
• Black

Art. no. Version Unit

Solid rubber contour plug, 2-pole

· For mounting on cables up to H07RN-F 2 x 2.50 mm², without earthing contact
- Clip in function, delivery to the end consumer is only permissible in assembled condition
- Must be connected by qualified specialists only
919.179 · Black 20 items

Solid rubber coupling

DIN 49440-2-D-AR1

· For mounting on cables up to H07RN-F 3G 2.50 mm², temperature range -40 °C to 70 °C
· Solid rubber insert with earthing contact and side fitting
- Robust industrial version with surface clamps and standardised clip in function
913.175 · Black 10 items

IP44, DIN 49440-2-D-AR1

· For mounting on cables up to H07RN-F 3G 2.50 mm², temperature range -40 °C to 70 °C
- Thermoplast rubber insert with earthing contact and side fitting and cover
- Robust industrial version with surface clamps and standardised clip in function
919.177 · Black 10 items

IP44 power strip

Art. no. Version Unit

3-way earthing contact power strip with covers

IP44; 230 V, 16 A

381.109 · Design: DIN 49 440 part 1 1 item
- With attachment eye and four fixing points
- Solid elastomer version

3-way couplings 16A/250V\~, IP44

Art. no. Version Unit

Solid rubber 3-way coupling

IP44, DIN 49440-2-D-AR1

· For mounting on cables up to H07RN-F 3G 2.50 mm², solid rubber insert with earthing contact
- Robust industrial version with hinged lid and hanger,
standardised snap latch and kink protection
- Side fitting and screw terminal block, temperature range -40 °C to 70 °C
· For permanent use out of doors and on construction sites
913.170 · Black 10 items

PA housing, 3-way coupling

IP20, DIN 49440-2-D-AR1

• For fitting to cables up to H07RN-F 3G 2.5 mm ^2 , PA insert with earthing contact
• With attachment eye and kink protection, connections with screw terminals
  · Temperature range -40 °C to 70 °C
  919.1751* | Black 10 items

Cord intermediate switch 16A/250V\~, IP44

Art. no. Version Unit

Solid rubber cord intermediate switch

IP44

• 2-pin cut-off
  · For round cable up to H07RN-F 3G 2.50 mm²
  923.174 - Black 10 items

* No storage type

Metal mechanical component with multiple ports and fittings (no visible text or symbols)

Collection of white and black electrical socket plugs with metal pins, shown from different angles (no text or symbols visible)

International earthing contact plugs

Art. no. Version Unit

Earthing contact plug, Switzerland CH, 10 A / 250 V\~ CH

Cables up to 3G 1.00 mm²

- Thermoplast version

- With strain relief

910.175 · Black 1 item

910.275 · White

1 item

Earthing contact plug, UK, 13 A / 250 V\~

Cables up to 3G 1.50 mm²

- Plastic version

· Integral 13 A miniature fuse

- With strain relief

910.176 · Black 1 item

910.276 - White

UK

1 item

Earthing contact plug, USA, 15 A / 125 V\~

3-pole

USA

- Non-polarised

- Thermoplast version

910.179 · Black 20 items

USA plug

USA

2-pole

· Not polarised, Duroplast

910.178 · Black

100 items

Earthing contact plug, Italy, 10 A / 250 V\~

3-pole

Italy

- Thermoplast version

910.174 · Black 50 items

Earthing contact plug, Australia, 10 A / 250 V\~

3-pole

Australia

- With insulated pins and sleeve

910.182 · Black 40 items

910.282 · White 40 items

International earthing contact couplings

Art. no. Version Unit

Earthing contact coupling, Switzerland CH, 10 A / 250 V\~ CH

912.174* · Black 50 items

912.274 - White 50 items

Earthing contact coupling, UK, 13 A / 250 V\~UK

With function display

- Thermoplast version

910.177* · Black 10 items

910.277* - White 10 items

Earthing contact coupling with earthing pin, Belgium / France 15 A / 125 V\~ Earthing contact /UTE

With kink protection sleeve

- Thermoplast version

912.173 · Black 35 items

912.273 · White 35 items

* No storage type

Solid rubber international plugs and couplings

• Up to max. H07RN-F 3G 2.5 mm ^2
• Belgian/French system
• IP44, thermoplastic and solid rubber version, with snap latch

Art. no. Version Unit

Solid rubber plug 16 A / 250 V\~ Earthing contact / UTE

IP44

913.169 · With dual earthing contact 20 items · With side fitting, socket and surface clamps · Black

Solid rubber coupling16A/250V\~ Earthing contact/UTE

IP44

919.169 · With snap latch and protection against contact 10 items · With Thermoplast cover · Black

Non-heating appliance plugs and sockets

Art. no. Version Unit

Non-heating appliance plug with earthing contact

C14, 10A/250V\~, 70°C

- For cables up to 3G 1.00 mm², Thermoplast version with earthing contact C14 for cable junction - Screw terminal, kink protection nozzle and strain relief 915.171 · Black 50 items 915.271 · White 50 items 915.971 · Grey (RAL7035) 50 items

Non-heating appliance right angle plug with earthing contact

C14, 10A/250V\~, 70°C

- For cables up to 3G 1.00 mm², Thermoplast version with earthing contact C14 for cable junction - Screw terminal, kink protection and strain relief, cable exit right hand side 915.172 - Black 50 items

Non-heating appliance socket with earthing contact

C13, 10A/250V\~, 70°C

- For cables up to 3G 1.00 mm², Thermoplast version with earthing contact C13 for cable junction - Screw terminal, kink protection nozzle and strain relief 915.170 · Black 25 items 915.270 · White 25 items 915.970 · Grey (RAL7035) 25 items

Non-heating appliance right angle socket with earthing contact

C13, 10A/250V\~, 70°C

- For cables up to 3G 1.00 mm², thermoplastic version with earthing contact C13 for cable mounting - Screw terminal, kink protection and strain relief, cable exit right hand side 915.173 · Black 25 items 915.973 · Grey (RAL7035) 25 items

Non-heating appliance built-in plug

C14, E, 10 A / 250 V\~, 70 °C

- Thermoplast version for screw terminal 917.170 · Black 50 items

Two black electrical input terminals with three leads (no text or symbols visible)

Non-heating appliance plugs and sockets

Art. no. Version Unit

Non-heating appliance in-built socket

C13, F, 10 A / 250 V\~, 70 °C

- Thermoplast version for screw terminal

917.171 · Black 50 items

Non-heating appliance plugs and sockets

Art. no. Version Unit

Non-heating appliance plug

C20, 16A/250V\~, 70°C

Thermoplast version with earthing contact

- With kink protection nozzle for line assembly

915.175 · Black 25 items

Non-heating appliance in-built plug

C20, 16A/250V\~, 70°C

- Thermoplast version

917.173 · Black 25 items

Non-heating appliance socket with earthing contact

C19, 16A/250V\~, 70°C

- For cables up to 3G 1.50 mm ^2

· Thermoplast version with earthing contact C19

· Kink protection nozzle for line assembly

915.174 · Black 25 items

Non-heating appliance in-built socket with earthing contact

C19, J, 16 A / 250 V\~, 70 °C

· Thermoplast version with earthing contact C19

917.172 · Black 25 items

Two black electrical input/output terminals with metallic contacts (no text or symbols visible)

Heating appliance plugs and sockets

Art. no. Version Unit

Heating appliance in-built plug

C16A, E, 10A/250V\~, 155°C

- Thermoplast version for screw terminal

918.170 · Black 50 items

Heating appliance socket with earthing contact

C15A, 10A/250V\~, 155°C

· For cables up to 3G 1.00 mm²

- Thermoplastic version with earthing contact, C15A for cable mounting

· Screw terminal, kink protection nozzle and strain relief

916.170 · Black 25 items

916.970 · Grey (RAL7035) 25 items

Heating appliance sockets

Art. no. Version Unit

Heating appliance socket
C21, 16A/250V\~, 155°C

· Kink protection nozzle for line assembly

918.171 · Black 25 items

Heating appliance socket with earthing contact
10A/250V\~, 155°C

· For cables up to 3G 1.00 mm2

· Steatite version

· Kink protection nozzle and strain relief

· Approved for export and replacement needs only

919.170 · Black 20 items

919.270 · White 20 items

Junction boxes

Art. no. Version Unit

Appliance junction box
16A/380V\~

· For 55 mm wall boxes / height 14 mm

· Thermoplast version for concealed wiring mounting

· Easy mounting thanks to removable terminal box

· Snap in lid

· With screw terminal 5 x 2.50 mm^2 and strain relief

190.271 · White 20 items

Cooker junction box
16A/380V\~

· For 55 mm wall boxes / height 23 mm

190.270 · White 20 items

Safety connector perilex plug 16A/250V\~

Art. no. Version Unit

Perilex plug
IP54

·Side entry, 3-pole + E + O to VDE 0100/5.73

·Waterproof IP20

349.203 · White 10 items

Two black electrical connectors with terminal ports, no visible text or symbols

Accessories

Art. no. Version Unit

Intermediate switch 2A/250V\~
For cables up to H03VVH2-F 2 x 0.75 mm²

· Plastic

923.170 · Black 1 item

923.270 · White 1 item

Two black electrical connectors with wires, no visible text or symbols

Lamp holder, pre-wired
E27

·60 W plastic E 27 holder·Delivery in units of 20 only

641.170 · 0.2 m H03W-F 2 x 0.75 mm ^2 20 items·With 2-pin terminal block·Black

641.171 · 0.2 m H03W-F 2 x 0.75 mm ^2 20 items·With plug terminals·Black

Light bulb adaptor
Converts E 27 fitting to E 14

730.005 · Outside thread: E 27 1 item

· Inside thread: E 14

· Thread: brass

· Insulation: plastic

Light bulb adaptor
Converts E 40 fitting to E 27

730.008 · Outside thread: E 40 1 item

· Inside thread: E 27

· Thread: brass

· Insulation: porcelain

Porcelain terminal
For wire cross sections up to 2.5 mm²

· Without wire protection

950.000 · 1-pin 1 item · Dimensions: 17 x 9.5 x 12 mm

950.002 · 2-pin with mounting hole in the centre 1 item · Dimensions: 21 x 18 x 16 mm

950.003 · 3-pin with mounting hole in the centre 1 item · Dimensions: 33 x 19 x 16 mm

For wire cross sections up to 4 mm ^2

950.004 · 2-pin with mounting hole in the centre 1 item · Dimensions: 24 x 22 x 22 mm

Ceiling box, diameter 70 mm

· Including screws

· Loose in bag

190.273 · White 20 items

Illumination lighting accessories

Art. no. Version Unit

Connecting box

For flat cables H05RN H 2 x 1.5 mm²

740.015 · Black 30 items

Solid rubber right angle plug

IP44

740.017 · For flat cable 10 items

· With clip in function

· With surface clamps

· With 2-way front screw connection

· Black

Flat cable plug for illumination cable 16 A / 250 V\~

DIN 49406, for H05RN H2-F 2 x 1.5 mm² cables

740.002 · Solid rubber version 10 items

· Without earthing contact

· With clip in function

· Black

Flat coupling for illumination cable

DIN 0282

740.003 · With lid and mounting 10 items

· Without earthing contact

· For contour plugs only

· Black

End piece for illumination cable

DIN 0282

740.004 · With mounting books 10 items

· For a safe cable ending

· Black

Coiled green cable with black connectors and connectors (no text or symbols visible)

Light chains

Art. no. Version Unit

Light chain with plug and end piece
With plug and end piece

·External dimensions approx. 5.20 x 13.20 m

·Including rubber plug and end piece with hook

740.005 ·With 10 E 27 lamp holders 1 item

·Without light bulb

·Green

740.006 ·With 20 E 27 lamp holders 1 item

·Without light bulb

·Green

Lamp holders

Art. no. Version Unit

Illumination lamp holder
E27

· For use outside
· Heat and weather resistant thermoplast
· Splash-proof when used with sealing ring (740.001/740.012) - please order separately
740.000 · Max. 40 W 100 items
	· Protection class || / IP44
	· Up to 165 °C without sealing ring

Illumination lamp holder with fixing base

· For fixing on firm surfaces
· Distance of fixing screws: 40 mm
· Only use outside with rubber seal.
Sealing ring (740.001/740.012) – please order separately
740.011 · E	27 50 items
	· Black
740.010 · E	14 50 items
	· Black

Art. no. Version Unit

Sealing ring for illumination lamp holders

· For fitting or retrofitting lamp holders to light chains for outdoor use
· Guaranteed protection from water droplets when the bulb is directed downwards
740.001 · E 27 500 items
	· Black
740.012 · E 14 150 items
	· Black

MAXI series 1000 silicon housing Also see page 287

• For halogen cold light mirror lamps, diameter 51 mm, 12 V \~, maximum 35 W
• Do not use Cool Beam light bulbs
• Triple insulation, with cable, light bulbs not included

Art. no. Version Unit

MAXI series 1000 silicon housing
With ceramic lamp holder

924.224 · Transparent 1 item

924.225 · White 1 item

With ceramic lamp holder, supplied in bags of 50, loose

924.332 - White 500 items

Without ceramic lamp holder, supplied in bags of 50, loose

924.334 · White 500 items

Series 1002 decorative rings
For MAXI series 1000 silicon housing

- Dimensions: inner 5 cm, outer 8 cm
924.231 · Chrome	1 item
924.250 · Matt brushed stainless steel	1 item

Two metallic wash rings on a white background (no text or symbols)

MAXI silicon housing for low-voltage recessed halogen spotlights

The MAXI silicon housing consists of a high temperature resistant high-tech elastomer with exceptional material qualities and thus a wide variety of applications:

·Totally rust-free
· Resistant to UV, ozone and ageing
· Heat and cold-resistant
· Excellent resistance to weather and maritime environments
· Patented
· Quick and easy to assemble and dismantle
· No component mounting
· Light bulb changing without tools
· No troublesome metal rings
- Can also be used for shops and exhibition stands (to match decor!)
· Quick mounting technology
- Mounting without springs

Can be fitted in:

· Solid materials in different thicknesses
· Fragile materials such as plasterboard, fibreboards, chipboards, etc.

dia. 68 50 dia. 51 dia. 78

Pulse starter See also page 253

Art. no. Version Unit

8600 series pulse starters
Instant ignition (rapid starter)

· For fluorescent lamps, reduces the costs of maintenance and replacement of fluorescent lamps, protects the environment, 10-year warranty, -30 °C to +75 °C, ENEC approval
924.167 · EFS 120 / 110-250 V -, 4-22 W 10 items
924.168 · EFS 600 / 200-260 V -, 4-125 W 10 items

inter BAR

Child safety

Three electronic components with metallic tags and a key, shown in white, brown, and black (no text or symbols visible)

Art. no. Version Unit

Teddy series 6310

Socket outlet protection

• Socket outlet protection for plugging into earthing contact socket outlets
• Protective cover with key
• Only remove from the socket outlet with the key supplied
• 5 items and 3 keys in transparent bag (price per bag)

924.201 · White 10 bags

924.101 · Black 10 bags

924.004 · Brown (delivery in units) 10 bags

- Loose (price per item)

924.005 · White 50 items

Teddy automatic series 6320

Socket outlet protection

• Socket outlet protection for sticking into earthing contact socket outlets
• 5 items on blister card (price per card)
  924.009 - White 20 cards
  924.010 · Black 20 cards
  924.011 · Brown 20 cards

- Loose (price per item)

924.012 · White 250 items

2002 series protective caps

· For plugging into earthing contact socket outlets
· 10 items transparent bag (price per bag)
924.172 ^* · White 10 items

8500 series automatic socket protection

· Telescoping technology without sticking panel

· With gap for earthing contact for the French system

924.173 · White 250 items

Teddy duo series 6330

Night light

• Pilot light and socket outlet protection
  · With key
• 1 item on blister card (price per card)
  924.001 · Illuminated red 20 items
  924.002* · Illuminated red with motif

20 items

Close-up of white electrical plug connectors with metal clamps and a colorful internal component (no text or symbols visible)

Cord intermediate switches

- With screwed contacts

- For dual insulated flat cable 2 × 0.75 ~mm^2

Art. no. Version Unit

Series 5052 cord intermediate switch, 2 A / 250 V \~ LxWxH 66 x 30 x 21 mm
Off switch, 2-pole

· Non-illuminated, for Class II equipment
· Marking 0 - 1
· For double insulated flat cable 2 x 0.75 mm ^2
924.028 · Housing black, rocker black	20 items
924.029 · Housing white, rocker white	20 items

Off switch, 2-pole

·Illuminated, for Class || equipment

·Marking 0 - 1

·For double insulated flat cable 2 x 0.75 mm ^2

924.031* · Housing white, rocker white 20 items

Series 5044 cord intermediate switch, 2 (1) A / 250 V \~ LxWxH 66 x 30 x 21 mm
Off switch, 1-pole

· Housing and strain relief screwed, 2 connector terminals· For dual insulated flat cable 2 × 0.75 mm^2 and 3 × 0.75 mm^2 · Contact strain relief

924.259 · Housing transparent, button transparent 20 items

924.023 · Housing white, button black 20 items

924.024 · Housing black, button black 20 items

924.025 · Housing white, button white 20 items

924.026 · Housing brown, button beige 20 items

924.027 · Housing gold, button gold 20 items

924.260* · Housing titan, button black

Series 8007 cord intermediate switch, 2 A / 250 V \~ LxWxH 61 x 23 x 15 mm
Off switch, 1-pole

Strain relief and housing screwed

Connector terminal for neutral conductor

For dual insulated flat cable 2 x 0.75 mm ^2 and 3 x 0.75 mm ^2

924.036 · Housing black, rocker black 50 items

924.037 · Housing white, rocker white 50 items

924.038 · Housing brown, rocker brown

924.039 · Housing gold, rocker gold

Series 8002 cord intermediate switch, 2 A / 250 V \~
LxWxH 58 x 28 x 29 mm (without button
Off switch, 1-pole

Strain relief screwed, snap-on housing, with inset pushbutton switch, button ∅ 12 mm

Connector terminal for neutral conductor

For dual insulated flat cable 2 x 0.75 mm^2 and 3 x 0.75 mm^2

924.032 · Housing black, button black 50 items

924.033 · Housing white, button white 50 items

924.034* · Housing brown, button brown

LxWxH 67 x 22 x 17 mm (without rocker)

Series 5055 cord intermediate switch, 3 (2)A/250V\~
Off switch, 1-pole

Strain relief via insulated material screw, snap-on housing assembly

Connector terminal for neutral conductor

Contacts with silver, therefore particularly suitable for LED

For dual insulated flat cable 2 x 0.75 mm ^2 and 3 x 0.75 mm ^2

924.043 · Housing black, rocker black 50 items

924.044 · Housing white, rocker white 50 items

924.045 · Housing brown, rocker brown

924.046 · Housing gold, rocker gold

924.261* · Housing titan, rocker black

* No storage type, purchase in complete packaging units only

Collection of various electronic lockers and connectors, shown in various colors and sizes (no text or labels visible)

inter BAR

Black rectangular electronic device with three smaller components, no visible text or symbols

Art. no. Version Unit

Series 8006 cord intermediate switch, 6 (4) A / 250 V - LxWxH 76 x 26 x 23 mm
Off switch, 1-pole

Strain relief for screwing, housing screwed, 2 connector terminals, marking 0 - IFor dual insulated flat cable 2 × 0.75 mm^2 and 3 × 0.75 mm^2 Suitable for secondary phase halogen lamp switching
924.047 · Housing black, rocker black 50 items
924.048 · Housing white, rocker white 50 items
924.049 · Housing brown, rocker brown	50 items
924.050 · Housing gold, rocker brown 50 items

Black rectangular electronic device with a red button and two smaller components (no visible text or symbols)

Series 8010 cord intermediate switch, 10 (4) A / 250 V \~ LxWxH 80 x 30 x 25 mm
Off switch, 2-pole

Strain relief for screwing, housing screwed, connector terminal for protective conductorMarking 0 - IFor cable 2 x 0.75 mm ^2 and 3 x 0.75 mm ^2
924.051 · Housing black, rocker red	50 items
924.052 · Housing white, rocker white 50 items
924.053 · Housing brown, rocker beige	50 items

Black rectangular electronic device with a red button, isolated on white background (no text or symbols visible)

Series 8010 cord intermediate switch, 10 (4) A / 250 V \~ LxWxH 80 x 30 x 25 mm
Off switch, 2-pole

Strain relief for screwing, housing screwed, connector terminal for protective conductorMarking 0 - IIlluminatedFor dual insulated flat cable 2 × 0.75 mm^2 and 3 × 0.75 mm^2
924.327*	Housing black, rocker red	50 items

Two black and white plastic electrical connectors with rounded tops (no text or symbols visible)

Series 8011 cord intermediate switch, 2 A / 250 V \~ LxWxH 105 x 37 x 37 mn
Multi-circuit switch, 1-pole

·Housing with line exit on both sides
·2 connector terminals
·Circuit 0-1-1+2-2-0
·For cable 2 x 0.75 mm ^2 and 3 x 0.75 mm ^2
924.054 · Housing black, button black 10 items
924.055 · Housing white, button white 10 items

Refrigerator door switches with quick-action contact

Collection of various electronic components including black and white plastic housing (no visible text or symbols)

• With screwed contacts, T 85° C
• Two-hole fixing, fixing holes diameter 3.5 mm

Art. no. Version Unit

Series 5120 refrigerator door switch with quick-action contact 2(1) A / 250 V \~ LxWxH 39 x 34 x 15 mm
Break-contact switch, 1-pole

Trade version with added housing
Hole distance 43 mm
924.203 · Housing white, button white 40 items
924.103 · Housing black, button black 40 items
Industrial version without additional housing
Hole distance 25.5 mm
Caution: Ensure installation is VDE-compliant, e.g. bolt only to insulating surfaces (plastic)
924.071* · Housing white, button white 100 items
924.072* · Housing black, button black 100 items

Foot-operated intermediate switches

• With screwed contacts
• For dual insulated flat cable 2 × 0.75 ~mm^2 and 3 × 0.75 ~mm^2
  · 2 connector terminals
• Snap-on housing assembly
• Strain relief screwed

Art. no. Version Unit

Series 5062 intermediate foot switch 2(1) A / 250 V \~ Diameter 66 mm
Off switch, 1-pole

924.056 · Housing gold, button gold 10 items

924.057 · Housing white, button black 10 items

924.058 · Housing black, button black 10 items

924.059 · Housing white, button white 10 items

924.060 · Housing brown, button beige 10 items

Series 8009 intermediate foot switch 2(1) A / 250 V \~ Diameter 66 mm
Off switch, 1-pole

924.062 · Housing black, button black 10 items

924.063 · Housing white, button white 10 items

924.064 · Housing brown, button brown 10 items

924.065 · Housing gold, button gold 10 items

Series 8009 intermediate foot switch 6(2) A / 250 V \~ Diameter 66 mm
Off switch, 1-pole

·Suitable for secondary phase halogen lamp switching
924.068 · Housing black, button black	10 items
924.069 · Housing white, button white	10 items

Series 8009 intermediate foot switch 2(1) A / 250 V \~ Diameter 66 mm
Multi-circuit switch, 1-pole

· Circuit 0-1-1+2-2-0
924.066 · Housing white, button black	10 items
924.067 · Housing black, button black	10 items
924.264 · Housing gold, button gold	10 items

Series 8008 intermediate foot switch 2 A / 250 V \~ Diameter 66 mm
Off switch, 1-pole

924.061 · Housing brass, button black 10 items

· Housing and strain relief screwed, no snap-on housing

Close-up of several circular electronic components with varying sizes and colors (no visible text or symbols)

Three circular mechanical components with different surface finishes, shown from different angles (no text or symbols visible)

Two rectangular electronic devices, one white and one black, shown against a plain background (no text or symbols visible)

Cord end switch

• With screwed contacts
  · Housing and strain relief screwed

Art. no. Version Unit

Series 8016 cord end switch 10(2)A/250V \~ 30 x 51 x 20 mm

On/off switch, 1-pole, marking 0 - 1
924.073 · Housing white, rocker white	50 items
924.074* · Housing black, rocker black	50 items

Cord end dimmers, 8013 series

• Hand or foot activated, for low-voltage halogen lamps (for conventional transformers)
• For high-volt halogen lamps, for bulbs of 20-500 W

Art. no. Version Unit

Product photo of electronic components including a black connector, cable, and various small accessories (no visible text or symbols)

Series 8013 cord end dimmer 250 V \~ 107 x 60 x 30 mm

With 2 m cable and appliance plug
924.078 · Housing black, slider black	1 item
924.079 · Housing white, slider white	1 item
924.080 · Housing gold, slider gold	1 item
924.266* · Housing titan, slider black	1 item

Product photo of a white rectangular electronic device with multiple gold, black, and gray modules (no visible text or symbols)

Series 8013 cord intermediate dimmer 250 V \~ 107 x 60 x 30 mm

924.075 · Housing black, slider black 1 item
924.076 · Housing white, slider white 1 item
924.077 · Housing gold, slider gold 1 item
924.265 · Housing titan, slider black 1 item
924.336 · Housing transparent, slider transparent 1 item

Series 8015 cord intermediate dimmer

- With illumination, for light bulbs, with strain relief

Art. no. Version Unit

Black rectangular electronic device with two additional battery-like components (no visible text or symbols)

Series 8015 cord intermediate dimmer 230 V \~ 92 x 28 x 27 mm

From 40 to 160 watts with miniature fuse 0.8A
924.267* · Housing transparent	10 items
924.081 · Housing black	10 items
924.082 · Housing white	10 items

* No storage type, purchase in complete packaging units only

Series 8113 cord intermediate dimmer

• For low-voltage halogen lamps (with electronic transformers)
• For high-voltage halogen lamps, for light bulbs

Art. no. Version Unit

Cord intermediate dimmer / reverse phase control dimmer series 8113, 230 V\~ 130 x 60 x 35 mm

50 Hz, 20 to 300 VA

• Connection options can be freely selected (as intermediate or end dimmer)
• Hand and foot activation
• Buzz-free, without fuse protection, separate on and off switches, pilot light in the dark

924.338 · Housing black 1 item

Series 8114 cord intermediate dimmer 250 V \~ 96 x 41 x 29 mm

50 Hz, 20 to 200 W/VA

• Revolving off function, with earth wire connection
• For low-voltage halogen lamps with conventional transformers
• For high-voltage halogen lamps, for light bulbs
• Fuse switch accessible from the outside, allows problem-free fuse changing

924.340 · Housing black, rotating wheel light grey 1 item
924.342 · Housing transparent 1 item
924.343 · Housing white 1 item
924.344 · Housing gold 1 item

Series 3652 rocker switches

- With and without illumination, tab terminals 6.3 x 0.8 mm

Snap-in fixing to 11 x 30 mm cut-out

Art. no. Version Unit

Series 3652 rocker switch 16(8) A / 250 V \~, T 185 °C

On-off switch, 1-pole, non-illuminated, no embossing on rocker

924.090 · Housing white, rocker white 50 items

924.091 · Housing black, rocker black 50 items

On-off switch, 1-pole, illuminated, no embossing on rocker

924.111 · Housing white, rocker red 50 items
924.112 · Housing black, rocker red 50 items
924.113 ^* · Housing black, rocker yellow
924.114 · Housing black, rocker green

Changeover switch, 1-pole, non-illuminated, no embossing on rocker, no centre position

924.092* · Housing black, rocker black 50 items

* No storage type, purchase in complete packaging units only

inter BAR

Collection of various switch-shaped electronic components with different colors and sizes (no visible text or symbols)

Series 3652 rocker switches

- With and without illumination, tab terminals 6.3 × 0.8 ~mm

Snap-in fixing to 22 x 30 mm cut-out

Art. no. Version Unit

Series 3652 rocker switch 16(8) A / 250 V \~, T 125 °C

On-off switch, 2-pole, non-illuminated, with rocker coinage 01

924.094 · Housing white, rocker white	50 items
924.095 · Housing black, rocker black	50 items

On-off switch, 2-pole, illuminated, rocker embossed with 0 l

924.096 · Housing white, rocker red 50 items
924.097 · Housing black, rocker green 50 items
924.098 · Housing black, rocker yellow	50 items
924.099 · Housing black, rocker red 50 items

Changeover switch, 2-pole, non-illuminated, no embossing on rocker, no centre position

924.109 · Housing black, rocker black 50 items

On-off switch, 2 x 1-pole, illuminated, no embossing on rocker

924.120 · Housing black, rocker red/red

25 items

PVC caps and surrounds

- Retrofit to series 3652 as splash and dust protection

Art. no. Version Unit

Four transparent plastic electronic components on black bases, no text or symbols visible

Series 22 SPVC caps and surrounds

for 1-pole rocker switch
924.115*	Frame white, cap clear	50 items
924.116	Frame black, cap clear	50 items

for 2-pole rocker switch

924.118 · Frame black, cap clear 50 items

Series 8004 rocker switches

• Snap-in fixing to 19.4 x 13 mm cut-out
• Suitable for secondary phase halogen lamp switching
  · Non-illuminated, marking 0 - 1

Two black electrical switch components with white terminal pins, one open and one red on a wheeled base (no text or symbols visible)

Art. no. Version Unit

Series 8004 rocker switch 6(2) A / 250 V \~, T 85 °C

Off switch, 1-pole

924.127 · Flat socket connections 4.8 mm 50 items · Housing black, rocker black

924.128* · Screw terminals 50 items · Housing black, rocker red

* No storage type, purchase in complete packaging units only

Series 8005 rocker switches

• Snap-in fixing to 22 x 30 mm cut-out
• Combined flat socket connections 6.3 mm
  · Screw terminals M 3
• Illuminated, marking 0 - 1

Art. no. Version Unit

Series 8005 rocker switch 16(4) A / 250 V \~, T 85 °C
Off switch, 2-pole

924.129* · Housing black, rocker red 100 items

Series 8014 rocker switches

Art. no. Version Unit

Series 8014 rocker switch 6(2) A / 250 V \~, T 85 °C

Off switch, 1-pole

• Fits diameter 22 mm, fixing thread M 22, Class II
• Screwed contacts, with plastic hexagonal nut
• Suitable for secondary phase halogen lamp switching

924.131* · Housing white, rocker white 50 items

924.132* · Housing black, rocker black 50 items

Series 8014 rocker switch 6(2) A / 250 V \~, T 120 °C
Off switch, 1-pole

• Fits hole diameter 19 mm, class II, screwed contacts, with protection against contact
• Suitable for secondary phase halogen lamp switching

924.133 · Housing black, rocker black 50 items

924.134 - Housing white, rocker white 50 items

Series 8014 rocker switch 16(4) A / 250 V \~, T 85 °C
Off switch, 2-pole

• Snap-in fixing to 22 x 30 mm cut-out, combined tab terminals 6.3 mm
  · Screw terminals M 3, with water protection cap, illuminated, marking 0 l

924.136 · Housing red, rocker red 50 items

Two black electronic components with rounded tops, one square and one hexagonal (no text or symbols visible)

Two small electronic components: a black push-button switch and a white push-button button (no text or symbols visible)

inter BAR

Close-up of a white push-button switch with a cylindrical port and mounting base (no visible text or symbols)

Multi-position pushbutton switches

- Central fixing by M 12 x 1 mm, screwed contacts, bell-shaped nut screws on from above

- Circuit 0-1-1+2-2-0

Art. no. Version Unit

Series 3076 multi-position pushbutton switches 2 A / 250 V \~, T 100 °C
Multi-circuit switch, 1-pole

924.140*	Button white, thread length 8 mm	50 items
924.141*	Button white, thread length 12 mm	100 items

Push-button switches

- Central fixing by M 10 x 1 mm, screwed contacts, bell-shaped nut screws on from above

Art. no. Version Unit

Five different types of push-button switches arranged in a row (no text or symbols visible)

Series 8001 pushbutton switch 2(0,7) A / 250 V \~, T 100 °C

Off switch, 1-pole

924.142 · Button white, thread length 8 mm 100 items

924.143 · Button black, thread length 8 mm 100 items

924.145* · Button white, universally usable for 8-15 mm thread 100 items· with 2 thread-reducing rings 100 items

Series 8001 pushbutton switch 6(2) A / 250 V - AC, T 85 °C

Off switch, 1-pole

·Suitable for secondary phase halogen lamp switching924.144 ·Button white, thread length 8 mm 100 items

Series 3030 pushbutton switch 2(1) A / 250 V \~, T 85 °C

Off switch, 1-pole

· Knurled nut screwed on

924.137 · Button white, thread length 11.5 mm 100 items

924.138 · Button black, thread length 11.5 mm 100 items

Close-up of a black mechanical component with a white cylindrical shaft and multiple mounting holes (no visible text or symbols)

Pushbutton

- Without thread, screwed contacts, fixing holes ∅ 3.6 mm

Art. no. Version Unit

Series 8001 pushbutton 2A/250V - AC

Make-contact switch, 2-pole

924.146 ^* · Button white 50 items

* No storage type, purchase in complete packaging units only

Button

• Central fixing by M 10 x 1 mm, screwed contacts, bell-shaped nut screws on from above
• With 2 thread-reducing rings, universal for 8-15 mm threads

Art. no. Version Unit

Series 8001 buttons 2(0,7) A / 250 V \~, T 100 °C
Make-contact switch, 1-pole

924.149* · Button white, thread length 8-15 mm 100 items

Pull switches

- Screwed contacts

Art. no. Version Unit

Series 3716 pull switch 4(1) A / 250 V \~, T 125 °C
Off switch, 1-pole

924.151 · Housing black 50 items

· Two-hole fixing

· Hole distance 20 mm

· Fixing holes ∅ 3.4 mm

Series 3730 pull switch 2(1) A / 250 V \~, T 125 °C

Off switch, 1-pole

924.152 · Housing black 100 items

· Single-hole fixing

· Fixing holes ∅ 3.2 mm

924.153 · Housing black 100 items

· Hole distance 22-25 m

· With screwing on latch

Series 3746 pull switch 2 A / 250 V \~, T 125 °C
Off switch, 1-pole

· Two-hole fixing
· Hole distance 22 mm
· Fixing holes ∅ 3.4 mm
924.154 · Housing brown-black, course cord guidance located on the face end	50 items
924.155 · Housing brown-black, course cord guidance located on the wide end	50 items
· Hole distance 23 mm
· Fixing holes ∅ 3.4 mm
· With fixing plate
924.156 · Housing brown-black, course cord guidance located on the face end	50 items

Close-up of a white and black industrial push-button trigger component (no visible text or symbols)

Two gray industrial electrical connectors with mounting holes and metal contacts (no visible text or symbols)

Two identical mechanical components with circular and rectangular features, no visible text or symbols.

inter BAR

Pull switches

• Two-hole fixing, hole spacing 20 mm, hole diameter 3.4 mm
• Screwed contacts

Art. no. Version Unit

Series 8017 pull switch 2 A / 250 V \~, T 100 °C

Off switch, 2-pole

924.159* · Housing black 50 items

Multi-circuit pull switch

• Two-hole fixing, hole spacing 22 mm, hole diameter 3.15 mm
• Screwed contacts, switches between 0 - 1 - 1+2 - 2 - 0

Art. no. Version Unit

Close-up of a black plastic electrical component with a transparent top and mounting holes (no visible text or symbols)

Series 3776 multi-circuit pull switch 2 A / 250 V \~, T 100 °C

Multi-circuit switch, 1-pole

924.157 50 items

Pull cord

• 25 cm, with pull cone
  · Suitable for switch types 3716, 3730, 3746, 8017, 3776

Art. no. Version Unit

Simple line drawing of a medical or laboratory device with a bulb and handle (no text or symbols)

Pull cord

924.158 · White 50 items

Toggle switches

• Suitable for equipment in safety class II, central fastening M 12 x 0.75 mm, hexagonal and knurled nut screwed on
• Toggle lever and housing made from thermoplastic, contacts silver, terminals silver plated
• Suitable for secondary phase halogen lamp switching

Art. no. Version Unit

Two black industrial control switches with four leads, no visible text or symbols

Series 8400 rocker switch 6(4) A / 250 V \~, T 85 °C

Off switch, 1-pole

924.160 · Solder connection 50 items

924.161 · Plug connection 4.8 mm 50 items

Series 8400 rocker switch 6(4) A / 250 V \~, T 85 °C

Changeover switch, 1-pole

924.162* · Solder connection 50 items

924.163* · Plug connection 4.8 mm 50 items

* No storage type, purchase in complete packaging units only

Special products

Art. no. Version Unit

8600 series pulse starters
Instant ignition (rapid starter)

· For fluorescent lamps, reduces the costs of maintenance and replacement of fluorescent lamps, protects the environment, 10-year warranty, -30 °C to +75 °C
924.167 · EFS 120 / 110-250 V ~, 4-22 W 10 items
924.168 · EFS 600 / 200-260 V ~, 4-125 W 10 items

Overload protection-power strip type 8110
2-way

924.164·230V-,50Hz/16A 1 item

·For connecting two devices with high energy consumption (e.g. washing machines and driers)

·1.5 m connector cable with plug

·1 socket outlet with automatic cut-out, power dependent

·1 socket outlet, carry current

·Screw-on

·Weight 450 g

Note

This overload-protected power strip solves the problem of running two power-hungry appliances such as a washing machine and a tumble drier from a single supply cable, it prevents fuses being blown and avoids the need for new cables to be installed. The two appliances can be run simultaneously because the power strip cuts out the tumble drier during the water-heating phase of the washing machine. Once the heating stage is completed, the dryer is automatically switched on again. For electronic dryers please consult your user manual.

Exterior view of a white electrical power strip with attached plug and socket (no text or symbols visible)

Art. no. Version Unit

Series 8140 power socket Thermo Dimensions: 59 x 107 x 40 mm

Temperature-controlled socket with 1 x earthed plug max 230 V / 16 A
924.174 · Built-in battery Ni-MH 2.4 V / 40 mA 10 items
	· Integrated thermostat
	· Adjustable temperature range: 5 °C to 30 °C, 40 °F to 85 °F
	· Operating temperature: -10 °C to 70 °C
	· Accuracy: +/- 1 °C
	· LCD display, with coloured operating information
	· Display of target/actual temperature
	· Socket with manual switch

Dawn switch DS-A type 8812 Dimensions: 34 x 22.5 x 16 mm

230 V AC, 50 / 60 Hz, ± 10 %
924.171	· Maximum load 100V – A at Too= -20°C to 35°C	1 item
	· Load current max. 430 mA
	· Switch-on wave approx. 5 - 15 Lux
	· Switch-off wave approx. 30 - 40 Lux
	· Cast housing

Pinfix series 8821

Art. no. Version Unit

Pinfix series 8821
Special solution for difficult flat connector power packs

· For the whole of Europe (except Switzerland)
· Pinfix is patented, 1 item on blister cards
924.329 · Black	20 cards
924.330 · White	20 cards

* No storage type, purchase in complete packaging units only

White electrical power outlet device with digital display and buttons, displayed against a blue starburst background (no text or symbols on device)

Close-up of a black electrical sensor with two leads, labeled 'NEW' in a blue badge (no other text or symbols)

Illustration of a wall-mounted electrical outlet connected to a power cord (no text or symbols visible)

4-key keypad

Programmable illuminated buttons for controlling equipment and media.

10-inch (10") panel

A mounting frame with a standardised width of 10^=254 mm, with holes for bolting to 10^ racks. Used for events equipment, media and laboratory systems and in data centres. As a rule the panels have a height of 1 height unit (1 U) with a specified height of 1.75^=44.5 mm.

19-inch (19") panel

A mounting frame with a standardised width of 19" = 482.6 mm, with holes for bolting to 19" racks. Frequently used for events equipment, media and laboratory systems and in data centres. As a rule the panels have a height of 1 height unit (1 U) with a specified height of 1.75" = 44.5 mm.

Audio jack or tip-ring-sleeve (TRS) connector

Internationally accepted electrical connector for AC or DC in the low-voltage (SELV - safety extra-low voltage) range. Jack plugs, sockets and couplings are used most typically for audio signals or for connecting a small electronic device to a power supply unit. Jack plugs are often used for connecting headphones to audio equipment. Versions available: 3.5 mm (mini audio jack) for portable devices (MP3 players, Discmans etc.), sound cards and small headphones. 6.35 mm (jack) for stereo systems and electronic music equipment (mixing desks, effects units, synthesisers, keyboards, electric pianos, electric guitars and guitar amplifiers).

BNC connectors - Bayonet Neill Concelman

These are coaxial connectors with a bayonet lock for high frequencies up to approx. 1 GHz, in some cases up to 4 GHz, with a defined wave impedance of 50 or 75 Ω (interchangeable). They are used chiefly in radio and video systems. The BNC design has however also been used for the transmission of weak DC and low-frequency AC signals and impulses in laboratory applications because of the shielding of the outer conductor from electrical interference. The coaxial construction thus provides protection against external electric fields. For this reason, connections to measuring devices such as oscilloscopes, frequency counters and function generators generally use BNC-type cables.

Bandwidth

The difference between two frequencies that form the limits of a specific, unbroken frequency range between them.

Blank

Function in video output devices of switching to a black still frame.

CAT

In data connection technology

the following main categories and classes for equipment performance are generally accepted:

Category Class MHz GB

CAT5e D 100 1

CAT6 E 250 1

CAT6a E 500 10

CAT7 F 600 10

CAT7a F 1.000

The difference between category and class is that the individual components such as cable, socket, connector etc. are graded into categories. The overall performance of the sum of these components, i.e. of the complete data network, is referred to as the class. The class of the network as a whole is thus determined by the weakest component. Example: CAT6 cable and plug are connected to a CAT5e socket, the overall network attains only class D. Additionally, a distinction is made in data connection equipment between shielded and unshielded components. Worldwide, unshielded versions are most commonly used; however, in Germany almost 100% of cabling is shielded. The currently applicable standard for this area of data connection technology is summarised in EN 50173.

Cinch (RCA)

For non-standardised connectors for electrical signals, primarily on ccaxial cables. Use: Audio white = left analogue channel (sometimes also black); Audio red = right analogue channel; Orange = digital audio; Video yellow = composite video, analogue unmodulated TV picture signal in baseband (VBS or CVBS); Video green = Y (brightness); Video blue = Pb (colour difference); Video red = Pr (colour difference)

Coaxial ('coax') cable

Coaxial cable is a special type of cable with concentrically arranged conductors for carrying high-frequency signals, such as in TV systems for analogue CVBS or for digital studio signals (DSC).

Composite Video

See Cinch (RCA)

Control unit

See Media control systems.

Crossover

In computer networking, a cross or crossover cable is an eight-wire twisted-pair cable with an RJ45 plug at each end, but where some of the wires have been swapped over in one of the plugs. It is required e.g. where two computers are connected together directly. It is also possible, instead of a crossover cable, to use an uncrossed cable in conjunction with a crossover adaptor to obtain the required crossing of wire pairs. The simplest use of a crossover cable is to link two computers with network cards without necessarily requiring a hub or switch. The two computers thus connected form a complete network on the smallest possible scale. Crossover cables can normally be dispensed with in gigabit Ethernet, since Auto-MDI-X is defined in the standard for this and is supported by most devices. In a crossover cable, the sent data wire is crossed with the received data wire at one end, so that data exchange is possible over a direct connection. If the send and receive wires had not been swapped at one end, no link between the machines would be obtained.

CVBS

See Cinch (RCA).

DVB – Digital Video Broadcasting

By 2010 all radio and TV channels in Germany are expected to be transmitted via digital video broadcasting (DVB). The transmission paths available are terrestrial frequencies (DVB-T), cable (DVB-C) and satellite (DVB-S). A mobile radio standard (DVB-H) is still at the testing stage. In all cases a special receiver is required to receive the signal.

DVB-T allows up to 24 TV channels to be received via a conventional domestic TV antenna. The channels are broadcast without encryption and are free of charge. So far, commercial broadcasters have only engaged in DVB-T in urban areas.

DVB-C offers more channels – theoretically up to 500. However, a prerequisite for receiving the signal is a paid-for cable connection. Commercial broadcasters using the digital cable network usually encrypt the signal, which then requires a smart card from the network operator to decode.

Display port

A port for conveying image and sound signals (e.g. monitor, DVD player, plasma TV etc.).

DVI - Digital Video Interface

A digital interface for video signals. In this system the sound has a separate input. The high-definition (HD) formats however use the new HDMI input. There are three different types of digital video interface:

DVI-A carries analogue signals only,

DVI-I is capable of transmitting both analogue and digital signals, and DVI-D carries digital signals only. If the new TFT monitor has a DVI-D interface, the old graphics card with analogue VGA output cannot be connected to it.

EIB

The European Installation Bus (EIB) is a standard to EN50090 that describes how sensors and actuators should be connected together in a domestic installation. It also defines the communications protocol. The EIB thus controls, for example, lighting and shutters or other shade-providing devices, heating, locking and alarm systems. EIB has subsequently been further developed and been known since 2002 as the KNX standard.

Ethernet

A protocol that controls data transfer in local area networks (LANs). This standard was developed by the Californian Xerox corporation in 1976.

F connectors

(IEC 60169-24) are coaxial plugs with screw locking designed for high frequencies up to about 5 GHz with a defined wave impedance of 75 Ω. The most commonly used connector in satellite television systems worldwide.

FireWire

The FireWire interface is used for rapid data exchange between a computer and multimedia or other peripheral devices. Thanks to its high transfer rate, FireWire can also be used as an alternative to Ethernet (IP over FireWire).

Full HD TV

Full HD models offer TV and video images with 1920 x 1080 pixels – currently the highest pixel number in HDTV broadcasts or high-definition feeds. This picture quality represents five times the resolution of conventional TV pictures. Even when observed close up, the viewer cannot see any kind of pixel structure. Video projections profit in particular from full HD resolution. The term is mostly used to describe the ability of an HDTV-capable device to output the highest possible HD resolution.

Hardware detect

Automatic detection of incoming signals, e.g. if a laptop is connected to an output device while switched on, the output device automatically recognises this newly-connected device.

HDMI - High Definition Multimedia Interface

Interface for picture and sound information in HDTV and HD television systems. It enables fully digital transmission of video and digital sound with up to eight channels. The HDCP digital copy-protection system is built in.

HDTV - High Definition Television

HDTV has significantly higher resolution, shows the picture more sharply and with more detail, and is broadcast with an aspect ratio of 16:9 rather than the traditional 4:3. Resolution is up to 1920 x 1080 pixels. To receive HD pictures, a TV set is required that carries the "HD ready" seal.

Hi-Fi - High Fidelity

Hi-Fi (high fidelity) is a quality standard for audio playback equipment.

Hosiden

See S-Video.

Impedance

Impedance, sometimes also known as AC resistance, states the ratio of electrical voltage across a consumer (component, cable etc.) to the current drawn. Impedance is important when matching high-frequency cables and also in the transmission of electromagnetic waves in free space. If for example the input impedance of a device does not match that of the incoming cable, reflections occur that reduce the energy transmitted and that can cause resonance effects and thus a non-linear frequency response.

ISDN - Integrated Services Digital Network

International standard for a digital telephone network. Allows multiple channels to transmit simultaneously. A basic ISDN connection offers the user two independently available channels for telephone or internet. Bandwidth is 64 kb/s.

Keystone

Universal dimensions (19.3 x 14.7 mm) for cutouts for mounting components.

KNX

KNX technology resulted from the confluence of three European bus standards, the European Installation Bus (EIB), the European Home Systems Protocol (EHS) and Batibus (used in heating/ventilation/climate control) to create a unified technological platform for all areas of home and building systems in the form of an international industry standard. KNX allows central control of practically all components of home and building systems technology, from lighting through heating to alarm systems, and offers advantages of convenience, security and economy for functional buildings as well as in residential settings. The KNX specification was presented by the then newly founded KNX Association in spring 2002. Based on the EIB standard, with which the new technology platform remains fully compatible, KNX emerged from expansions using new configuration mechanisms and transfer media that had originally been developed for Batibus and EHS. By 2003 KNX was ratified by CENELEC, the Brussels-based European committee for electrical standards, as European Standard EN 50090. Shortly afterwards it was ratified by the CEN standards institute under EN 13221-1 as the European standard for the automation of buildings.

LAN - Local Area Network

Computer network that links various computers and peripheral devices via cables or wireless over a restricted physical area.

Loudspeaker connections

Stereo (red + white) screw terminals for audio signals.

LC

This connector is similar to the SC but smaller.

Media control

Control of video, power, lighting and audio systems in a building. Sound, light and video are controlled by appropriate commands. Media control allows all the devices to be used in a presentation to be linked and controlled in the desired time sequence.

Mini audio jack

A 3.5 mm jack socket for audio signals (e.g. from laptop or PC to loudspeakers).

Mini USB

A compact plug or socket version of the USB standard. This version was developed for devices with restricted space such as mobile telephones and digital cameras.

MTRJ

An optical connector that accepts two fibres; the junctions are embedded in a common plastic block in the shape of a RJ45 connector. This design also prevents any confusion of the outward and return line and is easy to insert and to remove. This connector is suitable for single-mode and multi-mode fibres.

MUTE

Switching of audio devices to silence.

OWG - Optical waveguides

Cables made up of, or including, optical fibre conductors with connectors for transmitting optical signals in the visible, ultraviolet or infrared ranges. Fibre-optic cables form a reasonably pliable medium for transmitting optical signals or even higher-powered optical radiation.

Overvoltage protection with filter

Overvoltage protection - conforms to DIN VDE 0620-1:2002-01, EN 61643-11:08-2007, type 3, discharge current 6.5 kA, response time < 25 nS. Suitable for 16 A (miniature fuse on request) with varistors, temperature fuse, gas discharge arrester, visual LED function and failure indicator (acoustic signalling also available on request). Mains and frequency filters - conforming to VDE 0565-3:05-2006 for voltage peaks up to 30 MHz, damping diagram on data sheet.

PAL - Phase Alternating Line

The conventional television standard in Europe for analogue TV signals with a resolution of 720 x 576 pixels.

Potential-free contact

Used for communicating a status between electrical devices. Contact is normally established via a relay or optical coupler. This ensures that the electric circuits of the respective devices remain galvanically isolated from one another. This solution is the simplest and safest method for e.g. transmitting digital data electrically.

PowerCON

A type of 3-pole power connector with coding and interlocking, most frequently used for stage equipment. The interlock mechanism protects against the plug being accidentally pulled out of its socket.

PS/2 Interface (PS/2 connection, PS/2 port, originally 'auxiliary port'). Commonly used 6-pin serial interface for input devices (e.g., mouse and keyboard) on personal computers.

Pushbutton

Illuminated blue, various types, e.g. In desk control panels for controlling equipment. Rocker buttons are used for up/down control of external devices, e.g., screen, blinds etc.

Pushbutton: automatic switchoff

Power strips that feature an automatic switchoff device are used to automatically switch off the power to the connected equipment. Pressing the button subsequently restores power to the connected equipment.

Pushbutton: stainless steel

For connection by the user to control equipment and media.

RCA

See Cinch (RCA).

RGB signal

In a RGB signal the colours red, green and blue are each transmitted and/or stored in their own channel. RGB signals are used for video transmission e.g. on computers with a VGA interface or in video systems with SCART connections.

RJ (registered jack) connectors

These are standardised connectors for telecommunications cables. The standards describe the physical form of plugs and sockets and their contact configurations, and are designated by the letters RJ and a number (e.g. RJ-45), with or without the hyphen. Examples: RJ126P6C/RJ458P8C

RJ12

see RJ (registered jack) connectors.

Router

A device that forwards data packets though various networks. The router serves to calculate the connections between, for example, two local networks (LANs) and automatically establishes the optimum path for the data packets.

RS-232

Serial interface standard with 25-pole or 9-pole connector for serial data transmission. Also known as V.24. Both one-to-one pinouts and crossover configurations are commonly used.

sc

An optical connector used in now LAN installations. The right-angled design can be used for multi-mode and single-mode (monomode) glass fibres. Average insertion loss is about 0.2 dB, maximum approx. 0.4 dB. The advantage of SC over the ST connector is the push-pull design—i.e. the plug locks in automatically when inserted and is released when pulled out. This allows the use of duplex connectors (two connectors linked by a duplex clip) and duplex connections can be inserted or removed simultaneously.

Speakon

A connector designed for loudspeakers, offering a robust construction, a 20 A contact current capacity and secure interlocking. Speakon connectors are available in two-pole, four-pole and eight-pole versions; the 2-pole and 4-pole types are mutually compatible. The eight-pole version has a larger physical size. The number of contacts available in a single connector makes it possible to connect multi-channel passive systems, satellite subwoofer systems or multi-channel monitor loudspeaker constellations via a single cable.

ST

This connector (also known as a BFOC connector) is common in LANs and is suitable for single-mode and multi-mode optical fibre cables. Average insertion loss is about 0.3 dB, maximum approx. 0.5 dB.

S-Video/Super Video system

S-Video, also known as the Y/C process, designates a special analogue video signal process in which the 'luminance' (brightness) information is transmitted and processed separately from the 'chrominance' (colour information). An example application of S-Video is in VHS video recorders.

S-VHS - Super Video Home System

An improved, downward-compatible VHS standard for home video-band recording that offers better picture resolution and greater colour accuracy. Horizontal image resolution is some 2/3 better than in VHS. S-VHS is a standard, not a connector. The S-VHS standard signal may however be transmitted via the S-Video (Hosiden) connector.

Switch

A network component for linking multiple computers or network segments within a local area network (LAN). Switches analyse network traffic and make logical decisions.

TOSLINK

A standardised optical waveguide connection system for optical signals in the range up to about 20 Mbps. Used to carry digital audio signals between audio devices.

TrueHD

Audio standard for high-resolution media such as Blu-ray and HD DVD. TrueHD allows 100 % loss-free compression of audio data. The codec allows a data rate of up to 18 Mbps.

USB - Universal Serial Bus

USB is used to connect a variety of devices together by cable. USB is a bit-serial bus on which the individual bits of a data packet are transmitted one after another. Devices with USB can be connected to one another while operating, since the newly connected devices are automatically detected. USB is used to connect, for example, printers, digital cameras, MP3 players and hard disks to a computer.

VBS

See Cinch (RCA).

VGA / audio switch

Switches between multiple input sources (e.g. several laptops) as required and forwards the signal to output media devices (e.g. projector, monitor, loudspeaker).

VGA - Video Graphics Array

refers to a computer graphics standard (EISA, 1967) that defines specific combinations of image resolution and number of colours (colour bit depth) as well as repeat frequency, VGA allows a resolution of 640 x 480 pixels, while VGA cables allow a higher resolution. The 15-pole VGA socket is used to transmit image signals (e.g. from laptop or PC monitor to a projector, VGA switch box etc.)

XLR

Industry standard for electrical plug connections. Used in professional public-address and recording studio systems. 3-pole XLR connectors are used for analogue microphone and loudspeaker signals and for digital AES/EBU signals. 5-pole connectors are used for DMX digital lighting control data.

M type with earthing contact 35° / 90° Earthing contact

Earthing contact socket insert, 16 A / 250 V\~ max. 3600 W

· Conforms to DIN VDE 0620-1 Design DIN 49 440
· Colours: black, red, white, grey
- Set at 35°
- Module width 42.5 mm
· For use in: Germany, Austria, Netherlands, Italy (partial), Spain, Portugal, Sweden, Norway,
Finland, Slovenia, Romania, Hungary, Afghanistan, Andorra, Vatican City, San Marino, Estonia, South Korea, Indonesia, Iceland, Chile, Bulgaria

M-UTE 35° / 90° France

Earthing contact socket insert UTE / France, 16 A / 250 V\~ max. 3600 W

· Conforms to NF C 61-314
- Child-proof
· Colours: black, red, white, grey
- Set at 35°
- Module width 42.5 mm
· For use in: France, Belgium, Poland, Monaco, Slovakia, Czech Republic

M-UTE for IT red France

Earthing contact socket insert, UTE / France, for IT, red, 16 A / 250 V\~ max. 3600 W

· Conforms to NF C 61-314
- Child-proof and with additional plug-in fuse
· Colour: red
- Set at 35^
- Module width 42.5 mm
· For use in: France, Belgium, Poland, Monaco, Slovakia, Czech Republic

Simple geometric shape with three dots, no text or symbols present

M-CH 0° / 90° Switzerland

Earthing contact socket insert, Switzerland CH, 10 A / 250 V\~ max. 2500 W

· Conforms to SEV 1011:98
- Colours: black, red
- Set at 0^
- Module width 35 mm
· For use in: Switzerland, Liechtenstein

Simple geometric shapes: two horizontal lines and a curved shape on a gray background (no text or symbols)

M-USA 0° USA

Earthing contact socket insert, USA, 15 A / 115 V\~ max.

• Conforms to UL
• Colour: black
• Set at 0^
• Module width 32 mm
  · For use in: USA, Canada, Mexico, South America (some regions)

M-UK FUSE 45° UK

Earthing contact socket insert, UK, individually fused 3.15 A / 240 V\~ or 5 A / 240 V\~

· Conforms to BS 5733:1995
· Individually fused, either 3,15 A or 5 A
- Child-proof
- Colour: black
- Set at 45^
· For use in: UK as per standard for office furniture

M-UK 90° UK

Earthing contact socket insert, UK, 13 A / 240 V\~

· Conforms to BS 1363
- Child-proof
- Colour: black
- Set at 90^
- Module width 54 mm
· For use in: UK, Ireland, Singapore, Malaysia, Cyprus, Malta, Hong Kong, Dubai

M-IT 35° Italy

Earthing contact socket combination / Italy 10 A / 230 V or 16 A / 230 V\~

• Child-proof
  · Colour: black
• Set at 35°
• Module width 45 mm
• For use in: Italy, South Tyrol, South America (some regions)

M-AUS 90° Australia

Socket outlet combination, Australia, 10 A / 250 V

• Conforms to AS/NZS 3112
• Colour: black
• Set at 90°
• Module width 45 mm
  · For use in: Australia, New Zealand, Argentina

M-CN 90° China

Earthing contact socket insert, China, 10 A / 250 V

• Conforms to CCC
• Colour: black
• Set at 90°
  · Module width 42.5 mm
• Can be used in China

M-DK 35° Denmark

Earthing contact socket insert, Denmark, domestic, 10 A / 250 V\~

· Conforms to DS/IEC 60884-1:2004
• Colour: black
- Set at 35°
- Module width 42.5 mm
· For use in: Denmark

M-DK EDV 35° Denmark

Earthing contact socket insert, Denmark, for IT, 10 A / 250 V\~

· Conforms to DS/IEC 60884-1:2004
· Colour: black
- Set at 35^
- Module width 42.5 mm
· For use in: Denmark

M-IEC 10 A

Earthing contact socket insert, non-heating appliance socket, 10 A / 250 V\~

• Conforms to IEC 320
  · Colour: black
• Set at 90°
• Module width 42.5 mm
  · Can be used internationally

M-IEC 16 A

Earthing contact socket insert, non-heating appliance socket, 16 A / 250 V\~

• Conforms to IEC 320
• Colour: black
• Set at 90°
• Module width 42.5 mm
• Can be used internationally

M-GST18i3

Earthing contact socket insert GST18i3 16 A / 250 V\~

• Conforms to DIN VDE 0628
• Colours: black, red, white, pebble grey
• Set at 90^
• Module width 42.5 mm
• Can be used internationally

3-pole plug systems with earthing contact

Suitable for all European countries except parts of Switzerland, Italy and UK.

Right angle plug with earthing contact Type 30

With dual earthing contact system

Suitable for (e.g.):

· H03VV-F 3G 0.75 mm²
· H05W-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²
· H07BQ-F 3G 1.50 mm²
· H05BQ-F 3G 0.75 mm²

Central plug with earthing contact Type 32

With dual earthing contact system, splashwater protection

Suitable for (e.g.):

· H05W-F 3G 1.50 mm²
· H05RR-F 3G 0.75 mm²
· H05RR-F 3G 1.50 mm²
· H07RN-F 3G 1.00 mm²
· H07RN-F 3G 1.50 mm²
· H07BQ-F 3G 1.50 mm²
· H07RN-F 3G 2.50 mm²

Central plug with earthing contact Type 31

With dual earthing contact system

Suitable for (e.g.):

· H03VV-F 3G 0.75 mm²
· H05VV-F 3G 1.00 mm²
· H05VV-F 3G 1.50 mm²
· 05RV4-F 3G 0.75 mm²
· H03V4V4-H 3G 1.00 mm²
· H03RT-H 3G 0.75 mm²

Earthing contact coupling Type 34

Suitable for (e.g.):

· H05VV-F 3G 1.00 mm²
· H05VV-F 3G 1.50 mm²
· H05W-V 3G 2.50 mm²
· H07RN-F 3G 1.00 mm²
· H07RN-F 3G 1.50 mm²

Swiss plugs and couplings

Version tested by SEV.

Swiss plug Type 11, 10 A

2-pole

Suitable for (e.g.):

H03VH2-F 2 x 0.75 mm²

· H05VWH2-F 2 x 1.0 mm²
· H05W-F 2 x 1.00 mm²

Swiss plug Type 12, 10 A

3-pole

Suitable for (e.g.):

· H05W-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

Swiss coupling Type 11 D

2-pole

Suitable for (e.g.):

· H03VH2-F 2 x 0.75 mm²
· H03W-F 2 x 0.75 mm²
· H05W-F 2 x 1.00 mm²

Swiss plug Type 23, 10A/16A

3-pole

Suitable for (e.g.):

· H05VV-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²
· H05VV-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

Suitable for (e.g.):

International plugs

Plug with protection class 0 Type 44

2-pole

Suitable for (e.g.):

· H03VV-F 2 x 0.75 mm²
· H05W-F 2 x 0.75 mm²
· H05VV-F 2 x 1.00 mm²
· H05W-F 2 x 1.50 mm²

UK plug Type 45-2, 13 A

2-pole, moulded, with 13 A fuse fitted

Suitable for (e.g.):

· H03VWH2-2 × 0.75 mm²
· H05VVH2-2 x 0.75 mm²
· H03W-V 2 × 0.75 mm²
· H05W-F 2 x 0.75 mm²
· H05W-V 2 x 1.00 mm²

UK plug Type 45, 13 A

3-pole, moulded, with 13 A fuse fitted

Suitable for (e.g.):

· H03VV-F 3G 0.75 mm²
· H05W-F 3G 0.75 mm²
· H05VV-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

USA plug UL / CSA Type 46-2

2-pole

Cable types to suit your requirements.

USA plug -UL / CSA Type 46

3-pole

Cable types to suit your requirements.

Italy plug Type 49, 10 A

3-pole

Suitable for (e.g.):

· H05VV-F 3G 0.75 mm²
· H05VV-F 3G 1.00 mm²

Italy plug Type 50, 16 A

3-pole

Suitable for (e.g.):
· H05W-F 3G 1.50 mm²

Denmark plug Type 47, 10 A

3-pole

Suitable for (e.g.):

· H05W-F 3G 0.75 mm²
· H05VV-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

Denmark right angle plug Type 47 W, 10 A

3-pole

Suitable for (e.g.):

· H05W-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

Denmark IT plug Type 48, 10 A

3-pole

Suitable for (e.g.):

· H05W-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

Denmark right angle plug Type 48 W, 10 A

3-pole

Suitable for (e.g.):

· H05W-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²
· H05W-F 3G 1.50 mm²

2-pole plug systems without earthing contact

Suitable for all European countries except parts of Switzerland, Italy and UK.

Euro flat plug Type 20 F

Suitable for (e.g.):

Suitable for (e.g.):

· H03VWH2-F 2 x 0.75 mm²
· H05VWH2-F 2 x 0.75 mm²
· H03VV-F 2 x 0.75 mm²
· H05W-V 2 x 0.75 mm²

Contour plug Type 24 G

Suitable for (e.g.):

· H05RN-F 2 x 1.00 mm²
· H07RN-F 2 x 1.00 mm²
· H07RN-F 2 x 1.50 mm²
· H05BQ-F 2 x 1.00 mm²
· H07BQ-F 2 x 1.50 mm²

Contour plug Type 24 K

Suitable for (e.g.):

· H05VV-F 2 x 0.75 mm²
- H05W-V 2 x 1.00 mm²

Contour plug Type 24 S

Splashwater protected, impact resistant

Suitable for (e.g.):

• H07RN-F 2 x 1.00 mm²
  · H07RN-F 2 x 1.50 mm²
  · H05BQ-F 2 x 1.0 mm²
  · H05BQ-F 2 x 1.5 mm²

IEC appliance connectors

Non-heating appliance plug, central Type 35 S

2-pole, 70 °C

Suitable for (e.g.):

· H05VV-F 2 × 0.75 mm²
· H05W-F 2 x 1.00 mm²

Non-heating appliance plug, central Type 35 S

3-pole, 70 °C

Suitable for (e.g.):

· H05VV-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²

Non-heating appliance socket outlet, central Type 35-2

2-pole, 70 °C

Suitable for (e.g.):

Non-heating appliance socket outlet, central Type 35

3-pole, 70 °C

Suitable for (e.g.):

· H05W-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²

Side-entry non-heating appliance socket Type 35-2 W

2-pole, right, left, 70 °C

Suitable for (e.g.):

· H05VV-F 2 × 0.75 mm²
· H05W-F 2 x 1.00 mm²

Side-entry non-heating appliance socket Type 35 W

3-pole, right, left, 70 °C

Suitable for (e.g.):

· H05VV-F 3G 0.75 mm²
· H05W-F 3G 1.00 mm²

Socket outlet for small appliances Type 25 D

120°C, mounted

Suitable for (e.g.):

· H03VWH2-F 2 × 0.75 mm²

High-temperature appliance socket Type 37

155°C, mounted

Cable types to suit your requirements.

Art no Page	Art no Page	Art no Page	Art no Page	Art no Page
110.0160 297	246.175 253	305.175 249	329.3030 207	331.000 221
110.3118 297	246.176 253	305.176 249	329.3031 207	331.006 221
116.270 246	246.165 253	305.184 249	329.3032 207	331.007 221
116.271 246	246.186 253	305.185 249	329.3033 207	331.010 221
116.272 246	246.375 253	305.274 249	329.3034 207	331.011 221
116.280 246	246.376 253	305.275 249	329.3035 207	331.012 221
116.270 246	248.174 253	305.276 249	329.3036 207	331.013 221
119.270 246	248.175 253	305.284 249	329.3037 207	331.014 221
119.271 246	248.176 253	305.285 249	329.3102 199	331.0202 188
119.272 246	248.185 253	305.974 249	329.3104 199	331.032 222
119.274 246	248.186 253	305.975 249	329.3105 199	331.035 222
119.280 246	249.875 253	311.273 250	329.600 201	331.040 222
119.281 246	249.876 253	312.174 250	329.601 201	331.071 221
130.080 255	251.173 250	312.175 250	329.602 201	331.072 221
130.081 255	251.183 250	312.275 250	329.604 201	331.074 222
130.2300 299	290.0008 289	313.175 250	329.605 201	331.154 222
130.2400 297	300.000 155	313.185 250	329.606 201	332.071 222
130.2402 299	300.000 191	317.000 32	329.615 201	333.000 188
131.080 255	300.000 231	317.001 32	329.616 201	333.001 188
131.081 255	300.001 155	317.006 32	329.617 201	333.002 188
132.080 255	300.001 191	317.100 33	329.618 201	333.004 188
132.081 255	300.001 231	317.101 33	329.700 202	333.005 188
133.080 255	300.002 155	317.102 33	329.701 202	333.0122 180
133.081 255	300.002 191	317.117 32	329.702 202	333.0422 197
150.0203 298	300.002 231	317.173 306	329.703 202	333.071 222
150.0205 298	300.003 155	320.175 254	329.704 202	333.1007 26
150.0207 298	300.003 191	320.176 254	329.705 202	333.1008 26
150.0209 298	300.003 231	320.185 254	329.800 203	333.400 179
150.0211 298	300.004 155	320.186 254	329.801 203	333.401 179
150.0212 298	300.004 191	321.174 254	329.802 203	333.402 179
150.070 255	300.004 231	321.175 254	329.9001 206	333.403 179
150.072 255	300.005 155	321.176 254	329.9002 206	333.404 179
151.070 255	300.005 191	322.174 254	329.9003 206	333.405 179
151.072 255	300.005 231	322.175 254	329.9007 206	333.406 179
190.270 246	300.006 191	322.176 254	329.9008 206	333.4061 183
190.270 307	300.006 232	322.184 254	329.9009 206	333.4063 183
190.271 246	300.007 191	322.185 254	329.9010 206	333.4066 183
190.271 307	300.007 232	322.186 254	329.9011 206	333.4066 183
190.273 308	300.011 191	323.185 254	329.9012 206	333.407 181
202.174 247	300.011 231	323.186 254	329.9013 206	333.408 180
202.175 247	300.012 191	327.875 254	329.9014 206	333.410 180
202.184 247	300.012 231	327.876 254	329.9015 206	333.411 180
202.186 247	300.030 232	328.875 254	329.9016 206	333.412 180
202.274 247	301.174 249	328.876 254	330.070 221	333.413 180
202.276 247	301.175 249	329.174 254	330.071 221	333.416 179
202.284 247	301.274 249	329.213 197	330.072 221	333.417 180
202.286 247	301.275 249	329.214 197	330.073 221	333.418 183
211.174 247	301.974 249	329.215 197	330.100 227	333.419 183
211.274 247	302.174 248	329.3001 200	330.100F 229	333.505 179
233.184 261	302.274 248	329.3003 200	330.101 227	333.506 179
233.185 261	304.174 248	329.3004 200	330.101F 229	333.534 179
233.186 261	304.175 249	329.3005 200	330.102 227	333.535 179
233.284 261	304.176 249	329.3007 200	330.103 227	333.536 179
233.285 261	304.184 249	329.3008 200	330.104 227	333.537 179
233.286 261	304.185 248	329.3009 199	330.104F 229	333.538 180
240.187 248	304.274 249	329.3010 199	330.105 227	333.539 179
240.189 248	304.275 249	329.3011 199	330.106 227	333.540 180
241.175 248	304.276 249	329.3012 199	330.107 227	333.600 189
241.275 248	304.284 249	329.3013 199	330.140 228	333.601 189
244.875 253	304.285 249	329.3014 199	330.142 228	333.602 189
244.876 253	304.974 249	329.3016 200	330.153 228	333.604 189
246.174 253	306.174 249	329.3017 200	330.300 228	333.605 189

Art no Page	Art no Page	Art no Page	Art no Page	Art no Page	Art no Page
333.616 179	339.1000 50	349.010 274	375.044 135	375.524 137
333.804 182	339.1001 50	349.011 274	375.045 135	375.529 65
333.805 182	339.1001 157	349.012 275	375.046 135	380.270 241
333.808 197	339.1002 50	349.013 277	375.050 135	380.271 241
333.810 197	339.1004 50	349.017 273	375.050 159	381.109 273
333.815 179	339.1005 50	349.018 273	375.053 135	381.109 303
333.819 183	339.1006 50	349.019 273	375.053 159	381.121K 236
333.830 179	339.106F 229	349.020 273	375.055 135	381.130K 236
333.838 183	341.184 261	349.027 275	375.055 159	381.141S 240
333.840 183	341.185 261	349.028 275	375.054 136	381.144S 240
333.862 197	341.186 261	349.029 275	375.068 135	381.146K 236
333.864 197	341.189 261	349.033 275	375.069 135	381.147K 236
334.001 225	341.200S 260	349.035 275	375.070 135	381.148K 236
334.003 225	341.201S 260	349.183 275	375.071 136	381.149K 236
334.006 225	341.202S 260	349.184 273	375.072 136	381.150K 236
335.002 224	341.203S 260	349.185 273	375.073 136	381.151K 236
335.007 224	341.281 261	349.203 307	375.075 135	381.152K 236
335.009 224	341.284 261	349.300 276	375.075 159	381.221K 236
335.050 242	341.285 261	349.301 276	375.076 136	381.230K 236
335.051 242	341.286 261	349.302 276	375.079 136	381.241S 240
335.055 243	341.287 261	349.303 276	375.080 135	381.244S 240
336.003 64	341.288 261	349.304 276	375.081 135	381.246K 236
336.004 64	341.289 261	349.310 277	375.082 135	381.247K 236
336.004 153	341.870 260	349.311 277	375.083 135	381.248K 236
336.006 64	341.879 260	351.174 251	375.097 159	381.249K 236
336.014 64	341.880 290	351.184 251	375.098 159	381.2501K 236
336.015 64	343.170 263	351.974 251	375.101 136	381.2507K 237
336.015 153	343.171 263	351.984 251	375.101 159	381.250F 237
336.039 63	343.172 263	352.174 251	375.102 136	381.250K 236
336.046 63	343.173 263	352.175 251	375.102 159	381.2512K 237
336.065 64	343.174 263	353.175 251	375.105 136	381.251K 236
336.067 63	343.175 263	353.185 251	375.105 159	381.252K 236
336.072 63	343.176 263	353.975 251	375.106 136	381.340S 240
336.076 63	343.177 263	353.985 251	375.106 159	381.343S 240
336.079 63	343.179 263	356.119 209	375.115 135	381.450K 236
336.088 63	343.191 263	356.120 209	375.115 159	382.204 241
336.600 63	343.192 263	356.174 252	375.116 135	382.205 241
336.600 119	343.370 262	356.175 252	375.116 159	384.272S 240
336.600 152	343.371 262	356.974 251	375.117 135	384.371S 240
336.601 63	343.372 262	356.975 251	375.117 159	385.170 235
336.601 152	343.373 262	361.174 252	375.127 135	387.170 235
336.603 63	344.170 265	361.184 252	375.128 135	387.171 235
336.604 63	344.171 265	372.174 252	375.129 135	387.172 235
336.604 152	344.172 265	372.184 252	375.270 235	387.270 235
336.606 63	344.174 265	373.174 252	375.500 136	387.270S 240
336.626 63	344.175 265	375.000 135	375.500 159	387.271 235
338.0080 29	345.170 264	375.000 159	375.501 136	387.271S 240
338.0081 29	345.171 264	375.003 135	375.502 65	387.272 235
338.0200 15	345.172 264	375.003 159	375.503 136	388.170 235
338.0201 15	346.170 264	375.004 136	375.504 137	388.171 235
338.0203 24	346.171 264	375.005 135	375.505 137	388.172 235
338.0204 24	346.172 264	375.005 159	375.506 137	388.270 235
338.0205 24	347.170 265	375.007 135	375.507 137	388.270F 237
338.0206 24	347.171 265	375.007 159	375.514 137	388.271 235
338.0210 15	347.172 265	375.016 135	375.515 136	388.271F 237
338.0212 15	348.171 264	375.017 135	375.516 136	388.272 235
338.0214 24	348.172 264	375.018 135	375.517 137	388.371 235
338.0219 15	349.005 276	375.038 135	375.518 136	388.471 235
338.0221 15	349.006 275	375.038 159	375.519 137	392.180 268
338.0227 24	349.007 275	375.039 135	375.520 137	392.181 268
338.0230 15	349.008 274	375.039 159	375.521 137	392.182 269
338.0231 15	349.009 274	375.040 136	375.523 137	392.183 269

Art no Page		Art no Page		Art no Page		Art no Page		Art no Page
392.187 272		509.012 148		720.026 283		852.104 292		902.232 58
393.002 272		509.013 151		720.027 283		852.9821 291		902.300 57
393.006 272		509.014 151		720.028 283		900.002 300		902.301 59
393.011 272		509.015 156		720.029 283		900.003 300		902.302 59
394.170 245		624.871 259		720.030 283		900.004 300		902.400 57
394.171 245		641.170 286		720.031 283		900.005 300		902.401 58
394.172 245		641.170 306		722.009 286		900.010 300		902.402 58
394.175 245		641.171 286		730.004 285		900.011 300		902.403 57
394.179 265		641.171 308		730.005 308		900.012 300		902.404 57
394.180 245		654.180 257		730.008 308		900.013 300		902.4048 57
394.181 281		654.181 257		740.000 310		900.1077 298		902.405 58
394.182 245		654.182 257		740.001 310		900.180 271		902.406 57
394.183 280		654.280 257		740.002 309		900.181 271		902.407 57
394.184 280		654.281 257		740.003 309		900.187 271		902.408 57
394.187 260		654.282 257		740.004 309		900.000 48		902.409 58
394.188 279		654.283 259		740.005 310		900.001 48		902.411 57
394.189 279		654.284 259		740.006 310		900.002 48		902.428 58
394.190 279		663.170 259		740.010 310		900.003 49		902.429 59
394.191 279		663.171 259		740.011 310		900.004 48		902.430 59
394.195 285		663.270 259		740.012 310		900.0048 48		902.431 58
394.200 279		663.271 259		740.015 309		900.0049 48		902.432 58
395.180 268		665.870 259		740.017 309		900.005 48		902.500 57
395.181 268		665.871 259		755.000 187		900.0050 48		902.501 59
396.181 268		672.180 260		755.001 187		900.006 48		902.502 59
396.182 269		672.181 260		755.002 187		900.007 49		903.000 75
396.183 269		672.281 260		755.003 187		900.008 48		903.001 75
396.184 270		681.880 258		755.004 187		900.009 48		903.100 106
396.187 269		681.881 258		770.000 160		900.010 48		903.101 106
397.003 268		681.882 258		770.001 160		900.011 48		903.102 107
398.180 269		682.260 260		770.002 161		900.012 49		903.103 114
398.181 269		682.880 258		800.0050 209		900.0161 49		903.104 108
398.182 269		682.881 258		800.0051 209		900.017 48		903.105 113
398.183 268		682.882 258		800.0052 209		900.017 49		903.106 113
398.186 269		683.880 258		800.0053 208		900.017 157		903.107 119
398.200 271		683.881 258		800.0100 185		900.018 48		903.107 133
398.200 290		683.882 258		800.0101 185		900.018 49		903.108 119
399.000 267		684.880 258		800.0102 185		900.018 157		903.108 133
399.003 267		684.881 258		800.0103 185		900.0182 49		903.109 119
399.004 267		684.882 258		800.0104 185		900.0183 49		903.109 133
399.005 267		685.880 258		800.0105 185		900.0184 49		903.110 119
399.006 267		685.881 258		800.0106 185		900.0185 49		903.110 133
399.007 267		685.882 258		800.0107 185		900.019 49		903.111 118
399.009 267		692.180 257		800.0108 185		900.024 48		903.112 118
399.010 267		692.181 257		800.0109 185		900.039 48		903.113 118
399.012 267		692.182 257		800.0110 185		900.200 57		903.114 113
399.180 270		692.280 257		800.0111 185		900.201 58		903.2000 101
399.181 270		692.281 257		800.0112 185		900.202 58		903.2001 101
399.182 270		692.282 257		800.0113 185		900.203 57		903.3000 101
399.186 270		693.180 258		800.0114 185		900.204 57		903.3001 101
399.189 271		693.181 258		800.0119 185		900.2048 57		903.400 102
509.000 156		693.182 258		800.0120 181		900.205 58		903.500 102
509.001 146		693.260 258		800.1256 182		900.206 57		903.600 102
509.002 146		693.281 258		800.1259 182		900.207 57		904.000 42
509.003 146		693.282 258		800.1260 182		900.208 57		904.0001 42
509.004 147		693.283 258		800.1261 182		900.209 58		904.001 42
509.005 147		720.000 281		800.1262 182		900.211 57		904.002 42
509.006 149		720.006 260		800.1263 182		900.213 57		904.003 42
509.007 149		720.013 286		800.1264 182		900.214 57		904.004 42
509.008 149		720.020 285		800.1265 182		900.228 58		904.005 42
509.009 148		720.021 285		852.101 292		900.229 59		904.006 42
509.010 150		720.022 285		852.102 292		900.230 59		904.007 42
509.011 150		720.025 283		852.103 292		900.231 58		904.008 43
904.009 43		909.013 21		911.906 25		913.172 302		917.010 95
904.010 43		909.014 21		911.907 25		913.173 302		917.011 85
904.011 43		909.015 21		911.908 25		913.174 302		917.012 93
904.020 42		909.016 21		911.909 25		913.175 303		917.012 158
904.021 42		909.017 20		911.910 25		913.271 300		917.018 92
904.022 42		909.018 20		911.913 25		914.270 294		917.019 92
904.023 42		909.019 21		912.000 26		914.271 294		917.021 86
904.024 42		909.020 21		912.000 130		914.272 294		917.022 88
904.025 42		909.025 20		912.001 27		914.273 294		917.023 89
904.026 42		909.028 20		912.001 130		914.670 292		917.024 90
904.027 42		909.029 20		912.002 26		914.672 293		917.026 87
904.045 42		909.033 21		912.003 26		915.000 32		917.027 87
904.100 262		909.050 21		912.004 27		915.001 32		917.028 87
904.900 43		909.058 20		912.005 27		915.004 32		917.030 88
906.000 63		909.065 20		912.0055 26		915.170 305		917.031 93
906.000 153		910.002 277		912.006 27		915.171 305		917.031 158
906.001 63		910.100 300		912.007 27		915.172 305		917.032 78
906.002 63		910.1011 280		912.008 27		915.173 305		917.033 78
906.003 63		910.105 271		912.009 26		915.174 306		917.035 88
906.003 153		910.106 271		912.010 26		915.175 306		917.036 89
906.005 53		910.170 301		912.011 27		915.270 305		917.037 92
906.005 64		910.171 300		912.012 27		915.271 305		917.038 78
906.006 154		910.174 304		912.0122 27		915.500 35		917.039 79
906.0055 63		910.175 304		912.0123 27		915.501 35		917.040 95
906.0069 63		910.176 304		912.0124 27		915.502 35		917.041 95
906.0060 63		910.177 304		912.0125 27		915.503 35		917.045 84
906.009 63		910.178 304		912.013 27		915.970 305		917.046 94
906.0113 63		910.179 304		912.014 27		915.971 305		917.047 94
906.031 63		910.182 304		912.015 26		915.973 305		917.051 79
906.031 153		910.200 300		912.0156 26		916.000 33		917.052 79
906.039 155		910.270 301		912.016 26		916.001 33		917.056 94
906.067 64		910.271 300		912.0167 26		916.002 33		917.056 116
906.067 153		910.275 304		912.0168 27		916.003 33		917.057 76
906.071 63		910.276 304		912.0169 27		916.0039 33		917.060 53
906.080 63		910.277 304		912.017 27		916.004 33		917.060 94
906.1059 63		910.282 304		912.0170 27		916.0040 33		917.060 158
906.1075 63		910.470 301		912.0171 26		916.0041 33		917.061 76
906.1086 63		910.971 301		912.0172 27		916.0042 33		917.062 76
906.1306 63		911.000 24		912.018 27		916.005 33		917.064 74
909.000 20		911.001 24		912.019 27		916.010 33		917.065 74
909.001 21		911.002 24		912.021 27		916.059 32		917.066 74
909.002 20		911.003 24		912.022 27		916.060 32		917.067 75
909.0023 20		911.004 24		912.023 26		916.0601 33		917.068 75
909.0026 21		911.005 24		912.024 27		916.061 32		917.069 65
909.0027 21		911.170 301		912.025 27		916.0611 33		917.070 85
909.0028 21		911.171 301		912.035 27		916.062 32		917.071 84
909.0029 21		911.172 301		912.037 26		916.063 32		917.072 85
909.003 20		911.270 301		912.045 26		916.082 33		917.073 84
909.004 20		911.271 301		912.170 301		916.1129 33		917.074 85
909.005 21		911.272 301		912.171 300		916.170 306		917.075 92
909.0056 20		911.273 301		912.173 304		916.970 306		917.076 92
909.0057 20		911.470 301		912.174 304		917.000 76		917.077 85
909.0058 20		911.500 29		912.270 301		917.000 158		917.078 86
909.0059 20		911.501 29		912.273 304		917.001 76		917.081 87
909.006 21		911.502 29		912.274 304		917.001 158		917.083 88
909.0060 20		911.503 29		912.470 301		917.002 79		917.085 87
909.007 21		911.900 25		912.971 301		917.003 78		917.088 88
909.008 21		911.901 25		913.000 11		917.005 79		917.089 89
909.009 21		911.902 25		913.005 11		917.006 78		917.090 88
909.010 20		911.903 25		913.169 305		917.007 79		917.090 158
909.011 20		911.904 25		913.170 303		917.008 79		917.091 89
909.012 21		911.905 25		913.171 302		917.009 95		917.093 94
917.093 117		918.008 210		919.171 302		924.038 313		924.113 317
917.094 91		918.009 119		919.1751 303		924.039 313		924.114 317
917.095 90		918.009 132		919.176 302		924.043 313		924.115 316
917.096 90		918.010 134		919.177 303		924.044 313		924.116 316
917.098 90		918.011 134		919.178 302		924.045 313		924.118 316
917.099 90		918.012 134		919.179 303		924.048 313		924.120 316
917.100 91		918.013 134		919.163 290		924.047 314		924.127 316
917.101 90		918.014 134		919.189 290		924.049 314		924.128 316
917.102 91		918.015 133		919.190 290		924.050 314		924.129 319
917.110 91		918.016 133		919.2000 130		924.051 314		924.131 319
917.111 95		918.017 133		919.2001 130		924.052 314		924.132 319
917.112 93		918.018 133		919.2002 130		924.053 314		924.133 319
917.113 93		918.019 133		919.2003 130		924.054 314		924.134 319
917.114 91		918.020 133		919.2004 130		924.055 314		924.136 319
917.116 93		918.021 134		919.2005 130		924.056 315		924.137 320
917.117 88		918.022 134		919.270 307		924.057 315		924.138 320
917.120 77		918.023 118		919.273 237		924.058 315		924.140 320
917.120 92		918.024 134		919.284 290		924.059 315		924.141 320
917.127 94		918.025 65		919.371 262		924.060 315		924.142 320
917.127 118		918.033 77		920.000 291		924.061 315		924.143 320
917.134 84		918.033 132		921.000 295		924.062 315		924.144 320
917.134 118		918.033 158		921.001 295		924.063 315		924.145 320
917.136 94		918.033 210		921.002 295		924.064 315		924.146 320
917.139 75		918.034 77		921.003 295		924.065 315		924.149 321
917.140 75		918.034 132		921.004 293		924.066 315		924.151 321
917.141 92		918.034 210		921.005 293		924.067 315		924.152 321
917.143 86		918.035 77		921.006 293		924.068 315		924.153 321
917.145 86		918.040 77		921.008 294		924.069 315		924.154 321
917.150 84		918.040 86		921.010 293		924.071 314		924.155 321
917.152 94		918.045 78		921.011 293		924.072 314		924.156 321
917.153 79		918.066 119		921.012 295		924.073 316		924.157 322
917.157 77		918.066 132		921.013 295		924.074 316		924.158 322
917.157 89		918.067 119		921.014 293		924.075 316		924.159 322
917.158 76		918.067 132		921.271 241		924.076 316		924.160 322
917.159 76		918.068 119		922.014 155		924.077 316		924.161 322
917.160 84		918.068 132		923.003 247		924.078 316		924.162 322
917.161 87		918.069 119		923.004 247		924.079 316		924.163 322
917.162 87		918.069 132		923.005 247		924.080 316		924.164 241
917.163 89		918.071 78		923.170 308		924.081 316		924.164 323
917.164 89		918.071 158		923.174 303		924.082 316		924.167 287
917.165 90		918.072 78		923.270 308		924.090 317		924.167 311
917.166 95		918.072 158		924.001 312		924.091 317		924.167 323
917.167 95		918.073 78		924.002 312		924.092 317		924.168 287
917.168 74		918.074 78		924.004 312		924.094 318		924.168 311
917.169 74		918.106 59		924.005 312		924.095 318		924.168 323
917.170 305		918.107 59		924.009 312		924.096 318		924.171 323
917.171 306		918.170 306		924.010 312		924.097 318		924.172 312
917.172 306		918.171 307		924.011 312		924.098 318		924.173 312
917.182 92		918.900 37		924.012 312		924.099 318		924.174 323
917.183 86		918.900 39		924.023 313		924.101 312		924.201 312
918.001 51		919.003 291		924.024 313		924.1016 124		924.203 314
918.002 25		919.004 291		924.025 313		924.1018 126		924.224 287
918.003 132		919.005 291		924.026 313		924.103 314		924.224 311
918.003 210		919.014 269		924.027 313		924.1038 126		924.225 287
918.006 118		919.015 269		924.028 313		924.1039 126		924.225 311
918.006 132		919.016 269		924.029 313		924.1040 126		924.231 287
918.006 210		919.018 269		924.031 313		924.1041 125		924.231 311
918.007 118		919.1000 131		924.032 313		924.1046 126		924.250 287
918.007 132		919.1100 130		924.033 313		924.109 318		924.250 311
918.007 210		919.1101 130		924.034 313		924.111 317		924.259 313
918.008 118		919.169 305		924.036 313		924.112 317		924.260 313
918.008 132		919.170 307		924.037 313		924.112 317		924.261 313

Art no Page	Art no Page	Art no Page	Art no Page
924.264 315	930.030 139	930.120 51	940.053 210
924.265 316	930.030 211	930.120 157	940.057 76
924.266 316	930.031 139	930.137 140	940.057 158
924.267 316	930.031 211	930.138 141	940.070 137
924.327 314	930.032 139	930.139 141	940.071 137
924.329 323	930.032 211	930.143 77	940.073 137
924.330 323	930.033 139	930.160 141	940.074 137
924.332 287	930.033 211	930.161 141	940.083 76
924.332 311	930.034 141	930.162 141	940.085 76
924.334 287	930.034 212	930.163 141	940.085 158
924.334 311	930.035 141	930.164 141	940.089 132
924.336 316	930.035 212	930.165 141	940.089 210
924.338 317	930.036 141	930.166 140	940.096 65
924.340 317	930.036 211	930.180 51	940.096 156
924.342 317	930.037 211	930.182 51	940.096 208
924.343 317	930.038 211	930.183 51	940.097 65
924.344 317	930.039 212	930.183 157	940.099 21
924.4000 124	930.040 212	930.900 143	940.103 209
924.4001 124	930.041 212	930.900 214	940.104 133
924.4002 124	930.042 212	930.901 143	940.105 133
924.4003 125	930.044 141	930.901 214	940.108 65
924.4004 125	930.044 212	930.902 143	940.112 76
924.4005 125	930.045 141	930.902 214	940.140 209
924.4006 125	930.045 212	930.903 143	940.141 208
924.4009 124	930.049 139	930.903 214	940.142 208
924.5000 127	930.049 211	930.904 143	940.143 208
924.5001 127	930.050 139	930.904 214	940.166 209
924.5002 127	930.050 211	930.905 143	940.167 209
924.5003 127	930.051 140	930.905 214	950.000 308
924.6000 127	930.051 212	930.906 143	950.002 308
924.700 125	930.054 141	930.906 215	950.003 308
925.0022 18	930.054 211	930.907 143	950.004 308
925.0023 18	930.055 212	930.907 215
925.0034 18	930.057 141	930.908 143
925.0044 18	930.057 212	930.908 215
925.0047 18	930.058 139	930.909 143
925.0049 18	930.058 211	930.909 215
925.100 18	930.059 139	930.910 143
925.101 18	930.059 211	930.910 215
925.500 19	930.060 142	930.911 143
925.501 19	930.060 213	930.911 215
925.800 19	930.061 142	931.000 37
925.801 19	930.061 213	931.001 37
928.003 39	930.062 142	931.900 37
928.004 39	930.062 213	940.024 66
928.005 39	930.063 142	940.040 132
928.006 39	930.063 213	940.041 132
928.900 39	930.064 142	940.041 210
930.016 139	930.064 213	940.044 76
930.017 139	930.065 142	940.044 158
930.018 139	930.065 213	940.044 210
930.019 139	930.090 140	940.045 134
930.020 140	930.091 140	940.046 134
930.021 140	930.092 140	940.046 210
930.022 139	930.093 141	940.047 119
930.023 139	930.094 141	940.047 132
930.024 140	930.095 141	940.048 119
930.025 140	930.096 141	940.048 132
930.026 140	930.097 141	940.049 134
930.027 140	930.098 140	940.052 132
930.028 140	930.099 140	940.052 210
930.029 140	930.100 140	940.053 132

Witteveen Projectinrichting

Bachmann Facility Systeme

Exterior view of a modern office building (no signage)

Black-and-white photo of office desk with papers, pens, and a laptop (no visible text or symbols)

Office desk setup with electronic devices and office supplies (no visible text or symbols)

Office desk setup with electronic devices and a charging device (no visible text or symbols)

POWER FRAME COVER 6-fach

Collection of industrial electrical connector modules with multiple slots and mounting brackets (no visible text or symbols)

Office desk setup with a white lamp, red connector, and laptop (no visible text or symbols)

TWIST

Close-up of a metallic cylindrical device with two circular ports and a vertical rod, no visible text or symbols.

Close-up of a black cylindrical electronic component with a coiled cable and internal spring (no visible text or symbols)

Ø 115 Ø 105 25 4C Maße in mm

Exterior view of a modern office building (no signage)

Zubehör für DESK 2

Exterior view of a white electrical outlet rack with three black power outlets (no text or symbols visible)

Two 3D mechanical components shown in grayscale, one with a rectangular base and two circular ends, the other with a black base (no text or symbols visible)

DESK 2 Klebesockel

Disassembled electronic components laid out on a green grid mat, including screwdriver, switch, and circuit boards (no text or symbols visible)

CUSTOM MODULE

Kabelauszugsmodule

Three black electronic components with connectors and connectors, shown from different angles (no text or symbols visible)

Back panel of a BACH MAIN device showing ports, connectors, and a photo album (no readable text or symbols beyond branding)

Close-up of a red and white plastic tool on a metallic tray (no visible text or symbols)

USB 3.0 Zubehör

USB 3.0 Koppler

Close-up of two USB connectors with black plastic bands, no text or symbols visible

Close-up of two black USB connectors with metallic contacts (no text or symbols visible)

Koppler USB 3.0 A / B Keystone Schwarz

Modern kitchen sink with stainless steel basin and red cabinet (no text or symbols visible)

Modern kitchen setup with red cabinet, microwave oven, and stainless steel appliances (no visible text or symbols)

ELEVATOR COVER

Metallic cylindrical object with a curved top surface (no text or symbols visible)

Modern kitchen interior with purple and white cabinetry, stainless steel appliances, and a set of ovens on a reflective surface (no text or symbols visible)

Close-up of a metallic electrical outlet with five black socket holes, placed on a reflective surface (no text or symbols visible)

Four identical metal trapezoidal components with evenly spaced circular holes, arranged vertically (no text or symbols visible)

Close-up of a metallic ceiling fixture with four circular cutouts, mounted on a wall against a pink-pink gradient background (no text or symbols visible)

Interior view of a modern elevator shaft with four circular buttons and a wall-mounted panel (no text or symbols visible)

Interior view of a modern elevator shaft mounted on a wall, with no visible text or symbols.

Three identical electrical panel connectors with black and red terminal blocks, arranged horizontally (no text or symbols visible)

Basic PDU Vertikal

Power Distribution Units 230 - 400 V / 50 Hz

Front panel of a rack-mounted server unit with multiple ports and indicator lights (no visible text or labels)

BlueNet Produktmatrix

Blu≡Net

Efficient Power Management

Front view of a rack-mounted server unit with multiple ports and indicator lights (no visible text or labels)

BlueNet Metered Plus (16A / 400V / 50 Hz)

Front view of a rack-mounted industrial control unit with multiple ports and indicator lights (no visible text or labels)

Illustration of a desktop computer with a blue cable and 'LAN' label (no other text or symbols)

A2M Wireless A2M Wireless A2M Wireless A2M Wireless A2M Wireless A2M

Status Emission Absorption Emission Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption Absorption

Interface Webseite

BACH MANN Solutions Microsoft Temperature (°C) Temperature/setting configenerat Temperature1 Temperature2 Temperature3 Temperature4 Temperature5 Temperature6 Temperature7 Temperature8 Temperature9 Temperature10 Temperature11 Temperature12 Temperature13 Temperature14 Temperature15 Temperature16 Temperature17 Temperature18 Temperature19 Temperature20 Temperature21 Temperature22 Temperature23 Temperature24 Temperature25 Temperature26 Temperature27 Temperature28 Temperature29 Temperature30 Temperature31 Temperature32 Temperature33 Temperature34 Temperature35 Temperature36 Temperature37 Temperature38 Temperature39 Temperature40 Temperature41 Temperature42 Temperature43 Temperature44 Temperature45 Temperature46 Temperature47 Temperature48 Temperature49 Temperature50 Temperature51 Temperature52 Temperature53 Temperature54 Temperature55 Temperature56 Temperature57 Temperature58 Temperature59 Temperature60 Temperature61 Temperature62 Temperature63 Temperature64 Temperature65 Temperature66 Temperature67 Temperature68 Temperature69 Temperature70 Temperature71 Temperature72 Temperature73 Temperature74 Temperature75 Temperature76 Temperature77 Temperature78 Temperature79 Temperature80 Temperature81 Temperature82 Temperature83 Temperature84 Temperature85 Temperature86 Temperature87 Temperature88 Temperature89 Temperature90 Temperature91 Temperature92 Temperature93 Temperature94 Temperature95 Temperature96 Temperature97 Temperature98 Temperature99 Temperature100

BACH MANN Temperature 8.10 mm x 25°C Temperature/Temperature Temperature/1 Temperature/2 Temperature/3 Temperature/4 Temperature/5 Temperature/6 Temperature/7 Temperature/8 Temperature/9 Temperature/10 Temperature/11 Temperature/12 Temperature/13 Temperature/14 Temperature/15 Temperature/16 Temperature/17 Temperature/18 Temperature/19 Temperature/20 Temperature/21 Temperature/22 Temperature/23 Temperature/24 Temperature/25 Temperature/26 Temperature/27 Temperature/28 Temperature/29 Temperature/30 Temperature/31 Temperature/32 Temperature/33 Temperature/34 Temperature/35 Temperature/36 Temperature/37 Temperature/38 Temperature/39 Temperature/40 Temperature/41 Temperature/42 Temperature/43 Temperature/44 Temperature/45 Temperature/46 Temperature/47 Temperature/48 Temperature/49 Temperature/50 Temperature/51 Temperature/52 Temperature/53 Temperature/54 Temperature/55 Temperature/56 Temperature/57 Temperature/58 Temperature/59 Temperature/60 Temperature/61 Temperature/62 Temperature/63 Temperature/64 Temperature/65 Temperature/66 Temperature/67 Temperature/68 Temperature/69 Temperature/70 Temperature/71 Temperature/72 Temperature/73 Temperature/74 Temperature/75 Temperature/76 Temperature/77 Temperature/78 Temperature/79 Temperature/80 Temperature/81 Temperature/82 Temperature/83 Temperature/84 Temperature/85 Temperature/86 Temperature/87 Temperature/88 Temperature/89 Temperature/90 Temperature/91 Temperature/92 Temperature/93 Temperature/94 Temperature/95 Temperature/96 Temperature/97 Temperature/98 Temperature/99 Temperature/100

Four different industrial server rack units with indicator lights and ports, shown from different angles (no visible text or labels)

BlueNet Monitored PDU

Screenshot of a software toolbar with icons and labels in Chinese, likely representing menu or settings options.

BlueNet Basic WiFi/LAN Managed

Four identical industrial electrical modules with power connectors and indicator lights, arranged diagonally (no visible text or labels)

BlueNet PDU Basic PLC Monitored

Front view of a rack-mounted server unit with multiple ports and indicator lights (no visible text or labels)

WIFI/LAN Produkte

Collection of industrial control panel modules with black connectors and red indicator lights (no text or symbols visible)

Zubehör WiFi/LAN

Collection of black electronic components including coaxial connectors, coiled wires, and terminal antennas (no text or symbols visible)

Close-up of red and black electrical plug connectors (no text or symbols visible)

Two black electronic device modules with red and gray connectors, no visible text or symbols

Exploded view of a mechanical component assembly (no text or symbols visible)

Two black electrical connectors with terminal ports, shown against a white background (no text or symbols visible)

Zubehör

Collection of various electronic components and connectors, including black plastic enclosures, yellow safety clip, and various Ethernet cables (no text or symbols visible)

Modern living room interior with a black power strip unit and white sofa, no visible text or symbols

CONNECTLINE

Collection of gray industrial power strip connectors with terminal blocks and indicator lights (no text or symbols visible)

Four views of a black electrical component with metal brackets and mounting holes, shown from different angles (no text or symbols visible)

Haltewinkel flexibel montierbar

Three identical LED strip components with green indicator lights, shown from different angles (no text or symbols visible)

Exterior view of a black utility pole with multiple power lines and indicator lights (no text or symbols visible)

Electrical power strip with terminal blocks and cord (no visible text or symbols)

Three identical metallic industrial clamps with black connectors, arranged vertically (no text or symbols visible)

Three black rectangular electronic circuit breakers with terminal connectors and a red indicator button (no text or symbols visible)

Three metallic rectangular electronic components with black and red markings, arranged vertically (no visible text or symbols)

Exterior view of a rectangular electronic component with internal slots and a red accent (no text or symbols visible)

Two identical metallic electrical connectors with multiple ports, shown from different angles (no text or symbols visible)

Set of six black industrial control panel modules arranged vertically, each with a red indicator button (no text or symbols visible)

BACH MANN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Close-up of two metallic cylindrical objects with a central textured surface, possibly a mechanical or industrial component (no visible text or symbols)

Close-up of two ornate circular objects with a central diamond-shaped hole, possibly from a mechanical or architectural component (no text or symbols visible)

Weather Air Environment ADM WiFi Bluetooth 1. Air Extracban Extracban 2. No. Extracban Extracban 3. Air Extracban

A209 Spectrum: A209 Frequency: 48.0GHz Connection 1 Connection 2 Connection 3 Connection 4 Connection 5 Connection 6 Connection 7 Connection 8 Connection 9 Connection 10 Connection 11 Connection 12 Connection 13 Connection 14 Connection 15 Connection 16 Connection 17 Connection 18 Connection 19 Connection 20 Connection 21 Connection 22 Connection 23 Connection 24 Connection 25 Connection 26 Connection 27 Connection 28 Connection 29 Connection 30 Connection 31 Connection 32 Connection 33 Connection 34 Connection 35 Connection 36 Connection 37 Connection 38 Connection 39 Connection 40 Connection 41 Connection 42 Connection 43 Connection 44 Connection 45 Connection 46 Connection 47 Connection 48 Connection 49 Connection 50 Connection 51 Connection 52 Connection 53 Connection 54 Connection 55 Connection 56 Connection 57 Connection 58 Connection 59 Connection 60 Connection 61 Connection 62 Connection 63 Connection 64 Connection 65 Connection 66 Connection 67 Connection 68 Connection 69 Connection 70 Connection 71 Connection 72 Connection 73 Connection 74 Connection 75 Connection 76 Connection 77 Connection 78 Connection 79 Connection 80 Connection 81 Connection 82 Connection 83 Connection 84 Connection 85 Connection 86 Connection 87 Connection 88 Connection 89 Connection 90 Connection 91 Connection 92 Connection 93 Connection 94 Connection 95 Connection 96 Connection 97 Connection 98 Connection 99 Connection 100

Collection of industrial control panel modules with black connectors and red indicator lights (no text or symbols visible)
