Product Type	Wall Socket
Model	CASIA 2
Brand	Bachmann
Dimensions (H x W x D)	Approx. 80 x 80 x 40 mm
Weight	Approx. 100 g
Rated Voltage	230 V AC
Rated Current	16 A
Rated Frequency	50/60 Hz
Power Rating	3680 W
Material	High-grade plastic, flame retardant
Color	White (standard)
Mounting Type	Flush-mounted with screw terminals
Number of Outlets	1
USB Ports	No
Surge Protection	No
Child Protection	Yes (shutter mechanism)
Safety Certifications	CE, VDE, NF
Protection Class	IP20 (indoor use)
Operating Temperature	-5°C to +40°C
Maintenance	Clean with dry cloth, disconnect power before cleaning

Frequently Asked Questions - CASIA 2 Bachmann

What is the maximum load for the Bachmann CASIA 2 wall socket?

The maximum load is 3680 W (16 A at 230 V). Do not exceed this rating to avoid overheating.

Can the CASIA 2 be used outdoors?

No, it is rated IP20 for indoor use only. Exposure to moisture or dust may damage the socket and cause hazards.

Does the CASIA 2 have USB charging ports?

No, the CASIA 2 is a standard wall socket without USB ports. Use an adapter if needed.

How do I install the Bachmann CASIA 2 wall socket?

Installation should be done by a qualified electrician. Ensure power is off, connect wires to terminals (L, N, PE), and mount flush into a standard wall box. Follow local electrical codes.

Is the CASIA 2 compatible with dimmers?

No, this is a standard socket and not designed for dimmer control. Use only with compatible devices.

Does the socket have child safety features?

Yes, it is equipped with a shutter mechanism that prevents insertion of foreign objects. Safety shutters open only when a plug is inserted correctly.

What should I do if the socket feels hot?

Immediately disconnect the power and stop using it. Overheating may indicate overloading or a bad connection. Consult an electrician.

Can I paint the Bachmann CASIA 2 wall socket?

Painting is not recommended as it may affect the safety components (shutters, contacts) and void the warranty. Use only standard colors.

What certifications does the CASIA 2 have?

It is certified CE, VDE, and NF, ensuring compliance with European safety standards.

How do I clean the wall socket?

Disconnect power first. Use a soft, dry cloth to wipe the surface. Do not use water, solvents, or abrasive cleaners.

USER MANUAL CASIA 2 Bachmann

Modern wall-mounted electrical outlet with three internal channels, placed on a white surface against a wooden wall (no text or symbols visible)

CASIA 2

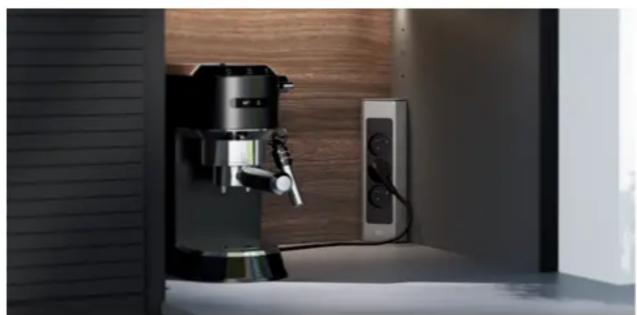

CASIA 2 is a power strip for corners and niches in a slim, design-focused shape. It is available in two versions.

The first version features a length-adjustable telescopic element and is suitable for installation in different kitchen types, both with and without wall units. A sliding device ensures that the socket housings are not visible.

The second version is small and compact: perfect for kitchens with limited space or those without wall units. Both versions can either be installed horizontally or vertically.

The high-quality surface is available in a stainless-steel look or as a black anodised version. Anti-fingerprint characteristics minimise marks.

As a kitchen socket, CASIA 2 either has a socket housing or a socket housing with a powerful 22 watt USB A/C charger. Different voltage profiles ensure device-friendly charging.

BENEFITS

• Hidden sockets
• Optional 22 watt USB A/C charger
• Slender, delicate appearance
• Adjustable using the telescopic element
  • High quality metal surface

AWARDS

reddot winner 2023

We power your life.

Modern kitchen cabinet interior with wooden paneling and ambient lighting (no text or symbols visible)

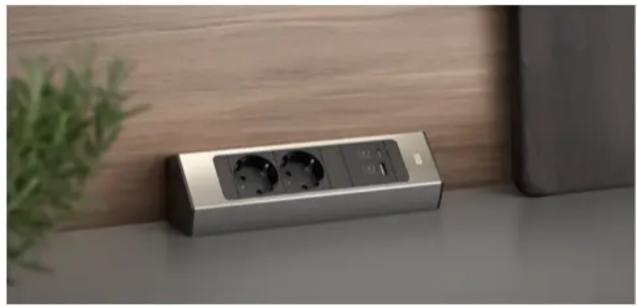

Modern wall-mounted electrical socket with two black buttons, placed on a surface near a wooden wall and a green plant (no text or symbols visible)

Interior view of a minimalist room with a mounted optical device and wall-mounted control unit (no visible text or symbols)

CASIA 2 short

- Material: Cover: Metal | Socket: Plastic

932.000932.001932.102932.103

#
Stainless steel look | Power input: 2.0 m cable with ferrules and mounting plug, included
932.000 3 235 x 78 x 64 mm
932.001 3 235 x 78 x 64 mm
932.002 2 A&C 22W 235 x 78 x 64 mm
932.003 2 A&C 22W 235 x 78 x 64 mm
Black (anodised, similar to RAL 9005) | Power input: 2.0 m cable with ferrules and mounting plug, included
932.100 3 235 x 78 x 64 mm
932.101 3 235 x 78 x 64 mm
932.102 2 A&C 22W 235 x 78 x 64 mm
932.103 2 A&C 22W 235 x 78 x 64 mm

CASIA 2 long

• Material: Cover: Metal | Socket: Plastic
• Telescopic element
• Sliding device

932.004

932.106932.105

Hotel	Hotel	Hotel	Dewert	Dewert
Stainless steel look | Power input: 2.0 m cable with ferrules and mounting plug, included
932.004 4 475 x 78 x 64 mm
932.005 4 475 x 78 x 64 mm
932.006 3 A&C 22W 475 x 78 x 64 mm
932.007 3 A&C 22W 475 x 78 x 64 mm
Black (anodised, similar to RAL 9005) | Power input: 2.0 m cable with ferrules and mounting plug, included
932.104 4 475 x 78 x 64 mm
932.105 4 475 x 78 x 64 mm
932.106 3 A&C 22W 475 x 78 x 64 mm
932.107 3 A&C 22W				475 x 78 x 64 mm
