| Product Type | Extension Block / Power Strip |
| Brand | Bachmann |
| Model | 912.0167 |
| Dimensions (approx.) | 30 x 5 x 4 cm |
| Weight | 0.3 kg |
| Power Input | 230 V / 50 Hz, 16 A max |
| Number of Outlets | 5 (Schuko type) |
| Cable Length | 2 m |
| Surge Protection | Yes, up to 1000 J |
| Overload Protection | Integrated circuit breaker |
| Features | On/Off switch, LED indicator, child safety shutters |
| Mounting Type | Freestanding or wall-mountable (keyhole slots) |
| Material | Flame-retardant plastic |
| Operating Temperature | -10°C to +40°C |
| Maintenance | Wipe with dry cloth; do not use liquids |
| Safety Certifications | CE, RoHS |
| Intended Use | Indoor use only |
| Warranty | 2 years |
Frequently Asked Questions - 912.0167 Bachmann
What is the maximum power rating of the Bachmann 912.0167 extension block?
The extension block supports up to 230 V, 16 A, so a maximum power of 3680 W (230 V x 16 A).
Can I use the extension block for outdoor appliances?
No, this model is designed for indoor use only. It does not have weatherproofing.
Does it have surge protection?
Yes, it includes surge protection to safeguard connected devices against voltage spikes.
How do I reset the overload protection?
If overloaded, the built-in circuit breaker will trip. Unplug some devices and press the reset button on the side.
Is the extension block compatible with international plugs?
The outlets are Schuko type (Type F), common in Europe. Adapters may be needed for other plug types.
Can I mount it on a wall?
Yes, it has keyhole slots on the back for wall mounting. Use appropriate screws.
What is the cable length?
The cable is approximately 2 meters long.
Does it have child safety features?
Yes, the outlets are equipped with child safety shutters to prevent accidental insertion of objects.
How do I clean the extension block?
Unplug it and wipe with a dry, soft cloth. Do not use water or cleaning agents.
What is the warranty period?
Bachmann provides a 2-year warranty from the date of purchase.
User questions about 912.0167 Bachmann
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Bloc d'extension in PDF format for free! Find your manual 912.0167 - Bachmann and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 912.0167 by Bachmann.
USER MANUAL 912.0167 Bachmann


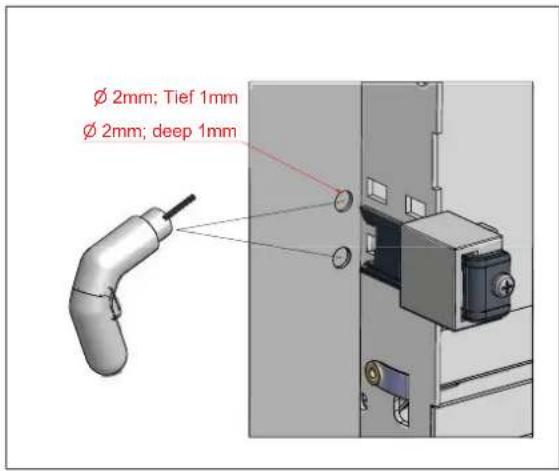

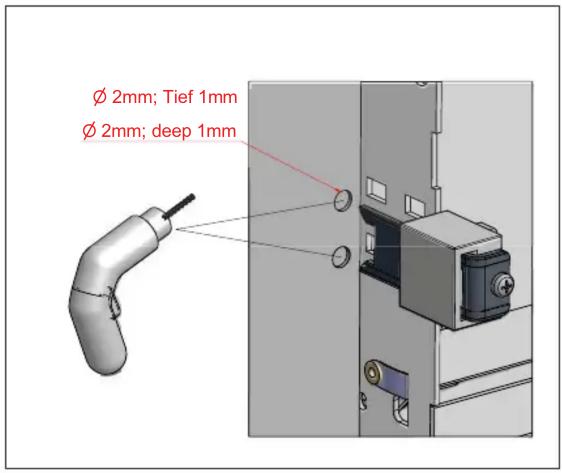

Ø 2mm; Tief 1mm Ø 2mm; deep 1mm


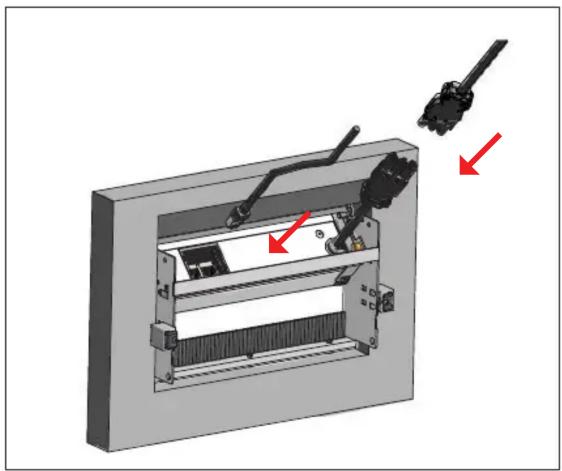

3D diagram of a mechanical assembly with labeled components and red arrows indicating movement (no text or symbols present)Attention: Tolerance from all A-/B-size = +0.50mm
table to the product
if the surface is plane
to the table
radius 5mm"
