Product Type	Wall Socket
Brand	Bachmann
Model	CONI
Material	High-grade thermoplastic
Color	White (standard)
Rated Voltage	230 V
Rated Current	16 A
Frequency	50/60 Hz
Number of Sockets	1
Protection Class	IP20 (indoor use)
Mounting Type	Flush mount (requires wall box)
Dimensions (HxWxD)	85 x 85 x 45 mm
Weight	Approx. 100 g
Operating Temperature	-10°C to 40°C
Safety Features	Child protective shutters, VDE certified
Standards	EN 60669, VDE 0620
Maintenance	Wipe with dry cloth; no solvents
Package Contents	1 wall socket, mounting screws, installation guide

Frequently Asked Questions - CONI Bachmann

What is the rated voltage and current of the Bachmann CONI wall socket?

The Bachmann CONI wall socket is rated for 230 V and 16 A at 50/60 Hz.

Is the CONI wall socket suitable for outdoor use?

No, the CONI has a protection class of IP20, meaning it is only suitable for indoor use in dry environments.

Does the socket have child safety protection?

Yes, the Bachmann CONI wall socket is equipped with child protective shutters that prevent insertion of foreign objects.

What are the dimensions of the CONI wall socket?

The socket has dimensions of 85 x 85 x 45 mm (height, width, depth) and weighs approximately 100 g.

How do I install the Bachmann CONI wall socket?

Installation must be performed by a qualified electrician. It is a flush mount socket requiring a standard wall box. Connect wires to terminals: L (phase), N (neutral), PE (earth). Ensure power is off before installation.

What tools are needed for installation?

You will need a screwdriver (Phillips or slotted) and a voltage tester to ensure power is off. The socket comes with mounting screws.

How should I clean the wall socket?

Clean the socket with a dry or slightly damp cloth. Do not use abrasive cleaners or solvents, as they may damage the surface.

Is the CONI wall socket compatible with smart plugs?

Yes, as a standard Schuko socket (Type F), it is compatible with most smart plugs and regular plugs used in Europe.

What safety certifications does the Bachmann CONI have?

The socket is VDE certified and complies with EN 60669 and VDE 0620 standards.

What is the maximum load for this wall socket?

The maximum load is 3680 W (230 V × 16 A). Do not exceed this rating to avoid overheating.

USER MANUAL CONI Bachmann

3D mechanical assembly diagram showing a component being inserted into a U-shaped housing, with red arrows indicating direction of movement (no text or symbols present)

1.

1.

1.

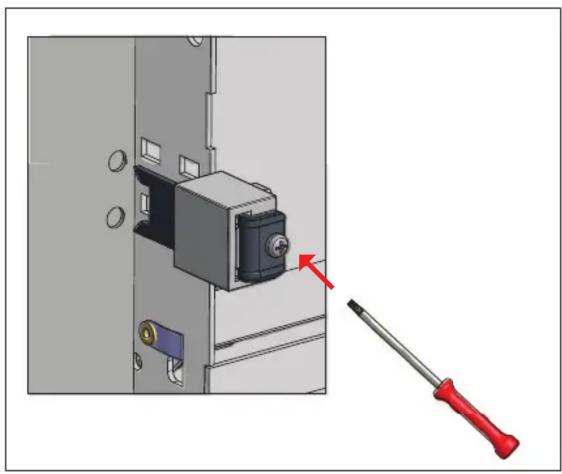

Mechanical component with a red screwdriver inserted, showing a close-up view of a mounted device (no text or symbols visible)

1.

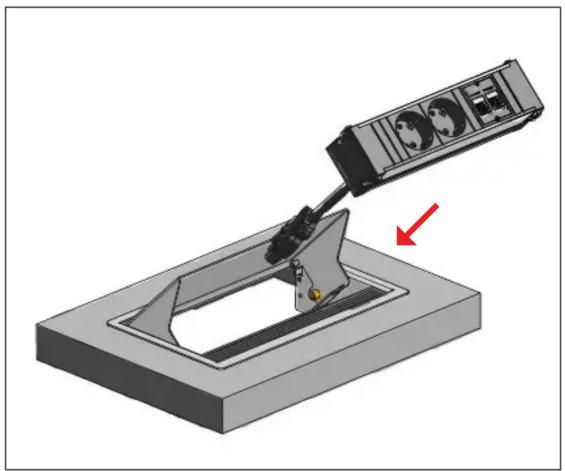

Mechanical assembly diagram showing a device being inserted into a housing (no text or symbols visible)

1.

3D diagram of an electronic device with labeled ports and connectors, showing internal components and wiring (no text or symbols)

Attention: Tolerance from all A-/B-size = +0,50mm

table to the product

if the surface is plane

to the table radius 5mm°
