Rettro PJ460 - Juicer Eldom - Free user manual and instructions

Product Type	Juicer
Brand	Eldom
Model	Rettro PJ460
Power	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Speed Settings	2 (Low/High)
Pulp Container Capacity	1.5 L
Juice Jug Capacity	1 L
Feed Chute Diameter	65 mm
Material	Stainless steel and plastic
Dimensions (W x D x H)	Approx. 250 x 200 x 400 mm
Net Weight	3.5 kg
Cord Length	1 m
Safety Features	Overload protection, safety lock system
Dishwasher Safe Parts	All removable parts
Additional Features	Anti-drip spout, non-slip feet
Spare Parts Availability	Yes (strainer, lid, jug)
Warranty	2 years
Manual Languages	EN, CS, DE, ES, HU, PL, RU, SK, and more

Frequently Asked Questions - Rettro PJ460 Eldom

How to clean the juicer after use?

Disassemble all removable parts: pulp container, juice jug, strainer, and lid. Rinse immediately under running water to prevent pulp from drying. Use a brush to clean the strainer. All parts are dishwasher safe. Wipe the motor base with a damp cloth; never immerse it in water.

Can I juice leafy greens like kale or spinach?

Yes, the Rettro PJ460 can juice leafy greens. Use the low speed setting for soft greens. For best results, roll leaves into small bundles before feeding. The 65 mm feed chute accommodates whole leaves.

Is the juicer dishwasher safe?

All removable parts (pulp container, juice jug, stainless steel strainer, and lid) are dishwasher safe. Place them on the top rack. Hand washing is also recommended to prolong lifespan. The motor base is not dishwasher safe.

What should I do if the motor stops during operation?

The juicer has an overload protection feature. If the motor stops, turn off and unplug the device. Remove the cause of overload (e.g., too much pulp or oversized pieces). Wait a few minutes for the motor to cool down, then resume. If the problem persists, contact customer service.

Can I juice frozen fruits?

It is not recommended to juice frozen fruits directly as they can damage the motor or strainer. Thaw fruits fully before juicing. For best results, use fresh or room-temperature produce.

How to assemble the juicer correctly?

Place the motor base on a flat surface. Insert the pulp container, then the strainer basket. Lock the lid securely until you hear a click. Place the juice jug with foam separator under the spout. Ensure the safety lock is engaged before use.

Does the juicer have a pulp ejection system?

Yes, the Rettro PJ460 is a centrifugal juicer that automatically ejects pulp into a separate container. This allows continuous juicing without stopping to empty the pulp container. The pulp container capacity is 1.5 liters.

What is the warranty period for this juicer?

The Eldom Rettro PJ460 comes with a 2-year warranty from the date of purchase. The warranty covers manufacturing defects under normal household use. Keep the purchase receipt for service claims.

Can I use the juicer continuously for long periods?

The juicer is designed for intermittent use. Do not operate for more than 2 minutes continuously. After each cycle, allow the motor to rest for at least 2 minutes to prevent overheating. This ensures longevity.

Where can I find replacement parts or accessories?

Replacement parts such as the strainer basket, lid, juice jug, and pulp container are available through Eldom's official website or authorized service centers. Use only genuine parts for safety and performance. Contact customer support for availability.

USER MANUAL Rettro PJ460 Eldom

Black industrial-style brush rester with clear glass and mesh top, no visible text or symbols

Please acquaint precisely with whole of this instruction before using the blender for the first time.

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.

2. Do not immerse the cable or the appliance in water.

3. Only intended for household use.

4. Do not use the appliance outdoors.

5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.

6. Do not leave your device without supervision.

7. Always unplug the appliance after operation.

8. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

9. Do not touch the appliance with wet hands.

10. Always pull the plug of the socket before cleaning.

11. Do not use the juicer when the filter is damaged.

12. Do not exceed the maximum time of continuous operation of the appliance.

13. Do not move during use.

14. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.

15. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

16. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

17. The appliance can be used only with the originally included accessories.
18. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

GENERAL DESCRIPTION
1 Pusher2 Lid3 Plastic tab4 Extracting bolt5 Filter6 Juicer collector7 Pulp spout8 Juice spout8a Cap I8b Cap II9 Microswitch10 Control knob (On, Off, R)11 Main body12 Drive spindle13 Pulp container14 Juice jug15 Brush for
TECHNICAL DATA
Power: 200 WMains voltage: 220-240V ~ 50HzMaximum time of continuous operation: 10 minBreak before continuation of operation: 5 min

INTENDED

PERFECT JUICER is designed for processing most of fruits and vegetables in a more efficient way than traditional juicer. A large dispensing opening for easy juice squeezing from soft fruit, e.g. apples.

Before using the appliance:

• Read these instructions for use carefully before using the appliance.
  • Make sure that none of elements are demaged.
• Wash all detachable parts.
• Assemble the appliance.

MONTAGE (fig.1)

• Ensure that the cup (8b) on the bottom of the collector (6) is pushed in.
• Place the juice collector (6) into main body (11) and turn right.
  • In juicer collector (6) set: filter (5) and extracting bolt (4).
• Set the containers (13,14) under the spouts (7,8).
• On the juicer collector (6) put the lid (2) according with the indicators, and turn it right.
• Slide the pusher into the feeding tube in the lid (2).

USING THE APPLIANCE

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked.

• Always operate the product on a flat, stable surface.
- Put the plug in the wall socket.
- Slice products into pieces which fit into the feeding tube that is in the lid (2).
• Make sure the juice jug (14) has been placed under the juice spout (8).
• Make sure that pulp container (13) has been placed under the pulp spout (7).
- Switch the appliance on by turning the control knob (10) to the position „ON”.
- Put prepared fruits/vegetables in the feeding tube and gently press them down towards.

• The rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could affect the quality of the end result or even blocked the appliance.
  Never insert your fingers or an object into the feeding tube.
• The juice will flow directly in the juice jug (14), and the pulp will be collected in the pulp container (13).
• If the Extracting bolt is locked, you need to set the switch (10) to "R" for 3 to 5 seconds. Repeat the process two to three times, then turn off, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blocking element.
• After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating.
• Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

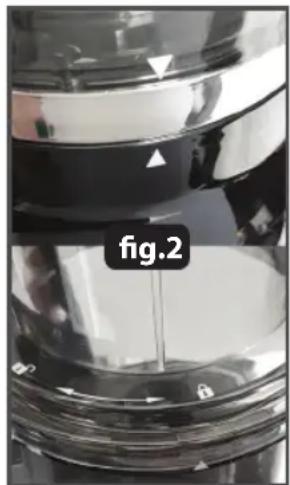

Close-up of a mechanical component with a labeled section 'fig.2' (no other text or symbols visible)

TIPS

• Clean fruits and vegetables, before juicing.
• Use fresh fruit and vegetables, as they contain more juice.
• Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.
• products should be sliced into pieces which fit into the feeding tube that is in the lid (2). Do not cut the food into too small pieces.
• Do not process the ice or frozen fruits.
• If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients.
  • Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.
• Fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches only y, about 0,5 kg. Before putting the next batch, turn the device off and remove the components for cleaning (see CLEANING).
• The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane.
• When juicing fruit and vegetables of different consistency it may help to juice first soft products, and than hard.

CLEANING

When device is not used or before cleaning, disconnect it from the network.

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.

Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Switch the appliance off, remove the plug from the wall socket. Next dissassemble the appliance in the following order:

• Remove the pusher (1).
• Unlock (turn to the left) and remove the lid (2).
• Unlock (turn to the left) and remove the juice collector (6) together with filter (5) and extracting bolt (4) and disassemble the appliance.
• Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.
• Clean the motor unit with a damp cloth.
  Never immerse the motor unit in water nor rinse it under the tap.

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled.
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.

WARRANTY

• only intended for household use.
• it cannot be used for commercial purposes.
• the warranty loses validity in case of inappropriate use.
