KDCM3727 - Coffee maker Kunft - Free user manual and instructions

Product Type	Drip Coffee Maker
Model	KDCM3727 BK / KDCM3727 WH
Brand	Kunft
Capacity	5 cups (approx. 25 oz / 700 ml)
Dimensions (approx.)	10.2 x 7.9 x 12.6 inches (26 x 20 x 32 cm)
Weight (approx.)	2.6 lbs (1.2 kg)
Power Supply	120V ~ 60Hz, 900W (typical)
Plug Type	Polarized plug
Water Tank	Removable, with max level indicator
Filter Type	Paper filter (#4 cone) or permanent filter
Carafe Material	Glass with lid, heat-resistant
Warming Plate	Yes, auto shut-off after 40 minutes
Pause-and-Serve	Yes, allows pouring mid-brew (up to 30 seconds)
Control Type	Simple switch with indicator light
Safety Features	Auto shut-off (40 min), polarized plug, moisture protection
Maintenance	Descaling every 40 brews or as needed using water and descaler (4:1)
Cleaning	Wash detachable parts in hot soapy water; wipe exterior with damp cloth
Warranty	2 years (manufacturing defects)
Color Options	Black (BK), White (WH)
Usage	Indoor household use only

Frequently Asked Questions - KDCM3727 Kunft

How many cups of coffee can the Kunft KDCM3727 make?

It brews a maximum of 5 cups per cycle. The amount of brewed coffee is slightly less than the water added due to absorption by grounds.

Can I pour coffee before the brewing cycle is complete?

Yes, the pause-and-serve feature allows you to temporarily remove the carafe for up to 30 seconds to pour a cup. The brewing continues without dripping, and you can return the carafe to resume.

How do I clean the coffee maker?

After each use, wash detachable parts (carafe, filter basket) in hot soapy water. Wipe the exterior with a soft, damp cloth. Rinse the water tank periodically with cold water. Do not immerse the base in water.

How do I descale the coffee maker?

Use a mixture of water and household descaler (4:1 ratio) or citric acid (100:3 ratio). Fill the tank, run a brewing cycle halfway, let sit for 15 minutes, then complete the cycle. Rinse by running plain water at least 3 times.

Why is my coffee not hot enough?

The warming plate keeps coffee warm for 40 minutes after brewing. For best flavor, serve immediately after brewing. If the coffee is lukewarm, ensure the carafe is properly seated on the plate and the warming function is active.

Can I use ground coffee from a packet?

Yes, use medium-ground coffee suitable for drip coffee makers. Store unused coffee in a cool, dry place or refrigerate. For best taste, grind whole beans just before brewing.

What should I do if the carafe cracks?

Do not use a cracked carafe. Contact customer service for a replacement. Only use the original carafe designed for this model.

Is the coffee maker safe to leave unattended?

It has an auto shut-off after 40 minutes on warming. However, for safety, do not leave it unattended while brewing. Unplug when not in use.

How do I prevent overflow when pouring?

Do not tip the carafe more than 45 degrees from vertical. Pour slowly until empty to avoid spillage from under the lid.

Where can I get the user manual?

The manual is available for free PDF download on notice-facile.com or from the manufacturer's support website.

USER MANUAL KDCM3727 Kunft

Black Kuwait Kuroflaser coffee maker with glass glaze and digital display (no visible text or symbols)

filter coffee maker

is perfectly enough

KDCM3727 BK

KDCM3727 WH

kunft.®

filter coffee maker

KDCM3727 BK

KDCM3727 WH

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instruction manual is provided to simplify the use of the appliance. The instructions guarantee quick and safe use.

Please read the instructions and safety measures described in this manual carefully.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water 7
1.4. Cleaning 7
1.5. General Precautions ...... 8

1. USE AND OPERATION ....11

2.1. Product Description....11
2.2. Operating Instructions ......11
2.3. Maintenance 13

1. CUSTOMER SERVICE 14

2. PROTECTION OF THE ENVIRONMENT ..... 14

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards and deterioration of your appliance through incorrect use it is advisable to read the instructions carefully and attentively.

Your appliance must not be used for other purposes than those described in the instruction manual. Safety is only guaranteed for household use and not for commercial

filter coffee maker

KDCM3727 BK

KDCM3727 WH

EN

use. Incorrect use is not covered and automatically voids the warranty.

Assistance

If there is a malfunction take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instruction in using the appliance safely and if they understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the mains voltage is compatible with the appliance voltage. If this is not the case consult the vendor or Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not roll up or pull the cord to disconnect the appliance, and do not use it to twine the appliance. Keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

If the power cord is damaged, do not use your appliance. Take it to technical assistance for replacement.

This appliance has a polarized plug. To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet in only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

A short power-supply cord (or detached power-supply cord) is provided to reduce risks resulting from becoming entangled in or tripping over a long cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a long detachable power-supply cord or extension cord is used, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as high as the appliance electrical rating.

The longer cord should be arranged so that it does not drape over the counter top or the

filter coffee maker

KDCM3727 BK

KDCM3727 WH

EN

table top where it can be pulled by children or tripped over.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example to wash it).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and let it cool down completely.

To protect against electrical shock, do not immerse the cord, plug or unit in water or liquid.

Clean all detachable parts in hot soapy water after each use.

Wipe the external surface of the product with a soft, damp cloth to remove stains.

Do not attempt to clean the inside of the water tank, as this will leave a residue of lint and may clog your coffee maker; simply rinse with cold water periodically.

Water droplets may build up in the area above the funnel and drip onto the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.

kunft®

1.5. General Precautions

• Please follow the user manual instructions to correctly install and use this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized dealers.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than originally designed, or if it is not correctly connected, the product may suffer damage and the warranty will be voided.
• Do not let the coffee maker operate without water.
• To protect against fire, electric shock and injury, do not immerse the cord or plug in water or another liquid.
• Close supervision is necessary when your appliance is operating. Do not leave the appliance on standby for a long time. Never allow children or uninformed persons to operate the appliance.
• Unplug from the power outlet when not in use and before cleaning. Allow the appliance to cool before fitting or removing parts, and before cleaning the appliance.

filter coffee maker

KDCM3727 BK

KDCM3727 WH

EN

• Do not operate any appliance with a damaged cord or plug, or following a malfunction, or following any type of damage.
  Return the appliance to an authorized service facility for examination, repair or adjustment.
• The use of accessories not recommended by the appliance manufacturer may result in fire, electric shock or injury.
• Do not use outdoors.
• Place the appliance on a flat surface or table. Do not let the cord hang over the edge of a table or counter, or touch a hot surface.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use the appliance for uses other than the intended use, and place it in a dry environment.
• Connect the plug to the wall outlet before use, and turn all switches off before the plug is removed from the wall outlet. When unplugging, always hold the plug. Never pull the cord.
• Some parts of the appliance heat when the appliance runs; do not touch the parts directly. Use the handles or knobs only.
• The carafe is designed for use with this appliance. It should never be used on a hob.
• Do not clean the carafe with cleansers, steel wool pads, or other abrasive materials.

kunft®

• Never leave the empty carafe on the warming plate, otherwise it is liable to crack.
• Never use the appliance if the carafe shows any signs of cracks or if the handle is loose or weakened. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.
• Do not place a hot container on a hot or cold surface.

filter coffee maker

KDCM3727 BK

KDCM3727 WH

EN

2. USE AND OPERATION

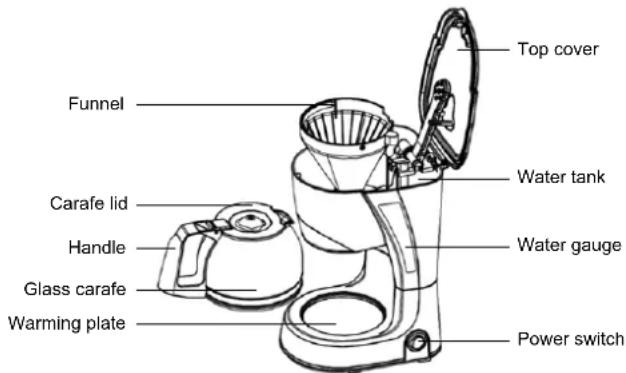

2.1. Product Description

2.2. Operating Instructions

BEFORE FIRST USE

Check that all the accessories are complete and the unit is not damaged. Pour water into the water tank to the maximum level on the water gauge and brew the water several times without coffee, then discard the water. Clean and dry all detachable parts thoroughly according to the "MAINTENANCE" section instructions.

1. Open the top cover and fill the water tank with cold water.
   NOTE: Do not fill the water tank above the max level as indicated on the water gauge. The appliance can brew a maximum of 5 cups of coffee every brewing cycle.
2. Place the funnel into the funnel holder and make sure the funnel is correctly fixed, then fit a paper filter into the funnel.
3. Add proper ground coffee into the paper filter. Usually a cup of coffee needs a level spoon of coffee, but you may adjust according to personal taste, and then refit the top cover.
4. Insert the glass carafe with its lid onto warming the plate, making sure the carafe center line aligns with that of the funnel.
5. Plug the unit into a power outlet.
6. Press the switch, the indicator will turn on and the appliance will begin working.

kunft®

NOTE: The brewing process can be interrupted by pressing the switch again at any time and the indicator light will turn off, indicating that your coffee maker is off.

NOTE: the appliance is designed with a pause-and-serve feature, if you wish, at any time during the brewing cycle, you can temporarily remove the carafe to pour and serve a cup of hot coffee. The brewing cycle will not be interrupted and no coffee will drip from the appliance, simply return the glass carafe back onto the warming plate to restart the brewing cycle. Do not remove the glass carafe for longer than 30s, never return an empty carafe onto the warming plate when it is still warm.

1. Remove the carafe to serve when brewing is complete.

NOTE: the amount of coffee you get will be less than the water you have added, as some water is absorbed by the ground coffee.

WARNING: When pouring coffee, do not tip the carafe more than 45 degrees from the vertical. Pour the coffee slowly until the carafe is empty, otherwise the coffee in the carafe will overflow from under the lid, and this may cause injuries!

1. After brewing, the appliance will automatically switch to warming mode, which will continue to keep your coffee warm for 40 minutes. After keeping warm for 40 minutes, the appliance will be cut off automatically. For an optimum coffee taste, serve it just after brewing.

2. Always turn the coffee maker off and unplug the appliance when not in use.

HINTS FOR GREAT-TASTING COFFEE

1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "CLEANING" section. Always use fresh, cold water in the coffee maker.

2. Store unused ground coffee in a cool, dry place. After opening a packet of ground coffee, reseal it tightly and store it in a refrigerator to maintain its freshness.

3. For an optimum coffee taste, buy whole coffee beans and finely grind them just before brewing.

4. Do not reuse ground coffee since this will greatly reduce the coffee's flavor. Reheating coffee is not recommended as coffee is at its peak flavor immediately after brewing.

5. Clean the coffee maker when brewing causes oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the ground coffee.

6. Oiliness may occur more frequently if heavily roasted coffees are used.

filter coffee maker

KDCM3727 BK

KDCM3727 WH

EN

2.3. Maintenance

REMOVING MINERAL DEPOSITS

To keep your coffee maker operating efficiently, you should regularly clean away the mineral deposits left by the water depending on the water quality in your area and the frequency of use, we recommend removing mineral deposits as follows:

1. Fill the tank with water and descaler to the max level as indicated on the water gauge (the proportion of water and descaler is 4:1, please refer to the descaler instructions. Please use "household descaler"), you may also use citric acid instead of the descaler (one hundred parts of water and three parts of citric acid).
2. Insert the glass carafe onto the warming plate.
3. Make sure there is no ground coffee and that the funnel is in place.
4. Switch on the appliance and allow it to "brew" the de-scaling solution.
5. After "brewing" one cup of solution, switch off the appliance.
6. Leave the solution for 15 minutes and repeat steps 3-5.
7. Switch on the appliance and run off the solution until the water tank is completely empty.
8. Rinse by operating the appliance with water at least 3 times.

kunft®

cafetera de goteo

KDCM3727 BK

KDCM3727 WH

ES

3. CUSTOMER SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs you may be able to determine its cause by following the procedures suggested in this section.

Do not attempt to open the appliance – there is a risk of electrical shock.

If you are not able to solve the problem please contact your seller or manufacturer.

All users must be familiar with this section. Knowing what could go wrong can help to prevent problems occurring.

WARNING: any attempt to repair the appliance without contacting the manufacturer will void the warranty.

If the problem persists take your appliance to the customer service of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar provides a 2 year warranty for manufacturing defects from the date of purchase of the appliance. The warranty is applicable for correct use and maintenance of the appliance, namely according to the instructions in this manual. Malfunctions caused by any other situations are not covered by the warranty.

The repair of electric appliances must only be made by qualified technicians in order to prevent future problems.

To avoid unnecessary risks, any malfunctions concerning wires or other components must be repaired in a specialized technical support workshop because suitable tools are required.

4. PROTECTION

OF THE ENVIRONMENT

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials once disassembled by a specialized company. Comply with local regulations concerning recycling of all materials.
