KDCM5024 - Coffee maker Kunft - Free user manual and instructions

Product Type	Drip Coffee Maker
Model	KDCM5024
Brand	Kunft
Capacity	Approximately 1.25 L (12 cups)
Power Supply	220-240 V, 50/60 Hz
Power Consumption	Approximately 1000 W
Dimensions (approx.)	25 x 20 x 35 cm (W x D x H)
Weight (approx.)	1.5 kg
Filter Type	Paper filter (size #4 or equivalent)
Water Tank	Transparent with water level indicator
Carafe	Glass carafe with marking, 1.25 L
Keep Warm Function	Automatic keep warm for 40 minutes
Brew Pause	Drip-stop function allows serving mid-brew (up to 30 seconds)
Safety Features	Auto shut-off after 40 minutes, overheat protection
Cleaning	Descaling with vinegar solution recommended periodically
Materials	Plastic housing, glass carafe, metal warming plate
Warranty	2 years for manufacturing defects

Frequently Asked Questions - KDCM5024 Kunft

How do I descale the coffee maker?

Mix two tablespoons (30 mL) of white vinegar with one carafe of cold water. Pour the solution into the water tank to the MAX level. Place a paper filter (without coffee) and funnel, then brew one cup. Turn off and let sit for 15 minutes. Repeat the brew and soak steps, then run the rest of the solution through. Rinse by brewing at least 3 carafes of fresh water.

What type of filter does this coffee maker use?

It uses standard paper filters, typically size #4 or cone-shaped filters. Do not use a permanent filter unless specified.

Can I use pre-ground coffee?

Yes, add coffee powder to the paper filter. Usually one level spoon of coffee powder per cup, but adjust to taste.

Why does my coffee taste bitter or oily?

This may be due to over-extraction or mineral buildup. Clean the coffee maker regularly, including descaling. Also, use fresh coffee and avoid reheating.

How long does the keep warm function last?

The warming plate stays on for 40 minutes after brewing completes, then the coffee maker shuts off automatically.

Can I remove the carafe while brewing?

Yes, you can remove the carafe for up to 30 seconds to serve. The drip-stop mechanism will pause dripping. If removed longer, coffee may overflow the funnel.

What should I do if the carafe is cracked?

Stop using the coffee maker immediately. Replace the carafe with a genuine Kunft part. Do not use a cracked carafe as it may break during use.

How do I clean the warming plate?

Unplug and allow to cool. Wipe the warming plate with a soft, damp cloth. Never use abrasive cleaners or steel wool.

Is the coffee maker safe to use around children?

Yes, but children under 8 should be supervised. Children aged 8 and above can use the appliance under supervision if they understand the risks. Keep the cord and appliance out of reach of very young children.

Can I use the coffee maker without water?

No, never operate the coffee maker without water. This can damage the heating element and pose a fire hazard.

USER MANUAL KDCM5024 Kunft

Black Kuwait Kuroflaser coffee maker with open lid and side handle (no visible text or symbols)

filter coffee maker

is perfectly enough

KDCM5024

kunft.®

filter coffee maker

KDCM5024

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply....6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....7
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....11

2.1. Product Description....11
2.2. Product usage....11
2.3. Maintenance 12

1. POST-SALE SERVICE....14

2. ENVIRONMENTAL PROTECTION .... 14

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

filter coffee maker

KDCM5024

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of

kunft.®

the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

filter coffee maker

KDCM5024

EN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.

kunft®

• Do not operate the coffee maker with a damaged cord or plug, or in abnormal state. If its main cord is damaged, it must be replaced by the manufacturer, the Customer Support Service or a qualified person.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock and injury to persons do not immerse the cord or plug in water or any other liquid.
• Remove the plug from the electrical outlet before cleaning the coffee maker and when not in use. Allow the coffee maker to cool down completely before taking off, attaching components or before cleaning.
• The use of accessory is not recommended by the coffee maker manufacturer. It may result in fire, electric shock and/or person injury.
• The carafe is designed for use with this coffee maker. It cannot be used on a cooker.
• Do not clean the coffee maker with cleansers, steel wool pads or other abrasive materials.
• Do not hang the power cord over the edge of table or counter or let it touch hot surfaces.

filter coffee maker

KDCM5024

EN

• Do not place the coffee maker on hot surface or beside fire in order to avoid it being damaged.
• To disconnect it, remove the plug from the electrical outlet. Always hold the plug, but never pull the cord.
• Close supervision is necessary when your coffee maker is being used near children.
• Be careful not to get burned by the steam.
• To disconnect it, turn any control to "OFF" and then remove the plug from the electrical outlet.
• Do not let the coffee maker operate without water.
• Never use the coffee maker if the carafe has any signs of cracks. Only use the carafe with this coffee maker. Be careful, as the carafe is very fragile.
• Do not set a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Scalding may occur if the cover is removed during the brewing cycles.
• Some parts of the coffee maker become hot when operated, so do not touch with your bare hand; use handles or knobs only.

kunft®

• Never leave the empty carafe on the warming plate otherwise the carafe is liable to crack.
• This coffee maker is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Do not use outdoors.

filter coffee maker

KDCM5024

EN

2. OPERATING INSTRUCTIONS

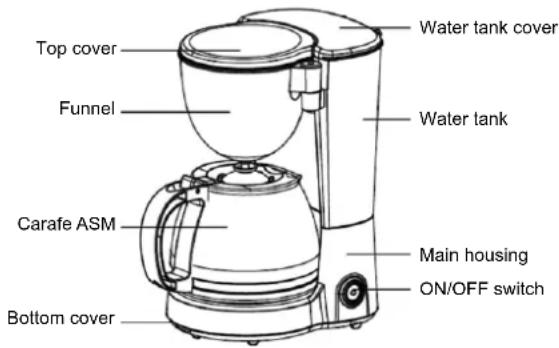

2.1. Product Description

2.2. Product usage

Before first use

Check that all accessories are complete and the unit is not damaged. Add clean water up to maximum level to brew several times without coffee powder according to the steps below, and then discard the water. Wash the detachable parts thoroughly with warm water.

Using your coffee maker

1. Open the water tank lid and fill the water tank with cold drinking water. The water level should not exceed the MAX level as indicated on the water gauge.
2. Swing the funnel holder out, put the funnel into the funnel holder and then place the filter paper in the funnel, making sure it is assembled correctly.
3. Add coffee powder to the paper filter. Usually a cup of coffee needs a level spoon of coffee powder, but you may adjust according to personal taste. Close the funnel holder – you will hear a click sound when the funnel holder is closed completely.
4. Insert the carafe onto the warming plate horizontally.
5. Plug the power cord into the outlet.
6. Pressing the switch down, the indicator will be illuminated. The coffee maker will begin working.
   Note: During the brewing process, you may remove the carafe to serve for a duration not exceeding 30 seconds and the coffee

kunft®

maker will stop dripping automatically. If the serve time exceeds 30 seconds, the coffee will overflow the funnel.

1. Upon completion of the brewing coffee, that is, one minute later after the coffee stops dripping out, you can remove the carafe, pour and serve.

Note: The brewed coffee you get will be slightly less than the water you have added as some water is absorbed by coffee powder. DO NOT touch the cover, warming plate and so on when operating as they are very hot.

1. When the process is finished, if you do not want to serve immediately, keep the switch on; the coffee can be kept warm in the warming plate for 40 minutes and the coffee maker will be cut off automatically after 40 minutes. For an optimum coffee taste, serve it just after brewing.

2. Always turn the coffee maker off and disconnect the power supply after use.

Note: Be careful when pouring the coffee. coffee will be very hot after brewing and you might get burnt.

Hints for great-tasting coffee

A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "Maintenance" section. Always use fresh, cold water in the coffee maker.

Store unused coffee powder in a cool, dry place. After opening a package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness.

For an optimum coffee taste, buy whole coffee beans and finely grind them just before brewing.

Do not reuse coffee powder since this will greatly reduce the coffee' flavour. Reheating coffee is not recommended as coffee is at its peak flavour immediately after brewing.

Clean the coffee maker when over-extraction causes oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the coffee powder. Oiliness may occur more frequently if heavily roasted coffees are used.

2.3. Maintenance

CAUTION: Always unplug the coffee maker from the electrical outlet and allow the warming plate to cool completely before cleaning it. Never immerse the unit or power cord into water or any other liquid for cleaning.

1. Clean all detachable parts after each use in hot, sudsy water.

2. Wipe the product's exterior surface with a soft, damp cloth to remove stains.

filter coffee maker

KDCM5024

EN

1. Water droplets may build up in the area above the funnel and drip onto the coffee maker's base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the coffee maker.
2. Use a damp cloth to gently wipe the warming plate. Never use abrasive cleaner to clean it.
3. Replace all parts and keep for next use.

Removing mineral deposits

To keep your coffee maker operating efficiently, you should periodically clean away the mineral deposits left by the water according to the water quality in your area and the frequency of use. We recommend descaling your coffee maker as follows, using a solution of white vinegar and cold water. A solution of two tablespoons (30 mL) of white vinegar in one carafe of cold water works best.

1. Fill the tank with the vinegar solution to the maximum level as indicated on water gauge.
2. Insert the glass carafe onto the warming plate.
3. Make sure the paper filter (without coffee powder) and funnel are assembled in place.
4. Switch on the coffee maker and allow it to "brew" descaling solution.
5. After "brew" one-cup solution, switch off the coffee maker.
6. Leave the solution for 15 minutes and repeat steps 3-5.
7. Switch on the coffee maker and run off the solution until the water tank is completely empty.
8. Rinse by operating the coffee maker with water at least 3 times.

kunft®

cafetera de goteo

KDCM5024

ES

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.
