USER MANUAL SPH01-10E Cotech

Close-up of a white wall socket with a coiled cable, no text or symbols visible

This product is only suitable for well insulated spaces or occasional use.

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

Do not cover.

Warning:

The product can become very hot during use and cause burns. Special care must be taken if the product is used in the same room as young children, aged or infirm persons.

• The product must never be installed directly beneath a wall socket.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• Do not use the product in small rooms containing persons incapable of vacating the room without assistance, unless these persons are under constant supervision.
• The product should only be connected to a 230 V, 50 Hz electrical outlet.
• Make sure that the mains lead does not come into contact with the housing when then the product is switched on.
• This product is intended for indoor use only.
• The product should be mounted on a wall in such a way that it does not come into contact with curtains or furniture and constitute a potential fire hazard.

• Never insert any foreign objects inside the housing of the product.

• Never use the product where explosive substances or flammable gases are used or stored.

• Do not use the product in a bathroom, laundry room, or close to the bath or shower.
• The product must only be used when it is fastened to a wall as described in this instruction manual.
• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance must not be performed by children without adult supervision.
• The product must be kept out of reach of children under 3 years of age unless they are under constant supervision.
• Children between the ages of 3 and 8 years must only switch the product on/off provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Children between the ages of 3 and 8 years must not plug in, regulate, clean or perform user maintenance on the product.

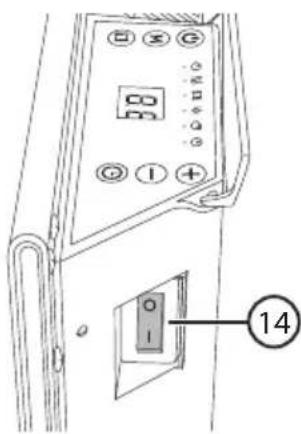

Buttons and functions

1. Open window function button
2. Ⓜ Programme selector button
3. ⏻ Standby button
4. On/off (standby) indicator light
5. Heating mode indicator light
6. Open window function indicator light
7. Comfort mode indicator light
8. ECO mode indicator light
9. Timer mode indicator light
10. Display
11. ⨁ Button to increase the value while making settings
12. ⏻ Button to decrease the value while making settings
13. Ⓞ Timer settings button
14. Main power switch

Installation

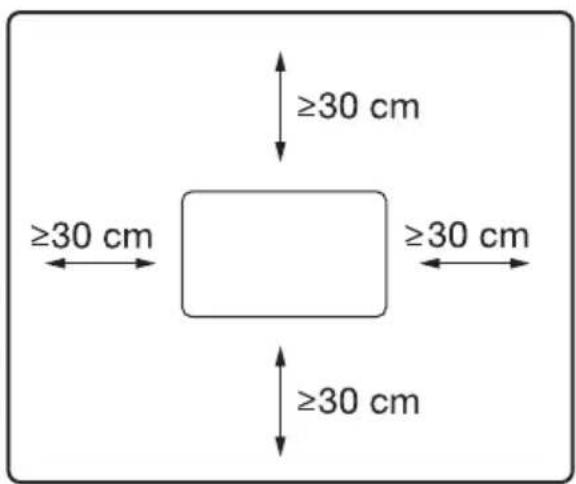

△ The panel heater must be installed in a location at least 30 cm away from the closest object.

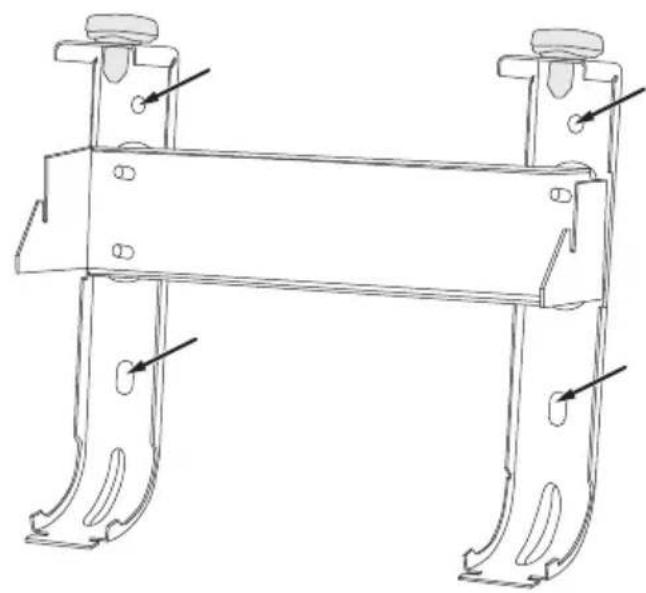

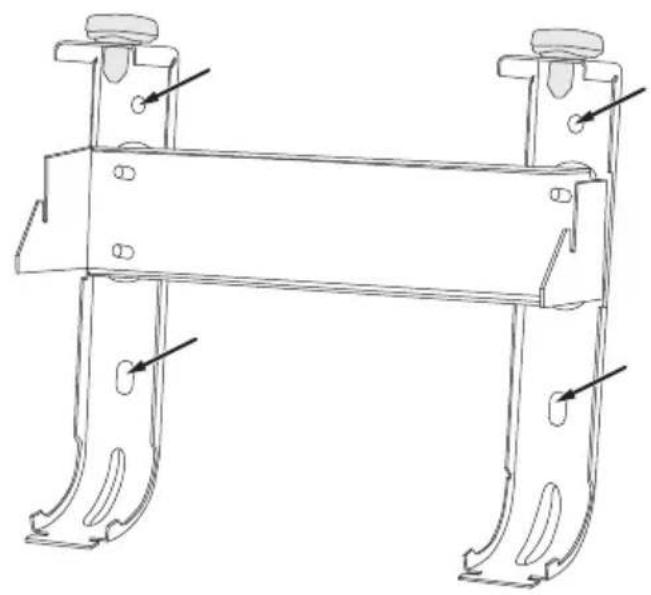

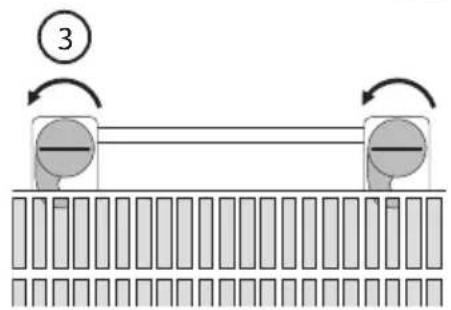

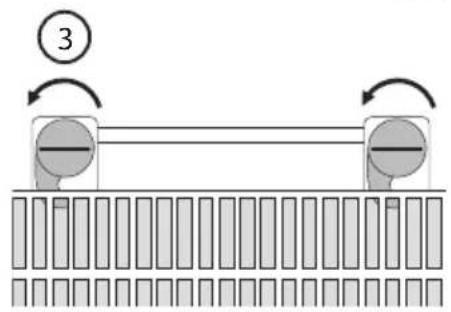

Use the wall bracket as a template and mark out where you need to drill on the wall. Use fasteners suitable for the surface material and ensure that there are no electrical wires or water pipes in the wall where you intend to drill/screw.

Technical line drawing of a mechanical bracket with mounting feet and side fasteners (no text or symbols)

Diagram of a mechanical or structural system with two circular components and directional arrows, no text or symbols present.

Instructions for use

1. Set the power switch to the I position.
2. Press ⏻ to switch the heater on.

Line drawing of a hand inserting a button into a device (no text or symbols)

Setting the current time

• Hold in for 3 seconds to enter settings mode, windflash.
• Press + and - to change value. Confirm each step by pressing .

Set the following in sequential order:

d: Day of the week 1–7 (Monday...Sunday)
H: Hours 0–23
n: Minutes 0–59

(i) Note:

In the event of a power cut, all clock settings will be deleted and need to be made again. Temperature settings will also be deleted and revert to the default setting of 15^ C.

Programme modes

Comfort mode

ECO mode

Programme 1

Programme 2

Programme 3

Anti-frost mode

• Press repeatedly to advance through the programme modes.
• Press + or - to change value.

The current time must be set before the weekly timer programme can be used.

Comfort mode: Continuous heat (5–35 °C).

ECO mode: 4 degrees cooler than ⚙ (1–31 °C).

Programme 1: Pre-programmed weekly programme.

Monday – Sunday

P2

Programme 2: Pre-programmed weekly programme.

Monday – Friday Saturday – Sunday

P3

Programme 3: Pre-programmed weekly programme that you can set yourself.

Monday – Friday Saturday – Sunday

Press ⊕ and ⊕ to change value. Confirm each step by pressing . Ⓜ

1. Hold in Ⓜ until the display shows d;
2. Select the day d1-d7.
3. Select the hour of the day that you wish to change (00–23).
4. Press Ⓜ repeatedly to choose between ⚙Comfort mode, Ⓗ ECO mode or OFF Off.
5. Repeat steps 3–4 for the hours you wish to change. After setting hour 23, press ⚠ to return to the selection of the day.
6. Repeat the process until you have made settings for every day of the week. After setting day 7, press ⊕ to return to the standard viewing mode P3.

If you have made changes to the programme, they will be lost in the event of a power cut.

Fr

Anti-frost mode: 7 ^ ± 3 ^ (cannot be changed).

Open window function

1. Press ☐ to activate this function. The LED indicator (6) will come on.
2. When the panel heater detects that the temperature in the room has dropped by 2^ C over a period of 2 min the heater will automatically enter anti-frost mode. The LED indicator will flash.
3. Press ☐ to deactivate this function.
   The panel heater will stay in anti-frost mode until the function is deactivated.

Shut-off timer

1. Press to enter the settings mode, the display will show . H N
2. Press ⭕ and ⓣ to set the number of hours the panel heater is to remain switched off for (0–24 hours).
3. Confirm by pressing ⏻. The LED indicator (9) comes on to indicate that the shut-off timer is activated.

Care and maintenance

• Always unplug the lead from the power point and let the panel heater cool down properly before cleaning.
• Clean the heater using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• If the panel heater is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location.

Cleaning

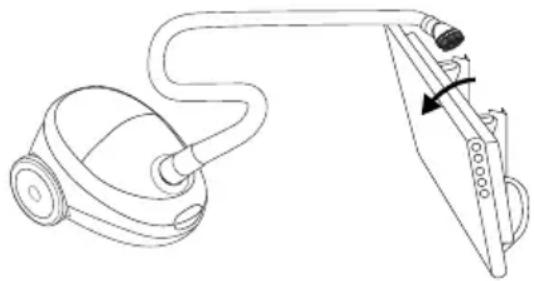

This type of panel heater should be cleaned regularly by vacuuming the upper and lower grille.

Line drawing of a vacuum cleaner with attached pipe and valve (no text or symbols)

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Specifications

Rated voltage 230 V AC, 50/60 Hz

Power 36-7864 400 W

36-7866 1000 W

IP rating IP24

Mains lead 1.2 m

Information requirement for electric local space heaters

Model identifier(s): SPH01-04E / Art.No: 36-7864
Item Symbol Value Unit	Item
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output P	nom	0.4 kW		manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.4 kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	0.4 kW		electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption	--- --- ---	fan assisted	heat	output No
At nominal heat output	el_max	N/A kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW		single stage heat output and no room temperature control	No
In standby mode el	SB	0.00016 kW		Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	Yes
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details	CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Test Data

Commission Regulation (EC) No 1275/2008 Requirement

Mode	Ecodesign requirements, from 7 January 2013	Result - Remark	Verdict
Off mode	Power consumption in ‘off mode’: Power consumption of equipment in any off-mode condition shall not exceed 0.50 W	0	P
Standby mode	Power consumption in ‘standby mode(s)’: The power consumption of equipment in any condition providing only a reactivation function, or providing only a reactivation function and a mere indication of enabled reactivation function, shall not exceed 0.50 W.	/	N/A
	The power consumption of equipment in any condition providing only information or status display, or providing only a combination of reactivation function and information or status display shall not exceed 1.00 W.	0.16	P

Seasonal space heating energy efficiency

Description	Value
Seasonal space heating energy efficiency in active mode- _S,on	40 %
F(1) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency of electric storage local space heaters due to adjusted contributions for options for heat storage and output; and a negative contribution to seasonal space heating efficiency for commercial local space heaters due to adjusted contributions for options for the heat output, expressed in %;	0 %
F(2) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls of indoor heating comfort, the values of which are mutually exclusive, cannot be added to each other, expressed in %;	7 %
F(3) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls for indoor heating comfort the values of which can be added to each other, expressed in %;	1 %
F(4) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by auxiliary electricity consumption, expressed in %;	0 %
F(5) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by energy consumption of a permanent pilot flame, expressed in %.	0 %
Seasonal space heating energy efficiency- _S	38 %
Verdict	P

Information requirement for electric local space heaters

Model identifier(s): SPH01-10E / Art.No: 36-7866
Item Symbol Value Unit	Item
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output P	nom	1	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption	--- --- ---	fan assisted heat		output No
At nominal heat output	el_max	N/A kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW		single stage heat output and no room temperature control	No
In standby mode e/	SB	0.00016 kW		Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	Yes
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details	CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Test Data

Commission Regulation (EC) No 1275/2008 Requirement

Mode	Ecodesign requirements, from 7 January 2013	Result - Remark	Verdict
Off mode	Power consumption in ‘off mode’: Power consumption of equipment in any off-mode condition shall not exceed 0.50 W	0	P
Standby mode	Power consumption in ‘standby mode(s)’: The power consumption of equipment in any condition providing only a reactivation function, or providing only a reactivation function and a mere indication of enabled reactivation function, shall not exceed 0.50 W.	/	N/A
	The power consumption of equipment in any condition providing only information or status display, or providing only a combination of reactivation function and information or status display shall not exceed 1.00 W.	0.16	P

Seasonal space heating energy efficiency

Description	Value
Seasonal space heating energy efficiency in active mode- _S,on	40 %
F(1) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency of electric storage local space heaters due to adjusted contributions for options for heat storage and output; and a negative contribution to seasonal space heating efficiency for commercial local space heaters due to adjusted contributions for options for the heat output, expressed in %;	0 %
F(2) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls of indoor heating comfort, the values of which are mutually exclusive, cannot be added to each other, expressed in %;	7 %
F(3) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls for indoor heating comfort the values of which can be added to each other, expressed in %;	1 %
F(4) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by auxiliary electricity consumption, expressed in %;	0 %
F(5) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by energy consumption of a permanent pilot flame, expressed in %.	0 %
Seasonal space heating energy efficiency- _S	38 %
Verdict	P

Panelelement 230 V

Art.nr 36-7864, 36-7866 Modell SPH01-04E, SPH01-10E

Technical line drawing of a mechanical bracket with mounting feet and side fasteners (no text or symbols)

Diagram of a mechanical or structural system with two circular components and directional arrows, no text or symbols present.

Användning

Line drawing of a hand pressing a button on a device panel (no text or symbols)

Line drawing of a vacuum cleaner with attached arm and handle, showing mechanical components (no text or symbols)

Avfallshantering

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 230 V AC, 50/60 Hz

Effekt 36-7864 400 W

36-7866 1000 W

Kapslingsklass IP24

Nätkabellängd 1,2 m

Technical line drawing of a mechanical bracket with mounting feet and side fasteners (no text or symbols)

Diagram of a mechanical or structural system with two circular components and directional arrows, no text or symbols present.

Bruk

Line drawing of a hand pressing a button on a device panel (no text or symbols)

Still inn aktuell tid

Dag Timer Minutter

Antifrost-innstilling

Line drawing of a vacuum cleaner with attached electrical connector (no text or symbols)

Avfallshändtering

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a solid black rectangle below (no text or labels)

Spesifikasjoner

Nettspenning 230 V AC, 50/60 Hz

Effekt 36-7864 400 W

36-7866 1000 W

Kapslingsklasse IP24

Kabellengde 1,2 m

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Diagram of a mechanical or structural system with two circular components and directional arrows, no text or symbols present.

Käyttö

Line drawing of a hand pressing a button on a device panel (no text or symbols)

Aseta aika

Line drawing of a vacuum cleaner with a handle and attached blade, showing no text or symbols

Kierrättäminen

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Gebrauch

Line drawing of a hand pressing a button on a device panel (no text or symbols)

Line drawing of a vacuum cleaner with attached device (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technische Daten

POSTAL 10 – 13 Market Place

Kingston upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND

KUNDENSERVICE Hotline: [phone]

E-Mail: [e-mail]

HOMEPAGE

www.clasohlson.de

POSTANSCHRIFT
