Dobble PH21 - Cooker Eldom - Free user manual and instructions

Product Type	Electric Ceramic Cooker
Brand	Eldom
Model	Dobble PH21
Power	2000W
Voltage	230V ~ 50Hz
Number of Plates	2
Plate Type	Ceramic with infrared lamp
Temperature Control	2 rotary thermostats, smooth adjustment (1-3 low, 4-5 high)
Indicator Lights	Yes, for each plate
Cooking Functions	Cooking, frying, reheating
Safety Features	Hot surface warning, requires grounded outlet, keep away from flammable materials
Cleaning and Maintenance	Wipe with soft damp cloth after cooling; no abrasive cleaners; do not immerse
Recommended Cookware	Flat-bottomed pots and pans, diameter suitable for plate size
Power Supply	Grounded electrical outlet, avoid overloaded circuits
Warranty	Household use only; warranty void for commercial use or misuse
Environmental Disposal	Recyclable; dispose at designated electronic waste collection points
Usage Restrictions	Indoor use only; keep at least 5 cm from walls and flammable items
First Use Smell	Normal; due to heating of insulation and elements

Frequently Asked Questions - Dobble PH21 Eldom

How do I clean the ceramic hob?

Unplug the appliance and allow it to cool completely. Wipe the surfaces with a soft, damp cloth and a mild cleaning agent. Do not use abrasive cleaners or immerse the cooker in water.

Can I use metal utensils on the ceramic plates?

It is not recommended as metal utensils may scratch the ceramic surface. Use wooden or heat-resistant plastic utensils to avoid damage.

What type of pans are recommended?

Use pans with flat bottoms and a diameter that fully covers the heating plate. This ensures good contact and efficient heat transfer. Avoid pans that are too small or warped.

Why is there a smell when first using the cooker?

During the first use, a specific odor may be emitted from the heating elements and insulation. This is normal and will disappear after a few uses. Ensure the room is well ventilated.

How do I set the temperature on the Dobble PH21?

Each plate has its own thermostat knob. Turn the knob to the desired setting: 1-3 for low temperature (reheating, simmering) and 4-5 for high temperature (cooking, frying). The control light indicates when the plate is heating.

Can both plates be used simultaneously?

Yes, both plates can be used at the same time. Each is controlled independently by its own thermostat.

What safety precautions should I take while using the cooker?

Always place the cooker on a stable, heat-resistant surface away from flammable materials. Keep at least 5 cm clearance on all sides. Do not leave the appliance unattended while in use, especially near children. Unplug when not in use.

Is the Eldom Dobble PH21 suitable for commercial use?

No, this appliance is intended for household use only. Commercial use will void the warranty and may cause safety hazards.

How should I dispose of the appliance when it fails?

The appliance is made of recyclable materials. Do not dispose of it with household waste. Take it to a designated collection point for electronic and electrical waste to ensure proper recycling.

What should I do if the cooker does not heat up?

Check that the appliance is plugged into a working grounded outlet and that the thermostat is set above the off position. If it still does not heat, the unit may be faulty. Contact Eldom customer support or a qualified technician.

USER MANUAL Dobble PH21 Eldom

Exterior view of a modern electric stove with two glowing red ovens and control knobs (no text or symbols visible)

CERAMICZNA KUCHENKA ELEKTRYCZNA • ELECTRIC COOKER • ELEKTRICKÝ VARIČ • ELEKTROKOCHER • ЭЛЕКТРИЧЕСКАЯ ПЛИТА • KERAMICKÝ ELEKTRICKÝ VARIČ • ELEKTROMOS KERÁMIA FÓZÓLAP COCINA VITROCERÁMICA

Eldom Sp. z o.o.

OBSŁUGA

Please acquaint precisely with whole of this instruction before the blender for the first time.

1. Before operating the appliance, read the user manual thoroughly.
2. Plug in the connecting cable to a grounded electrical outlet
3. Ensure that a limited number of receivers are connected to one current circuit.
4. If an extension cord is used, it should be grounded and placed in a safe manner.
5. The appliance is intended for household use only.
6. Use only in rooms with good ventilation.
7. Keep an eye on the operating appliance, especially when there are children nearby. Before leaving - the room with the appliance, switch it off.
8. If the appliance is not working, unplug it.

9. Before unplugging, set the thermostat (1) in the position "●●●"

10. Do not use in open air.

11. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

12. Make sure that children do not play with the equipment.

13. Never place products directly on the heating plate (2). It poses the risk of serious burning and damage of the appliance.

14. Do not use the appliance near curtains, blinds or other inflammable material.

15. Do not place the appliance in a corner of a room or directly next to the wall. The space of at least 5 cm from the sides of the appliance should be provided.
16. To ensure free and safe access to the appliance, place it at a proper height.
17. The cooker can be only positioned on a level, stable and high-temperature resistant surface. No items of inflammable material can be placed above the appliance.

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

WARRANTY

• only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use,

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely.

• Do not immerse the appliance in water or wash it in a dish-washer machine.
• All surfaces can be cleaned only by wiping them with a soft, damp cloth with the addition of gentle cleaning agents.
• Do not use abrasive agents.

This symbol warns against the high temperature of the surface of the appliance.

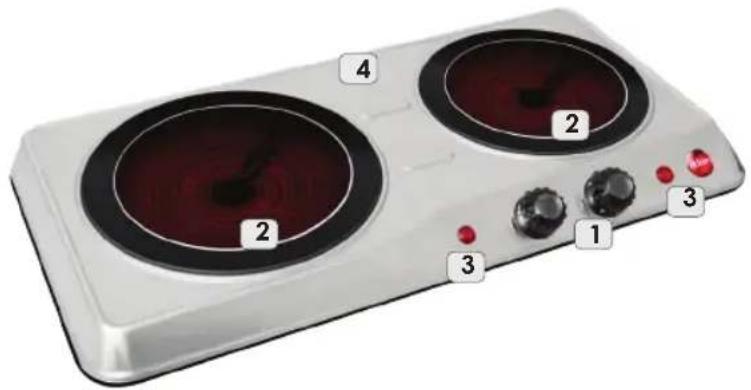

GENERAL DESCRIPTION

1. Thermostats
2. Heating plates
3. Control lights
4. Housing

TECHNICAL DATA

• power: 2000W
• supply voltage: 230V \~ 50Hz

USING THE APPLIANCE

The ceramic cooker allows to prepare food in many different ways (cooking, frying, etc.) The use of infrared lamp in appliance allows to reach rapidly required temperature, which saves time and reduces power consumption.

Before operating and plugging in the appliance, set thermostats (1)

in the position "●●●" (the appliance switched off).

Position the appliance on a level, dry, stable and high-temperature resistant surface. The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm from the sides of the device should be provided.

To ensure free and safe access to the appliance, place it at a proper height.

• plug in the appliance
• place a dish with products on the heating plate (2)
• switch on the appliance selecting the working temperature of the thermostat (1).

Each heating plate (2) is controlled by a separate thermostat (1).

Both plates can be used at the same time.

Thermostat enables smooth adjustment of the temperature.

Settings 1-3 correspond to the lower temperature proper for heating meals.

Settings 4 - 5 - high temperature intended for cooking. Operation of the appliance is signalled by the control light (3).

The operation of the appliance is signalled by control lights (3).

During the first activation of the appliance, a specific smell can be emitted from the heating elements and the insulation. It is a normal occurrence.

In order to ensure safety and high efficiency of the operation, use only dishes with flat bottoms and of a proper diameter which guarantee stability and good contact of the dish with the heating plate
