TKM 2940 K - Coffee maker BEKO - Free user manual and instructions

Product Type	Turkish coffee maker
Brand	Beko
Model	TKM 2940 K
Power	500-600 W
Voltage	220-240 V ~, 50-60 Hz
Current	Max 3 A
Coffee Pot Capacity	Up to 4 cups (65 ml each)
Maximum Level Indicator	Inside coffee pot
Double Sided Pouring Chute	Yes
Start Cooking Button & Status Light	Yes
Coffee-making Detection Sensor	Yes
Coffee Measuring Spoon	Included
Materials	Plastic and metal
Cooking Time (1 person)	1-1.5 minutes
Cooking Time (2 persons)	1.5-2.5 minutes
Cooking Time (3 persons)	2-3.5 minutes
Cooking Time (4 persons)	3-4 minutes
Automatic Shut-off	After cooking cycle
Cleaning	Wipe with dry cloth; descaling with citric acid
Safety Features	Overheat protection, automatic shut-off
Included Accessories	Coffee pot, measuring spoon
Weight	Approximately 1.2 kg

Frequently Asked Questions - TKM 2940 K BEKO

How to make Turkish coffee with this machine?

Add water, coffee, and sugar to the pot (max level). Place the pot correctly on the base. Press the start button. When done, pour immediately to avoid over-extraction.

Why does the coffee maker not start?

Ensure the coffee pot is properly seated on the base. The detection sensor prevents operation if not placed correctly.

Can I use pre-ground coffee?

Yes, use fine grind fresh coffee suitable for Turkish coffee. The provided measuring spoon helps with dosage.

How to clean the coffee maker?

Unplug and let cool. Wipe exterior with dry cloth. Do not immerse in water. For descaling, use citric acid solution.

How to descale the coffee maker?

Mix one dessert spoon of citric acid with boiling water in the pot, wait 10 minutes, then rinse thoroughly. Regular descaling prevents limescale buildup.

Is the coffee pot dishwasher safe?

No, never wash the coffee pot in a dishwasher. Hand wash only.

What is the maximum capacity?

Up to 4 cups (each 65 ml). Do not exceed the maximum level indicator inside the pot.

Can I use Turkish coffee with sugar?

Yes, add sugar according to taste. Recommended: use sugar cubes for easy adjustment.

What should I do if coffee overflows?

Check if you exceeded the maximum level. Also ensure the pot is clean and the pouring chute is not blocked.

How to cancel cooking mid-cycle?

Press and hold the start cooking button for 3 seconds to cancel.

USER MANUAL TKM 2940 K BEKO

Turkish Coffee Machine

User Manual

Simple line drawing of a coffee cup on a saucer (no text or symbols)

TKM 2940 K

EN - DE - RO - UA - SR - EL - RU - AR

CONTENTS

ENGLISH 06-19

DEUTSCH 20-34

ROMÂNĂ 35-50

УКРАЇНСЬКА 51-65

СРПСКИ 66-79

ΕΛΛΗΝΙΚΑ 80-95

РУССКИЙ 96-114

EN	FIRST USE OPERATION	CLEANING AND CARE
DE	VORBEREITUNG BETRIEB	B REINIGUNG UND PFLEGE
RO	PRIMA UTILIZARE OPERA	AREA CURĂ AREA ȘI ÎNGRIJIREA
UA	ПРИГОТУВАННЯ РЕЖИМ	РОБОТИ ОЧИЩЕННЯ
SR	PRVA UPOTREBA RUKO	VANJE ČIŠĆENJE I ODRŽAV	ANJE
EL	ПРОТН ХРНЗН ЛЕІТОУРГІА КАӨАРІЗМОЗ КАІ		ФРОНТИДА
RU	ПЕРВОЕ ВКЛЮЧЕНИЕ ЭКСПЛУАТАЦИЯ ОЧИСТКА И УХОД

Illustration of a coffee maker with a red upward arrow emerging from an open box (no text or symbols)

Line drawing of a hand cleaning a small mechanical device with a cloth (no text or symbols)

Illustration of two kitchen water purifiers: one with a faucet spraying water, the other with a hand cleaning it (no text or symbols)

Illustration of a pitcher pouring liquid from a ladle into a container with a spoon (no text or symbols)

Line drawing of a mechanical device with a spool and handle (no text or symbols)

Illustration of a coffee maker with a steaming cup and a checkmark (no text or symbols)

Line drawing of a mechanical component with a flanged base and central hub (no text or symbols)

Illustration showing a hand cleaning a cup of water from a faucet (no text or symbols)

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Warning for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

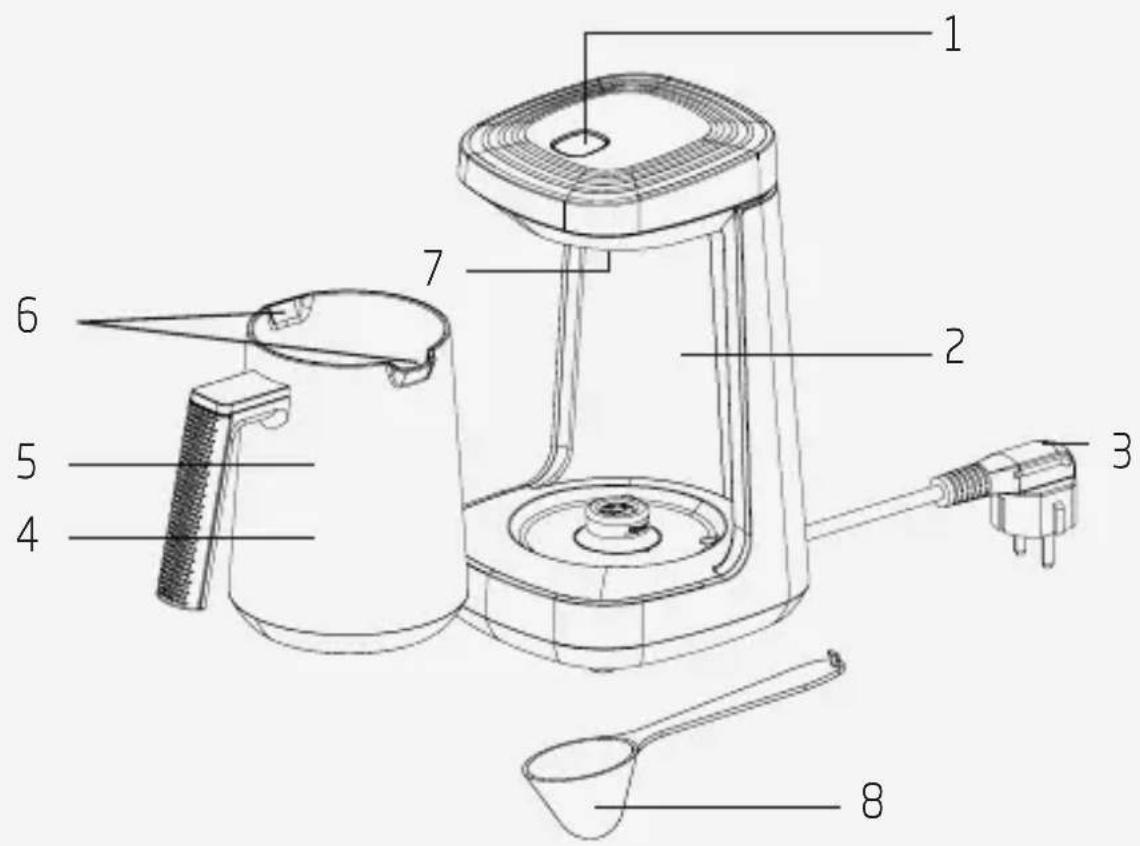

1. Start cooking button and status light

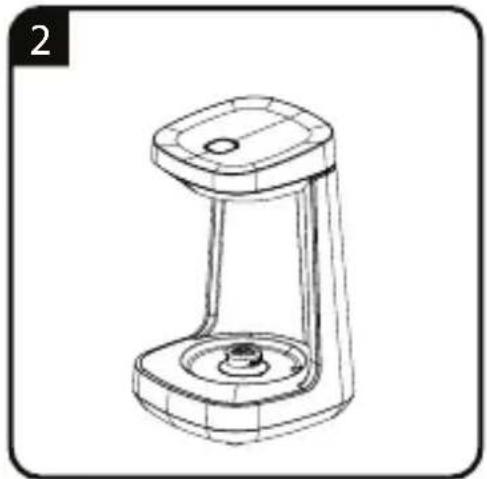

2. Coffee pot base
3. Power cable
4. Coffee pot
5. Maximum level indicator (Inside the coffee-making pot)
6. Double sided pouring chute
7. Coffee-making detection sensor
8. Coffee measuring spoon

Technical data

Current: Max 3A

Power: 500-600 W

Voltage: 220-240 VAC \~, 50-60 Hz

Technical and design modifications reserved!

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• Do not use the appliance outdoors and in the bathroom.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle or separate the mounted parts of the appliance.
• Only use the original parts or parts recommended by the manufacturer.
  • Always use the appliance on a stable, flat, clean, dry and non-slip surface.
• Do not start to cook coffee without putting water into the coffee pot.

1 Important safety and environmental instructions

• Do not put any substances apart from coffee, sugar and water into the coffee pot.
• Do not drink the cooked coffee using the coffee pot.
• Due to the manufacturing technology, steam and odour may arise at the heating element of your product during initial use. It is normal. They will disappear after a few cycles.
• Do not move the appliance when it is still hot or when there is liquid inside the coffee pot.
• Avoid contacting the hot surfaces. Hold the coffee pot only by its handle; otherwise there is the risk of burning. Coffee pot gets hot during cooking.
• The base (heating surface) on which the coffee pot is placed gets hot during operation. Therefore, do not touch this area while using and until the appliance gets cold.
• Ensure that the appliance is switched off before moving it.
• For additional protection, this appliance should be connected to a household current fault protection circuit breaker of no more than 30 mA.

1 Important safety and environmental instructions

• Connect the appliance to a shockproof socket that has the correct fuse.
• Do not use it if the power cable or the appliance itself is damaged.
• Do not use the appliance with an extension cord.
• Dry the seat of coffee pot before plugging in the appliance and seating the parts.
• Do not immerse the appliance, power cord, or power plug in water or any other liquids.
• Do not touch the appliance or its plug with damp or wet hands.
• Position the appliance in such a way that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance if any failure occurs.

1 Important safety and environmental instructions

• Unplug the appliance before cleaning it and never clean it when it is in use.
• Do not pull the power cable of the appliance to unplug the appliance from the outlet and do not wrap its power cable around the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance in or near to combustible or inflammable places and materials.
• Do not use the appliance next or close to the heat resources (hob, grill, heater core, stove and etc.).
• Keep the appliance away from steam resources and avoid using it in environments containing excessive steam.
• Do not use the coffee pot with any other heater (hob and etc.) apart from the appliance.
• This appliance is intended to be used in household only. It is not designed for professional use in:
• staff kitchen areas in shops, offices and other working environments;

1 Important safety and environmental instructions

• farm houses;
• by clients in hotels, motels, and other residential type environment

• bed and breakfast type en vironment.

• Do not use the appliance for anything other than its intended use.

• This appliance can only be used to cook coffee.
• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.
• This appliance may be used by children who are at the age of 8 or over and the people whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance.
• Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.

1 Important safety and environmental instructions

• If you keep the package material keep it away from children.
• Make sure the appliance is kept in a place out of reach of children.
• Appliance is not built-in coffee-makers and is not designed use in cabinet. The coffee maker shall not be place in a cabinet when in use.

1.2 Compliance with the WEEE Directive and disposal of waste products

This product does not include harmful and prohibited materials specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. Complies with the WEEE Regulation. This appliance has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the appliance with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Help protect the environment and natural resources by recycling used products.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1 Important safety and environmental instructions

1.4 Package information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authoriti-

es.

2 Operation

2.1 Cooking

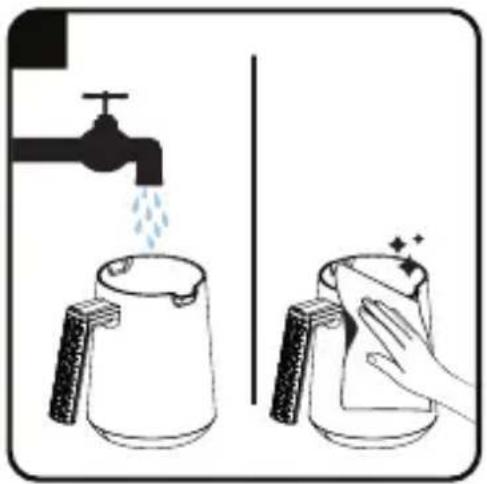

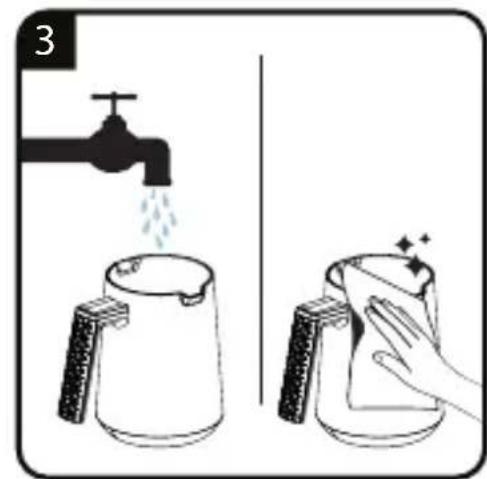

Before adding coffee, rinse at least four times with clean water.

To obtain a tasty coffee, make sure that the inside of the coffee-making reservoir is dry and clean.

If you notice agglomeration or dry coffee at the surface, it is recommended to stir the coffee mixture with a plastic or wooden spoon (do not use metal spoon) before starting to make the coffee.

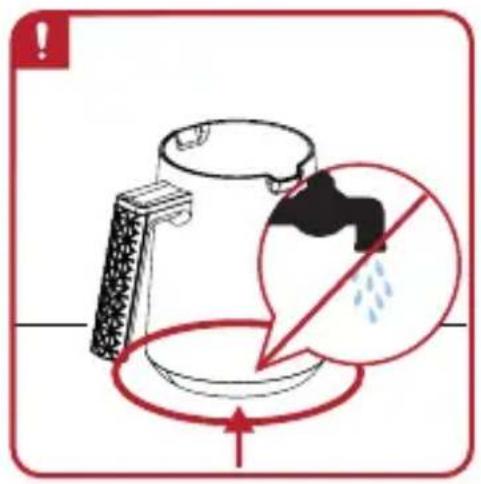

Make sure that there are no water drops underneath the coffee-making reservoir when preparing the coffee. Otherwise, an annoying noise will arise when the water drops get into contact with the hot base.

WARNING: While adding coffee, sugar and water, do not exceed the maximum level (5) line inside the coffee-making pot (4).

WARNING: Do not put any other object other than the provided spoon or wooden spoon into the pot.

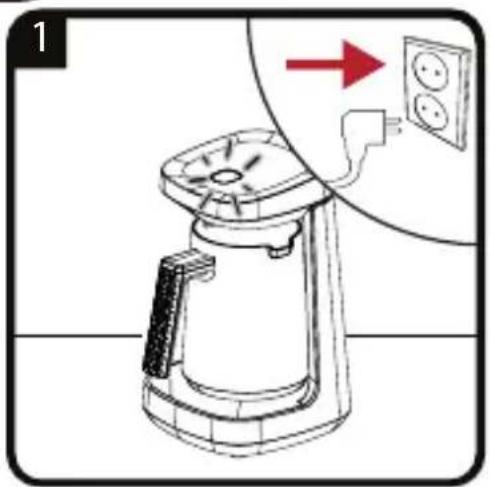

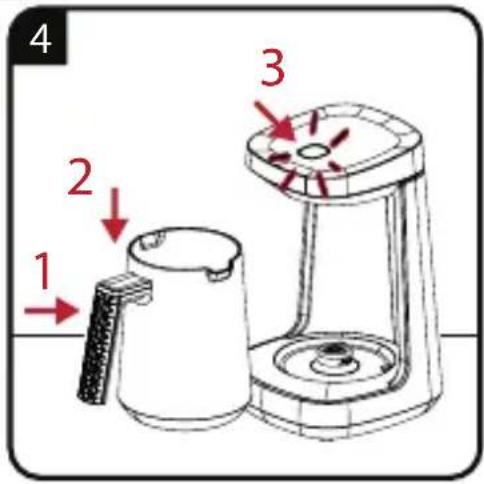

WARNING: Appliance will not start unless you place the coffee pot properly onto its seat.

2 Operation

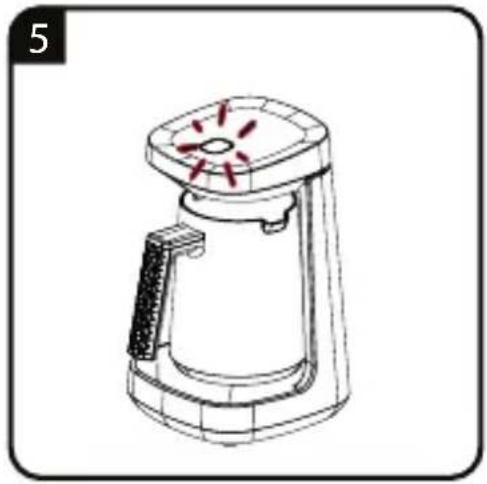

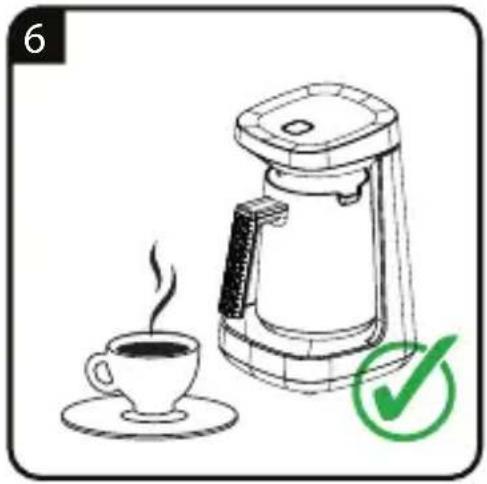

Cooking time is 1-1.5 min. for 1 person., 1.5-2.5 min. for 2 persons and 2-3.5 min. for 3 persons, 3-4 min. for 4 persons.

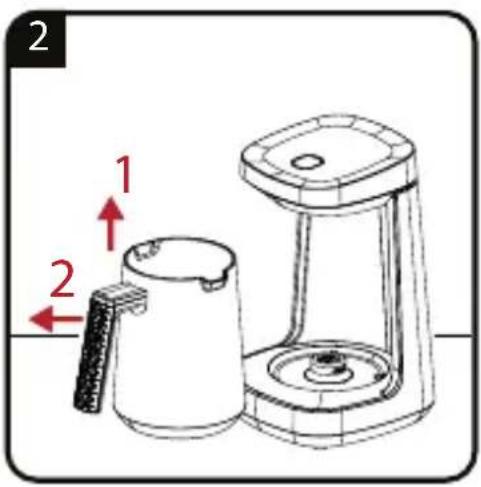

For a tasty coffee, take the coffee pot (4) from the coffee pot base (2) without waiting!

Pour coffee swiftly in order to ensure the foam and grounds are fully transferred to the coffee pot.

Keep the start cooking button (1) pressed for 3 sec. to cancel cooking coffee for any reason.

2 Operation

2.2 Quantities

This is an easy-to-use appliance designed to cook coffee. You can cook foamy coffee that suits to your tastes by using the quantities in the table. Following quantities are provided only for information purposes. You can adjust them as per your personal tastes.

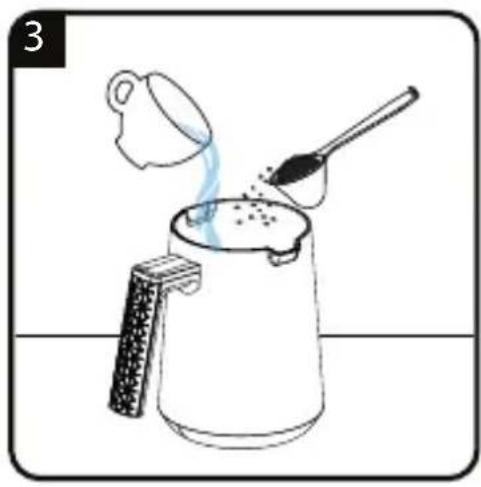

• Add sufficient coffee for one, two, three or four persons by using the measuring spoon, desired amount of sugar and required amount of water for your cup size (recommended cup size is 65 ml) into the coffee-making reservoir.
• These amounts are for a one-serving medium cup. You can use the measuring spoon provided with the product for measuring the amount of coffee. For a foamy, delicious coffee, use fine grind fresh coffee suitable for making Turkish coffee.

Recommended quantities of ingredients to prepare coffee
	Plain With	less sugar Medium	With sugar
Coffee 1	measuringspoon	1 measuringspoon	1 measuringspoon	1 measuringspoon
Sugar	-	1/2 lump sugar/1/2 tea spounsugar cube	1 piece of lump sugar/1 tea spounsugar cube	2 pieces of lump sugar/2 tea spounsugar cube

- We recommend you to use sugar cubes to easily adjust the amount of sugar.

3 Cleaning and care

3.1 Cleaning

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

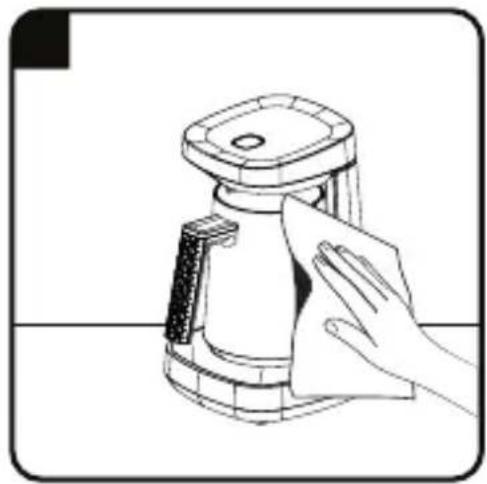

WARNING: Use a dry cloth to wipe the water droplets that appear on the sensor glass after consecutive coffee-making cycles.

WARNING: Never wash the coffee pot (4) in dishwasher.

3.1.2 Descaling

To clean the stains (deposits) that might appear in the coffee-making reservoir in time without harming the inner base surface, pour one dessert spoon of citric acid crystals to the coffee-making reservoir and pour boiling water on it, so that water fills 1/3 of the pot. Wait for 10 minutes. At the end of the waiting process, you can rinse the coffee-making reservoir (4) and use it again.

WARNING: If you do not perform the descaling process for a long time, the base of the water reservoir of the appliance gets covered with lime and becomes inoperable.

3 Cleaning and care

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.

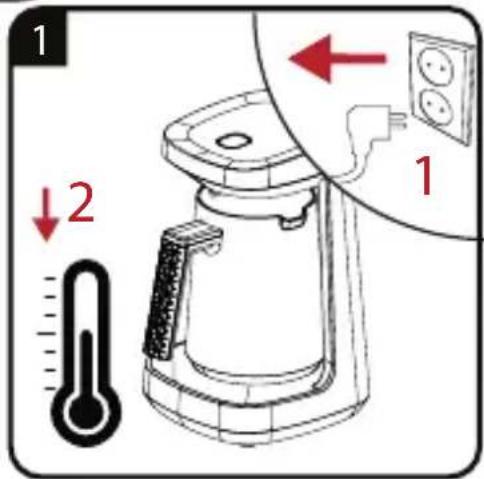

• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

3.3 Handling and transportation

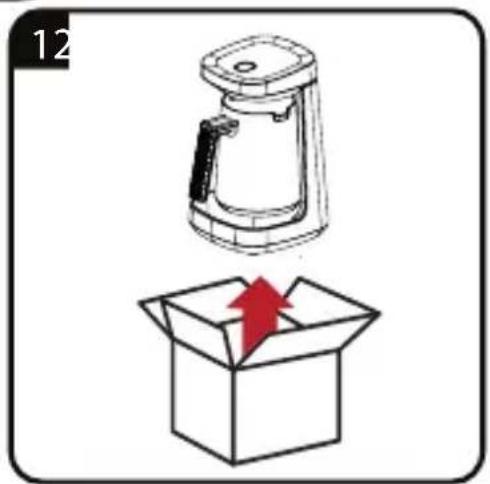

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it nonoperational or cause permanent damage.
