Product Type	Built-in Fridge-Freezer (No Frost)
Model	FBCD 355 TNF EDBL
Brand	Fulgor Milano
Overall Height	1778-1781 mm
Overall Width	540 mm
Overall Depth	550 mm
Net Weight	Approx. 70 kg
Power Supply	220-240 V, 50 Hz
Climate Class	N-ST (16-38°C)
Energy Class	A+ (estimated)
Refrigerant	R600a (flammable)
Fridge Capacity	Approx. 220 L (estimated)
Freezer Capacity	Approx. 90 L (estimated)
Freezing Capacity (24h)	2.6 kg
No Frost System	Yes
Chiller Zone Drawer	Adjustable -3°C to +3°C
Temperature Control	Electronic panel: Fridge 2-8°C, Freezer -15 to -25°C
Fast Cooling Function	Yes (auto-off after 24h)
Fast Freezing Function	Yes (auto-off after 24h)
Holiday Mode	Fridge at 17°C, Freezer at -18°C
Eco Mode	Fridge 5°C, Freezer -18°C, Zone 3°C
Door Reversible	Yes
LED Lighting	Yes (12V/10W, replaceable by professional)
Defrosting	Automatic (compulsive defrost available)
Ventilation Requirements	200 cm² intake, 200 cm² exhaust, 30 mm rear gap

Frequently Asked Questions - FBCD 355 TNF EDBL Fulgor Milano

How do I adjust the fridge temperature?

Press the temperature adjustment button on the left part of the control panel to cycle through temperatures from 2°C to 8°C.

What is the Holiday function?

The Holiday function sets the fridge to 17°C and the freezer to -18°C, saving energy while you are away. Press the button to activate.

How do I replace the LED light?

The LED light is not user-replaceable. It requires a professional service. If it fails, contact Customer Care.

How does the defrosting work?

The appliance has a No Frost system, so automatic defrosting occurs. For manual compulsive defrost, press the two buttons ( + ) for 5 seconds. To stop, press them again for 5 seconds.

What should I do if the appliance beeps?

The beeping indicates a door open alarm. Check if the doors are closed properly. If the alarm persists after closing, contact support.

Can I install the refrigerator myself?

Yes, but we recommend two people for handling. Follow the installation instructions carefully, especially regarding ventilation and door reversal.

How do I reverse the doors?

Remove the upper hinge cover and hinge, upper door, middle hinge and pin, bottom door, and bottom hinge. Then reinstall them on the opposite side using the provided plugs and covers. Use a hair dryer to adjust the seal if needed.

What is the Chiller Zone drawer?

The My Zone drawer can be set from -3°C to +3°C, ideal for storing meat and fish. Press the button to adjust; press and hold for 3 seconds to turn off.

How do I clean the refrigerator?

Disconnect the power. Clean with a solution of bicarbonate of soda and lukewarm water. Do not use abrasives or detergents. Clean shelves separately by hand with mild soap.

Why is ice forming on the back wall of the fridge?

Some ice droplets on the back wall are normal. Ensure items do not touch the back wall. If excessive, check the door seal for kinks or damage.

USER MANUAL FBCD 355 TNF EDBL Fulgor Milano

Simple geometric diagram with two vertical lines inside a larger rectangle (no text or symbols)

FBCD 355 TNF EDBL

FBCD 701 TNF EDBL

FRIGORIFERI

FRIDGE

RÉFRIGÉRATEUR

FRIGORÍFICO

FRIGORÍFICO

LODÓWKA

Warning symbol of a flame inside a triangle (no text or numbers)

Rischio d'incendio / materiali infiammabili

Cassetto Chiller Zone

Line drawing of a refrigerator with two doors and a side shelf, showing height dimension (no text or symbols)

4

Technical line drawing of a vertical cabinet with internal components and directional arrows (no text or symbols)

2

Pure mechanical diagram showing a lever mechanism with no text or symbols

Simple line drawing of a two-tiered rectangular frame with vertical arrows indicating direction (no text or symbols)

4

Technical line drawing of a rectangular electronic component with mounting brackets and a handle (no text or symbols)

6

Line drawing of a cabinet with doors and a shelf, showing internal components and directional arrows (no text or symbols)

2

Simple line drawing of a cabinet with an open door and a triangular support (no text or symbols)

3

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a roof structure with a triangular roof and an arrow indicating direction (no text or symbols)

Line drawing of a monitor with buttons and directional arrows indicating movement (no text or symbols)

Line drawing of a computer monitor with a base and scroll, showing no text or symbols

SUMMARY PAGE

1 - Safety information 2

Scrapping old appliances 3

Conformity 3

Energy Saving 3

2 - Before first use 4

3 - Use 5

Fridge use 5

Freezer use 5

My Zone drawer humidity adjustment 5

4 - Storage 6

5 - Control panel 7

LED light replacement instructions 8

Care and Cleaning 8

Defrosting 8

6 - Troubleshooting 9

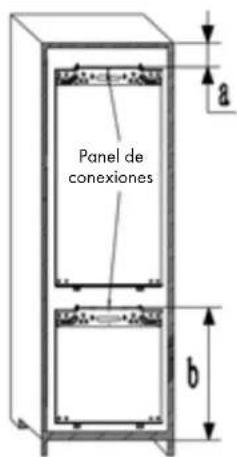

7 - Installation preparation 10

Ventilation 10

8 - Installation Instruction 13

Installation Instruction (sliding hinge) 13

Mounting the fascia doors 14

Installation Instruction (FIX hinge) 15

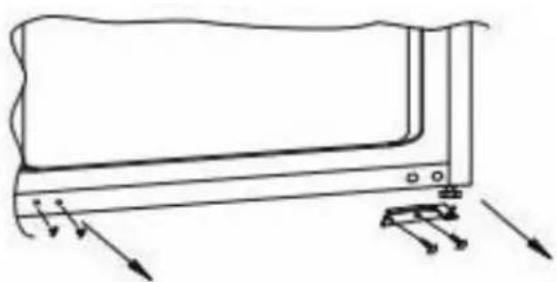

Reversing the appliance doors 16

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners.

This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clients of hotels, motels and other environments of a residential type
  • at bed and breakfasts (B&B)
  • for catering services and similar applications not for retail sale

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

WARNING

Warning symbol of a flame inside a triangle (no text or numbers)

Risk of fire / flammable materials

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• Do not damage the refrigerant circuit
• Do not use electrical appliances inside the food storage compartments of the
• appliance, unless they are of the type recommended by the manufacturer
• When positioning the appliance, ensure the supply cord is not trapped or damaged
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• catering and similar non-retail applications.

Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas.

If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

- To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Energy saving

For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

You must allow the fridge to settle for at least four hours prior to switching the power on.

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start 5°C for fridge and -18°C for freezer and work continuously until it comes down to the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.

Fridge use

• Never put liquids in the refrigerator uncovered.
- Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
- Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
- Make sure food is clean and any extra water is wiped away before putting into the fridge.
- Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
- Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
- Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
- Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
- Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Freezer use

• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date.
• Store food in small packages (ideally less than 1kg). This reduces the freezing time and improves the quality of the food after thawing.
• Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
• Bottled or canned drinks should not be stored in the freezer compartments as they could explode.
• The maximum amount of fresh food that can be frozen within a 24 hour period is 2.6kg.
• Do not attempt to freeze more than the maximum amount.

Chiller Zone drawer

- The temperature inside the My Zone drawer can be regulated from +3°C to -3°C. This is the ideal drawer to store meat and fish.

The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

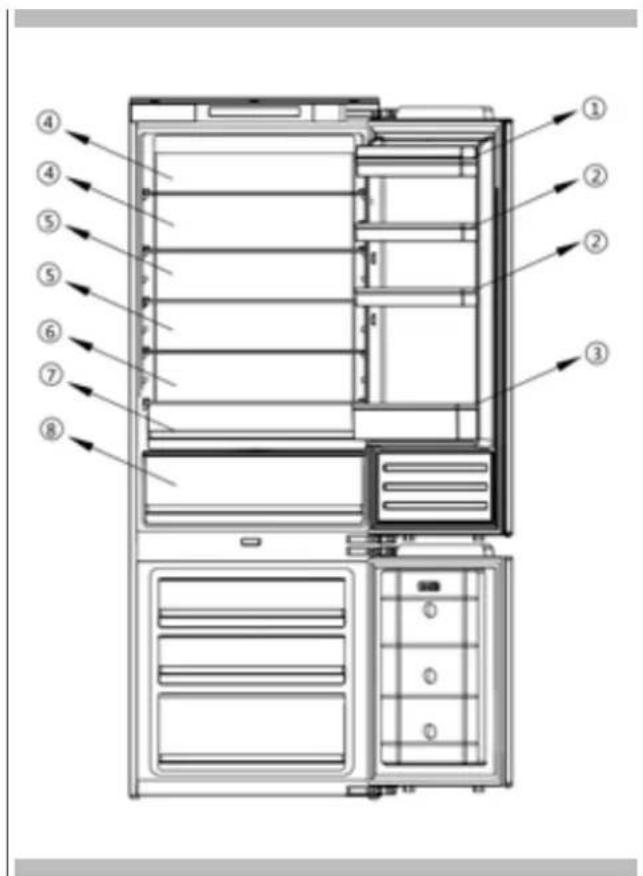

As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.

1. Butter, cheeses etc.
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yogurts, preserves etc.
6. 75cl bottles or ready meals etc.
7. Fruit and vegetables
8. Fresh meat and fish/fruit and vegetables

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.

To replace, slide the shelf back into the slot, and then lower the rear section.

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

Row of eight white icons on black background, including water drop, sun, thermometer, blank rectangle, alarm, weather icon, snowflake, and power button (no text or symbols)

1. First time of switching on the appliance, this appliance always works at settings: 5 C for fridge, Zone and -18°C for freezer. If you want temperature or functions manually, press the button to conduct the operations. Temperature ranges of adapt zone from -3°C to 3°C.

2. Fridge temperature adjustment: press button ⚠ on left part of control panel to achieve different temperatures from 2°C to 8°C.

3. Freezer temperature adjustment: press button on right part of control panel to achieve different temperatures from -15°C to -25°C.

4. Chiller Zone drawer adjustment function: this button controls temperature. By pressing on this button, the digit will go from -3° to +3°. This function can be on/off by continuously pressing for three seconds (shows OFF).

5. Fast cooling function : press button 🔒, light of button illumines and fast cooling function is turned on, fridge starts to work automatically at temperature setting and quits after 24 hours, light of symbol eliminates.

6. Holiday function: press button, light of button illumines, holiday function is turned on and whole appliance starts to work automatically at settings: fridge at 17°C and freezer at -18°C.

7. Eco function : press button 📋 on control panel, eco function is turned on and button illuminates, fridge compartment works at setting 5°C and compartment works at setting of -18°C. The adapt zone works at setting of 3°C.

8. Fast freezing function: press button ✪, light of button illumines and freezer start to work at fast freezing function, temperature setting -25°C. After 24 hours, fast freezing function quits automatically.

9. Press button for 3 seconds to switch off your appliance and the button illumines, power is cut off. Internal lamps eliminate, compressor stops working. Press the button for 3 seconds to switch on your appliance, the symbol illumined and power is connected again

10. On the no frost models, there is a function: compulsive defrosting. Press the buttons 🎨 + 🎨 r 5 seconds to switch on the compulsive defrosting function to clean the freezer evaporator and digitals of freezer temperature shine. Press the button 🎨 + 🎨 seconds to switch off the compulsive defrosting function, and the digitals of freezer temperature eliminate.

11.Fault display

This appliance has 'fault display & alarm' function. Once 0 C the consenMys got fault, there are alarms displayed on the to temperaturedisplaying, the appliance still cools but professional service engineer should be called and check the appliance

F2 - Sensor of adapt zone

F3 - Sensor of fridge apartment

F4 - Sensor of freezer compartment

F5 - Sensor of defrosting

2E - Fault of fan/motor in freezer

CE- Communication fault between main panel and display panel.

The above Errors only show on display, no voice:

Over temperature alarm in freezer: after freezer temperature arrives at the set temperature, after that, if the temperature rises to > -1°C, the alarm will start, accompany with flash of freezer temperature digit. Press any button to cancel the voice alarm. The flash will remain until the temperature is <-1°C.

2°C PS: Main board locates in compressor compartment

Position	Conditions
5°C/-18°C	Summer or ambient temperature between 25-35°C
5°C/-18°C	Spring, autumn or ambient temperature between 15-25°C
5°C/-18°C	Winter or ambient temperature between 5-15°C
Super freezing function Quick freeze
Super cooling function Super cooling

LED light replacement instructions

Note: the LED light is set to be non replaceable by the user and needs to be replaced by professionals.

Lighting parameters: 12V / 10W

1. Unplug the power plug.
2. Remove the aluminum alloy trim strip on the top of the LED surface light source, and then remove the left and right fixing screws.

Steps 1 and 2 are shown below.

1. Replace the spare LED light board.
2. Replace the aluminum alloy trim strip in turn.

Care and Cleaning

Always disconnect the appliance from the power supply before any cleaning or maintenance.

The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.

Clean the shelves and balconies separately by hand with a mild solution of washing up liquid and water. Do not put them in the dishwasher.

If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odors.

Defrosting

The product has a no frost system which is designed to prevent the heavy build up of ice. Under normal use, there should be no need to regularly defrost the freezer system.

Please note: If you are regularly finding a heavy build up of ice, or pools of water, in the freezer section then it is likely that the door is not sealing properly. This could be due to a defective door seal or an incorrectly fitted, or overly heavy, decor door. For more information see the troubleshooting section about ice.

If you have any problems with your appliance, you should check the troubleshooting prior to calling Customer Care.

If the appliance is not working, check:

• That there is power to the appliance.
- The house fuses are intact and the fuse in the plug has not blown.
• The fridge has not been turned off.
- The plug socket is functioning fine. To check this, plug another electrical appliance in to see if the socket is faulty.

If the appliance is working, but not very well, check:

• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The doors are closing properly.
- The cooling system at the rear of the appliance is clean and free of dust, and not touching the rear wall.
• There is enough ventilation at the side and rear walls

If the appliance is noisy, check:

• The appliance is level and stable.
- The side and rear walls are clear, and there is nothing resting on the appliance.
- Note: The cooling gas in the refrigerator may make a slight bubbling or gurgling noise, even when the compressor is not running

If the appliance is beeping, check:

- That the doors are closed. An alarm will sound after 60 seconds of a door being open.

If ice has formed on the back wall of the fridge:

• It is normal for some ice droplets to form on the back wall of the fridge. This does not constitute a fault with the appliance
• Ensure that no items inside the fridge are in contact with the back wall.
• Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If you are at all unsure, ask your fitter to check the décor doors.

If excessive ice has formed in the freezer:

• Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If you are at all unsure, ask your fitter to check the decor doors.

If one or more of the LED units within the appliance is not working:

- Contact Customer Care to arrange a service visit

This appliance must never be installed close to heat sources, e.g. heating elements or cookers, nor in damp places.

Seek the help of another individual, or two, when installing this appliance. This appliance may have sharp edges. Wear adequate PPE for the task and environment

• To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance.
• The cooling system at the rear of the appliance must not touch the rear wall. The greater the gap, the better.
• The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Ventilation

The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive power consumption, total system failure and may invalidate the warranty provided with the appliance. For products intended to be installed into a tall housing unit, the following requirements need to be met:

FBCD 355 TNF EDBL FBCD 701 TNF EDBL

An air intake should be provided somewhere in the cabinet run to allow free air in. In this example a plinth vent is shown underneath the refrigerator.

A cutout should be made in the plinth below the fridge/freezer and this finished neatly using the air vent grille.

Alternatively a thin section of the plinth can be removed to allow air into the unit (recommended 600mm x 10mm)

The top of the cabinet needs to be vented into the room.

Recommended size of vent opening: 50-0 it 30mm.

If the furniture does not allow free air into the room then a plinth vent, or other means of ventilation needs to be provided to ensure a natural flow of air.

There should be space at the rear of the cabinet to allow cool air to be drawn over the condenser.

Recommended: 500 x 35mm

plan view of rear ventilation gap

The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units.

A ventilation hole is required in the plinth of the unit; this allows air to be drawn over the compressor & heat exchange.

As a rule, the more air that can get in and out, the better and more efficient the operation of the product.

Installation Instruction (sliding hinge)

With the help of another individual, or two, move the appliance into the cabinet. There are two metal plates at the base of the appliance. Fit the supplied white spacers to these plates. Ensure that the lips of the cabinet base.

3

Screw the appliance lower part.

1

Insert the appliance into the column placing it on the opposite site of the hinges, and make sure 3-5 mm distance gap.

Technical line drawing of a refrigerator with height dimension labeled (3.5mm), showing front and side views without any text or symbols beyond measurement lines.

4

Fit the seal to the appliance, cut off the excessive part if necessary. Fit the bottom parts with plastic covers.

Diagram of a vertical shelf or cabinet with directional arrows indicating movement, no text or symbols present.

2

After the match between appliance door and column door, fix the plastic covers from accessories bag.

5

Use a cross-screwdriver to loosen the connecting pin underneath the right middle hinge, and adjust to screw onto the right cabinet wall.

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Mounting the fascia doors

• Ensure that there is a gap of 3 to 4mm between the non-hinged side and the cabinet wall.
• Locate the slider in the bracket and fix the slider to the fascia door 20 to 22mm from the edge of the fascia as shown in following pic., ensuring that the slider is positioned centrally and horizontally within the bracket. Tighten securely by hand.

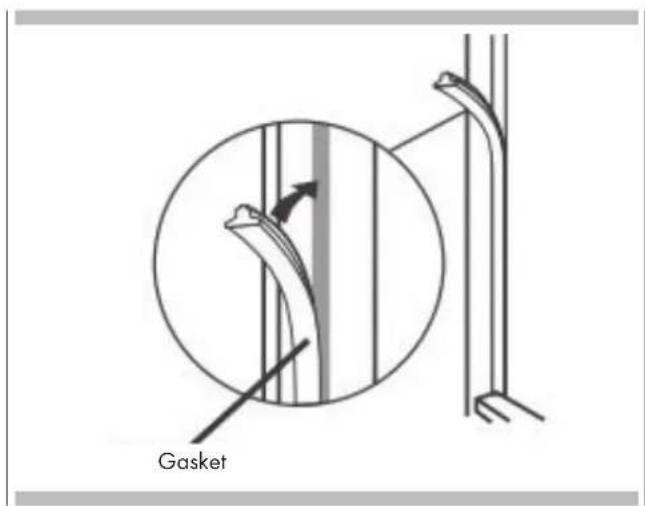

• Fill the gap on the non-hinged side with the gasket/seal strip provided.
• The finished look for the door sliders should be similar to those shown in following pic., which shows 2 sliders in place.

Ensure the appliance doors open, close and seal properly.

Once complete, and if you are happy with the fit of the appliance in the cabinet, bend and snap the parts of the white spacers marked 'S' as shown by the dotted outline. Leave the rest of the spacer cover in place over the metal plates.

IMPORTANT

After completing the installation, check that the appliance is secured within the unit and that the door(s) close and open properly. If there is no resistance from the door seals when opening the doors, then it is probable that the appliance and/or decor doors are not fitted properly.

Installation Instruction (FIX hinge)

Tools & parts
	Spacer for hinge A
	Spacer for hinge B
	Hinge cover
	Cross head screw3,9x12, T203,9x16, T20
	Spanner
	Left cover for control panel-spacer
	Right cover for control panel-spacer
	Decoration stripe

1

Push the appliance into the wooden furniture, the appliance should be better approach furniture left side.

Diagram showing a refrigerator with a handle and a cable being inserted, no text or symbols present

PS: the appliance must be plugged in before installation

2

Adjust the position fo appliance, screw product top and bottom part on the furniture.

PS: Please remove the tail after fixing the bottom part cover.

3

Fix the hinge on furniture by screw, attached the docoration stripe on the product left side.

PS: Fix the hinge on furniture with spacer.

Simple line drawing of a two-story rectangular frame with vertical supports and horizontal arrows indicating dimensions (no text or symbols)

4

Measure the dimension of A and B.

Disassemble the junction panel before measuring.

Diagram of a rectangular electronic device with mounting brackets and a handle, no text or symbols present

5
Fix the junction panel on furniture door.

6
Fix the appliance door on furniture door.

Reversing the appliance doors

We recommend you seek the help of another individual to support the doors whilst performing this operation.

1
Remove the right upper hinge cover and hinge by screw driver.

Line drawing of a cabinet with an open lid and internal components, no text or symbols present

2

Remove the upper door.

Simple line drawing of a cabinet with an open door and a triangular support (no text or symbols)

3
Remove the middle hinge and its connecting pin underneath.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

4
Remove the bottom door.

Simple line drawing of a roof structure with a triangular roof and an arrow indicating direction (no text or symbols)

7
Reassemble the doors and hinges workings from bottom to top, from 1-4.

5
Remove the right bottom hinge and left plastic plugs, and refit them onto the opposite side.

Line drawing of a monitor with buttons and directional arrows indicating movement (no text or symbols)

Ensuring the door seals correctly:

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

6
Assembly the right upper hinge to the left bottom and fit the cover.

Line drawing of a computer monitor with a base and scroll, showing no text or symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Technical line drawing of a refrigerator with two doors and a side shelf, showing height dimension (no text or labels)

4

Technical line drawing of a vertical cabinet with internal components and dimension lines (no text or symbols)

2

Pure mechanical diagram showing a lever mechanism without any text or symbols

Simple line drawing of a two-tiered rectangular frame with vertical supports and horizontal arrows indicating direction (no text or symbols)

Diagram of a rectangular electronic device with mounting bracket and internal components (no text or symbols)

6

Line drawing of a cabinet with an open lid and internal components, no text or symbols present

2

Simple line drawing of a cabinet or enclosure with an arrow indicating direction (no text or symbols)

3

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a roof structure and a triangular roof with an arrow indicating direction (no text or symbols)

Line drawing of a device with arrows indicating motion or force (no text or symbols)

Line drawing of a computer monitor with base mount and control buttons, no text or symbols present

ÍNDICE PÁGINA

Warning symbol of a flame inside a triangle (no text or numbers)

Row of white icons on black background, including phone, water drop, sun, thermometer, blank rectangle, lock, speech bubble, snowflake, and power button (no text or symbols)

Cuidado y limpieza

Technical line drawing of a refrigerator with height dimension labeled (3.5mm), no text or symbols present

2

Diagram of a vertical shelf or cabinet with directional arrows indicating movement, no text or symbols present.

5

Pure mechanical diagram showing a lever mechanism without any text or symbols

Diagram showing two 3D rectangular containers with internal compartments and a separate box, connected by wires (no text or symbols)

Simple line drawing of a two-tiered rectangular frame with a vertical rod on the left side (no text or symbols)

4

Diagram of a flat-panel electronic device with mounting bracket and indicator lights (no text or symbols)

Line drawing of a cabinet with doors and a shelf, showing structural components (no text or symbols)

2

Simple line drawing of a cabinet or enclosure with an arrow indicating motion (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a roof structure with an arrow pointing to a triangular roof (no text or symbols)

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Line drawing of a device with arrows indicating motion or force (no text or symbols)

Inverter as portas dos aparelhos 16

Warning symbol of a flame inside a triangle (no text or numbers)

Pure graphical toolbar icons without any text or symbols

Cuidados e Limpeza

Line drawing of a refrigerator with two doors and a side shelf, showing height dimension (no text or symbols)

4

Diagram of a vertical shelf or cabinet with directional arrows indicating movement, no text or symbols present.

2

Pure mechanical diagram showing a lever mechanism without any text or symbols

Diagram showing two 3D rectangular containers with internal compartments and a coiled spring attached to one (no text or symbols)

Simple line drawing of a two-tiered rectangular frame with vertical arrows indicating dimensions (no text or symbols)

4

Diagram of a rectangular electronic device with mounting brackets and a handle, no text or symbols present

6

Diagram showing two rectangular containers with internal compartments and a coiled cable or wire attached to one (no text or symbols)

Line drawing of a cabinet with an open lid and internal components, no text or symbols present

2

Simple line drawing of a cabinet or storage unit with an arrow indicating motion (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

4
Remover a porta inferior

Simple line drawing of a roof structure and a triangular roof with an arrow indicating direction (no text or symbols)

Line drawing of a device with arrows indicating motion or force (no text or symbols)

Line drawing of a computer monitor with base mount and control buttons, no text or symbols present

SPIS TREŚCI STRONA

Technical line drawing of a refrigerator with height dimension labeled (3.5mm), no other text or symbols present.

4

Technical line drawing of a vertical cabinet with internal components and directional arrows (no text or symbols)

2

Pure mechanical diagram showing a lever mechanism without any text or symbols

Simple line drawing of a two-story cabinet with a vertical rod on the left side (no text or symbols)

Pure technical diagram of a rectangular panel with mounting holes and a handle, no text or symbols present

6

Line drawing of a cabinet with an open lid and internal components, no text or symbols present

2

Line drawing of a kitchen appliance with a door and angled arm (no text or symbols)

3

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a roof structure and a triangular roof with an arrow indicating direction (no text or symbols)

Line drawing of a device with arrows indicating motion or force (no text or symbols)

Line drawing of a computer monitor with base mount and control buttons, no text or symbols present

FULGOR

MILANO

SINCE 1949
