Product Type	Wet/Dry Vacuum Cleaner
Model	HWD 18
Brand	Cocraft
Dimensions (L x W x H)	14.2 x 11.8 x 20.5 inches (36 x 30 x 52 cm)
Weight	11.5 lbs (5.2 kg)
Power Supply	Corded electric, 120V / 60Hz
Power Consumption	1200 W
Tank Capacity	18 liters (4.75 gallons)
Suction Power	20 kPa (max)
Airflow	60 CFM (1.7 m³/min)
Cord Length	16.4 ft (5 m)
Hose Length	6.6 ft (2 m)
Dust Bag Type	Reusable cloth bag or disposable paper bag (not included)
Filter Type	Washable foam filter and pleated paper filter
Noise Level	72 dB(A)
Blower Function	Yes
Accessories Included	Crevice tool, utility nozzle, floor brush, wet nozzle, foam filter
Material	High-impact plastic body, stainless steel tank
Safety Features	Thermal overload protection, double insulation
Maintenance	Clean foam filter after each use; replace paper filter when dirty
Repairability	Spare parts available: filters, hoses, nozzles, accessory kit
Warranty	2 years limited warranty

Frequently Asked Questions - HWD 18 Cocraft

How do I clean the foam filter?

Remove the foam filter and rinse it with lukewarm water. Squeeze out excess water and let it air dry completely before reinstalling. Do not use detergent.

How often should I replace the paper filter?

Replace the paper filter when it appears dirty or clogged, typically every 3-6 months depending on usage. A clean filter ensures optimal suction power.

Can I use the vacuum for wet pickup?

Yes, the Cocraft HWD 18 is a wet/dry vacuum. Remove the dust bag and paper filter before wet pickup, and use the included wet nozzle.

What is the tank capacity?

The tank has a capacity of 18 liters (4.75 gallons).

How do I switch to blower mode?

Connect the hose to the blower port (exhaust) on the vacuum. The blower function can be used to clean hard-to-reach areas or inflate items.

The vacuum loses suction. What should I do?

Check if the tank is full, the filters are clogged, or the hose is blocked. Clean or replace filters as needed. Also ensure the dust bag is not overfilled.

What accessories are included?

The vacuum comes with a crevice tool, utility nozzle, floor brush, wet nozzle, and a foam filter. Additional accessories can be purchased separately.

Is the cord long enough for large rooms?

The power cord is 16.4 feet (5 meters) long, suitable for most rooms. Use an extension cord if needed, with a minimum rating of 14 AWG.

How do I store the vacuum?

Wrap the cord around the cord hooks, attach the hose to the side of the tank, and store accessories in the onboard accessory storage. Keep in a dry place.

Where can I find replacement parts?

Replacement parts such as filters, hoses, and nozzles are available on the Cocraft website or through authorized dealers. Use only genuine parts for safety.

USER MANUAL HWD 18 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Wet and Dry Vacuum Cleaner

Art.no 18-3600 Model VOC1218P

40-9906

VOC1218P

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• This product is only intended for domestic use and only in the manner described in this instruction manual.
• The product should only be connected to a 220–240 V\~, 50/60 Hz outlet equipped with a 30 mA RCD. Check the RCD before each use.
• This product is intended for indoor use only.
• This product should not be exposed to excessive heat such as open flames or other heat sources, prolonged sunlight or moisture.
• Never immerse the product in water or any other type of liquid.
• Never handle the product if your hands are moist or wet.
  • Always grip the plug when unplugging the product, never pull the mains lead.
  • Always unplug the product from the mains if its motor has become wet or damp.
• This product may only be used to vacuum non-hazardous materials and non-flammable liquids.
• Never point the nozzle at yourself, others or animals.
• The product may not be used without a correctly mounted dust bag and filter when dry vacuuming.
• Never use the product if it, its mains lead or plug are damaged in any way.
• The mains lead must be replaced by a qualified electrician if it is damaged in any way.
• Never vacuum up hot ashes or coals. Never use the vacuum to vacuum up glass shards or other sharp objects.
• Do not vacuum toner powder used in printers. This may damage the product and be re-distribute the powder throughout the room.
• Never vacuum asbestos, asbestos dust, hazardous or flammable particulates.
• Never vacuum up petrol, oil, acid or other flammable and hazardous liquids.
• Never vacuum up liquids exceeding 60 °C.
• The product must always be used in a balanced upright position.

• Always unplug the mains lead before cleaning, changing the dust bag, filter or any other accessories.

• Never attempt to repair or modify the product in any way.

• Any repairs should only be carried out by qualified service technicians.
• Never use the product whilst under the influence of drugs, alcohol or medicine. Do not use the product if you are tired or sick.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or qualified persons in order to avoid a hazard.

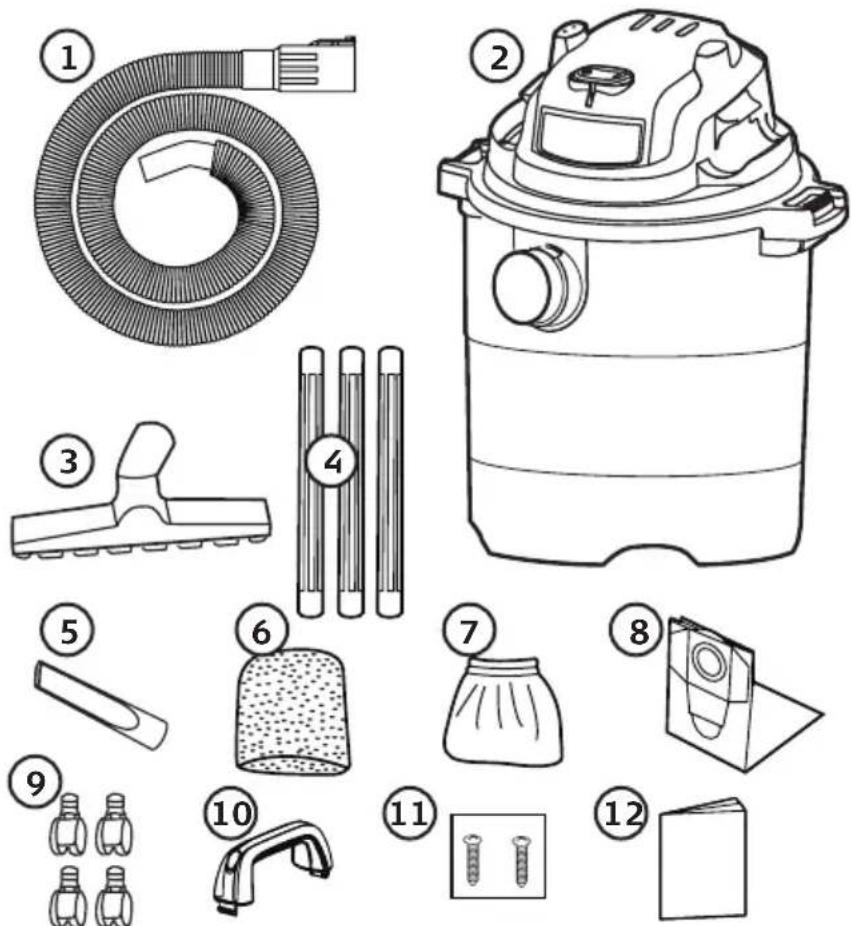

Package contents

1. Suction hose
2. Wet and dry vacuum cleaner
3. Universal floor and carpet nozzle
4. Extension tubes
5. Crevice nozzle for corners and confined spaces
6. Wet vacuuming - foam filter
7. Dry vacuuming - cloth dust filter
8. Dust bag
9. Castors
10. Handle
11. Handle retaining screws
12. Instruction manual

Product description

1. Handle
2. [0/I] Power switch
3. Vacuum port
4. Castors
5. Blower port
6. Motor unit
7. Latch
8. Container

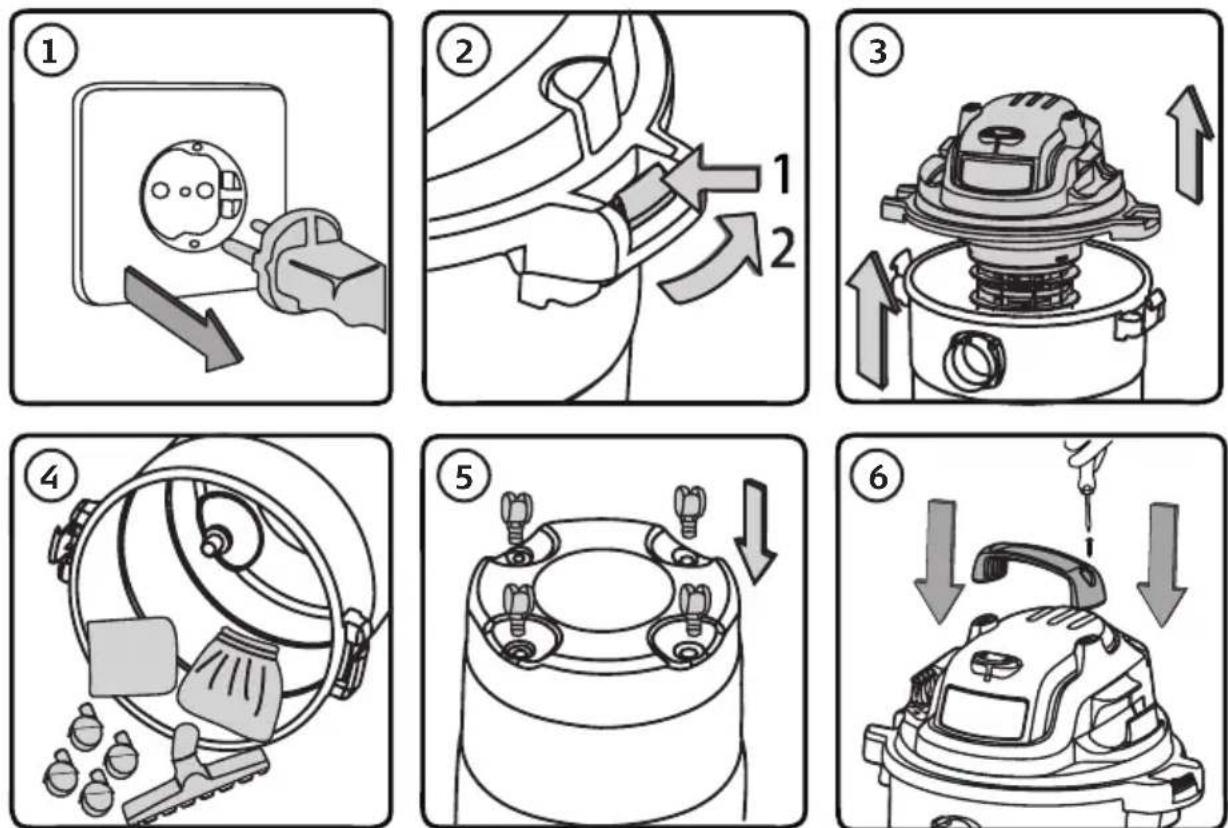

Assembly instructions

1. Make sure that the vacuum is unplugged from the mains.
2. Open the latch.

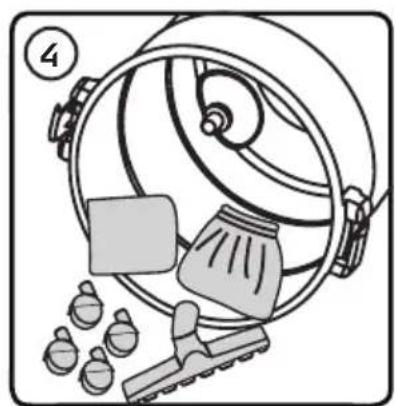

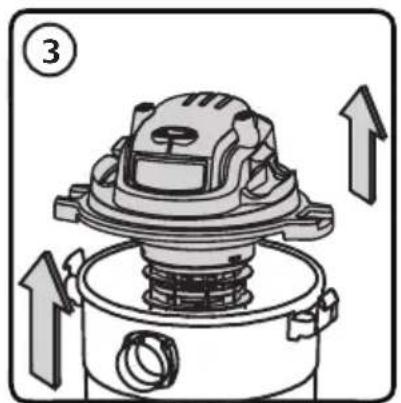

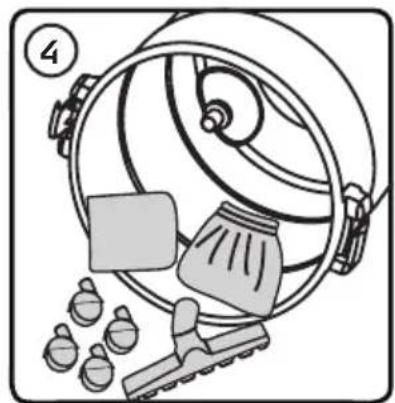

3. Lift up the motor unit and remove the accessories from the container.
4. Check that all the parts are intact and that nothing is missing.

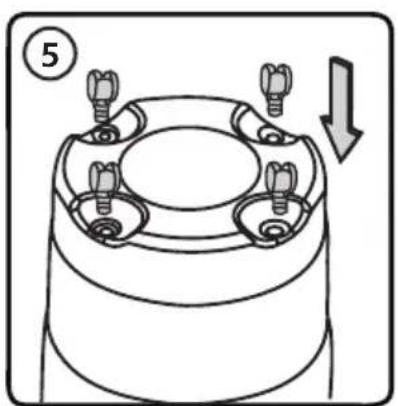

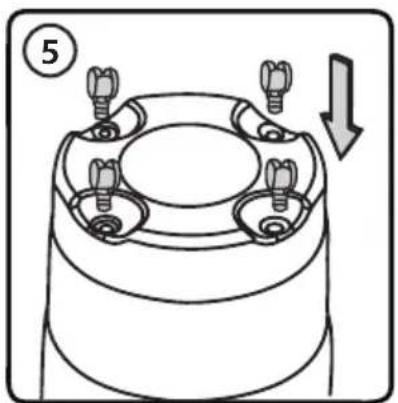

5. Press the castors in securely into the underside of the container.

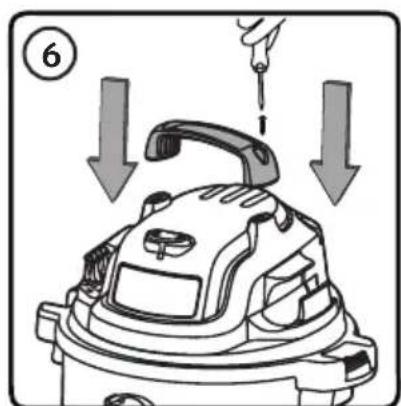

6. Place the handle into position and fasten it with two supplied retaining screws.

Operating instructions

Note:

The cloth dust filter and dust bag must be used for dry vacuuming. The cloth dust filter and dust bag must first be removed and the foam filter fitted, before beginning any type of wet vacuuming.

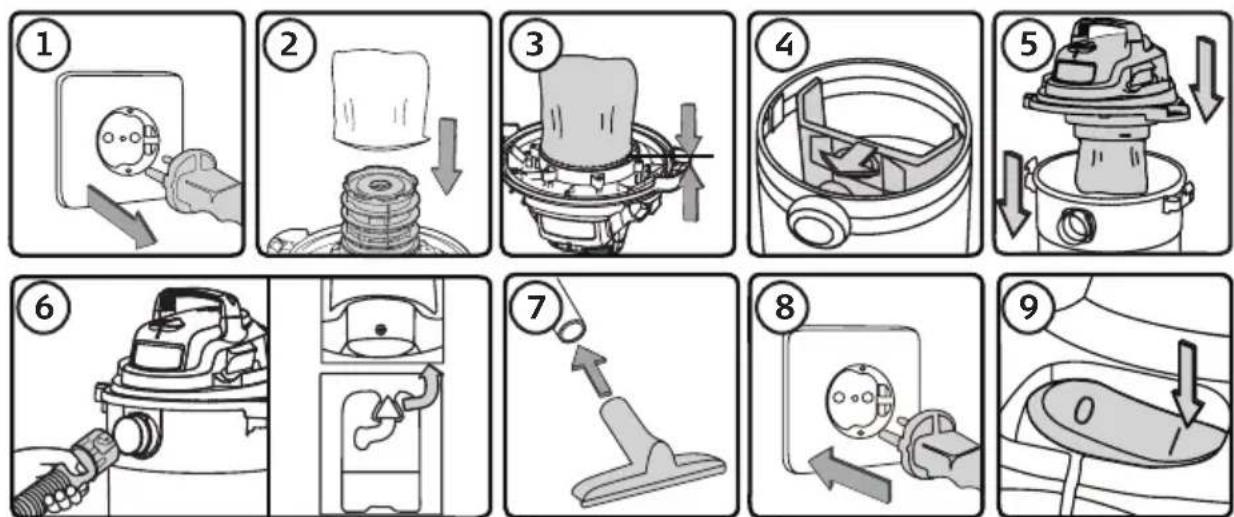

Dry vacuuming

1. Make sure that the vacuum is unplugged from the mains.
2. Fitting the cloth dust filter:
3. Slide the filter all the way down until it bottoms on the motor unit.
4. Fit the dust bag.
5. Refit the motor unit back onto the container and make sure that the latch is securely fastened.
6. Attach the vacuum hose to the vacuum port and twist it clockwise until it locks into place.
7. Attach the appropriate accessory.
8. Plug the mains lead into a wall socket.
9. Start the vacuum with the power switch.

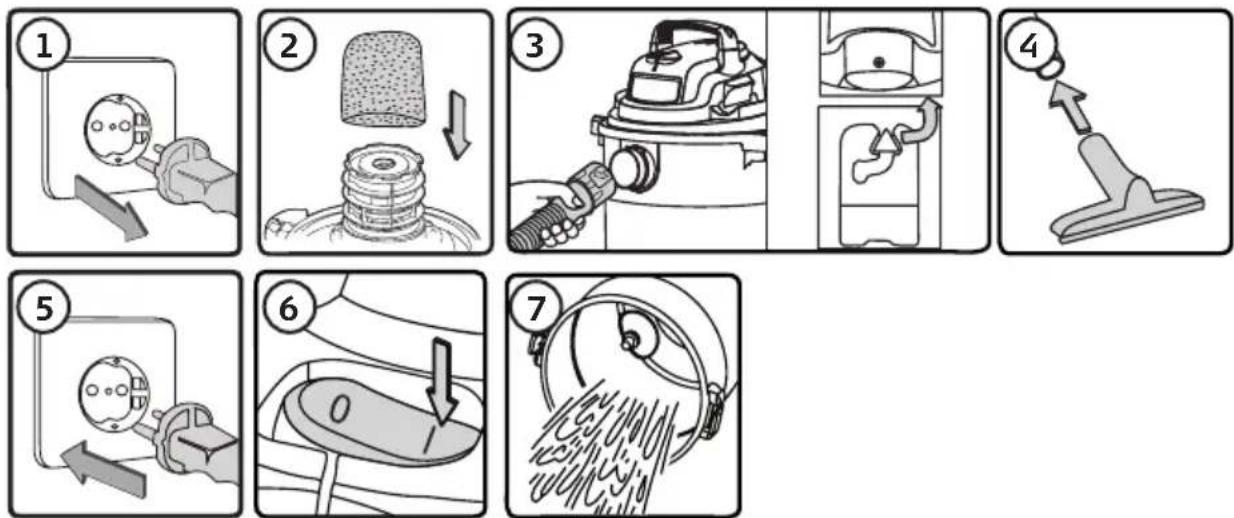

Wet vacuuming

Note: Do not submerge the entire nozzle under the surface of the liquid. Leave some space so that air can also pass through when vacuuming a large amount of liquid.

1. Make sure that the vacuum is unplugged from the mains.
2. Lift the motor unit and fit the foam filter onto the motor. Refit the motor unit back onto the container and make sure that the latch is securely fastened.
3. Attach the vacuum hose to the vacuum port and twist it clockwise until it locks into place.
4. Attach the appropriate accessory.
5. Plug the mains lead into a wall socket.
6. Start the vacuum with the power switch.
7. Empty the container when it becomes full.

Things to consider when wet vacuuming

• The cloth dust filter and dust bag must first be removed and the foam filter fitted, before beginning any type of wet vacuuming.
• Make sure that the foam filter is clean and dry before wet vacuuming.
• A safety float valve regulates the water level within the container. When the container needs to be emptied, the motor will start to race. Turn off the motor with the power switch, lift off the motor unit and empty the container.
• Refit the motor unit back onto the container and continue work as usual.
• Clean the foam filter regularly. Remove the foam filter and hand wash it with water and a little mild detergent. Allow the filter to air dry.
• Wipe the container clean and allow it to dry before storing the vacuum or continuing with any type of dry vacuuming.
• Don't forget to fit the cloth filter and dust bag before beginning any type of dry vacuuming.

Blower function

The blower function is used to clear the hose of any lodged foreign objects or debris. You may be forced to clean the hose manually if any lodged objects or debris have not been cleared after a few seconds of using the blower function.

Warning: Use respiratory protection and protective eyewear. Keep children and pets at a safe distance while the vacuum is in use.

1. Make sure that the vacuum is unplugged from the mains.
2. Connect the vacuum hose to the blower port (17).
3. Plug the mains lead into a wall socket.
4. Start the vacuum with the power switch.

Care and maintenance

• Always unplug the vacuum from the wall socket before cleaning/maintenance or when it is not in use for an extended period.
• Clean the exterior of the vacuum using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Make sure that all components are completely dry before storing the vacuum in a dry dust-free environment and away from the reach of children.

Cleaning the cloth dust filter

1. Make sure that the vacuum is unplugged from the mains.
2. Remove the cloth filter.
3. Brush or shake the filter free of dirt and debris in an appropriate outdoor area.
4. Hand wash the filter with water and a little mild washing up liquid and rinse well with water after cleaning.
5. Let the filter air-dry for about 24 hours. Refit the filter only when it is completely dry.

Cleaning the foam filter

1. Make sure that the plug is unplugged from the mains.
2. Remove the cloth filter.
3. Hand wash the filter with water and a little mild washing up liquid and rinse well with water after cleaning.
4. Allow the filter to air dry. Replace the filter only when it is completely dry.

Troubleshooting guide

The vacuum doesn’t start.	Make sure that the mains lead is undamaged and securely plugged into a wall socket.Make sure that the wall socket is live.The container is full. Empty the container.
Poor suction, racing motor.	The dust bag is full. Empty the dust bag.The container is full. Empty the container.Nozzle, hose or coupling clogged. Check and clean the vacuum hose if necessary.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Mains power supply 220–240 V\~, 50/60 Hz

Power 1250 W

Max vacuum pressure 140 mbar

Suction capacity 30 l/s

Container capacity 181

Mains lead 4 m

Vacuum hose ∅ 35 mm, length 1.8 m

Torr- och våtsugare

Art.nr 18-3600 Modell VOC1218P

40-9906 VOC1218P

Produktbeskrivning

Illustration of a hooded device with a hose and cable, no text or symbols present

Illustration of a hand holding a plug inserted into an electrical socket, with no text or symbols present.

Simple line drawing of a bowl with a downward arrow indicating a drop or direction (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V\~, 50/60 Hz

Effekt 1250 W

Undertryck 140 mbar

Sugkapacitet 30 l/s

Behållare 18 l

Nätkabel 4 m

Produktbeskrivelse

Technical illustration of a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a bucket with a bag, bucket handle, and accessories (no text or symbols)

Diagram of a mechanical component with four circular ports and a downward arrow, no text or symbols present

Illustration of a person using a handheld device to interact with a device (no text or symbols visible)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols)

Simple line drawing of a sink with an arrow indicating downward flow (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Strømtilkobling 220–240 V\~, 50/60 Hz

Effekt 1250 W

Undertrykk 140 millibar

Sugekapasitet 30 l/s

Tuotekuvaus

Technical illustration of a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a bucket with cleaning tools and a bag, no text or symbols present

Diagram of a mechanical component with four circular features and a downward arrow, no text or symbols present

Diagram of a steam machine with downward arrows indicating force or movement (no text or symbols)

Illustration of a hooded device with a hose and cable, no text or symbols present

Illustration of a hand holding a plug inserted into an electrical socket, with no text or symbols present.

Simple line drawing of a bowl with a downward arrow indicating a drop or direction (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Produktbeschreibung

Technical illustration of a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a bucket with a bag, bucket handle, and accessories (no text or symbols)

Diagram of a mechanical component with four circular ports and a downward arrow, no text or symbols present

Illustration of a hooded device with a hose and cable, no text or symbols present

Illustration of a hand holding a plug with an electrical socket inside, next to a sun (no text or symbols)

Simple line drawing of a bathtub with a downward arrow indicating a point (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Declaration of Conformity

Low Voltage Directive

2014/35/EU

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 60335-1:2012/A11:2014

EN 60335-2-2:2010/A1:2013

EN 62233:2008

Henrik Alfredsson

Technical Manager

Insjön, Sweden, 2016-12-06
