HV 12-W - Vacuum Cleaner Cocraft - Free user manual and instructions

Brand	Cocraft
Model	HV 12-W
Product Type	Handheld Vacuum Cleaner
Power Source	Cordless, 12V Li-ion Battery
Battery Capacity	12V, 2000mAh (typical)
Charging Time	Approx. 4-5 hours
Run Time	Up to 20 minutes
Dust Capacity	0.5 L
Dimensions (L x W x H)	11.0 x 5.5 x 7.9 inches (28 x 14 x 20 cm)
Weight	2.2 lbs (1.0 kg)
Filtration System	Washable HEPA filter
Suction Power	10 kPa (typical)
Noise Level	Less than 80 dB
Included Accessories	Crevice tool, brush nozzle, charging adapter
Maintenance	Clean dust cup and filter regularly; wash filter every 3 months
Safety Features	Overheat protection, automatic shut-off
Spare Parts Available	Replacement filter, battery pack, charger
Warranty	2 years

Frequently Asked Questions - HV 12-W Cocraft

How do I charge the HV 12-W vacuum cleaner?

Connect the included charging adapter to the charging port on the vacuum. Plug the adapter into a wall outlet. The LED indicator will show red during charging and turn green when fully charged. Full charge takes approximately 4-5 hours.

What should I do if the suction power decreases?

First, empty the dust cup. Then, check and clean the filter. If the filter is clogged, wash it with water and let it dry completely before reinserting. Also, check the nozzle and crevice tool for blockages.

Can I wash the filter?

Yes, the filter is washable. Remove the filter and rinse it under running water. Do not use detergent. Let the filter air dry for at least 24 hours before reinstalling. Do not use a hair dryer or microwave to dry it.

How long does the battery last on a full charge?

Under normal use, the battery provides up to 20 minutes of continuous suction. Run time may vary depending on surface type and attachments used.

Is the vacuum suitable for wet spills?

No, the HV 12-W is designed for dry vacuuming only. Do not use it to pick up liquids, as this may damage the motor and pose an electric shock hazard.

How do I empty the dust cup?

Press the dust cup release button and remove the cup. Hold it over a trash bin, then press the bottom latch to open and empty the contents. Reattach the cup by aligning it and clicking it into place.

What accessories are included?

The package includes a crevice tool for tight spaces and a brush nozzle for upholstery and delicate surfaces. Both attach to the main unit.

The vacuum stops working suddenly. What could be wrong?

The vacuum may have triggered overheat protection. Turn it off, unplug the charger, and let it cool down for 30 minutes. Also, check if the dust cup is full or the filter is blocked. If the battery is depleted, recharge it.

Where can I buy spare parts?

Spare parts such as filters, batteries, and chargers are available at Clas Ohlson stores or online at the Cocraft official website. Use the model number HV 12-W to find compatible parts.

How do I store the vacuum when not in use?

Store the vacuum in a dry place away from direct sunlight. Remove the battery if storing for more than a month. Keep it out of reach of children. The vacuum can be hung using the wall mount if provided.

USER MANUAL HV 12-W Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning the use of the product in a safe manner and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be made by children without supervision.
• Never expose the product to impacts, shocks, rain or moisture.
• The product is only intended for normal domestic use and only in the manner described in this instruction manual.
• Never leave the product unattended while it is switched on.
• Never use the product near flammable liquids or explosive gases. Do not use the appliance in extremely dusty environments.
• Do not use any accessories other than those recommended by the retailer or manufacturer.
• Never unplug the product by pulling the power cord from the 12 V socket, always grab the plug.
• Make sure that the power cord is not pinched and is a safe distance away from heat sources, oil and sharp edges.
• Never use the product if it, its power lead or plug is damaged in any way.
• Never use the product if it does not function normally, has been left outdoors or has been immersed in water or other liquid.
• Do not insert any foreign objects into the ventilation ports of the motor. Make sure that the ventilation ports are not blocked whenever the product is used.
• Never attach any accessories to the vacuum when it is on.
• Never operate the product if the filter is damaged or missing. Always change the filter if it is damaged before using the product.
• Never vacuum embers or hot ashes.
  • Always disconnect the product from the 12 V plug when it is not in use.
  • Always check the product for any damage before use.
• Any repairs should only be carried out by qualified service technicians using original parts.

• Always check the power cord and plug regularly for possible damage. Replace any parts if they are damaged in any way.

• Never try to modify the product in any way.

• This product is designed to run off of a 12 V electrical system with negative (-) earth.
• Make sure that the product is turned off before connecting it to a 12 V socket.
• Never use the product if your hands are moist or wet.
• Never use the product to vacuum poisonous or any other hazardous substances.

Product description

1. Fold-out extension nozzle
2. Dust collector
3. Filter holder
4. Filter
5. LED work light
6. [EN] Dust collector release button
7. [ON/OFF] Power switch
8. Motor ventilation ports
9. 12 V plug and 4.5 m cable.
10. Storage bag
11. Brush nozzle
12. Wet vacuuming nozzle

Operating instructions

Note: Never use the vacuum without the filter in place.

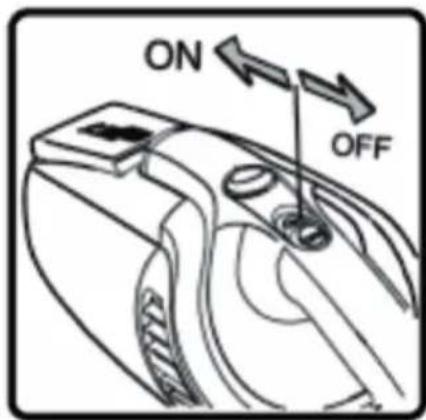

On/off button

1. Make sure the power switch is in the OFF position.

Line drawing of a hand holding a screwdriver near a door panel (no text or symbols)

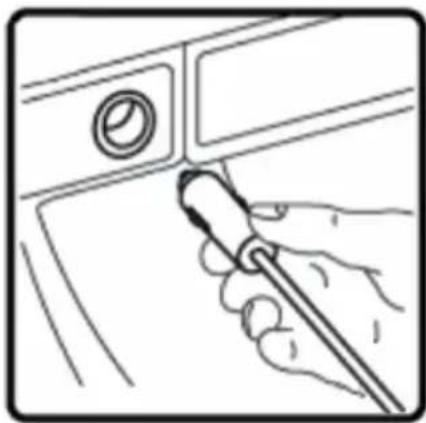

1. Insert the power cable into the 12 V socket of the vehicle.

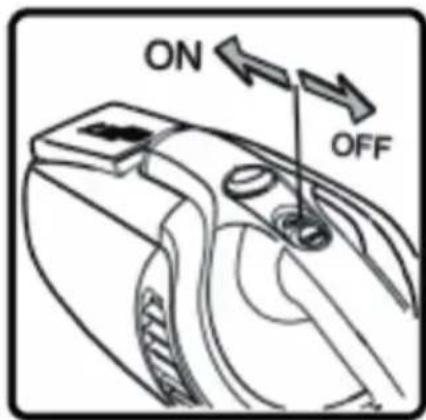

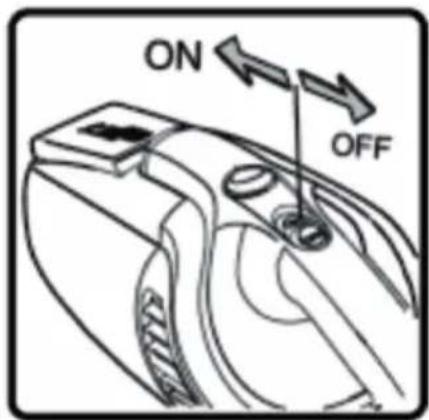

1. Turn the vacuum on/off by sliding the power switch to the desired position.

Dry vacuuming

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

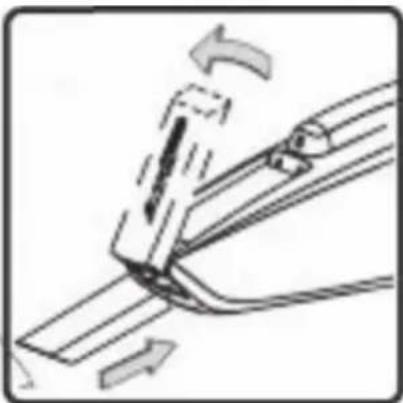

1. Fold out the extension nozzle (1) and push it into the vacuum until it sits securely in place (the vacuum may also be used without extending the extension nozzle).

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

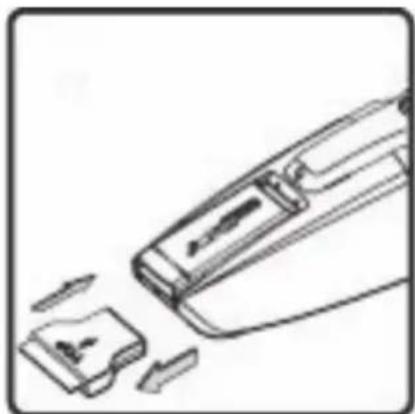

1. Attach the brush nozzle if needed. Note: The brush nozzle can only be attached to the extension nozzle.

2. Remove the brush nozzle once you have finished vacuuming.

Diagram of a mechanical lever mechanism with directional arrows indicating motion (no text or symbols)

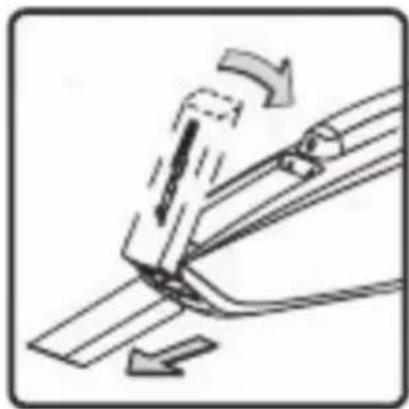

1. Carefully pull out the extension nozzle from the vacuum and fold it back into place.

Diagram showing a device being processed with a tool, no text or symbols present

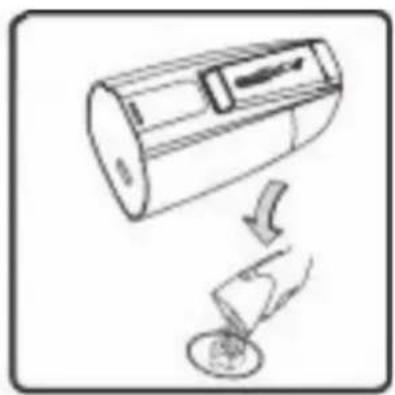

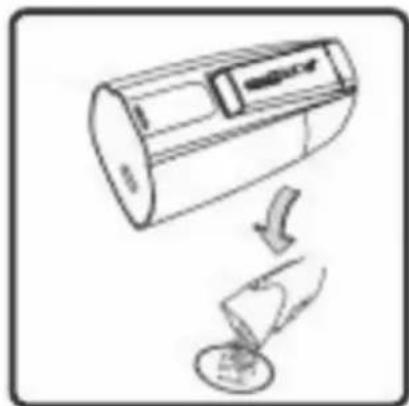

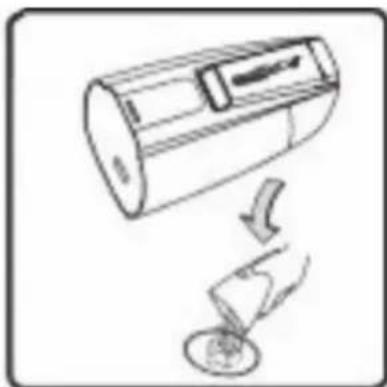

1. Press [EN] (6), remove the dust collector, empty it and clean it.

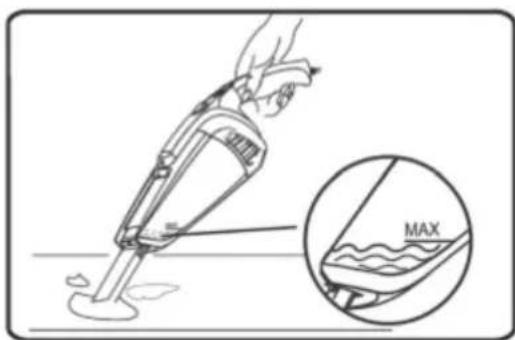

Wet vacuuming

Note:

• The vacuum is only designed to vacuum a small amount of liquid.

• Refer to the capacity mark on the collector for reference. Never vacuum more liquid than the capacity marking indicates.

• Attach the wet vacuuming nozzle if needed.

Line drawing of a handheld device with a small component and directional arrows indicating movement (no text or symbols)

1. Remove the nozzle once you have finished vacuuming, press [EN] (6), remove the collector, empty it and dry it out thoroughly.

Care and maintenance

• Always unplug the power lead from the 12 V socket before any type of cleaning or maintenance.

- Clean the exterior of the vacuum using a slightly dampened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.

- Unplug the power lead from the 12 V socket of the vehicle and store the vacuum in a dry, dust-free environment out of the reach of children, whenever the vacuum is not to be used for an extended period.

Cleaning the filter

1. Pull out the plug from the 12 V socket of the vehicle.

Diagram showing a device being lifted by a curved arrow, with no visible text or symbols.

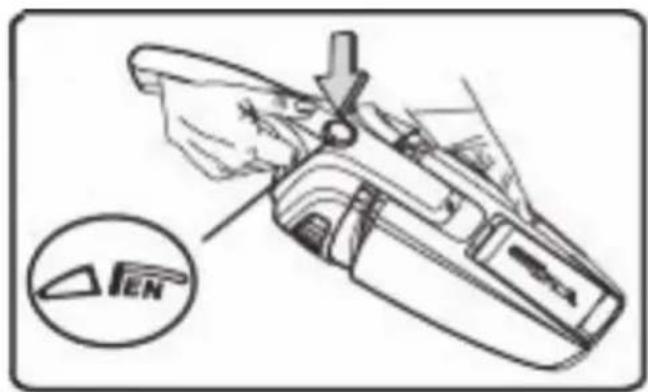

1. Press [ △EN ] (6), remove the collector and empty it.

Diagram showing a hand holding a small object being processed by a device, with no visible text or symbols.

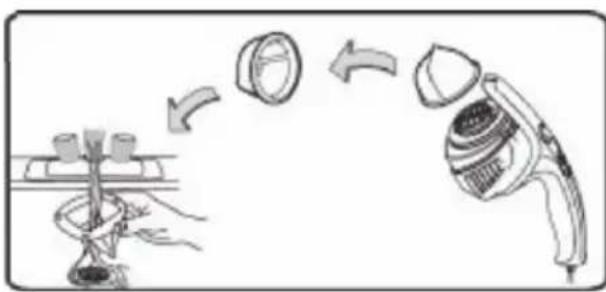

1. Remove the filter and filter holder by pulling it out straight from the vacuum.

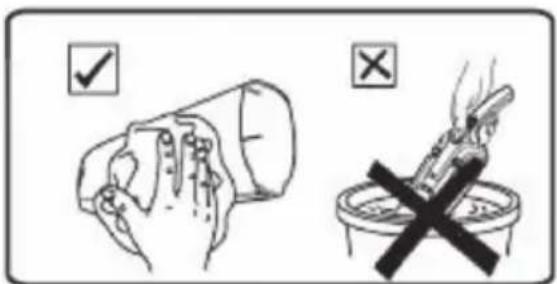

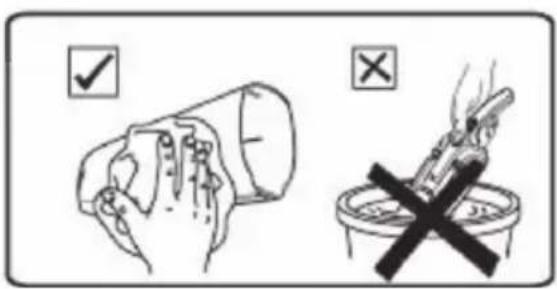

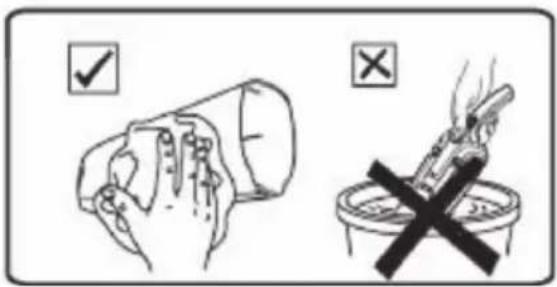

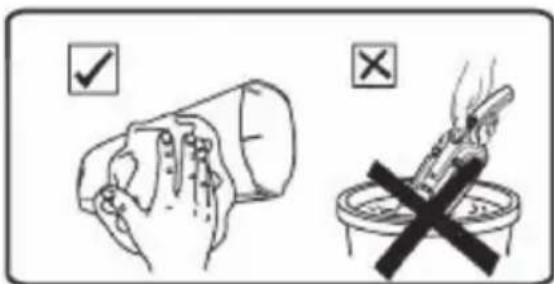

Clean both parts thoroughly. Let both parts dry thoroughly before refitting them.

Note: Never immerse the motor unit in water.

1. Refit the dust collector back onto the vacuum cleaner.

Troubleshooting guide

The vacuum does not turn on.	Make sure that both the power cable and plug are undamaged and that the plug is fully inserted into the vehicle's 12 V socket.Check that the 12 V socket is live. Check that the connected fuse is intact and that the vehicle battery has charge.
Low power.• Clean the filter according to the Care and maintenance section above.Make sure that there is nothing blocking the ventilation ports, extension nozzle or any of its attached accessories.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Specifications

Supply voltage 12 V

Cable 4.5 m

Size 40 × 11 × 12 cm

Weight 800 g

Dammsugare 12 V

Art.nr 41-1103 Modell AA12V1

Line drawing of a hand holding a screwdriver to press down a door panel (no text or symbols)

1. Sätt anslutningskabelns stickpropp i fordonets 12 V-uttag.

Diagram of a mechanical clamp or bracket with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a car air conditioner being placed into a cup (no text or symbols present)

Line drawing of a handheld device with a small component and directional arrows indicating motion (no text or symbols)

Simple line drawing of a cylindrical device with an arrow indicating motion or change, and a circular base with a handle (no text or symbols)

Illustration of a hand holding a small object with a ring, being processed by a tool (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifikationer

Nätanslutning 12 V

Line drawing of a hand holding a screwdriver to press down a door panel (no text or symbols)

1. Plugg laderens støpsel i 12 V-uttaket i bilen.

Diagram of a mechanical clamp or bracket with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram showing a device being processed with a tool, no text or symbols present

Line drawing of a handheld device with a close-up of its internal components and directional arrows indicating motion (no text or symbols)

Diagram showing a device being dropped with a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a magnified inset showing the lens and fan (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Spesifikasjoner

Line drawing of a hand holding a screwdriver to press down a door panel (no text or symbols)

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical tool or bracket with directional arrows indicating movement (no text or symbols)

Diagram of a device being processed with a tool, showing a curved arrow indicating process (no text or symbols present)

Line drawing of a hand holding a small object with arrows indicating movement or force (no text or symbols)

Diagram showing a device being dropped with a curved arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a lid, showing mechanical components (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Tekniset tiedot

Jännite 12 V

Johto 4,5 metriä

Mitat 40 × 11 × 12 cm

Paino 800 g

Staubsauger 12 V

Line drawing of a hand holding a screwdriver to press down a door panel (no text or symbols)

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a car air conditioner being placed into a container (no text or symbols present)

Line drawing of a handheld device with a small component and directional arrows indicating motion (no text or symbols)

Diagram showing a device being dropped from a circular button to a battery (no text or symbols present)

Illustration of a hand holding a small object with a magnified inset showing the same object (no text or symbols present)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten
