USER MANUAL KW-AVX720 JVC

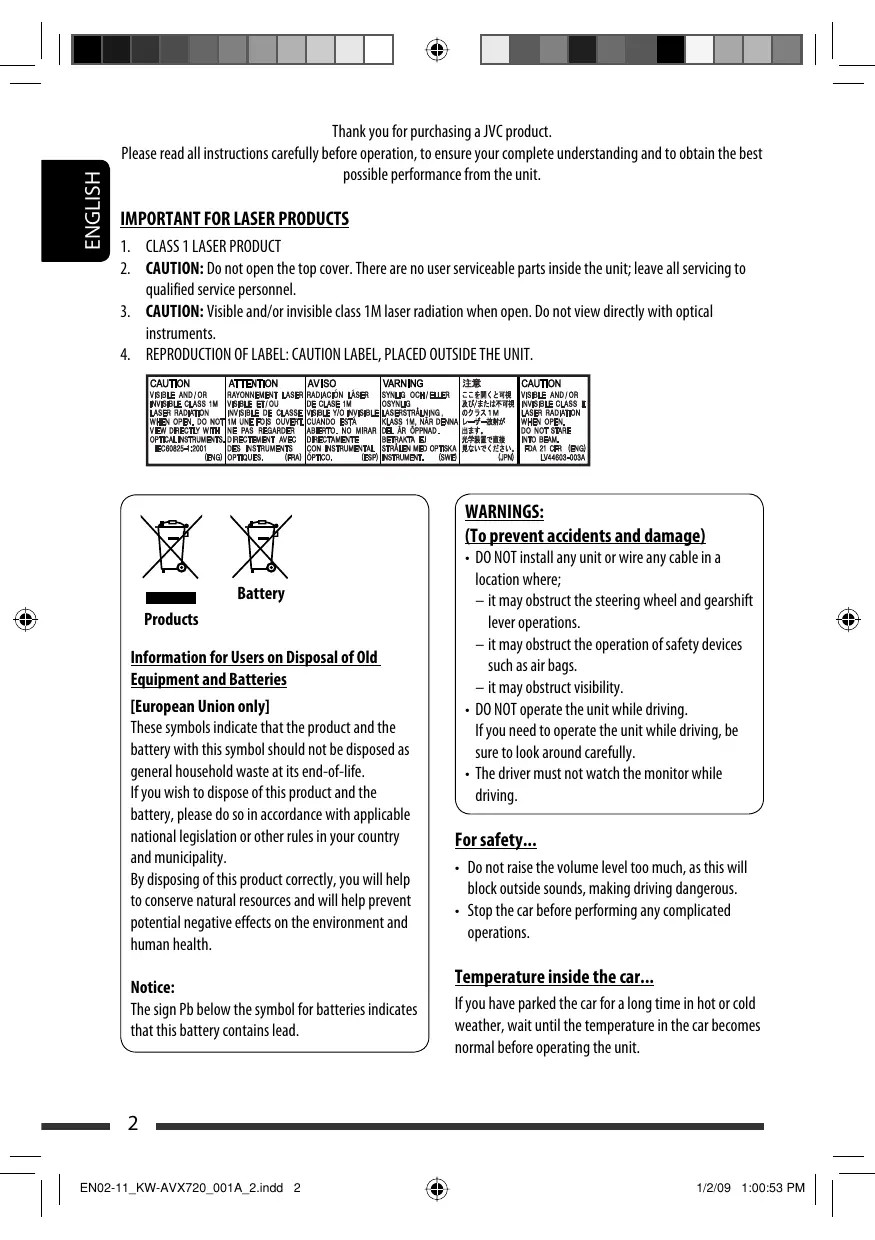

[E] 2/11/09 12:02:22 PM ENGLISH Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

WARNINGS: (To prevent accidents and damage) Battery Products Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

• DO NOT install any unit or wire any cable in a location where; – it may obstruct the steering wheel and gearshift lever operations. – it may obstruct the operation of safety devices such as air bags. – it may obstruct visibility.
• DO NOT operate the unit while driving. If you need to operate the unit while driving, be sure to look around carefully.
• The driver must not watch the monitor while driving. For safety...
• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations. Temperature inside the car... If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

EN02-11_KW-AVX720_001A_2.indd 2 1/2/09 1:00:53 PM

• Your preset adjustments will also be erased (except the registered Bluetooth device). ( 28, 40) How to forcibly eject a disc Cautions on the monitor:
• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip. Touch the buttons on the touch panel with your finger directly (if you are wearing a glove, take it off).
• When the temperature is very cold or very hot... – Chemical changes occur inside, causing malfunction. – Pictures may not appear clearly or may move slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments. ENGLISH How to reset your unit How to read this manual Back

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc,

• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit. This unit is equipped with the steering wheel remote control function.
• See the Installation/Connection Manual (separate volume) for connection.
• Some of the operations might be different with the steering wheel remote control function.

• < > is used to indicate the variable screens/ menus/operations/settings that appear on the touch panel.
• [ ] is used to indicate the buttons on the touch panel. page number) is used to indicate the reference page number of the related topics/ operations/settings.
• Operation index: To locate easily the desired operations/functions. ( 65)
• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the 15) <AV Menu>. ( For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

EN02-11_KW-AVX720_001A_2.indd 3 1/2/09 1:00:54 PM ENGLISH Playable disc type Disc type DVD

• DTS sound cannot be reproduced. Recording format, file type, etc Playable

• If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not playable. *3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a +R/+RW disc is loaded. +RW double layer discs are not playable. Caution for DualDisc playback Caution on volume setting: The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended. Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

Display/exit the Short Cut icons, (

• Attenuates the sound (if the power is on).
• Turns off the power. (Hold) Changes the display information. *1
• Bluetooth PHONE : Adjusts the volume of the incoming calls. *2 Remote sensor Touch panel (see the following pages).
• Most of the touch panel operations are explained unless mentioned otherwise.
• The screen will turn off if no operation is done for about 10 seconds (depends on the <Illumination> setting). ( 19) 7 Motion sensor 8 • Activates/deactivates TA Standby Reception. *3

• Displays <PTy Search> menu. (Hold) 9 • Selects the source. *4 TUNER = DAB = DISC (DVD/VCD/CD) = USB/ iPod = CD-CH/iPod/EXT-IN = Bluetooth PHONE = Bluetooth AUDIO = AV-IN = (back to the beginning)

• Switches the setting between “HEAD MODE” and “iPod MODE” (Hold) q • Displays <Open/Tilt> screen. *6 [Open] : Opens the monitor panel. [Eject] : Ejects the disc. [Close] : Closes the monitor panel. [Tilt +] : Tilts open the monitor panel. [Tilt –] : Tilts close the monitor panel.
• Ejects the disc and display <Open/Tilt> screen. (Hold)
• Closes the monitor panel if the panel is opened. w Monitor panel *1 Available display information varies among the playback sources. ( 56) *2 This adjustment does not affect the volume level of other sources. *3 The TP indicator lights up when activated; flashes when the unit tune into another station providing Radio Data System signals. When a DAB tuner is connected, TA Standby Reception also searches for DAB services. *4 Available sources depend on the external components you have connected, media you have attached, and the <Input> settings you have made. ( 18) *5 Only when Bluetooth phone is connected. *6 Shaded items cannot be used. You can also adjust the volume by moving your finger on the touch panel as illustrated. ENGLISH p • Selects “USB/ iPod” as the source. When you drag your finger on the touch panel, it functions in the same way as touching [5 / ∞ / 4 / ¢]. Touch panel and button illumination Dependable on the <Illumination> setting. 19)

• Turned off: When no operation is done for about 10 seconds.
• Turned on again: – When you touch the touch panel or move your hand nearby. – When you use the remote controller. – When a call/SMS comes in (for Bluetooth cellular phone). – When the source automatically changed by receiving the Traffic Announcement /PTY programme. – When the signal from the rear view camera comes in.
• Always turned on: – When <AV Menu> screen is displayed. – When <Source Menu> screen is displayed. – When <Open/Tilt> screen is displayed. – When <Illumination> is set to <Normal>. Continued on the next page INTRODUCTIONS EN02-11_KW-AVX720_001A_2.indd 7

12/30/08 11:51:01 AM ENGLISH <Source Menu> screen You can also select the source using the touch panel. SOURCE Source Menu TUNER FM1

BAND Current source Exit Short Cut icons You can easily access some frequently used functions by using the Short Cut icons. Available icons vary among the sources. SOURCE TUNER FM1

BAND Short Cut window appears.

• To exit from the window, press the button again. Turns on or off Track/Chapter Repeat.

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly. Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like. If the effectiveness of the remote controller decreases, replace the batteries. Before using the remote controller:
• Aim the remote controller directly at the remote sensor on the unit.
• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting). The following describes all the available operations for all the sources.
• To easily locate the available operations between different type of files, 35, 36.

• Turns the power on if pressed briefly or attenuates the sound when the power is on.
• Turns the power off if pressed and held. 2 5/∞ buttons

• TUNER/DAB: Selects the preset stations/ services. Continued on the next page INTRODUCTIONS EN02-11_KW-AVX720_001A_1.indd 9

• DISC/USB: – DVD-Video: Selects the title. – DVD-VR: Selects the program/Playlist. – USB/other discs (except VCD/CD): Selects the folders if included.
• CD-CH: – Selects the folders if included.
• iPod: – 5 : Enters the main menu (then 5 / ∞ / 4 / ¢ work as menu selecting buttons.) 5 : Returns to the previous menu. ∞ : Confirms the selection. – ∞ : Pauses or resumes playback. 4 / ¢ buttons
• TUNER/DAB: – Searches for stations/ensembles automatically if pressed briefly. – Searches for stations/ensembles manually if pressed and held.
• DISC/USB/CD-CH: – Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed and held.
• iPod: – Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed and held.
• iPod: – Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed and held. In menu selecting mode: – Selects an item if pressed briefly. (Then, press ∞ to confirm the selection.) – Skips 10 items at a time if pressed and held.
• Bluetooth AUDIO: – Reverse skip/forward skip if pressed briefly. 3 VOL (volume) + / – buttons

• Adjusts the volume level.
• Bluetooth PHONE: – Adjusts the volume of the incoming calls. 2nd VOL (volume) buttons
• Not applicable for this unit. 4 * ASPECT button

• Changes the aspect ratio of the playback pictures.

PHONE button Applicable only when a Bluetooth phone is connected.

• Displays <Dial Menu> screen.
• Displays <Redial> menu if pressed and held.
• Answers incoming calls. 6 * SETUP button

• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Original Program screen.
• VCD: Resumes PBC playback. 8 OSD (on-screen display) button

• Shows the on-screen bar.
• Does not function as “*.” 9 SHIFT button

• Functions with other buttons. p DISP (display) button

• Changes the display information. q 1 / ¡ buttons

• DISC/USB/ iPod: Reverse search/forward search.

EN02-11_KW-AVX720_001A_1.indd 10 12/19/08 3:52:01 PM

• Selects the source. e 3 (play) / 8 (pause) button

• DISC/USB/ iPod : Starts playback/pauses.
• Bluetooth PHONE: Answers incoming calls.

• TUNER/DAB: Selects the bands. 7 (stop) button

• DISC/USB: Enters direct search mode for chapter/title/program/playlist/folder/track when pressed with SHIFT button ( 36). CLR (clear) button
• DISC/USB: Erases the misentry when pressed with SHIFT button. ENGLISH w SOURCE button SURROUND button
• Not applicable for this unit.
• Functions as number buttons when pressed with SHIFT button. – DISC/USB : Enters chapter/title/program/playlist/ folder/track number after entering search mode by 36) pressing SHIFT and DIRECT. ( – TUNER/DAB : (Number 1 to 6) : Enters preset station/service number. y * MENU button

• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Playlist screen.
• VCD: Resumes PBC playback. u * % / fi buttons

• DVD-Video: Makes selection/settings.
• CD-CH: Changes discs in the magazine. @ / # buttons

• DVD-Video: Makes selection/settings.
• DivX/MPEG Video: Skips back or forward by about 5 minutes. ENT (enter) button
• Confirms selection. i DUAL button

• Not applicable for this unit.

¤ Finish the procedure. Back Back 12 INTRODUCTIONS EN12-21_KW-AVX720_001A_3.indd 12 1/16/09 2:29:21 PM You can use the <AV Menu> for most of the operations and settings. The available menu items shown on the touch panel, depends on the selected source.

• Non-available items will be shaded. ! Press the desired icon/item to perform the desired operations/settings. Moves to the preceding menu page ENGLISH AV Menu operations Indicates the next hierarchy level/setting item exists Setup The following steps are one of the fundamental procedures.
• You can perform the operations/change the settings by following these steps unless mentioned otherwise. ~ Turn on the power. Demonstration Wall Paper Color Scroll Dimmer Dimmer Time Set Bright Blue Once Auto

Back Returns to the previous screen. Ÿ Display <AV Menu> screen. Indicates the remaining time before the current screen exit automatically. Moves to the succeeding menu page BAND

• Some of the settings do not open the sub-setting screen, but just selecting an option will change the setting.

1/16/09 2:29:23 PM ENGLISH Initial: Underlined Menu item Demonstration Wall Paper Selectable setting/item ♦ Off ♦ On : Cancels. : Activates the demonstration on the screen. To stop it temporarily, touch the screen. ( 12) You can select the background picture of the screen. ♦ Bright, Future, Horizon, Plain You can select the color of the background picture. ♦ Blue, Light-Blue, Red, Orange, Yellow, Green, Purple, Dark-Blue, Dark-Green, Brown, Light-Brown, Black Scroll ♦ Off ♦ Once ♦ Auto : Cancels. : Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals).

• Touching the information bar scrolls the text regardless of the setting. Dimmer ♦ Off ♦ On ♦ Auto ♦ Dimmer Time Set Dimmer Time Set Sets the Dimmer On ( Dimmer Level You can select the brightness for dimmer. ♦ 01 (bright), 02 (middle), 03 (dark) Bright You can adjust the brightness of the screen. ♦ –15 to +15; Initial 00 Picture Adjust *2 You can adjust the following to make the screen clear and legible for watching the playback picture. The setting will be stored—one for “DISC/USB/ iPod” (common) and the other for “AV-IN.” Press [5] or [∞] to adjust. (–15 to +15; Initial 00) Display Color ♦ Bright ♦ Contrast ♦ Color ♦ Tint

Cancels. Activates dimmer. Dims the monitor when you turn on the headlights. *1 Activates the Dimmer Time setting (see below). )/Off (

) times. Adjust if the picture is too bright or too dark. Adjust the contrast. Adjust the color of the picture—lighter or darker. Adjust the tint if the human skin color is unnatural, only when color system setting is <NTSC>. *1 The ILLUMINATION CONTROL lead connection is required. (See the Installation/Connection Manual.) *2 Adjustable only when the source is “ DISC/USB/ iPod” (the media must contain pictures or videos) or “AV-IN.”

EN12-21_KW-AVX720_001A_f.indd 14 2/11/09 2:07:41 PM Menu item You can change the aspect ratio of the picture. ENGLISH Aspect *3 Selectable setting/item Aspect ratio of the incoming signal 4:3 16:9 Regular: For 4:3 original pictures Full: For 16:9 original pictures Display Panorama: For viewing 4:3 pictures naturally on the wide screen Clock Auto:

• For “DISC”: Aspect ratio is automatically selected to match the incoming signals.
• For the other video sources: Aspect ratio is fixed to <Regular>. Language *4 Select the indication language shown on the screen. ♦ English, Español, Français, Deutsch, Italiano, Nederlands, Svenska, Dansk, Руccĸий, Português
• The characters you can enter for assigning the titles also change according to the language selected. ( 56) Time Set Initial 0:00 Time Format Select either 12-hour system or 24-hour system. ( ♦ 12 Hours, 24 Hours; Initial 24 Hours OSD Clock ♦ Off ♦ On : Cancels. : The clock time is displayed on the playback picture. Clock Adjust ♦ Auto : The built-in clock is automatically adjusted using the CT (clock time) data in the Radio Data System signal. : Cancels. ♦ Off 12) *3 Not adjustable when no picture is shown. *4 Turn off then on the power so that your setting takes effect. Continued on the next page AV MENU EN12-21_KW-AVX720_001A_f.indd 15

Select the audio language; Initial English ( 57) Audio Language * Subtitle *5 Select the subtitle language or erase the subtitle <Off>.; Initial English ( 57) Monitor Type *5 16:9 4:3LB Disc 4:3PS Select the monitor type to watch a wide screen picture on the external monitor. ♦ 16:9 : Select when the aspect ratio of the external monitor is 16:9. ♦ 4:3LB (Letterbox)/ : Select when the aspect ratio of the external 4:3PS (Pan Scan) monitor is 4:3. OSD Position *5 Select the position of the on-screen bar. ( : Higher position. : Lower position. File Type *5 Select the playback file type when a disc/USB contains different types of files. You can store this setting separately for each source— “DISC/USB.” ♦ Audio : Plays back audio files. ♦ Still Picture : Plays back JPEG files. ♦ Video : Plays back DivX/MPEG1/MPEG2 files. ♦ Audio&Video : Plays back audio files and DivX/MPEG1/MPEG2 files. DivX Regist. (Registration) *5 This unit has its own Registration Code. Once you have played back a file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection. iPod Artwork *6 While playing back a track (in “HEAD MODE”), Artwork recorded for the track is displayed on the monitor. ♦ Off : Cancels. ♦ On : Activates Artwork display. To display the artwork, press DISP repeatedly.

• It takes 5 seconds or more to display an Artwork and no operations are available while loading it. 38) *5 Selectable only for “DISC/USB.” (Playback stops when you change the setting.) *6 Skip the track so that your setting takes effect.

EN12-21_KW-AVX720_001A_1.indd 16 12/19/08 3:49:09 PM Disc Selectable setting/item D. (Digital) Audio Output *7 Select the signal format emitted through the DIGITAL OUT (optical) terminal. 55) ♦ PCM : Select this when connecting an amplifier or a decoder incompatible with Dolby Digital or MPEG Audio, or when connecting to a recording device. ♦ Dolby D : Select this when connecting an amplifier or a decoder compatible with Dolby Digital. ♦ Stream : Select this when connecting an amplifier or a decoder compatible with Dolby Digital or MPEG Audio. Down Mix *7 When playing back a multi-channel disc, this setting affects the signals reproduced through the LINE OUT jacks. ♦ Dolby Surr. : Select this to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround. ♦ Stereo : Normally select this. D. (Dynamic) Range Compres. (Compression) *7 You can enjoy a powerful sound at a low volume level while playing Dolby Digital software. ♦ Auto : Select to apply the effect to multi-channel encoded software. ♦ On : Select to always use this function. IF Band Width ♦ Auto Tuner ♦ Wide AF Regional ENGLISH Menu item : Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.) : Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain. When the received signals from the current station become weak, you can change the Network-Tracking Reception. ( 50)

• When the DAB tuner is connected, refer also to <DAB AF>, ♦ Off : Cancels—not selectable when <DAB AF> is set to <On>. ♦ AF Reg. : Switches to another station broadcasting the same (Regional) programme. The REG indicator lights up. ♦ AF : Switches to another station. The programme may differ from the one currently received (the AF indicator lights up). *7 Selectable only for “DISC/USB.” (Playback stops when you change the setting.) Continued on the next page AV MENU EN12-21_KW-AVX720_001A_1.indd 17

12/19/08 3:49:10 PM Selectable setting/item TA Volume When you activate TA Standby Reception ( 6), the unit will temporarily switch to Traffic Announcement (TA) if available, from any source other than AM. You can preset the TA volume level.

• The volume changes to the preset TA volume level if the current volume level is lower than the preset level. ♦ VOL 00 to 30 (or 50) *8; Initial VOL 15 Program Search *9 Usually when you select preset stations, the preset station is tuned in. If the signals from the FM Radio Data System preset station are not strong enough, this unit uses the AF data to tune in to another station of the same network, possibly broadcasting the same programme with stronger signals. ♦ On : Select to activate. ♦ Off : Cancels. DAB AF *10 While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM Radio Data System station broadcasting the same programme. While receiving an FM Radio Data System station: When driving in an area where a DAB service is broadcasting the same programme as the FM Radio Data System station, this unit automatically tunes in to the DAB service. ♦On : Select to activate. ♦ Off : Cancels. AV Input *11 You can determine the use of LINE IN and VIDEO IN jacks. ( 47) ♦ Off : Select when no component is connected (“AV-IN” is skipped while selecting the source). ♦ iPod (Off) : Select when connecting the iPod/iPhone using the USB Audio and Video cable for iPod/iPhone. ( 45) ♦ Audio&Video : Select when connecting an AV component such as a VCR. ♦ Audio : Select when connecting an audio component such as a portable audio player. ♦ Camera *12 : Select when connecting a rear view camera to display the picture (as it is taken). ♦ Navigation 48) : Select when connecting a Navigation System. ( Input Tuner ENGLISH Menu item *8 Depends on the amplifier gain control settings. *9 The unit takes some time to tune in to another station using programme search. *10 Appears only when DAB tuner is connected. *11 Not selectable when “AV-IN” is selected as the source. *12 The REVERSE GEAR SIGNAL lead connection is required. See Installation/Connection Manual. The rear view through the camera appears on the screen in <Full> aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position. When you press DISP on the monitor panel, or when you shift the gear to another position other than the reverse (R) position, the rear view screen is cleared.

EN12-21_KW-AVX720_001A_3.indd 18 1/16/09 2:31:10 PM Menu item Selectable setting/item ♦ Changer/iPod *15 ENGLISH External Input *13, *14 For connecting an external component to the CD changer jack on the rear. 43), iPod, ( 46). : CD changer, ( : Any other than the above, ( 48). Beep ♦ Off ♦ On : Cancels. : Activates the key-touch tone. Telephone Muting *16 ♦ Off ♦ Muting1, : Cancels. : Select either one which mutes the sounds while using the cellular phone. Illumination You can turn off the screen and the light of the buttons on the monitor panel while turning on the unit. (

Input ♦ External Muting2 Others Buttons on the monitor panel Motion Sensitiv. Screen Normal: Always lights. Always lights. Proximity/Motion: Lights up when your hand moves close to the buttons. Always lights. Proxi/Motion-LCD: Lights up when your hand moves close to the buttons. Lights up when your hand moves close to the buttons. Touch Panel: Lights up when your Always lights. finger touches the buttons or touch panel. Touch Panel-LCD: Lights up when your Lights up when your finger touches the finger touches the buttons or touch panel. buttons or touch panel. Change the sensitivity of the sensor for <Illumination> above. ♦ Low, Mid, High Initialize Initialize all settings you have made in <AV Menu>. Press and hold [Enter] to initialize the settings, then reset the unit. (

*13 Not required for Bluetooth adapter and DAB tuner. They are automatically detected. *14 Not selectable when the component connected to the CD changer jack is selected as the source. *15 The name of the component detected through the CD changer jack is shown. *16 The TEL MUTING lead connection is required. See Installation/Connection Manual. AV MENU EN12-21_KW-AVX720_001A_f.indd 19

2/11/09 11:51:48 AM ENGLISH Selects a preset sound mode suitable to the music genre. ♦ Flat (Initial), Hard Rock, R&B, Pop, Jazz, Dance, Country, Reggae, Classic, User1, User2, User3

Back Display <Equalizer> screen. Edit Make adjustments by moving each bar directly. AV Menu User Store User1 User2 User3 Back

Select a sound mode. Ex.: When storing into <User2>. Equalizer Moves to the other 6 sound modes. Ex.: When <Hard Rock> is selected Storing your own adjustments You can store your adjustments into <User1>, <User2>, and <User3>.

Perform steps 1 and 2 above to enter the <Equalizer> screen. Flat 15 kHz

EN12-21_KW-AVX720_001A_1.indd 20 12/19/08 3:49:12 PM Menu item Fader/Balance ENGLISH Initial: Underlined Selectable setting/item Fader : Adjust the front and rear speaker output balance.

• When using a two-speaker system, set the fader level to “0.” ♦ F6 to R6; Initial 0 Balance : Adjust the left and right speaker output balance. ♦ L6 to R6; Initial 0 Press [ 5/∞/2/3 ] to adjust. Fader/Balance Reset Fader Balance 0 Back Volume Adjust *1 Subwoofer Level Adjust and store the auto-adjustment volume level for each source, comparing to the FM volume level. The volume level will automatically increase or decrease when you change the source.
• <Fix> appears if “ TUNER/Bluetooth PHONE” is selected as the source. ♦ –12 to +12; Initial 00 Adjust the subwoofer output level. ♦ –06 to +08; Initial 00 High Pass Filter ♦ Through ♦ On Crossover Select the crossover frequency between the front/rear speakers and the subwoofer. ♦ 80Hz, 120Hz, 150Hz Amplifier Gain *2 You can change the maximum volume level of this unit. ♦ Off : Deactivates the built-in amplifier. ♦ Low : VOL 00 to 30 (Select this if the maximum power of the speakers is less than 50 W.) ♦ High : VOL 00 to 50 : Select when the subwoofer is not connected. : Select when the subwoofer is connected. *1 For “ DISC/USB”: You can make the adjustments separately depending on the audio format—Dolby digital/MPEG Audio and the others. *2 The volume level automatically changes to “VOL 30” if you change to <Low> with the volume level set higher than “VOL 30.” AV MENU EN12-21_KW-AVX720_001A_1.indd 21

• iPod *1 : Repeat, Random, Audiobooks
• AV-IN, EXT-IN : Title Entry Menu item Selectable setting/item Mono When an FM stereo broadcast is hard to receive, activate monaural mode for better reception. ♦ ON : Activate monaural mode to improve FM reception, but stereo effect will be lost. The MONO indicator lights up. ♦ OFF : Restore the stereo effect. SSM (Strong-station Sequential Memory) You can automatically preset 6 stations for each FM band.
• Local FM stations with the strongest signals are searched and stored automatically in the FM band. Mode Mono SSM PTy Standby PTy Code Start News Back PTy Standby PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM. When a DAB tuner is connected, PTY Standby Reception also searches for DAB services. ♦ ON : Activate PTY Standby Reception. (The PTY indicator lights up; flashes when the unit tune in to another station providing the Radio Data System signals.) ♦ OFF : Cancels. PTy Code You can change the PTY code (

EN22-29_KW-AVX720_001A_1.indd 22 12/19/08 3:49:27 PM Selectable setting/item D. (Dynamic) Some DAB services provide Dynamic Range Control (DRC) signals together with their regular Range Control programme signals. DRC will reinforce the low level sounds to improve your listening when the surrounding sounds are noisy.

• The DRC indicator will light up while tuning in to a service with the DRC signals. As the number increases, the effect becomes stronger.

♦ OFF/DRC 1/DRC 2/DRC 3

Announce Standby Announcement Standby Reception allows the unit to switch temporarily to your favorite DAB service (announcement type) from any source other than FM/AM. ♦ ON : Activate Announce Standby Reception. (The ANN indicator lights up; flashes when the unit tune in to another service providing the related signals.) ♦ OFF : Cancels. Announce Code You can change the announcement type for Announcement Standby Reception. ENGLISH Menu item Mode ♦ Transport News, Warning, News, Weather, Event, Special Event, Radio Info, Sports News, Financial News Back Available items depend on the loaded disc type and playback file. iPod

*2 Not applicable in “iPod MODE.” ( Repeats current chapter. Repeats current title. Repeats current program (for DVD-VR, not available during Playlist playback). Repeats all tracks of the current disc. Repeats all tracks of the current folder. Repeats current track. (For VCD: When PBC is not in used.) Functions the same as “Repeat One” of the iPod. Functions the same as “Repeat All” of the iPod. Cancels. 45) Continued on the next page AV MENU EN22-29_KW-AVX720_001A_1.indd 23

DISC Disc/file type MPEG/MP3/ WMA/WAV Source VCD/CD Random*3 Selectable setting/item DivX/MPEG/ MP3/WMA/ WAV ENGLISH Menu item Folder Disc/USB (All) All Song Album Off ♦ Folder ♦ Disc/USB : Randomly plays all tracks of the current folder, then tracks of the next folders. : Randomly plays all tracks. (For VCD: When PBC is not in used.) (All) ♦ All ♦ Song ♦ Album ♦ Off

Randomly plays all tracks of all loaded discs. Functions the same as “Shuffle Songs” *5 of the iPod. Functions the same as “Shuffle Albums” of the iPod. Cancels. Audiobooks*3 You can select the playback speed of the “Audiobook” audio file in your iPod. ♦ Normal : Plays at normal speed. ♦ Faster : Plays faster. ♦ Slower : Plays slower. Title Entry You can assign titles (up to 16 characters) to AV-IN and EXT-IN. (For available characters, 56.) Press [Enter] to show the <Title Entry> screen. [Store] : Confirm the entry. : Move the cursor. [2/3] [BS] : Erase the character before the cursor. [Del] : Erase the character on the cursor. Back [Cap] : Change the letter case (upper/lower). [A = 0 = Ä] : Change the character set. [Space] : Enter a space. *3 Not applicable in “iPod MODE.” ( 45) *4 Not applicable for video file. *5 You can activate <Shuffle Songs> in <Search Mode> menu. ( 26)

EN22-29_KW-AVX720_001A_3.indd 24 1/16/09 2:31:33 PM TUNER/DAB ENGLISH Source Operation/setting

• Storing a preset station/service manually 1 Press [BAND], then [ / ] to tune in to the station you want to preset. 2 Select <List> from the <AV Menu>. 3 Press and hold a preset number. List FM1 FM2 FM3 Ex.: Storing FM station in to preset number 4 Back The station selected in step 1 is now stored in preset number 4.
• Selecting a preset station/service on the list List FM1 FM2 FM3 Ex.: Selecting a preset FM station Back DISC/USB Selecting a track on the list If a device contains folders, you can display the Folder/Track (File) Lists, then start playback. 1 Current folder list number/ List Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06 Back 0005/0035 0003/0099 Track001.mp3 Track002.mp3 Track003.mp3 Track004.mp3 Track005.mp3 Track006.mp3 total folder list number 2 Current track list number/total track list number of the current folder
• Press: Skips the list up or down. Drag: Scrolls the list up or down. Continued on the next page AV MENU EN22-29_KW-AVX720_001A_1.indd 25

12/19/08 3:49:30 PM ENGLISH Source Bluetooth PHONE Operation/setting Selecting a preset phone number on the list to make a call List Phone Number Back CD-CH Selecting a disc on the list Disc List Disc 01 Disc 04 Disc 02 MP3 Disc Disc 03 Disc 06 If an MP3 disc is selected, Folder/ Track List appear. Select a track to start playback. Back To go to the other list iPod * Selecting a track/video from <Search Mode> ♦ Music : Playlists, Artists, Albums, Search Mode Music Videos Shuffle Songs Playlists Artists Albums Songs Podcasts Genres Songs, Podcasts, Genres, Composers, Audiobooks ♦ Videos : Video Playlists, Movies, Music Videos, TV shows, Video Podcasts ♦ Shuffle Songs : Playback starts if this is selected. 0003/0099 Current track (video) number/total track (video) number Back List Playlists Artists Albums Songs Podcasts Genres Track 01 Track 02 Track 03 Track 04 Track 05 Track 06 Back

• Not applicable in “iPod MODE.” ( 45)

EN22-29_KW-AVX720_001A_1.indd 26 12/19/08 3:49:31 PM ENGLISH Select “Bluetooth PHONE” or “Bluetooth AUDIO” as the source for operations.

• Firstly, use <Open> or <Search> to register and establish the connection with a device. Menu item Dial Menu *1 Selectable setting/item Select the method to make a call. ♦ Redial : Shows the list of the phone numbers you have dialed. ♦ Received Calls : Shows the list of the received calls. ♦ Phonebook : Shows the phone book of the connected cellular phone. ♦ Missed Calls : Shows the list of the missed calls. ♦ Phone Number : Shows the phone number entry screen. Phone Number Back ♦ Voice Dialing Message *2 [BS] : Erase the character before the cursor. [Del] : Erase the character on the cursor. [Preset] : Goes to Preset List. You can preset the entered number by selecting a preset number. [Dial] : Calls the entered number. : Only when the connected cellular phone has the voice recognition system: = Speak the name you want to call. If <Message Info> is set to <Manual>... ( 29) Access the message list to read messages. ♦ Unread : Messages you have not read. ♦ Read : Messages you have read. ♦ Unsent : Messages you have not sent. ♦ Sent : Messages you have sent.
• The number of messages in each history is also shown. *1 Only for the device connected for “ Bluetooth PHONE.” *2 Selectable only when the source is “ Bluetooth PHONE” and the connected cellular phone is compatible with SMS (Short Message Service). Continued on the next page AV MENU EN22-29_KW-AVX720_001A_1.indd 27

12/19/08 3:49:31 PM ENGLISH Menu item Open Selectable setting/item Preparation:

• Operate the Bluetooth device to turn on its Bluetooth function.
• Make sure “NEW DEVICE” is selected. If not, press [ 5 ] or [ ∞ ] to select it. 1 Press <Open> on the <Bluetooth> menu. 2 Enter a PIN (Personal Identification Number) *3.

• You can enter any number you like (1-digit to 16-digit number). PIN Code Back You can enter [0] – [9] only. [BS] : Erases the character before the cursor. [Del] : Erases the character on the cursor. [Enter] : Confirms the entry. 3 Operate the Bluetooth device to connect while “Open...” is displayed on the screen. Enter the same PIN code (as entered in the above step) on the device to be connected. Now connection is established and you can use the device through the unit.
• The device remains registered even after you disconnect the device. Use <Connect> or activate <Auto Connect> to connect the same device the next time. Search Preparation:
• Make sure “NEW DEVICE” is selected. If not, press [ 5 ] or [ ∞ ] to select it. 1 Press <Search> on the <Bluetooth> menu. The unit searches for available devices and displays the list of them. (If no available device is detected, “Device Unfound” appears.) 2 Select a device you want to connect. 3 Enter the specific PIN code of the device to the unit.
• Refer to the instructions supplied with the device to check the PIN code. 4 Operate the Bluetooth device to connect while “Connecting...” is displayed on the screen. Now connection is established and you can use the device through the unit. *3 Some devices have their own PIN code. Enter the specified PIN code to the unit.

EN22-29_KW-AVX720_001A_1.indd 28 12/19/08 3:49:32 PM Selectable setting/item Special Device Only for “NEW DEVICE.” Select a device you want to connect from the list of Bluetooth devices which require some special procedure to establish the Bluetooth connection. Then, use <Open> or <Search> to connect.

• Once the connection is established, it is registered in the unit. You can connect the unit and the device by using <Connect> the next time. Connect Only for the registered devices. Select a device from the list of registered devices, establish the connection with it. Disconnect Only for the connected devices. Disconnect the current device before connecting another device. Delete Pairing Only for the registered devices. Press <Yes> to confirm delete the registered devices. Settings Initial: Underlined Auto Connect *4 When the unit is turned on, the connection is established automatically with... ♦ Off : No Bluetooth device. ♦ Last : The last connected Bluetooth device. ♦ Order : The available registered Bluetooth device found first. Auto Answer *5 ♦ Off ♦ On ♦ Reject

Message Info * ♦ Auto ♦ Manual ENGLISH Menu item : The unit does not answer the calls automatically. Answer the calls manually. : The unit answers the incoming calls automatically. : The unit rejects all incoming calls. : The unit informs you of the arrival of a message by ringing and displaying “Receiving Message.” To read the message, : The unit does not inform you of the arrival of a message. MIC Setting *5 Adjust the volume of the microphone connected to the Bluetooth adapter. ♦ 01/02/03 Version The Bluetooth software and hardware versions are shown. *4 Selectable only for “ Bluetooth PHONE.” *5 Only for the cellular phone connected for “ Bluetooth PHONE.” Not selectable when “NEW DEVICE” is selected. AV MENU EN22-29_KW-AVX720_001A_1.indd 29

PTY code for FM Radio Data System BAND ~ Press [SOURCE], then press [TUNER]. Ÿ Press [BAND]. ! Press [ ] or [ ] to search for a station—Auto Search.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
• If no PS signal comes in, “No Name” appears.

• Manual Search: Hold either [ ]or [ ] until “Manual Search” appears on the screen, then press it repeatedly. Selecting a preset station Changing the display information

• Directly from the touch panel

• To improve the FM reception,

• To automatically preset stations into memory,

• To manually preset stations into memory,

BAND You can also select a preset station using the remote controller (

9) and from the Preset List (

25). You can display the Preset List by pressing [ holding [5/∞]. ] or

EN30-37_KW-AVX720_001A_f.indd 30 2/12/09 5:40:18 PM Searching for FM Radio Data System programme—PTY Search Storing your favorite programme types You can store your favorite PTY codes into the PTY Preset List. Ex.: Storing <Drama> into <Preset 1>

You can search for your favorite programmes being broadcast by selecting the PTY code of your favorite programmes.

Back PTy Search Preset PTy Code Back PTY Search starts. If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

• To activate/deactivate PTY Standby Reception,

• To change the PTY code for PTY Standby Reception,

• To trace the same programme—NetworkTracking Reception,

• To automatically select station—Programme Search,

12/19/08 3:48:14 PM ENGLISH Disc operations The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears). If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc. If “ ” appears on the screen, the unit cannot accept the operation you have tried to do.

• In some cases, without showing “ ,” operations will not be accepted. ~ Open the monitor panel. ! Insert a disc. Label side <Open/Tilt> menu is displayed.
• By pressing and holding the button, you can open the monitor panel and eject the disc.

Open/Tilt Monitor panel closes automatically. If not, press [Close]. Caution: Do not place your finger behind the monitor panel. Prohibiting disc ejection You can lock a disc in the loading slot. When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.

• You can fully enjoy multi-channel sound by connecting an amplifier or a decoder compatible 55) with these multi-channel sources. (

• To select the playback mode, 23, 24.

• To select tracks on the list, Back To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.
• Discs can be forcibly ejected. (

• DVD Video/DVD-VR: Selects title/program/ playlist.
• DivX/MPEG/JPEG/MP3/WMA/WAV: – Selects folder – Displays Folder/Track List (Hold)
• DVD Video: Title no./Chapter no./Playing time
• DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time
• DivX/MPEG/MP3/WMA/WAV: Folder no./Track no./Playing time

• DVD Video/DVD-VR: Sampling frequency/Bit rate/Recorded signal channel no.
• DivX/MPEG/JPEG: Folder name/file name
• CD Text: Title/artist name/album name – “No Name” appears for conventional CDs or if not recorded
• MP3/WMA/WAV: Current folder name/current file name/tag data (current track title/artist name/album title) if it is recorded q Stops playback w [4 / ¢]
• DVD Video/DVD-VR: Selects chapter.

2/4/09 9:16:10 AM ENGLISH Operation buttons on the screen You can display the following operation buttons while watching the playback pictures on the screen.

• If no operation is done after awhile, the operation buttons disappear (except when a disc menu is displayed).

[SOURCE] [5 ∞] [3 / 8] [4 ¢] Touch the screen (center portion). Displays <Source Menu> screen Starts playback/pause

• Reverse/forward search (Hold)

Displays <AV Menu> screen [7] Stops playback

• The above buttons also work when they are not shown on the screen (while watching the playback picture).

Touch [KEY]. Touch [KEY]. For entering the numbers [0]–[9]=[ENTER] Enters numbers [Direct/CLR]

• Switches between chapter/track entry and title/folder entry
• Erases the last entry when you enter a wrong number Ex.: To enter “105,” press [1], [0], [5], then [ENTER] *1 While a disc menu is played back for DVD, [KEY] is automatically displayed. On the disc menu, you can select a menu item directly by touching it on the screen *2 Displays Short Cut icons. ( *3 Playback time. ( 33) To end the operations, touch the screen again.

Button Stop play Start play/Pause (if pressed during play)

• DivX/MPEG: Start play/Pause (if pressed during play)
• JPEG: • Start play (Slide show: Each file is shown for a few seconds.)
• Pause (if pressed during play).
• Reverse/forward chapter search *1 (No sound can • DivX/MPEG: Reverse/forward track be heard.) search *4 (No sound can be heard.)
• Slow motion *2 during pause (No sound can be heard.) – DVD-VR: Reverse slow motion does not work.
• DivX/MPEG: • Select track
• Select chapter (during play or pause)
• Reverse/fast-forward track
• Reverse/fast-forward chapter search *3 (No sound can be heard.) (Hold) search *5 (No sound can be heard.) (Hold)
• DVD-Video: Select title (during play or pause) Select folder
• DVD-VR: • Select program
• Select playlist (during play or pause)
• DivX/MPEG: Skip back or forward the scenes by about 5 minutes Select aspect ratio

Search speed: Slow motion speed: Search speed: Search speed: Search speed: Using menu driven features... (DVD Video) Canceling the PBC playback... (VCD) 1 Enter the menu screen. During stop...

2 Select an item you want to start play.

12/19/08 3:48:17 PM ENGLISH Button Stop play Stop play Stop play Start play/Pause (if pressed during play) Reverse/forward track search *6

• Forward slow motion *7 during pause. (No sound can be heard.) – Reverse slow motion does not work.
• Reverse/fast-forward track search *8 (No sound can be heard.) (Hold) Start play/Pause (if pressed Start play/Pause (if pressed during play) during play) Reverse/forward track search *6 Reverse/forward track search *6

• Reverse/fast-forward track search *8 (Hold)

• Reverse/fast-forward track search *8 (Hold) Select folder Select aspect ratio

• For DivX/MPEG/JPEG/MP3/WMA/WAV, track is searched within the same folder.
• For DVD-VR, program/playlist search is possible during Original program playback (PG)/Playlist playback (PL).
• To erase a misentry, press CLR (clear) while holding SHIFT.
• To return to the previous screen, press RETURN. VCD/CD:

Make a selection. Original Program/Playlist screen

• To cancel pop-up menu, press RETURN.
• For entering time/numbers, see the following.
• Playlist 1 Original Program/Playlist number 2 Recording date 3 Recording source (TV station, the input terminal of

the recording equipment, etc.) Start time of recording Title of the program/playlist * Highlight bar (current selection) Creating date of playlist Total number of chapters included in the playlist Playback time

• The title of the original program or playlist may not be displayed depending on the recording equipment. Entering time/numbers Press % / fi to change the number, then press @ / # to move to the next entry.
• Each time you press % / fi, the number increases/ decreases by one value.
• After entering the numbers, press ENT (enter).
• It is not required to enter the zero and tailing zeros (the last two digits in the example below). Ex.: Time search DVD: _:_ _:_ _ (Ex.: 1:02:00) Press % once, then # twice to go to the third entry, % twice, then press ENT (enter). Removing the on-screen bar Continued on the next page OPERATIONS EN30-37_KW-AVX720_001A_1.indd 37

• VCD: PBC 3 Playback mode *1 DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG Video: T. RPT: Track repeat F. RPT: Folder repeat A. RND: All (Disc) random F. RND: Folder random JPEG: F. RPT: Folder repeat VCD *2: T. RPT: Track repeat A. RND: All (Disc) random 4 Playback information Current title/chapter Current program/chapter Current playlist/chapter Current track Current folder/track Current folder/file 5 Time indication Elapsed playing time of the disc (For DVD-Video, elapsed playing time of the current title/program/ playlist.) DVD-Video/DVD-VR: Remaining title/program/playlist time VCD: Remaining disc time Elapsed playing time of the current chapter/track *3 Remaining time of the current chapter/track *3 6 Playback status Play Forward/reverse search Forward/reverse slow-motion Pause Stop 7 Operation icons Change time indication (see 5) Time Search (Enter the elapsed playing time of the current title/ program/playlist or of the disc.) Title Search (by its number) Chapter Search (by its number) Track Search (by its number) Repeat play *1 Random play *1 Change the audio language, audio stream, or audio channel Change or turn off the subtitle language Change the view angle *1 For repeat play/random play, *2 While PBC is not in use. *3 Not applicable for DVD-VR. 23, 24.

EN38-49_KW-AVX720_001A_1.indd 38 12/19/08 3:48:37 PM You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod to the USB terminal of the unit. For details of the operations, 45 – 46. ENGLISH USB operations USB cable from the rear of the unit This unit can play JPEG/MPEG1/MPEG2/MP3/WMA/ WAV files stored in USB mass storage class device.
• You can operate the USB device in the same way you operate the files on discs.
• All tracks in the USB device will be played repeatedly until you change the source.
• Playback starts from where it has been stopped previously when you reconnect the same USB device again.
• To select the playback mode, 23, 24.
• To select tracks on the list,

• Avoid using the USB device if it might hinder your safety driving.
• Do not pull out and attach the USB device repeatedly while “Now Reading” is shown on the screen.
• Do not start the car engine if a USB device is connected.
• This unit may not be able to play the files depending on the type of USB device.
• Operation and power supply may not work as intended for some USB devices.
• You cannot connect a computer to the USB input terminal of the unit.
• Make sure all important data has been backed up to avoid losing the data.
• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.
• Some USB devices may not work immediately after you turn on the power.
• For more details about USB operations,

12/19/08 3:48:40 PM ENGLISH Using the Bluetooth® devices For Bluetooth operations, it is required to connect the Bluetooth adapter, KS-BTA200 (not supplied) to the CD changer jack on the rear of this unit.

• Refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth device.
• Refer to the list (included in the box) to check the countries where you may use the Bluetooth ® function. To use a Bluetooth device through the unit (“ Bluetooth PHONE” and “ Bluetooth AUDIO”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device.
• Once the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be registered in total.
• Only one device can be connected at a time for each source (“ Bluetooth PHONE” and “ Bluetooth AUDIO”). Connecting a new Bluetooth device Registration (Pairing) methods Use either of the following items in <Bluetooth> menu to register and establish the connection with a device.
• Select “ Bluetooth PHONE” or “ Bluetooth AUDIO” as the source to operate <Bluetooth> menu. Open Make the unit ready to establish a new Bluetooth connection. The connection is established by operating the Bluetooth device. Search Make the unit ready to establish a new Bluetooth connection. The connection is established by operating this unit.

• To register a device using <Open> or <Search>,
• To connect a special device,

• To connect/disconnect/delete a device,

56) Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only).

EN38-49_KW-AVX720_001A_1.indd 40 12/19/08 3:48:41 PM Status of the device

• Signal strength/Battery remainder (only when the information comes from the device). [5 / ∞]: Selects the other registered device. Connected device name
• When a cellular phone with audio function is registered/connected, appears. SOURCE Connected Device Name FLAT 3:00 ENGLISH Using the Bluetooth cellular phone

Activates <Voice Dialing> Display <Dial Menu> screen. function. (Hold)

• Appears on any source information screen when the Bluetooth adapter is connected. Bluetooth icon
• Lights up when the Bluetooth adapter is connected. ~ Press [SOURCE], then press [Bluetooth PHONE]. Ÿ Press [ ]. ! Press [Bluetooth]. ⁄ Establish the connection with a device, then make a call (or settings using <Bluetooth> menu). ( 27 – 29) When a call comes in... The source is changed to “ Bluetooth PHONE” automatically. To end the call
• Hold the message displayed on the touch panel.
• Hold any button on the monitor panel (except or VOL +/–).
• You can adjust the microphone volume,

• Press any button on the monitor panel (except or VOL +/–). Continued on the next page EXTERNAL DEVICES EN38-49_KW-AVX720_001A_1.indd 41

12/19/08 3:48:42 PM ENGLISH When an SMS comes in... If the cellular phone is compatible with SMS (Short Message Service), you can read the messages on the screen.

• You cannot edit or send a message through the unit. Presetting the phone numbers You can preset up to 6 phone numbers.

When <Message Info> is set to <Auto>... The unit rings and the following screen is displayed to inform you of a message arrival. ( 29) Select the phone number you want to preset from <Phonebook>, <Redial>, <Received Calls>, or <Missed Calls>.

Device Name Receiving Message Jack 27) Select a telephone number to store. Dial Menu Read ? Yes

Back To read the message, press [Yes]. The source is changed to “Bluetooth PHONE.” To read the message later, press [No].

Select a preset number. Dial Menu Back Now “Tom” is stored into preset no. 1. To stop ringing (canceling the outgoing call) To call a preset number,

Hold any button on the monitor panel (except or VOL +/–).

EN38-49_KW-AVX720_001A_1.indd 42 12/19/08 3:48:43 PM Using the Bluetooth audio player ENGLISH Indicates the button pressed.

• It may be different from the operation status. Starts playback/pause SOURCE Connected Device Name FLAT 3:00

[5 / ∞]: Selects the other registered device. [4 / ¢]: Reverse/ forward search Stops playback ~ Press [SOURCE], then press [Bluetooth AUDIO]. Ÿ Start playback. If playback does not start automatically, operate the Bluetooth audio player to start playback. Listening to the CD changer It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs. Preparation: Make sure <Changer> is selected for <External Input>. ( 19) Ex.: While playing an MP3 disc
• [4 / ¢]: Selects track
• [4 / ¢]: Reverse/forward search (Hold) [5 / ∞]: Displays Disc List. DISC 1 SOURCE CD-CH FLAT REPEAT 3:00

Current Folder Name Current File Name.mp3 Current Track Title Artist Name Album Title Tag data (if it is recorded) ~ Press [SOURCE], then press [CD-CH]. Ÿ Press [ ]. ! Press [List]. Folder no./Track no./Playing time ⁄ Select a disc to start playing. To select the playback mode, 23, 24. EXTERNAL DEVICES EN38-49_KW-AVX720_001A_1.indd 43

12/19/08 3:48:43 PM ENGLISH Listening to the DAB tuner Preset number SOURCE Band DAB Sound mode DAB indicators */ Standby Reception indicator DAB1 1 1475.216MHz LN Service Label FLAT If no signal is received, “No DAB Signal” appears. DRC 3:00

BAND ~ Press [SOURCE], then press [DAB]. Ÿ Press [BAND]. ! Press [ ] or [ ] to search for an ensemble—Auto Search.

• Manual Search: Hold either [ repeatedly. ]or [ ] until “Manual Search” appears on the screen, then press it ⁄ Press [5 SERVICE] or [SERVICE ∞] to select a service (either primary or secondary) to listen to.
• While tuning in a service with DLS (Dynamic Label Segment), the TEXT indicator lights up.

To improve your listening when the surrounding sounds are noisy, To manually preset services into memory, To select a preset service, To activate/deactivate TA/PTY Standby Reception, 6, 22. (You cannot store PTY codes separately for the DAB tuner and the FM tuner.)

• To activate/deactivate Announcement Standby Reception,

• To change the announcement type for Announcement Standby Reception,
• To trace the same programme—Alternative Frequency Reception (DAB AF),

Listen to the music Cable/adapter To operate USB 2.0 cable (accessory of the iPod/iPhone) to the USB cable from the rear of the unit. See “When connected with the USB cable” below. Interface Adapter for iPod, KS-PD100 (not supplied) to the CD changer jack on the rear of the unit. See “When connected with the interface adapter” on page 46. Watch the video USB Audio and Video cable for iPod/iPhone, KS-U30 (not supplied) to the USB cable from the rear of the unit. See “When connected with the USB cable” below.

• Make sure <iPod (Off)> is selected for <AV Input>, When connected with the USB cable There are 2 control modes in ” iPod “ source.
• “HEAD MODE” : Control by this unit.
• “iPod MODE” : Control by the connected iPod/iPhone. Make sure <iPod (Off)> is selected for <AV Input> when using KS-U30 to connect. ( 18)

• Press and hold to switch between “HEAD MODE” and “iPod MODE.” The operation explained below are under “HEAD MODE.”

Current Track Title Artist Name Album Title

• [4 / ¢]: Selects a track/video
• [4 / ¢]:Reverse/forward search (Hold) Track no./Playing time Stops playback *1 [5 / ∞] may not function depending on how you select the current track/video. *2 Not applicable in “iPod MODE.” Continued on the next page EXTERNAL DEVICES EN38-49_KW-AVX720_001A_2.indd 45

The following operations/settings are only available in “HEAD MODE.”

• To display the <iPod Artwork>,

• To select track/video from <Search Mode>,

• To select the playback mode, 23, 24.
• To change the play speed of the audio books,

Playback starts automatically.

• When you connect the iPod to the USB terminal, “ iPod” is selected as the source and playback starts automatically. Ÿ Press [4] or [¢] to select a track/ video. You cannot resume playback for video sources. When connected with the interface adapter Enters main menu Track no./Playing time SOURCE iPod FLAT REPEAT 3:00

• [4 / ¢]: Selects tracks
• [4 / ¢]: Reverse/forward search (Hold) Song Name Artist Name Album Title Starts playback/pause Preparation: Make sure <iPod> is selected for <External Input>. ( 19) ~ Press [SOURCE], then press [iPod]. Playback starts automatically.

Press [4] or [¢] to select a track.

Press [4] or [¢] to select the desired item. Press [3 / 8] to confirm the selection. Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.
• To return to the previous menu, press [SEARCH]. Press [SEARCH] to enter the main menu. “SEARCH” flashes on the screen during menu operations.
• This mode will be canceled if no operations are done for about 5 seconds.

ENGLISH Selecting a track from the main menu 23, 24. To select the playback mode, Changing the display information

• Skips 10 items at a time if there are more than 10 items. (Hold)

56) Playlists Ô Artists Ô Albums Ô Songs Ô Genres Ô Composers Ô (back to the beginning) Using other external components AV-INPUT You can connect an external component to the LINE IN/VIDEO IN jacks. Assigned title ( 24) SOURCE AV-IN FLAT 3:00

~ Press [SOURCE], then press [AV-IN]. Ÿ Turn on the connected component and start playing the source. To display the operation buttons while watching the playback picture,

Continued on the next page EXTERNAL DEVICES EN38-49_KW-AVX720_001A_1.indd 47

12/19/08 3:48:46 PM ENGLISH Navigation screen You can also connect a Navigation System to the VIDEO IN jack so that you can watch the navigation screen. Preparation: Make sure <Navigation> is selected for <AV Input>. ( 18) To view the navigation screen Press DISP on the monitor panel repeatedly. ( 56)

• The aspect ratio of the navigation screen is fixed to <Full> regardless of the <Aspect> setting. ( 15) When <Navigation> is selected for <AV Input> ( 18)
• You can use the source “AV-IN” for listening to an audio source connected to the LINE IN jacks. EXT-INPUT You can connect an external component to the CD changer jack on the rear using the Line Input Adapter, KS-U57 (not supplied) or AUX Input Adapter, KS-U58 (not supplied). Assigned title ( 24) Preparation: Make sure <External> is selected for <External Input>. ( 19) SOURCE EXT-IN FLAT 3:00

~ Press [SOURCE], then press [EXT-IN]. Ÿ Turn on the connected component and start playing the source. Changing the display information

56) EXTERNAL DEVICES EN38-49_KW-AVX720_001A_3.indd 48 1/16/09 2:37:08 PM Caution on cleaning the unit Do not use any solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit. To keep discs clean A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs. ENGLISH Maintenance To play new discs Recommended cleaning method: Gently wipe the panel with a soft, dry cloth. Moisture condensation Center holder Moisture may condense on the lens inside the unit in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates. How to handle discs When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.
• Always hold the disc by the edges. Do not touch its recording surface. When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).
• Make sure to store discs in cases after use. New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc. Do not use the following discs: Single CD (8 cm disc) Warped disc Sticker and sticker residue Stick-on label Unusual shape C-thru Disc (semitransparent disc) Transparent or semitransparent parts on its recording area REFERENCES 49 EN38-49_KW-AVX720_001A_1.indd 49 12/19/08 3:48:46 PM ENGLISH More about this unit General Turning on the power
• By pressing SOURCE on the monitor panel, you can also turn on the power. If the source is ready, playback starts. Tuner (FM only) Storing stations in memory
• When SSM is over, received stations are preset in no. 1 (lowest frequency) to no. 6 (highest frequency). FM Radio Data System operations
• Network-Tracking Reception requires two types of Radio Data System signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.
• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA Volume) if the current level is lower than the preset level.
• Tracing the same programme—NetworkTracking Reception: When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals. Programme A broadcasting on different frequency areas (01 – 05)

• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Frequency Reception. ( 18)
• Available PTY codes: News, Current Affairs, Information, Sport, Education, Drama, Cultures, Science, Varied Speech, Pop Music, Rock Music, Easy Listening, Light Classics M, Serious Classics, Other Music, Weather & Metr, Finance, Children’s Progs, Social Affairs, Religion, Phone In, Travel & Touring, Leisure & Hobby, Jazz Music, Country Music, National Music, Oldies Music, Folk Music, Documentary Disc General
• In this manual, words “track” and “file” are interchangeably used.
• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV) are recorded on the same disc. Inserting a disc
• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the screen. Eject the disc. Ejecting a disc
• If “No Disc“ appears after removing a disc, insert a disc or select another playback source.
• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

EN50-57_KW-AVX720_001A_1.indd 50 12/19/08 3:51:39 PM Playing JPEG files

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).
• Use only “finalized” discs.
• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
• This unit can recognize a total of 25 characters for file/folder names.
• Some discs or files may not be played back due to their characteristics or recording conditions.

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.
• This unit can play back JPEG files that are at 32 × 32 to 8 192 × 7 680 resolution. It may take time to display the file depending on its resolution.
• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played. Playing DVD-VR Playing MP3/WMA/WAV files

• For details about DVD-VR format and playlist, refer to the instructions supplied with the recording equipment.

• This unit can play back files with the extension code <.mp3>, <.wma>, or <.wav> (regardless of the letter case—upper/lower).
• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)
• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).
• This unit can also show WAV/WMA Tag.
• This unit can play back files recorded in VBR (variable bit rate).
• Files recorded in VBR have a discrepancy in elapsed time indication.
• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and voice format. – WMA files which are not based upon Windows Media® Audio. – WMA files copy-protected with DRM. – Files which have the data such as AIFF, ATRAC3, etc. File playback Playing DivX files
• This unit can play back DivX files with the extension code <.divx>, <.div>, or <.avi> (regardless of the letter case—upper/lower).
• Audio stream should conform to MP3 or Dolby Digital.
• The file encoded in the interlaced scanning mode may not be played back correctly.
• The maximum bit rate for video signals (average) is 4 Mbps. Playing MPEG1/MPEG2 files
• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*.
• <.mod> is an extension code used for the MPEG2 files recorded by JVC Everio camcorders. The MPEG2 files with the <.mod> extension code cannot be played back when stored on a USB mass storage class device.
• The stream format should conform to MPEG system/ program stream. The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.
• The maximum bit rate for video signals (average) is 4 Mbps. Continued on the next page REFERENCES EN50-57_KW-AVX720_001A_1.indd 51 ENGLISH Playing Recordable/Rewritable discs

• DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV The following screens appear only on the external monitor.
• CD TIME T. RPT Track Information Album Four seasons Artist Robert M. Smith Title Rain 00:14 Track : 6 / 14 Cloudy Fair Fog Hail Indian summer Rain Shower Snow Thunder Typhoon Wind Winter sky

Selected playback mode Elapsed playing time of the current track Operation status Current track number/total number of tracks on the disc 5 Track information 6 Track list 7 Current track (highlighted bar)

Current folder (highlighted bar) Current folder number/total folder number Folder list Selected playback mode Elapsed playing time of the current track (not displayed for JPEG) Operation status Current track number/total number of tracks in the current folder (total number of tracks on the disc) Track information (only for MP3/WMA/WAV) Track list Current track (highlighted)

• If tag data includes “Jacket Picture” (baseline JPEG), it will be displayed.

EN50-57_KW-AVX720_001A_1.indd 52 12/19/08 3:51:41 PM Bluetooth operations General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in a safe place.
• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.
• This unit may not work for some Bluetooth devices.
• Connecting condition may vary depending on circumstances around you.
• When the unit is turned off, the device is disconnected. ENGLISH USB operations
• If “No USB Device“ appears after removing a device, reattach a device or select another playback source.
• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the screen.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.
• While playing from a USB device, the playback order may differ from other players.
• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.
• USB devices equipped with special functions such as data security functions cannot be used with the unit.
• Do not use a USB device with two or more partitions.
• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.
• When connecting a USB device, refer also to its instructions.
• Connect only one USB device to the unit at a time. Do not use a USB hub.
• This unit may not recognize a USB device connected through a USB card reader.
• When connecting with a USB cable, use the USB 2.0 cable.
• This unit may not play back files in a USB device properly when using a USB extension cord.
• This unit cannot assure proper functions or supply power to all types of the devices.
• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).
• This unit can recognize a total of 25 characters for file/folder names.
• For MPEG1/2 files: The maximum bit rate for video signals (average) is 2 Mbps. Warning messages for Bluetooth operations
• Connection Error: The device is registered but the connection has failed. Use <Connect> to connect the device again. ( 29)
• Error: Try the operation again. If “Error” appears again, check if the device supports the function you have tried.
• Device Unfound: No available Bluetooth device is detected by <Search>.
• Loading: The unit is updating the phone book or SMS.
• Please Wait...: The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).
• Reset08: Check the connection between the adapter and this unit. Continued on the next page REFERENCES EN50-57_KW-AVX720_001A_1.indd 53

12/19/08 3:51:41 PM ENGLISH Icons for phone types

• These icons indicate the phone type set on the device. : Cellular phone : Household phone : Office : General : Other than above CD changer
• If you select a folder, which does not include any music files, on the list ( 26), you will hear a beep. Select another folder including music files. DAB
• Only the primary DAB service can be preset even when you store a secondary service. iPod/iPhone operations
• You can control the following types of iPod/iPhone: (A) Connected with the USB cable: – iPod with video (5th Generation) *1, *2, *3 – iPod classic *1, *2 – iPod nano *2, *3 – iPod nano (2nd Generation) *2 – iPod nano (3rd Generation) *1, *2 – iPod nano (4th Generation) *1, *2 – iPod Touch *1, *2 – iPod Touch (2nd Generation) *1, *2 – iPhone/iPhone 3G *1, *2 (B) Connected with the interface adapter: – iPod with Click Wheel (4th Generation) – iPod mini – iPod photo – iPod with video (5th Generation) – iPod classic – iPod nano – iPod nano (2nd Generation) – iPod nano (3rd Generation) – iPod nano (4th Generation) *4 *1 To watch the video with its audio, connect the iPod/ iPhone using USB Audio and Video cable (KS-U30, not supplied). *2 “iPod MODE” is available, *3 To listen to the sound in “iPod MODE,” connect the iPod/iPhone using USB Audio and Video cable (KS-U30, not supplied). *4 It is not possible to charge the battery through this unit.
• If the iPod does not play correctly, update your iPod software to the latest version. For details about updating your iPod, visit <http://www.apple.com>.
• When you turn on this unit, the iPod is charged through the unit.
• The text information may not be displayed correctly.
• The text information scrolls on the monitor. This unit can display up to 40 characters when using the interface adapter and up to 128 characters when using the USB 2.0 cable or USB Audio and Video cable (KS-U30). Notice: When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only) For the USB connection: When <iPod Artwork> is set to <On>: Do not press any keys during the first 5 seconds or more of playing back any track containing an Artwork*. It takes 5 seconds or more to display an Artwork and no operations are available while loading it.

EN50-57_KW-AVX720_001A_2.indd 54 12/30/08 11:59:02 AM ENGLISH Menu settings

• If you change the <Amplifier Gain> setting from <High> to <Low> while the volume level is set higher than “30,” the unit automatically changes the volume level to “VOL 30.”
• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.
• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.
• Even if <4:3PS> is selected, the screen size may become <4:3LB> for some discs. Sound signals emitted through the rear terminals Through the analog terminals (Speaker out/LINE OUT) 2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed.
• DTS sound cannot be reproduced. Through the DIGITAL OUT terminal Digital signals (Linear PCM, Dolby Digital, MPEG Audio) are emitted.
• DTS sound cannot be emitted.
• To reproduce the multi-channel sounds such as Dolby Digital and MPEG Audio, connect an amplifier or a decoder compatible with these multi-channel sources to this terminal, and set <D. Audio Output> correctly. ( 17) Output signals <D. Audio Output> Playback disc DVD <Stream> <Dolby D> <PCM> 48 kHz, 16/20/24 bits Linear PCM 48 kHz, 16 bits stereo Linear PCM* 96 kHz, Linear PCM 48 kHz, 16 bits stereo Linear PCM with Dolby Digital with MPEG Audio Audio CD, Video CD DivX/ with Dolby Digital MPEG with MPEG Audio MP3/WMA WAV 48 kHz, 16 bits stereo Linear PCM Dolby Digital bitstream MPEG bitstream 48 kHz, 16 bits stereo Linear PCM

44.1 kHz, 16 bits stereo Linear PCM /

44.1 kHz, 16 bits Linear PCM

• Digital signals may be emitted at 20 or 24 bits (at their original bit rate) through the DIGITAL OUT terminal if the discs are not copy-protected. Continued on the next page REFERENCES EN50-57_KW-AVX720_001A_3.indd 55

• Available display information varies among the playback sources. Each time you press DISP, the display changes to show the various information. Ex.: When the playback source is a DVD video disc SOURCE SOURCE DVD DVD FLAT FLAT CHAP. RPT 3:00 Playback picture screen (only for video sources)

Playback picture and source information screen *1 Navigation screen *2 *1 When the source is “ iPod,” the Artwork of the song is shown if the song has an Artwork data. ( 16) While MP3/WMA file is played, “Jacket picture” is shown if the file has the tag data including “Jacket picture.” 18) *2 When <Navigation> is selected for <AV Input>. ( Characters you can enter for titles In addition to the roman alphabet (A – Z, a – z), you can use the following characters to assign titles. (

• When <Руccĸий> is selected for <Language>. ( 15) 24) Upper and lower cases Numbers and symbols

• When any language other than <Руccĸий> is selected for <Language>. ( 15) Upper and lower cases Numbers and symbols

Persian Finnish Fiji Faroese Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue Inupiak Indonesian Icelandic Hebrew Japanese Yiddish Javanese Georgian

Sesotho Sundanese Swahili Tamil Telugu Tajik Thai Tigrinya Turkmen Tagalog Setswana Tonga Turkish Tsonga Tatar Twi Ukrainian Urdu Uzbek Vietnamese Volapuk Wolof Xhosa Yoruba Zulu ENGLISH Language codes (for DVD/DivX language selection) JVC bears no responsibility for any loss of data in an iPod/iPhone and/or USB mass storage class device while using this unit. Continued on the next page REFERENCES EN50-57_KW-AVX720_001A_2.indd 57

12/30/08 12:00:38 PM ENGLISH

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.
• DivX® is a registered trademark of DivX, Inc., and is used under license.
• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device that plays DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX® Certified device must be registered in order to play DivX Video-onDemand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorized for your device, the message “Authorization Error” will be displayed and your content will not play.] Learn more at www.divx.com/vod.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.
• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

EN58-65_KW-AVX720_001A_1.indd 58 12/19/08 3:47:34 PM What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied for the adapters used with the connections (as well as the instructions supplied with the external components).
• Messages (enclosed in “ ”) in the tables below are shown in the language selected on <Language>. ( 15) Messages described here are in the language of this manual. TUNER General Symptom ENGLISH Troubleshooting Remedy/Cause

• No sound comes out of the speakers. • Adjust the volume to the optimum level.
• Check the cords and connections.
• The screen is not clear and legible. Sunshine from the windshield may cause this symptom. 14) Adjust <Bright>. (
• “Position Error Push Open Key” The monitor panel angle has been forcibly adjusted, or its appears on the screen. adjustment has been interrupted while opening or closing. Press [OPEN/TILT].
• “Mecha Error Push Reset” appears on Reset the unit. ( the screen, and the panel does not move.
• “No Signal” appears.
• Start the playback on the external component connected to VIDEO IN jack.
• Check the cords and connections.
• Signal input is too weak.
• The buttons on the monitor panel do When the monitor panel is open, only VOL +/– and work. The other buttons do not function. not work.
• The unit does not work at all. Reset the unit. (
• The touch panel does not respond
• Keep your hands and the touch panel clean and dry. properly.
• Eliminate static electricity and do not place magnetic items
• <Illumination> function does not near the unit. work properly.
• Leave the unit until the temperature becomes stable in the car.
• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.
• SSM automatic presetting does not Store stations manually. ( 25) work.
• Static noise while listening to the Connect the aerial firmly. radio. Continued on the next page REFERENCES EN58-65_KW-AVX720_001A_1.indd 59

• Disc can be neither recognized nor played back.
• Disc cannot be ejected.

Remedy/Cause Eject the disc forcibly. (

Unlock the disc. ( 32) Recordable/Rewritable discs cannot • Insert a finalized disc. be played back.

• Finalize the discs with the component which you used for Tracks on the Recordable/Rewritable recording. discs cannot be skipped. Playback does not start.
• Insert the disc correctly again.
• The format of files is not supported by the unit. The playback picture is not clear and Adjust items in <Picture Adjust> menu. ( 14) legible. Sound and pictures are sometimes
• Stop playback while driving on rough roads. interrupted or distorted.
• Change the disc. No playback picture is shown and Parking brake lead is not connected properly. “Parking Brake” appears on the See Installation/Connection Manual. screen, even when the parking brake is engaged. No picture appears on the external • Connect the video cord correctly. monitor.
• Select the correct input on the external monitor. “Eject Error” or “Loading Error” Change the source by pressing SOURCE. appears on the screen. “Region code error” appears on the Region code is not correct. ( screen when you insert a DVD Video. Disc cannot be played back.
• Record the tracks using a compliant application on the appropriate discs. (

• Add appropriate extension codes to the file names. Noise is generated. The track played back is not a playable file format. Skip to another file. Tracks are not played back as you Playback order may differ from the one played back using other have intended them to play. players. Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the tracks are recorded. “Not Support” appears on the screen The track is unplayable. and track skips.

EN58-65_KW-AVX720_001A_1.indd 60 12/19/08 3:47:36 PM

• Noise is generated. USB

• Tracks cannot play back as you have intended them to play.
• “Now Reading...” keeps flashing on the screen. Remedy/Cause The track played back is not a playable file format. Skip to another file. Playback order may differ from the one played back using other players.
• Readout time varies depending on the USB device.
• Do not use too many hierarchy and folders.
• Turn off the power then on again. ENGLISH Symptom

• “Cannot play this device Check the No tracks are stored. Copy tracks to the USB device. device” appears on the screen.
• Correct characters are not displayed (e.g. album name).
• While playing a track, sound is sometimes interrupted.
• Bluetooth device does not detect the unit.

For available characters,

The tracks are not properly copied into the USB device. Copy tracks again, and try again. This unit can be connected with one Bluetooth cellular phone and one Bluetooth audio player at a time. While connected to a device, this unit cannot be detected from another device. Disconnect currently connected device and search again. The unit does not detect the

• Check the Bluetooth setting of the device. Bluetooth device.
• Search from the Bluetooth device. The unit does not make pairing
• Enter the same PIN code for both the unit and target device. If with the Bluetooth device. the PIN code of the device is not indicated on its instructions, try “0000” or “1234.”
• Select the device name from <Special Device>, then try to 29) connect again. ( Echo or noise occurs. Adjust the microphone unit (supplied with Bluetooth Adapter) position. Phone sound quality is poor.
• Reduce the distance between the unit and the Bluetooth cellular phone.
• Move the car to place where you can get a better signal reception. The sound is interrupted or
• Reduce the distance between the unit and the Bluetooth audio skipped while using a Bluetooth player. audio player.
• Disconnect the device connected for “Bluetooth PHONE.”
• Turn off, then turn on the unit.
• (When the sound is not yet restored,) connect the player again. “NEW DEVICE” cannot be selected Bluetooth audio player is already connected. To select “NEW for “Bluetooth AUDIO.” DEVICE,” disconnect it. ( 29) The connected audio player Check whether the connected audio player supports AVRCP (Audio cannot be controlled. Video Remote Control Profile). Continued on the next page REFERENCES EN58-65_KW-AVX720_001A_1.indd 61

12/19/08 3:47:36 PM CD changer ENGLISH Symptom

• “No Disc” appears on the screen.
• “No Magazine” appears on the screen.
• “Cannot play this disc Check the disc” appears on the screen.
• “Reset08” appears on the screen. DAB tuner

• “Reset01” – “Reset07” appears on the screen.
• The CD changer does not work at all.
• “No DAB Signal” appears on the screen.
• “Reset 08” appears on the screen.
• The DAB tuner does not work at all.
• “Antenna Power NG” appears on the screen.
• The iPod/iPhone does not turn on or does not work. AV-IN iPod /iPhone

• “Disconnect” appears on the screen.
• Playback stops. Remedy/Cause Insert a disc into the magazine. Insert the magazine. Current disc does not include playable files. Replace the disc with one including playable files. Connect this unit and the CD changer correctly and press the reset button of the CD changer. Press the reset button of the CD changer. Reset the unit. ( Move to an area with stronger signals. Connect this unit and the DAB tuner correctly, then reset the unit. ( Connect this unit and the DAB tuner correctly, then reset the unit.( Check the cords and connections.
• Check the connecting cable and its connection.
• Update the firmware version of the iPod/iPhone.
• Charge the battery of the iPod/iPhone.
• Check whether “HEAD MODE” or “iPod MODE” is correctly selected. ( 45)
• Reset the iPod/iPhone. Deactivate the equalizer either on this unit or the iPod. Check the connection. The headphones are disconnected during playback. Restart playback. No tracks are stored. Import tracks to the iPod.

• “Cannot play this device Check the device” appears on the screen.
• No operations are available when playing back Operate the unit after the Artwork is loaded. ( 16) a track containing Artwork.
• “Reset01” – “Reset07” appears on the screen. Disconnect the adapter from both this unit and iPod. Then, connect them again. Check the connection between the adapter and this unit.
• “Reset08” appears on the screen.
• The iPod’s controls do not work after Reset the iPod. disconnecting from this unit.
• “Restricted Device” appears on the screen. Check whether the connected iPod is compatible with 54) this unit. (
• No picture appears on the screen.
• Turn on the video component if it is not on.
• Connect the video component correctly.
• Playback picture is not clear and legible. 14) Adjust items in <Picture Adjust> menu. (

• SUBWOOFER Line-Out Level/ Impedance: Output Impedance: Color System: Video Output (composite): Other Terminals: Input:

Frequency Range: FM Tuner: MW Tuner: LW Tuner: Output: Others: FM: AM: Usable Sensitivity: 50 dB Quieting Sensitivity: Alternate Channel Selectivity (400 kHz): Frequency Response: Stereo Separation: Sensitivity/Selectivity: Sensitivity: 50 W per channel 20 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 1.0% total harmonic distortion 4 Ω (4 Ω to 8 Ω allowance) 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz,

ENGLISH Specifications 1 kΩ PAL 1 Vp-p/75 Ω LINE IN, VIDEO IN, Aerial input, USB input, Steering wheel remote input VIDEO OUT CD changer, DIGITAL OUT (optical)

87.5 MHz to 108.0 MHz

(MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

9.3 dBf (0.8 μV/75 Ω)

16.3 dBf (1.8 μV/75 Ω)

2/10/09 6:02:24 PM DVD/CD GENERAL MONITOR USB ENGLISH Signal Detection System: Non-contact optical pickup (semiconductor laser) Frequency Response: DVD, fs=48 kHz/96 kHz: 16 Hz to 22 000 Hz VCD/CD: 16 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit USB Standards: USB 2.0 Full Speed Data Transfer Rate Full Speed: Maximum 12 Mbps Low Speed: Maximum 1.5 Mbps Compatible Device: Mass storage class Compatible File System: FAT 32/16/12 Max. Current: DC 5 V 500 mA Screen Size: 7 inch wide liquid crystal display Number of Pixel: 336 960 pixels: 480 × 3 (horizontal) × 234 (vertical) Drive Method: TFT (Thin Film Transistor) active matrix format Color System: NTSC/PAL Aspect Ratio: 16:9 (wide) Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Storage Temperature: –10°C to +60°C Allowable Operating Temperature: 0°C to +40°C 182 mm × 111 mm × 161 mm Dimensions (W × H × D): Installation Size (approx.):

• With trim plate and Panel Size (approx.): 188 mm × 117 mm × 22 mm sleeve attached Mass (approx.):

3.3 kg (including trim plate and sleeve)

Design and specifications are subject to change without notice. Required space for installation and the monitor ejection Dashboard

CAUTION: When ejecting the monitor, leave an open space for the monitor to come out. If you do not, the monitor may obstruct the steering wheel and gearshift lever operations, and this may result in a traffic accident. Unit: mm

• CD T. RPT Track Information Album Four seasons Artist Robert M. Smith Title Rain

Current Track Title Artist Name Album Title

Current Track Title Artist Name Album Title
