USER MANUAL KW-AVX820 JVC

[E] ENGLISH Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the

top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable Products national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead. Battery WARNINGS: (To prevent accidents and damage)

• DO NOT install any unit or wire any cable in a location where; – it may obstruct the steering wheel and gearshift lever operations. – it may obstruct the operation of safety devices such as air bags. – it may obstruct visibility.
• DO NOT operate the unit while driving. If you need to operate the unit while driving, be sure to look around carefully.
• The driver must not watch the monitor while driving.
• The driver must not put on the headphones while driving.
• Excessive sound pressure from earphones or headphones can cause hearing loss when you listen through earphones or headphones with using Dual Zone. Cautions on the monitor:
• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip. Touch the buttons on the touch panel with your finger directly (if you are wearing a glove, take it off).
• When the temperature is very cold or very hot... – Chemical changes occur inside, causing malfunction. – Pictures may not appear clearly or may move slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments. Temperature inside the car... If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

• < > indicates the variable screens/menus/ operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel. page number) indicates the reference page number of the related topics/operations/settings.
• Operation index: To locate easily the desired operations/functions. ( 71)
• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the <AV Menu>. 15) How to reset your unit

• Your preset adjustments will also be erased (except the registered Bluetooth devices, 28). How to forcibly eject a disc CONTENTS How to read this manual .............................. How to reset your unit ................................. How to forcibly eject a disc........................... INTRODUCTIONS Playable disc type ........................................ Basic operations ...........................................

ENGLISH How to read this manual:

• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit. For safety...
• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations. For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

• Connecting a new Bluetooth device ........... 44
• Using the Bluetooth cellular phone ............ 45
• Using the Bluetooth audio player ............... 47 Listening to the CD changer ......................... 47 Listening to the DAB tuner ........................... 48 Listening to the iPod/iPhone ....................... 50
• When connected with the USB cable .......... 50
• When connected with the interface adapter... 51 Using other external components ................ 52
• AV-INPUT .................................................... 52

• DTS sound cannot be reproduced or emitted from this unit. Recording format, file type, etc Playable

MPEG4 *1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not playable. *3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a +R/+RW disc is loaded. +RW double layer discs are not playable. *4 This unit can play back AAC files encoded using iTunes. Caution for DualDisc playback The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

ENGLISH Basic operations Detaching/attaching the monitor panel

Detaching ~ While the unit is turned on: The monitor panel is unlocked. Open/Tilt Open Tilt + Eject Tilt – Close Yes Detach Exit Detach?

• The attaching plate closes automatically about 10 seconds after the monitor panel is released. Remove the monitor panel before this happens. The monitor panel opens by about 50°.
• It closes automatically when no operation is done for about a minute.

Soft case (supplied) Attaching Caution:

• Hold the monitor panel securely so as not to drop it accidentally.
• Fit the monitor panel onto the attaching plate until it is firmly locked. INTRODUCTIONS EN_KW-AVX820[E]_1.indb 5

Attenuates the sound (if the power is on). Turns off the power. (Hold) Adjusts the volume. Bluetooth (phone) : Adjusts the volume of the incoming calls. *1

• Displays <Dial Menu> screen. ( 25)
• Displays <Redial> menu. (Hold) ( 25)
• Selects the source. *2

TUNER = DAB = DISC (DVD/VCD/

CD) = USB/USB iPod = CD-CH/iPod/ EXT-IN = Bluetooth =AV-IN = (back to the beginning) Touch panel (see the following pages). Most of the operations are explained using the touch panel unless mentioned otherwise. Remote sensor

• Displays <PTy Search> menu. (Hold) ( 30)

• Turns off the screen (touch panel) when the unit is turned on. *4 (Hold) p • Change the source to “USB” or “USB-iPod.”
• Change the iPod/iPhone control for “USBiPod.” (Hold) ( 50) q • Displays <Open/Tilt> screen. (

• Ejects the disc and display <Open/Tilt> screen. (Hold)
• Closes the monitor panel if pressed when the panel is open. w Monitor panel

• Turned off: When no operation is done for about 10 seconds.
• Turned on again: – When you touch the touch panel or move your hand nearby (depending on the <Illumination> setting). ( 18) – When you use the remote controller. – When a call/SMS comes in (for Bluetooth cellular phone).
• Always turned on: – When <AV Menu> screen is displayed. ( 13) – When <Source Menu> screen is displayed.

ENGLISH *1 This adjustment does not affect the volume level of the other sources. *2 Available sources depend on the external components you have connected, media you have attached, and the <Input> settings you have made. ( 18) *3 Available display information varies among the playback sources. *4 The screen will turn on again: When you touch the touch panel When you press TP/PTY, DISP, iPod , or When a call/SMS comes in (for Bluetooth cellular phone) When the signal from the rear view camera comes

You can also adjust the volume by moving your finger on the touch panel as illustrated. Caution on volume setting: Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level. When you drag your finger on the touch panel, it functions in the same way as touching [5 / ∞ / 4 / ¢].

– When <Open/Tilt> screen is displayed. (

– When <Illumination> is set to <Normal>.

You can easily access some frequently used functions by using the Short Cut icons. 30) Activates <Voice Dialing> function. ( 25) Bayern Radio <Source Menu> screen Pop Music You can also select the source using the touch panel. 15:45

• Shaded items cannot be used.

• Available display information varies among the playback sources. Installing the batteries

Ex.: When the playback source is a DVD video disc. Playback picture screen (only for video sources) Insert the batteries into the remote controller by matching the polarity (+ and –) correctly. Source information screen Caution: Playback picture*1 and clock time in large numbers

Navigation screen* Back to the beginning *1 • When the source is “ USB-iPod”, the Artwork of the song is shown if the song has an Artwork data. ( 16)

• While MP3/WMA/AAC file is played, “Jacket picture” is shown if the file has the tag data including “Jacket picture.” *2 When <Navigation> is selected for <AV Input> ( 18)

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like. If the effectiveness of the remote controller decreases, replace the batteries. Before using the remote controller:
• Aim the remote controller directly at the remote sensor on the unit.
• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting). The unit is equipped with the steering wheel remote control function.
• See the Installation/Connection Manual (separate volume) for connection.
• Operations may differ depending on the types of the steering wheel remote control. Continued on the next page INTRODUCTIONS EN_KW-AVX820[E]_1.indb 9

• Turns the power on if pressed briefly or attenuates the sound when the power is on.
• Turns the power off. (Hold) 2 5/∞ buttons
• TUNER/DAB: Selects the preset stations/ services.
• DISC/USB/CD-CH: – DVD-Video: Selects the title. – DVD-VR: Selects the program/playlist. – DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC: Selects the folders if included.

• iPod: – 5 : Enters the main menu (then 5 / ∞ / 4 / ¢ work as menu selecting buttons.) 5 : Returns to the previous menu. ∞ : Confirms the selection. – ∞ : Pauses or resumes playback. 4 / ¢ buttons
• TUNER/DAB: – Searches for stations/ensembles automatically. – Searches for stations/ensembles manually. (Hold)
• DISC/USB/CD-CH: – Reverse skip/forward skip. – Reverse search/forward search. (Hold)
• USB iPod: – Reverse skip/forward skip. – Reverse search/forward search. (Hold)
• iPod: – Reverse skip/forward skip. – Reverse search/forward search. (Hold) In menu selecting mode: – Selects an item. (Then, press ∞ to confirm the selection.) – Skips 10 items at a time. (Hold)
• Bluetooth (audio): – Reverse skip/forward skip. 3 VOL (volume) + / – buttons*1
• Adjusts the volume level.
• Bluetooth (phone): – Adjusts the volume of the incoming calls. 2nd VOL (volume) buttons
• Adjusts the volume level through the 2nd AUDIO OUT plug when pressed with SHIFT button. ( 40) 4 ASPECT button*2
• Changes the aspect ratio of the playback pictures. PHONE button*1
• Displays <Dial Menu> screen. ( 25)
• Displays <Redial> menu. (Hold) ( 25)
• Answers incoming calls.

• Functions as a number button only. 7 TOP M (menu) button*2

• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Original Program screen.
• VCD: Resumes PBC playback. OSD (on-screen display) button
• Shows the on-screen bar.
• Does not function as “ “. SHIFT button
• Functions with other buttons. DISP (display) button*1 Changes the display information. ( 1 / ¡ buttons
• DISC/USB: – DVD-Video: Slow motion playback (during pause). – DVD-VR/VCD: Forward slow motion playback (during pause). – DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC: Reverse search/forward search.
• USB iPod: Reverse search/forward search. w SOURCE button*1

• Selects the source. e 3 (play) / 8 (pause) button

• DISC/USB/USB iPod: Starts/pauses playback.
• Bluetooth (phone): Answers incoming calls.
• Bluetooth (audio): Starts playback.

• TUNER/DAB: Selects the bands. 7 (stop) button

• DVD-VR: Shows the Playlist screen.
• VCD: Resumes PBC playback. u % / fi buttons*2
• DVD-Video: Makes selection/settings.
• CD-CH: Changes discs in the magazine. @ / # buttons*2
• DVD-Video: Makes selection/settings.
• DivX/MPEG1/MPEG2: Skips back or forward by about 5 minutes. ENT (enter) button*2
• Confirms selection. i DUAL button 40) Activates or deactivates Dual Zone. (
• Does not function as “#“. o DIRECT button
• DISC/USB: Enters direct search mode for chapter/title/program/playlist/folder/track when pressed with SHIFT button. ( 37) CLR (clear) button
• DISC/USB: Erases the misentry when pressed with SHIFT button. SURROUND button
• Not applicable for this unit. ENGLISH 6 SETUP button*2 *1 When Dual Zone is activated, these buttons cannot be used. *2 Functions as number buttons when pressed with SHIFT button. – DISC/USB : Enters chapter/title/program/playlist/ folder/track number after entering search mode by pressing SHIFT and DIRECT. ( 37) – TUNER/DAB : (Number 1 to 6) : Enters preset station/service number. – Bluetooth (phone): (Number 1 to 6) : Makes a call to the preset number. INTRODUCTIONS 11 EN_KW-AVX820[E]_1.indb 11

Exit ¤ Finish the procedure. Auto Exit

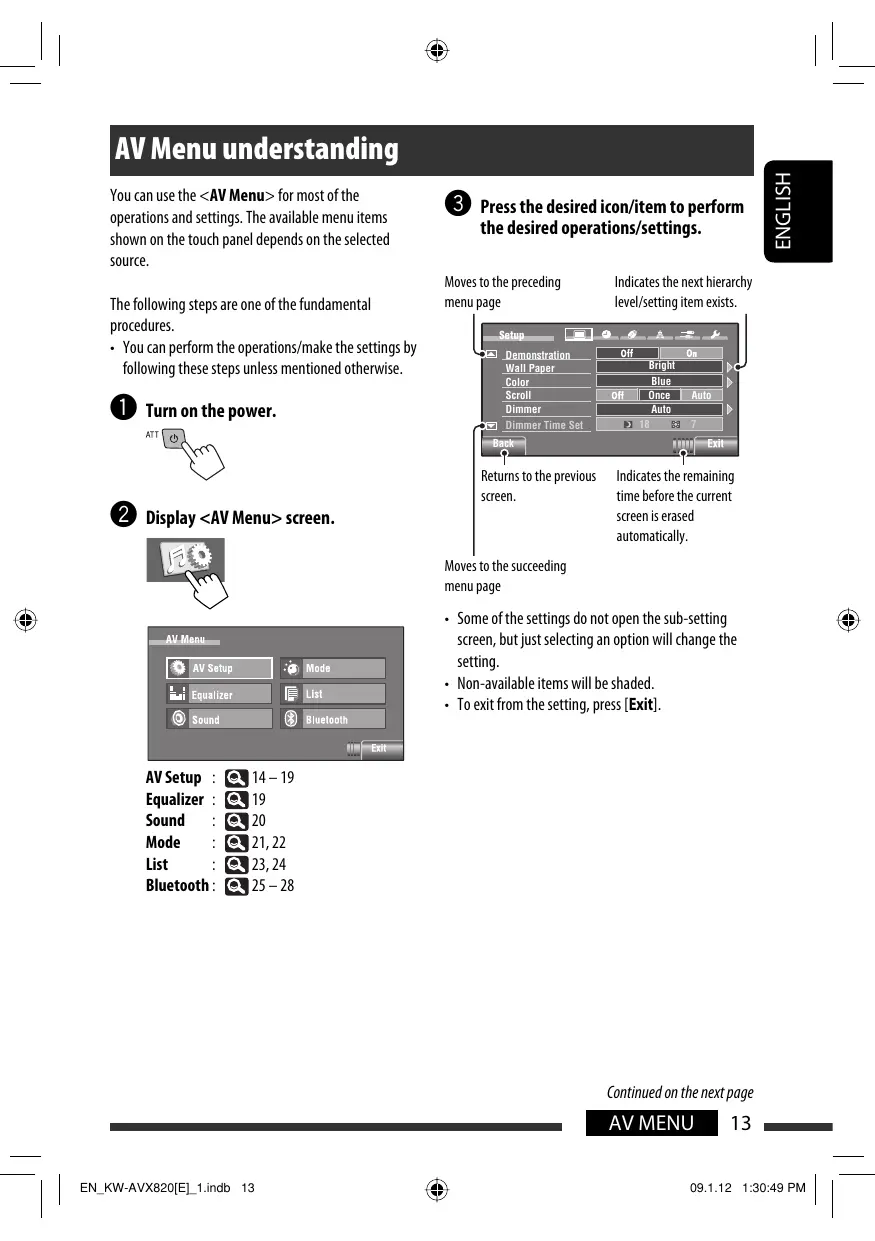

You can use the <AV Menu> for most of the operations and settings. The available menu items shown on the touch panel depends on the selected source. The following steps are one of the fundamental procedures.

• You can perform the operations/make the settings by following these steps unless mentioned otherwise. ~ Turn on the power. ! Press the desired icon/item to perform the desired operations/settings. Moves to the preceding menu page ENGLISH AV Menu understanding Indicates the next hierarchy level/setting item exists. Setup Demonstration Wall Paper Color Scroll Dimmer Dimmer Time Set Bright Blue Once Auto

Back Ÿ Display <AV Menu> screen. Returns to the previous screen. Indicates the remaining time before the current screen is erased automatically. Moves to the succeeding menu page

• Some of the settings do not open the sub-setting screen, but just selecting an option will change the setting.
• Non-available items will be shaded.
• To exit from the setting, press [Exit]. AV Setup : Equalizer : Sound Mode List Bluetooth : 14 – 19

21, 22 23, 24 25 – 28 Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 13

ENGLISH AV Setup Initial: Underlined Menu item Demonstration Wall Paper Selectable setting/item ♦ Off ♦ On : Cancels. : Activates the demonstration on the screen. To stop it temporarily, touch the screen. ( 12) You can select the background picture of the screen. Display ♦ Bright, Future, Horizon, Plain Color You can select the color of the background picture. ♦ Blue, Light-Blue, Red, Orange, Yellow, Green, Purple, Dark-Blue, Dark-Green, Brown, Light-Brown, Black Scroll ♦ Off ♦ Once ♦ Auto : Cancels. : Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals).

• Touching an information bar scrolls the text regardless of this setting. ( 34) Dimmer ♦ Off ♦ On Dimmer Time Set Sets the Dimmer On ( )/Off ( ) times. Dimmer Level You can select the brightness for dimmer. ♦ 01 (bright), 02 (middle), 03 (dark) Bright You can adjust the brightness of the screen. ♦ –15 to +15; Initial 00 Picture Adjust *2 You can adjust the following to make the screen clear and legible for watching the playback picture. The setting will be stored—one for “DISC/USB” (common) and the other for “AV-IN.” Press [5] or [∞] to adjust. (–15 to +15; Initial 00)

Cancels. Activates dimmer. Dims the monitor when you turn on the headlights. *1 Activates the Dimmer Time setting (see below). Adjust if the picture is too bright or too dark. Adjust the contrast. Adjust the color of the picture—lighter or darker. Adjust the tint if the human skin color is unnatural (available only when the source is “AV-IN” and the incoming signal is NTSC). *1 The ILLUMINATION CONTROL lead connection is required. (See the Installation/Connection Manual.) *2 Adjustable only when the source is “ DISC/USB” (the media must contain pictures or movies) or “AV-IN.”

• For “DISC”: Aspect ratio is automatically selected to match the incoming signals.
• For the other video sources: Aspect ratio is fixed to <Regular>. Language *4 Select the indication language shown on the screen. ♦ English, Español, Français, Deutsch, Italiano, Nederlands, Svenska, Dansk, Руccĸий, Português
• The characters you can enter for assigning the titles also change according to the language selected. ( 59) Time Set Initial 0:00 ( Time Format Select either 12-hour system or 24-hour system. ( ♦ 12 Hours, 24 Hours OSD Clock ♦ Off ♦ On Clock Adjust 12) 12) : Cancels. : The clock time is displayed on the playback picture. Select <Auto> to adjust the clock automatically using the clock time (CT) data from an FM Radio Data System station. ♦ Off ♦ Auto Menu Language *5 Select the initial disc menu language; Initial English ( Disc Audio Language * Subtitle *5

Select the initial audio language; Initial English ( 61) 61) Select the initial subtitle language or erase the subtitle <Off>.; Initial English 61) *3 Not adjustable when no picture is shown. *4 Turn off the power and on again so that your setting takes effect. *5 Selectable only for “DISC/USB.” (Playback stops when you change the setting.) Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 15

Menu item Selectable setting/item ENGLISH Monitor Type *5 16:9 Disc 4:3PS 4:3LB Select the monitor type to watch a wide screen picture on the external monitor. ♦ 16:9 : Select when the aspect ratio of the external monitor is 16:9. ♦ 4:3LB (Letterbox)/ : Select when the aspect ratio of the external 4:3PS (Pan Scan) monitor is 4:3. OSD Position *5 Select the position of the on-screen bar. ( : Higher position. : Lower position. File Type *5 Select the playback file type when a disc/USB contains different types of files. You can store this setting separately for each source— “DISC/USB.” ♦ Audio : Plays back audio files. ♦ Still Picture : Plays back JPEG files. ♦ Video : Plays back DivX/MPEG1/MPEG2 files. ♦ Audio&Video : Plays back audio files and DivX/MPEG1/MPEG2 files. DivX Regist. (Registration) *5 This unit has its own Registration Code. Once you have played back a file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection. iPod Artwork *5 While playing back a track that has an Artwork, the Artwork is displayed on the screen. ♦ Off : Cancels. ♦ On : Activates Artwork display. To display the Artwork, press DISP repeatedly. *6 38) D. (Digital) Audio Output *5 Select the signal format emitted through the DIGITAL OUT (optical) 60) terminal. ( ♦ PCM : Select this when connecting an amplifier or a decoder incompatible with Dolby Digital or MPEG Audio, or when connecting to a recording device. ♦ Dolby D : Select this when connecting an amplifier or a decoder compatible with Dolby Digital. ♦ Stream : Select this when connecting an amplifier or a decoder compatible with Dolby Digital or MPEG Audio. *5 Selectable only for “DISC/USB.” (Playback stops when you change the setting.) *6 It takes 5 seconds or more to display Artwork and no operations are available while loading it.

Disc Selectable setting/item Down Mix *5 When playing back a multi-channel disc, this setting affects the signals reproduced through the LINE OUT plugs. ♦ Dolby Surr. : Select this to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround. ♦ Stereo : Normally select this. D. (Dynamic) Range Compres. (Compression) *5 You can enjoy a powerful sound at a low volume level while playing Dolby Digital software. ♦ Auto : Select to apply the effect to multi-channel encoded software. ♦ On : Select to always use this function. IF Band Width ♦ Auto ♦ Wide ENGLISH Menu item : Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.) : Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain. You can change the Network-Tracking Reception setting. ( 32) When the received signals from the current station become weak... ♦ Off : Cancels—not selectable when <DAB AF> is set to <On>. ♦ AF Reg. : Switches to another station broadcasting the same (Regional) programme. The REG indicator lights up. ♦ AF : Switches to another station. The programme may differ from the one currently received (the AF indicator lights up). ( 32) TA Volume You can adjust the preset TA volume level. When the unit switches to Traffic Announcement (TA), the volume changes to the preset TA volume level if the current volume level is lower than the preset 31) level. ( ♦ 00 to 30 or 50*7, Initial 15 Tuner AF Regional Program Search You can turn on and off the Programme Search. ( 32) : Activates the Programme Search. : Cancels. ♦ On ♦ Off DAB AF *8 You can turn on and off the Alternative Frequency Reception. ( 49) ♦ On : Activates the Alternative Frequency Reception. ♦ Off : Cancels. *7 Depends on the amplifier gain control. ( 20) *8 Appears only when DAB tuner is connected. ( 48) Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 17

Input ENGLISH Menu item Selectable setting/item AV Input *9 You can determine the use of LINE IN and VIDEO IN plugs. ( 52) ♦ Off : Select when no component is connected (“AV-IN” is skipped while selecting the source). ♦ iPod (Off) : Select when connecting the iPod/iPhone using the USB Audio and Video cable for iPod/iPhone. ( 50) ♦ Audio&Video : Select when connecting an AV component such as a VCR. ♦ Audio : Select when connecting an audio component such as a portable audio player. ♦ Navigation : Select when connecting a Navigation System. ( 52) Camera Input *10, *11 For connecting a rear view camera to the CAMERA IN plug on the rear. ♦ Off ♦ On : Select when no rear view camera is connected to the CAMERA IN plug. : Select when connecting the rear view camera to the CAMERA IN plug. The picture from the camera is displayed as it is taken. External Input *12 For connecting an external component to the CD changer jack on the rear.

• For connecting the DAB tuner, this setting is not required. The DAB tuner is automatically detected. ♦ Changer/iPod *13 : CD changer, ( 47), iPod, ( 51). ♦ External : Any other than the above, ( 53). Beep ♦ Off ♦ On : Cancels. : Activates the key-touch tone. Telephone Muting *14 ♦ Off ♦ Muting1, : Cancels. : Select either one which mutes the sounds while using the cellular phone. Muting2 Other Illumination Motion Sensitiv. You can turn off the lights of the monitor panel buttons while turning on the unit. ( ♦ Normal : Always light. ♦ Proximity/ : Monitor panel buttons light up when your finger Motion moves closer to the touch panel. ♦ Touch Panel : Monitor panel buttons light up when your finger touches the touch panel. Change the sensitivity of the sensor for <Illumination> (above). ♦ Low, Mid, High Initialize Initialize all settings you have made in <AV Menu>. Press and hold [Enter] to initialize the settings, then reset the unit. (

*9 Not selectable when “AV-IN” is selected as the source.

Equalizer ENGLISH *10 The REVERSE GEAR SIGNAL lead connection is required. See Installation/Connection Manual. The rear view through the camera appears on the screen in <Full> aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position. When you press DISP on the monitor panel, or when you shift the gear to another position other than the reverse (R) position, the rear view screen is cleared. *11 While the pictures through the camera are shown on the monitor, no message will be displayed. *12 Not selectable when the component connected to the CD changer jack is selected as the source. *13 The name of the component detected through the CD changer jack is shown. *14 The TEL MUTING lead connection is required. See Installation/Connection Manual. Storing your own adjustments Selects a preset sound mode suitable to the music genre. ♦ Flat (Initial), Hard Rock, R&B, Pop, Jazz, Dance, Country, Reggae, Classic, User1, User2, User3 You can store your adjustments into <User1>, <User2>, and <User3>.

Display <Equalizer> screen. Equalizer Back Edit Moves to the other 6 sound modes. Makes adjustments by moving each bar directly. Exit 15 kHz

ENGLISH Sound Initial: Underlined Menu item Selectable setting/item Fader/Balance Fader/Balance Reset Fader Balance 0 Back Volume Adjust *1 Subwoofer Level Fader : Adjust the front and rear speaker output balance. ♦ F6 to R6; Initial 0

• When using a two-speaker system, set the fader to the center (0). Balance : Adjust the left and right speaker output balance. ♦ L6 to R6; Initial 0 Press [ 5/∞/2/3 ] or drag [ ] to adjust. Adjust and store the auto-adjustment volume level for each source, comparing to the FM volume level. The volume level will automatically increase or decrease when you change the source.
• <Fix> appears if an FM broadcast is selected as the source. ♦ –12 to +12; Initial 00 Adjust the subwoofer output level. ♦ –06 to +08; Initial 00 High Pass Filter ♦ Through ♦ On Crossover Select the crossover frequency between the front/rear speakers and the subwoofer. ♦ 80Hz, 120Hz, 150Hz Amplifier Gain *2 You can change the maximum volume level of this unit. ♦ Off : Deactivates the built-in amplifier. ♦ Low : VOL 00 to 30 (Select this if the maximum power of the speakers is less than 50 W.) ♦ High : VOL 00 to 50 Rear Speaker *3 You can activate/deactivate the rear speakers. ♦ On : Activate the rear speakers. ♦ Off : Deactivate the rear speakers. : Select when the subwoofer is not connected. : Select when the subwoofer is connected. *1 For “DISC/USB”: You can make the adjustments separately depending on the audio format—Dolby digital/MPEG Audio and the others. *2 The volume level automatically changes to “VOL 30” if you change to <Low> with the volume level set higher than “VOL 30.” *3 This setting takes effect only when Dual Zone is activated. ( 40)

• USB iPod : Repeat, Random, Audiobooks
• AV-IN, EXT-IN : Title Entry Menu item Selectable setting/item Mono When an FM stereo broadcast is hard to receive, activate monaural mode for better reception. ♦ On : Activate monaural mode to improve FM reception, but stereo effect will be lost. The MONO indicator lights up. ♦ Off : Restore the stereo effect. SSM (Strong-station Sequential Memory) You can automatically preset 6 stations for each FM band.
• Local FM stations with the strongest signals are searched and stored automatically in the FM band. Mode Mono SSM PTy Standby PTy Code Start News Back PTy Standby ENGLISH Mode Exit 31) You can turn on and off the PTY Standby Reception. ( : Activate the PTY Standby Reception. : Cancels. ♦ On ♦ Off PTy Code Selects the PTY code for the PTY Standby Reception. ( D.(Dynamic) Range Control Some DAB services provide Dynamic Range Control (DRC) signals together with their regular programme signals. DRC will reinforce the low level sounds to improve your listening. ♦ DRC1, DRC2, : As the number increases, the effect becomes stronger. DRC3 ♦ Off : Cancels. 30, 31) Announce Standby You can turn on and off the Announce Standby Reception. ( 49) ♦ On : Activate the Announce Standby Reception. ♦ Off : Cancels. Announce Code Selects the announcement type for the Announce Standby Reception. ( 49) ♦ Transport News, Warning, News, Weather, Event, Special Event, Radio Info, Sports News, Financial News Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 21

ENGLISH Menu item Repeat Random Selectable setting/item Available items depend on the types of loaded disc and playback file. ♦ Chapter : Repeats current chapter. ♦ Title : Repeats current title. ♦ Program : Repeats current program (For DVD-VR, not available during Playlist playback). ♦ Disc : Repeats all tracks of the current disc. ♦ Folder/Group : Repeats all tracks of the current folder/group. ♦ Track : Repeats current track. (For VCD: When PBC is not in use.) ♦ One : Functions the same as “Repeat One” of the iPod/iPhone. ♦ All : Functions the same as “Repeat All” of the iPod/iPhone. ♦ Off : Cancels. Available items depend on the types of loaded disc and playback file. : Randomly plays all tracks of the current folder/group, then tracks of the next folders/groups. ♦ Disc/USB : Randomly plays all tracks. (For VCD: When PBC is not in use.) ♦ All : Randomly plays all tracks of all loaded discs. ♦ Song : Functions the same as “Shuffle Songs” *1 of the iPod/iPhone. ♦ Album : Functions the same as “Shuffle Albums” of the iPod/iPhone. ♦ Off : Cancels. ♦ Folder/Group Audiobooks *2 You can select the playback speed of the “Audiobook” sound file in your iPod/iPhone. ♦ Normal : Plays at normal speed. ♦ Faster : Plays faster. ♦ Slower : Plays slower. Title Entry You can assign titles (up to 16 characters) to AV-IN and EXT-IN. (For available characters, 59.) Press [Enter] to show the <Title Entry> screen.

Confirm the entry. Move the cursor. Erase the character before the cursor. Erase the character on the cursor. Change the letter case (upper/lower). Change the character set. Enter a space. 24) *1 You can activate <Shuffle Songs> in <Search Mode> menu. ( *2 Not selectable when connecting the iPod with the interface adapter. ( 51)

• Storing a preset station/service manually 1 Press [BAND], then [ / ] to tune in to the station/service you want to preset. 2 Press [ ], then [List]. 3 Select a preset number. Ex.: When storing an FM station ENGLISH List

Back Exit The station selected in step 1 is now stored in preset number 4.

• Selecting a preset station on the list Ex.: When selecting an FM preset station List FM1 FM2 FM3 Back DISC/USB Selecting a track on the list If a disc/device includes folders, you can display the Folder/Track (File) Lists, then start playback. 1 Current folder list number/ total folder list number 0005/0035 0003/0099 List Folder 01 Track001.mp3 2 Current track list number/total Folder 02 Track002.mp3 track list number of the Folder 03 Track003.mp3 Folder 04 Track004.mp3 current folder Folder 05 Folder 06 Back Track005.mp3 Track006.mp3 Exit Press/drag to browse the list.
• You can also browse the list by dragging your finger up and down on the list. Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 23

ENGLISH Source CD-CH Operation/setting Selecting a disc on the list If an MP3 disc is selected, Folder/ Track List appear. (

track to start playback. ( 47) Disc List Back To go to the other list USB iPod Selecting a track/video from <Search Mode>*1 ♦ Music : Playlists, Artists, Albums, Search Mode Music Videos Shuffle Songs Playlists Artists Albums Songs Podcasts Genres Songs, Podcasts, Genres, Composers, Audiobooks ♦ Videos : Video Playlists, Movies, Music Videos, TV shows, Video Podcasts ♦ Shuffle Songs : Starts playback. 0003/0099 Current track (video) number/total track (video) number Back List Playlists Artists Albums Songs Podcasts Genres Track 01 Track 02 Track 03 Track 04 Track 05 Track 06 Back Press/drag to browse the list.

• You can also browse the list by dragging your finger up and down on the list. *1 Available search modes depend on the type of your iPod/iPhone.

• Firstly, use <New Paring> in <Device Menu> to register and establish the connection with a device. Menu item

Dial Menu * * Selectable setting/item Select a calling method, then select the desired item to call. ♦ Redial*3 : Shows the list of the phone numbers you have dialed. ♦ Received Calls : Shows the list of the received calls. ♦ Phonebook : Shows the phone book copied from a cellular phone. ( ♦ Preset Calls : Shows the list of the preset numbers. ( 46) ♦ Phone Number : Shows the phone number entry screen. 27) Phone Number Back ♦ Voice Dialing*4

[BS] : Erase the character before the cursor. [Del] : Erase the character on the cursor. [Preset] : Goes to Preset List. You can preset the entered number by selecting a preset number. [Dial] : Calls the entered number. : Available only when the connected cellular phone has the voice recognition system = Speak the name you want to call. Only for the device connected for Bluetooth phone. You can display <Dial Menu> screen by holding SOURCE on the monitor panel. You can also display <Redial> menu by holding on the remote controller. You can also activate it by holding [

To delete the phone numbers/names 1 Press [Delete] when <Redial>, <Received Calls>, or <Phonebook> in <Dial Menu> is displayed. 2 Select the phone number/name you want to delete.

• Press [ALL] to delete all the numbers/names in the selected item. 3 Press [Yes] to confirm deleting. Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 25

ENGLISH Menu item Selectable setting/item Phone Connect*5/ Audio Connect*5 Only for the registered devices. Select a device from among the registered devices, establish the connection with it. Phone Disconnect*5/ Audio Disconnect*5 Only for the device being connected. Disconnect the current device before connecting another device. Delete Pairing Only for the registered devices. Press [Yes] to confirm deleting the registered devices. New Pairing Preparation:

• Operate the Bluetooth device to turn on its Bluetooth function. Device Menu 1 Press [Enter]. 2 Enter a PIN (Personal Identification Number) *6.

• You can enter any number you like (1-digit to 16-digit number). [BS] : Erases the character before the cursor. [Del] : Erases the character on the cursor. [Enter] : Confirms the entry. PIN Code Back 3 Operate the Bluetooth device to connect while “Open...” is displayed on the screen. Enter the same PIN code (as entered in the above step) on the device to be connected. Now connection is established and you can use the device through the unit.
• The device remains registered even after you disconnect the device. Use <Phone Connect>/<Audio Connect> (or activate <Auto Connect>,

27) to connect the same device from next time.

*5 When a device has already been connected to the unit, <Phone Connect> and <Audio Connect> do not appear and vice versa. *6 Some devices have their own PIN code. Enter the specified PIN code to the unit.

Selectable setting/item When the unit is turned on, the connection is established automatically with... ♦ Off : No Bluetooth device. ♦ Last : The last connected Bluetooth device. Auto Answer ♦ Off ♦ On ♦ Reject SMS Notify ♦ On ♦Off Settings Add Phonebook ENGLISH Menu item Auto Connect : The unit does not answer the calls automatically. Answer the calls manually. : The unit answers the incoming calls automatically. : The unit rejects all incoming calls. : The unit informs you of the arrival of a message by ringing and displaying “Receiving Message.” : The unit does not inform you of the arrival of a message. You can copy the phone book memory of a cellular phone into the unit. 1 Press [Enter]. 2 Enter a PIN (Personal Identification Number) .*6

• You can enter any number you like (1-digit to 16-digit number). [BS] : Erases the character before the cursor. [Del] : Erases the character on the cursor. [Enter] : Confirms the entry. 3 Operate the target cellular phone. Enter the same PIN code (as entered in the above step) on the cellular phone then transfer the phone book memory to the unit. (Refer to the instruction manual supplied with your cellular phone.) 4 Press [Back] to finish the procedure.
• If you try to copy a 101st phone book entry, “Phonebook Full” appears on the monitor. Delete unwanted names before copying. ( 25) Continued on the next page AV MENU EN_KW-AVX820[E]_1.indb 27

Menu item ENGLISH MIC Setting Phone Volume Selectable setting/item Adjust the volume of the microphone connected to the unit. ♦ 01/02/03 Adjust the phone volume. Settings ♦ 00 to 30 or 50*7, Initial 15 Initialize Information Hold [Enter] to initialize all settings you have made in <Bluetooth> screen. The following information is shown: : The unit name : The Mac address of the unit ♦ Version : The Bluetooth software/hardware versions*8 ♦ Phone Device/ : The connected device names Audio Device ♦ Name ♦ Address 20) *7 Depends on the amplifier gain control. ( *8 If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

• If no PS signal is coming in, “No Name” appears. Sound mode Tuner/Standby Reception indicators ENGLISH Listening to the radio PTY code for FM Radio Data System

30) ~ Press [SOURCE], then press [TUNER]. Ÿ Press [BAND]. ! Press [ ] or [ ] to search for a station—Auto Search.

• Manual Search: Hold either [ ]or [ ] until “Manual Search” appears on the screen, then press it repeatedly.
• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength. Selecting a preset station
• To preset stations into memory,

• To improve the FM reception,

• Directly from the touch panel Bayern Radio 15:45 You can also select a preset station using the remote 10, 11) and from the Preset List ( controller ( 23). You can display the Preset List by pressing [ holding [5/∞]. ] or Continued on the next page OPERATIONS EN_KW-AVX820[E]_1.indb 29

ENGLISH The following features are available only for FM Radio Data System stations. Searching for FM Radio Data System programme—PTY Search You can search for your favorite programmes being broadcast by selecting the PTY code for your favorite programmes.

Select a PTY code. Available PTY codes: News, Current Affairs, Information, Sport, Education, Drama, Cultures, Science, Varied Speech, Pop Music, Rock Music, Easy Listening, Light Classics M, Serious Classics, Other Music, Weather & Metr, Finance, Children’s Progs, Social Affairs, Religion, Phone In, Travel & Touring, Leisure & Hobby, Jazz Music, Country Music, National Music, Oldies Music, Folk Music, Documentary

• In the example below, a PTY code is selected from the Preset List. If you enter <PTy Code> menu below, you can select one from 29 PTY codes. Back Exit Back Exit PTY Search starts. If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

You can store your favorite PTY codes into the PTY Preset List. Ex.: Storing <Drama> into <Preset 1> Activating/deactivating TA/ PTY Standby Reception TA Standby Reception Indicator Press activate.

on the monitor panel to ENGLISH Storing your favorite programme types Lights up The unit will temporarily switch to Traffic Announcement (TA) if available, from any source other than AM.

• The volume changes to the preset TA volume level if the current level is 17) lower than the preset level. ( Not yet activated. Tune in to another station providing the Radio Data System signals. Press Flashes Goes off to deactivate. PTY Standby Reception Indicator To activate, display <AV Menu> screen, press [Mode], then press [On] PTY for <PTy Standby>. ( 21) The unit will temporarily switch to Lights up your favorite PTY programme from any source other than AM. Not yet activated. Tune in to another station providing the Radio Data System signals. Flashes To deactivate, press [Off] for <PTy 21) Standby>. ( Goes off

• When a DAB tuner is connected, TA Standby/PTY Standby Reception also works for the DAB tuner and searches for the services. To change the PTY code for PTY Standby Reception,

ENGLISH Tracing the same programme —Network-Tracking Reception When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals. Programme A broadcasting on different frequency areas (01 – 05) Automatic station selection— Programme Search Usually when you select preset stations, the preset station is tuned in. If the signals from the preset FM Radio Data System station are not sufficient for good reception, this unit, using the AF data, tunes in to another station broadcasting the same programme as the original preset station is broadcasting. To activate this function, select <On> for <Program Search>.( 17)

• The unit takes some time to tune in to another station using programme search. When shipped from the factory, Network-Tracking Reception is activated. To change the Network-Tracking Reception setting, see <AF Regional>. ( 17)
• When the DAB tuner is connected, refer also to “Tracing the same programme—Alternative Frequency Reception (DAB AF).” ( 49)

The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears). If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc. ENGLISH Disc operations If “ ” appears on the screen, the unit cannot accept the operation you have tried to do.

• In some cases, without showing “ ,” operations will not be accepted. ~ Open the monitor panel. ! Insert a disc. Label side <Open/Tilt> screen is displayed.
• By pressing and holding the button, you can open the monitor panel and eject the disc.

Monitor panel closes automatically. If not, press [Close]. Caution: Do not place your finger behind the monitor panel. Prohibiting disc ejection You can lock a disc in the loading slot. When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.

• You can fully enjoy multi-channel sound by connecting an amplifier or a decoder compatible 60) with these multi-channel sources. (

• To select the playback mode,
• To select tracks from the list,

Back To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

• Disc can be forcibly ejected. (

ENGLISH Changing the display information Each time you press the button, the display changes to show the different information. Ex.: While playing a DVD Video Ex.: While playing an MP3

• DVD Video/DVD-VR: Selects title/program/ playlist.
• DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/ AAC: – Selects folder – Displays Folder/Track List (Hold)
• DVD Video: Title no./Chapter no./Playing time
• DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time
• DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC: Folder no./Track no./Playing time

• DVD Video/DVD-VR: Sampling frequency/Bit rate/Recorded signal channel no.
• DivX/MPEG1/MPEG2/JPEG: Folder name/file name
• CD Text: Current track title/artist name/album title – “No Name” appears for conventional CDs or if not recorded
• MP3/WMA/WAV/AAC: Current folder name/ current file name/tag data (current track title/ artist name/album title) if it is recorded q Stops playback w [4 / ¢]
• DVD Video/DVD-VR: Selects chapter.

Operation buttons on the screen ENGLISH You can display the following operation buttons while watching the playback pictures on the screen.

• If no operation is done for about 10 seconds, the operation buttons disappear (except when a disc menu is displayed).

[SOURCE] [5 ∞] [3 / 8] [4 ¢] Touch the screen (center portion). Displays <Source Menu> screen Starts playback/pauses

• Reverse/forward search (Hold)

Displays <AV Menu> screen [7] Stops playback

• The above buttons also work when they are not shown on the screen (while watching the playback picture). FLAT

Touch [KEY]. Touch [KEY]. For entering the numbers [0]–[9]=[ENTER] Enters numbers [Direct/CLR]

• Switches between chapter/track entry and title/folder entry
• Erases the last entry when you enter a wrong number Ex.: To enter “105,” press [1], [0], [5], then [ENTER] *1 While a disc menu is played back for DVD, [KEY] is automatically displayed. On the disc menu, you can select a menu item directly by touching it on the screen *2 Displays Short Cut icons. (

Button Stop play Stop play Start play/Pause (if pressed during play)

• DivX/MPEG1/MPEG2: Start play/Pause (if pressed during play)
• JPEG: Start play (Slide show: Each file is shown for a few seconds.) Show the current file until you change it if pressed during slide show.

• Reverse/forward chapter search *1 (No sound • DivX/MPEG1/MPEG2: Reverse/forward track can be heard.) search *4 (No sound can be heard.)
• Slow motion *2 during pause (No sound can be heard.) – DVD-VR: Reverse slow motion does not work.
• Select chapter (during play or pause)
• Reverse/fast-forward chapter search *3 (No sound can be heard.) (Hold)

• Reverse/fast-forward track search *5 (No sound can be heard.) (Hold)

• DVD-VR: Select program Select playlist (during play or pause) Select aspect ratio

DivX/MPEG1/MPEG2: Skip back or forward the scenes by about 5 minutes Select aspect ratio Search speed: Slow motion speed: Search speed: Search speed: Search speed:

Stop play Stop play Stop play Start play/Pause (if pressed during play) Start play/Pause (if pressed during play) Start play/Pause (if pressed during play) ENGLISH Button

• Reverse/forward track search Reverse/forward track search *1 Reverse/forward track search *1 (No sound can be heard.)*1
• Forward slow motion *2 during pause. (No sound can be heard.) – Reverse slow motion does not work.
• Reverse/fast-forward track search *3 (No sound can be heard.) (Hold)

• Reverse/fast-forward track search *3 (Hold)

• Reverse/fast-forward track search *3 (Hold) Select folder Select aspect ratio

AAC: VCD/CD: 2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number. 3 Press ENT (enter) to confirm. Continued on the next page OPERATIONS EN_KW-AVX820[E]_1.indb 37

• For DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/AAC, track is searched within the same folder.
• For DVD-VR, program/playlist search is possible during Original program playback (PG)/Playlist playback (PL).
• To erase a misentry, press CLR (clear) while holding SHIFT. (DVD-Video/DVD-VR/DivX/MPEG1/MPEG2/ JPEG/VCD) These operations are possible on the monitor using the remote controller. Using menu driven features

• DVD Video 1 Press TOP M/MENU to enter the menu screen. 2 Press % / fi / @ / # to select an item you want to start play. 3 Press ENT (enter) to confirm.
• DVD-VR 1 Press TOP M to enter the Original Program. Press MENU to enter the Playlist. 2 Press % / fi / @ / # to select an item you want to start play. 3 Press ENT (enter) to confirm.
• Original Program/Playlist screen,

Operations using the on-screen bar Show the on-screen bar. ( 39) (twice)

Select an item. Make a selection. If pop-up menu appears...

• To cancel pop-up menu, press RETURN.
• For entering time/numbers, see the following.

• VCD 1 While holding SHIFT, press DIRECT to enter the Entering time/numbers search mode. 2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number. 3 Press ENT (enter) to confirm.
• To return to the previous screen, press RETURN. Press % / fi to change the number, then press @ / # to move to the next entry.
• Each time you press % / fi, the number increases/ decreases by one value.
• After entering the numbers, press ENT (enter).
• It is not required to enter the zero and tailing zeros (the last two digits in the example below). Canceling the PBC playback... (VCD) 1 Press , then press DIRECT while holding SHIFT. 2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number. 3 Press ENT (enter) to confirm.

• VCD: PBC 3 Playback mode *1 DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG1/MPEG2: T. RPT: Track repeat F. RPT: Folder repeat A. RND: All (Disc) random F. RND: Folder random JPEG: F. RPT: Folder repeat VCD *2: T. RPT: Track repeat A. RND: All (Disc) random 4 Playback information Current title/chapter Current program/chapter Current playlist/chapter Current track Current folder/track Current folder/file 5 Time indication Elapsed playing time of the disc (For DVD-Video, elapsed playing time of the current title/program/ playlist.) DVD-Video/DVD-VR: Remaining title/program/playlist time VCD: Remaining disc time Elapsed playing time of the current chapter/track *3 Remaining time of the current chapter/track *3 6 Playback status Play Forward/reverse search Forward/reverse slow-motion Pause Stop 7 Operation icons Change time indication (see 5) Time Search (Enter the elapsed playing time of the current title/ program/playlist or of the disc.) Title Search (by its number) Chapter Search (by its number) Track Search (by its number) Repeat play *1 Random play *1 Change the audio language, audio stream, or audio channel Change or turn off the subtitle language Change the view angle *1 For repeat play/random play, *2 While PBC is not in use. *3 Not applicable for DVD-VR.

ENGLISH Dual Zone operations You can enjoy disc playback on the external monitor connected to the VIDEO OUT and 2nd AUDIO OUT plugs, while listening to any source other than “USB” through the speakers.

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller. ~ Press [SOURCE]. To select a different source (main source) to listen to through the speakers Press SOURCE on the monitor panel.
• By using the touch panel, you can operate the newly selected source without affecting Dual Zone (Disc) operations.
• You cannot select “USB” for the main source. Ÿ Press [Dual Zone]. On the remote:

2 Adjust the volume through the 2nd AUDIO OUT plug. Pressing the button turns on/off Dual Zone. DUAL indicator appears when Dual Zone is activated.

Operate the DVD/CD player.

For discs except DVD and VCD: While Dual Zone is on, these operations are possible on the external monitor using the remote controller. The control screen automatically appears when you insert a disc. (For DivX/MPEG1/MPEG2/JPEG; while not playing.) To select a folder or track

Select “Folder” column or “Track” column on the control screen.

Select a folder or track. ENGLISH Operations using the control screen

• If tag data includes “Jacket Picture” (baseline JPEG), it will be displayed. If you press OSD, the playback mode selection window appears. ( 42) Selected playback mode ( 42) Elapsed playing time of the current track (not displayed for JPEG) Operation status Current track no./total number of tracks in the current folder (total number of tracks on the disc) Track information (only for MP3/WMA/WAV/AAC) Track list Current track (highlighted) MODE REPEAT TRACK Track Information Album Four seasons Artist Robert M. Smith Title Rain TIME 00:14 Track : 6 / 14 Cloudy Fair Fog Hail Indian summer Rain Shower Snow Thunder Typhoon Wind Winter sky 1 The playback mode selection window: appears when OSD is pressed. ( 42) Selected playback mode ( 42) Elapsed playing time of the current track Operation status Current track number/total number of tracks on the disc 6 Track information 7 Track list 8 Current track (highlighted bar)

ENGLISH Selecting playback modes You can also change the playback modes using the playback mode selection window.

• For JPEG, Random cannot be selected.

MODE REPEAT OFF Operations using the list screen For discs other than DVD, VCD, and CD While Dual Zone is on, these operations are possible on the external monitor using the remote controller. While not playing...

Select your desired option.

• To go back to the folder list, press RETURN. 1 Current folder number/total folder number 2 Current track number/total number of tracks in the current folder 3 Current page/total number of the pages included in the list 4 Current folder/track (highlighted bar)

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod/iPhone to the USB terminal of the unit. For details of the operations,

ENGLISH USB operations USB cable from the rear of the unit The source changes to “USB” and playback starts. This unit can play JPEG/MPEG1/MPEG2 *1/MP3/WMA/ WAV/AAC *2 files stored in USB mass storage class device.

• You can operate the USB device in the same way you operate the files on discs. ( 34 – 39)
• All tracks in the USB device will be played repeatedly until you change the source. *1 Except for MPEG2 files recorded by JVC Everio camcorder (extension code <.mod>). *2 This unit can play back AAC files encoded using iTunes. This unit cannot play back FairPlay-encrypted files. Cautions:
• Avoid using the USB device if it might hinder your safety driving.
• Do not pull out and attach the USB device repeatedly while “Now Reading” is shown on the screen.
• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.
• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.
• This unit may not be able to play the files depending on the type of USB device.
• Operation and power supply may not work as intended for some USB devices.
• You cannot connect a computer to the USB input terminal of the unit.
• Make sure all important data has been backed up to avoid losing the data.
• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.
• Some USB devices may not work immediately after you turn on the power.

ENGLISH Using the Bluetooth® devices Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function. Bluetooth profile This unit supports the following Bluetooth profiles;
• HFP (Hands-Free Profile) 1.5
• OPP (Object Push Profile) 1.1
• A2DP (Advanced Audio Distribution Profile) 1.2
• AVRCP (Audio/Video Remote Control Profile) 1.3 Connecting a new Bluetooth device Connecting a Bluetooth device for the first time When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other. To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.
• Once the connection is established, it is registered in the unit even if you reset the unit. Up to 5 devices can be registered in total.
• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.
• To use the Bluetooth function, you need to turn on Bluetooth function of the device. Use <New Paring> in <Bluetooth> menu to register and establish the connection with a new device. ( 26)
• To connect/disconnect/delete a device,

Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

Status of the device

• Signal strength/Battery remainder (only when the information comes from the device). Connected Device Name FLAT Current Track Title Artist Name Album Title Activates <Voice Dialing> function. (Hold)
• To cancel <Voice Dialing>, hold any button on the monitor panel (except or VOL +/–).

• Displays <Dial Menu> screen.
• Displays <Redial> menu. (Hold) Connected device name or appears depending on the device connected.
• When no audio device is connected, “No Audio ENGLISH Using the Bluetooth cellular phone Device” appears. Bluetooth icon
• Turns blue when a Bluetooth device is connected. ~ Press [SOURCE], then press [BLUETOOTH]. Ÿ Press [ ]. ! Press [Bluetooth]. ⁄ Establish the connection with a device, then make a call (or settings using <Bluetooth> menu). ( 25 – 28) To make a call, use <Dial Menu>. ( 25) When a call comes in... The source is changed to “ Bluetooth” automatically. Name and phone number (if acquired) When <Auto Answer> is activated... The unit answers the incoming call automatically. 27) When <Auto Answer> is deactivated... To answer the incoming call
• Press the message displayed on the touch panel.
• Press any button on the monitor panel (except or VOL +/–). To end the call
• Hold the message displayed on the touch panel.
• Hold any button on the monitor panel (except or VOL +/–).
• You can adjust the microphone volume,

Continued on the next page EXTERNAL DEVICES EN_KW-AVX820[E]_1.indb 45

ENGLISH When an SMS comes in... If the cellular phone is compatible with SMS (Short Message Service), the unit tells you a message has been received. Presetting the phone numbers You can preset up to 6 phone numbers.

SOURCE FLAT Select the phone number you want to preset from <Redial>, <Received Calls>, <Phonebook>, or <Phone Number>.

25) Select a telephone number to store. To read a received message, operate the cellular phone after stopping the car in a safe place.

• You cannot read, edit, or send a message through the unit. Back To stop ringing (canceling the outgoing call)

Select a preset number. Hold any button on the monitor panel (except or VOL +/–). Back Now “Tom” is stored into preset no. 1. To call a preset number,

Starts playback/pauses Track no./Playing time (Only for devices that support the function) FLAT Reverse search Indicates the button pressed. (Only for devices that support the function)

• It may be different from the operation status. ENGLISH Using the Bluetooth audio player Connected Device Name Forward search Current Track Title Artist Name Album Title

• “No Name” appears when the Tag data is not recorded or when the device does not support the function. Starts playback/pauses Tag data* (current track title/artist name/album title) if it is recorded (Only for devices that support the function) ~ Press [SOURCE], then press [BLUETOOTH]. To connect a new device, Ÿ Start playback.

Listening to the CD changer It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs. Preparation: Make sure <Changer> is selected for <External Input>. ( 18) Ex.: While playing an MP3 disc DISC 1 SOURCE Folder no./Track no./ Playing time CD-CH FLAT REPEAT Current Folder Name Current File Name.mp3 Current Track Title Artist Name Album Title ~ Press [SOURCE], then press [CD-CH]. Ÿ Press [ ]. ! Press [List]. You can also display the Disc List by holding [5 / ∞]. Tag data (current track title/artist name/album title) if it is recorded ⁄ Select a disc to start playing.
• To select the playback mode,

• To select an MP3 track from the Folder/Track List,

ENGLISH Listening to the DAB tuner Band Preset no. If no signal is received, “No DAB Signal” appears. DAB indicators *1/Standby Reception indicators *1 While tuning in a service with DLS (Dynamic Label Segment), the TEXT indicator lights up. ~ Press [SOURCE], then press [DAB]. Ÿ Press [BAND]. ! Press [ ] or [ ] to search for an ensemble—Auto Search.

• Manual Search: Hold either [ repeatedly. ]or [ ] until “Manual Search” appears on the screen, then press it ⁄ Press [5 SERVICE] or [SERVICE ∞] to select a service (either primary or secondary) to listen to.
• To improve your listening when surrounding sounds are noisy, try to adjust <D. Range Control>. (
• To activate/deactivate TA/PTY Standby Reception, 31.*2 21) *2 Operations are exactly the same as the ones for FM Radio Data System stations.

• While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM Radio Data System station broadcasting the same programme.
• While receiving an FM Radio Data System station: When driving in an area where a DAB service is broadcasting the same programme as the FM Radio Data System station, this unit automatically tunes in to the DAB service. When shipped from the factory, Alternative Frequency Reception is activated. To deactivate the Alternative Frequency Reception, select <Off> for <DAB AF>. ( 17) To change the announcement type for Announcement Standby Reception, EXTERNAL DEVICES EN_KW-AVX820[E]_1.indb 49

ENGLISH Listening to the iPod/iPhone You can connect the iPod/iPhone using the following cable or adapter:

Cable/adapter Listen to the music Watch the video To operate USB 2.0 cable (accessory of the iPod/iPhone) to the USB cable from the rear of the unit. See “When connected with the USB cable” below. Interface Adapter for iPod, KS-PD100 (not supplied) to the CD changer jack on the rear of the unit. See “When connected with the interface adapter” ( 51). USB Audio and Video cable for iPod/iPhone, KS-U30 (not supplied) to the USB cable from the rear of the unit. See “When connected with the USB cable” below.

• Make sure <iPod (Off)> is selected for <AV Input>,

When connected with the USB cable The operation explained below are under “HEAD MODE.”

• Moves to the previous/next item of a category *1
• Enters <Search Mode> menu (Hold) ( 24 ) Starts playback/pause SOURCE Indicates the controlling unit for playback

• Reverse/forward search (Hold) HEAD MODE iPod FLAT REPEAT Current Track Title Artist Name Album Title ~ Press [SOURCE], then press [USB iPod]. Playback starts automatically.
• When you connect the iPod/iPhone to the USB terminal, “USB iPod” is selected as the source and playback starts automatically.
• Press and hold iPod to select the controlling unit. –HEAD MODE: Control playback with this unit. –iPod MODE*2: Control playback with the iPod/iPhone connected. *1 [5 / ∞] may not function depending on how you select the current track/video. *2 Make sure <iPod (Off)> is selected for <AV Input> when using KS-U30 to connect. ( 18) *3 You cannot resume playback for video sources.
• To select track/video from <Search Mode>,

• To select the playback mode,

• To change the play speed of the audio books,

When connected with the interface adapter ENGLISH Enters player’s menu SOURCE iPod FLAT REPEAT Song Name Artist Name Album Title

• Reverse/forward search (Hold) Starts playback/pauses Preparation: Make sure <iPod> is selected for <External Input>. ( 18) ~ Press [SOURCE], then press [iPod]. Playback starts automatically. Ÿ Press [4] or [¢] to select a track. Selecting a track from the player’s menu

Press [SEARCH] to enter the player’s menu. “SEARCH” flashes on the screen during menu operations.

• This mode will be canceled if no operations are done for about 5 seconds.

Press [3 / 8] to confirm the selection. Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.
• To return to the previous menu, press [SEARCH]. To select the playback mode,

Press [4] or [¢] to select the desired item.

• Skips 10 items at a time if there are more than 10 items. (Hold) Playlists Ô Artists Ô Albums Ô Songs Ô Genres Ô Composers Ô (back to the beginning) EXTERNAL DEVICES EN_KW-AVX820[E]_1.indb 51

ENGLISH Using other external components AV-INPUT You can connect an external component to the LINE IN/VIDEO IN plugs. Assigned title ( 22) SOURCE AV-IN FLAT ~ Press [SOURCE], then press [AV-IN]. Ÿ Turn on the connected component and start playing the source. To display the operation buttons while watching the playback picture,

Navigation screen You can also connect a Navigation System to the VIDEO IN plug so that you can watch the navigation screen. Preparation: Make sure <Navigation> is selected for <AV Input>. ( 18) To view the navigation screen Press DISP on the monitor panel repeatedly.

• The aspect ratio of the navigation screen is fixed to <Full> regardless of the <Aspect> setting. ( 15) When <Navigation> is selected for <AV Input> ( 18)
• You can use the source “AV-IN” for listening to an audio source connected to the LINE IN plugs.

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter, KS-U57 (not supplied) or AUX Input Adapter, KS-U58 (not supplied). Assigned title ( 22) Preparation: Make sure <External> is selected for <External Input>. ( 18) ENGLISH EXT-INPUT SOURCE EXT-IN FLAT ~ Press [SOURCE], then press [EXT-IN]. Ÿ Turn on the connected component and start playing the source. EXTERNAL DEVICES EN_KW-AVX820[E]_1.indb 53

ENGLISH Maintenance Caution on cleaning the unit Do not use any solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit. Recommended cleaning method: Gently wipe the panel with a soft, dry cloth. To keep discs clean A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs. To play new discs How to clean the connector Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton Connectors swab or cloth moistened with alcohol, being careful not to damage the connectors. New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc. Do not use the following discs: Single CD (8 cm disc) Warped disc Sticker and sticker residue Stick-on label Unusual shape C-thru Disc (semitransparent disc) Moisture condensation Moisture may condense on the lens inside the unit in the following cases: Center holder
• After starting the heater in the car.
• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates. How to handle discs When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.
• Always hold the disc by the edges. Do not touch its recording surface. When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).
• Make sure to store discs in their cases after use. Transparent or semitransparent parts on its recording area

General Turning on the power

• By pressing SOURCE on the monitor panel, you can also turn on the power. If the source is ready, playback starts. Tuner (FM only) Storing stations in memory
• When SSM is over, received stations are preset in no. 1 (lowest frequency) to no. 6 (highest frequency). ENGLISH More about this unit
• Some discs or files may not be played back due to their characteristics or recording conditions. Playing DVD-VR
• For details about DVD-VR format and playlist, refer to the instructions supplied with the recording equipment. Original Program/Playlist screen
• Original Program Disc General
• In this manual, words “track” and “file” are interchangeably used.
• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV/AAC) are recorded on the same disc.

• Playlist Inserting a disc
• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the screen. Eject the disc. Ejecting a disc
• If “No Disc“ appears after removing a disc, insert a disc or select another playback source.
• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. Playing Recordable/Rewritable discs
• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).
• Use only “finalized” discs.
• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
• This unit can recognize a total of 25 characters for file/folder names. 1 Original Program/Playlist number 2 Recording date 3 Recording source (TV station, the input terminal of the recording equipment, etc.) Start time of recording Title of the program/playlist * Highlight bar (current selection) Creating date of playlist Total number of chapters included in the playlist Playback time
• The title of the original program or playlist may not be displayed depending on the recording equipment.

• This unit can play back DivX files with the extension code <.divx>, <.div>, or <.avi> (regardless of the letter case—upper/lower).
• Audio stream should conform to MP3 or Dolby Digital.
• The file encoded in the interlaced scanning mode may not be played back correctly.
• The maximum bit rate for video signals (average) is 4 Mbps. Playing MPEG1/MPEG2 files
• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*.
• <.mod> is an extension code used for the MPEG2 files recorded by JVC Everio camcorders. The MPEG2 files with the <.mod> extension code cannot be played back when stored on a USB mass storage class device.
• The stream format should conform to MPEG system/ program stream. The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.
• The maximum bit rate for video signals (average) is 4 Mbps. Playing JPEG files
• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.
• This unit can play back JPEG files that are at 32 x 32 to 8 192 x 7 680 resolution. It may take time to display the file depending on its resolution.
• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played. Playing MP3/WMA/WAV/AAC files
• This unit can play back files with the extension code <.mp3>, <.wma>, <.wav>, or <.m4a> (regardless of the letter case—upper/lower).
• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps AAC: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

48 kHz, 44.1 kHz (for AAC)

• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).
• This unit can also show WAV/WMA Tag.
• This unit can play back files recorded in VBR (variable bit rate).
• Files recorded in VBR have a discrepancy in elapsed time indication.
• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and voice format. – WMA files which are not based upon Windows Media® Audio. – WMA files copy-protected with DRM. – AAC files encoded by using any other application than iTunes. – AAC files copy-protected with FairPlay (except those stored on an iPod/iPhone). – Files which have the data such as AIFF, ATRAC3, etc.

• If “No USB Device“ appears after removing a device, reattach a device or select another playback source.
• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the screen.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.
• While playing from a USB device, the playback order may differ from other players.
• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.
• USB devices equipped with special functions such as data security functions cannot be used with the unit.
• Do not use a USB device with 2 or more partitions.
• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.
• When connecting a USB device, refer also to its instructions.
• Connect only one USB device to the unit at a time. Do not use a USB hub.
• This unit may not recognize a memory card inserted into a USB card reader.
• When connecting with a USB cable, use the USB 2.0 cable.
• This unit may not play back files in a USB device properly when using a USB extension cord.
• This unit cannot assure proper functions or supply power to all types of the devices.
• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).
• This unit can recognize a total of 25 characters for file/folder names.
• For MPEG1/MPEG2 files: The maximum bit rate for video signals (average) is 2 Mbps. Bluetooth operations General
• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in a safe place.
• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.
• This unit may not work for some Bluetooth devices.
• Connecting condition may vary depending on circumstances around you.
• When the unit is turned off, the device is disconnected. ENGLISH USB Warning messages for Bluetooth operations
• Connection Error: The device is registered but the connection has failed. Use <Phone Connect> or <Audio Connect> to connect the device again. ( 26)
• Error: Try the operation again. If “Error” appears again, check if the device supports the function you have tried.
• Please Wait...: The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit). Icons for phone types
• These icons indicate the phone type set on the device. : Cellular phone : Household phone : Office : General : Other than above REFERENCES EN_KW-AVX820[E]_1.indb 57

• If you select a folder, which does not include any 23), you will hear a beep. music files, on the list ( Select another folder including music files. DAB tuner
• Only the primary DAB service can be preset even when you store a secondary service. iPod/iPhone operations
• You can control the following types of iPods/iPhones: (A) Connected with the USB cable: – iPod with video (5th Generation) *1, *2, *3 – iPod classic *1, *2 – iPod nano *2, *3 – iPod nano (2nd Generation) *2 – iPod nano (3rd Generation) *1, *2 – iPod nano (4th Generation) *1, *2 – iPod Touch *1, *2 – iPod Touch (2nd Generation)*1, *2 – iPhone/iPhone 3G*1, *2 (B) Connected with the interface adapter: – iPod with Click Wheel (4th Generation) – iPod mini – iPod photo – iPod with video (5th Generation) – iPod classic – iPod nano – iPod nano (2nd Generation) – iPod nano (3rd Generation) – iPod nano (4th Generation) *4 *1 To watch the video with its audio, connect the iPod/ iPhone using USB Audio and Video cable (KS-U30, not supplied). *2 “iPod MODE” is available, *3 To listen to the sound in “iPod MODE,” connect the iPod/iPhone using USB Audio and Video cable (KSU30, not supplied). *4 It is not possible to charge the battery through this unit.

• If the iPod/iPhone does not play correctly, update your iPod/iPhone software to the latest version. For details about updating your iPod/iPhone, visit <http://www.apple.com>.
• When you turn on this unit, the iPod/iPhone is charged through the unit.
• The text information may not be displayed correctly.
• The text information scrolls on the monitor. This unit can display up to 40 characters when using the interface adapter and up to 128 characters when using the USB 2.0 cable or USB Audio and Video cable. Notice: When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http:// www.jvc.co.jp/english/car/> (English website only) For the USB connection: When <iPod Artwork> is set to <On>: Do not press any keys during the first 5 seconds or more of playing back any track containing an Artwork*. It takes 5 seconds or more to display an Artwork and no operations are available while loading it.
• The picture displayed on the iPod’s/iPhone’s screen while playing back a track JVC bears no responsibility for any loss of data in an iPod/iPhone and USB mass storage class device while using this unit.

Characters you can enter for titles In addition to the roman alphabet (A – Z, a – z), you can use the following characters to assign titles. ( 22)

• When <Руccĸий> is selected for <Language>. 15) ENGLISH Menu settings
• If you change the <Amplifier Gain> setting from <High> to <Low> while the volume level is set higher than “30,” the unit automatically changes the volume level to “VOL 30.”
• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.
• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.
• Even if <4:3PS> is selected, the screen size may become <4:3LB> for some discs. Upper and lower cases Numbers and symbols

• When any language other than <Руccĸий> is 15) selected for <Language>. ( Upper and lower cases Numbers and symbols REFERENCES EN_KW-AVX820[E]_1.indb 59

ENGLISH Sound signals emitted through the rear terminals Through the analog terminals (Speaker out/LINE OUT) 2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed.

• DTS sound cannot be reproduced. Through the DIGITAL OUT terminal Digital signals (Linear PCM, Dolby Digital, MPEG Audio) are emitted.
• DTS sound cannot be emitted from the DIGITAL OUT terminal.
• To reproduce the multi-channel sounds such as Dolby Digital and MPEG Audio, connect an amplifier or a decoder compatible with these multi-channel sources to this terminal, and set <D. Audio Output> correctly. ( 16) Output signals <D. Audio Output> Playback disc DVD <Stream> <Dolby D> <PCM> 48 kHz, 16/20/24 bits Linear PCM 48 kHz, 16 bits stereo Linear PCM* 96 kHz, Linear PCM 48 kHz, 16 bits stereo Linear PCM with Dolby Digital with MPEG Audio Audio CD, Video CD DivX/ with Dolby Digital MPEG with MPEG Audio MP3/WMA Dolby Digital bitstream MPEG bitstream 48 kHz, 16 bits stereo Linear PCM 48 kHz, 16 bits stereo Linear PCM

44.1 kHz, 16 bits Linear PCM

• Digital signals may be emitted at 20 or 24 bits (at their original bit rate) through the DIGITAL OUT terminal if the discs are not copy-protected.

Persian Finnish Fiji Faroese Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue Inupiak Indonesian Icelandic Hebrew Japanese Yiddish Javanese Georgian

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.
• DivX® is a registered trademark of DivX, Inc., and is used under license.
• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device that plays DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX® Certified device must be registered in order to play DivX Video-onDemand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorized for your device, the message “Authorization Error” will be displayed and your content will not play.] Learn more at www.divx.com/vod.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.
• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• iPod and iTunes are a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).
• Messages (enclosed in “ ”) in the tables below are shown in the language selected on <Language>. ( 15) Messages described here are in the language of this manual. Symptom ENGLISH Troubleshooting Remedy/Cause

• No sound comes out of the speakers. • Adjust the volume to the optimum level.
• Check the cords and connections.
• DTS sound cannot be reproduced through any terminals (Speaker out/LINE OUT/DIGITAL OUT).
• The screen is not clear and legible. Sunshine from the windshield may cause this symptom. Adjust <Bright>. ( 14)

• “Position Error Push Open Key” appears on the screen. The monitor panel angle has been forcibly adjusted, or its adjustment has been interrupted while opening or closing. , then [Open]. Press

• “Mecha Error Push Reset” appears on Reset the unit. ( the screen, and the panel does not move. General

• “No Signal” appears.

• Start the playback on the external component connected to VIDEO IN plug.
• Check the cords and connections.
• Signal input is too weak.

• The buttons on the monitor panel do When the monitor panel is open, only VOL +/– and work. The other buttons do not function. not work.
• The unit does not work at all. Reset the unit. (

• The remote controller does not work. Deactivate Dual Zone. ( 40) (While Dual Zone is activated, the remote controller only functions for operating the DVD/CD player.)
• The touch panel does not respond
• Keep your hands and the touch panel clean and dry. properly.
• Eliminate static electricity and do not place magnetic items
• <Illumination> function does not near the unit. work properly.
• Leave the unit until the temperature becomes stable in the car.
• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat. Continued on the next page REFERENCES EN_KW-AVX820[E]_1.indb 63

• SSM automatic presetting does not work. Store stations manually. (

• Static noise while listening to the radio. Connect the aerial firmly.

• Disc can be neither recognized nor played back. Eject the disc forcibly. (

• Recordable/Rewritable discs cannot • Insert a finalized disc. be played back.
• Finalize the discs with the component which you used for
• Tracks on the Recordable/Rewritable recording. discs cannot be skipped. Disc in general

• Playback does not start.

• Insert the disc correctly again.
• The format of files is not supported by the unit.

• The playback picture is not clear and Adjust items in <Picture Adjust> menu. ( legible.
• Sound and pictures are sometimes interrupted or distorted. 14)

• Stop playback while driving on rough roads.

• No playback picture is shown and Parking brake lead is not connected properly. “Parking Brake” appears on the See Installation/Connection Manual. screen, even when the parking brake is engaged.
• No picture appears on the external monitor.

• Connect the video cord correctly.
• Select the correct input on the external monitor.

• “Eject Error” or “Loading Error” appears on the screen. Change the source by pressing SOURCE.

• “Region code error” appears on the Region code is not correct. ( screen when you insert a DVD Video.

Bluetooth USB Remedy/Cause

• Disc cannot be played back.

• Record the tracks using a compliant application on the appropriate discs. (

• Add appropriate extension codes to the file names.

• Noise is generated. The track played back is not a playable file format. Skip to another file.

• Tracks are not played back as you have intended them to play. Playback order may differ from the one played back using other players.

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the tracks are recorded. ENGLISH DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC Symptom

• “Not Support” appears on the screen The track is unplayable. and track skips.
• Noise is generated. The track played back is not a playable file format. Skip to another file.

• Tracks cannot play back as you have intended them to play. Playback order may differ from the one played back using other players.

• “Now Reading...” keeps flashing on the screen.

• Readout time varies depending on the USB device.
• Do not use too many hierarchy and folders.
• Turn off the power and on again.

• Correct characters are not displayed (e.g. album name). For available characters,

• While playing a track, sound is sometimes interrupted. The tracks are not properly copied into the USB device. Copy tracks again, and try again.

• Bluetooth device does not detect the • Search from the Bluetooth device again. unit.
• Reset the unit. When “Open...” appears on the monitor, search from the Bluetooth device again.
• The unit does not make pairing with Enter the same PIN code for both the unit and target device. If the Bluetooth device. the PIN code of the device is not indicated on its instructions, try “0000” or “1234.” Continued on the next page REFERENCES EN_KW-AVX820[E]_1.indb 65

CD changer Remedy/Cause

• Echo or noise occurs. Adjust the microphone unit position.

• Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth cellular phone.
• Move the car to place where you can get a better signal reception.

• The sound is interrupted or skipped while using a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.
• Disconnect the device connected for Bluetooth phone.
• Turn off, then turn on the unit.
• (When the sound is not yet restored) connect the player again.

• The connected audio player cannot be controlled. Check whether the connected audio player supports AVRCP (Audio Video Remote Control Profile).

• The unit does not response when you tried to copy the phone book to the unit. You may have tried to copy the same entries (as stored) to the unit.

• “No Audio Device” appears on the monitor. Connect this unit and the Bluetooth audio player correctly.

• “No Voice Device” appears on the monitor. The connected cellular phone does not have the voice recognition system. Bluetooth ENGLISH Symptom

• “No Disc” appears on the screen. Insert a disc into the magazine.

• “No Magazine” appears on the screen. Insert the magazine.

• “Cannot play this disc Check the disc” appears Current disc does not include playable files. Replace on the screen. the disc with one including playable files.
• “Reset08” appears on the screen. Connect this unit and the CD changer correctly and press the reset button of the CD changer. DAB tuner

• “Reset01” – “Reset07” appears on the screen. Press the reset button of the CD changer.
• The CD changer does not work at all. Reset the unit. (

• “No DAB Signal” appears on the screen. Move to an area with stronger signals.

• “Reset 08” appears on the screen. Connect this unit and the DAB tuner correctly, then reset the unit. (

• The DAB tuner does not work at all. Connect this unit and the DAB tuner correctly, then reset the unit. (

• “Antenna Power NG” appears on the screen. Check the cords and connections.

iPod/iPhone Symptom Remedy/Cause

Check the connecting cable and its connection. Update the firmware version. Charge the battery. Check whether “HEAD MODE” or “iPod MODE” is correctly selected. ( 50)

• Reset the iPod/iPhone.

• Sound is distorted. Deactivate the equalizer either on this unit or the iPod/iPhone.

• Playback stops. The headphones are disconnected during playback. Restart playback.

• “No Files” appears on the screen. No tracks are stored. Import tracks to the iPod/iPhone.

• No operations are available when playing back Operate the unit after the Artwork is loaded. ( a track containing Artwork. AV-IN Only when connecting with the interface adapter iPod

• “Restricted Device” appears on the screen. ENGLISH

• The iPod/iPhone does not turn on or does not work. 16) Check whether the connected iPod/iPhone is compatible with this unit. ( 58)

• “Disconnect” appears on the screen. Check the connection.

• “Reset01” – “Reset07” appears on the screen. Disconnect the adapter from both this unit and iPod. Then, connect them again.

• “Reset08” appears on the screen. Check the connection between the adapter and this unit.
• The iPod’s controls do not work after disconnecting from this unit. Reset the iPod.

• No picture appears on the screen.

• Turn on the video component if it is not on.
• Connect the video component correctly.

ENGLISH Specifications AMPLIFIER Maximum Power Output Continuous Power Output (RMS) Load Impedance Equalizer Control Range Signal-to-Noise Ratio Audio Output Level LINE OUT (FRONT, REAR), SUBWOOFER Color System Video Output (composite) Other Terminals Front/Rear Front/Rear 50 W per channel 20 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion 4 Ω (4 Ω to 8 Ω allowance) Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, 15 kHz Level ±10 dB 70 dB Line-Out Level/Impedance 5 V/20 kΩ load (full scale) Output Impedance 1 kΩ PAL 1 Vp-p/75 Ω LINE IN, VIDEO IN, CAMERA IN, USB input, MIC IN, Aerial input 2nd AUDIO OUT, VIDEO OUT CD changer, OE REMOTE, DIGITAL OUT (optical) Input Output Others

FM Tuner Usable Sensitivity 50 dB Quieting Sensitivity Alternate Channel Selectivity (400 kHz) Frequency Response Stereo Separation Sensitivity/Selectivity Sensitivity MW Tuner LW Tuner

87.5 MHz to 108.0 MHz

(MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

9.3 dBf (0.8 μV/75 Ω)

16.3 dBf (1.8 μV/75 Ω)

ENGLISH GENERAL Power Requirement Operating Voltage Grounding System Allowable Storage Temperature Allowable Operating Temperature Dimensions (W × H × D) Installation Size (approx.) Panel Size (approx.) Mass (approx.) DC 14.4 V (11 V to 16 V allowance) Negative ground –10°C to +60°C 0°C to +40°C 182 mm × 111 mm × 160 mm 188 mm × 117 mm × 10 mm

3.3 kg (including the Trim plate, Sleeve, and

Brackets) Design and specifications are subject to change without notice. Required space for installation and the monitor ejection Dashboard

CAUTION: When ejecting the monitor, leave an open space for the monitor to come out. If you do not, the monitor may obstruct the steering wheel and gearshift lever operations, and this may result in a traffic accident. Unit: mm

TUNER = DAB = DISC (DVD/VCD/

Étui souple (fourni) Attachement Attention:

TUNER = DAB = DISC (DVD/VCD/

DVD DVD-Video * Region Code: 2

TUNER = DAB = DISC (DVD/VCD/

Receiving Message 25)
