Product Type	Cordless Drill/Driver with Hammer Function
Model	PRO Edition DH18-BL (Art.no 40-9930)
Battery Voltage	18 V
Battery Capacity	2.0 Ah
No-Load Speed	0–450 rpm (Low Gear), 0–1600 rpm (High Gear)
Torque Settings	18 + Drill Mode + Hammer Mode, max 40 Nm
Chuck Type	Keyless Chuck
Weight	1.35 kg
Charger Input	100–240 V, 50/60 Hz
Charging Time	Approx. 40 minutes
Speed Control	Variable Speed Trigger
Forward/Reverse	Selector with Lock-off Center Position
Light	Work Light near Battery
Battery Indicator	3 LEDs on Battery and Tool
Noise Level (LpA)	82 dB(A) (Uncertainty 3 dB)
Noise Level (LwA)	93 dB(A) (Uncertainty 3 dB)
Vibration (Hammer Drilling)	9.397 m/s² (K=1.5 m/s²)
Vibration (Drilling into Steel)	2.270 m/s² (K=1.5 m/s²)
Safety Features	Overload Protection, Overheating Protection, Low-Voltage Protection
Maintenance	Keep ventilation openings clean; clean with mild detergent; store dry

Frequently Asked Questions - PRO Edition DH18-BL Cocraft

How long does it take to fully charge the battery?

The charging time is approximately 40 minutes when using the supplied charger.

What should I do if the drill does not start?

Check if the battery is discharged or overheated. Recharge the battery or let it cool down. If the problem persists, contact Customer Services.

How do I change the drill bit?

The drill has a keyless chuck. Twist the chuck to the left to tighten and to the right to loosen. Ensure the bit is centered and secure.

What is the maximum torque of this drill?

The maximum torque is 40 Nm in drill mode.

How do I select the correct torque setting for screws?

Use the torque/drill mode selector ring. Start at the lowest setting and increase until the screw is driven without over-tightening. There are 18 torque settings.

Can I use this drill in hammer mode for masonry?

Yes, set the selector ring to hammer mode and use high gear (2) for best results. Always wear ear protection.

How do I check the battery charge level?

Press the button on the battery or squeeze the trigger halfway. The 3 LEDs indicate charge: 3 = full, 2 = 90%, 1 = 25%, none = discharged.

What safety gear should I use with this drill?

Always wear safety glasses, ear defenders, and a face mask. Use a dust mask if needed.

How do I store the drill when not in use?

Remove the battery and store it separately. Keep the drill in a dry place out of reach of children. Charge battery fully before long-term storage.

What does the overload protection do?

The overload protection automatically turns off the drill during high-load situations to prevent damage. Release the trigger, wait a few seconds, and restart. It resets automatically.

USER MANUAL PRO Edition DH18-BL Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Art.no 40-9930 Model CDI218LB1.1

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings - Personal Safety

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained

Specific safety instructions for drilling

a) Wear ear protectors when hammer drilling. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

Specific safet instructions for battery packs

a) Do not dismantle, open or shred cells or the battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject the battery pack to mechanical shock.
e) In the event of the battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep the battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) The battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain the battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) The battery pack performs best when it is operated at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the specified charger. Do not use any charger other than that specifically provided for use with the equipment.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep the battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

General safety instructions for batteries and chargers

• Never attempt to dismantle a battery.
• Never store a battery in direct sunlight or at temperatures above 40 °C.
• Only charge the battery when the ambient temperature is between +5 and 40 °C.
• Never expose the battery or charger to water.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use safety glasses, ear defenders and a face mask.

For indoor use only.

max 40 °C

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

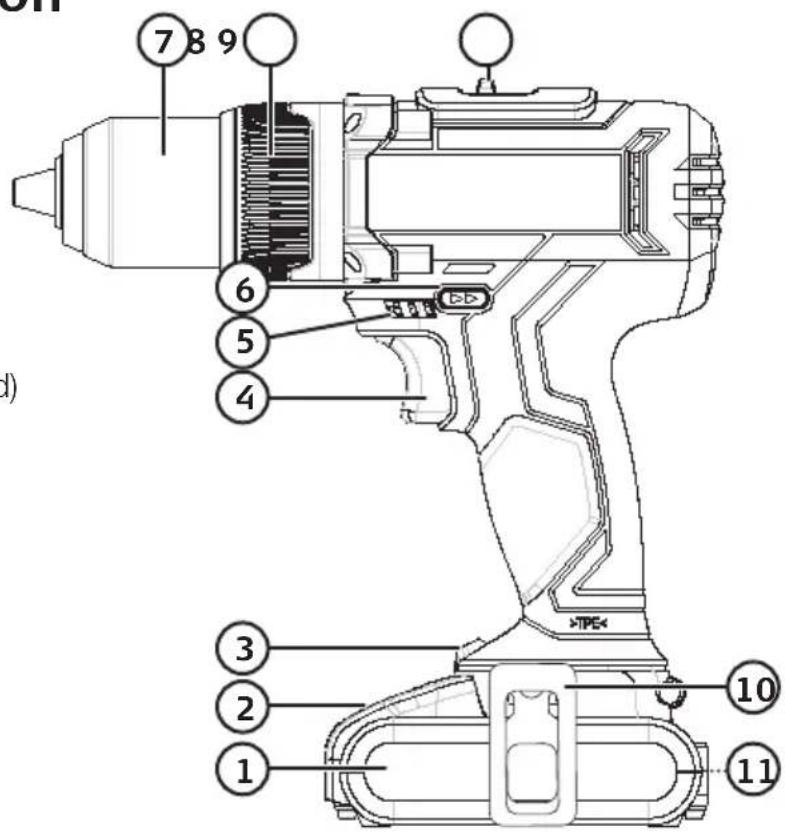

Product description

1. 18 V/2.0 Ah battery
2. Battery release button
3. Sight light
4. Power trigger (variable speed)
5. Battery status indicator
6. Forward/reverse selector
7. Keyless chuck
8. Torque adjustment and drill mode selector ring
9. Two-speed gear selector
10. Belt clip
11. Battery status indicator

Power trigger

• The direction of rotation (forward or reverse) can be chosen using the selector (6). The selector also has a middle setting which locks the power trigger. If the selector is set to this middle position, the drill will not start. The drill/driver is started and stopped by squeezing and releasing the power trigger (4).
• The drill/driver is equipped with a variable speed control, which makes it extremely practical for driving screws. The more the power trigger is squeezed, the higher the chuck rotation speed.

Light

The drill/driver is equipped with a light which is positioned down close to the battery so that it can light up the work area without being obscured by the chuck. The light comes on when the power trigger is squeezed and goes off when the power trigger is released.

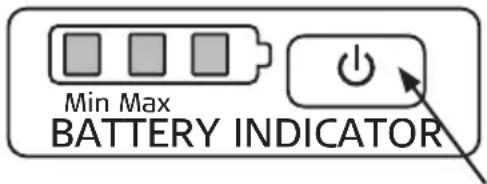

Battery indicators

Note: The indicators give a general picture of the battery's actual charge status. The percentages shown below should therefore be considered as approximate indicators. The readings from the two different indicators can differ somewhat from each other.

• One battery indicator (11) is found on the battery. Press the button on the side of the battery indicator to display the current battery status.
• One battery indicator (5) is found on the drill/ driver itself. Press the trigger halfway to display the current battery status.

At full, 100 % charge, all three LEDs shine. At 90 % charge, one LED goes out and two LEDs will be lit. At 25 % charge, two LEDs are unlit and only one LED will be lit. If none of the LEDs are lit, the battery is completely discharged and needs charging.

Screwdriver mode

Use the torque/drill mode selector ring (8) to set a suitable torque setting. The correct torque setting will disengage the drive at the preset torque to prevent screws from being over-tightened or driven in too far. The setting should be based on the type and size of screw and the material being screwed into. Always start at the lowest setting and increase in increments to find the correct setting.

Hammer drill mode

Set the torque/drill mode selector ring (8) (1) to hammer drill mode and ideally the gear selector to 2 for maximum efficiency.

High/Low gear

The gear selector (9) has two settings. Setting 1: 0–450 rpm, setting 2: 0–1600 rpm.

Charging

Note: Only use the supplied charger. The battery needs to be charged fully before initial use.

1. Remove the battery from the drill/driver by pressing the battery release button (2) and sliding the battery out. If the battery feels hot after heavy use, allow it to cool properly before charging it.
2. Connect the charger to a wall socket. The green LED will come on.

3. Insert the battery into the charger. The green LED will go out and the red LED will come on whilst the battery is being charged.

4. When the battery has been fully charged, the green LED will come on.

5. The charging time is approximately 40 min.

6. The battery may become hot whilst it is being charged. This is completely normal.
7. The battery and charger function best at normal room temperature. Do not charge the battery in direct sunlight or in temperatures below 5 °C. The temperature range for charging is 5–40 °C.
8. When the battery becomes discharged, the electronics of the battery will turn the drill off automatically.
9. For long-term storage (months) the battery should first be fully charged.

Overload protection and other safety features

The drill/driver and its battery have a number of safety features that prevent damage to the machine and battery during use.

• During short high-load situations the overload protection may turn off the drill/driver and battery. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no-load and restart the drill. The drill/driver should now function normally again.
• During high-load situations for an extended period of time the overheating protection will turn off the drill/driver and battery. Self-resetting once the drill/driver returns to normal operating temperature. Let the machine cool properly before trying to restart it. Adverse temperatures can occur in direct sunlight and should therefore be avoided.
• The battery has low-voltage protection which comes into effect when the battery becomes discharged. The low-voltage protection turns off the machine automatically and the battery should then be recharged.

Changing drill and screwdriver bits

The drill/driver has a keyless chuck which enables drill or screwdriver bits to be changed with one hand. Twist the chuck to the left to tighten, to the right to untighten. Make sure that the bit sits centred and secured in the chuck.

Drilling tips and advice

• Set the torque dial (8) to drill mode ( ).
• When drilling into slippery materials, like tiles, you should place a strong piece of tape on the area in which you wish to drill to prevent the bit from wandering.
• When drilling into metal you should first use a centre punch to make a small indentation at the spot where you wish to drill. This indentation will help hold the bit in place and prevents it from wandering when you drill.
• When drilling into metal you should also use cutting oil to assist in drilling and to preserve the machine and drill bit.
  • Always use a clamp or vice to hold the workpiece.
• When drilling into walls, make sure not to damage water pipes, electricity cables or gas pipes.

Care and maintenance

• Keep the motor ventilation openings free from contaminants.
• Clean the product using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Make sure the battery is fully charged before storing the product if it is not to be used for a longer period.
• Store the product in a dry environment and out of the reach of children if it is not to be used for a longer period.

Troubleshooting guide

Problem Possible cause Solution
The machine does not start.	Flat/discharged battery. Recharge the battery.
	The battery is overheated. Let the battery cool down.
	Faulty power trigger. Contact our Customer Services.
The machine is slow and/or shuts off.	Blunt or damaged drill bit. Replace drill bit.
	Too much pressure applied. Decrease applied pressure.
	Flat/discharged battery. Recharge the battery.
	The battery is overheated. Let the battery cool down.
	The motor is overheated. Let the machine cool down.
Unusual sounds and/or strong vibrations.	The drill/screwdriver bit is not centred or incorrectly fitted.	Make sure that the drill/screwdriver bit is centred, correctly inserted and securely fixed.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Specifications

Charger power supply 100–240 V, 50/60 Hz

No-load speed 0–450/1600 rpm

Battery 18 V/2.0 Ah

Torque settings 18 + drill mode + hammer mode, max 40 Nm

Noise emission data LpA 82 dB(A) (uncertainty KpA: 3 dB

LwA 93 dB(A) (uncertainty KwA: 3 dB

Ear protection must be worn when the sound

level exceeds: 80 dB(A)

Vibration value

a_h, ID 9.397 m/s ^2 K: 1.5 m/s ^2 (hammer drilling into concrete)

a_h,D 2.270 m/s ^2 , K: 1.5 m/s ^2 (drilling into steel)

Weight 1.35 kg

Skruvdragare 18 V

Art.nr 40-9930 Modell CDI218LB1.1

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning laddare 100–240 V, 50/60 Hz

Varvtal 0–450/1600 v/min

Batterier 18 V/2,0 Ah

Ställbart moment 18 + borr + slag, max 40 Nm

Ljud LpA 82 dB(A) (onoggrannhet KpA: 3 dB

LwA 93 dB(A) (onoggrannhet KwA: 3 dB

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a solid black rectangle below (no text or labels)

Spesifikasjoner

Spenning 100–240 V, 50/60 Hz

Turtall 0–450/1600 o/min

Batterier 18 V/2,0 Ah

Justerbart moment 18 + bor + slag, maks 40 Nm

Lyd LpA 82 dB(A) (unøyaktighet KpA: 3 dB

LwA 93 dB(A), (unøyaktighet KwA: 3 dB

Bruk hørselsvern när lyden overstiger 80 dB(A)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Tekniset tiedot

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Manager Technique & Quality

Insjön, Sweden, 2017-01-31

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
