Product Type	Infrared Forehead Thermometer
Model	THD2FE / 15.2024.02
Dimensions	49 x 36 x 155 mm
Weight	78 g (instrument only)
Power Supply	2 x 1.5V AAA batteries (included)
Battery Life	Approximately 3000 measurements
Measurement Mode	Forehead (body temperature) and Surface
Forehead Mode Range	34.0°C to 42.2°C (93.2°F to 108.0°F)
Surface Mode Range	-22°C to 80°C (-7.6°F to 176°F)
Measurement Accuracy (Forehead)	±0.2°C (0.4°F) at 35°C to 42°C; ±0.3°C (0.5°F) otherwise
Measurement Accuracy (Surface)	±0.3°C (0.5°F) at 22°C to 42.2°C; otherwise ±4% or ±2°C (whichever greater)
Measurement Time	Approximately 1 second
Memory Capacity	25 measurements
Fever Alarm	≥37.5°C (100.4°F) – 3 short beeps
Auto Power Off	After about 1 minute
IP Protection	IP22
Cleaning and Maintenance	Clean sensor with 70-75% medical alcohol on a cotton swab; let dry 1 minute. Wipe body with soft damp cloth. Do not immerse in water.
Safety Precautions	Keep away from children; do not expose to extreme temperatures, vibrations, or strong electromagnetic fields (keep 1m distance from mobile phones).
Repairability	Unauthorized repairs prohibited; contact supplier for issues.
Standards Compliance	ASTM E1965-98, EN ISO 80601-2-56, IEC/EN60601-1-2, IEC/EN60601-1, ISO10993, RoHS, Medical Devices Directive 93/42/EEC
Warranty / Service Life	Expected service life: 4 years

Frequently Asked Questions - 15.2024.02 TFA

How do I measure body temperature on the forehead?

Press the ON button briefly to turn on the device. Ensure it is in forehead mode (default). Point the sensor at the middle of the forehead, about 4 cm away, and press the START button. A beep sounds after about 1 second. If the reading is 37.5°C or higher, three short beeps indicate fever.

Can I use the thermometer to measure surface temperature?

Yes. After power on, press and hold the ON button, then press the START button to switch to surface mode. Aim at the target and press START. The surface temperature is displayed. Note: This is not suitable for shiny metal surfaces or through glass/plastic.

How do I switch between °C and °F?

With the device switched off, press and hold the START and ON buttons simultaneously for 3 seconds. The unit toggles between °C and °F, and the memory is cleared at the same time.

How do I enable or disable the mute function?

Hold the ON button until the mute symbol flashes. The mute symbol stays on the display, and beeps are deactivated. Repeat the same process to reactivate the sound. Note: Holding the ON button longer turns off the device.

Why does the display show 'Er1'?

Er1 indicates that the measurement was taken before the device stabilized. Wait for the error message to disappear and then repeat the measurement.

What should I do if the display shows 'Er3'?

Er3 means the ambient temperature is outside the operating range (10°C to 40°C). Allow the thermometer to rest in a room at a temperature between 10°C and 40°C for at least 15 minutes before use.

How do I clean the thermometer?

Clean the sensor lens with a cotton swab soaked in medical alcohol (70-75%). Let it dry completely for at least 1 minute. For the rest of the unit, use a soft, slightly damp cloth. Do not use solvents or submerge in water.

How many measurements can I store in memory?

The thermometer automatically stores up to the last 25 forehead temperature measurements. To view them, press the ON button while the device is on; the memory symbol appears. Each press shows the previous measurement (1 is most recent).

What is the temperature range and accuracy of the forehead mode?

The forehead mode measures from 34.0°C to 42.2°C (93.2°F to 108.0°F) with an accuracy of ±0.2°C (0.4°F) between 35°C and 42°C, and ±0.3°C (0.5°F) otherwise.

Can I take a measurement immediately after exercise or bathing?

No. Wait at least 30 minutes after physical exercise, bathing, or dining before taking a measurement. Also, the thermometer and the person should be in the same room for at least 15 minutes prior to measurement.

USER MANUAL 15.2024.02 TFA

Close-up of a white remote control device with blue background (no visible text or symbols)

Close-up of a hand holding a white electric shaver over a bowl of food (no visible text or symbols)

Kat. Nr. 15.2024.02

Hersteller: Radiant Innovation Inc., 1F, No. 3, Industrial East 9th Road, Science-Based Industrial Park, HsinChu, Taiwan 300

Made in PRC 04/2020D/GB

Infrared Forehead Thermometer THD2FE / 15.2024.02

Thank you for choosing this instrument from TFA.

This product is based on the latest infrared technology and can be used to measure body temperature on the forehead, as well as surface temperatures. The temperature measurement is contactless, simple and fast.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Infrared Forehead Thermometer THD2FE / 15.2024.02
• Batteries 2 x AA 1.5 V
- Instruction manual

3. For your safety

• The thermometer has been designed for home use.
- The product should only be used as described within this instruction.
- Before each measurement, check the thermometer for any signs of damage. Only use the device if intact. Unauthorised repairs, modifications or changes to the product are prohibited.
- Operation in strong electromagnetic fields, such as next to a mobile phone, can lead to malfunction. Keep a minimum distance of 1 m from such devices when using this device.
- The minimum measurement time until the beep must be maintained without exception.

Infrared Forehead Thermometer THD2FE / 15.2024.02

• Discuss the measured values with your doctor.
- The temperature measured at the forehead area differs from the core body temperature, which is obtained by taking an oral or rectal measurement with a clinical thermometer.
- Check the measurement result with a conventional clinical thermometer

1. if you are using the thermometer for the first time, or you are not yet familiar with the correct use of the device
2. if the measurement result is surprisingly low and does not match the state of health
3. for newborns up to 6 months of age
4. for persons, especially small children, who react unusually in the presence or absence of fever.

Caution! Risk of injury:

• The instrument contains small parts that could be accidentally swallowed by children. Keep this instrument and the batteries out of reach of children. Use under parental supervision.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place the device near extreme temperatures, vibrations or shocks.
• Protect the device from large or abrupt ambient temperature changes.
• Steam, dust, smoke, etc., can prevent accurate measurement by obstructing the device's optics.

Infrared Forehead Thermometer THD2FE / 15.2024.02

• The device is not waterproof. Protect it from moisture. Do not immerse in water or other liquids.
• To clean and disinfect the unit, please follow the instructions in the section "Care and Maintenance".

4. Measuring procedure

- Every object releases infrared energy. The optical detector senses the infrared energy, converts this information into a digital reading and the surface temperature is displayed.

4.1 Measurement of body temperature

• In the default setting, in forehead thermometer mode, the thermometer measures the temperature of the infrared heat given by the arterial blood supply under the forehead area and converts this temperature into an oral equivalent temperature. The measurement result is displayed within 1 second. The contactless measuring method allows, for example, to take the temperature of babies without disturbing them during sleep.
• Many people believe that normal body temperature is 37^ , however body temperature, like blood pressure, varies from person to person and during the day. It may range from 35.5^ (95.9^) to 37.8^ (100.4^) .
• We should remember as well that oral temperature is normally lower by 0.5^ (0.9°F) from rectal temperature. The forehead temperature is converted by the infrared forehead thermometer to the commonly used oral temperature. For some people it may show some difference from their normal oral temperature.

Therefore: Practice is important!

• We recommend that you practise using the thermometer on yourself and your family when you're in a healthy condition. In this way you can improve your technique and obtain a reference value for normal body temperature of each member of your family. This in turn will help you to feel more confident to take the temperature when someone is ill.
• For repeated accurate measurement, be sure to always measure the same spot on the forehead as in the following instructions.

Infrared Forehead Thermometer THD2FE / 15.2024.02

5. Get to know the device!

5.1 Elements (Fig. 1)

A 1: Probe lens

A 2: START button

A 3: ON button

A 4: Battery compartment

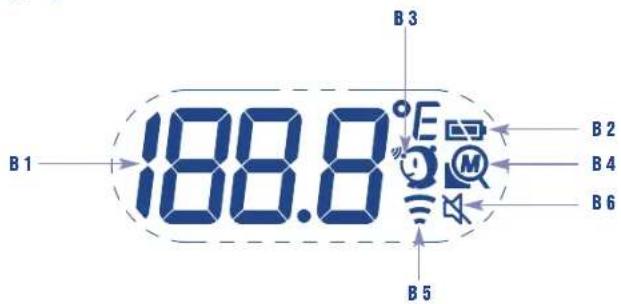

5.2 Display (Fig. 2)

B 1: Temperature display °C/°F

B 2: Battery symbol

B 3: Symbol for forehead mode

B 4: Memory symbol

B 5: Symbol for surface mode

B 6: Mute symbol

6. Getting started

• The battery compartment is located on the back of the device. Open the battery compartment by sliding the battery cover down.
• Insert the two AAA 1.5 V batteries with the correct polarity.
• You will hear two beeps.
  • The device is now ready for operation.
• Close the battery compartment again. The cover is properly inserted in the housing, as soon as a click is heard.
• To switch off the device, keep the ON button pressed until OFF appears in the display. The device switches off automatically after about 1 minute if no button is operated.

7. Operation

7.1 Measuring body temperature on the forehead (Fig. 2)

• Avoid taking a measurement less than 30 minutes after physical exercise, bathing or dining.
• The thermometer and the person to be measured should be in the same room under constant ambient conditions at least 15 minutes before the measurement.
  • Always make sure that the sensor is clean and undamaged.

Infrared Forehead Thermometer THD2FE / 15.2024.02

• Clean the forehead from sweat, makeup, etc
• Press the ON button briefly. The unit now displays the symbol for forehead mode (default mode).
• You will hear two beeps.
• Now point the measuring sensor at a suitable measuring spot in the middle of the forehead at a distance of about 4 cm.
• Hold it steadily at this position and press the START button.
• A beep will sound once the measurement is completed, after approx. 1 second.
• If the reading is 37.5°C or higher, you will hear three short beeps.
• Remove the thermometer from the measuring area. Read the temperature on the LCD display. The blue LED backlight turns on for 5 seconds.

7.2 Repeated measurements

- To repeat measurements, always return to the same point of measuring on the forehead. Wait until the symbol for forehead mode stops flashing.

Remember:

- The forehead temperature is equivalent to oral temperature (oral temperature is normally 0.5^ less then rectal measured temperature.) This is based on the average population. For some people it may be different and it is recommended to learn and recognize the forehead temperature while healthy.

7.3 Memory function

• The thermometer automatically stores the last 25 temperature values in the forehead temperature mode.
• To use the memory function, press the ON button while the thermometer is turned on. The memory symbol appears. "1" appears briefly, then the temperature of the last measurement.
• Each time the ON button is pressed, the temperatures of the previous measurements (2 to 25) are displayed. If no more measured values are stored, - - appears on the display.

7.4 °C/°F selection and clearing of the memory

- When the device is switched off, press the START button and the ON button simultaneously for 3 seconds. The temperature unit changes from °C to °F and the memory is erased at the same time.

Infrared Forehead Thermometer THD2FE / 15.2024.02

7.5 Mute mode

• To enable the mute function, hold the ON button until the mute symbol flashes. The mute symbol remains on the display and the signal tone is deactivated.
• Use the same process to disable the mute function and reactivate the signal tone.

Please note:

- If you press and hold the ON button for longer, OFF will appear on the display and the unit will be switched off without setting the mute mode.

7.6 Measuring surface temperature

• After power on, press and hold the ON button, and then press the START button at the same time. The surface mode symbol appears on the display.
• Simply aim at the target and press the START button. You will get the surface temperature within one second.
• If you keep the START button pressed, the measured value is continuously updated.

Please note:

• This mode shows the actual and unadjusted surface temperature which is different from body temperature.
• To get the most accurate temperature reading, aim at the target as near as possible.
• Not suitable for measuring shiny or polished metal surfaces (stainless steel, aluminium, etc.).
• The device cannot measure through transparent surfaces such as glass or plastic. It will measure the surface temperature of the glass instead.

8. Care and maintenance

• The sensor is the most delicate part of the infrared thermometer. Please protect the sensor part from dirt.
• For cleaning, please use a cotton swab soaked with medical alcohol (70-75%).
• Allow the sensor to dry completely for at least 1 minute.
• Clean the rest of the unit with a soft, slightly damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you are not going to use the device for a long period of time.

Infrared Forehead Thermometer THD2FE / 15.2024.02

8.1 Battery replacement

full

half full

empty

• The battery symbol appears permanently on the display.
- Change the batteries when the empty battery symbol appears on the display.
- Confirm the unit is switched off before changing battery.
- Please follow the instructions on the section "Getting started".

9. Troubleshooting

Display Problem Solution

	No display → Press the ON button to switch on the device → Ensure that the battery polarity is correct → Change the batteries
Er	Er 5...9 The system is not wait for 1 minute and functioning properly. restart the device
Er 1 Measurement before → Wait for "Er1" to device stabilisation disappear
Er 3 The ambient temperature → Allow the thermometer to is not within the range rest in a room for at least between 10°C and 40°C (50°F...104°F).		15 minutes at a room temperature between 10°C and 40°C (50°F...104°F)
Hi	1. In forehead mode: Temperature taken is higher than +42.2°C (108°F)

Infrared Forehead Thermometer THD2FE / 15.2024.02

	2. In surface mode:Temperature taken ishigher than +80°C (176°F)	→ Please select the targetwithin specifications.
Lo	1. In forehead mode:Temperature taken islower than +34°C (93.2°F)2. In surface mode:Temperature taken islower than -22°C (-7.6°F)
	Device cannot be putinto operation mode	→ Change the batteries

If your device fails to work despite these measures, please contact the supplier from whom you have purchased the product from.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to appropriate collection sites depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Pb=lead, Hg = mercury

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal

Infrared Forehead Thermometer THD2FE / 15.2024.02 GB
11. Specifications

Model THD2FE / 15.2024.02
Type Infrared thermometer
Forehead mode measuring range 34...42.2°C (93.2...108°F)
Precision ±0.2°C (0,4°F)	at 35°C...42°C (95°F...107.6°F)±0.3°C (0.5°F) otherwise

Surface mode measuring range -22°C...80 °C (-7.6...176 °F)

Precision ±0.3°C (0,5°F)

at 22°C...42.2°C (71.6°F...108°F)±4% or ±2°C (4°F)otherwise, whichever is greater

Resolution 0.1 °C

Storage conditions Temperature: -20°C...+50 °CHumidity: ≤ 85 % rH

Transport conditions Temperature: ≤ 70 °CHumidity: ≤ 95 % rH

Ambient conditions for use Temperature: 10°C...40°CHumidity: 15...85 % rH

Duration of measurement About 1 second

Memory capacity 25 measurements

Fever alarm Temperature ≥37,5 °C

Automatic switch-off After about 1 minute

IP protection class IP22

Batteries 2 x 1.5 V AAA included

Average battery life 3000 measurements

Expected service life 4 years

Dimensions 49 x 36 x 155 mm

Weight 78 g (Instrument only)

Reference to standards Complies with

ASTM E1965-98, EN ISO 80601-2-56, IEC/EN60601-1-2 (EMC), IEC/EN60601-1 (Safety) standards, ISO10993, RoHS

This device complies with the requirements of the Directive for Medical devices 93/42/EEC.

Infrared Forehead Thermometer THD2FE / 15.2024.02

12. Explanation of symbols

1639

Declaration of European conformity, number of the notified body

Device complies with protection class BF

Consult instructions for use

Storage conditions: Temperature: -20 °C...+50 °C / humidity: ≤ 85 % rH

Ambient conditions by use: Temperature: +10 °C...+40 °C / humidity: 15...85 %

Lot number

Manufacturer: Radiant Innovation Inc., 1F, No. 3, Industrial East 9th Road, Science-Based Industrial Park, HsinChu, Taiwan 300

EU Representative: Medical Technology Promedt Consulting GmbH, Altenhofstrasse 60, D-66386 St. Ingbert, Germany

Importer:

TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de

Made in PRC 04/2020D/GB
