Product Type	2.5" Internal Solid State Drive (SSD)
Interface	SATA III (6 Gb/s), backward compatible with SATA II
Form Factor	2.5 inch, 7mm thickness
NAND Flash Type	3D TLC (Triple-Level Cell)
Capacities Available	120GB, 240GB, 480GB, 960GB, 1TB, 2TB
Sequential Read Speed	Up to 560 MB/s
Sequential Write Speed	Up to 520 MB/s
4K Random Read	Up to 90,000 IOPS
4K Random Write	Up to 80,000 IOPS
Power Consumption (Active)	2.5W typical
Power Consumption (Idle)	0.3W typical
Dimensions (L x W x H)	100.45 x 69.85 x 7.0 mm
Weight	Approximately 47g (120GB) to 52g (2TB)
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Features	LDPC ECC, DEVSLP (Device Sleep), S.M.A.R.T., TRIM, NCQ, RAID support
Warranty	3-year limited warranty
Compatibility	Windows, Mac OS X, Linux; Desktop and Laptop PCs
Installation	2.5" drive bay or bracket; SATA power and data cable required
Cleaning and Maintenance	No routine cleaning needed; avoid physical shock and static discharge
Safety Precautions	Handle with care to avoid static damage; power off before installation

Frequently Asked Questions - Ultimate SU800 ADATA

Can I install the ADATA Ultimate SU800 in my laptop?

Yes, the SU800 uses a standard 2.5-inch SATA interface and is compatible with most laptops that have a 2.5-inch drive bay. Ensure your laptop supports a 7mm height drive; if your laptop requires a 9.5mm drive, a spacer may be needed.

Do I need to format the SU800 before use?

If you are installing the SSD as a secondary drive, it may need to be initialized and formatted in Disk Management (Windows) or Disk Utility (Mac). As a boot drive, the installation process will format it automatically.

How do I clone my old hard drive to the SU800?

You can use cloning software such as ADATA's own SSD Toolbox, or third-party tools like Acronis True Image, EaseUS Todo Backup, or Clonezilla. Connect both drives to your PC and follow the software's instructions.

Is the SU800 compatible with Windows XP?

Windows XP does not natively support TRIM, which is important for SSD performance. It is recommended to use Windows 7 or later, Mac OS X 10.6.8 or later, or a modern Linux distribution to ensure optimal performance and features.

Why is my SU800 not detected by the computer?

Ensure the SATA cable and power cable are firmly connected. Check if the drive appears in BIOS/UEFI. If not, try a different SATA port or cable. If still undetected, the drive may be defective.

What is the expected lifespan of the SU800 SSD?

The SU800 has a typical lifespan of 1.5 million hours MTBF. For most users, the drive will last many years under normal usage. The warranty covers 3 years.

Can I use the SU800 as an external drive?

Yes, you can place the SU800 in an external USB 3.0 enclosure compatible with 2.5-inch SATA drives. This allows you to use it as a portable high-speed storage device.

Does the SU800 support TRIM?

Yes, the ADATA Ultimate SU800 supports the TRIM command, which helps maintain performance over time. Make sure TRIM is enabled in your operating system (Windows: enabled by default for SSDs).

What should I do if the system freezes or slows down after installing the SU800?

Ensure the SSD is connected to a native SATA III port and that AHCI mode is enabled in BIOS. Update your motherboard chipset drivers. If the issue persists, check for firmware updates for the SU800.

How do I update the firmware on the SU800?

Firmware updates can be downloaded from the ADATA website. Use the ADATA SSD Toolbox software to perform the update. Backup your data before updating firmware.

USER MANUAL Ultimate SU800 ADATA

Colorful hummingbird logo with wings spread against blue background (no text or symbols)

ADATA®

INDEX

INSTALLING AN 2.5" SATA SSD ON A DESKTOP PC

Chinese traditional 03

Chinese simple 07

English 11

German 15

Japanese 19

Korean 23

Portuguese 27

Russian 31

Romanian 35

Spanish 39

INSTALLING AN 2.5" SATA SSD ON A LAPTOP PC

Chinese traditional 43

Chinese simple 47

English 51

German 55

Japanese 59

Korean 63

Portuguese 67

Russian 71

Romanian 75

Spanish 79

如何在桌機安裝

2.5吋 SATA固態硬碟

更換前準備步驟

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. 準備工具

2. 備份資料

3. 請確實關機

Hand inserting a rack into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. 將主機機殼卸下

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a CD-ROM drive into an electronic device (no visible text or symbols)

3. 取下支架與排線

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. 重新裝上機殼

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)

更换前准备步骤

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. 准备工具

2. 备份数据

Hand inserting a rack into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. 将电脑侧板卸下

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable and a black plastic device on a laptop chassis (no visible text or symbols)

3. 取下支架与扁平电缆

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. 重新装上机箱侧板

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

BEFORE INSTALLATION

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdriver, and ADATA 2.5" SATA SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case.

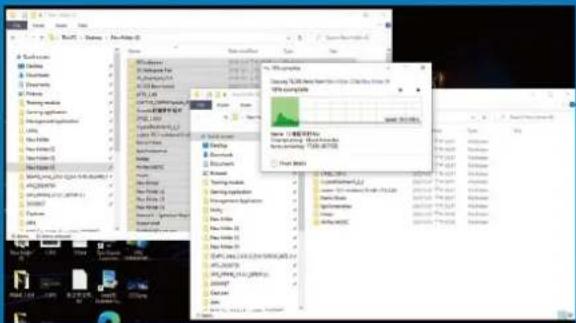

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

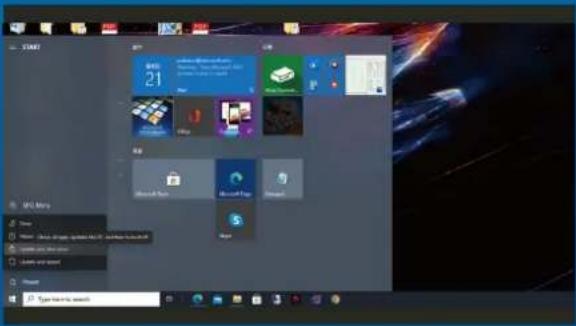

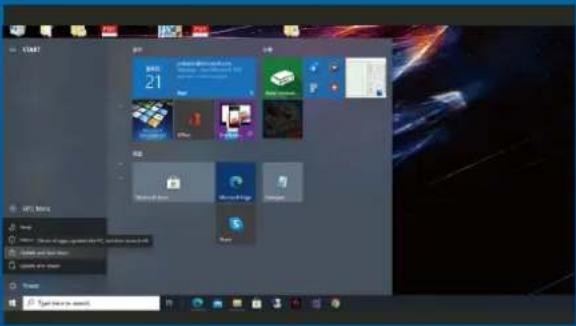

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

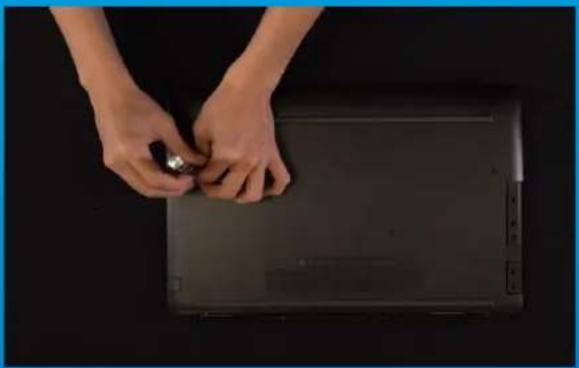

INSTALLATION

Hand placing a hard disk into an open computer tower case with visible internal components and a digital display nearby (no text or symbols)

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

2. CONFIRM THE POSITION OF THE 2.5" SLOT AND REMOVE THE BRACKET

*Please check the side of the motherboard to find the unused 2.5" bracket

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

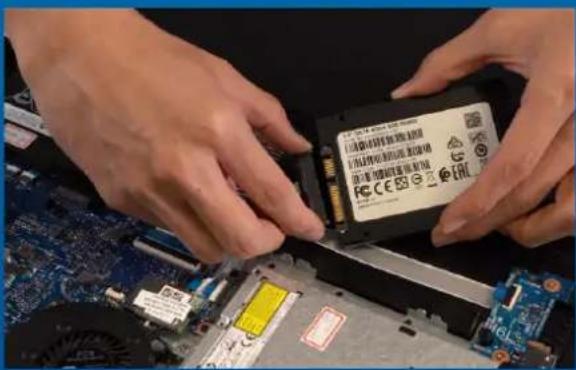

3. REMOVE THE BRACKET AND CABLE

*Each PC has different ways to fix drives. There may be drawers or brackets to place the solid state hard drives. The way to remove them will involve pulling out the bracket or support frame.

**When removing the stand, please check the screws on the top or side carefully, these screws may be fixed on it.

Close-up of hands installing a device into a computer motherboard with a blue SUGBO card (no visible text or symbols on the device itself)

4. CONNECT CABLES AND ATTACH BRACKET TO THE NEW 2.5" SATA SSD. PUT THE BRACKET IN THE SLOT TO FIX DRIVES

There is a row of pins on the cable as well as on the SSD. Align to the correct orientation and place the bracket back into the slot.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot.. Do not insert it forcibly to avoid damage to the product.

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

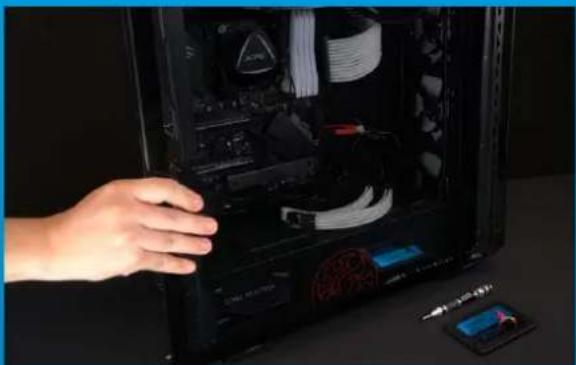

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE 2,5-ZOLL-SATA-SSD AN EINEM DESKTOP-PC INSTALLIEREN

VOR DER INSTALLATION

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

3. IHREN PC ABSCHALTEN

Hand inserting a drive into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into an open computer tower case with visible internal components and a digital display nearby (no text or symbols)

1. PC-GEHÄUSE ENTFERNEN

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a CD-ROM drive into an electronic device (no visible text or symbols)

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

Interior view of a computer tower case with visible internal components and a small display panel (no text or symbols)

1. 準 備するもの

2. データの バックアップ

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into an open computer tower case with visible internal components and a digital display nearby (no text or symbols)

1. パソコン本 体のケースを取り外す

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable and a black plastic device on a laptop chassis (no visible text or symbols)

3. ブラケットとケーブルを取り外す

Close-up of hands installing a blue SBJ300 card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. ケースを元の位置に取り付ける

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)

설치하기 전에

Interior view of a computer tower case with visible internal components and a small display panel (no text or symbols)

1. 필요한 도구 준비

Hand placing a socket into a black rack-mounted server unit (no visible text or labels)

Hand placing a hard disk into an open computer tower case with visible internal components and a digital display nearby (no text or symbols)

1. PC 케이스 제거

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable and a black plastic device on a laptop chassis (no visible text or symbols)

3.브래킷과 케이블 제거

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. 케이스 재조립

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)

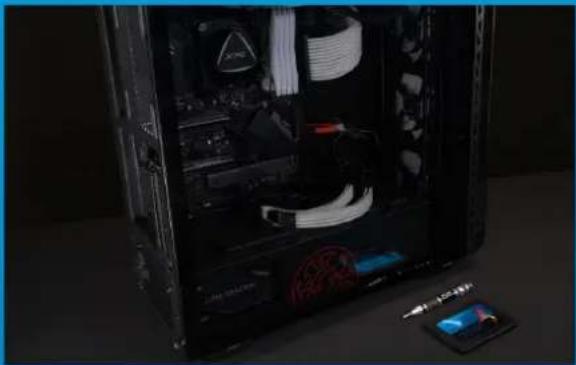

ANTES DA INSTALAÇÃO

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

3. DESLIGUE SEU PC

Hand inserting a drive into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into an open computer tower case with visible internal components and a digital display nearby (no text or symbols)

1. REMOVA O GABINETE DO PC

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a CD-ROM drive into an electronic device (no visible text or symbols)

3. REMOVA O SUPORTE E O CABO

Close-up of hands installing a blue SBJ900 memory card into a computer motherboard (no visible text or symbols on the chip or background)

4. CONECTE OS CABOS E PRENDA O SUPORTE AO NOVO SSD SATA DE 2,5". COLOQUE O SUPORTE NO SLOT PARA FIXAR AS UNIDADES

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable and a black plastic device on a laptop chassis (no visible text or symbols)

3. СНИМИТЕ КРОНШТЕЙН И ОТСОЕДИНИТЕ КАБЕЛЬ

Close-up of hands installing a blue SBJ300 card into a computer motherboard (no visible text or symbols on the chip or background)

4. ПРИСОЕДИНИТЕ КАБЕЛИ И ПРИКРЕПИТЕ КРОНШТЕЙН К НОВОМУ ТВЕРДОТЕЛЬНОМУ НАКОПИТЕЛЮ 2,5 ДЮЙМА SATA. ВСТАВЬТЕ КРОНШТЕЙН В СЛОТ, ЧТОБЫ ЗАКРЕПИТЬ НАКОПИТЕЛИ

Close-up of a hand inserting a CPU into a black internal OS drive, with a small electronic device nearby (no visible text or symbols)

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

ÎNAINTE DE INSTALARE

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

3. OPRITI PC-UL

Hand placing a socket into a rack-mounted server rack (no visible text or labels)

4. DECONECTATI ALIMENTAREA CU ENERGIE ŞI CABLUL DE ALIMENTARE

Hand placing a hard disk into a black server tower case with visible internal components and a small electronic device nearby (no text or symbols)

1. SCOATEȚI CARCASA PC-ULUI

Interior view of a computer motherboard showing CPU socket, RAM slots, and wiring (no visible text or labels)

2. CONFIRMAȚI POZIȚIA FANTEI 2,5" ȘI SCOATEȚI CONSOLA

Close-up of hands installing a red cable and a black GPU chip into a server rack (no visible text or symbols)

3. SCOATEȚI SUPORTUL ȘI CABLUL

Close-up of hands installing a blue S1800 memory card into a computer motherboard (no visible text or symbols on the chip or background)

4. CONECTATI CABLURILE SI ATAŞATI SUPORTUL LA NOUL SSD SATA 2,5" PUNETI SUPORTUL IN FANTĂ PENTRU A FIXA UNITĂTILE.

Close-up of a hand inserting a device into a black server room with visible internal components (no text or symbols)

5. REASAMBLATI CARCASA

Hand pointing at a black server rack with a mesh vent, no visible text or symbols

6. CONECTATI CABLUL DE ALIMENTARE ȘI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓLIDO SATA DE 2,5" EN UN EQUIPO DE SOBREMESA

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. REUNIR LOS ELEMENTOS QUE SE NECESITARÁN

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

1. QUITAR LA CARCASA DEL EQUIPO

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a device into a computer motherboard with a blue SUGBO card (no visible text or symbols on the device itself)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. VOLVER A MONTAR LA CARCASA

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)

更換前準備步驟

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 準備工具

2. 備份資料

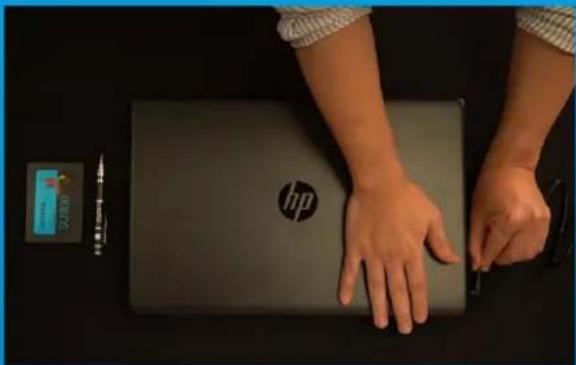

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. 將電源線及電池拔除

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. 將主機背板卸下

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. 取下支架與排線

Two hands holding a black rectangular electronic device on a dark surface (no text or symbols visible)

4. 重新蓋上背板

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo and pen nearby (no readable text or symbols)

更换前准备步骤

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 准备工具

2. 备份数据

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. 将电源线及电池拔除

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. 将电脑背板卸下

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. 取下支架与扁平电缆

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. 重新盖上背板

再以螺丝起子固定M.2固态硬盘。

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor and pen nearby (no visible text or symbols)

BEFORE INSTALLATION

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdriver, and ADATA 2.5" SATA SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. UNPLUG POWER CORD AND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your user manual.

INSTALLATION

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. REMOVE YOUR PC'S BACK PLATE

Use your standard Phillips screwdriver to loosen the screws and then remove the back plate.

*If you are unsure how to do this, refer to your user manual

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. REMOVE THE MOUNTING BRACKET AND CABLES

*The bracket is used to secure the solid state drive, because the slot is not exactly the same size as the solid state drive.

Close-up of hands installing a CD-ROM drive into a motherboard (no visible text or symbols)

3. CONNECT CABLES AND ATTACH BRACKET TO THE NEW 2.5" SSD.

There is a row of pins on the cable as well as on the SSD. Align to the correct orientation and place the bracket back into the slot.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Two hands holding a black electronic device with a small screen (no visible text or symbols)

4. SECURE THE BACK PLATE INTO PLACE

*Do not overtighten the screws as it may cause damage

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo and pen nearby (no readable text or symbols)

5. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE 2,5-ZOLL-SATA-SSD AN EINEM LAPTOP-PC INSTALLIEREN

VOR DER INSTALLATION

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. NETZKABEL UND AKKU TRENNEN

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. RÜCKPLATTE WIEDER EINSETZEN

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo and pen nearby (no readable text or symbols)

交換前の準備

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 準 備するもの

2. データの バックアップ

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. パソコンのバックパネルを取り外す

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. ブラケットとケーブルを取り外す

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo and pen nearby (no readable text or symbols)

설치하기 전에

Top-down view of a HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. 필요한 도구 준비

2. 데이터 백업

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. 전원 코드와 배터리 분리

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. PC 뒤판 제거

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2.마운팅 브래킷과 케이블 제거

Close-up of hands installing a hard drive into a motherboard, no visible text or symbols on the device itself.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. 뒤판 제자리에 고정

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo and pen nearby (no readable text or symbols)

ANTES DA INSTALAÇÃO

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2. FAÇA BACKUP DE SEUS DADOS

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. REMOVA A PLACA TRASEIRA DO SEU PC

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

2. REMOVA O SUPORTE DE MONTAGEM E OS CABOS

3. CONECTE OS CABOS E PRENDA O SUPORTE AO NOVO SSD DE 2,5".

Two hands holding a black rectangular electronic device on a dark surface (no text or symbols visible)

4. PRENDA A PLACA TRASEIRA NO LUGAR

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo nearby (no readable text or symbols)

Top-down view of a silver HP laptop with a small electronic device and cable on the side (no visible text or symbols)

2. ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

Close-up of hands holding a small object on a black laptop cover (no visible text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Person assembling a laptop with visible circuit board and drive components (no text or symbols)

3. ПРИСОЕДИНИТЕ КАБЕЛИ И ПРИКРЕПИТЕ КРОНШТЕЙН К НОВОМУ ТВЕРДОТЕЛЬНОМУ НАКОПИТЕЛЮ 2,5 ДЮЙМА.

Two hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИНУ НА МЕСТЕ

Top-down view of hands holding a HP laptop on a dark surface, with a small monitor displaying a logo and pen nearby (no readable text or symbols)

ÎNAINTE DE INSTALARE

Top-down view of a HP laptop with a small electronic device and cable on the surface (no visible text or symbols)

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

3. OPRITI PC-UL

Top-down view of hands operating a HP laptop on a dark surface, with a small electronic device and pen nearby (no visible text or symbols)

4. DECONECTATI CABLUL DE ALIMENTARE ȘI BATERIA

Close-up of hands holding a small metallic object on a black electronic device casing (no visible text or symbols)

1. SCOATEȚI PLACA DIN SPATE A PC-ULUI

Person assembling a laptop with visible circuit board and battery cover (no text or symbols)

2. SCOATEȚI SUPORTUL DE MONTARE ȘI CABLURILE

3. CONECTATI CABLURILE ŞI ATAŞATI SUPORTUL LA NOUL SSD SATA 2,5".

Close-up of hands holding a black rectangular electronic device against a dark background (no text or symbols visible)

4. FIXAREA PLĂCII DIN SPATE ÎN POZITIE

Top-down view of hands operating a HP laptop on a dark surface, with a small monitor and pen nearby (no visible text or symbols)

5. CONECTATI CABLUL DE ALIMENTARE ȘI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓLIDO SATA DE 2,5" EN UN EQUIPO DE SOBREMESA

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

1. REUNIR LOS ELEMENTOS QUE SE NECESITARÁN

Hand placing a socket into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into an open computer tower case with visible internal components and a digital display nearby (no text or symbols)

1. QUITAR LA CARCASA DEL EQUIPO

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

Close-up of hands installing a device into a computer motherboard with a blue SUGBO card (no visible text or symbols on the device itself)

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. VOLVER A MONTAR LA CARCASA

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)
