FALCON - SSD ADATA - Free user manual and instructions

Product Type	Internal Solid State Drive (SSD)
Brand	ADATA
Model	FALCON
Interface	PCIe Gen3 x4, NVMe 1.3
Form Factor	M.2 2280
Capacity Available	256GB, 512GB, 1TB
Sequential Read (Max)	Up to 2500 MB/s
Sequential Write (Max)	Up to 2100 MB/s
Random Read (4K, Max)	Up to 200K IOPS
Random Write (4K, Max)	Up to 260K IOPS
Controller	Realtek RTS5762
NAND Flash Type	3D TLC NAND
Dimensions (L x W x H)	80 x 22 x 3.5 mm
Weight	8 g
Power Consumption (Active)	2.5 W (typical)
Power Consumption (Idle)	0.3 W (typical)
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Shock Resistance	1500G / 0.5 ms
MTBF	1.5 million hours
Warranty	5 years or up to TBW limit
Key Features	NVMe 1.3, SLC Caching, LDPC ECC, TRIM, SMART, Low Power Consumption
Maintenance & Cleaning	No physical maintenance required; keep firmware updated via ADATA SSD Toolbox
Repairability	Not user-serviceable; replace the entire unit if defective

Frequently Asked Questions - FALCON ADATA

What interface does the ADATA FALCON SSD use?

The ADATA FALCON uses the PCIe Gen3 x4 interface with NVMe 1.3 protocol, offering high-speed data transfer.

What capacities are available for the FALCON SSD?

The FALCON is available in 256GB, 512GB, and 1TB capacities to suit different storage needs.

Is the ADATA FALCON compatible with my motherboard?

It requires an M.2 slot that supports PCIe NVMe. Check your motherboard manual to confirm compatibility.

Does the FALCON SSD support TRIM?

Yes, the FALCON fully supports TRIM to maintain performance over time when used with an operating system that enables it.

What is the warranty period for the ADATA FALCON?

It comes with a 5-year limited warranty or up to the specified TBW (Terabytes Written) limit, whichever comes first.

How do I install the FALCON SSD?

Insert the M.2 drive into the M.2 slot at a 30-degree angle, then secure it with the screw. No cables are needed.

Why is my SSD not being recognized?

Ensure the M.2 slot is NVMe-compatible, the drive is properly seated, and check BIOS settings for detection. Update motherboard drivers if needed.

How can I check the health of my FALCON SSD?

Use the ADATA SSD Toolbox software to monitor SMART status, temperature, and remaining lifespan.

Is the FALCON SSD good for gaming?

Yes, its high sequential and random speeds reduce game loading times and improve overall gaming experience.

How do I migrate my OS to the new FALCON SSD?

Use cloning software like Acronis True Image (often included) or ADATA's SSD Toolbox to clone your existing drive to the FALCON.

USER MANUAL FALCON ADATA

Colorful hummingbird logo with wings spread against blue background (no text or symbols)

ADATA®

INDEX

INSTALLING AN M.2 SSD ON A DESKTOP PC

Chinese traditional 03

Chinese simple 07

English 11

German 15

Japanese 19

Korean 23

Portuguese 27

Russian 31

Romanian 35

Spanish 39

INSTALLING AN M.2 SSD ON A LAPTOP PC

Chinese traditional 43

Chinese simple 47

English 51

German 55

Japanese 59

Korean 63

Portuguese 67

Russian 71

Romanian 75

Spanish 79

如何在桌機安裝 M.2固態硬碟

Exterior view of a computer monitor displaying a colorful circular lens, next to a black ADATA RAM module (no text or symbols on the main subject)

更換前準備步驟

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. 準備工具

2. 備份資料

Hand inserting a socket into a server rack unit (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and wiring (no text or symbols)

1. 將主機機殼卸下

Interior view of a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

3. 對準M.2插槽、插上固態硬碟

Close-up of hands operating a computer motherboard with a mouse and monitor (no visible text or symbols)

4. 拴上螺絲固態硬碟

再以螺絲起子固定M.2固態硬碟。

Interior view of a black desktop computer tower with visible internal components and a hand adjusting the base panel (no text or symbols)

5. 重新裝上機殼

Hand pressing a button into a server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a black ADATA RAM module (no text or symbols on the main subject)

更换前准备步骤

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. 准备工具

2. 备份数据

3. 请确认关机

Hand inserting a socket into a server rack unit (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. 将机箱侧板卸下

Interior view of a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

3. 对准M.2插槽、插上固态硬盘

Close-up of a hand inserting a component into a computer case (no visible text or symbols)

4.拧上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

5. 重新装上机箱侧板

Hand pressing a button on a black server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a black ADATA RAM module (no text or symbols on the main subject)

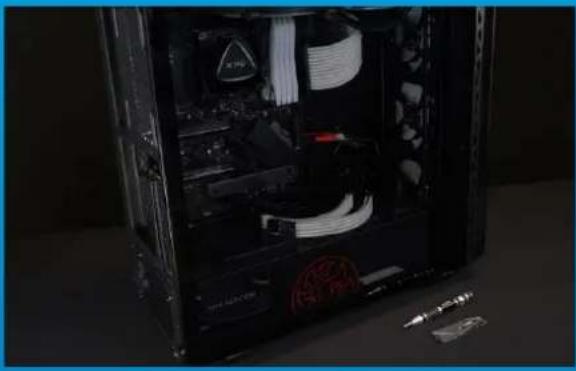

BEFORE INSTALLATION

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD *Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand inserting a socket into a server rack unit (no visible text or labels)

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

*The location of the power switch may vary by PC, please check your user manual.

INSTALLATION

Hand placing a hard drive into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

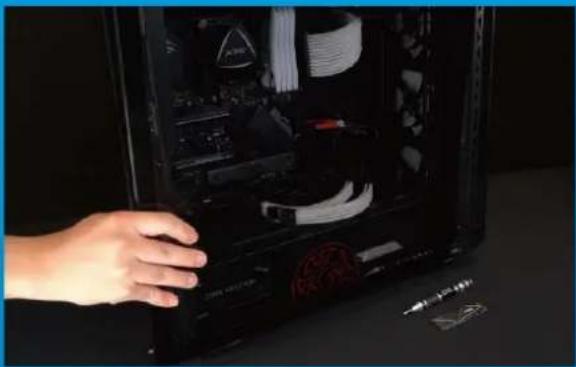

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard with CPU socket and monitor, showing internal components like XPE logo (no readable text or symbols)

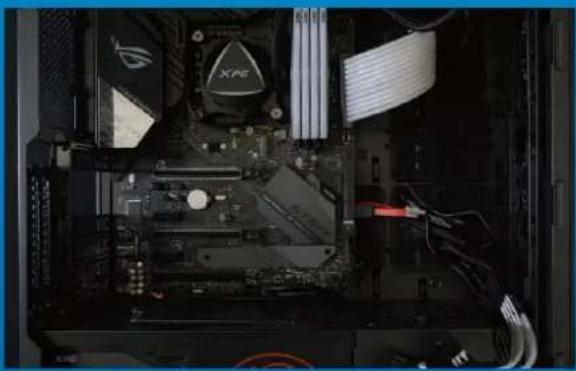

2. LOCATE THE M.2 PCIE SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit, and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the PC is shipped from the factory.

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

* The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands operating a computer motherboard with a tool, no visible text or symbols

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

Hand pressing a button into a server rack with multiple drive bays (no visible text or labels)

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM DESKTOP-PC INSTALLIEREN

Exterior view of a computer monitor displaying a colorful circular lens, next to a black ADATA RAM module (no text or symbols on the main subject)

VOR DER INSTALLATION

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. PC-GEHÄUSE ENTFERNEN

Interior view of a computer motherboard with CPU socket and monitor (no visible text or symbols)

2. M.2-PCIE-STECKPLATZ AUSFINDIG MACHEN UND SICHERSTELLEN, DASS SCHRAUBEN VORHANDEN SIND

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

Close-up of a hand inserting a component into a computer case (no visible text or symbols)

Interior view of a black desktop computer tower with visible internal components and a hand adjusting the base panel (no text or symbols)

Hand pressing a button on a black server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a black ADATA RAM module (no text or symbols on the main subject)

交換前の準備

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. 準 備するもの

2. データのバックアップ

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. パソコン本体のケースを取り外す

Interior view of a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of a hand inserting a component into a computer case (no visible text or symbols)

4. SSDをねじで固定する

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

5. ケースを元の位置に取り付ける

Hand pressing a button into a server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a black ADATA RAM module (no text or symbols on the main subject)

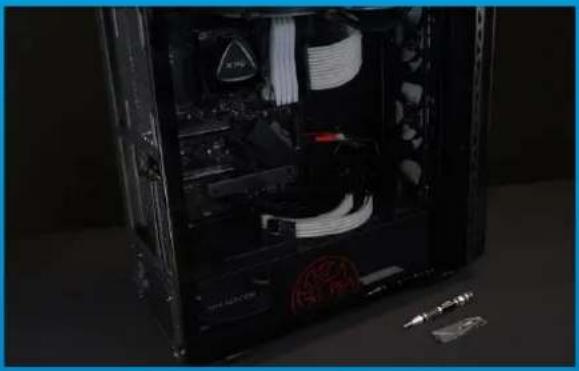

설치하기 전에

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. 필요한 도구 준비

2. 데이터 백업

Hand inserting a socket into a server rack with ventilation grilles (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and wiring (no text or symbols)

1. PC 케이스 제거

Interior view of a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

Close-up of a hand inserting a component into a device (no visible text or symbols)

4. 나사를 조여서 SSD 고정

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

5. 케이스 재조립

Hand pressing a button on a black server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a black RAM module labeled 'ADATA' (no other text or symbols visible)

ANTES DA INSTALAÇÃO

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2. FAÇA BACKUP DE SEUS DADOS

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and wiring (no text or symbols)

1. REMOVA O GABINETE DO PC

Interior view of a computer motherboard with CPU socket and monitor, showing internal components like XPE logo (no readable text or symbols)

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓLIDO

Close-up of hands operating a computer motherboard with a mouse and monitor (no visible text or symbols)

4. APERTE OS PARAFUSOS PARA PRENDER O SSD

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

Hand pressing a button into a server rack with multiple drive bays (no visible text or labels)

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

2. ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and wiring (no text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Interior view of a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

Close-up of hands operating a computer motherboard with a mouse and monitor (no visible text or symbols)

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

5. ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИНУ НА МЕСТЕ

Hand pressing a button into a server rack with multiple drive bays (no visible text or labels)

Exterior view of a computer RAM module next to a colorful circular display screen (no text or symbols on the main subject)

ÎNAINTE DE INSTALARE

Interior view of a computer tower case showing internal components like CPU, RAM, and memory drive (no visible text or labels)

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

3. OPRITI PC-UL

Hand inserting a socket into a server rack (no visible text or labels)

4. DECONECTATI ALIMENTAREA CU ENERGIE ȘI CABLUL DE ALIMENTARE

Hand placing a hard drive into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. SCOATETI CARCASA PC-ULUI

Interior view of a computer motherboard with CPU socket and monitor, showing no visible text or symbols

2. LOCALIZATI FANTA M.2 PCIE ŞI CONFIRMAȚI CĂ EXISTĂ ȘURUBURI

Close-up of a hand holding a computer motherboard with CPU socket and monitor (no visible text or symbols)

3. ALINIATI FANTA M.2 ŞI INTRODUCEȚI UNITATEA SOLID STATE

Close-up of hands assembling a computer motherboard with a screwdriver (no visible text or symbols)

4. STRÂNGETI ŞURUBURILE PENTRU A FIXA SSD

Close-up of a hand inserting a CPU into a black internal space, with visible hardware and components (no text or symbols)

5. REASAMBLATI CARCASA

Close-up of a hand pressing a button on a black server rack with multiple drive bays (no visible text or labels)

6. CONECTATI CABLUL DE ALIMENTARE ȘI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE

ESTADO SÓLIDO M.2 EN

UN EQUIPO DE

SOBREMESA

Interior view of a computer tower case showing internal components like CPU, memory, and hardware (no visible text or labels)

1. REUNIR LOS ELEMENTOS QUE NECESITARÁ

Hand inserting a socket into a server rack with ventilation grilles (no visible text or labels)

Hand placing a hard drive into a black server tower case with visible internal components and wiring (no text or symbols)

1. QUITAR LA CARCASA DEL EQUIPO

Interior view of a computer motherboard with CPU socket and monitor, showing internal components like XPE logo (no readable text or symbols)

2. LOCALIZAR LA RANURA PCIE M.2 Y CONFIRMAR QUE TIENE TORNILLOS

Close-up of a hand inserting a CPU into a motherboard with visible hardware and slots (no text or symbols)

3. ALINEAR LA RANURA M.2 E INSERTAR LA UNIDAD DE ESTADO SÓLIDO

Close-up of a hand inserting a component into a computer case (no visible text or symbols)

Hand placing a button into a black server rack with visible internal components and a small electronic device nearby (no text or symbols)

5. VOLVER A MONTAR LA CARCASA

Hand pressing a button into a server rack with multiple drive bays (no visible text or labels)

Laptop with a black CPU socket and a white RAM module, no visible text or symbols on the main components.

更換前準備步驟

1. 準備工具

2. 備份資料

Close-up of two hands resting on a dark surface, with a small triangular object labeled 'XPS' visible in the background (no other text or symbols)

4. 將電源線及電池拔除

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. 將主機背板卸下

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. 對準M.2插槽、插上固態硬碟

Close-up of hands using a tool to adjust or install electronic components on a circuit board (no visible text or symbols)

4. 拴上螺絲以固定固態硬碟

再以螺絲起子固定M.2固態硬碟。

5. 重新盖上背板

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

Laptop with a black CPU socket and a white RAM module, no visible text or symbols on the hardware components.

更换前准备步骤

1. 准备工具

2. 备份数据

Close-up of two hands resting on a dark surface, with a small triangular object labeled 'XPS' visible in the background (no other text or symbols)

4. 将电源线及电池拔除

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. 将电脑背板卸下

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. 对准M.2插槽、插上固态硬盘

Close-up of hands using a tool to adjust or repair a device component labeled 'XPG' on a circuit board (no readable text beyond label)

4. 拴上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5. 重新盖上背板

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

Laptop keyboard with ADATA chip resting on a blue surface, no visible text or symbols on the main components.

BEFORE INSTALLATION

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Close-up of two hands resting on a dark surface, no visible text or symbols

4. UNPLUG POWER CORD AND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your user manual.

INSTALLATION

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

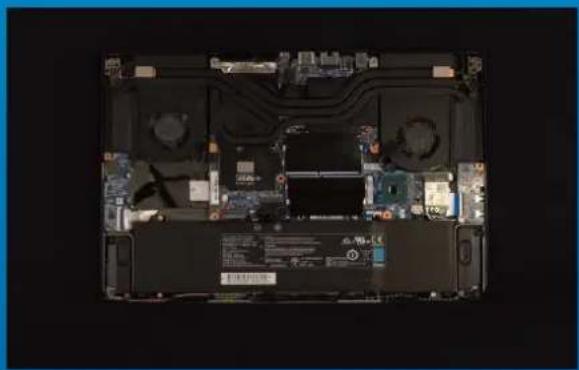

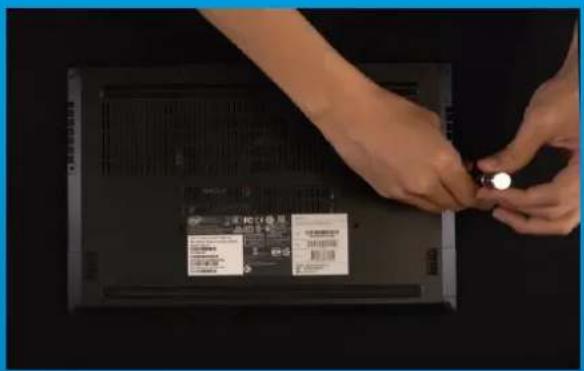

1. REMOVE YOUR PC'S BACK PLATE

Use your standard Phillips screwdriver to remove the screws from the back plate.

*If you are unsure how to do this, refer to your user manual

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

2. LOCATE THE M.2 PCIE SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the laptop is shipped from the factory.

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands using a tool to repair a device on a circuit board (no visible text or symbols)

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

*Do not overtighten the screws

5. SECURE THE BACK PLATE INTO PLACE

*Do not overtighten the screws as it may cause damage

Close-up of human legs and hands resting on a dark surface, with no visible text or symbols

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM LAPTOP-PC INSTALLIEREN

Laptop keyboard with ADATA chip resting on a blue surface, no visible text or symbols on the main components.

VOR DER INSTALLATION

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

Close-up of two hands resting on a dark surface, no visible text or symbols

4. NETZKABEL UND AKKU TRENNEN

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. RÜCKPLATTE IHRES PCS ENTFERNEN

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

2. M.2-PCIE-STECKPLATZ AUSFINDIG MACHEN UND SICHERSTELLEN, DASS SCHRAUBEN VORHANDEN SIND

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a tool to repair a device on a circuit board (no visible text or symbols)

5. RÜCKPLATTE WIEDER EINSETZEN

Close-up of human legs and hands resting on a dark surface, with no visible text or symbols

Laptop with a black CPU socket and a white RAM module, no visible text or symbols on the main components.

交換前の準備

1. 準 備するもの

2. データの バックアップ

Close-up of two hands resting on a dark surface, no visible text or symbols

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. パソコンのバックパネルを取り外す

Laptop interior showing exposed circuit board and drive bays (no visible text or symbols)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands using a tool to repair a device on a circuit board (no visible text or symbols)

4. SSDをねじで固定する

Close-up of human legs and hands resting on a dark surface, with no visible text or symbols

Laptop keyboard with ADATA chip placed on a blue surface, no visible text or symbols on the main components.

설치하기 전에

1. 필요한 도구 준비

2. 데이터 백업

Close-up of human hands resting on a dark surface, no visible text or symbols

4. 전원 코드와 배터리 분리

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. PC 뒤판 제거

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a tool to adjust or install electronic components on a circuit board (no visible text or symbols)

4. 나사를 조여서 SSD 고정

5. 뒤판 제자리에 고정

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

Laptop keyboard with ADATA chip resting on a blue surface, no visible text or symbols on the main components.

ANTES DA INSTALAÇÃO

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2. FAÇA BACKUP DE SEUS DADOS

Close-up of two hands resting on a dark surface, no visible text or symbols

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. REMOVA A PLACA TRASEIRA DO SEU PC

Laptop interior showing exposed circuit board and drive bays (no visible text or symbols)

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓLIDO

Close-up of hands using a tool to repair a device on a circuit board (no visible text or symbols)

4. APERTE OS PARAFUSOS PARA PRENDER O SSD

5. PRENDA A PLACA TRASEIRA NO LUGAR

Close-up of human legs and hands resting on a dark surface, with no visible text or symbols

2. ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Close-up of two hands resting on a dark surface, no visible text or symbols

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a tool to repair a device on a circuit board (no visible text or symbols)

5. ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИНУ НА МЕСТЕ

Close-up of human legs and hands resting on a dark surface, with no visible text or symbols

Laptop keyboard with ADATA chip and a glowing GPU readout, no visible text or symbols on the hardware surface.

ÎNAINTE DE INSTALARE

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

Close-up of human hands resting on a dark surface, no visible text or symbols

4. DECONECTATI CABLUL DE ALIMENTARE ȘI BATERIA

Close-up of hands installing a device on a laptop back panel (no visible text or symbols)

1. SCOATEȚI PLACA DIN SPATE A PC-ULUI

Laptop interior view showing exposed circuit board and internal components (no visible text or symbols)

2. LOCALIZATI FANTA M.2 PCIE ŞI CONFIRMAȚI CĂ EXISTĂ ȘURUBURI

Close-up of a hand inserting a device into a computer motherboard with an XPG chip (no visible text or symbols)

3. ALINIATI FANTA M.2 ŞI INTRODUCEȚI UNITATEA SOLID STATE

Close-up of hands using a tool to adjust or install electronic components on a circuit board (no visible text or symbols)

4. STRÂNGETI ŞURUBURILE PENTRU A FIXA SSD

5. FIXAREA PLĂCII DIN SPATE ÎN POZITIE

Close-up of hands resting on a dark surface, possibly a laptop or tablet device (no visible text or symbols)

6. CONECTATI CABLUL DE ALIMENTARE ȘI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓLIDO M.2 EN UN EQUIPO PORTÁTIL

Laptop with a black RAM module and a CD-ROM displaying 'ADATA' on its side, against a blue background (no readable text or symbols beyond the chip graphic)

Close-up of human hands resting on a dark surface, with a small triangular logo visible in the background (no readable text or symbols)

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. RETIRAR LA PLACA POSTERIOR DE SU PC

Laptop keyboard with visible circuit board and ventilation ducts (no text or symbols)

2. LOCALIZAR LA RANURA PCIE M.2 Y CONFIRMAR QUE TIENE TORNILLOS

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALINEAR LA RANURA M.2 E INSERTAR LA UNIDAD DE ESTADO SÓLIDO

Close-up of hands using a tool to repair a device on a circuit board (no visible text or symbols)

5. ASEGURAR LA PLACA POSTERIOR EN SU LUGAR

Close-up of human legs and hands resting on a dark surface, with no visible text or symbols
