USER MANUAL KD-G321 JVC
MP3
WMA
R·D·S
For canceling the display demonstration, see page 5.
For installation and connections, refer to the separate manual.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
- CLASS 1 LASER PRODUCT
- CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
- CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
- REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
| CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSE TO BEAM. (e) | ADVARSEL : Synlig og usynlig laserstråling när maskinen er äben eller interlocken fejler. Undgå direkte eksponering til stråling. (d) | VARNING : Synlig och osynlig laserstråling när den öppnas och spärren är urkopplad. Betrakta ej strålen. (s) | VARO : Avattaessa ja suojalukitus ohitettau tai viällisena olet alttina näkyvälle ja näkymättmälle laserstälilylle. Vältä sätten kohdistumista suoraan itseesi. (f) |
Warning:
If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.
Caution on volume setting:
Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

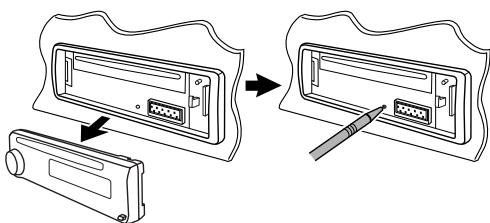

How to reset your unit
- Your preset adjustments will also be erased.
How to forcibly eject a disc
- If this does not work, reset your unit.
- Be careful not to drop the disc when it ejects.

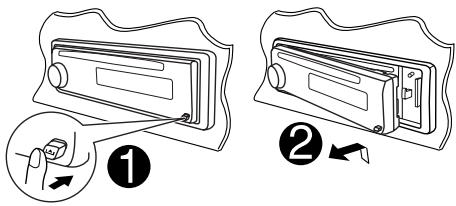

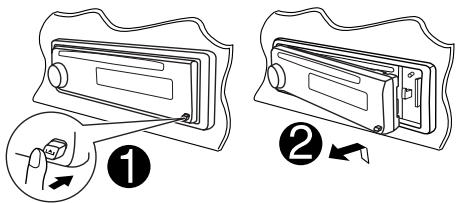

How to detach/attach the control panel
Detaching...
Attaching...
Note: Only for [EX] model users in UK and European countries
For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.
How to read this manual
- Button operations are mainly explained with the illustrations in the table below.
- is used to indicate an indicator is displayed for the corresponding operation.
- Some related tips and notes are explained in “More about this unit” (see pages 15 – 17).
 | Press briefly. |
 | Press repeatedly. |
 |  | Press either one. |
 | Press and hold until your desired response begins. |
 | Press and hold both buttons at the same time. |

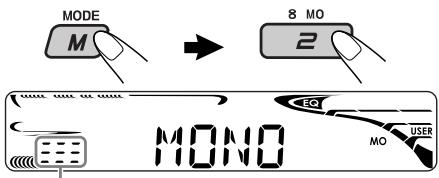

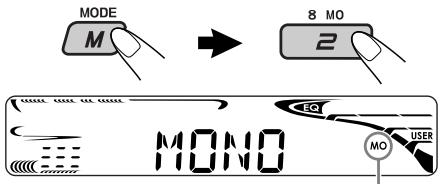

If you press M MODE, the unit goes into functions mode, then the number buttons and ▲▶▶|/◀◀◀ √ buttons work as different function buttons.
Ex.: When number button 2 works as MO (monaural) button.
Time countdown indicator
To use these buttons for their original functions again after pressing M MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared or press M MODE again.
CONTENTS

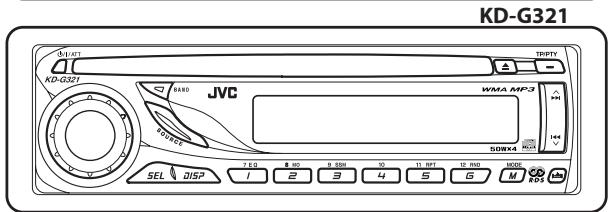

Control panel — KD-G322 and KD-G321 ...... 4
Getting started.... 5
Basic operations.... 5
Radio operations 6
FM RDS operations.... 7
Searching for your favorite FM RDS programme ... 7
Disc operations.... 9
Playing a disc in the unit 9
Sound adjustments.... 11
General settings — PSM ...... 12
Maintenance 14
More about this unit 15
Troubleshooting.... 17
Specifications.... 19
This unit is equipped with the steering wheel remote control function.
- See the Installation/Connection Manual (separate volume) for connection.
For safety...
- Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
- Stop the car before performing any complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

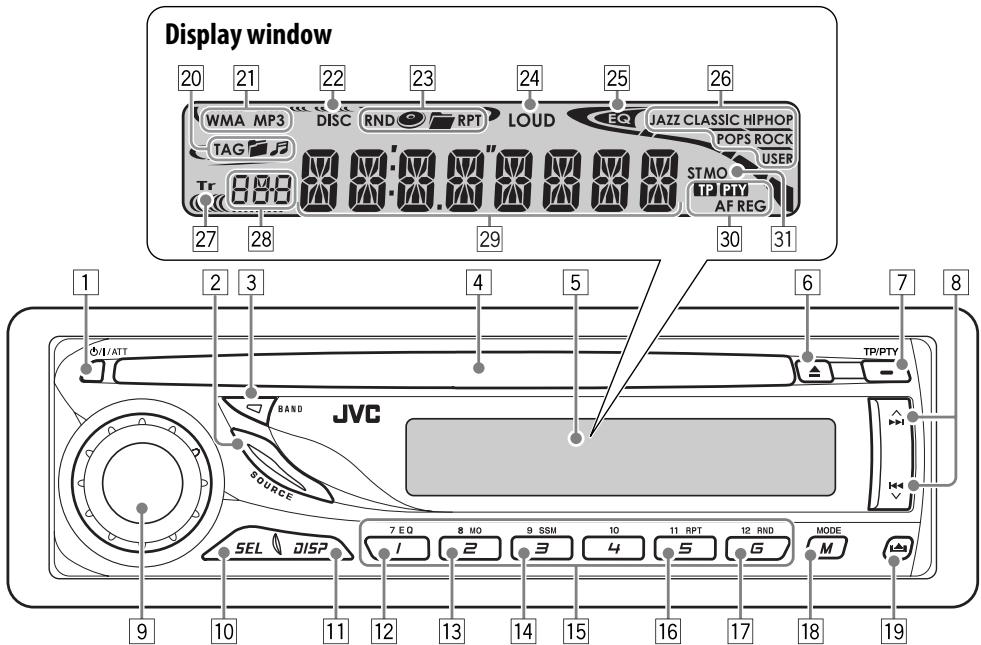

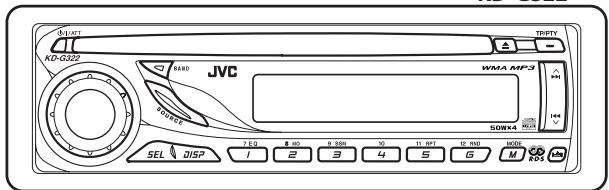

Parts identification
1 ⏻/I/ATT (standby/on/attenuator) button
2 SOURCE button
3 BAND button
4 Loading slot
5 Display window
6 ▲ (eject) button
7 TP/PTY (traffic programme/programme type) button
8 ▲▶▶/|◀◀ √ buttons
9 Control dial
10 SEL (select) button
11 DISP (display) button
12 EQ (equalizer) button
13 MO (monaural) button
14 SSM (Strong-station Sequential Memory) button
15 Number buttons
16 RPT (repeat) button
17 RND (random) button
18 M MODE button
19 (control panel release) button
Display window
20 Disc information indicators—TAG (ID3 Tag), 📋 (folder), 🌐 (track/file)
21 Disc type indicators—WMA, MP3
22 DISC indicator
23 Playback mode / item indicators—
RND (random), 📋 (disc), 📄 (folder), RPT (repeat)
24 LOUD (loudness) indicator
25 EQ (equalizer) indicator
26 Sound mode (C-EQ: custom equalizer) indicators—JAZZ, CLASSIC, HIP HOP, POPS, ROCK, USER
27 Tr (track) indicator
28 Source display / Volume level indicator / Time countdown indicator
29 Main display
30 RDS indicators—TP, PTY, AF, REG
31 Tuner reception indicators—ST (stereo), MO (monaural)

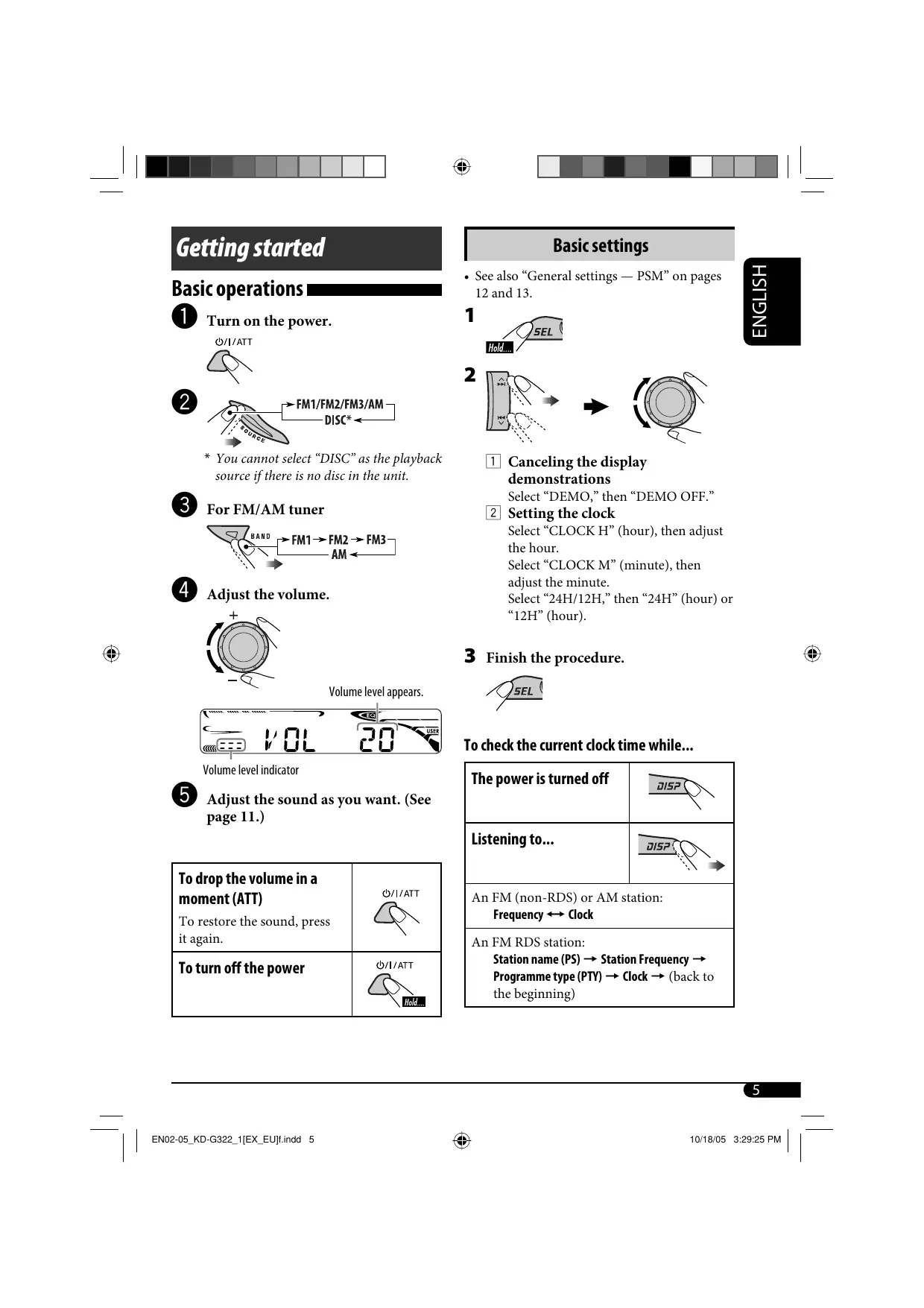

Getting started
Basic operations
1 Turn on the power.
* You cannot select "DISC" as the playback source if there is no disc in the unit.
3 For FM/AM tuner
4 Adjust the volume.
Volume level appears.
Volume level indicator
5 Adjust the sound as you want. (See page 11.)
| To drop the volume in a moment (ATT)To restore the sound, press it again. |  |
| To turn off the power | //  |
Basic settings
- See also “General settings — PSM” on pages 12 and 13.
1 Canceling the display demonstrations
Select “DEMO,” then “DEMO OFF.”
② Setting the clock
Select “CLOCK H” (hour), then adjust the hour.
Select “CLOCK M” (minute), then adjust the minute.
Select “24H/12H,” then “24H” (hour) or “12H” (hour).
3 Finish the procedure.
To check the current clock time while...
| The power is turned off |  |
| Listening to... |  |
| An FM (non-RDS) or AM station: Frequency ↔ Clock |
| An FM RDS station: Station name (PS) → Station Frequency → Programme type (PTY) → Clock → (back to the beginning) |
Radio operations
Lights up when receiving an FM stereo broadcast with sufficient signal strength.
Selected band appears.
3 Start searching for a station.
When a station is received, searching stops.
To stop searching, press the same button again.
To tune in to a station manually
In step ③ above...
1
2 Select the desired station frequencies.
When an FM stereo broadcast is hard to receive
Lights up when monaural mode is activated.
Reception improves, but stereo effect will be lost.
To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.
Storing stations in memory
You can preset six stations for each band.
■ FM station automatic presetting—SSM (Strong-station Sequential Memory)
1 Select the FM band (FM1 - FM3) you want to store into.
“SSM” flashes, then disappears when automatic presetting is over.
Local FM stations with the strongest signals are searched and stored automatically in the FM band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number 4 of the FM1 band.
1
2
3
Preset number flashes for a while.
Listening to a preset station
1
2
Select the preset station (1 - 6) you want.
FM RDS operations
What you can do with RDS
RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.
By receiving the RDS data, this unit can do the following:
- Programme Type (PTY) Search (see the following)
• TA (Traffic Announcement) and PTY Standby Receptions (see pages 8 and 13)
- Tracing the same programme automatically —Network-Tracking Reception (see page 9)
• Programme Search (see page 13)
Searching for your favorite FM RDS programme
You can tune in to a station broadcasting your favorite programme by searching for a PTY code.
- To store your favorite programme types, see page 8.
1
The last selected PTY code appears.
2
Select one of your favorite programme types.
Select one of the PTY codes (see page 8).
To be continued...
3
Start searching for your favorite programme.
If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.
Storing your favorite programme types
You can store six favorite programme types.
Preset programme types in the number buttons (1 to 6):
| 1 | 2 | 3 | 4 | 5 | 6 |
| POP M | ROCK M | EASY M | CLASSICS | AFFAIRS | VARIED |
1 Select a PTY code (see page 7).
2 Select the preset number (1 - 6) you want to store into.

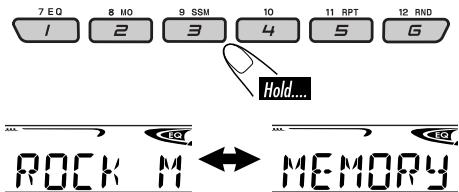

Ex.: When "ROCK M" is selected
3 Repeat steps 1 and 2 to store other PTY codes into other preset numbers.
4 Finish the procedure.
PTY codes
NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT
Using the standby receptions
TA Standby Reception
TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM.
The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 13).
To activate TA Standby Reception
The TP (Traffic Programme) indicator either lights up or flashes.
- If the TP indicator lights up, TA Standby Reception is activated.
- If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)
To activate TA Standby Reception, tune in to another station providing these signals. The TP indicator will stop flashing and remain lit.
To deactivate the TA Standby Reception
The TP indicator goes off.
PTY Standby Reception
PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.
To activate and select your favorite PTY code for PTY Standby Reception, see page 13.
The PTY indicator either lights up or flashes.
- If the PTY indicator lights up, PTY Standby Reception is activated.
- If the PTY indicator flashes, PTY Standby Reception is not yet activated.
To activate PTY Standby Reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.
To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 13).
The PTY indicator goes off.

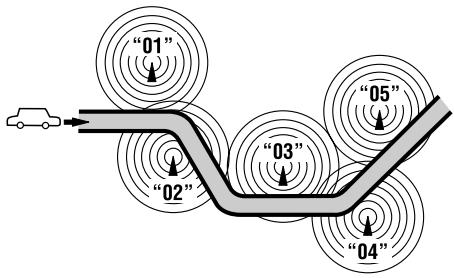

Tracing the same programme—Network-Tracking Reception
When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).
When shipped from the factory, Network-Tracking Reception is activated.
To change the Network-Tracking Reception setting, see “AF-REG” on page 12.
Programme A broadcasting on different frequency areas (01 - 05)
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you change the source or eject the disc.
| To stop play and eject the disc |  |
| To fast-forward or reverse the track |  |
| To go to the next or previous tracks |  |
To go to the next or previous folders (only for MP3 or WMA discs) |
To go to the next or previous folders (only for MP3 or WMA discs)
To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly
To select a number from 01 - 06:
To select a number from 07 - 12:
- To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and so on.
To select a particular track in a folder (for MP3 or WMA disc):
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same procedure.
While playing an audio CD or a CD Text


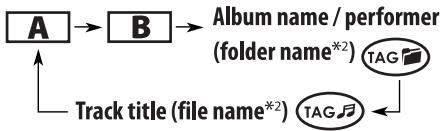

While playing an MP3 or a WMA disc
- When “TAG DISP” is set to “TAG ON” (see page 13)
- When "TAG DISP" is set to "TAG OFF"
A : Elapsed playing time with the current track number
B : Clock with the current track number
*1 If the current disc is an audio CD, "NO NAME" appears.
*2 If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this case, the TAG indicator will not light up.
Selecting the playback modes
You can use only one of the following playback modes at a time.
2 Select your desired playback mode.
■ Repeat play
Mode Plays repeatedly
TRK RPT : The current track. ⓇRPT
FLDR RPT ^*3 : All tracks of the current folder. ☐RPT
RPT OFF : Cancels.
■ Random play
Mode Plays at random
FLDR RND ^*3 : All tracks of the current folder, then tracks of the next folder and so on. RND
DISC RND : All tracks of the current disc.
RND
RND OFF : Cancels.
*3 Only while playing an MP3 or a WMA disc.
Sound adjustments
You can select a preset sound mode suitable to the music genre (C-EQ: custom equalizer).
1
2
Ex.: When "ROCK" is selected
| Indication (For)\Preset values | BAS(bass) | TRE(treble) | LOUD(loudness) |
| USER(Flat sound) | 00 | 00 | OFF |
| ROCK(Rock or disco music) | +03 | +01 | ON |
| CLASSIC(Classical music) | +01 | -02 | OFF |
| POPS(Light music) | +04 | +01 | OFF |
| HIP HOP(Funk or rap music) | +02 | 00 | ON |
| JAZZ(Jazz music) | +02 | +03 | OFF |
Adjusting the sound
You can adjust the sound characteristics to your preference.
1
2
Indication, [Range]
BAS^*4 (bass), [-06 to +06]
Adjust the bass.
TRE ^*4 (treble), [-06 to +06]
Adjust the treble.
FAD ^*5 (fader), [R06 to F06]
Adjust the front and rear speaker balance.
BAL (balance), [L06 to R06]
Adjust the left and right speaker balance.
LOUD*4 (loudness), [LOUD ON or LOUD OFF] Boost low and high frequencies to produce a well-balanced sound at low volume level.
VOL (volume), [00 to 30 or 50*6] Adjust the volume.
*4 When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”
*5 If you are using a two-speaker system, set the fader level to “00.”
*6 Depending on the amplifier gain control setting. (See page 13 for details.)
General settings — PSM
You can change PSM (Preferred Setting Mode) items listed in the table that follows.
1
2 Select a PSM item.
3 Adjust the PSM item selected.
4 Repeat steps 2 and 3 to adjust other PSM items if necessary.
5 Finish the procedure.
*1 Depends on the amplifier gain control.
*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
| Indications | Selectable settings, [reference page] |
| DEMO Display demonstration | DEMO ON : [Initial]; Display demonstration will be activated automatically if no operation is done for about 20 seconds, [5]. DEMO OFF : Cancels. |
| CLOCK H Hour adjustment | 0 - 23 (1 - 12), [5] [Initial: 0 (0:00)] |
| CLOCK M Minute adjustment | 00 - 59, [5] [Initial: 00 (0:00)] |
| 24H/12H Time display mode | 12H ≡ 24H, [5] [Initial: 24H] |
| CLK ADJ Clock adjustment | AUTO : [Initial]; The built-in clock is automatically adjusted using the CT (clock time) data in the RDS signal. OFF : Cancels. |
| AF-REG Alternative frequency/regionalization reception | When the received signals from the current FM RDS station become weak... AF : [Initial]; Switches to another station (the programme may differ from the one currently received), [9]. • The AF indicator lights up. AF REG : Switches to another station broadcasting the same programme. • The AF and REG indicators light up. OFF : Cancels. |
| PTY-STBYPTY standby | Activates PTY Standby Reception with one of the PTY codes, [8].OFF [Initial] → PTY codes, [8] → (back to the beginning) |
| TA VOLTraffic announcement volume | [Initial: VOL 15]; VOL 00 — VOL 30 or 50*1, [8] |
| P-SEARCHProgramme search | ON : Using the AF data, the unit tunes in to another frequency broadcasting the same programme as the original preset RDS station is if the preset station signals are not sufficient.OFF : [Initial]; Cancels. |
| DIMMERDimmer | ON : Dims the display illumination of this unit.OFF : [Initial]; Cancels. |
| TELTelephone muting | MUTING 1/MUTING 2 : Select either one which mutes the sounds while using a cellular phone.OFF : [Initial]; Cancels. |
| SCROLL^*2 Scroll | ONCE : [Initial]; Scrolls the disc information once.AUTO : Repeats scrolling (5-second intervals in between).OFF : Cancels.• Pressing DISP for more than one second can scroll the display regardless of the setting. |
| TAG DISPTag display | TAG ON : [Initial]; Shows the ID3 tag while playing MP3/WMA tracks, [10].TAG OFF : Cancels. |
| AMP GAINAmplifier gain control | You can change the maximum volume level of this unit.LOW PWR : VOL 00 – VOL 30 (Select this if the maximum power of the speaker is less than 50 W to prevent them from damaging the speaker.)HIGH PWR: [Initial]; VOL 00 – VOL 50 |
| IF BANDIntermediate frequency band | AUTO : [Initial]; Increase the tuner selectivity to reduce interference noises between close stations. (Stereo effect may be lost.)WIDE : Subject to the interference noises from adjacent stations, but sound quality will not be degraded and maintains the stereo effect. |
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors.
To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.
Connector
Moisture condensation
Moisture may condense on the lens inside the CD player in the following cases:
• After starting the heater in the car.
- If it becomes very humid inside the car.
Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.
How to handle discs
When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.
Center holder
• Always hold the disc by the edges. Do not touch its record
When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).
- Make sure to store discs into the cases after use.
To keep discs clean
A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.
- Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.
To play new discs
New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.
To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.
Do not use the following discs:
Warped disc
Sticker
Sticker residue
Disc
Stick-on label
More about this unit
Basic operations
Turning on the power
- By pressing SOURCE on the unit, you can also turn on the power. If the source is ready, playback also starts.
Turning off the power
- If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.
Tuner operations
Storing stations in memory
- During SSM search...
- All previously stored stations are erased and stations are stored newly.
– Received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).
- When SSM is over, the station stored in No. 1 will be automatically tuned in.
- When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.
FM RDS operations
- Network-Tracking Reception requires two types of RDS signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.
-
If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.
-
When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Frequency Reception. (See page 12.)
- If you want to know more about RDS, visit «http://www.rds.org.uk».
Disc operations
Caution for DualDisc playback
- The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.
General
- This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.
- MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”
- When a disc has been loaded, selecting “DISC” for the playback source starts disc play.
Inserting a disc
- When a disc is inserted upside down, the disc automatically ejects.
- Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc.) into the loading slot.
Playing a disc
- While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.
To be continued...
Playing a CD-R or CD-RW
- Use only "finalized" CD-Rs or CD-RWs.
- This unit can play back only files of the same type which are first detected if a disc includes both audio CD (CD-DA) files and MP3/WMA files.
- This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
- Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:
- Discs are dirty or scratched.
- Moisture condensation occurs on the lens inside the unit.
- The pickup lens inside the unit is dirty.
- CD-R/CD-RW on which the files are written with “Packet Write” method.
- There are improper recording conditions (missing data, etc.) or media conditions (stained, scratched, warped, etc.).
- CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
- Do not use the following CD-Rs or CD-RWs:
- Discs with stickers, labels, or protective seal stuck to the surface.
- Discs on which labels can be directly printed by an ink jet printer.
Using these discs under high temperatures or high humidities may cause malfunctions or damage to the unit.
Playing an MP3/WMA disc
- This unit can recognize a total of 512 files, of 200 folders, and of 8 hierarchies.
- This unit can play back files recorded in VBR (variable bit rate).
Files recorded in VBR have a discrepancy in elapsed time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.
- This unit cannot play back the following files:
- MP3 files encoded with MP3i and MP3 PRO format.
- MP3 files encoded in an inappropriate format.
- MP3 files encoded with Layer 1/2.
- WMA files encoded with lossless, professional, and voice format.
- WMA files which are not based upon Windows Media® Audio.
- WMA files copy-protected with DRM.
- Files which have the data such as WAVE, ATRAC3, etc.
- The search function works but search speed is not constant.
Changing the source
- If you change the source, playback also stops (without ejecting the disc).
Next time you select “DISC” for the playback source, disc play starts from where it has been stopped previously.
Ejecting a disc
- If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc will not play this time.)
General settings—PSM
- If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the unit automatically changes the volume level to “VOL 30.”
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center.
| Symptoms | Remedies/Causes |
| General | Sound cannot be heard from the speakers. | Adjust the volume to the optimum level.Check the cords and connections. |
| The unit does not work at all. | Reset the unit (see page 2). |
| FM/AM | SSM automatic presetting does not work. | Store stations manually. |
| Static noise while listening to the radio. | Connect the aerial firmly. |
| Disc playback | Disc cannot be played back. | Insert the disc correctly. |
| CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped. | Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording. |
| Disc can be neither played back nor ejected. | Unlock the disc (see page 10).Eject the disc forcibly (see page 2). |
| Disc sound is sometimes interrupted. | Stop playback while driving on rough roads.Change the disc.Check the cords and connections. |
| “NO DISC” appears on the display. | Insert a playable disc into the loading slot. |
To be continued...
| Symptoms | Remedies/Causes |
| MP3/WMA playback | Disc cannot be played back. | Use a disc with MP3/WMA tracks recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.Add the extension code <.mp3> or <.wma> to the file names. |
| Noise is generated. | Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.) |
| A longer readout time is required (“CHECK” keeps flashing on the display). | Do not use too many hierarchies and folders. |
| Tracks do not play back in the order you have intended them to play. | Playback order is determined when the files are recorded. |
| Elapsed playing time is not correct. | This sometimes occurs during play. This is caused by how the tracks are recorded on the disc. |
| “NO FILES” appears on the display. | Insert a disc that contains MP3/WMA tracks. |
| Correct characters are not displayed (e.g. album name). | This unit can only display alphabets (upper case), numbers, and a limited number of symbols. |
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
AUDIO AMPLIFIER SECTION
Maximum Power Output:
Front: 50 W per channel
Rear: 50 W per channel
Continuous Power Output (RMS):
Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.
Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance:
2.5 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ
Other terminals: Steering wheel remote input
TUNER SECTION
Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
[FM Tuner]
Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)
50 dB Quieting Sensitivity:
16.3 dBf (1.8 μV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
Capture Ratio: 1.5 dB
[MW Tuner]
Sensitivity: 20 μV
Selectivity: 35 dB
[LW Tuner]
Sensitivity: 50 μV
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical pickup (semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit
MP3 Decoding Format:
MPEG1/2 Audio Layer 3
Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding
Format:
Max. Bit Rate: 192 kbps
GENERAL
Power Requirement:
Operating Voltage:
DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0^ to +40^
Dimensions (W × H × D):
Installation Size (approx.):
182 mm × 52 mm × 150 mm
Panel Size (approx.):
188 mm × 58 mm × 11 mm
Mass (approx.):
1.2 kg (excluding accessories)
Design and specifications are subject to change without notice.
Détachement...
Attachment...
Connecteur
Having TROUBLE with operation?
Please reset your unit
Refer to page of How to reset your unit
