VT 5220 2in1 Flex Clean - Vacuum Cleaner ECG - Free user manual and instructions

Product Type	Wireless Vacuum Cleaner
Brand	ECG
Model	VT 5220 2in1 Flex Clean
Motor Power	150 W
Battery Type	Li-ion (6×3.7 V, 22.2 V)
Battery Capacity	2200 mAh
Charging Time	Approx. 4.5 hours
Run Time	30 minutes
Dust Container Capacity	0.5 L
Filtration	HEPA filter class H12 (washable)
Charging Adapter Input	AC 100–240 V, 50/60 Hz, 0.5 A
Charging Adapter Output	DC 26.5 V, 500 mA
Accessories Included	Motorised brush with replaceable roller, mini brush, dusting spatula, flexible tube, adapter, wall mount
Brush Roll Replacement	Yes (for carpets and hard floors)
Filter Cleaning	Rinse in cold water, air dry
Filter Replacement Interval	Every 3 to 6 months
Dust Container Emptying	After each use
Battery Indicator	Red (charging), blue (full), off (low)
Power Modes	Low and high (toggle via ON/OFF button)
Weight	Not specified

Frequently Asked Questions - VT 5220 2in1 Flex Clean ECG

How do I charge the vacuum cleaner?

Switch off the vacuum cleaner. Connect the AC adapter to the power connector on the battery. The indicator turns red during charging and blue when fully charged. Charging takes approximately 4.5 hours.

How long does the battery last on a full charge?

The vacuum cleaner operates for about 30 minutes on a full charge. Run time may vary depending on the power mode and attachments used.

How do I clean the filter?

Remove the dust container, take out the filter cover and the Hepa filter with conical microfilter. Rinse both filters in cold water, let them dry thoroughly before reinserting. Do not use a hair dryer or wash in a washing machine.

How do I replace the brush roller?

Press the brush lock button on the motorised brush. Slide out the old roller and insert the desired roller (for carpets or hard floors). Turn the edge of the brush until it fits into the hole and press to secure.

What accessories are included with the VT 5220?

The package includes a motorised brush with replaceable roller for carpets and hard surfaces, mini brush, dusting spatula for hard surfaces, flexible tube, adapter, and a wall mount bracket.

Can I use the vacuum cleaner on carpets?

Yes, the motorised brush comes with a replaceable roller suitable for carpets. You can switch to the roller for hard floors when needed.

Why is there no suction or weak suction?

Check if the dust container is full, the filter is clogged, or the battery is low. Empty the dust container, clean or replace the filter, and ensure the battery is charged.

What does the battery indicator mean?

The indicator shows the battery status: red while charging, blue when fully charged, and off when the battery is running low. It turns off automatically when power is low.

How do I empty the dust container?

Press the dust container release button to remove the container. Empty it into a trash bin. Clean the filter if necessary. Reinsert the container until it clicks into place.

Is the filter washable and how often should I replace it?

Yes, the Hepa filter and microfilter are washable. Rinse them with cold water and dry thoroughly. For optimal performance, replace the filter every 3 to 6 months.

USER MANUAL VT 5220 2in1 Flex Clean ECG

Exterior view of a modern office building (no signage)

VT 5220 2in1 Flex Clean VT 6220 2in1 Power Flex

WIRELESS VACUUM CLEANER INSTRUCTION MANUAL

Product catalog image showing various cleaning and assembly components including a blue solar panel, battery pack, charging plug, and remote control casing (no text or labels visible)

English

Vacuum cleaner:

1. Dust container release button
2. Extension tube release button
3. Brush release button
4. Motorized brush
5. Battery release button
6. ON/OFF button
7. Battery
8. Button for opening the dust container
9. Brush lock
10. Filter cover

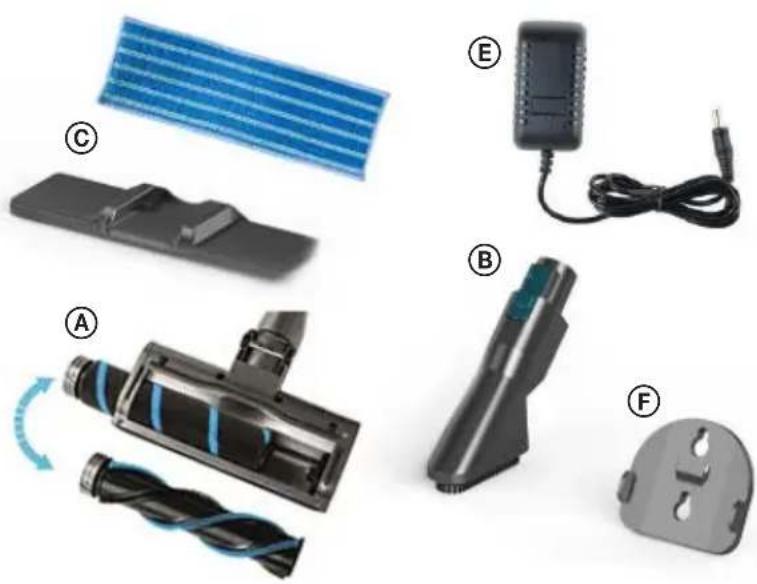

Included attachments:

A. Motorised brush with replaceable roller for carpets and hard surfaces
B. Mini brush
C. Dusting spatula for cleaning hard surfaces
D. Flexible tube
E. Adapter
F. Bracket for attaching the vacuum cleaner to the wall

Deutsch

Staubsauger:

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure that the voltage in your socket corresponds to the voltage on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
3. Do not use the charging adapter if it shows signs of damage. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the appliance from direct contact with water and other liquids and neither place containers with liquids to it to avoid possible electric shock.
5. The hand-held vacuum cleaner is only partially charged after purchase and must therefore be fully charged before use by inserting it into the charging holder. Never use the vacuum cleaner without a filter.

6. Do not use the vacuum cleaner outdoors or in a damp environment. Do not touch the vacuum cleaner or the charging holder with wet hands. Risk of electric shock.

7. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.

8. Use only with the supplied adapter, charger, attachment and accessories that have been approved by the manufacturer.
9. If the vacuum cleaner does not work properly; if the vacuum cleaner fell (eg dropped into water); if it is damaged or has been forgotten outside, have it checked by an authorized service center.
10. Keep the handheld vacuum cleaner and battery away from heat sources, do not use the vacuum cleaner plugged into the charger holder, unplug the power cord from the wall outlet.
11. Never pull the plug of the charging holder from the outlet by pulling the cable. Unplug the cable from the outlet by grasping the plug.
12. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any debris, which can reduce the suction power of the vacuum cleaner.
13. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
14. Do not use the tapered nozzle close to eyes and ears! Use extra care when cleaning stairs.
15. Do not vacuum sharp objects like glass, screws, coins, nails, etc.
16. Do not vacuum hot or smouldering materials like embers, cigarettes or other burning objects.
17. When used excessively or in extreme temperatures the batteries can leak. If the fluid comes into contact with your skin, wash immediately the affected area with soap and water or neutralize with a soft acid such as lemon juice or vinegar. If the fluid gets into your eyes, immediately rinse them out with clean water as soon as possible and seek medical help.

18. Only use the vacuum cleaner in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

19. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children shall not play with the appliance. Cleaning and maintenance performed by the user should not be done by children unless they are older than 8 years and under supervision.

20. Children under 8 years old must keep away from the appliance and its power supply.

Use only the adapter supplied with the vacuum cleaner for charging!

USING THE VACUUM CLEANER

Before first use

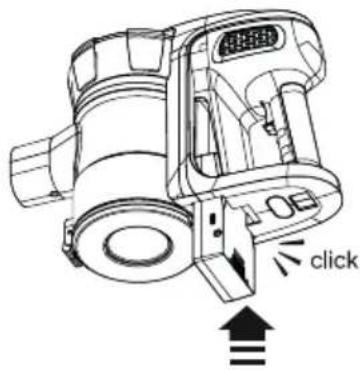

Inserting the battery

Insert the supplied battery by sliding it into the battery compartment as shown at right. You should hear an audible click. Press the battery release button to release the battery ⑤.

Charging

The power connector is located right in the battery.

• Switch off the vacuum cleaner before charging.
• When the AC adapter is connected to the connector, the power indicator turns red.
• Once the charging is complete, the indicator will turn blue.

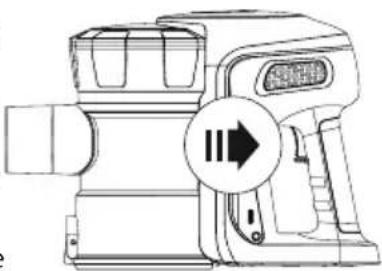

Starting

• Press the buttonON/OFF ⑥ to start the vacuum cleaner. The vacuum cleaner will start in low power mode.
• Press again the ON/OFF ⑥ button to increase the suction power of the vacuum cleaner.
• Once you press the ON/OFF ⑥ button the third time, the vacuum cleaner turns off.

Note: The power indicator will indicate the remaining battery capacity. The indicator will turn off when the battery is running low.

Line drawing of a handheld device with a circular button and directional arrow (no text or symbols)

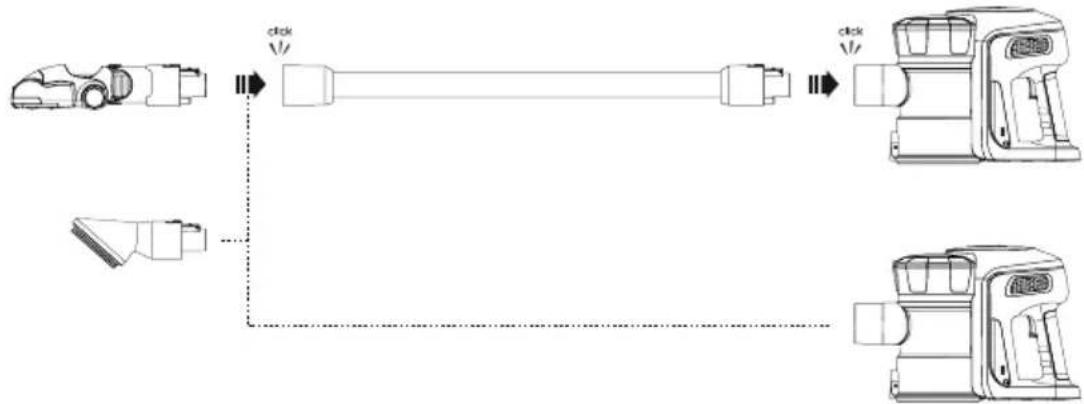

Using vacuum cleaner accessories

The attaching diagram for each accessory is shown below.

1. Push the extension tube into place.
2. Attach the motorized brush to the opposite end of the extension tube.


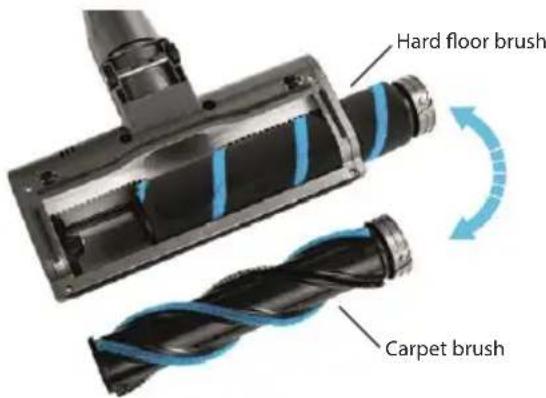

Replacing the roller in the motorised brush (carpets / hard floors)

If you need to change the roller tip in the motorised brush (for hard floors / carpets); press the brush lock button.

The roller will slide out freely. Insert the desired brush roll, turn the edge of the brush until it fits into the hole and press to secure.

CLEANING AND MAINTENANCE

Replacement and cleaning filter and dust container

To make sure that the vacuum cleaner always delivers optimum performance, empty the dust container after each use and clean the filter.

1. Remove the hand-held vacuum cleaner from the holder in the floor vacuum cleaner.
2. Press the dust container release button and remove the container.
3. Remove the dust container filter.
4. Empty the container.
5. Remove the filter cover ⑩. Remove the Hepa filter and conical microfilter; clean both filters. You can rinse both filters in cold water and allow the filters to dry thoroughly before reinserting them into the dust container. Do not wash the dust container filter in the washer. For drying, do not use a hair dryer, allow the filter let to dry by itself.
6. Replace the filter carefully in the dust container. NEVER use the vacuum cleaner without inserted filter.
7. Insert the dust container in the handheld vacuum cleaner.

WARNING: The suction opening must be permeable and free of obstructions in all circumstances. Otherwise, it could lead to engine overheating and damage to the appliance.

Note: Depending on the intensity of use, it is recommended that you replace the filter with a new one every 3 to 6 months to ensure the top performance of the appliance.

Pulling out and refreshing the filter

Open the dust container lid by turning it counterclockwise. Remove the foam inlet filter from the top of the dust container. Rinse the filter together with the holder and allow it to dry naturally before putting it back into the vacuum cleaner.

Note: The dust container cannot be washed with water as it contains conductive parts.

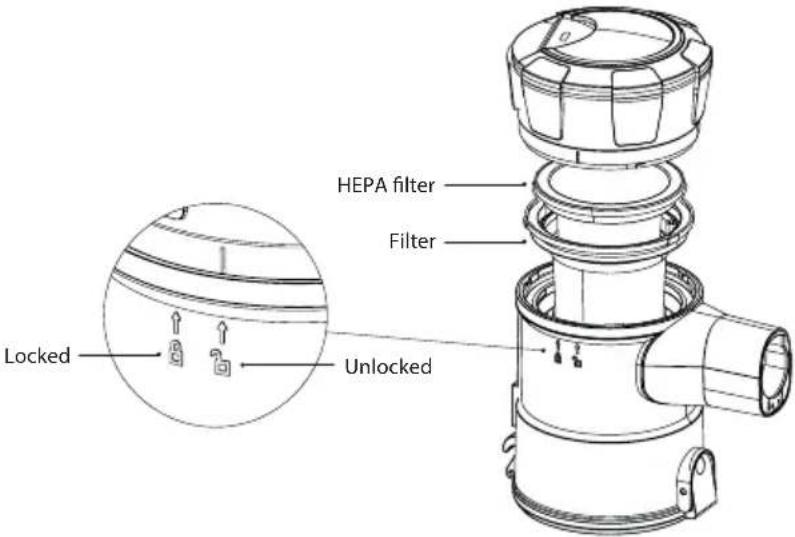

Dust container assembly

1. Insert the assembled filter into the dust container by aligning the three position marks on the filter and the dust container. The foam filter belongs on the top.

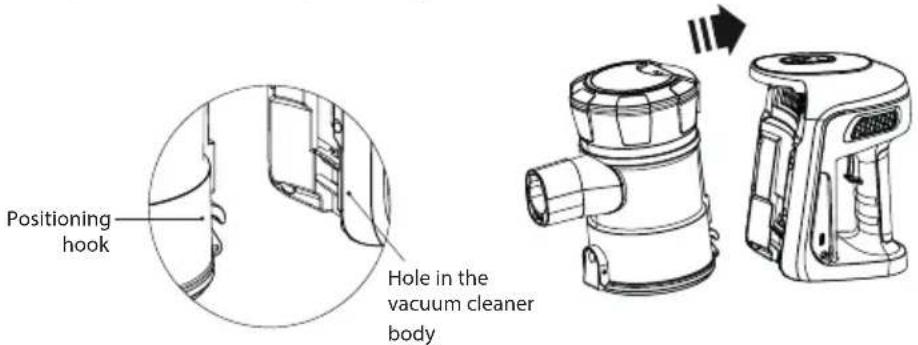

2. Holding the vacuum cleaner body, align the mark on the dust container with the locking mechanism and turn the container towards the mark clockwise.

3. Insert the dust container by inserting the positioning hook into the hole at the bottom and turn it. A proper insertion in place will be accompanied by an audible click.

Cleaning the vacuum cleaner

Make sure before cleaning that the vacuum cleaner is not connected to the charger.

Use soft and slightly moist cloth with a few drops of detergent to clean the vacuum cleaner. Never use solvents or other abrasive cleaners.

Never immerse the vacuum cleaner or the adapter in water or any other liquid and do not place it under running water.

TROUBLESHOOTING

Problem Cause Correction
The handheld vacuum cleaner does not work	· The battery is empty.· Faulty battery (does not hold the charge).· Dirty contacts between the appliance and the charging contacts.· Charging adapter is connected to an outlet without voltage.· The charger is connected.	· Charge the appliance.· The battery is dead.· Clean the contacts.· Check the fuses, use different outlet.· Disconnect the charger.
The motorized brush of the floor vacuum cleaner does not work.	· The blade fan wheel is clogged with dirt.· Broken belt.· The handheld vacuum cleaner is not properly inserted.	· Remove dirt from the blade wheel. Cu tangled hair, etc. carefully with scissors.· Call service.· Insert the handheld vacuum properly.
The handheld vacuum cleaner does not collect dirt or has weak suction power.	· Dust container is full.· You must clean or replace the dust container filter.· The vacuum cleaner battery is empty.	· Empty the dust container.· Remove the filter and make sure the suction hole is not clogged. Clean or replace filter.· Charge the vacuum cleaner.
Dust escapes from the handheld vacuum cleaner.	· Dust container is full.· Incorrectly installed dust filter.· Torn dust filter.	· Empty the dust container.· Check proper insertion of the dust filter.· Replace the dust filter.
The battery does not hold the charge.	The battery is dead. Call service.

TECHNICAL DATA

VT 5220 2in1 Flex Clean

Wireless vacuum cleaner

Motor power: 150 W

Washable filter

Charging time: appr. 4.5 hours

Operation time: 30 minutes

Dust container capacity: 0.5 l

Charging battery indicator

HEPA filter class H12

Accessories: motorised brush with replaceable roller for carpets and hard surfaces, mini brush, dusting

spatula for cleaning hard surfaces, adapter, wall mount

Charging adapter:

AC 100–240 V, 50/60 Hz, 0.5 A

DC 26.5 V - 500 mA

Batteries:

Li-ion battery 22,2 V (6× 3,7 V); 2200 mAh

VT 6220 2in1 Power Flex

Wireless vacuum cleaner

Motor power: 200 W

Washable filter

Charging time: appr. 4 hours

Operation time: 35 minutes

Dust container capacity: 0.5 l

Charging battery indicator

HEPA filter class H12

Accessories: motorised brush with replaceable roller for carpets and hard surfaces, mini brush, dusting spatula for cleaning hard surfaces, adapter, wall mount

Charging adapter:

AC 100–240 V, 50/60 Hz, 0.5 A

DC 26.5 V - 500 mA

Batteries:

Li-ion battery 22,2 V (6× 3,7 V); 2200 mAh

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating manual is available on internet at www.ecg-electro.eu.

Changes of text and technical parameters reserved.

08/05

SICHERHEITSHINWEISE

Line drawing of a handheld device with directional arrow and circular button (no text or symbols)

Staubsauger-Zubehör

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with directional arrow and circular indicator (no text or symbols)

Technical line drawing of a mechanical component with concentric circular features (no text or symbols)

Line drawing of a portable electronic device with a circular button and directional arrow (no text or symbols)

Line drawing of a mechanical device with directional arrow and control panel (no text or symbols)

Line drawing of a portable electronic device with a circular button and directional arrow (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrow (no text or symbols)

Line drawing of a handheld electronic device with a circular indicator overlay (no text or symbols)

Technical line drawing of a mechanical device with directional arrow indicator (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrow (no text or symbols)

Line drawing of a portable electronic device with a circular button and directional arrow (no text or symbols)

Uporaba dodatkov sesalnika

BEZBEDNOSNA UPUTSTVA

Line drawing of a handheld device with a circular button and directional arrow (no text or symbols)

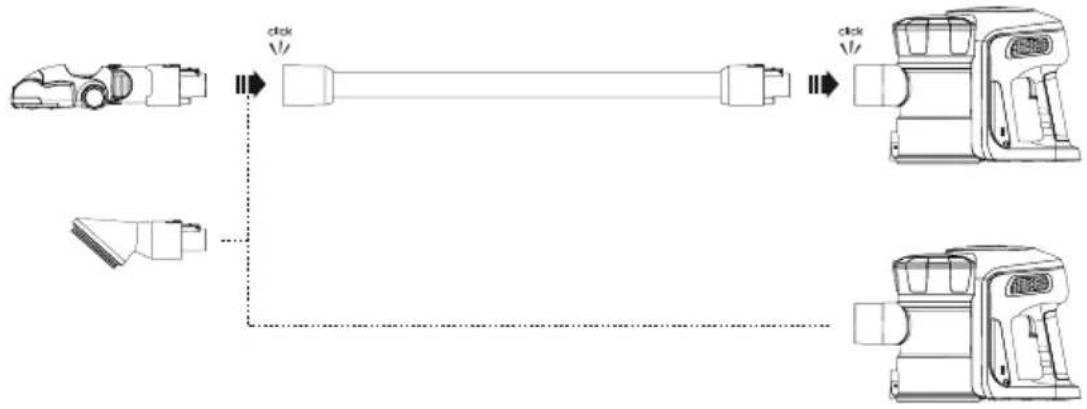

Korišćenje pribora za usisivač

Dijagram primene raznog pribora je prikazan na slici ispod.

1. Postavite produžnu cev na mesto dok ne čujete klik.
2. Pričvrstite električnu četku na suprotni kraj produžne cevi.

Zamena motorizovanog valjka četke (tepisi / tvrdi pod)

Ako trebate promeniti vrh valjka na motorizovanoj četki (za tvrde podove / tepihe); pritisnite taster za zaključavanje četke. Valjak će se slobodno isunuti. Umetnite željeni valjak četke, okrenite rub četke dok ne klikne u rupu i stisnite da se zaključa.

ČIŠĆENJE I ODRŽAVANJE

Zamena i čišćenje filtra i spremnika za prašinu

Line drawing of a handheld device with directional arrow and control panel (no text or symbols)

Line drawing of a handheld device with a circular button and directional arrow (no text or symbols)

250 69 Klíčany, Czech Rep. e-post: [e-mail]

Hrvatski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Bosanski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-mail: [e-mail]

Latviešu valoda

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-pasts: [e-mail]

Lietuvių kalba

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. el. paštas: [e-mail]

Magyar

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-mail: [e-mail]

Polski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-mail: [e-mail]

Română

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Slovenčina
