Product Type	Motorcycle Helmet
Brand	CRIVIT
Model	IAN 278609
Available Sizes	M (57-58 cm), L (59-60 cm), XL (61 cm)
Weight (Approx.)	1500 g
Outer Shell Material	High-Density Copolymer Matrix (ABS Plastic)
Visor Type	Anti-scratch coated, Pinlock® 30 ready
Sun Shield	Integrated, hinged, operates with visor closed
Ventilation	Front vent (toggle), top vent (slider)
Lining Material	Coolmax® (moisture-wicking) with HeiQ® Pure antimicrobial treatment
Cheek Pads	Removable, two thicknesses included for custom fit
Closure	Chin strap with snap-fastener system
Acoustic Damping	Included, reduces wind noise
Winter Collar	Separate, replaceable for cold weather
Homologation	ECE-R 22.05, TÜV Rheinland emission certified
Warranty (Helmet)	3 years from purchase date
Warranty (Pinlock® Lens)	1 year
Spare Parts Available	Visor, Pinlock® lens, cheek pads, inner lining, winter collar, acoustic damping
Cleaning Instructions	pH-neutral detergent, soft cloth; hand wash lining at <30°C
Storage	Dry, ventilated place at room temperature, away from heat

Frequently Asked Questions - IAN 278609 CRIVIT

How do I choose the correct helmet size?

Measure your head circumference at the widest part (around forehead and above ears). Use the size table: M (57-58 cm), L (59-60 cm), XL (61 cm). Try the helmet on; it should fit snugly without pressure points, and the skin on your temples should move when you turn your head. The chin strap must be tight enough that you can barely slide a finger under.

How do I clean the helmet and visor?

Use a soft cloth dampened with pH-neutral detergent dissolved in clean water for the shell. Do not use solvents or abrasive cleaners. For the visor, wipe with a soft cloth; if heavily soiled, use mild detergent and rinse. The inner lining can be hand washed below 30°C and air dried at room temperature. Remove the Pinlock® lens before cleaning visor.

Can I replace the visor myself?

Yes, the visor is toolless to replace. Slide the visor fully open, pull the locking lever, and remove. To install, place the new visor on the hold-down device, pull the lever, position, and release. Ensure it snaps into place. Replacement visors (type DS-MULTIX400) are available from the service address for 5 years from purchase.

How do I install the Pinlock® lens?

Remove the helmet visor, bend it slightly, and place the Pinlock® lens between the two pins on the visor. Let the visor return to shape; the silicone seal must fully contact the visor. Remove the protective film and reattach the visor to the helmet. Adjust tension by pushing and turning the pins if needed.

What is the warranty coverage on this helmet?

The CRIVIT IAN 278609 helmet comes with a 3-year warranty from the date of purchase covering material and manufacturing defects. The Pinlock® lens has a separate 1-year warranty. The warranty does not cover misuse, improper handling, normal wear, or modifications. Keep your receipt as proof of purchase.

Can I use the sun shield at night?

No, the integrated sun shield is only for daytime use. Never use it at twilight, night, or in poor visibility conditions. Always keep the visor closed when using the sun shield.

How do I change the cheek pads for a better fit?

The helmet comes with two sets of cheek pads: thinner (pre-installed) and thicker (included). If the helmet feels loose, remove the thin pads by undoing three press-studs, then attach the thicker pads with the three press-studs, ensuring each locks in place with an audible click.

Is this helmet suitable for eyeglass wearers?

Yes, the helmet is designed to accommodate eyeglass wearers. The cheek pads and inner lining allow space for glasses arms without discomfort.

How do I replace the winter collar?

Remove the standard collar by pulling it out. To install the winter collar, first attach the plastic clip in the centre at the back part of the helmet (in the groove between shell and padding). Then press the winter collar firmly onto the padding until fully seated.

Where can I find spare parts for this helmet?

Spare parts such as visors, Pinlock® lenses, cheek pads, inner linings, and winter collars can be ordered from authorized retailers or online at www.delta-sport.com (category Service - Lidl Spare Parts Service). Contact the service hotline for your country (GB: 0871 5000 720; CY: 8009 4409) for assistance.

USER MANUAL IAN 278609 CRIVIT

Before reading, fold out the illustration page and get to know all of the functions of your unit.

CR CY

Instructions for use

DE AT CH

KLAPPHELM

Bedienungsanleitung

OR CY

KP'ANOI

Οδηγίες χρήσης

OB/CY Instructions for use 6

GR/CY O6nyes xpijong 13

Before reading, fold out the illustration page and get to know all of the functions of your unit.

CR CY

Instructions for use

DE AT CH

KLAPPHELM

Bedienungsanleitung

OR CY

KP'ANOI

Οδηγίες χρήσης

OB/CY Instructions for use 6

GR/CY O6nyies xpijong 13

Before reading, fold out the illustration page and get to know all of the functions of your unit.

CR CY

Instructions for use

DE AT CH

KLAPPHELM

Bedienungsanleitung

OR CY

KP'ANOI

Οδηγίες χρήσης

OB/CY Instructions for use 6

GR/CY O6nyes xpijong 13

Diagram showing a car helmet with a side view and a close-up of the head (no text or symbols present)

Diagram of a curved mechanical component with directional arrows indicating motion (no text or symbols)

GB CY

Instructions for use

Parts Overview 7

Scope of Delivery 7

Important Information 7

Instructions for Use

Safety Advice 7-8

Product Characteristics 8-9

Use and Installation Instructions

Sun Shield 9

Inner Lining 9

Snap-Fastener System 9

Chin-Wind Deflector 9

Cheek Pads 9-10

Acoustic Damping 10

Front Vent 10

Top Vent 10

Winter Collar 10

Visor Replacement 10

Installing the Pinlock® lens 10

Adjusting the Pinlock® lens tension 10

Selecting the Correct Helmet Size 10 - 11

Maintenance and Care 11

Storage 11

Disposal 11

3 Years Warranty 11 - 12

Congratulations!

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Parts Overview

1 Top vent
2 Air exhaust
3 Reflector
4 Visor mechanism
5 Slider for sun shield with safety latch
6 Front vent
7 Breath deflector
8 Visor
9 Pinlock® lens
10 Sun shield
11 Pivoted release
12 Chin-wind deflector
13 Acoustic damping
14 Cheek pads
15 Inner Lining
16 Standard collar
17 Winter collar
18 Chin straps with snap fastener

Scope of Delivery

The scope of delivery for your helmet consists of the following:

• Additional pair of cheek pads for individual size adjustment
- Pinlock® lens
- Acoustic damping
- Winter collar
- Helmet bag
- Instructions for use

Important Information

Our helmets are manufactured in accordance with the latest technology and are specifically designed for motorcycling. Whether the owner deems them to be suitable for any other use, is up to him. Wearing a helmet does not exclude the possibility of injury should an accident occur. To guarantee adequate protection this helmet must be well fitting and securely fastened. Every helmet that is exposed to a hard blow must be replaced.

We guarantee that this item is free of production and material defects. The guarantee does not apply to normal wear and tear and in case of improper use.

Instructions for Use

Safety Advice

- Warning!

When riding, the helmet may only be used if the chin piece and visor are closed.

• The helmet is equipped with a hinged sun shield, which may only be used in conjunction with a closed visor.
• To open the chin piece, press the release (11) and lift the chin piece up (Fig. B).
• To close the chin part, pull the chin section down until it audibly locks into place.
• The helmet must fit tightly and the chin strap be closed.
• Always ensure that there is no airflow restriction inside the helmet.
• Ensure that your visor is clean and scratch-free at all times. Exchange damaged visors for a genuine replacement immediately. Never use smoked visors at night or when visibility is poor.
  You are able to obtain replacement visors from the stipulated service address for a period of 5 years from the purchase date.
  Visor type: DS-MULTIX400.
• Never modify the helmet, its structure or the individual components.

• The helmet may not be painted or have stickers or labels.

• The helmet is designed to absorb the energy of a blow or a collision by destroying some of its components. In case of a further blow it wouldn't protect you any longer. After an accident, the helmet must be replaced even though it doesn't show external damages.

• Refrain from transporting your helmet by hanging it onto any part of your motorcycle. Keep it away from exhaust pipes and other sources of heat.
• Never clean the helmet with solvents containing petroleum or scouring agents, neither the outside nor the inside.

Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth.

Then wipe dry with a lint-free cloth.

The pad may be cleaned with a little soap using a soft brush.

• Only use genuine spare parts for your helmet.
• Only use the sun shield in daylight! Never use at twilight or at night.

Product Characteristics

ECE-R 22.05 Homologation

This helmet is in compliance with ECE-R 22.05 standards and is homologised accordingly. The ECE-R 22.05 standard consists of uniform conditions for the approval of protective helmets and its visors for drivers and passengers of motorcycles and mopeds. The basic principles for these tests are the so called ECE-Regulations of the Economic Commission for Europe.

Significant Tests of the ECE-Regulation 22.05

• Shock absorbance
  • Dynamic test of wear features
• Field of vision test
• Design strength
  • Sustainability test (Strip-off test)
• Chin straps and lock test
  • Shear test for outside edges

- Friction performance test of the outer shell

- Visor test

(mechanical and visual characteristics)

• Chin bar, chin part damping test

Voluntary product testing Emission certificate

The TÜV Rheinland emission certificate indicates products tested for contaminants and according to current knowledge pose no risks to the health.

Inside Padding with Coolmax® Inserts

Coolmax® by INVISTA is a high-performance fabric fibre that supports its wearers during sport activities.

Based on the patented DuPont-fibre technology, Coolmax ^® transports moisture from the body to the fabric surface where it dries quicker than with any other fabric.

The specially developed fibres of INVISTA that are used for Coolmax®-fabrics transport the moisture away from the body to the surface of the fabric where it has the opportunity to evaporate quickly. At the same time, the uniquely formed fibres offer maximum breathing activity, even in wet conditions. In addition, the breathing activity improves the heat regulating effect.

Cheeks, forehead and neck pads of this article are equipped with Coolmax ^® .

HeiQ® Pure dynamiq

FRESH & COMFORTABLE THERMOREGULATING ANTIMICROBIAL

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

The helmet liner contains a biocide agent (PURE TF by HeiQ®) for an anti-bacterial, odour-inhibiting lining treatment. Active ingredient: silver adsorbed to silicon dioxide (nano).

Breath deflector and visor ventilation

The breath deflector (7) decreases fogging of the visor due to exhaled air. Additionally, the air circulation in the visor area is improved.

Pinlock® 30

The plastic lens in the Pinlock ^® visor absorbs moisture. The air

pocket between the lens and visor reduce the difference between the temperature inside the helmet and the outdoor temperature.

Integrated sun shield

High-strength HCM outer shell

High Density Copolymer Matrix: High quality ABS plastic is formed under extreme heat and pressure to make a robust and impact-resistant outer shell.

Anti-scratch coated visor

Separate winter comfort collar

Removable, washable liner

Toolless visor changes

With an additional set of cheek pads for a custom fit

Suitable for eyeglass wearers

Safety lock closure

Use and Installation Instructions

Sun Shield (Fig. C)

The integrated sun shield (10) will enable you to quickly and easily react to changed light conditions with the aid of the patent mechanism.

To pull out and retract the sun shield, press the safety latch to operate the slider (5).

Note:

• Please take care that the edge of the sun shield does not block your field of vision.
• The sun shield may only be used when the visor is closed and may only be used during the day.

Inner Lining (Fig. D)

The inner lining (15) can be completely removed and cleaned separately (see care instructions). To remove the inner lining, firstly remove the helmet collar and the cheek pads. Then undo the back press-studs of the inner lining and pull the clips of the inner lining from the front side of the helmet.

Snap-Fastener System (Fig. E)

The snap-fastener enables an individual and quick vernier adjustment of the chin strap. Press the snap-fastener together until the helmet is sitting comfortably but firm. The movable buckle may be used to fasten or secure excess chin strap.

Chin-Wind Deflector (Fig. F)

The chin-wind deflector (12) is secured to the pivoted piece by means of snaps.

This can be removed and re-attached as required.

Cheek Pads (Fig. G)

You will receive two different pairs of cheek pads (14) for individual size adjustment. The thinner cheek-pads are already pre-mounted as standard. The thicker cheek pad is enclosed with the helmet separately. If the helmet is too loose and therefore is not sitting firmly on your head, you can replace the thin cheek pad with the thicker ones.

The cheek pads are affixed via three press-studs respectively in the helmet. You can easily remove the pads. The thicker cheek pads can now also be affixed in the helmet with three press-studs. You need to be able to hear that each press-stud locks-in.

Acoustic Damping (Fig. H)

The acoustic damping (13) is for noise reduction, in particular when driving at high speeds.

Press the acoustic damping into the cavity of the cheek pads. The acoustic side pad equipped with Velcro faces towards the helmet shell.

Front Vent (Fig. I)

The front vent (6) can be opened and closed via toggle.

Top Vent (Fig. J)

The top vent (1) can be opened and closed by means of a slider.

Winter Collar

To reduce the wind inlet at the bottom of the helmet during periods with very cold temperatures, the pre-installed standard collar (16) can be replaced with the supplied winter collar (17).

Removing the standard collar (Fig. K)

Pull the one-piece standard collar out of the helmet.

Inserting the Winter Collar (Fig. L)

First attach the plastic clip in the centre at the back part of the helmet in the groove between the outer shell and the padding.

Once the plastic clip is completely locked, press the complete winter collar again firmly onto the padding of the helmet.

Visor Replacement

A damaged or severely scratched visor (8) can be replaced with a replacement visor.

Removal of the Visor

• Slide the visor into the highest position (fully opened) (Fig. M).
• Pull the visor-locking lever and remove the visor (Fig. N).

Inserting the Visor

• Place the replacement visor on the hold-down device and observe the correct positioning in the process (fully opened) (Fig. M).
• Pull the visor-locking lever and place the visor appropriately (Fig. O).
• Allow the replacement visor to snap in and close the visor.

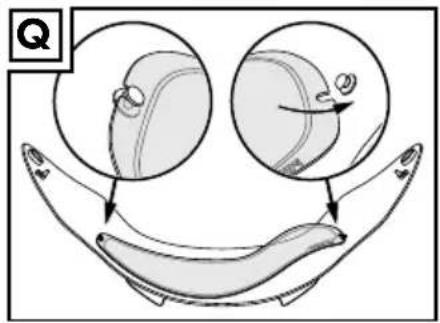

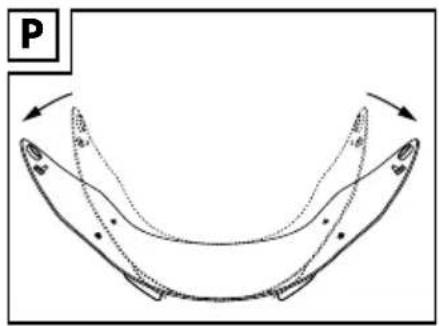

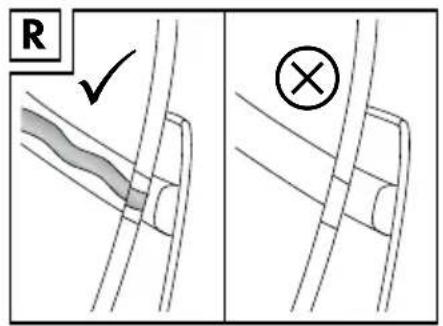

Installing the Pinlock® lens

Remove the helmet visor. Bend the visor and place the Pinlock ^® lens between the two pins on the helmet visor (Fig. P-Q). Allow the helmet visor to return to its original shape. The silicone seal on the Pinlock ^® lens must make full contact with the helmet visor to prevent condensation (Fig. R). Remove the protective film from the Pinlock ^® lens. Reattach the helmet visor to the helmet.

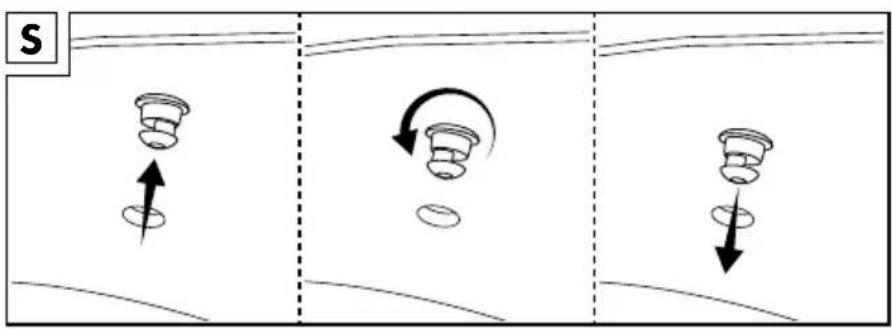

Adjusting the Pinlock® lens tension

Remove the Pinlock ^® lens. To adjust the pins, push the pins outward, turn with your fingers and push back in (Fig. S).

Selecting the Correct Helmet Size

• Measure the circumference of your head and select the helmet size based on this measurement. Try out several helmets before deciding. Ideally, the skin on your temples will move along when wearing the helmet.
• Ensure that even without the chin strap secured, the helmet does not move much on your head.
• The chin strap must be closed firmly for a secure fit. It is fitted correctly if it is difficult to slide your fingers under the chin strap. However, you must still be able to comfortably breathe, swallow and turn your head.
• Verify the helmet was tested according to the latest ECE standard.

Size table

Size Head circumference
M 57 - 58cm
L 59 - 60cm
XL 61cm

Maintenance and Care

Regular maintenance and care contributes to safety and maintaining the helmet.

Cleaning of the Helmet

• Never use solvents, petrol or other detergents when cleaning the shell and interior of your helmet.
  • Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth.

Visor care and cleaning

• After using the helmet, lightly wipe off any grime (e.g. dead insects, dirt, sand, dust etc.) from the visor with a soft cloth and then fully wipe it clean using a dry soft cloth.
- When the visor gets wet (e.g. rainwater) it should always be wiped with a soft cloth.
- When cleaning the visor, never use any petroleum-based solvents or detergents containing abrasives.
- Remove the Pinlock® lens and clean with a soft, damp cloth and mild detergent. Let the Pinlock® lens air dry. Do not use harsh detergents or fluids containing ammonia or alcohol.

Cleaning of the Cheek Pads, Acoustic Pads and Inside Pads

• Hand wash below 30^ C .

• Allow to dry at room temperature.

• Avoid sources of heat.

• When not in use, store in a dry, well ventilated place.

Storage

When not in use, store the helmet in a dry and well ventilated place at room temperature. Avoid sources of heat. Do not needlessly expose the item to heat, e.g. in the car in hot outside temperatures.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

3 Years Warranty

The helmet was manufactured with great care and continuous inspection. This helmet includes a three year warranty from the date of purchase. Please keep your receipt.

The warranty covers materials and defects in manufacture only; misuse or improper handling will void the warranty.

They warranty further does not apply to the included Pinlock® visor lens, which is covered by separate warranty terms specified below.

This warranty does not limit your legal rights, particularly your warranty rights.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

1 Year Warranty on Pinlock® visor lens

The Pinlock ^® visor lens is covered by a one year manufacturer durability warranty subject to the following terms: LIMITED LIABILITY

Pinlock ^® guarantees the original owner the visor insert to be free from defects in material and manufacture for a period of one (1) year from the date originally purchased. Pinlock ^® will at its discretion repair, replace or refund the purchase price of a defective visor insert. The Pinlock ^® warranty does not apply to damages due to misuse, negligences, modifications, normal wear, incorrect installation or cleaning, or accidents (also including races, stunts or similar activities). The Pinlock ^® warranty does not apply to the Pinlock ^® ready helmet visor or the location of the holes in the helmet made for the Pinlock ^® helmet visor. This warranty and legal means are exclusive and replace all other warranties and legal means, verbal or written, express or implied. Pinlock ^® resellers, retailers, agents or employees are not authorised to modify or extend this warranty or legal means. To exercise a warranty claim, the original owner must present the visor insert and purchase invoice or dated receipt to an authorised Pinlock ^® retailer.

Pinlock ^® excludes any implied warranty, which also includes the guarantee of marketability and suitability for a specific purpose. In the event Pinlock ^® is unable to legitimately exclude implied warranty under applicable law, these shall be excluded as permitted by law. All claims for implied warranty are void upon expiration of the above warranty period. Pinlock ^® is not liable for direct, indirect, specific, collateral or consequential damages due to violation of the warranty terms or other principle of law.

IAN: 278611 (Size L)

IAN: 278612 (Size M)

IAN: 278613 (Size XL)

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

GR CY

Οδηγίες χρήσης

Five abstract geometric symbols: crown, star, square, cross, and X (no text or labels)

Lagerung
