KH 2910 - Moving accessory POWERFIX - Free user manual and instructions

Product Type	Furniture Transport Set
Brand	Powerfix
Model	KH 2910
Load Capacity per Roller Base	75 kg
Load Capacity per Lever Arm	75 kg
Total Weight	Approx. 3.2 kg
Number of Roller Bases	4
Material	Plastic, steel
Color	Blue, black
Operation Type	Mechanical lever
Intended Use	Short-distance moving of furniture on level surfaces
Commercial Use	Not intended
Cleaning Method	Wipe with damp cloth (no solvents)
Storage	In original packaging
Safety Warnings	Risk of tipping; use two persons for large items; secure doors/drawers
Included Components	1 lever arm with swivelling head, 4 transport rollers, operating instructions
Importer / Service	KOMPERNASS GMBH, Burgstraße 21, 44867 Bochum, Germany
IAN	68920
Year of Manufacture	07/2011
Compliance	Machinery Directive 2006/42/EC

Frequently Asked Questions - KH 2910 POWERFIX

How do I lift furniture using this set?

Push the swivelling head of the lever arm under the furniture and slowly press the lever arm down to lift it. Keep the lever pressed while placing a roller base under each corner, then slowly lift the lever to lower the furniture onto the rollers.

How many roller bases are included?

The set includes four roller bases.

What is the maximum load per roller base?

Each roller base can support up to 75 kg.

Can I use this on carpet or uneven surfaces?

No, only use on level surfaces. The furniture transporter is designed for smooth, even floors.

Is this suitable for commercial use?

No, it is intended for private use only and not for commercial employment.

What should I do if the furniture is hard to move?

Ensure all roller bases have their wheels facing the same direction. Also check that the load is evenly distributed and the surface is level.

How should I clean the lever arm and roller bases?

Use only a damp cloth. Never use spirits, solvents, or detergents as they may damage the components.

How do I remove the roller bases from under the furniture?

Relift the furniture using the lever arm, then slide out the roller bases. Lower the furniture slowly by lifting the lever arm.

What safety precautions should I take?

Secure all doors and drawers on the furniture. Ensure no obstacles on the route. Use a second person for large pieces. Only move slowly and on level surfaces.

What is included in the package?

The package contains 1 lever arm with swivelling head, 4 transport rollers, and operating instructions.

USER MANUAL KH 2910 POWERFIX

Furniture Transport Set

Four blue and black exercise skates on a wooden floor, no visible text or symbols

FURNITURE TRANSPORT SET SET ZA TRANSPORT NAMJEŠTAJA Operating instructions Upute za upotrebu
10 SET TRANSPORT MOBILÄ Instructionile 35 KOMПЛЕКТ ЗА ПРЕМЕСТВАНЕ НА МЕБЕЛИ Ръководство за експопатация
SET METAΦOPAΣ ΕΠΙΛΩΝ Οδηγιες χρήσης OE AT CH MÖBELTRANSPORT-SET Bedienungsanleitung

KOMPERNASS GMBH BURGSTRASSE 21 - D-44867 BOCHUM www.kompernass.com ID-Nr : KH2910-07/11-V2 IAN: 68920

KH 2910

Illustration of a blue tool with labeled parts, showing progressive assembly from top to bottom (no text or symbols present)

CONTENT PAGE

Safety notices 2

Intended purpose 2

Description 2

Items supplied 2

Overview 3

Technical data 3

Placing furniture on the roller bases 3

Shunting furniture 4

Removing the roller bases 4

Troubleshooting 4

Cleaning 4

Storage 4

Disposal 5

Importer/Service 5

Declaration of conformity 5

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

FURNITURE TRANSPORT SET KH 2910

Safety notices

Risks of Injury!

- Serious injuries caused by the tipping of loads are possible. Ensure that the load to be shunted cannot tip over. Arrange for a second person to assist. Only move the load slowly.

- Injuries are possible through the uncontrolled lowering of loads. Always lower loads under control.

- Use the lever arm and the four roller bases only if they are in a faultless condition.

- Do not extend/lengthen the lever arm.

- Ensure that all doors and drawers that the piece of furniture might have are secured against unintentional opening before shunting it.

- Ensure that there are no obstacles in the way on the shunting route.

- Only use the furniture transporter with four roller bases on level surfaces.

- Place the roller bases under the furniture so that the roller-wheels are all facing in the same direction.

- Do not permit children or people re-quiring guidance to handle the furniture transporter with four roller bases without supervision. They may not be able to correctly assess the potential dangers.

Property Damage!

- Remove the contents from furniture pieces before lifting and shunting them.

- Incorrect placing of the lever arm may cause damage to furniture. Always slide the swivel head of the lever arm under the furniture to the stop plate.

- Place the four roller bases below the extreme corners of the furniture piece. The furniture piece should sit completely on the four roller bases.

• Shunt larger furniture pieces with assistance from a second person.
• Ensure that there are no obstacles in the way on the shunting route.
• Only use the furniture transporter with four roller bases on level surfaces.

Intended purpose

The furniture transporter with four roller bases is only suitable for shunting furniture over short distances.

The furniture transporter with four roller bases is NOT intended for commercial employment.

The manufacturer accepts no liability for damage resulting from improper or false usage of the device.

Description

With the help of the furniture transporter you can lift pieces of furniture and place them on the roller bases. Subsequently, you can shunt the furniture over short distances with a minimum of effort.

Items supplied

Immediately after unpacking check to ensure that all components are available and that there are no signs of visible damage to the furniture transporter with four roller bases:

• 1 Lever arm with swivelling head
- 4 transport rollers
- Operating Instructions

Overview

1 Lever arm
② Hand grip
③ Roller base
4 Swivelling head

Technical data

Loading per roller base: 75 kg

Loading per Lever arm: 75 kg

Weight: approx. 3,2 kg

Placing furniture on the roller bases

1. Ensure that there is sufficient space available to work safely.
2. Remove obstacles, e.g. other furniture items, within ca. 1,5 m from the roller bases ③.

i Hints:

To avoid uneven lifting, always take into account the load centre of gravity and place the lever arm ① on the side to be lifted.

1. Hold the lever arm ① at the hand grip ②. With this you will require the least effort.
2. Push the swivelling head ④ of the lever arm ① under the furniture and in the middle of it (A).

3. To lift the furniture, slowly press the lever arm down (B).

4. Hold the lever arm ① pressed down.

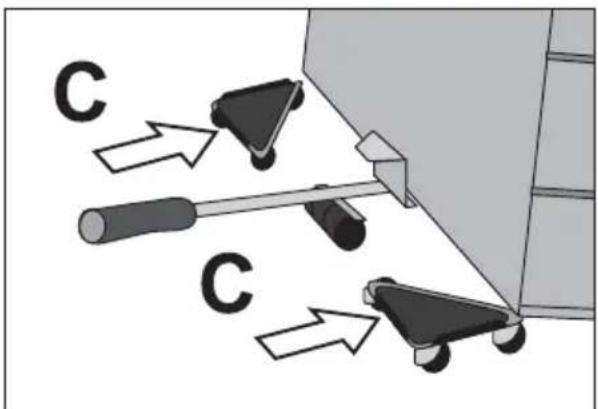

1. Place one roller base ③ (C) under each raised corner of the furniture piece.

1. To lower the furniture piece onto the roller base ③, slowly lift the lever arm ① (D).

1. Remove the lever arm ①.
2. Repeat the above procedure for the opposite side of the furniture piece.

Shunting furniture

1. Adjust the roller bases ③ so that the wheels all face in the same direction.
2. Pull/push the furniture piece to the desired location with the assistance of the roller bases ③.

Removing the roller bases

i Hint:

To avoid uneven lifting, always take into account the load centre of gravity and place the lever arm ① on the side to be lifted.

1. Push the swivelling head 4 of the lever arm 1 under the furniture and in the middle of it.

i Hint:

Hold the lever arm ① at the hand grip ②. With this you will require the least effort.

1. To lift the furniture, slowly press the lever arm 1 down.
2. Hold the lever arm ① pressed down.
3. Remove the roller bases ③.
4. To lower the furniture piece, slowly lift the lever arm 1.
5. Remove the lever arm 1.
6. Repeat the above procedure for the opposite side of the furniture piece.

Troubleshooting

The furniture piece is very difficult to shunt.

- Adjust the roller bases ③ so that all of the wheels are facing in the same direction.

The furniture piece tips easily.

- Place the four roller bases ③ under the extreme corners of the furniture piece. Thereby, the furniture piece should be positioned completely over the four roller bases ③.

Cleaning

⚠️ Important

It is possible to damage the furniture transporter with four roller bases ③ by cleaning it.

For cleaning the lever arm ① and the four roller bases ③ NEVER use spirits, solvents or detergents. Clean the lever arm ① and the four roller bases ③ only with a moist cloth.

Storage

The furniture transporter with four roller bases can also be stored in its original packaging.

Disposal

Do not dispose of the appliance in your normal domestic waste.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Importer/Service

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Tel.: [phone] / 30180

IAN 68920

Declaration of conformity

We, Kompernaß Handelsgesellschaft GmbH, Burgstraße 21, D-44867 Bochum declare under our sole responsibility that this product complies with all requirements of the Machinery Directive: 2006/42/EC.

Type/Appliance Designation:

Powerfix Profi-Plus Furniture Transport Set KH 2910

Serial number:

IAN 68920

Year of manufacture:

07/2011

Bochum, dated 04.07.2011
