MC355 - Food processor VOX - Free user manual and instructions

Product Type	Mini Chopper (Food Processor)
Brand	VOX
Model	MC355
Power Supply	120V / 230V (regional variant)
Power Consumption	Approx. 250W
Bowl Capacity	0.5 L (supports up to 200g food)
Material	Bowl: Plastic; Blade: Stainless Steel
Safety Features	Lid lock mechanism; operates only when locked; pulse action
Functions	Chopping, mincing, pureeing
Cleaning	Bowl and blade dishwasher safe; motor unit wipe with damp cloth
Dimensions (approx)	15 x 15 x 25 cm
Weight (approx)	1 kg
Cord Length	Approx. 80 cm
Warranty	Standard manufacturer warranty (check local)
Included Accessories	Motor unit, bowl, blade assembly
Usage	Household use only
Pulse Function	Yes, pulse button for intermittent operation
Max Continuous Run Time	1 minute (pulse mode)
Special Feature	Locking system prevents operation unless properly assembled
Environment-friendly Disposal	Recycle at appropriate waste center

Frequently Asked Questions - MC355 VOX

How do I assemble the VOX MC355 mini chopper?

Place the bowl on a flat surface, insert the blade assembly over the shaft, add food, then lock the motor unit onto the bowl by aligning the tabs and slots until it clicks.

Why won't my MC355 turn on?

The unit has a safety lock: ensure the motor unit is properly locked onto the bowl with the tabs aligned into slots. It will not operate unless locked.

Can I use the chopper continuously for more than one minute?

No, avoid running the motor continuously in pulse mode for over one minute. Use short pulses for coarse chopping and longer pulses for finer texture.

What is the maximum food capacity for chopping?

The bowl supports up to 200g of food for most ingredients. For herbs, use up to 200g; for beef, cut into 20x20mm pieces and process up to 200g.

How should I clean the motor unit?

Do not immerse the motor unit in water. Wipe it with a damp cloth and dry thoroughly. The bowl and blade are dishwasher safe.

Can I chop hot liquids in the MC355?

Be cautious: if hot liquid is poured in, it may eject due to sudden steaming. Allow liquids to cool before processing.

What kinds of food can I chop?

You can chop bread, fruits, vegetables, herbs, beef, cookies, crackers, and more. Follow the chopping guide in the manual for best results.

Is the blade removable for cleaning?

Yes, carefully pull the blade assembly off the shaft after use. It is very sharp, so handle with caution.

Can children use this appliance?

No, this appliance shall not be used by children. Keep it and its cord out of reach of children.

What should I do if the appliance malfunctions?

Stop using it immediately, unplug, and contact an authorized service facility for examination, repair, or adjustment.

USER MANUAL MC355 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MC - 355

OPERATING INSTRUCTIONS MINI CHOPPER

MANUALE DELL'UTENTE MINI TRITATUTTO

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUAL DE USUARIO MINI CHOPPER

MANUAL DO USUÁRIO MINI PICADOR

NAVODILA ZA UPORABO MINI SEKLJALNIK

UPUTE ZA UPORABU MINI SJECKALICA

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUALI I PERDORUESIT MINI GRIRËSE

MINI CHOPPER

INSTRUCTION MANUAL

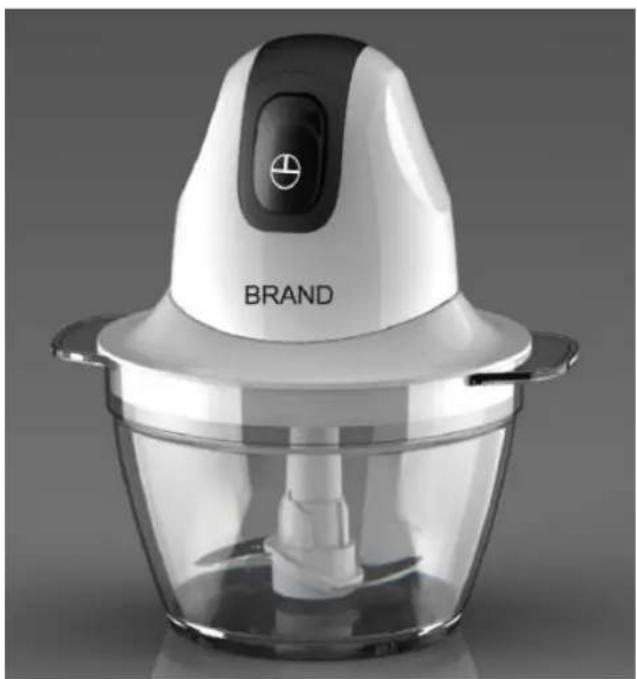

White brand blender with black handle and 'BRAND' logo, no visible text or symbols on device body

MC355

Read this booklet thoroughly before using and save it for future reference

IMPORTANT SAFETY INSTRUCTIONS

• Read all instructions before using.
• Do not open until blades stop.
• The appliance cannot be used for other than intended use.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not let the cord hang over the edge of a table or counter or touch a hot surface.

- Do not place on or near a hot gas or electric burner or in a heated oven.

- Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.

- To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, or motor unit in water or other liquids.

- Close supervision is necessary when any appliance is used by or near children.

- The appliance is not a toy. Do not let the children play it.

- Avoid contacting moving parts.

- The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

- Do not use the appliance for other than intended use.

- Be sure motor unit is locked securely in place before operating appliance.

- Do not attempt to defeat the lid interlock mechanism.

- Do not use outdoors.

· Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning.

- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

SAVE THIS INSTRUCTION. DO NOT OPEN UNTIL BLADES STOP. HOUSEHOLD USE ONLY

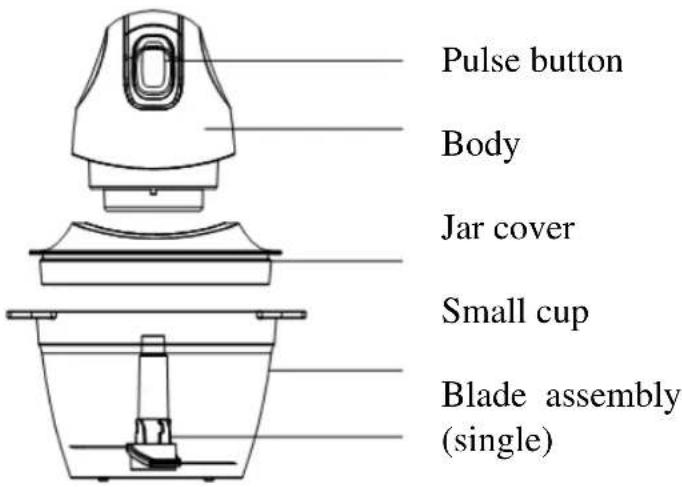

KNOW YOUR FOOD CHOPPER

BEFORE THE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in sudsy water and dry thoroughly, all of these parts are safe in dishwasher, wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

HOW TO CHOP OR MINCE FOOD

1. Place the bowl on a counter or other flat surface, then slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place dry food in the bowl, the desired food refers to the chopping guide.
3. Position the motor unit onto the bowl, lining up the motor unit locking tabs to the bowl locking slots till the motor unit locks.

Note: For your protection, this unit has a lid locking system, the unit will not operate unless the tabs in the motor unit and slots in the bowl align. Do not attempt to operate the unit without locking the motor unit in place.

1. Depress and hold the pulse button to process.

Note: This product has a "pulse action" feature. Avoid running the motor continuously in this mode for period over 1 minute. the longer the continuous pulse, the finer the texture. For coarsely chopped foods, use short pulses.

1. Be sure the blade stops rotating completely before removing the motor unit. Unplug the unit. Remove the motor unit and grasp the plastic blade hub and carefully pull the blade assembly out. Remove the bowl and empty the processed food. Do not use bowl for storing food.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet before cleaning.

Wash the bowl, blade assembly immediately after use either with warm/sudsy water or in the dishwasher. Wipe off the motor unit with a damp cloth- do not immerse in water.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

CHOPPING GUIDE

FOOD TYPE	PREPARATION HINTS
Bread fresh, toasted or stale	Use 1 slice at a time, torn into several pieces.
Fruits and vegetablesCannedCookedFresh	Drain up to200g and process15 seconds ON 1min OFF until pureed as desired.Use up to200g plus cooking liquid as needed and process ON15 seconds OFF 1min until pureed is desiredPulse or process up to200g chunked fruits or vegetables ON15 seconds OFF 1min until desired chop is reached.
Parsley and other leafy herbs	Wash and dry thoroughly then pulse or process up to200g ON 30seconds OFF 1min until desired chop is achieved.
Beef	Pulse or process up to200g (cut to size 20*20mm) ON15 seconds OFF 1min until desired chop is reached
Cookies, crackers	Pulse or process up to 12 cookies or crackers ON15 seconds OFF 1min until desired chop is reached.

ENVIRONMENT FRIENDLY DISPOSAL

Simple line drawing of a trash bin with no text or symbols

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

MINI TRITATUTTO

MANUALE DELL'UTENTE

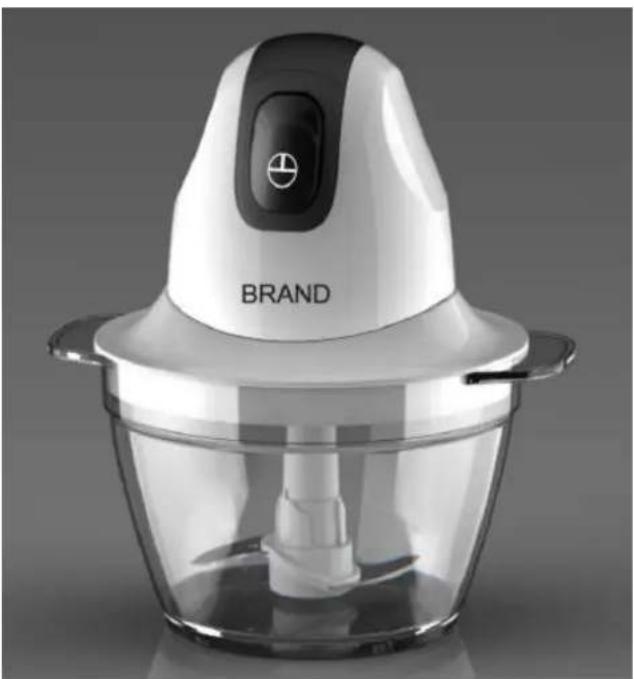

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC355

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

MINI ZERKLEINERER

BEDIENUNGSANLEITUNG

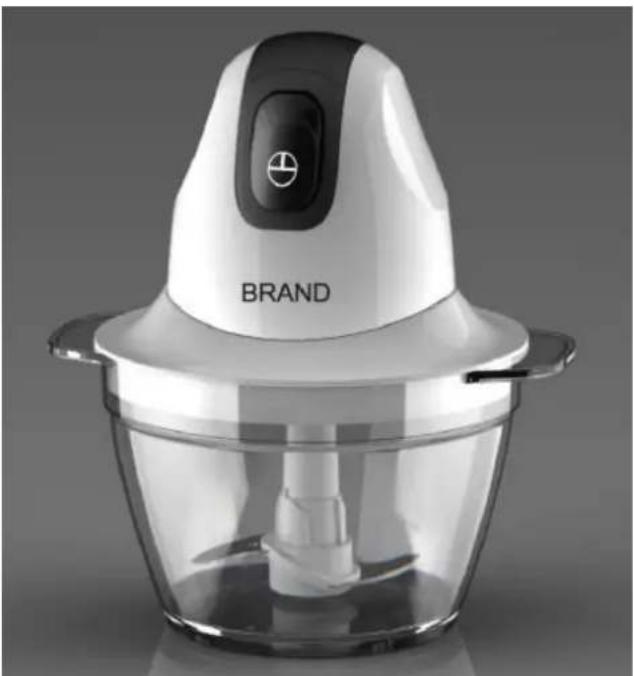

White brand blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC355

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

White brand blender with black handle and 'BRAND' logo, shown in a clear glass bowl (no text or symbols on device body)

MC355

Symbol of a waste bin with no text or numbers present

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

MINI ČOPER UPUTSTVO ZA UPOTREBU

White brand blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC355

Pažljivo pročitajte ovo uputstvo pre upotrebe i sačuvajte ga za svaku buduću upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

- Pročitajte uputstvo pre korišćenja aparata.

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

MINI CHOPPER

MANUAL DE USUARIO

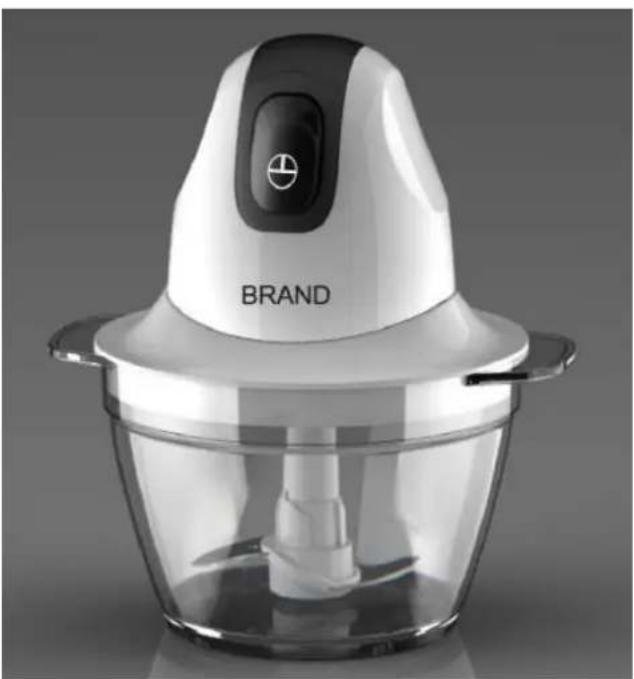

White brand blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC355

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

MINI PICADOR MANUAL DE INSTRUÇÕES

White brand blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC355

Exploded view diagram of a kitchen appliance showing internal components (no text or labels)

Botão pulsar

Corpo

Tampa da tigela

Tigela pequena

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΠΟΛΥΚΟΦΤΗΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

White brand blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC355

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

MINI SEKLJALNIK

NAVODILA ZA UPORABO

White brand blender with black handle and 'BRAND' logo, no visible text or symbols on device body

MC355

Exploded view diagram of a kitchen appliance showing internal components (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

MINI SJECKALICA UPUTE ZA UPORABU

White brand kitchen blender with black handle and 'BRAND' label, no visible text or symbols on device body

MC355

Pažljivo pročitajte ove upute prije uporabe i sačuvajte ih za uporabu u budućnosti

VAŽNE SIGURNOSNE UPUTE

-Pročitajte upute prije korištenja uređaja.

-Ne otvarajte uređaj dok se sječiva ne zaustave.

-Motorna jedinica se ne smije koristiti ni u jednu drugu svrhu osim propisane.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

MINI ČOPER UPUTSTVO ZA UPOTREBU

White brand cleaning brush with a black handle and 'BRAND' label, shown in a clear glass bowl (no additional text or symbols visible)

MC355

VAŽNA BEZBEDNOSNA UPUTSTVA

-Pročitajte uputstvo prije korišćenja aparata.

-Ne otvarajte aparat dok se sječiva ne zaustave.

-Motorna jedinica se ne smijė koristiti ni u jednu drugu svrhu osim propisane.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

White brand kitchen blender with black handle and 'BRAND' label, no visible text or symbols on the device itself

MC355

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

MINI GRIRËSE UDHËZIMI PËR PËRDORIM

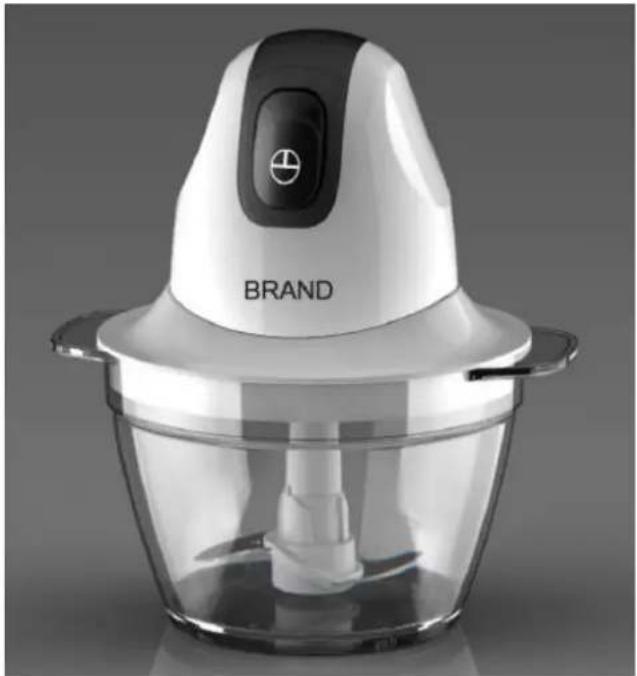

White brand blender with black control knob and 'BRAND' label, no visible text or symbols on device body

MC355

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)
