Product Type	Mini Chopper / Food Processor
Brand	VOX
Model	MC 400
Bowl Capacity	Up to 120 g (based on chopping guide)
Bowl Material	Plastic
Blade Material	Stainless steel
Safety Lock System	Lid lock – unit only operates when motor unit is correctly locked onto bowl
Operation	Pulse button (press and hold to process)
Dishwasher Safe Parts	Bowl and blade assembly
Motor Unit Cleaning	Wipe with damp cloth; do not immerse in water
Usage	Household use only
Included Accessories	Motor unit, bowl, blade assembly
Blade Safety	Sharp blade; handle with care when inserting, removing, and cleaning
Automatic Shut-off	No; requires manual release of pulse button
Disposal	Environmentally friendly – hand in to appropriate waste disposal center
Warranty	Not specified in manual; refer to retailer
Certifications	Not listed in manual

Frequently Asked Questions - MC 400 VOX

How do I operate the VOX MC 400 mini chopper?

Place the bowl on a flat surface, slide the blade down over the shaft in the bowl, add dry food, then lock the motor unit onto the bowl by aligning the locking tabs with the slots. Plug in, hold the motor unit with your left hand, and depress and hold the pulse button with your right hand to process. Release the button to stop. Ensure the blade stops completely before removing the motor unit.

Is the blade dishwasher safe?

Yes, the blade assembly and bowl are dishwasher safe. For best results, wash them immediately after use. The motor unit should only be wiped with a damp cloth and never immersed in water.

What is the maximum capacity of the bowl?

The bowl can hold up to 120 grams of dry food, as indicated in the chopping guide. Do not overfill to ensure proper chopping and avoid strain on the motor.

Can I chop nuts and herbs with this chopper?

Yes, the chopper can process nuts, herbs, fruits, vegetables, bread, cookies, crackers, and fresh meat. Refer to the chopping guide for specific preparation and processing times: for nuts, pulse or process up to 120g ON 10 seconds OFF 1 minute until desired chop.

Why won't my chopper start?

The chopper will not operate unless the motor unit is properly locked onto the bowl. Ensure the locking tabs on the motor unit align with the slots on the bowl and click into place. Also, check that the power cord is plugged in.

How do I clean the motor unit?

Unplug the appliance before cleaning. Wipe the motor unit with a damp cloth only. Do not immerse it in water or use abrasive cleaners, as this may damage the unit.

Is it safe to leave the appliance unattended?

No, always disconnect the appliance from the supply if it is left unattended. Children should not use or play with the appliance. Keep the appliance and cord out of reach of children.

Can I use the chopper for other purposes?

The appliance is intended for household use only and should be used only for chopping or mincing food as described in the manual. Do not use attachments not recommended by the manufacturer.

How do I remove the blade safely?

After processing, unplug the unit. Wait for the blade to stop completely. Remove the motor unit, then grasp the plastic blade hub and carefully pull the blade assembly out of the bowl. Avoid touching the sharp blade.

What should I do if the cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, an authorized service agent, or a qualified technician to avoid hazard. Do not use the appliance with a damaged cord.

USER MANUAL MC 400 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MC - 390

MC - 400

OPERATING INSTRUCTIONS MINI CHOPPER

MANUALE DELL'UTENTE MINI TRITATUTTO

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUAL DE USUARIO MINI CHOPPER

MANUAL DO USUÁRIO MINI PICADOR

NAVODILA ZA UPORABO MINI SEKLJALNIK

UPUTE ZA UPORABU MINI SJECKALICA

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUALI I PERDORUESIT MINI GRIRËSE

MINI CHOPPER

INSTRUCTION MANUAL

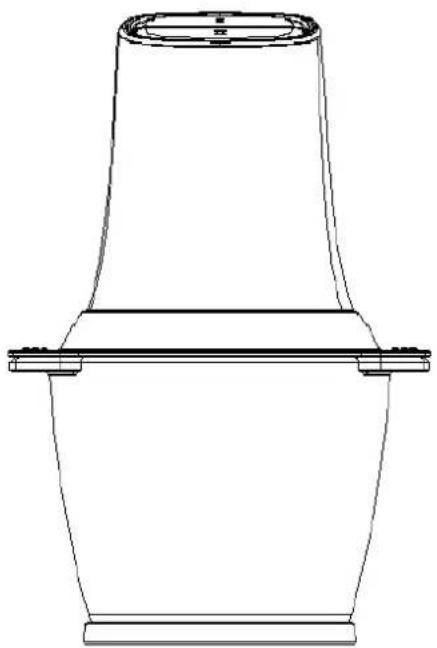

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Read this booklet thoroughly before using and save it for future reference

IMPORTANT SAFETY INSTRUCTIONS

- Read all instructions before using.

- Do not open until blades stop.

- The attached motor unit cannot be used for other than intended use.

- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- Do not let the cord hang over the edge of a table or counter or touch a hot surface.

- Do not place on or near a hot gas or electric burner or in a heated oven.

- Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.

- To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, or motor unit in water or other liquids.

- Close supervision is necessary when any appliance is used by or near children.

- The appliance is not a toy. Do not let the children play it.

- Avoid contacting moving parts.

- The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

- Do not use the appliance for other than intended use.

- Be sure motor unit is locked securely in place before operating appliance.

- Do not attempt to defeat the lid interlock mechanism.

- Do not use outdoors.

- If the supply cord is damaged it must be replaced by the manufacturer or an authorized service agent or a qualified technician in order to avoid a hazard.

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

·Appliance shall warn of potential injury from misuse.

· This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

·Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

SAVE THIS INSTRUCTION.

DO NOT OPEN UNTIL BLADES STOP. HOUSEHOLD USE ONLY

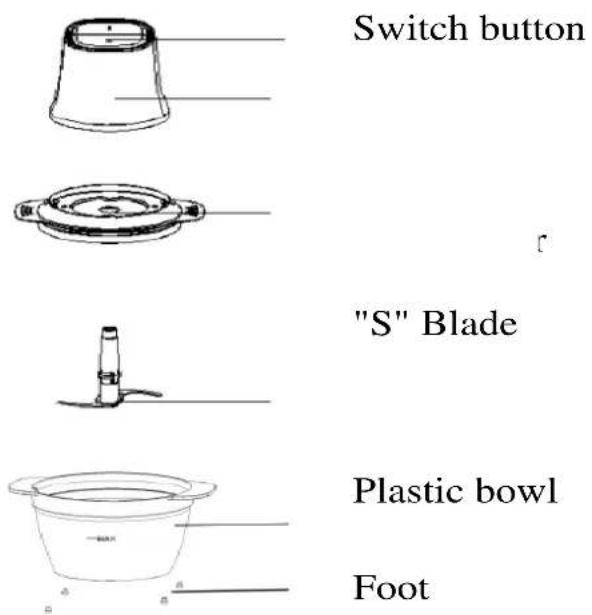

KNOW YOUR FOOD CHOPPER

BEFORE THE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in sudsy water and dry thoroughly, all of these parts are safe in dishwasher, wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

HOW TO CHOP OR MINCE FOOD

1. Place the bowl on a counter or other flat surface, then slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place dry food in the bowl, the desired food refers to the chopping guide.
3. Position the motor unit onto the bowl, lining up the motor unit locking tabs to the bowl locking slots till the motor unit locks.
   Note: For your protection, this unit has a lid locking system, the unit will not operate unless the tabs in the motor unit and slots in the bowl align. Do not attempt to operate the unit without locking the motor unit in place.
4. Plug the power cord, the left hand hold the motor unit, then the right hand depress and hold the pulse button to process.
5. Be sure the blade stops rotating completely before removing the motor unit. Unplug the unit. Remove the motor unit and grasp the plastic blade hub and carefully pull the blade assembly out. Remove the bowl and empty the processed food. Do not use bowl for storing food.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet before cleaning.

Wash the bowl, blade assembly immediately after use either with warm/sudsy water or in the dishwasher. Wipe off the motor unit with a damp cloth- do not immerse in water.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

CHOPPING GUIDE

FOOD TYPE	PREPARATION HINTS
Bread fresh, toasted or stale	Use 1 slice at a time, torn into several pieces.
Fruits and vegetablesCannedCookedFresh	Drain up to 120g and process 10 seconds ON 1min OFF until pureed as desired.Use up to 120g plus cooking liquid as needed and process ON 10 seconds OFF 1min until pureed is desiredPulse or process up to 100g chunked fruits or vegetables ON 15 seconds OFF 1min until desired chop is reached.Wash and dry thoroughly then pulse or process up to 120g ON 10 seconds OFF 1min until desired chop is achieved.
Parsley and other leafy herbs
Cookies, crackers	Pulse or process up to 120g cookies or crackers ON 10 seconds OFF 1min until desired chop is reached.
Nuts	Pulse or process up to 120g ON 10 seconds OFF 1min until desired chop is reached.
Fresh beef or pork (cut to size 30*15*15mm)	Pulse or process up to 120g ON 15 seconds OFF 1min until desired chop is reached
Stir the maltose	30 grams of maltose or 25 grams of honey ON 5 seconds OFF 1min until desired chop is reached

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

MINI TRITATUTTO

MANUALE DELL'UTENTE

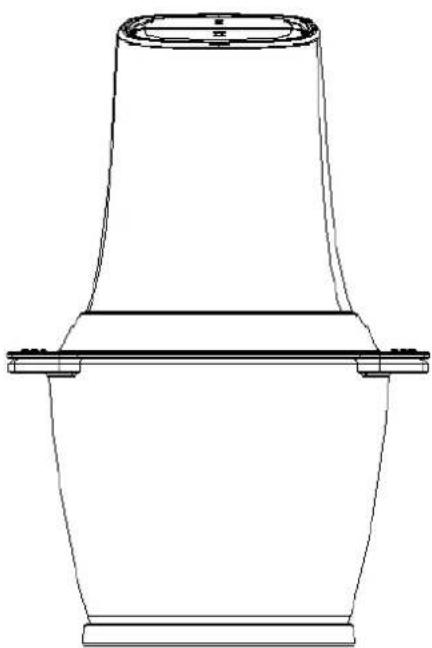

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

MINI ZERKLEINERER

BEDIENUNGSANLEITUNG

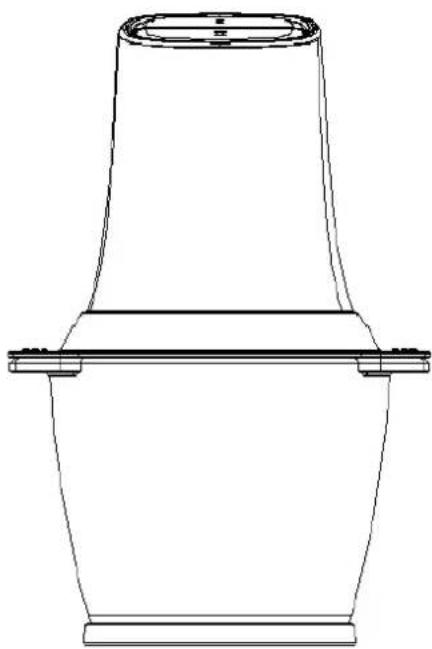

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

МИНИ-ИЗМЕЛЬЧИТЕЛЬ

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Symbol of a waste bin with no text or numbers present

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

MINI ČOPER UPUTSTVO ZA UPOTREBU

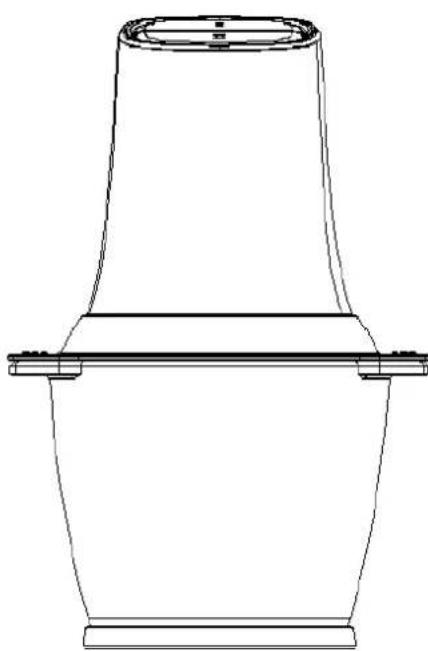

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Pažljivo pročitajte ovo uputstvo pre upotrebe i sačuvajte ga za svaku buduću upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

- Pročitajte uputstvo pre korišćenja aparata.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

MINI CHOPPER

MANUAL DE USUARIO

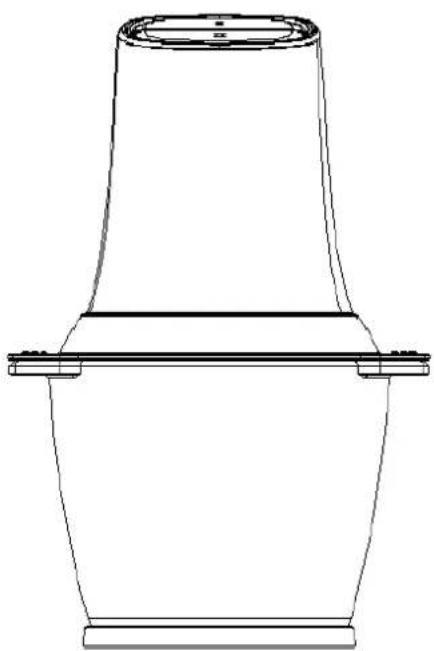

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

Simple line drawing of a bowl with a lid and measurement lines (no text or symbols)

Tigela de plástico

Pé

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΠΟΛΥΚΟΦΤΗΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

Technical line drawing of a mechanical component or housing (no text or symbols)

MC - 390

MC - 400

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

MINI SEKLJALNIK

NAVODILA ZA UPORABO

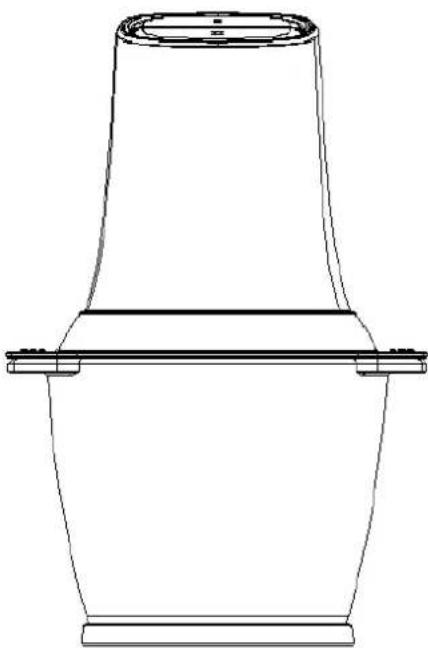

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

MINI SJECKALICA UPUTE ZA UPORABU

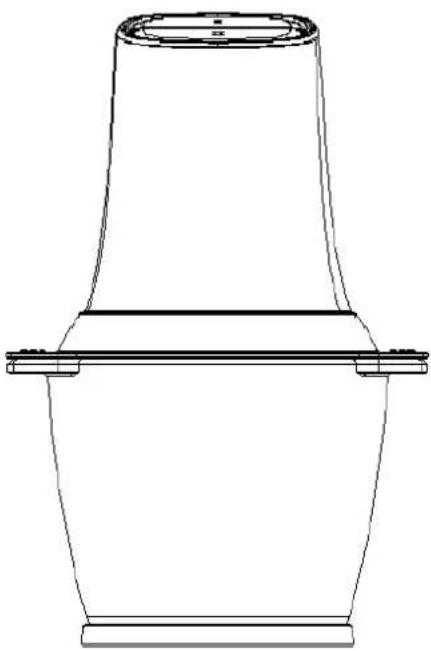

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Pažljivo pročitajte ove upute prije uporabe i sačuvajte ih za uporabu u budućnosti

VAŽNE SIGURNOSNE UPUTE

MINI ČOPER UPUTSTVO ZA UPOTREBU

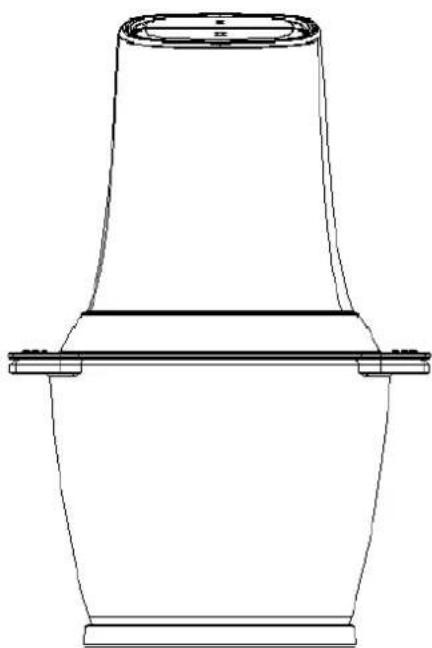

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

VAŽNA BEZBEDNOSNA UPUTSTVA

-Pročitajte uputstvo prije korišćenja aparata.

-Ne otvarajte aparat dok se sječiva ne zaustave.

-Motorna jedinica se ne smije koristiti ni u jednu drugu svrhu osim propisane.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

MC - 390

MC - 400

UDHËZIME TË RËNDËSISHME SIGURIE

Ena plastike

Këmba

PARA PËRDORIMIT TË PARË

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)
