USER MANUAL MC 393 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MC - 393

OPERATING INSTRUCTIONS MINI CHOPPER

MANUALE DELL'UTENTE MINI TRITATUTTO

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUAL DE USUARIO MINI CHOPPER

MANUAL DO USUÁRIO MINI PICADOR

NAVODILA ZA UPORABO MINI SEKLJALNIK

UPUTE ZA UPORABU MINI SJECKALICA

UPUTSTVO ZA UPOTREBU MINI ČOPER

MANUALI I PERDORUESIT MINI GRIRËSE

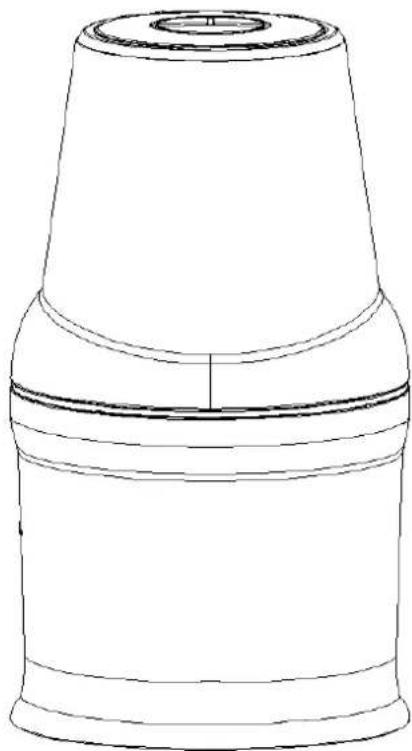

MINI CHOPPER

INSTRUCTION MANUAL

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Read this booklet thoroughly before using and save it for future reference

IMPORTANT SAFETY INSTRUCTIONS

- Read all instructions before using.

- Do not open until blades stop.

- The attached motor unit cannot be used for other than intended use.

- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- Do not let the cord hang over the edge of a table or counter or touch a hot surface.

- Do not place on or near a hot gas or electric burner or in a heated oven.

- Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.

- To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, or motor unit in water or other liquids.

- Close supervision is necessary when any appliance is used by or near children.

- The appliance is not a toy. Do not let the children play it.

- Avoid contacting moving parts.

- The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

- Do not use the appliance for other than intended use.

- Be sure motor unit is locked securely in place before operating appliance.

- Do not attempt to defeat the lid interlock mechanism.

- Do not use outdoors.

SAVE THIS INSTRUCTION.

DO NOT OPEN UNTIL BLADES STOP.

HOUSEHOLD USE ONLY

KNOW YOUR FOOD CHOPPER

Press key

Motor unit

Bowl cover

Blade assembly

Bowl

BEFORE THE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in sudsy water and dry thoroughly, all of these parts are safe in dishwasher, wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

HOW TO CHOP OR MINCE FOOD

1. Place the bowl on a counter or other flat surface, then slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place dry food in the bowl, the desired food refers to the chopping guide.
3. Position the motor unit onto the bowl, lining up the motor unit locking tabs to the bowl locking slots till the motor unit locks.

Note: For your protection, this unit has a lid locking system, the unit will not operate unless the tabs in the motor unit and slots in the bowl align. Do not attempt to operate the unit without locking the motor unit in place.

1. Depress and hold the pulse button to process.

Note: This product has a "pulse action" feature. Avoid running the motor continuously in this mode for period over 30 seconds. the longer the continuous pulse, the finer the texture. For coarsely chopped foods, use short pulses.

1. Be sure the blade stops rotating completely before removing the motor unit. Unplug the unit. Remove the motor unit and grasp the plastic blade hub and carefully pull the blade assembly out. Remove the bowl and empty the processed food. Do not use bowl for storing food.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet before cleaning.

Wash the bowl, blade assembly immediately after use either with warm/sudsy water or in the dishwasher. Wipe off the motor unit with a damp cloth- do not immerse in water.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

CHOPPING GUIDE

FOOD TYPE	PREPARATION HINTS
Bread fresh, toasted or stale	Use 1 slice at a time, torn into several pieces.
Fruits and vegetablesCannedCookedFresh	Drain up to 100g and process 15 seconds ON 1min OFF until pureed as desired.Use up to 100g plus cooking liquid as needed and process ON 15 seconds OFF 1min until pureed is desiredPulse or process up to 100g chunked fruits or vegetables ON 15 seconds OFF 1min until desired chop is reached.
Parsley and other leafy herbs	Wash and dry thoroughly then pulse or process up to 120g ON 15 seconds OFF 1min until desired chop is achieved.
Cookies, crackers	Pulse or process up to 120g cookies or crackers ON 15 seconds OFF 1min until desired chop is reached.
Nuts	Pulse or process up to 100g ON 15 seconds OFF 1min until desired chop is reached.
Fresh beef or pork (cut to size 60*20*20mm)	Pulse or process up to 60g ON 15 seconds OFF 1min until desired chop is reached

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

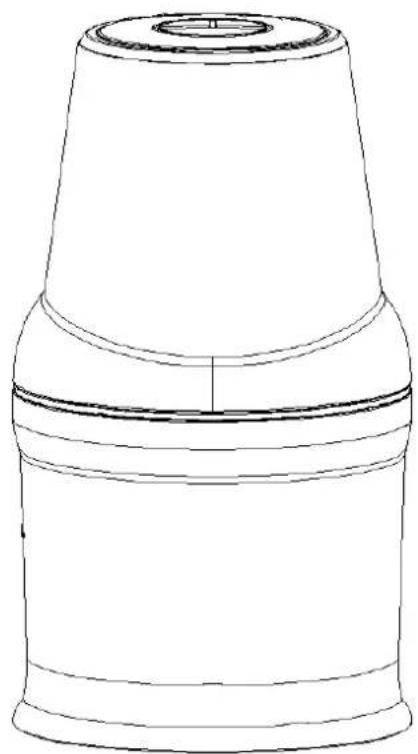

MINI TRITATUTTO

MANUALE DELL'UTENTE

Line drawing of a mechanical component with a flanged top and tapered base (no text or symbols)

MC - 393

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

MINI ZERKLEINERER

BEDIENUNGSANLEITUNG

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Symbol of a waste bin with no text or numbers present

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

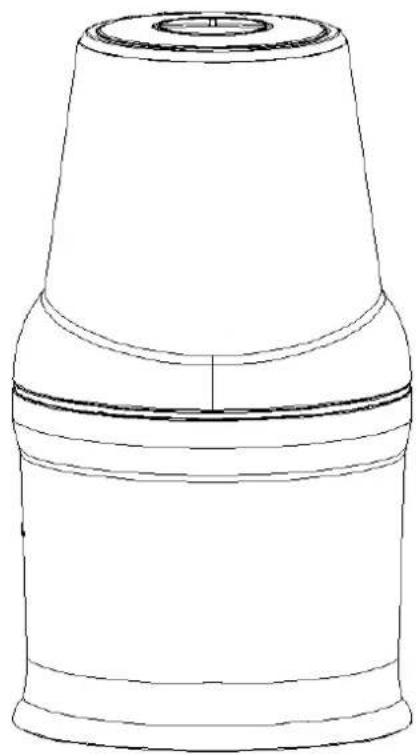

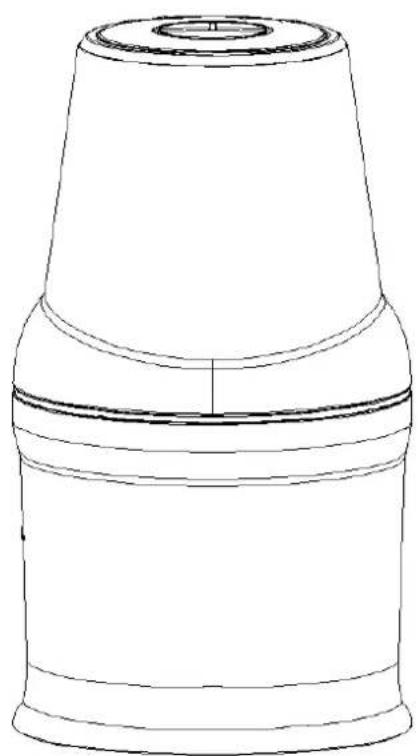

MINI ČOPER UPUTSTVO ZA UPOTREBU

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Pažljivo pročitajte ovo uputstvo pre upotrebe i sačuvajte ga za svaku buduću upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

- Pročitajte uputstvo pre korišćenja aparata.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

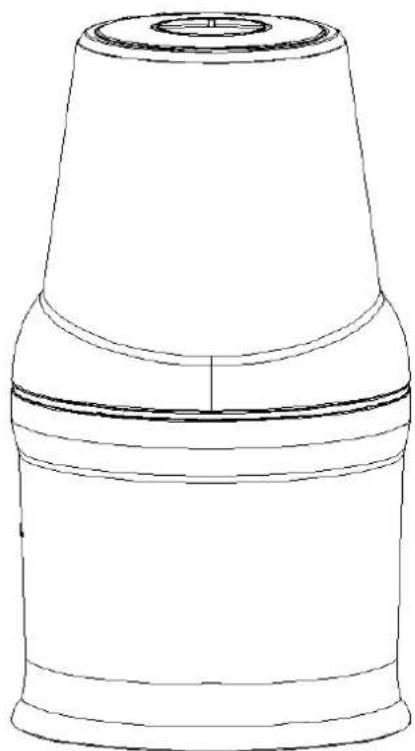

MINI CHOPPER

MANUAL DE USUARIO

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

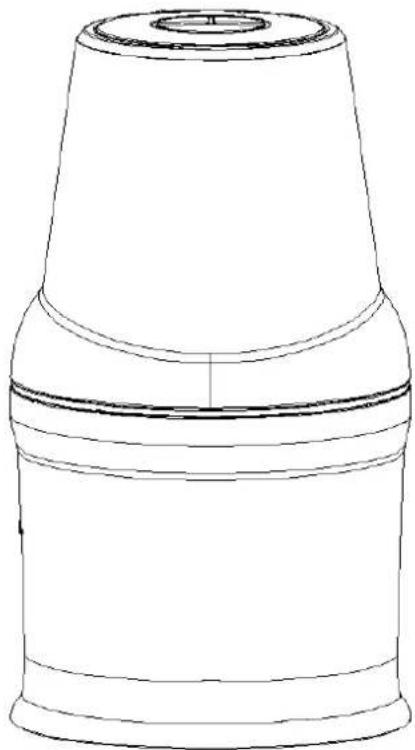

ΠΟΛΥΚΟΦΤΗΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

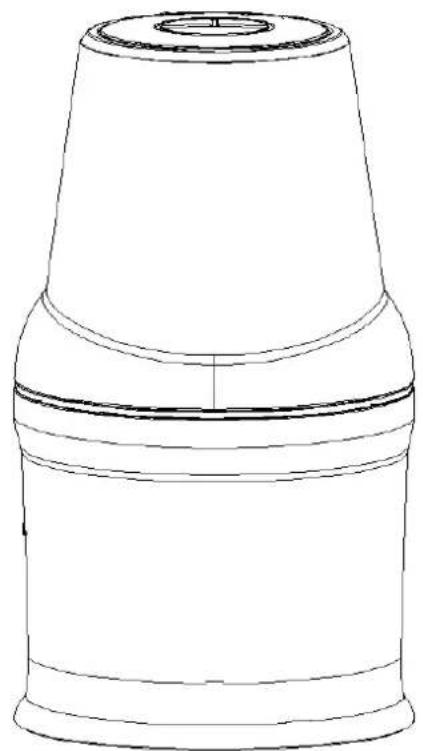

MINI SEKLJALNIK

NAVODILA ZA UPORABO

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

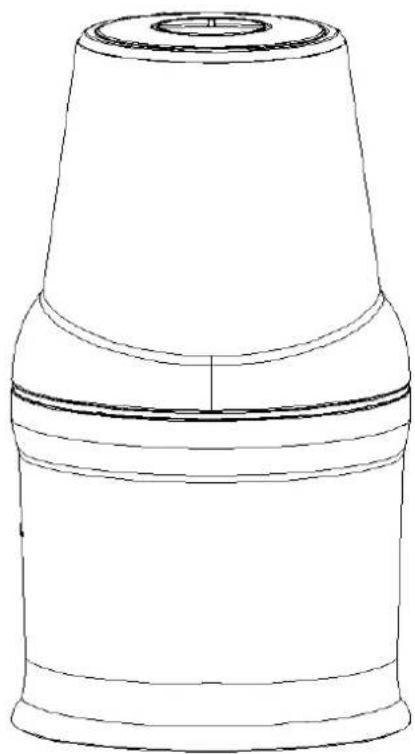

MINI SJECKALICA UPUTE ZA UPORABU

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Pažljivo pročitajte ove upute prije uporabe i sačuvajte ih za uporabu u budućnosti

VAŽNE SIGURNOSNE UPUTE

Technical line drawing of a mechanical component assembly (no text or symbols)

Gumb za pulsiranje

Kućište

Poklopac posude

Sklop sječiva

Posuda

PRIJE PRVE UPORABE

Prije prve uporabe ovog uređaja, operite posudu i sječivo u sapunjavoj vodi i temeljito osušite. Ovi dijelovi se mogu sigurno oprati i u perilici posuđa, dok se motorna jedinica čisti prvo vlažnom krpom, a potom i suhom. Motorna jedinica se ne smije potapati u vodu.

SJECKANJE HRANE

MINI ČOPER UPUTSTVO ZA UPOTREBU

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

VAŽNA BEZBEDNOSNA UPUTSTVA

-Pročitajte uputstvo prije korišćenja aparata.

-Ne otvarajte aparat dok se sječiva ne zaustave.

-Motorna jedinica se ne smijė koristiti ni u jednu drugu svrhu osim propisane.

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

Line drawing of a mechanical component with a conical top and flanged base (no text or symbols)

MC - 393

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

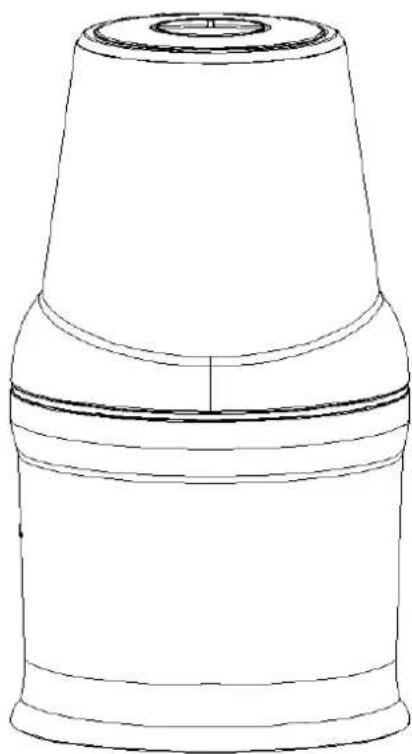

MINI GRIRËSE UDHËZIMI PËR PËRDORIM

Line drawing of a mechanical component with a flanged top and tapered base (no text or symbols)

MC - 393

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)
