IAN 315957 - Uncategorized FLORABEST - Free user manual and instructions

Product Type	Patio umbrella (parasol)
Model	IAN 315957
Brand	Florabest
Intended Use	Outdoor sun protection in domestic environments
Diameter (Approx.)	2 m (based on assembly space requirement)
Pole Length (Top + Bottom)	At least 40 cm bottom pole insertion into base; total pole length approx. 2-2.5 m
Color	White canopy with black tines
Material	Polyester canopy, metal pole (aluminum/steel)
Opening Mechanism	Manual runner with locking knob and tilt button
Tilt Function	Yes, press tilt button to adjust angle
Minimum Base Weight Required	50 kg (base not included)
Minimum Pole Insertion Depth in Base	40 cm for bottom pole; 10 cm for top pole into bottom pole
Assembly	Requires 2 persons preferred; 2 m diameter workspace
Cleaning	Wipe with slightly damp lint-free cloth; mild soap for stubborn dirt; no chemicals or abrasives
Storage	Cool, dry place; close and cover in windy/rainy/snowy conditions
Warranty	3 years from date of purchase
Safety Features	Locking runner, tilt button, anti-tipping warning, shear/pinch hazard warnings
Compliance	Manufactured to strict quality guidelines; CE marked (implied)
Package Contents	Umbrella canopy with frame, top pole, bottom pole, locking knob, instructions
Service Contacts (UK)	Tel: [phone], Email: [e-mail]
Service Contacts (Malta)	Tel: [phone], Email: [e-mail]

Frequently Asked Questions - IAN 315957 FLORABEST

What is the minimum base weight required for the Florabest IAN 315957 umbrella?

The base must have a minimum weight of 50 kg to ensure stability and prevent tipping. The bottom pole should be inserted at least 40 cm into the base.

How do I assemble the Florabest IAN 315957 umbrella?

Assembly requires a workspace at least 2 m in diameter. Insert the top pole into the bottom pole (at least 10 cm penetration), then tighten the locking knob clockwise. Place the assembled pole into a suitable base weighing at least 50 kg. Two people are recommended.

How do I open and tilt the umbrella?

To open, slide the runner upward until it engages. To tilt, press the tilt button and gently push the canopy to the desired angle (see manual Fig. B). Always ensure no one is in the opening or closing zone.

What cleaning methods are safe for the umbrella?

Clean with a slightly damp, lint-free cloth. For stubborn dirt, use a weak soap solution. Do not use chemical cleaners, scouring agents, or sharp objects as they may damage the fabric or frame.

How should I store the umbrella during winter?

Store in a cool, dry place. Close the umbrella and secure it with a protective sleeve or band to prevent unintentional opening. Avoid leaving it open in windy, rainy, or snowy conditions.

Can I use the umbrella as protection from rain or snow?

No. The umbrella is designed only for sun protection in outdoor domestic environments. It should not be used as shelter from bad weather.

What should I do if the umbrella is damaged?

Check all parts before use. If damaged, do not use. The product has a 3-year warranty against material or manufacturing defects. Contact the service department (UK: 0800 404 7657, Malta: 80062230) with your proof of purchase.

Is the umbrella flame-resistant?

Not specified. However, the manual warns not to operate open flames (e.g., garden oven or grill) under or near the umbrella due to fire risk.

How deep should the pole be inserted into the base?

The bottom pole must penetrate at least 40 cm into the base. The top pole should penetrate at least 10 cm into the bottom pole before tightening the locking knob.

Can children play near or climb on the umbrella?

No. The umbrella is not a toy or climbing frame. Keep children away to prevent tipping or injury. Never leave children unsupervised with packaging material.

USER MANUAL IAN 315957 FLORABEST

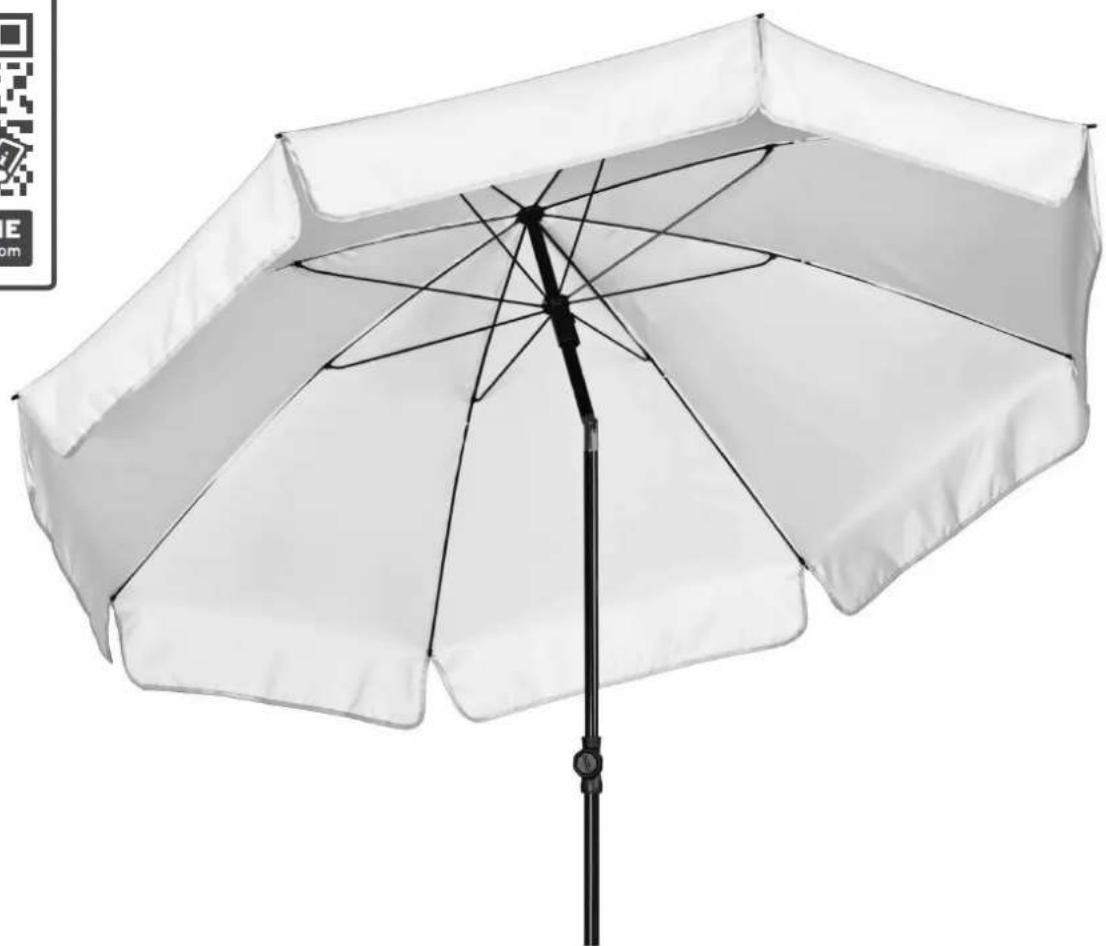

White outdoor beach umbrella with black tines and a vertical pole, no text or symbols visible

Operation and safety notes

GB / MT Operation and safety notes Page 14

Technical line drawing of a structural support structure with an inset showing a detailed detail (no text or symbols)

Sombrilla

- Introducción

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

●Properuse

The product is intended for use as sun protection in an outdoor domestic environment. The product is not intended for commercial use.

General safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS

ANDCHILDREN! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

⚠️ CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can affect safety and function.

⚠ CAUTION! Do not leave children unattended. The product is not a climbing frame or toy. Make sure that nobody, in particular children, climbs on the product. The product could tip over resulting in injury or damage.

⚠️ CAUTION! DANGER OF TIPPING OVER!

Always ensure the firm footing and good balance of the product. Insert the parasol into a suitable

parasol base. Ensure that the parasol base has a minimum weight of approx. 50 kg. The bottom pole 5 must penetrate at least 40 cm into the parasol base. Non-observance of this advice could cause the parasol to overturn, resulting in injury and / or damage. A parasol base is not included.

- Ensure that the parasol is standing on a solid, level surface and cannot roll away, resulting in injury or damage.

- Check that the product is stable before using it.

Close the parasol in strong winds or approaching squalls / gusts of wind. Secure the parasol with an additional protective sleeve or band to prevent it opening unintentionally.

■ Never leave the open parasol unattended. Sudden gusts of wind could cause damage.

- Close the product in windy weather, snow or rain and pull a protective sleeve over it, if necessary.

- Do not hang any objects (e.g. clothing) from the product.

- When opening the parasol, ensure that the parasol top 1 is firmly fixed in the open position and the runner 2 is properly engaged. Unless this is done, it is not safe to use the parasol.

⚠️ CAUTION! The parasol protects your skin from direct UV radiation but not from reflected UV radiation. Therefore you must also use skin-applied sun protection.

⚠️ CAUTION! DANGER OF INJURY! Before opening or closing the product ensure that no person is within the opening or closing zone.

⚠️ CAUTION! DANGER OF SHEARING OR CRUSHING INJURY! Make sure you do not trap your fingers when opening or closing the product. A moment of inattention may result in a shearing or crushing injury.

- Never use the product as protection against bad weather.

⚠️ CAUTION! DANGER OF PINCHING IN-JURY! Body parts could become pinched at all the articulating joints of the parasol top frame. Be aware of these danger points when opening or closing the product.

CAUTION! DANGER OF FIRE! Do not operate an open flame device (e.g. garden oven or grill) under or close to the product.

- Assembly

- Assembling / disassembling the parasol (see Fig. A)

Note: For assembly you will need a working space at least 2 m in diameter.

Note: If possible have a second person help you with the assembly.

Follow these steps:

1. Unpack the parasol carefully.

2. Insert the top pole 3 into the bottom pole 5.
   Note: Ensure that the end of the top pole 3 penetrates at least 10 cm into the bottom pole 5.

3. Turn the locking knob 4 clockwise to fix the top pole 3 in place.

4. Place the parasol in a suitable parasol stand (not contained in delivery).

Note: Always comply with the safety and operating instructions of the manufacturer.

Note: Ensure that the parasol base has a minimum weight of approx. 50 kg. The bottom pole ^5 must penetrate at least 40 cm into the parasol base. Non-observance of this advice could cause the parasol to overturn, resulting in injury and / or damage. A parasol base is not included.

1. When disassembling the parasol, follow the instructions in reversed order.

- Opening / tilting the parasol

Open the parasol by sliding the runner 2 upwards until you hear it engage.
☐ Press the tilt button 6 and tilt the parasol carefully to the side to suit the direction of the sunshine (see Fig. B).

- Closing the parasol

☐ Press the tilt button 6 to bring the parasol once more into the upright position (see Fig. B).
☐ Press the unlocking button on the runner 2 and close the parasol.

- Cleaning and storage

□ Clean the product using a slightly moist, fluff-free cloth. For more stubborn dirt you may also apply a weak soap solution to the cloth.
- Do not use chemical cleaners, scouring agents or sharp objects for cleaning the device, otherwise the product could be damaged.
■ Store the product in a cool, dry place over the winter.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.:[phone]

E-Mail: [e-mail]
