Z31259A - Uncategorized SILVERCREST - Free user manual and instructions

Product Type	Household Appliance
Model Number	Z31259A
Brand	SilverCrest
Dimensions (approx.)	25 x 15 x 10 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1200 W
Main Functions	Heating, mixing, or similar primary operation
Operating Principle	Electric motor or heating element
Safety Features	Overheat protection, automatic shut-off
Cleaning and Maintenance	Wipe with damp cloth; do not immerse in water
Spare Parts Availability	Contact manufacturer or authorized service centers
Reparability	Designed for professional repair only
Manual Languages	DE, EN, ES, IT, PT, and more
Warranty	Standard 2 years

Frequently Asked Questions - Z31259A SILVERCREST

How do I turn on the device?

Connect the device to a power outlet and press the power button located on the front panel.

Can I use this device continuously?

Yes, but allow it to cool down after prolonged use to prevent overheating. Refer to the manual for specific duty cycles.

How do I clean the device?

Unplug the device and wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do if the device stops working?

Check the power cord and outlet. If still not working, contact SilverCrest customer service or a qualified technician.

Are spare parts available?

Yes, you can order spare parts from the manufacturer's website or authorized service centers. Use only original parts.

Can I use an extension cord?

Yes, but ensure it is rated for the device's power (1200 W) and fully unwound to avoid overheating.

Is the device safe to leave unattended?

No, never leave the device unattended while in use. Always turn off and unplug after use.

How do I store the device?

Store in a cool, dry place away from direct sunlight. Disconnect the power cord and keep out of reach of children.

Does the device have automatic shut-off?

Yes, it is equipped with overheat protection that automatically turns off the device if it becomes too hot.

Where can I find more information?

Refer to the user manual that came with your device, or download the full manual in your preferred language from the SilverCrest website.

USER MANUAL Z31259A SILVERCREST

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

ES

MiniaLtavoz

Operation and Safety Notes

DE AT CH

Mini-Lautsprecher

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to pink (no text or symbols)

GB / MT Operation and Safety Notes Page 61

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Minialtavoz

Usoadecuado

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Pilas: 3 × 1.5 V ,

tipo AAA

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

- Contenido

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

- a la humedad.

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

hay en el aparato 1 (ver fig. A).

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Mini-altoparlante

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

3 Interruttore ON-/OFF
4 Presa jack per cavo audio 3,5 mm presa stereo
5 Presa jack a bassa tensione (3,5 mm, 5 V, min 500 mA)
6 Coperchio del vano portabatterie
7 Vano portabatterie
8 Batterie 3 x 1,5 V—, tipo AAA
9 Cavo audio con 2 connettori jack stereo da 3,5 mm

Datitecnici

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Batterie: 3 × 1,5 ~V ,

Typ AAA

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Minialtifalante

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Dados técnicos

necessários para

ligar transformador

à entrada de

baixatensão:3,5mm

5V

min. 500 mA

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Materialfornecido

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Intended use......Page 62

Description of Parts ......Page 62

Technical data......Page 63

Contents......Page 64

Safety Page 65

Safety notice concerning

batteries......Page 68

Before initial use......Page 70

Start-up Page 70

Replacing batteries and

mains operation ......Page 72

Cleaning and care ......Page 74

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Mini speaker

Intendeduse

The appliance is only suitable for use in-doors in dry, enclosed rooms. The device is not intended for commercial use.

• Description of Parts

1 Mini speaker
2 Indicator light ("POWER")
3 ON/OFF switch
4 Jack for audio cable 3.5 mm stereo plug

62 GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

5 Low voltage jack (3.5 mm, 5 V, min. 500 mA)
6 Battery compartment cover
7 Battery compartment
8 Batteries 3 x 1.5 V—type AAA
9 Audio cable with 2 x 3.5 mm stereo jack plug

●Technicaldata

Audio input: 3.5 mm Stereo min jack

Batteries: 3 x 1.5 V ——, type AAA Required external power supply characteristics for

63 GB/MT

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

connecting to the

low voltage jack: 3.5 mm 5V min. 500 mA

(Power supply not included.)

Model

Z31259A: silver

Z31259B: purple

Z31259C: blue

- Contents

1 Mini speaker
3 Batteries 1.5 V—, type AAA (already installed)

64 GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

1 Audio cable (with 2 x stereo mini jack 3.5 mm)
1 Instructions for use

Safety

PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE IN A SAFE PLACE FOR FUTURE REFERENCE!

This product is not intended for use by individuals (including children) with limited physical sensory or mental capacity, or lacking experience and /

65 GB/MT

or skills unless supervised by an individual responsible for their safety, or after being instructed on product use. Never allow children to play with the device.

Do not use the device if damaged.
Do not expose the device

- to strong vibration,

- to strong mechanical stress,

• to direct sunlight,
• to moisture.

The device may otherwise be damaged.

- Keep away from splash water. Do not place containers with liquids near the device.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

■ Always ensure adequate ventilation. Be sure not to cover the device with towels, curtains or newspapers.
- Keep device away from open flames (e.g. candles).
■ Always provide adequate ventilation. Leave adequate space around the device (at least 5 cm).
Use in temperature climates (approx. 0–35 °C).
■ Never disassemble the device. Always have repairs performed by a professional.
■ Avoid damaging the sensitive hearing! Adjust the volume so it is not harmful to your health.

67 GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Safety notice concerning batteries

WARNING! FIRE HAZARD!

Batteries are not intended for children. Do not leave batteries lying around. They may otherwise be swallowed by children or pets. If accidentally swallowed seek immediate medical attention.

WARNING! FIRE HAZARD!

Never short-circuit the battery. The battery may overheat, ignite or explode.

WARNING! Never throw batteries

into fire or water. Never recharge non-rechargeable batteries! The batteries may otherwise explode.

68 GB/MT

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

■ Skin contact with leaking or damaged batteries may result in chemical burns; therefore always wear suitable protective gloves.
■ Remove drained batteries from the device. Very old or used batteries may leak. The chemicals inside may damage the product.
■ Remove battery from the device when not being used for extended periods.
■ Routinely check battery for signs of leaking.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

- Before initial use

☐ Pull insulating strip from the battery compartment.

Start-up

The stereo signal is internally converted to a mono signal.

The device supports audio devices with ∅ 3.5 mm audio port.

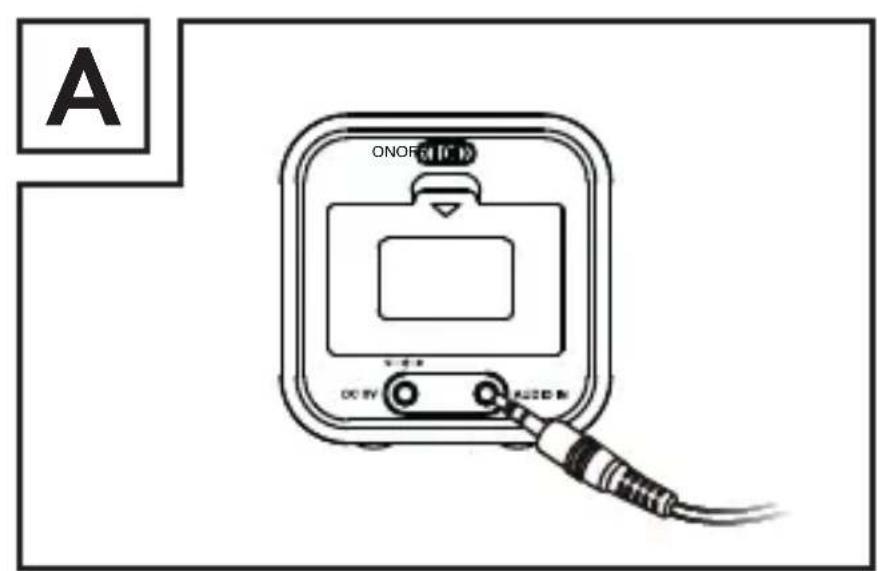

Plug the audio cable into the designated jack 4 on the device 1 (see Fig. A). Plug the other end of the audio cable into the headphones jack on the audio device.

70 GB/MT

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Slide the ON / OFF switch to the ON position to power the device on. The indicator light 2 will light up blue. The device is now ready for use.
☐ Slide the ON / OFF switch to the OFF position to power the device off. The indicator light will turn off and the device is now powered off.
Control the volume through the audio device.
If the audio signal sounds distorted the internal amplifier is being over-modulated. In this case turn the volume down a little through your audio device.
☐ If the volume of the speaker is clearly diminished it indicates the battery is

71 GB/MT

becoming weak. In this case replace the batteries.

☐ In the product is not in use, slide the ON / OFF switch to the OFF position. The blue indicator light will turn off.

●Replacing batteries and mains operation

Replacing batteries:

☐ Slide the ON / OFF switch to the OFF position.
☐ Flip the cover of the battery compartment 6 on the handle outward. Use a pointy object (e.g. pen).

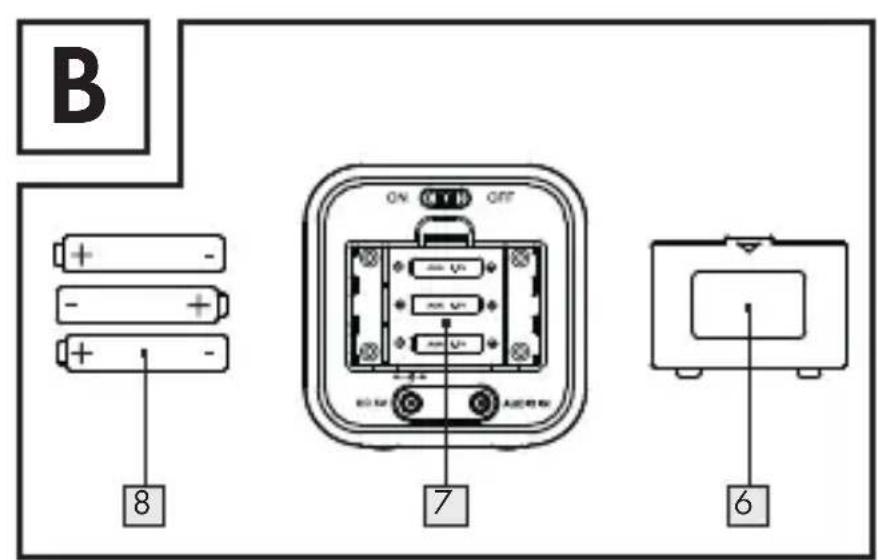

Insert 3 AAA batteries (see Fig. B).

72 GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Be sure to insert batteries as indicated in the battery compartment 7 (with flat negative battery terminal toward the spring of the respective slot.).

☐ Close the battery compartment. The device is now ready to use.

Mains operation:

Alternately to batteries this device may also be powered by an external mains adaptor as the power supply. The mains adaptor must meet the technical data specified under "Technical data / low voltage jack". Such mains adaptors are available from speciality retailers.

73 GB/MT

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

☐ First switch the ON / OFF switch to the OFF position.

Plug the mains adapter into the jack at the back of the device. The device is now ready to use.

- Cleaning and care

■ Never use liquids or cleaning agents as these will damage the device.

☐ Use a slightly dampened cloth to remove stubborn dirt.

☐ The device should only be cleaned externally, using a soft, dry cloth.

74 GB/MT

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

●Disposal

The packaging is made from environmentally friendly materials which may be disposed through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn out device.

In the interest of environmental protection do not dispose of the worn out device through your household refuse but instead dispose of properly. Contact your municipality for informa-

75 GB/MT

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

tion regarding collection facili- ties and their opening hours.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

EMC C€

76 GB/MT

Bestimmungsgemäße

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Mini-Lautsprecher

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Teilebeschreibung

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

●TechnischeDaten

Audioeingang:3,5mmStereo-

Mini-Klinke

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Modell

Z31259A: silber

Z31259B: lila

Z31259C: blau

Lieferumfang

1 Mini-Lautsprecher

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Sicherheit

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

WARNING! BRANDGEFAHR!

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to pink (no text or symbols)

Inbetriebnahme

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to pink (no text or symbols)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

●Entsorgung

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

EMC C€

95 DE/AT/CH

IAN 75983

Milomex Ltd.

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model-No.: Z31259A/Z31259B/Z31259C

Version: 08 / 2012

© by ORFGEN Marketing

Last Information Update
