Product Type	True Wireless Stereo (TWS) Bluetooth Speaker
Model	BT22TWS
Brand	Blaupunkt
Power Source	DC 5V, 1A (via microUSB)
Bluetooth Version	4.2
Rated Power	2 x 8W
Battery Type	Rechargeable lithium-ion
Battery Capacity	2 x 3.7V / 1500 mAh
Charging Time	2.5 - 3 hours
Music Playback Time	6 - 8 hours
Waterproof Rating	IPX7
Wireless Range	Up to 10 meters
Hands-Free Calling	Yes (built-in microphone)
TWS Pairing	Yes (two speakers can be paired for stereo sound)
Controls	Power button, volume up/down, track control
Input	microUSB for charging
Power Consumption (active)	13.6W
Standby Power Consumption	< 0.5W
Accessories Included	USB charging cable
Dimensions	Not specified in manual
Weight	Not specified in manual

Frequently Asked Questions - BT22TWS BLAUPUNKT

How do I charge the Blaupunkt BT22TWS speaker?

Use the included USB to microUSB cable and connect to a USB charger with DC 5V/1A output (or higher). The red LED will turn off when fully charged. Charging time is approximately 2.5 to 3 hours.

How do I pair two speakers in TWS mode?

Turn on both speakers simultaneously by long pressing the power button. Place them within 30 cm of each other; they will automatically pair. A short chime indicates successful TWS pairing. Then pair your Bluetooth device to the master speaker using the name 'BP BT22'.

Why is there no sound or intermittent sound?

Ensure the Bluetooth connection is active and devices are within 10 meters. Try turning off Bluetooth and re-pairing. If the battery is low, recharge the speaker. Also, place the speaker and device closer together.

Can I use the speaker while it is charging?

Yes, the speaker can play music during charging. However, using a low-current charger may cause noise or abnormal function; if that happens, unplug and let the speaker reset.

Is the speaker waterproof?

Yes, the Blaupunkt BT22TWS has an IPX7 waterproof rating, meaning it can be submerged in up to 1 meter of water for 30 minutes. However, avoid charging when wet.

How do I make a hands-free call?

After pairing with your phone, short press the power button to answer an incoming call. Speak into the microphone (located near the driver, within 30 cm). Short press again to end the call and resume music. Double press to reject a call.

What should I do if the two speakers do not pair?

Power off both speakers, then power them on simultaneously and place them close together. If they still do not pair, try resetting by leaving them unpaired for a while. Contact service if the issue persists.

How long does the battery last?

Music playback time is approximately 6 to 8 hours, depending on volume level and usage. Battery life naturally shortens over time.

What is the Bluetooth pairing name?

The Bluetooth device name is 'BP BT22' for both single and TWS mode.

How do I clean the speaker?

Wipe the speaker with a clean, dry or slightly damp cloth. Do not use chemical solvents or immerse the speaker in water for cleaning.

USER MANUAL BT22TWS BLAUPUNKT

Enjoy it.

Important Notes

• This safety and operating instruction should be retained for future reference. • The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom. • Do not install the product in the following areas: - Places exposed to direct sunlight or close to radiators. - On top of other stereo equipment that radiate too much heat. - Blocking ventilation or in a dusty area. - Areas where there is constant vibration. • Humid or moist places. • Do not place near candles or other naked flames. - Operate the product only as instructed in this manual. • Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries, and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth™

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Thank you for purchasing our model. Please read and reference the manual before operating this unit. Please keep the manual for future operation reference.

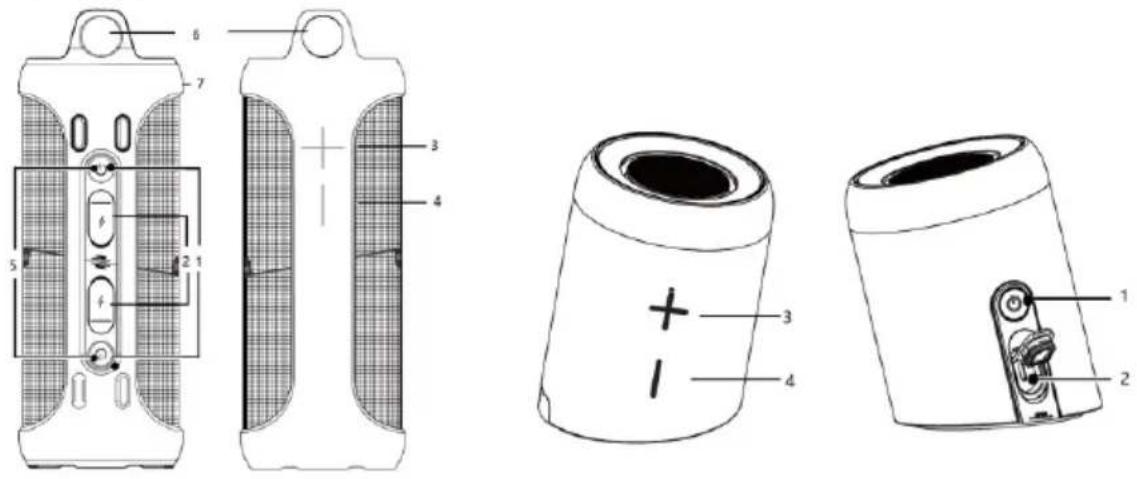

Location of controls:

1-Power button; 2-DC 5V microUSB power jack; 3-volume up; 4-volume down; 5-signal indicator; 6-hook hole; 7-rubber bracket.

Battery charging

This unit has a built-in rechargeable lithium battery. Before starting playback, please follow the steps below for charging. 1. Use the supplied USB to dual microUSB charging cable to connect the speaker to your USB charger (USB adapter or USB output port such as on a PC, with a USB rating output of 5V/1A, or other USB charger with current equal to or above 1A). Connect the microUSB connector to the DC 5V power jack of the speaker, and the other terminal to the USB charger. Then plug your USB charger into household AC power. 2. The charging LED will light up in red during charging, and the red LED will turn off when the battery is fully charged. 3. The speaker will turn off automatically when the battery is exhausted; please recharge it for continued playback. 4. The output sound may be intermittent due to low power. This is not a malfunction. Please recharge the speaker.

Important: We recommend connecting a USB charger with a rated output of DC 5V/1A or higher output current. The general USB output on a PC is 5V/1A (please check your PC specifications). There may be some charging noise or abnormal function from the speaker if the charging current is too low. If this happens, please disconnect the charging power and let the speaker sit for a while; the speaker will then reset to normal function. Please note that this is not a malfunction.

Notes:

Your battery lifetime will last longer if you follow these simple guidelines for charging and storing.

a. For the first charge, charge it for at least 10 hours. b. Recharge and store the unit within a temperature range of 5°C to 35°C (40°F to 95°F). c. Do not charge for more than 24 hours. Excessive charging or discharging may shorten the battery's life. d. Battery life naturally shortens slowly over time. e. Please turn off the speaker if it will not be used for a long time.

f. The speaker can play music while charging.

g. Due to prolonged charging and discharging, the unit's battery life will be affected and playback time will also be shortened. We cannot guarantee consistent playback throughout, and this is not covered by our warranty and service.

Bluetooth operation

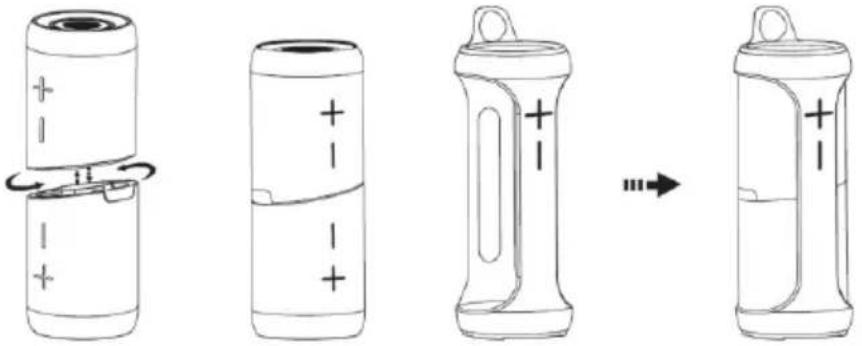

Before starting operation, you can choose to enjoy music as an all-in-one speaker (with the two speakers attached together), or detach the speaker from the rubber bracket, then rotate the top speaker clockwise to separate them for two-speaker playback. To reassemble the two speakers, put them together and rotate counterclockwise to tighten.

TWS playback (two speakers playing at the same time): For first-time use, long press the power button to power on both speakers simultaneously; place the two speakers within 30cm of each other and wait a moment; then the speakers will pair with each other automatically. A short notice sound will come from the speaker after successful pairing, and the signal LED on the master speaker will flicker rapidly for Bluetooth pairing; the LED on the slave speaker (the other speaker) will light up steadily. Turn on the Bluetooth function on your device (for details, please refer to the device's manual for operation), check the available Bluetooth device list on your device, select "BP BT22" for pairing; there will be two short notice sounds from the master speaker after successful pairing. Select and play music from your Bluetooth device, and the sound will wirelessly play from both speakers. The best working distance is within 10 meters between the two speakers.

The other speaker will be controlled correspondingly if you perform the following operations on one speaker during TWS playback mode:

a. Short press the +/- button to switch the playing track; press and hold the +/- button to increase or decrease the volume.

b. Short press the power button to play/pause the music.

c. Short press the power button twice to quit the current Bluetooth pairing with another device.

d. Short press the power button 3 times to disconnect the TWS speaker connection.

e. Long press the power button to turn off the speaker; the two speakers can pair with your device automatically after powering on again.

Single playback (one speaker playing): The Bluetooth operation is similar to TWS playback mode, but only one speaker powers on and produces sound. Please note that the Bluetooth pairing name is also "BP BT22" during pairing.

Phone call hands-free: When the cell phone is paired with the speaker and an incoming call arrives, short press the power button to answer the call; answer the call and speak toward the microphone (located next to the inner driver) within 30cm (suggested distance) for better conversation sound quality; short press the power button again to end the call and resume music playback; short press the power button twice to reject the call.

In hands-free mode, the phone call or talking voice will output from only one speaker, but each speaker has a built-in microphone. We suggest using one speaker for hands-free phone calls.

Notes:

a. Not all Bluetooth devices are guaranteed to pair successfully due to different designs and brands.

b. Please do not place your cell phone very close to the speaker during hands-free phone calls to avoid interference that could affect conversation sound quality.

c. The best Bluetooth working distance is within 10 meters without any obstacles in between.

d. The unit will power off automatically if it remains unpaired with a device for 10 minutes, in order to save battery power.

Troubleshooting

1. The unit cannot power on.

a. Please charge the unit and try again.

b. Please contact the service center if the issue remains.

1. There is no or intermittent sound output in Bluetooth mode.

a. Please turn off Bluetooth and repair with the speaker.

b. Please bring your Bluetooth device closer to the speaker.

1. The two speakers cannot pair with each other successfully (TWS pair failed).

a. Please try to power off both speakers first, then power on the two speakers at the same time, and put them together for a while.

Then the speakers will connect to each other.

b. Please contact the service center if the issue remains.

Specifications

Power source: DC5V, 1A; (or DC 5V, rated current above 1A).

Bluetooth version: 4.2, best working distance within 10 meters.

Rated power: 2 x 8W.

Battery power: 2 x 3.7V/1500 mAh rechargeable lithium battery.

Charging time: 2.5~3 hours based on DC5V, 1A input.

Music playback time: 6~8 hours.

Waterproof: IPX7 supported.

Power consumption: 13.6Watt.

Standby power consumption: < 0.5Watt.

Accessory: 1 pcs x USB charging cable.

(The above spec may revise without prior notice)

Important Information

TWS Playback (two speakers working simultaneously): On first use, long press the power button to turn on both speakers simultaneously; place the two speakers 30 cm apart and wait a moment; then the speakers will automatically connect. After successful connection of the two speakers, a short sound will be heard, and the LED on the main speaker will flash rapidly, indicating it is ready to connect to an external Bluetooth device; the LED on the secondary speaker (the other speaker) will stay on continuously. Enable the Bluetooth function on your external device (for detailed information, refer to the user manual of the external device), check the available Bluetooth device list on the external device, select "BP BT22" for connection; after proper connection, the speaker will emit two short beeps. Select and play music on the external Bluetooth device, and the sound will be wirelessly played on both speakers. The best working distance between the two speakers is 10 meters.

In TWS playback mode, perform the following procedures to control the speaker functions:

a. Briefly press the +/- button to change the playing track; press and hold the +/- button to increase or decrease the volume. b. Briefly press the power button to play/pause music. c. Briefly press the power button twice to end the current Bluetooth connection with the external device. d. Briefly press the power button three times to disconnect the TWS connection between the speakers. e. Long press the power button to turn off the speaker; the two speakers will automatically reconnect after being turned on again.

Single playback (playback using one speaker): The Bluetooth operation is similar to TWS playback mode, but only one speaker works. Note that the device name during Bluetooth connection is the same as in TWS mode "-BP BT22".

Phone calls (handsfree calling): If the mobile phone is connected to the speaker and a call comes in, briefly press the power button to answer the call; answer the phone and speak into the microphone at a distance of about 30 cm (recommended distance) for better call quality; briefly press the power button to end the call and resume music playback; press the power button twice to reject the call.

When using the handsfree kit, we suggest using only one speaker.

Notes:
