KML 4011 - Food processor AMICA - Free user manual and instructions

Brand	Amica
Model	KML 4011
Product Type	Food processor / Stand mixer
Power	500 W
Bowl Material	Stainless steel
Bowl Capacity	4.5 L
Speed Control	Rotary knob with multiple speeds
Multifunction Head	Yes, with release lever
Accessories Included	Whisk, Beater, Dough Hook, Meat Grinder (with fine and coarse plates, cutting blades, auger, ring), Feeder Tray, Pusher, Sausage Attachment, Bowl Splash Cover, Kebbe Attachment, Separator, Conical Attachment
Maximum Continuous Operation	7 minutes
Dishwasher Safe Accessories	Yes, except metal grinder parts
Safety Features	Automatic shut-off not specified; recommended max 7 min operation
Voltage	220-240 V (typical)
Frequency	50 Hz (typical)
Cleaning Instructions	Wipe with soft cloth; accessories washable; lubricate grinder plates
Warranty	As per warranty card

Frequently Asked Questions - KML 4011 AMICA

What is the maximum continuous operating time for the Amica KML 4011?

The appliance should not be used continuously for more than 7 minutes at rated power.

How do I assemble the meat grinder attachment?

Insert the auger into the grinder body, then place the cutting blade with blades facing the plate, add the desired grinder plate aligning protrusions with notches, and tighten the screw-on ring.

Can I wash the accessories in the dishwasher?

Most accessories are dishwasher safe, but exclude metal parts of the meat grinder (plates, auger, cutting blade, ring). The spiralizer should not be washed in the dishwasher.

What should I do if the accessories become discolored from food?

Wipe them with a kitchen towel dipped in cooking oil, then clean as usual.

How do I lock the multifunction head?

Push the lever (2) to the side until you hear a click, ensuring the head is horizontal and locked.

Is the bowl removable?

Yes, the stainless steel bowl (max 4.5 L) is removable. Place it in the appliance and turn until it locks.

What is the power rating of the Amica KML 4011?

The appliance has a 500 W motor.

Can I use the appliance unattended?

No, never leave the appliance unattended while it is turned on, especially near children or disabled persons.

What attachments are included with the KML 4011?

It includes whisk, beater, dough hook, meat grinder with fine and coarse plates, feeder tray, pusher, sausage attachment, bowl splash cover, kebbe attachment, separator, conical attachment, and cutting blades.

How should I clean the appliance body?

Unplug and wipe the body with a soft, dry or slightly damp cloth. Never immerse in water.

USER MANUAL KML 4011 AMICA

White Amsterdam 500W stand mixer with stainless steel bowl (no visible text or symbols on device body)

PL INSTRUKCJA OBSŁUGI....2

EN OPERATING INSTRUCTIONS....13

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

KML 6011

Four 3D renderings of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

B.

SAFETY INSTRUCTIONS FOR USE....14

WARRANTY AND AFTER SALES SERVICE....16

DISPOSING/SCRAPPING OF USED EQUIPMENT....17

OPERATION....19

CLEANING AND MAINTENANCE....21

Dear customer!

Thank you for choosing an Amica product. For years we have delivered high-quality appliances, so that household chores become a real pleasure. Before being packaged and leaving the manufacturer, this appliance was thoroughly checked with regard to safety and functionality. We also endeavour to make sure that modern technology in Amica products always goes hand in hand with a unique design.

Before using the appliance, please carefully read these Operating Instructions Follow these instruction to avoid improper use and ensure long and reliable operation of the appliance. Learn the principles of the safe use to avoid accidents.

Store these operating instructions in a safe place to use them for reference whenever needed. These Operating Instructions contain all the necessary information that will make the use of your Amica appliance simple and fun. We also encourage you to find out more about other Amica appliances.

We hope using your new appliance is a pleasure.

Amica

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

SAFETY INSTRUCTIONS FOR USE

• Carefully read the instructions below before using the appliance.
• Turn off the appliance before you install or take off accessories.
• Keep fingers away from moving parts and the accessory mounting opening.
• Use the appliance at home for its intended purpose only. The manufacturer declines any responsibility if the appliance is used improperly or contrary to these operating instructions.
• Never leave the appliance unattended when it is turned on, especially when there are small children or disabled people in the vicinity.
• Check that the rated voltage of the appliance matches that of the electrical system. Any damage due to incorrect connection is not covered by warranty.
• Remove the plug from the socket after use and before cleaning.
• Do not use a damage appliance or accessories. Contact an authorised service centre for repairs.
• Do not immerse the appliance, power cord or plug in water or any other liquid.
• Do not let the power cord hang within the reach of children. The power cord must not be exposed to heat from hot parts of the appliance, other heat sources, or sharp edges.
• Do not use the appliance if the power cord or plug is damaged. To avoid the risk, have them replaced at an authorised service centre.

SAFETY INSTRUCTIONS FOR USE

• Do not put any meta accessories in the microwave oven.
• Before changing accessories turn off the appliance and unplug it from the power supply.
• Do not touch the whisk, mixer or dough hook while the appliance is operating.
• Do not use more than one accessory at the same time.
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• Children shall not play with the appliance.

This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

- Children are not allowed to operate this appliance. Keep the appliance and the power cord out of the reach of children.

- Improper use may cause injury. Be careful with the appliance.

SAFETY INSTRUCTIONS FOR USE

• Be careful when handling sharp cutting knives, emptying the bowl and cleaning.
• Warning: Make sure the food processor is turned off before removing it from the stand.
  •Always unplug the appliance from the power supply when leaving it unattended and before installing or removing accessories and before cleaning.
  •After each use, allow the appliance to cool down to room temperature.
• Never use the appliance continuously for more than 7 minutes at rated power.
• Be careful when pouring hot liquid into the food processor as it may scald you as a result of evaporation.
• The appliance is intended for use at home and similar places.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card.

The manufacturer shall not be held liable for any damage caused by improper use of the product.

UNPACKING

Simple line drawing of a three chasing recycling symbol (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

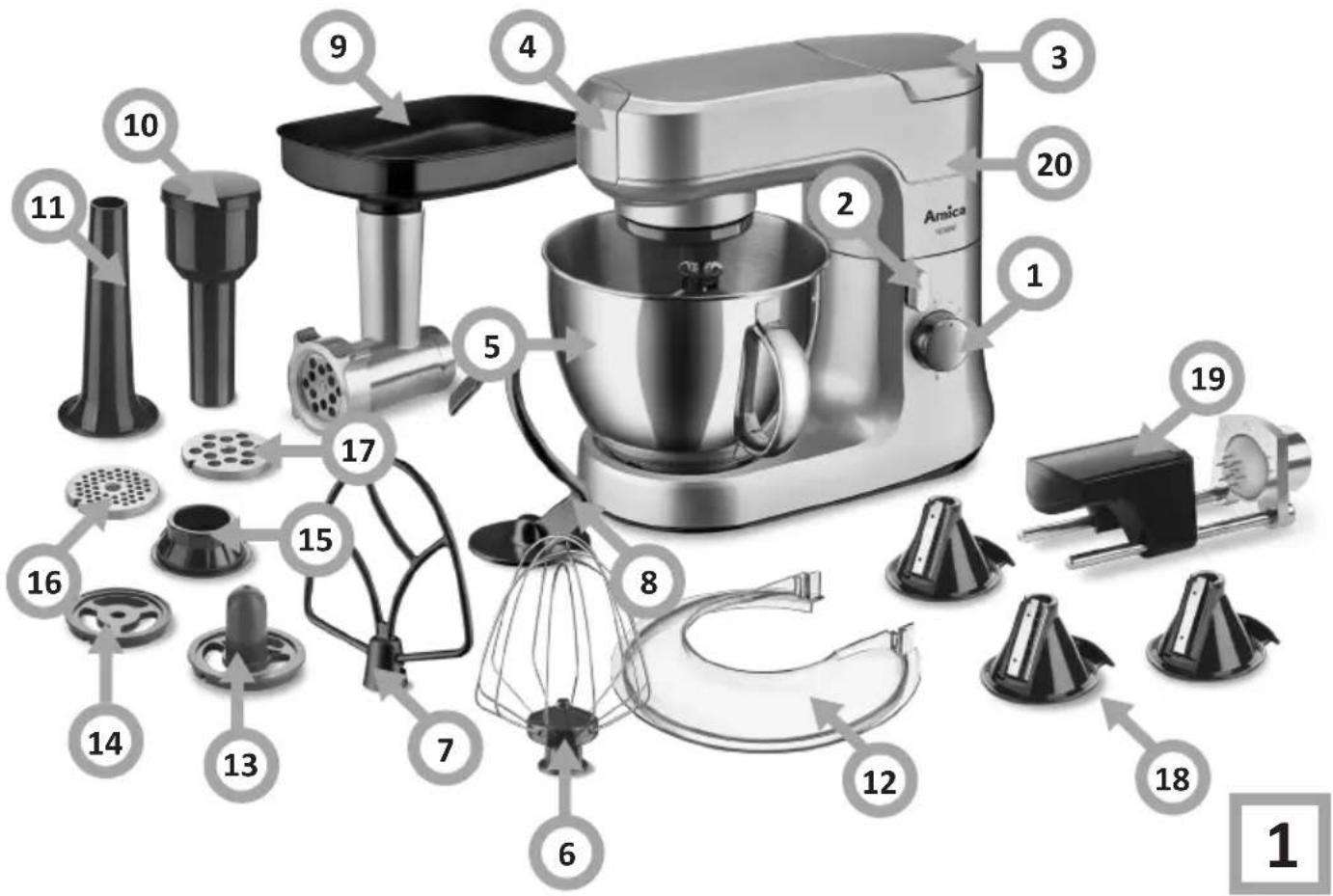

Features and components (Figure 1)

1. Speed control knob
2. Multifunction head release lever
3. Lid
4. Removable cover of the mincer socket
5. Stainless steel bowl (max. 4.5 l)
6. Whisk
7. Beater
8. Dough hook
9. Feeder tray
10. Pusher
11. Sausage attachment
12. Bowl splash cover
13. Kebbe attachment
14. Separator
15. Conical attachment
16. Fine mesh meat grinder plate
17. Coarse mesh meat grinder plate
18. Cutting blades *
19. Spiralizer *
20. Multifunction head

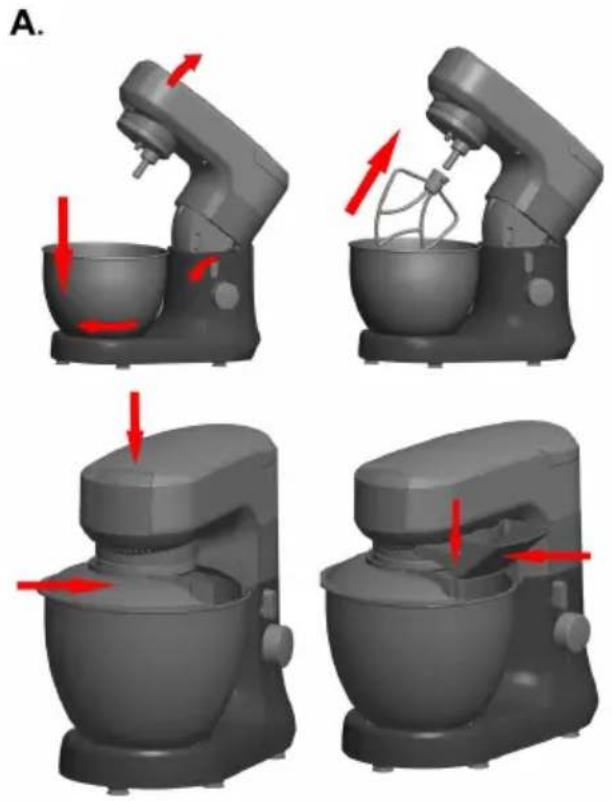

Before first use (Fig 2)

A Release and raise the multifunction head to add accessories and then lock it

1. Push the lever (2) to the side to release the multifunction head (20) and raise it to a higher position.
2. Place the bowl (5) in the appliance, turn it until it locks, and place the ingredients in the bowl.
3. Place the splash cover on the mixer head so that the filler hole is accessible at the front of the appliance.
4. Install the desired accessory (6, 7, 8) in the socket by pushing the accessory shaft all the way and turning it a quarter turn to lock it in place.
5. Lock the multifunction head in a horizontal position and push the lever to the side (2), you should hear a click.
6. When preparing your dish, you can add ingredients through the opening in the splash cover.
7. To stop the appliance, turn the knob (1) back to position 0.

Before first use, wash all accessories with water and detergent, rinse and dry.

FEATURES AND COMPONENTS

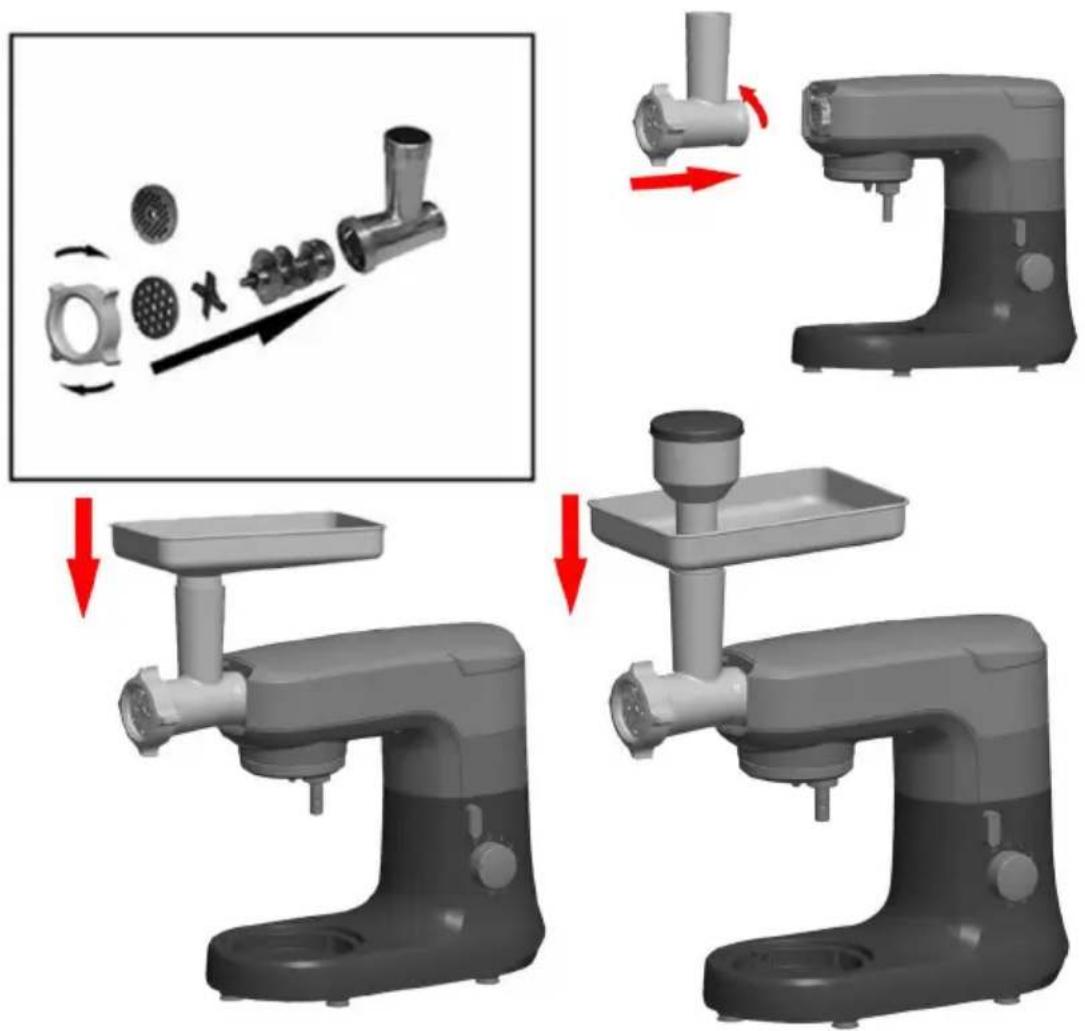

B Meat grinder

Install and insert accessories:

1. Grasp the meat grinder by the feeder with the opening facing up.
2. Insert the auger (shaft connector first in) into the body of the meat grinder. Fit the cutter blade onto the shaft with the blades facing the grinding plate.
3. Place the grinder plate of your choice on the blades, making sure that the two protrusions fit into the two notches in the body.
4. Tighten the screw-on ring on the body.
5. Make sure that there is no play on the shaft and it does not rotate.
6. Lock the multifunction head in a horizontal position (it should click into place).
7. Insert the assembled meat grinder into the socket.
8. Place the feeder tray on the feeder tube.

Warning:

1. In order to release meat grinder attachment, press the release button.
2. Use the pusher to force the pieces of the product into the feeder tube. Never push the product with your fingers or any cutlery.
3. After use, always set the switch to the "0" position.

CLEANING AND MAINTENANCE

1. Unplug the appliance from power.
2. Never immerse the appliance in water or place it under running water. Wipe with a soft, dry or slightly damp cloth.
3. To facilitate cleaning, rinse the accessories immediately after use. Remove the accessories from the appliance. Handle accessories with care as some have sharp cutting edges.
4. Wash, rinse and wipe the accessories. The accessories are dishwasher safe, with the exception of the metal parts of the meat grinder attachment, such as fine and coarse grinder plates, auger, cutting blade and screw-on ring.

Do not wash the spiralizer in the dishwasher.

1. Lubricate the grinder plates and the blades. Rub the accessories with cooking oil after each use.

2. If the accessories discolour due to contact with food (such as carrots, oranges, etc.), gently wipe them with a kitchen towel dipped in cooking oil, then clean as usual.

Instructions:

Accessories	Dish Maximum Duration Speed F		Reparation		method
Whisk Cream	(38% fat)	250 ml 5 minutes	8 /
	Egg white 8 pieces	3 minutes /
Dough hook F	our 1200 g 7 min	utes 1-8	/
	Special salt	15g
	Yeast	10g
	Water	840 g
	Lard	20g
Beater	Flour 100 g	5 minutes	1-8 /
	Powdered sugar	100 g
	Margarine	100 g
	Egg	2 pieces
Meat grinder	Beef	2000 g	3 minutes	1-8	20x20x60 mm
	Pork	2000 g 3 minutes
Spiralizer * KML 6011	Vegetable spa-ghetti, curly garnish.	no limit	3 minutes 1-8	/
