Product Type	Table Blender
Brand	Blaupunkt
Model	TBG801
Power	1200 W
Power Supply	220-240 V ~50/60 Hz
Capacity	1.75 L
Maximum Run Time (Wet Blending)	2 minutes
Maximum Run Time (Dry Blending)	20 seconds
Minimum Rest Time	30 minutes
Control Panel	Rotational speed knob, Pulse button (Turbo), Ice crushing program, Smoothie program
Speed Settings	Variable speed with knob
Jug Material	Tritan
Blade Material	Stainless steel
Safety Features	Power switch lock, automatic shut-off, lid interlock, jug interlock, overload protection
Maximum Liquid Temperature	55°C
Cleaning	Motor body: wipe with damp cloth; other parts: hand wash or dishwasher safe
Accessories Included	Pusher, blade fixing nut gripper, Tritan cocktail bottle with lid
Country of Origin	Poland
Compliance	CE, EU Low Voltage Directive, EMC

Frequently Asked Questions - TBG801 BLAUPUNKT

How to use the blender for smoothies?

Place ingredients in the jug (max 3/4 full), cover with lid, plug in, press the Smoothie program button (8d). The blender runs automatically. Switch off when done. Do not exceed 2 minutes of continuous operation.

What is the maximum capacity?

The jug capacity is 1.75 L. Do not fill above 3/4 of its capacity to allow proper blending.

Can I blend hot liquids?

No, do not pour hot liquids or ingredients above 55°C into the blender jug. This can damage the blender or cause injury.

How to clean the blender?

Unplug first. Wipe the motor body with a damp cloth. Disassemble the jug, blade assembly, lid, and accessories. Wash them with dish soap and water or in a dishwasher. Dry thoroughly before reassembling.

What to do if the blender doesn't start?

Check that the lid is correctly fitted and turned perpendicular to the handle. Ensure the jug is properly seated on the rotor and turned so the handle is perpendicular to the control panel. If still not working, the thermal overload may have tripped; wait 10-20 minutes for it to cool down.

How to use the cocktail bottle?

Put ingredients in the bottle (max 3/4 full). Screw the blade assembly onto the bottle. Place the bottle with blade assembly onto the motor body, fitting the rotor, and rotate to lock. Blend. After blending, unscrew the blade assembly and screw on the bottle lid.

What is the maximum run time?

For wet blending, maximum 2 minutes. For dry blending, maximum 20 seconds. After each use, let the blender rest for at least 30 minutes before next use.

Is the blender dishwasher safe?

All parts except the motor body are dishwasher safe. Wash the motor body only with a damp cloth. Do not immerse the motor body in water.

How to replace the blade?

Use the provided blade fixing nut gripper to unscrew the blade assembly from the jug. Handle the sharp blades carefully. Clean or replace the blade assembly as needed. Reassemble by screwing back securely.

What safety features does the blender have?

The blender has a power switch lock and automatic shut-off if the lid or jug is not correctly fitted. It also has overload protection that trips if the motor overheats, requiring a cool-down period.

USER MANUAL TBG801 BLAUPUNKT

Black and white photo of a modern blender with a handle and control panel (no visible text or symbols)

Enjoy it.

Table blender

Standmixer

Blender kielichowy

Kalichový mixér

Stolný mixér

Kelyhes turmixgép

Čassni mešalnik

Blender sa staklenim

Μπλέντερ κύπελλο

Блендер

Blender cu cupă

Trintuvas su indu

K a n n b l e

Line drawing of a magnifying glass with handle and circular lens (no text or symbols)

12

Line drawing of a mechanical component with no visible text or symbols

9

Line drawing of a cylindrical mechanical part with flanged base (no text or symbols)

Important notes

- To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

• Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold

it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to

a professional service location to be fixed or replaced to prevent any hazards from arising.

• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.
• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
  • Take special care when handling the very sharp blades.
• Do not put fingers or any kitchen utensils to the blender's jug when the appliance is connected to the power supply.
• Do not pour hot liquids or put hot ingredients (above 55°C) into the blender's jug.
• Do not switch on the blender when the lid is not placed on the jug.
• The blender can only be used for grinding, mixing, and blending food products.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 1200W

Power Supply: 220-240 V \~50/60Hz

Capacity: 1.75L

Maximum run time (wet blending) = 2min

Maximum run time (dry blending) = 20s

Minimum rest time = 30min

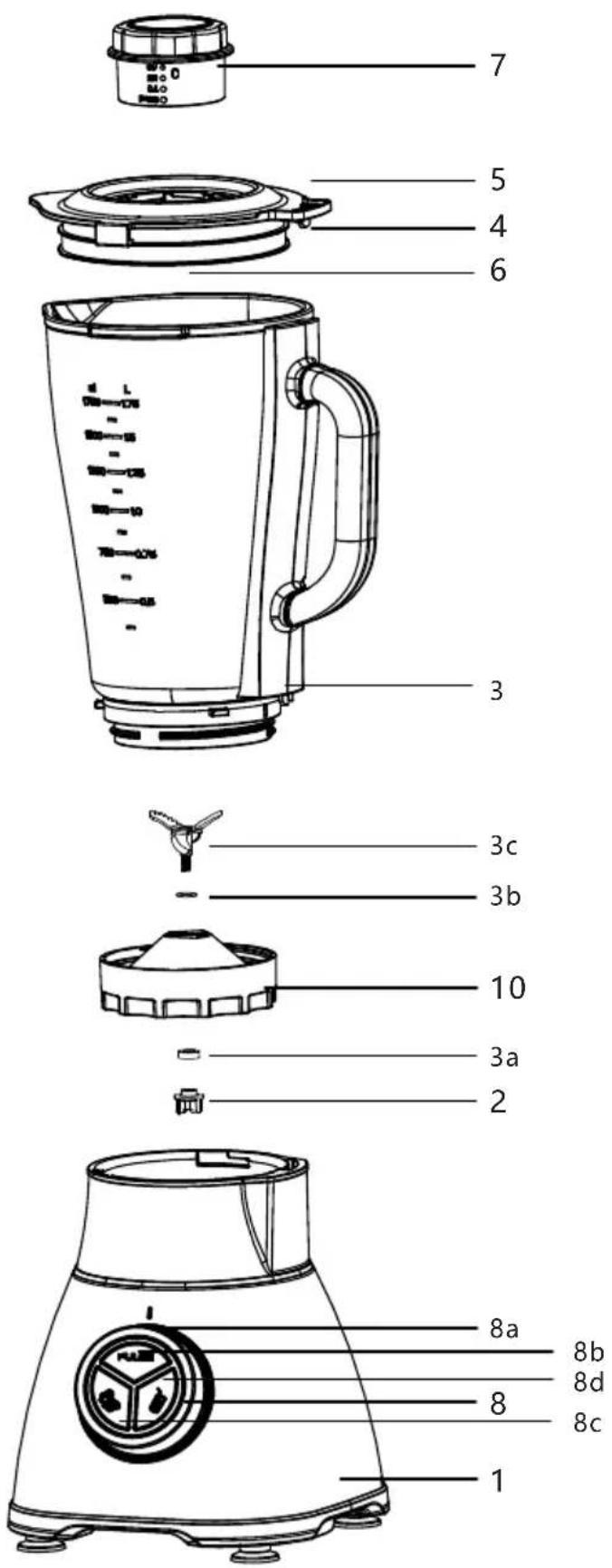

1. Body with the motor

2. Rotor

3. Jug

3a. Blade fixing nut

3b. Gasket

3c. Blade

1. Jug lid

2. Blender lid

3. Blender lid opening

4. Blender lid plug with a measuring cup

5. Control panel

8a. Rotational speed knob

8b. Pulse button – “Turbo” pulse operation mode

8c. "Ice crushing" program button

8d. "Smoothie" program button

1. Pusher

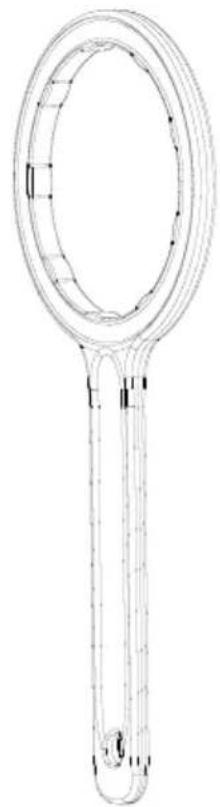

2. Blade fixing nut gripper

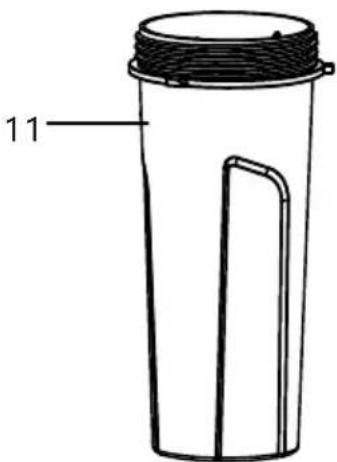

3. Tritan cocktail bottle

4. Cocktail bottle lid

BEFORE FIRST USE

1. Remove all paper, cardboard and film protecting the blender and its parts.

2. Clean the blender according to the instructions provided in the CLEANING AND MAINTENANCE section.

Place the jug (3) on the appliance's body (1) by fitting the rotor (2) into the blade assembly clutch at the bottom of the jug. Put the ingredients into the jug. Pour some water. It is recommended not to fill the jug with ingredients above 34 of its capacity. Cover the jug with the lid (4).

Note: Hold the jug during the appliance's operation.

Insert the power cord plug into a power outlet.

To select one out of the two automatic programs, press the button of the selected automatic program: smoothie (8d, Smoothie drink), ice crushing (8c, Ice crushing). For a series of short bursts of the maximum speed, press the "pulse" button (8b) repeatedly. Otherwise, set the blender rotational speed with the selection knob (8a).

Press the operation mode button again or rotate the knob to "0" position to switch off the blender. For better mixing and grinding of ingredients, you can use a pusher to direct the ingredients towards the blade.

Switch off the appliance when you obtain the required ingredients consistency. Do not switch on the blender for more than 2 minutes. Wait 30 minutes before switching on the appliance again. In order to use the cocktail bottle:

Put the ingredients in the bottle. Pour some water. It is recommended not to fill the bottle with ingredients above 34 of its capacity. Screw the blade assembly (3) onto the cocktail bottle (11). Place the cocktail bottle with the attached blade assembly on the appliance's body (1) by fitting the rotor (2), and then rotate to lock.

After preparing the cocktail, unscrew the blade assembly (3) from the bottle (11). Screw the lid on (12). Unplug the appliance once you finished the operation.

APPLIANCE SAFETY FEATURES

The blender is equipped with the power switch lock and automatic switching off function in case the operation conditions are not safe.

If the blender does not start or it switches off:

1. Ensure the jug lid is correctly fitted and turned to a position perpendicular to the handle.

2. Ensure the jug is correctly fitted on the rotor and turned so that the handle is perpendicular to the control panel line.

3. The temperature or overload breaker could trip after the blender runs for too long or grinds very hard ingredients. Wait 10-20 minutes for the blender to cool down and try to switch on the appliance again.

CLEANING AND MAINTENANCE

Make sure the blender has been disconnected from the power supply.

Clean the body with a mildly damp cloth and then wipe it dry. Do not immerse the body in water or other liquids.

After disassembly, all parts except for the body with the motor are suitable for cleaning with water combined with a dishwashing liquid, or in a dishwasher.

You can unscrew the blade assembly from the jug for better cleaning.

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
