TBG601 - Blender BLAUPUNKT - Free user manual and instructions

Product Type	Table Blender
Brand	Blaupunkt
Model	TBG601
Power	1300 W
Power Supply	220-240 V ~ 50/60 Hz
Capacity	1.75 L
Speed Settings	5 speeds + Pulse (P)
Maximum Blending Time (Wet)	2 minutes
Maximum Blending Time (Dry)	20 seconds
Minimum Rest Time	30 minutes
Jug Material	Glass
Blade Material	Stainless Steel
Safety Features	Power switch lock, automatic shut-off when jug or lid not properly fitted
Dishwasher Safe Parts	Jug, lid, blade assembly (except motor body)
Included Accessories	Pusher, measuring cup in lid lid plug
CE Compliance	Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC)
Disposal	Do not dispose in household waste; follow local electronic waste collection

Frequently Asked Questions - TBG601 BLAUPUNKT

How do I start the blender?

Ensure the jug is correctly placed on the motor body and the lid is locked. Plug in the power cord, then turn the knob to the desired speed (1-5) or use pulse mode (P). Hold the jug during operation.

Can I blend hot liquids?

No, do not pour hot liquids or ingredients above 55°C into the blender jug. Allow them to cool first.

What is the maximum blending time?

For wet blending, do not exceed 2 minutes. For dry blending (e.g., grinding), do not exceed 20 seconds. Always allow the blender to rest for at least 30 minutes before next use.

Why won't my blender start?

Check that the jug lid is properly fitted and turned perpendicular to the handle. Also ensure the jug is correctly seated on the rotor with the handle perpendicular to the control panel. The blender has safety locks that prevent operation if not assembled correctly.

Can I blend ice or frozen foods?

No, do not attempt to blend ice, frozen foods, hard seeds, pits, or hard materials. This can damage the blades and motor.

How do I clean the blender?

Unplug the blender. Wipe the motor body with a damp cloth. All other parts (jug, lid, blade assembly) are dishwasher safe or can be washed with dish soap and water. The blade is sharp; handle with care.

What does the pulse mode do?

Pulse mode (P) provides short bursts of power for quick chopping or mixing. Turn the knob to P and press/hold. Release to stop. Use for controlled blending.

What is the capacity of the jug?

The jug has a capacity of 1.75 liters. Do not fill above 3/4 of its capacity when blending.

Can I use the blender for juicing?

No, this appliance is a blender, not a juicer. It is designed for grinding, mixing, and blending food products, not for extracting juice from fruits/vegetables.

What should I do if the blender overheats?

If the blender stops due to overheating or overload, wait 10-20 minutes for it to cool down. The thermal breaker will reset. Then try operating again. Avoid overloading or running too long.

USER MANUAL TBG601 BLAUPUNKT

Exterior view of a modern kitchen blender with clear glass and black handle (no text or symbols visible)

Enjoy it.

Table blender

Standmixer

Blender kielichowy

Kalichový mixér

Stolný mixér

Kelyhes turmixgép

Čassni mešalnik

Blender sa staklenim

Μπλέντερ κύπελλο

Блендер

Blender cu cupă

Trintuvas su indu

K a n nb l e r

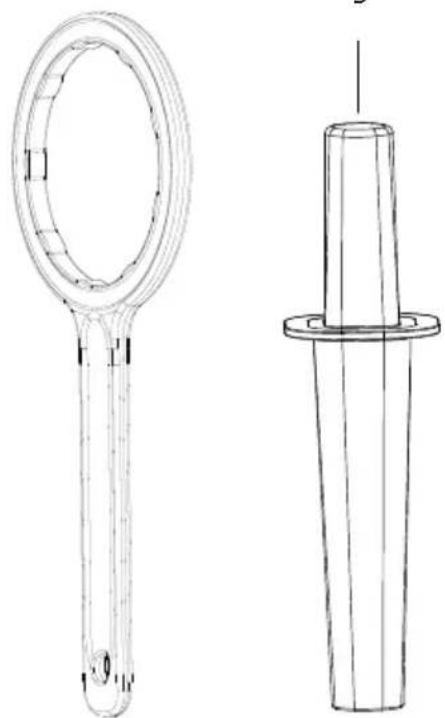

Technical line drawings of two mechanical components: a circular ring and a conical pin (no text or symbols)

Important notes

- To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

• Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold

it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to

a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

- All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Do not attempt to juice any hard materials, large seeds (seeds which cannot be swallowed or chewed), pits, ice or frozen foods.

- Before each use, check out the juicer's filter. If you see any cracks or damage, do not use the device.

- During operation, do not put your hands or any objects into feeder. To push fruits, use only the pusher.

- Fruits should be put into feeder during operation, you cannot fill feeder with fruit or vegetable at a standstill.

- Be careful not to overload the juicer, do not use too much force to push products through the feeder.

- Do not operate with an empty bowl.

- Do not disassemble the juicer if it is plugged into a power outlet.

- Do not operate the Juicer continuously more than 20 minutes with any loading. Wait about 30 minutes before next use.

• Take special care when handling the very sharp blades.
- Do not put fingers or any kitchen utensils to the blender's jug when the appliance is connected to the power supply.
- Do not pour hot liquids or put hot ingredients (above 55°C) into the blender's jug.
- Do not switch on the blender when the lid is not placed on the jug.
- The blender can only be used for grinding, mixing, and blending food products.

CE Device is compliant with EU directives: - Low voltage directive (LVD) - Electromagnetic compatibility (EMC) Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 1300W

Power Supply: 220-240 V \~50/60Hz

Capacity: 1.75L

Maximum run time (wet blending) = 2min

Maximum run time (dry blending) = 20s

Minimum rest time = 30min

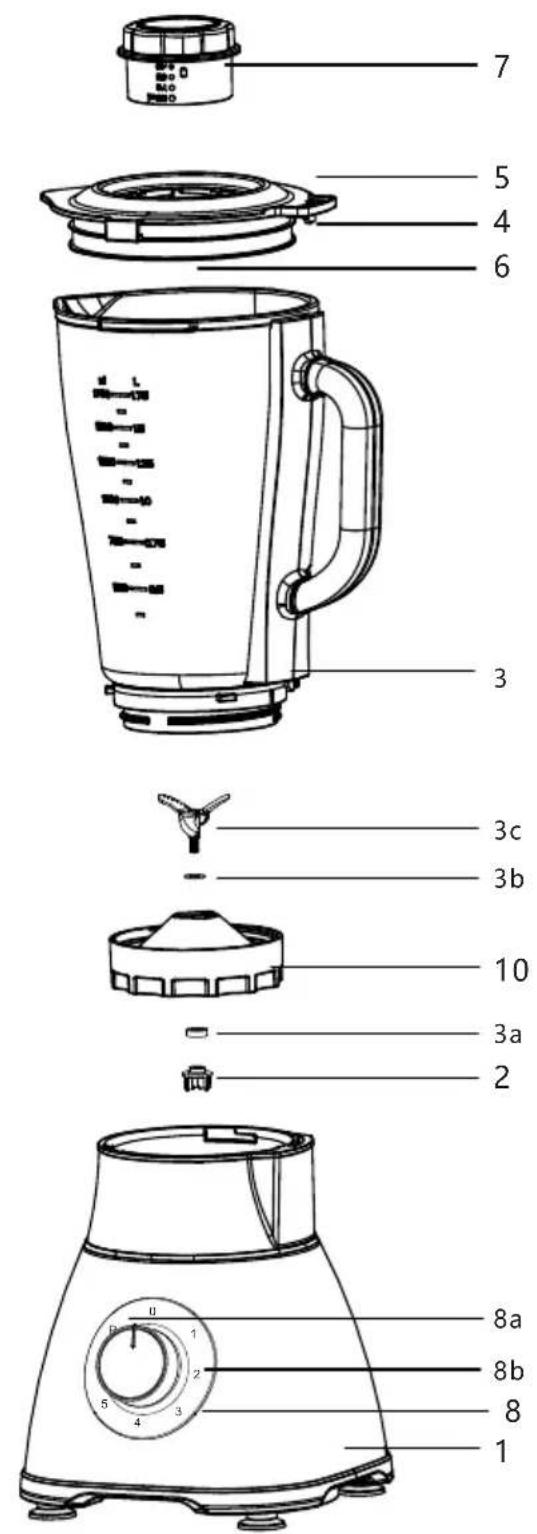

1. Body with the motor
2. Rotor
3. Jug
   3a. Blade fixing nut
   3b. Gasket
   3c. Blade
4. Jug lid

5. Blender lid

6. Blender lid opening

7. Blender lid plug with a measuring cup
8. Power switch knob
   8a. P - pulse mode
   8b. 1 – lowest speed, 5 – highest speed
9. Pusher
10. Blade fixing nut gripper

BEFORE FIRST USE

1. Remove all paper, cardboard and film protecting the blender and its parts.
2. Clean the blender according to the instructions provided in the CLEANING AND MAINTENANCE section.

Place the jug (3) on the appliance's body (1) by fitting the rotor (2) into the blade assembly clutch at the bottom of the jug. Put the ingredients into the jug. Pour some water. It is recommended not to fill the jug with ingredients above 34 of its capacity. Cover the jug with the lid (4).

Note: Hold the jug during the appliance's operation.

Insert the power cord plug into a power outlet.

Switch on the blender with the power switch by selecting the rotational speed with the knob (8).

For better mixing and grinding of ingredients, you can use a pusher to direct the ingredients towards the blade.

Switch off the appliance when you obtain the required ingredients consistency. Do not switch on the blender for more than 2 minutes. Wait 30 minutes before switching on the appliance again.

Unplug the appliance once you finished the operation.

APPLIANCE SAFETY FEATURES

The blender is equipped with the power switch lock and automatic switching off function in case the operation conditions are not safe.

If the blender does not start or it switches off:

1. Ensure the jug lid is correctly fitted and turned to a position perpendicular to the handle.
2. Ensure the jug is correctly fitted on the rotor and turned so that the handle is perpendicular to the control panel line.
3. The temperature or overload breaker could trip after the blender runs for too long or grinds very hard ingredients. Wait 10-20 minutes for the blender to cool down and try to switch on the appliance again.

CLEANING AND MAINTENANCE

Make sure the blender has been disconnected from the power supply.

Clean the body with a mildly damp cloth and then wipe it dry. Do not immerse the body in water or other liquids.

After disassembly, all parts except for the body with the motor are suitable for cleaning with water combined with a dishwashing liquid, or in a dishwasher.

You can unscrew the blade assembly from the jug for better cleaning.
