Product Type	Electric Scooter
Brand	Blaupunkt
Model	ESC910
Dimensions (Folded)	1088 x 461 x 420 mm
Dimensions (Unfolded)	1176 x 461 x 420 mm
Net Weight	15 kg
Max Load	120 kg
Motor Power	350 W
Battery Type	Replaceable Lithium-ion
Battery Voltage	36 V
Battery Capacity	10 Ah
Charging Time	Approx. 5 hours
Max Speed	25 km/h (3 speed modes adjustable)
Range	Up to 40 km (depending on load and surface)
Max Climbing Slope	15 degrees
Wheel Size	10 inches (inflatable with inner tubes)
Recommended Tire Pressure	2.5 bar (250 kPa, 36 PSI)
Brakes	Rear disc brake, rear foot brake, front electric brake with E-ABS
Lights	Front and rear LED lights
Display	LED display with speed, battery level, mode, warning lights
Special Features	Foldable with one key, cruise control, replaceable battery, warning bell
Charger Input	110-240 V ~ 50/60 Hz, 2.5 A max
Charger Output	42 V, 2 A

Frequently Asked Questions - ESC910 BLAUPUNKT

How do I fold the Blaupunkt ESC910 scooter?

To fold, first turn the locking clamp anticlockwise. Then press the folding device key downwards. Gently fold the handlebar down and hook it into the opening in the rear fender until it locks.

How do I remove and install the battery?

To remove: press the battery-housing lock button, slide the housing upwards, then horizontally pull it out. To install: insert the housing with the socket facing down, press it downwards until it latches. Ensure the lock is secure.

What is the correct tire pressure for the ESC910?

The recommended tire pressure is 2.5 bar (250 kPa or 36 PSI). Riding with low pressure may damage tires and cause accidents, which is not covered by warranty.

How long does it take to fully charge the battery?

Charging time is approximately 5 hours. Use only the supplied charger and charge in a dry environment. The red LED turns green when fully charged.

What speed modes are available and how to select them?

Press the Function key to cycle modes: Beginner (no 'D' displayed), Normal ('D' white), Sport ('D' red). Press twice quickly to toggle the front and rear LED lights.

Can I ride the scooter in rain or wet conditions?

Avoid riding in rain or on wet surfaces as water may flood the front motor and cause irreparable damage, which is not covered by warranty. Also avoid puddles deeper than 5 cm.

What is the maximum weight limit and recommended age?

Max load is 120 kg. The scooter is for users aged 14 years and above under supervision. Children under 14 and people over 60 should not ride alone.

How do I maintain the battery for long life?

Store at 10°C, avoid below -10°C or above 35°C. Charge before full discharge. Recharge every 30 days if not used. Charge at temperatures above 0°C.

What safety precautions should I take before riding?

Always wear an approved helmet and protectors. Check battery charge (above 25%). Ensure no loose parts. Obey local traffic laws. Do not ride if under influence of drugs or alcohol.

What does the warning light on the display indicate?

The warning light signals that the controller temperature is too high. Stop riding immediately, switch off, and wait for it to cool. Continued use may cause permanent damage not covered by warranty.

USER MANUAL ESC910 BLAUPUNKT

Exterior view of a black BLAUPUNKT electric scooter with two wheels and a side-mounted sensor (no text or symbols on the vehicle body)

Enjoy it.

Električni skuter Нлектріко окоутер Електрическа тротинетка Trotineta electrica Elektrinis paspirtukas Tõukeratas Elektriskais skrejritenis

- Familiarize yourself with and comply with the local road traffic regulations.

• Always wear an approved helmet and other elbow, knee, and wrist protectors.

- Check the battery charge status when the scooter is turned on. If the battery charge is less than 25%, do not drive for a long time.

- Check the appearance and condition of your electric scooter. Make sure that no parts are loose and that there are no abnormal noises.

- The user should be healthy, rested, sober and not take any sedatives or psychotropic drugs before driving.

- Remember that you are taller when driving, so be careful when driving through the door, beware of signs, branches and other upper obstacles to protect your head from injury.

- This equipment can be used by children aged 14 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

- Unplug the AC adapter from the electrical outlet when not in use.

- Do not connect or disconnect the adaptor from the power source with wet hands.

Completely prohibited

- Do not ride a scooter in areas prohibited by local or national law.

- It is forbidden to move on slopes whose angle of inclination exceeds 15 degrees, do not enter puddles or water reservoirs whose depth is greater than 5 cm.

- Do not ride a scooter on the stairs.

- It is not allowed to ride on roads intended for cars, roadsides or roads on which it is forbidden to ride.

- It is forbidden to move several people on the scooter or to transport children, also in appropriate carrying slings.

- It is forbidden to move on the scooter without holding the handlebar.

- It is forbidden for children under 14 or for people over 60 to move on their own on the scooter. They must be accompanied by other family members or carers. It is forbidden to ride on the scooter for pregnant women, drunk people, people with mental disorders or disabled people with limited steering abilities.

- Do not ride a scooter in dangerous or explosive locations.

- Do not make phone calls while driving the scooter.

- Avoid driving in bad weather such as heavy rain, snow, strong wind and on icy, slippery or muddy roads.

BEFORE DRIVE!

- This scooter has an electric motor installed in the front wheel. Please take a note that riding the scooter in the rain or on wet surfaces may flood the engine and damage it. This malfunction is not covered by the warranty.

- The maximum scooter's range depends on many different factors, such as: user's weight, surface on which the scooter moves, terrain, style and driving mode, weather conditions and the proper air pressure level in the wheels.

- Also keep in mind that battery life drops over the time. This is natural process and should not be treated as a malfunction.

Stylized illustration of a car tire with a pressure gauge attached (no text or symbols)

- This scooter has inflatable wheels with inner tubes that absorb vibration while riding, but you need to ensure the correct air pressure in the wheels

- Check the tire pressure regularly to ensure optimum driving comfort as well as the best possible range on a fully-charged battery. The scooter has standard valves that allow to pump wheels using public compressors. A special adapter that helps to pump the front wheel is included.

- Riding the scooter with low tire pressure is prohibited as it may cause an accident and cause permanent damage of tires. Please note that this malfunction is not covered by the warranty.

• The correct tire pressure range is 2,5 bar (250Kpa, 36PSI).

- Check the tightening of all screw connections regularly. If any clearance is detected, remove it immediately by tightening the appropriate screws. Clearance occurrence in the screw connections is normal and is not covered by the warranty.

Instruction manual

Thank you for purchasing our BLAUPUNKT ESC910 electric scooter. Please read this manual and keep it for future reference. The information contained in this manual will help you get acquainted with the following issues:

• Basic operation and learning how to drive on an electric scooter.
  • Safety when driving on an electric scooter.
• Construction and maintenance of an electric scooter.

The device complies with the requirements of the following European Union directives:

- Low-voltage electrical equipment - Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

The product is CE-marked on name plate

If a crossed-out waste bin symbol appears on the appliance, this indicates that the product is covered by European Directive 2012/19/EU. Familiarise yourself with the requirements of your local electrical and electronic waste collection system. Follow your local regulations. Do not dispose of this product with household waste. Proper disposal of the old product will prevent potential negative effects on the environment and human health.

The device is equipped with batteries covered by the European Directive 2006/66/EC. Do not dispose of batteries with household waste. Please refer to your local regulations for separate collection of batteries, as proper disposal will prevent potential negative consequences for the environment and human health.

Information on environmental protection

The packaging contains only the necessary elements. Every effort has been made to ensure that the three packaging materials are easy to separate: cardboard (box), polystyrene foam (internal protection) and polyethylene (handbags, protective sheet). The device is manufactured from recyclable materials and can be used again after its disassembly by a specialized company. Observe local regulations for the disposal of packaging materials, waste batteries and unnecessary equipment.

The product is manufactured from high quality materials and components that can be recycled and reused.

Packing contents

• ESC910 electric scooter - 1 pc
- Charger for the battery charging - 1 pc
- Operating manual - 1 pc
• Wrench for mounting the handlebar - 1 set
- Adapter for wheel pumping - 1 pc
- Handlebar bag - 1 pc

Main features of the electric scooter:

The Blaupunkt ESC910 is an innovative folding electric scooter. The user can stand on the scooter's platform and adjust the speed using the appropriate handle on the handlebar.

• The front and rear wheels are symmetrical and the front-wheel drive provides greater mobility safety. The 10-inch inflatable wheels enhance riding comfort.
• The disc brake applied with a lever on the handlebar, and the rear foot brake and electric front brake with the E-ABS system, ensure the shortest braking distance possible to better protect the rider.
• The device uses a replaceable lithium-ion battery with a capacity of 10Ah, high power without the charging the memory, no pollution.
• The total weight of the device is 15kg. The foldable design with one key ensures an easy handling and storage.

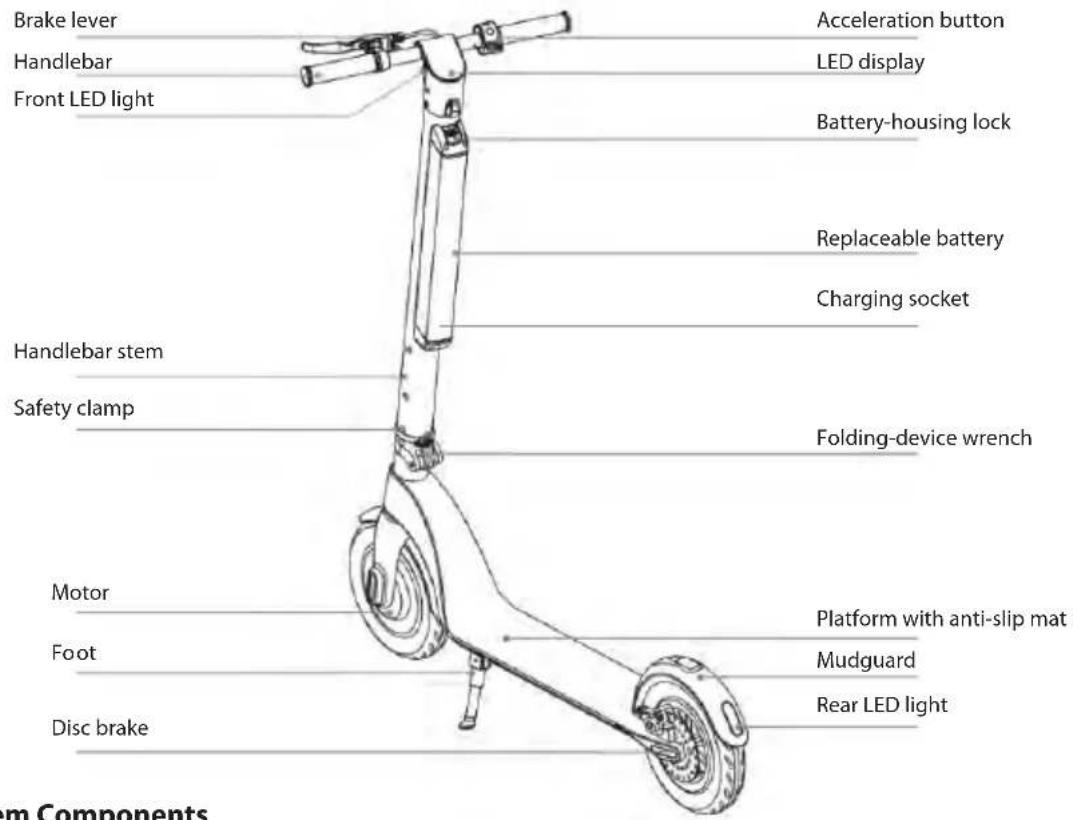

Design of an electric scooter:

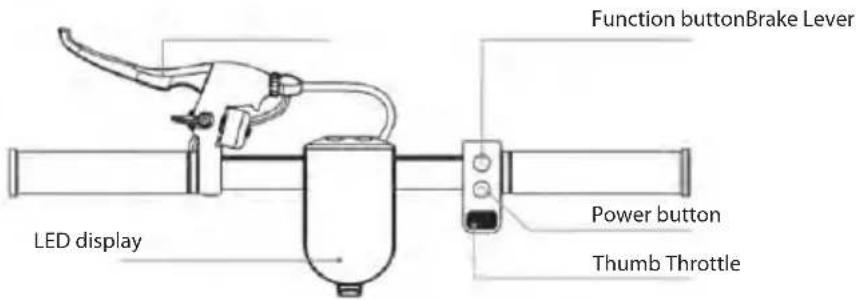

Control-System Components

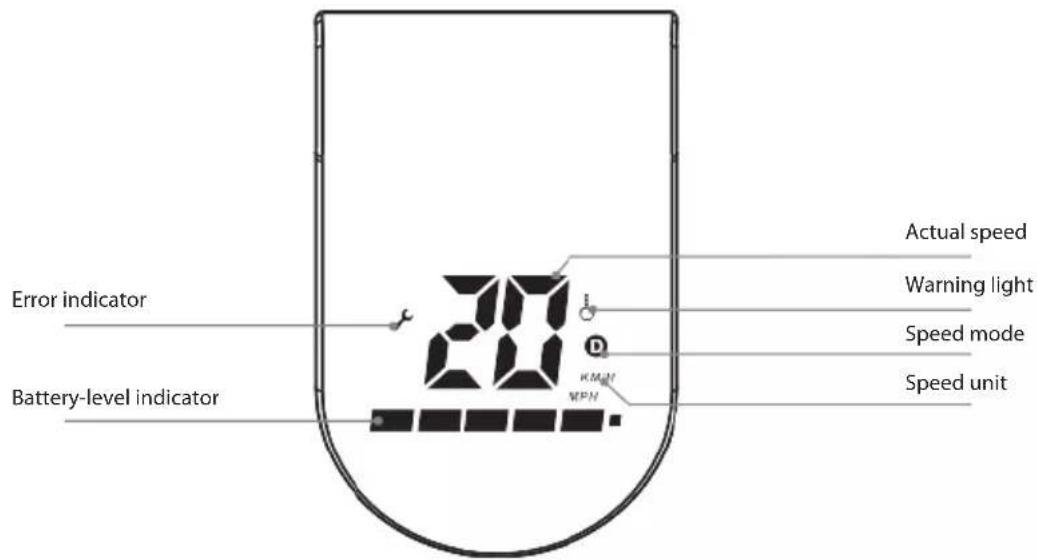

LED display

Description of push buttons/features

1. Power Push Button: press and hold the Power Push Button to turn the power on/off
2. Thumb Throttle: press the Thumb Throttle to start and accelerate

3. Brake: squeeze and hold the Brake Lever to work the Disc Brake. Press the Rear Fender slightly to assist the braking (during braking the rear LED lamp flashes)

4. Function key: press the Function Key to select the speed mode

a. Beginner mode: "D" not displayed
b. Normal mode: "D" lights up white
c. Sports mode: "D" lights up red

1. LED lighting: press the Function Key twice to turn on the front and rear LED lights on; press the Function Key twice again to turn the LED lights off.

2. Cruise-Control Mode: maintain your current speed for approximately 6 seconds to enter the Cruise-Control Mode; press the Thumb Throttle or squeeze the Brake Lever to deactivate the Cruise Control.

3. Warning light Indicates that the controller temperature is too high. As soon as it appears on the display, stop riding immediately, switch off the scooter, and wait until the controller cools down. Using the scooter with the light on can cause permanent damage to the controller. This fault is not covered by the warranty.

Unpacking

After opening the cardboard box, first remove the scooter and make sure that all parts are complete. If anything is missing, contact your dealer. Check the condition of the unit and its appearance to ensure that the folding system is stable enough and that the platform is free from cracks. Check also that the display screen is not damaged.

Installation

After unpacking and checking the condition of all components, you can start assembling the scooter. Follow the picture below:

1. Assembly after removal from the packing.

Mechanical diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

A CB D

Line drawing of a person's head and neck with a stylized object, possibly a device or tool (no text or symbols)

●

Mechanical assembly diagram showing interconnected components without any text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a scooter with wheels and suspension components (no text or symbols)

A. Press the rear fender to release the lock and lift the handlebar stem to the upright position
B. Lock the folding device by moving the key up as far as possible, and turn the locking clamp to the right as far as possible to secure the key against unlocking

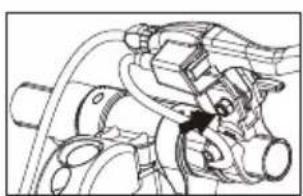

C. Use an M6 Allen key to fix the brake base
D. Tighten the handlebars securely (observe the direction of tightening)

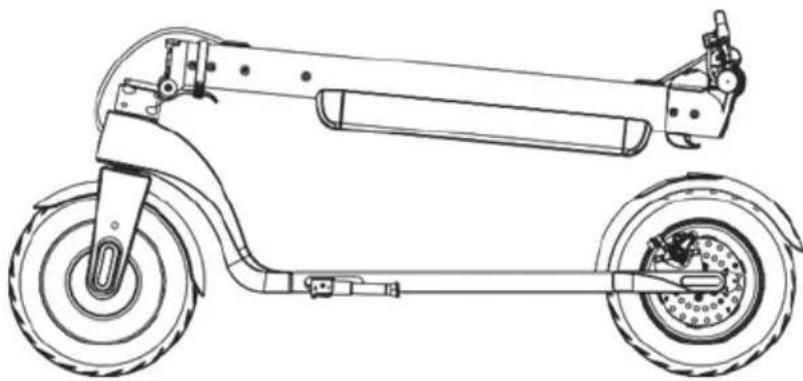

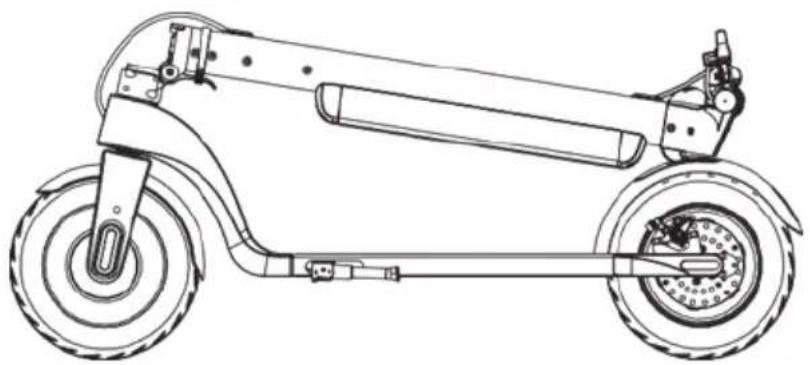

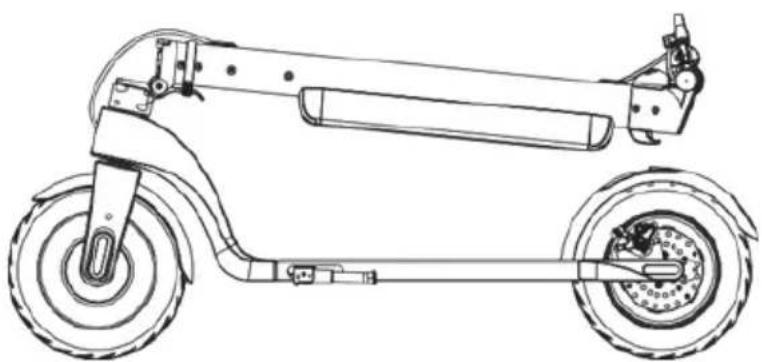

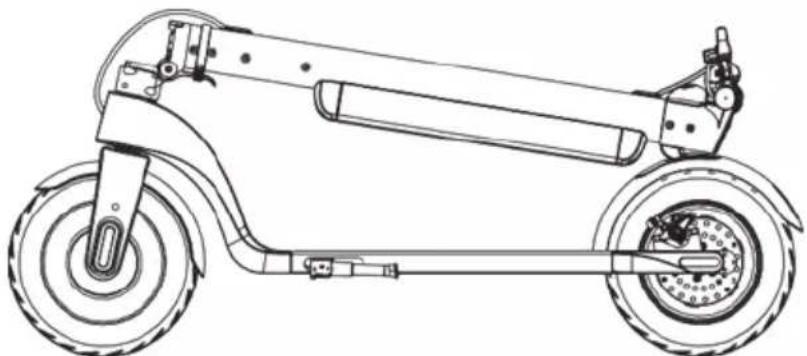

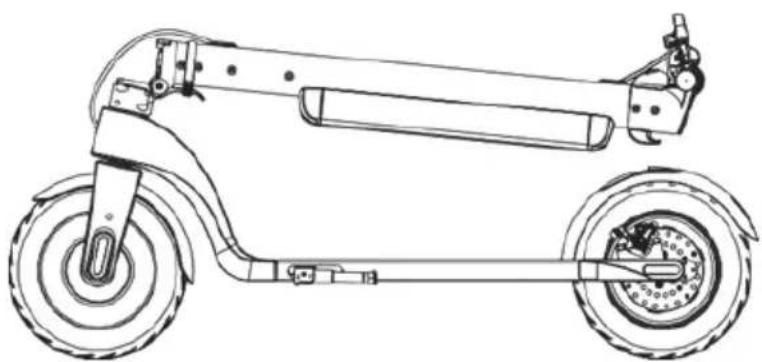

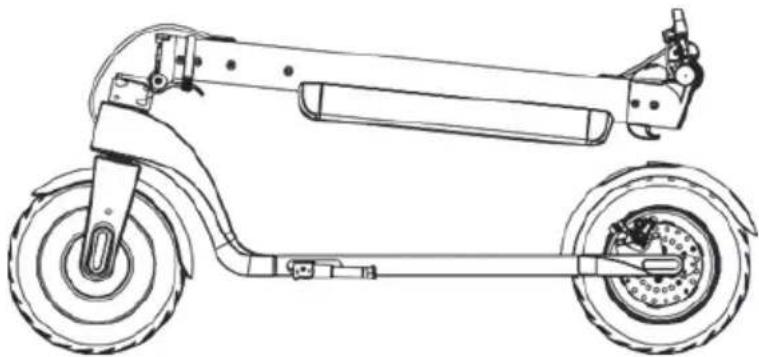

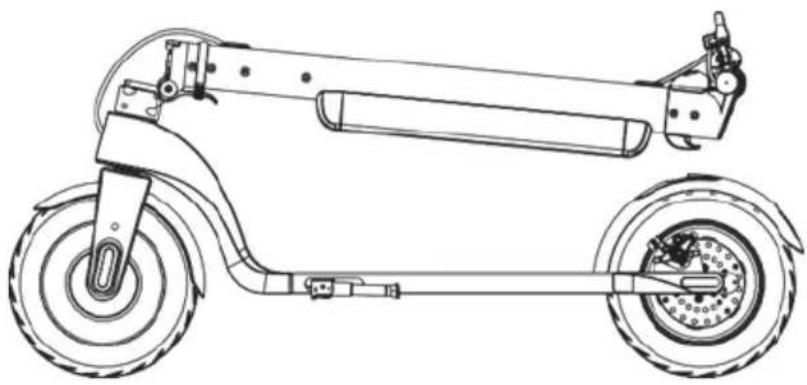

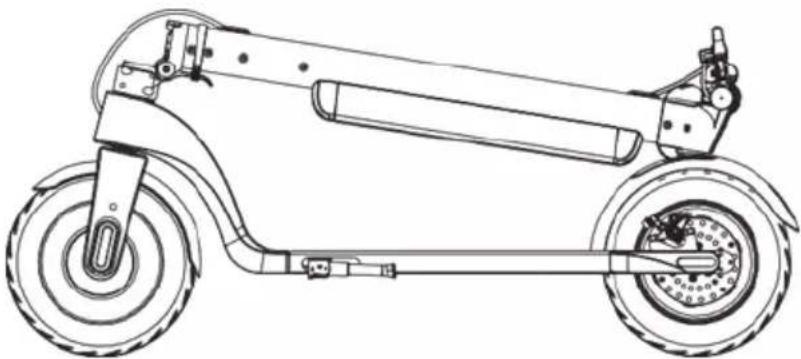

2. Folding the scooter

Line drawing of a person wearing a knitted garment with a zipper (no text or symbols)

A

Diagram of a mechanical clamp or grip mechanism with an arrow indicating rotation (no text or symbols present)

B

Mechanical assembly diagram showing a rotating arm mechanism with no visible text or symbols

C

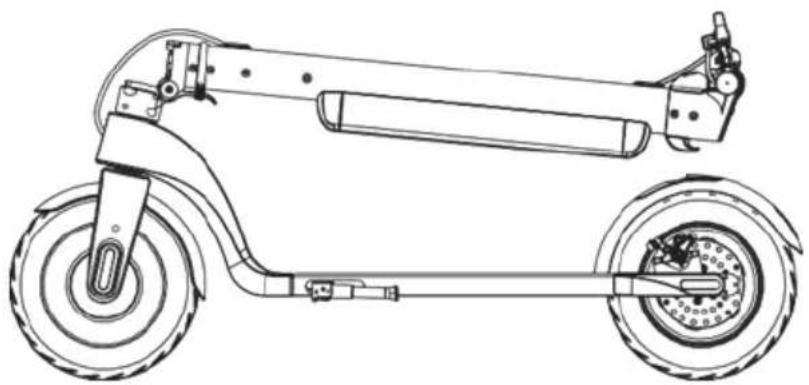

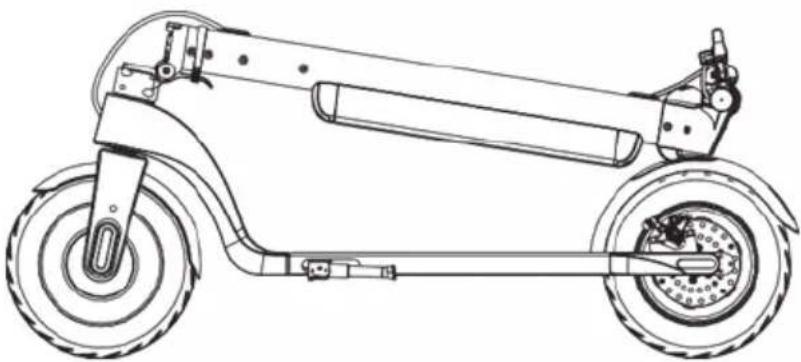

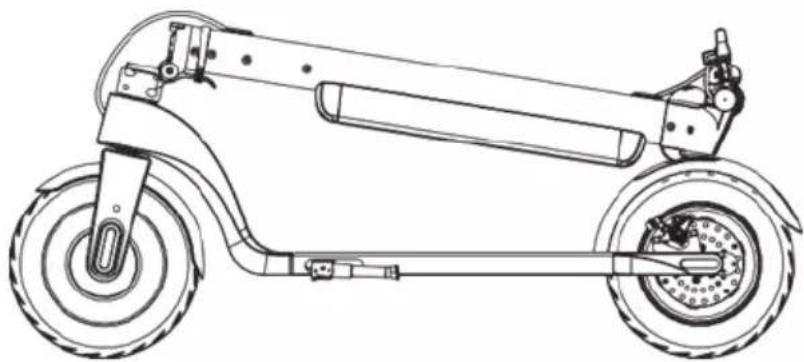

Line drawing of an electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle suspension system with tire, wheel, and suspension bracket (no text or symbols)

D

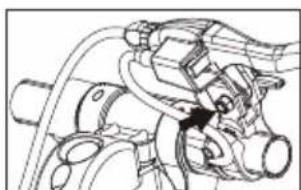

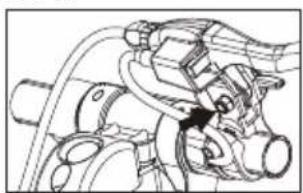

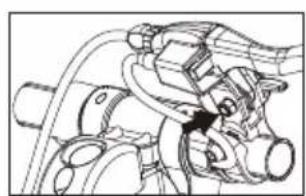

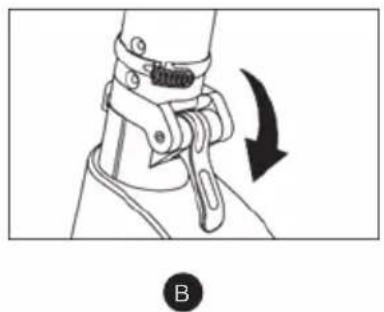

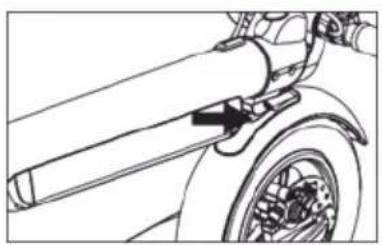

A. Turn the clamp which locks the key anticlockwise
B. Press the folding device key downwards as far as possible

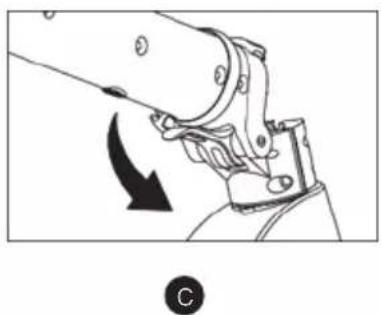

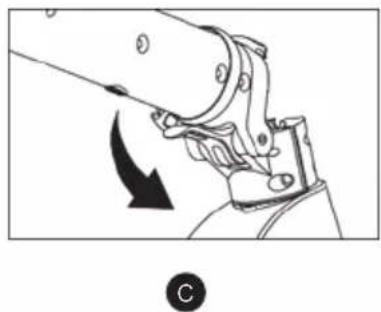

C. Fold the handlebar gently by pulling it down

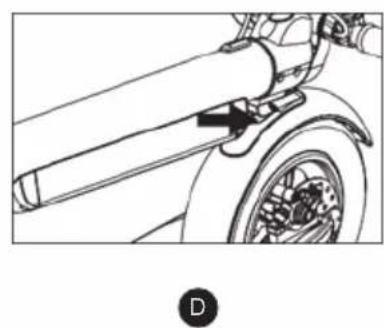

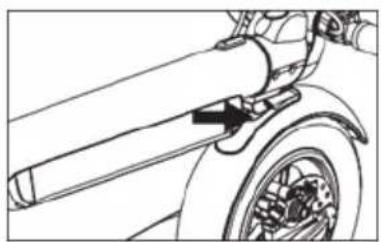

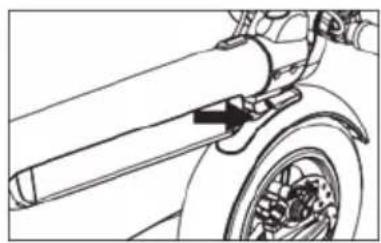

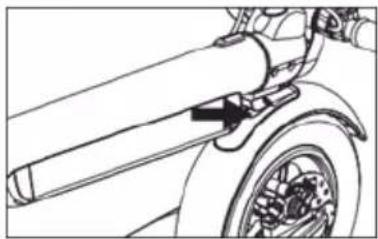

D. Move the hook provided on the handlebars into the opening in the rear fender and press to lock

3. Battery removal and installation

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Installation

Simple line drawing of a cylindrical object with an arrow indicating direction, no text or symbols present.

A

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

B

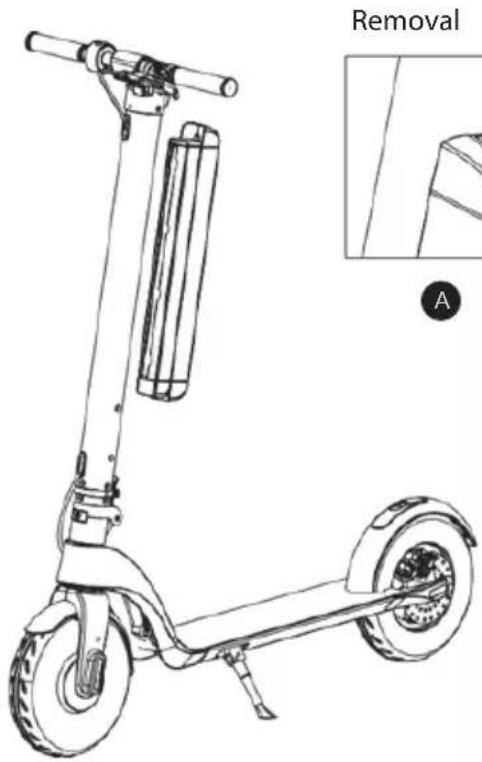

Battery removal

A. Press the battery-housing lock button.
B. Gently slide the battery housing from the bottom upwards.
C. After moving the battery upwards, remove it from the handlebar stem by horizontally pulling the battery housing.

Battery installation

A. Insert the battery housing (with the connection socket facing downwards) into the opening in the handlebar stem.
B. Press the battery housing downwards until the battery housing latches into place. Check that the battery is correctly installed and the lock on the top of the housing is locked.

NOTE!

After the battery has been removed, you can (re)charge it with the supplied charger.

Do not charge the battery when handling, cleaning, or maintaining the scooter.

Guide to safe driving

The content of this chapter is very important, read it carefully and follow all safety rules and procedures. Our company is not responsible for any accidents that result in property or health damage due to the violation of this safe driving guide.

An electric scooter is not only a fun tool but also a means of transport. Following proper safety precautions while driving can protect you and others from an accident. Please note that using your scooter in the field and on public roads can lead to collisions caused by other road users, even if you follow all safety precautions. It is very important to keep a sufficient distance from other road users and from other vehicles.

Driving the scooter

• Observe the local road traffic regulations when driving on a scooter. You should guide the scooter carefully and calmly, paying attention to other people and objects in order to avoid collisions.
• Ride your scooter safely at controlled speed and at a distance from pedestrians and other vehicles. Be ready to stop at any time. Avoid sudden acceleration and braking.
• When walking on the pavement, respect pedestrians' rights, give way to them when passing through the belts, and do not frighten passers-by, especially children.
• Adjust the speed of the scooter to other road users in congested areas. If you want to overtake a group of pedestrians, make sure you have enough space and do it safely. Moving in a crowd at high speed is very dangerous.
• Do not park your scooter in a place that will make walking difficult.
• When driving the scooter, you should be relaxed, have knees slightly bent and head raised.

In the event of sudden acceleration or sudden braking while driving at high speed, the driver can easily become unbalanced and ultimately cause an accident. Try to avoid such situations.

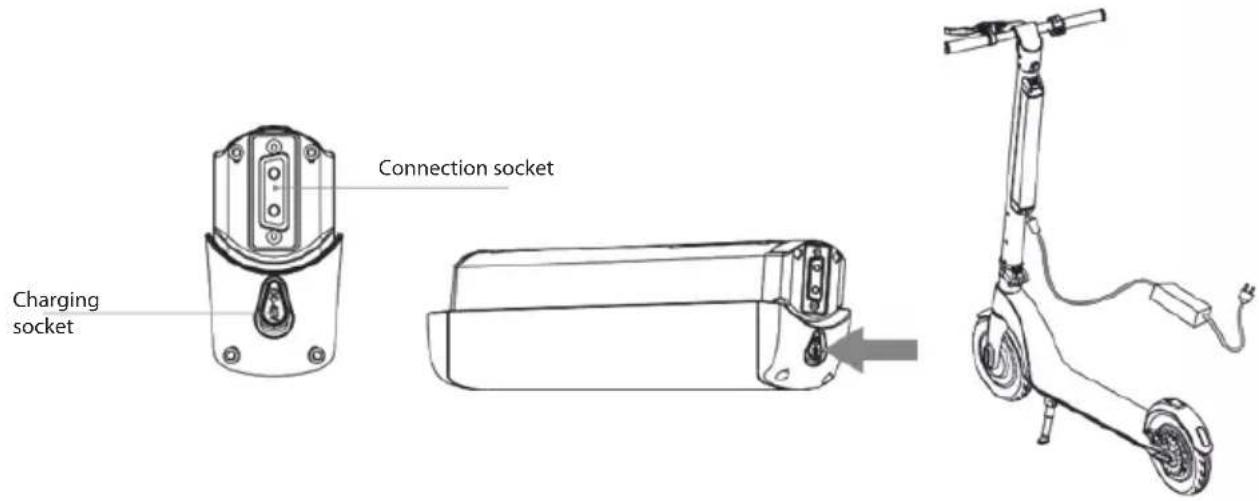

Charging the battery

• Make sure that the electrical outlet is dry.
- When charging the scooter-mounted battery, open the cover of the battery-charging socket located in the lower part of the battery housing. When charging the disassembled battery, the charger is plugged into the same socket.
- Plug the adapter plug into the power source (110 V \~ 240 V, 50 Hz \~ 60 Hz), make sure the green charging lamp is lit, insert the other adapter plug into the scooter's charging socket.
- When the red LED on the power supply lights up, the battery is charging correctly, otherwise check all cable connections.
- When the red light turns green, the battery is fully charged. Disconnect the power supply from the power source. Long-lasting charging can shorten battery life.
- Follow the instructions for charging the battery, otherwise it will damage the battery and shorten its service life.
- The time to charge the scooter's battery is about 5 hours. The manufacturer cannot guarantee the same charging time and operation of the battery due to its wear.
- Ensure clean and dry conditions when charging the battery.
- Do not charge the battery when the power outlet is wet.

First run

Preparation

• Select the desired location. This place can be inside or outside, it must have an area of 10 × 10 meters (about 100 square meters). The place should be flat, neither wet nor slippery, without obstacles, without vehicles, children, pets or any other things that could distract your attention.
• Read this manual carefully, if you have the opportunity to do so, for advice from a person who is more experienced in safe driving.
• Wear helmet and protectors to avoid possible injuries. Move the scooter to the center of the area where you will be moving and familiarize yourself with the area.

Start

• Press and hold the POWER push button for 2 seconds to switch the scooter on, then select one of the three speed modes.
• Place one foot on the deck plate and with the other foot kick-start the scooter
• Place the other leg on the deck plate and ensure you keep your balance
• Press the thumb throttle with your right thumb, and do not ride too fast
• Squeeze the brake lever with your left hand to brake, and gently press the rear fender to assist the braking
• You can get off the scooter when it is running at a low speed or after it has come to a complete stop
  • To warn other users that you are nearby, use the bell fitted next to the brake lever

Cleaning and storage

- Clean the scooter after each ride.

- If the rubber surfaces are difficult to clean, use a toothbrush and toothpaste and clean them with a soft cloth. This method can also remove small scratches.

- Store the scooter indoors, in a cool and dry place. Do not expose the scooter to prolonged sunlight.

When cleaning, the battery charging receptacle must be tightly closed, otherwise you may be electrocuted and the scooter may be seriously damaged. Do not wash your scooter under a high pressure water jet or immerse it in water - this may cause irreparable damage to the unit.

Battery maintenance

The battery is the most important part to maintain. To extend its service life, follow the instructions below:

- Read and follow the notes on battery marking. - The best battery storage temperature is 10 degrees. Do not store the battery pack at temperatures below -10 degrees or above 35 degrees.

- Do not recharge the battery in ambient temperatures lower than 0 degrees - move the battery to a room where the temperature is higher than 10 degrees and allow a minute before you start recharging the battery.

- Store the battery in a cool and dry place. A very humid place can cause condensation inside the battery, which can quickly damage the battery.

- When the display shows a low level of battery, connect the battery pack to the charger. Try to prevent the battery from draining completely. Please charge the battery fully before starting to drive. Frequent charging will not damage the battery. On the contrary, long-term storage of an uncharged battery can shorten its service life

- If the scooter has not been used for 30 days, recharge the battery, otherwise there is a risk of battery failure not covered by the warranty.

- When using the device at room temperature, the battery will maintain optimum performance. If the battery is operated at 0^ , its efficiency will decrease significantly; when operated at temperatures below -10^ the maximum distance can be shortened even by half or more.

Features and specification:

• Motor: 350 W
• Battery: 36 V 10 Ah
• Replaceable battery
  • Max speed: 25 km/h (3 speed adjustable)
• Range: up to 40 km (depending on the load and type of surface)
  • Max loading: 120 kgs
  • Climbing slope: 15 degree
  • Cruise-control feature
• Rear brake: disc brake, fender brake (foot brake)
• Front brake: electric brake E-ABS
• 10" tube wheels
• Front and rear LED light
  • LED for indicating speed and battery-charge level
• Warning bell
• Easy folding mechanism
  • Charging current: 42 V 2 A
• Charging time: about 5 hours
• Dimensions: 1088x461x420/1176 mm (folded/unfolded)
• Net weight: 15 kg

TECHNICAL DATA OF ADAPTOR:

Input voltage: 110-240V\~50/60Hz

Max. Input current: 2.5 A

Output voltage: 42 V

Max output current: 2 A

Sicherheitsregeln

Stylized illustration of a car tire with a pressure gauge attached (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

A CB D

Line drawing of a mechanical component with no visible text or symbols

●

Technical line drawing of a mechanical assembly with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a fully electric scooter with visible suspension components and wheel (no text or symbols)

Line drawing of a person wearing a knitted garment with a zipper (no text or symbols)

A

Mechanical diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols present)

B

Mechanical assembly diagram showing a rotating arm mechanism with no visible text or symbols

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a mounted lever (no text or symbols)

D

Line drawing of a scooter with visible wheels and battery compartment, labeled 'Demontag' in top right corner (no other text or symbols)

Demontage

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Montage

Simple line drawing of a vertical cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

B

Stylized icon of a car wheel connected to a pressure gauge, symbolizing speed or pressure (no text or symbols present)

Mechanical diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

A CB D

Line drawing of a person's neck and shoulder with a stylized object, no text or symbols present

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of an electric scooter with visible suspension components and wheel (no text or symbols)

Line drawing of a person wearing a medical or ergonomic device (no text or symbols visible)

Diagram of a mechanical clamp or grip mechanism with an arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a rotating arm mechanism with a curved arrow indicating motion (no text or symbols)

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle suspension system with a brake lever and wheel (no text or symbols)

Stylized illustration of a car tire with a pressure gauge attached (no text or symbols)

Mechanical assembly diagram showing a lever and wheel with directional arrows (no text or labels)

A CB D

Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating motion or force (no text or symbols)

●

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a neck-mounted medical device (no text or symbols)

A

Mechanical component diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols)

B

Mechanical assembly diagram showing a rotating arm joint with a curved arrow indicating rotation (no text or symbols present)

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a brake lever (no text or symbols)

D

Line drawing of a scooter with visible wheels and battery compartment, labeled 'Demontáž' (no other text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Montáž

Simple line drawing of a vertical cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a pipe bend with a downward arrow indicating a point of interest (no text or symbols)

B

Demontáž baterie:

Stylized icon of a car wheel connected to a pressure gauge, symbolizing speed or pressure (no text or symbols present)

Mechanical diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

A CB D

Line drawing of a person's neck and shoulder with a stylized object, no text or symbols present

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a medical or ergonomic device (no text or symbols visible)

A

Diagram of a mechanical clamp or grip mechanism with an arrow indicating rotation (no text or symbols present)

B

Mechanical assembly diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols)

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle suspension system with tire and wheel (no text or symbols)

D

Line drawing of a electric scooter with visible battery pack and wheels, labeled 'Demontáž' (no other text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a pipe joint with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Montáž

Simple line drawing of a cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a pipe bend with a downward arrow indicating a point of interest (no text or symbols)

B

Stylized icon of a car wheel connected to a pressure gauge, symbolizing speed or pressure (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

A CB D

Line drawing of a person's neck and shoulder with a stylized object, no text or symbols present

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a fully electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a neck and shoulder accessory (no text or symbols)

A

Mechanical diagram showing a lever mechanism with a black arrow indicating rotational motion (no text or symbols present)

B

Mechanical assembly diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols)

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a car wheel assembly with a brake lever (no text or symbols)

D

Stylized illustration of a car wheel connected to a pressure gauge (no text or symbols)

- Skuter ima kolesa z notranjimi cevmi, ki z ustreznim zračnim tlakom v pnevmatikah blažijo vibracije med vožnjo.

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or labels)

A CB D

Line drawing of a person's upper torso with a belt and wristband (no text or symbols)

●

Technical line drawing of a mechanical assembly with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a high-collared garment with a zipper, labeled 'A' at bottom (no text or symbols on the garment itself)

Diagram of a mechanical clamp or grip mechanism with an arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a brake lever and tire (no text or symbols)

Line drawing of a fully electric scooter with wheels and a battery pack, shown in technical sketch (no text or symbols on the diagram itself)

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a bent pipe with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Montaža

Simple line drawing of a cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a pipe bend with a downward arrow indicating a point of interest (no text or symbols)

B

Demontaža akumulatorja:

Stylized illustration of a car wheel connected to a pressure gauge (no text or symbols)

- Skuter ima kotače s unutarnjim cijevima koji zahvaljujući odgovarajućem tlaku zraka u pneumaticima prigušuju vibracije tijekom vožnje.

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or symbols)

A CB D

Line drawing of a person's neck and shoulder with a stylized object, no text or symbols present

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a scooter with wheels and suspension components (no text or symbols)

A. Pritisnite stražnji blatobran da biste oslobodili blokadu i podigli cijev upravljača u vertikalni položaj.
B. Blokirajte mehanizam sklapanja dizanjem ključa maksimalno prema gore, zaštitite ključ od deblokiranja okretanjem zaštitnog prstena maksimalno udesno.
C. Pričvrstite kućište kočnice koristeći šesterokutni ključ M6.
D. Pričvrstite ručke upravljača (vodite računa o smjeru zavrtanja).

2. Sklapanje

Line drawing of a person's lower back wearing a knitted collar and belt (no text or symbols)

A

Mechanical diagram showing a belt clamp mechanism with an arrow indicating rotational motion (no text or symbols present)

B

Mechanical assembly diagram showing a rotating arm joint with a curved arrow indicating rotation (no text or symbols)

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a mounted bracket (no text or symbols)

D

Line drawing of a fully electric scooter with wheels and suspension components, shown in technical sketch (no text or symbols)

Demontaža

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a vertical cylindrical object with an arrow pointing to it, against a plain background (no text or symbols)

C

Montaža

Simple line drawing of a vertical cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

B

Demontaža baterije:

A. Pritisnite tipku za blokadu kućišta baterije.

B. Pažljivo pomaknite kućište baterije odozdo prema gore.

C. Kad pomaknete bateriju prema gore, izvadite je iz cijevi upravljača, povlačeći horizontalno kućište baterije.

Montaža baterije

Stylized illustration of a car tire with a pressure gauge attached (no text or symbols)

Mechanical assembly diagram showing a lever and wheel with directional arrows (no text or labels)

A CB D

Line drawing of a person's neck and shoulder with a stylized object, no text or symbols present

●

Mechanical assembly diagram showing interconnected components without any text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a neck and shoulder accessory (no text or symbols)

A

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

B

Mechanical assembly diagram showing a rotating arm mechanism with no visible text or symbols

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a brake lever (no text or symbols)

D

Line drawing of a scooter with wheels and battery, showing front and side views (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Αφαίρεση

Simple line drawing of a vertical cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a mechanical component with a downward arrow indicating a force or direction (no text or symbols)

B

Stylized illustration of a car tire with a pressure gauge attached (no text or symbols)

Mechanical assembly diagram showing a lever and wheel with directional arrows (no text or labels)

A CB D

Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating motion or force (no text or symbols)

●

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a knitted collar and belt (no text or symbols)

A

Mechanical diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols present)

B

Mechanical assembly diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols present)

C

Line drawing of an electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a mounted lever (no text or symbols)

D

Line drawing of a scooter with wheels and battery, shown with an inset detail labeled 'Демонтаж' (no text or symbols on the diagram itself)

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Монтаж

Simple line drawing of a vertical cylindrical object with an arrow indicating direction (no text or symbols)

A

Simple line drawing of a pipe bend with a downward arrow indicating a point of interest (no text or symbols)

B

Демонтаж на акумулатора:

Illustration of a car wheel connected to a pressure gauge (no text or symbols)

Mechanical assembly diagram showing a lever and wheel with directional arrows (no text or labels)

A CB D

Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating motion or force (no text or symbols)

●

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a medical or ergonomic device (no text or symbols visible)

A

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating rotation (no text or symbols present)

B

Mechanical assembly diagram showing a rotating arm mechanism with no visible text or symbols

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with no visible text or symbols

D

Line drawing of a electric scooter with visible battery pack and wheels, labeled 'Dezasamb' (no text on the diagram itself)

Dezasamblare

Line drawing of a mechanical component with internal structure (no text or symbols)

Simple line drawing of a bent pipe or tube with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Asamblare

Simple line drawing of a vertical cylindrical object with an arrow pointing to it, no text or symbols present.

A

Simple line drawing of a pipe bend with a downward arrow indicating force or direction (no text or symbols)

B

Date tehnice adaptor:

Voltaj intrare: 110-240V\~50/60Hz

Current max.intrare: 2,5A

Voltaj iesire: 42 V

Current max iesire: 2 A

Saugos principai

Stylized illustration of a car wheel connected to a pressure gauge (no text or symbols)

Mechanical assembly diagram showing a lever and wheel with directional arrows indicating motion (no text or symbols)

A CB D

Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating motion or force (no text or symbols)

●

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a neckal brace (no text or symbols)

A

Mechanical diagram showing a lever mechanism with an arrow indicating rotational motion (no text or symbols present)

B

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with a mounted lever (no text or symbols)

D

Stylized illustration of a car tire with a pressure gauge attached (no text or symbols)

Mechanical assembly diagram showing a lever and wheel with directional arrows (no text or labels)

A CB D

Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

●

Mechanical assembly diagram showing interconnected components with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating motion or force (no text or symbols)

●

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a person's lower back wearing a knitted collar (no text or symbols)

A

Diagram of a mechanical clamp or bracket with an arrow indicating rotational motion (no text or symbols present)

B

Mechanical assembly diagram showing a rotating arm joint with a curved arrow indicating rotation (no text or symbols present)

C

Line drawing of a fully electric scooter with visible wheels and suspension components (no text or symbols)

Technical line drawing of a bicycle wheel assembly with suspension bracket (no text or symbols)

D

Stylized illustration of a car wheel connected to a pressure gauge (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or labels)

A CB D

Line drawing of a person's neck and shoulder with a black arrow indicating direction (no text or symbols)

●

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

●

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

●

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Line drawing of a person wearing a neckal and cap (no text or symbols)

Diagram of a mechanical clamp or grip mechanism with an arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a turning mechanism with an arrow indicating rotational motion (no text or symbols)

Line drawing of a fully electric scooter with visible suspension components and wheels (no text or symbols)

Mechanical assembly diagram showing a car wheel with a brake lever and gear (no text or symbols)

Line drawing of a fully electric scooter with visible battery pack and wheels, shown in technical sketch (no text or symbols)

Demontāža

Line drawing of a mechanical component or device with no visible text or symbols

Simple line drawing of a bent pipe or tube with an upward arrow indicating force or direction (no text or symbols)

B

Simple line drawing of a cylindrical object with an arrow pointing to it, no text or symbols present.

C

Uzstādīšana

Simple line drawing of a vertical cylindrical object with an arrow pointing downward (no text or symbols)

A

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

B

Akumulatora demontāža

EC - DECLARATION OF CONFORMITY

01/2019/ESC910

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw

Poland

BLAUPUNKT

Corespondence address:

We declare under our sole responsibility that our product:

Type of device:

Electric Scooter

Name:

ESC910

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2014/35/EU (LVD Directive)

2006/42/EC (Machinery Directive)

2011/65/EU (RoHS Directive)

EC 1907/2006 (REACH directive, None of substance presented in the

article(s)/product(s) is above a concentration limit of 0.1% by weight)

The assessment of this product has been based on the following standards:

EMC standards:

EN 61000-6-1:2007

EN 61000-6-3:2007+A1:2011

EN 55014-1 | EN 55014-2

LVD and MD standards:

EN 60335-1:2012+A11:2014+A13:2017

EN ISO 12100:2010

ERP standard:

European Commission Regulation (EC) No 278/2009

RoHS standards:

EN 62321-3-1:2013 | EN 62321-6:2015 | EN 62321-8:2017

Warsaw, 15.10.2019

02-801 Warsaw, Poland

Registration Court: XIII Wydz.

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
