Product Type	Video Projector
Brand & Model	Dell 7700 Full HD
Native Resolution	1920 x 1080 (1080p)
Brightness	5000 ANSI Lumens (Max)
Contrast Ratio	2500:1 (Natural), 10000:1 (Dynamic), 20000:1 (Static)
Display Technology	0.95" 1080p DMD, DLP™
Lamp Type & Life	Philips 400 W, up to 2000 hours (Eco), 1500 hours (Normal)
Projection Lens	F/2.6-2.9, f=39.12-46.94 mm, 1.2X manual zoom, throw ratio 1.85-2.22
Projection Screen Size	20.3" to 292.9" (diagonal)
Projection Distance	3.28 ft to 39.37 ft (1 m to 12 m)
Aspect Ratio	16:9 (native), supports 4:3 and Origin
Color Support	1.07 billion colors
Audio	2 speakers x 5 Watt RMS
Noise Level	39 dB(A) (Normal), 36 dB(A) (Eco)
Power Consumption	525 W (Normal), 430 W (Eco), <20 W (Power Saving), <0.5 W (Standby)
Power Supply	AC 100-240 V, 50/60 Hz, with PFC

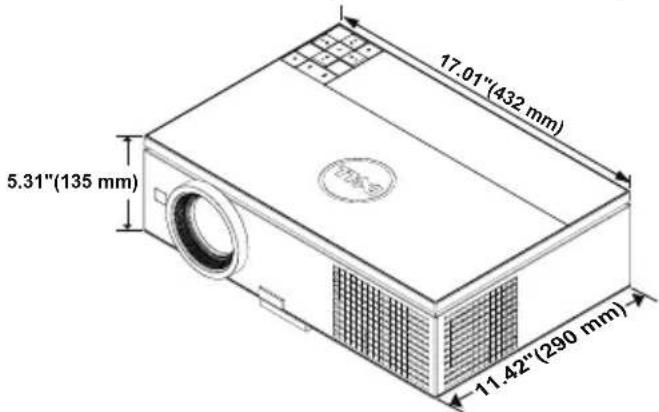

Dimensions (W x H x D)	432 x 135 x 290 mm (17.01 x 5.31 x 11.42 in)
Weight	7.26 kg (16 lb)
Input / Output Connectors	2x VGA, 2x HDMI, S-Video, Composite, Component (RCA), USB (Type A & B), RS232, RJ45, 12V trigger, Audio In/Out
Wireless Connectivity	Optional via USB dongle (IEEE 802.11b/g/n)
Keystone Correction	±30° vertical/horizontal (auto and manual)
Lamp Replacement	User-replaceable (see manual for instructions)
Safety Features	Overheat protection, lamp door interlock, security cable slot
Operating Temperature	5 °C to 35 °C (41 °F to 95 °F)

Frequently Asked Questions - 7700 Full HD DELL

How do I connect my laptop to the Dell 7700 Full HD projector?

You can connect via VGA (using a VGA cable), HDMI, or USB Display (via USB-B port). For wireless, install the optional wireless dongle and use the Wireless Application Software. Ensure the correct input source is selected in the OSD menu.

What is the lamp life and how do I replace it?

The Philips lamp lasts up to 2000 hours in Eco mode and 1500 hours in Normal mode. To replace, turn off the projector, unplug, let cool for 30 minutes, loosen the lamp cover screws, remove the old lamp by its metal handle, insert the new one, tighten screws, and reset the lamp hour counter in the OSD menu.

Why is the projected image not rectangular (keystone distortion)?

Use the Keystone adjustment feature via the control panel, remote, or OSD menu. You can also enable Auto Keystone in the projector settings. Adjust the tilt adjustment wheel and elevator foot to level the projector.

Can I use this projector wirelessly?

Yes, with the optional wireless dongle (sold separately). Install the dongle, enable wireless in the OSD menu, and install the Wireless Application Software on your computer. The projector can then be accessed via its SSID and login code.

How do I clean or maintain the projector?

Regularly clean the ventilation slots with a soft dry cloth or compressed air. Do not use liquid cleaners. Replace the lamp when prompted. Avoid dusty environments and ensure proper airflow. Refer to the manual for detailed maintenance instructions.

What should I do if the projector does not display any image?

Check that the lens cap is removed, the projector is powered on, and the correct input source is selected. Ensure cables are securely connected and the source device is outputting video. Try a Test Pattern from the OSD menu. If using a laptop, enable the external display (e.g., Fn+F8).

How do I change the aspect ratio for a 16:9 movie?

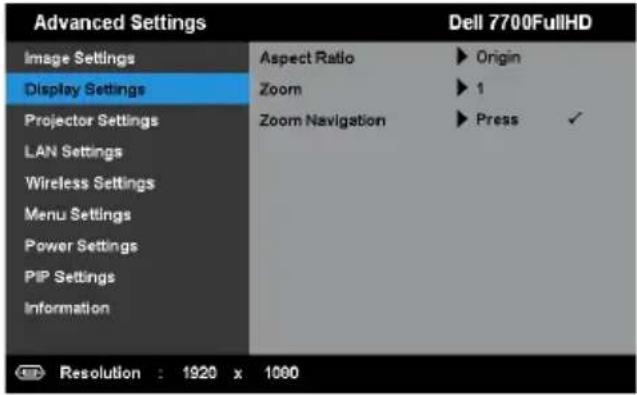

Press the Aspect Ratio button on the remote or navigate to Display Settings in the OSD. Options include Origin (auto), 16:9, and 4:3. Select 16:9 for widescreen content.

The remote control is not working properly. What can I do?

Replace the AAA batteries (two) and ensure they are inserted with correct polarity. Check that nothing blocks the IR receivers on the projector. The remote operates up to about 10 meters. If using Page Up/Down, ensure the Mini USB cable is connected.

How do I cool down the projector and why does it stay on after turning off?

After pressing the Power button, the projector enters cooling mode with fans running for about 120 seconds. This is normal to protect the lamp. You can enable Quick Shutdown in Power Settings if you need faster cooling (higher noise). Do not unplug until fans stop.

Can I mount the Dell 7700 Full HD on the ceiling?

Yes, the projector has mounting holes for a ceiling mount (M3 x 6.5 mm depth). It is recommended to use the Dell Ceiling Mount Kit (P/N: C3505) and have it installed by a qualified technician. Do not attempt ceiling mounting yourself.

USER MANUAL 7700 Full HD DELL

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice. © 2012 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model 7700FullHD

March 2012 Rev. A00

Contents

1 Your Dell Projector.... 7

About Your Projector 8

2 Connecting Your Projector....10

Installing the Optional Wireless Dongle ..... 11

Connecting to a Computer 12

Connecting a Computer Using a VGA Cable ..... 12

Monitor Loop-Through Connection Using VGA Cables 13

Connecting a Computer Using a RS232 Cable . . . 14

Connecting a Computer by USB Cable ..... 15

Connecting a Computer Using Wireless Dongle (Optional) 16

Connecting a DVD Player 17

Connecting a DVD Player Using an S-Video Cable. 17

Connecting a DVD Player Using a Composite Video Cable 18

Connecting a DVD Player Using a Component Video Cable 19

Connecting a DVD Player Using a 3 RCA Component Video Cable 20

Connecting a DVD Player Using an HDMI Cable . . 21

Connecting to Local Area Network 22

To project an image and control the projector that is connected to a network through a RJ45 cable. . . 22

Professional Installation Options: Installation for Driving Automatic Screen 23

Connection With Commercial RS232 Control Box . 24

3 Using Your Projector 25

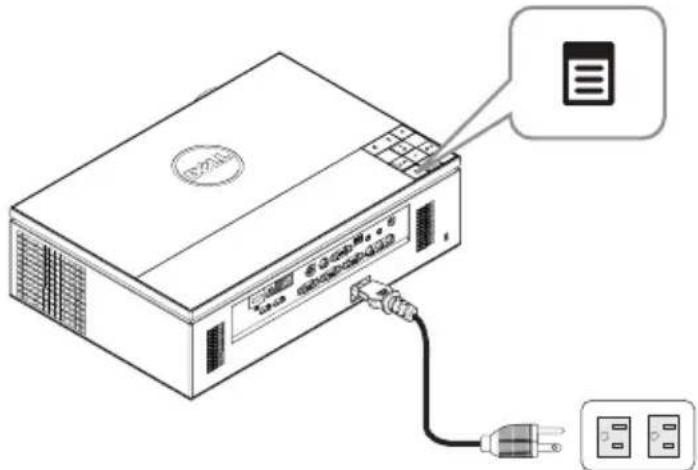

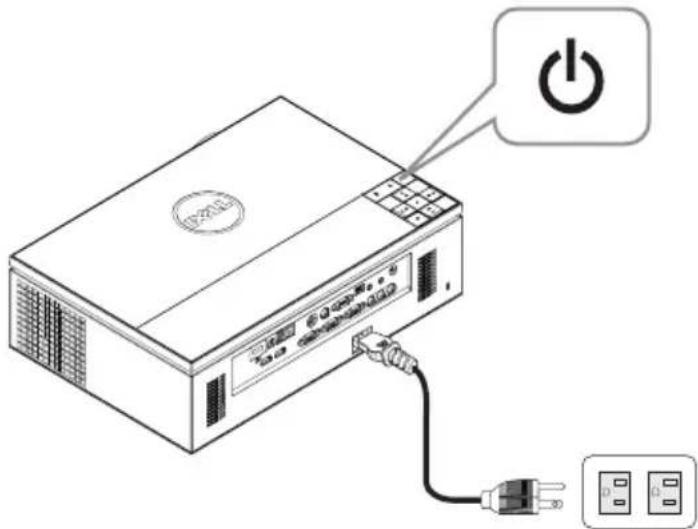

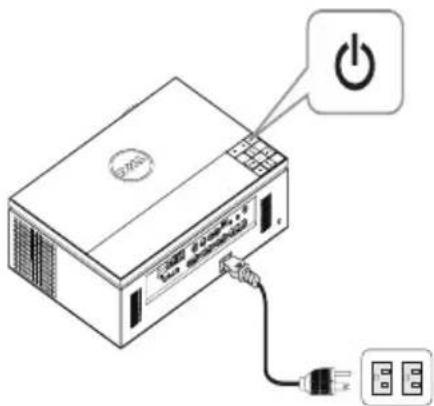

Turning Your Projector On 25

Turning Your Projector Off. 25

Adjusting the Projected Image 26

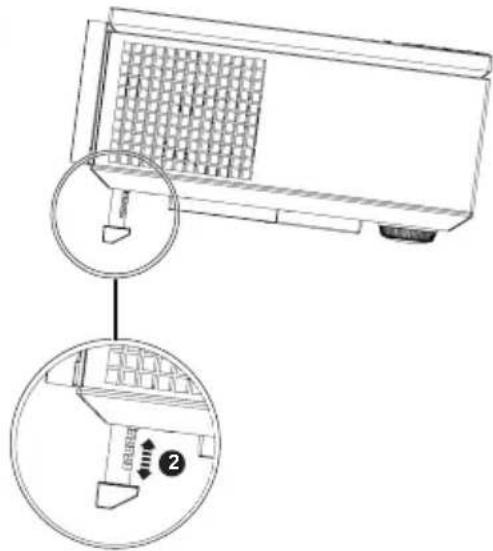

Raising the Projector Height 26

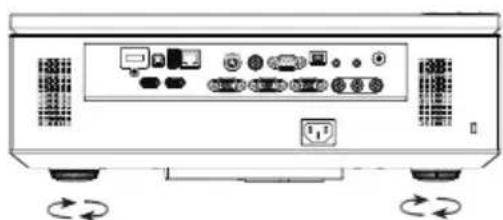

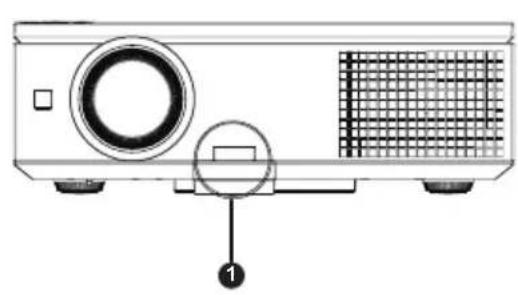

Lowering the Projector Height 26

Adjusting the Projector Zoom and Focus ..... 27

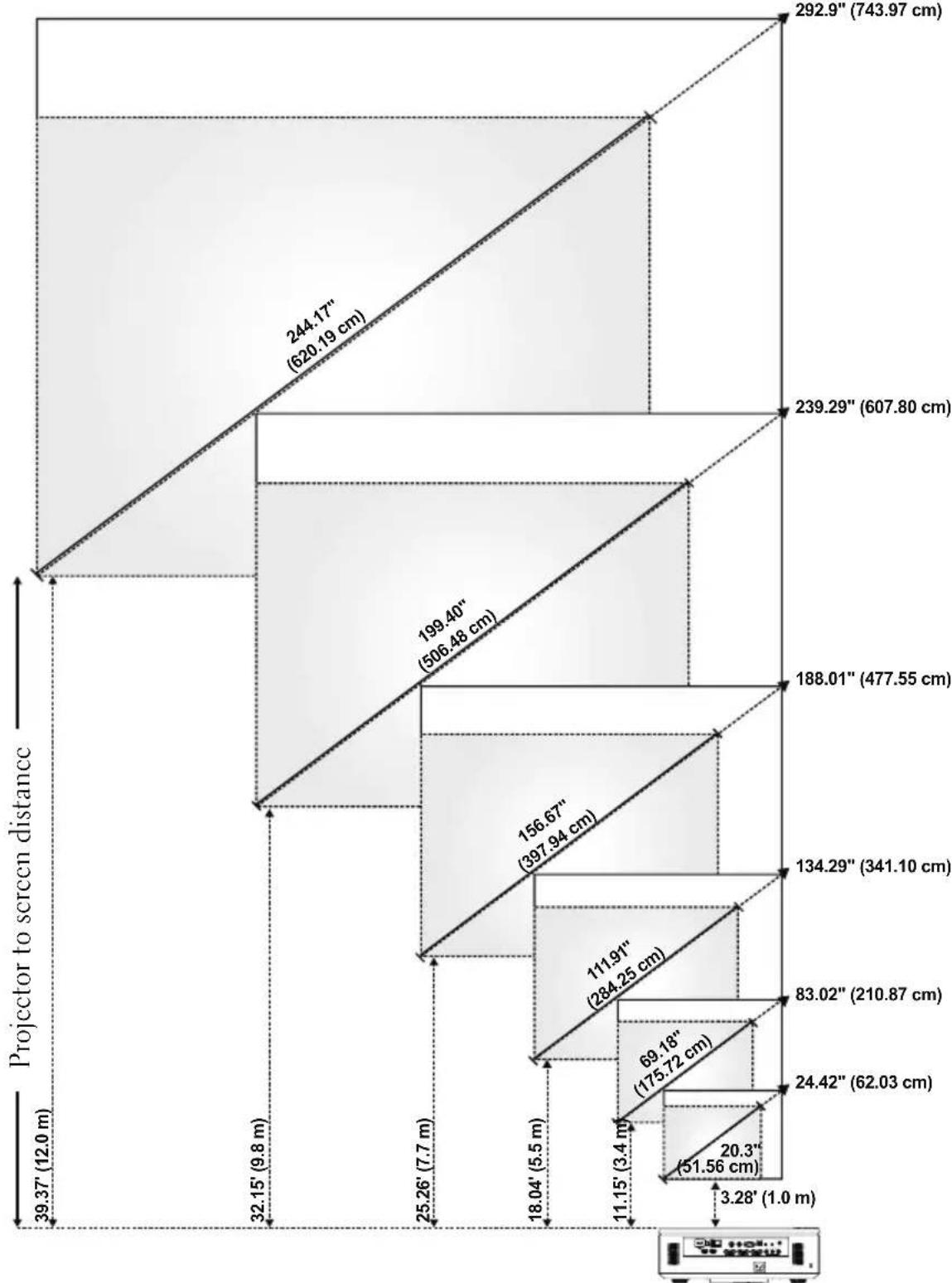

Adjusting Projection Image Size 28

Using the Control Panel 30

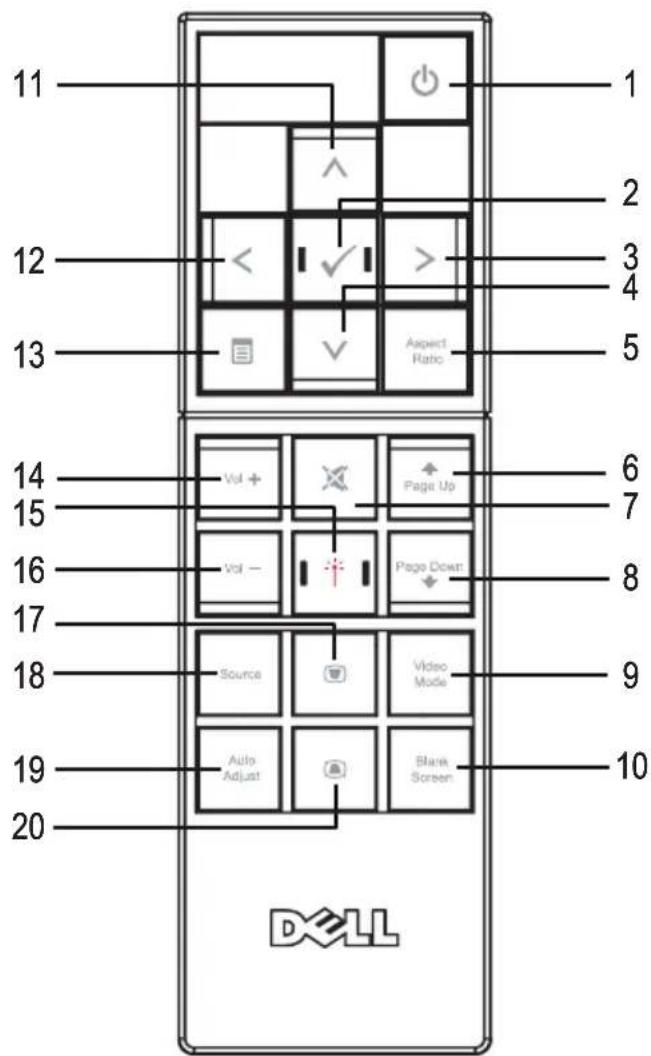

Using the Remote Control 32

Installing the Remote Control Batteries 35

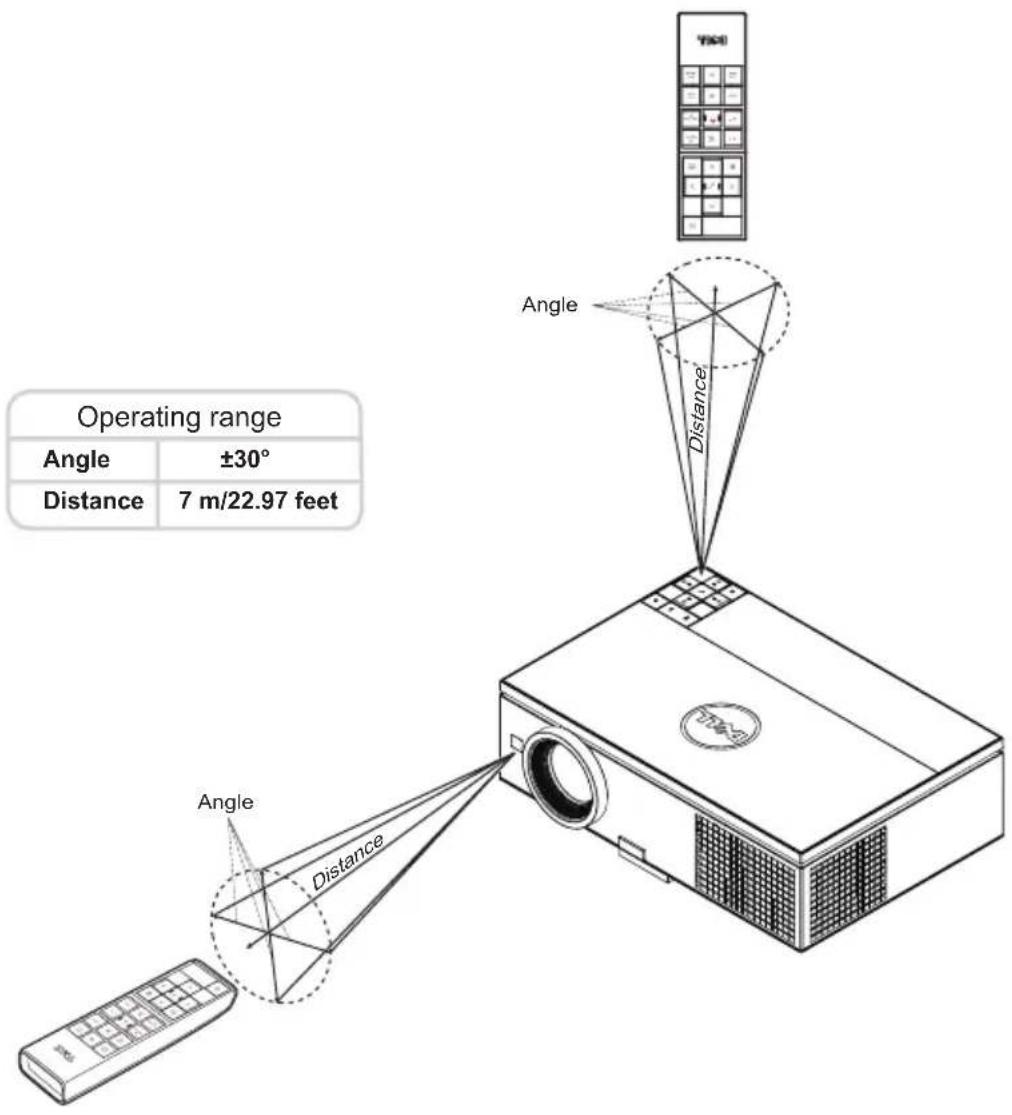

Operating Range With Remote Control ..... 36

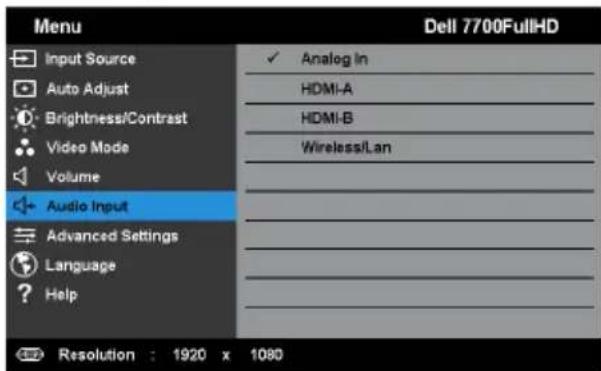

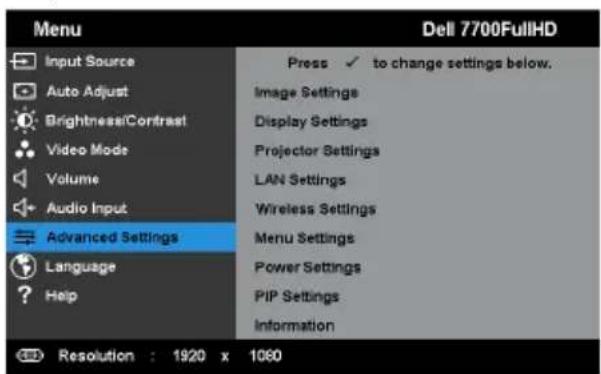

Using the On-Screen Display 37

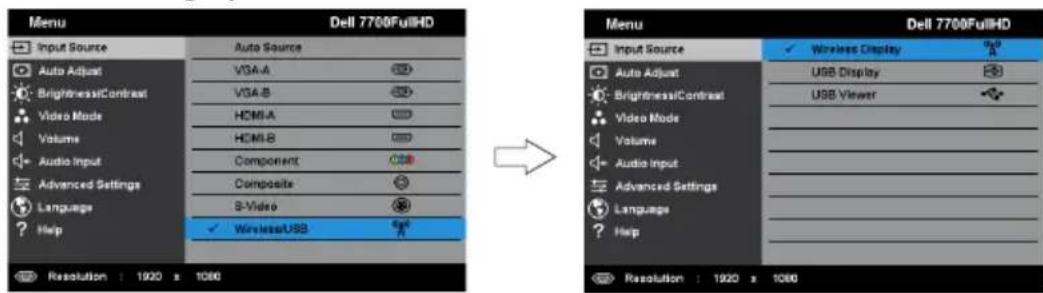

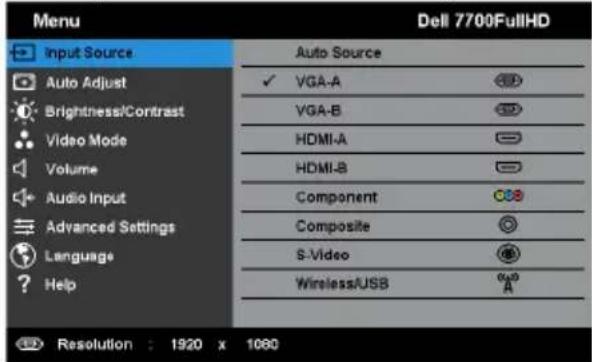

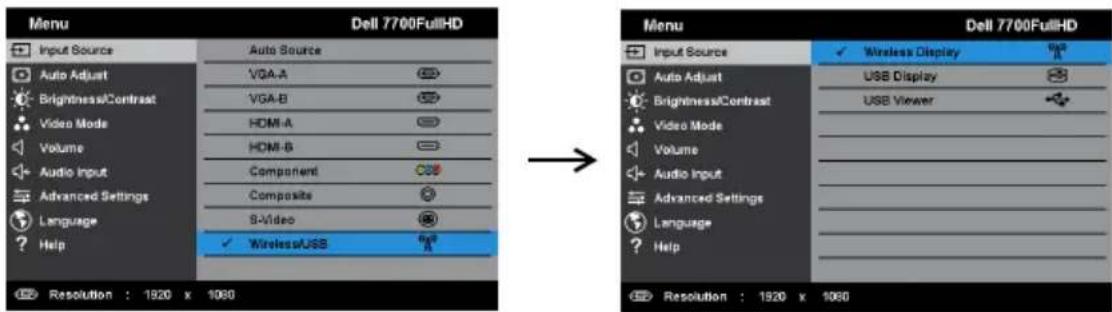

INPUT SOURCE 37

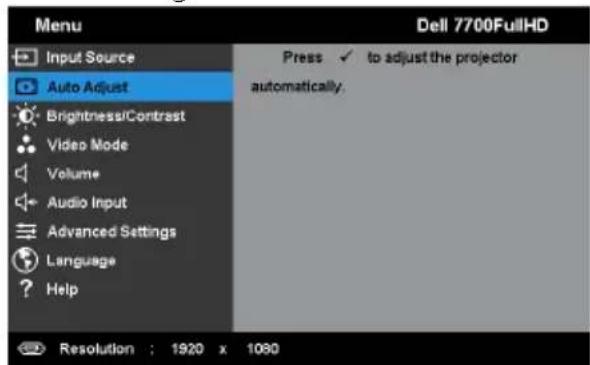

AUTO ADJUST 38

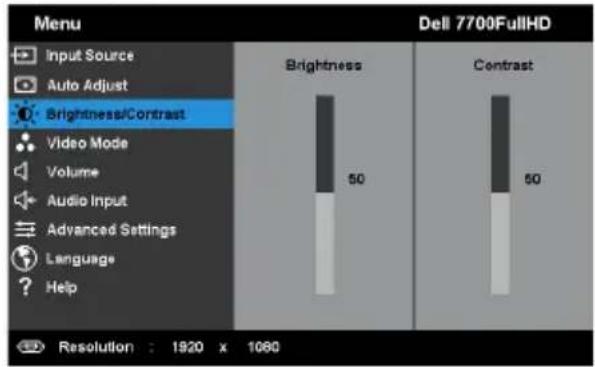

BRIGHTNESS/CONTRAST 39

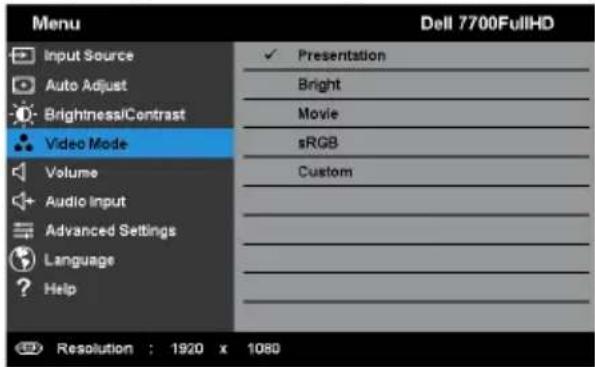

VIDEO MODE 39

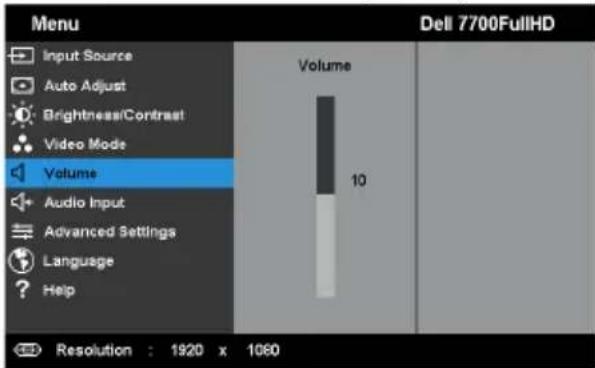

VOLUME 40

AUDIO INPUT 40

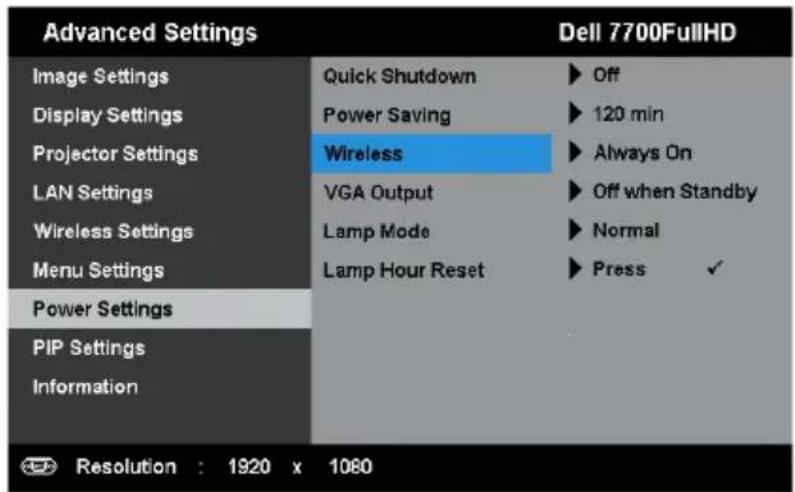

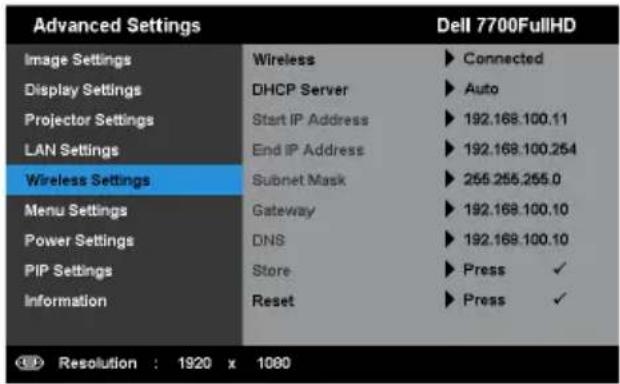

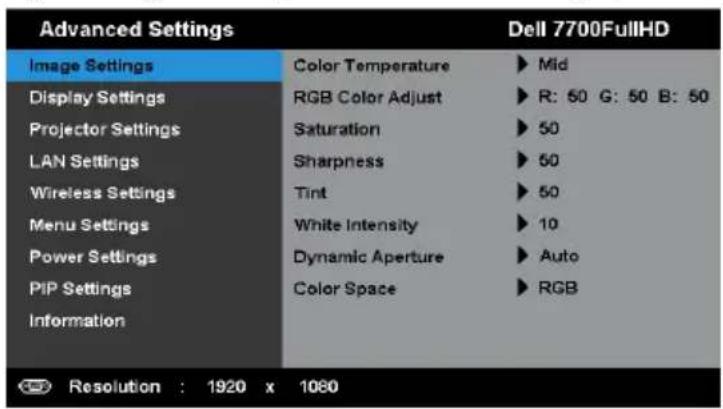

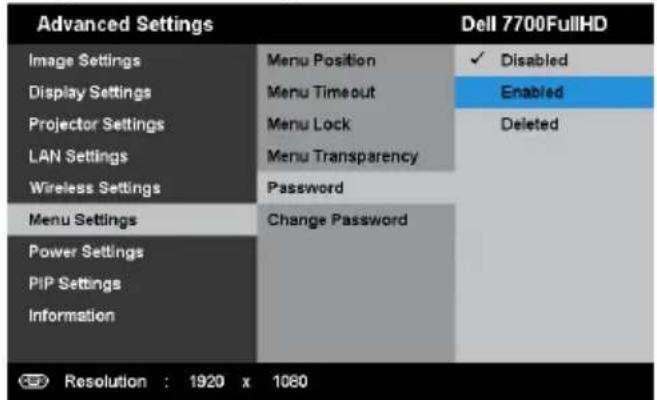

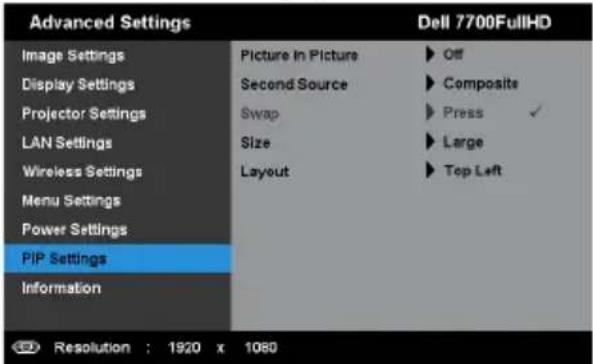

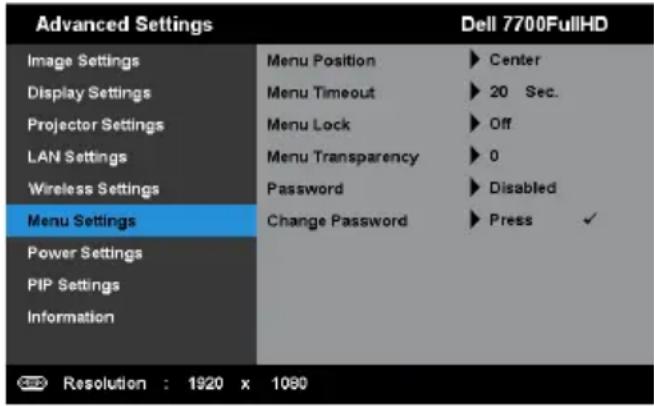

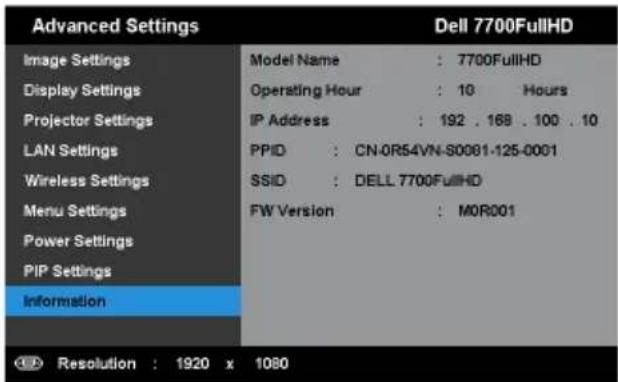

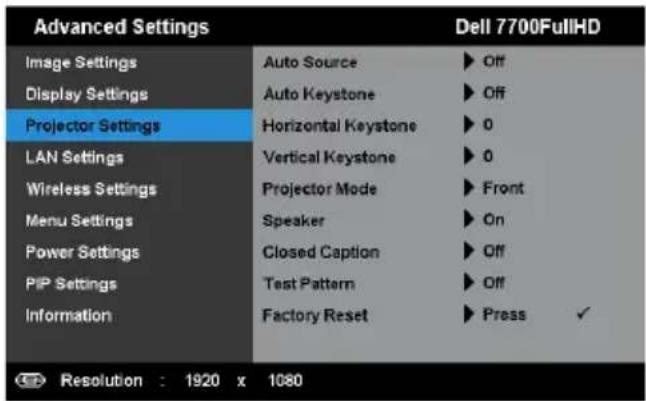

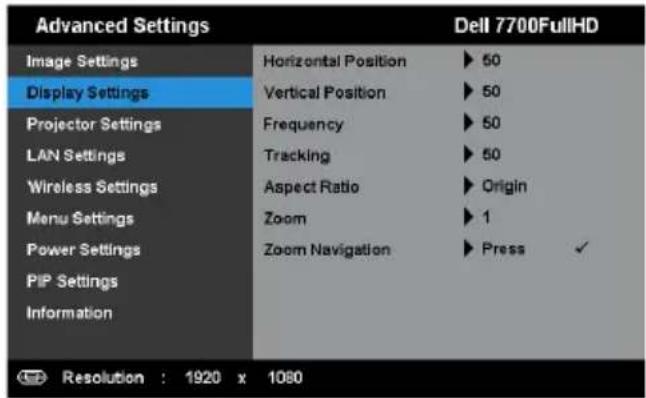

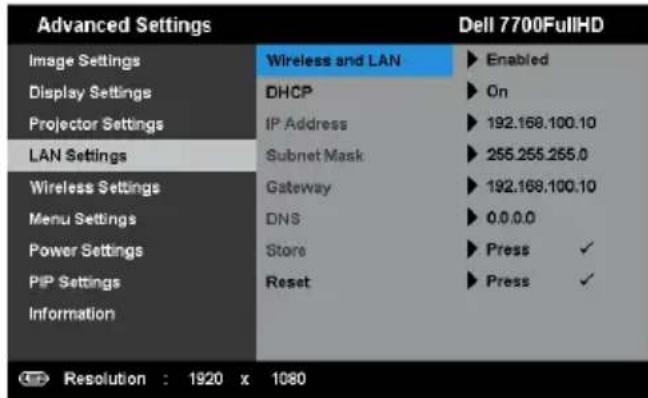

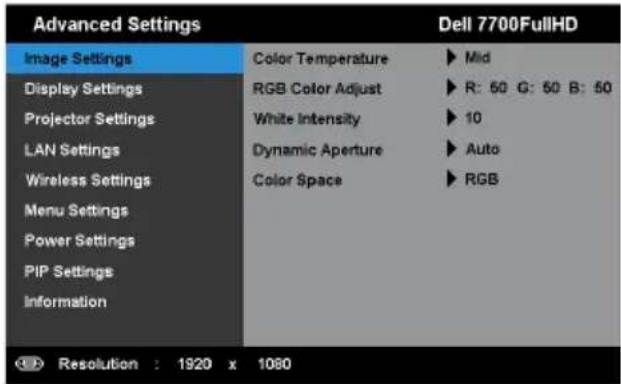

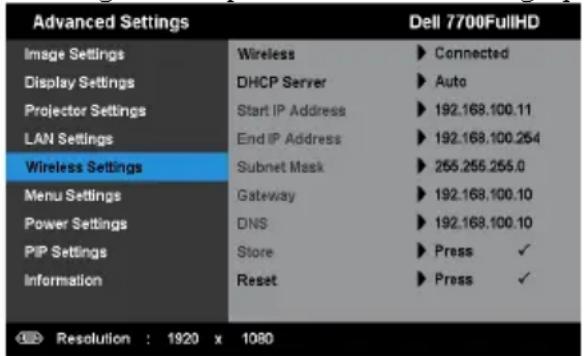

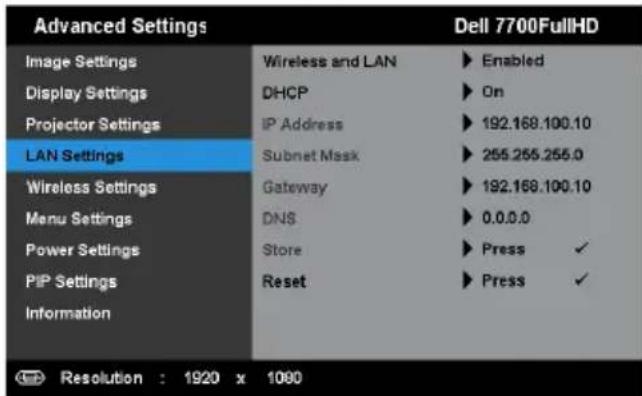

ADVANCED SETTINGS 40

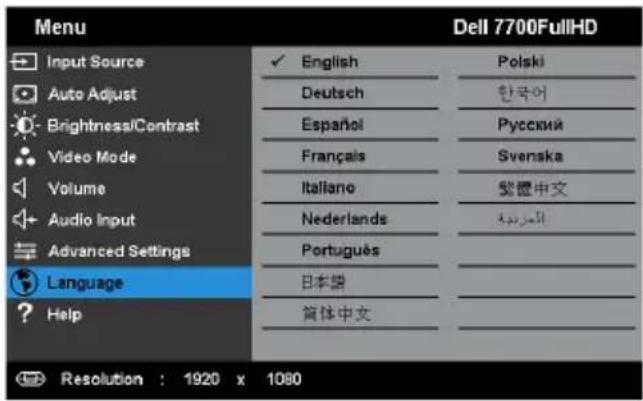

LANGUAGE 54

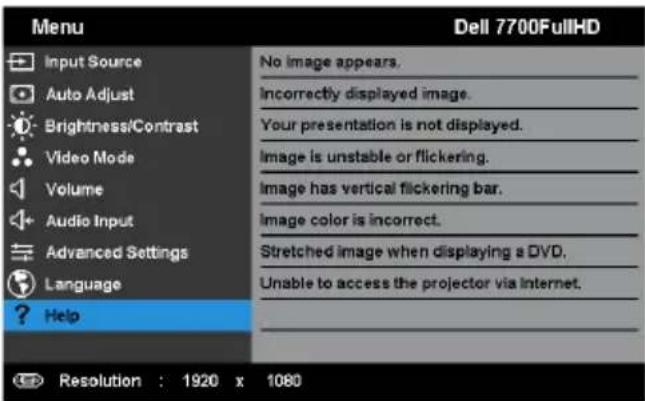

HELP 54

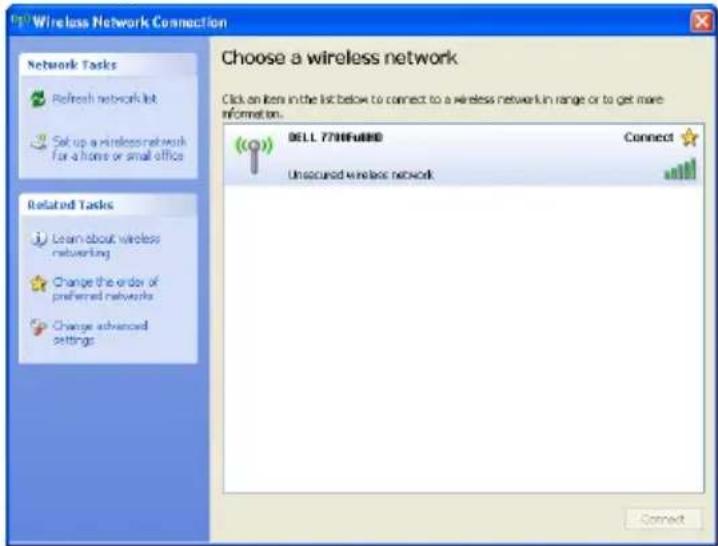

Wireless Networking Installation 55

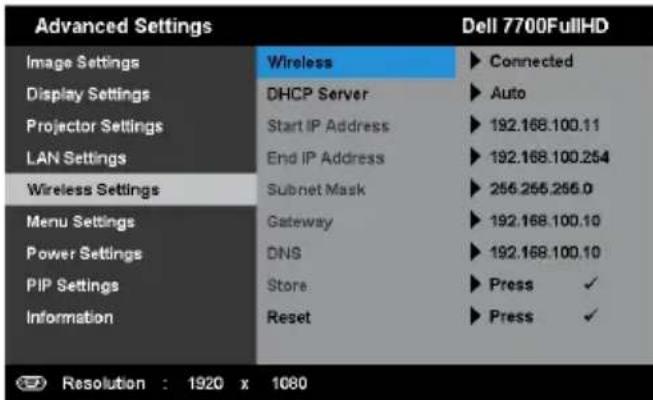

Enable Wireless on the Projector ..... 56

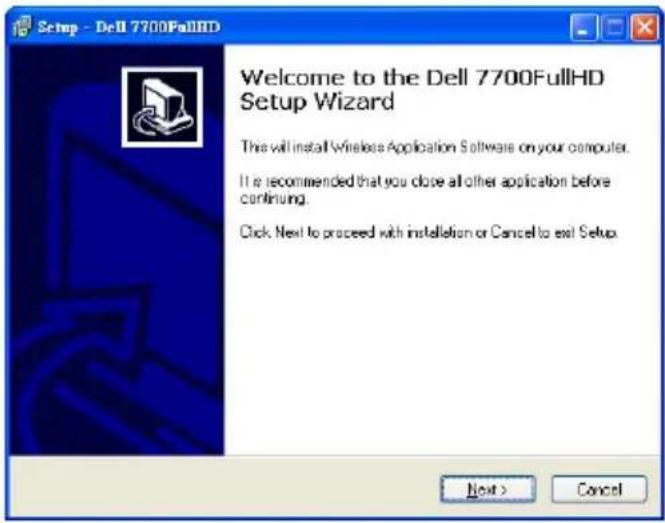

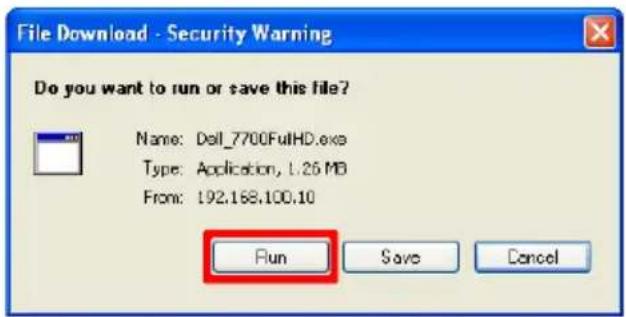

Install the Wireless Application Software on Your Computer 58

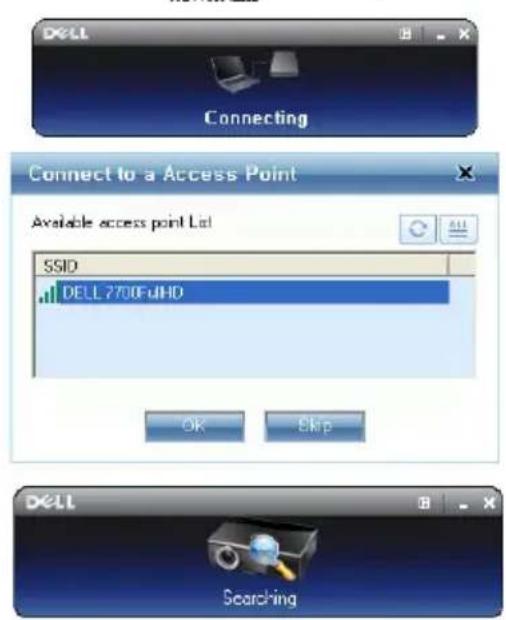

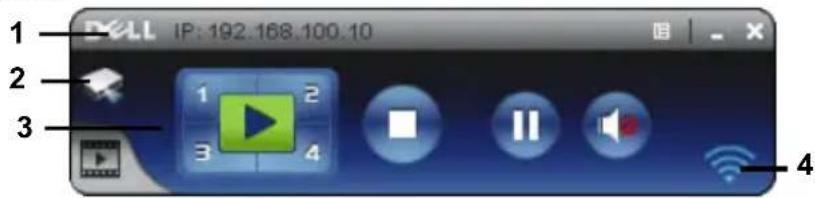

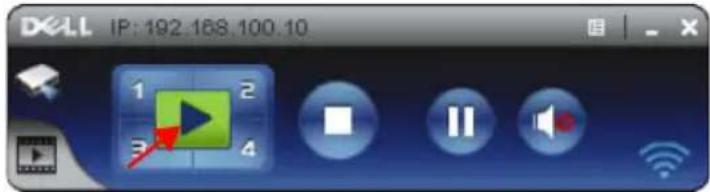

Launch the Wireless Application ..... 61

Presentation to Go (PtG) Installation 65

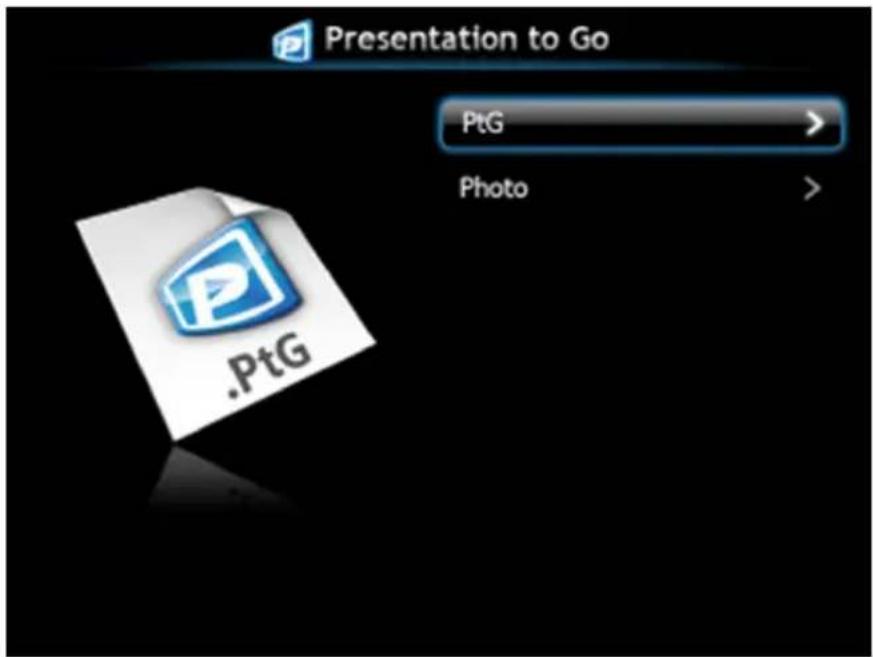

PtG Viewer 66

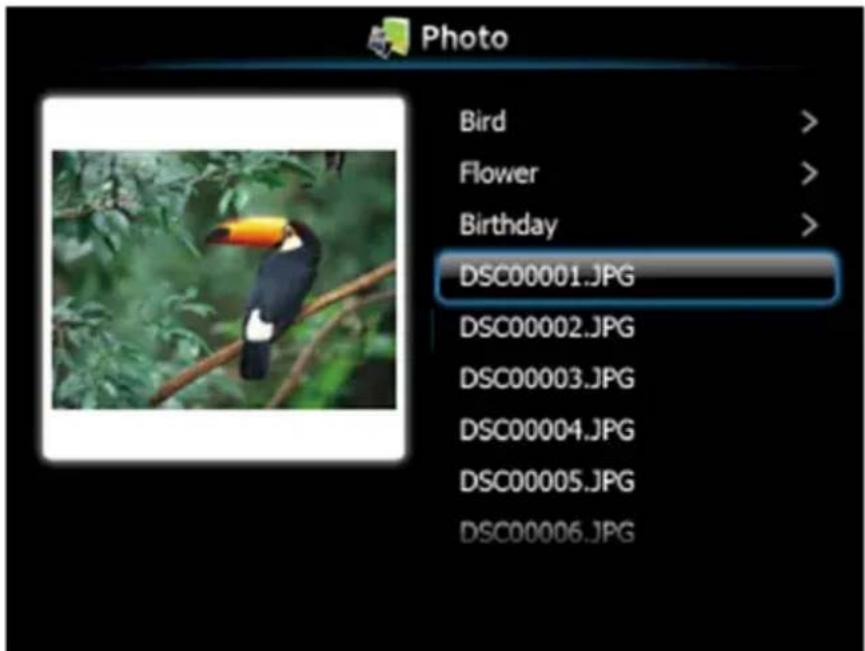

Photo Viewer 66

PtG/Photo Function Introduction 67

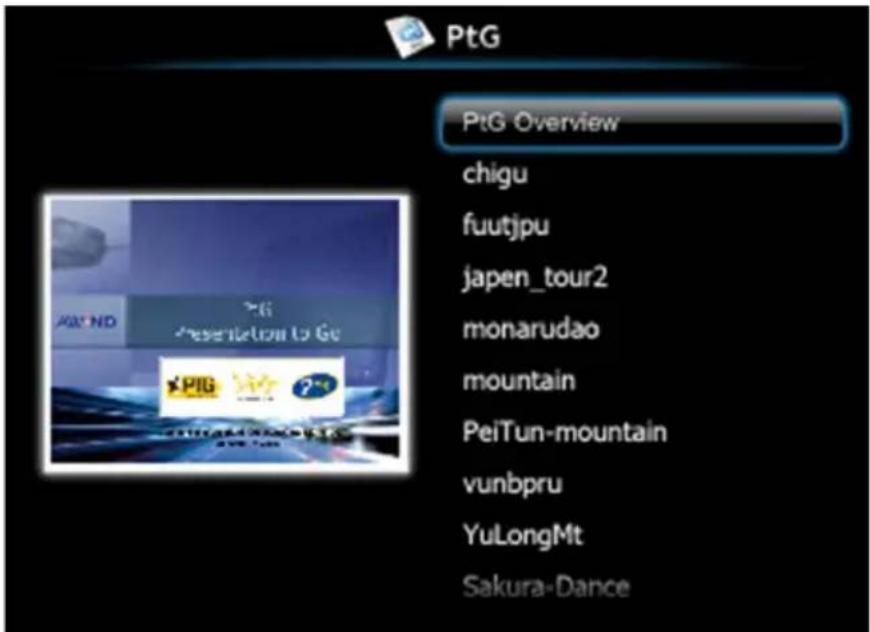

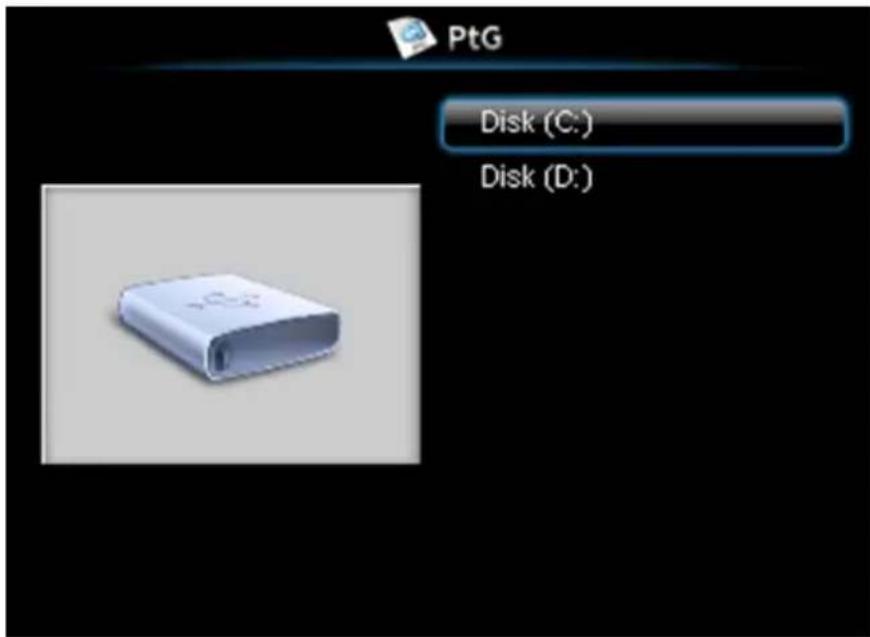

PtG Overview 67

Photo Overview 68

Buttons-Introduction 68

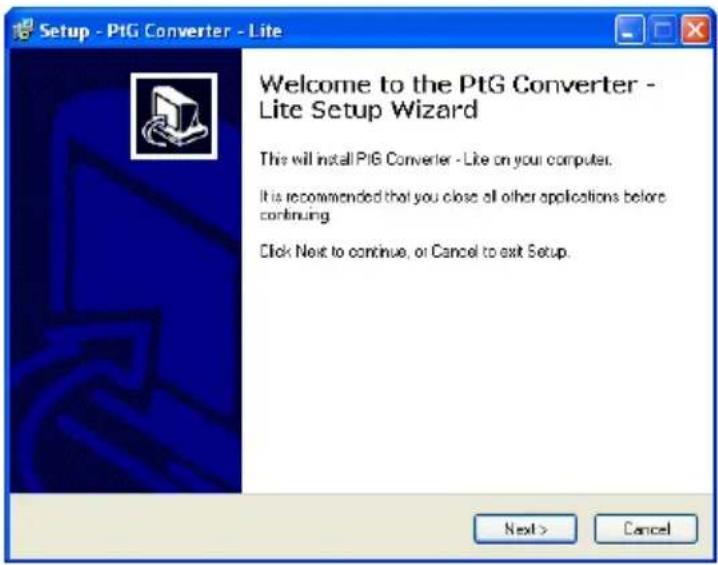

Install the PtG Converter Application Software on Your Computer 69

Using the PtG Converter 70

Audio Projection Installation 71

Enable Wireless or LAN on the Projector ..... 72

Install the Wireless Application Software on Your Computer 73

Launch the Wireless Application ..... 74

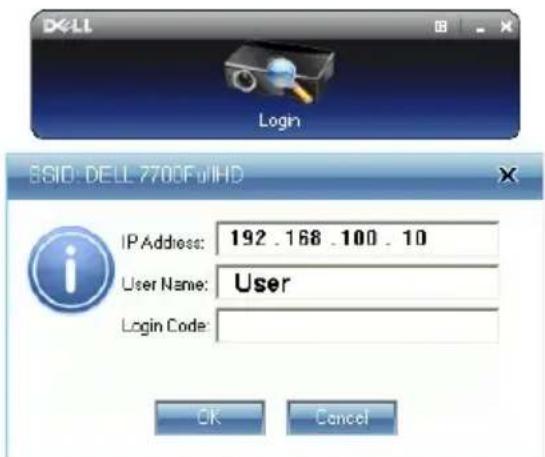

Login 75

Video Stream Installation 76

Video Stream Support Format 76

Enable Wireless or LAN on the Projector ..... 77

Install the Wireless Application Software on Your Computer 77

Launch the Wireless Application ..... 77

Login 77

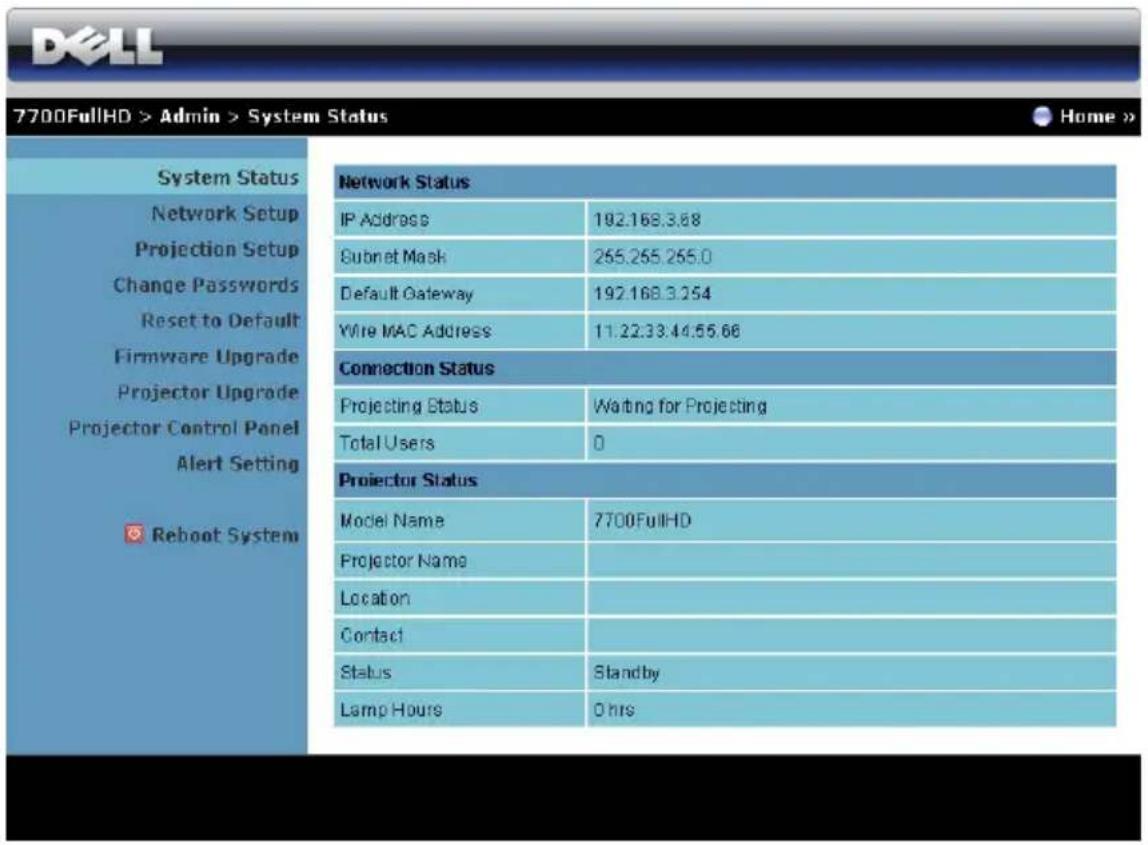

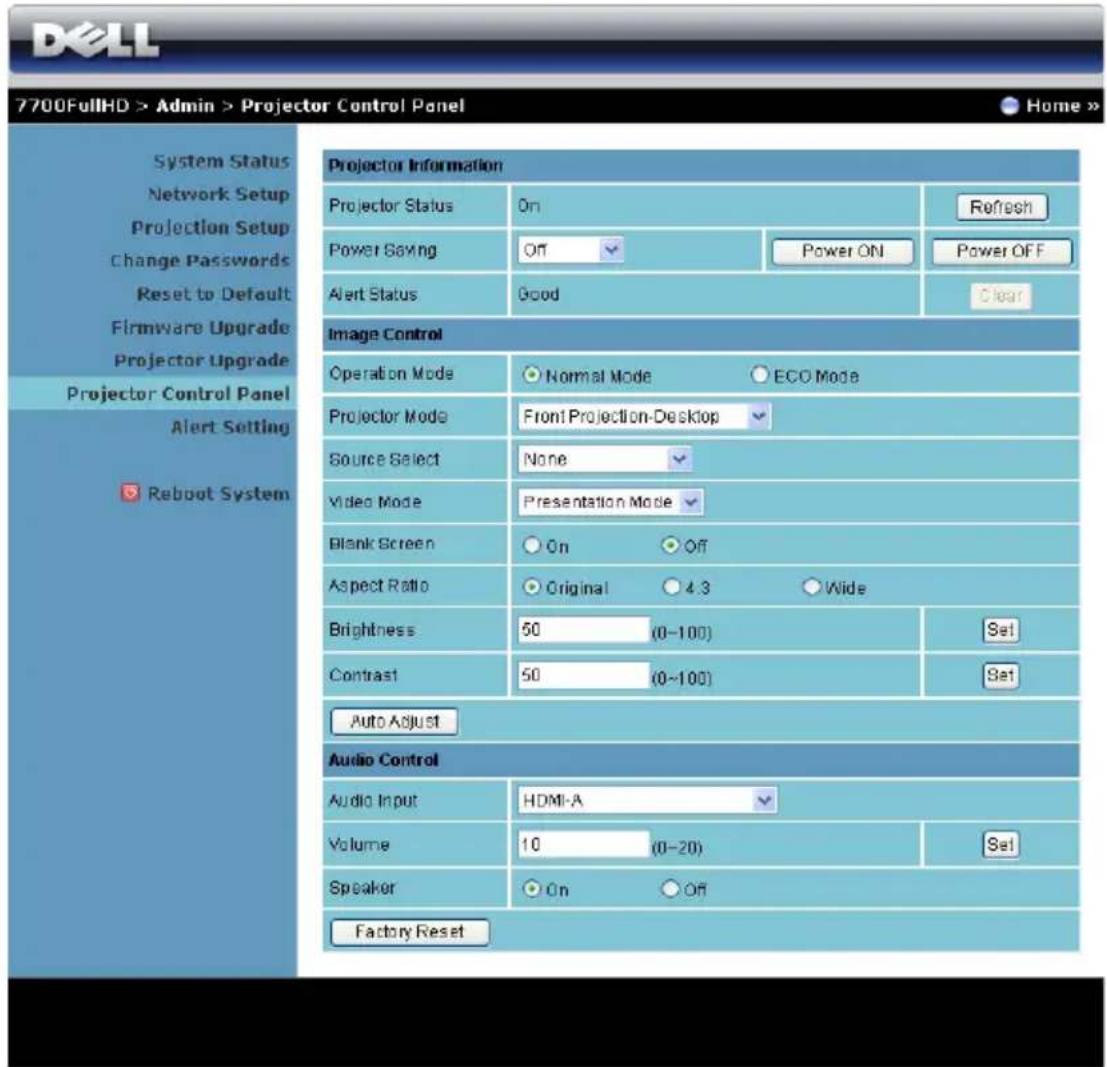

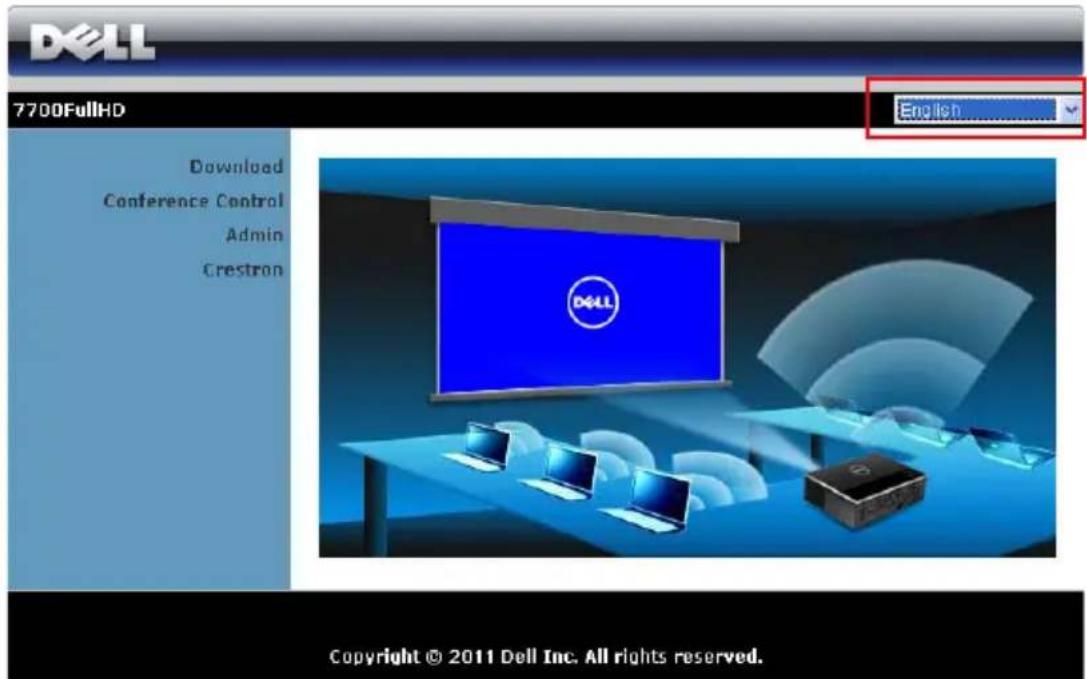

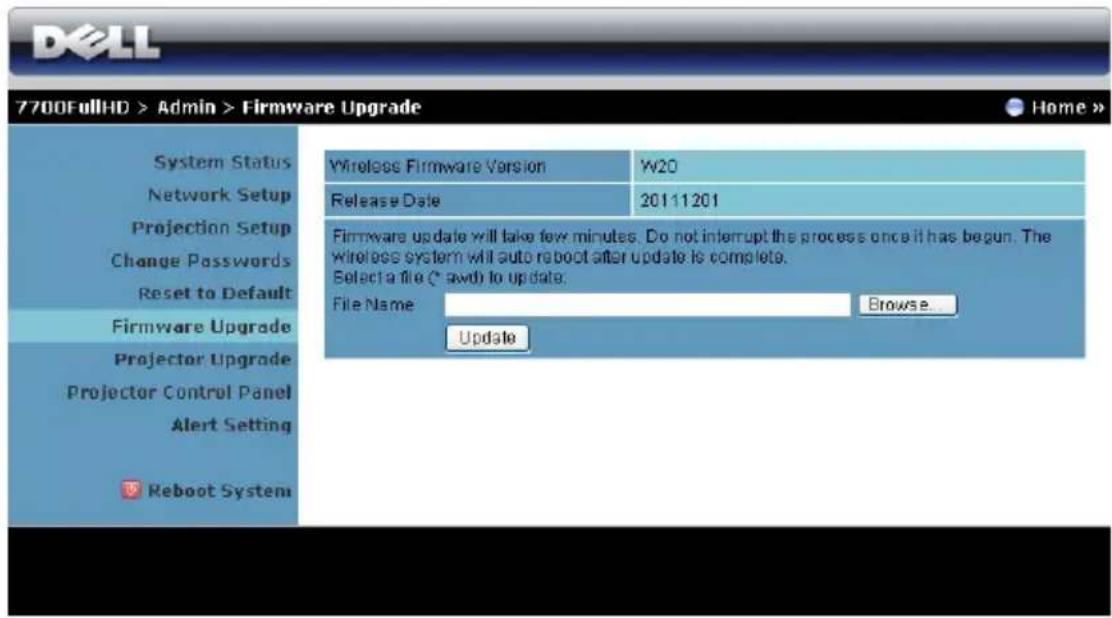

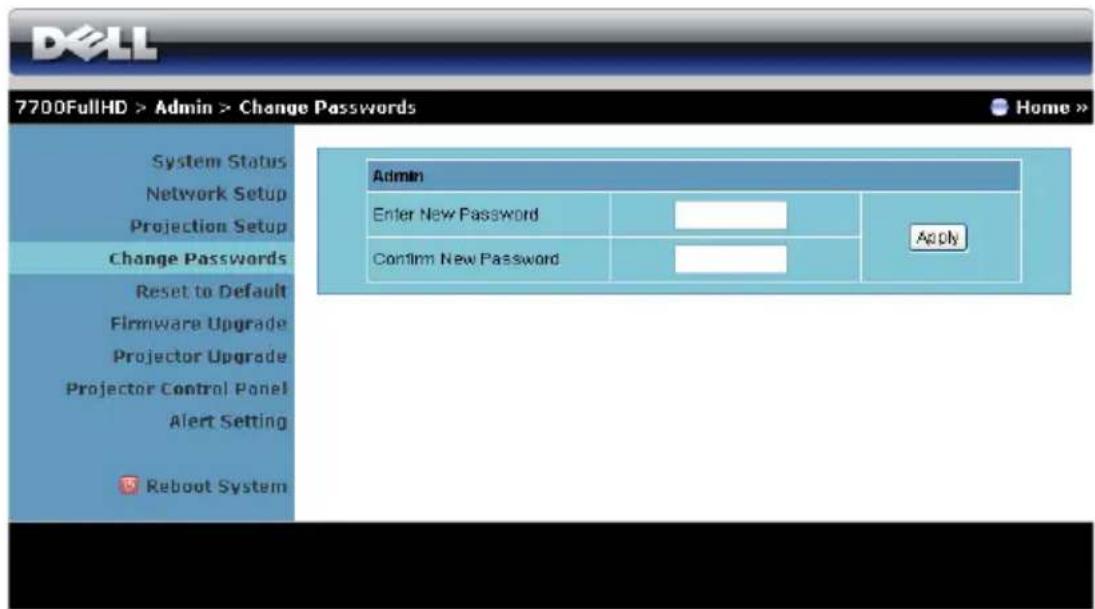

Managing the Projector From Web Management . . . . 78

Configuring the Network Setting 78

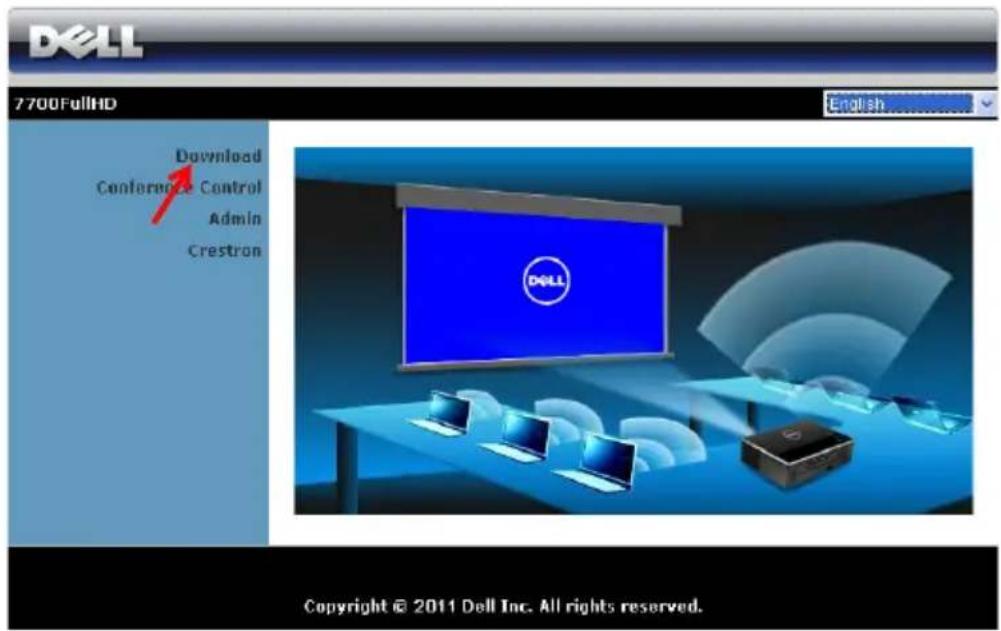

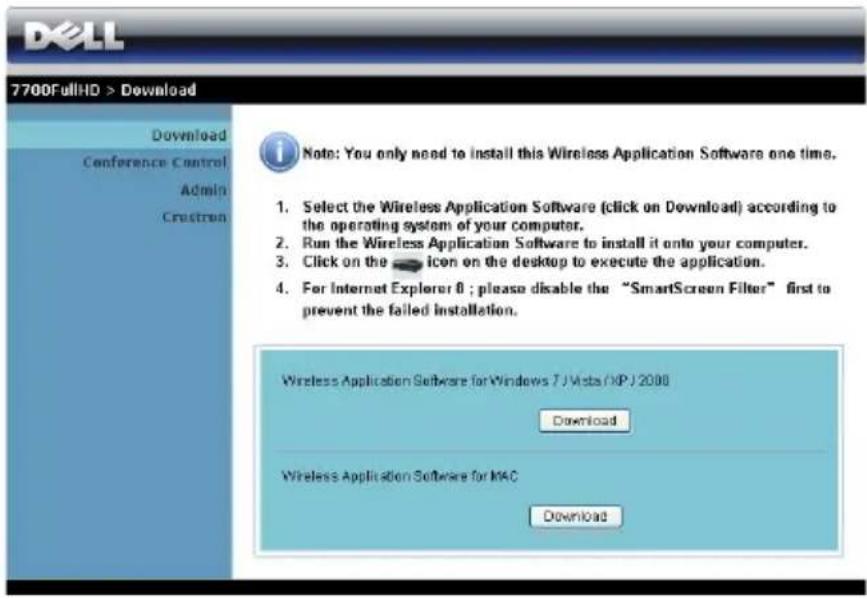

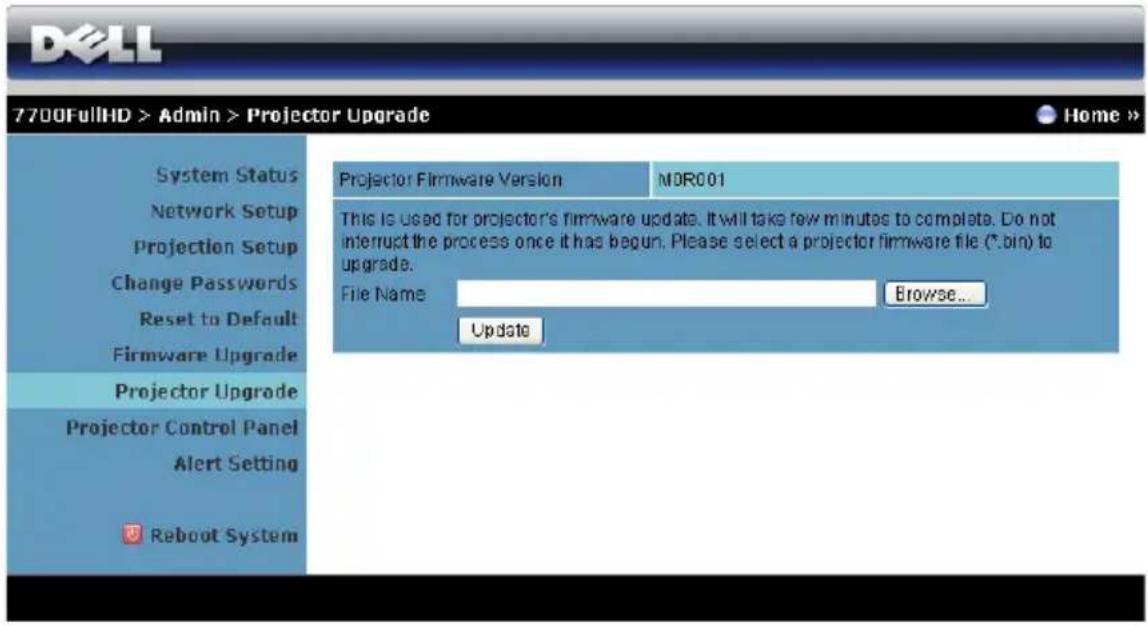

Accessing Web Management 78

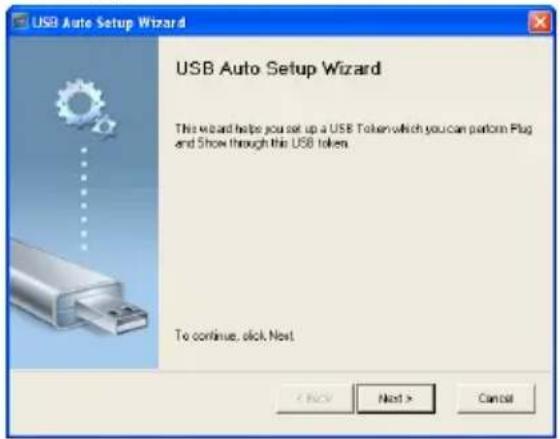

Make Application Token 99

4 Troubleshooting Your Projector ..... 101

Guiding Signals 105

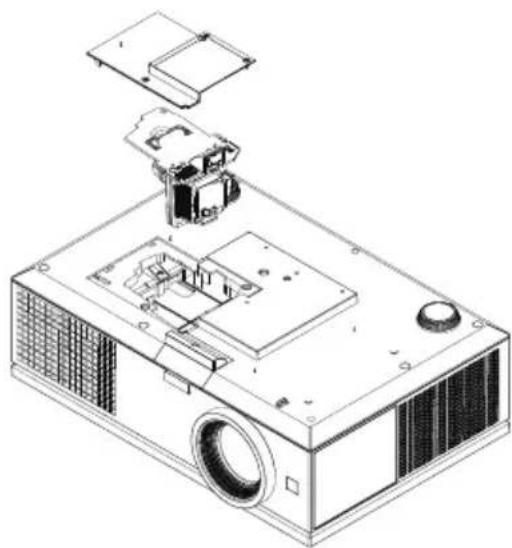

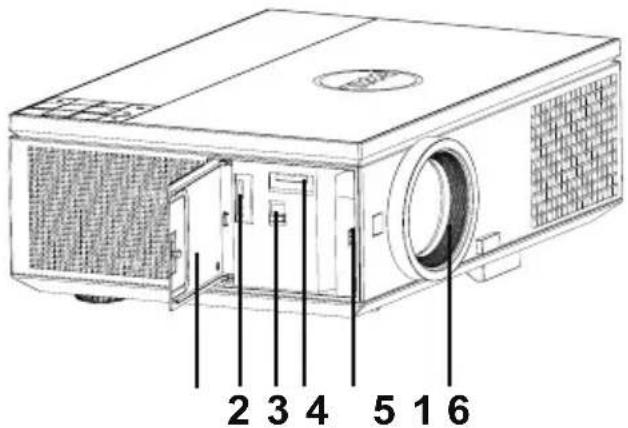

Changing the Lamp 106

5 Specifications 108

6 Contacting Dell 115

7 Appendix: Glossary 116

Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell ^™ if anything is missing.

Package Contents

Power cable 1.8 m VGA cable (VGA to VGA)

Illustration of a bundle of cables with two connectors and a terminal plug (no text or symbols)

Pure electrical circuit lines without any symbols

1.8 m USB cable (USB-A to USB-B) Remote control

Line drawing of a USB cable with connectors (no text or symbols)

CD User's Guide and Documentation AAA Batteries (2)

About Your Projector

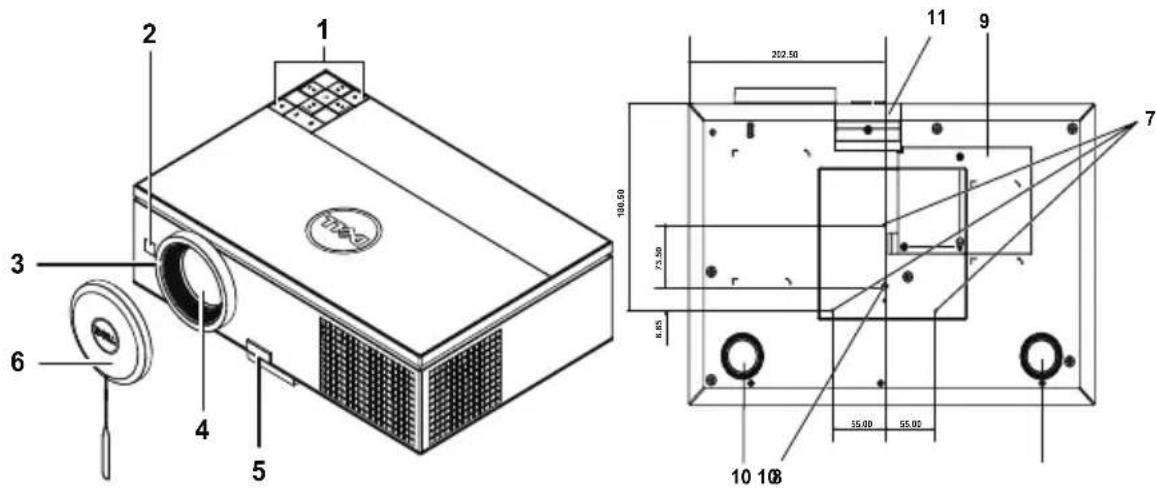

Top View

1 Control panel

2 IR receivers

3 Focus ring

4 Lens

5 Elevator button for height adjustments

6 Lens cap

7 Mounting holes for ceiling mount: Screw hole M3 x 6.5 mm depth.Recommended torque <8 kgf-cm

8 Mounting hole for tripod: Insert nut 1/4"*20 UNC

9 Lamp cover

10 Tilt adjustment wheel

11 Elevator foot

CAUTION: Safety Instructions

1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The dust may cause the system to fail and the projector will automatically shut down.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 °C to 35 °C).

6 Do not try to touch the ventilation outlet as it can become very hot after the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to your eyes.
8 Do not place any objects near or in front of the projector or cover its lens while the projector is on as the heat may cause the object to melt or burn.
9 Do not use the wireless projector near cardiac pacemakers.

10 Do not use the wireless projector near medical equipment.

11 Do not use the wireless projector near microwave ovens.

NOTE:

• Do not attempt to ceiling mount the projector yourself. It should be installed by a qualified technician.
• Recommended Projector Ceiling Mount Kit (P/N: C3505). For more information, see the Dell Support website at support.dell.com.
• For more information, see the Safety Information that shipped with your projector.
• The 7700FullHD projector can only be used indoors.

2

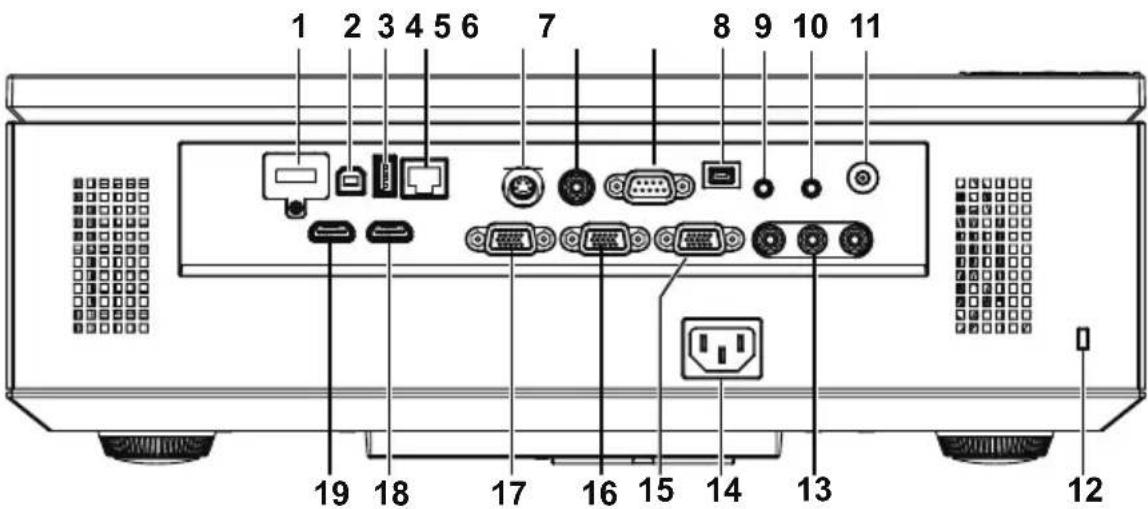

Connecting Your Projector

1	WiFi USB (Type A) connector	11	+12 V DC out connector
2	USB Type B connector for USB Display	12	Security cable slot
3	USB Type A connector for USB Viewer	13	Component Video input connector
4	RJ45 connector	14	Power cord connector
5	S-Video connector	15	VGA-A output (monitor loop-through) connector
6	Composite Video connector	16	VGA-B input (D-sub) connector
7	RS232 (D-sub) connector	17	VGA-A input (D-sub) connector
8	Mini USB (Mini Type B) connector for remote control	18	HDMI-B connector
9	Audio output connector	19	HDMI-A connector
10	Audio input connector

CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions as described on page 8.

Installing the Optional Wireless Dongle

Your projector must be installed with a wireless dongle if you want to use the wireless networking option. Refer to "Wireless Networking Installation" on page 55. The wireless dongle is not shipped with your projector. You can purchase it on the Dell website at www.dell.com.

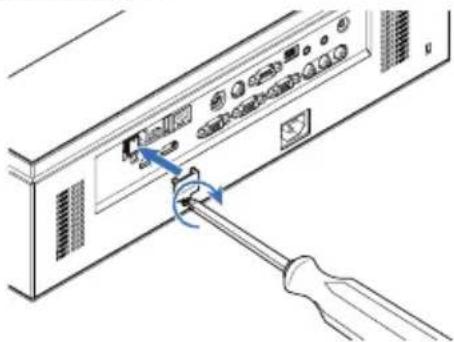

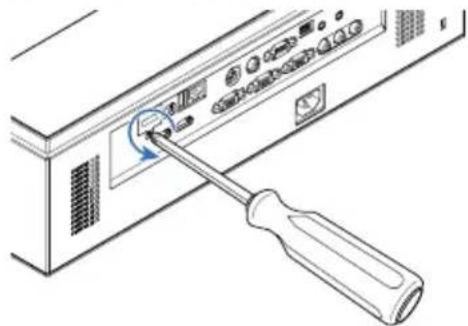

1 Unscrew and take off the wireless cover.

Illustration of a screwdriver inserted into a rack-mounted device with ports and buttons (no text or symbols visible)

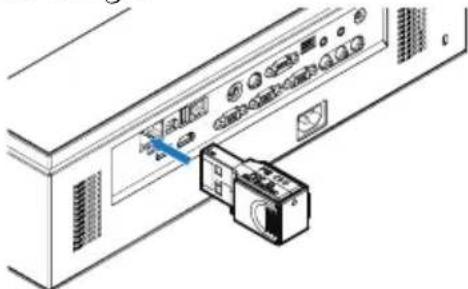

2 Plug in the wireless dongle.

Diagram of a server rack with ports and a cable connector (no text or symbols)

3 Assemble the wireless cover.

Diagram of a computer interface showing a cable inserted into a drive, with no visible text or symbols

Connecting to a Computer

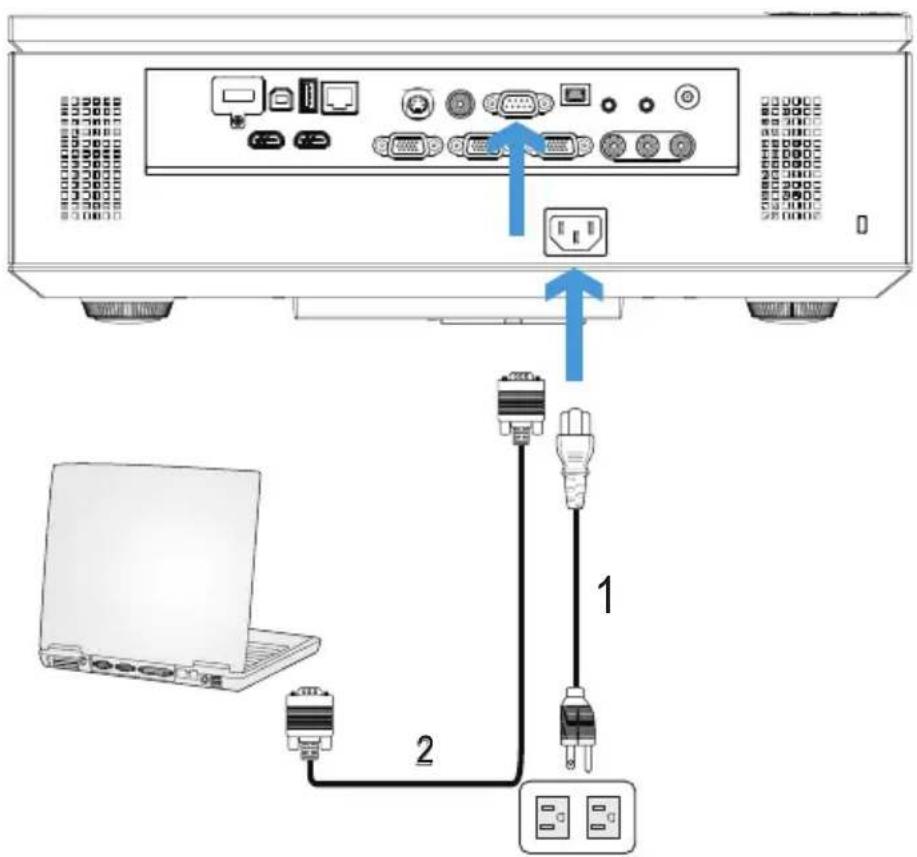

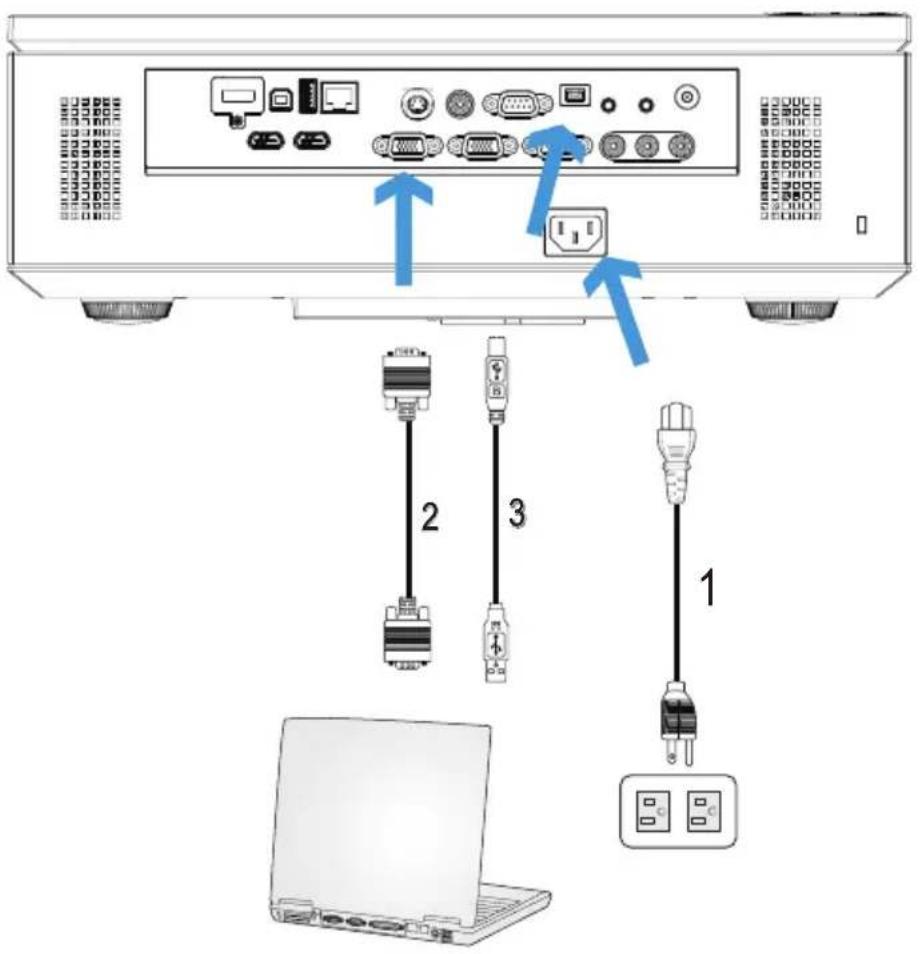

Connecting a Computer Using a VGA Cable

1 Power cord

2 VGA to VGA cable

3 USB-A to Mini USB-B cable

NOTE: The Mini USB cable must be connected if you want to use the Page Up and Page Down features on the remote control.

NOTE: The Mini USB cable is not shipped with your projector. You can purchase the Mini USB cable on the Dell website at www.dell.com.

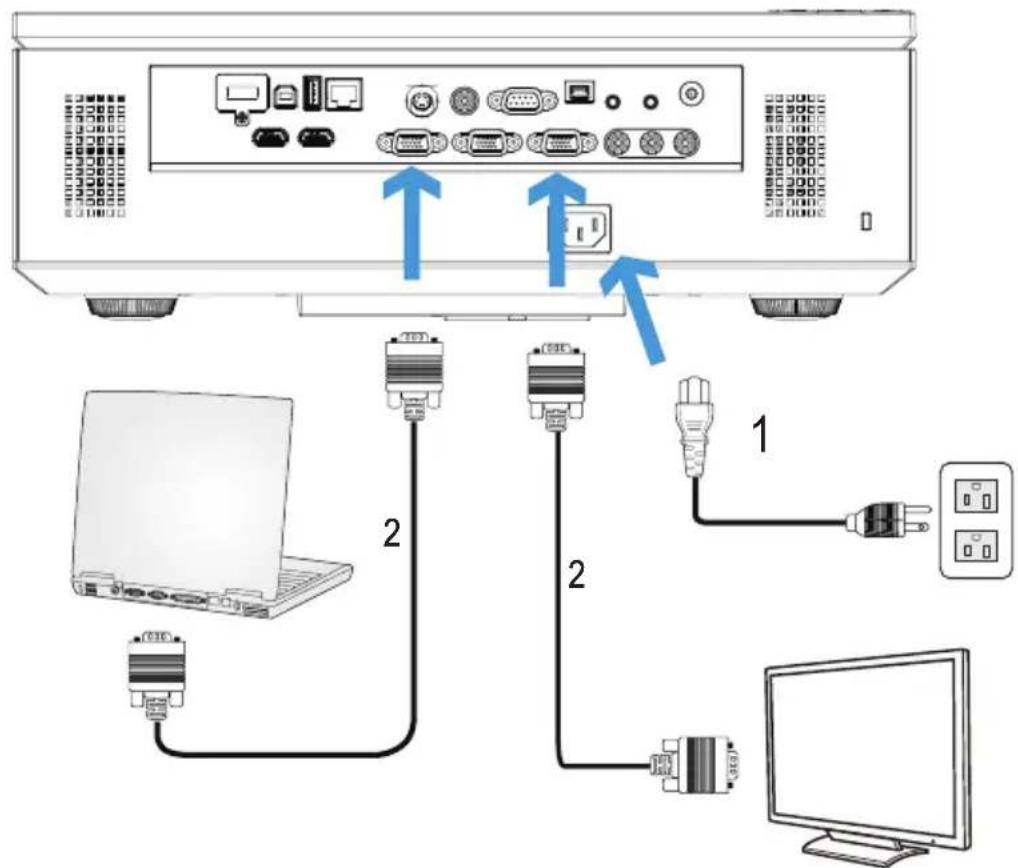

Monitor Loop-Through Connection Using VGA Cables

1 Power cord

2 VGA to VGA cable

NOTE: Only one VGA cable is shipped with your projector. An additional VGA cable can be purchased on the Dell website at www.dell.com.

Connecting a Computer Using a RS232 Cable

l	P o w e r c o
2 RS2	32 (9-pin D-sub female to female pin2-3 swap) cable

r d

NOTE: The RS232 (9-pin D-sub female to female pin2-3 swap) cable is not shipped with your projector. Consult a professional installer for the cable and RS232 remote control software.

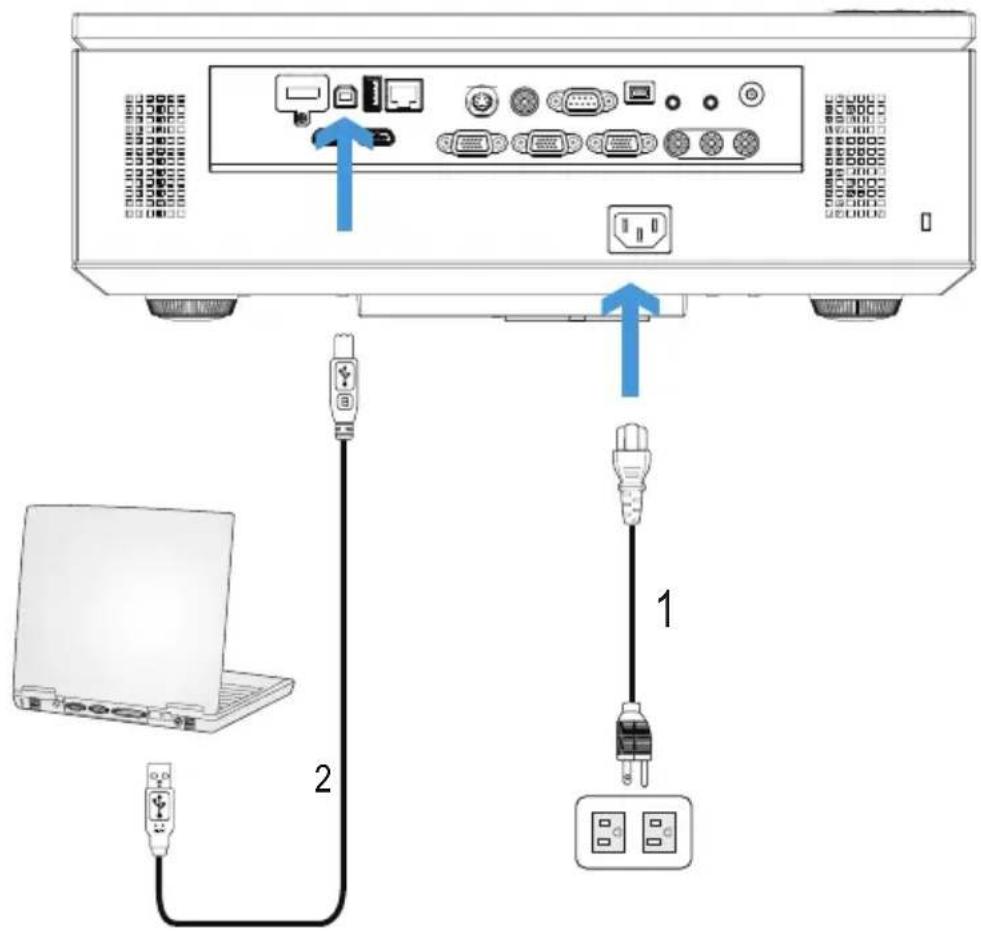

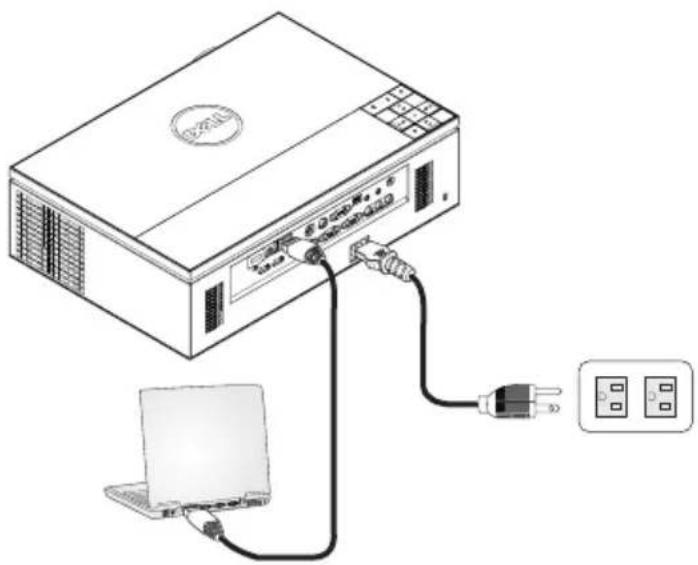

Connecting a Computer by USB Cable

l	P	o	w	e	r	c	o	r
2 USB-A to USB-B cable

d

NOTE: Plug and Play. Only one USB cable is shipped with your projector. An additional USB cable can be purchased on the Dell website at www.dell.com.

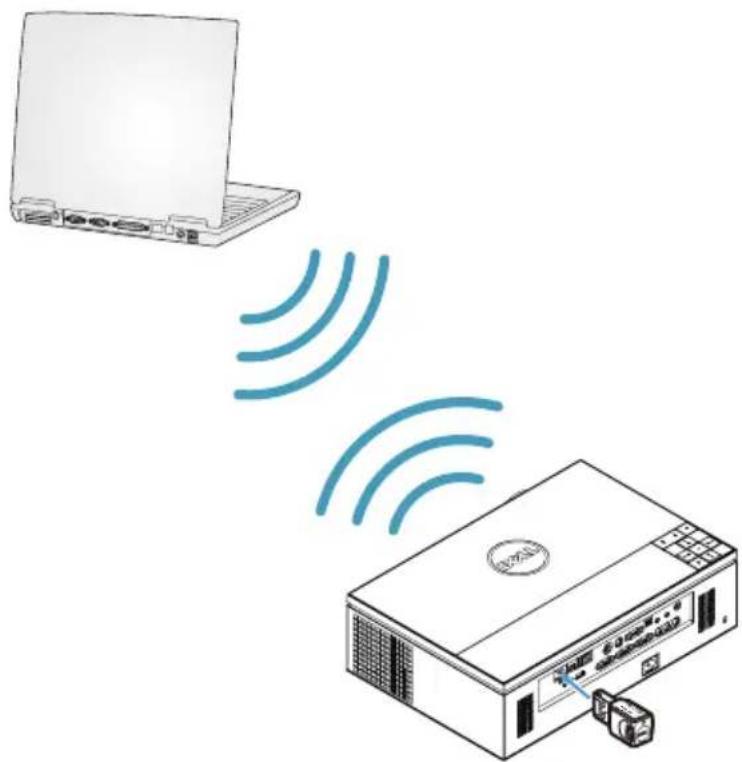

Connecting a Computer Using Wireless Dongle (Optional)

Illustration of a laptop connected to a network device with signal waves (no text or symbols)

NOTE: Your computer should be equipped with a wireless connector and properly configured to detect another wireless connection. Refer to your computer's documentation on how to configure a wireless connection.

NOTE: Your projector must be installed with a wireless dongle if you want to use the wireless networking. Refer to "Wireless Networking Installation" on page 55.

Connecting a DVD Player

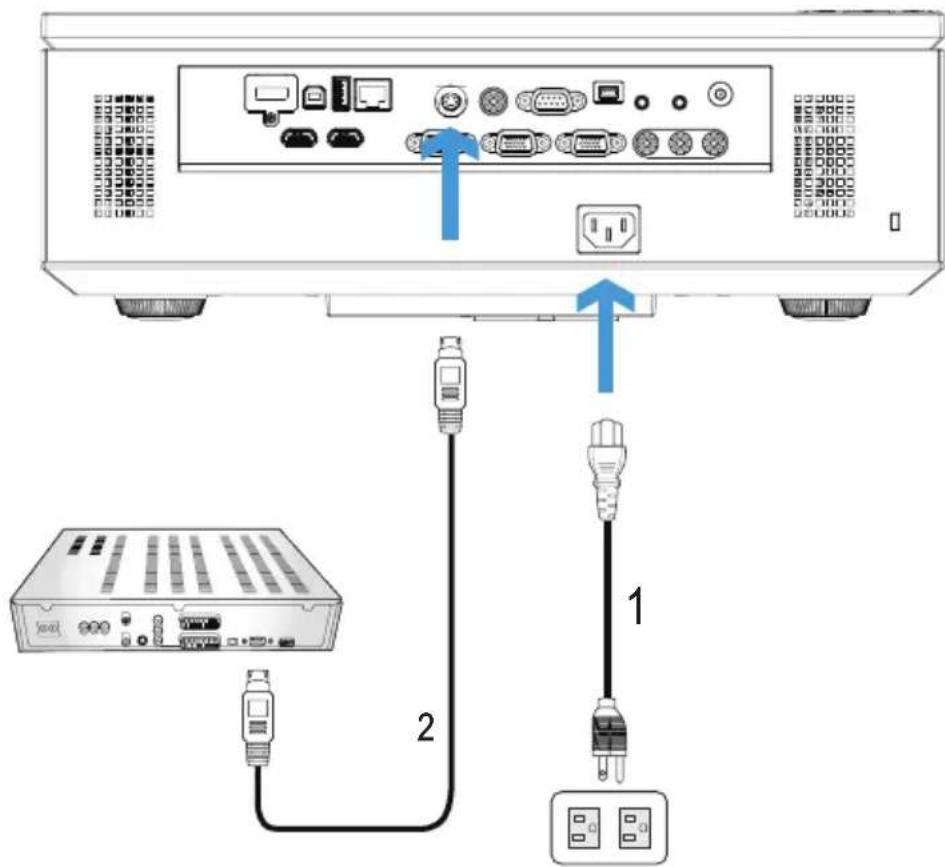

Connecting a DVD Player Using an S-Video Cable

1 Power cord

2 S-Video cable

NOTE: The S-Video cable is not shipped with your projector. You can purchase the S-Video extension (50 ft/100 ft) cable on the Dell website at www.dell.com.

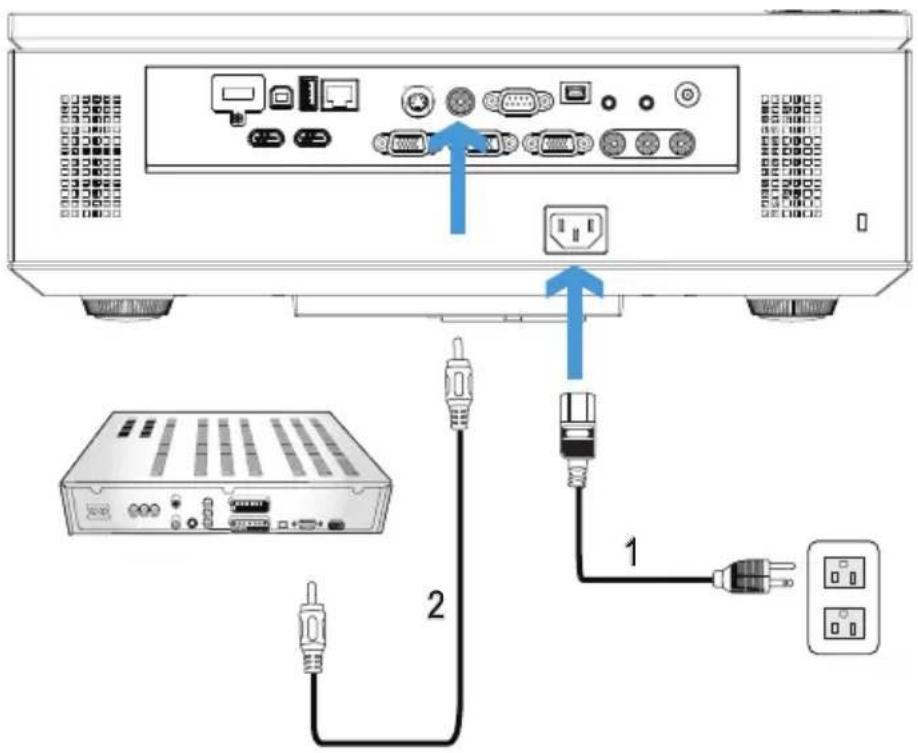

Connecting a DVD Player Using a Composite Video Cable

1 Power cord

2 Composite Video cable

NOTE: The Composite Video cable is not shipped with your projector. You can purchase the Composite Video Extension (50 ft/100 ft) cable on the Dell website at www.dell.com.

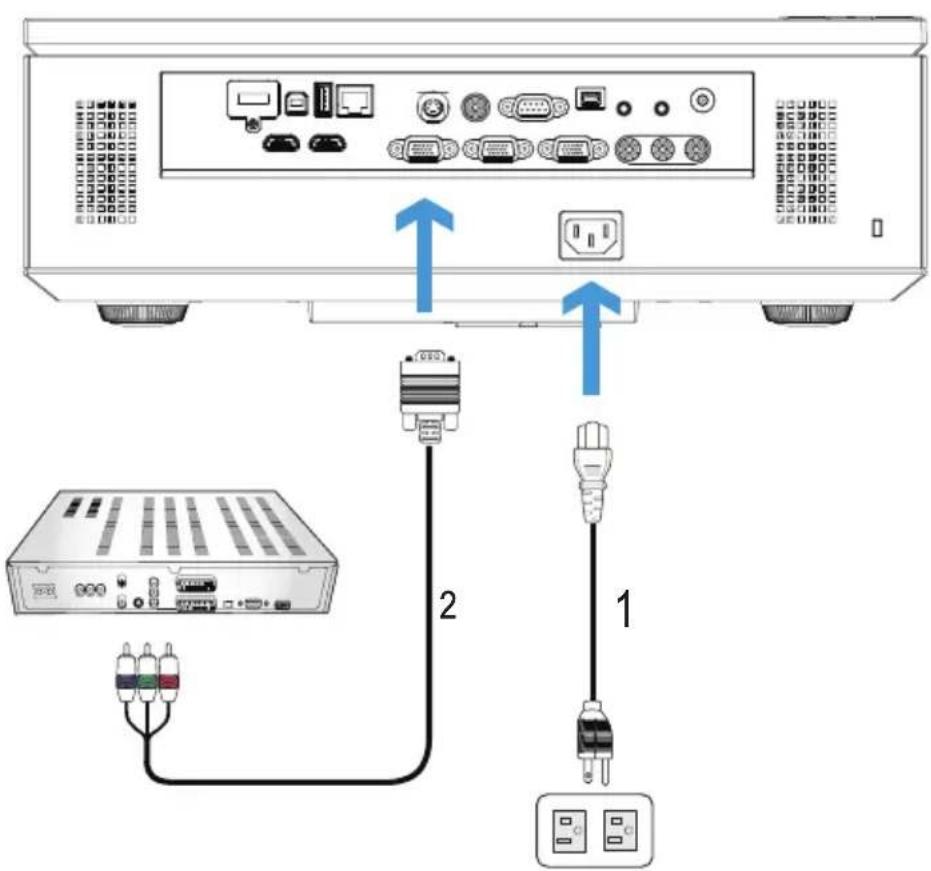

Connecting a DVD Player Using a Component Video Cable

1 Power cord

2 VGA to Component Video cable

NOTE: The VGA to Component Video cable is not shipped with your projector. You can purchase the VGA to Component Video Extension (50 ft/100 ft) cable on the Dell website at www.dell.com.

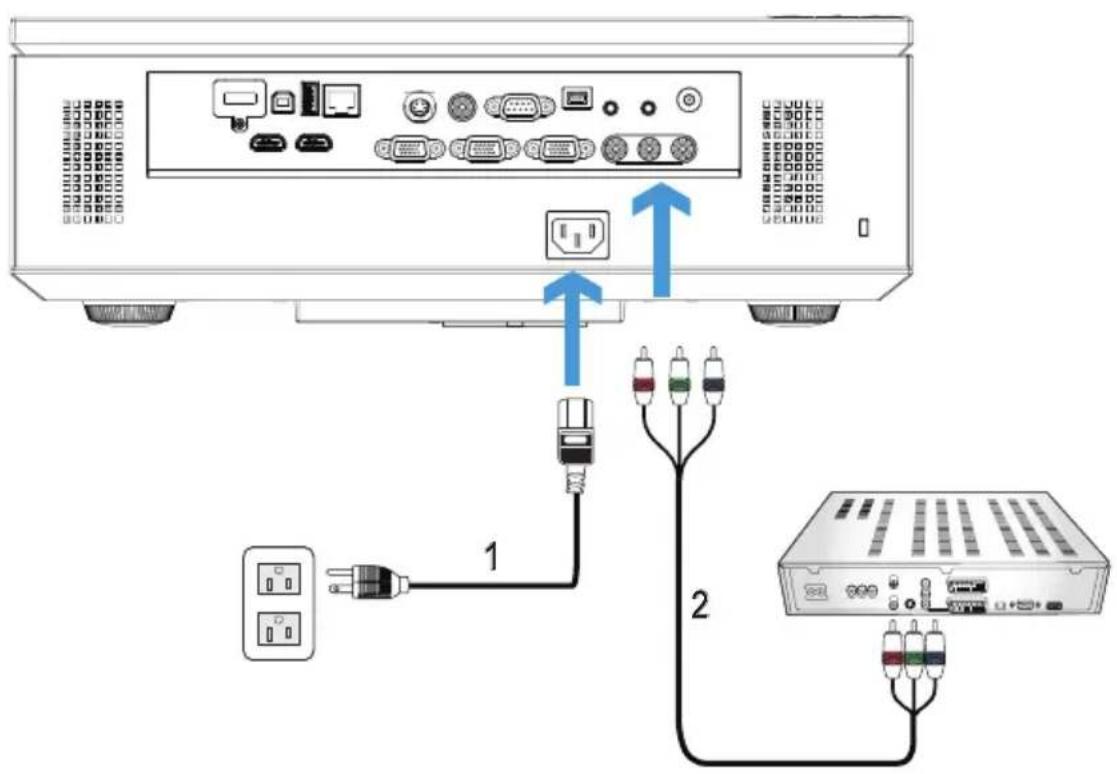

Connecting a DVD Player Using a 3 RCA Component Video Cable

l	P o w c r c o r
2 3 RCA to 3 RCA Component Video (Male to Male) cable

d

NOTE: The 3 RCA to 3 RCA Component Video (Male to Male) cable is not shipped with your projector. You can purchase the 3 RCA to 3 RCA Component Video (Male to Male) cable Extension (50 ft/100 ft) cable on the Dell website at www.dell.com.

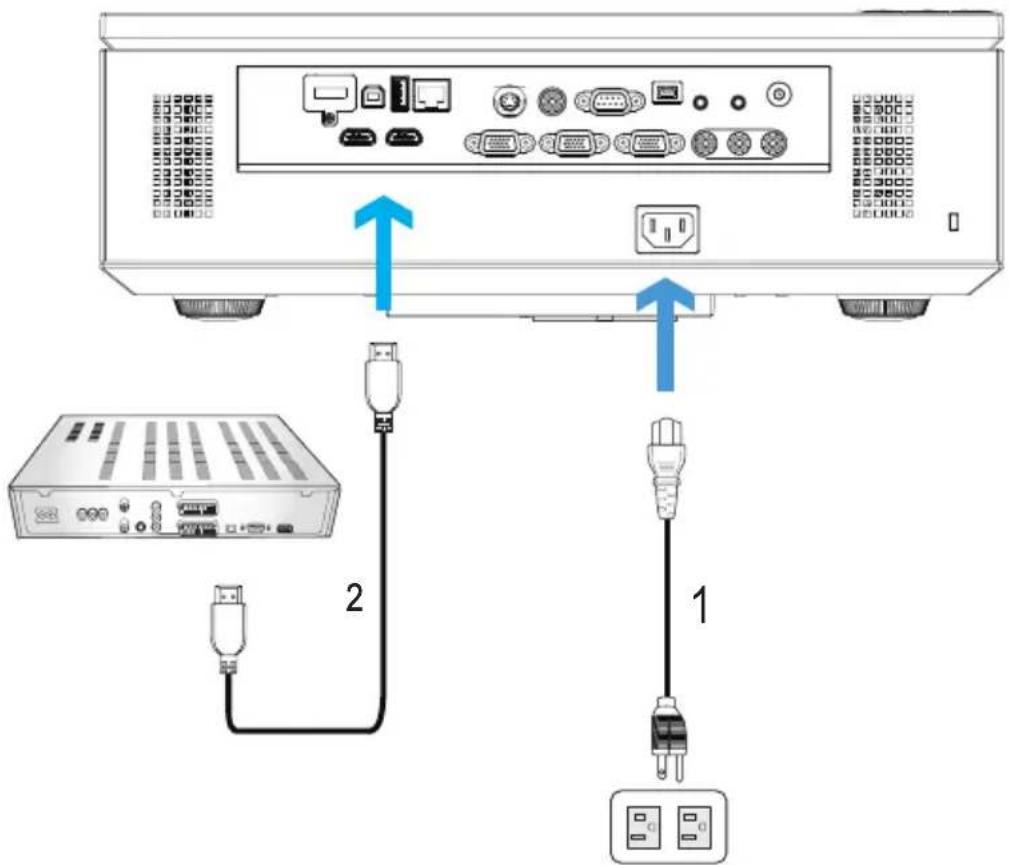

Connecting a DVD Player Using an HDMI Cable

1 Power cord

2 HDMI cable

NOTE: The HDMI cable is not shipped with your projector. You can purchase the HDMI cable on the Dell website at www.dell.com.

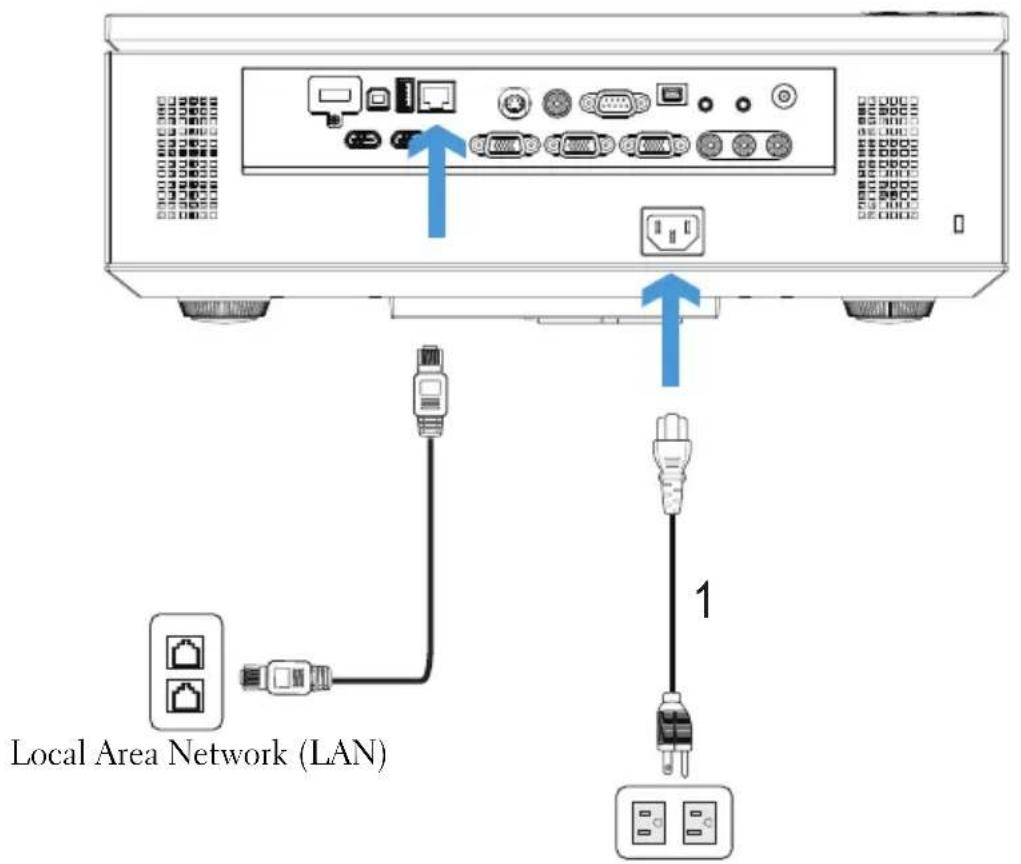

Connecting to Local Area Network

To project an image and control the projector that is connected to a network through a RJ45 cable.

1 Power cord

2 RJ45 cable

NOTE: The RJ45 cable is not shipped with your projector. You can purchase the RJ45 cable on the Dell website at www.dell.com.

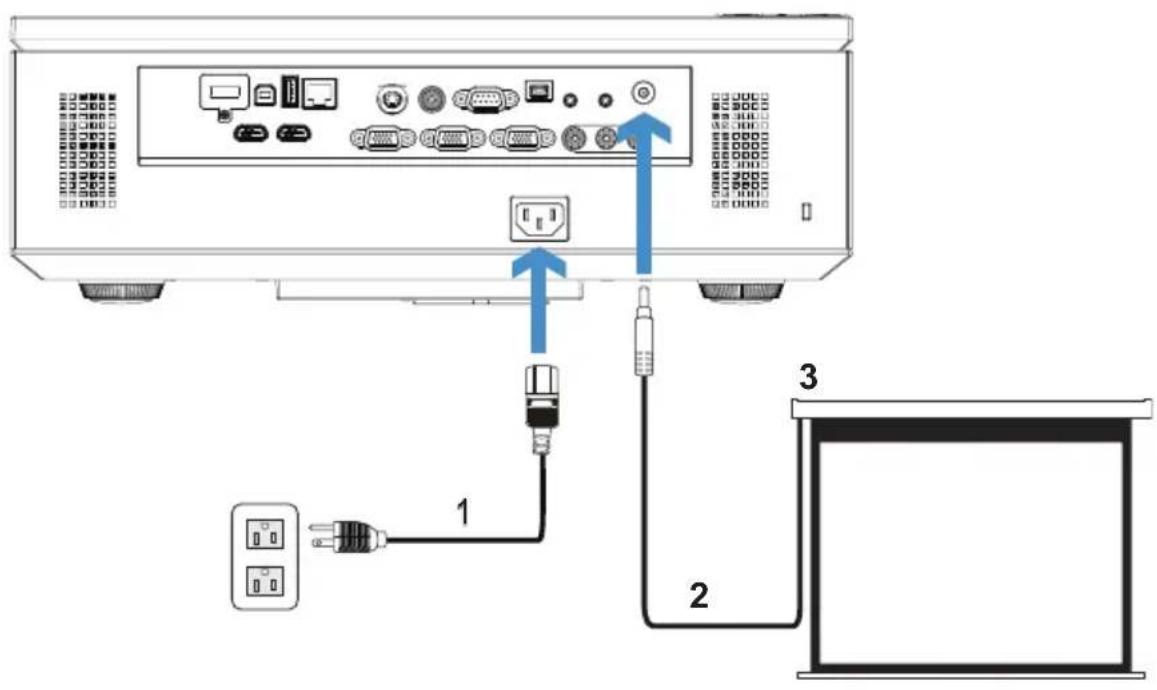

Professional Installation Options: Installation for Driving Automatic Screen

1 Power cord

2 12 V DC Plug

3 Motorized projection screen

NOTE: Use a 12 V DC plug in, 1.7 mm (ID) x 4.00 mm (OD) x 9.5 mm (shaft), to connect the automatic screen to the projector.

12 V DC Plug

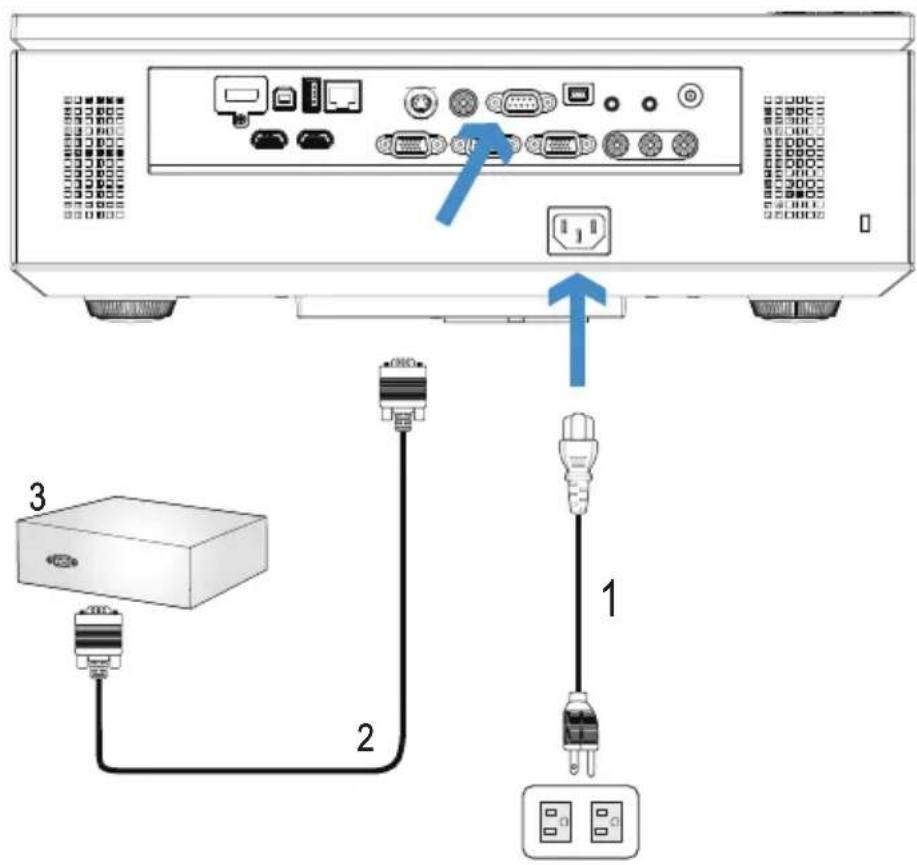

Connection With Commercial RS232 Control Box

1 Power cord

2 RS232 (9-pin D-sub female to female pin2-3 swap) cable

3 Commercial RS232 control box

NOTE: The RS232 (9-pin D-sub female to female pin2-3 swap) cable is not shipped with your projector. Consult a professional technician to obtain the cable.

Using Your Projector

Turning Your Projector On

NOTE: Turn on the projector before you turn on the source (computer, DVD player, etc.). The Power button light blinks blue until pressed.

1 Remove the lens cap.
2 Connect the power cord and appropriate signal cables to the projector. For information about connecting the projector, see "Connecting Your Projector" on page 10.
3 Press the Power button (see "Using the Control Panel" on page 30 to locate the Power button).
4 Turn on your source (computer, DVD player, etc.)
5 Connect your source to the projector using the appropriate cable. See "Connecting Your Projector" on page 10 for instructions to connect your source to the projector.
6 By default, the input source of the projector is set to VGA-A. Change the input source of the projector if necessary.
7 If you have multiple sources connected to the projector, press the Source button on the remote control or control panel to select the desired source. See "Using the Control Panel" on page 30 and "Using the Remote Control" on page 32 to locate the Source button.

Turning Your Projector Off

CAUTION: Unplug the projector after properly shutting down as explained in the following procedure.

1 Press the Power button. Follow the instruction displayed on screen to properly turn off the projector.

NOTE: The "Press Power Button to Turn off Projector" message will appear on the screen. The message disappears after 5 seconds or you can press the Menu button to clear it.

2 Press the Power button again. The cooling fans continue to operate for 120 seconds.

3 To power off the projector quickly, press the Power button and hold for 1 second while the projector's cooling fans are still running.

NOTE: Before you turn on the projector again, wait for 60 seconds to allow the internal temperature to stabilize.

4 Disconnect the power cord from the electrical outlet and the projector.

Adjusting the Projected Image

Raising the Projector Height

1 Press the Elevator button.

2 Raise the projector to the desired display angle, and then release the button to lock the elevator foot into position.

3 Use the tilt adjustment wheel to fine-tune the display angle.

Lowering the Projector Height

1 Press the Elevator button.

2 Lower the projector, then release the button to lock the elevator foot into position.

Diagram of a projector with labeled components (no text or symbols present)

Front view of a computer monitor with control panel and buttons, shown in side profile (no text or symbols visible)

3
3

1 Elevator button

2 Elevator foot (Angle of tilt: 0 to 8 degrees)

3 Tilt adjustment wheel

Adjusting the Projector Zoom and Focus

CAUTION: To avoid damaging the projector, ensure that the side door is fully closed and the elevator foot is fully retracted before moving the projector.

1 Open the side door of the projector.

2 Unlock the lens shift lock, before you adjust the lens shift.

3 Turn the vertical/horizontal lens shift knob to shift the lens.

4 After adjusting the lens shift, lock the lens shift lock.

5 Pull the zoom ring adjustment up and down to zoom in and out.

6 Rotate the focus ring until the image is clear. TIIe projector focuses at distances ranging between 3.28 ft to 39.37 ft (1.0 m to 12.0 m).

7 Close the side door of the projector.

1 Side door

2 Vertical lens shift knob

3 Lens shift lock

4 Horizontal lens shift knob

5 Zoom ring

6 Focus ring

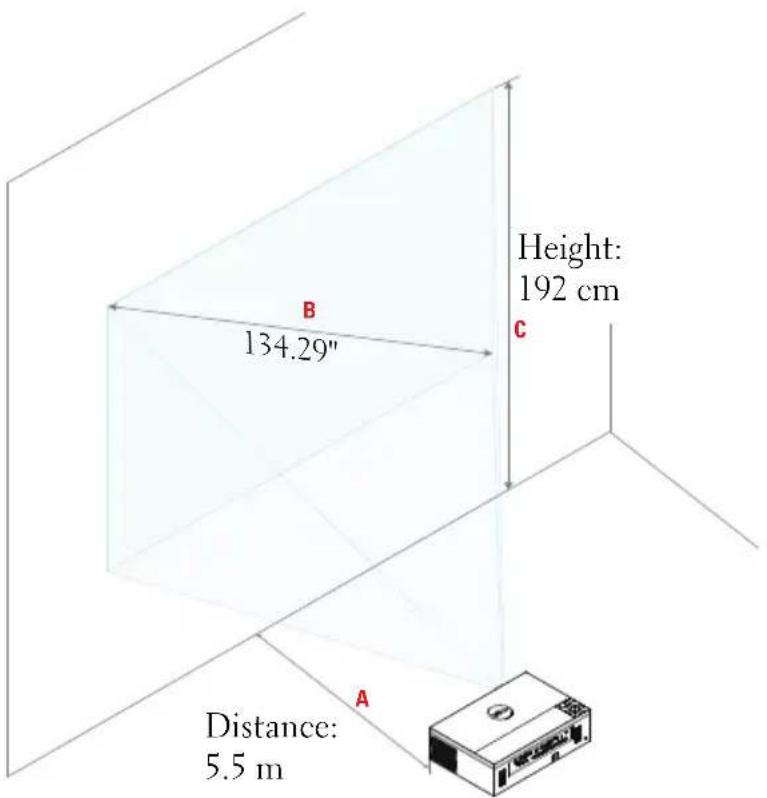

Adjusting Projection Image Size

Desired Distance (m)	(Min zoom) (Max zoom)
	Screen size Top S		Screen size Top
	Diagonal (inch)	W (cm) x II (cm)	From base to top of image (cm)	Diagonal (inch)	W (cm) x II (cm)	From base to top of image (cm)
1 20.3	45 x 25 29 24	42 54 x 30	35
3.4 69.18	153 x 86 99	83.02	184 x 103 119
5.5	111.91	248 x 139	160	134.29	297 x 167	192
7.7	156.67	347 x 195	224	188.01	416 x 234	269
9.8	199.4	441 x 248	286	239.29	530 x 298	343
12	244.17	541 x 304	350	292.9	649 x 365	420

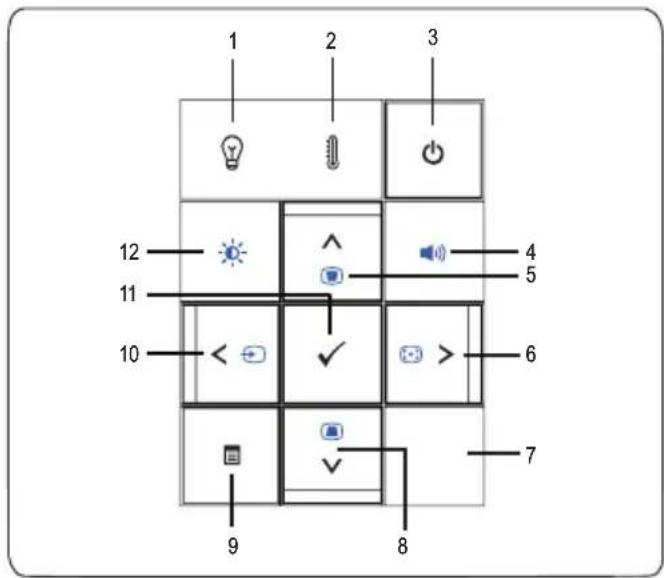

Using the Control Panel

1 LAMP warning light If the LAMP amber indicator is on or blinking, one of the following problems could be occurring:• Lamp is reaching its end of usable life• Lamp module is not properly installed• Lamp driver failure• Color wheel failureFor more information, see "Troubleshooting Your Projector" on page 101 and "Guiding Signals" on page 105.
2 TEMP warning light If the TEMP amber indicator is on or blinking, one of the following problems could be occurring:• Internal temperature of the projector is too high• Color wheel failureFor more information, see "Troubleshooting Your Projector" on page 101 and "Guiding Signals" on page 105.
3 Power 🏻	Turns the projector on or off. For more information, see "Turning Your Projector On" on page 25 and "Turning Your Projector Off" on page 25.
4 Volume Control Allows you to increase or decrease the volume.
5 Up / Keystone adjustment [IMAGE]	Press to navigate through the On-Screen Display (OSD) Menu items.Press to adjust image distortion caused by tilting the projector (+/-30 degrees).
6 Right > / Auto Adjust [IMAGE]	Press to navigate through the On-Screen Display (OSD) Menu items.Press to synchronize the projector to the input source.[IMAGE]NOTE: Auto Adjust does not operate if the on-screen display (OSD) is displayed.
7 IR Receiver Point the remote control towards the IR receiver and press a button.
8 Down / Keystone adjustment [IMAGE]	Press to navigate through the On-Screen Display (OSD) Menu items.Press to adjust image distortion caused by tilting the projector (+/-30 degrees).
9 Menu Press to activate the OSD. Use the directional keys and theMenubutton to navigate through the OSD.
10 Left /Source Press to navigate through the On-Screen Display (OSD) Menu items.Press to toggle through Analog RGB, Composite, Component (YPbPr via VGA), HDMI, and S-Video sources when multiple sources are connected to the projector.
11 Enter Press to confirm the selection item.
12 Brightness and Contrast Control [IMAGE]	Allows you to adjust the brightness and contrast values.

Using the Remote Control

1	Power	Turns the projector on or off. For more information, see "Turning Your Projector On" on page 25 and "Turning Your Projector Off" on page 25.
2	Enter	Press to confirm the selection.
3	Right	Press to navigate through the On-Screen Display (OSD) Menu items.
4	Down	Press to navigate through the On-Screen Display (OSD) Menu items.
5	Aspect Ratio Press to change the aspect ratio of a displayed image.
6	Page up	Press to move to the previous page.
		NOTE: The Mini USB cable must be connected if you want to use the Page Up feature.
7	Mute	Press to mute or un-mute the projector speaker.
8	Page down	Press to move to the next page.
		NOTE: The Mini USB cable must be connected if you want to use the Page Down feature.
9	Video mode The projector has preset configurations that are optimized for displaying data (presentation slides) or video (movies, games, etc.).Press the Video Mode button to toggle between Presentation mode, Bright mode, Movie mode, sRGB, or Custom mode.Pressing the Video Mode button once will show the current display mode. Pressing the Video Mode button again will switch between modes.
10	Blank screen Press to hide/unhide the image.
11	Up	Press to navigate through the On-Screen Display (OSD) Menu items.
12	Left	Press to navigate through the On-Screen Display (OSD) Menu items.
13	Menu	Press to activate the OSD.
14	Volume up	Press to increase the volume.
15	Laser Point the remote control at the screen, press and hold the laser button to activate the laser light.
			WARNING: Do not look at the laser point when it is active. Avoid directing the laser light on your eyes.
16	Volume down	Press to decrease the volume.
17	Keystone adjustment	Press to adjust image distortion caused by tilting the projector (+/-30 degrees).
18	Source Press to switch between Analog RGB, Composite, Component (YPbPr, via VGA), HDMI, and S-Video source.

19 Auto Adjust Press to synchronize the projector with the input source. Auto Adjust does not operate if the OSD is displayed.

20 Keystone adjustment Press to adjust image distortion caused by tilting the projector (+/-30 degrees).

Installing the Remote Control Batteries

NOTE: Remove the batteries from the remote control when not in use.

1 Press the tab to lift the battery compartment cover.

2 Check the polarity (+/-) marking on the batteries.

3 Insert the batteries and align their polarity correctly according to the marking in the battery compartment.

NOTE: Avoid mixing different types of batteries or using new and old batteries together.

4 Slip the battery cover back.

Diagram of a refrigerator interior showing the door, drawer, and seat with blue arrows indicating movement (no text or symbols)

Diagram of a vertical container with arrows indicating flow or movement, no text or symbols present

Operating Range With Remote Control

NOTE: Actual operating range may slightly differ from the diagram. Weak batteries will also prevent the remote control from properly operating the projector.

Using the On-Screen Display

- The projector has a multi-language On-Screen Display (OSD) Menu that can be displayed with or without an input source.

- Press the Menu button on the control panel or the remote control to enter the Main Menu.

- To navigate through the tabs in the Main Menu, press the or buttons on your projector's control panel or remote control.

- To select a submenu, press the √ or button on your projector's control panel or remote control.

- To select an option, press the or buttons on your projector's control panel or remote control. When an item is selected, the color changes to dark blue.

- Use the or buttons on the control panel or remote control to adjust the settings.

- To go back to the Main Menu, press the button on the control panel or the remote control.

- To exit the OSD, press the Menu button directly on the control panel or the remote control.

INPUT SOURCE

The Input Source menu allows you to select your projector's input source.

AUTO SOURCE—Press √ to turn on or off Auto Source mode.

VGA-A—Press √ to detect a VGA-A signal.

VGA-B—Press to detect a VGA-B signal.

HDMI-A—Press to detect a HDMI-A signal.

HDMI-B—Press to detect a HDMI-B signal.

COMPONENT—Press to detect a RCA Component signal.

COMPOSITE—Press √ to detect a Composite Video signal.

S-VIDEO—Press to detect a S-Video signal.

WIRELESS/USB—Press √ to activate the Input Source Wireless/USB menu.

NOTE: The Wireless/USB can be used after the "Wireless and LAN" option is turned on.

INPUT SOURCE WIRELESS/USB

The Input Source Wireless/USB menu allows you to activate the Wireless Display, USB Display, and USB Viewer.

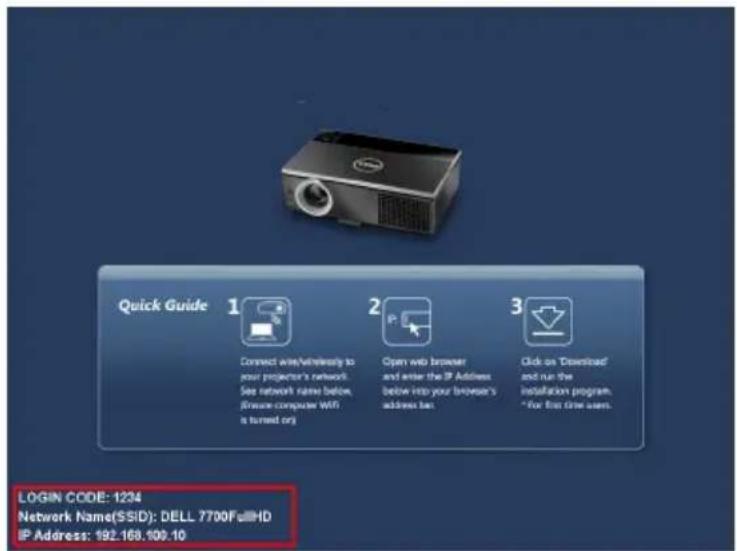

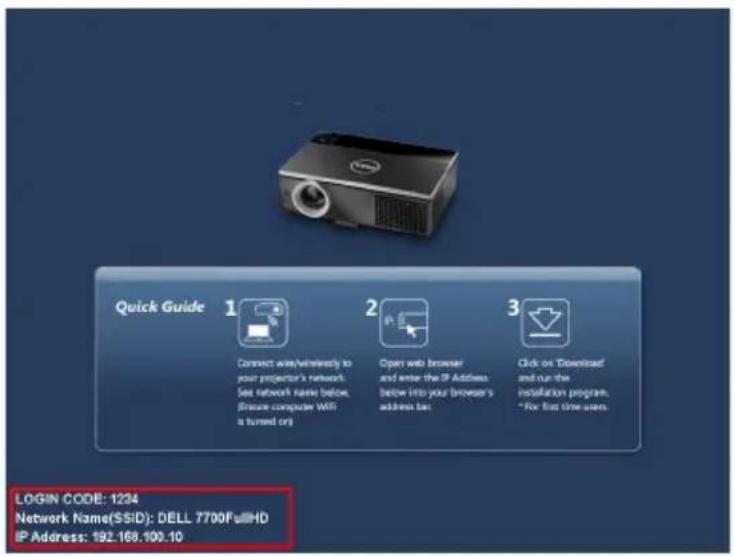

WIRELESS DISPLAY—Press √ to access the projector's Wireless Guide screen. See "Wireless Guide screen" on page 57.

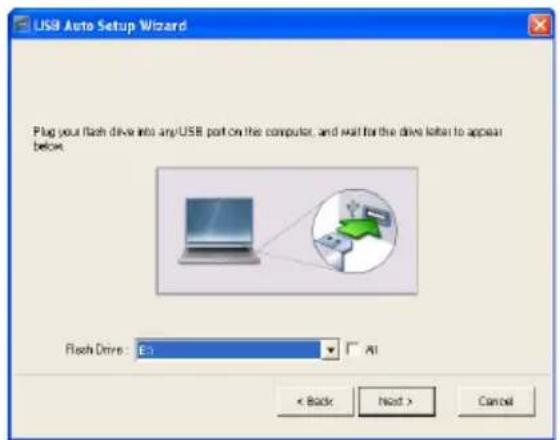

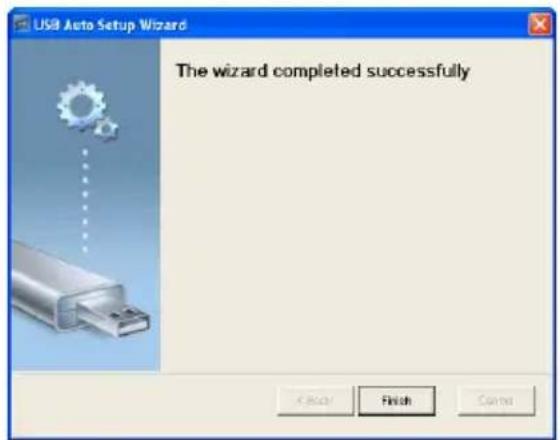

USB DISPLAY—Allows you to display the computer/laptop screen to your projector via the USB cable.

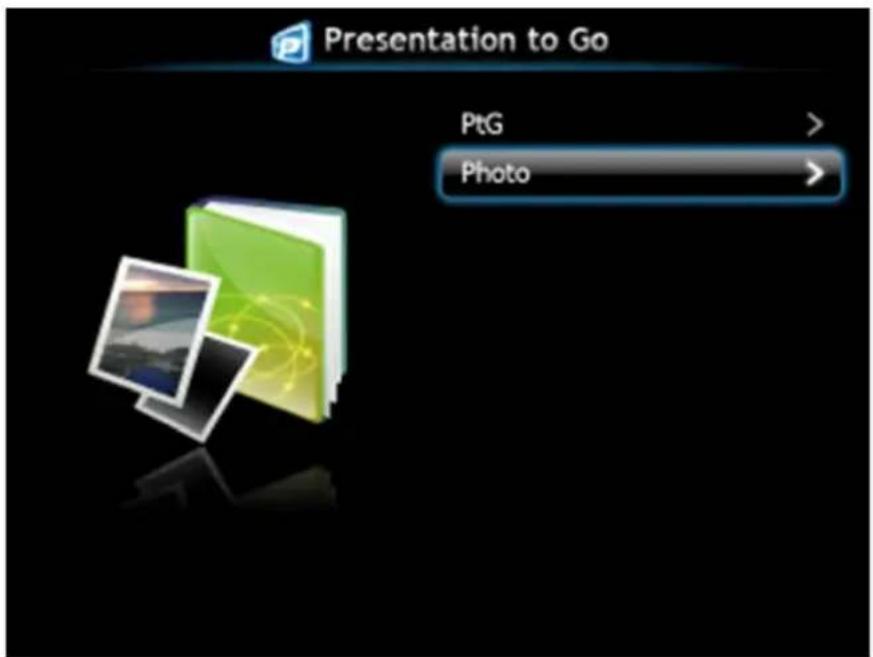

USB VIEWER—Allows you to display photo and PPT files from your USB flash drive. See "Presentation to Go (PtG) Installation" on page 65.

AUTO ADJUST

Auto Adjust automatically adjusts the projector's Horizontal, Vertical, Frequency, and Tracking in PC mode.

BRIGHTNESS/CONTRAST

The Brightness/Contrast menu allows you adjust the brightness/contrast settings of your projector.

BRIGHTNESS—Use △ and to adjust the brightness of the image.

CONTRAST—Use ▲ and to adjust the display contrast.

NOTE: If you adjust the settings for Brightness and Contrast the projector automatically switch to Custom mode.

VIDEO MODE

The Video Mode menu allows you to optimize the display image: Presentation, Bright, Movie, sRGB (provides more accurate color representation), and Custom (set your preferred settings).

VOLUME

The Volume menu allows you adjust the volume settings of your projector.

VOLUME—Press ▲ to increase the volume and ▼ to decrease the volume.

AUDIO INPUT

The Audio Input menu allows you to select your audio input source. The options are: Analog In, HDMI-A, HDMI-B, and Wireless/LAN.

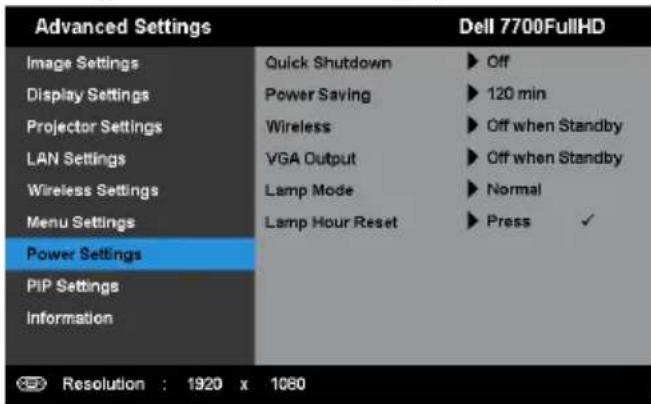

ADVANCED SETTINGS

The Advanced Settings menu allows you to change settings for Image, Display, Projector, LAN, Wireless, Menu, Power, PIP, and Information.

IMAGE SETTINGS (IN PC MODE)—Select and press √ to activate image settings.

The image settings menu provides the following options:

COLOR TEMPERATURE—Allows you to adjust the color temperature. The screen appears cooler at higher color temperatures and warmer at lower color temperatures. When you adjust the values in the Color Adjust menu, the Custom mode is activated. The values are saved in the Custom mode.

RGB COLOR ADJUST—Allows you to manually adjust the colors red, green, and blue.

WHITE INTENSITY—Press √ and use ▲ and ▼ to display white intensity.

DYNAMIC APERTURE—Allows you to set the projector dynamic aperture. The options are: Off, Dynamic, and Auto.

COLOR SPACE—Allows you to select the color space. The options are: RGB, YCbCr, and YPbPr.

NOTE: If you adjust the settings for Color Temperature, RGB Color Adjust, and White Intensity the projector automatically switch to Custom mode.

IMAGE SETTINGS (IN VIDEO MODE)—Select and press √ to activate image settings. The image settings menu provides the following options:

COLOR TEMPERATURE—Allows you to adjust the color temperature. The screen appears cooler at higher color temperatures and warmer at lower color temperatures. When you adjust the values in the Color Adjust menu, the Custom mode is activated. The values are saved in the Custom mode.

RGB COLOR ADJUST—Allows you to manually adjust the colors red, green, and blue.

SATURATION—Allows you to adjust the video source from black and white to fully saturated color. Press □to increase the amount of color in the image and □to decrease the amount of color in the image.

SHARPNESS—Press ▲ to increase the sharpness and ▼ to decrease the sharpness.

TINT—Press △ to increase the amount of green in the image and ▼ to decrease the amount of green in the image (available for NTSC only).

WHITE INTENSITY—Press √ and use ▲ and ▼ to display white intensity.

DYNAMIC APERTURE—Allows you to set the projector dynamic aperture. The options are: Off, Dynamic, and Auto.

COLOR SPACE—Allows you to select the color space. The options are: RGB, YCbCr, and YPbPr.

NOTE:

1 If you adjust the settings for Color Temperature, RGB Color Adjust, Saturation, Sharpness, Tint, and White Intensity the projector automatically switch to Custom mode.
2 Saturation, Sharpness, and Tint are only available when the input source is from Component, Composite, or S-Video.

DISPLAY SETTINGS (IN PC MODE)—Select and press √ to activate display settings. The display settings menu provides the following options:

HORIZONTAL POSITION—Press △ to move the image right and ▼ to move the image left.

VERTICAL POSITION—Press ▲ to move the image up and ▼ to move the image down.

FREQUENCY—Allows you to change the display data clock frequency to match the frequency of your computer's graphics card. If you see a vertical flickering wave, use the Frequency control to minimize the bars. This is a coarse adjustment.

TRACKING—Synchronize the phase of the display signal with the graphic card. If you experience an unstable or flickering image, use Tracking to correct it. This is a fine adjustment.

ASPECT RATIO—Allows you to select the aspect ratio to adjust how the image appears. Options are: Origin, 16:9, and 4:3.

• Origin — Select Origin to maintain the aspect ratio of the image projector according to the input source.
• 16:9 — The input source scales to fit the width of the screen to project a 16:9 screen image.
• 4:3 — The input source scales to fit the screen and projects a 4:3 image.

ZOOM—Press and to zoom and view the image.

Adjust the image scale by pressing or and press to view on your remote control only.

ZOOM NAVIGATION—Press √ to activate the Zoom Navigation menu.

Use < to navigate the projection screen.

DISPLAY SETTINGS (IN VIDEO MODE)—Select and press √ to activate display settings. The display settings menu provides the following options:

ASPECT RATIO—Allows you to select the aspect ratio to adjust how the image appears. Options are: Origin, 16:9, and 4:3.

• Origin — Select Origin to maintain the aspect ratio of image projector according to the input source.
• 16:9 — The input source scales to fit the width of the screen to project a 16:9 screen image.
  •4:3 — The input source scales to fit the screen and projects a 4:3 image.

ZOOM—Press and to zoom and view the image.

Adjust the image scale by pressing or and press to view on your remote control only.

ZOOM NAVIGATION—Press √ to activate the Zoom Navigation menu.

Use □ to navigate the projection screen.

PROJECTOR SETTINGS—Select and press √ to activate projector settings. The projector settings menu provides the following options:

AUTO SOURCE—Select Off (the default) to lock the current input signal. If you press the Source button when the Auto Source mode is set to Off, you can manually select the input signal. Select On to auto detect the available input signals. If you press the Source button when the projector is on, it automatically finds the next available input signal.

AUTO KEYSTONE—Select On to automatically adjust image distortion caused by tilting the projector.

HORIZONTAL KEYSTONE—Use ▲ and ▼ to adjust the image horizontal keystone.

VERTICAL KEYSTONE—Use △ and ▼ to adjust the image vertical keystone.

PROJECTOR MODE—Allows you to select the projector mode, depending upon how the projector is mounted.

• Rear Projection-Desktop — The projector reverses the image so that you can project from behind a translucent screen.
• Rear Projection-Ceiling Mount — The projector reverses and turns the image upside down. You can project from behind a translucent screen with a ceiling-mounted projection.
• Front Projection-Desktop — This is the default option.
• Front Projection-Ceiling Mount — The projector turns the image upside down for ceiling-mounted projection.

SPEAKER—Select On to enable the speaker. Select Off to the disable speaker.

CLOSED CAPTION—Select On to enable close caption and activate the closed caption menu. Select appropriate closed caption options: CC1, CC2, CC3, and CC4.

NOTE:

1 Closed caption option is available for NTSC only.
2 Closed captioning can only be enabled via S-Video and Composite Video inputs.

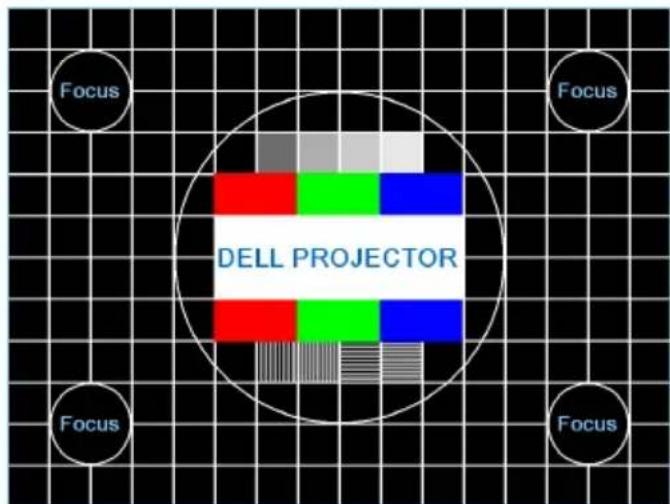

TEST PATTERN—Test Pattern is used to test focus and resolution.

You can enable or disable the Test Pattern by selecting Off, 1, or 2. You can also invoke the Test Pattern 1 by pressing and holding down and buttons on the control panel simultaneously for 2 seconds. You can also invoke the test pattern 2 by pressing and holding down and buttons on the control panel simultaneously for 2 seconds.

Test Pattern 1:

Test Pattern 2:

FACTORY RESET—Select and press √ to reset all settings to its factory default. The below warning message appears:

Reset items include both computer sources and Video source settings.

LAN SETTINGS—Select and press √ to activate LAN settings. The LAN settings menu provides the following options:

WIRELESS AND LAN—Select Enabled to active the Wireless and LAN function.

DHCP—If a DIICP server exists in the network to which the projector is connected, the IP address will automatically be acquired when you select DHCP On. If DHCP is Off, manually set the IP Address, Subnet Mask, and Gateway. Use and to select the number of IP address, Subnet Mask, and Gateway. Key in enter to confirm each number and then use and to set the next item.

IP ADDRESS—Automatically or manually assigns the IP address to the projector connected to the network.

SUBNET MASK—Configure the Subnet Mask of the network connection.

GATEWAY—Check the Gateway address with your network/system administrator if you configure it manually.

DNS—Check the DNS Server IP address with your network/system administrator if you configure it manually.

STORE—Press √ to save the changes made in network configuration settings.

NOTE:

1. Use △ and √ buttons to select IP Address, Subnet Mask, Gateway, DNS, and Store.

2. Press the button to enter IP Address, Subnet Mask, Gateway, or DNS to set the value. (The selected option is highlighted in blue)
   a Use and buttons to select the option.
   b Use and buttons to set the value.
   c After the setup is complete, press the button to exit.

3. After the IP Address, Subnet Mask, Gateway, and DNS is set up, select Store and press button to store the settings.

4. If you select Store without pressing the Enter button, the system will keep the original settings.

RESET—Press to reset network configuration.

WIRELESS SETTINGS—Select and press √ to activate wireless settings. The wireless settings menu provides the following options:

WIRELESS—Default option is Connected. Select Disconnected to disable the wireless connection.

NOTE: It is recommended to use the default settings for Wireless Connect.

DHCP SERVER—Allows you to enable DHCP server of the wireless.

START IP ADDRESS—Automatically or manually assigns the Start IP address of the DIICP server to the projector connected to the wireless.

END IP ADDRESS—Automatically or manually assigns the End IP address of the DHCP server to the projector connected to the wireless.

SUBNET MASK—Configure the Subnet Mask of the wireless connection.

GATEWAY—Check the Gateway address with your network/system administrator if you configure it manually.

DNS—Check the DNS Server IP address with your network/system administrator if you configure it manually.

STORE—Press √ to save the changes made in wireless configuration settings.

NOTE:

1. Use ▲ and √ buttons to select IP Address, Subnet Mask, Gateway, DNS, and Store.
2. Press the button to enter IP Address, Subnet Mask, Gateway, or DNS to set the value. (The selected option is highlighted in blue)

a Use and buttons to select the option.

b Use and buttons to set the value.

c After the setup is complete, press the button to exit.

1. After the IP Address, Subnet Mask, Gateway, and DNS is set up, select Store and press button to store the settings.

2. If you select Store without pressing the Enter button, the system will keep the original settings.

RESET—Press to reset wireless configuration.

MENU SETTINGS—Select and press √ to activate the menu settings. The menu settings consists of the following options:

MENU POSITION—Allows you to change the position of the OSD menu on the screen.

MENU TIMEOUT—Allows you to adjust the time for an OSD timeout. By default, the OSD disappears after 20 seconds of non-activity.

MENU LOCK—Select On to enable the Menu Lock and hide the OSD menu. Select Off to disable the Menu Lock. If you want to disable the Menu Lock function and have the OSD disappear, press the Menu button on the control panel or remote control for 15 seconds, and then disable the function.

MENU TRANSPARENCY—Select to change the transparency level of the OSD background.

PASSWORD—When Password Protect is enabled, a Password Protect screen requesting you to enter a password will be displayed when the power plug is inserted into the electrical output and the power for the projector is first turned on. By default, this function is disabled. You can enable this feature by selecting Enabled. If the password has been set before, key in the password first and select the function. This password security feature will

be activated the next time you turn on the projector. If you enable this feature, you will be asked to enter the projector's password after you turn on the projector:

1 First time password input request:

a Go to Menu Settings, press √ and then select Password to Enabled the password settings.

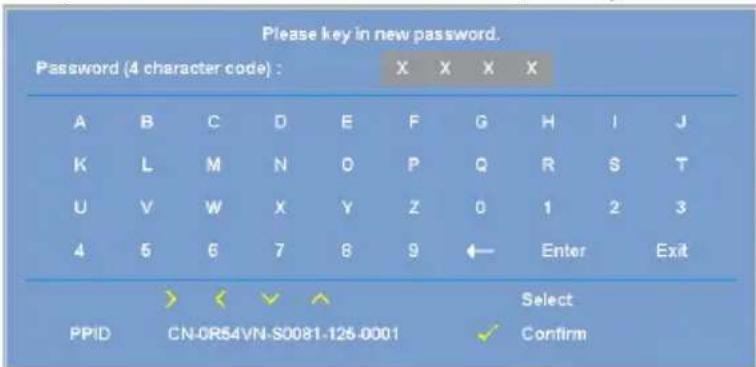

b Enabling the Password function will pop up a change screen. Key in a 4-digit number from the screen and press √

c To confirm, enter the password again.

d If the password verification is successful, you may resume with accessing the projector's functions and its utilities.

2 If you have entered an incorrect password, you will be given another two chances. After three invalid attempts, the projector will automatically turn off.

NOTE: If you forget your password, contact DELL™ or a qualified service personnel.

3 To disable the password function, select the Disabled option to close the function.

4 To delete the password, select the Deleted option.

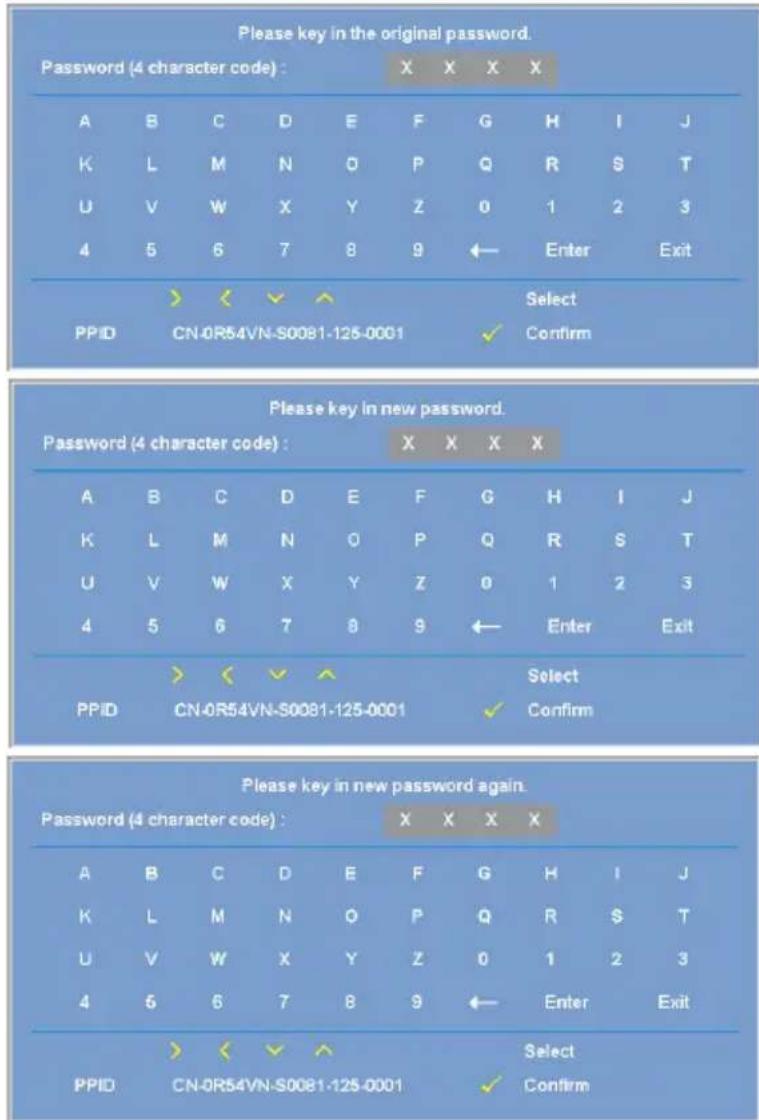

CHANGE PASSWORD—Key in the original password. Then, enter the new password and confirm the new password again.

POWER SETTINGS—Select and press √ to activate power settings. The power settings menu provides the following options:

QUICK SHUTDOWN—Select On to turn off the projector with a single press of the Power button. This function allows the projector to quickly power off with an accelerated fan speed. Slightly higher acoustic noise is expected during quick power off.

NOTE: Before you turn on the projector again, wait for 60 seconds to allow the internal temperature to stabilize. The projector will take a longer time to turn on if you try to power on immediately. Its cooling fan will run at full speed for about 30 seconds to stabilize the internal temperature.

POWER SAVING—Select Off to disable Power Saving mode. By default, the projector is set to enter power saving mode after 120 minutes of no activity. A warning message appears on screen showing a 60 seconds countdown before switching to power saving mode. Press any button during the countdown period to stop the power-saving mode.

You can also set a different delay period to enter power saving mode. The delay period is the time you want the projector to wait without an input signal. Power saving can be set to 30, 60, 90, or 120 minutes.

If an input signal is not detected during the delay period, the projector turns off. To turn on the projector press the Power button.

WIRELESS—Select Always On or Off when Standby to set the Wireless/LAN module on/off while the projector is standby status.

VGA OUTPUT—Select Always On or Off when Standby the VGA output feature at projector standby status.

LAMP MODE—Allows you to select between Normal or ECO mode.

Normal mode operates at full power level. ECO mode operates at a lower power level which may provide longer lamp life, quieter operation, and dimmer luminance output on the screen.

LAMP HOUR RESET—Press √ and select the Confirm option to reset the lamp hour.

PIP SETTINGS—Select and press √ to activate pip settings. The pip settings menu provides the following options:

PICTURE IN PICTURE—Select On to enable the picture in picture display. Select Off to disable the feature.

SECOND SOURCE—Allows you to select the possible second source is available in the OSD selection depending on the current primary input source. See "PIP Combination Sources" on page 113.

SWAP—Press √ to swapping the first and second source displays.

SIZE—Allows you to adjust the image size of the second source. The options are: Small, Mid, Large, and Half.

LAYOUT—Allows you to change the second source position to the four different corners. The options are: Top Left, Top Right, Bottom Left, and Bottom Right.

INFORMATION—The information menu displays the current projector settings.

LANGUAGE

Allows you to set the language for the OSD. Press to activate the Language menu.

HELP

If you encounter problems with your projector, you can access the help menu for troubleshooting.

Wireless Networking Installation

NOTE: Your computer must have the following minimum system requirements:

Operating System:

- Windows

Microsoft Windows XP ^™ Home or Professional Service pack 2 (32-bit recommended), Windows Vista 32-bit, and Windows ^® 7 Home or Professional 32-bit or 64-bit

• MAC

MacBook and above, MacOS 10.5 and above

Minimum Hardware:

a Intel Dual Core 1.8 MHz or higher
b 256 MB of RAM required, 512 MB or more recommended
c 10 MB of available hard-disk space
d nViDIA or ATI graphic card must with 64 MB VRAM or above
e Ethernet adapter (10 / 100 bps) for an Ethernet connection
f A supported WLAN adapter for a WLAN connection (any NDIS-compliant 802.11b or 802.11g or 802.11n WiFi device)

Web browser

Microsoft Internet Explorer 6.0 or 7.0 (recommended) or 8.0, Firefox 2.0, Safari 3.0, and above

Enable Wireless on the Projector

In order to use your projector wirelessly, you need to complete the steps below:

1 Install the optional wireless dongle. See "Installing the Optional Wireless Dongle" on page 11.
2 Connect the power cable to the wall outlet and press the power button.

3 Press the Menu button on your projector control panel or remote control.

NOTE: Use ∧, √, ◀ and ▶ buttons to navigate and √ to select.

4 The wireless connection default is Enabled. See "Wireless Settings" on page 48.
5 Access the INPUT SOURCE menu, select Wireless/USB and then select Wireless Display on the sub-menu. See "INPUT SOURCE WIRELESS/USB" on page 38.

The Wireless Guide Screen shown below appears:

NOTE: If wireless connection is disabled, then follow these steps to set up: ADVANCED SETTINGS → Wireless Settings → Wireless → Connected. The image input source will be automatically switched to wireless screen when wireless option is selected in this step.

6 Take note of the LOGIN CODE, NETWORK NAME (SSID), and IP ADDRESS. You will need these information to log in later.

Install the Wireless Application Software on Your Computer

7 Connect your computer to the 7700FullIID wireless network.

NOTE:

• Your computer must have wireless network function to detect the connection.
• When you connect to the 7700FullHD wireless network, you will lose wireless connectivity with other wireless networks.

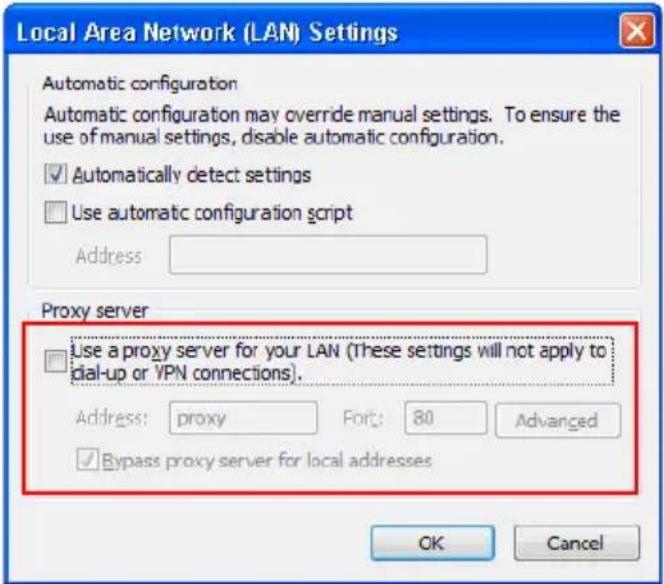

NOTE: Remember to turn off all proxies. (In Microsoft® Windows Vista: Click Control Panel → Internet Options → Connections → LAN Settings)

8 Open your Internet browser. You will be automatically directed to the 7700FullHD Web Management web page.

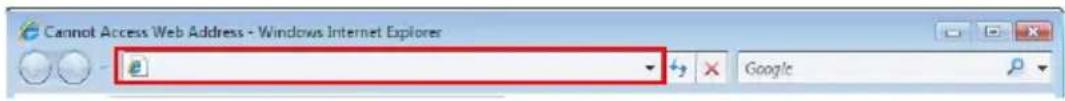

NOTE: If the web page does not load automatically, enter the IP address (default IP address is 192.168.100.10) noted from the projector's screen in the browser's address bar.

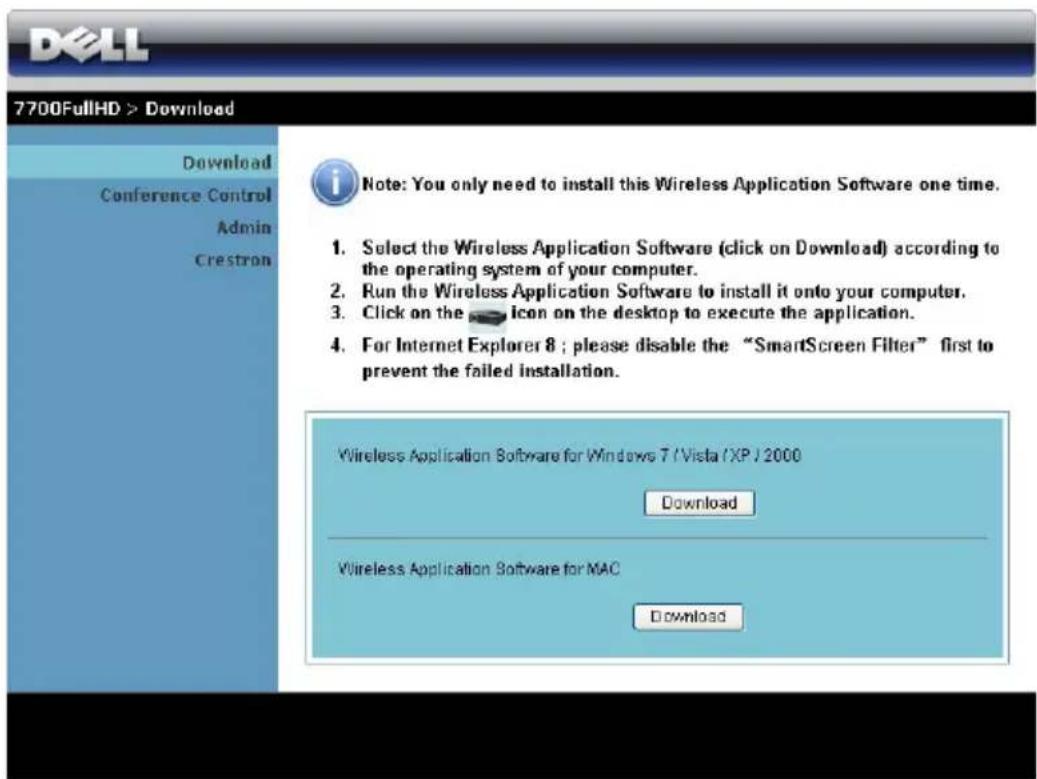

9 The 7700FullHD Web Management page opens. For first time use, click Download.

10 Select the appropriate operating system, then click Download.

11 Click Run to proceed with the one-time installation of the software.

NOTE: You may choose to save the file and install it at a latter time. To do this, click Save.

NOTE: If you are unable to install the application because of inadequate rights on the computer, please contact your network administrator.

12 The installation software will launch. Follow the on-screen instructions to complete setup.

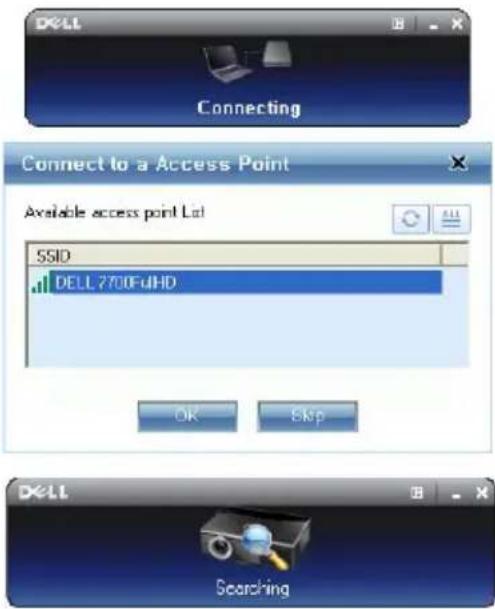

Launch the Wireless Application

Once the installation is complete, the program will launch and search automatically. If the program not launch automatically, you can double-click the icon on the desktop to start the application. Select the Dell 7700FullHD, and then click OK.

Login

To communicate with your projector, enter the Login Code provided in Step 6 of Wireless Networking Installation, then click OK.

NOTE: If the IP Address is not detected, enter the IP Address displayed at the bottom left corner of the screen.

Understanding the Buttons

After a successful log in, the following screen appears:

Projection Mode

Item Description
1 Status Bar Displays IP and LOGIN CODE information.
	Menu Click to activate the application menu.
	Minimize button Click to minimize the application.
	Close button Click to exit the application.
2 Status Mode
	Projection Mode Click to activate the projection mode.
	Video Mode Click to activate the video mode.
3 Controls Toolbar
	Full screen Click to project the image in full screen.
	Split 1 Click to project the image in the upper left corner of the screen.
	Split 2 Click to project the image in the upper right corner of the screen.
	Split 3 Click to project the image in the lower left corner of the screen.
	Split 4 Click to project the image in the lower right corner of the screen.
	Stop Click to stop projection.
	Pause Click to pause projection.
	Audio Projection Click to enable audio projection.
4 Connection Status
[ZAHS]	Connection Icon Blinks when projection is in progress.

Projecting the Presentation

• To project the presentation, click any of the projection buttons

• To pause the presentation, click in The icon turns green.
• To continue the presentation, click again.

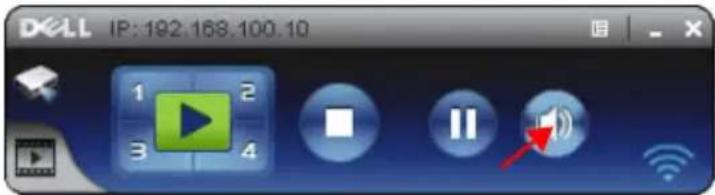

- To audio projection the presentation, click See "Audio Projection Installation" on page 71.
• To stop the presentation, click

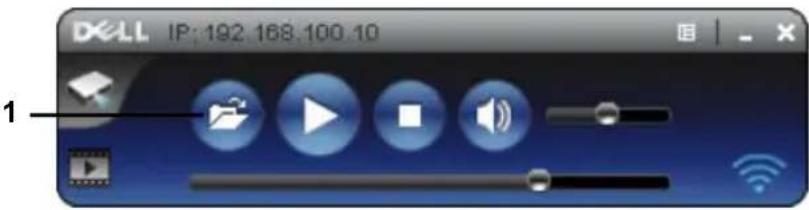

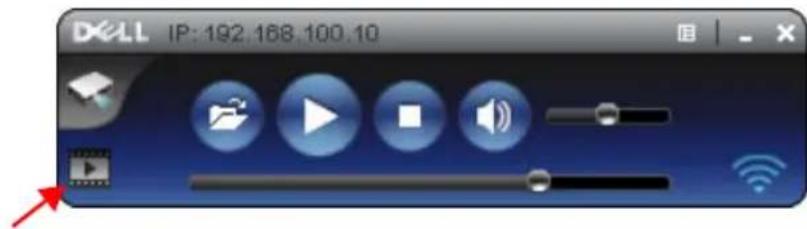

Video Mode

Item Description
1 Control Toolbar
	Open Click to open folder and searching the video or music file.
	Play Click to starting player.
	Stop Click to stop player.
	Mute Click to mute/un-mute.

NOTE: The following information is for wireless data presentation mode only. Image display could be slow or not displayed smoothly if displaying a video clip or animation. Refer to the frame-rate table below for reference:

Frame Rate of Wireless Presentation

Screen Variation %1	Estimated frames per second2
<5%	303
<10%	283
<20%	263
<40%	253
<75%	223
<=100%	203

NOTE:

1 The percentage of screen variation is based on 1024 x 768. Example to display a 320 x 240 video clip on 1024 x 768 desktop, the screen variation is 9.8%.
2 Actual frame rate could be different depending on factors such as network environment, image content, signal conditions, locations, and CPU performance.
3 Under clean WLAN environment using 802.11g connection, and no screen stretching.
4 Compressed to 1024 x 768 and under 802.11g.

NOTE: Your computer will not enter S1 (standby mode) / S3 (sleep mode) / S4 (hibernate mode) when running a wireless, USB Display, or USB Viewer presentation.

Using the Menu

Click to display the menu.

Web ManagementSearch for ProjectorMake Application Token

InfoHotkey

AboutExit

WEB MANAGEMENT—Click to open the Web Management page. See "Managing the Projector From Web Management" on page 78.

SEARCH FOR PROJECTOR—Click to search and connect to wireless projector.

MAKE APPLICATION TOKEN—Click to make application token. See "Make Application Token" on page 99.

INFO—Click to display system information.

HOTKEY—Click to display the hotkey information.

ABOUT—Click to display the application version.

EXIT—Click to close the application.

Presentation to Go (PtG) Installation

Minimum system requirements to install PtG are as follow:

Operating System:

- Windows

Microsoft Windows XP ^™ Home or Professional Service pack 2/3 (32-bit recommended), Windows Vista 32-bit, or Windows ^® 7 Home or Professional 32-bit or 64-bit

- Office 2003 or Office 2007

In order to use your USB Viewer, you need to complete the steps below: "Wireless and LAN" option and "Wireless connection" default are enabled.

1 Plug the USB Flash drive to your projector.

NOTE:

• Supports only the JPEG format photo within 10 MB x 40 M pixels.

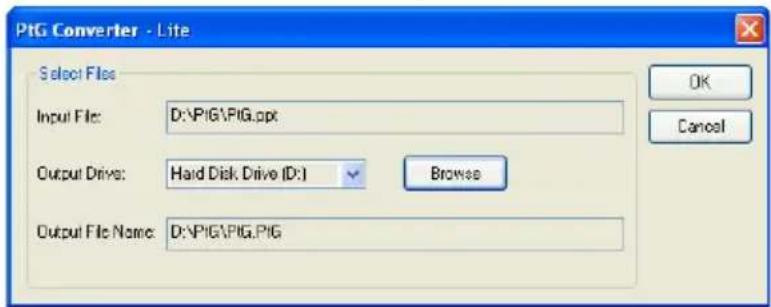

• The PtG converter can convert your PowerPoint files into PtG files. See "Install the PtG Converter Application Software on Your Computer" on page 69.
• You can download the "PtG Converter - Lite" from the Dell Support site at support.dell.com.

2 At INPUT SOURCE menu, select Wireless/USB and then select USB Viewer on the sub-menu. See "INPUT SOURCE WIRELESS/USB" on page 38.

NOTE:

1 When the Wireless and LAN function is disabled, Go to LAN Settings menu, select the "Enabled" in the "Wireless and LAN" option to activate the Wireless and LAN function.
2 When the Wireless connection is disconnected, Go to Wireless Settings menu, select the "Connected" in the Wireless option to enable wireless connection.

PtG Viewer

System will stay in this page when ready.

Photo Viewer

PtG/Photo Function Introduction

Show valid PtG and Photo files which are stored in the USB disk.

NOTE: If only one disk is detected, the system will skip this step.

PtG Overview

Photo Overview

NOTE: Supports 14 languages of photo files name format (Languages: English, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, and Traditional Chinese).

Buttons-Introduction

Use the up, down, and left buttons to navigate and √ button on your projector's control panel or remote control to select.

Button Up	Down	Left	Right	>	Enter √
PtG function Up	Down Back	No function	Enter
PtG Playback	Pre Page	Next Page	Back	No function	Next Pause
Photo function	Up Down	Back No function Enter
Photo Playback	Pre Page	Next Page	Back No function No		function

NOTE: If you enter the OSD menu while using PtG, PtG navigation by the up, down, and left buttons will not function.

Install the PtG Converter Application Software on Your Computer

Please follow the on-screen instructions to complete the setup.

NOTE: You can download the "PtG Converter - Lite" from the Dell Support site at support.dell.com.

Using the PtG Converter

1 Launch the "PtG Converter - Lite.exe" or double-click the icon on the desktop to start the application.

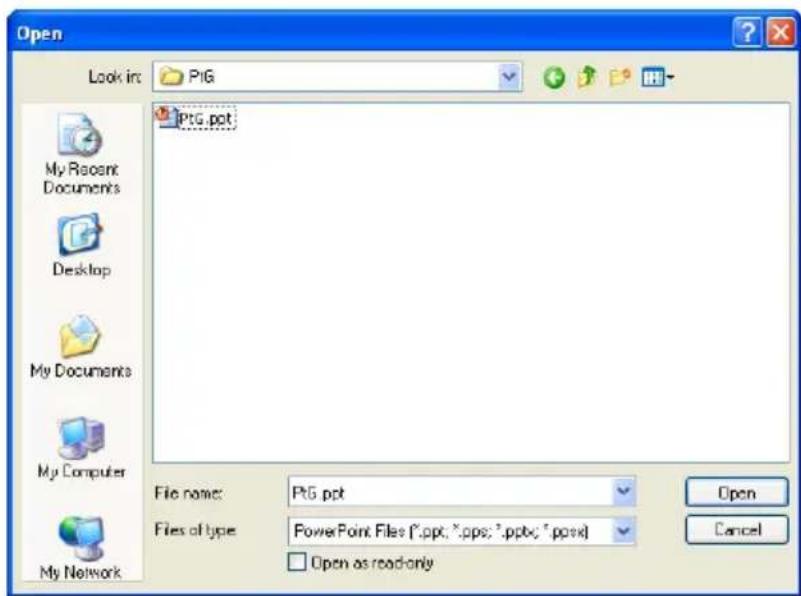

2 Click to select a PowerPoint file and start conversion.

3 Click Browse button to select the storage location and then press OK.

NOTE:

1 If your computer does not have MS PowerPoint installed, file convert will fail.
2 PtG converter only supports up to 20 pages.
3 PtG converter only supports conversion of .ppt files to .PtG files.

Audio Projection Installation

Audio Projection only supports the Wireless Display and LAN Display input source.

Minimum system requirements as follow:

Operating System:

- W i n d o w s

Microsoft Windows XP ^™ Home or Professional Service pack 2/3 (32-bit recommended), Windows Vista 32-bit, or Windows ^® 7 Home or Professional 32-bit or 64-bit

- MAC

MacBook Pro and above, MacOS 10.5 and above

Minimum Hardware:

a Intel ^® Core ^™ i5-460 MHz (2.53 GHz/Turbo 2.8 GHz) or greater
b 1 GB DDR3 VRAM independent graphics card or more recommended
c 2 GB dual channel DDR3 SDRAM memory at 1066 MHz required or more recommended
d Gigabit Ethernet
e Integrated 802.11 b/g/n Wi-Fi Device for a WLAN connection

NOTE: If your computer does not meet the minimum hardware requirements, audio projection may have lag or noise. Meet the recommended system requirements to have optimized performance of audio projection.

NOTE: If you want to use wireless for audio projection, need installed the optional wireless dongle. See "Installing the Optional Wireless Dongle" on page 11.

NOTE: The audio projector function needs an extra driver to be installed. A pop-up screen will alert you if your computer needs to install the driver. You can download the Audio Projection Driver from the Dell Support site at support.dell.com.

NOTE: Ports / Protocol for connection to the projector for projection via Ethernet:

UDP: 1047, (backup: 1048, 1049)

TCP: 3268, 515, 1688, 1041 (backup: 389, 8080, 21)

Enable Wireless or LAN on the Projector

1 Connect the power cable and turn on the projector by pressing the power button.

2.1 If the LAN is used for audio projection, follow these steps to enable Wireless and LAN function (default is Enabled): Advanced Settings → LAN Settings → Wireless and LAN → Enabled.

2.2 If the Wireless is used for audio projection, follow these steps to enable wireless connection (default is Connected): Advanced Settings → Wireless Settings → Wireless → Connected.

3 Access the Input Source menu, select the Wireless/USB and then select the Wireless Display on the sub-menu.

The Wireless Guide Screen shown below appears:

4 Take note of the LOGIN CODE, NETWORK NAME (SSID), and IP ADDRESS. You will need these information to log in later.

Install the Wireless Application Software on Your Computer

5 "Wireless Application Software" is required if the Wireless or LAN is used for the Audio Projection set-up. Please download and install the software the first time you use Audio Projection. If it is already installed, skip Step 5 - 6.

NOTE: You only need to install the "Wireless Application Software" once.

6 Wireless Application Software download and install steps refer to steps 7 to 12 of the "Wireless Networking Installation" on page 55.

NOTE: If the LAN is used for audio projection, connect the LAN cable to the projector and the computer.

Launch the Wireless Application

7 Once the installation is complete, the program will launch automatically. Or you can double-click the icon on the desktop to start the application.

NOTE:

1 When you select the LAN for projection, click "Skip".
2 When you select the Wireless for projection, select the Dell 7700FullHD, and the click "OK".

Login

8 To communicate with your projector, enter the Login Code (see Step 4), and then click OK.

NOTE: If the IP Address is not detected, enter the IP Address displayed at the bottom left corner of the wireless screen.

9 You are now logged into the 7700FullHD Wireless Application. Click the "Play" button in the application to starting the LAN or wireless projection.

NOTE: You may use the controls to either project in full screen mode or in split screen mode.

10

Click the "Audio Projection" button in the application to enable Audio Projection function.

NOTE: Audio projector function need install extra driver, if your computer do not install driver, will pop-up need install driver message on screen. You can download the "extra driver" from the Dell Support site at support.dell.com.

11

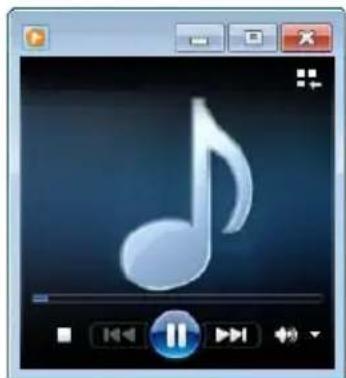

Executing the Windows Media Player or others audio player software (example: Winamp player...) on your computer.

Video player interface with a white musical note icon on a dark blue background, no text or symbols present.

Video Stream Installation

Video Stream only supports the Wireless Display and LAN Display input source.

Minimum system requirements as follow:

Operating System:

- W i n d o w s

Microsoft Windows XP ^™ Home or Professional Service pack 2/3 (32-bit recommended), Windows Vista ^™ 32-bit, or Windows ^® 7 Home or Professional 32-bit or 64-bit

- MAC

MacBook Pro and above, MacOS 10.5 and above

Minimum Hardware:

a Dual ^® Core ^™ 1.8 GHz or greater
b 64 MB VRAM independent graphics card or more recommended
c 2 GB DDR SDRAM memory or more recommended
d Gigabit Ethernet
e Integrated 802.11 b/g/n Wi-Fi Device for a WLAN connection

NOTE: If your computer does not meet the minimum hardware requirements, video stream may have lag. Meet the recommended system requirements to have optimized performance of the video stream.

NOTE: If you want to use wireless feature, need installed the optional wireless dongle. See "Installing the Optional Wireless Dongle" on page 11.

NOTE: Ports / Protocol for connection to the projector for projection via Ethernet:

UDP: 1047, (backup: 1048, 1049)

TCP: 3268, 515, 1688, 1041 (backup: 389, 8080, 21)

Video Stream Support Format

File Format Video Format Max Resolution Audio Format
MP4, MOV II.263		FWVGA (854x480) AAC LC, LPCM
MP4, MOV H.264		Up to 720P30	AAC LC, LPCM, MP3
MP4, MOV MPEG-4		Up to 720P30	AAC LC, LPCM, MP3
ASF	WMV9/VC-1	Up to 720P24	WMA

Enable Wireless or LAN on the Projector

Please refer to "steps 1 to 4 of the Audio Projection Installation" on page 71 for instructions to enable wireless or LAN feature.

Install the Wireless Application Software on Your Computer

Please refer to "steps 5 to 6 of the Audio Projection Installation" on page 73 for instructions to install the Dell Wireless Application Software.

Launch the Wireless Application

Please refer to "step 7 of the Audio Projection Installation" on page 74 for instructions to launching the application..

Login

Please refer to "step 8 of the Audio Projection Installation" on page 75 for instructions to log-in the application.

1 You are now logged into the 7700FullHD Wireless Application. Click "Video Mode" button switch to Video Mode screen.

2 Click to select the video or music files and starting player.

NOTE: Select the video or music file, then press Play. The projector will enter hibernate mode first, it will playback the video or music file after a few seconds.

Managing the Projector From Web Management

Configuring the Network Setting

If the projector is connected to a network, you can access the projector using a web browser. For configuring the network setting, refer to "LAN Settings" on page 47.

Accessing Web Management

Use Internet Explorer 6.0 and above or Firefox 2.0 and above and enter the IP address. You can now access Web Management and manage the projector from a remote location.

Home Page

• Access the Web Management Home page by entering the projector's IP address at the web browser. See "LAN Settings" on page 47.
• Select the language for web management from the list.
• Click any menu item on the left tab to access the page.

Download the Wireless Application Software

See also "Wireless Networking Installation" on page 55.

Click the Download button of the corresponding operating system of your computer.

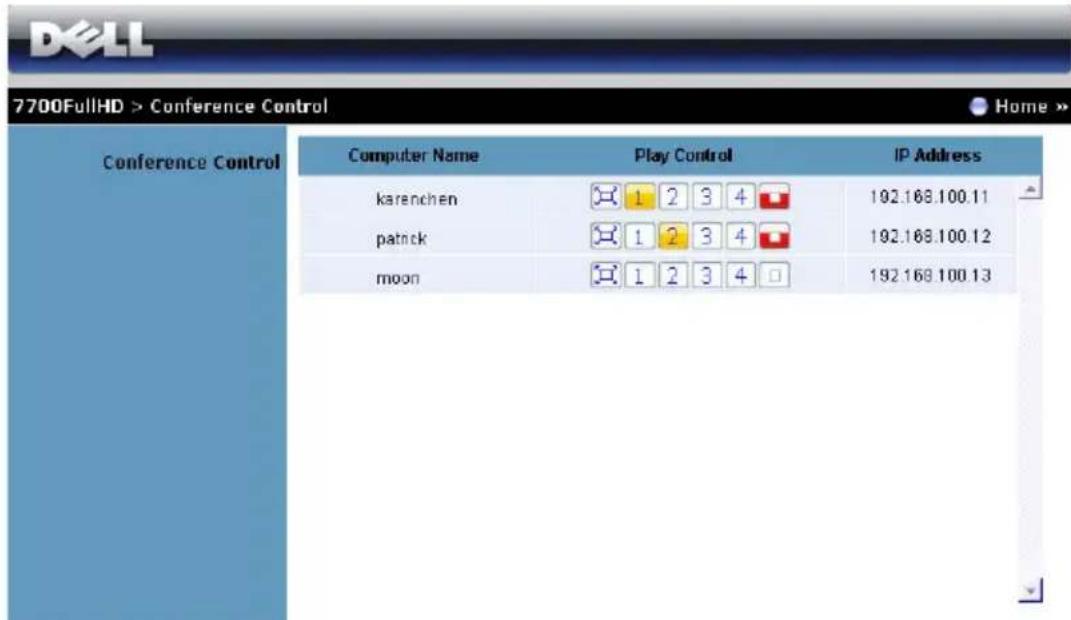

Conference Control

This allows you to host conference presentations from different sources without using projector cables and lets you control how each presentation will appear on screen.

NOTE: Without Conference Play Control, the last user to hit the "Play" button on the application will take control of the full-screen projection.

Computer Name: Lists the computers logged for conference control.

Play Control: Click the buttons to control how each computer's projection will appear on screen.

• Full screen projection — The presentation from the computer occupies the whole screen.
- Split 1 - The presentation from the computer appears on the upper left corner of the screen.
- Split 2- The presentation from the computer appears on the upper right corner of the screen.
- Split 3- The presentation from the computer appears on the lower left corner of the screen.
- Split 4- The presentation from the computer appears on the lower right corner of the screen.
- Stop - Projection from the computer is stopped.

IP Address: Shows each computer's IP Address.

NOTE: To end the conference, click Home.

Managing Properties

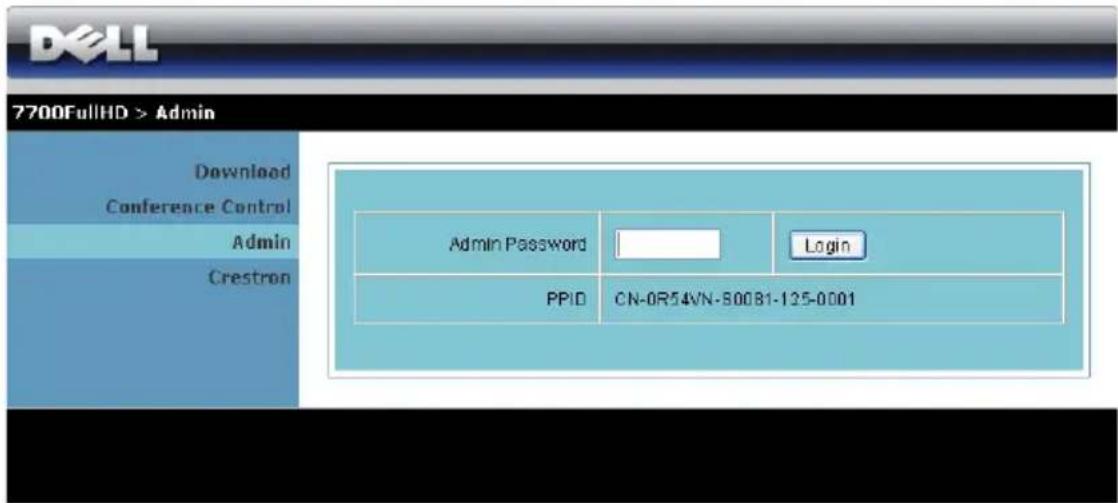

Admin

An administrator password is required to access the Admin page.

- Admin Password: Enter the administrator password and then click Login. The default password is "admin". To change the password, see "Change Passwords" on page 86.

System Status

Displays the Network Status, Connection Status, and Projector Status information.

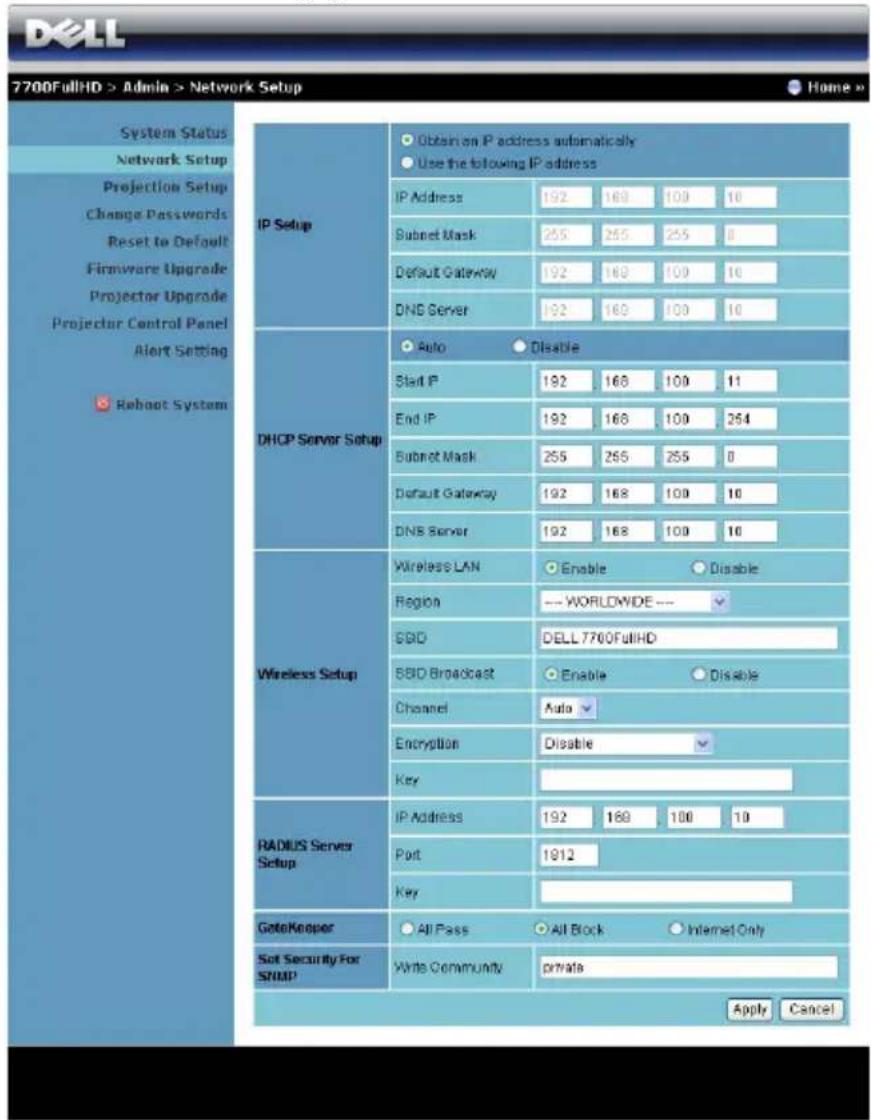

Network Setup

See OSD section on page 47.

IP Setup

- Choose Obtain an IP address automatically to assign an IP address to the projector automatically, or Use the following IP address to assign an IP address manually.

DHCP Server Setup

- Choose Auto to automatically set up the Start IP, End IP, Subnet Mask, Default Gateway, and DNS Server address from a DHCP server, or Disable to disable this function.

Wireless Setup

- Choose Enabled to set up the Region, SSID, SSID Broadcast, Channel, Encryption, and Key. Choose Disable to disable the wireless set up.

SSID: Up to maximum length of 32 characters.

Encryption: You can Disable WPA key or select one of 64-bit or 128-bit in ASCII or HEX string.

Key: If Encryption is enabled, you have to set key value according to the encryption mode you selected.

RADIUS Server Setup

- Set up the IP address, Port, and Key information.

GateKeeper

• There are three options:

All Pass: Allow users to access the office network via the wireless projector.

All Block: Block users from accessing the office network via the wireless projector.

Internet Only: Block users from the office network, but still reserve Internet connection capability.

Set Security For SNMP

- Setup Write Community information.

Click the Apply button to save and apply changes. The projector must be restarted for the changes to take effect.

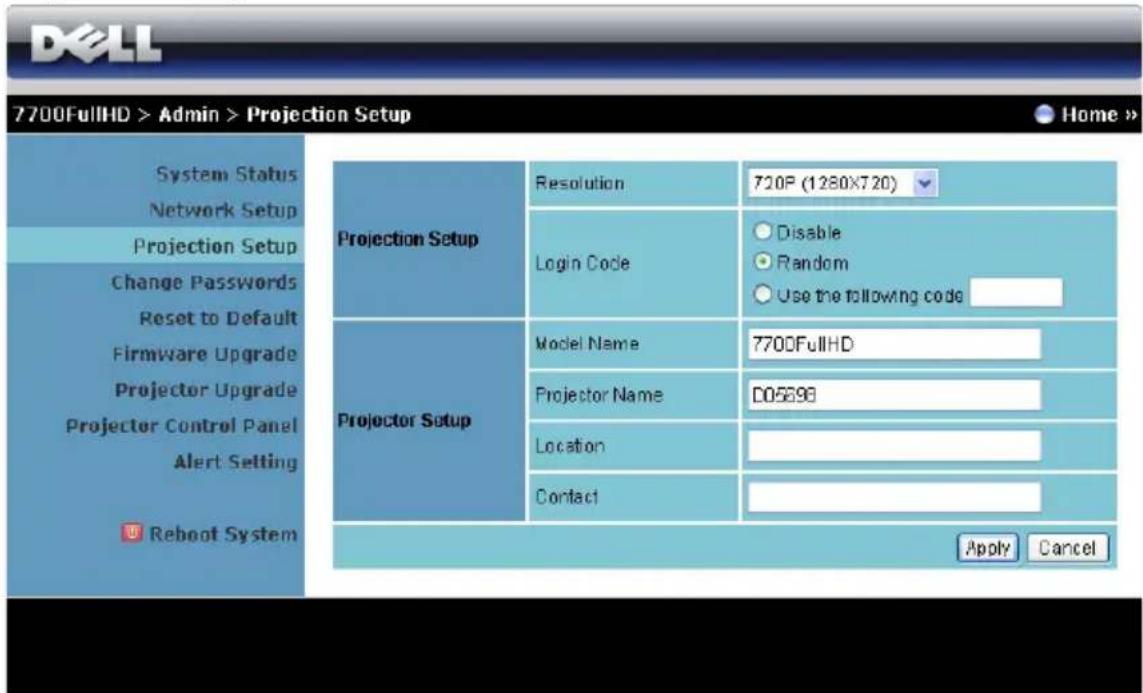

Projection Setup

Projection Setup

• Resolution: Allows you to select the resolution. Options are: XGA (1024 x 768) and 720p (1280 x 720).

• Login Code: Select how you want the login code to be generated by the projector. There are three options:

• Disable: Login code will not be required when logging in to the system.
  • Random: Default is Random. Login code will be randomly generated.

• Use the following code: Enter a 4-digit code. This code will be used to log in to the system.

Projector Setup

- S e t Model Name, Projector Name, Location, and Contact information (up to 21 characters for each field).

Click the Apply button to save and apply changes. The projector must be restarted for the changes to take effect.

Change Passwords

This page allows you to change the administrator password.

• Enter New Password: Enter the new password.
• Confirm New Password: Enter the password again and click Apply.

NOTE: Contact Dell if you forget your administrator password.

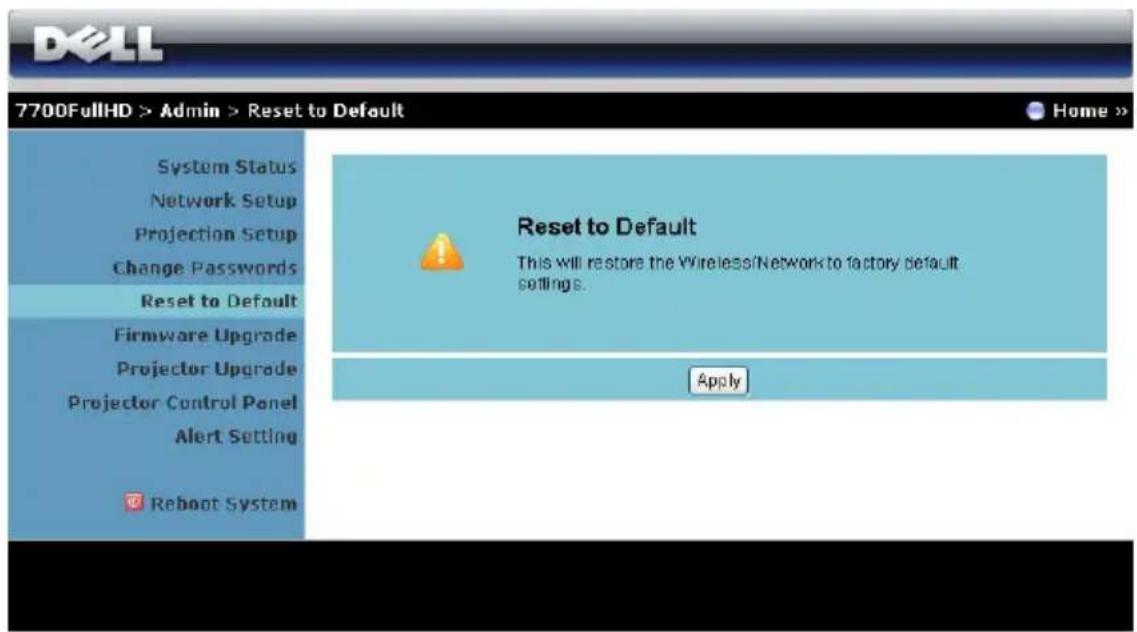

Reset to Default

Click the Apply button to restore the wireless/network setup to its factory default settings.

Firmware Upgrade

Use the Firmware Upgrade page to update your projector's wireless firmware.

NOTE: Please disable and enable wireless/network using the OSD to restart the network card for the projector after firmware upgrade is successful.

To start the firmware update, follow these steps:

1 Press Browse to select the file to update.

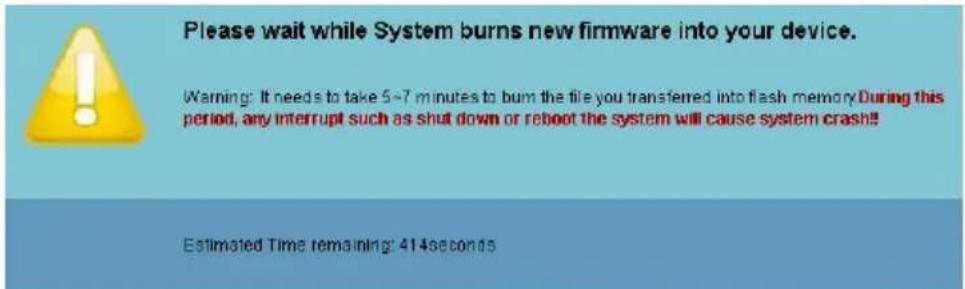

2 Click the Update button to start. Wait while the system updates the firmware in your device.

CAUTION: Do not interrupt the update process as this may cause the system to crash!

3 ClickOK when the update is complete.

Projector Upgrade

Use the Projector Upgrade page to update your projector's firmware.

NOTE: Please disable and enable wireless/network using the OSD to restart the network card for the projector after firmware upgrade is successful.

NOTE: Ensure the wireless standby mode is turn on (default is off), follow these steps: Advanced Settings -> Power Settings -> Wireless -> Always On.

To start the firmware update, follow these steps:

1 Plug in the power cord and the projector will enter standby mode.
2 Connect the LAN cable to the projector and your computer.
3 Open your Internet browser and then enter the IP address (default IP address is 192.168.100.10).
4 At Projector Upgrade web page, press Browse to select the file to update.

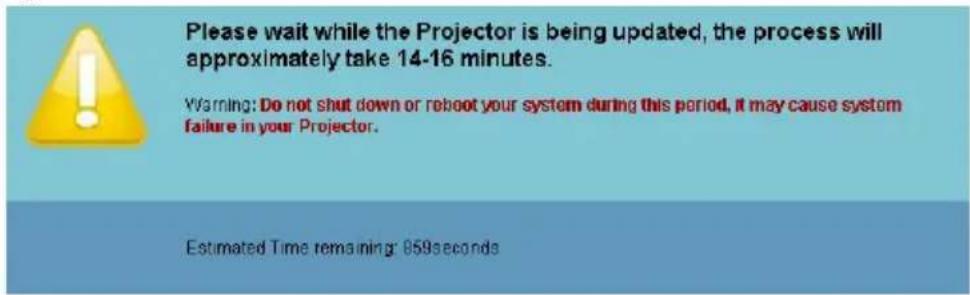

5 Click the Update button to start. Wait while the system updates the firmware in your device.

NOTE: Temp and Lamp LEDs are both lighted up (Amber).

CAUTION: Do not interrupt the update process as this may cause the system to crash!

6 Click OK when the update is complete.

Projector Control Panel

Projector Information

• Projector Status: There are five status: Lamp On, Standby, Power Saving, Cooling, and Warming up. Click Refresh to refresh the status and control settings.
• Power Saving: Power Saving can be set to Off, 30, 60, 90, or 120 minutes. For more information, see "Power Saving" on page 52.
• Alert Status: There are three alert states: Lamp warning, Low lamp life, and Temperature warning. Your projector might lock up in the protection mode if any of the alerts are activated. To exit the protection mode, click Clear to clear the Alert Status before you power on your projector.

Image Control

• Operation Mode: Allows you to select the operation mode. The two options are: Normal Mode and ECO Mode.
• Projector Mode : Allows you to select the projector mode, depending on how the projector is mounted. There are four projection modes: Front Projection-Desktop, Front Projection-Ceiling Mount, Rear Projection-Desktop, and Rear Projection-Ceiling Mount.
• Source Select: The Source Select menu allows you to select your projector input source. You can select VGA-A, VGA-B, S-Video, Composite Video, HDMI-A, HDMI-B, RCA Component, Wireless Display, USB Display, or USB Viewer.

• Video Mode : Select a mode to optimize the display image based on how the projector is being used:

• Presentation: Best for presentation slides.

• Bright: Maximum brightness and contrast.
• Movie: For viewing movies and photos
• sRGB: Provides a more accurate color representation.

• Custom: User-preferred settings.

• Blank Screen: You can select On or Off.

• Aspect Ratio: Allows you to select the aspect ratio to adjust how the image appears.
• Brightness: Select value to adjust the brightness of the image.
• Contrast: Select value to adjust the display contrast.

Click the Auto Adjust button to adjust the settings automatically.

Audio Control

• Audio Input : Select the input source. Options are: Analog In, HDMI-A, HDMI-B, and Wireless/LAN.
  • Volume : Select the value (0\~20) for audio volume.
• Speaker: Select On to enable the audio function or select Off to disable the audio function.

Click the Factory Reset button to restore the factory default settings.

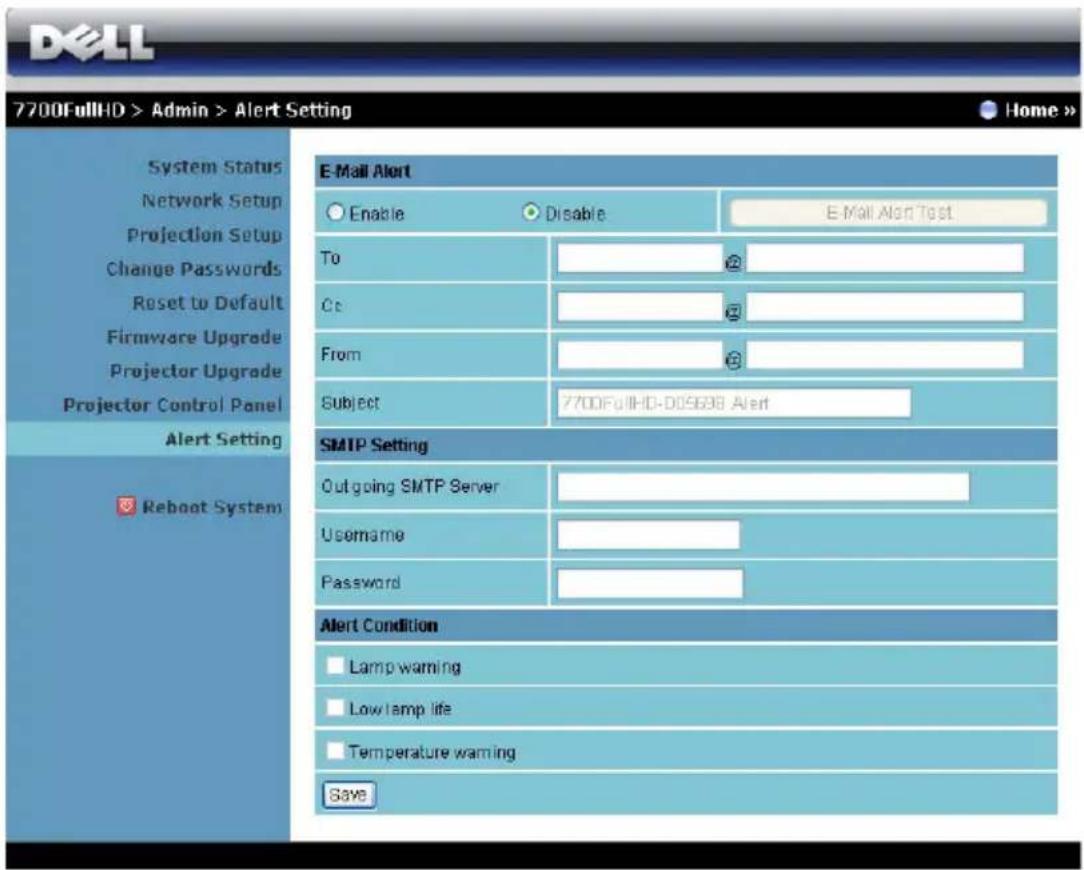

Alert Setting

E-mail Alert

• E-mail Alert: You can set whether to be notified by email (Enable) or not (Disable).
• To/Cc/From: You can enter email address of sender (From) and recipients (To/Cc) to receive notification when an abnormality or warning occurs.
• Subject: You can enter the subject line of the email.

Click the E-mail Alert Test button to test the e-mail alert settings.

SMTP Setting

- Out going SMTP server, User name, and Password should be provided by your network administrator or MIS.

Alert Condition

- You can select the abnormalities or warnings to be notified by email. When any of the alert conditions occur, an email will be sent to the recipients (To/Cc).

Click the Save button to save the settings.

NOTE: E-mail alert is designed to work with a standard SMTP server using the default 25 port. It does not support encryption and authentication (SSL or TLS).

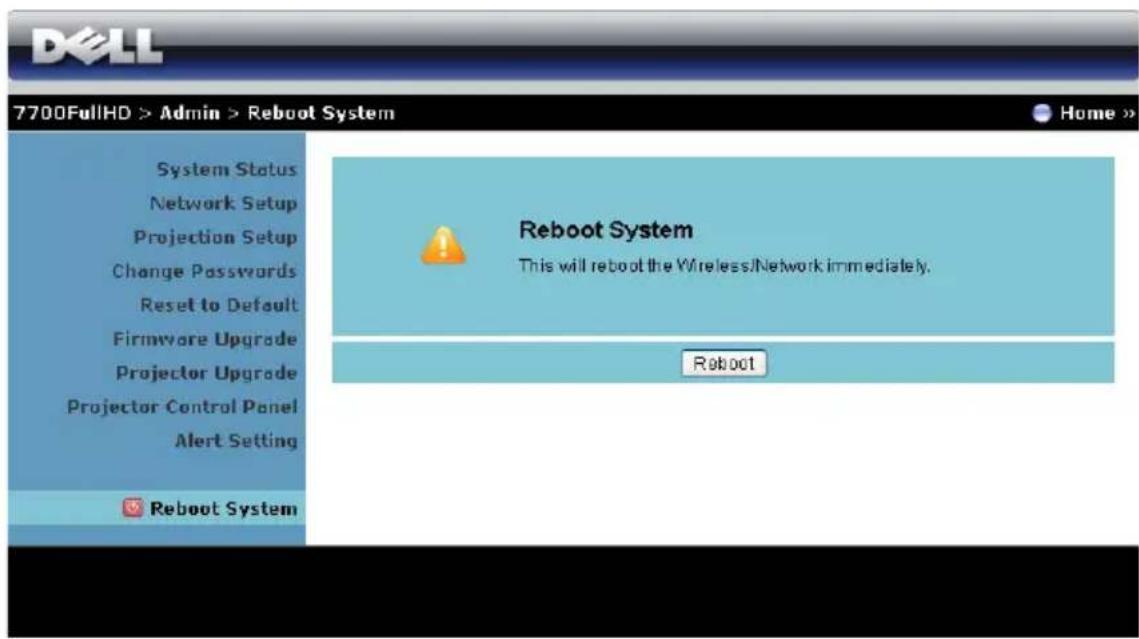

Reboot System

Click Reboot to reboot the system.

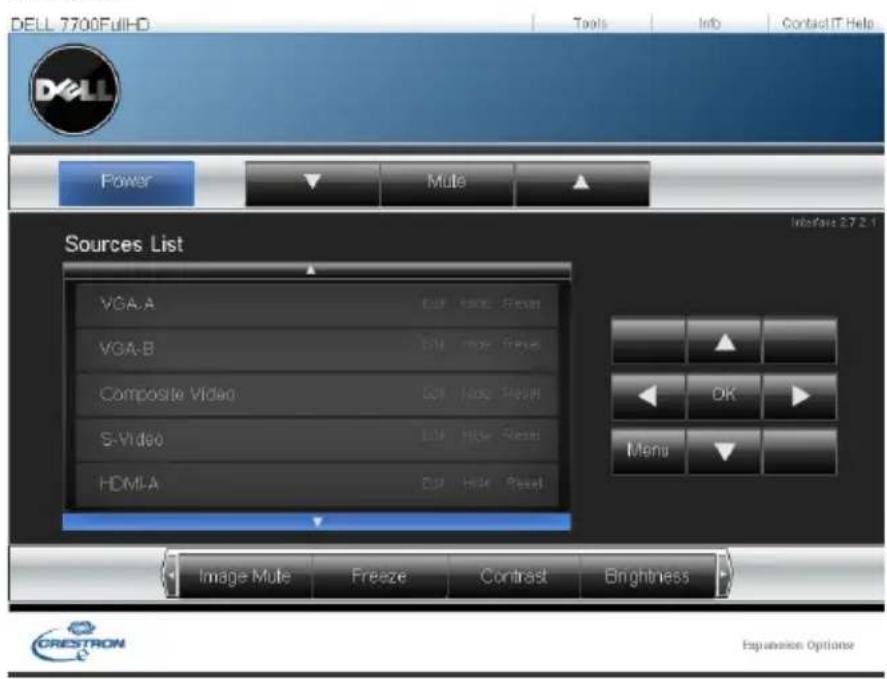

Crestron

For Crestron function.

FAQS:

I would like to remotely access the projector via the Internet. What is the best setting for the browser?	To have the best setting for the browser, please follow the below steps:1 Open Control Panel → Internet Options → General tab → Temporary Internet Files → Settings → Select Every visit to the pages.2 Some firewall or anti-virus may block the HTTP application. If possible, turn off the firewall or anti-virus.
I would like to remotely access the projector via Internet. What socket port number should I open for it in the firewall?	The following are the TCP/IP socket ports which the projector uses.
	UDP/TCP Port Description Number
	TCP 80 Web configuration (HTTP)
	UDP/TCP 25 SMTP: used for email routing between mail servers
	UDP/TCP 161 SNMP: Simple Network Management Protocol
	UDP 9131 AMX: used for AMX discovery
Why am I unable to access the projector via the Internet?	1 Check whether your computer/laptop is connected to the Internet.2 Check with your MIS or network administrator whether your computer/laptop is in the same subnet.
Why am I unable to access the SMTP server?	1 Check with your MIS or network administrator whether the SMTP server function is open for the projector and the IP assigned to the projector is allowed to access the SMTP server. The projector's SMTP socket port number is 25, this cannot be changed.2 Check if the outgoing SMTP server, user name, and password are set correctly.3 Some SMTP servers will check whether the mail address of "From" correlates with the "User name" and "Password". For example, you use [e-mail] as the mail address in "From". You should also use [e-mail] account information for the User name and the password to log in the SMTP server.
Why am I unable to receive the test alert email even though the projector already indicates the test mail is already sent?	It could be because the SMTP server recognized the alert mail as a spam mail or because of the SMTP server restriction. Check with your MIS or network administrator for the SMTP server's setting.

Firewall Configuration and FAQ

Q: Why can't I access the Web Management Page?

A: Your computer's firewall configuration may prevent you from accessing the Web Management Web Page. Please refer to the following configuration settings:

Firewall Protection Configuration
McAfee Security Center	1 Launch McAfee Security Center (Start > All Programs > McAfee > McAfee Security Center).2 On the personal firewall plus tab, click View the Internet Applications List.3 Find and select Dell 7700FullHD Projectorfrom the list.4 Right-click on its Permissions column.5 Select Allow Full Access from the pop-up menu.
Norton AntiVirus 1	Open Norton AntiVirus (Start > All Programs > Norton AntiVirus > Norton AntiVirus).2 Click Options menu, then select Norton AntiVirus.3 On the Status page, select Internet Worm Protection .4 Find and select Dell 7700FullHD Projectorfrom the list of programs.5 Right-click on its Internet Access column.6 Select Permit Allfrom the pop-up menu.7 Click OK.
Sygate Personal Firewall	1 Open Sygate Personal Firewall (Start > All Programs > Sygate > Sygate Personal Firewall).2 From the Running Applications list, find and right-click on Dell 7700FullHD Projector.3 Select Allow from the pop-up menu.
Windows Firewall 1	Open Windows Firewall (Start > All Programs > Control Panel). Double-click on Windows Firewall .
	2 On the General tab, uncheck Don’t allow exceptions.
	3 On the Exceptions tab, click the Add Program... button.
	4 Find and select Dell 7700FullHD Projectorfrom the list of programs, then click OK.
	5 Click OK to confirm exceptions settings.
Zone Alarm 1	Open Zone Alarm Firewall (Start > All Programs > Zone Labs > Zone Labs Center).
	2 On the Program Control page, find and select Dell 7700FullHD Projectorfrom the list.
	3 Right-click on its Access-Trusted column.
	4 Select Allow from the pop-up menu.
	5 Right-click and select Allow for the Access-Internet, Server-Trusted and Server-Internet columns.

Make Application Token

NOTE: This feature is only applicable to wireless-enabled models.

The Application Token lets you perform Plug and Show using a USB token.

1 From the application software, click ▶ Make Application Token.

2 The following screen appears. Click Next.

3 Plug a flash drive into any of the USB ports on your computer. Select the drive from the list, then click Next.

4 Click Finish to close the wizard.

Troubleshooting Your Projector

If you experience problems with your projector, see the following troubleshooting tips. If the problem persists, contact Dell ^™ (see Contacting Dell ^™ on page 115).

Problem Possible Solution

No image appears on the screen

- Ensure that the lens cap is removed and the projector is turned on.

- Ensure that you have chosen the correct input source on the INPUT SOURCE menu.

- Ensure the external graphics port is enabled. If you are using a Dell™ laptop computer, press (FnF8). For other computers, see your respective documentation. If images are not displayed properly, please upgrade the video driver of your computer. For Dell computers, see support.dell.com.

- Ensure that all the cables are securely connected. See "Connecting Your Projector" on page 10.

- Ensure that the pins of the connectors are not bent or broken.

- Ensure that the lamp is securely installed (see "Changing the Lamp" on page 106).

- U s Test Pattern in the Projector Settings of the Advanced Settings menu. Ensure that the colors of the test pattern are correct.

Problem (continued)	Possible Solution (continued)
Partial, scrolling, or incorrectly displayed image	1 Press the Auto Adjust button on the remote control or the control panel.2 If you are using a DellTM portable computer, set the resolution of the computer to Full HD (1920 x 1080):a Right-click the unused portion of your Microsoft® Windows® desktop, click Properties , and then select Settings tab.b Verify that the setting is 1920 x 1080 pixels for the external monitor port.c Press Fn F8(Fn+F8).If you experience difficulty in changing resolutions, or if your monitor freezes, restart all the equipment and the projector.If you are not using a DellTM portable computer, see your documentation. If images are not displayed properly, please upgrade the video driver of your computer. For a Dell computer, see support.dell.com.

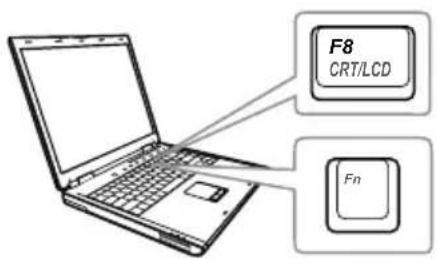

The screen does not display your presentation	If you are using a portable computer, press Fn Fn(Fn+F8).
Image is unstable or flickering	Adjust the tracking in the OSD Display Settings of the Advanced Settings menu (in PC Mode only).
Image has vertical flickering bar	Adjust the frequency in the OSD Display Settings of the Advanced Settings menu (in PC Mode only).
Image color is incorrect	· If the display receives the wrong signal output from the graphics card, please set the signal type to RGB in the OSD Image Settings of the Advanced Settings tab.· U s Test Pattern in the Projector Settings of the Advanced Settings menu. Ensure that the colors of the test pattern are correct.
Image is out of focus 1	Adjust the focus ring on the projector lens.2 Ensure that the projection screen is within the required distance from the projector (3.28 ft [1.0 m] to 39.37 ft [12.0 m]).
The image is stretched when displaying a 16:9 DVD	The projector automatically detects the input signal format. It will maintain the aspect ratio of the projected image according to input signal format with an Original setting.If the image is still stretched, adjust the aspect ratio in the Display Settings of the Advanced Settings menu in the OSD.
Image is reversed Select	Projector Settings of the Advanced Settings from the OSD and adjust the projector mode.
Lamp is burned out or makes a popping sound	When the lamp reaches its end of life, it may burn out and may make a loud popping sound. If this occurs, the projector does not turn back on. To replace the lamp, see "Changing the Lamp" on page 106.
LAMP light is solid amber	If the LAMP light is solid amber, replace the lamp.
LAMP light is blinking amber	If the LAMP light is blinking amber, the lamp module connection may be disrupted. Please check the lamp module and ensure that it is properly installed.If the LAMP light and the Power light are blinking amber, the lamp driver has failed and the projector will automatically shut down.If the LAMP and TEMP lights are blinking amber and the Power light is solid blue, the color wheel has failed and the projector will automatically shut down.To clear the protection mode, press and hold the POWER button for 10 seconds.
TEMP light is solid amber The projector has overheated. The display automatically shuts down. Turn the display on again after the projector cools down. If the problem persists, contact DellTM.
TEMP light is blinking amber If the projector fan fails, the projector will automatically shut down. Try to clear the projector mode by pressing and holding the Power button for 10 seconds. Please wait for about 5 minutes and try to power up again. If the problem persists, contact DellTM.
The OSD does not appear on the screen	Try to press the Menu button on the panel for 15 seconds to unlock the OSD. Check the Menu Lock on page 49.
The remote control is not operating smoothly or works only within a limited range	The battery may be low. Check if the laser beam transmitted from the remote is too dim. If so, replace with two new AAA batteries.

Guiding Signals

Projector Status Description		Control Buttons Indicator
		Power	TEMP (Amber)	LAMP (Amber)
Standby mode Projector in Standby mode. Ready to power on.		BLUE Flashing	OFF OFF
Warning up mode	Projector takes some time to warm up and power on.	BLUE OFF OFF
Lamp on Projector in Normal mode, ready to display an image. Note: The OSD menu is not accessed.		BLUE OFF OFF
Cooling mode Projector is cooling to shutdown. BLUE OFF OFF
Cooling before Power Saving mode	The projector takes 60 seconds to cool down before entering Power Saving mode. AMBER OFF OFF
Projector overheated	Air vents might be blocked or ambient temperature may be above 35 °C. The projector automatically shuts down. Ensure that the air vents are not blocked and that the ambient temperature is within operational range. If the problem persists, contact Dell.	OFF AMBER OFF
Lamp driver overheated	The lamp driver is overheated. The air vents may be blocked. The projector automatically shuts down. Turn the display on again after the projector cools down. If the problem persists, contact Dell.	AMBER	AMBER	OFF
Fan breakdown	One of the fans has failed. 'The projector automatically shuts down. If the problem persists, contact Dell.	OFF	AMBER Flashing	OFF
Lamp driver breakdown	The lamp driver has failed. 'The projector automatically shuts down. Unplug the power cord after three minutes and then turn the display on again. If this problem persists, contact Dell.	AMBER Flashing	OFF	AMBER Flashing
Color Wheel breakdown	Color wheel cannot start. The projector has failed and the projector automatically shuts down. Unplug the power cord after three minutes and then turn on the projector. If this problem persists, contact Dell.	BLUE	AMBER Flashing	AMBER Flashing
Lamp failure	Lamp is defective. Replace the lamp.	OFF	OFF	AMBER
Fault - DC supply (+12V)	Power supply has been interrupted. The projector automatically shuts down. Unplug the power cord after three minutes and then turn on the projector. If this problem persists, contact Dell.	AMBER Flashing	AMBER	AMBER
Lamp module connection failed	Lamp module connection may be disrupted. Check the lamp module and ensure that it is properly installed. If the problem persists, contact Dell.	OFF	OFF	AMBER Flashing

Changing the Lamp

CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions as described on page 8.

Replace the lamp when the message "Lamp is approaching the end of its useful life in the operation. Replacement suggested! www.dell.com/lamps" appears on the screen. If this problem persists after replacing the lamp, contact Dell™. For more information, see Contacting Dell™ on page 115.

CAUTION: Use an original lamp to ensure safe and optimal working condition of your projector.
CAUTION: The lamp becomes very hot when in use. Do not attempt to replace the lamp until the projector has been allowed to cool down for at least 30 minutes.
CAUTION: Do not touch the bulb or the lamp glass at any time. Projector lamps are very fragile and may shatter if touched. The shattered glass pieces are sharp and can cause injury.
CAUTION: If the lamp shatters, remove all broken pieces from the projector and dispose or recycle according to state, local, or federal law. For more information see www.dell.com/hg.

1 Turn off the projector and disconnect the power cord.
2 Let the projector cool for at least 30 minutes.
3 Loosen the two screws that secure the lamp cover, and remove the cover.
4 Loosen the two screws that secure the lamp.
5 Pull the lamp up by its metal handle.

NOTE: Dell™ may require lamps replaced under warranty to be returned to Dell™. Otherwise, contact your local waste disposal agency for the address of the nearest deposit site.

6 Replace with the new lamp.
7 Tighten the two screws that secure the lamp.
8 Replace the lamp cover and tighten the two screws.
9 Reset the lamp usage time by selecting "Yes" for Lamp Hour Reset in the OSD Power Settings of the Advanced Settings menu (see Power Settings of the

Exploded view diagram of a projector with internal components (no text or labels)

Advanced Setting menu on page 51). When a new lamp module has been changed, the projector will automatically detect and reset the lamp hours.

CAUTION: Lamp Disposal (for the US only)

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. FOR MORE INFORMATION, GO TO WWW.DELL.COM/HG OR CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP-SPECIFIC DISPOSAL INFORMATION, CHECK WWW.LAMPRECYCLE.ORG.

Specifications

Light Valve 0.95" 1080p DMD, DarkChip2™

Brightness 5000 ANSI Lumens (Max.)

Contrast Ratio 2500:1 (Natural)

10000:1 (Dynamic)

20000:1 (Static)

Uniformity 85% Typical (Japan Standard - JBMA)

Number of Pixels 1920 x 1080 (1080p)

Aspect Ratio 16:9

Displayable Color 1.07 billion colors (with Dithering)

Color Wheel Speed 2X

Projection Lens F-Stop: F/2.6\~2.9

Focal length, f=39.12\~46.94 mm

1.2X manual Zoom Lens

Throw ratio =1.85\~2.22 wide and tele

Offset ratio: 115 ± 5%

Projection Screen Size 20.3\~292.9 inches (diagonal)

Projection Distance 3.28\~39.37 ft (1 m \~ 12 m)

Video Compatibility Composite Video / S-Video: NTSC (J, M, 4.43), PAL

(B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, Kl, L)

HDMI, and Component Video input (via VGA and

YPbPr RCA): 1080i/p, 720p, 576i/p, 480i/p

Power Supply Universal AC 100-240 50-60 Hz with PFC input

Power Consumption Normal mode: 525 W ± 10% @ 110 Vac

Eco mode: 430 W ± 10% @ 110 Vac

Power saving mode: <20 W (Wireless and Network On)

Standby mode: < 0.5 W (Network, VGA_Out, and Wireless Off)

Audio 2 speakers x 5 watt RMS

Noise Level 39 dB(A) Normal mode, 36 dB(A) Eco mode

Weight 16 lb (7.26 kg)

Dimensions (W x II x D) 17.01 x 5.31 x 11.42 inches (432 x 135 x 290 mm)

Environmental Operating temperature: 5

^ C - 35 ^ C (41 ^ F - 95 ^ F)

Humidity: 80 % maximum

Storage temperature: 0 °C to 60 °C (32 °F to 140 °F)

Humidity: 90 % maximum

Shipping temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Humidity: 90 % maximum

I/O Connectors Power: One AC power socket (3-pin - C14 inlet)

VGA input: Two 15-pin D-sub connectors (Blue), VGA-A and VGA-B, for analog RGB/Component input signals.

VGA output: One 15-pin D-sub connector (Black) for VGA-A loop through.

Component Video input: One set of RCA connector (RGB) for component input signal.

S-Video input: One standard 4-pin min-DIN S-Video connector for Y/C signal.

Composite Video input: One Yellow RCA jack for CVBS signal.

HDMI input: Two HDMI connector for supporting HDMI 1.3. HDCP compliant.

Analog Audio input: One 3.5 mm stereo mini phone jack (Blue).

Variable audio output: One 3.5 mm stereo mini phone jack (Green).

USB (type A) port: One USB connector for Photo/PtG viewer (JPG/PPT format).

USB (type B) port: One mini USB slave for remote support and One USB connector for supporting USB Display.

RS232 port: One 9-pin D-sub for RS232 communication.

RJ45 port: One RJ45 connector for control of projector through network and LAN Display.

12 V output: One 12 V DC / 200 mA max. relay output for driving automatic screen.

Wireless Dongle Wireless Standard: IEEE802.11b/g/n

Wireless: One WiFi USB (type A) connector for supporting wireless dongle (USB interface, Optional).

OS environment: Windows 7/Vista/XP/2000, MAC OS X

Support: Presentation slides and projector control.

Allow connection up to 30 users at the same time.

4-to-1 split screen. Allow four presentation slides to be projected on screen.

Conference Control mode.

Supports Audio Projection (need to install extra driver)

Supports Video Streaming (up to 720p)

Lamp Philips 400 W user-replaceable lamp (up to 2000

hours in eco mode; up to 1500 hours in normal mode)

NOTE: The lamp life rating for any projector is a measure of brightness degradation only, and is not a specification for the time it takes a lamp to fail and cease light output. Lamp life is defined as the time it takes for more than 50 percent of a lamp sample population to have brightness decrease by approximately 50 percent of the rated lumens for the specified lamp. The lamp life rating is not guaranteed in any way. The actual operating life span of a projector lamp will vary according to operating conditions and usage patterns. Usage of a projector in stressful conditions which may include dusty environments, under high temperatures, many hours per day, and abrupt powering-off will most likely result in a lamp's shortened operating life span or possible lamp failure.

RS232 Pin Assignment

RS232 Protocol

- Communication Settings

Connection settings Value
Baud Rate 19,200
Data Bits 8
Parity None
Stop Bits 1

- Command types

To pop up the OSD menu and adjust the settings.

• Control command Syntax (From PC to Projector)

[II][AC][SoP][CRC][ID][SoM][COMMAND]

• Example: Power ON Command (Send low byte firstly)

--> 0xBF, 0xEF, 0x10, 0x05, 0x00, 0xC6, 0xFF, 0x11, 0x11, 0x01, 0x00, 0x01

• Control Commands List

To view the latest RS232 code, go to the Dell Support site at: support.dell.com.

PIP Combination Sources

HDMI-A HDMI-B VGA-A VGA-B Component
HDMI-A No No Yes Yes Yes
IIDMI-B No No Yes Yes Yes
VGA-A Yes Yes No No No
VGA-B Yes Yes No	No No
Component	Yes Yes No No No
S-Video	Yes Yes No No No
Composite	Yes Yes No No No
Wireless Display	No No Yes Yes Yes
USB Display	No No Yes Yes Yes
USB Viewer	No No	Yes Yes Yes
	S-Video	Composite	Wireless Display	USB Display	USB Viewer
HDMI-A Yes Yes	No No No
IIDMI-B Yes Yes	No No No
VGA-A No No Yes Yes Yes
VGA-B No No Yes Yes Yes
Component	No No Yes Yes Yes
S-Video	No No Yes Yes Yes
Composite	No No Yes Yes Yes
Wireless Display	Yes Yes	No No No
USB Display	Yes Yes	No	No No
USB Viewer	Yes Yes	No	No No

Compatibility Modes (Analog/Digital)

Resolution	Refresh Rate (Hz)	Hsync Frequency (KHz)	Pixel Clock (MHz)
640 x 350 70.087	31.469 25.175
640 x 480 59.940	31.469 25.175
640 x 480 p60 59.940	31.469 25.175
720 x 480 p60 59.940	31.469 27.000
720 x 576 p50 50.000	31.250 27.000
720 x 400 70.087	31.469 28.322
640 x 480 75.000	37.500 31.500
848 x 480 60.000 31.020	33.750
640 x 480 85.008	43.269 36.000
800 x 600 60.317	37.879 40.000
800 x 600 75.000	46.875 49.500
800 x 600 85.061	53.674 56.250
1024 x 768 60.004	48.363 65.000
1280 x 720 p50 50.000	37.500 74.250
1280 x 720 p60 60.000	45.000 74.250
1920 x 1080 i50 50.000	28.125 74.250
1920 x 1080 i60 60.000	33.750 74.250
1280 x 720 59.855	44.772 74.500
1024 x 768 75.029	60.023 78.750
1280 x 800 59.810	49.702 83.500
1366 x 768 59.790	47.712 85.500
1360 x 768 60.015	47.712 85.500
1024 x 768 84.997	68.677 94.500
1440 x 900 59.887	55.935 106.500
1152 x 864 75.000	67.500 108.000
1280 x 960 60.000 60.000	108.000
1280 x 1024 60.020	63.981 108.000
1152 x 864 85.000	77.095 119.651
1400 x 1050 59.978	65.317 121.750
1280 X 800 84.880 71.554	122.500
1280 x 1024 75.025	79.976 135.000
1440 X 900 74.984 70.635	136.750
1680 x 1050 59.954	65.290 146.250
1280 x 960 85.002 85.938	148.500
1920 x 1080 60.000	67.500 148.500
1400 X 1050 74.867	82.278 156.000
1280 x 1024 85.024	91.146 157.000
1440 X 900 84.842 80.430	157.000
1600 x 1200 60.000	75.000 162.000

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell ^™ provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1 Visit support.dell.com.
2 Verify your country or region in the Choose A Country/Region dropdown menu at the bottom of the page.
3 Click Contact Us on the left side of the page.
4 Select the appropriate service or support link based on your need.
5 Choose the method of contacting Dell that is convenient for you.

Appendix: Glossary

ANSI LUMENS — A standard for measuring the brightness. It is calculated by dividing a square meter image into nine equal rectangles, measuring the lux (or brightness) reading at the center of each rectangle, and averaging these nine points.

ASPECT RATIO — The most popular aspect ratio is 4:3 (4 by 3). Early television and computer video formats are in a 4:3 aspect ratio, which means that the width of the image is 4/3 times the height.

Brightness — The amount of light emitted from a display or projection display or projection device. The brightness of projector is measured by ANSI lumens.

Color Temperature — The color appearance of white light. Low color temperature implies warmer (more yellow/red) light while high color temperature implies a colder (more blue) light. The standard unit for color temperature is Kelvin (K).

Component Video — A method of delivering quality video in a format that consists of the luminance signal and two separate chrominance signals and are defined as Y'Pb'Pr' for analog component and Y'Cb'Cr' for digital component. Component video is available on DVD players.

Composite Video — A video signal that combines the luma (brightness), chroma (color), burst (color reference), and sync (horizontal and vertical synchronizing signals) into a signal waveform carried on a single wire pair. There are three kinds of formats, namely, NTSC, PAL, and SECAM.

Compressed Resolution — If the input images are of higher resolution than the native resolution of the projector, the resulting image will be scaled to fit the native resolution of the projector. The nature of compression in a digital device means that some image content is lost.

Contrast Ratio — Range of light and dark values in a picture, or the ratio between their maximum and minimum values. There are two methods used by the projection industry to measure the ratio:

1 Full On/Off — measures the ratio of the light output of an all white image (full on) and the light output of an all black (full off) image.
2 ANSI — measures a pattern of 16 alternating black and white rectangles. The average light output from the white rectangles is divided by the average light output of the black rectangles to determine the ANSI contrast ratio.

Full On/Off contrast is always a larger number than ANSI contrast for the same projector.

dB — decibel — A unit used to express relative difference in power or intensity, usually between two acoustic or electric signals, equal to ten times the common logarithm of the ratio of the two levels.

Diagonal Screen — A method of measuring the size of a screen or a projected image. It measures from one corner to the opposite corner. A 9 ft high and 12 ft wide, screen has a diagonal of 15 ft. This document assumes that the diagonal dimensions are for the traditional 4:3 ratio of a computer image as per the example above.

DHCP — Dynamic Host Configuration Protocol — A network protocol that enables a server to automatically assign a TCP/IP address to a device.

DLP ^® — Digital Light Processing ^™ — Reflective display technology developed by Texas Instruments, using small manipulated mirrors. Light passing through a color filter is sent to the DLP mirrors which arrange the RGB colors into a picture projected onto screen, also known as DMD.

DMD — Digital Micro-Mirror Device — Each DMD consists of thousands of tilting, microscopic aluminum alloy mirrors mounted on a hidden yoke.

DNS — Domain Name System — An Internet service that translates domain names into IP addresses.

Focal Length — The distance from the surface of a lens to its focal point.

Frequency — It is the rate of repetition in cycles per seconds of electrical signals. Measured in Hz (Hertz).

HDCP — IHigh-Bandwidth Digital-Content Protection — A specification developed by Intel™ Corporation to protect digital entertainment across digital interface, such as DVI, HDMI.

HDMI — High-Definition Multimedia Interface — HDMI carries both uncompressed high definition video along with digital audio and device control data in a single connector.

Hz (Hertz) — Unit of frequency.

IEEE802.11 — A set of standards for wireless local are network (WLAN) communication. 802.11b/g/n uses the 2.4 GHz band.

Keystone Correction — Device that will correct an image of the distortion (usually a wide-top narrow-bottom effect) of a projected image caused by improper projector to screen angle.

Maximum Distance — The distance from a screen the projector can be to cast an image that is usable (bright enough) in a fully darkened room.

Maximum Image Size — The largest image a projector can throw in a darkened room. This is usually limited by focal range of the optics.

Minimum Distance — The closest position that a projector can focus an image onto a screen.

NTSC — National Television Standards Committee. North American standard for video and broadcasting, with a video format of 525 lines at 30 frames per second.

PAL — Phase Alternating Line. A European broadcast standard for video and broadcasting, with a video format of 625 lines at 25 frames per second.

Reverse Image — Feature that allows you to flip the image horizontally. When used in a normal forward projection environment text, graphics, etc. are backwards. Reverse image is used for rear projection.

RGB — Red, Green, Blue — typically used to describe a monitor that requires separate signals for each of the three colors.

S-Video — A video transmission standard that uses a 4-pin mini-DIN connector to send video information on two signal wires called luminance (brightness, Y) and chrominance (color, C). S-Video is also referred to as Y/C.

SECAM — A French and international broadcast standard for video and broadcasting, closely related to PAL but with a different method of sending color information.

SSID — Service Set Identifiers — A name used to identify the particular wireless LAN to which a user wants to connect.

SVGA — Super Video Graphics Array — 800 x 600 pixels count.

SXGA — Super Extended Graphics Array, — 1280 x 1024 pixels count.

UXGA — Ultra Extended Graphics Array — 1600 x 1200 pixels count.

VGA — Video Graphics Array — 640 x 480 pixels count.

WEP — Wired Equivalent Privacy — This is a method for encrypting communication data. The encryption key is created and notified only to the communicating user, so the communication data cannot be decrypted by a third party.

XGA — Extended Video Graphics Array — 1024 x 768 pixels count.

WXGA — Wide Extended Graphics Array — 1280 x 800 pixels count.

1080p — 1080p is the shorthand identification for a set of HDTV high-definition video modes that are characterized by 1080 horizontal lines of resolution and progressive scan, meaning the image is not interlaced as is the case with the 1080i display standard.

Zoom Lens — Lens with a variable focal length that allows operator to move the view in or out making the image smaller or larger.

Zoom Lens Ratio — Is the ratio between the smallest and largest image a lens can

the project from a fixed distance. For example, a 1.4:1 zoom lens ratio means that a 10 foot image without zoom would be a 14 foot image with full zoom.

Index

A

Adjusting the Projected Image 26

Elevator button 26

lower the projector

Elevator foot 26

Tilt adjustment wheel 26

Lowering the Projector Height 26

Raising the Projector Height 26

Adjusting the Projector Zoom and Focus 27

Focus ring 27

Horizontal lens shift knob 27

Lens shift lock 27

Side door 27

Vertical lens shift knob 27

Zoom ring 27

C

Changing the Lamp 106

Connecting the Projector

12 V DC Plug 23

3 RCA to 3 RCA Component Video (Male to Male) cable 20

Composite Video cable 18

Connecting a Computer with a RS232 cable 14, 15

Connecting with a Component Cable 19

Connecting with a Composite Cable 18

Connecting with an HDMI Cable 21

Connecting with an S-video Cable 17

HDMI cable 21, 22

Motorized projection screen 23

Power cord 12, 13, 14, 15, 17, 18, 19, 20, 21, 22, 23, 24

RS232 (9-pin D-sub female to female pin2-3 swap) cable 14, 24

S-Video cable 17

To Computer 12

USB to USB cable 12

USB-A to USB-B cable 15

VGA to VGA cable 12, 13

VGA to YPbPr cable 19

Connection Ports

+12 V DC out connector 10

Audio input connector 10

Audio output connector 10

Component Video input connector 10

Composite Video connector 10

HDMI-A connector 10

HDMI-B connector 10

Mini USB (Mini Type B) connector for remote control 10

Power cord connector 10

RJ45 connector 10

RS232 (D-sub) connector 10

Security cable slot 10

S-Video connector 10

USB Type A connector for USB Viewer 10

USB Type B connector for USB Display 10

VGA-A input (D-sub) connector 10

VGA-A output (monitor loop-through) connector 10

VGA-B input (D-sub) connector 10

WiFi USB (Type A) connector 10

Contact Dell 7, 104, 106

Control Panel 30

D

Dell

contacting 115

M

Main Unit 8

Control panel 8

Elevator button for height adjustments 8

Focus tab 8

IR receivers 8

Lens 8

Lens cap 8

0

On-Screen Display 37

ADVANCED SETTINGS 40

AUDIO INPUT 40

AUTO ADJUST 38

BRIGHTNESS/CONTRAST 39

HELP 54

INPUT SOURCE 37

INPUT SOURCE MULTIPLE DISPLAY 38

LANGUAGE 54

VIDEO MODE 39

VOLUME 40

P

phone numbers 115

Powering On/Off the Projector

Powering Off the Projector 25

Powering On the Projector 25

R

Remote Control 32

IR receiver 31

s

Specifications

Audio 109

Brightness 108

Color Wheel Speed 108

Contrast Ratio 108

Dimensions 109

Displayable Color 108

Environmental 109

I/O Connectors 109

Light Valve 108

Noise Level 109

Number of Pixels 108

Power Consumption 109

Power Supply 108

Projection Distance 108

Projection Lens 108

Projection Screen Size 108

RS232 Protocol 112

Uniformity 108

Video Compatibility 108

Weight 109

support

contacting Dell 115

T

telephone numbers 115

Troubleshooting 101

Contact Dell 101
