Dell Advanced Projector S718QL User's Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your projector

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Provide an earthing connection before the main plug is connected to the mains.

Information in this document is subject to change without notice. © 2017 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model: Dell Advanced Projector S718QL

October 2017 Rev. A01

Contents

1 About Your Dell Projector.... 5

Projector Box Contents 5

Projector Top and Bottom View 6

Projector Connections.... 7

Federal Communication Commission Interference Statement. 10

Radiation Exposure Statement: 10

FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) 10

Industry Canada statement: 11

2 Adjusting Projector Image 15

Aligning Projected Image To A Projection Screen . . . 15

Adjusting Image Shape 18

Adjusting Image Height 22

Projector Image Focus Adjustment 23

Quick Focus Adjustment 24

Adjusting Projector Position 25

Adjusting Image Corners 27

Adjusting Image Size 28

Cleaning the Projector's Lens 30

3 Using Your Projector.... 31

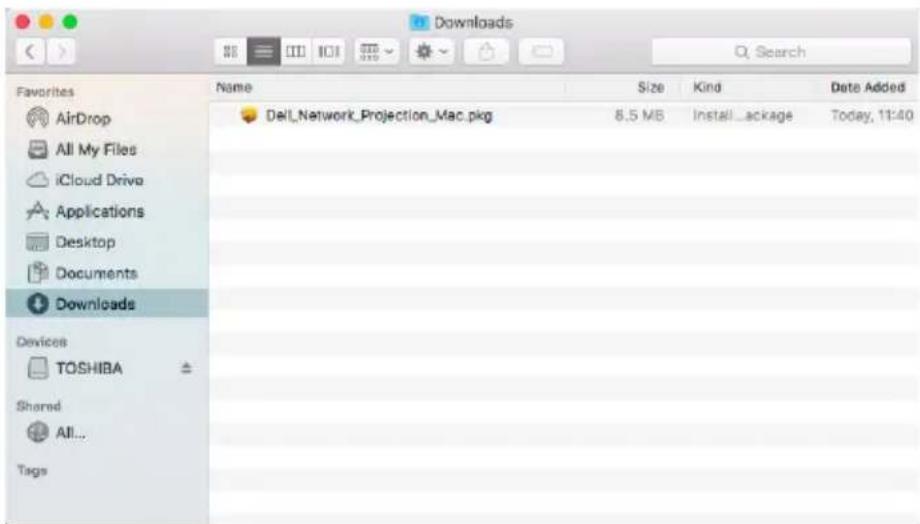

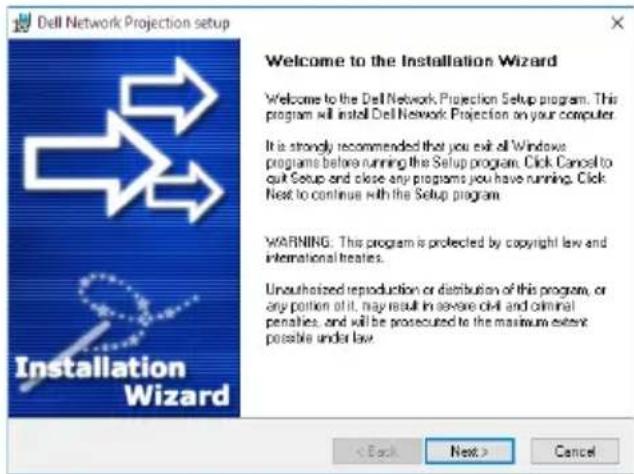

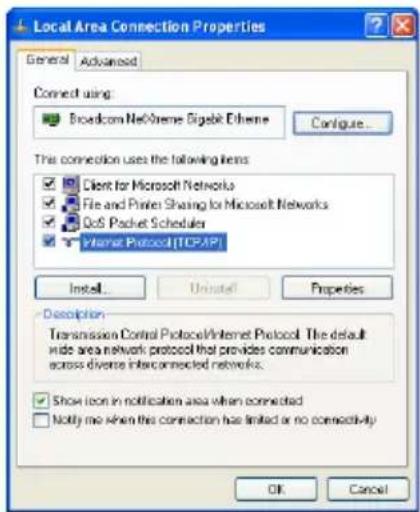

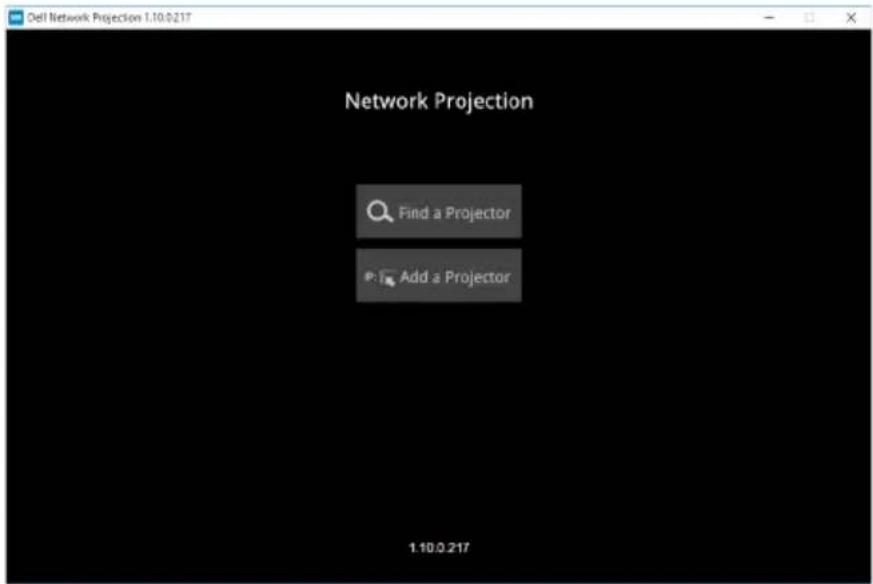

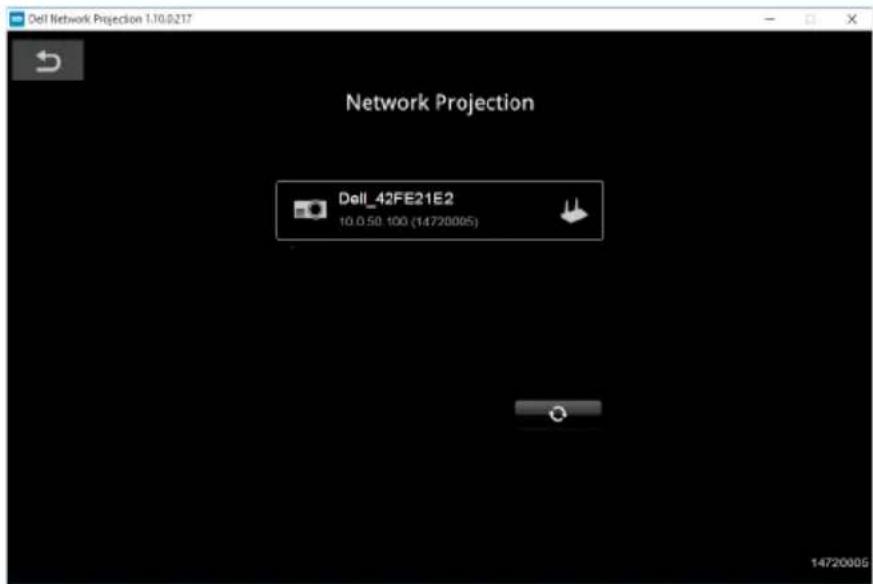

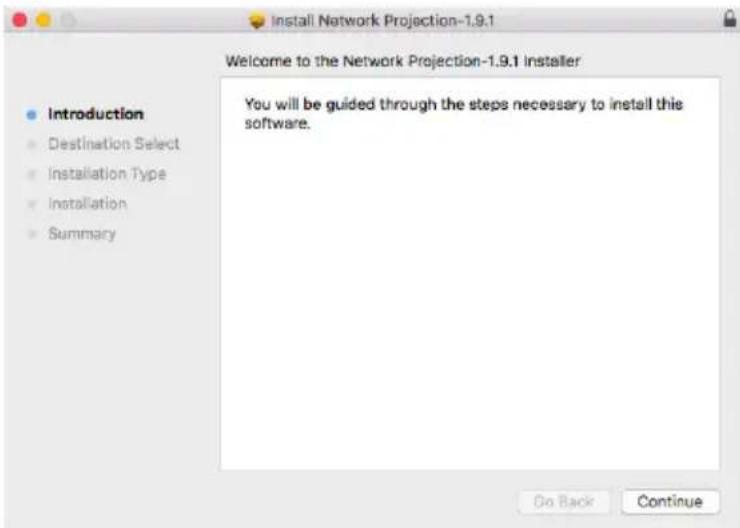

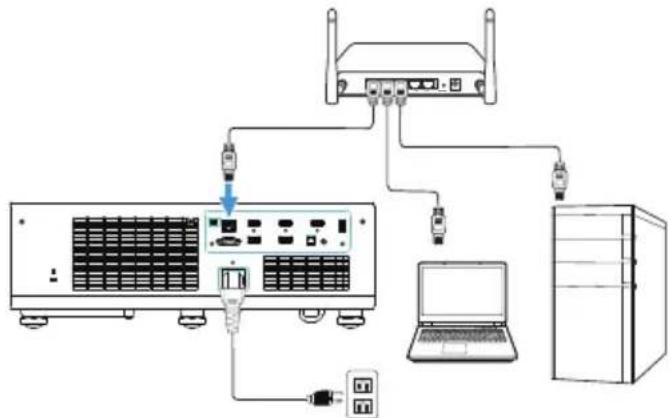

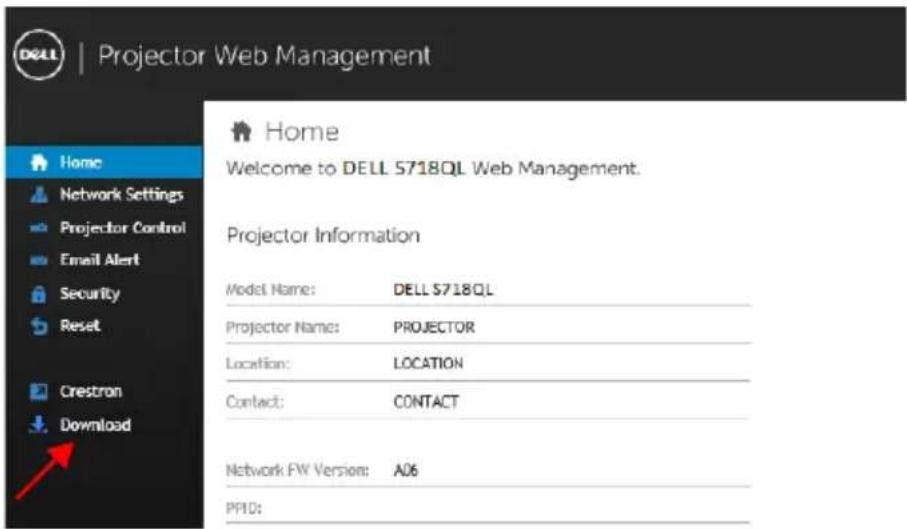

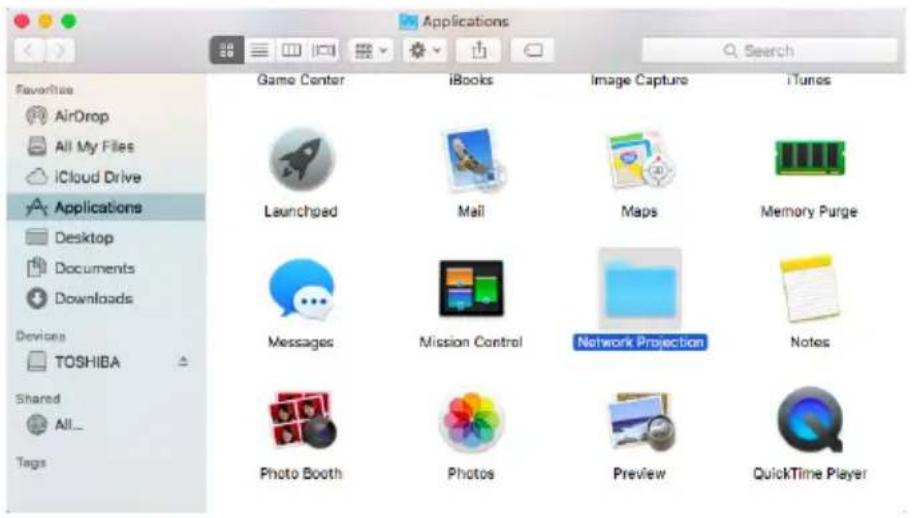

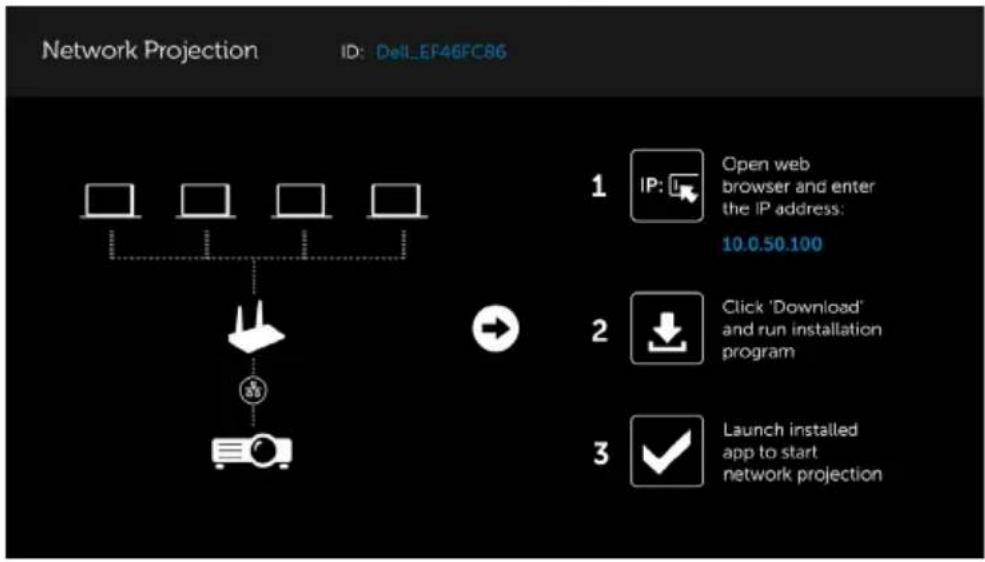

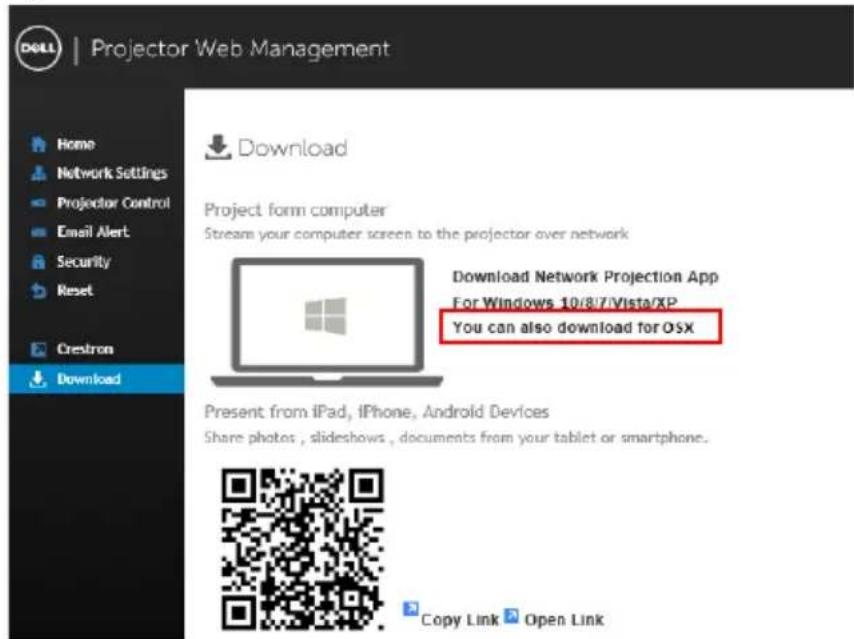

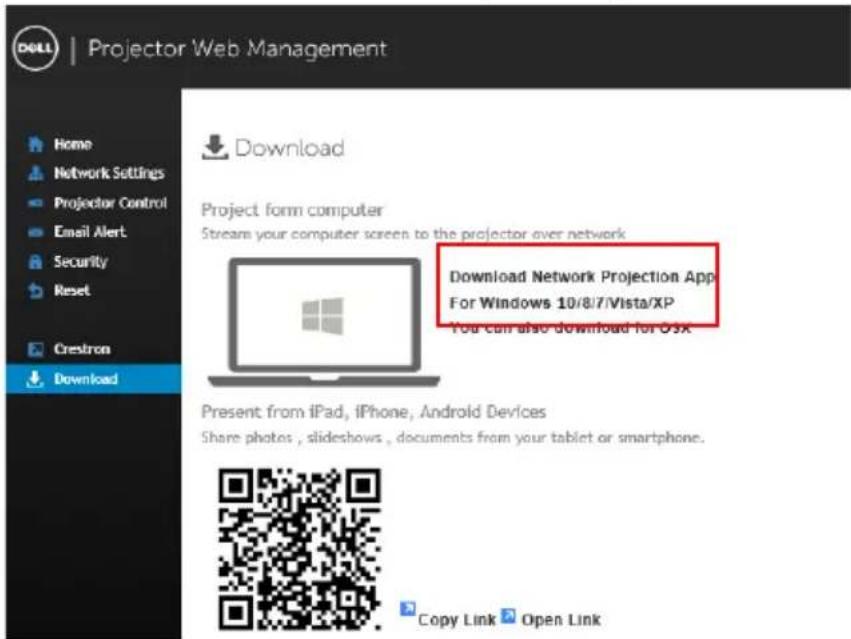

Using Network Display 31

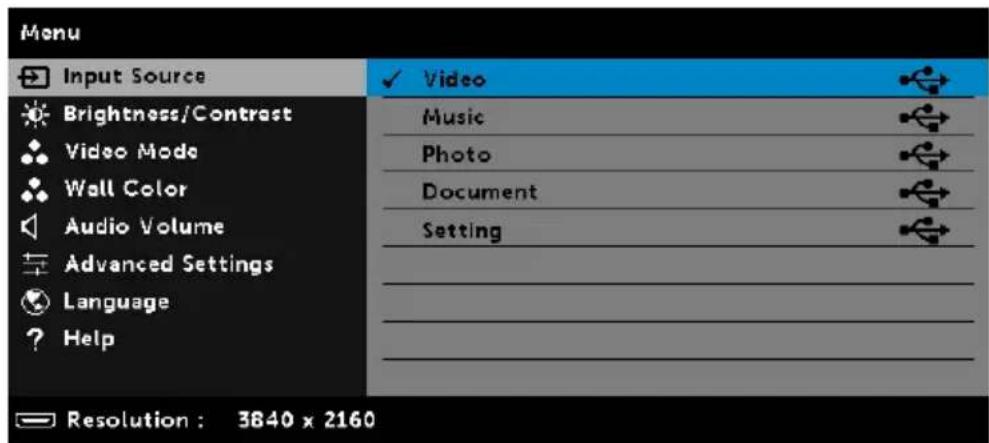

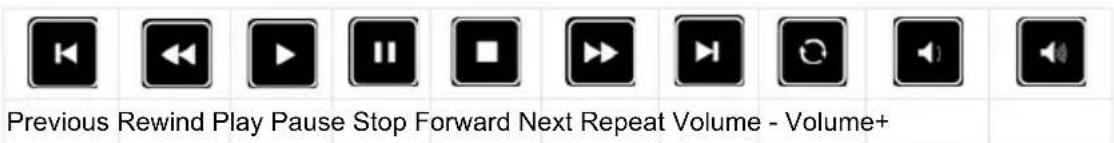

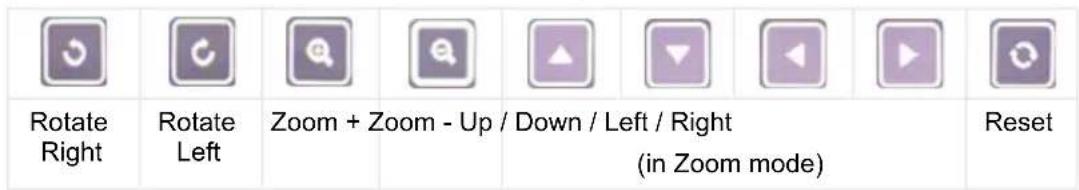

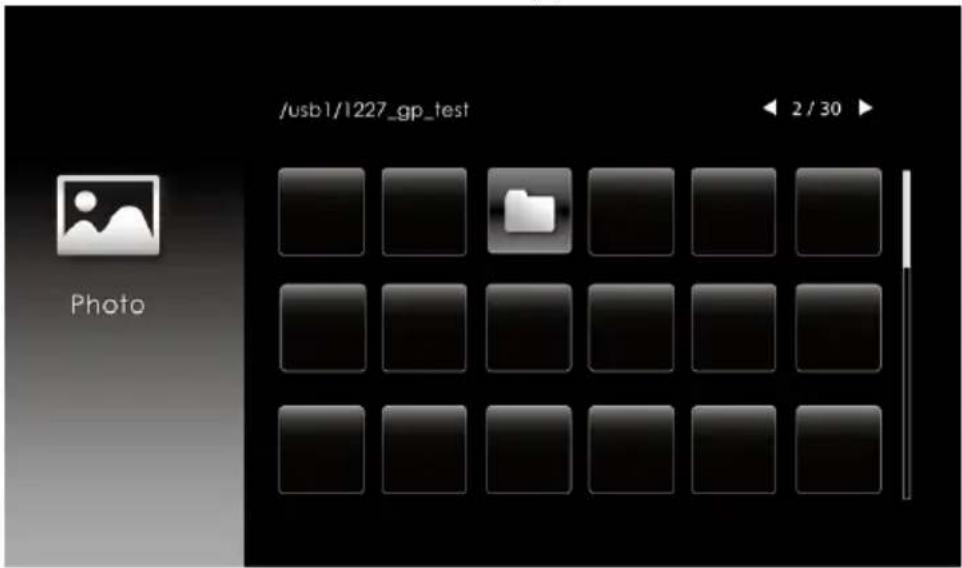

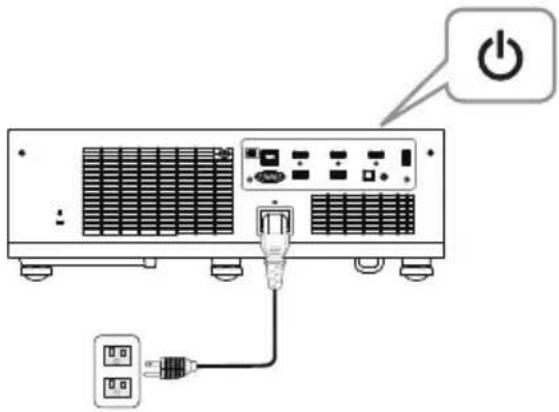

Using PC-Free Presentation. 45

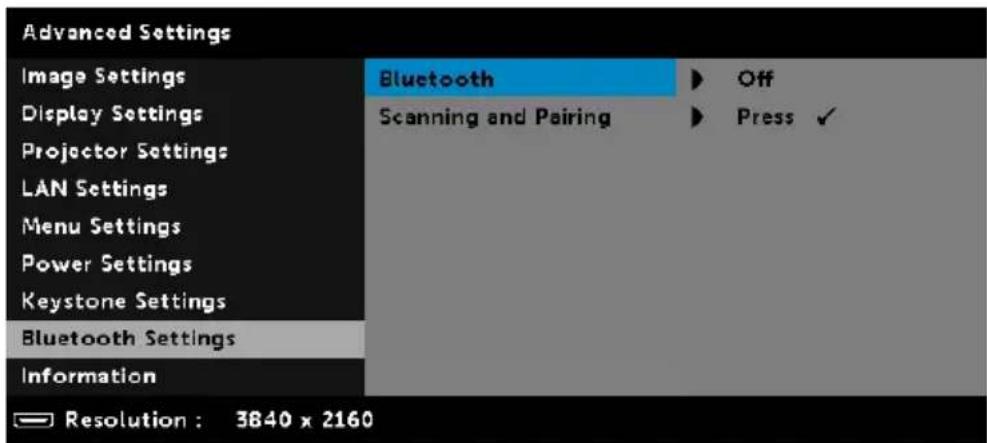

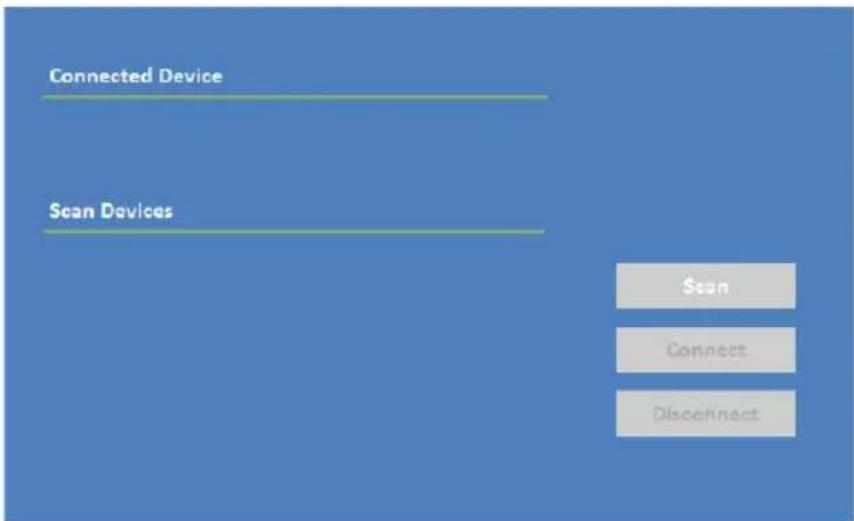

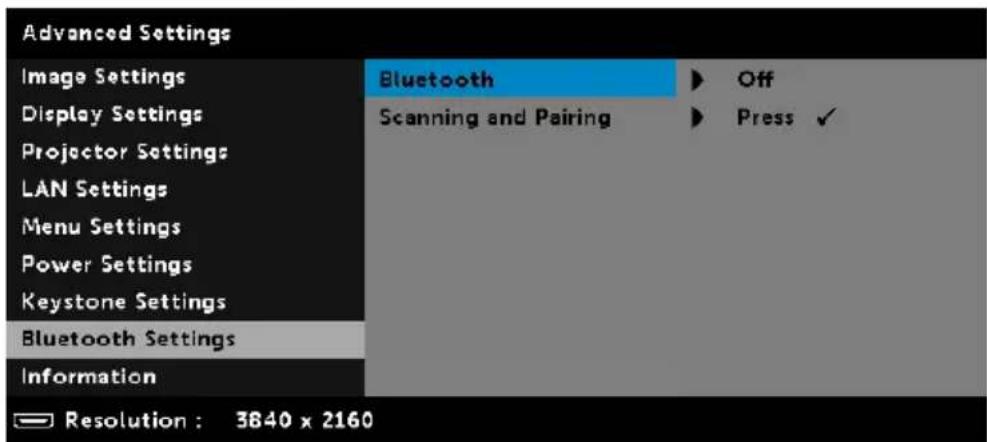

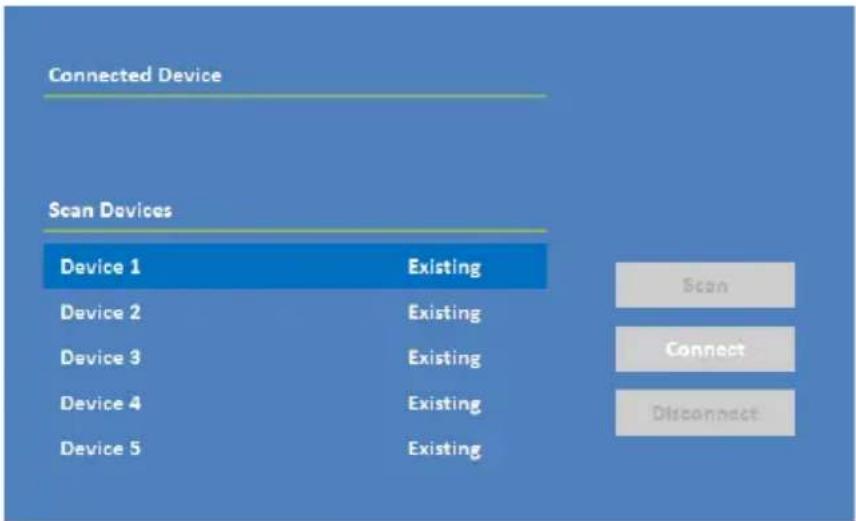

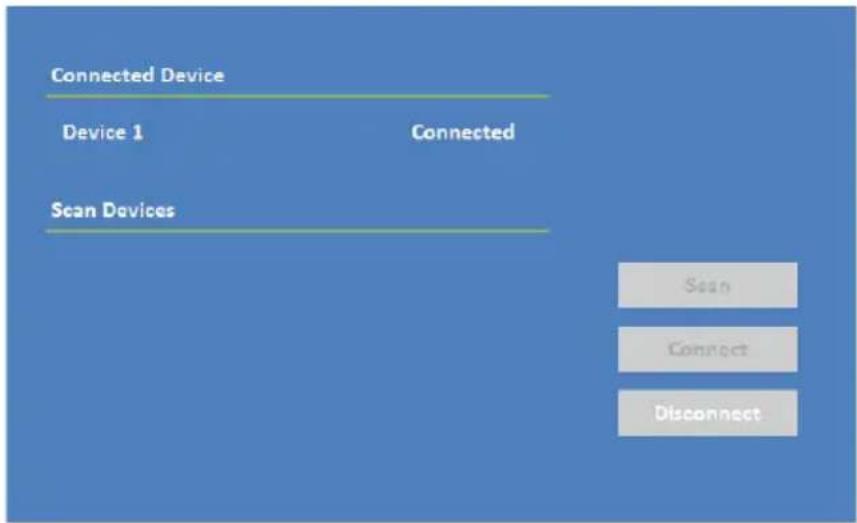

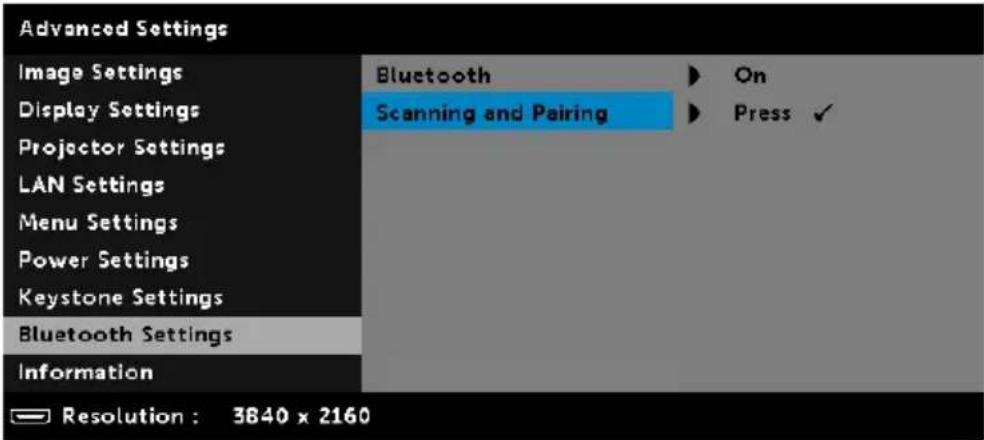

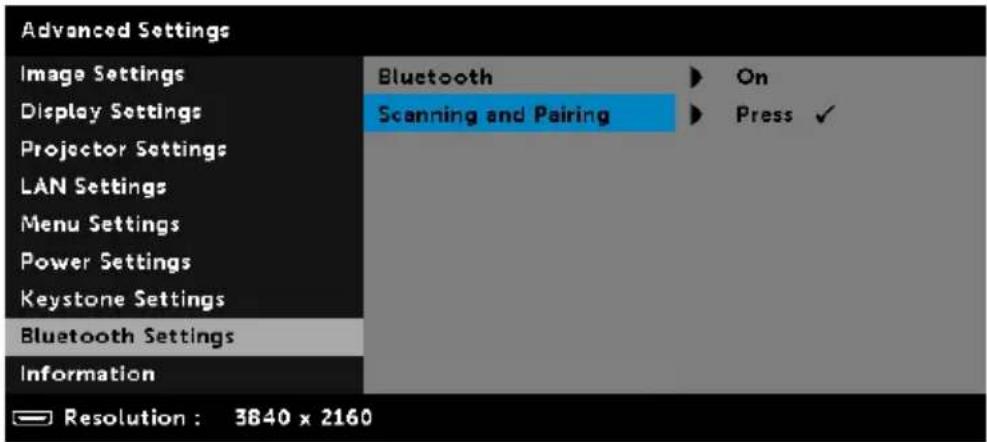

Set-up Bluetooth Speaker 55

Turn Off the Projector Speaker 59

Using High Dynamic Range (HDR) 60

4 Troubleshooting 62

Troubleshooting Tips. 62

Guiding Signals 65

5 Maintenance....66

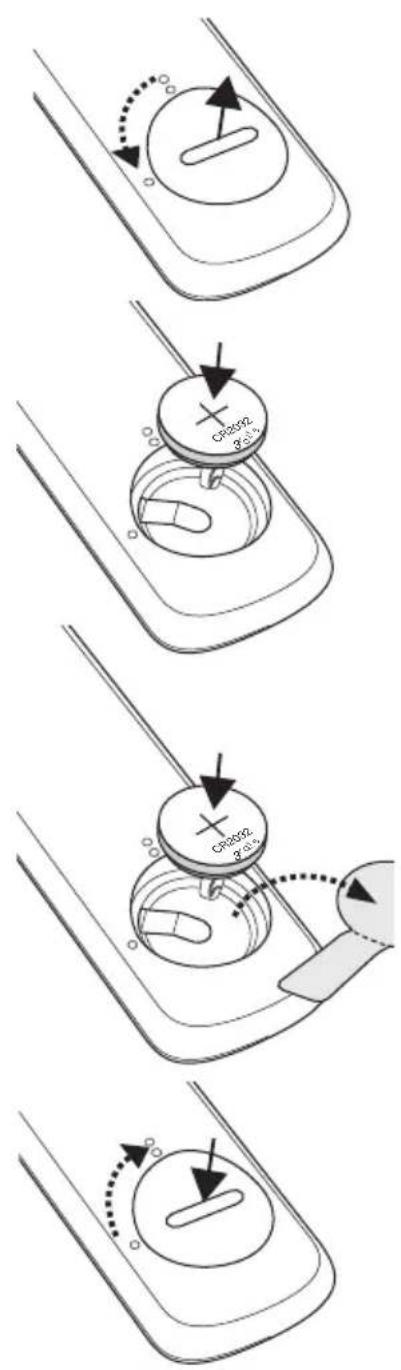

Replacing the Remote Control Battery 66

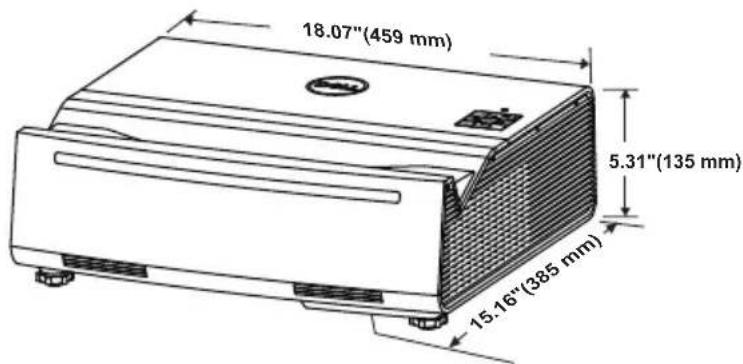

6 Specifications 67

Compatibility Mode (Digital) 70

7 Additional Information 72

8 Contacting Dell 73

1

About Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell if anything is missing.

Projector Box Contents

Package Contents

Power cable 1.8 m HDMI cable (2.0 spec)

Line drawing of a bundle of cables with two connectors (no text or symbols)

Remote control (CR2032 x 2pcs)

Coiled cable with connectors, no visible text or symbols

User's Guide and Documentation

Scanned document page showing a webpage with technical diagrams and text blocks, alongside a hand pointing to a webpage with a grid layout.

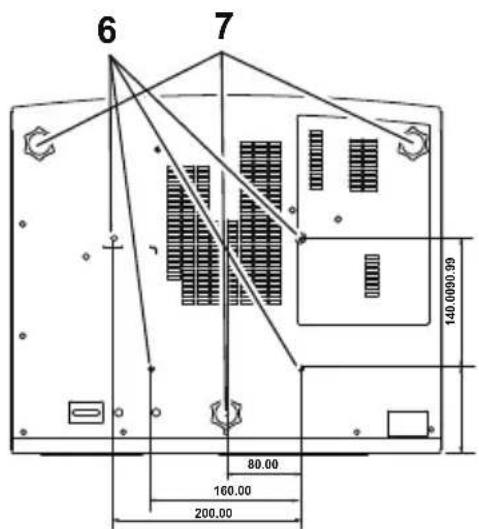

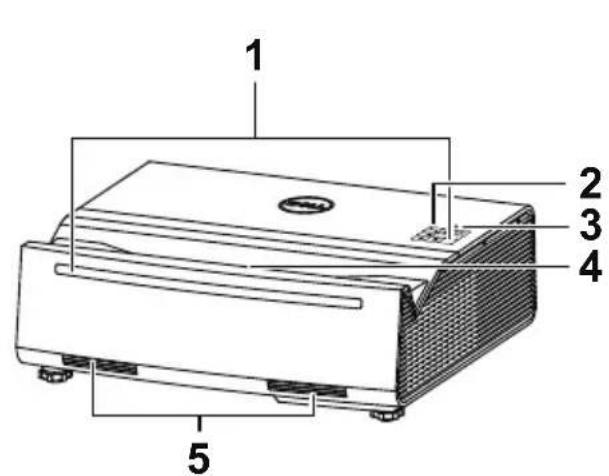

Projector Top and Bottom View

Top View Bottom View

1 2 3 4 5

6 7 140.0000.99 80.00 160.00 200.00

1 IR receivers
2 Status indicators
3 Power button
4 Lens
5 6W (x 2) speakers
6 Mounting holes for wall mount
7 Tilt adjustment wheel

NOTE: Wall mount screw hole M4 x 9 mm depth.

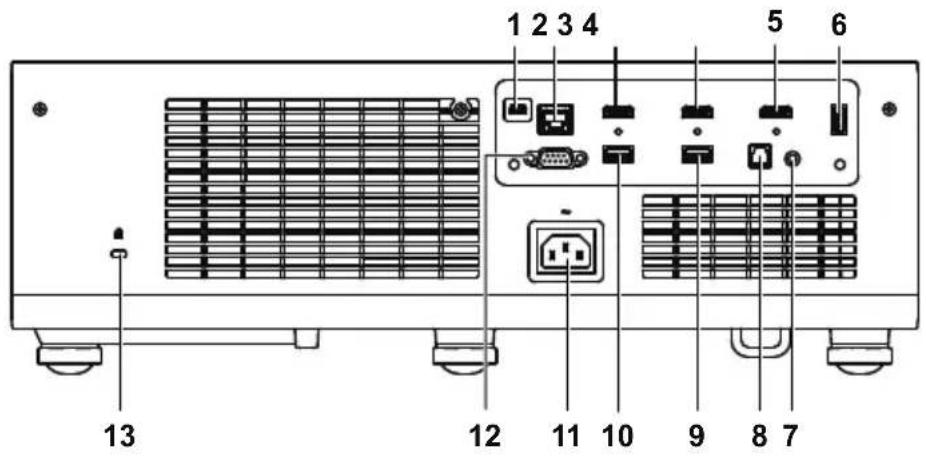

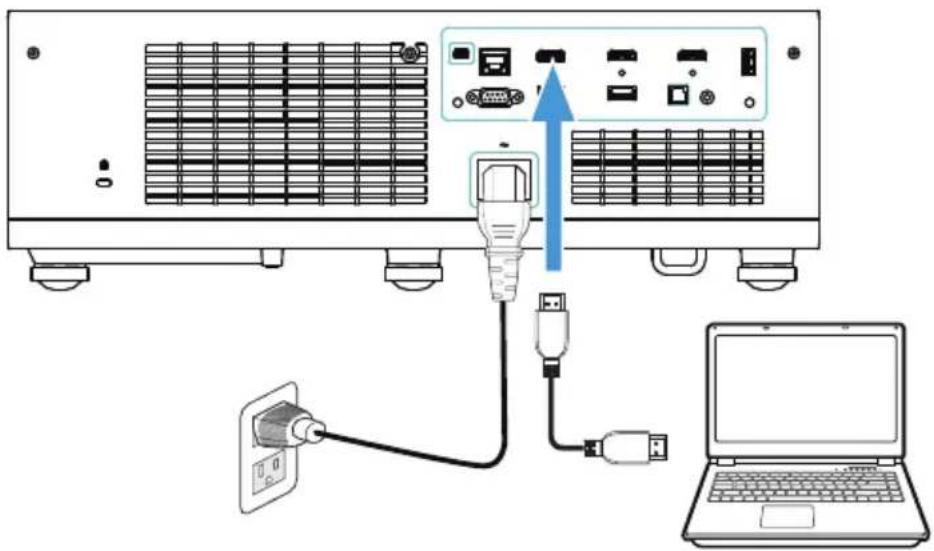

Projector Connections

1 2 3 4 5 6 13 12 11 10 9 8 7

1 Mini USB (mini type B) connector for firmware upgrade	8 SPDIF connector

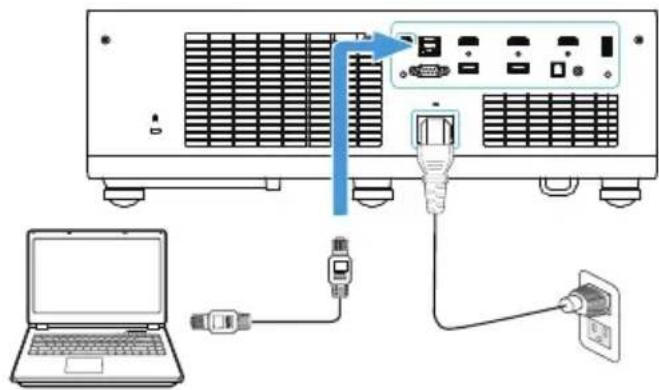

2 RJ45 connector 9 USB Type A Power (5V/1.8A) connector
3 HDMI 1 (2.0) connector 10 USB Type A Power (5V/1.8A) connector

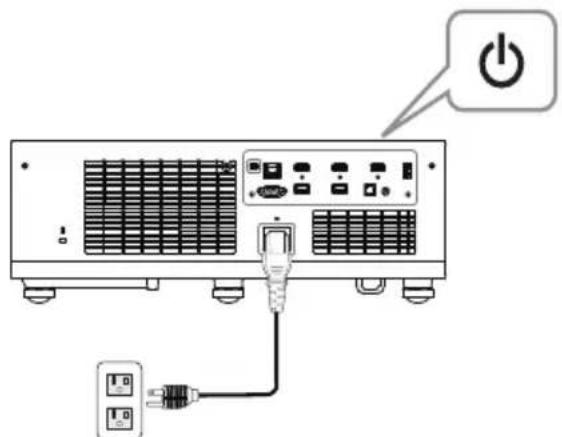

4 HDMI 2 (1.4) connector 11 Power cord connector
5 HDMI 3 (1.4) connector 12 RS232 connector
6 USB (Type A) 3.0 connector for USB media playback and optional wireless dongle	13 Kensington cable slot
7 Audio output connector

CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions as described on page 8.

CAUTION: Safety Instructions

1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The dust may cause the system to fail and the projector will automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures 5^ C to 40^ C ( 41^ F to 104^ F).
6 Do not try to touch the ventilation outlet as it can become very hot after the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to your eyes.
8 Do not place any objects near or in front of the projector or cover its lens while the projector is on as the heat may cause the object to melt or burn.
9 Do not use alcohol to wipe the lens.

NOTE:

• Do not attempt to ceiling mount the projector by yourself. It should be installed by a qualified technician.
• Recommended Projector Wall Mount Kit. For more information, see the Dell Support website at dell.com/support.
• For more information, see the Safety Information that shipped with your projector.
  • The S718QL projector can only be used indoors.

WARNING: Laser Safety Notice

This product is classified as CLASS 1 LASER PRODUCT - RISK GROUP 1 according to IEC 60825-1 : 2014. Complies with FDA regulations 21 CFR 1040.10 and 1040.11 as a Risk Group 1 , LIP ( Laser Illuminated Projector) as defined in IEC 62471:2006 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 1, LIP (Laser Illuminated Projector) as defined in IEC 62471:2006 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 IEC 60825-1:2014 IEC 60825-1:2014 IEC 60825-1:2014 IEC 60825-1:2014 IEC 60825-1:2014 CLASS 1 LASER PRODUCT PRODUIT LASER DE CLASSE 1 1类激光产品 1동급 레이저 제품 クラス1レーザー製品 RISK GROUP 1 GROUPE DE RÉSQUE 1 危険組1 위험그룹 1 リスクグループ 1

- Failure to comply with the following could result in death or serious injury.

- This projector has a built-in Class 4 laser module. Never attempt to disassemble or modify the projector.

- Any operation or adjustment not specifically instructed in the User manual creates the risk of hazardous laser radiation exposure.

- Do not open or disassemble the projector as this may cause damage or exposure to laser radiation.

- Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.

- When turning on the projector, make sure no one within projection range is looking into the lens.

- Follow the control, adjustment, or operation procedures to avoid damage or injury from exposure of laser radiation.

- The instructions for the assembly, operation, and maintenance include clear warnings concerning precautions to avoid possible exposure to hazardous laser radiation.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)

NOTE: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

Industry Canada statement:

This device complies with ISED's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

1 Power Turns the projector on or off.

2 Back Returns to the previous screen.

3 Up Press to navigate through the On-Screen Display (OSD) Menu items.

4 Right Press to navigate through the On-Screen Display (OSD) Menu items.

5 Down Press to navigate through the On-Screen Display (OSD) Menu items.

6 Volume down Press to decrease the volume.

7 Volume up Press to increase the volume.

8 Freeze Press to pause the screen image, then press"Freeze" again to resume normal projection.

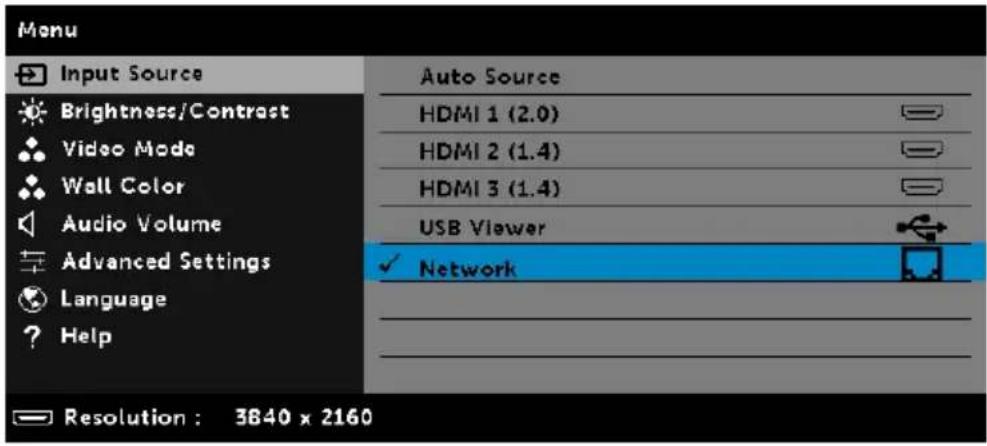

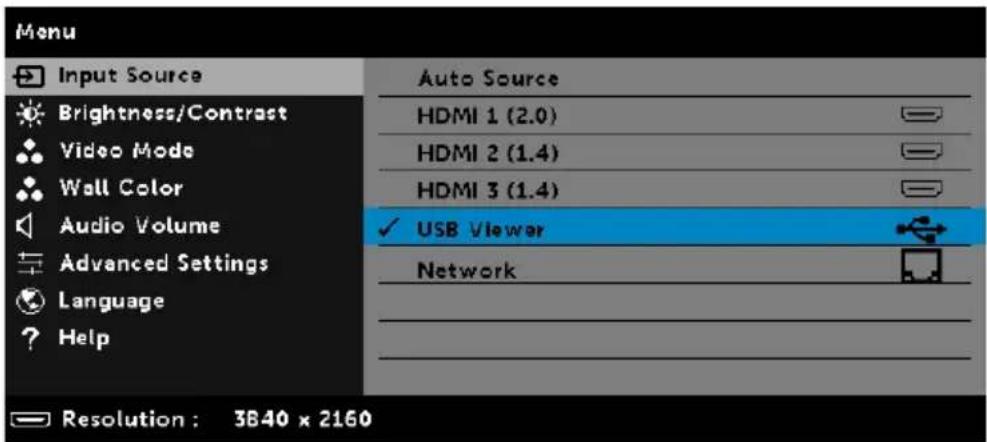

9 Video in Press to switch between sources: HDMI 1,HDMI 2, HDMI 3, Wireless/LAN Display, andUSB Viewer.

10 Video mode The projector has preset configurations thatare optimized for displaying data (presentation slides) or video (movies, games, etc.).Press theVideo Modebutton to togglebetweenPresentation mode, Bright mode,Movie mode, sRGB, orCustom mode.Pressing theVideo Modebutton once willshow the current display mode. Pressing theVideo Modebutton again will switch between modes.

11 Menu Press to activate the OSD.

12 Enter Press to confirm the selection.

13 Left Press to navigate through the On-ScreenDisplay (OSD) Menu items.

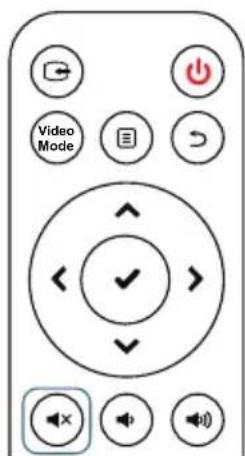

14 Mute Press to mute or un-mute the projectorspeaker.

15 Blank Press to toggle between white/blank/resumethe image.

Remote Control Operating Range

Operating range Angle ±30° Distance 7 m/22.97 feet Angle Distance Angle TMO

NOTE: Actual operating range may slightly differ from the diagram. Weak batteries will also prevent the remote control from properly operating the projector.

2

Adjusting Projector Image

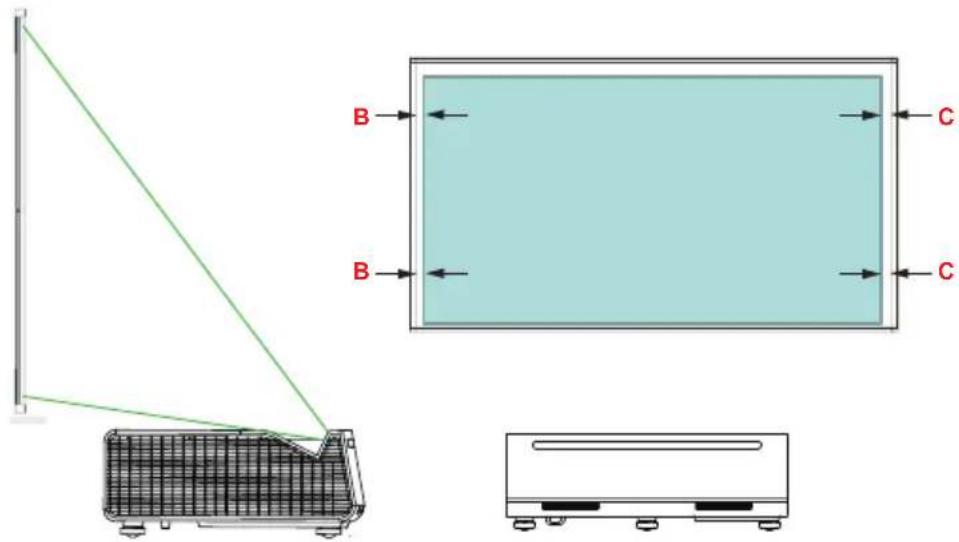

Aligning Projected Image To A Projection Screen

To ensure that the projected image shows within the surface of a projection screen, use the following method:

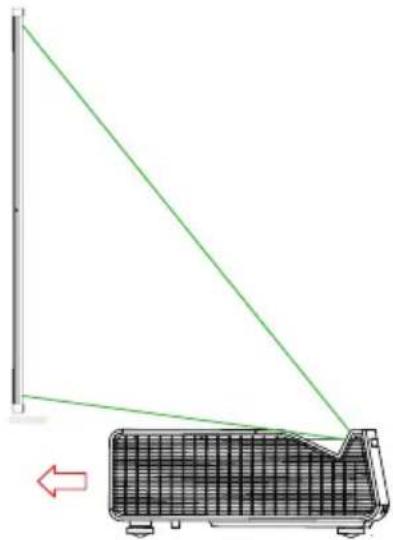

1 Move the projector close to the screen, and form a rectangular image that is smaller than the screen itself.

Diagram of a vehicle chassis with green lines indicating motion or force directions, no text or symbols present

Plain light blue rectangular shape with no text, symbols, or markings

2 Check that the bottom edge of the projected image aligns with the bottom edge of screen frame, and the top edge of the projected image is level with the screen.

Diagram of a shopping cart with green lines indicating diagonal and vertical motion (no text or symbols)

A A

3 Check that the left and right edges are parallel to the screen. If you are unable to align the sides, skip this step and correct this with 4-Corner adjustment on Page 27 Adjusting Image Corners.

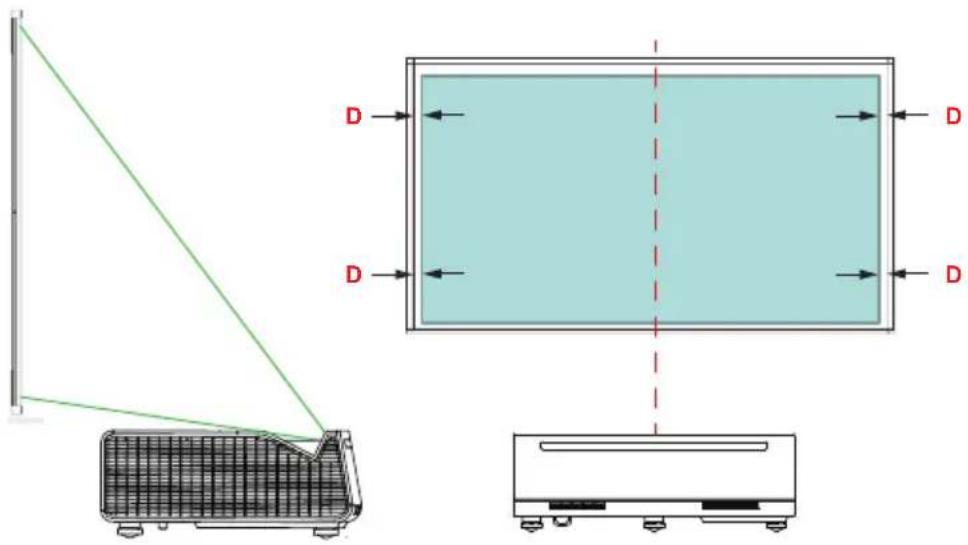

4 Ensure that the rectangle is in the center of the screen (equal distance from left and right sides of the screen).

Technical diagram showing air conditioning unit with labeled dimensions D and a schematic view of the device.

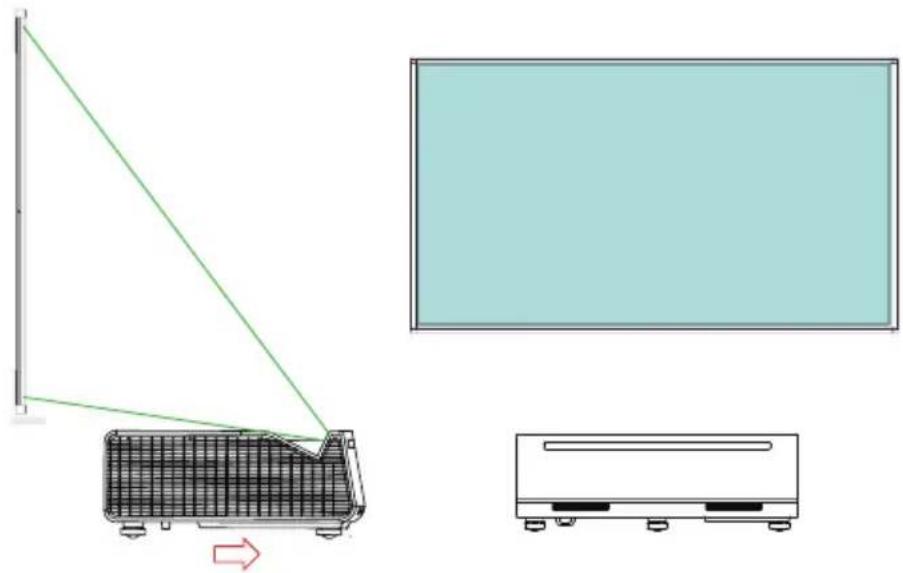

5 Move the projector backwards slowly to fill the screen.

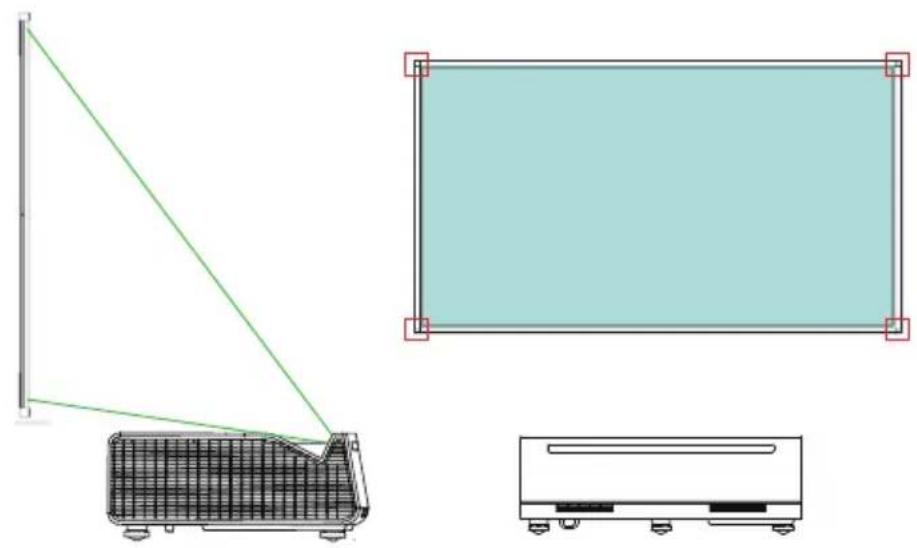

6 Once the screen is filled, use the 4 corner correction to fine-tune the image shape.

Adjusting Image Shape

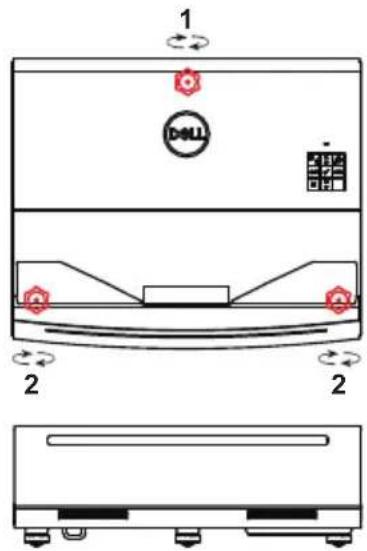

1 Turn the front tilt adjustment wheels ② and rear tilt adjustment wheel ① such that there are no gaps between the projector and wheels.

1 DOLL 2 2

NOTE: Adjustment wheels can only be extended/protrude by 2cm, after which they fall out.

2 Extend the rear tilt adjustment wheel ① if the projected image appears as shown below:

1 DOLL

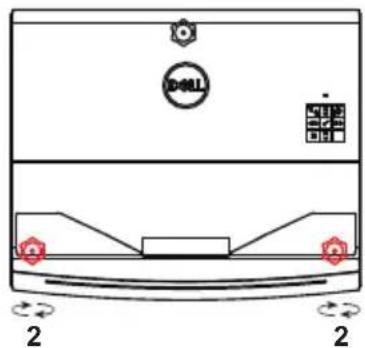

3 Extend the front tilt adjustment wheels ② if the projected image appears as shown below:

Simple geometric shape: a light green trapezoid with no text or symbols

D-ALL 2 2

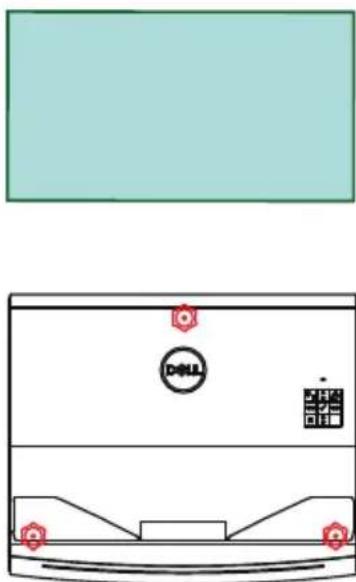

4 Extend the left side front tilt adjustment wheel ② if the projected image appears as shown below:

Simple rectangular shape with a light teal fill and dark border (no text or symbols)

Diagram of a refrigerator interior with labeled buttons and a curved base, no readable text or symbols present.

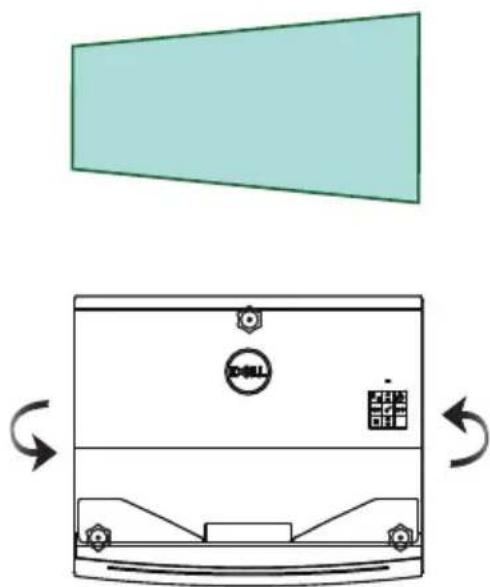

5 Extend the right side front tilt adjustment wheel ② if the projected image appears as shown below:

DOLL 2

6 In certain situations, it might be necessary to adjust the orientation of projector to correct the distortion on the projected image. Turn the projector anticlockwise when the projected image appears shown as below.

Diagram of a refrigerator with a door, showing top-down view and side rotation arrows (no text or symbols)

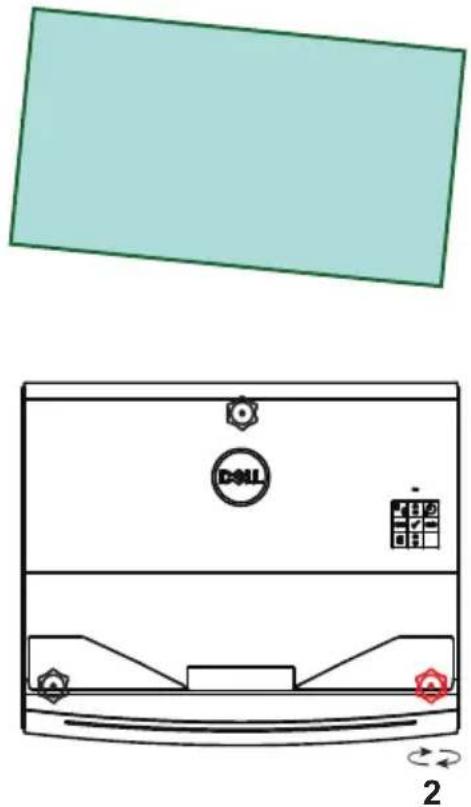

7 Turn the projector clockwise when the projected image appears as shown below:

Diagram showing a door panel with 'DOLL' label and circular buttons, illustrating the rotation of the door panel.

8 If necessary, repeat Steps 2 to 7 to achieve a rectangular projected image. In certain situations, it might be necessary to adjust the projector to be nearer or further away from the wall. For fine adjustment of the projected image, use Keystone Settings as shown on page 27.

Diagram of a refrigerator front view with a Dell logo and red star-shaped buttons (no text or symbols)

Adjusting Image Height

Raising the Projector Image Height

1 Extend the rear tilt adjustment wheel ① to raise the image.

2 Use the keystone settings to make the image shape to be a rectangle. Refer to section on Page 27 Adjusting Image Corners for more information about fine adjustment of the keystone settings.

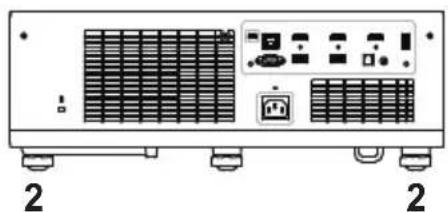

Lowering the Projector Image Height

1 Extend the front tilt adjustment wheels ② to lower the image.
2 Use the keystone settings to make the image shape to be a rectangle.

Simple line drawing of a rectangular electronic component with four pins and a horizontal bar, labeled '1' at the bottom (no text or symbols on the component itself)

3.6" (42.8 mm) 1

Front view of a computer rack with ventilation grilles and control panel (no visible text or symbols)

1 Rear tilt adjustment wheel (Angle of tilt: 0 to 3.6 degrees)
2 Front tilt adjustment wheel

Projector Image Focus Adjustment

1 The Dell S718QL supports power focus. When the projection screen is blurred, you can use the Power Focus option to adjust the screen until it is clear.

Steps: Advanced Settings > Projector Settings > Focus Adjust

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Auto Source Projector Mode Speaker Audio Timing Adjustment Focus Adjust Test Pattern Factory Reset Off Front On Normal 2 Off Press ✓ Resolution: 3840 x 2160

2 Adjust the focus until the image is clear. The projector focuses at distances ranging between 3.9 inches to 8.9 inches (9.9 cm to 22.6 cm).

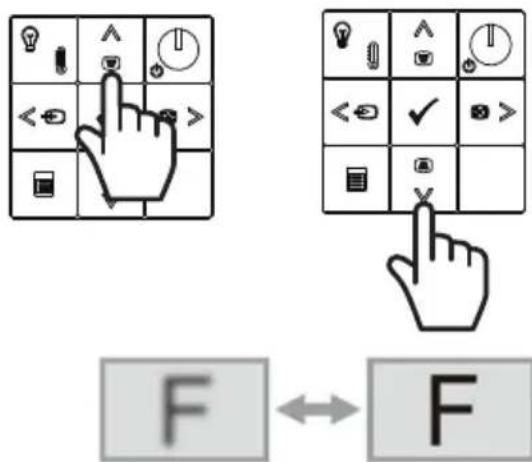

Quick Focus Adjustment

1 With the On-Screen Display (OSD) not shown, press and hold the right button on the projector control panel for 2 seconds.

Hand cursor pointing at a 3x3 grid of icons including lightbulb, clock, and navigation buttons

DOLL

2 A quick focus adjustment screen will pop up.

DOLL Pass Adjust

3 Adjust the focus of your projected image by pressing the up and down buttons on the projector control panel.

Diagram illustrating finger movement and function call, showing cursor clicking on a keyboard layout with F button

Adjusting Projector Position

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

• When positioning the projector to the screen, it must be at least 3.9 inches (9.9 cm) and not more than 8.9 inches (22.6 cm) from the projection screen.
• The size of the projected image is dependent on the distance between the projector and the screen. Move the projector further away from the screen to obtain a larger projected image.
• Position the projector to the required distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
• Lens throw ratio: 0.189

You can set up or install the S718QL in the following ways:

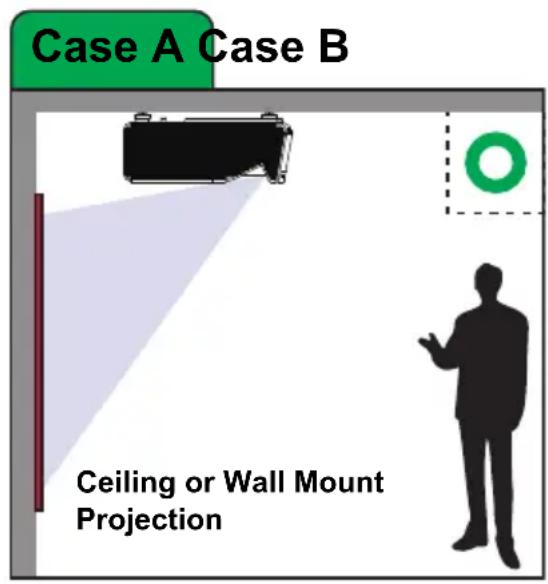

Case A Case B Ceiling or Wall Mount Projection

Table Top Projection

Case C

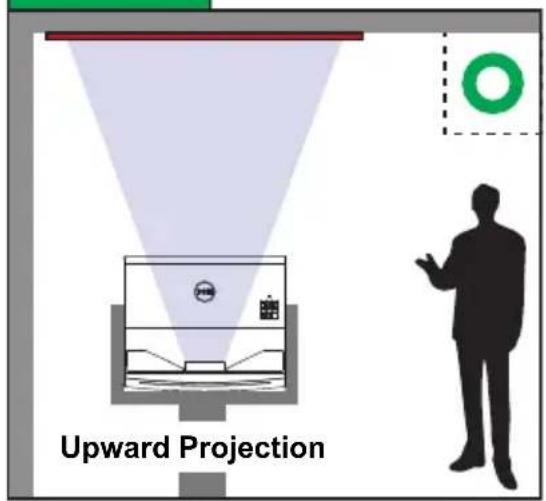

Upward Projection

Case D

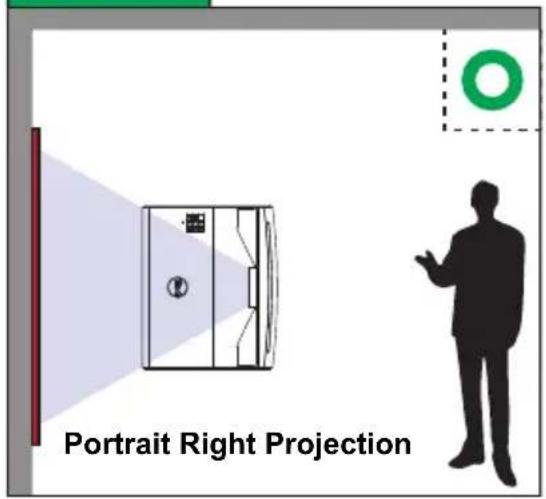

Portrait Right Projection

Case E

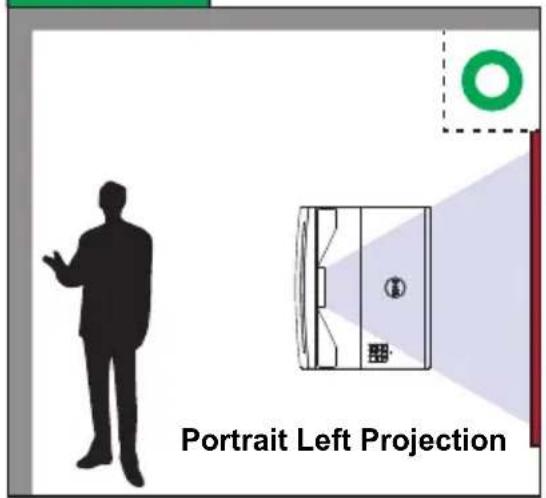

Portrait Left Projection

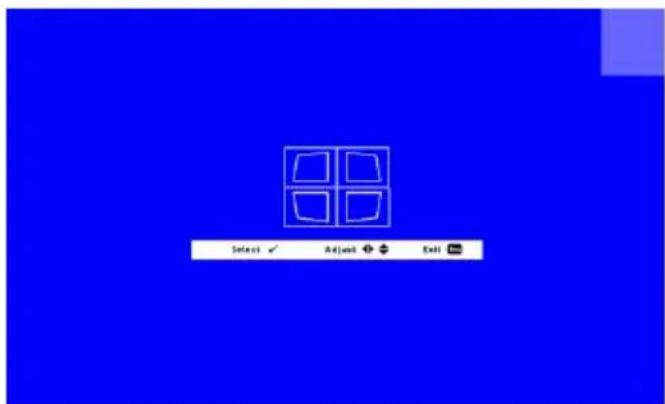

Adjusting Image Corners

Use 4 corner adjustment features to get perfect, rectangular images.

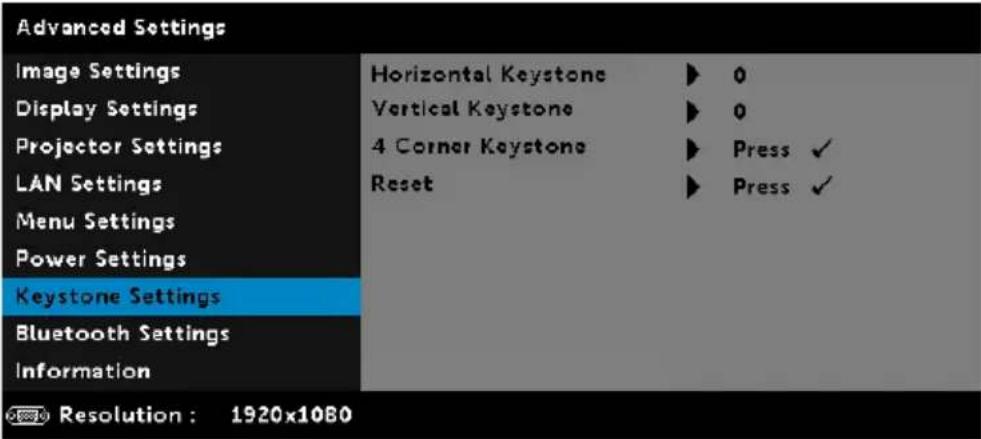

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Horizontal Keystone ▶ 0 Vertical Keystone ▶ 0 4 Corner Keystone ▶ Press ✓ Reset ▶ Press ✓ Resolution: 1920x1080

1 Advanced Settings > Keystone Settings > 4 Corner Keystone

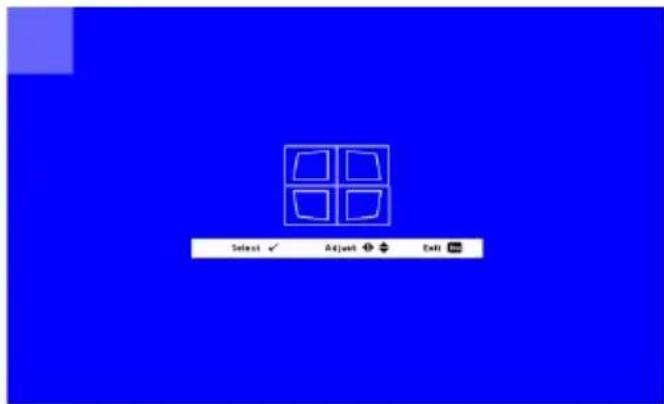

2 Press to start adjusting the first corner. Use ∧, √, ⟨ or × to move the corner position. Once satisfied with the new position of the corner, press ⊗ to return to the previous step.

Select ✓ Adjust + Exit

3 Use ∧, √, ⟨ and × to select another corner to adjust. Repeat Step 2 to adjust the corner to desired position.

Insert ✓ Adjust + Exit

4 Repeat Step 3 to select another corner to adjust.
5 When you are finished, press ☐ button to exit.

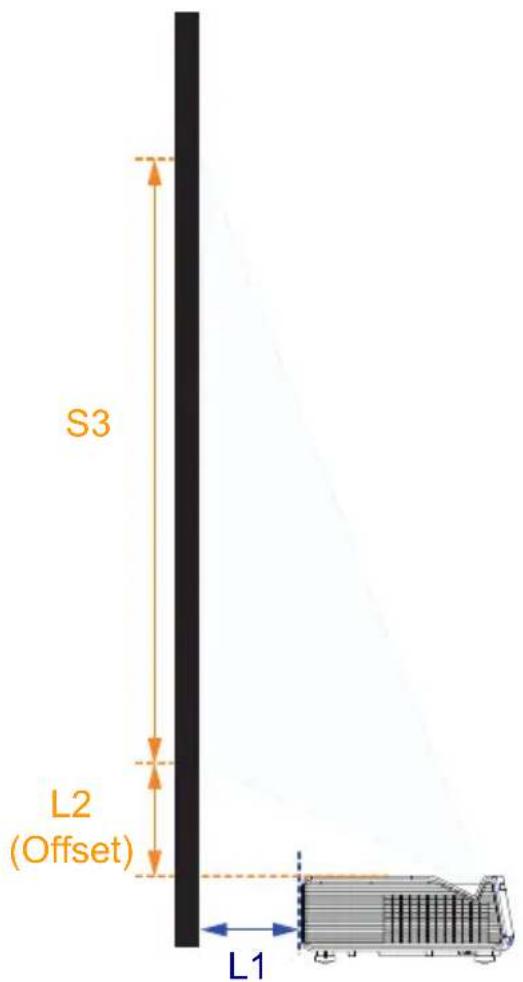

Adjusting Image Size

Projection Distance (L1)		Image size Distance from top						of image to top of projector (L2)
		Diagonal (S1) Width (S2) Height (S3)
inch cm inch cm inch cm inch cm inch cm
3.9	9.9	100	254	87.1	221.2	49.0	124.5	7.3	18.6
5.6	14.2	110	279	95.8	243.3	53.9	137.0	8.2	20.9
7.2	18.4	120	305	104.5	265.4	58.8	149.4	9.1	23.1
8.9	22.6	130	330	113.2	287.5	63.7	161.9	10.0	25.4
* This graph is for user reference only.* Offset Ratio: 118%

S3 L2 (Offset) L1

Cleaning the Projector's Lens

Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface.

1 Turn off the projector power and disconnect the power cord.
2 Let the projector cool for at least 30 minutes.
3 Use air blower bulb to blow off dust on the lens or gently wipe the lens by using a microfiber cleaning cloth.
4 If significant dust, dirt, or smudges are still bound to the surface of the lens, moisten a lint-microfiber cloth and gently wipe until clean.

CAUTION:

• Never touch lens with bare hands to prevent fingerprints on or damage to the lens surface.
• Never use cleaners that contain flammable gas.
• Do not use glass cleaner.

Using Network Display

Configure Your Projector for Network Display

Connect Projector to the Network

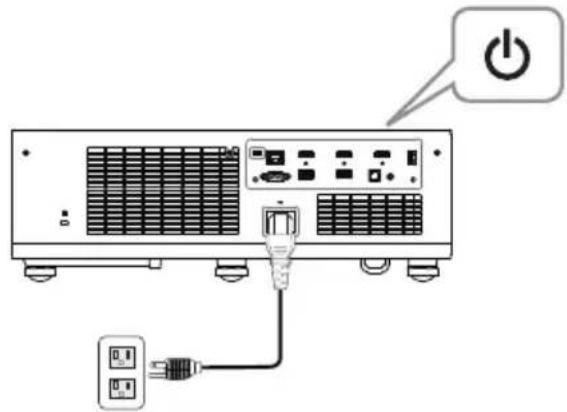

1 Connect the power cable and turn on the projector by pressing the power button.

Diagram of a server rack connected to an RJ4 port with power button icon (no text labels)

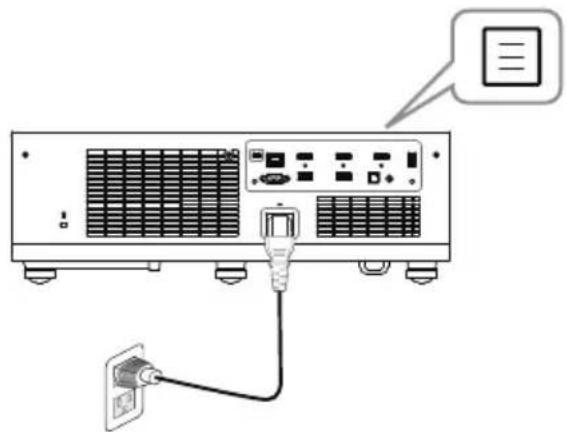

2 Press the Menu button on your projector control panel or remote control.

Diagram of a server rack connected to an RJ4 port via cable, with a speech bubble containing text (no readable document text)

NOTE: Use select.

and

buttons to navigate and

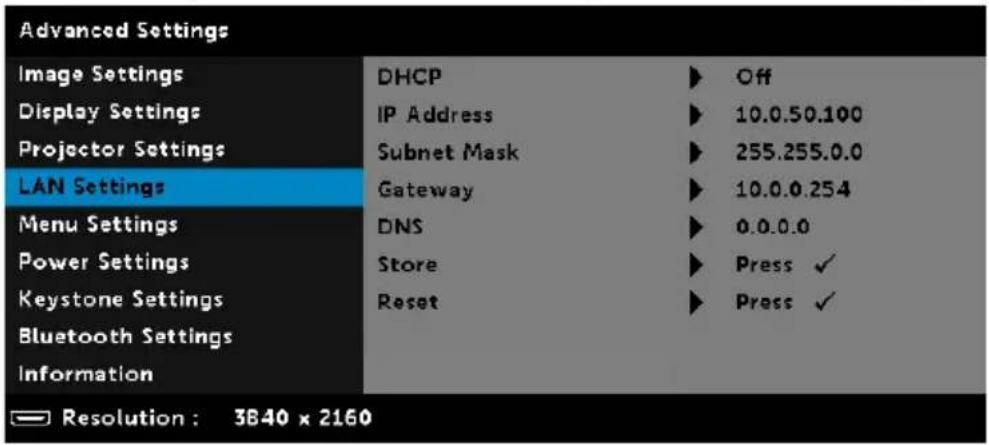

3 Ensure DHCP option is Off from LAN settings of Advanced Settings menu.

Advanced Settings Image Settings DHCP ▶ Off Display Settings IP Address ▶ 10.0.50.100 Projector Settings Subnet Mask ▶ 255.255.0.0 LAN Settings Gateway ▶ 10.0.0.254 Menu Settings DNS ▶ 0.0.0.0 Power Settings.Store ▶ Press ✓ Keystone Settings Reset ▶ Press ✓ Bluetooth Settings Information Resolution: 3840 x 2160

4 Access the Input Source menu, select Network source.

Menu Input Source Brightness/Contrast Video Mode Wall Color Audio Volume Advanced Settings Language Help Auto Source HDMI 1 (2.0) HDMI 2 (1.4) HDMI 3 (1.4) USB Viewer ✓ Network Resolution : 3840 x 2160

The Network Guide Screen shown below appears:

Connect Projector Directly to the Computer

A. Cable Connections

5 Connect the LAN cable to the projector and the computer.

Diagram showing connection between a laptop and an electronic device with labeled ports and cables

B.Network Switch/Hub

6 Connect the LAN cable to the projector and the computer via the network switch/hub.

7 DHCP of LAN Settings switches to On.

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information DHCP IP Address Subnet Mask Gateway DNS Store Reset On 192.168.100.10 255.255.255.0 192.168.100.10 0.0.0.0 Press ✓ Press ✓ Resolution : 3840 x 2160

NOTE: If the DHCP setting is set to On, the IP sharing device will automatically assign a set of IP Address, Subnet Mask, and Gateway.

Instructions for installing Dell Network Projection Software on Windows PC

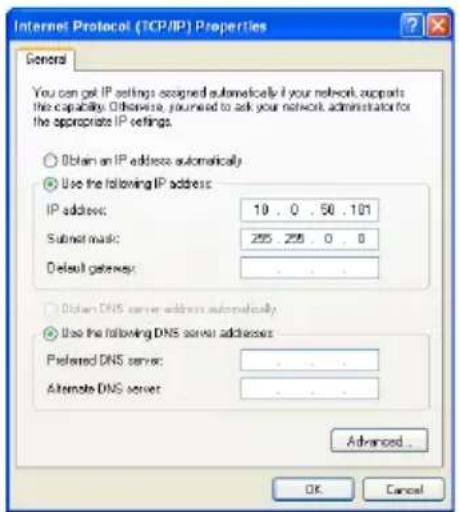

1 Open Local Area Connection Properties, and then enter the IP Address and Subnet Mask, click OK.

Steps: Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adapter Setting > Local Area Connection

Local Area Connection Properties General Advanced Connect using: Broadcom NetXhreme Bigabit Ethene Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ File and Printer Sharing for Microsoft Networks ✓ QoS Packet Scheduler ✓ Internet Protocol [TCP/IP] Install... Uninstall Properties Description: Transmission Control Protocol/Internet Protocol: The default wide area network protocol that provides communication across diverse interconnected networks. ✓ Show Icon in notification area when connected ✓ Notify me when the connection has limited or no connectivity OK Cancel

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network, administration for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 10 . 0 . 50 . 101 Submit mask: 255 255 0 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: Alternate DNS server: Advanced... OK Cancel

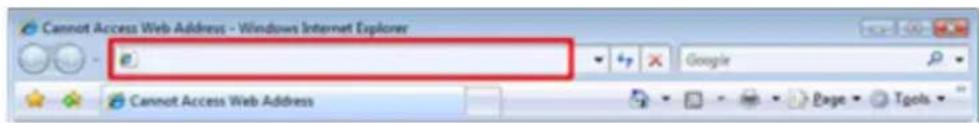

2 Open the Internet browser on your computer, and enter 10.0.50.100 (default) in the browser's address bar. You will be directed to the Dell S718QL Web Management page.

Cannot Access Web Address - Windows Internet Explorer Cannot Access Web Address

3 The S718QL Web Management page opens. For first-time use, click Download.

DELL | Projector Web Management Home Welcome to DELL 5718QL Web Management. Projector Information Model Name: DELL S718QL Projector Name: PROJECTOR Location: LOCATION Contact: CONTACT Network FW Version: A06 PPID:

4 At the Download page, click Download Network Projection App For Windows 10/8/7/Vista/XP and install to your computer.

DOLL | Projector Web Management Home Network Settings Projector Control Email Alert Security Reset Cresiron Download Download Project form computer Stream your computer screen to the projector over network Download Network Projection App For Windows 10/8/7/Vista/XP You can also download for OSX Present from iPad, iPhone, Android Devices Share photos , slideshows , documents from your tablet or smartphone. Copy Link Open Link

NOTE: If you are unable to install the application because of inadequate rights on the computer, please contact your network administrator.

5 Click Run to proceed with the one-time installation of the software.
6 The installation software will launch. Follow the on-screen instructions to complete setup.

Dell Network Projection setup Welcome to the Installation Wizard Welcome to the Dell Network Projection Setup program. This program will install Dell Network Projection on your computer. It is strongly recommended that you exit all Windows programs before running the Setup program. Click Cancel to quit Setup and close any programs you have running. Click Next to continue with the Setup program. WARNING: This program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under law.

NOTE: Alternatively you can download the latest version of the Dell Network Projection application from dell.com/support

Install Dell Network Projection Software on the Mac

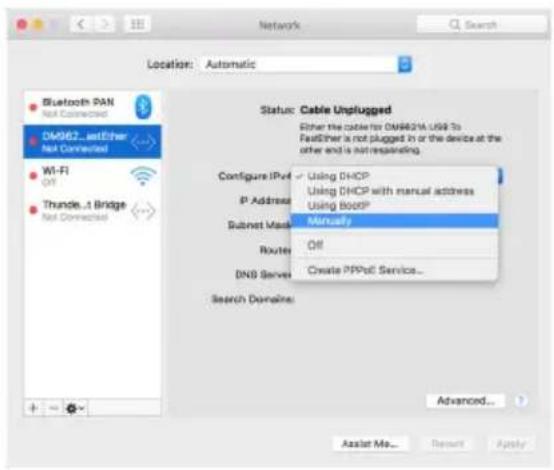

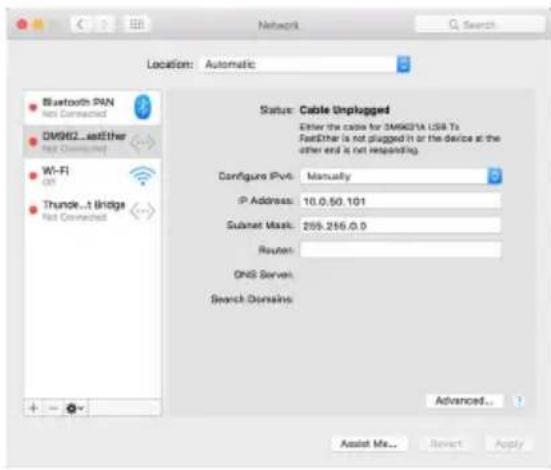

1 Open Local Area Connection Properties, and then enter the IP Address and Subnet Mask, click OK.

Steps: Go > Applications > System Preferences > Network

Location: Automatic Status: Cable Unplugged Either the cable for DM9621A USB To FastEther is not plugged in or the device at the other and is not responding. Configure IPv4 Using DHCP IP Address Using DHCP with manual address Using BootP Subnet Mask Mutually Router Off DNS Server Create PPPoE Service... Search Defaults: Advanced... Assist Me... Report Apply

Location: Automatic Status: Cable Unplugged Either the cable for DM9021A USB To FastEther is not plugged in or the device at the other end is not responding. Configure IPv6: Manually IP Address: 10.0.50.101 Subnet Mask: 269.216.0.0 Router: DNS Server: Search Domains: Advanced... Assist Ms... Revert Apply

2 Open the Safari browser on your Mac computer, and enter 10.0.50.100 (default) in the browser's address bar. You will be directed to the Dell S718QL Web Management page.

Safari File Edit View History Bookmarks Window Help

3 The S718QL web management page opens. For first-time use, click Download.

DELL | Projector Web Management Home Welcome to DELL 5718QL Web Management. Projector Information Model Name: DELL 5718QL Projector Name: PROJECTOR Location: LOCATION Contact: CONTACT Network FW Version: A06 PPID:

4 At the Download page, click You can also download for OSX and install to your computer.

DOLL | Projector Web Management Home Network Settings Projector Control Email Alert Security Reset Crestron Download Download Project form computer Stream your computer screen to the projector over network Download Network Projection App For Windows 10/8/7/Vista/XP You can also download for OSX Present from iPad, iPhone, Android Devices Share photos, slideshows, documents from your tablet or smartphone. Copy Link Open Link

NOTE: If you are unable to install the application because of inadequate rights on the computer, please contact your network administrator.

5 Running Dell_Network_Projection_Mac.pkg from Downloads folder.

Downloads Favorites AirDrop All My Files iCloud Drive Applications Desktop Documents Downloads Devices TOSHIBA Shared All... Tags Name Size Kind Date Added Dell_Network_Projection_Mac.pkg 8.5 MB Install_ackage Today, 11:40

6 The installation software will launch. Follow the on-screen instructions to complete setup.

Install Network Projection-1.9.1 Welcome to the Network Projection-1.9.1 Installer Introduction Destination Select Installation Type Installation Summary You will be guided through the steps necessary to install this software. Go Back Continue

Using the Dell Network Projection App (Windows)

Once the installation is completed, you can double-click icon on the desktop to start the application.

The Dell Network Projection Screen shown below appears:

Del Network Projection 1.10.0.217 Network Projection Find a Projector Add a Projector 1.10.0.217

1 At Dell Network Projection screen, click Find a Projector, and then select Dell_42FE21E1 (This is an example. The actual network name of your projector will differ from this example.). This is the name and code that will be projected, when your projector is set to the 'Network' source.

Dell Network Projection 1.10.0217 Network Projection Dell_42FE21E2 10.0.50.100 (14720005) 14720005

2 In order to start presenting, click on the first icon until "Mirror On" is shown.

DellNetwork Projection 1.1.0.250 Network Projection Mirror On Quality Audio Conference Preference 14720014

Using the Dell Network Projection App (Mac)

1 1.Go to Applications folder, and then open the Network Projection folder.

Applications Game Center iBooks Image Capture iTunes Launched Mail Maps Memory Purge Messages Mission Control Network Projection Notes Photo Booth Photos Preview QuickTime Player

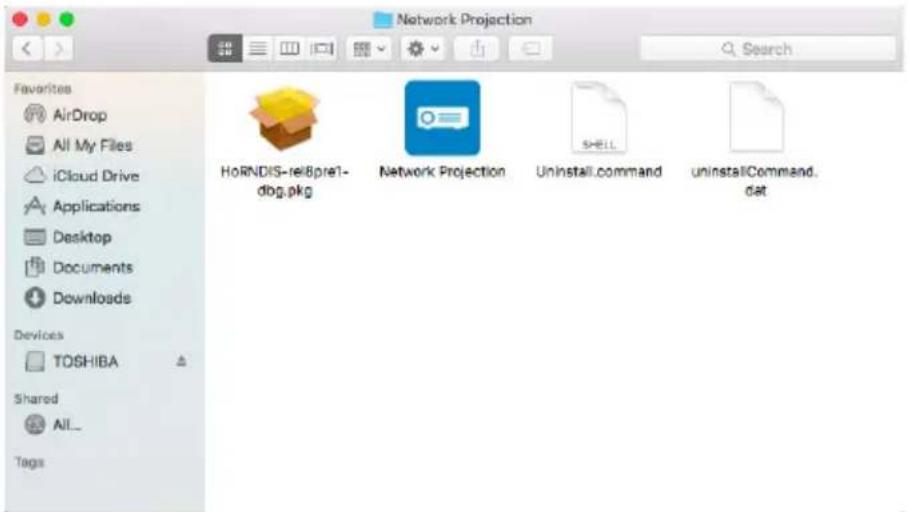

2 Running Network Projection application from Network Projection folder.

Network Projection Favorites AirDrop All My Files iCloud Drive Applications Desktop Documents Downloads Devices TOSHIBA Shared All_ Tags HoRNDIS-rei8pre1- dbg.pkg Network Projection SHELL Uninstall.command uninstallCommand. dat

The Dell Network Projection Screen shown below appears:

Network Projection Find a Projector IP Add a Projector

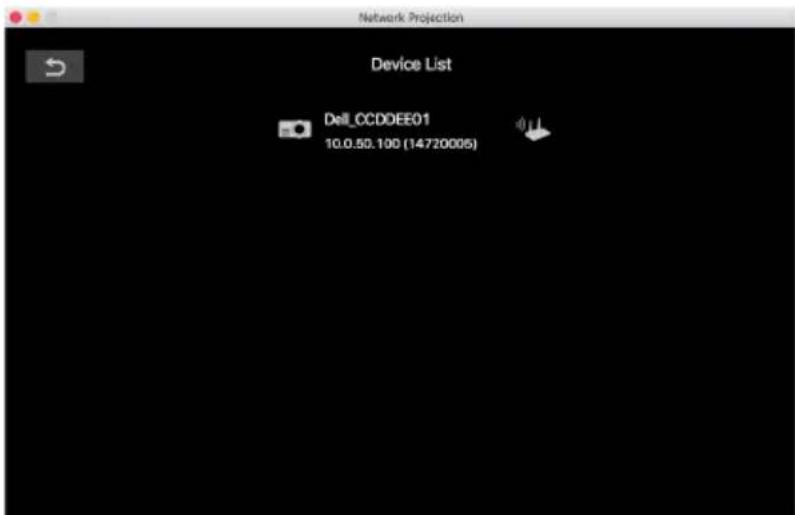

3 At the Dell Network Projection screen, click Find a Projector, and then select Dell_CCDDEE01 (This is an example. The actual network name of your projector will differ from this example.). This is the name and code that will be projected, when your projector is set to the 'Network' source.

Network Projection Device List Dell_OCD0EE01 10.0.50.100 (14720005)

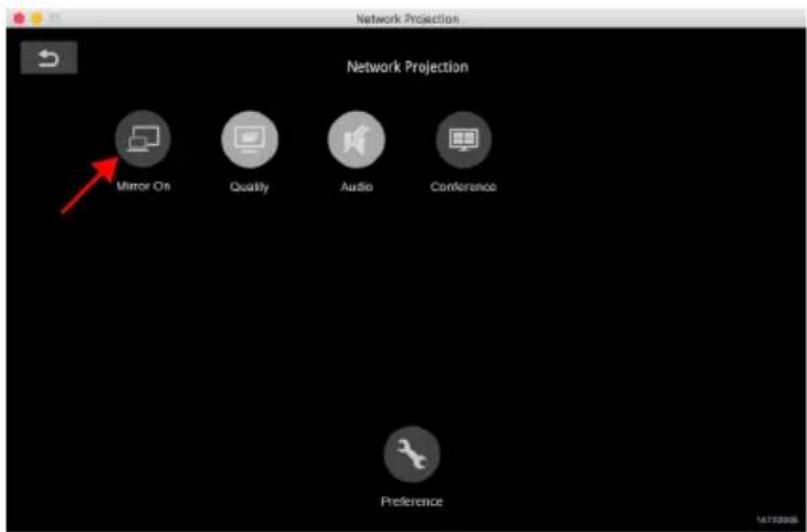

4 In order to start presenting, click on the first icon until "Mirror On" is shown.

Network Projection Network Projection Mirror On Quality Audio Conference Preference

Split Screen

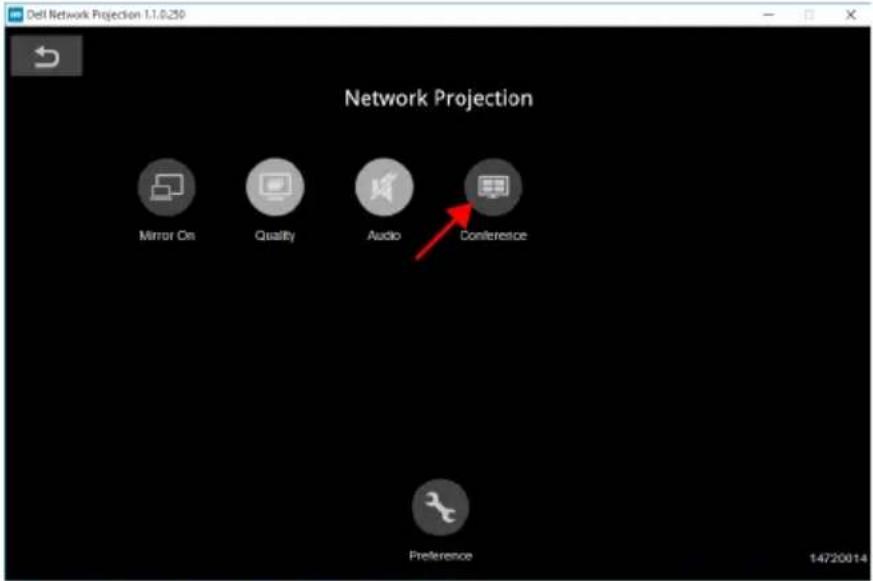

After the network projection connects, click Conference button to activate the split screen feature.

Dell Network Projection 1.1.0.250 Network Projection Mirror On Quality Audio Conference Preference 14720014

Preference

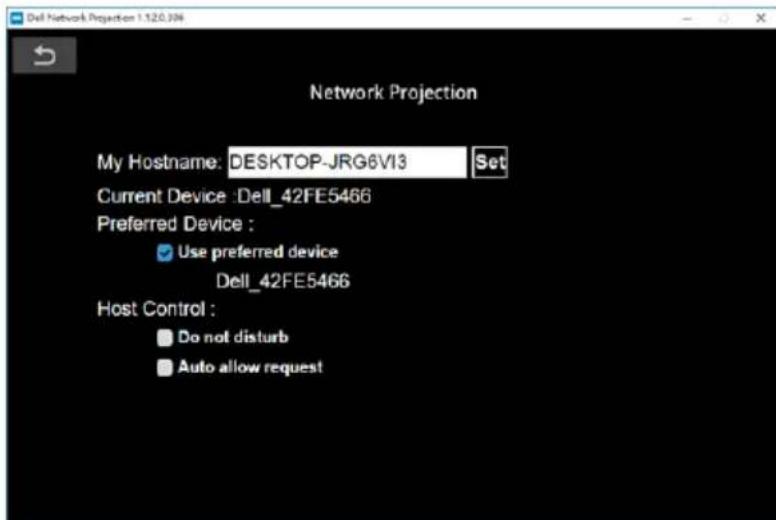

Click Preference button to activate the fast connection settings.

Dell Network Projection 1.120.904 Network Projection My Hostname: DESKTOP-JRG6V13 Set Current Device: Dell_42FE5466 Preferred Device : ✓ Use preferred device Dell_42FE5466 Host Control : ☐ Do not disturb ☐ Auto allow request

MY HOSTNAME—Allows you to change the computer hostname.

CURRENT DEVICE—Display the current device name.

PREFERRED DEVICE—Connect to the computer and the projector using the "Preferred Device".

HOST CONTROL

DO NOT DISTURB—Users are not allowed to connect to the projector.

AUTO ALLOW REQUEST—Allows users to connect to the projector.

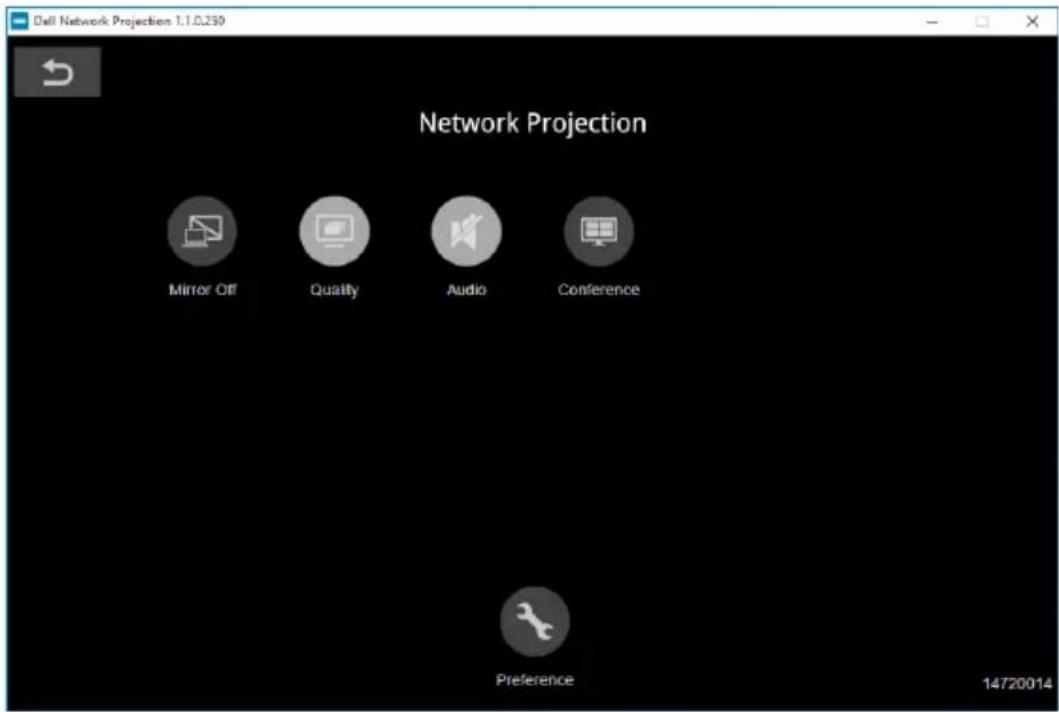

Understanding the Buttons

Dell Network Projection 1.1.0.230 Network Projection Mirror Off Quality Audio Conference Preference 14720014

Item Description

Control Toolbar

Mirror Off/On

Click to toggle network projection On/Off and screen extension.

Quality Click to toggle High/Low quality.

Audio Click to toggle audio On/Off.

Conference Click to activate the conference control.

Preference Click to activate the fast connection settings.

Using PC-Free Presentation

Multimedia File Type Support

Photos

Media Type	Ext Name Version Support	Detailed Specification
JPEG jpg/jpeg Baseline mode: size <=65536 x 65536
		Progressive baseline:color mode=444, size <= 2080 x 2080color mode=(422, 440), size <=2544 x 2544color mode=(420, 400, 411, others), size <=2944 x 2944JPEG (CMYK) is not supported
BMP bmp Size<=65536 x 65536
PNG/GIF png/gif PNG<=65536 x 65536
		GIF<=65536 x 65536Animation mode is not supported
TIFF tiff TIFF<=3264 x 2176

Audio

File Type File Extension		Version Support Detailed Specification
Mpeg-1 Layer 3	mp3 VBR: bit rate: 8~320 Kbps
WMA wma/asf WMA 7~9.1 Bit rate: CBR up to 320 kbps, VBR up to 256 kbps
WMV wav Sampling rate: 8KHz; Bit rate: 32Kbps
LPCM n/a	(included in the video only)	LPCM LPCM:	Sampling rate: 8KHZ~192KHz; Bit rate: 64~4608 Kbps
ADPCM n/a	(included in the video only)	1. Microsoft ADPCM 2. IMA ADPCM (DVI_ADPCM) 3. SWF ADPCM 4. QT IMA ADPCM	Microsoft ADPCM: Sampling rate: 8KHz; Bit rate: 32 Kbps
OGG Vorbis	ogg CBR: Sampling rate: 32K~192KHz
			VBR: Up to 500 Kbps (spec)
AMR amr/3ga

Video

File Type Video Type		Audio Type Detailed Specification
MP4(.mov,.mp4)	MPEG-4AVC(H.264)	LPCMADPCMMPEG-Audio	H.264:1. Main and High Profile @ level 4.22. Baseline @ level 33. 4K@24P
MP4(.mp4)	H.265/HEVC	MPEG-AudioHE-AAC, LC-AAC	H.265:1. MP@L5.1 Main Tier2. 4K@60P 10bit
AVI (.avi)	MPEG-4AVC(H.264)	LPCMADPCM MPEG-Audio	MPEG-1: support up to 1080@60pH.264:1. Main and High Profile @ level 4.22. Baseline @ level 33. 4K@24P
FLV (.flv)	MPEG-4AVC(H.264)	LPCM MPEG-Audio	H.264: 4K@24P
F4V (.f4v)	H.264 HE-AAC	MP3	H.264:1. Main and High Profile @ level 4.22. Baseline @ level 33. 4K@24P
MKV(.mkv)	MPEG-4AVC(H.264)	LPCMADPCM MPEG-Audio	H.264:1. Main and High Profile @ level 4.22. Baseline @ level 33. 4K@24P
MKV(.mkv)	H.265/HEVCVP9	MPEG-AudioHE-AAC, LC-AAC	H.265:1. MP@L5.1 Main Tier2. 4K@60P 10bit

Setting up to present using External USB Storage

NOTE: A USB flash disk must be plugged into the projector if you want to use the USB media playback feature.

Follow these steps to display the Video, Audio, Photo, or PDF files on your projector:

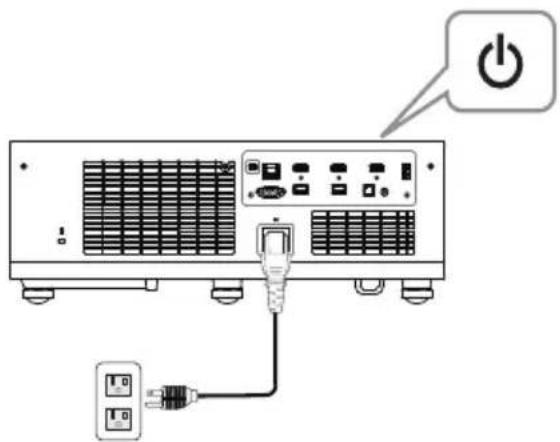

1 Connect the power cable and turn on the projector by pressing the power button.

Diagram of a power supply unit with two connected cables and a power button (no text or symbols)

2 Plug in a USB flash disk to your projector.

Diagram showing connection between a server rack and connected to an RJ4 port with a USB cable (no text or symbols present)

3 Press the Menu button on the control panel or remote control.

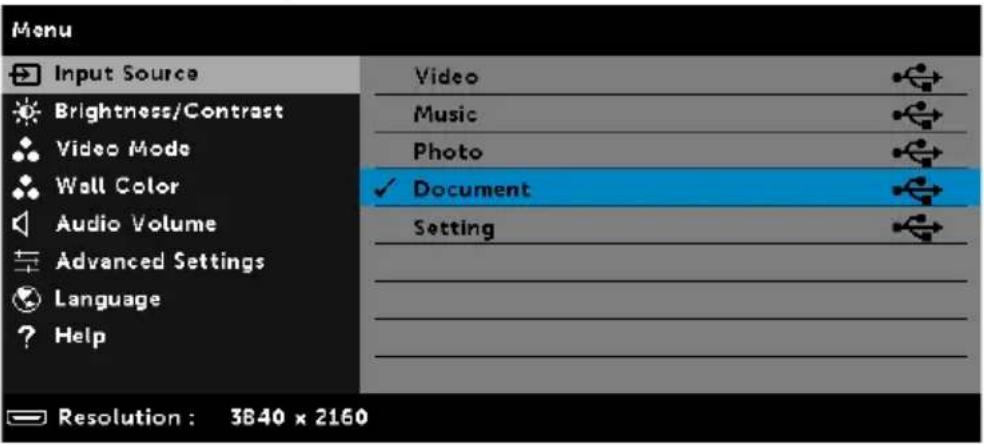

4 Access the Input Source menu, select USB Viewer source.

Menu Input Source Brightness/Contrast Video Mode Wall Color Audio Volume Advanced Settings Language Help Auto Source HDMI 1 (2.0) HDMI 2 (1.4) HDMI 3 (1.4) ✓ USB Viewer Network Resolution: 3840 x 2160

5 Go to USB Viewer menu:

a You can play Video, Music, or Photo files, or select Setting option to change multimedia settings.

Menu Input Source ✓ Video Brightness/Contrast Music Video Mode Photo Wall Color Document Audio Volume Setting Advanced Settings Language Help Resolution : 3840 x 2160

The Video Source Screen shown below appears:

/usb1/1227_gp_test 2 / 16 Video 1227_gnhfp.avi 2014/03/01 16:24 1227_gpa.avi 2014/03/01 16:24 12ghhp 2014/03/01 16:24 gpgtenn 2014/03/01 16:24 12ghy5j[p] 2014/03/01 16:24 1phefh122 2014/03/01 16:24 12gptest 2014/03/01 16:24 122gpest 2014/03/01 16:24

At the Video playback screen, press the button on the control panel or remote control to access the video playback control. Then you can use the following buttons on the screen to control video playback.

Row of black square buttons with white function icons (e.g., play, pause, refresh) on white background, no text or symbols present.

Previous Rewind Play / Pause Forward Next Repeat Volume - Volume+

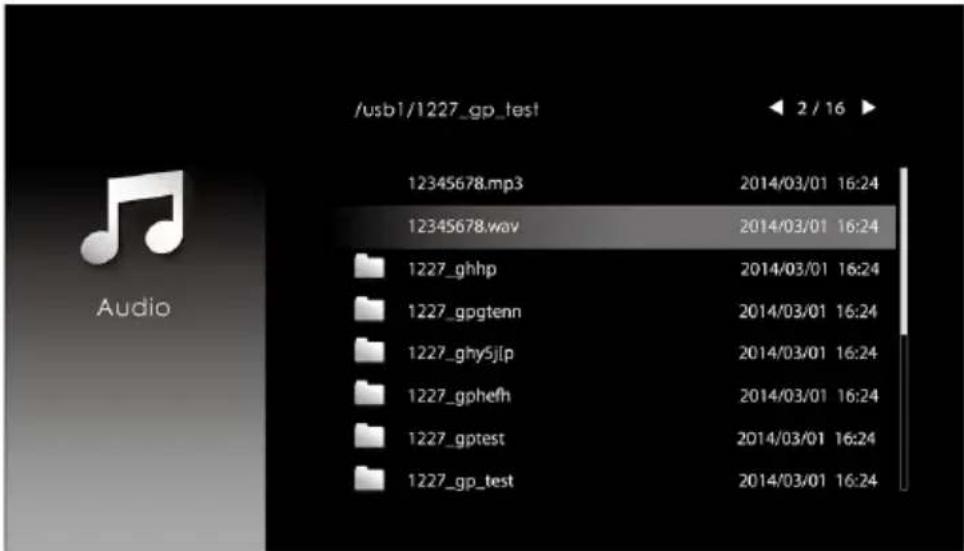

The Music Source Screen shown below appears:

/usb1/1227_gp_test Audio 12345678.mp3 2014/03/01 16:24 12345678.wav 2014/03/01 16:24 1227_ghhp 2014/03/01 16:24 1227_gpgtenn 2014/03/01 16:24 1227_ghy5jlp 2014/03/01 16:24 1227_gphefh 2014/03/01 16:24 1227_gptest 2014/03/01 16:24 1227_gp_test 2014/03/01 16:24

At the Music playback screen, press the button on the control panel or remote control to access the music playback control. Then you can use the following buttons on the screen to control music playback.

Previous Rewind Play Pause Stop Forward Next Repeat Volume - Volume+

The Photo Source Screen shown below appears:

/usb1/1227_gp_test 2 / 30 Photo

At the Photo playback screen, press the button on the control panel or remote control to access the photo playback control. Then you can use the following buttons on the screen to control photo playback.

Rotate Right Rotate Left Zoom + Zoom - Up / Down / Left / Right (in Zoom mode) Reset

Slideshow Information Slideshow settings

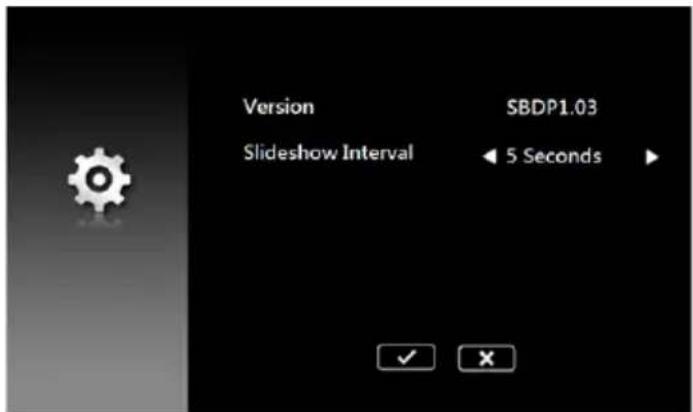

The Setting Source Screen shown below appears:

Version SBDP1.03 Slideshow Interval 5 Seconds ✓ ×

b You can also play MS Excel, MS Word, MS PowerPoint, or PDF files via Document option.

Menu Input Source Brightness/Contrast Video Mode Wall Color Audio Volume Advanced Settings Language Help Video Music Photo ✓ Document Setting Resolution: 3840 x 2160

The Document Screen shown below appears:

/usb1/1227_gp_test 2 / 30 abc.doc 2014/03/01 16:24 120.pdf 2014/03/01 16:24 eglc745c 2014/03/01 16:24 522rrcgg 2014/03/01 16:24 1251dbb 2014/03/01 16:24 akck6155 2014/03/01 16:24 dgng52l 2014/03/01 16:24 852122bi 2014/03/01 16:24 Office Viewer

Buttons Introduction ( In USB Viewer)

Button Up Down Left Right Enter Menu Return
Control Panel	Up Down Left and Source Menu (Hold 2 seconds)	Right and quick focus screen (Hold 2 seconds)	Enter Return N/A
Remote Control	Up Down Left Right Enter Return Return

Office Viewer File Type Support

The office viewer feature allows you to play the MS Excel, MS Word, MS PowerPoint, and PDF files.

File Type Support Version Pages/Lines Limitation Size			Limitation
Adobe PDF Up to 1000 pages (One file) Up to			75 MB
MS Word Word 97, 2000, 2002, 2003	Because office viewer does not load all pages of MS Word file at the same time, there are no obvious limitations of page and line.		Up to 100 MB
Word 2007, 2010 (.docx)
MS Excel Excel 97,2000,2002, 2003		Row Limit: up to 595 / Column Limit:up to 256	Up to15 MB
Office XP Excel Note: Any one of three limitationsabove cannot appear on one Excelfile simultaneously
MSPowerPoint	PowerPoint 97 Up to 1000 pages (One file) Up to		19 MB
	PowerPoint2000, 2002,2003
	PowerPoint2007, 2010(.pptx)
	Office XPPowerPoint
	PowerPointpresentation-2003 andearlier*.pps)
	PowerPointpresentation-2007 and2010(.ppsx)

Set-up Bluetooth Speaker

NOTE:

a Bluetooth transmitter range is 10 m.
b Bluetooth sound profile supports Stereo (2 channel).
c The S718QL projector Bluetooth transmitter can only communicate with one Bluetooth speaker at a time.
d Once a Bluetooth speaker is paired, the projector will automatically connect to it when the projector is turned on.
e If there is a time lag between the projector's speaker and the Bluetooth speaker, you may choose to disable the projector's speaker.

Connecting to Bluetooth Speaker

1 Connect the power cable and turn on the projector by pressing the power button.

Diagram showing power connection between a server rack and two connected power outlets with a power button icon

2 Access the Advanced Settings menu. Select the Bluetooth Settings and then turn-on Bluetooth feature on the sub-menu.

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Bluetooth Scanning and Pairing Off Press ✓ Resolution : 3840 x 2160

3 When the Bluetooth function is enabled, select Scanning and Pairing, and then press the Enter button to enter the Scanning and Pairing screen.

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Bluetooth Scanning and Pairing On Press ✓ Resolution : 3840 x 2160

a Click Scan button.

Connected Device Scan Devices Scan Connect Disconnect

b When the Scan Devices list appears, select Device 1 and click the Pairing button.

Connected Device Scan Devices Device 1 Existing Device 2 Existing Device 3 Existing Device 4 Existing Device 5 Existing Scan Connect Disconnect

Disconnect the Bluetooth Speaker

1 Connect the power cable and turn on the projector by pressing the power button.

Diagram showing power connection between a server rack and two connected power sources with a 'Power' icon

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Bluetooth Scanning and Pairing Off Press ✓ Resolution : 3840 x 2160

2 Select Scanning and Pairing, and then press the Enter button to enter the Scanning and Pairing screen.

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Bluetooth Scanning and Pairing On Press ✓ Resolution : 3840 x 2160

3 When you into Bluetooth Scanning and Pairing sub-menu, and then click Disconnect button.

Turn Off the Projector Speaker

1 Access the Advanced Settings menu. Select the Projector Settings and then turn-off Speaker (default is On) on the sub-menu.

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Auto Source Projector Mode Speaker Audio Timing Adjustment Focus Adjust Test Pattern Factory Reset Off Front Off Normal 2 Off Press ✓ Resolution : 3840 x 2160

NOTE: The Speaker option refers only to the projector internal speaker.

2 When you press the Mute button on the remote control, the projector speaker, the external audio, SPDIF, and Bluetooth speakers will be turned off.

Video Mode

3 Once the 3.5 mm mini phone jack external speaker are connected, the internal speaker will be automatically turned off. But Bluetooth speakers will not affected by internal speaker or 3.5 mm mini phone jack external speaker.

Using High Dynamic Range (HDR)

NOTE:

a Only HDMI-1 port can support HDR feature.
b PQ functions cannot be adjusted in HDR mode.

Follow these steps to activate HDR feature:

1 Connect the power cable and turn on the projector by pressing the power button.

Diagram showing power connection between a server rack and two connected power outlets with a power button icon

2 Connect the HDMI 2.0 cable to the projector HDMI-1 port and the computer or DVD player.

Diagram showing connection between a computer monitor and a laptop via USB cable, with an arrow indicating the device's connector.

NOTE: Your computer or DVD player must support the HDR function.

3 Access the Display Settings menu, select HDR and then follow the functionality difference to select Auto, HDR Bright, or Off on the sub-menu.

Advanced Settings Image Settings Display Settings Projector Settings LAN Settings Menu Settings Power Settings Keystone Settings Bluetooth Settings Information Aspect Ratio MEMC Zoom Zoom Navigation HDR Origin Off X 3 Press ✓ Auto Resolution : 3840 x 2160

Troubleshooting Tips

If you experience problems with your projector, see the following troubleshooting tips. If your problem persists, please contact Dell.

Problem Possible Solution

No image appears on the screen

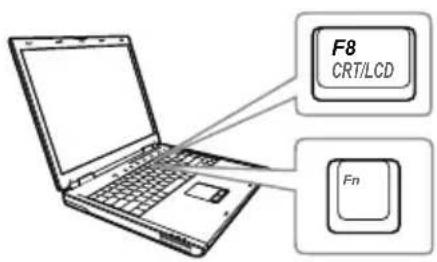

F8 CRT/LCD Fn

• Ensure that you have chosen the correct input source on the INPUT SOURCE menu.
• Ensure the external graphics port is enabled. If you are using a Dell laptop computer, press (Fn4-F8). For other computers, see your respective documentation. If images are not displayed properly, please upgrade the video driver of your computer. For Dell computers, see www.dell.com/support.
• Ensure that all the cables are securely connected. See "Adjusting Projector Image" on page 15.
• Ensure that the pins of the connectors are not bent or broken.
• Use the Test Pattern in the Projector Settings of the Advanced Settings menu. Ensure that the colors of the test pattern are correct.

Problem (continued)	Possible Solution (continued)
Partial, scrolling, or incorrectly displayed image	If you are using a Dell laptop computer, set the resolution of the computer to 4K (3840 x 2160):aRight-click the unused portion of your Microsoft® Windows® desktop, click Screen Resolution.bVerify that the setting is 3840 x 2160 pixels for the external monitor port.cPress Fn F8(Fn+F8).If you experience difficulty in changing resolutions, or if your monitor freezes, restart all the equipment and the projector.If you are not using a Dell laptop computer, see your documentation. If images are not displayed properly, please upgrade the video driver of your computer. For a Dell computer, see www.dell.com/support.
The screen does not display your presentation	If you are using a portable computer, press Fn Fn(Fn+F8).
Image color is incorrect	If the display receives the wrong signal output from the graphics card, please set the signal type to RGB in the OSD Image Settings of the Advanced Settings tab.Use Test Pattern in the Projector Settings of the Advanced Settings menu. Ensure that the colors of the test pattern are correct.
Image is out of focus 1	Adjust the focus until the image is clear.Use Focus Adjust in the Projector Settings of the Advanced Settings menu.2 Ensure that the projection screen is within the required distance from the projector (3.9 inches [9.9 cm] ~ 8.9 inches [22.6 cm]).
The image is stretched when displaying a 16:9 DVD	The projector automatically detects the input signal format. It will maintain the aspect ratio of the projected image according to the input signal format with an Original setting.If the image is still stretched, adjust the aspect ratio in the Display Settings of the Advanced Settings menu in the OSD.
Image is reversed Select	Projector Settings of the Advanced Settings from the OSD and adjust the projector mode.
TEMP light is solid amber The	projector has overheated. The display automatically shuts down. Turn the display on again after the projector cools down. If the problem persists, please contact Dell.
TEMP light is blinking amber	If the projector fan fails, the projector will automatically shut down. Try to clear the projector mode by pressing and holding the Power button for 10 seconds. Please wait for about 5 minutes and try to power up again. If the problem persists, please contact Dell.
The remote control is not operating smoothly or works only within a limited range	The battery may be low. If so, replace with new CR2032 battery.
LAN control support	Web Control functions were verified on IE9, IE10, and IE11. The other version may have compatibility problem.The Compatibility View setting should be disabled. Otherwise the web control page may have icon or content display abnormal issue.

Guiding Signals

Projector Status	Description	Control Buttons Indicator
		Power	TEMP (Amber)	LAMP (Amber)
Standby mode	Projector in Standby mode. Ready to power on.	White Flashing OFF OFF
Warming up mode	Projector takes some time to warm up and power on.	White OFF OFF
Laser Diode on	Projector in Normal mode, ready to display an image.Note: The OSD menu is not accessed.	White OFF OFF
Cooling mode	Projector is cooling to shutdown. White OFF OFF
Projector overheated	Air vents might be blocked or ambient temperature may be above 40°C. The projector automatically shuts down.Ensure that the air vents are not blocked and that the ambient temperature is within operational range. If the problem persists, please contact Dell.	OFF AMBER OFF
Fan breakdown	One of the fans has failed. The projector automatically shuts down. If the problem persists, please contact Dell.	OFF	AMBER Flashing	OFF
Laser Diode driver overheated	Air vents might be blocked or the Laser Diode driver has overheated.The projector will automatically shut down. Turn the display on again after the projector cools down. If the problem persists, please contact Dell.	AMBER AMBER OFF
Color Wheel breakdown	Color wheel cannot start. The projector has failed and the projector automatically shuts down. Unplug/plug the power cord and then turn on the projector. If this problem persists, please contact Dell.	White	AMBER Flashing	AMBER Flashing
Laser Diode failure	Laser Diode is defective.	OFF OFF AMBER
Fault - DC supply (+12V)	Power supply has been interrupted.The projector automatically shuts down. Unplug/plug the power cord and then turn on the projector. If this problem persists, please contact Dell.	AMBER Flashing AMBER AMBER

Replacing the Remote Control Battery

1 Rotate the battery lid counterclockwise to remove the battery cover.

2 Insert a CR2032 coin cell battery and align the polarity correctly according to the marking in the battery holder.

NOTE: When you use the remote control for the first time, there is a plastic sheet between the battery and its contact. Remove the sheet before use.

3 Rotate the battery lid clockwise to mount the battery cover.

Light Valve 0.66" UHD TRP S610 DMD, DarkChip3™

Brightness 5000 ANSI Lumens (Max.)

Contrast Ratio 2000:1 Typical (Full On/Full Off)

100000:1 High Contrast Ratio

Uniformity 80% Typical (Japan Standard - JBMA)

Number of Pixels 3840 x 2160 (4K UHD)

Aspect Ratio 16:9

Displayable Color 1.07 billion colors

Color Wheel Speed 2 X for Normal

Projection Lens F-Stop: F/2.74

Focal length, f=2.84 mm

No Manual Zoom Lens, Fixed

Throw ratio = Fixed UST 0.18 wide and tele

Offset ratio: 118%

Projection Screen Size 100 \~ 130 inches (diagonal)

Projection Distance 0.32 \~ 0.74 ft (10 \~ 22.5 cm)

Video Compatibility Component Video input via HDMI: 2160p

(24/25/60 Hz), 1080i (24/25/60 Hz), 720p (50/60

Hz), 576i/p, 480i/p

Power Supply Universal AC 100-240 V 50-60 Hz with PFC

input

Power Consumption Normal mode: 545 W ± 15% @ 110 Vac

Eco mode: 395 W ± 15% @ 110 Vac

Standby mode: < 0.5 W

Network standby: < 2 W

NOTE: By default, the projector is set to enter power saving mode after 20 minutes of no activity.

Audio

2 speakers x 6 watt RMS

Noise Level Normal mode: 36 dB(A)

Eco mode: 29 dB(A)

Projector Weight < 29.76 lb (13.5 Kg)

Dimensions (W x D x H) 18.07 x 15.16 x 5.31 inches (459 x 385 x 135 mm)

18.07"(459 mm) 5.31"(135 mm) 15.16"(385 mm)

Environmental Operating temperature: 5 °C - 40 °C (41 °F - 104 °F)

Humidity: 80% maximum

Storage temperature: 0 °C to 60 °C (32 °F to 140 °F)

Humidity: 90% maximum

Shipping temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Humidity: 90% maximum

I/O Connectors Power: One AC power socket (3-pin - C14 inlet)

HDMI 2.0 input: One HDMI 2.0 connector for HDMI 2.0 specification HDCP 2.2 compliant and HDR capable.

HDMI 1.4 input: Two HDMI 1.4 connectors for HDMI 1.4 specification HDCP 2.2 compliant.

Variable audio output: One 3.5 mm stereo mini phone jack (Green).

USB (mini type B) port: One mini type B connector for firmware upgrade.

USB 3.0 (type A) port: One USB 3.0 type A connector for USB playback.

USB Power (5V/1.8A): Two USB Power (5V/1.8A) for power only

RS232 port: One 9-pin D-sub for RS232 communication.

RJ-45 port: One RJ-45 connector for build-in for network control and LAN display.

SPDIF port: One SPDIF connector for digital audio output.

Light Source Up to 20,000 hours in Normal mode

Compatibility Mode (Digital)

Resolution	Refresh Rate (Hz)	H Sync Frequency (KHz)	Pixel Clock (MHz)	Support HDMI 1.4 or 2.0
640 x 480 59.940 31.469 25.175 HDMI 1.4 & 2.0
640 x 480 75.000 37.500 31.500 HDMI 1.4 & 2.0
640 x 480 85.008 43.269 36.000 HDMI 1.4 & 2.0
720 x 480 p60 59.940 31.469 27.000 HDMI 1.4 & 2.0
720 x 576 p50 50.000 31.250 27.000 HDMI 1.4 & 2.0
800 x 600 60.317 37.879 40.000 HDMI 1.4 & 2.0
800 x 600 75.000 46.875 49.500 HDMI 1.4 & 2.0
800 x 600 85.061 53.674 56.250 HDMI 1.4 & 2.0
1024 x 768 60.004 48.363 65.000 HDMI 1.4 & 2.0
1024 x 768 74.930 60.241 80.000 HDMI 1.4 & 2.0
1024 x 768 84.997 68.677 94.500 HDMI 1.4 & 2.0
1280 x 720 59.855 44.772 74.250 HDMI 1.4 & 2.0
1280 x 720 p50 50.000 37.500 74.250 HDMI 1.4 & 2.0
1280 x 720 p60 60.000 45.000 74.250 HDMI 1.4 & 2.0
1280 x 800 59.810 49.702 83.500 HDMI 1.4 & 2.0
1280 x 1024 60.020 63.981 108.000 HDMI 1.4 & 2.0
1366 x 768 59.790 47.712 85.500 HDMI 1.4 & 2.0
1400 x 1050 59.978 65.317 121.750 HDMI 1.4 & 2.0
1600 x 1200 60.000 75.000 162.000 HDMI 1.4 & 2.0
1920 x 1080 60.000 67.500 148.500 HDMI 1.4 & 2.0
1920 x 1080 i50 50.000 28.125 74.250 HDMI 1.4 & 2.0
1920 x 1080 i60 60.000 33.750 74.250 HDMI 1.4 & 2.0
1920 x 1080 p120	120.00 33.750 297.000 HDMI 1.4 & 2.0
3840 x 2160 24.000 54.000 297.000 HDMI 1.4 & 2.0
3840 x 2160 25.000 56.250 297.000 HDMI 1.4 & 2.0
3840 x 2160 30.000 67.500 297.000 HDMI 1.4 & 2.0
3840 x 2160 50.000 112.500 594.000 HDMI 2.0
3840 x 2160 60.000 135.000 594.000 HDMI 2.0
4096 x 2160 24.000 54.000 297.000 HDMI 1.4 & 2.0
4096 x 2160 25.000 56.250 297.000 HDMI 1.4 & 2.0
4096 x 2160 30.000 67.500 297.000 HDMI 1.4 & 2.0
4096 x 2160 50.000 112.500 594.000 HDMI 2.0
4096 x 2160 60.000 135.000 594.000 HDMI 2.0

7

Additional Information

For additional information on how to use your projector, please see the Dell Projectors User Guide at www.dell.com/support/manuals.

For customers in the United States, call 800-WWW-DELL (800-456-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1 Visit go to www.dell.com/contactDell.
2 Select your country from the displayed list.
3 Select a Segment for Contact.
4 Select the appropriate service or support link based on your need.

Index

A

Adjusting Projector Focus 23

Adjusting the Projected Image Adjusting the Projector Height 22

lower the projector Front tilt adjustment wheel 22 Rear tilt adjustment wheel 22

C

Connection Ports

Audio output connector 7

HDMI 1 (2.0) connector 7

HDMI 2 (1.4) connector 7

HDMI 3 (1.4) connector 7

Kensington cable slot 7

Mini USB (mini type B) connector for firmware upgrade 7

Power cord connector 7

RJ45 connector 7

RS232 connector 7

SPDIF connector 7

USB (Type A) 3.0 connector for USB media playback and optional wireless dongle 7

USB Type A Power (5V/1.8A) connector 7

Contact Dell 5

D

Dell

contacting 72, 73

M

Main Unit 6

6W (x 2) speakers 6

IR receivers 6

Lens 6

Mounting holes for wall mount 6

Power button 6

Status indicators 6

Tilt adjustment wheel 6

P

phone numbers 73

R

Remote Control 12

Replacing 66

s

Specifications

Aspect Ratio 67

Audio 67

Brightness 67

Color Wheel Speed 67

Contrast Ratio 67

Dimensions 68

Displayable Color 67

Environmental 68

I/O Connectors 68

Light Valve 67

Noise Level 68

Number of Pixels 67

Power Consumption 67

Power Supply 67

Projection Distance 67

Projection Lens 67

Projection Screen Size 67

Projector Weight 68

Uniformity 67

Video Compatibility 67

support

contacting Dell 72, 73

T

telephone numbers 73
