Device type	Cordless vacuum cleaner
Brand	Beko
Model	VRT94929VI
Power supply (charger)	100-240 V~, 50-60 Hz, 0.8 A max
Charger output voltage	36 V, 0.6 A
Rated power	450 W
Battery type	Li-ion, model ZB1858
Maximum runtime	45 min (low mode), 22 min (medium), 7 min (max)
Charging time	4-5 hours
Filter	Washable HEPA, replace every 3-6 months
Included accessories	Crevice tool, soft dusting brush, mini turbo brush, curved extension, special parquet/hard floor roller, telescopic tube
Approximate weight	2.7 kg
Approximate dimensions (L x W x H)	250 x 260 x 1120 mm
Noise level	Not specified
Protection class	II (double insulation)
Dust container capacity	Approximately 0.6 L (estimated)

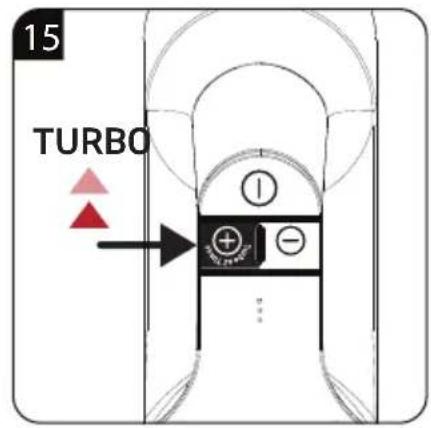

Power modes	Min, Medium, Max (via +/- buttons)
Parking position	Charging station provided, can stand vertically on hard floor
Maintenance	Clean filter and container regularly; replace HEPA filter every 3-6 months
Safety	Do not use for water or flammable substances; unplug before cleaning
Warranty	See manual or retailer

Frequently Asked Questions - VRT94929VI BEKO

How to charge the Beko VRT94929VI vacuum cleaner?

Plug the charging station into a mains socket (100-240 V). Place the vacuum on the station aligning the contacts. The white light flashes during charging, and becomes steady when fully charged. Charging time is about 4 to 5 hours.

What is the runtime of the vacuum?

Runtime varies depending on power mode: 45 minutes in low mode, 22 minutes in medium mode, and 7 minutes in maximum mode. The battery discharges gradually; fully recharge after each use.

How to clean the HEPA filter?

Stop and unplug the vacuum. Remove the dust container, then take out the HEPA filter. Tap gently to remove dust, or wash with lukewarm water (no detergent). Dry completely before replacing. Replace the filter every 3 to 6 months depending on use.

What if the vacuum no longer sucks?

First check if the battery is charged (red light flashing). Then check that the dust container and filter are not clogged. Clean the roller brush if hair or threads are entangled. If the problem persists, contact customer service.

Can I use the vacuum to pick up water?

No, the Beko VRT94929VI vacuum is designed only for dry vacuuming. Never vacuum liquids, as this would damage the motor and void the warranty. Use only on dry surfaces.

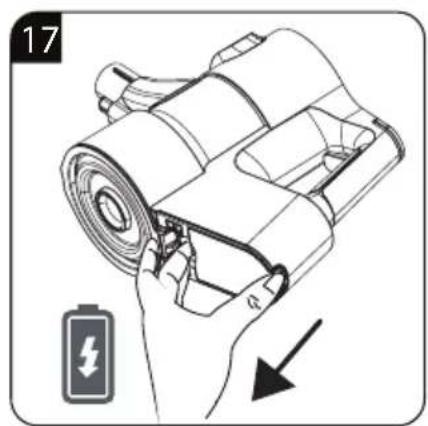

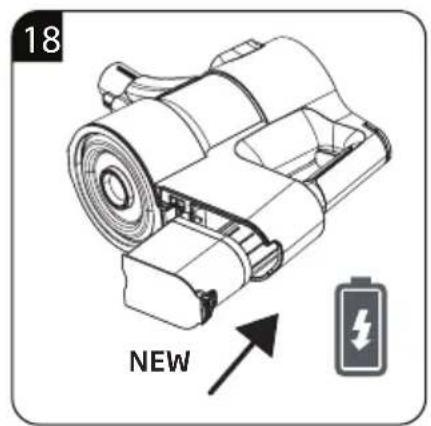

How to replace the battery?

The battery is removable. To remove it, press the battery release button (located on the body) and slide the battery out of its compartment. Insert the new battery (model ZB1858) respecting polarity. Only an authorized technician can replace the battery if it is built-in.

How to use the mini turbo brush?

Insert the mini turbo brush onto the end of the tube or directly onto the hand vacuum until you hear a click. It is ideal for deep cleaning sofas, armchairs and removing pet hair. Use it on upholstery.

What do the indicator lights mean?

In operation: steady white = battery OK, flashing = charging. Flashing red = low battery or brush blocked. If red and white flash alternately, it indicates a battery or connection problem. Refer to the troubleshooting table in the manual.

How to store the vacuum if not used for long periods?

Unplug the vacuum and remove the battery if possible. Store the battery in a dry, cool place at half charge (neither fully nor empty). Pack the battery in non-conductive material. Keep the vacuum clean and dry, out of reach of children.

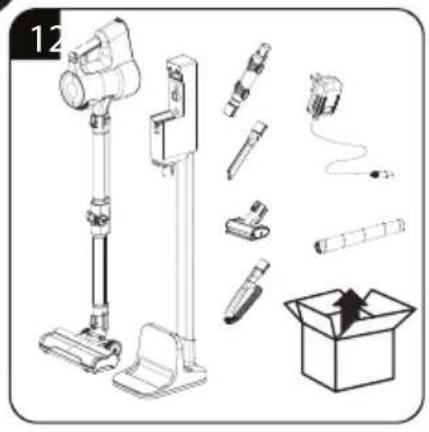

What accessories are included with the vacuum?

Included accessories: a crevice tool (for gaps), a soft dusting brush (for furniture), a mini turbo brush (for fabrics), a curved extension (for high areas), a special parquet and hard floor roller, and a telescopic tube. The charging station is also provided.

USER MANUAL VRT94929VI BEKO

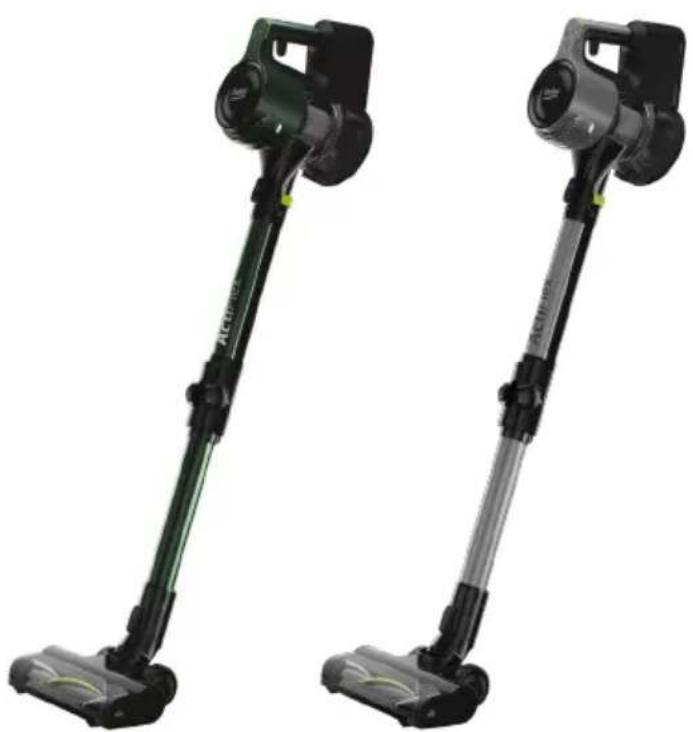

Cordless Stick Vacuum Cleaner

User Manual

Two black and gray handheld vacuum cleaner units with green and yellow labels, shown against a white background (no text or symbols visible)

VRT 94929 VV

VRT 94929 VI

EN DE FR ES RO IT

PL NL SR MK SQ

01M-8816513200-0920-04

01M-8816643200-0920-04

beko

CONTENTS

ENGLISH 07-17

DEUTSCH	18-27
FRANÇAIS	28-36
ESPAÑOL	37-47
ROMANIAN	48-58
ITALIANO	59-68
POLSKI	69-78
NEDERLANDS	79-87
SRPSKI	88-96
MAKEDOHСКИ	97-105
SHQIP	106-114

Abstract blue curved shape on white background (no text or symbols)

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET	ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUID	ADOS
RO	UTILIZARE CURĂȚAREA ȘI ÎNGRIJIREA
IT	UTILIZZO PULIZIA E CURA
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
NL	BEDIENING REINIGING EN ONDERHOUD
SRB	RUKOVANJE ČIŠĆENJE I ODRŽAVANJE
MK	РАБОТА ЧИСТЕЊЕ И ОДРЖУВАЊЕ
ALBANIA (SQ)	FUNKSIONIMI PASTRIMI DHE KUJDESI

Illustration of various household appliances and tools including a vacuum cleaner, switch, and box (no text or symbols)

Diagram showing a mechanical assembly with a vertical rod and a base, both with downward arrows indicating motion (no text or symbols)

Technical line drawing of a vertical mechanical device connected to an electrical outlet, with battery symbol below (no text or labels)

Line drawing of a vacuum cleaner with attached circuit board and indicator symbols (no text or labels)

Illustration of a vacuum cleaner with three different parts, showing a step to process (no text or symbols present)

Technical line drawing of a mechanical device with arrows indicating assembly or process steps (no text or symbols)

Illustration of a handheld device with a battery and lightning bolt symbol (no text or labels)

Line drawing of a hand cleaning a mechanical device with a cloth (no text or symbols)

Line drawing of a manual blender with an arrow pointing to the cup of food (no text or symbols)

Mechanical component diagram showing a rotating fan assembly with directional arrows (no text or symbols)

Diagram showing two mechanical components with an upward arrow, no text or symbols present

Diagram showing a cylindrical object being dropped from its top to its base, with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical device with three circular components and a lock icon (no text or symbols)

Technical line drawing of a mechanical device with a magnified circular detail showing internal components (no text or symbols)

Technical line drawing of a vehicle chassis frame with wheels and structural components (no text or symbols)

Simple line drawing of a broom with a broom and a small object above it, no text or symbols present.

Technical line drawing of a vehicle chassis with wheels and structural components (no text or symbols)

Please read this manual first!

Dear Customer,

Thank you for selecting a Beko product. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well.

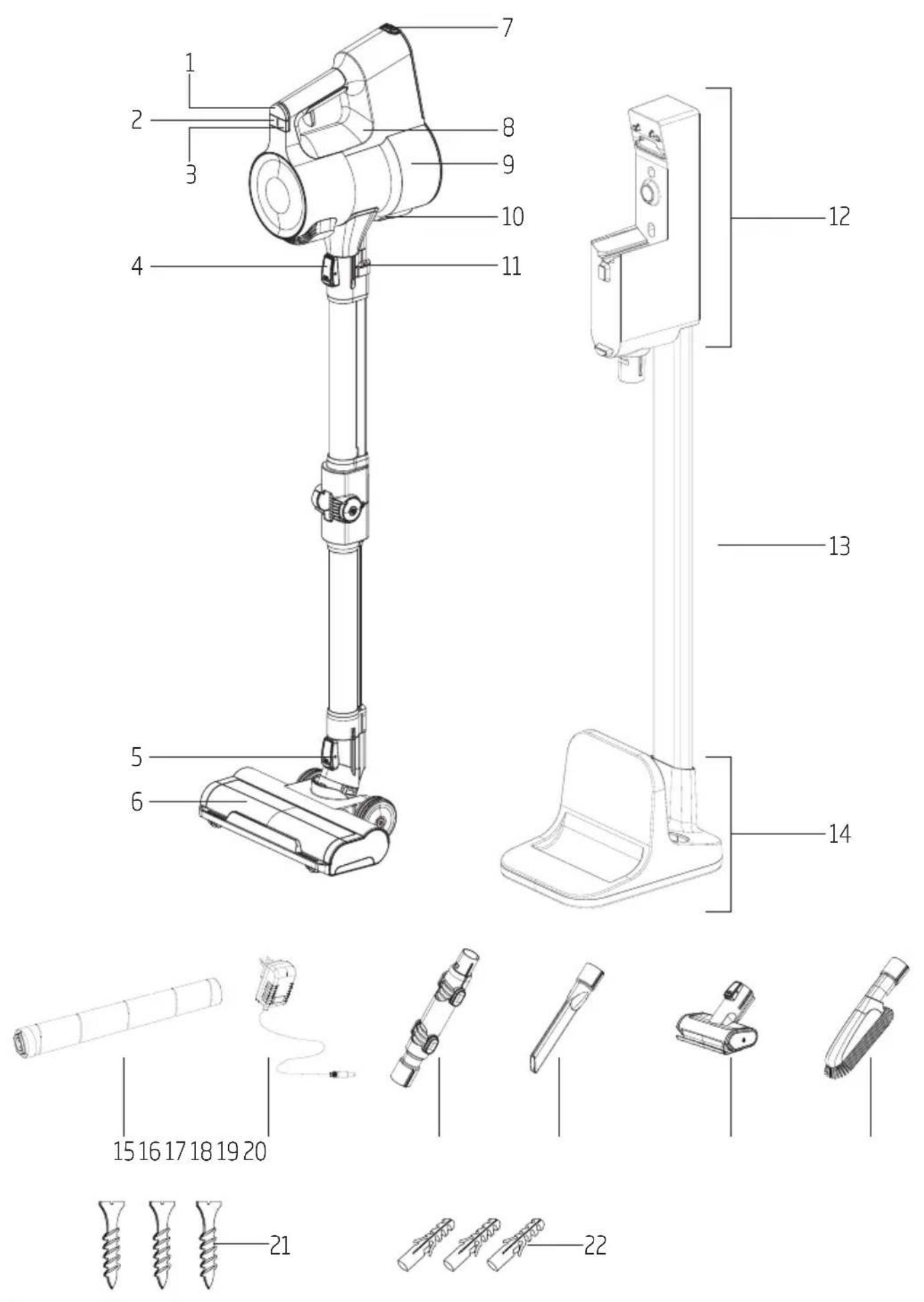

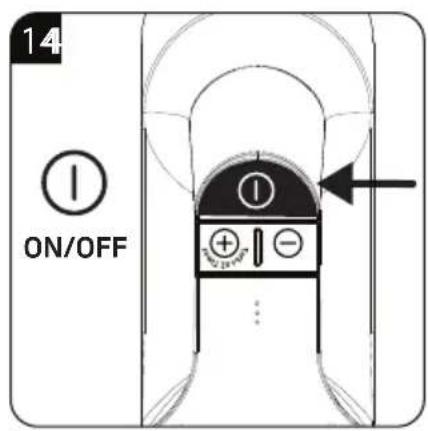

1. On/off button
2. Mode button +
3. Mode button -
4. Tube release button
5. Brush release button
6. Electrical turbo brush
7. Battery pack release button
8. Machine body
9. Dust cup
10. Dust cup release button
11. Foldable tube button
12. Charging station
13. Charging station tube
14. Charging station support
15. Hard floor roller
16. Power supply plug
17. Elbow
18. Crevice
19. Mini turbo brush
20. Soft brush
21. Screw
22. Wall plug

Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

Technical data

Rated input power : 450 W

Input :

100 - 240 V\~ 50-60Hz 0.8 A (max)

Output :36 V = 0.6A

Charging time : 4-5 hours

Running time max. power: 7 min.

Run time at medium power: 22 min

Running time min. power to up to:

45 min.

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This appliance has been produced in environmentally-friendly, state-of-the-art facilities.

Parameter of External Power Supply

Manufacturer :

Dongguan Yinli Electronics Co., Ltd

Model Identifier : YLS0241A-E360060

Output Current : 0.6A

Output Power : 21.6W

Average active efficiency : 87.19%

Efficiency at low load(10%) : 79.58%

No-load power consumption : 0.09W

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

- This appliance complies with international safety standards.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the adapter or the appliance itself is damaged, do not use it. Contact an authorised service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

- Do not use the appliance with an extension cable.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

- Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

- Do not pull the power cable when unplugging the appliance.

- Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.

- Do not vacuum water or other liquids.

- Protect the appliance from rain, humidity and heat sources.

- Never use the appliance in or near places where combustible or inflammable ambience or places are present.

- Unplug the appliance before cleaning and maintenance.

- Do not immerse the appliance or its power cable in water for cleaning.

- Do not attempt to dismantle the appliance.

1 Important safety and environmental instructions

- Use the original parts parts recommended by the manufacturer only.

- Do not clean the particles such as cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.

- Use the appliance only with the adapter supplied with.

- Do not use the appliance without filters; otherwise it can get damaged.

- If you keep the packaging materials, store them out of the reach of children.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

• Children should be supervised to ensure that they do not play with the appliance

- The appliance is only to be used with the power supply unit provided with the appliance.

- The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance

- If the adapter is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner

- The battery must be removed from the appliance before it is scrapped;

- The appliance must be disconnected from the supply mains when removing the battery;

- Please dispose of used batteries according to local laws and regulations.

- This appliance contains batteries that are only replaceable by skilled persons.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit YLS0241A-E360060 provided with this appliance.

- Please remove and insert the batteries according to UM.

1 Important safety and environmental instructions

• Rechargeable batteries are to be removed from the appliance before being charged;
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance and safely disposed of.
• If the appliance is to be stored unused for a long period, the batteries should be removed.
• The supply terminals are not to be short-circuited.
  • Only use with ZB1858 battery.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children being supervised not to play with the appliance.

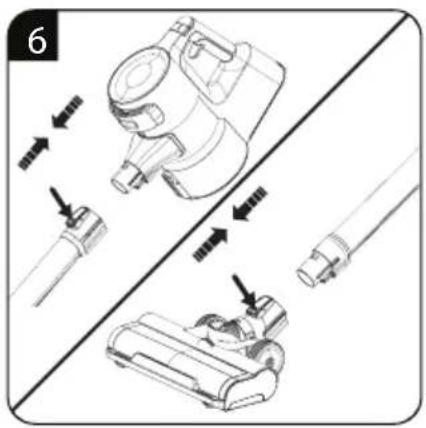

2 Part assembling

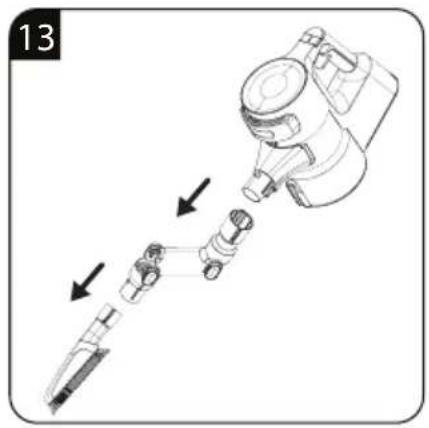

2.1 Elbow (17)

The elbow is extension tools, one end is inserted into the suction port, the other end is connected with the accessories, which can clean corners or narrow spaces (7).

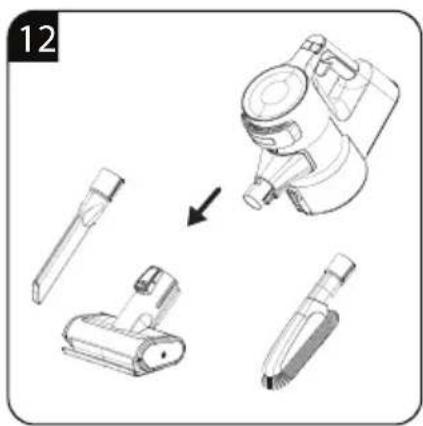

2.2 Crevice (18) and soft brush (20)

Push the round part of the accessory into the suction part until it clicks. Soft brush cleans your furniture without harming it (6-7).

2.3 Mini turbo brush (19)

Push the end of the Mini-brush into the suction part until it clicks.

Remove it by pulling the buttons (6).

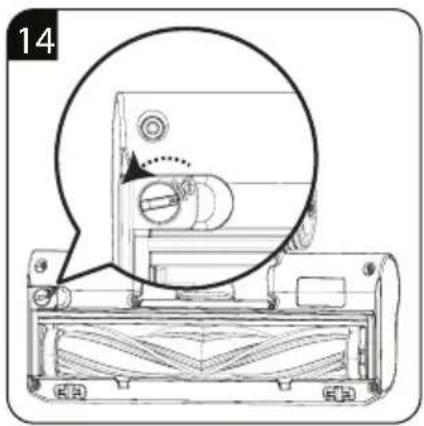

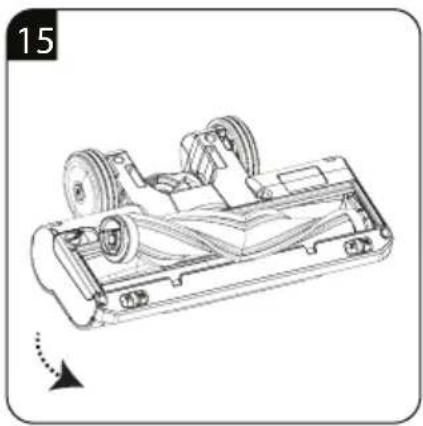

2.4 Hard floor roller (15)

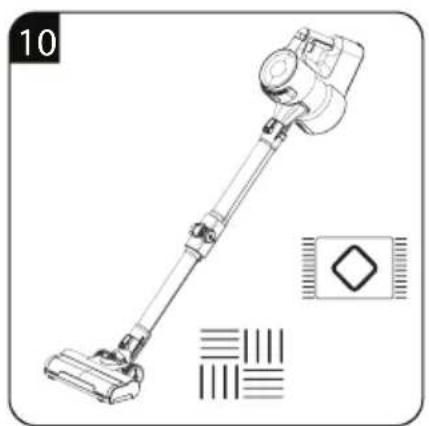

Hard floor roller provides higher cleaning performance on parquet, tiles etc. (17)

3 Use

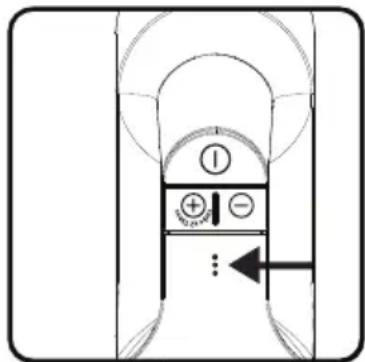

3.1 Charging Indicator

It indicates the battery charge status.

Working Charging		Fully charged	Lower power
Persistent white light	Blinking white light	Persistent white light	Blinking red light

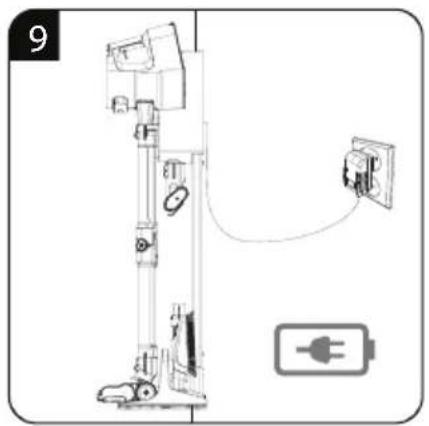

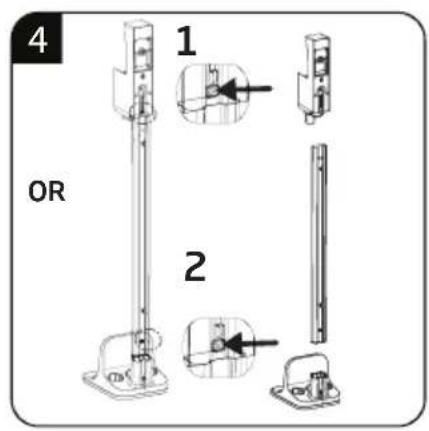

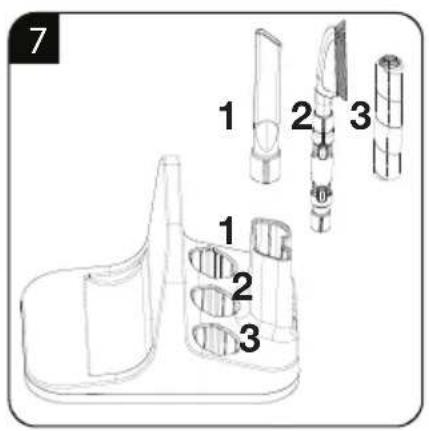

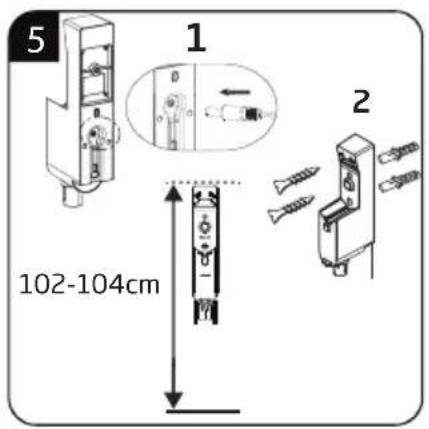

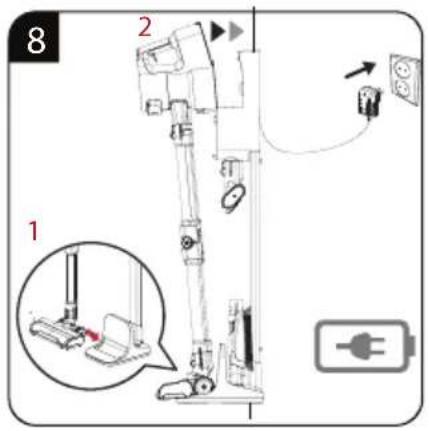

3.2 Charging station (12)

While charging the battery on the charging dock the charge indicator flashes white.

• When you receive this product, please use the charger provided by our company to recharge the battery for 3 hours (no need to charge it full) and the charging frequency should be every 3 months.
• Do not place the battery on the charging base for a very long time.

• When the battery is not in use for a long time or it is over-discharged, you may find the working time is reduced at the first few times. We recommend you fully charge the battery (usually 6 hours) and discharge it. Repeat this action two times.

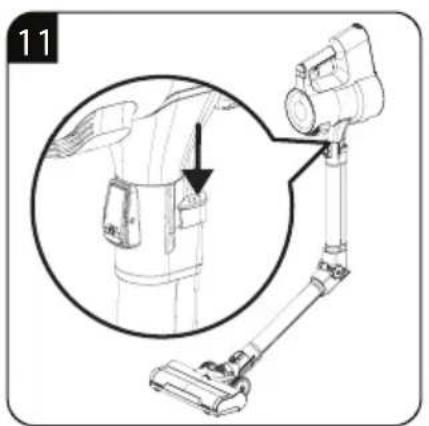

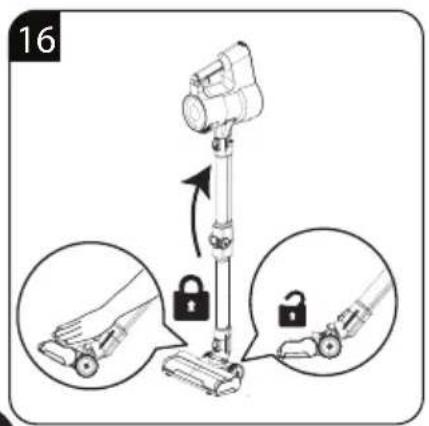

• The product has the ability to stand in upright position with the locking mechanism of the brush. The floor must be level for this function to be used correctly (hard floor, parquet, etc.). If the product is not used and when it is to be stored, it must be kept on its charging station. The vacuum cleaner can stand in upright position (on surfaces such as hard floors, parquet,
  etc.) for short durations (2-3 minutes) thanks to the brush locking mechanism.

4 Information

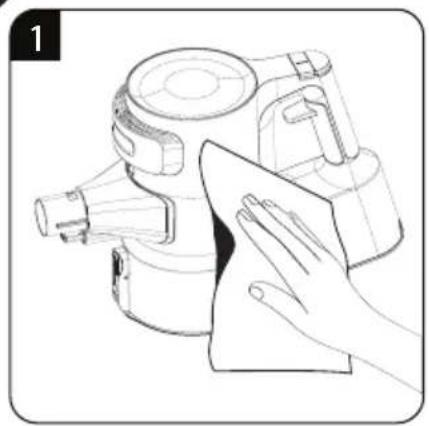

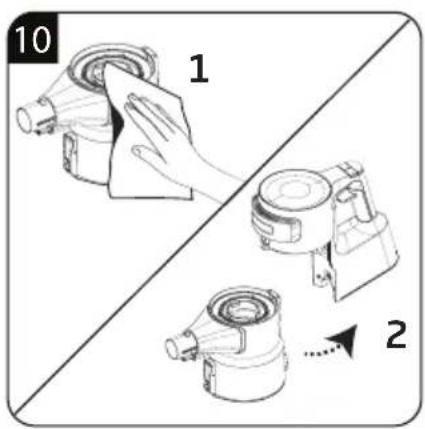

4.1 Cleaning and care

Switch off and unplug the appliance, before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

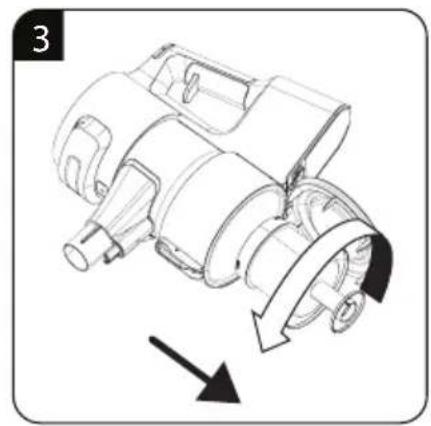

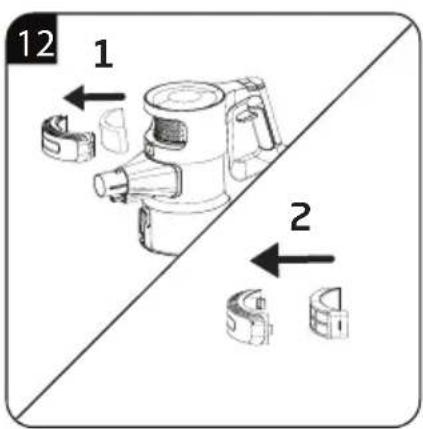

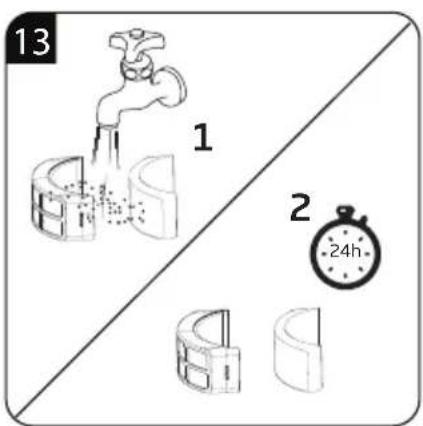

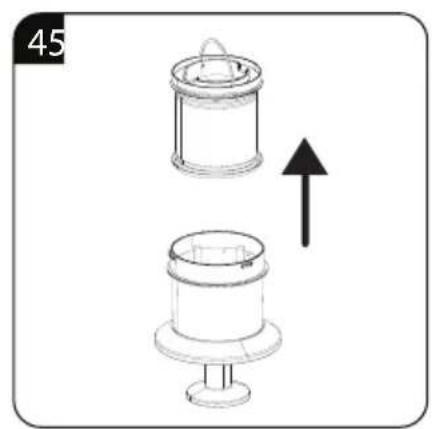

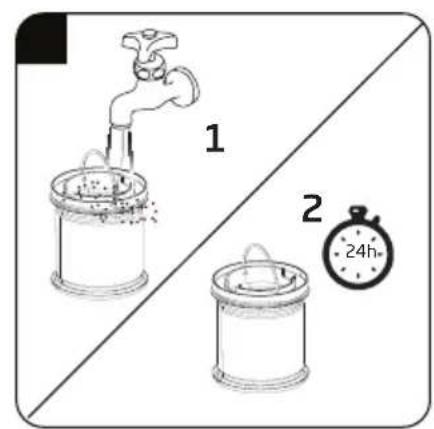

4.2 Hepa filter

- In order to ensure the performance of the product, we recommend you clean regularly, and replace one after 3-6 months. (Depending on usage)

WARNING: Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

4.3 Storage

• If you do not intend to use the appliance for long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.
• Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty.
• Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

4.5 Compliance with the WEEE Directive and disposal of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

4.6 Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain recharge able batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

4.7 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

4.8 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do

not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

For commissioning, general use and cleaning, please observe the instructions on pages 5-6-7 of this operating manual.

5 Troubleshooting

Common failure Possible cause Solutions
The vacuum doesn't work	Product is power off or battery is low	Please charge the product before use
	Product suction port is blocked. Cleaning product suction mouth

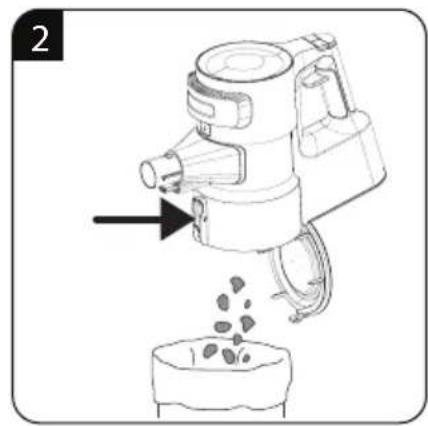

Suction is too weak	Dust barrel & filter assembly is dusty Clean the dustbin and filter material

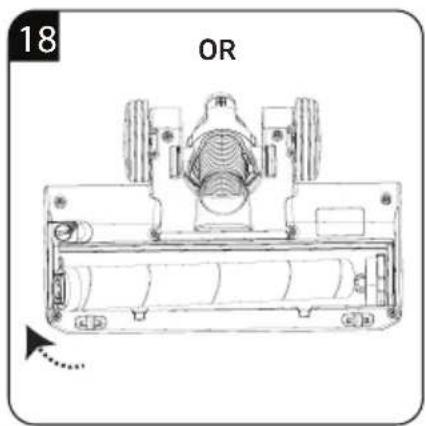

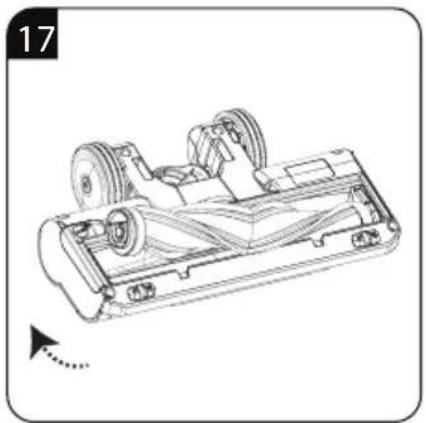

	Rolling brush is wrapped around the hair and other objects	Clean roller brush
	Situation still remains	Please contact with our after sales team
Different motor operation sound	The aluminum tube is blocked Clean up the obstacles
	Situation still remains	Please contact with our after sales team
Vacuum cleaner in trouble at work	Too many obstacles in the cleaning area	Manually remove obstacles
	Product suction port is blocked Clean product suction mouth
	Situation still remains	Please contact with our after sales team
Product can not be charged	Battery pack and charger interface not connected well	Please check and contact well
	Charger or receptacle is not fully charged or loose	Check it and put away
	Situation still remains Please contact with us
Common LED failure Possible cause Solutions
The red light flicker Product is power off or battery is low		Please charge the product before use
The red light flash	Brush plugging and the main brush motor is working	Clean roller brush
	Overcharging current is too larger Change the correct adapter
The red and white light trading flash when the discharge process	The battery pack has a problem	Please contact with our after sales team
The red and white light trading flash when the charge process	The battery pack is not installed well	1- Remove adapter2- Installed the battery pack again3- Insert adapter4- Strictly follow the above steps

12 months breakdown and repair guarantee

Guarantor: Beko plc, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8UF

The guarantee does not in any way diminish your statutory or legal rights.

Your appliance has the benefit of our manufacturer's guarantee which covers the product for 12 months from the date of original purchase.

This gives you reassurance that if within that time, your appliance is proven to be defective because of either workmanship or materials, we will at our discretion either repair or replace your appliance.

The appliance must be correctly installed, located and operated in accordance with the instructions contained in the user manual. The guarantor disclaims any liability for accidental or consequential damage.

The Guarantee is subject to the following conditions:

■ Documentary proof of the original purchase date is provided.
The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions.
The appliance is used only on the electricity supply on the rating plate.
The appliance has only been used for normal domestic purposes.
The appliance has not been altered, serviced, dismantled or otherwise interfered with by any person.
■ The appliance is used in the United Kingdom or Republic of Ireland.
■ Any parts removed during repair work or any product that has been replaced becomes our property.
The guarantee is not transferrable if the product is resold.

The Guarantee does not cover:

■ Transit, installation or delivery damage.
- Accidental damage.
- Misuse or abuse.
- Replacement of any consumable item or accessories. These include but are not limited to: plugs, cables, light bulbs, knobs, filters and flaps.
- Repairs or replacements required as a result of unauthorised repairs or inexpert installation that fails to meet the requirements contained in the user guide or instruction book.
■ Repairs to products used in commercial or non-residential household premises.

How to obtain after sales service, help or general advice

Please keep your purchase receipt or other proof of purchase in a safe place as you will need to show us this document if your product requires attention within the guarantee period.

Please also record your product details below, which will allow you to access our services more quickly and help us identify your product. The model number is printed on the front of the user guide and the serial and model number is shown on your products rating plate.

Model number	Serial number	Purchased from	Date of purchase

Please call our UK based Customer Service department if you need help or advice from us:

United Kingdom and Northern Ireland: 0333 207 9710

Republic of Ireland: 01 862 3411

You can also contact us through our website: www.beko.co.uk

Fabricant : Dongguan Yinli Electronics Co., Ltd

3.2 Station de charge (12)

Producent: Dongguan Yinli Electronics Co., Ltd

Identyfikator modelu: YLS0241A-E360060

Dongguan Yinli Electronics Co., Ltd

Identifikator modela: YLS0241A-E360060

Ulazni napon: 100-240V\~

Ukazuje na stanje napunjenosti baterije.

Radi Puni se		U potpunosti napunjeno	Malo preostale energije
Neprekidno svetli belo	Treperi belo	Neprekidno svetli belo	Treperi crveno

3.2 Stanica za punjenje (11)

Tokom punjenja baterije na postolju za punjenje, indikator za punjenje treperi belo.

4.4 Prenos i transport

• Tokom prenosa i transporta nosite uređaj u njegovoj originalnoj ambalaži. Ambalaža uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovu ambalažu. Uređaj se može oštetiti.
• Ako vam uređaj ispadne, to može izazvati trajno oštećenje, odnosno aparat može postati nefunkcionalan.

4.5 Usaglašenost sa WEEE direktivom i odlaganje otpada

Ovaj proizvod je usaglašen sa WEEE direktivom Evropske unije (2012/19/EU). Ovaj proizvod nosi simbol klasifikacije za električni i elektronski otpad (WEEE).

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za sakupljanje, obratite se lokalnim nadležnim telima ili prodavcu gde je proizvod kupljen. Svako domaćinstvo ima važnu ulogu u vraćanju i recikliranju starih uređaja. Odgovarajuće odlaganje iskorišćenog aparata pomaže u sprečavanju potencijalnih negativnih posledica po životnu sredinu i zdravlje ljudi.

4.6 Informacije o iskorištenim baterijama

Ovaj simbol na punjivoj bateriji/baterijama ili na ambalaži označava da se punjiva baterija/baterije ne sme odlagati zajedno sa običnim otpadom iz domaćinstva. Za određene punjive baterije / baterije, ovaj simbol može biti dopunjen hemijskim simbolom. Simboli za živu (Hg) ili olovo (Pb) se navedeni ako punjive baterije / baterije sadrže više od 0,0005% žive ili više od 0,004% olova.

Abstract geometric design with blue triangular shapes on white background (no text or symbols)
