T650 - Mouse LOGITECH - Free user manual and instructions

Product Type	Wireless Mouse
Brand	Logitech
Model	T650
Connection Technology	Logitech Unifying (2.4 GHz)
Interface	USB (Unifying receiver)
Power Supply	2 AA batteries
Estimated Battery Life	Up to 6 months
Dimensions (L x W x H)	Approx. 12 x 7.5 x 3 cm
Weight	Approx. 120 g (with batteries)
Compatibility	Windows 7, 8, 10
Main Functions	One-finger touch scrolling, left/right/middle clicks, access to Start screen
Included Software	Logitech Options (download)
Touch Gestures	Swipe up/down/left/right
Number of Buttons	3 (left, right, middle)
Surface Type	Capacitive touch strip
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Keep out of reach of children. Do not expose to moisture.
Spare Parts	AA batteries, Unifying receiver (Logitech ref.)
Repairability	Battery compartment can be opened. For other repairs, contact Logitech support.
General Information	Allows connecting up to 6 compatible Unifying devices with a single receiver.

Frequently Asked Questions - T650 LOGITECH

How to connect the T650 mouse?

Plug the Unifying receiver into a USB port on your computer. Then, turn on the mouse using the switch. The mouse will connect automatically.

How to replace the batteries of the T650 mouse?

Remove the battery compartment cover located under the mouse. Insert two new AA batteries, respecting polarity. Close the cover.

What to do if the mouse does not work?

Restart the mouse by turning it off and on. Check the Unifying receiver connection on another USB port. Move away any metal objects. If the indicator blinks red, replace the batteries.

What software to use with the T650 mouse?

Install the Logitech Options software to benefit from additional gestures and custom settings. Download it from www.logitech.com/support/t650.

How to perform touch scrolling?

Slide your finger up, down, or to the sides of the touch strip to scroll content.

How to click with the T650 mouse?

Click on the left, right, or middle part of the mouse surface to perform the corresponding clicks.

How to access the Windows Start screen?

Click at two-thirds of the upper part of the touch strip to open the Start screen.

Can I connect multiple Logitech devices with the same receiver?

Yes, Logitech Unifying technology allows connecting up to six compatible keyboards and mice with a single USB receiver. Visit www.logitech.com/unifying for more information.

How to clean the T650 mouse?

Use a soft, dry cloth to clean the surface. Avoid chemical or abrasive products.

Where to find spare parts for the T650 mouse?

Contact Logitech support or visit their website to obtain replacement batteries or a Unifying receiver.

USER MANUAL T650 LOGITECH

1. Plug in the receiver

Plug the Unifying receiver into a USB port.

2. Power on the mouse

Move the power switch to the On position.

Check the battery status light. Red means it's time to change the battery.

Power switch in the On position

3. Software installation

You are prompted to install Logitech software that enhances your Touch Mouse experience with additional gestures, smoother performance, and personalized settings.

Follow the onscreen instructions to complete installation.

No prompt?

Download the software from:

www.logitech.com/download/t400

Visit the Product Page

While you're online, check out the Zone Touch Mouse T400 Product Page, your destination for world-class support.

www.logitech.com/support/t400

In addition to software, you'll find tutorials, troubleshooting tips, and guidelines for using your new Touch Mouse.

The Product Page is also home to live forums that connect you to a global community of knowledgeable users.

Using the mouse

One finger scrolling

Swipe up, down, or sideways on the touch strip.

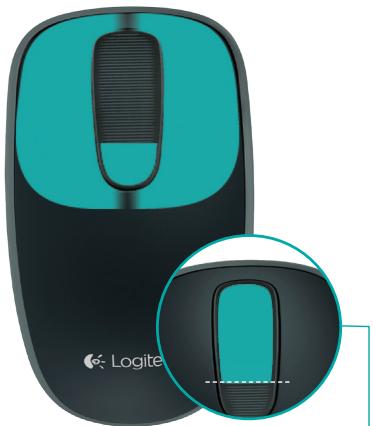

Clicking

The Touch Mouse provides full 3-button operation. Click the left, right, or middle area of the mouse surface.

Click the top 2/3 of the touch strip to go to the Windows Start screen.

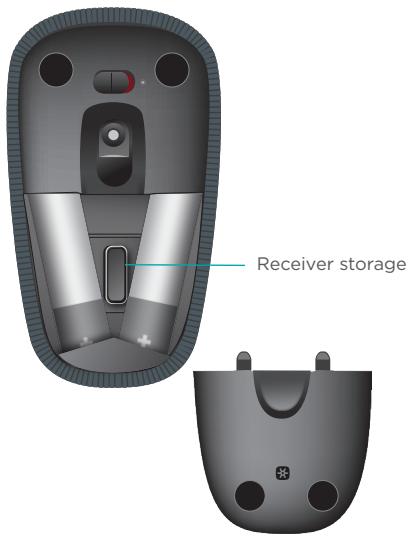

Replace batteries

Remove the battery cover and insert new batteries into the compartment.

Unifying

Logitech Unifying technology connects up to six compatible Logitech mice and keyboards to the same receiver, using only one USB port for multiple devices. To learn more, visit:

www.logitech.com/support/unifying

unifying

Troubleshooting

Touch Mouse not working?

• Restart the mouse by turning it off and then back on.
• Check if your Unifying receiver is properly connected to a USB port.
• Move the Unifying receiver to another USB port on your computer. (Try connecting directly to your computer instead of using a USB hub.)
• Remove any metallic objects near the mouse.
• If the status light blinks red, replace the battery.

Zone Touch Mouse T400

Zone Touch Mouse T400

www.logitech.com/support/unifying

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

www.logitech.com/support/unifying

unifying

Troubleshooting

3. Software installation

www.logitech.com/support/unifying

unifying

Troubleshooting

Your Zone Touch Mouse T400

Your Zone Touch Mouse T400

Install your mouse

1. Plug in the receiver

Connect the Unifying receiver to a USB port.

2. Turn on the mouse

The switch button must be set to "On".

www.logitech.com/support/unifying

unifying

Troubleshooting

Is your Touch Mouse not working?

www.logitech.com/support/unifying

unifying

Troubleshooting

Is the Touch Mouse not working?

• Restart the mouse by turning it off and on again.
• Make sure the Unifying receiver is properly connected to a USB port.
• Move the Unifying receiver to another USB port on your computer. (Try connecting directly to the computer instead of using a USB hub.)
• Remove metal objects near the mouse.
• If the status light blinks red, you need to replace the battery.

Zone Touch Mouse T400 - high resolution

Zone Touch Mouse T400 -hiresi

Hiiren käyttoönotto

www.logitech.com/support/unifying

Vianmääritys

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

unifying

Sorun giderme
