MZP-02 - Iron MPM - Free user manual and instructions

Product Type	Garment Steamer
Brand	MPM
Model	MZP-02
Power Supply	120-240V AC (see nameplate)
Power Cord Length	1.85 m
Water Tank Capacity	250 ml
Preheat Time	Approx. 40 seconds
Auto Shut-off	After 8 minutes of inactivity
Modes	ECO mode, Steam blast mode
Brush Attachment	Dual-bristle brush for soft and heavy textiles
Steam Output	Continuous steam with latch-lock button
Anti-Calc Cartridge	Built-in in water tank
Safety Features	Auto shut-off, thermal fuse, cool-down before cleaning
Cleaning	Wipe soleplate and housing with damp cloth; rinse water tank regularly
Maintenance	Use distilled water; descale as needed
Weight	Approx. 0.8 kg (estimate)
Dimensions (HxWxD)	Approx. 25 x 10 x 12 cm (estimate)
Warranty	See manufacturer's warranty card

Frequently Asked Questions - MZP-02 MPM

How do I fill the water tank?

Unplug the steamer, hold the housing, pull the water tank out, remove the plug, fill with fresh distilled water up to the MAX mark, then reattach securely.

How long does preheating take?

Preheating takes approximately 40 seconds. The Power LED will flash during preheating and become steady when ready.

What is the ECO mode?

ECO mode reduces steam output for longer operation and lower power consumption. Press the ECO button to enable; the LED will light up.

How do I use the steam blast mode?

Press the steam blast button to enable higher steam output. The LED will light up. This mode uses more water and power.

Can I use tap water?

It is recommended to use distilled or demineralized water to prevent scale buildup. Do not use chemically decalcified water.

How do I clean the steamer?

Unplug and let cool. Wipe the soleplate and housing with a damp cloth. Rinse the water tank regularly. Do not use abrasive cleaners.

What does the auto shut-off feature do?

If no steam is used for 8 minutes, the heater automatically turns off. The Power LED will flash. Press the steam button to reactivate.

How do I install the brush attachment?

Ensure the steamer is unplugged and cool. Fit the brush onto the soleplate from the top, then press down until it clicks. To remove, pull the latch at the bottom.

Why is water leaking from the tank?

Check if the tank is overfilled (above MAX), the cap is properly closed, and the steamer is held upright. If problem persists, contact support.

Can I use the steamer on delicate fabrics like silk?

Yes, but use the brush attachment to reduce water dripping and keep the steamer at least 5 cm away from the fabric. Steam around metal accessories to avoid discoloration.

USER MANUAL MZP-02 MPM

Blue and white MDM washing machine with a head-mounted sensor (no visible text or symbols)

Illustration of a shoe with directional arrows indicating movement or force (no text or symbols)

Illustration of a steamer with handle and spout (no text or symbols)

MONTAŻ NAKŁADKI

Close-up of a medical device component with directional arrows indicating movement or force (no text or symbols)

Read the Instruction manual carefully before first use.
Insert the device's power plug to an earthed power socket.
Pay special attention if there are children around! Do not let anyone touch the device during steam ironing.

Do not immerse the device, cable or plug in water or other liquids!

Do not leave a device connected to power supply unattended.

Do not hang the cable on sharp edges and do not let it touch hot surfaces.

▶ Regularly check if the power cable is not damaged.

Do not use a damaged device, this also applies to damaged cable or plug, have the device fixed shop.

▶ Always disconnect the plug when not using the device.

Before starting cleaning and before attaching or removing accessories from the device, unplug the cable plug from socket and wait for the device to cool down completely.

Disconnect the device from power supply when filling the tank with water or draining water.

Never touch the heating heel of an operating device.

Pour only water to the tank. It is recommended to use distilled water to avoid scaling on the internal elements of the device.

Fill the device with water only, do not add any chemicals as such agents might damage the device.

Do not touch the hot metal parts, hot water nor steam to avoid scalding.

▶ Use the device only according to its purpose.

The device is designed for household use only.

▶ Using the device outdoors is prohibited.

Do not open the water tank during steam ironing.

Place the device on stable surface when not in use.

Do not use the device if it fell, has visible damage or if water is leaking from the device.

This device may be used by children at the age at least 8 and persons with reduced physical and cognitive capabilitie, or persons inexperienced with the use of the device or without proper knowledge, only under supervision or instruction on the safe use of the device including the possible risks. Children without supervision shall not clean nor maintain the device.

- Store the device and power cable out of reach of children under 8.

Do not let children play with the device or accessories.
After completing ironing drain any water left in the device.

Under no circumstances press clothes or materials actually worn by people or animals.

▶ Never direct steam to people or animals.
Do not remove the power plug from a socket by pulling.
Do not try to insert plug into socket using wet hands.

Do not wind the power cable around the device until it cools down.

Do not place the device near electrically or gas powered stoves, burners, ovens etc.
The equipment was not designed for operation with external remote time-lag switchers or a separate remote adjustment system
If the device has a base for putting away, make sure the surface on which the base was placed is stable.
Before starting the device check if the available supply voltage conforms with specification on the device's nameplate

For the safety of children, do not leave packaging elements freely (plastic bags, boxes, polystyrene etc.)
▶ WARNING Do not let children play with foil. Danger of suffocation.

Place the device at least 20 cm from wall and other heat or steam sensitive materials. Ensure a proper empty space is available on all sides of the device for air circulation.

Do not fill water above the MAX marking because it may result in leak.
- Be careful during use of the device due to generation of water vapour.

Do not let the cable touch hot surfaces.

Do not used the device without water. This may damage the device.
Do not use the device for cleaning electrical equipment nor wiring.

Do not touch hot surfaces. Before installing or removing accessories, turn the device off and wait for cooling down.

Warning! Hot surface!

WARNING! Danger of scalding by steam!

OVERVIEW

1. Housing
2. Steamer sole
3. Touch control panel

a. Power switch with LED indicator
b. ECO mode switch with LED indicator
c. Steam blast switch with LED indicator

1. Latched steam jet button
2. 250 ml water tank
3. Water tank plug
4. Water tank latches
5. Brush attachment for soft and heavy textiles

BEFORE FIRST USE

1. Take out the device from the box and remove all protective cardboard elements and foil.
2. Unwind and straighten the cable before use.

NOTICE SMOKE MAY COME OUT OF device DURING FIRST USE. THIS SHALL STOP AFTER SHORT WHILE.

FIRST STEPS

FILLING THE WATER TANK

1. Make sure that the appliance is unplugged from the mains.
2. Hold the housing by the grip with one hand. Pull away the water tank (5) firmly with the other hand to detach it (Fig. 1).
3. Remove the water tank plug (6) from the fill port.
4. Add fresh water to the maximum level. Check the maximum level in the water tank by putting the water tank straight up.

Fig. 1

Illustration of a shoe with motion arrows indicating movement (no text or symbols)

CAUTION! straight up. Do not fill beyond the MAX mark. In order to get the best results from using the clothing steamer and prevent clogging it with scale, always use fresh demineralized or distilled

water. Never use chemically decalcified water or any other liquids. The water tank features an anti-calc cartridge which reduces scale forming within the appliance.

1. Close the fill port with the water tank plug (6).
2. Reattach the water tank to the clothing steamer. Make sure that the latches (7) are secured on the water tank (Fig. 2).

INSTALLING THE BRUSH ATTACHMENT

Fig. 2

Illustration of a steamer with a handle and spout (no text or symbols)

The brush attachment for soft and heavy textiles features two types of bristle. The rough bristle at the top of the brush attachment improves steam penetration of heavy textiles, from which overcoats are made, for example. The soft bristle at the bottom of the brush attachment is great for swift removal of loose threads, human and animal hair, and fluff from soft textiles, including velour, velvet or wool.

1. Before using the brush attachment, always disconnect the clothing steamer from the mains and wait for the appliance to cool down completely.
2. Next, hold the clothing steamer firmly by the grip with one hand and install the brush attachment (8) on the steamer sole (2). Have the brush attachment engage the steamer sole at the top first and press down the bottom to secure it (Fig. 3). It will click when secured in place.

CAUTION! Always unplug the clothing steamer from the mains and wait for it to cool down completely before installing or removing the brush attachment. Be careful: the steamer sole can be hot!

1. To remove the brush attachment, hold the clothing steamer firmly by the grip and pull away the latch at the bottom of the brush attachment.

USING THE CLOTHING STEAMER

1. Fill the water tank (5).
2. Plug the power cord to a mains outlet with a PE pin.
3. Press and hold the Power switch (3a) for 3 seconds. The clothing steamer will be powered on and start preheating. The preheating process is in progress while the Power LED indicator (3a) is flashing. Once the preheating process is complete (which takes approx. 40 seconds), the Power LED indicator is continuously on. Now the clothing steamer is hot and ready for use.
4. Operate the button (3b) or (3c) to choose the ECO mode or the steam blast mode, respectively.
5. ECO is a mode with a low steam blast for longer operation and lower power consumption.
6. The steam blast mode gives much more steam at the cost of a higher water and power consumption.
   When enabled, the chosen mode's LED indicator is lit on (3b) or (3c). The steam blast mode is selected by default.

CAUTION! Hold the clothing steamer upright during use. Do not steam textiles with the steamer sole directed downward. Do not turn the clothing steamer upside down.

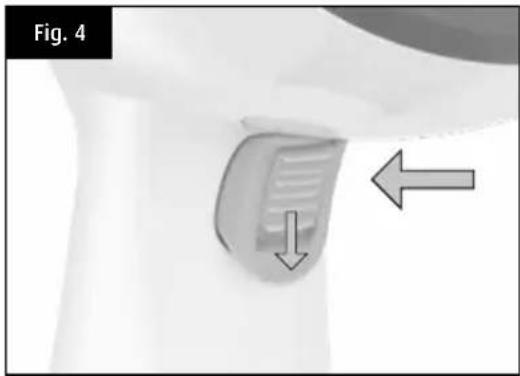

1. When the clothing steamer is ready for use, press the latched steam jet button (4). Before steaming textiles, point the steam jet away from the textile for the first few seconds; the clothing steamer may eject some water droplets first.

CAUTION! The steam is very hot! Hazard of burns! Never direct the steam jet toward people or animals!

1. Do not release the latched steam jet button (4) while steaming. You can leave it latched on with the latch on the button (Fig. 4).
2. To steam the textiles, bring the steamer sole close to the textile while tugging the textile straight and flat with the other hand.

CAUTION! Do not hold any textile with a bare hand when steaming. Do not place the steamer sole on the power cord after use.

Close-up of a medical device component with directional arrows indicating movement or force (no text or symbols)

CAUTION! Do not direct the steam jet directly toward metal accessories and appliqués. Steam carefully around any metal accessories and appliqués.

1. If you are not steaming with the brush attachment, keep the steamer sole 5 cm away from the textile.
2. The water pump in the appliance will produce continuous low ticking noise, which is perfectly normal. When the water tank is empty, the water pump will run louder. When this happens, immediately power off the clothing steamer, unplug it from the mains and leave to cool down before refilling the water tank.
3. The clothing steamer features an auto-shutoff feature which disables the steam heater after 8 minutes from the last time you use steam. When enabled, the auto-shutoff feature is indicated by the flashing of the Power LED indicator (3a). Using the latched steam jet button (4) will turn on the steam heater again.
4. When done steaming, unlatch and release the latched steam jet button (4), power off the clothing steamer by pressing and holding the Power switch (3a) for 3 seconds. Now, unplug the power cord from the mains and leave the clothing steamer to cool down completely.
5. Drain all unused water from the water tank.

HINTS AND TIPS

It is best to steam the textiles on a hanger. To steam a buttoned shirt, button up the collar to keep the garment from wandering during straightening it with steam.

▶ Steaming may leave small, damp spots on the textiles. The textiles may become slightly damp to touch because of the steam. When done steaming, leave the textiles to dry before storing or wearing it.
- Steam the sleeves from the shoulders and proceed down to the cuffs. Steam pockets by proceeding from the bottom up.
▶ Always empty all pockets before steaming.
Use the clothing steamer in the ECO mode. Use the steam blast to level out persistent or heavy creases.

▶ Spread your laundry straight on the dryer. This reduces stubborn creases.
▶ Steaming can reduce or completely eliminate bad smell from your textiles.

CLEANING AND MAINTENANCE

NOTICE! Never immerse the device in water and do not rinse it in tap water.

CAUTION! Unplug the power cord from the mains before cleaning or maintaining the appliance. Wait until the appliance has completely cooled down.

1. Wipe off any sediment from the steam heel (2) using a moist cloth and a liquid cleaning agent free of abrasive elements.

NOTICE! To protect the heel surface unscratched, do not place the device near any metal objects. Do not use scratchpads, vinegar nor any other chemical agents for cleaning the steamer.

1. Wipe the device housing with a moist cloth.
2. Rinse the water tank (5) regularly and empty it after rinsing.
3. Always store the device in an upright position on a stable surface.
4. Do not place the device near heat sources or in direct sunlight.
5. Always make sure that steam openings are clean and free from impurities.

TROUBLESHOOTING GUIDE

Problem Possible solution
The steamer does not heat up Check main plug is inserted correctly.	Check power supply.Check power button.
The steamer does not produce steam Check the water level and the water tank inlet cover is properly covered.Press the steam activation button harder.Hold the steamer in an upright position.
Water spills from the water tank Make sure water is not over the MAXIMUM level.Make sure water tank inlet cover is properly closed.Always use the steamer in an upright position as per the operating instructions.
The steamer is producing a loud humming or pumping sound	Check water level; if there is no water or it is low, refill the water tank.
The steamer does not seem to be removing creases easily	Hold the steamer in an upright position and stretch the fabric downward to ensure best results.
Unsure when to use the fabric brush Use when steaming is to directly touch the fabric.When steaming delicate fabric, such as silk to reduce the risk of water dripping onto the garment while steaming.
Avoiding discolouring of metal accessories on the garment	Do not directly hover the garment steamer over the metal accessories.Use caution and steam around the metal accessories.

TECHNICAL SPECIFICATION:

The specification is printed on the device's nameplate.

Length of power cable: 1.85 m

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department mental Protection. Do not dispose the device with other municipal waste.

Illustration of a shoe with motion arrows indicating movement (no text or symbols)

Illustration of a steamer with a handle and spout (no text or symbols)

МОНТАЖ НАКЛАДКИ

Close-up of a medical device component with directional arrows indicating movement or force (no text or symbols)

Illustration of a shoe with directional arrows indicating motion (no text or symbols)

Illustration of a steamer with a handle and spout (no text or symbols)

Close-up of a medical device component with directional arrows indicating movement or force (no text or symbols)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
