Product type	Wireless touch mouse
Brand	Logitech
Model	T620
Connection	2.4 GHz via Unifying receiver
Buttons	3 (left, right, middle click) + touch strip
Power	2 AA batteries (not included)
Weight	121 g
Range	Up to 10 m (typical)
System compatibility	Windows, macOS (with Logitech software)
Included software	Logitech Options (download)
Touch functions	Vertical and horizontal scrolling, customizable gestures
Battery indicator	Red LED when batteries low
Number of connectable devices	Up to 6 with a single Unifying receiver
Maintenance	Clean with a soft, slightly damp cloth
Warranty	2 years (depending on country)

Frequently Asked Questions - T620 LOGITECH

How to connect the Logitech T620 mouse to my computer?

Plug the Unifying receiver into a USB port on your computer. Turn on the mouse (switch to On position). Logitech software can be installed for advanced features.

What is the battery life?

The Logitech T620 mouse uses 2 AA batteries. Typical battery life is about 6 to 12 months depending on usage. The red LED indicates low battery.

Can I use the mouse without Logitech software?

Yes, basic functions (click, scroll) work without software. For touch gestures and customization, install Logitech Options from the Logitech website.

How to clean the touch mouse?

Turn off the mouse and remove the batteries. Clean the surface with a soft cloth slightly damp. Do not use abrasive products.

What to do if the mouse stops responding?

Restart the mouse by turning it off and on again. Check that the receiver is connected directly to a USB port (avoid hubs). Replace the batteries if the LED blinks red.

Is the Unifying receiver compatible with other devices?

Yes, the Unifying receiver can connect up to 6 compatible Logitech devices (mice, keyboards). Visit www.logitech.com/support/unifying for more information.

What touch gestures are available?

You can swipe a finger up, down, or sideways to scroll. A click on the touch strip can open the Windows Start screen. Gestures are customizable via Logitech software.

How to replace the batteries?

Remove the battery compartment cover on the back of the mouse. Insert 2 AA batteries respecting polarity. Close the cover.

Does the mouse work with Mac?

Yes, the Logitech T620 is compatible with macOS. Install Logitech Options software to enjoy all features.

How to access the full manual?

Download the manual in PDF format from the Logitech product page or on sites like notice-facile.com. You can also request a translation by email.

USER MANUAL T620 LOGITECH

1. Plug in the receiver

Plug the Unifying receiver into a USB port.

2. Power on the mouse

Move the power switch to the On position.

Check the battery status light. Red means it's time to change the battery.

Power switch in the On position

3. Software installation

You are prompted to install Logitech software that enhances your Touch Mouse experience with additional gestures, smoother performance, and personalized settings.

Follow the onscreen instructions to complete installation.

No prompt?

Download the software from:

www.logitech.com/download/t400

Visit the Product Page

While you're online, check out the Zone Touch Mouse T400 Product Page, your destination for world-class support.

www.logitech.com/support/t400

In addition to software, you'll find tutorials, troubleshooting tips, and guidelines for using your new Touch Mouse.

The Product Page is also home to live forums that connect you to a global community of knowledgeable users.

Using the mouse

One finger scrolling

Swipe up, down, or sideways on the touch strip.

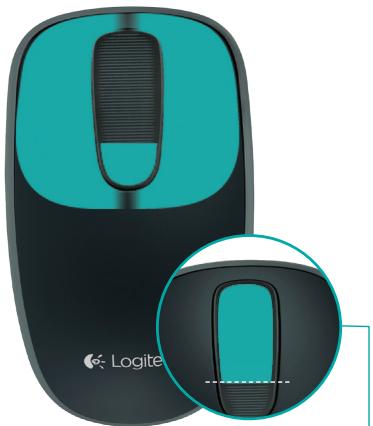

Clicking

The Touch Mouse provides full 3-button operation. Click the left, right, or middle area of the mouse surface.

Click the top 2/3 of the touch strip to go to the Windows Start screen.

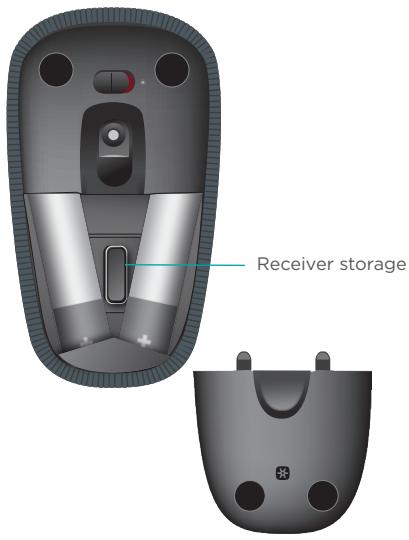

Replace batteries

Remove the battery cover and insert new batteries into the compartment.

Unifying

Logitech Unifying technology connects up to six compatible Logitech mice and keyboards to the same receiver, using only one USB port for multiple devices. To learn more, visit:

www.logitech.com/support/unifying

unifying

Troubleshooting

Touch Mouse not working?

• Restart the mouse by turning it off and then back on.
• Check if your Unifying receiver is properly connected to a USB port.
• Move the Unifying receiver to another USB port on your computer. (Try connecting directly to your computer instead of using a USB hub.)
• Remove any metallic objects near the mouse.
• If the status light blinks red, replace the battery.

Zone Touch Mouse T400

Zone Touch Mouse T400

www.logitech.com/support/unifying

Troubleshooting

www.logitech.com/support/unifying

unifying

Troubleshooting

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

unifying

Troubleshooting

Is the Touch Mouse not working?

www.logitech.com/support/unifying

unifying

Troubleshooting

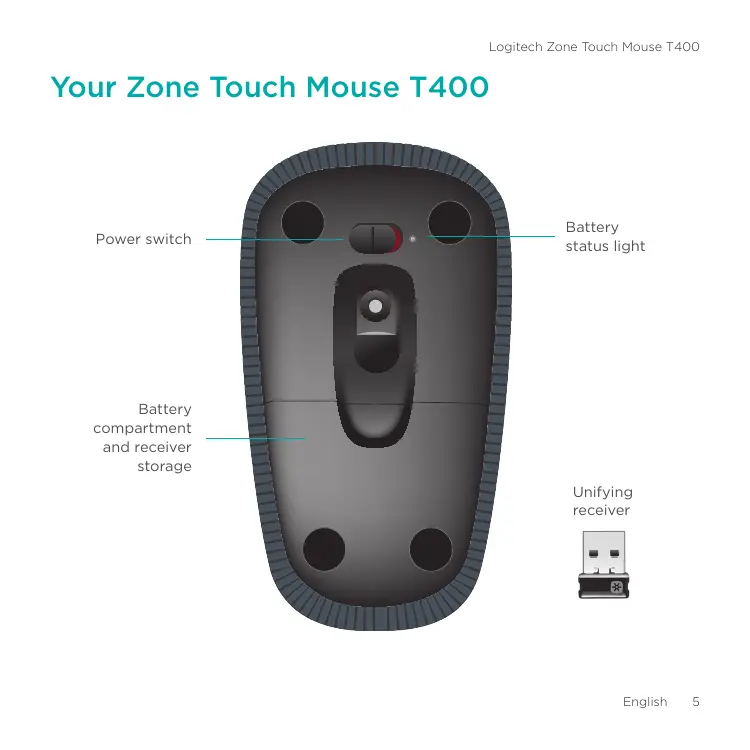

Your Zone Touch Mouse T400

Your Zone Touch Mouse T400

Install your mouse

1. Plug in the receiver

Finally, connect the receiver to a USB port.

2. Turn on the mouse

The switch should be set to "On".

www.logitech.com/support/unifying

unifying

Troubleshooting

Is your Touch Mouse not working?

www.logitech.com/support/unifying

unifying

Troubleshooting

Is your Touch Mouse not working?

www.logitech.com/support/unifying

Troubleshooting

www.logitech.com/support/unifying

unifying

www.logitech.com/support/unifying

unifying

Troubleshooting
