Product type	LED light garland
Brand	Livarno Lux
Model	IAN 273535
References	14108800L / 14108906L
Use	Indoor and outdoor (IP44)
Supply voltage (set)	230-240 V~ 50 Hz
Power supply output voltage	12 V DC, max. 500 mA
Total power	max. 3.9 W (14108800L) / 4.5 W (14108906L)
Garland power	max. 3.0 W
Number of LEDs	10 x 3 LEDs (30 LEDs)
Protection rating (garland and cable)	IP44 (protected against water splashes)
Protection rating (power supply)	IP20 (indoor use or protected socket)
Protection class	II
Replaceable bulbs	No (LEDs not replaceable)
Dimming (dimmable)	Not dimmable
Main material	Glass and plastic
Decorative use	Yes (do not use as night light for model 14108800L)
Warranty	36 months
After-sales service	Briloner, tel. [phone], [e-mail]
Certifications	CE, compliance with European directives
Maintenance	Unplug before cleaning; use a dry, lint-free cloth
Safety	Do not immerse; do not use if damaged; keep out of reach of children

Frequently Asked Questions - IAN 273535 Livarno Lux

How to turn the light garland on and off?

To turn on, plug the power supply into a mains socket. To turn off, unplug the power supply from the socket.

Can I use this garland outdoors?

Yes, the garland and its cable have a protection rating IP44 (protected against water splashes). Ensure that the electrical socket is also protected from the weather and that the power supply remains dry (IP20).

Can the LEDs be replaced if they burn out?

No, the LEDs are not replaceable. If an LED is defective, the entire garland must be replaced.

Can I use a dimmer with this garland?

No, the garland is non-dimmable. Do not connect it to a dimmer.

How long can I leave the garland on?

You can leave it on for as long as desired, but to avoid overheating, do not cover it and do not use it in its packaging. Unplug it if you do not use it for an extended period.

How to clean the garland?

Before cleaning, always unplug the power supply. Use a dry, lint-free cloth. Never clean it with water or chemicals.

What to do if an LED no longer lights up?

If an LED is off or damaged, the garland must no longer be used as it may pose an electrical risk. Dispose of it at an appropriate collection point.

Can I connect multiple garlands together?

No, the garland must not be electrically connected to another light garland. Each garland must be plugged into a separate socket.

What is the warranty period and how to use it?

The warranty is 36 months from the date of purchase. Keep the receipt and the article reference (IAN 273535). In case of defect, send the article to the after-sales service address indicated in the manual.

Where can I find after-sales service?

After-sales service is provided by Briloner: phone [phone], email [e-mail], website www.briloner.com. Address: 59929 Brilon, Germany.

USER MANUAL IAN 273535 Livarno Lux

Operation and Safety Notes

IAN 273535

CH

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 23

Potenza in Watt: max. 3,0 W

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

Intendeduse

This product is suitable for indoors and outdoor use.

This product is suitable for indoors and outdoor use. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.

For model 14108800L only:

This product is a decorative light. Do not use this as room lighting or as a night light.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED fairy lights, Model 14108800L and 14108906L
1 Set of instructions for use

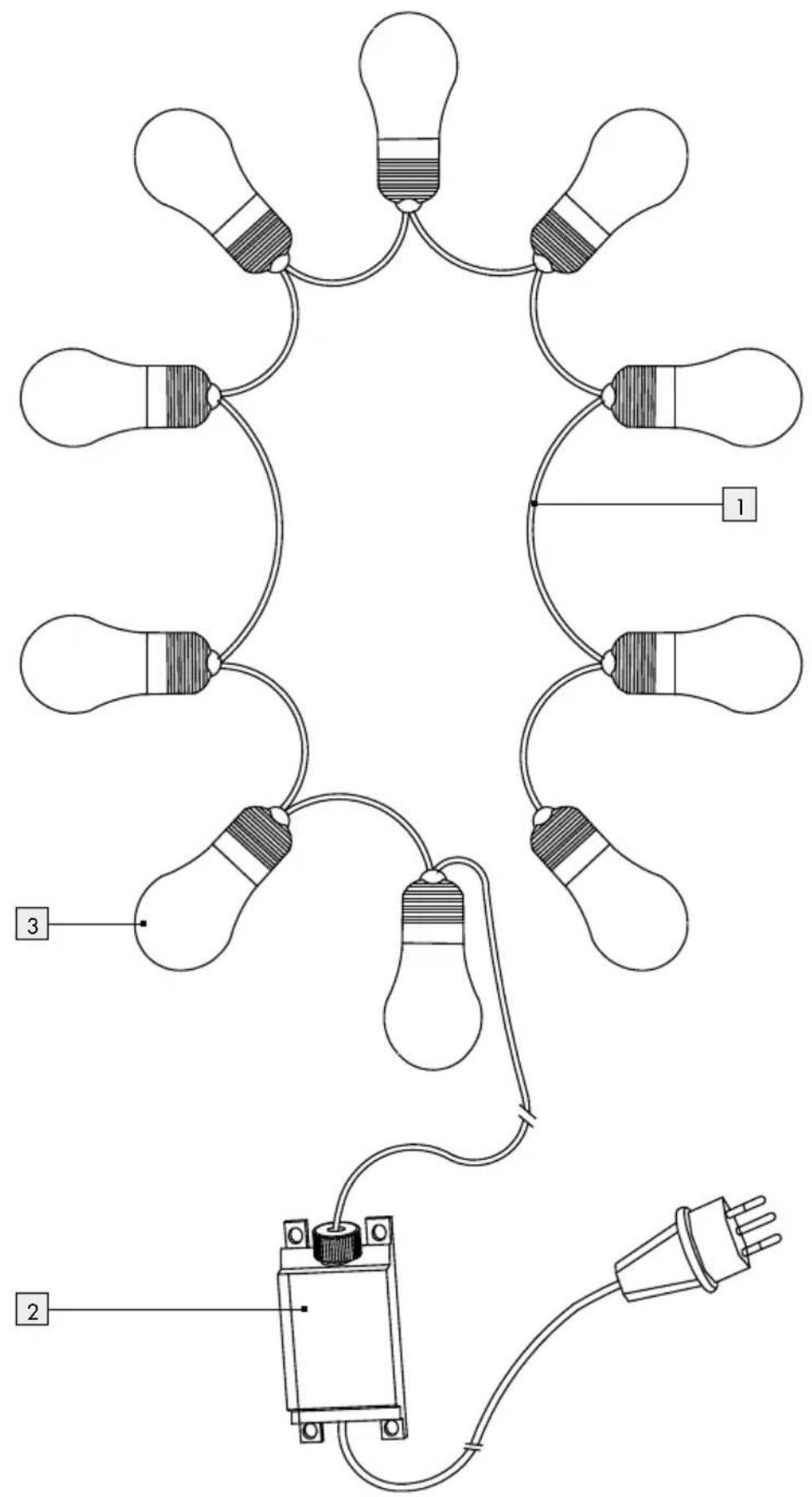

Partsdescription

1 Fairy lights
2 Mains adapter
3 LEDs

●TechnicalData

Item no.: 14108800L and 14108906L

Output in Watts

Complete set 14108800L: max. 3.9 W

Complete set 14108906L: max. 4.5 W

Operating voltage

(complete set 14108800L)

and 14108906L): 230-240 V\~50 Hz

Power factor: 0.54; 31 mA

Protection class: II /

Degree of protection:

IP44 (splash-proof; only lamps and power cable - not ap- plicable on the plug)

Fairy lights:

Output in Watts: max. 3.0 W

Illuminant: 10 x 3 LED (not replaceable, not dimmable)

Degree of protection: IP44 (splash-proof)

Mains adapter:

Operating voltage: 220-240 V\~ 50/60 Hz

Output voltage: 12 V-- max. 500 mA

Protection class: II /

Degree of protection

(mains adapter):

IP20 (Only suitable for outdoor use when the plug connected to mains power is protected from the elements.)

Safety

Safetyinformation

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

■ Always keep children away from the product.
This product is not a toy and should be kept out of the reach of children. Children cannot recognise the risks that arise through use of the product.
This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

■ Make sure that the product is only assembled by competent persons.

CAUTION! RISK OF OVERHEATING! Do not operate the light chain inside the packaging.

■ Store the fairy lights in the packaging after use to prevent accidental damage.
Do not pull on the light set lead and always ensure others cannot walk or trip on it.
Do not attach objects to the product.
The product must be assembled and used in a way which prevents large amounts of dirt.
■ Never modify or convert any of the product.
Do not operate near gas- or electric heaters, open fire, candles, or other heat sources.
- Keep the fairy lights away from flammable materials and objects!
In the event of damage of any type, particularly to the housing (tightness!), which no longer allows the fairy lights to be operated safely, immediately disconnect the transformer and connecting

cable from the mains, put the fairy lights out of serve, and secure from being used again!
When using the fairy lights outdoors with an extension cable, the extension cable must be suitable for outdoor use.
Route the connecting cable and any extension cable so people cannot trip over it or accidentally pull on it.
Please keep the packaging, as it contains important information.

WARNING! Please note, packaging materials are not a toy and must therefore be kept out of the reach of children.

Do not hang any objects from the fairy lights.
■ Unplug the transformer and fairy lights from the socket when not using the fairy lights for extended periods.
■ Always pull on the transformer, never the connecting cable.
■ Never cover the fairy lights with other objects.
The flexible connecting cable of these fairy lights is not replaceable or repairable. If the cable is damaged, the fairy lights must be disposed of.

■ The LED lamps are not replaceable

Never attempt to install a disconnected light bulb in a E27 socket.
■ Attention! This product is made from glass and fragile!
Never remove light bulbs and install them in mains voltage sockets.
Be sure not to damage the transformer and the connecting cable. Discontinue use if the fairy lights are damaged.
Check the fairy lights for damage before every use.
■ ATTENTION! The transformer supplies the fairy lights with safety extra-low voltage. Never connect the fairy lights directly to the mains without using the transformer. Always disconnect the transformer and connecting cable from the socket when installing.

Avoid the risk of fatal injury from electric shock

The LEDs in this light cannot be replaced. If the LEDs have reached the end of their service life, the entire light must be replaced.

Avoid the risk of fatal injury from electric shock

If lamps are broken or damaged, the fairy lights must not be used/ operated on the mains, and must be disposed of properly.

For model 14108800L only:

This product is an illuminated decoration. Do not use this as room lighting or as a night light.

Avoid the risk of fatal injury from electric shock

Before use, ensure that the available mains voltage is the same as the voltage required for operating the appliance (230-240 V\~).
Before connecting the light set to the mains, always check it and the mains adapter for any damage.
■ Never use the light set if you discover that it is damaged in any way.
■ Never open any of the components of the electrical equipment or insert any objects into the same components.
■ Protect the mains lead from sharp edges, mechanical stress and hot surfaces.
Do not secure with sharp staples or nails.
Always unplug the mains adapter from the socket before assembling, disassembling or cleaning.
■ Never touch the plug of the fairy lights or the fairy lights itself with wet hands.
■ Never electrically connect the fairy lights to other fairy lights.
■ Disconnect the fairy lights from the mains when they are not being used for extended periods.
If you have any questions about the product or are unsure about any of its aspects, please

seek the advice of an electrical equipment specialist.

Only use the fairy lights with the included mains adapter. Otherwise any warranty claims will be void.
These fairy lights are splash-proof (IP44). This protection class will only be maintained, if the electrical socket used also complies with at least this protection class.

CAUTION! RISK OF ELECTRIC SHOCK!

This fairy light is rain- and splash-proof (not the plug). When used outdoors, the plug must be plugged in protected from the weather. Do not immerse the fairy lights in water. Maintain a minimum distance of approx. five metres from swimming pools or ponds. Protect the transformer from moisture.

Never wear metallic or conductive jewellery such as necklaces, bracelets, rings, etc. when performing any work, including cleaning!

- Start-up

Assembly

Do not attach objects to the product.
The product must be assembled and used in a way which prevents large amounts of dirt.
■ Protect the mains lead from sharp edges, mechanical stress and hot surfaces.
Do not secure with sharp staples or nails.

- Switching on and off

Switching on:

Plug the mains adapter into the socket. The fairy lights are on.

Switching off:

☐ Unplug the mains adapter from the socket to switch the fairy lights off.

● Maintenance and Cleaning

CAUTION! RISK OF ELECTRIC SHOCK!

First of all pull the mains adapter out of the mains socket.

CAUTION! RISK OF ELECTRIC SHOCK!

For reasons of electrical safety the device must never be cleaned with water or other liquids or immersed in water.

Do not use solvents, benzene or similar substances. They could damage the light.
☐ Only use a dry, lint-free cloth for cleaning.

●Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following

article number: 14108800L and 14108906L. Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Declaration of conformity

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer / Service

Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

BRILONER LEUCHTEN GMBH

Im Kissen 2

59929 Brilon (Germany)
