HOR-SS-10525 - Oven Sogo - Free user manual and instructions

Brand	Sogo
Model	HOR-SS-10525
Product type	Electric countertop oven
Power supply	220-240 V~, 50/60 Hz, 1000 W
Temperature range	90°C – 230°C
Temperature control	Rotary thermostat
Timer	Mechanical with auto-off and audible signal
Included accessories	Baking tray, wire rack
Door	Tempered safety glass
Interior cleaning	Damp sponge, no abrasive pads
Accessories cleaning	Wash with warm soapy water or dishwasher
Safety	Auto-off, insulated door, tempered glass
Usage	Indoor use only
Compliance	Directives 2014/35/EU, 2014/30/EU, 2011/65/EU, 2009/125/EC
Manufacturer	Sanysan Appliances S.L., Valencia, Spain
After-sales service	www.sogosat.com, 0034 902 222 161

Frequently Asked Questions - HOR-SS-10525 Sogo

How to use the oven for the first time?

Set the timer to 15 minutes empty to evaporate manufacturing oils. A slight odor or smoke is normal.

What is the oven's power?

The power is 1000 W at 220-240 V.

Can I use aluminum foil in the oven?

Yes, but do not cover the heating elements or walls. Place food in an aluminum dish for easy cleaning.

How to clean the inside of the oven?

Unplug and let cool. Use a damp sponge without abrasive cleaner. Never use steel wool.

What to do if the oven does not heat?

Check that the timer is set to a non-zero position and the thermostat is at a temperature. If the problem persists, contact after-sales service.

Can children use this oven?

Yes, from age 8 with supervision. Children under 8 should be kept away.

Can I leave the oven unattended?

No, supervision is necessary, especially near children. If using flammable materials, stay nearby.

How to set the temperature?

Turn the thermostat knob between 90°C and 230°C as desired. The indicator lights up when the elements are heating.

What does the audible signal mean?

It indicates that the cooking time is over. The timer stops automatically and the heating elements turn off.

Where to find after-sales service?

Go to www.sogosat.com or call 0034 902 222 161. Address: Sanysan Appliances S.L., Valencia, Spain.

USER MANUAL HOR-SS-10525 Sogo

Black SOGO portable toaster oven with open lid and control knobs (no visible text or symbols)

Horno tostador 9L Toaster-Ofen 9L Four électrique 9L Forno eléctrico 9L Toaster-Ofen 9L Forno tostapane 9L

Please read instruction manual carefully before using

For Household Use Only

This manual can also be downloaded from our website

www.sogo.es

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS. When using your Electric Oven, basic safety precautions should always be observed, including the following:

1. Read all instructions before using your Electric Oven.
2. Do not touch hot surfaces. Always use handles or knobs.
3. Close supervision is necessary when any appliance is used by or near children.
4. To protect against electric shock, do not immerse cord, plug or any parts of the oven in water or any other liquids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions or has been damage in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause hazard or injury.

8. Do not place on or near a hot gas, or electric burner, or in a heated oven.

9. The rear surface of appliances which, according to the instructions, shall be placed against a wall; and are not accessible with test probe 41 of EN61032.

10. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
11. To disconnect, turn the time control to 0, then remove the plug. Always hold the plug, and never pull the cord.
12. Extreme caution must be used when moving a drip pan containing hot oil or other hot liquids.
13. Do not cover any part of the oven with metal foil. This may cause the oven to overheat.
14. Use extreme caution when removing the tray, racks or disposing of hot grease or other hot liquids.
15. Do not clean the inside of the oven with metal scouring pads, pieces can break off the pad and touch electrical parts, creating a risk of electric shock. \~
16. Oversized foods or metal utensils must not be inserted in a electric oven as they may create a fire or risk of electric risk.
17. A fire may occur if the oven is covered or touching flammable material, including the curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
18. Extreme cautions should be exercised when using cooking or baking containers constructed

of anything other than metal or ovenproof glass.

1. Be sure that nothing touches the top or bottom elements of the oven.
2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
3. Do not store any materials other than manufacturer's recommended accessories in this oven when not in use.
4. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.
5. This appliance has a tempered, safety glass door. The glass in stronger than ordinary glass and more resistant to breakage. Tempered glass can still break around edges. Avoid scratching door surface or nicking edges.
6. This appliance is OFF when the Timer Control button is in the "0" position.
7. Do not use outdoors, Indoor use only.
8. Do not use appliance for other than intended use.
9. Surfaces are liable to get hot during use
10. The door or the outer surface may get hot when the appliance is operating.
11. Appliances are not intended to be operated by means of an external timer or separate remote-control system.
12. This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

1. Keep the appliance and its cord out of reach of children less than 8 years.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
3. When this symbol is used, it means "Caution: Hot surfaces"

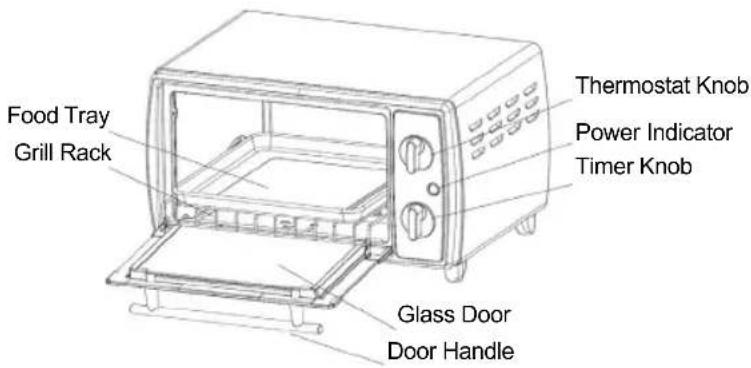

Know Your Electric Oven

How to Use

1 For initial use, set the timer to 15 minutes to let factory grease and oil evaporate. This process may result in minimal smell and smoke (about 15 minutes). This is normal and harmless.
2 Check whether the Timer Switch is at OFF position before connecting this appliance to a power outlet.
3 Place food item(s) on the food tray above the grill rack and then close the glass door. We recommend you wrap the food tray with tinfoil under the food item(s) for easy clean.
4 Temperature Selector: Choose the desired temperature from 90° to 230° for toasting.
5 Then turn the timer knob to the desired position. Kindly note that the heating elements will only be switched on after the timer has been activated.
6 When the food is ready, the timer will automatically give an acoustic signal and the cooking stops (heating elements switched off).
7 In the event that you have to interrupt the cooking process, turn the ti mer switch first to OFF position and then open the door. BEWARE OF HOT AIR FLOWING OUT.

Care & Cleaning

Warning: Be sure to unplug the oven and allow it to cool before cleaning.

Caution: In order to avoid the risk of an electric shock, never try to repair the unit yourself. Take it to an authorized service station for examination and repair.

DO NOT USE STEEL WOOL SCOURING PADS, ABRASIVE CLEANERS OR SCRAPE THE WALLS WITH A METAL UTENSIL, AS ALL OF THESE METHODS MAY DAMAGE THE CONTINUOUS CLEAN COATING.

All accessories should be washed in hot soapy water or can be cleaned in a dishwasher. The door can be wiped with a damp sponge and wiped dry with a paper or cloth towel. Clean the outside with a damp sponge. DO NOT USE AN ABRASIVE CLEANER AS IT MAY DAMAGE THE

EXTERIOR FINISH.

DO NOT USE AN ABRASIVE CLEANER OR STEEL WOOL SCOURING PAD ON THE DRIP PAN AS IT MAY DAMAGE THE PORCELAIN ENAMEL FINISH.

LET ALL PARTS AND SURFACES DRY THOROUGHLY PRIOR TO PLUGGING OVEN IN AND USING.

ABNORMAL CONDITION:

If abnormal condition occurs, unplug and send this appliance to the distributor (or any authorized service facility) for repair and/or electrical & mechanical adjustments.

Technical Specification:

Voltage / Frequency: 220 -240V \~ 50/60Hz Power Consumption: 1000W

Technical Specification:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
