Product Type	Ultra-Wide Curved Gaming Monitor
Brand	MSI
Model	MPG341CQR
Screen Size	34 inches
Curvature	1800R
Panel Type	VA
Resolution	3440 x 1440 (UWQHD)
Aspect Ratio	21:9
Brightness	400 cd/m²
Contrast Ratio	3000:1
Refresh Rate	144 Hz
Response Time	4 ms (GTG) / 1 ms (MPRT)
Viewing Angles	178°(H) / 178°(V)
Color Gamut	sRGB 105% / DCI-P3 84%
Display Colors	1.07 billion
Input Interfaces	2x HDMI, 1x DisplayPort, 1x USB-C (DP Alt Mode)
USB Ports	2x USB 3.1 Gen1 Type-A, 1x USB 3.1 Gen1 Type-A (Quick Charger 18W), 1x USB-B Upstream
Audio	Headphone out, Mic in, Audio combo jack
Built-in Webcam	HD 1280x720
Power Consumption	On: <160W, Standby: <0.5W
VESA Mount	100 x 100 mm (M4 x 10mm screws)
Adjustability	Tilt: -5°~15°, Swivel: -30°~30°, Height: 0~100mm
Dimensions (WxDxH)	810.6 x 324.2 x 563.0 mm
Weight (Net)	9.7 kg
Special Features	Gaming OSD, Navi Key, PIP/PBP, Adaptive Sync, Night Vision, Anti Motion Blur, Zero Latency
What's in the Box	Monitor, Stand & Base, Power Cord, HDMI Cable, DisplayPort Cable, USB Upstream Cable, Y-type Audio Cable, Mouse Bungee, Camera Cradle, Quick Start Guide, Warranty Card

Frequently Asked Questions - MPG341CQR MSI

How do I set up the MSI MPG341CQR monitor?

Connect the stand to the monitor using the provided screws, then attach the base and tighten the base screw. Connect the power cord and video cable (HDMI/DisplayPort/USB-C) to your PC. Turn on the monitor and PC, then select the appropriate input source via the OSD menu.

How do I adjust the monitor settings using the Navi Key?

Press the middle button of the Navi Key to open the OSD main menu. Use the Up/Down/Left/Right buttons to navigate. The default hotkeys (when OSD is off) are: Up for Game Mode, Down for Screen Assistance, Left for Alarm Clock, Right for Input Source. Customize these in the OSD under 'Navi Key' settings.

How to enable Adaptive Sync (FreeSync)?

Go to OSD Menu > Gaming > Adaptive Sync and set it to ON. Note that Adaptive Sync disables Anti Motion Blur and PIP/PBP. Ensure your graphics card supports Adaptive Sync and use a compatible DisplayPort or HDMI cable.

How do I use PIP/PBP mode?

In OSD Menu > PIP/PBP, select PIP or PBP mode. Choose the secondary input source (HDMI1, HDMI2, DP, or Type C). Adjust PIP size and location if desired. PIP/PBP disables Anti Motion Blur and Adaptive Sync.

What is the maximum resolution and refresh rate supported?

The monitor supports up to 3440x1440 at 144 Hz via DisplayPort. HDMI can support up to 3440x1440 at 100 Hz. Check your graphics card capabilities and use the appropriate cable.

How do I clean the screen safely?

Unplug the power cord. Use a soft, dry cloth to gently wipe the screen. Do not use any liquid or chemical cleaners. Avoid touching the display panel directly.

Can I mount this monitor on a wall?

Yes, it supports VESA 100x100 mm mounting. Use M4 x 10mm screws (included). Remove the stand and attach a compatible wall mount kit. Ensure the wall can support the monitor's weight (9.7 kg).

Why is there no image on the screen?

Check that the monitor and PC are powered on. Verify the video cable is securely connected. Try a different input source. If the computer is in standby, press any key. Ensure the correct input source is selected in OSD.

How do I enable the USB ports on the monitor?

Connect the included USB Upstream cable from the monitor's USB-B port to a USB port on your PC. Once connected, the USB Type-A ports on the monitor will function. The USB-C port supports video and power (5V/3A) but not data.

How to reset the monitor to factory settings?

Go to OSD Menu > Setting > Reset and select YES. This restores all settings except Language. The monitor will reboot with default values.

USER MANUAL MPG341CQR MSI

Copyright and Trademarks Notice ....iii

Revision......iii

Technical Support......iii

Safety Instructions....iv

CE Conformity....vi

FCC-B Radio Frequency Interference Statement....vi

WEEE Statement......vii

Chemical Substances Information......vii

RoHS Statement......vii

1. Getting Started....1-1

Package Contents....1-2

Installing the Monitor Stand....1-3

Adjusting the Monitor 1-4

Monitor Overview 1-5

Connecting the Monitor to PC....1-8

2. OSD Setup 2-1

Navi Key....2-2

OSD Setup via Navi Key 2-5

Appendix ......A-1

Specifications....A-2

Preset Display Modes....A-4

Troubleshooting....A-5

Copyright and Trademarks Notice

Copyright © Micro-Star Int'l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int'l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.

Revision

Revision

Date

V1.0

2019/04

Technical Support

If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.

Safety Instructions

Read the safety instructions carefully and thoroughly.

All cautions and warnings on the device or user's manual should be noted.

Refer servicing to qualified personnel only.

Keep the User's Guide that comes with the package for future reference.

To prevent fire or shock hazard, keep this device away from humidity and high temperature.

Lay this device on a reliable flat surface before setting it up.

Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the device to the power outlet. Do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet.

Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.

The ventilator on the device is used for air convection and to prevent the device from overheating. Do not cover the ventilator.

Do not leave the device in an unconditioned environment with a storage temperature above 60^ or below -20^ , which may damage the device.

NOTE: The maximum operating temperature is around 40^ C.

When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.

Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.

Always keep strong magnetic or electrical objects away from the device.

If any of the following situations arises, get the device checked by service personnel:

The power cord or plug is damaged.
- Liquid has penetrated into the device.
The device has been exposed to moisture.

The device does not work well or you can not get it work according to user's manual.

The device has dropped and damaged.
The device has obvious sign of breakage.

Green Product Features

• Reduced energy consumption during use and stand-by
  Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
Visit the MSI website and locate a nearby distributor for further recycling information.
Users may also reach us at [e-mail] for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.

★ Warning! Overuse of screens is likely to affect eyesight.
★ Recommendations:

1. Take a 10-minute break for every 30 minutes of screen time.
2. Children under 2 years of age should have no screen time. For children aged 2 years and over, screen time should be limited to less than one hour per day.

CE Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/ EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

MSI Computer Corp.

901 Canada Court, City of Industry, CA 91748, USA

[phone]

www.msi.com

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://www.msi.com/html/popup/csr/evmtprtt_pcm.html

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

https://www.msi.com/html/popup/csr/cemm_jp.html

https://tw.msi.com/html/popup/csr_tw/cemm_jp.html

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Turkey EEE Regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine Restriction of Hazardous Substances

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.

1

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

IMPORTANT

• The illustrations are for reference only. Your monitor may vary in appearance.
• Do not use any sharp objects on the monitor.

Package Contents

1. Monitor
2. Stand
3. Stand Base with Screw
4. Wall Mount Screws x 4
5. Stand Screws x 4
6. VESA Cover
7. Power Cord
8. HDMI Cable
9. DisplayPort Cable
10. USB Upstream Cable (to enable the USB ports on the monitor)
11. Y-type Audio Cable (to enable the audio jacks on the monitor)
12. Quick Start Guide
13. Warranty Card
14. Mouse Bungee
15. Camera Cradle with Rotatable Ball Head

* Contact your place of purchase or local distributor if any of the items is damaged or missing.
* Package contents may vary by country.

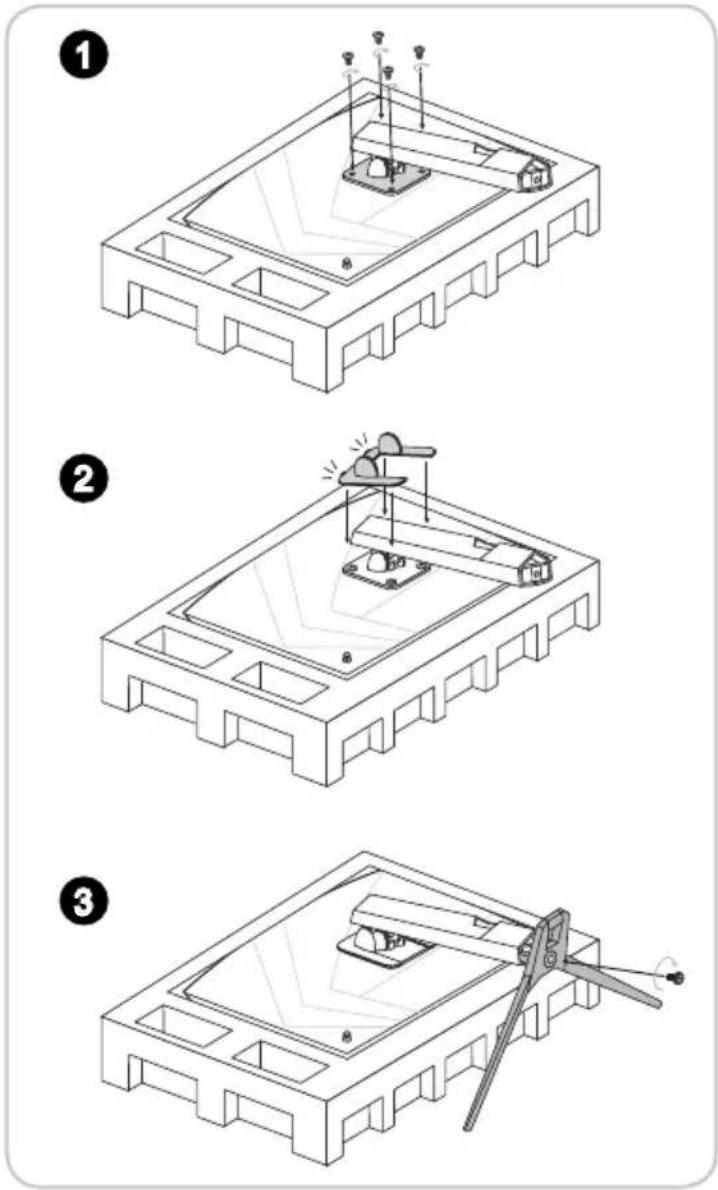

Installing the Monitor Stand

1. Align the latches of the stand to the monitor. Tighten the stand with the stand screws.
2. Adjust the angle of the stand. Align the latches to place the VESA cover.
3. Connect the base to the stand and tighten the base screw to secure the base.

IMPORTANT

Place the monitor on a soft, protected surface to avoid scratching the display panel.

IMPORTANT

The holes for installing the stand can be also used for wall mount. Please contact your dealer for proper wall mount kit.

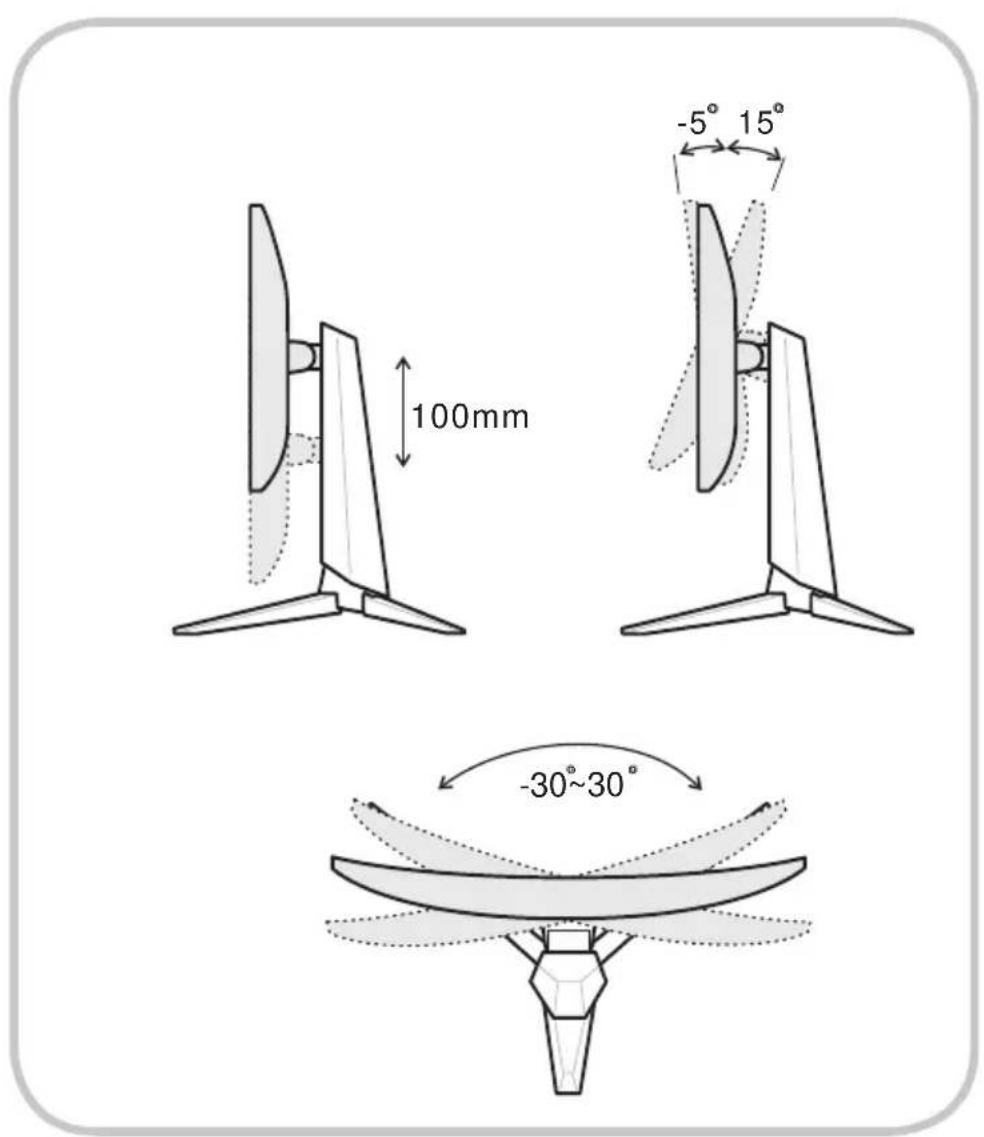

Adjusting the Monitor

This monitor is designed to maximize your viewing comfort with its adjustment capabilities.

IMPORTANT

Avoid touching the display panel when adjusting the monitor.

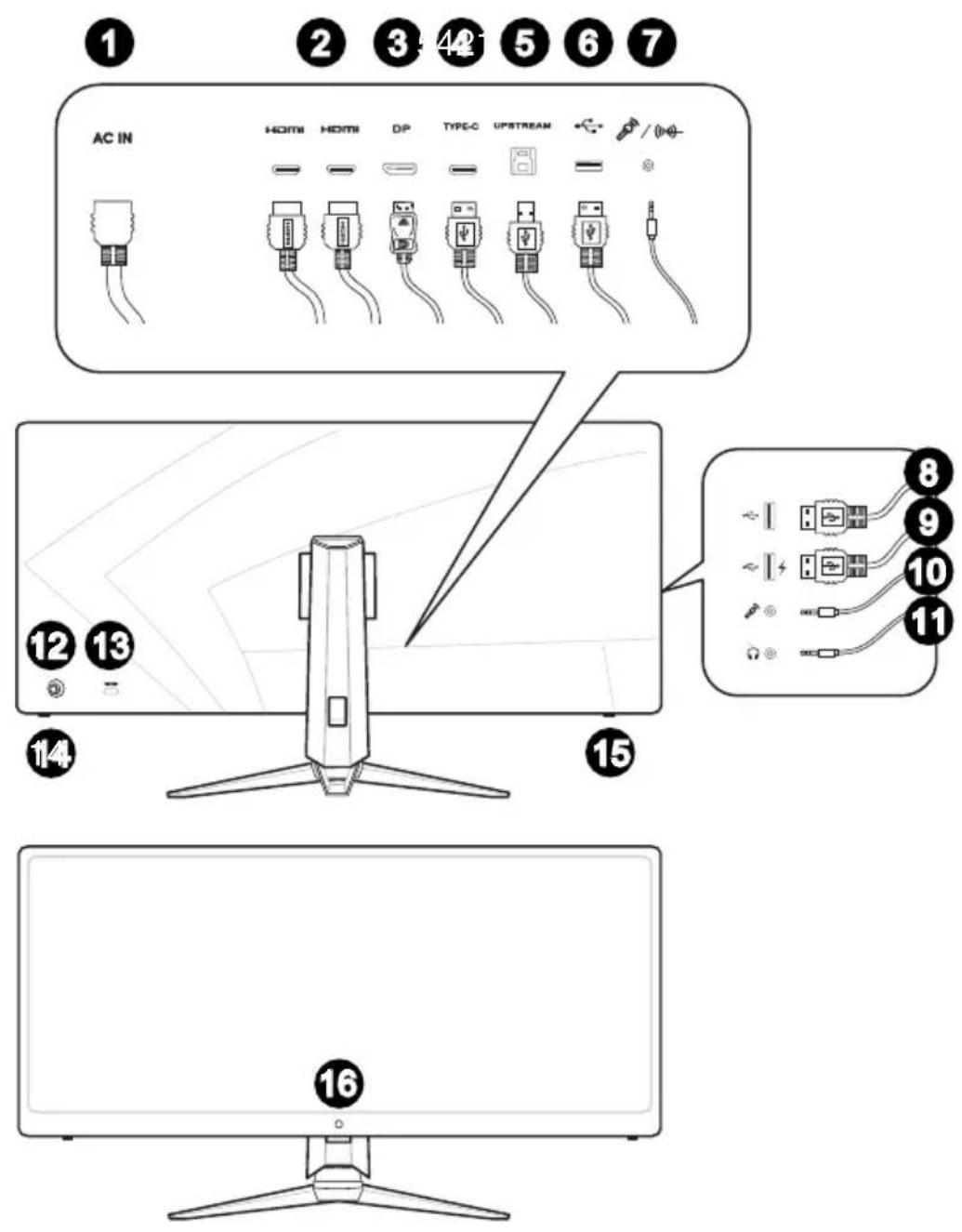

Monitor Overview

1

Power Jack

2

HDMI Port

HDMI ^TM

HIGHDEFINITION MULTIMEDIA INTERFACE

3 DisplayPort

4 USB-C Port This port can

This port can send simultaneously video signal and power stream up to 5V/3A. It doesn't support data transmission function.

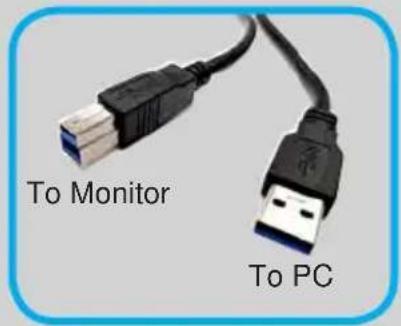

USB3.1 Gen1 Type B Upstream Port

For USB Upstream Cable.

IMPORTANT

Check the package for USB Upstream Cable and connect it to the PC and monitor. Once this cable is connected, the USB Type A Downstream Ports on the monitor will be ready for use.

6 USB3.1 Gen1 Type A Port

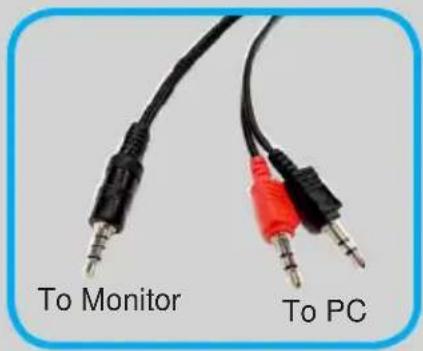

Combo Audio Jack

For Y-type Audio Cable.

IMPORTANT

Check the package for Y-type Audio Cable and connect it to the PC and monitor. Once this cable is connected, the audio jacks on the monitor will be ready for use.

USB3.1 Gen1 Type A Port

USB3.1 Gen1 Type A Port

This USB port supports Quick Charger function up to 18W.

10 Microphone Jack

11 Headphone Jack

12 Navi Key

Kensington Lock

Power Button

Macro Key

To activate Gaming OSD.

Webcam

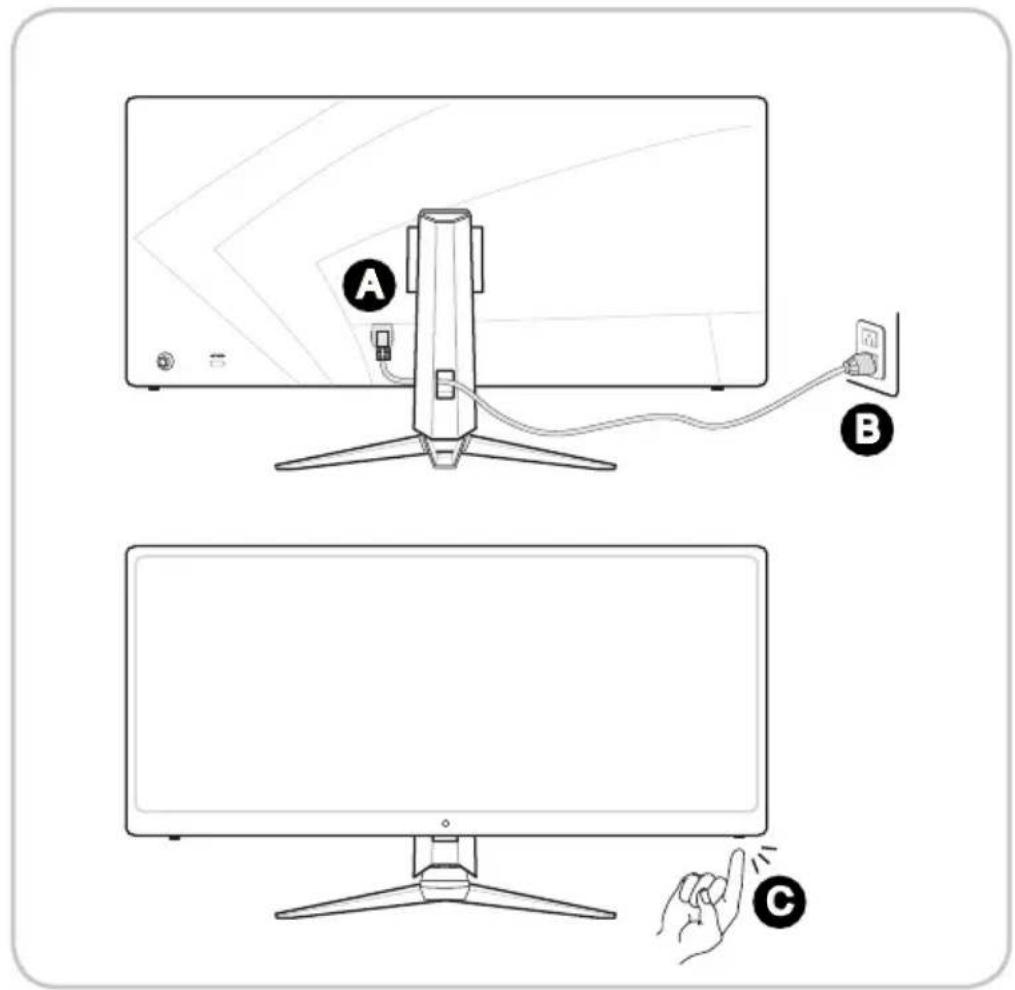

Connecting the Monitor to PC

1. Turn off your computer.
2. Connect the HDMI/DisplayPort cable from the monitor to your computer.
3. Connect the power cord to the monitor power jack. (Figure A)
4. Plug the power cord into the electrical outlet. (Figure B)
5. Turn on the monitor. (Figure C)
6. Power on the computer and select your input source in OSD menu.

2

OSD Setup

This chapter provides you with essential information on OSD Setup.

IMPORTANT

All information is subject to change without prior notice.

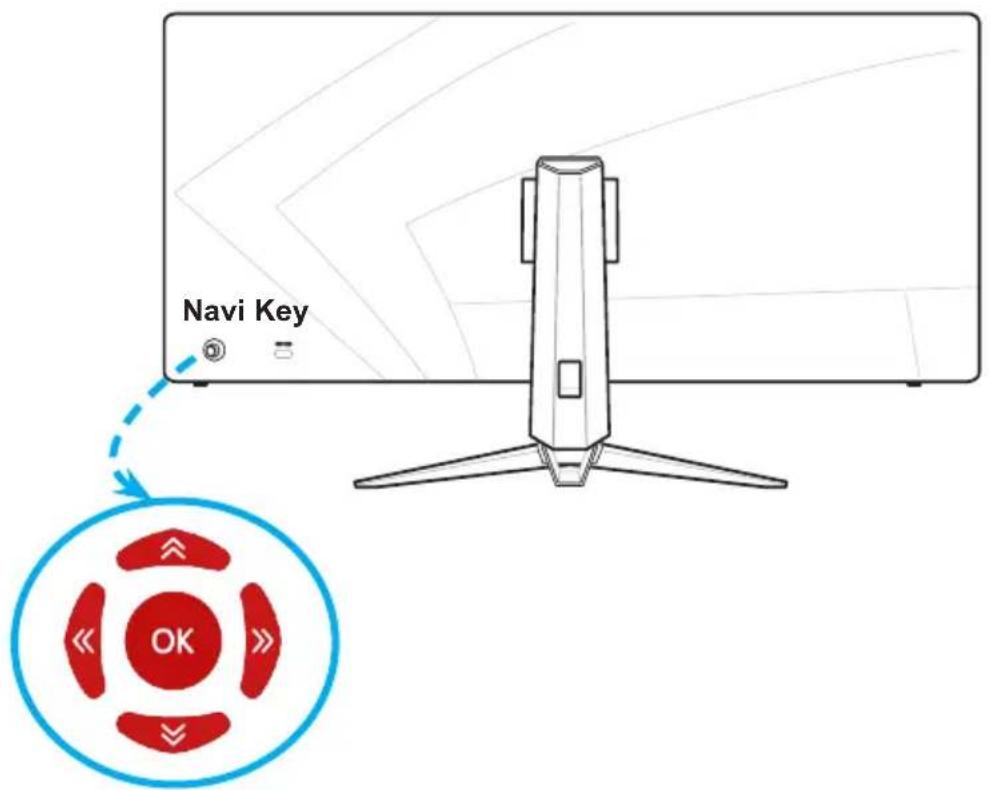

Navi Key

The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu.

The Navi Key default settings are as follows.

Navi Key Hot Key(When OSD menu is OFF)		Basic Operations(When OSD menu is ON)
Middle Button	OSD Main Menu ■ Entering submenus	■ Confirming a selection or setting

Navi Key Hot Key(When OSD menu is OFF)			Basic Operations(When OSD menu is ON)
Up	Game Mode ■ Press Middle	Button to confirm selection and exit.■ Press Up and Down Buttons to adjust.■ Press Left Button to cancel preview and exit without applying mode effect.	■ Selecting function menus and items■ Allowing upward adjustment in function values
Down	Screen Assistance ■ Press Middle	Button to confirm selection and exit.■ Press Up and Down Buttons to adjust.■ Press Left Button to cancel preview and exit.	■ Selecting function menus and items■ Allowing downward adjustment in function values
Left	Alarm Clock ■ Press Middle	Button to confirm selection and exit.■ Press Up and Down Buttons to select.■ Press Left Button to cancel preview and exit.	■ Selecting function menus and items■ Exiting the current menu
Right	Input Source ■ Press Middle	Button to confirm selection and exit.■ Press Up and Down Buttons to select.■ Press Left Button to exit.	■ Selecting function menus and items■ Entering submenus

Users may enter the OSD Menu to customize their own Navi Key Hot Keys.

More Hot Key options are as below.

Navi Key Hot Key Options Operations
Brightness		■ Press Middle Button to save value and exit.■ Press Up and Down Buttons to adjust.■ Press Left Button to cancel preview and exit.
PIP/PBP ■ PresMiddle Button to confirm selection and exit.
Refresh Rate		to confirm selection and exit.■ Press Right Button to turn on and Left Button to turn off this function.
Audio Volume		■ Press Middle Button to save value and exit.■ Press Up and Down Buttons to adjust.■ Press Left Button to cancel preview and exit.

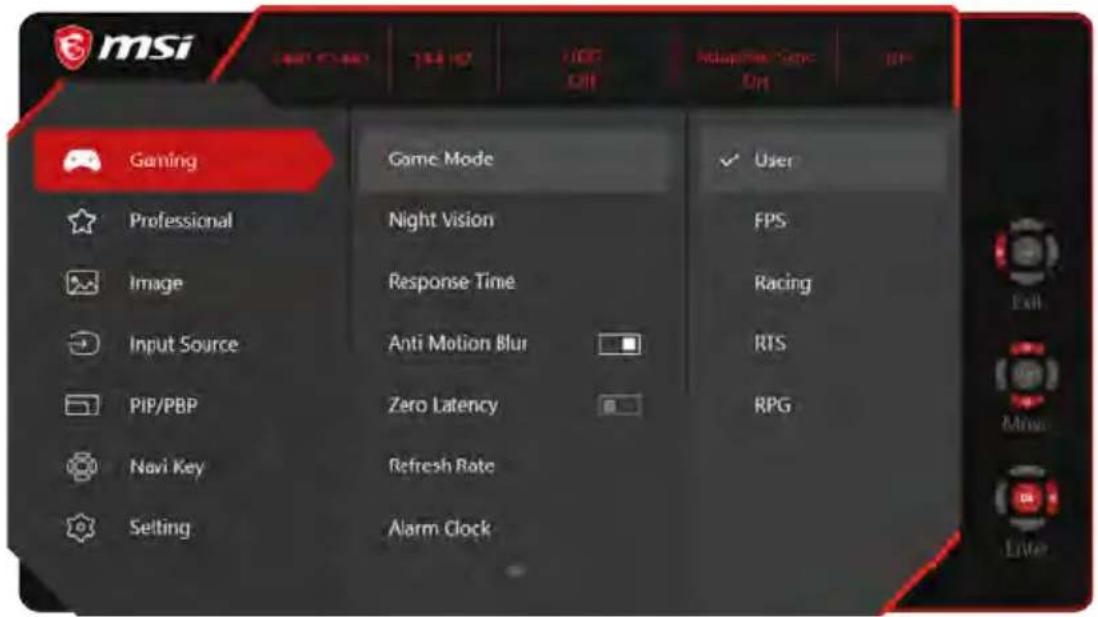

OSD Setup via Navi Key

Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu. Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences.

GAMING

1st Level Menu 2nd/3rd Level Menu Description
Game Mode User		All items can be adjusted by users.
	FPS All items can be adjusted by users.
	Racing All items can be adjusted by users.
	RTS All items can be adjusted by users.
	RPG All items can be adjusted by users.
	■ Use Up or Down Button to select and preview mode effects.■ Press the Middle Button to confirm and apply your mode type.
Night Vision OFF		■ This function optimizes background brightness and is recommended for FPS games.
	Normal
	Strong
	Strongest
	A.I.
Response Time Normal ■ Users can adjust Response Time in any Mode.
1st Level Menu 2 Level Menu Description
Anti Motion Blur	(OFF)		■ Brightness cannot be adjusted when Anti Motion Blur is set to ON.■ When Anti Motion Blur is enabled, HDCR and Brightness cannot be enabled and will be grayed out.■ Response time will be grayed out while Anti Motion Blur is enabled.■ Anti Motion Blur have to set to OFF while Adaptive Sync is set to ON.■ PIP/PBP will be disabled while Anti Motion Blur set to ON.■ Screen Size will set to Auto if 1:1 is selected.
	(ON)
Zero Latency	(OFF)		■ Zero Latency default is ON.■ Zero Latency helps to reduce the signal throughput timing.
	(ON)
Refresh Rate	Location	Left Top	■ Users can adjust Refresh Rate in any Mode.■ Default Refresh Rate Location is Left Top. Location is adjustable in OSD Menu. Press the Middle Button to confirm and apply your Refresh Rate Location.■ This monitor follows and works at the Operating System's preset Screen Refresh Rate.
		Right Top
		Left Bottom
		Right Bottom
	ON
Alarm Clock Locat	Top		■ Users can adjust Alarm Clock in any Mode.■ After setting the time, press the Middle Button to activate the timer.■ Default Alarm Clock Location is Left Top. Users can select their own location.
		Right Top
		Left Bottom
		Right Bottom
	OFF 00:01~99:59
	[5:00] 00:01~99:59
	6U:00
Screen Assistance			■ Users can adjust Screen Assistance in any Mode.■ Screen Assistance default is None.
Adaptive Sync	(OFF)		■ Adaptive Sync prevents screen tearing.■ DisplayPort or HDMI default is ON and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate.■ Anti Motion Blur will be disabled if Adaptive Sync is enabled.■ PIP/PBP will be disabled if Adaptive Sync is enabled.■ Screen Size will set to Auto if 1:1 is selected.
	(ON)

▶ Professional

1st Level Menu 2nd Level Menu Description
Pro Mode User		Default mode. All items can be adjusted by users.
	Reader All items can be adjusted by users.
	Cinema All items can be adjusted by users.
	Designer All items can be adjusted by users.
	■ Use Up or Down Button to select and preview mode effects.■ Press the Middle Button to confirm and apply your mode type.
Eye Saver	(OFF)	■ Eye Saver protects your eyes against blue light.When enabled, Eye Saver adjusts the screen color temperature to a more yellow glow.■ Users can adjust Eye Saver in any Mode.■ When Pro Mode is set to Reader, it is mandatory to enable Eye Saver.
	(ON)
HDCR	(OFF)	■ Users can adjust HDCR in any Mode.■ HDCR enhances image quality by increasing the contrast of images.■ When HDCR is set to ON, Brightness will be grayed out.■ HDCR and Anti Motion Blur cannot be enabled simultaneously.
	(ON)
Anti Motion Blur	(OFF)	■ Brightness cannot be adjusted when Anti Motion Blur is set to ON.■ When Anti Motion Blur is enabled, HDCR and Brightness cannot be enabled and will be grayed out.■ Response time will be grayed out while Anti Motion Blur is enabled.■ Anti Motion Blur have to set to OFF while Adaptive Sync is set to ON.■ PIP/PBP will be disabled while Anti Motion Blur set to ON.■ Screen Size will set to Auto if 1:1 is selected.
	(ON)
Image Enhancement	OFF ■ Image Enhancement enhances image edges to improve their acutance.■ Users can adjust Image Enhancement in any Mode.
	Weak
	Medium
	Strong
	Strongest

> Image

1st Level Menu	2nd/3rd Level Menu Description
Brightness 0-100
Contrast 0-100	■ Users can adjust Contrast in any Mode.
Sharpness 0-5
Color Temperature	Cool ■ Color Temperature default is Normal.
	Normal
	Warm
	Customization R (0-100)	Use Up or Down Button to select and preview mode effects.Press the Middle Button to confirm and apply your mode type.Users can adjust Color Temperature in Customization mode.
Screen Size Auto
	4:3
	16:9
	21:9
	1:1

▶ Input Source

1st Level Menu	2nd/3rd Level Menu Description
HDMI1		Users can adjust Input Source in any Mode.
HDMI2
DP
Type C
1st Level Menu	2nd/3rd Level Menu Description
OFF			■ PIP (Picture in Picture) allows users to simultaneously display multiple video sources on one screen. One program is displayed on the full screen at the same time as one or more other programs are displayed in inset windows.■ PBP (Picture by Picture) is a similar feature that displays two input sources side-by-side on the screen.■ PIP/PBP default is OFF.■ Display Switch allows users to switch between primary and secondary input sources.■ While User choose Audio Switch, the Audio Source will be changed to Digital.■ If there is only one signal input, the Display Switch and Audio Switch will be grayed out.■ While Display Switch is selected in PBPx3 or PBPx4, the source will exchange clockwise.
PIP Source HDMI1		HDMI2
		DP
		Type C
	PIP Size Small
		Medium
		Large
	Location Left Top
		Right Top
		Left Bottom
		Right Bottom
		Customize
	Display Switch
	Audio Switch HDMI1
		HDMI2
		DP
		Type C
PBP (X2/3/4) Source (1/2/3) HDMI1
		HDMI2
		DP
		Type C
		Display Switch
		Audio Switch HDMI1
		HDMI2
		DP
		Type C

Navi Key

1st Level Menu	2nd Level Menu Description
Up / Down / Left / Right	OFF	■ Up Button default is Game Mode.■ Down Button default is Screen Assistance.■ Left Button default is Alarm Clock.■ Right Button default is Input Source.■ All Navi Key items can be adjusted via OSD Menu.
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	Refresh Rate
	Audio Volume

Setting

1st Level Menu 2nd Level Menu Description
Language 繁體中文		■ Language factory default is English.■ Users have to press the Middle Button to confirm and apply the Language setting.■ Language is an independent setting. Users' own language setting will override the factory default. When users set Reset to Yes, Language will not be changed.
Transparency 0~5		Users can adjust Transparency in any Mode.
OSD Time Out 5~30s Users can adjust OSD Time Out in any Mode.
Audio Volume 0~100 Users can adjust Audio Volume in any Mode.
Audio Source Analog Audio Source default is Digital. Users can adjust Audio Source in any Mode.
RGB LED	(OFF)	Users can adjust RGB LED to On or Off. Default is ON.
	(ON)
Quick Charger	(OFF)	Users can enable or disable the Quick Charger. Default is OFF.
	(ON)
Reset YES Users can Reset and restore settings to original OSD Default in any Mode.

A

Appendix

IMPORTANT

All information is subject to change without prior notice.

Specifications

Model Optix MPG341CQR		3DA0
Size 34 inch
Curvature 1800R
Panel Type VA
Resolution 3440 x 1440 (UWQHD)
Aspect Ratio 21:9
Brightness (nits) 400
Contrast Ratio 3000:1
Refresh Rate 144Hz
Response Time 4ms
MPRT 1ms
Input Interface		■ HDMI x2■ DP x1■ USB-C x1 (for DP Alt Mode)
I/O		■ USB 3.1 Gen1 Type A x2■ USB 3.1 Gen1 Type A with Quick Charger x1■ USB 3.1 Gen1 Type B x1 (for PC to Monitor)■ Headphone out x1■ MIC in x1■ Audio combo jack x1 (for PC's Mic in and Headphone out to Monitor)
View Angles 178°(H), 178°(V)
sRGB / DCI-P3 * 105% / 84%
Surface Treatment Anti-glare
Display Colors		1.07B
Webcam		HD 1280x720
Power Type		Internal Power
System Rating		100-240Vac, 50-60Hz, 2A
Power Consumption		Power On: < 160WStandby: < 0.5WPower Off: < 0.5W
Adjustment (Tilt)		-5° ~ 15°
Adjustment (Swival)		-30° ~ 30°
Adjustment (Height)		0 ~ 100mm
Kensington Lock		Yes
VESA Mounting ▪ Plate Type: 100 x 100mm		Screw Type: M4 x 10mmThread Diameter: 4mmThread Pitch: 0.7mmThread Length: 10mm
Dimension (W x D x H) 810.6		x 324.2 x 563.0mm
Weight 9.7 kg (Net), 13.5 kg (Gross)
Environment Operating Tem		perture: 0°C to 40°CHumidity: 20% to 90%, non-condensingAltitude: 0 ~ 5000m

* Based on CIE1976 test standards.

Preset Display Modes

Resolution	MPG341CQR3DA0
	HDMI DP
640x480 @60Hz V V
640x480 @67Hz V V
640x480 @72Hz V V
640x480 @75Hz V V
720x400 @70Hz V V
800x600 @56Hz V V
800x600 @60Hz V V
800x600 @72Hz V V
800x600 @75Hz V V
1024x768 @60Hz V V
1024x768 @70Hz V V
1024x768 @75Hz V V
1280x720 @60Hz V V
1280x960 @60Hz V V
1280x1024 @60Hz V V
1152x864 @75Hz V V
1440x900 @60Hz V V
1680x1050 @60Hz V V
1920x1080 @60Hz V V
2560x1080 @60Hz V V
2560x1080 @100Hz V
2560x1080 @144Hz V
3440X1440 @60Hz V V
3440X1440 @85Hz V V
3440X1440 @100Hz V V
3440X1440 @120Hz V
3440X1440 @144Hz V

Video timing Resolution	MPG341CQR 3DA0
	HDMI DP
480p V V
576p V V
720p V V
1080p V V

Troubleshooting

The power LED is off.

■ Press the monitor power button again.
- Check if the monitor power cable is properly connected.

No image.

■ Check if the computer graphics card is properly installed.
- Check if the computer and monitor are connected to electrical outlets and are turned on.
- Check if the monitor signal cable is properly connected.
■ The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered.

Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play.

• Check if the monitor power cable is properly connected.
  ■ Check if the monitor signal cable is properly connected.
  ■ Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

■ Avoid using any video extension cables.
■ Adjust brightness and contrast.
■ Adjust RGB color or tune color temperature.
■ Check if the monitor signal cable is properly connected.
■ Check for bent pins on the signal cable connector.

The monitor starts flickering or shows waves.

■ Change the refresh rate to match the capabilities of your monitor.
■ Update your graphics card drivers.
- Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI).
