Product Type	27-inch Curved Gaming Monitor
Model	MSI Optix MPG27C-007
Panel Type	VA (Vertical Alignment)
Resolution	1920 x 1080 (Full HD)
Refresh Rate	144Hz
Response Time	1ms (MPRT) / 4ms (GTG)
Brightness	250 cd/m² (nits)
Contrast Ratio	3000:1 (Static)
Viewing Angles	178°(H) / 178°(V)
Display Colors	16.7 million
Curvature	1800R
Inputs	2x HDMI, 1x DisplayPort
USB Ports	2x USB 2.0 Type A (downstream), 1x USB 2.0 Type B (upstream)
Audio	Headphone out, Mic in, Combo audio jack (via Y-cable)
Dimensions (with stand)	612 x 555.8 x 379.3 mm
Net Weight	7.3 kg (16.1 lbs)
Power Consumption (Typical)	65W
Power Input	100~240Vac, 50~60Hz (External Adapter)
Adjustment (Tilt)	-5° to 20°
Adjustment (Swivel)	-40° to 40°
Adjustment (Height)	0 to 120mm
VESA Mounting	100 x 100mm (M4 x 10mm screws)
Key Features	FreeSync, Anti Motion Blur, Gaming OSD, Zero Latency, RGB LED, Eye Saver mode, HDCR
Package Contents	Monitor, Stand, Stand Base, Power Adapter & Cord, HDMI Cable, DisplayPort Cable, Y-type Audio Cable, USB Upstream Cable, Quick Start Guide, Warranty Card

Frequently Asked Questions - Optix MPG27C-007 MSI

How do I assemble the monitor stand?

First, place the monitor on a soft surface. Fit the stand to the monitor, then push down the latch to lock it. Attach the base to the stand and tighten the base screw. Secure all connections.

What cables are included in the box?

The package includes an HDMI cable, DisplayPort cable, Y-type audio cable, USB upstream cable, power adapter and power cord. Ensure you connect the USB upstream cable to enable the monitor's USB ports.

How do I enable FreeSync on this monitor?

FreeSync is enabled by default via HDMI. For DisplayPort, you can toggle it ON/OFF in the OSD under Gaming > FreeSync. Ensure your graphics card supports FreeSync and that the connection is using a compatible cable.

How do I adjust the OSD settings?

Press the middle button of the Navi Key to open the OSD menu. Use the directional buttons (Up, Down, Left, Right) to navigate through menus like Gaming, Professional, Image, etc. Press the middle button to confirm selections.

What is the recommended refresh rate for optimal performance?

The monitor supports up to 144Hz. For best results, set your operating system's display settings to 144Hz. Gaming modes and Anti Motion Blur work best with 75Hz or more.

How do I clean the monitor safely?

Turn off the monitor and unplug it. Use a soft, slightly damp cloth (water only) to wipe the screen. Do not use any chemical cleaners or pour liquids directly onto the monitor.

Why is there no image on the screen?

Check that the monitor is powered on (power LED should be lit). Ensure the video cable (HDMI or DP) is securely connected to both the monitor and the computer. Verify the computer is not in standby mode and that the correct input source is selected in the OSD.

How do I mount the monitor on a wall?

Remove the base and stand by unscrewing the base screw and releasing the latch. Remove the pre-installed VESA screws. Attach a VESA-compatible wall mount bracket using 100x100mm pattern with M4 screws (10mm length). Follow the wall mount kit instructions.

What is the Eye Saver mode?

Eye Saver mode reduces blue light emission to protect your eyes. It can be enabled in the Professional menu. When Pro Mode is set to Reader, Eye Saver is mandatory. The screen will appear warmer.

How do I enable Picture-in-Picture (PIP) mode?

PIP mode is available for MPG27CQ and MPG27CQ2 models only. In the OSD under PIP/PBP, select a PIP source (HDMI1, HDMI2, or DP) and adjust size and location. The main screen will display one source with an inset window for another.

USER MANUAL Optix MPG27C-007 MSI

Copyright and Trademarks Notice

Revision

Technical Support

Safety Instructions

CE Conformity

FCC-B Radio Frequency Interference Statement

WEEE Statement

Chemical Substances Information

RoHS Statement

1. Getting Started....1-1

Package Contents

Installing the Monitor Stand

Adjusting the Monitor

Monitor Overview

Connecting the Monitor to PC

Wall Mounting (Optional)

2. OSD Setup 2-1

Navi Key

OSD Setup via Navi Key

Appendix ...... A-1

Specifications

Preset Display Modes

Troubleshooting

Copyright and Trademarks Notice

Copyright © Micro-Star Int'l Co , Ltd All rights reserved The MSI logo used is a registered trademark of Micro-Star Int'l Co , Ltd All other marks and names mentioned may be trademarks of their respective owners No warranty as to accuracy or completeness is expressed or implied MSI reserves the right to make changes to this document without prior notice

Revision

Revision Date

V1 1 2018/08

Technical Support

If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance

Safety Instructions

Read the safety instructions carefully and thoroughly

All cautions and warnings on the device or user's manual should be noted Refer servicing to qualified personnel only.

Keep the User's Guide that comes with the package for future reference

To prevent fire or shock hazard, keep this device away from humidity and high temperature

Lay this device on a reliable flat surface before setting it up.

Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the device to the power outlet. Do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.

The ventilator on the device is used for air convection and to prevent the device from overheating Do not cover the ventilator

Do not leave the device in an unconditioned environment with a storage temperature above 60^ C or below -20^ C, which may damage the device

NOTE: The maximum operating temperature is around 40^ C

When cleaning the device, be sure to remove the power plug Use a piece of soft cloth rather than industrial chemical to clean the device Never pour any liquid into the opening; that could damage the device or cause electric shock

Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord

Always keep strong magnetic or electrical objects away from the device

If any of the following situations arises, get the device checked by service personnel:

The power cord or plug is damaged
- Liquid has penetrated into the device
The device has been exposed to moisture

The device does not work well or you can not get it work according to user's manual

The device has dropped and damaged
The device has obvious sign of breakage

Green Product Features

• Reduced energy consumption during use and stand-by
  Limited use of substances harmful to the environment and health
  Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products
Visit the MSI website and locate a nearby distributor for further recycling information
Users may also reach us at gpcontdev@msi com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products

★ Warning! Overuse of screens is likely to affect eyesight.
★ Recommendations:

1 Take a 10-minute break for every 30 minutes of screen time

2 Children under 2 years of age should have no screen time For children aged 2 years and over, screen time should be limited to less than one hour per day

CE Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/I)

This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

■ Reorient or relocate the receiving antenna
■ Increase the separation between the equipment and receiver
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
■ Consult the dealer or an experienced radio/television technician for help

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits

This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://www.msi.com/html/ popup/csr/evmtprtt_pcm.html

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

https://www.msi.com/html/ popup/csr/cemm_jp.html

https://tw msi com/html/ popup/csr_tw/cemm_jp html

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0–1 weight % and 0–01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule

Turkey EEE Regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine Restriction of Hazardous Substances

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity

IMPORTANT

• The illustrations are for reference only Your monitor may vary in appearance
- Do not use any sharp objects on the monitor

Package Contents

1 Monitor
2 Stand
3 Stand Base with Screw
4 Power Adapter & Power Cord
5 HDMI Cable
6 DisplayPort Cable
7 Y-type Audio Cable (to enable the audio jacks on the monitor)
8 USB Upstream Cable (to enable the USB ports on the monitor)
9 Quick Start Guide
10 Warranty Card

* Contact your place of purchase or local distributor if any of the items is damaged or missing
* Package contents may vary by country

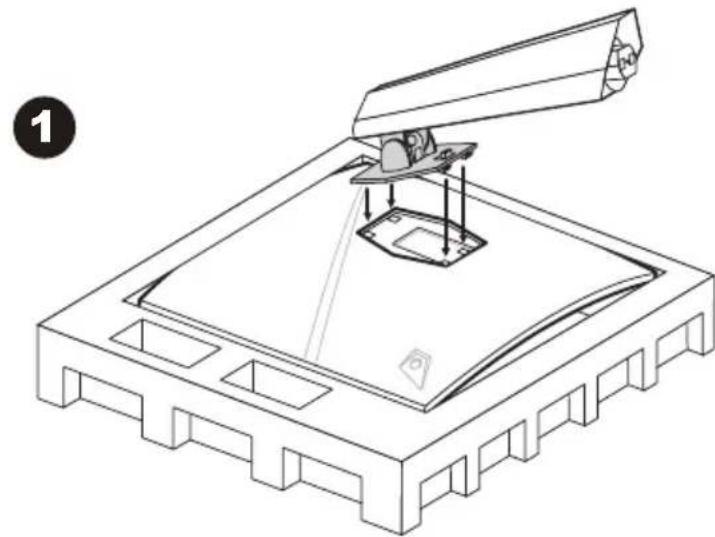

Installing the Monitor Stand

1 Fit the stand to the monitor
2 Push down the latch to lock the stand in place

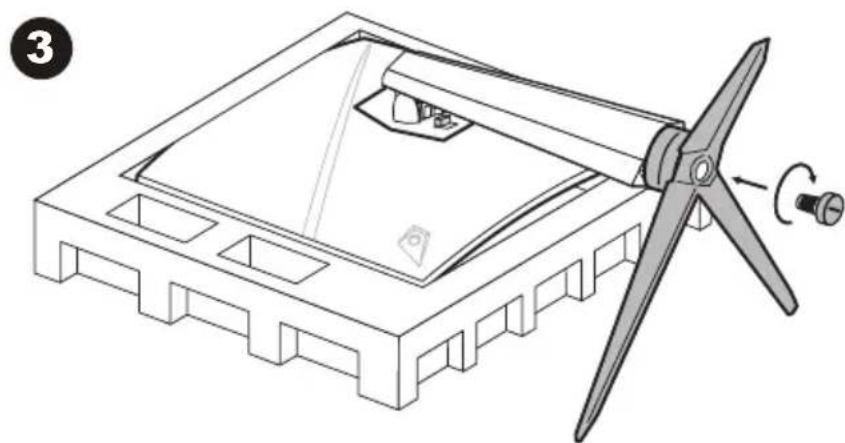

3 Connect the base to the stand and tighten the base screw to secure the base

IMPORTANT

Place the monitor on a soft, protected surface to avoid scratching the display panel

Isometric line drawing of a mechanical assembly with a base platform and component, no text or symbols present

Technical line drawing of a mechanical device with a propeller and rotating component (no text or symbols)

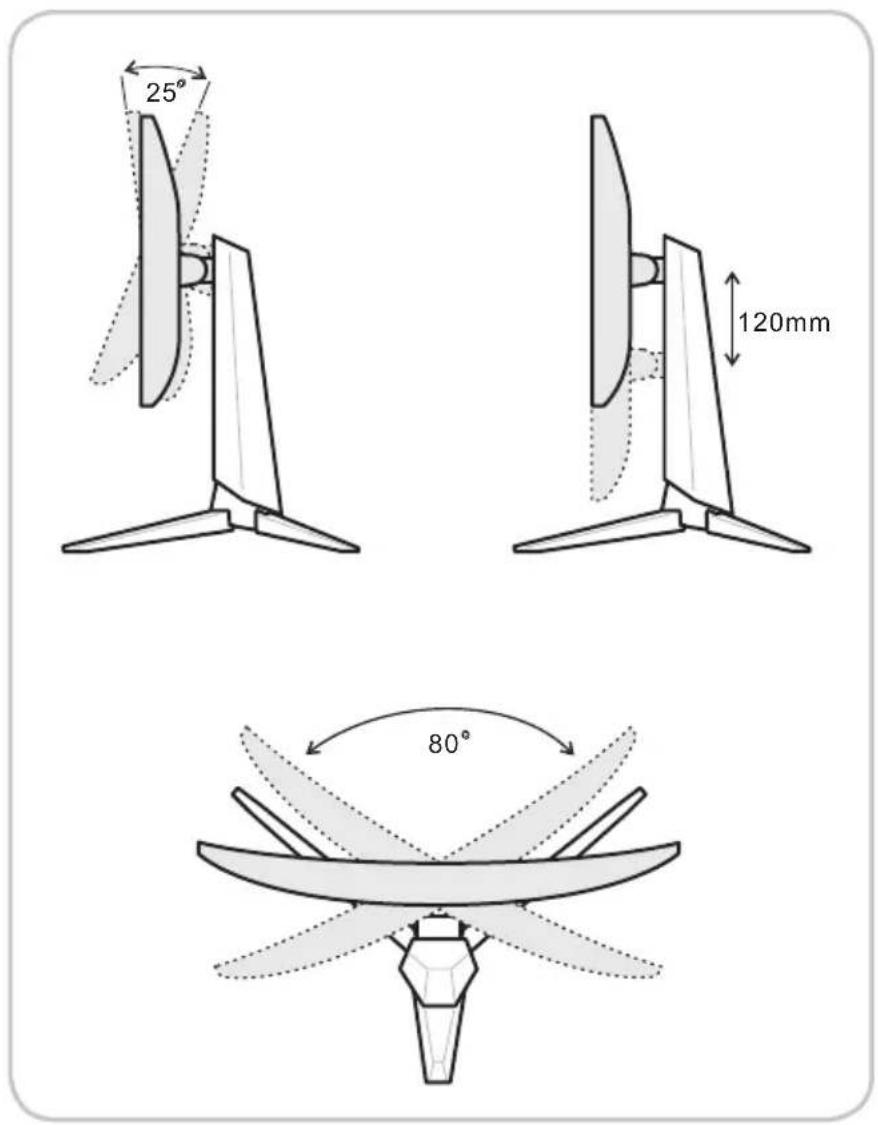

Adjusting the Monitor

This monitor is designed to maximize your viewing comfort with its adjustment capabilities such as tilt, lift and swivel

IMPORTANT

Avoid touching the display panel when adjusting the monitor

Monitor Overview

Power Button

Navi Key

Power Jack

HDMI Port

HDMI Port

DisplayPort

USB Type B Upstream Port

For USB Upstream Cable

IMPORTANT

Check the package for USB Upstream Cable and connect it to the PC and monitor Once this cable is connected, the USB Type A Downstream Ports on the monitor will be ready for use

Combo Audio Jack

For Y-type Audio Cable

IMPORTANT

Check the package for Y-type Audio Cable and connect it to the PC and monitor Once this cable is connected, the audio jacks on the monitor will be ready for use

Headphone Jack

Microphone Jack

USB Type A Downstream Port

USB Type A Downstream Port

Kensington Lock

Connecting the Monitor to PC

1 Turn off your computer.
2 Connect the HDMI/DisplayPort cable from the monitor to your computer
3 Assemble the monitor power adapter & power cord (Figure A)
4 Connect the power adapter to the monitor power jack (Figure B)
5 Plug the power cord into the electrical outlet (Figure C)

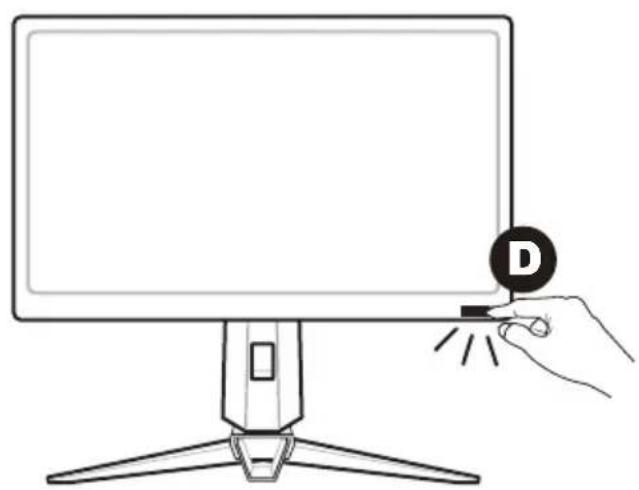

6 Turn on the monitor (Figure D)
7 Select your Input Source at OSD menu and power on the computer

Line drawing of a hand holding a small object on a computer monitor, with no text or symbols present.

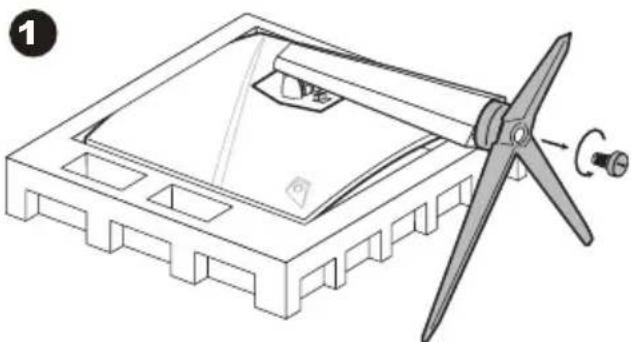

Wall Mounting (Optional)

1 Release the base screw and detach the base
2 Pull up the latch to unlock the stand
3 Disassemble the stand

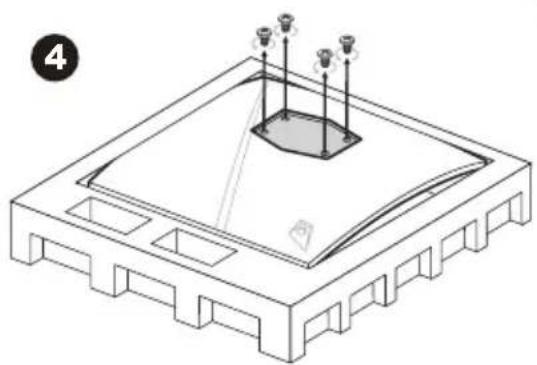

4 Remove the pre-installed screws for VESA mount
5 Install the wall mounting bracket to the monitor
6 Follow the wall mounting kit instructions to mount the monitor onto the wall

IMPORTANT

• Place the monitor on a soft, protected surface to avoid scratching the display panel
• When mounting this monitor to the wall, be sure to keep it at a proper distance from the wall to ensure effective ventilation.

Technical line drawing of a mechanical device with a propeller and base plate (no text or symbols)

Isometric diagram of a microchip or integrated circuit with a base and top component, no text or symbols present.

Isometric technical diagram of a microchip or electronic component with three LEDs and a base plate (no text or symbols)

Isometric line drawing of a mechanical assembly with a base platform and component, no text or symbols present

Simple diagram showing a curved object and a vertical line with diagonal hatching, no text or symbols present.

2

OSD Setup

This chapter provides you with essential information on OSD Setup

IMPORTANT

All information is subject to change without prior notice

Navi Key

The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu

The Navi Key default settings are as follows

Navi Key Hot Key(When OSD menu is OFF)			Basic Operations(When OSD menu is ON)
Middle Button OSD Main Menu ■ Entering submenus			■ Confirming a selection or setting
Up Game Mode ■ Press Middle		Button to confirm selection and exit■ Press Up and Down Buttons to adjust■ Press Left Button to cancel preview and exit without applying mode effect.	■ Selecting function menus and items■ Allowing upward adjustment in function values
Down Screen Assistance ■ Press Middle		Button to confirm selection and exit■ Press Up and Down Buttons to adjust■ Press Left Button to cancel preview and exit	■ Selecting function menus and items■ Allowing downward adjustment in function values
Left Alarm Clock ■ Press Middle		Button to confirm selection and exit■ Press Up and Down Buttons to select■ Press Left Button to cancel preview and exit	■ Selecting function menus and items■ Exiting the current menu
Right Input Source ■ Press Middle		Button to confirm selection and exit■ Press Up and Down Buttons to select■ Press Left Button to exit	■ Selecting function menus and items■ Entering submenus

Users may enter the OSD Menu to customize their own Navi Key Hot Keys.

More Hot Key options are as below

Navi Key Hot Key Options Operations
Brightness ■ Pi		ave value and exit■ Press Up and Down Buttons to adjust■ Press Left Button to cancel preview and exit■ Brightness default is 80
PIP/PBP ■ Press Middle Button to confirm selection and exit
Refresh Rate ■		to confirm selection and exit■ Press Right Button to turn on and Left Button to turn off the Refresh Rate.

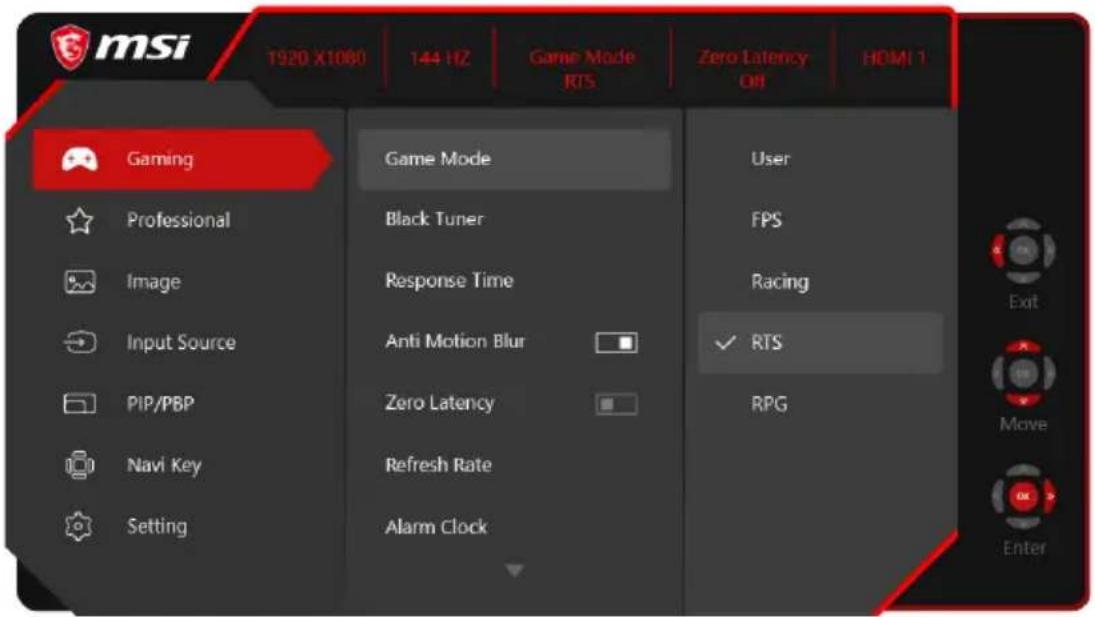

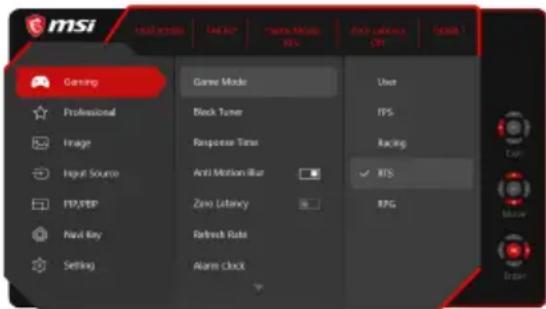

OSD Setup via Navi Key

Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences

GAMING

1st Level Menu 2nd/3rd Level Menu Description
Game Mode User	Default mode All items can be adjusted by users
	FPS All items can be adjusted by users
	Racing All items can be adjusted by users
	RTS All items can be adjusted by users
	RPG All items can be adjusted by users
	■ Use Up or Down Button to select and preview mode effects.■ Press the Middle Button to confirm and apply your mode type.
Black Tuner 0-20	■ Use Up or Down Button to adjust the value■ This function improves background brightness and is recommended for FPS games
Response Time Normal ▪ Users can adjust Response Time in any Mode■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled■ When Screen Refresh Rate is lower than 75HZ, “Fastest” will be grayed out■ This function is recommended for FPS and Racing games

1st Level Menu 2nd/3rd Level Menu Description
Anti Motion Blur	(OFF)		■ Brightness cannot be adjusted when Anti Motion Blur is set to ON■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled■ When Screen Refresh Rate is lower than 75HZ, Anti Motion Blur cannot be enabled and Response Time cannot be set to Fastest■ When Anti Motion Blur is enabled, HDCR cannot be enabled and will be grayed out■ This function is recommended for cinema, FPS and Racing games■ When FreeSync is enabled, Anti Motion Blur will be grayed out
	(ON)
Zero Latency	(OFF)		■ Zero Latency default is ON■ Zero Latency helps to reduce the signal throughput timing and supports QHD only
	(ON)
Refresh Rate	Location	Left Top	■ Users can adjust Refresh Rate in any Mode■ Default Refresh Rate Location is Left Top Location is adjustable in OSD Menu Press the Middle Button to confirm and apply your Refresh Rate Location■ This monitor follows and works at the Operating System's preset Screen Refresh Rate
		Right Top
		Left Bottom
		Right Bottom
	OFF
	ON
Alarm Clock	on	Left Top	■ Users can adjust Alarm Clock in any Mode■ After setting the time, press the Middle Button to activate the timer■ Default Alarm Clock Location is Left Top Users can select their own location
		Right Top
		Left Bottom
		Right Bottom
	OFF
	15:00 00:01~99:59
	30:00
	45:00
	60:00
Screen Assistance	None ■ Users can adjust Screen Assistance in any Mode■ Screen Assistance default is None
FreeSync	(OFF)		■ FreeSync prevents screen tearing■ HDMI default is ON but grayed out (cannot be changed)■ DisplayPort default is ON and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate■ When FreeSync is enabled, Anti Motion Blur will be grayed out
	(ON)

▶ Professional

1st Level Menu 2nd Level Menu Description
Pro Mode User Default mode All items can be adjusted by users
Eye Saver	(OFF)	■ Eye Saver protects your eyes against blue lightWhen enabled, Eye Saver adjusts the screen color temperature to a more yellow glow■ Users can adjust Eye Saver in any Mode■ When Pro Mode is set to Reader, it is mandatory to enable Eye Saver
	(ON)
HDCR	(OFF)	■ HDCR default is OFF Users can adjust HDCR in any Mode■ HDCR enhances image quality by increasing the contrast of images■ When HDCR is set to ON, Brightness will be grayed out■ HDCR and Anti Motion Blur cannot be enabled simultaneously■ When HDCR is enabled, Anti Motion Blur cannot be enabled and Response Time cannot be set to Fastest
	(ON)
Anti Motion Blur	(OFF)	■ Brightness cannot be adjusted when Anti Motion Blur is set to ON■ When Response Time is set to Fastest with at least 75Hz Screen Refresh Rate, Anti Motion Blur will be automatically enabled■ When Screen Refresh Rate is lower than 75HZ, Anti Motion Blur cannot be enabled and Response Time cannot be set to Fastest■ When Anti Motion Blur is enabled, HDCR cannot be enabled and will be grayed out■ This function is recommended for cinema, FPS and Racing games■ When FreeSync is enabled, Anti Motion Blur will be grayed out
	(ON)
Image Enhancement	OFF ■ Image Enhancement enhances image edges to improve their acutance■ Users can adjust Image Enhancement in any Mode
	Weak
	Medium
	Strong
	Strongest

> Image

1st Level Menu	2nd/3rd Level Menu Description
Brightness 0-100	■ Brightness default is 80
Contrast 0-100	■ Contrast default of Optix MPG27C is 80
Sharpness 0-5	■ Sharpness default is 0 Users can adjustSharpness in any Mode■ Sharpness improves clarity and details of images
Color Temperature	Cool ■ Color Temperature default is Normal
	Normal
	Warm
	Customization R (0-100)
Screen Size 19"	■ Screen Size default is 16:9.
	24"
	4:3
	16:9

Input Source

1st Level Menu	Description
HDMI1 Users can adjust Input Source in any Mode
HDMI2
DP

> PIP/PBP (For Optix MPG27CQ / MPG27CQ2 only)

1st Level Menu	2nd/3rd Level Menu Description
OFF ■ PIP (Picture in Picture) allows users to			simultaneously display multiple video sources on one screen One program is displayed on the full screen at the same time as one or more other programs are displayed in inset windows■ PBP (Picture by Picture) is a similar feature that displays two input sources side-by-side on the screen■ PIP/PBP default is OFF■ Display Switch allows users to switch between primary and secondary input sources■ Audio Switch allows users to switch between primary and secondary digital audio sources
PIP Source HDMI1		HDMI2
		DP
	PIP Size Small
		Medium
		Large
	Location Left Top
		Right Top
		Left Bottom
		Right Bottom
	Display Switch
	Audio Switch
PBP Source HDMI1
		HDMI2
		DP
		Display Switch
		Audio Switch

Navi Ke

1st Level Menu 2nd Level Menu Description
Up OFF ■ Up Button default is Game Mode		■ Down Button default is Screen Assistance■ Left Button default is Alarm Clock■ Right Button default is Input Source■ All Navi Key items can be adjusted via OSD Menu
Down OFF
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	PIP/PBP Mode
	Refresh Rate
Left OFF
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	PIP/PBP Mode
	Refresh Rate
Right OFF
	Brightness
	Game Mode
	Screen Assistance
	Alarm Clock
	Input Source
	PIP/PBP Mode
	Refresh Rate

Setting

1st Level Menu 2nd Level Menu Description
Language	繁體中文	■ Language factory default is English■ Users have to press the Middle Button to confirm and apply the Language setting■ Language is an independent setting Users' own language setting will override the factory default When users set Reset to Yes, Language will not be changed
	English
	Français
	Deutsch
	Italiano
	Español
	한국어
	日本語
	Русский
	Português
	简体中文
	ไทย
	Bahasa Indonesia
	हिन्दी
	Türkçe
	فارسی
	Tiếng Việt
	הכלה
	बांला
	عربية
	(More languages coming soon)
Transparency 0~5	Transparency default is 0	Users can adjust Transparency in any Mode
OSD Time Out 5-30s OSD Time Out default is 20s Users can adjust OSD Time Out in any Mode
Audio Source Analog Audio Source default is Digital Users can adjust Audio Source in any Mode
RGB LED OFF RGB LED default is On Users can adjust RGB LED to On or Off.
ON
Reset YES Users can Reset and restore settings to original OSD Default in any Mode
NO

A

Appendix

IMPORTANT

All information is subject to change without prior notice

Specifications

Model Optix MPG27C Optix	MPG27CQ Optix MPG	27CQ2
Size 27 inch
Curvature 1800R
Panel Type VA
Resolution 1920 x	1080@144Hz	2560 x 1440@144Hz
Aspect Ratio 16:9
Brightness (nits) 250 400
Contrast Ratio 3000:1
Refresh Rate 144Hz
Response Time 1ms (MPRT)	4ms (GTG)
Input Interface HDMI x2, DP x1
I/O	USB 2 0 Type A x2USB 3 1 Gen 1 Type B x1 (with USB 2 0 signal, for PC to Monitor)Mic in x1Headphone out x1Audio combo jack x1 (for PC's Mic in and Headphone out to Monitor)	USB 3 1 Gen 1 Type A x2USB 3 1 Gen 1 Type B x1 (for PC to Monitor)Mic in x1Headphone out x1Audio combo jack x1 (for PC's Mic in and Headphone out to Monitor)
View Angles	178°(H), 178°(V)
NTSC / sRGB *	100% / 115%
Surface Treatment	Anti-glare
Display Colors 16 7M
Power Type	External Adapter
Power Consumption (Typical)	65W	90W
Power Input	100~240Vac, 50~60Hz
Power Output	■ 19V--- 3.42A■ 20V--- 3.25A	■ 19V--- 4.74A■ 20V--- 4.5A
Adjustment (Tilt)	-5° ~ 20°
Adjustment (Swivel)	-40° ~ 40°
Adjustment (Height)	0 ~ 120mm
Kensington Lock	Yes

Model Optix MPG27C Optix		MPG27CQ Optix MPG	27CQ2
VESA Mounting ▪ Plate Type: 100 x 100mm ▪ Screw Type: M4x10mm ▶ Thread Diameter: 4mm ▶ Thread Pitch: 0 7mm ▶ Thread Length: 10mm
Dimension (W x H x D) 612 x 555 8 x 379 3 mm 612 x 555 8 x				252 65 mm
Net Weight 7 3 kg (16 10 lb) 7 14 kg (15 74 lb)
Environment Operating Temperature: 0°C to 40°C Humidity: 20% to 90%, non-condensing Altitude: 0 ~ 5000m

* NTSC and sRGB are based on CIE1976 test standards

Preset Display Modes

Standard Resolution		Optix MPG27C	Optix MPG27CQ /MPG27CQ2
		HDMI / DP HDMI / DP
VGA 640x480 @60Hz V V
		640x480 @67Hz V V
		640x480 @72Hz V V
		640x480 @75Hz V V
Dos-Mode 720x400@70Hz V V
SVGA 800x600 @56Hz V V
		800x600 @60Hz V V
		800x600 @72Hz V V
		800x600 @75Hz V V
XGA 1024x768 @60Hz V V
		1024x768 @70Hz V V
		1024x768 @75Hz V V
XGA+ 1152x864 @75Hz V V
SXGA 1280x1024 @60Hz V V
		1280x1024 @75Hz V V
WXGA 1280x720 @60Hz V V
VESA 1280x960 @60Hz V V
SDTV 640x480P @60Hz V V
		720x480P @60Hz V V
		720x576P @50Hz V V
		1440x480P @60HZ	VV
		1440x576P @50HZ	VV
HDTV 1280x720P @50Hz		VV
		1280x720P @60Hz	VV
		1920x1080P @50Hz	VV
		1920x1080P @60HZ	VV
		1920x1080I @50HZ	VV
		1920x1080I @60HZ	VV
WXGA+	1440x900 @60Hz V V
WSXGA+	1680x1050 @60Hz V V
Full HD	1920x1080 @60Hz V V
	1920x1080 @120Hz	VV
	1920x1080 @144Hz	VV
WQHD	2560x1440 @60Hz		V
	2560x1440 @85Hz		V
	2560x1440 @120Hz		V
	2560x1440 @144Hz		V

Troubleshooting

The power LED is off.

■ Press the monitor power button again
■ Check if the monitor power cable is properly connected

No image.

■ Check if the computer graphics card is properly installed
■ Check if the computer and monitor are connected to electrical outlets and are turned on
■ Check if the monitor signal cable is properly connected
■ The computer may be in Standby mode Press any key to activate the monitor

The screen image is not properly sized or centered.

Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display

No Plug & Play.

■ Check if the monitor power cable is properly connected
■ Check if the monitor signal cable is properly connected
■ Check if the computer and graphics card are Plug & Play compatible

The icons, font or screen are fuzzy, blurry or have color problems.

■ Avoid using any video extension cables
■ Adjust brightness and contrast
■ Adjust RGB color or tune color temperature
■ Check if the monitor signal cable is properly connected
■ Check for bent pins on the signal cable connector

The monitor starts flickering or shows waves.

■ Change the refresh rate to match the capabilities of your monitor
■ Update your graphics card drivers
- Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI)
