Product type	Wireless audio transmitter
Brand	Denon Professional
Model	DN-202WT
Power supply	Mains via included power cord
Transmission range	Up to 30.5 meters
Antenna	Built-in wireless antenna
Audio inputs	2 x balanced XLR, 2 x unbalanced 6.35 mm jack
Audio outputs	Wireless to DN-202WR receiver
Audio mode	Stereo or Mono (selector)
Status indicator	Status LED (blinking/solid)
Clipping indicator	Clipping LEDs (0 dB threshold)
Pairing	Dedicated button (press and hold 3 seconds)
Frequency band	2.4 GHz
Minimum user distance	20 cm
Box contents	DN-202WT, user guide, power cord, safety instructions
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Compliant with Industry Canada CNR standards. Do not use near a microwave oven.

Frequently Asked Questions - DN-202WT DENON

How to pair the DN-202WT with a DN-202WR receiver?

Press and hold the pairing button on the DN-202WT for 3 seconds. The LED flashes quickly. Then, within 15 seconds, press and hold the pairing button on the DN-202WR for 3 seconds. Wait until the LEDs on both devices are solid, indicating successful pairing.

What to do if the DN-202WT does not turn on?

Check that the power cord is properly connected to the power input of the DN-202WT and to a functioning wall outlet.

Why is there no sound or is the sound distorted?

Make sure all cables and devices are properly connected and not damaged. Check the settings of your audio source, mixing console, and speakers.

The DN-202WT has trouble pairing or the connection is unstable.

Check that both devices are within 30.5 meters of each other. Remove obstructions and turn off nearby devices operating in 2.4 GHz (microwaves, routers).

How to set stereo or mono mode?

Use the St./Mono switch on the panel. Up position = stereo, down position = mono. For stereo mode, respect the correct L and R connections.

What do the status LEDs mean?

Slow flash (1x/s): not paired. Fast flash (2x/s): pairing in progress. Solid: paired and connected.

What do the clipping LEDs mean?

They light up when the audio signal exceeds 0 dB, indicating distortion. Reduce the volume of the audio source.

Can I use cables other than those provided?

Yes, you can use standard XLR or 6.35 mm jack cables to connect the inputs. Use the included power cord for power.

What is the maximum range of the DN-202WT?

The range can reach 30.5 meters under ideal conditions, without obstacles and 2.4 GHz interference.

How to clean the DN-202WT?

Unplug the device. Clean the housing with a soft, dry cloth. Do not use liquid or abrasive products.

USER MANUAL DN-202WT DENON

User Guide (English)

Introduction

DN-202WT is a wireless audio transmitter with professional-grade audio outputs. In conjunction with our DN-202WR wireless receivers, this lets you add wireless audio transmission to your audio system—reducing cables and clutter without reducing sound quality.

Please see this guide's Setup chapter to learn how to integrate DN-202WT with your audio system.

Box Contents

DN-202WT

User

Guide

Power Adapter Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit denonpro.com.

Features

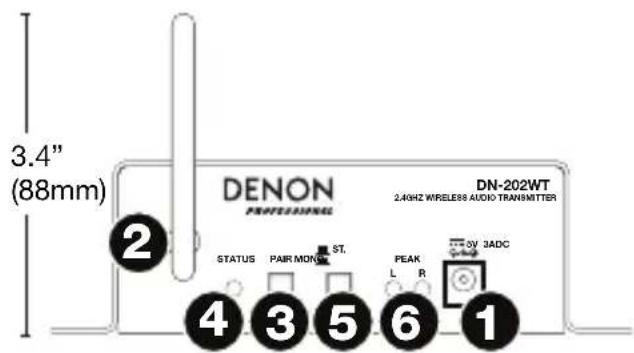

1. Power Input: Use the included power adapter to connect this input to a power outlet. See Setup for more information.
2. Wireless Antenna: This antenna transmits the audio signal to a paired DN-202WR within range. DN-202WT has a transmission range of 100 feet (30.5 meters).

3. Pair Button: Press and hold this button for 3 seconds to make DN-202WT available for pairing to a nearby DN-202WR. See Setup for more information.

4. Status Light: This LED indicates the DN-202WT's pairing status:

5. Flashing slowly (approximately once per second): DN-202WT is not paired to a DN-202WR.

6. Flashing quickly (approximately twice per second): DN-202WT is "searching" for a DN-202WR.
   • Solidly lit: DN-202WT is paired to a DN-202WR.

7. Stereo/Mono Selector (St./Mono): Press this button to set the outgoing wireless audio signal to stereo (raised position) or mono (depressed position).

Note: For stereo operation, make sure the left (L) and right (R) inputs are connected to left and right outputs, respectively.

1. Peak Lights: These LEDs light up when the incoming audio signal is "clipping" (distorting) at levels higher than 0 dB. If this happens, reduce the volume level of your audio source.

2. Inputs (Balanced XLR): Use XLR cables to connect these inputs to your audio source (mixer, media player, etc.). See Setup for more information.

3. Inputs (Unbalanced 1/4" / 6.35mm): Use 1/4" (6.35 mm) cables to connect these inputs to your audio source (mixer, media player, etc.). See Setup for more information.

Setup

For an example of how you could set up DN-202WT, please see the Example diagram later in this section.

Items not listed under Introduction > Box Contents are sold separately.

Important:

For stereo operation, make sure left and right inputs are connected to left and right outputs, respectively.

Make sure DN-202WT and DN-202WR are within 100 feet (30.5 meters) of each other.

Do not use DN-202WT near a microwave oven, which can interfere with the reception.

1. Use XLR cables or 1/4" (6.35mm) cables to connect DN-202WT's inputs (balanced or unbalanced) to your mixer, media player, or other audio source.
2. Use the included power adapter to connect DN-202WT's power input to a power outlet. It will power on immediately.
3. Connect your mixer, media player, or other audio source to a power outlet, and then power it on.

DENON PROFESSIONAL

1. Use XLR cables or 1/4" (6.35mm) cables to connect your DN-202WR's outputs (balanced or unbalanced) to your loudspeakers, mixer, amplifier, or other device that accepts line-level inputs (make sure this device is powered off).
2. Use the included power adapter to connect DN-202WR's power input to a power outlet. It will power on immediately.
3. Connect your loudspeakers, mixer, amplifier, or other output device to a power outlet, but do not power it on yet.
4. Press and hold the Pair button on DN-202WT for 3 seconds. Its Status Light will start flashing rapidly.
5. Within approximately 15 seconds, press and hold the Pair button on DN-202WR for 3 seconds. Its Status Light will start flashing rapidly. If you need to pair multiple DN-202WR units to DN-202WT, do this step with all of them within the 15 seconds.
6. Wait until the Status Lights on both DN-202WT and DN-202WR are solidly lit (not flashing), indicating that they are paired.
7. Power on your loudspeakers, mixer, amplifier, or other output devices. You can now use DN-202WT and DN-202WR to play audio wirelessly.

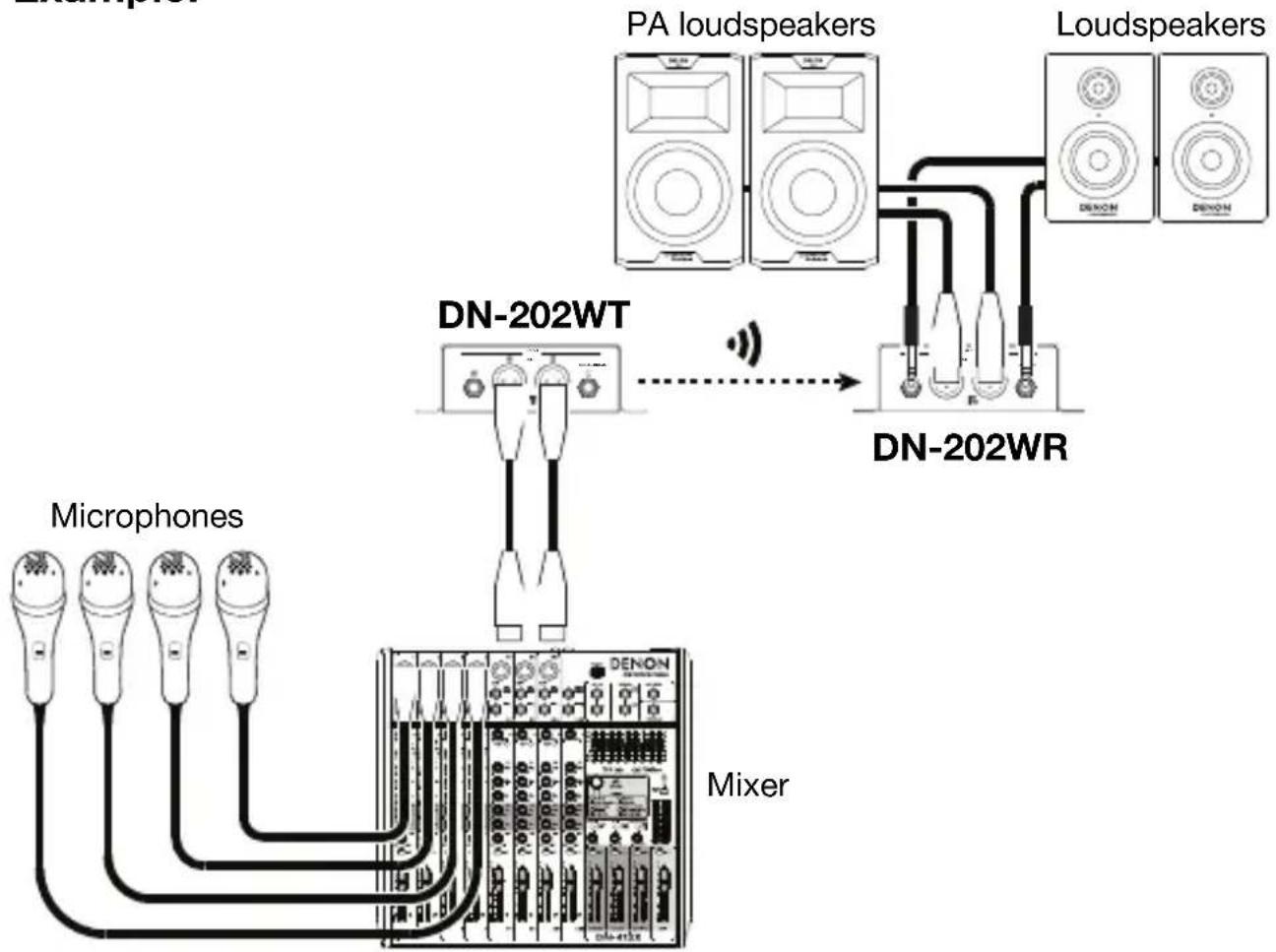

Example:

Items not listed under Introduction > Box Contents are sold separately.

Troubleshooting

If you encounter a problem, try doing these things first:

• Make sure all cables and other connected devices are properly and securely connected.
  • Make sure you are using DN-202WT as described in this User Guide.
  • Make sure your other devices or media are working properly.
• If you believe DN-202WT is not working properly, check the following table for your problem and solution.

Problem:	Solution: Please	see:
Power does not turn on.	Make sure DN-202WT's power input is properly connected to a power outlet using the included power adapter.	Setup
DN-202WT does not produce any sound, or the sound is distorted.	Make sure all cable and device connections are secure and correct.Make sure none of the cables are damaged.Make sure the settings on your loudspeaker, mixer, etc. are correct.	Setup

Problem:	Solution:	Please	see:
DN-202WT does not pair to a DN-202WR or is having trouble maintaining a connection.	Make sure the power inputs of the DN-202WT and DN-202WR are properly connected to power outlets using the included power adapters.Make sure the DN-202WT and DN-202WR are within 100 feet (30.5 meters) of each other.If possible, remove any obstructions between DN-202WT and DN-202WR.If possible, power off or remove any nearby devices that transmit on a 2.4 GHz frequency. These devices can cause interference.	Setup

Assistance technique

Technical Specifications

Specifications are subject to change without notice.

For optimal performance, place the product in the center of the room so it is unobstructed by walls, furniture, etc.

Frequency Response	20 Hz – 20 KHz, ±3 dB
Signal-to-Noise Ratio	≥ 80 dB
THD	≤ 0.1%
Input Level	+5 dBu
Dynamic Range	>90 dB at 1 KHz
Crosstalk	>90 dB at 1 KHz
Latency	20 ms

Wireless Specifications	Channel	25
	Modulation	GFSK
	Bandwidth	≥ 1.8 MHz
	Transmission Frequency	2.404 – 2.476 GHz
	Transmission Range	Up to 100 ft. (30.5 m)
	Transmission Power	10 dBm
Power	100–240 V AC, 50/60 Hz5 V DC, 3 A, center-positive (adapter included)
Dimensions(width x depth x height)	5.8” x 4.6” x 1.8”149 x 117 x 45 mm
Weight	1.3 lbs.0.6 kg

Trademarks and Licenses

Denon is a trademark of D&M Holdings Inc., registered in the U.S. and other countries. All other product or company names are trademarks or registered trademarks of their respective owners.

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The distance between user and products should be no less than 20 cm.

Warnings

This device complies with Industry Canada's licence-exempt RSSs Operation is subject to the following two conditions: (1) This device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

The distance between user and products should be no less than 20 cm.
