IAN 311657 - Parasol FLORABEST - Free user manual and instructions

Product type	Offset umbrella (cantilever)
Brand	Florabest
Model	IAN 311657
Canopy diameter	approx. 300 cm
Total height	approx. 258 cm
Cross base dimensions	approx. 100 x 100 cm (L x W)
Minimum total ballast weight required	90 kg (4 paving slabs 50x50x5 cm not included)
Pole material	Aluminium/steel (not specified by manufacturer)
Canopy material	Polyester (not specified by manufacturer)
Opening system	Crank
Tilt system	Manual tilt via handle and clamping screw
Canopy rotation	Horizontal rotation possible (360°)
Safety features	Stability with ballast, handle lock, console stopper
Care and cleaning	Clean with a slightly damp, lint-free cloth
Warranty	3 years from date of purchase (wear parts excluded)
Delivery contents	Cross base spacers, lower and upper pole, screws and washers, spanner, instruction manual
Intended use	Sunshade in a private outdoor space (non-professional use)

Frequently Asked Questions - IAN 311657 FLORABEST

How to assemble the cross base of the umbrella?

Insert spacer 2 of the cross base into spacer 1. Then screw the lower pole into the assembled cross base using the M8x20 mm screws and washers provided. Finally, insert the upper pole into the lower pole and tighten the union nut.

What type of ballasting is needed for the umbrella?

The umbrella must be used with 4 paving slabs of approx. 50x50x5 cm, with a minimum total weight of 90 kg. These slabs are not included and must be placed on the cross base spacers.

How to open the canopy of the umbrella?

Pull the console until it reaches the stopper, then lock the support rail by lowering the plastic peg. Raise the handle until it reaches the stopper and lock it with the clamping screw. Then turn the crank clockwise until the canopy is fully extended.

How to tilt the sunshade canopy?

Loosen the clamping screw to release the handle. Lower the handle to the desired tilt angle, then retighten the clamping screw to lock the position. The canopy will then tilt automatically.

How to rotate the umbrella canopy?

Loosen the clamping screw to release the handle. Orient the canopy to the desired position (horizontal rotation), then retighten the clamping screw to lock. The canopy can rotate 360°.

What to do in case of strong wind or thunderstorm?

Close the umbrella if the wind blows stronger or if a storm is approaching. Never use the umbrella as protection during a thunderstorm. In strong wind, rain, or snowfall, always close the umbrella and never leave it open unattended.

How to clean and maintain the umbrella?

Clean the umbrella with a slightly damp, lint-free cloth. In winter, store it in a cool, dry place, preferably unheated.

Where to store the umbrella in winter?

Store the umbrella in a cool, dry place, such as a garden shed or basement. Avoid heated rooms to preserve the materials.

What is the warranty for the Florabest umbrella?

The umbrella has a 3-year warranty from the date of purchase. The warranty covers material and manufacturing defects, but not wear parts or damage due to improper use. Keep the receipt.

Is the umbrella rain-resistant?

The umbrella is designed for outdoor use as a sunshade, but it is not designed to withstand rain or snow. It is recommended to close it during precipitation to avoid accumulation of water or snow.

USER MANUAL IAN 311657 FLORABEST

AMPELSCHIRM CANTILEVER PARASOL PARASOL DÉPORTÉ

DE AT CH

AMPELSCHIRM

Assembly and safety advice

FR BE

PARASOL DÉPORTÉ

Technical line drawing of a mechanical linkage system with no visible text or symbols

Line drawing of a simple outdoor umbrella with a canopy and support structure (no text or symbols)

AMPELSCHIRM

- Einleitung

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended Use

This article is intended for providing protection from the sun in outdoor domestic environments only. Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.

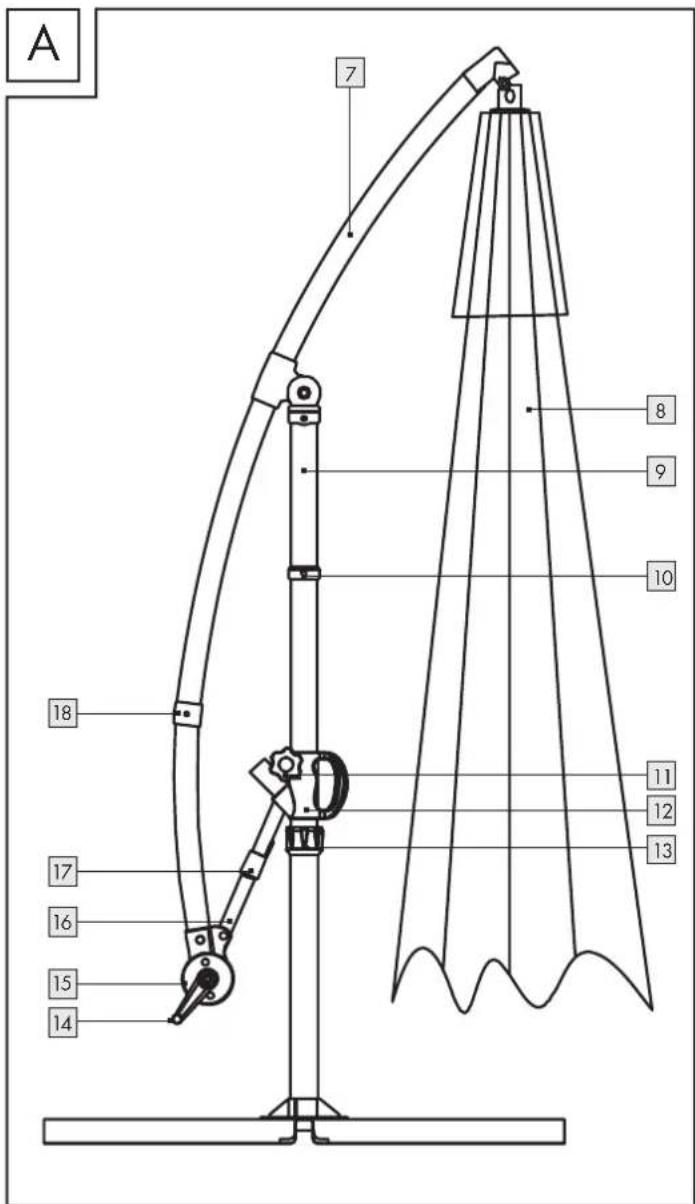

• Description of parts

1 Cross member for paving stand 1
2 Cross member for paving stand 2
3 Bottom pole section
4 Bolt (approx. M8 x 20 mm)
5 Plain washer (approx. 8 mm)
6 Top pole with attachments
7 Arm
8 Umbrella top
9 Top pole section
10 Stopper (top pole section)

11 Locking knob
12 Handle
13 Union nut
14 Crank
15 Crankcase
16 Support rod
17 Plastic sleeve
18 Stopper (arm)

- Included in delivery

Please check immediately on unpacking that the delivery is complete and that the product and all parts are in perfect condition. Do not under any circumstances assemble the product if the delivery is incomplete.

1 x Cross member for paving stand 1
1 x Cross member for paving stand 2
1 x Bottom pole section
4 x Bolt (approx. M8 x 20 mm)
4 x Plain washer (approx. ∅ 8 mm)
1 x Top pole with attachments
1 x Assembly instructions manual
1 x Open spanner

- Technical data

Dimensions

Hanging umbrella: Approx. 300 x 258 cm (ø x H)

Paving stand: Approx. 100 x 100 cm (L x W)

Safety advice

PLEASE READ THE ASSEMBLY INSTRUCTIONS

BEFORE USE! PLEASE KEEP THE ASSEMBLY

INSTRUCTIONS IN A SAFE PLACE!

J

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS TO INFANTS AND CHILDREN!

Never leave children alone and unsupervised with packaging material and the product. The packaging material constitutes a risk to life through suffocation and strangulation. Children often underestimate the risks. Always keep children away from the product. The product is not a toy.

⚠️ CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can effect safety and function.

⚠CAUTION! Do not leave children unattended. The product is not a climbing frame or toy. Make sure that nobody climbs or leans on the product, particularly children. The product could become imbalanced and tip up. This may result in injury and/or damage.

⚠️CAUTION! DANGER OF TIPPING OVER!

Ensure that the product stands in stable equilibrium on a firm surface. The hanging umbrella must always be used in conjunction with 4 pieces of approx. 50 × 50 × 5 cm paving slabs with minimum total weight 90kg (not included). Otherwise the hanging umbrella could tip over and result in injury and damage to property.

J Never move the hanging umbrella in the open state. Always fully close the umbrella top 8 first and pull in the arm 7 completely. Otherwise the load on the product could become unbalanced and cause it to overturn, resulting in injury and / or damage.

⚠️CAUTION! FIRE HAZARD! Never place the product near an open fire and / or radiant heaters.

J Make sure that this product is standing on a solid, level surface.

J Make sure the product is stable before use!

⚠CAUTION! RISK OF INJURY! Before opening and closing the product, make sure that there are no people standing too near to it.

⚠️CAUTION! RISK OF CRUSHING! Watch

your fingers when opening and closing the product. If you are careless, you risk injuring your fingers by crushing them!

J Ensure that the top pole with attachments 6 is attached firmly to the lower pole section 3 on the paving stand. Unless this is done, it is not safe to use the hanging umbrella.

J Close the hanging umbrella if the wind shows signs of increasing in speed or on the approach of squally showers.

J Never use the product as protection against bad weather.

J Never leave an open hanging umbrella unattended. Damage could occur if strong winds arise unexpectedly.

J Close the hanging umbrella in the event of wind, snow or rain.

J Do not hang any objects (e.g. clothing) from the product.

- Assembly/disassembly

Note: For assembly you will need a working space at least 16 m^2 in area and 4 m in diameter.

Note: If possible have a second person help you with the assembly.

Note: Keep 4 pieces of approx. 50 x 50 x 5 cm paving slabs with minimum total weight 90 kg close at hand for the paving stand. Place the paving slabs evenly on the cross members of the paving stand.

- Assembling the paving stand

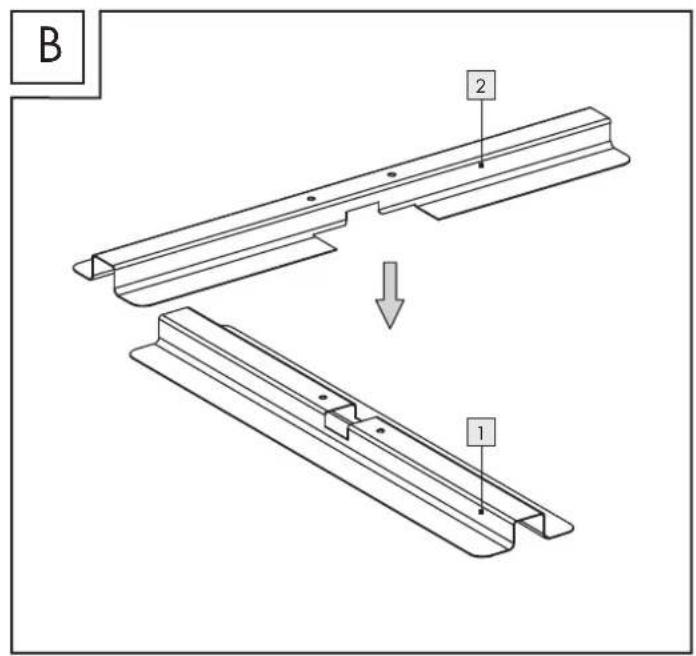

☐ Fit the cross member for paving stand 22 on top of the cross member for paving stand 11 (see Figure B).

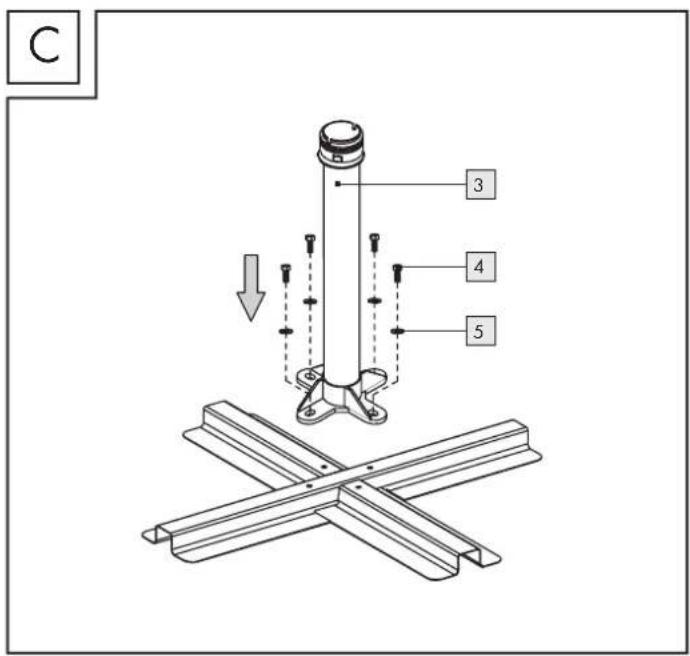

☐ Bolt the bottom pole section 3 to the assembled cross members. Use the bolts (approx. M8 x 20 mm) 4 with the plain washers (approx. ∅ 8 mm) 5 (see Figure C).

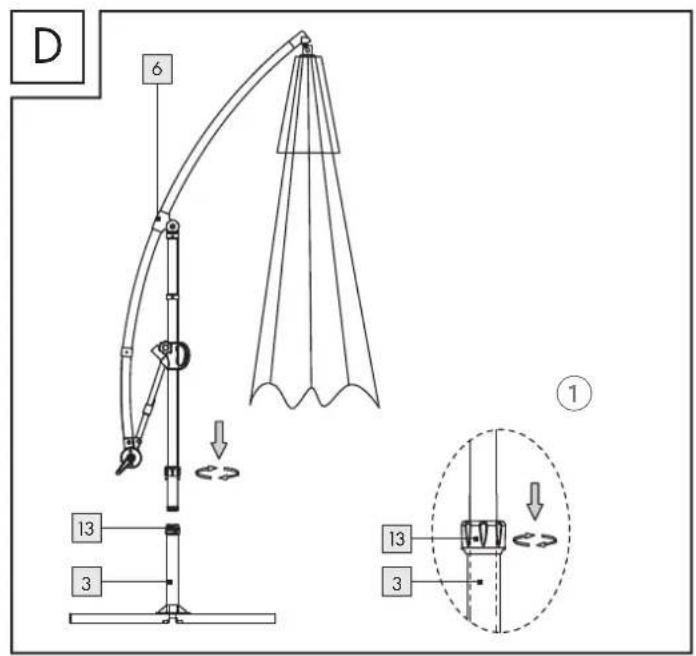

☐ Insert the top pole with attachments 6 into the bottom pole section 3 attached to the paving stand and screw the two poles together with the union nut 13 (see Figure D, step ①).

- Opening the umbrella top

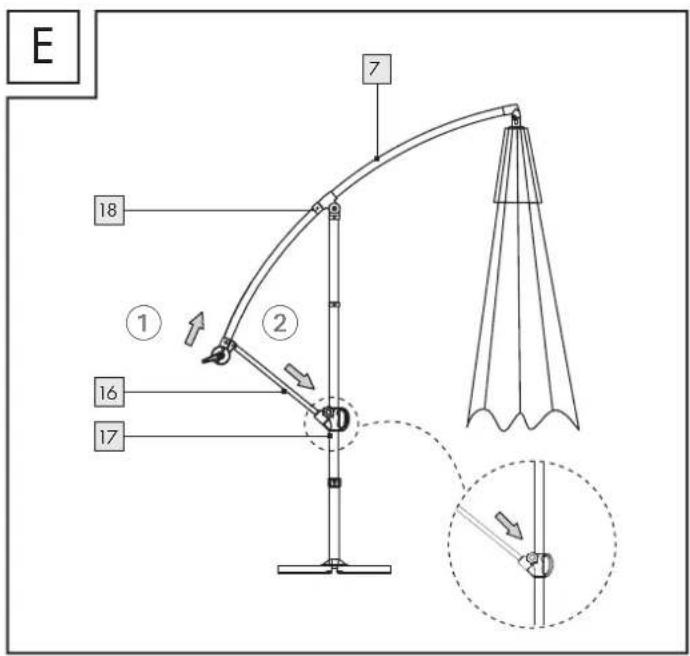

☐ Push the arm7 upwards until it meets the stopper 18 (see Figure E, step ①). Lock the support rod 16 in place by pushing the plastic sleeve 17 downwards (see Figure E, step ②).

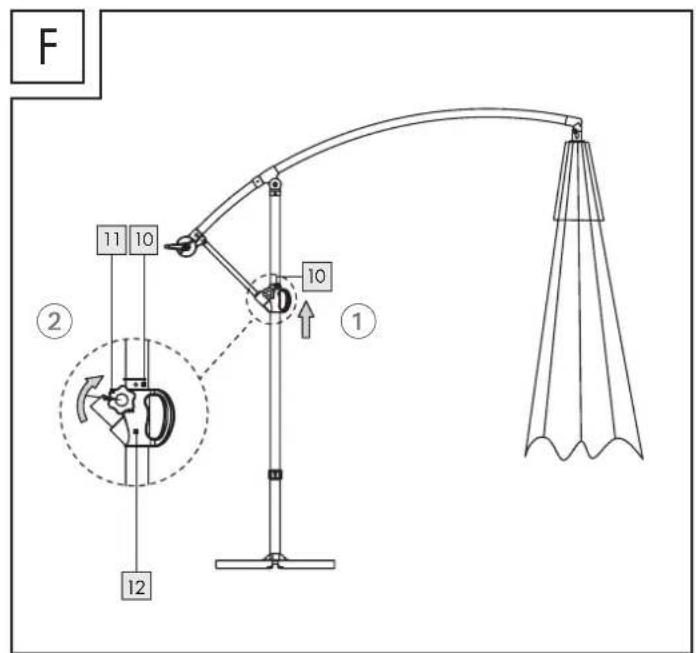

☐ Push the handle ^12 upwards until it meets the stopper ^10 (see Figure F, step ①). Lock the handle ^12 in place with the locking knob ^11 . To do this turn the locking knob ^11 in the clockwise direction to tighten it (see Figure F, step ②).

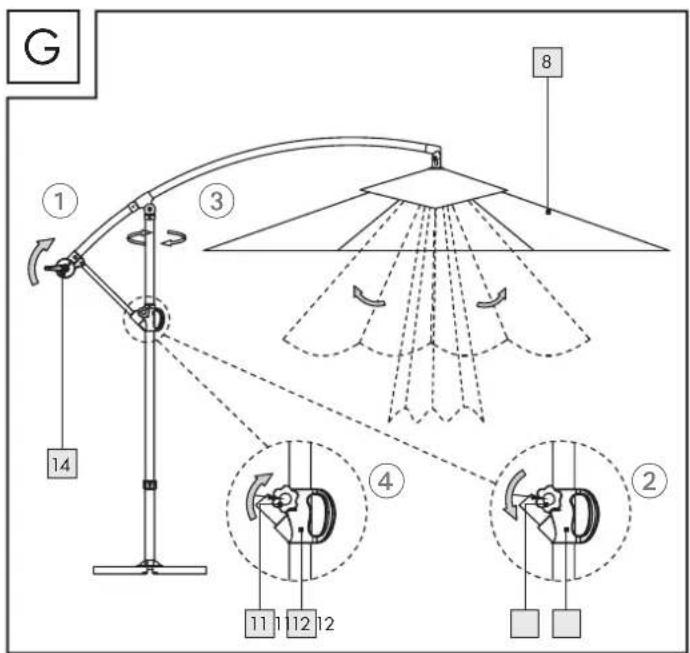

Turn the cran4 clockwise until the umbrella top 8 is completely open (see Figure G, step 1).

- Turning the umbrella roof

☐ Release the lock on the handle ^2 by turning the locking knob 11 anticlockwise until the handle 12 moves freely (see Figure G, step ②).
□ Swivel the umbrella top8 into the desired position (see Figure G, step ③).
☐ Lock the handle 12 in place with the locking knob 11. To do this turn the locking knob 11 in the clockwise direction to tighten it (see Figure G, step 4).

- Inclining the umbrella top

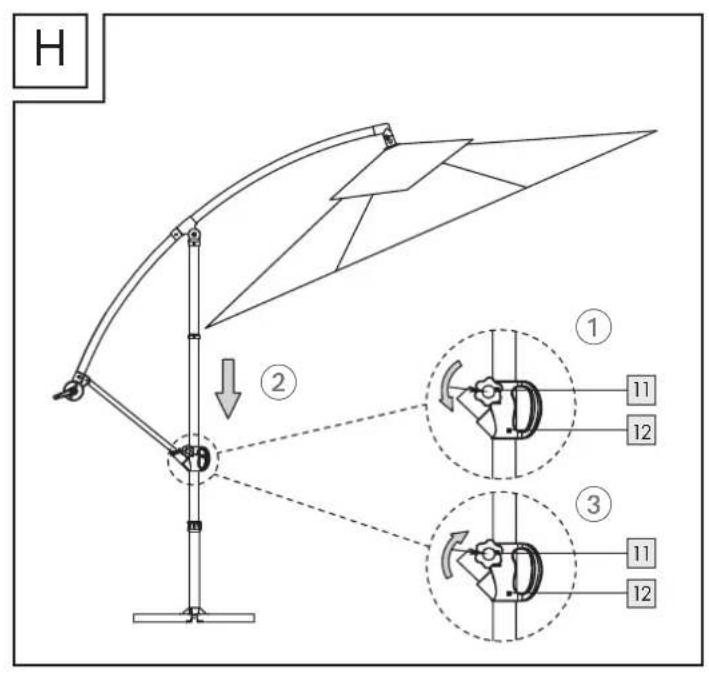

☐ Release the lock on the handle ^2 by turning the locking knob 11 anticlockwise until the handle 12 moves freely (see Figure H, step ①).
☐ Push the handle 12 downwards until the desired inclination angle is reached (see Figure H, step ②).
☐ Lock the handle 12 in place with the locking knob 11. To do this turn the locking knob 11 in the clockwise direction to tighten it (see Figure H, step 3).

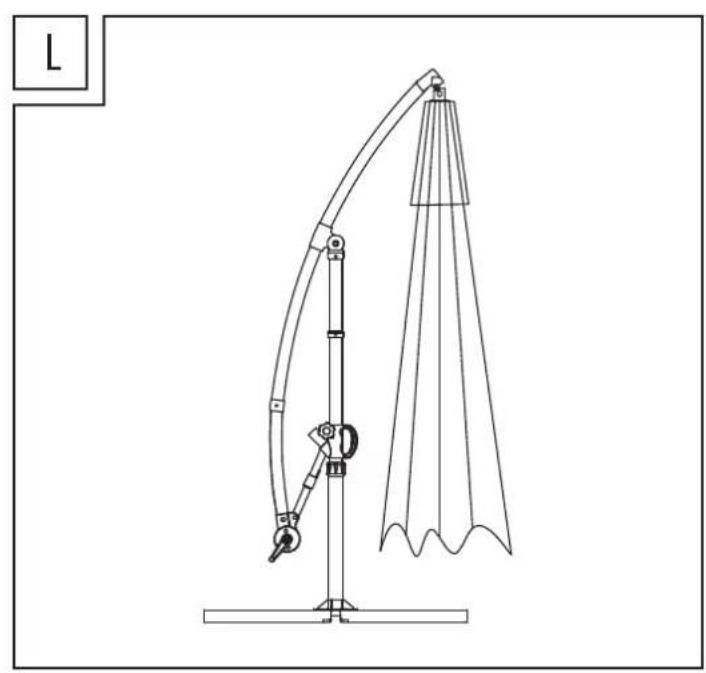

- Closing the umbrella top, moving the hanging umbrella

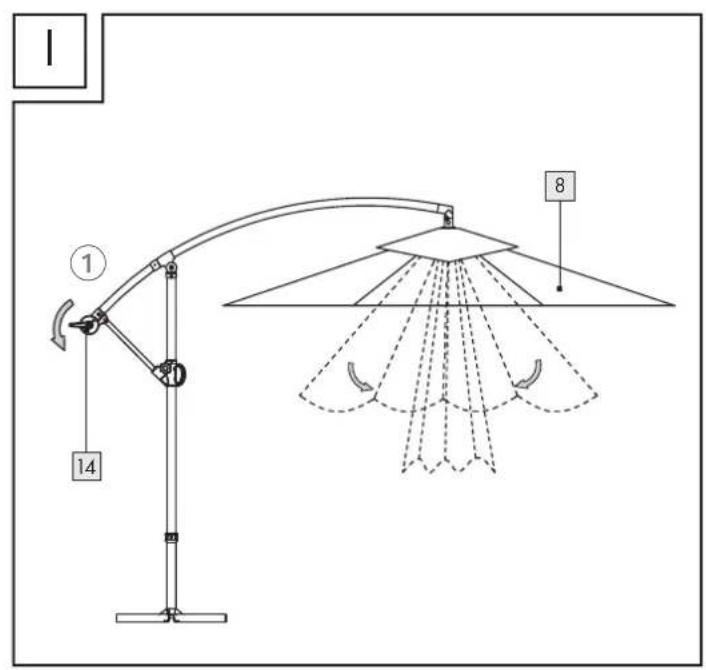

Turn the cran14 anticlockwise until the umbrella top 8 is completely closed (see Figure I, step ①).

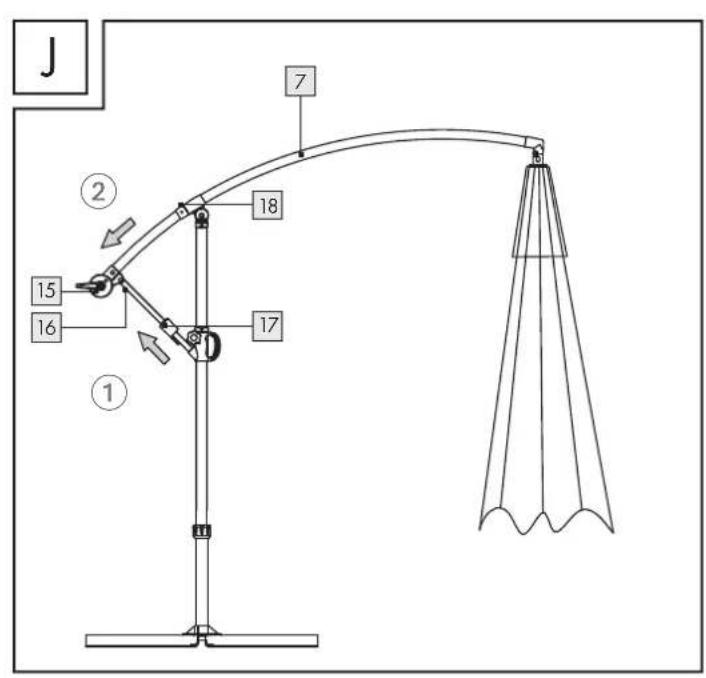

☐ Push the plastic sleeve ^17 on the support rod 16 upwards (see Figure J, step ①).
☐ Pull the arm7 on the crankcase 15 downwards (see Figure J, step ②).

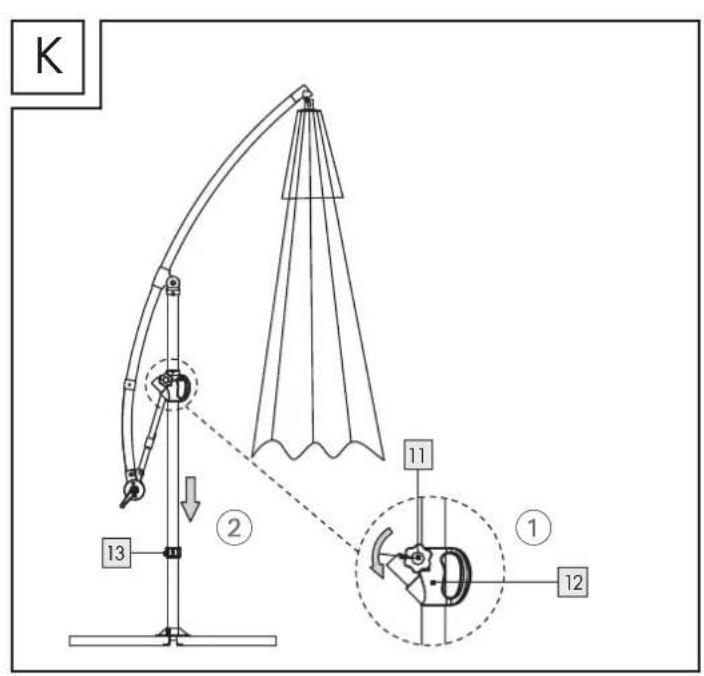

☐ Release the lock on the handle ^12 by turning the locking knob 11 anticlockwise until the handle 12 moves freely (see Figure K, step ①).
☐ Push the handle ^12 downwards until it lies against the union nut ^13 (see Figure K, step ②).

- Cleaning and maintenance

□ Clean this product with a slightly dampened, lint-free cloth.
Store the product in winter in a cool, dry place - avoid storing the product in a heated room.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

PARASOL DÉPORTÉ
