Product type	Table lamp
Brand	Livarno Lux
Model	IAN 292054
Usage	Indoor, dry and enclosed rooms
Power supply	230–240 V~, 50 Hz
Lamp socket	E14
Included bulb	LED E14, max. 4 W
Protection class	II
Body material	Metal and plastic
Number of decorative slats	16
Number of rings	2 (upper and lower)
Switch	On/Off on cable
Cable length	Approx. 1.5 m (estimation)
Warranty	36 months
Maintenance	Dry, lint-free cloth, do not use water
Spare parts available	LED E14 bulb (max. 4 W), slats
Dimmer compatibility	Not suitable for dimmers
Article numbers	14129506L, 14129501L, 14129504L
Customer service	[e-mail], +49 (0) 29 61 / 97 12-800

Frequently Asked Questions - IAN 292054 Livarno Lux

How to assemble the lamp?

Insert the bulb into the socket by turning clockwise. Place the slats one by one into the lower ring, then insert the upper ring. Distribute the slats evenly. Plug in the power cord.

What type of bulb to use?

Use exclusively an E14 LED bulb with a maximum power of 4 W. Do not use halogen or incandescent bulbs.

Can I use a dimmer with this lamp?

No, this lamp is not suitable for dimmers or electronic switches.

How to replace the bulb?

Turn off the lamp and unplug it. Allow it to cool. Remove 3-4 slats to access the bulb. Unscrew the old bulb counterclockwise and screw in the new one clockwise. Reassemble the slats.

How to clean the lamp?

Use a dry, lint-free cloth or a duster. Never use water, solvents, or abrasive products. Always unplug the lamp before cleaning.

Does the lamp get hot?

Yes, the bulb and surfaces can become hot. Allow to cool before touching or replacing the bulb. Do not cover the lamp.

Can I use the lamp outdoors?

No, this lamp is designed exclusively for indoor use in dry and enclosed rooms.

What to do if the lamp does not turn on?

Check that the plug is properly inserted and the bulb is screwed in correctly. If the problem persists, test another bulb or contact customer service.

Are there risks for children?

Do not let children play with the packaging or the lamp. Children under 8 years must be supervised. The lamp can be used by children over 8 years under supervision.

How to dispose of the lamp at end of life?

Do not throw the lamp in household waste. Take it to a recycling center or collection point for electrical appliances. The packaging is recyclable.

USER MANUAL IAN 292054 Livarno Lux

Product display of a modern LED table lamp with geometric glass panels and metal base, shown alongside three inset views (no text or symbols on the lamp itself)

LED-TISCHLEUCHTE/ LED DESK LAMP / LAMPE DE TABLE À LED

DE AT CH

LED-TISCHLEUCHTE

Operation and Safety Notes

NL BE

LED-TAFELLAMP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and Safety Notes Page 11

B

Intended use......Page 12

Scope of delivery Page 12

Description of Parts Page 13

Technical Data Page 13

Safety Page 13

Safety notices....Page 13

Initial Use......Page 14

Assembling the light....Page 14

Switching the light on/off......Page 14

Changing the light bulb....Page 14

Maintenance and Cleaning......Page 14

Disposal Page 15

Warranty and Service......Page 15

Warranty Page 15

Service address......Page 15

Declaration of conformity....Page 15

Manufacturer....Page 15

List of pictograms used
	Read the instructions!		Observe the warning and safety instructions!
	This light is only suitable for indoor use in dry and enclosed spaces.		Danger to life and risk of accident for infants and children!
	Volt (AC)		Electric shock warning!Danger to life!
	Hertz (mains frequency) Safe working
	Watt (effective power)		Caution! Risk of burns due to hot surfaces!
	Safety class II	[IMAGE]	Dispose of packaging and device in an environmentally-friendly way!
	Operating life		Switching cycles
1s	Turn-on time refers to the time the lamp requires to light up consistently after it has been supplied with voltage.		This light is not suitable for dimmer or electronic switches.

LED Desk Lamp

- Introduction

Congratulations on your new product. You have selected a high quality product. The instructions for use are a part of the prod-

uct. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this product on to others, please be sure to include all its documentation. Before using this product for the first time verify the correct voltage and that all parts are properly installed.

- Intended use

This light is only suitable for indoor use in dry and enclosed spaces. This product is intended for private household use only.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 Table lamp 14129506L, 14129501L, 14129504L

1 Ring

16 Slats

1 LED light bulb

1 Set of assembly instructions and instructions for use

• Description of Parts

1 Light bulb
2 Upper ring
3 | Slat
4 Lamp socket
5 Lower ring
6 Lamp base
7 ON/OFF SWITCH
8 Mains plug

- Technical Data

Item no.: 14129506L, 14129501L, 14129504L

Operating voltage: 230–240 V\~, 50 Hz

Lampsocket:E14

Protection class: II/

Bulb: LED E14, max. 4 W

Safety

Safetynotices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! RISK OF FATAL INJURY AND ACCIDENT HAZ-ARD FOR TODDLERS AND SMALL

CHILDREN!

Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, when supervised or instructed in the safe use of the

device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

RISK OF INJURY!

Do not leave the lamp or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children.

Avoid the risk of fatal injury from electric shock

■ Always check the mains plug for damage before connecting the light to the mains. Never use the light if it shows any signs of damage.
In the event of damage, repairs or other problems with the light, please contact the service centre or an electrician.
- Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open or insert anything into electrical fittings or equipment (e.g. switches, fitting socket). This will pose a risk of fatal injury from electric shock.
■ Only touch the insulated area of the mains plug when connecting to or disconnecting from the mains!
To prevent hazards, a damaged flexible outer lead of this light may only be exchanged by the manufacturer, his service representative or by an equally qualified specialist.
Before every use, verify the available mains voltage matches the required operating voltage of the light (see „Technical Data“).
■ Always unplug the mains plug, respectively, from the mains prior to assembly, disassembly, cleaning, or when the light will not be used for extended periods.
- Do not install the light on a damp or conductive surface.
This light is not suitable for dimmer or electronic switches.

Safe working

■ Position the lamp so it is protected from moisture and dirt.
■ Always be attentive! Always pay attention to what you are doing and use common sense.
Do not cover the lamp with objects. Excessive heat can result in fire.
Do not look into the illuminant from a close distance during operation.
Do not use optical instruments to look at the light source (e.g. magnifying glass).
In order to disconnect the light completely from the power supply, the mains plug must be removed from the socket.
Only use the LED light bulbs specified in the chapter „Technical Data“.

- Initial Use

• Assembling the light

Note: Please remove all packaging material from the product before assembly.

☐ Use a clean, lint-free, dry cloth to insert the light bulb 1.
☐ Screw the light bulb 1 clockwise into the lamp socket 4.

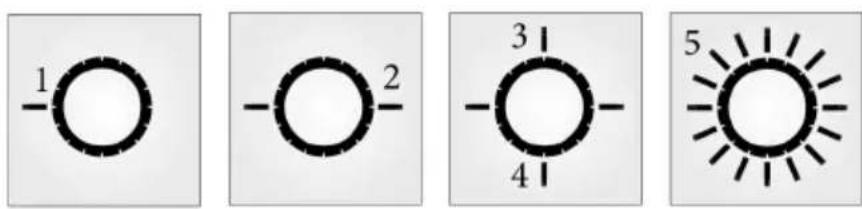

Take a slat 3 and carefully insert it with the curve pointing downwards and outwards into the lower ring 5.
□ Then fit the upper ring 2 into the slat 3.
☐ You can now insert another slat 3 on the opposite side. Ensure that the spacing between the slats 3 is correct (see Fig. B).

Note: Be careful not to damage the light bulb

☐ Assemble another two slats 3 each at approx. 90° on the upper ring 2 and lower ring 5.
□ Now insert all the other slats 3 into the rings 2, 5.
☐ Plug the mains plug 8 into a properly installed socket.

Your light is now ready to use.

- Switching the light on / off

☐ Switch the light on and off by pressing the on / off switch 7.

● Changing the light bulb

□ Switch the light off using the on / off switch 7.

WARNING! DANGER OF ELECTRIC SHOCK!

Unplug the mains plug 8 from the socket.

⚠️ CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the light to cool down completely.

□ Carefully remove 3-4 slats 3.
☐ Use a clean, lint-free, dry cloth when replacing the light bulb 1.
□ Unscrew the defective light bulb 1 from the lamp socket 4, turning counter-clockwise.
☐ Only use the light bulbs specified in chapter "Technical Data".
☐ Screw a new light bulb clockwise into the lamp socket 4.
□ Carefully assemble the removed slats 3.
☐ Plug the mains plug 8 into a properly installed socket.

Your light is now ready to use.

● Maintenance and Cleaning

☐ Switch the light off using the on / off switch 7.

WARNING! RISK OF ELECTRIC SHOCK!

First remove the mains plug 8 from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the lamp to cool down completely.

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

Do not use solvents, benzene or similar substances. They could damage the light.

☐ Use a cloth or a duster to clean the light.
☐ Plug the mains plug 8 into a properly installed socket.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty and Service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period,

please send the appliance to the listed Service Centre address, referencing the following item number: 14129506L/14129501L/14129504L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
