Powericer ECO 3 - Ice Maker Klarstein - Free user manual and instructions

Brand	Klarstein
Model	Powericer ECO 3
Product type	Ice cube maker
References	10029294 (30 kg/24h), 10029295 (40 kg/24h)
Power supply	220-240 V ~ 50 Hz
Ice production	30 kg/24h (10029294) or 40 kg/24h (10029295)
Ice basket capacity	3 kg (10029294) or 8 kg (10029295)
Dimensions (W x D x H)	410 x 380 x 480 mm (10029294) or 410 x 380 x 580 mm (10029295)
Weight	Not specified
Refrigerant	R600a (Isobutane), flammable but environmentally friendly
Transparent window	Yes
Removable water tank	Yes
Removable ice basket	Yes
Ice scoop included	Yes
Ice cube size selector	Small (S) or Large (L), SELECT button
Water level indicator	ADD WATER (light display)
Full basket indicator	ICE FULL (light display + beep)
Automatic stop	Yes, when basket is full or water shortage
Cleaning	Water and vinegar solution, rinse with clean water
Maintenance	Change water every 24 hours, clean interior and evaporator regularly
Safety instructions	Plug into a grounded outlet, indoor use only, do not submerge in water

Frequently Asked Questions - Powericer ECO 3 Klarstein

How to start the ice cube maker?

Fill the tank with drinking water (not distilled water) up to the MAX mark, plug in the appliance, select the ice cube size using the SELECT button (S for small, L for large) then press START.

What to do if the ADD WATER light comes on?

This means the tank has too little water. Press STOP, fill with drinking water up to the MAX mark, then press START again.

Why are my first ice cubes small or irregular?

This is normal during the first three uses. After about 60 minutes of operation, the ice cubes will be normal and regular in size.

How to clean the ice cube maker?

Unplug the appliance and remove all ice cubes. Clean the interior and exterior with a water and vinegar solution. Do not use chemicals, gasoline or petroleum. Rinse with clean water before restarting.

What to do if the machine does not produce ice cubes even though it is running?

Check if the water inlet tube is blocked: remove the tube from the evaporator, remove the plug, run water to clean it, then reassemble. If the problem persists, contact a specialist.

Can I use distilled water?

No, it is recommended to use drinking water. Distilled water may disrupt the operation of the machine.

How to change the ice cube size?

Before starting or during operation, press the SELECT button to alternate between small (S) and large (L) size. The default size is L.

What to do if the compressor makes an unusual noise?

This may be due to an electrical voltage that is too low. Stop the appliance and plug it into an outlet corresponding to the indicated voltage (220-240 V ~ 50 Hz).

How to drain the remaining water?

Unscrew the cap at the water outlet (located at the back) to drain the excess water. Once emptied, screw the cap back on.

Should the machine be unplugged after use?

Yes, for safety reasons, always unplug the appliance after use and before any cleaning or maintenance.

USER MANUAL Powericer ECO 3 Klarstein

INHALTSVERZEICHNIS

Technical line drawing of a gas delivery device with labeled parts A and B (no text or symbols beyond labels)

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 16

Product Overview 18

Use and Operation 20

Cleaning and Care 22

Troubleshooting 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10029294 10029295
Power supply 220-240 V ~ 50 Hz
Ice making Capacity 30 kg / 24 hours 40 kg / 24 hours
Ice Storage Capacity 3 kg 8 kg
Dimensions 410 x 380 x 480 mm 410 x 380 x 580 mm

SAFETY INSTRUCTIONS

• Check that the mains voltage corresponds to the rating of the appliance before operating.
• Use handles or knobs when moving. Place on a flat stable surface for use. Do not use outdoors.
• Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
• Unplug from socket outlet when not in use.
  • To protect against electric shock, do not immerse cord or plug in water or any other liquid.
• The use of accessory attachments not recommended by the appliance manufacturer, may cause injury.
• Do not locate this appliance immediately below a socket outlet.
• Do not allow cord to overhang the counter top where it can be easily pulled by children.
• Do not use this appliance for anything else other than its intended use.
• Do not overfill as this may cause a hazard. Ensure lid is closed when in operation
• To remove plug from outlet, do not pull on supply cord. Grasp plug firmly and pull to remove.
• No liability can be accepted for any damage caused by non compliance with these instructions or any other improper use or mishandling. This appliance is for household use only
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is not intended to be immersed in water.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Fill with potable water only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Danger from fi re/fl ammable materials. Please observe the local regulations for the disposal of units with fl ammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

PRODUCT OVERVIEW

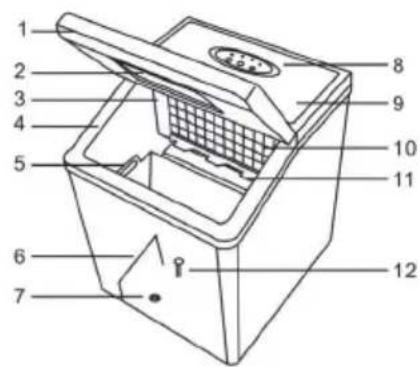

Model 10029294

1	Front Lid	9	Back Top Cover
2	Viewing Window	10	Evaporator
3	Evaporator Bracket	11	Icefull Sensor Plate
4	Middle Frame(Water Tank)	12	Water Level Buoy

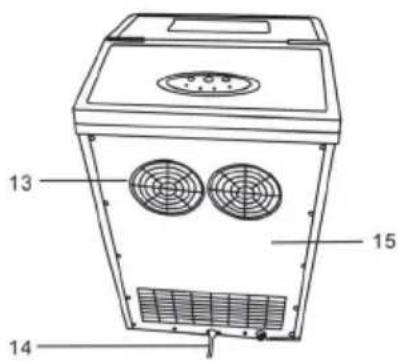

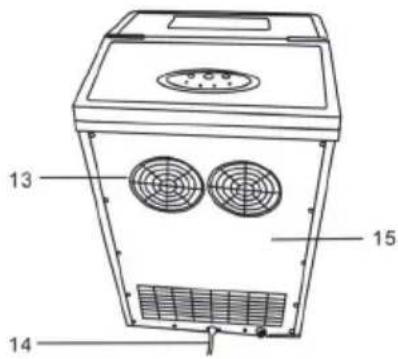

5	Ice Basket	13	Fan Cover
6	Division Plate	14	Plug
7	Silicon Stopper	15	Back Cover
8	Control Panel
1	Front Lid	10	Evaporator
2	Water Level Bouy	11	Icefull Sensor Plate
3	Water Pump	12	Handle
4	Water Receiver	13	Fan Cover
5	Middle Frame	14	Plug
6	Front Shell	15	Back Cover
7	Control Panel	16	Drain Pipe
8	Back Top Cover	17	Water Inlet Hole
9	Viewing Window

Control Panel (both items)

ICE FULL S L ADD WATER START SELECT STOP
START Press to turn unit on.
STOP Press to turn unit off.
SELECT Ice size selection (S) Small or (L) Large.) The default setting is Large.
ADD WATER	If this comes on press STOP, add water and press START to restart the Ice maker.
ICEFULL	If this light comes on the ice has reached the maximum capacity of the storage cabinet.

USE AND OPERATION

Before first Use

• During transportation, the incline angle of the cabinet should not be over 45^ . Do not turn the ice maker upside down, as this may damage the compressor and sealed system.
• Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
• The ice maker should be placed horizontally on a level surface. To ensure proper ventilation for your ice maker allow 150 mm of space at the top, the back and on each side. Do not install the ice maker near an oven, radiator, or any other heat source. Before using the ice maker for the first time, please wait 2 hours after positioning it, and keep the front lid open for at least 2 hours
• Ensure that the voltage indicated on the ice maker corresponds with the voltage in your home.
• Pure water is not allowed to be used on this unit, spring water is recommended.

Operation

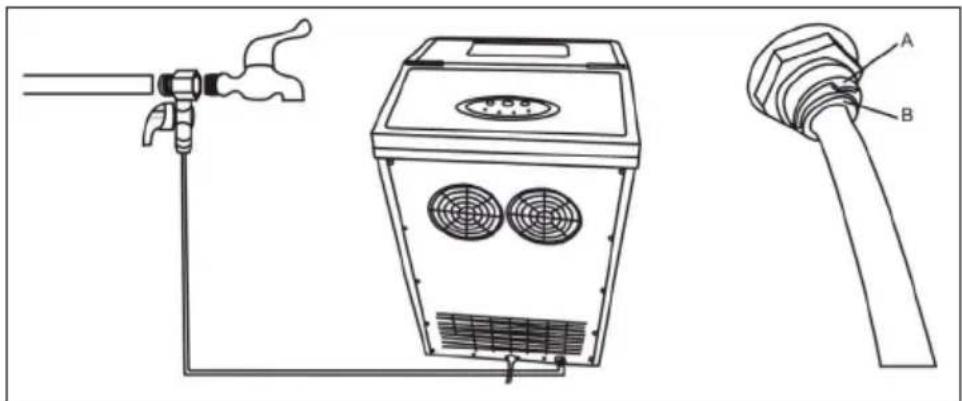

1. If filling water by manual (10029294), take out of the ice basket, then add water to the tank directly, please make sure the water is not over the MAX line. If filling water automatically (10029295), connect the external water pipe at back of unit with the water tape as follows.

Technical line drawing of a gas station with labeled components (no text or symbols beyond labels A, B, and diagram elements)

1. Plug in.

2. Select desired ice cube size by pressing "SELECT". Note: Please select the (S) when ambient temperature is below 15 °C.

3. Press "START" button to turn unit on. The ice maker begins to work. Note: For the first three cycles, the ice may be small and irregular in size, and it would last for longer time, maybe even around 60 minutes.

4. If indicator, ICEFULL' is in red with noise, DI DI', please take out the ice with the scoop.

5. Press, STOP' button to stop the machine.

6. Remove the drain plug to drain remaining water from the water reservoir. Screw the drain plug back in place after the water has been drained.

CLEANING AND CARE

- Clean the inner liner, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Do not spray Ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.

- Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- If the machine is reused after a long time, maybe the water pump cannot pump sufficient water due to the air inside, the ADD WATER water indicator light will turn on in this case. To correct this press the START button again, then the machine will work normally.

- To ensure the cleanliness of the ice cubes, water in the water reservoir should be replaced every 24 hours.

- If the compressor stops for any reason such as water shortage, too much ice, power off, etc... Do not start the system right away, wait 3 minutes, and then re-start the ice maker.

- Always change with fresh water before starting ice production at initial installation or after long shut-off periods.

TROUBLESHOOTING

Please note, if the water filled to the evaporator is not symmetrical, small sundries maybe be formed and lod- ged in the pipe which will mean that water will be filled to the evaporator causing it to jam. Please pull out the cap of the pipe, then let the water through the pipe in order to clean the pipe, then you can replace the cap. It will make formal ice cubes.

Problem Possible Cause Solution
The compressor works abnormally with a buzzing noise.	The voltage is lower than recommended.	Stop the Ice maker and do not restart until the voltage is normal.
The light of ADD WATER is on.	There is no water or water is not enough.	Press the "STOP" button, fill with water, and press the "START" button again to restart.
Indicator light on the display is not on.	Control panel wire line is loosen.	Call for service.
	Control panel is broken.
The water is flowing,ice is made,however no release of ice.	Temperature sensors are connected by mitake.	Call for service.
Everything is correct but no ice is made.	Refrigerant leaks. Call for service.
	Cooling system blocked.
Spray pipe jammed. Step 1:	Take down the spray pipe from the evaporator.
	Step 2: Take off the pipe plug from the spray pipe.
	Step 3: Let water flow from the pipe for a while. Fix the spray pipe from step 3 to step 1.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
