Product Type	Beverage Refrigerator (Cooler)
Brand	Klarstein
Model	CoolTour
Article Numbers	10031689, 10033687
Power Supply	220-240 V ~ 50/60 Hz
Annual Energy Consumption	187 kWh/year (48 L model)
Energy Efficiency Class	G
Total Capacity	48 L (model 10031689) or 36 L (model 10033687)
Approximate Dimensions (H × W × D)	515 × 440 × 510 mm (48 L model)
Adjustable Temperature Range	5 °C to 12 °C
Temperature Control	Rotary knob (MIN-MED-MAX)
Refrigerant	R600a (isobutane)
Climate Class	Temperate (16 °C to 32 °C)
Defrost	Automatic
Interior Light	Yes
Reversible Door	Yes (modifiable)
Adjustable Feet	Yes (up to 20 mm)
Noise Level	35 dB(A) (48 L model)
Manufacturer Warranty	24 months
Maintenance	Clean with a soft cloth and dishwashing liquid, do not use abrasive products or solvents
Safety	Do not damage the refrigerant circuit, keep away from sources of ignition (R600a flammable)

Frequently Asked Questions - CoolTour Klarstein

How to adjust the temperature of the Klarstein CoolTour refrigerator?

Turn the temperature control knob located inside. The adjustable temperature range is between 5 and 12 °C. The MIN, MED and MAX positions correspond to the warmest, intermediate and coldest temperatures respectively.

Can I change the door opening direction?

Yes, the door is reversible. Follow the steps in the manual: unplug the appliance, remove the covers and screws, reverse the upper and lower hinges, then reassemble the door on the other side. A detailed diagram is provided.

What to do if the refrigerator does not cool?

First check that the appliance is plugged in and the socket works. Make sure the fuse has not blown. If the voltage is correct, check that ventilation is adequate (5 cm on the sides, 10 cm at the back) and that the door closes properly.

How to clean my CoolTour refrigerator?

Unplug the appliance. Use a soft cloth dampened with soapy water (dishwashing liquid) to clean the interior and exterior. Rinse with clean water and dry. Clean the shelves and door gasket with warm soapy water. Never use abrasive products or solvents.

Why does my refrigerator make liquid noises?

These noises are normal: they are caused by the circulation of the refrigerant R600a. This natural gas is slightly louder than others, but it does not affect the performance of the appliance.

Can I freeze food in the CoolTour?

No, this appliance is a beverage refrigerator and is not designed for freezing. It is intended for storing beverages only.

What is the warranty of the Klarstein CoolTour refrigerator?

The minimum warranty period offered by the manufacturer is 24 months.

How to adjust the height of the appliance?

The four adjustable feet allow height adjustment up to 20 mm. Turn the feet to level the appliance on a horizontal floor.

How to save energy with this refrigerator?

Place the appliance away from heat sources and direct sunlight. Leave sufficient ventilation space. Open the door as little as possible and do not place hot food inside. The shelves are pre-installed for efficient energy use.

Is the refrigerant R600a dangerous?

R600a (isobutane) is a flammable natural gas but very environmentally friendly. Do not damage the refrigerant circuit. In case of a leak, ventilate the room and avoid any source of ignition. The warning symbol is located on the back of the appliance.

USER MANUAL CoolTour Klarstein

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 18

product description 20

Use and Operation 21

Reversing the Door Swing 21

Important Notes on Use 22

Care and Cleaning 23

Troubleshooting 23

Product Data Sheet 24

Product Data Sheet 26

Disposal Considerations 28

Manufacturer & Importer (UK) 28

TECHNICAL DATA

Item number 10031689, 10033687
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Defrost the freezer at least once a month because too much frost may affect refrigeration.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is fl ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special Notes

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip on other foods.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of drinks.
- This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
• This appliance is not suitable for freezing food.
- The shelves have been installed in advance to allow the most efficient use of energy.

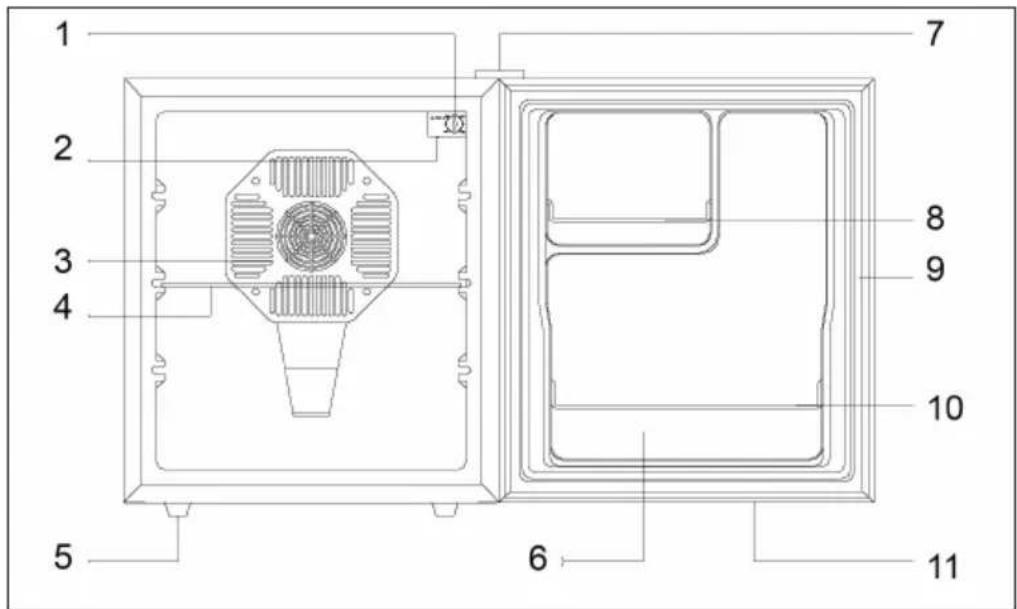

PRODUCT DESCRIPTION

1 Temperature Control Knob 7 Upper Hinge Cover
2 Interior Light 8 Small Rack
3 Cold Sink Fan Cover 9 Door Gasket
4 Shelf 10 Large Bottle Rack
5 Legs 11 Door
6 Door Liner

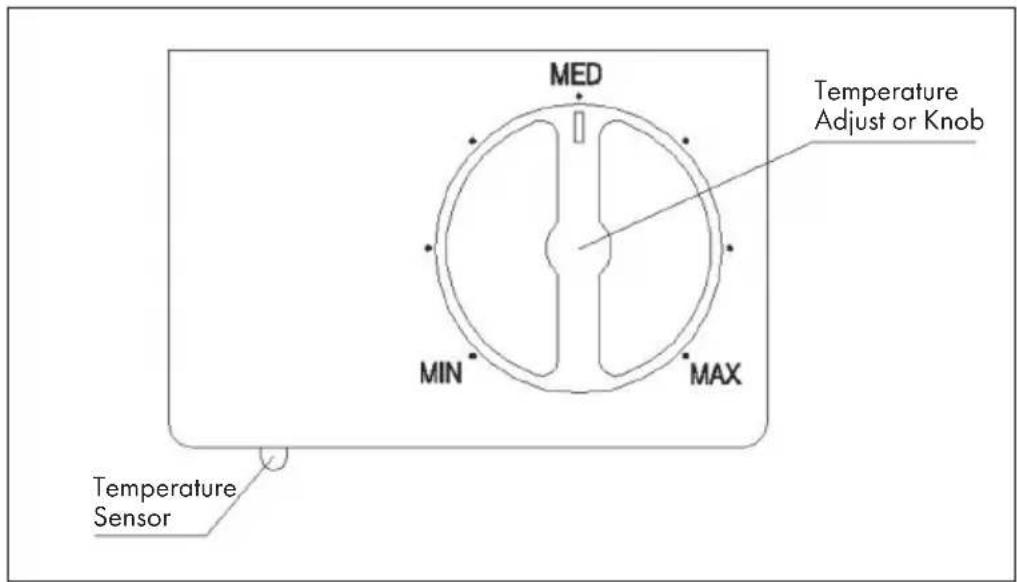

Temperature Control

USE AND OPERATION

1 Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth.
2 Clean the interior with a clean moist cloth.
3 Insert the power supply cord into the socket.
4 Tum the thermostat dial to „5“ or „low“.
5 Close the door and let the refrigerator and operate it empty for 1-2 hours, before you store any food inside.

When use for the first time (or not use for a long time), you should adjust the temperature to minimum and have the cabinet empty running for 2 hours, and then adjust to the desired temperature. When you want to change the temperature in the cabinet, You can make use of the temperature setting knob to set the temperature. The temperature range is 5^ C— 12^ C, after the temperature is set on one certain point and when the temperature inside reaches this point, the automatic temperature control system begin to work.

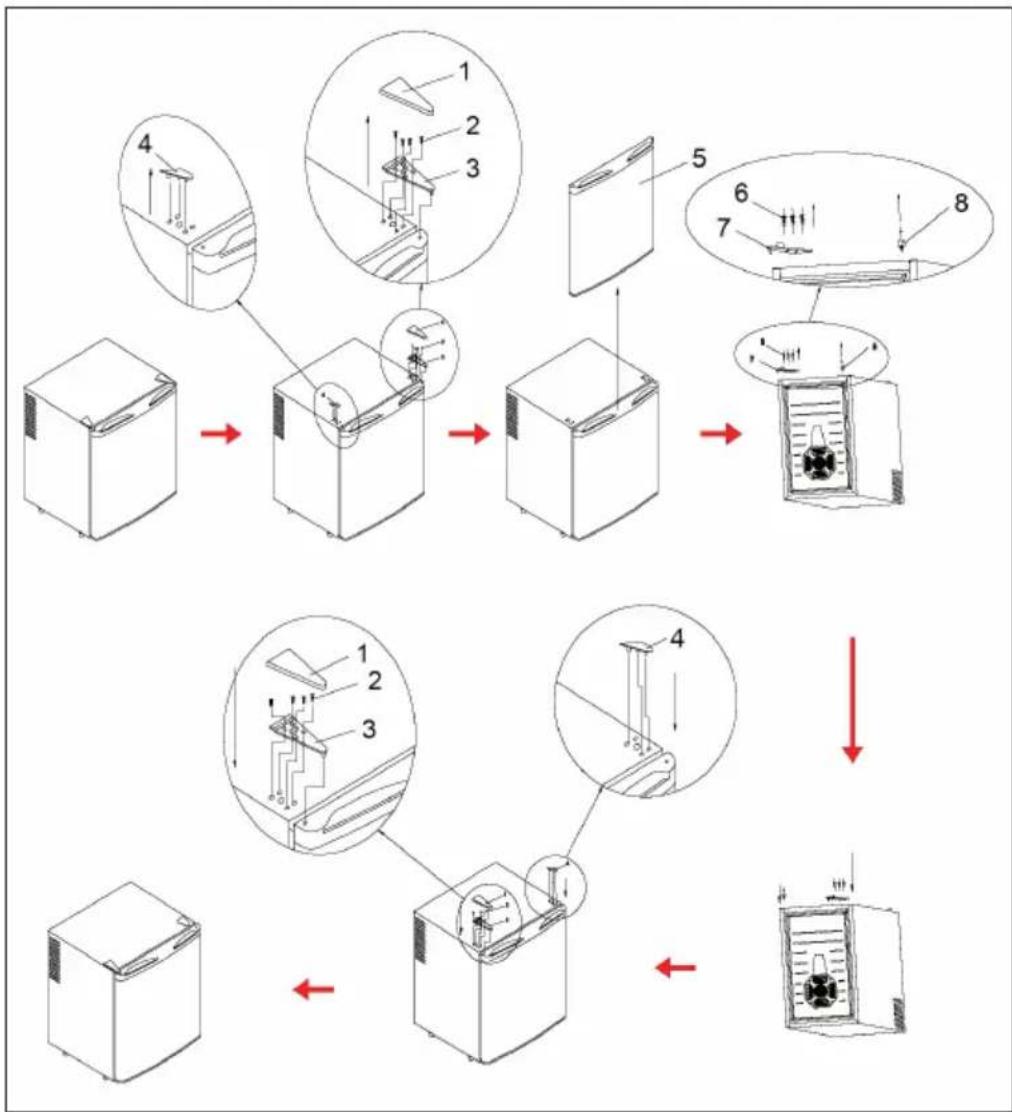

REVERSING THE DOOR SWING

This refrigerator has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call customer service for reversal instruction or the chart following the installation of an adjustment

1 Pull out the cover and 4 pcs screws, see step 1 and 2.
2 Take out upper hinge, see step 3.
3 Pull out the other cover, see step 4.
4 Take out the whole door, see step 5.
5 Pull out the 4 pcs screw and take out the down hinge, see step 6 and 7.
6 Pull out the feet on anther side, see step 8.
7 Fix the down hinge into another side which pull out the feet by step 8;
8 Fix the whole door into the down hinge; then fix the upper hinge by
9 screws, and fix the cover.

IMPORTANT NOTES ON USE

• Please unplug the refrigerator before moving.
• Please check if all the parts are available before installation.
• In order to get the best performance at its potential, this refrigerator needs to be placed on flat floor, with 5cm spaces from the wall at each side and 10 cm at the backside.
• The height of the refrigerator can be adjustable by adjusting the four legs, but cannot be over 20 mm of each.
• Keep ventilation holes clear, and keep at a distance of 50 mm from surroundings.
  • Hot food should be cooled down before placing in the refrigerator.
• Please keep away from the heat resources or gas.
• Avoid direct sunshine and carry high temperature.
• Do not place heavy articles on the top of the refrigerator.

CARE AND CLEANING

• Before cleaning remove the plug from the power outlet. Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.
• Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing use silicon wax.
• Refrigeration Section: Wash shelves and other removable parts in warm sudsy water. Rinse and dry. Wash interior with baking soda solution (3 tablespoons to 1 liter of water) or warm sudsy water, rinse and dry.
  • Magnetic Door Seals: Wash with warm sudsy Water.
• The Finishing Touch: Replace all parts and return thermostat dial to desired setting.

TROUBLESHOOTING

Problem Possible	Cause Suggested Solution
No cooling. Plug	not put in. Put in the plug.
	Low voltage. Ensure normal voltage.
	Fuse broken. Change fuse.
Not cold enough temperature inside.	The refrigerator is placed too near heat source.	Keep the refrigerator away from sunshine or other heat source.
	Bad ventilation. Place the refrigerator in the area with good ventilation and keep things away from the fans;
	Fans don’t work. Check whether the plug is connected or change the fan.
	The door is not closed tightly or opened too frequently or for too long time.	Close the door tightly and don’t open the door too frequently or for too long time.
Peculiar smell inside Refrigerator.	Check whether there is any sour inside.	Wrap the source or take it out

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10031689A
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 515		Total volume (dm3 or L)	48Width 430
	Depth	510
EEI		244	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		187 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 48 17 - A
Wine storage No - - -
Cellar No - - -
Fresh food No - - -
Chill No - - -
0-star or icemaking No - - -
1-star No - - -
2-star No - - -
3-star No - - -
4-star No - - -
2-star section	No - - -
Variable temperature compartment	-	- - -
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10033687A
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 510		Total volume (dm3 or L)	36Width 430
	Depth 410
EEI		210	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		160	Climate class:	temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 36 17 - A
Wine storage No - - -
Cellar No - - -
Fresh food No - - -
Chill No - - -
0-star or icemaking No - - -
1-star No - - -
2-star No - - -
3-star No - - -
4-star No - - -
2-star section	No - - -
Variable temperature compartment	-	- - -
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente:

ÍNDICE

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Chère cliente, cher client,

SOMMAIRE

CONSIGNES IMPORTANTES D' UTILISATION

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile Cliente,

INDICE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

KLARSTEIN
