Product Type	Sliding Cross Cut Mitre Saw
Model	PZKS 1500 B2
Rated Voltage	220-240 V ~ 50 Hz
Power Consumption	1500 W (S6, 25% duty cycle)
No-Load Speed	5000 min⁻¹
Saw Blade Size	∅210 x 2.6 x ∅30 mm, 24 teeth
Mitre Cutting Range	0° to 45° left and right
Bevel Cutting Range	0° to 45° left
Max. Cutting Capacity (0°/0°)	340 x 62 mm
Max. Cutting Capacity (45°/0°)	240 x 62 mm
Max. Cutting Capacity (0°/45°)	340 x 34 mm
Max. Cutting Capacity (45°/45°)	240 x 34 mm
Laser Class / Output	Class 2, ≤1 mW, λ: 650 nm
Protection Class	II (Double insulated)
Weight	Approx. 13 kg
Sound Pressure Level	98.8 dB(A) (K=3 dB)
Sound Power Level	111.8 dB(A) (K=3 dB)
Vibration Level (handle)	≤2.5 m/s² (K=1.5 m/s²)
Minimum Workpiece Size	140 x 50 mm
Dust Extraction Connection	35 mm hose compatible

Frequently Asked Questions - PZKS 1500 B2 PARKSIDE

How do I change the saw blade on the PZKS 1500 B2?

First, disconnect the saw from power. Raise the machine head to the upright position. Loosen the cover plate screw with the 4 mm Allen key (do not remove it). Hold the release lever to the right, rotate the cover plate upward, and raise the movable blade guard to expose the flange bolt. Use the 6 mm Allen key to turn the flange bolt clockwise while pressing the saw shaft lock until it engages. Continue holding the lock and loosen the flange bolt. Remove the flange bolt and outer flange, then take off the saw blade. Clean the flanges, fit the new blade (ensuring rotation direction matches the arrow), and reassemble in reverse order. Always check that the blade spins freely in the table insert at 0° and 45°.

How do I adjust the mitre angle?

Loosen the mitre lock handle (10) by turning it counter-clockwise. Press the mitre detent lever (11) and turn the turntable (15) to the desired angle. The mitre scale (14) shows angles. For preset angles (45°, 30°, 22.5°, 15°, 0°), release the detent lever to lock into the detent. For custom angles, simply tighten the mitre lock handle to secure the turntable in position.

How do I adjust the bevel angle?

First ensure the turntable is locked at 0°. Loosen the bevel locking screw (27). Use the handle (1) to tilt the machine head (4) to the left until the bevel angle pointer (24) indicates the desired angle on the bevel angle scale (23). Re-tighten the bevel locking screw. The bevel range is 0° to 45° left.

How do I use the laser guide?

To turn on the laser, move the ON/OFF switch for the laser (31) to the 'I' position. A laser line will project onto the workpiece, indicating the cut line. To turn off, switch to '0'. If the laser drifts, you can adjust it by loosening the screws (39) and moving the laser module sideways so the beam strikes the saw blade teeth. Never stare into the laser beam.

What safety precautions should I take when using this saw?

Always wear safety goggles, ear-muffs, and a breathing mask. Keep hands away from the blade. Use the clamping device to secure workpieces. Ensure the blade guard moves freely and retracts automatically. Never reach into the running blade. Disconnect power before maintenance. Do not use damaged blades. Keep work area clean and well-lit. Follow all instructions in the manual.

How do I perform a crosscut at 90°?

Set the turntable to 0° using the mitre detent. For cuts up to 100 mm, lock the drag guide (25) in the rear position. Push the machine head back, place the workpiece against the stop rail, and clamp it. Lower the head with steady pressure while pressing the ON/OFF switch. For wider cuts, keep the drag guide unlocked and pull the head forward before lowering, then push it back through the cut. Allow the head to rise slowly after the cut.

How do I make a bevel cut with mitre?

First set the mitre angle: loosen the mitre lock handle, press the detent lever, rotate the turntable to the desired angle, and tighten. Then set the bevel angle: loosen the bevel locking screw, tilt the machine head to the required angle, and re-tighten. Perform the cut as described for crosscutting, ensuring the workpiece is clamped and the blade guard operates correctly.

What maintenance does the saw require?

Regularly clean the saw, especially the ventilation slots and the area around the retracting blade guard. Remove sawdust and chips with compressed air or a brush. Check and replace carbon brushes every 50 hours initially, then every 10 hours; replace if worn to 6 mm length. Keep the guard roller, automatic extension fence, and turntable clean. Store in a dry, frost-free place.

Can this saw cut materials other than wood?

The saw is designed for crosscutting wood and plastic materials according to the machine's size. The supplied saw blade is intended only for wood. Do not cut metals or firewood. For plastic, always use clamps and ensure proper support. Using the saw for other materials may be unsafe and void the warranty.

How do I transport the saw safely?

Tighten the mitre lock handle to lock the turntable. Press the machine head down using the release lever and secure it with the fastening bolt (30) in the lowest position. Lock the drag guide with the locking screw (25) in the rear position. Carry the saw by the carry handle (22) or by the recessed handles on the sides of the saw table. Avoid carrying by the blade guard.

USER MANUAL PZKS 1500 B2 PARKSIDE

SLIDING CROSS CUT MITRE SAW PZKS 1500 B2

GB IE NI

SLIDING CROSS CUT MITRE SAW

Operation and Safety Notes

Translation of original operation manual

RO

FERĂSTRU PENTRU DEBITARE ȘI TĂIERI ÎNCLINATE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

HR

GB / IE/NI Operation and Safety Notes Page 1

HR	Prijevod originalnih uputa za uporabu	Stranica	19
RO	Instrucțiuni de exploatare originale	Pagina	38
BG	Оригинално ръководство за употреба	страница	59
GR	Прωτότυπες однүίες хрήσης	Σελίδα	86
DE/ AT/ CH	Bedienungs-und Sicherheitshinweise	Seite	108

Product photo of a parkside accessibility seat with adjustable legs and tools (no text or symbols visible)

Close-up of mechanical components with no visible text or symbols

Close-up of a mechanical tool with gear and circular components, no visible text or symbols

Table of contents

Explanation of the symbols on the equipment....Page 2

Introduction Page 3

Device description Page 3

Scope of delivery Page 4

Intended use Page 4

Safety information Page 5

Technical data Page 9

Before starting the equipment Page 10

Attachment and operation Page 10

Transport Page 15

Maintenance......Page 15

Storage Page 16

Electrical connection Page 16

Disposal Page 17

Warranty Page 17

Service-center Page 17

Declaration of conformity Page 18

Explanation of the symbols on the equipment

GB

Caution - Read the operating instructions to reduce the risk of inquiry

GB

Wear safety goggles!

GB

Wear ear-muffs!

GB

Wear a breathing mask!

GB

Important! Risk of injury. Never reach into the running saw blade!

LASER 2

EN 60825-1:2014 P ≤ 1 mW λ: 650 nm

GB

Attention! - Laser radiation Do not stare into beam! class 2 laser product laser specification according to EN 60825-1:2014 λ: 650 nm P ≤ 1 mW

GB

Protection Class II (double shielded)

GB

Danger area! Keep hands, fingers or arms away from this area.

1. Introduction

MANUFACTURER:

Ga-Po-Vertrieb GmbH

47906 Kempen, Germany

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
  • Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
  • Application other than specified
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

WE RECOMMEND:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

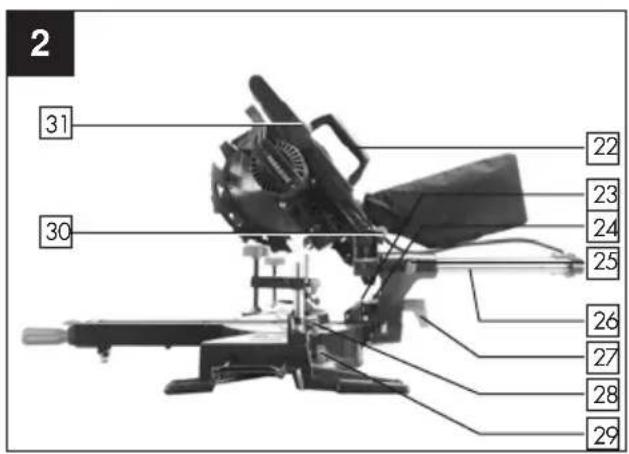

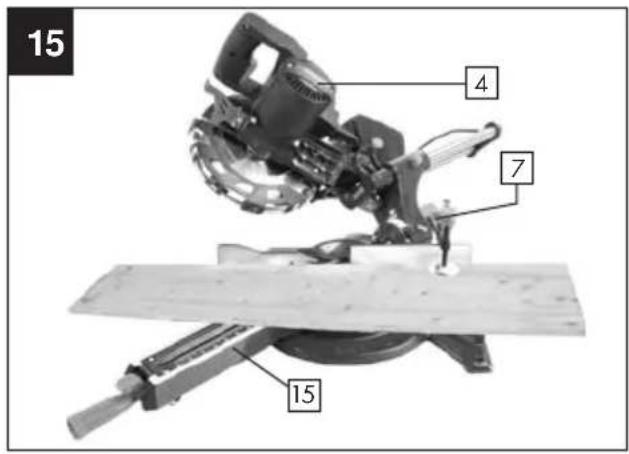

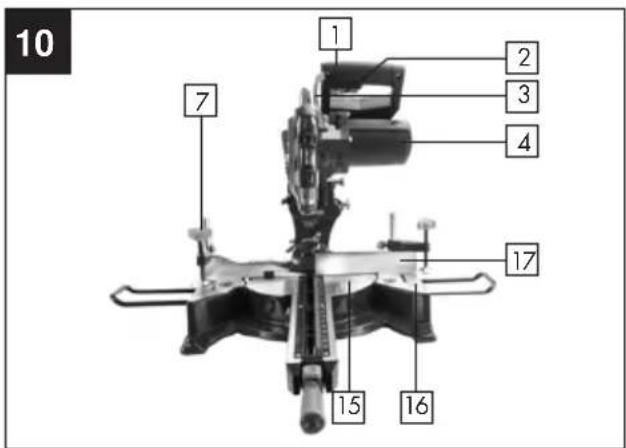

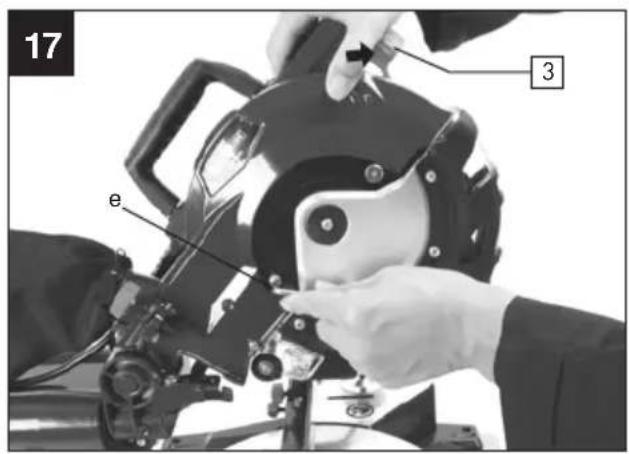

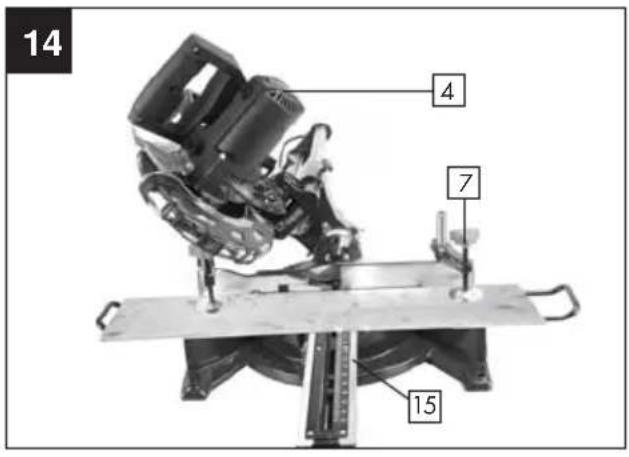

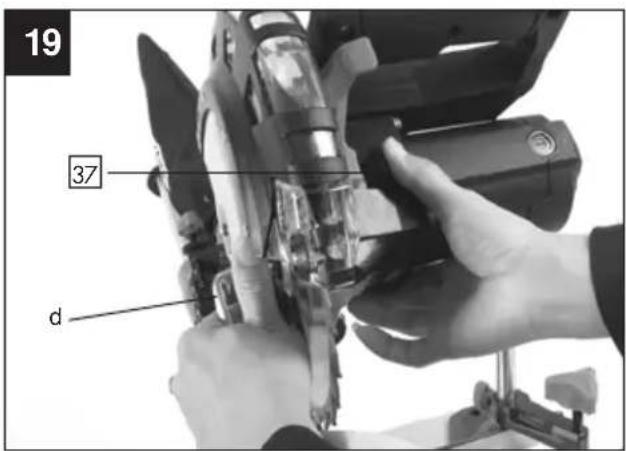

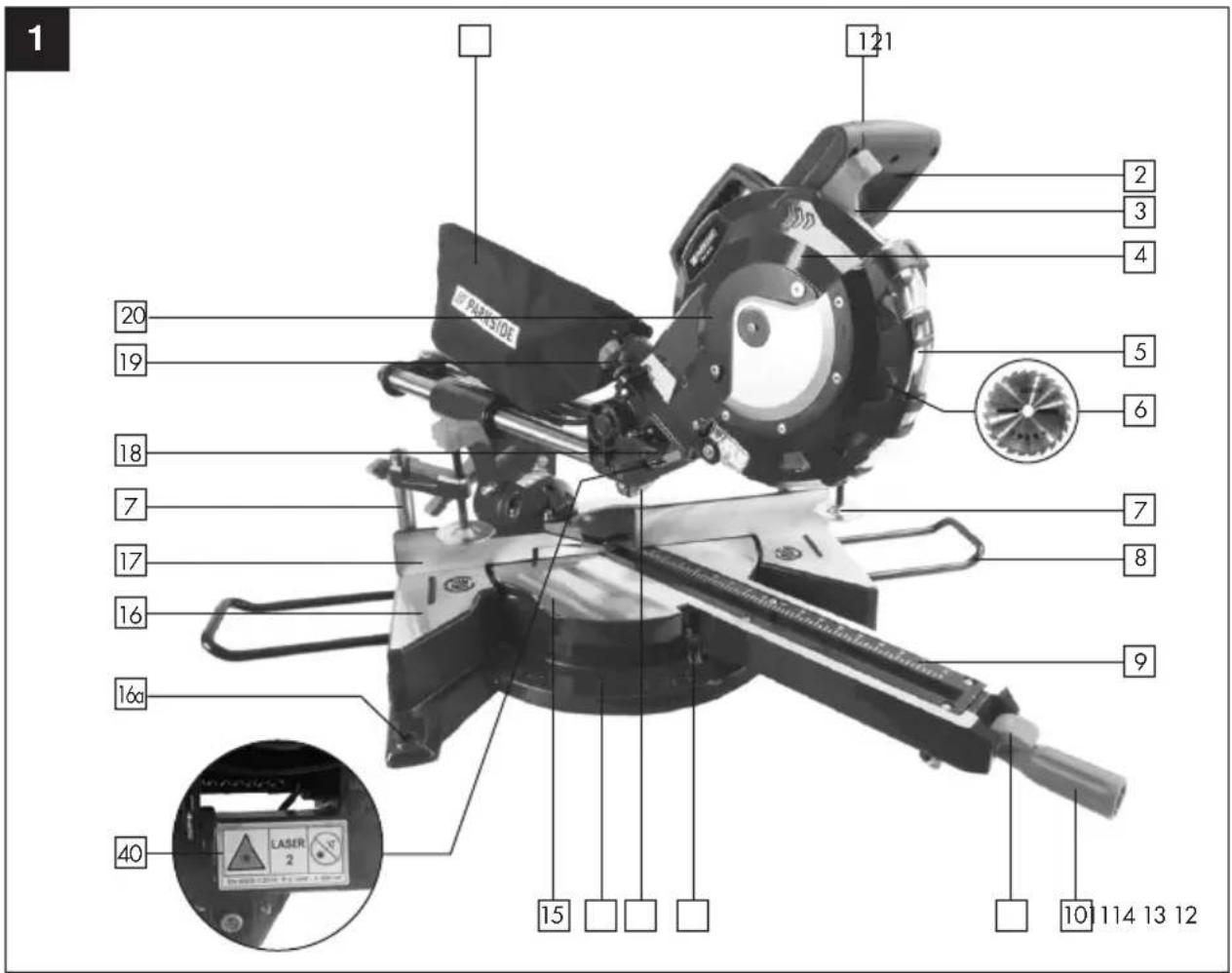

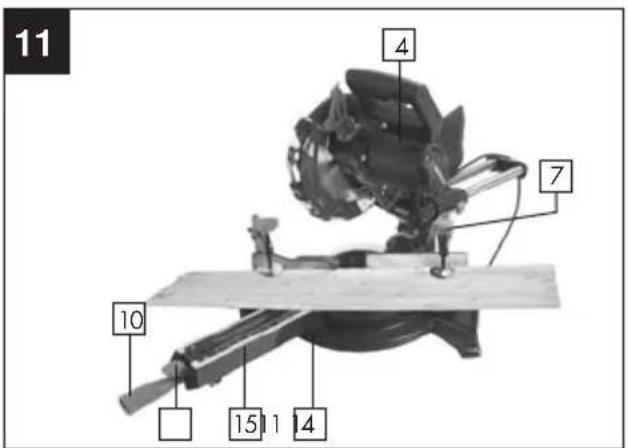

2. Device description (Fig. 1-21)

1. Handle
2. ON/OFF switch
3. Release lever
4. Machine head
5. Movable blade guard
6. Saw blade
7. Clamping device
8. Workpiece support
9. Table insert
10. Miter lock handle
11. Miter detent lever
12. Miter angle pointer
13. Laser
14. Miter angle scale
15. Turntable
16. Fixed saw table
    16a.Mounting hole
17. Stop rail

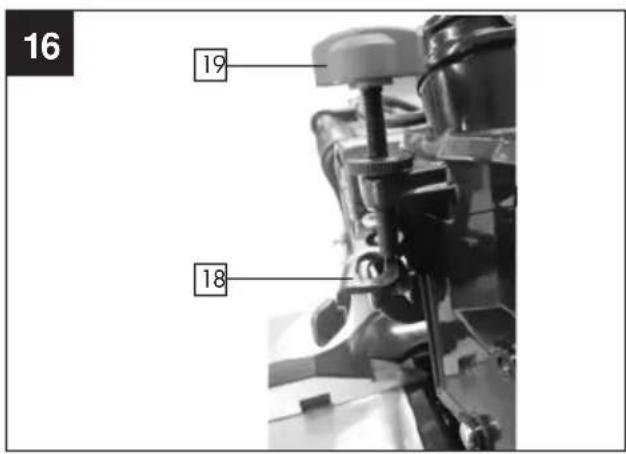

18. Stop for cutting depth limiter
19. Screw for cutting depth limiter
20. Cover plate
21. Sawdust bag

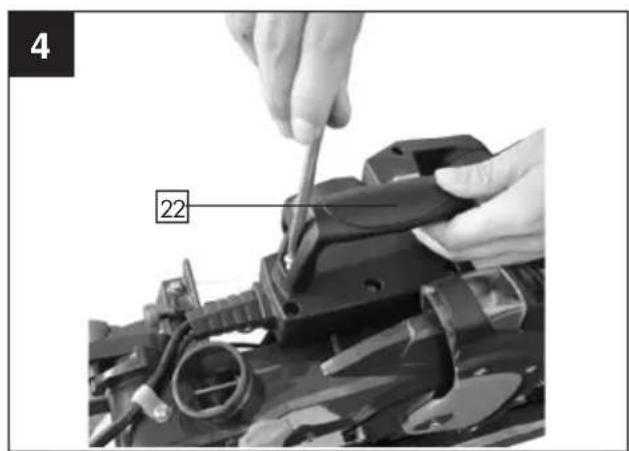

22. Carry handle
23. Bevel angle scale
24. Bevel angle pointer
25. Locking screw for drag guide
26. Drag guide
27. Bevel locking screw

28. Screw for clamping device

29. Screw for workpiece support

30. Fastening bolt
31. ON/OFF switch for laser
32. Adjustment screw (90°)

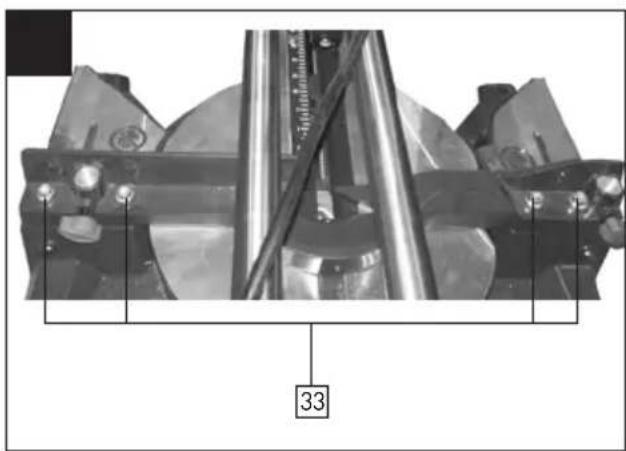

33. Screw for stop rail
34. Adjustment screw (45°)

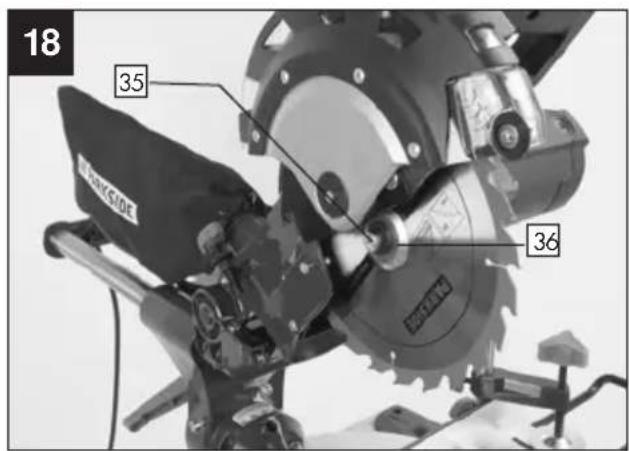

35. Flange bolt
36. Outer flange
37. Saw shaft lock

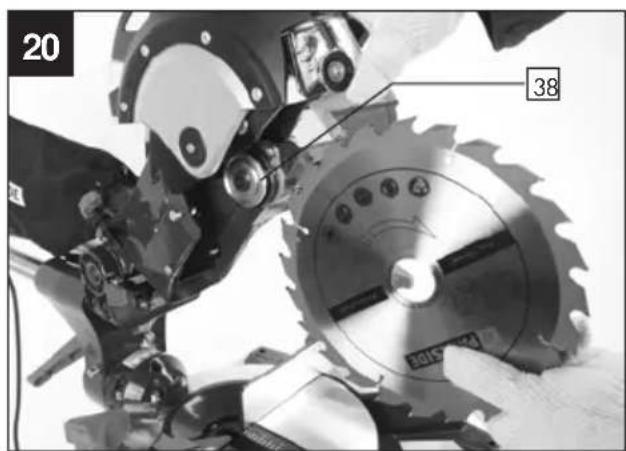

38. Inner flange
39. Screw for Laser fixing
40. Laser radiation label

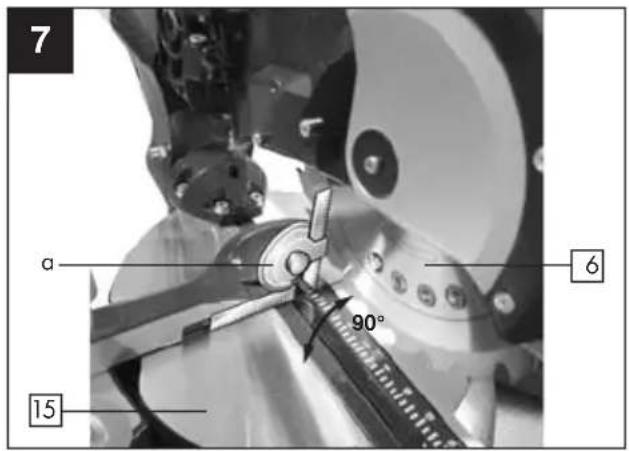

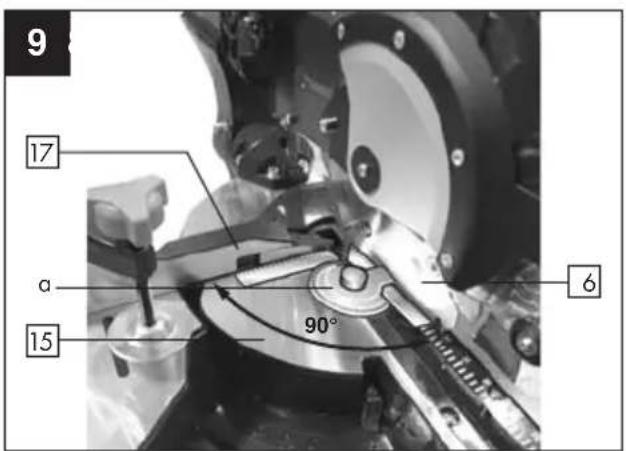

a) 90^ stop angle (not supplied)
b) 45^ stop angle (not supplied)
c) Locking nut
d) Allen key, 6 mm
e) Allen key, 4 mm

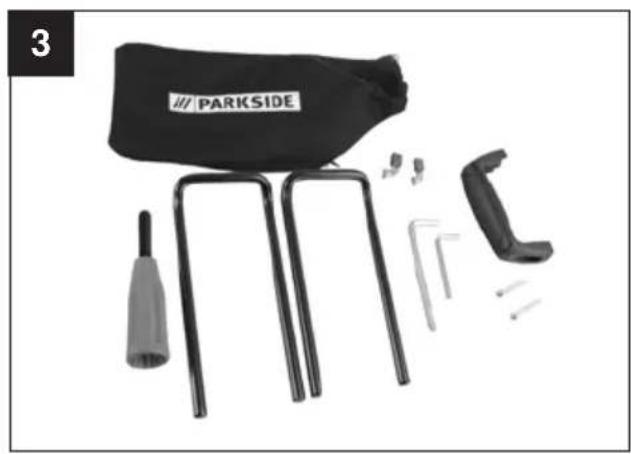

3. Scope of delivery

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts (Fig. 3) for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

• Sliding cross cut mitre saw
• 2 x Clamping device
• 2 x Workpiece support
• Sawdust bag
• Allen key 6 mm

• Allen key 4 mm

• 2 x carbon brush

• Operating manual
• Mitre lock handle
• Carry handle
• 2 x screws for carry handle

4. Intended use

The sliding cross cut mitre saw is designed to crosscut wood and plastic respective of the machine's size. The saw is not designed for cutting firewood.

Warning! Not use the saw to cut materials other than those specified described in manual.

Warning! The supplied saw blade is only intended for the sawing of wood! Do not use this blade for the sawing of plastic!

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

The equipment is to be operated only with suitable saw blades. It is prohibited to use any type of cuttingoff wheel.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the equipment's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it

is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

• Contact with the saw blade in the uncovered saw zone.
• Reaching into the running saw blade (cut injuries).
• Kick-back of workpieces and parts of workpieces.
• Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
• Damage to hearing if ear-muffs are not used as necessary.
• Harmful emissions of wood dust when used in closed rooms.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety information

WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury including the following. Read all these instructions before attempting to operate this production and save these instructions.

Safe Operation

1 Keep the work area orderly
- Disorder in the work area can lead to accidents.
2 Take environmental influences into account
- Do not expose electric tools to rain.
- Do not use electric tools in a damp or wet environment.
- Make sure that the work area is well-illuminated.

- Do not use electric tools where there is a risk of fire or explosion.

3 Protect yourself from electric shock

- Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges, cooling units).

4 Keep children away

- Do not allow other persons to touch the equipment or cable, keep them away from your work area.

5 Securely store unused electric tools

- Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.

6 Do not force the tool.

- It will do the job better and safer at the rate for which it was intended.

7 Use the correct electric tool

• Do not use low-output electric tools for heavy work.
• Do not use the electric tool for purposes for which it is not intended. For example, do not use handheld circular saws for the cutting of branches or logs.

- Do not use the electric tool to cut firewood.

8 Wear suitable clothing

- Do not wear wide clothing or jewellery, which can become entangled in moving parts.

- When working outdoors, anti-slip footwear is recommended.

- Tie long hair back in a hair net.

9 Use protective equipment

• Wear protective goggles.
• Wear a mask when carrying out dust-creating work.

10 Connect the dust extraction device

- If connections for dust extraction and a collecting device are present, make sure that they are connected and used properly.

- Operation in enclosed areas is only permitted with a suitable extraction system.

11 Do not use the cable for purposes for which it is not intended

- Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

12 Secure the workpiece

• Use the clamping devices or a vice to hold the workpiece in place. In this manner, it is held more securely than with your hand.
• An additional support is necessary for long workpieces (table, trestle, etc.) in order to prevent the machine from tipping over.
• Always press the workpiece firmly against the working plate and stop in order to prevent bouncing and twisting of the workpiece.

13 Avoid abnormal posture

• Make sure that you have secure footing and always maintain your balance.
• Avoid awkward hand positions in which a sudden slip could cause one or both hands to come into contact with the saw blade.

14 Take care of your tools

- Keep cutting tools sharp and clean in order to be able to work better and more safely.

- Follow the instructions for lubrication and for tool replacement.

- Check the connection cable of the electric tool regularly and have it replaced by a recognised specialist when damaged.

- Check extension cables regularly and replace them when damaged.

- Keep the handle dry, clean and free of oil and grease.

15 Pull the plug out of the outlet

- Never remove loose splinters, chips or jammed wood pieces from the running saw blade.

- During non-use of the electric tool or prior to maintenance and when replacing tools such as saw blades, bits, milling heads.

16 Do not leave a tool key inserted

- Before switching on, make sure that keys

and adjusting tools are removed.

17 Avoid inadvertent starting

- Make sure that the switch is switched off when plugging the plug into an outlet.

18 Use extension cables for outdoors

- Only use approved and appropriately identified extension cables for use outdoors.

- Only use cable reels in the unrolled state.

19 Remain attentive

- Pay attention to what you are doing. Remain sensible when working. Do not use the electric tool when you are distracted.

20 Check the electric tool for potential damage

- Protective devices and other parts must be carefully inspected to ensure that they are fault-free and function as intended prior to continued use of the electric tool.

- Check whether the moving parts function faultlessly and do not jam or whether parts are damaged.

All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.

- The moving protective hood may not be fixed in the open position.

- Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.

- Damaged switches must be replaced at a customer service workshop.

- Do not use any faulty or damaged connection cables.

- Do not use any electric tool on which the switch cannot be switched on and off.

21 ATTENTION!

- Exercise elevated caution for double mitre cuts.

22 ATTENTION!

- The use of other insertion tools and other accessories can entail a risk of injury.

23 Have your electric tool repaired by a qualified person.

- This electric tool complies with the applicable safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

ADDITIONAL SAFETY INSTRUCTIONS

1 Safety precautions

• WARNING! Do not use saw blades which are damaged or deformed.
• Replace the table insert when worn.
• Only use saw blades recommended by the manufacturer which conform to EN 847-1.
• Do not use saw blades made of high speed steel (HSS steel).
• Wear suitable personal protective equipment when necessary, this could include:
• Hearing protection to reduce the risk of induced hearing loss,
• Eye protection. Sparks generated during work or splinters, chippings and dust coming from the device can lead to loss of eyesight.
• Respiratory protection to reduce the risk of inhalation of harmful dust,
• Gloves for handling saw blades and rough materials. Carry saw blades in a holder whenever practical.
• Always connect the saw to a dust collecting device.

The emission of dust is influenced, among other things, by the type of material to be processed, the significance of local separation (collection or source), and the correct setting of the hood/guide plates/guides.

2 Maintenance and repair

• Pull out the mains plug for any adjustment or repair tasks.
• The generation of noise is influenced by various factors, including the characteristics of saw blades, condition of saw blade and electric tool. Use saw blades which were designed for reduced noise development, insofar as possible. Maintain the electric tool and tool attachments regularly and if necessary, initiate repairs in order to reduce noise.
• Report faults on the electric tool, protective devices or the tool attachment to the person responsible for safety as soon as they are discovered.

3 Safe Operation

• Make sure that a suitable saw blade for the material to be cut is selected.
• Never use the machine to cut other materials as specified.
• To transport the machine follow the procedure of point 9. When transporting the electric tool, only use the transport devices. Never use the protective devices for handling or transport.
• Operate the machine only if the protective devices are functional, in good condition and in the correct position.
• The floor around the machine must be level, clean and free of loose particles, such as chips and cutting residues.
• Only use saw blades for which the maximum permissible speed is not lower than the maximum spindle speed of the machine and which are suitable for the material to be cut.
• Be sure to only use spacers and spindle rings specified by the manufacturer as suitable for the intended purpose.
• Attention! Do not replace the laser by a different type.

Repairs may only be carried out by the manufacturer or an authorized representative.

- Do not remove any cutting residues or other parts of workpieces from the cutting zone while the machine is running and the saw unit is not at rest.

Instructions for proper and safe sawing:

a) Clamp the workpiece always at the saw table firmly. Therefore please use the supplied clamping device.
b) Before each cut, ensure that the machine is stable.
c) If necessary attach the machine to a workbench or the like. Fasten the machine to the workbench.
d) Support long workpieces (e.g. with a roller table) to prevent them sagging at the end of a cut.
e) Make sure that the saw blade does not touch the rotary table in any position by pulling out the mains plug and rotating the saw blade by hand in the 45^ and 90^ position. If necessary, readjust the saw head.

WARNING! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

SAFETY INSTRUCTIONS FOR THE HANDLING OF SAW BLADES

1 Only use insertion tools if you have mastered their use.
2 Observe the maximum speed. The maximum speed specified on the insertion tool may not be exceeded. If specified, observe the speed range
3 Observe the motor / saw blade direction

of rotation.
4 Do not use any insertion tools with cracks. Sort out cracked insertion tools. Repairs are not permitted.
5 Clean grease, oil and water off of the clamping surfaces.
6 Do not use any loose reducing rings or bushes for the reducing of holes on saw blades.
7 Make sure that fixed reducer rings for securing the insertion tool have the same diameter and have at least 1/3 of the cutting diameter.
8 Make sure that fixed reducer rings are parallel to each other.
9 Handle insertion tool with caution. They are ideally stored in the originally package or special containers. Wear protective gloves in order to improve grip and to further reduce the risk of injury.
10 Prior to the use of insertion tools, make sure that all protective devices are properly fastened.
11 Prior to use, make sure that the insertion tool meets the technical requirements of this electric tool and is properly fastened.
12 Only use the supplied saw blade for cutting wood, never for the processing of metals.

Attention: Laser radiation

Do not stare into the beam

Class 2 laser product

laser specification according to

EN 60825-1:2014

λ: 650 nm P ≤ 1 mW

This laser radiation label located above the laser. See fig.1 No.(40).

Protect yourself and you environment from accidents using suitable precautionary measures!

• The laser outlet opening is located at the front of the laser's visible end; see Fig. 21 No. (13).
• Do not look directly into the laser beam with unprotected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting surfaces and persons or animals. Even a laser beam with a low output can cause damage to the eyes.
• Caution- methods other than those specified here can result in dangerous radiation exposure.
• Never open the laser module. unexpected exposure to the beam can occur.
• The laser may not be replaced with a different type of laser.

• Repairs of the laser may only be carried out by the laser manufacturer or an authorised representative.

• Technical data

Rated voltage 220 - 240 V ~ 50Hz
Power 1200 W
Operating mode S6		25% 1500 W
Idle speed n_0		5000 min ^-1
Carbide saw blade		∅210 mm x 2,6 mm x ∅30 mm
Number of teeth 24
Mitre sawing range 0°- 45° (to left and right)
Bevel sawing range 0°- 45° to the left
Maximum cutting capability:
Mitre/Bevel Angle		Maximum cross-section(length and depth) of thecut / the workpiece (mm)
Horizontal	Vertical
0° 0°	340 x 62 mm
45° 0°	240 x 62 mm
0° 45°	340 x 34 mm
45°	45° 240 x 34 mm
Protection class		II/ ☐
Weight		approx.13 kg
Laser class		2
Wavelength of laser		650 nm
Laser output		≤1 mW

* S6, continuous operation periodic duty. Identical duty cycles with a period at load followed by a period at no load.

Running time 2 minutes; duty cycle is 25% of the running time.

Minimum workpiece sizes (all workpieces that can be clamped from the saw blade with the supplied material clamp): 140 x 50 mm (length x width). Cutting depth, max. (0°/0°): 62 mm

Make sure that the workpiece is always secured with the clamping device.

Noise

Total noise values determined in accordance with EN 61029.

sound pressure level L_pA	98.8 dB(A)
uncertainty K_pA	3 dB
sound power level L_WA	111.8 dB(A)
uncertainty K_WA	3 dB

Wear hearing protection.

The effects of noise can cause a loss of hearing.

Vibration levels

Total vibration value at the handle ≤ 2.5 m/s^2

Measurement uncertainty: 1.5 m/s ^4

The measurements were performed in accordance with EN 61029-1 and EN 61029-2-9.

The specified vibration emission level was measured on the basis of a standardised test procedure and can be used to compare power tools with one another.

The specified vibration emission level may also be used to initially assess the exposure.

Attention!

While actually using the power tool, the vibration emission level may differ from the level specified depending on how the power tool is used.

Safety measures must be defined to protect the operator. They must be based on an assessment of exposure during actual usage conditions (all parts of the operating cycle must be accounted for, e.g. periods when the power tool is switched off and when it is switched on, but not operating under load).

Reduce the vibration risk by

• wearing protective gloves during use and
• limiting the working time and reducing the actual operation time.

Residual risks

The machine has been built according to the state of the art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety information" and the "Intended use" are observed along with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive pressure when sawing will quickly damage the saw blade, which results in reduced output of the machine in the processing and in cut precision.
• When cutting plastic material, please always use clamps: the parts which should be cut must always be fixed between the clamps.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet.
• Use the tool that is recommended in this manual. In doing so, your mitre saw

provides optimal performance.

- Hands may never enter the processing zone when the machine is in operation. Release the handle button and switch off the machine prior to any operations.

7. Before starting the equipment

• The equipment must be set up where it can stand securely. Secure the machine on a workbench or a stand with 4 screws through the holes in the fixed saw table (16).
• All covers and safety devices have to be properly fitted before the equipment is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws, etc.
• Before you press the ON/OFF switch check that the saw blade is fitted correctly. Moving parts must run smoothly.
• Before you connect the equipment to the power supply make sure the data on the rating plate are dentical to the mains data.

8. Attachment and operation

8.1 Attaching the saw (Fig 1/2/3/4/5)

WARNING! Avoid unintentional starting of the machine. During assembly and for all work on the machine, the power plug must not be connected to the mains supply.

- Attach the carry handle (22) to the machine head (4) with 2 x screws.

• Attach the miter lock handle (10) to the turntable (15).
• When fixing the saw to the workbench, insert the mounting screws (not included) through the mounting holes (16a).

- In order to adjust the turntable (15) loosen the mitre lock handle (10) approx. 2 turns.

- Press the mitre detent lever (11) and turn the turntable (15) and pointer (12) to the desired angle measurement on the scale (14), release the mitre detent lever (11) and secure with the mitre lock handle (10).

- Pressing the machine head (4) lightly downwards and removing the fastening bolt (30) from the motor bracket at the same time disengages the saw from the lowest position.

- Swing the machine head (4) up until the release lever (3) latches into place.

- It is possible to secure the clamping device (7) to the left or right on the stationary saw bench. Insert the clamping device (7) in the hole on the rear side of the stop rail (17) and secure it with the grip screw (28).

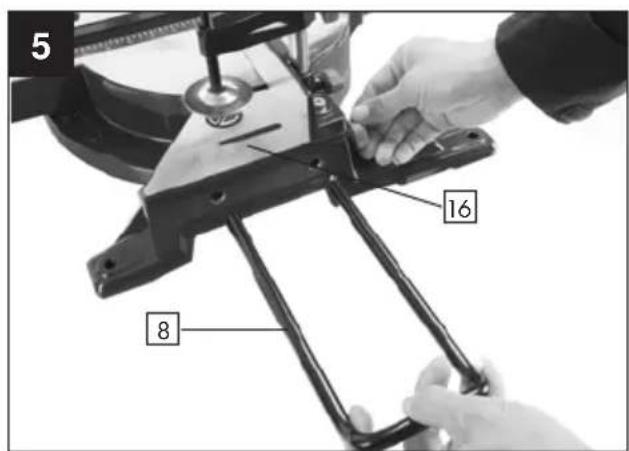

- Attach the workpiece supports (8) to the fixed saw table (16) as shown in Figure 5 and fasten with the screw (29).

- It is possible to tilt the machine head (4) a max. 45^ to the left by loosening the locking screw (27).

8.2 Mitre angle setting

• Nine positive miter detents are provided for fast and accurate preset miter angles – locations are at 45^ , 30^ , 22.5^ , 15^ left and right, and center at 0^ .
• Follow the process for mitre angle setting.
• Unlock the turntable by turning the mitre lock handle (10) counter-clockwise.
• Move the turntable while press the mitre detent lever (11) to align the mitre angle pointer (12) to the desired degree on the

• If the desired angle is one of the nine positive mitre detents, release the mitre detent lever (11), making sure the lever snaps into position, and then secure by tightening the mitre lock handle (10).
• If the mitre angle desired is not one of the nine positive mitre detents, simply lock the turntable into desired angle position by turning the mitre lock handle (10) in the clockwise direction.

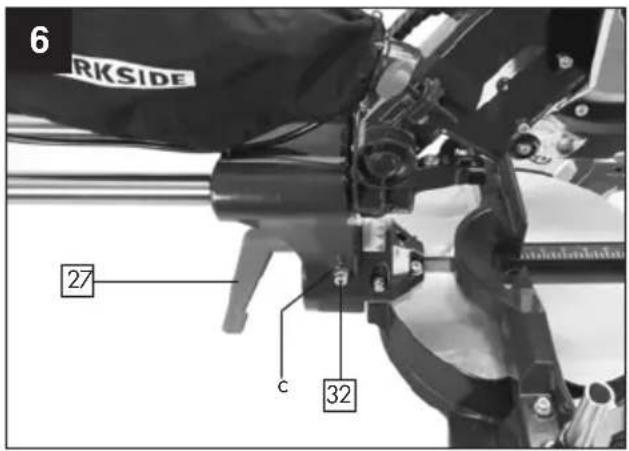

8.3 Precision adjustment of the blade for crosscut 90°

(Fig. 1/2/6/7)

• No stop angle included.
• Move the head (4) in position, so that the blade (6) rests directly above the turntable (15). Now, use locking screw (25) to lock the drag guide (26).
• Lower the machine head (4) and secure using the fastening bolt (30).
• Loosen the bevel locking screw (27).
• Position the angle stop (a) between the saw blade (6) and the turntable (15).
• Release the locking nut (c) and adjust the adjusting screw (32) until the angle between the saw blade (6) and turntable (15) is 90°.
  • Re-tighten the locking nut (c).
• Subsequently check the position of the angle indicator. If necessary loosen the pointer (24) using a Philips screwdriver, set to position 0^ on the angle scale (23) and re-tighten the retaining screw.

8.4 Precision adjustment of stop rail for crosscut 90°

(Fig. 1/8/9)

• Bring the power tool into the working position.
• Turn the turntable (15) to the 0^ on the mitre angle scale (14). The metre detent lever (11) must be felt to engage in the detent.

Checking: (see figure 9)

- Adjust an angle gauge to 90^ and position it between the stop rail (17) and the saw blade (6) on the turntable (15). The leg of the angle gauge must be flush with the saw blade (6) over the complete length.

Adjusting: (see figure 8/9)

- Loosen all four set screws (33) and turn the stop rail (17) until the leg of the angle gauge is flush with the stop rail over the complete length. - Retighten the four set screws again. When the mitre angle pointer (12) is not in line with the 0^ mark of mitre angle scale (14) after adjusting, loosen the screw on the mitre angle pointer (12) with a philips screwdriver and align the angle pointer pointed to the 0^ mark.

8.5 Cross cut 90° and turntable 0° (Fig. 10/12)

In the case of cutting widths up to approx. 100 mm it is possible to fix the traction function of the saw with the locking screw (25) in the rear position. In this position the machine can be operated in cross cutting mode. If the cutting width is over 100 mm then it is necessary to ensure that the locking screw (25) is loose and the machine head (4) can move.

• Move the machine head (4) to its upper position.
• Use the handle (1) to push back the machine head (4) and fix it in this position if required(dependent on the cutting width).
• Place the piece of wood to be cut at the stop rail (17) and on the turntable (15).

• Lock the material with the clamping device (7) on the fixed saw table(16) to prevent the material from moving during the cutting operation.

• Operate the release lever (3) to release the machine head (4).

• Press the ON/OFF switch (2) to start the motor.
• With the drag guide (26) fixed in place: Use the handle (1) to move the machine head (4) steadily and with light pressure downwards until the saw blade (6) has completely cut through the work piece.
• With the drag guide (26) not fixed in place:
  Pull the machine head (4) all the way to the front. Lower the handle (1) to the very bottom by applying steady and light downward pressure. Now push the machine head (4) slowly and steadily to the very back until the saw blade (6) has completely cut through the work piece.
• When the cutting operation is completed, move the machine head (4) back to its upper (home) position and release the ON/OFF switch (2).

Attention! The machine executes an upward stroke automatically due to the return spring, i.e. do not release the handle (1) after completing the cut; instead allow the machine head to move upwards slowly whilst applying light counter pressure.

8.6 Cross cut 90° and metre cut 0° - 45° (Fig. 10/11)

The crosscut saw can be used to make crosscuts of 0^-45^ to the left and 0^-45^ to the right in relation to the stop rail.

• Loosen the metre lock handle (10) in case it is tightened, press the metre detent lever (11) and use the mitre lock handle (10) to adjust the turntable (15) to the desired angle. The mitre angle pointer (12) on the turntable must match the desired angle on the mitre angle scale (14) on the fixed saw table (16).
• Re-tighten the mitre lock handle (10) in order to secure the turntable (15).

• Cut as described under section 8.5.

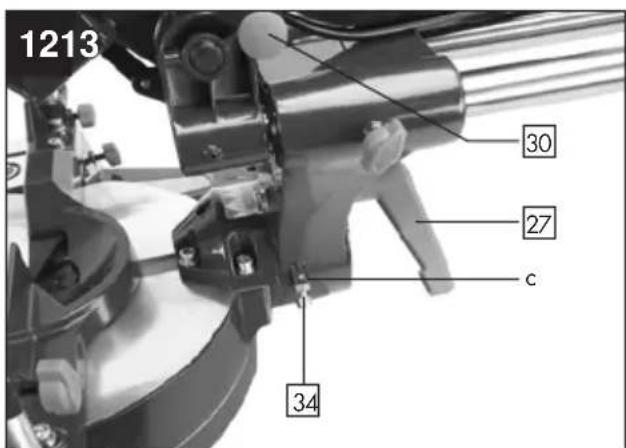

8.7 Precision adjustment of the stop for bevel cut 45° (Fig. 1/12/13)

• No stop angle included.
• Lower the machine head (4) and secure using the fastening bolt (30).
  • Fix the turntable (15) in the 0^ position.
• Loosen the locking screw (27) and use the handle (1) to angle the machine head (4) 45^ to the left.

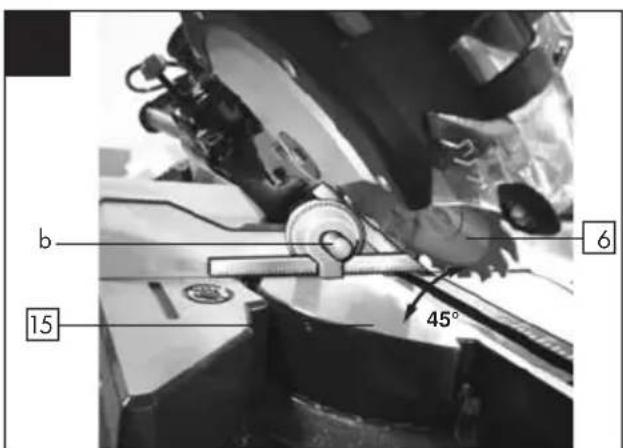

• Place the 45^ -position angle stop (b) between the saw blade (6) and turntable (15).
• Release the locking nut (c) and adjust the adjusting screw (34) until the angle between the saw blade (6) and turntable (15) is precisely 45^ .
  • Re-tighten the locking nut (c).
• Subsequently check the position of the angle indicator. If necessary loosen the bevel angle pointer (24) using a Philips screwdriver, set to position 45^ on the bevel angle scale (23) and re-tighten the retaining screw.

8.8 Bevel cut 0°-45° and mitre cut 0° (Fig. 1/2/14)

The crosscut saw can be used to make bevel cuts of 0^ - 45^ in relation to the work face.

• Move the machine head (4) to the top position.
  • Fix the turntable (15) in the 0^ position.
• Loosen the locking screw (27) and use the handle (1) to angle the machine head (4) to the left, until the bevel angle pointer (24) indicates the desired angle measurement on the bevel angle scale (23).
  • Re-tighten the locking screw (27)

• Cut as described in section 8.5.

8.9 Bevel cut 0°-45° and mitre cut 0°-45° (Fig. 1/2/15)

The crosscut saw can be used to make bevel cuts to the left of 0^-45^ in relation to the work face and, at the same time, 0^-45^ to the left or 0^-45^ to the right in relation to the stop rail (double mitre cut).

• Move the machine head (4) to its upper position.
• Loosening the metre lock handle (10) and press the metre detent lever (11).
• Using the mitre locking handle (10), set the turntable (15) to the desired angle (refer also to point 8.6 in this regard).
• Re-tighten the mitre lock handle (10) in order to secure the rotary table.
• Loosen the locking screw (27) and use the handle (1) to tilt the machine head (4) to the left until it coincides with the required angle value (in this connection see also section 8.8).
  • Re-tighten the locking screw (27) .
• Cut as described under section 8.5.

8.10 Limiting the cutting depth (Fig. 1/16)

• The cutting depth can be infinitely adjusted using the screw (19). To do this loosen the knurled nut on the screw (19). Move the stop for the cutting depth limitre (18) to the outside. Turn the screw (19) in or out to set the required cutting depth. Then re-tighten the knurled nut on the screw (19).

- Check the setting by completing a test cut.

8.11 Sawdust bag (Fig. 1)

Dust/Chip Extraction

Dust from materials such as lead-containing

coatings, some wood types, minerals and metal can be harmful to one's health.

Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• Always use dust extraction.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.
  Observe the relevant regulations in your country for the materials to be worked.

Prevent dust accumulation at the

workplace. Dust can easily ignite.

The dust/chip extraction can be blocked by dust, chips or workpiece fragments.

• Switch the machine off and pull the mains plug from the socket outlet.
• Wait until the saw blade has come to a complete stop.
• Determine the cause of the blockage and correct it.

External Dust Extraction

For dust extraction, a vacuum hose (size ∅ 35 mm) can also be connected to the dust extraction spout.

• Connect the vacuum hose with the dust extraction spout.
  The vacuum cleaner must be suitable for the material being worked.
  When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

The saw is equipped with a sawdust bag (21) for sawdust and chips.

Squeeze together the metal ring on the dust bag and attach it to the outlet opening in the motor area.

The sawdust bag (21) can be emptied by means of a zipper at the bottom.

8.12 Changing the saw blade (Fig. 1/17/18/19/20)

• Allow the machine head (4) to rise to the upright position.
• Loosen the cover plate screw with the 4 mm Allen key (e).
  WARNING! Do not remove this screw.
• Hold the release lever (3) to the right. Then, rotate the cover plate (20) upward and raise the movable blade guard to the upper position to expose the flange bolt (35). Let the release lever (3) move back to its default position.
• Place the 6 mm Allen key (d) over the flange bolt.
• Press the saw shaft lock (37), holding it in firmly while turning the 6mm Allen key (d) clockwise. The shaft lock will be engage after turning the 6mm Allen key.
• Continue to hold the saw shaft lock to keep it engaged, while turning the blade Allen key clockwise to loosen the flange bolt (35).
• Remove the flange bolt (35) and the outer flange (36).
  • Take the saw blade (6) off the inner flange (38) and pull out downwards.
  NOTE: Pay attention to the pieces removed, noting their position and direction they face.
• Carefully clean the flange bolt (35), outer flange (36) and inner flange (38).
• Fit and fasten the new saw blade (6) in reverse order.
• Important! The cutting angle of the teeth, in other words the direction of rotation of the saw blade (6) must coincide with the direction of the arrow on the housing.
• Hold the release lever (3) to the right. Rotate the cover plate (20) downward

and lower the movable blade guard to the lower position to cover the flange bolt (35). Let the release lever (3) move back to its default position.

• Tighten the cover plate screw with the 4 mm Allen key (e).
• Before continuing your work, make sure that all safety devices are in good working condition.
• Important! Every time that you change the saw blade (6), check to see that it spins freely in the table insert (9) in both perpendicular and 45° angle settings.
• Important! The work to change and align the saw blade (6) must be carried out correctly.

8.13 Using the laser (Fig. 2/21)

• To switch on: Move the ON/OFF switch of the laser (31) to the "I" position. A laser line is projected onto the material you wish to process, providing an exact guide for the cut.
• To switch off: Move the ON/OFF switch of the laser (31) to the "0" position.

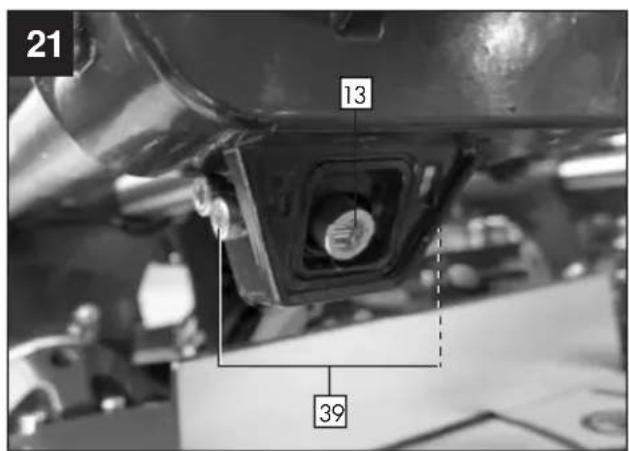

8.14 Adjusting the laser (Fig. 21)

WARNING! While adjusting the laser (e. g. when moving the tool arm), never actuate the ON/OFF switch (2). Accidentally starting the power tool can lead to injuries.

If the laser (13) ceases to indicate the correct cutting line, you can readjust the laser. To do so, open the screws (39) and set the laser by moving sideways to that the laser beam strikes the teeth of the saw blade (6).

9. Transport

• Tighten mitre lock handle (10) in order to lock the turntable (15)
• Activate the release lever (3), press the machine head (4) downwards and secure with the fastening bolt (30). The saw is now locked in its bottom position.
• Fix the saw's drag function with the locking screw for drag guide (25) in rear position.
• Carry the machine by the transport carrying handle or hold it by the recessed handles on the sides of the saw table.
• When reassembling the equipment proceed as described under section 7.

10. Maintenance

WARNING! Prior to any adjustment, maintenance or service work disconnect the mains power plug!

General maintenance measures

Cleaning

For safe and proper working, always keep the power tool and its ventilation slots clean. The retracting blade guard must always be able to move freely and retract automatically. Therefore, always keep the area around the retracting blade guard clean.

Remove dust and chips after each working procedure by blowing out with compressed air or with a brush.

Clean the guard roller, automatic extension fence and turntable regularly.

To clean the laser unit and remove any dust using a brush.

When cleaning the plastic do not use corrosive products.

Carbon brush inspection

Check the carbon brushes after the first 50 operating hours with a new machine, or when new brushes have been fitted. After carrying out the first check, repeat the check every 10 operating hours.

If the carbon is worn to a length of 6 mm, or if the spring or contact wire are burned or damaged, it is necessary to replace both brushes. If the brushes are found to be usable following removal, it is possible to reinstall them.

11. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C. Store the electrical tool in its original packaging.

Cover the electrical tool in order to protect it from dust and moisture.

Store the operating manual with the electrical tool.

12. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

• The product meets the requirements of EN 61000-3-3 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.

• Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.

• The product is exclusively intended for use at connection points that have a continuous current-carrying capacity of at least 100 A per phase.

• As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets the specified requirements.

Damaged electrical connection cable The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking "H05VV-F".

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~
- Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .
Connections and repairs of electrical equipment may only be carried out by an electrician.
Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate

13. Disposal

The packaging is wholly composed of environmentally friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2012 / 19 / EU (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

14. Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free dispatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for

damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

15. Service center

GB

Service Great Britain

Sertronics GmbH

Ostring 60

D-66740 Saarlouis-Fraulautern

Germany

Email: [e-mail]

Tel: [phone]

Fax: [phone]

IE

Service Ireland

Sertronics GmbH

Ostring 60

D-66740 Saarlouis-Fraulautern

Germany

[e-mail]

Tel: [phone]

Fax: [phone]

IAN 295934

● Translation of the original declaration of conformity / Manufacturer

We, GA-PO-VERTRIEB GMBH, the person responsible for documents: Mr. Z. Fabijanic, Heinrich-Horten-Straße 5 47906 Kempen, Germany, hereby declare: The object of the declaration described below is in conformity with the relevant Union harmonisation legislation. This declaration of conformity is issued under the sole responsibility of the manufacturer.

Machinery Directive (2006 / 42 / EC)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011 / 65 / EU)

Applicable harmonized standards

EN 61029-1:2009/A11:2010 EN 61029-2-9:2012/A11:2013 EN 55014-1:2006/A2:2011 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 60825-1:2014 AfPS GS 2014:01 PAK

Type / Device description: SLIDING CROSS CUT MITRE SAW PZKS 1500 B2

Date of manufacture (DOM): 01 - 2018 Serial number: S-FA00001 \~ S-FA64988

Kempen, 31.01.2018

Mr. Z. Fabijanic - Quality Manager -

The product described above complies with the regulations of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment We reserve the right to make technical modifications in the course of further development.

Sadržaj

Objašnjenje simbola na uređaju ....Stranica 20

Uvod ....Stranica 21

Opis uređaja ....Stranica 21

Sadržaj isporuke....Stranica 22

Namjenska uporaba ....Stranica 22

Sigurnosne napomene ....Stranica 23

Tehnički podatci ....Stranica 27

Prije puštanja uređaja u rad ......Stranica 28

Directiva RoHS (2011/65/UE)

Normele armonizate relevante

EN 61029-1:2009/A11:2010

EN 61029-2-9:2012/A11:2013

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 60825-1:2014

AfPS GS 2014:01 PAK

Tip / descriere aparat:

FERĂSTRU PENTRU DEBITARE ȘI TĂIERI

ÎNCLINATE PZKS 1500 B2

47906 Kempen, Germany

УВАЖАЕМИ КЛИЕНТИ,

47906 Kempen, Germany

47906 Kempen, Germany

Manual PZKS 1500 B2-CB7,

Update: 01/2018.1.15
