SCL 5 A1 - Hi-Fi System SILVERCREST - Free user manual and instructions

Product type	Compact Hi-Fi system
Brand	SilverCrest
Model	SCL 5 A1
Dimensions (approx.)	25 x 15 x 25 cm
Weight	2.5 kg
Power supply	230 V ~ 50 Hz
Power consumption	20 W
Output power	2 x 10 W RMS
CD player	Yes, compatible with CD/CD-R/CD-RW
Radio tuner	FM, 20 station presets
Bluetooth	Yes, version 4.2
USB port	Yes, MP3/WMA playback
AUX input	Yes, 3.5 mm jack
Display	LCD with backlight
Remote control	Included
Repairability	Repairability index: 6.5/10
Maintenance	Clean with a soft, dry cloth
Safety	Do not expose to moisture, unplug before cleaning
Spare parts	Available via SilverCrest after-sales service

Frequently Asked Questions - SCL 5 A1 SILVERCREST

How to turn on the SCL 5 A1 Hi-Fi system?

Press the Standby/On button on the front panel or on the remote control.

How to connect a device via Bluetooth?

Enable Bluetooth on your device, select 'SCL 5 A1' from the list of available devices. The default PIN is 0000.

How to save an FM radio station?

Tune to the desired station, then press the MEM button and select a preset using the numeric keys.

What file formats are readable via USB?

The USB port reads files in MP3 and WMA formats. The USB stick must be formatted in FAT32.

How to set the clock?

Press and hold the Clock button until the hours blink, then adjust with the +/- buttons. Press again to confirm.

What to do if the CD player does not read discs?

Check that the disc is clean and inserted with the printed side facing up. If the problem persists, try a standard audio CD.

How to clean the device?

Unplug the device and use a soft, dry cloth. Do not use abrasive products or solvents.

Can I connect headphones?

Yes, connect headphones with a 3.5 mm jack plug to the PHONES jack on the front. The speakers are then muted.

How to reset the device to factory settings?

Unplug the device, wait 10 seconds, then plug it back in. Press and hold the Source button for 5 seconds.

Where to find spare parts?

Spare parts are available on the official SilverCrest website or via the Lidl after-sales service.

USER MANUAL SCL 5 A1 SILVERCREST

Operation and Safety Notes

NL BE

SOUNDSYSTEEM

GB/IE Operation and Safety Notes Page 11

Line drawing of a silver chest device with no text or symbols

Line drawing of a device casing with radial lines and a labeled base (no text or symbols beyond the label)

Warnings and symbols used 12

Scope of delivery 12

General safety instructions 13

Description of parts 16

Technical data 17

Beforeuse17

Operation 17

Storage when not in use 17

Cleaning 17

Troubleshooting 18

Disposal 18

Simplified EU declaration of conformity 18

SOUND SYSTEM

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is a consumer electronics device. This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

Warnings and symbols used

These instructions for use contain the following warnings:

DANGER!

This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

CAUTION!

This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

Note:

This symbol with the signal word provides additional useful information.

Scope of delivery

1 x Subwoofer

2 x Satellite speakers

(right and left channel speakers)

1 x Instruction Manual

General safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety

1. Read these instructions – All the safety and operating instructions should be read before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions - All operating and usage instructions should be followed.

5. Do not use this apparatus near water - The appliance should not be used near water or moisture - for example, in a wet basement or near a swimming pool and the like.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

16. The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

17. Minimum distance around the apparatus for sufficient ventilation is 5cm.
18. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc...
19. No naked flame sources, such as lighted candles, should be placed on the apparatus.

Caution:

• Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus must not be exposed to dripping or splashing and objects filled with liquids, such as vases, must not be placed on the apparatus.
• The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.

Warning:

• Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
• Do not place this unit close to strong magnetic fields.
• Do not place this unit on an amplifier or receiver.
• Do not place this unit close to damp areas.
• If any solid object or liquid falls into the system, unplug the system and have it checked by qualified personnel before operating it any further.

• Do not attempt to clean the unit with chemical solvents as this may damage the finish. Use a clean, dry or slightly damp cloth.

• When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord.

• Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment.
• The rating label is pasted on the bottom or back of the equipment.

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER Risk of suffocation!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

RISK OF PROPERTY DAMAGE

• This product does not contain any parts which can be serviced by the user.
• Keep the product away from moisture, dripping and splash water!
• Do not place burning candles or other open fire on or next to the product.
• Check the product before every use!
• Discontinue use if any damage to the product or the charging cable is detected!

• If you notice smoke or unusual noise or odour, switch the product off immediately.

• Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimatize for some time before using it again to prevent short circuits!

• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
• Do not throw the product into fire and do not expose to high temperatures.

DANGER

Do not try to open the product! It has no internal parts requiring maintenance.

⚠ WARNING! Note on the mains disconnection

The main power switch located on the back panel of this device does not fully disconnect the device from the mains, the device still consumes electricity.

Disconnecting the device completely involves removing the power plug from the mains socket. The device should be positioned in such a way that ensures direct and unobstructed access to the mains socket so that the power plug can be immediately pulled out in an emergency situation.

To avoid the risk of fire, if the device is not going to be used for an extended period (e.g. during holidays), it should always be disconnected from the mains socket. If there is the risk of a thunderstorm or lightning, disconnect the device from the power supply.

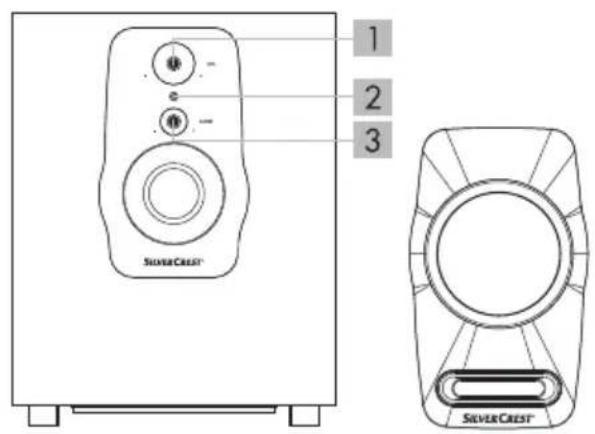

Description of parts

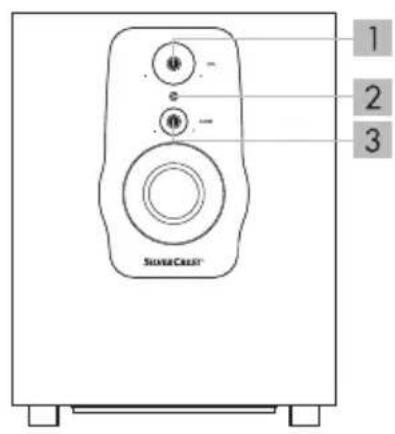

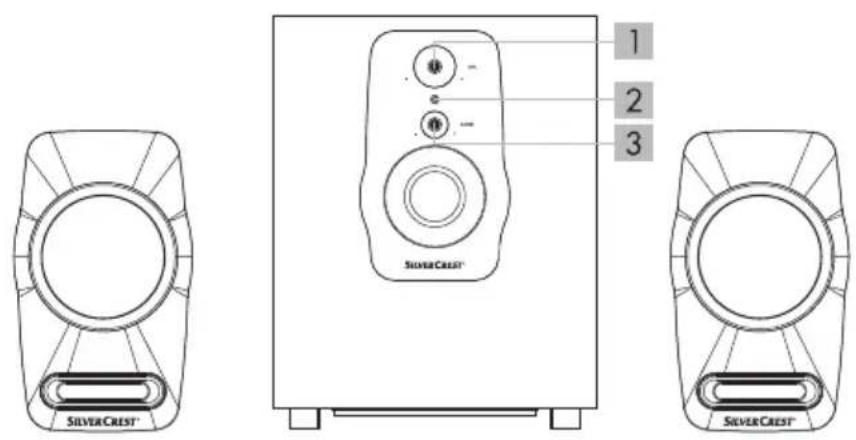

Front

1. Indicator Light1. V③LBaseVChannelButton

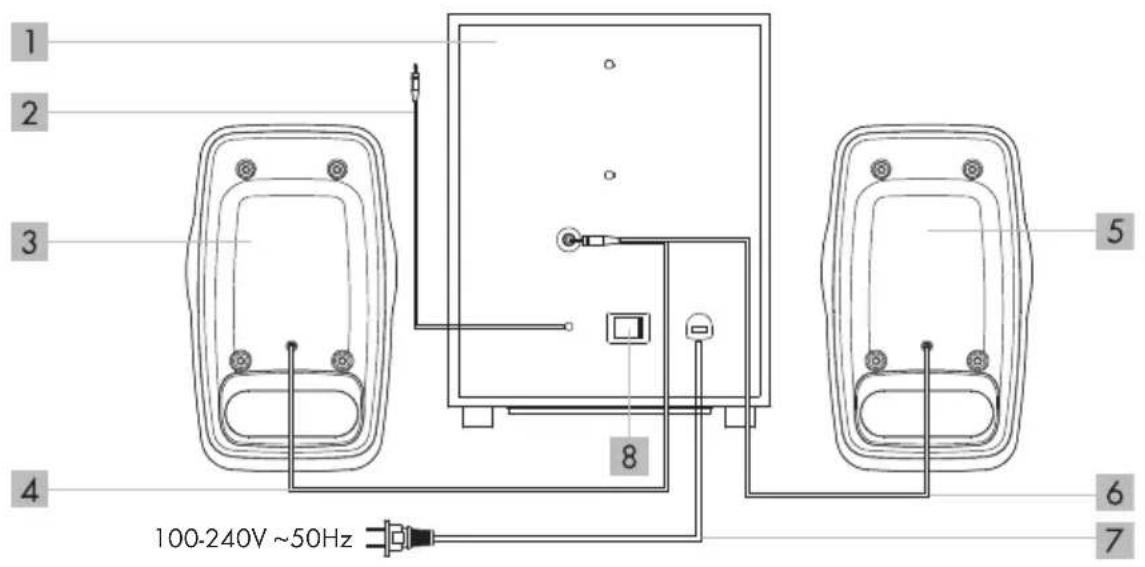

Back

1. Subwoofer
2. 3.5 mm stereo cable
3. Right channel Satellite speaker

4. Right channel output cable

5. Left channel Satellite speaker

6. Left channel output cable
7. Power cord
8. ON/OFF button

Note:

Computer, CD, DVD and other devices are not included as part of this product.

Technical data

General

Sound System: 2.1

Power supply: 100 - 240V\~50 Hz

Weight: 1.70 kg

Separating degree: ≥ 45 dB

Signal-to-noise ratio: ≥ 72 dB

Output Power

Subwoofer: 3 W + 2 x 1 W (RMS)

Driver size: 105 × 105 × 45mm × 1

+ 62 × 55 × 35 mm × 2

Frequency response

Subwoofer: 38Hz - 180Hz

Satellite speaker: 180Hz - 20Hz

Product size (W x H x D)

Subwoofer: 160 x 205 x 202mm

Satellite speaker: 79 x 130 x 68mm

The specification and design may be changed without notification

Beforeuse

Note:

All parts have to be unpacked and the packaging material has to be removed completely.

Before use, verify the package contents are complete and undamaged!

Connections

Please make sure the system and the devices are power off before connecting.

1. Connect the device PC/CD/MP3/MP4 (not included), with the 3.5 mm stereo cable on the rear panel of the subwoofer.

2. Connect the satellite speakers to the 3.5mm AUX OUTPUT socket on the rear panel of the subwoofer.

3. Connect the mains plug to the mains socket.

Operation

1. After all cables are correctly connected turn the VOLUME Control to low volume level.
2. Turn the ON/OFF button which is at the rear panel of the subwoofer to the ON position.
3. When the unit is ON, you can turn the MAIN and BASS VOLUME controls to adjust the volume to your desired level.
4. The sound system is now ready to use.

Storage when not in use

Store the product in a dry location to protect it from dust and direct sunlight.

Cleaning

• Switch the product off, remove all plugs before cleaning!
• No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
• Only clean the outside of the product using a soft, dry cloth!
• For persistent soiling, a mild cleaning agent can be used.
• Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, turn the product off immediately. In such cases, the product should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the product.
• Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.

Troubleshooting

If you encounter problems when using this unit, check the following points before requesting service.

• Make sure all the connections between the speakers and device are correct.
• Make sure that the mains power supply is switched on.
• Check that your PC volume level is sufficient.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012 / 19 / EU.

This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you. Protect the environment and dispose properly.

Please contact your local waste management company or the city / municipal administration for more information.

Think about the environment and your personal health. Dispose empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.

Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße1, DE-74167 Neckarsulm, GERMANY, declares that the product SOUND SYSTEM HG03085, is in compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU and 2009/125/EC.

The full text of the EU declaration of conformity is available at the following internet address:

www.owim.com

CE
